Pronto Networks Wavespot User Manual

Power

WiFi

Net

WAN

LAN

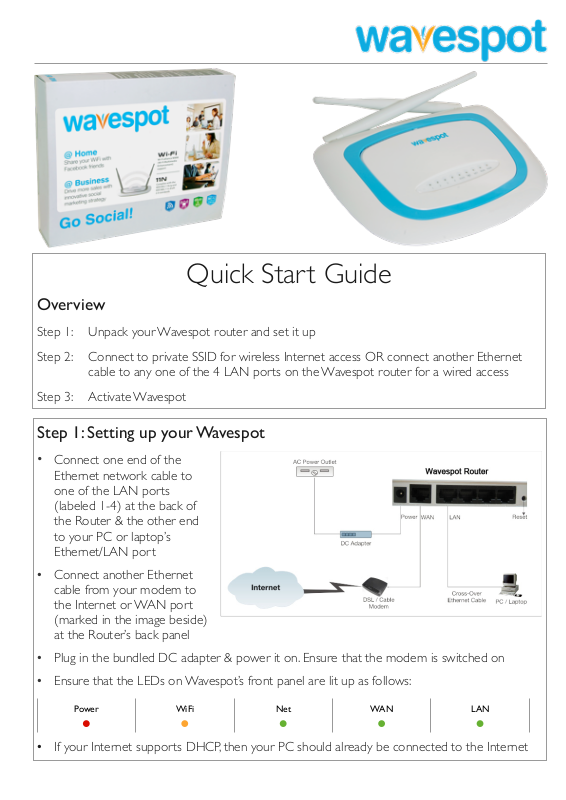

Quick Start Guide

Overview

Step 1:! Unpack your Wavespot router and set it up

Step 2:! Connect to private SSID for wireless Internet access OR connect another Ethernet

cable to any one of the 4 LAN ports on the Wavespot router for a wired access

Step 3:! Activate Wavespot

Step 1: Setting up your Wavespot

Connect one end of the

•

Ethernet network cable to
one of the LAN ports
(labeled 1-4) at the back of
the Router & the other end
to your PC or laptop’s
Ethernet/LAN port

Connect another Ethernet

•

cable from your modem to
the Internet or WAN port
(marked in the image beside)
at the Router’s back panel

Plug in the bundled DC adapter & power it on. Ensure that the modem is switched on

•

Ensure that the LEDs on Wavespot’s front panel are lit up as follows:

•

If your Internet supports DHCP, then your PC should already be connected to the Internet

•

www.wavespot.net

Step 2: Connect to “Wavespot”

• Use your operating system’s network manager to
connect to “Wavespot” (SSID)

• The passkey to the “Wavespot” SSID is
the last 6 digits of the MAC ID (pasted at the back
of your Router box)

•

Use uppercase if the Router’s MAC ID contains
alphabets. For example, if your MAC ID is 01:2E:34:5C:67:R8, the passkey to your
“Wavespot” SSID will be 5C:67:R8

•

After you input the passkey, your device is connected to the wireless network

Step 3: Activate your Wavespot

•

Click on the Activate button on the Wavespot
website http://www.wavespot.net

•

Click the Activate your Wavespot button (in the
login page shown beside)

•

On the next page, choose your location type

•

Input your MAC ID, as printed at the back of
your Wavespot Router

•

Enter your Wavespot account details

•

For using Wavespot at home, link your Facebook & Wavespot account. For use at a business
location, provide your Facebook Business URL

•

Read Terms of Services & then click the Activate my Wavespot button

Congratulations! Your Wavespot router is successfully activated. Now, you can share your Internet
bandwidth with your Facebook friends / fans and even earn out of it.

Wavespot Factory Configuration

The Wavespot Router is shipped with the following default settings:

WAN port is pre-configured to operate in DHCP mode

•
LAN port has an IP address of 192.168.4.1

•
“Wavespot” has addresses in the 192.168.4.x series

•
“Wavespot-Free-Internet” has addresses in the 192.168.3.x series

•
Press & release the Reset button to reboot the router. Press & hold to restore the router to

•
factory default settings.

Contact Wavespot

4637 Chabot Drive, Suite 206, Pleasanton, CA 94588, United States.

For queries call: [phone] or mail to [e-mail]
