Page 1

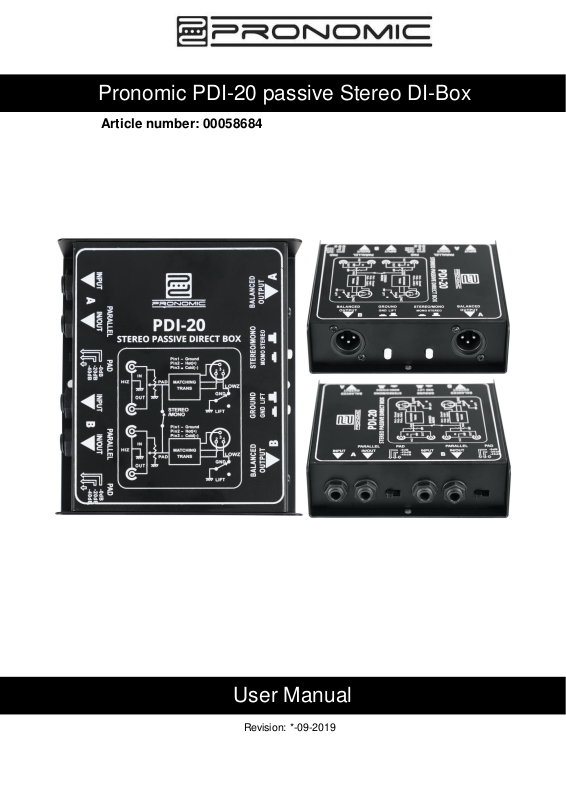

Pronomic PDI-20 passive Stereo DI-Box
User Manual
Article number: 00058684
Revision: *-09-2019
Page 2
PDI-20
© 2019
This manual is protected by copyright. Any copying or reprint, even in excerpts, is
only allowed with written consent of Musikhaus Kirstein GmbH. The same applies to
reproduction or copying of images, even in altered form.
Content
General safety instructions and warnings ......................................................... 2
Product description............................................................................................ 3
Delivery ............................................................................................................ 3
Specification ..................................................................................................... 3
Intended use ....................................................................................................... 4
Important safety instructions .............................................................................. 4
Usage .............................................................................................................. 4
Maintenance ....................................................................................................... 5
WEEE Declaration (Waste of Electrical and Electronic Equipment) ................. 5
Pronomic PDI-20 Stereo DI-Box / ArtNr.: 00058684
Page 3
PDI-20
Follow the Operating Manual!
The signal word WARNING identifies hazards, which can result
without precautions in serious injury.
The signal word NOTE indicates general precautions, which should
be observed in handling the product.
Images used in this manual may differ slightly from the actual
product, as long as it has no adverse effect on the properties and
safety of the product.
All personal formulations in these instructions are to be considered
gender neutral.
Children should be supervised to ensure that they do not play with
the appliance. Do not leave the children unattended.
Thank you for purchasing the Pronomic PDI-20 passive DI-Box. To ensure you will
be completely satisfied with this product, read and understand these manual
carefully before use. Keep the manual in a safe place. The Operating Manual must
be passed on to all subsequent users.
These operating instructions apply to persons who have been supervised or
instructed in the operation of the device by a person responsible for their safety and
who have proven to be able to handle the device.
All information contained in this Operating Manual is accurate to the best of our
knowledge and belief. Neither the author nor the publisher, however, can be held liable for
damages or losses that arise in connection with the use of this Operating Manual.
Other product, brand or company designations specified in this document are
possibly the trademarks of their respective owners. Compliance with all applicable
copyright laws is the responsibility of the user of this document.
2019-09-20 Pronomic PDI-20 passive Stereo DI-Box / ArtNr.: 00058684 1
Page 4
PDI-20
General safety instructions and warnings
Place of storage and for usage:
Do not expose the instrument to the following conditions to avoid deformation,
discoloration or major damage:
- Direct sunlight
- Extreme temperature or humidity
- Excessively dusty or dirty place
- Strong vibrations or shocks
- In the vicinity of magnetic fields
Interference with other electrical devices, radios and TVs nearby may experience
interference cause. Operate this device in a suitable Distance to radios and
televisions.
Cleaning:
Only clean it with a soft, dry cloth.
Do not use paint thinner, solvent, cleaning fluids or chemically impregnated wipes.
Handling:
Do not apply excessive force to the switches or controls off.
Do not put paper, metal or other objects in the device.
Then leave the device to qualified check service personnel.
Disconnect all cables before moving the instrument.
Attention:
The normal function of the product can be disturbed due to strong electromagnetic
interferences. In this case, simply reset the product, to resume normal operation by
following the instruction manual. If the function still does not continue smoothly
you can use the product on another place.
2019-09-20 Pronomic PDI-20 passive Stereo DI-Box / ArtNr.: 00058684 2
Page 5
PDI-20
Pronomic PDI-20
passive stereo DI-Box
Frequency Range
15Hz - 30kHz
Input Impedance
50kΩ
Output Impedance
600Ω symmetrisch
Connectors
two 6.35mm Jack Inputs, two
6.35mm Jack Outputs
(through), two symmetric
XLR- Outputs (male)
Ground-Lift
Ground-Lift AN/AUS
Stereo/Mono
Stereo/Mono button
Input level adapt
2x (0dB – 20dB – 40dB)
Dimensions
135 (W ) x 120 (L) x 45 (H)
mm
Weight
670 g
Product description
With the PDI-20, you can turn high-impedance, unsymmetrical audio signals into
symmetrical, low-impedance signals. You have the option to input from sound
sources with jacks - such as an electric guitar, electric bass or keyboard - and
transfer them to devices with a symmetrical XLR input like a mixer.
In addition to the symmetrical XLR output, the passive stereo DI Box from Pronomic
allows you to connect an amplifier over an asymmetrical output jack. Here the
asymmetrical input signal is directly passed to the asymmetrical output jack.
Delivery
- 1x Pronomic PDI-20 passive stereo DI-Box
Specification
2019-09-20 Pronomic PDI-20 passive Stereo DI-Box / ArtNr.: 00058684 3
Page 6
PDI-20
Signal Adjustment of the Input level
Input signals with high levels like keyboards can be lowered to between 20-40
dB with a selector switch.
Stereo/Mono operation
In the Stereo mode, both signals run separately through the device.
Switch it on Mono, both signals will be combined.
Ground-Lift-switch
With the ground lift switch, you can disconnect the ground connection of the
XLR signal, in order to avoid ground loops.
Passive DI-Box
Passive DI-Boxes need no supply voltage and do not have any preamp. With
that they have a better audio signal than their active relatives.
Intended use
Important safety instructions
This electrical appliance complies with technical safety and electromagnetic
compatibility standards.
Never touch it with wet hands.
Switch off your appliance: after use; in the event of malfunction; before
cleaning it.
Never operate your appliance when it has fallen.
Never dismantle your appliance. An incorrectly repaired appliance can be
dangerous for the user. If you encounter any problems, contact one of the
Approved Service Centers in our customer service network.
The warranty expires in case of damage caused when the product is not
used as intended.
Never use this device near bathtubs, showers or pools.
Usage
2019-09-20 Pronomic PDI-20 passive Stereo DI-Box / ArtNr.: 00058684 4
Page 7
PDI-20
Maintenance
Your appliance does not require any particular maintenance. However, in the event
of a malfunction, contact an Approved Service Center.
WEEE Declaration
(Waste of Electrical and Electronic Equipment)
Your product has been designed and manufactured using quality materials and
components that are recyclable and reusable. The symbol means that your product
must be disposed separately from household waste at the end of its service life.
Dispose of this equipment at your local collection point or recycling center.
Please help to protect the environment in which we all live.
All specifications and appearances are subject to change without notice. All
information was correct at time of printing. Musikhaus Kirstein GmbH does not
guarantee for the accuracy or completeness of any description, photograph or
statement contained in this manual. Printed colors and specifications may vary
slightly from product. Products from Musikhaus Kirstein GmbH are only sold through
authorized dealer. Distributors and dealers are not agents of Musikhaus Kirstein
GmbH and have no authority to bind Musikhaus Kirstein GmbH legally in any way.
Musikhaus Kirstein GmbH
Bernbeurener Str. 11
86956 Schongau – Germany
Telefon/Phone: 0049-8861-909494-0
Telefax/Fax: 0049-8861-909494-19
2019-09-20 Pronomic PDI-20 passive Stereo DI-Box / ArtNr.: 00058684 5
