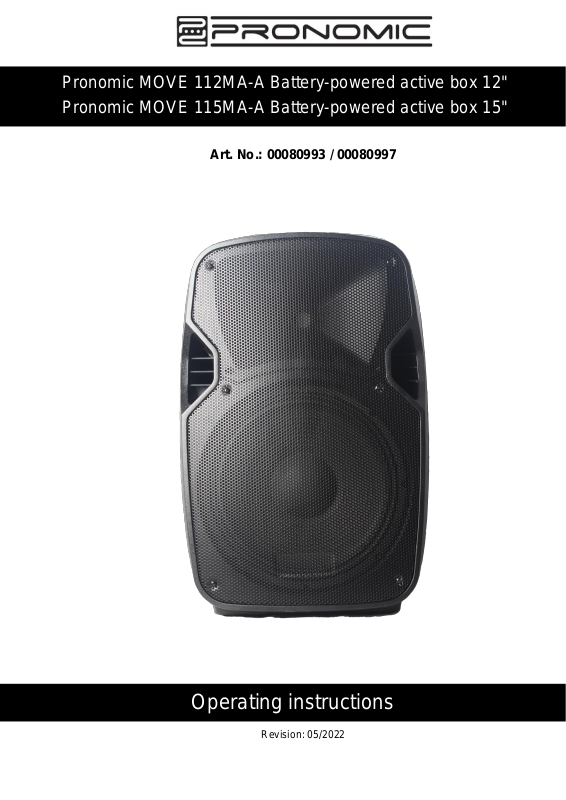

Pronomic MOVE 112MA-A Battery-powered active box 12"
Pronomic MOVE 115MA-A Battery-powered active box 15"
Operating instructions
Art. No.: 00080993 / 00080997
Revision: 05/2022
Page 2
MOVE battery-powered active boxes
These operating instructions are protected by copyright. Reproduction of these
operating instructions, even in part, is only permitted with the permission of
Musikhaus Kirstein GmbH. The same applies to the reproduction or copying of
pictures, even in modified form.
Content
Intended use ....................................................................................................... 2
Technical specifications .................................................................................... 3
Bluetooth function.............................................................................................. 3
Operation & connections of the loudspeaker module ....................................... 4
Operation & connections of the loudspeaker module ....................................... 5
Using the wireless microphones incl. transmitter ............................................. 6
TWS function ...................................................................................................... 6
Operation & functions of the player ................................................................... 7
Simplified EU Declaration of Conformity ........................................................... 8
WEEE Declaration (Waste of Electrical and Electronic Equipment) ................. 8
Page 3
MOVE battery-powered active boxes
2023-01-13 Pronomic MOVE battery-powered active box 1
Thank you for choosing this product.
To ensure that you are completely satisfied with this product, please read carefully
and understand this instruction manual before using our product. Keep these
operating instructions in a safe place. The operating instructions must be passed on
to all subsequent users.
Follow the operating instructions!
The signal word WARNUNG indicates hazards that can lead to
serious injuries if no precautionary measures are taken.
The signal word NOTE indicates general precautions to be
observed when handling the product.
Images and screen representations in these operating instructions
may differ slightly from the appearance of the actual product, as
long as this does not have a negative impact on the technical
characteristics and safety of the product.
All person-related formulations in these operating instructions are
to be regarded as gender-neutral.
These operating instructions apply to persons who have been supervised or
instructed in the operation of the appliance by a person responsible for their safety
and who have demonstrated their ability to handle the appliance.
Children should be supervised to ensure that they do not play
with the appliance.
Do not leave children unattended.
All information in these operating instructions has been checked to the best of our
knowledge and belief. However, neither the author nor the publisher can be held liable for
any damage in connection with the use of these operating instructions.
Other product, brand and company names mentioned in this document may be the
trademarks of their respective owners. Compliance with all applicable copyright laws
is the responsibility of the user of this document.
Page 4
MOVE battery-powered active boxes
2 Pronomic MOVE battery-powered active box 2023-01-13
Intended use
• Only use the product in accordance with the instructions given here. In the
event of damage caused by failure to observe these instructions for use, the
warranty will be invalidated! Musikhaus Kirstein GmbH accepts no liability for
any resulting damage.
• Unauthorised conversions or modifications to the product are not permitted
for safety reasons and will also invalidate the warranty.
• Loudspeaker systems can tip over and cause injuries and property damage.
Therefore, keep the immediate area around the loudspeaker system clear
and make sure that no persons are in this area.
• Make sure that the installation complies with the standards and regulations
applicable in your country.
• This product is intended for indoor use only.
• Check the item for possible damage before putting it into operation.
• You can use a slightly damp cloth for cleaning.
• Installation is only permitted on a stable and solid surface. An appropriate
substructure may have to be provided.
• Do not operate the speaker with overload to avoid damage to the speakers.
• Do not place any open light sources (candles, etc.) on or near the product.
• Only operate the item from an earthed mains socket.
• Do not allow liquids or moisture to enter the housing.
• Disconnect the unit from the mains when not in use.
• Have the fuse checked or replaced by trained personnel only. Disconnect the
unit from the mains beforehand.
• Disconnect the unit from the mains during a thunderstorm.
• The unit does not contain any user-serviceable parts. Always consult
appropriately trained personnel for this.
• Lay the mains cable so that people cannot fall over it.
• Turn the volume control to the lowest setting before switching on.
Page 5
MOVE battery-powered active boxes
2023-01-13 Pronomic MOVE battery-powered active box 3
Technical specifications
Bluetooth function
1. The first time you connect a device to the battery box, press the MODE button on
the MP3 player to activate Bluetooth mode.
2. Next, activate the Bluetooth connection on the device of your choice (e.g. mobile
phone or tablet) and connect it to 112MA-A or 115MA-A.
3. The next time you want to use the Bluetooth connection with your mobile phone,
tablet, etc., simply switch to Bluetooth mode on the battery box and your previously
paired device will automatically connect to the product.
Model
112MA-A
115MA-A
Type
12'' 2-way full range speaker
cabinet
15'' 2-way full range speaker
cabinet
Woofer
12", 1.5" voice coil, 30 ounce
magnet
15", 1.5" voice coil, 30 ounce
magnet
Tweeter
25.4mm PEN driver
1.35'' PEN driver
Power (PEAK)
60 Watt
60 Watt
Power (RMS)
30 Watt
30 Watt
Frequency range
55Hz-18KHz (-10dB)
50Hz-18KHz (-10dB)
Sensitivity
96dB
97dB
Connections
XLR / 2x 6.35mm jack / 2x
cinch
XLR / 2x 6.35mm jack / 2x
cinch
Microphone input level
< 5mV
< 5mV
Line input/output level
250 mV
250 mV
SPL
114 dB
115 dB
Crossover frequency
2.5 KHz
2.5 KHz
Mains voltage
AC 230 V
AC 230V
Fuse
1.6A
1.6A
Housing
Polypropylene
Polypropylene
Amplifier type
Class AB
Class AB
Bluetooth version
Bluetooth 5.0
Bluetooth 5.0
S/R Ratio
80 dB
80 dB
Battery type
Spill-proof lead battery,
rechargeable
Spill-proof lead battery,
rechargeable
Battery specifications
1400g, 12V, 4500mA
1400g, 12V, 4500mA
Headset & Microphone
Frequency Range
863-865Mhz
863-865Mhz
Dimensions
41.5 x 34.0 x 64.5 cm
48.0 x 40.0 x 74.5 cm
Weight
11.18 kg
14,52 kg
Page 6
MOVE battery-powered active boxes
4 Pronomic MOVE battery-powered active box 2023-01-13
Operation & connections of the loudspeaker module
Page 7
MOVE battery-powered active boxes
2023-01-13 Pronomic MOVE battery-powered active box 5
Operation & connections of the loudspeaker module

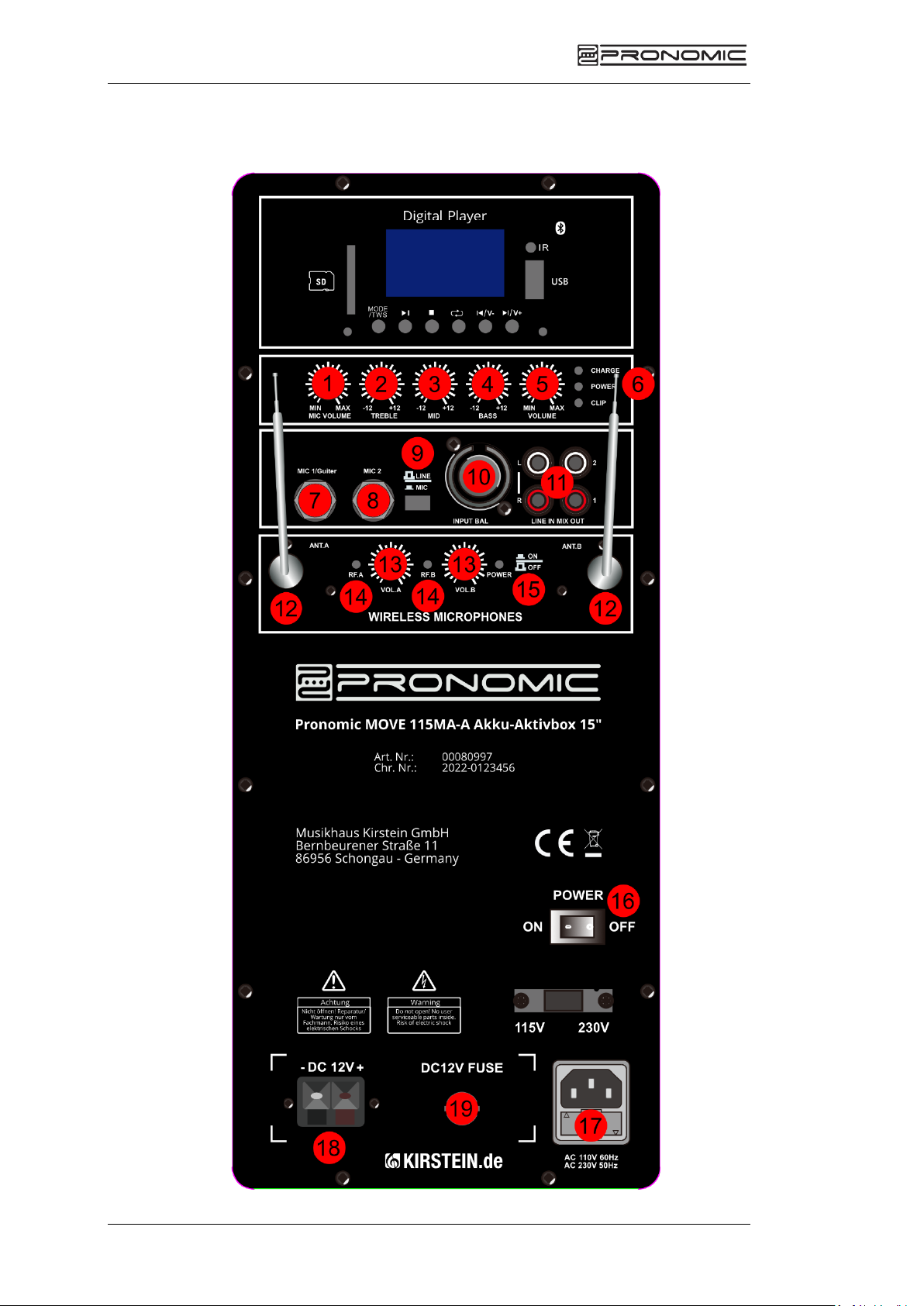

1. Microphone volume control
Controls the input level for the XLR and jack sockets (7, 8 & 10).
2. Treble control
This allows you to control the amount of treble frequencies.
3. Middle control
Here you can control the proportion of the mid frequencies.
4. Bass control
This allows you to control the amount of bass frequencies.
5. Volume control
You can adjust the overall volume with this rotary control.
6. LED indicators
Charge: LED signal to indicate the internal battery charge.
Power: LED signal to indicate the mains voltage.
Clip: LED signal to indicate overriding signal strength. If this LED light up, you should turn
down the volume to prevent damage to the unit.
7. Microphone 1 input / guitar input (jack)
Can be used as input for guitar or as microphone input via 6.3mm jack cable.
8. Microphone 2 input (jack)
Can be used as a microphone input via 6.3 mm jack cable.
9. Line / mic switch
Select the input signal here (microphone or line).
10. Line-In / Microphone input (XLR)
Can be used for Line signals (balanced) or as microphone input via XLR cable.
11. Cinch input /output
LINE-IN connector for external devices that use audio cables with RCA plugs (e.g. CD
players, mixers, or similar).
The MIX-OUT connections output an unbalanced stereo signal to external devices via cinch
cables.
12. VHF Wireless Microphones Antennas
These antennas can be pointed in any direction for better reception while using the wireless
microphones.
13. Wireless microphone volume control
Use these two rotary controls to adjust the level of the wireless microphones.
14. LED indicators
LED signals to indicate the reception strength.
15. ON/OFF switch for wireless microphones
For switching the radio links of the wireless microphones on and off.
16. Mains switch
Switches the system on or off.
Page 8
MOVE battery-powered active boxes
6 Pronomic MOVE battery-powered active box 2023-01-13
17. AC IN socket
Connect the supplied AC power cable here. First connect the mains cable to the appliance
and then insert the plug of the mains cable into the mains socket.
18. Battery output for external consumers
External devices can be supplied with power from the battery integrated in the unit via this
connection (DC 12V).
19. Fuse
If this fuse is blown, it may only be replaced by trained personnel with an identical model with
the same specifications.
Using the wireless microphones incl. transmitter
You can play back vocals or your speech via wireless microphones or headset through the
speaker box.
1. To use the headset, first insert a battery into the transmitter/body pack. If you want to use
the microphone, please insert the battery there. You can also operate both versions in
parallel.
2. Connect the cable of the headset to the bodypack.
3. Depending on which variant you want to use, you can now switch on the bodypack for the
headset or the microphone.
4. Now carefully turn the volume control of the wireless microphones (13) to the desired
volume.
5. The wireless microphone antennas (12) can then be pointed in any direction to improve
reception.
TWS function
It is possible to connect two Pronomic MOVE battery box systems via TWS stereo
connection, using one speaker as "master" and the other speaker as "slave".
1. Press the mode button on both battery boxes to switch on the Bluetooth function of both
systems.
2. Press and hold the MODE / TWS button to enter the TWS mode. Do this for both boxes.
3. You can hear a connection tone that signals that the products have connected to each
other.
4. Connect your Bluetooth-enabled device to one of the battery boxes. Songs that are played
on the first system will also be played on the second system.
5. Long press the MODE / TWS button again if you want to disconnect the two units.
Page 9
MOVE battery-powered active boxes
2023-01-13 Pronomic MOVE battery-powered active box 7
Operation & functions of the player

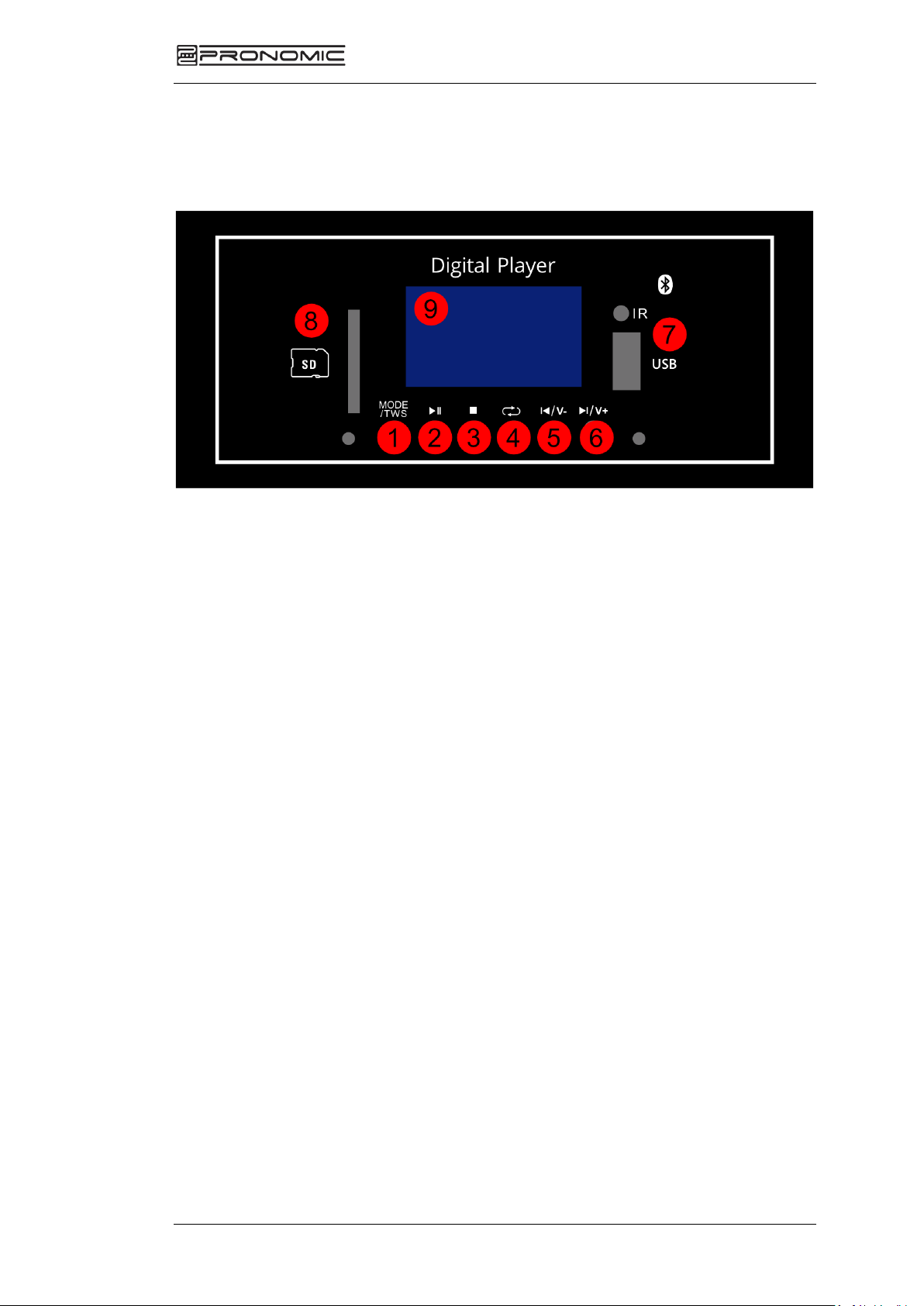

1. MODE / TWS button
Select the mode here (USB, SD, Bluetooth)
Press and hold the button to enter the TWS mode.
2. PLAY / PAUSE button
Press this button to start or pause the current playback.
3. STOP button
Press the button to stop the current playback.
4. REPEAT button
When you press this button, the current song is played in loop.
5. PREVIOUS / VOLUME button
Press this button to go back to the previous track.
Press and hold the button to lower the volume.
6. PRESET / VOLUME button
Press this button to go to the next track.
Press and hold the button to increase the volume.
7. USB input
Connect your USB stick here to be able to play MP3 files stored on it.
8. SD card input
Insert your SD card here to play MP3 files stored on it.
9. display
Used to display various information.
Page 10
MOVE battery-powered active boxes
8 Pronomic MOVE battery-powered active box 2023-01-13
Simplified EU Declaration of Conformity
Musikhaus Kirstein GmbH hereby declares that the radio system type [Pronomic
MOVE 112MA-A Akku-Aktivbox 12" and Pronomic MOVE 115MA-A Akku-Aktivbox
15"] complies with the directive 2014/53/EU.
The full text of the EU Declaration of Conformity can be found at the following
Internet address:
http://www.kirstein.de/docs/Konformitaetserklaerung/CE_Konformitaetserklaerung_
00080993.pdf
http://www.kirstein.de/docs/Konformitaetserklaerung/CE_Konformitaetserklaerung_
00080997.pdf
WEEE Declaration
(Waste of Electrical and Electronic Equipment)
Your product has been designed and manufactured using high quality materials and
components that are recyclable and reusable. The symbol means that your product
must be disposed of separately from household waste at the end of its life.
Dispose of this appliance at your local collection point or recycling centre.
Please help protect the environment in which we all live.
All technical data and appearances are subject to change without notice. All
information was correct at the time of going to press. Musikhaus Kirstein GmbH
does not guarantee the accuracy or completeness of the descriptions, photographs
or statements contained in this manual. Printed colours and specifications may differ
slightly from the product. Musikhaus Kirstein GmbH products are only sold through
authorised distributors. Distributors and dealers are not representatives of
Musikhaus Kirstein GmbH and are not authorised to legally bind Musikhaus Kirstein
GmbH in any way.
Musikhaus Kirstein GmbH
Bernbeurener Str. 11
86956 Schongau - Germany
Telephone/Phone: 0049-8861-909494-0
Telefax/Fax: 0049-8861-909494-19
Loading...
