Page 1

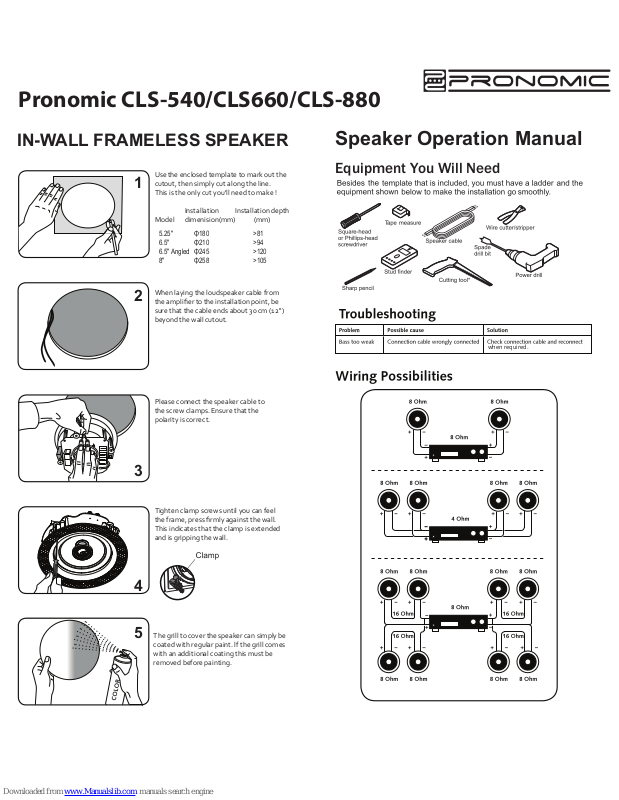

Speaker Operation Manual
Equipment You Will Need
IN-WALL FRAMELESS SPEAKER
when required.
Pronomic CLS-540/CLS660/CLS-880
Model
5.25″
6.5″
6.5″ Angled
8″
Φ180
Φ210
Φ245
Φ258
>81
>94
>120
>105
Installation
dimenision(mm)
1
2
3
4
5
Installation depth
(mm)

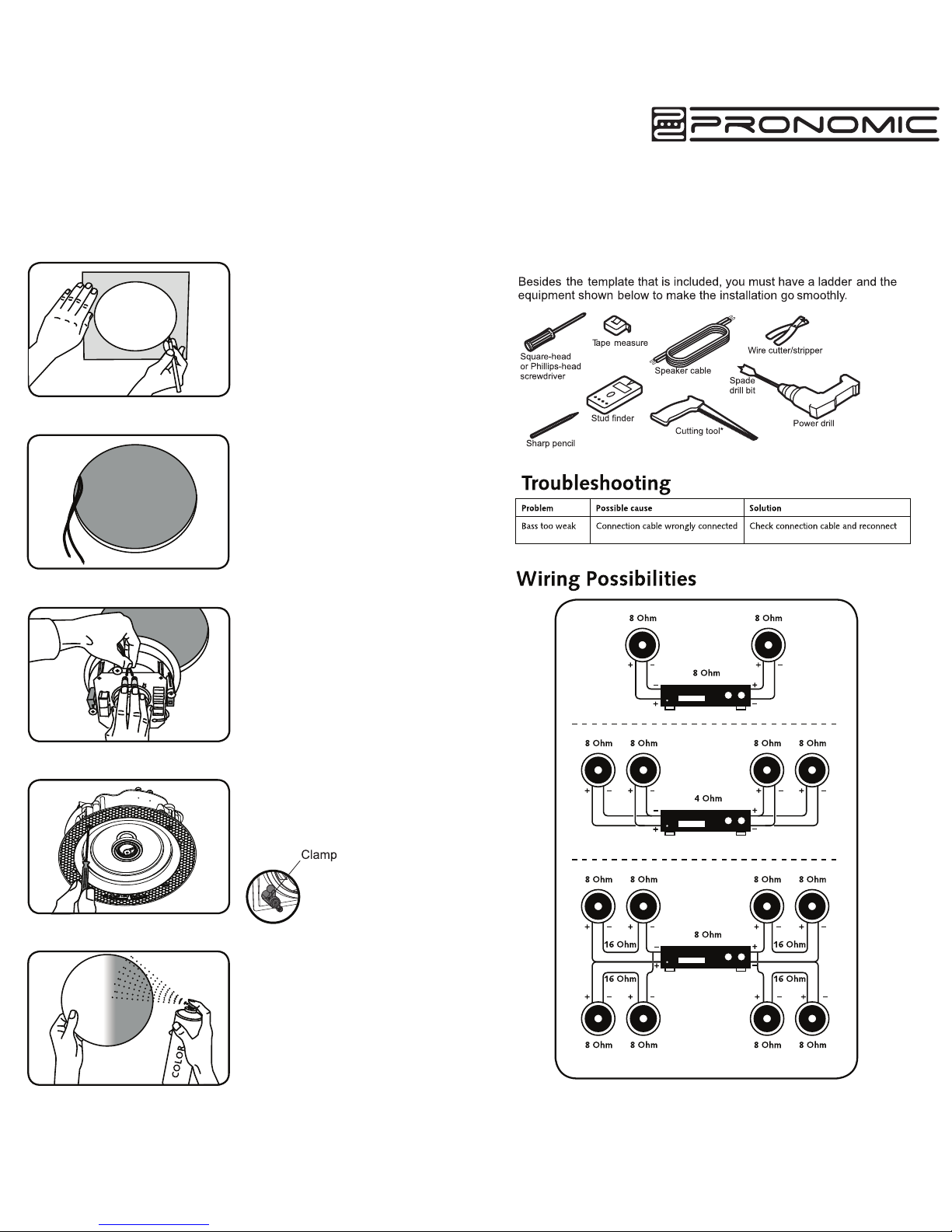

Use the enclosed template to mark out the
cutout, then simply cut along the line.
This is the only cut you'll need to make !
When laying the loudspeaker cable from
the amplifier to the installation point, be
sure that the cable ends about 30 cm (12'')
beyond the wall cutout.
Please connect the speaker cable to
the screw clamps. Ensure that the
polarity is correct.
Tighten clamp screws until you can feel
the frame, press firmly against the wall.
This indicates that the clamp is extended
and is gripping the wall.
The grill to cover the speaker can simply be
coated with regular paint. lf the grill comes
with an additional coating this must be
removed before painting.
