Page 1
00073546 Pronomic C-118SA Subwoofer, active
00093139 Pronomic C-115SA Subwoofer, active
Operating instructions
Revision: 11-2024
c
Page 2
© 2020
These operating instructions are protected by copyright. Reproduction of these
operating instructions, even in part, is only permitted with the permission of
Musikhaus Kirstein GmbH. The same applies to the reproduction or copying of
images, even in modified form.
Content
Safety precautions ................................................................................................. 3
Additional precautions .......................................................................................... 3
Connections and functions ................................................................................... 4
Connections and functions ................................................................................... 5
DSP setting ............................................................................................................ 6
The correct cabling ................................................................................................ 7
The correct cabling ................................................................................................ 8
Technical specifications ....................................................................................... 8
WEEE Declaration .................................................................................................. 9
Page 3
Follow the operating instructions!
The signal word WARNING indicates hazards that can lead to
serious injuries if no precautionary measures are taken.
The signal word NOTE indicates general precautions to be
observed when handling the product.
Images and screen representations in these operating instructions
may differ slightly from the appearance of the actual product, as
long as this does not have a negative impact on the technical
characteristics and safety of the product.
All person-related formulations in these operating instructions are
to be regarded as gender-neutral.
Children should be supervised to ensure that they do not play
with the appliance. Do
not leave children unattended.
Thank you for choosing this product.
To ensure that you are fully satisfied with this product, please read these operating
instructions carefully before using our product. Keep these operating instructions in
a safe place. The operating instructions must be passed on to all subsequent users.
These operating instructions apply to persons who have been supervised or
instructed in the operation of the appliance by a person responsible for their safety
and who have demonstrated their ability to handle the appliance.
All information in these operating instructions has been checked to the best of our
knowledge and belief. However, neither the author nor the publisher can be held liable for
any damage in connection with the use of these operating instructions.
Other product, brand and company names mentioned in this document may be the
trademarks of their respective owners. Compliance with all applicable copyright laws
is the responsibility of the user of this document.
2
Page 4
Always place the appliance securely on a level surface to avoid
injury from the appliance falling over.
Do not place any devices that can heat up (e.g. lighting
equipment or fog machines) on the housing.
Never touch the mains cable or the unit when it is wet, as this
may cause an electronic shock.
The fuse may only be replaced by trained personnel. The unit
must be disconnected from the mains beforehand.
Safety precautions
Do not clean the plastic housing with solvents or other chemical-based cleaning
agents.
Keep the unit away from rain and moisture.
Damage caused by non-compliance with this user manual is not covered by the
warranty. The dealer accepts no liability for any resulting defects or problems.
Additional precautions
The unit is only intended for use in dry conditions.
Handle the mains cable and all connections to the mains with special care.
Before connecting, make sure that the mains cable is in perfect condition.
Only touch the mains cable by the plug.
Always plug in the mains plug last. Plugging in must be done without using force.
Before switching on, make sure that the mains plug is firmly connected to the
socket.
Avoid contact of the mains cable with other cables.
Only use fuses with the same rating. The correct fuse rating is indicated on the back
of the unit.
3
Page 5
Connections and functions
4
Page 6

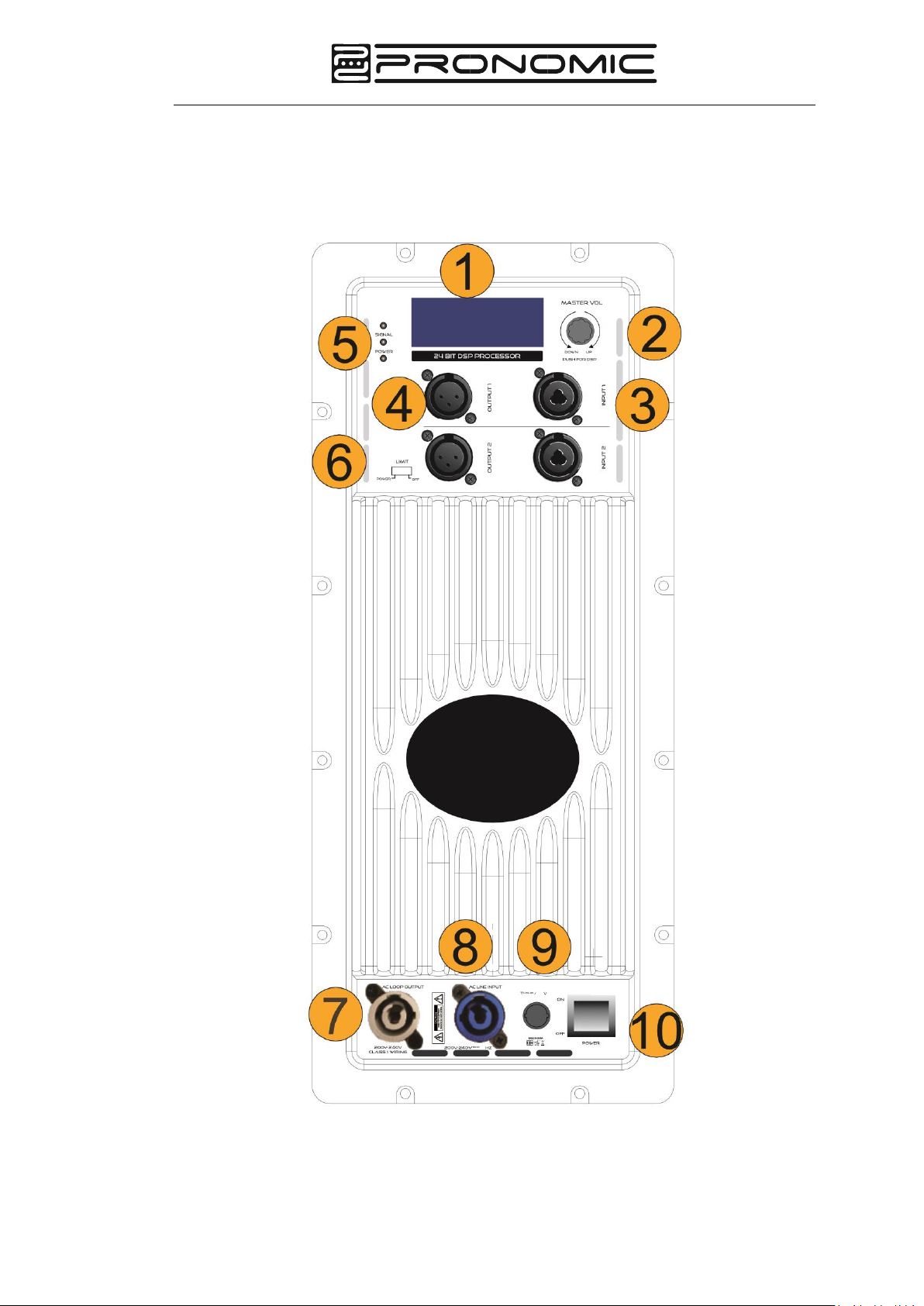

Connections and functions
1. LCD display: Display for DSP control and general display
2. Volume control: Controls the overall volume level
DSP: Scroll through the menu and select the available choices. Press the
Master VOL button to enter the DSP menu
3. Input: Balanced input for connecting signal sources such as mixers, feeds, etc.
The connection can be made via a 6.3mm jack plug or XLR plug
4. Output: XLR output sends the input signal to another speaker or subwoofer
5. Limiter:
(1) Limit: When the audio signal reaches the threshold that is dangerous for the
transducers, this circuit automatically intervenes by reducing the signal strength
to protect the speaker and to prevent distortion
(2) Signal: LED signal to indicate the input signal
(3) Power: LED signal to indicate mains voltage
6. LED switch: With this switch you can change the display option of the LED on
the front. If you switch it to the "Power" position, the light is constantly blue, if
you switch it to the "Limit" position, the light is red when the Input signal is too
high. To switch off the LED, please switch it to the "Off" position
7. AC Loop Output: 100-127V 50/60Hz Max 7A is used to connect to a second
subwoofer or external speaker to power 2 systems with one mains cable
8. AC Line Input: Used to connect to power sockets to supply power to the system
9. Fuse holder: Used to hold the fuse, which is a safety device that protects the
AC power supply circuit of the unit.
If the fuse is blown, it should be replaced with the same type with the same
specification by trained personnel
10. Power switch: This power switch turns the system on or off. Please set the
volume level to the lowest value before switching on the power switch
5
Page 7
Mode
Live
Music
DJ
C-Series
Low Pass
OFF
80 Hz
100 Hz
120 Hz
150 Hz
Delay
OFF
0-30ms
DSP setting
DSP Menu
The integrated DSP menu is used for individual sound configuration of the
subwoofer in order to be able to use it perfectly in different locations with different
setups.
Available options for this selection are: Live, Music, DJ and C-Series.
• Live: Very linear with very low cut-off frequency
• Music: Slight bass boost at 50 Hz
• DJ: Stronger bass boost at 50 Hz
• C-Series: Tuned filters for Pronomic C-Series speakers with low pass
at 150 Hz
Low Pass Menu
The additionally adjustable Low Pass is used to select the low pass frequency for
correct summing with a full range speaker. Available options for this selection are:
80Hz, 100 Hz, 120 Hz, 150 Hz.
Make sure that the Low Pass is set to "OFF" if you want to use the C-Series DSP
setup.
Delay:
Sets the delay time. This is used to compensate for the distance between speakers.
Polarity:
Polarity is used to compensate for time shifts in speaker setups whose individual
components (speaker cones) are not on the same axis. Room-related acoustic
cancellations can also be corrected.
If there is too little bass in the auditory impression, this can be corrected by
changing the polarity.
An exact correction of the phase position can only be achieved with the aid of
suitable measuring instruments.
The polarity can be reversed in the menu
6
Page 8
The correct cabling
7
Page 9
Modell
C-118SA
C-115SA
Typ
Aktiver SUB
Lautsprecher
Aktiver SUB
Lautsprecher
Frequenzbereich
30 Hz – 200 Hz
30 Hz – 200 Hz
Sensitivität (1m/1w)
96,5 dB
96,5 dB
Impedanz
4
4
Woofer
18 75 mm 80 OZ
15“ 75 mm 80 OZ
SPL
126 dB
124 dB
DSP
48 KHz SamplingFrequenz 24 Bit
48 KHz SamplingFrequenz 24 Bit
Verstärker Typ
Class D
Class D
Leistung RMS
800 Watt
800 Watt
Leistung PEAK
1600 Watt
1600 Watt
Trenn-Frequenz
Einstellbar siehe Seite 6
Einstellbar siehe Seite 6
Maße
625x755x655 mm
535X645X590
Gewicht
41 kg
35 kg
Main Voltage
200-240V
200-240V
Sicherung
6.3A, 500 Volt
6.3A, 500 Volt

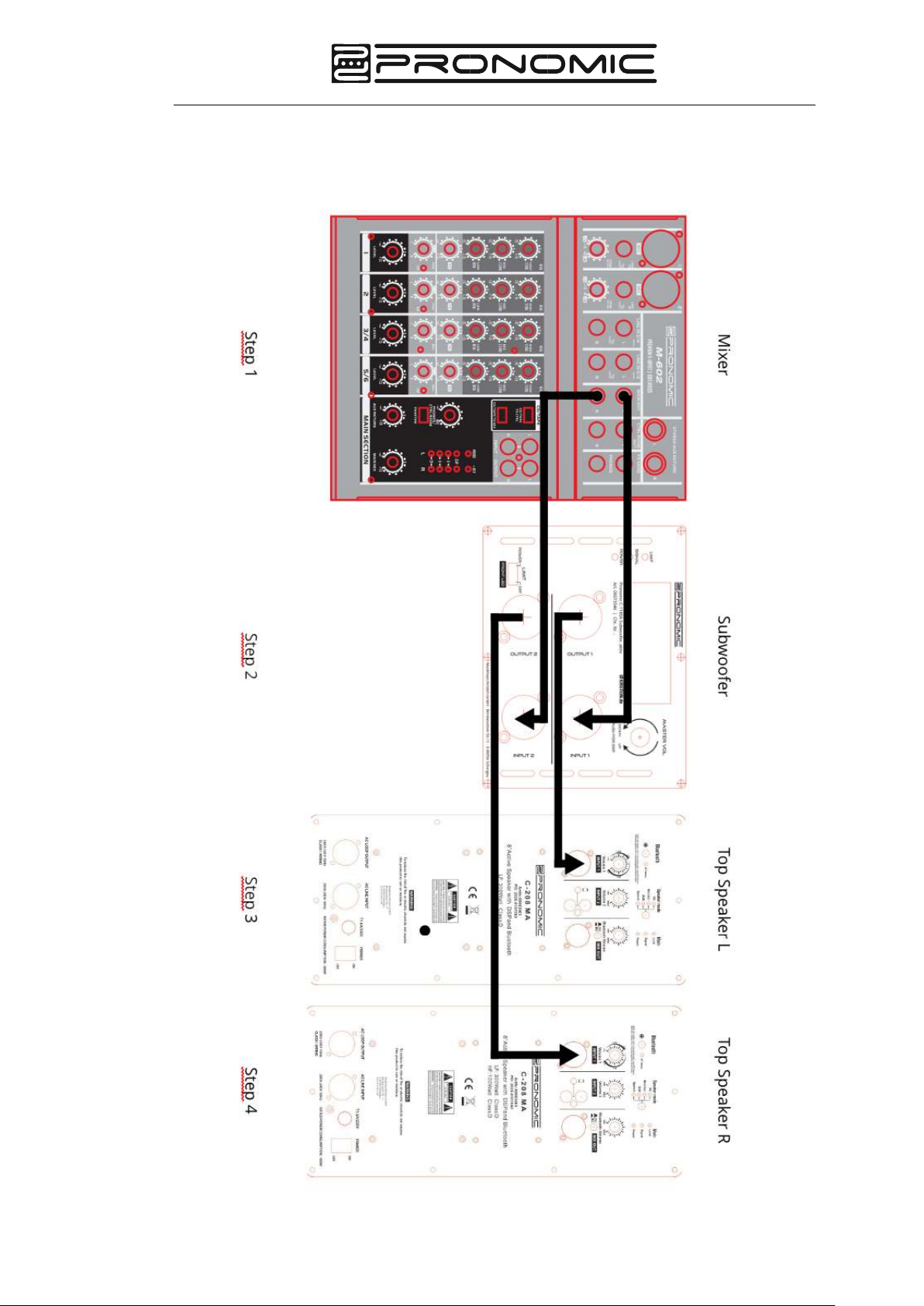

The correct cabling
First of all, connect the line outputs L and R of your mixer (step 1) to the line inputs 1
and 2 of the subwoofer (step 2).
Then connect the line outputs of the subwoofer (step 2) to the line inputs of your top
speakers (steps 3 and 4).
Technical specifications
8
Page 10

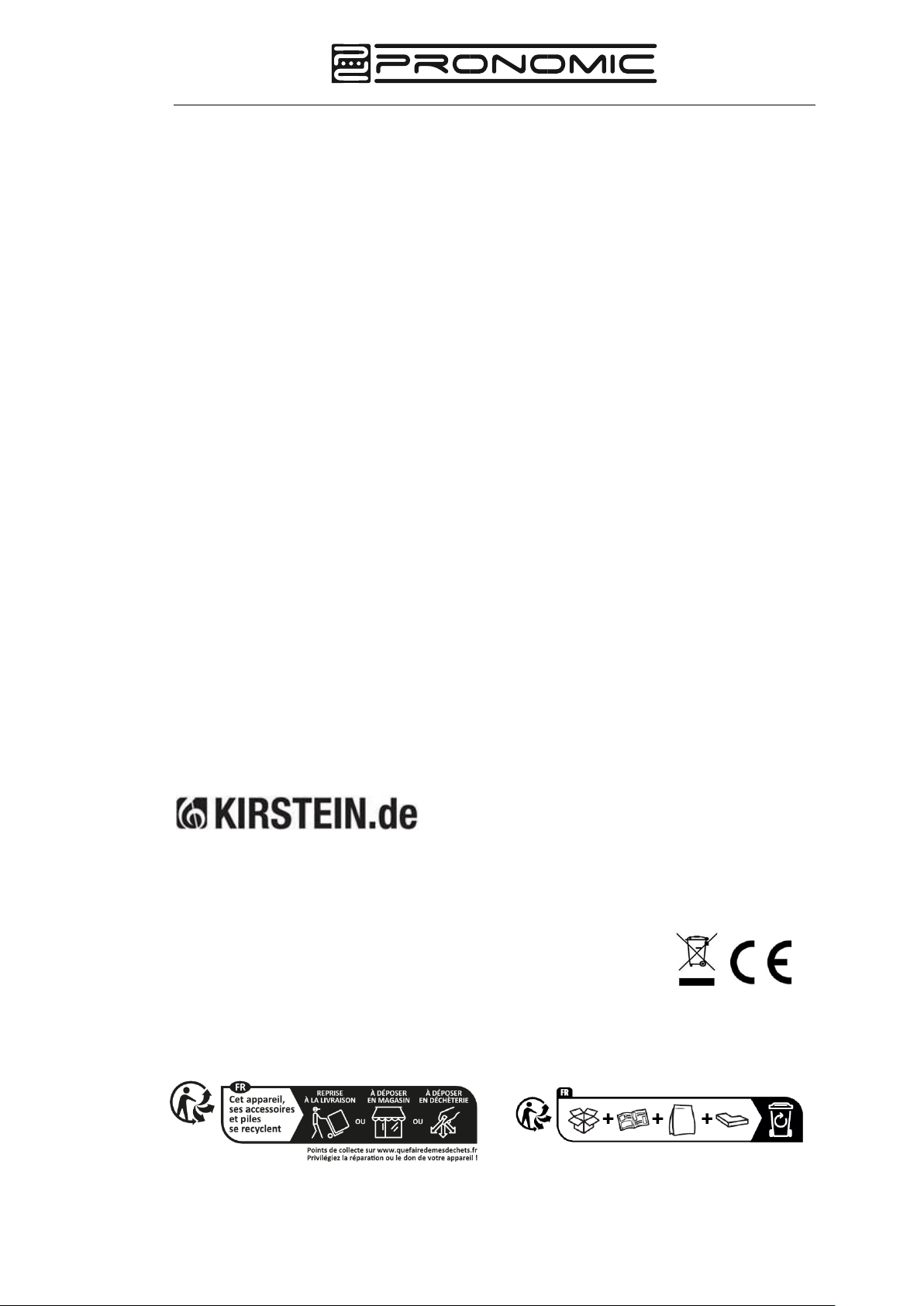

WEEE Declaration
(Waste of Electrical and Electronic Equipment)
Your product has been designed and manufactured using high quality materials and
components that are recyclable and reusable. The symbol means that your product
must be disposed of separately from household waste at the end of its life. Dispose
of this appliance at your local collection point or recycling centre.
Please help protect the environment in which we all live.
All technical data and appearances are subject to change without notice. All
information was correct at the time of going to press. Musikhaus Kirstein GmbH
does not guarantee the accuracy or completeness of the descriptions, photographs
or statements contained in this manual. Printed colours and specifications may differ
slightly from the product. Musikhaus Kirstein GmbH products are only sold through
authorised distributors. Distributors and dealers are not representatives of
Musikhaus Kirstein GmbH and are not authorised to legally bind Musikhaus Kirstein
GmbH in any way.
Musikhaus Kirstein GmbH
Bernbeurener Str. 11
86956 Schongau – Germany
Telefon/Phone: 0049-8861-909494-0
Telefax/Fax: 0049-8861-909494-19
[email protected]
9
