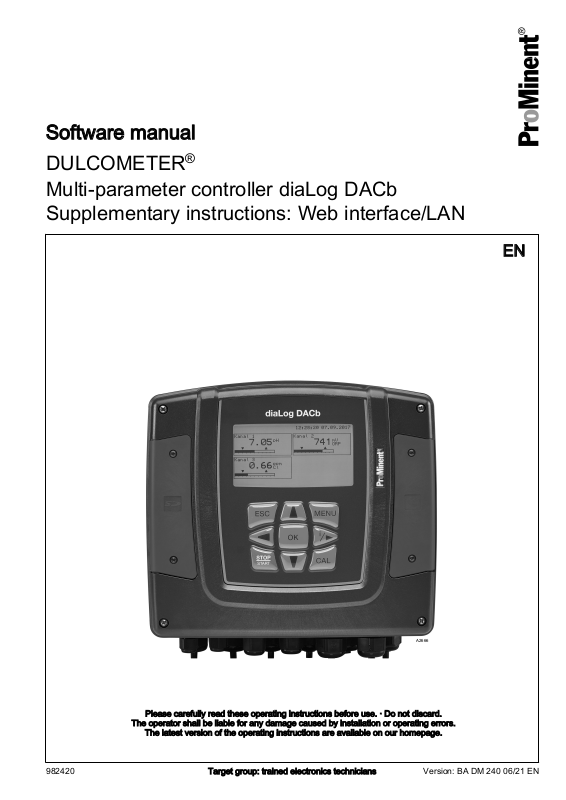

Software manual
A2666
DULCOMETER
®
Multi-parameter controller diaLog DACb
Supplementary instructions: Web interface/LAN
EN
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
Target group: trained electronics technicians982420 Version: BA DM 240 06/21 EN
Page 2
Supplemental directives
General non-discriminatory approach
Supplementary information
In order to make it easier to read, this document uses the male
form in grammatical structures but with an implied neutral sense.
The document is always aimed equally at women, men and
gender-neutral persons. We kindly ask readers for their under‐
standing in this simplification of the text.
Please read the supplementary information in its entirety.
Information
This provides important information relating to the
correct operation of the unit or is intended to make
your work easier.
Warning information
Warning information include detailed descriptions of the hazardous
situation.
The following symbols are used to highlight instructions, links, lists,
results and other elements in this document:
Tab. 1: More symbols
Symbol Description
Action, step by step.
⇨ Outcome of an action.
Links to elements or sections of these instructions or other applicable documents.
n
[Button]
List without set order.
Display element (e.g. indicators).
Operating element (e.g. button, switch).
‘Display /GUI’
CODE
Screen elements (e.g. buttons, assignment of function keys).
Presentation of software elements and/or texts.
2
Page 3
Table of contents
Table of contents
1 IP address............................................................................. 4
1.1 Suitable browsers......................................................... 4
2 Main display.......................................................................... 5
2.1 Main Display of a Channel............................................ 5
2.2 Access Code................................................................. 6
2.3 "Start/Stop" Key............................................................ 6
2.4 Error Display................................................................. 6
2.5
‘Total Error List’
2.6
‘Pumps’
2.7
‘Current Outputs’
2.8 Limit Value Settings...................................................... 7
2.9 Control Parameter Settings.......................................... 7
3 Global error list...................................................................... 8
Key................................................................. 6
Key.................................................... 6
Display............................................. 7
3
Page 4
IP address
1 IP address
Validity of the supplementary instruc‐
tions
IP address
These supplementary instructions are only valid when used in con‐
junction with the operating instructions for the Multi-parameter con‐
troller diaLog DACb.
The IP address is an address in computer networks, which, like the
internet, is based on the internet protocol (IP). The IP address is
assigned manually or automatically (DHCP) to devices when
devices are integrated within a network. An IP address makes
devices accessible within a network. The IP address of the diaLog
DACb controller is the network address at which the web interface
of the controller can be accessed in the network.
You can configure the IP address of the controller in the menu of
the controller. You can choose between manual input and auto‐
matic assignment by a DHCP server. Inputting the IP address and
the subnet mask is essential with manual input. Details of the
gateway and DNS server are optional and dependent on the net‐
work to which the controller is connected. If in doubt, request the
necessary information from the responsible person within your
organisation.
A common private IP configuration might be:
n IP: 192.168.000.001
n Subnet mask: 255.255.255.000
There needs to be a DHCP server within the connected network to
enable you to use automatic assignment of the network configura‐
tion. When the controller starts up, it requests a valid configuration
from the DHCP server and takes over this configuration.
You can then view the IP address assigned by DHCP in the
‘Setup’
connected directly to a PC/laptop, check that the PC/laptop does
not have DHCP server functionality. Should this be the case, then
the IP address must be assigned manually. The PC/laptop then
has to be set up for manual assignment of IP addresses. The IP
addresses have to lie within the same address range, for example
PC/laptop: 192.168.000.010, diaLog DACb 192.168.000.001, both
with the subnet mask: 255.255.255.000. A cross-over LAN cable
may need to be routed between the diaLog DACb and the PC/
laptop depending on the age of the PC/laptop.
menu of the diaLog DACb. If a diaLog DACb controller is
1.1 Suitable browsers
Supported web browsers:
n Google Chrome 89.0,
n Mozilla Firefox 88.0,
n EDGE 90,
n Safari 14,
n Opera 76.0,
n Chrome for Android.
Web browsers not supported:
n Microsoft® Internet Explorer.
4
Page 5
2 Main display
A2227
A2228
Main display
The main display of the web interface provides a complete over‐
view of the current status of the controller. 1, 2 or 3 main channels,
and where applicable the mathematical supplementary channel,
are displayed depending on the design and configuration of the
controller.
2.1 Main Display of a Channel

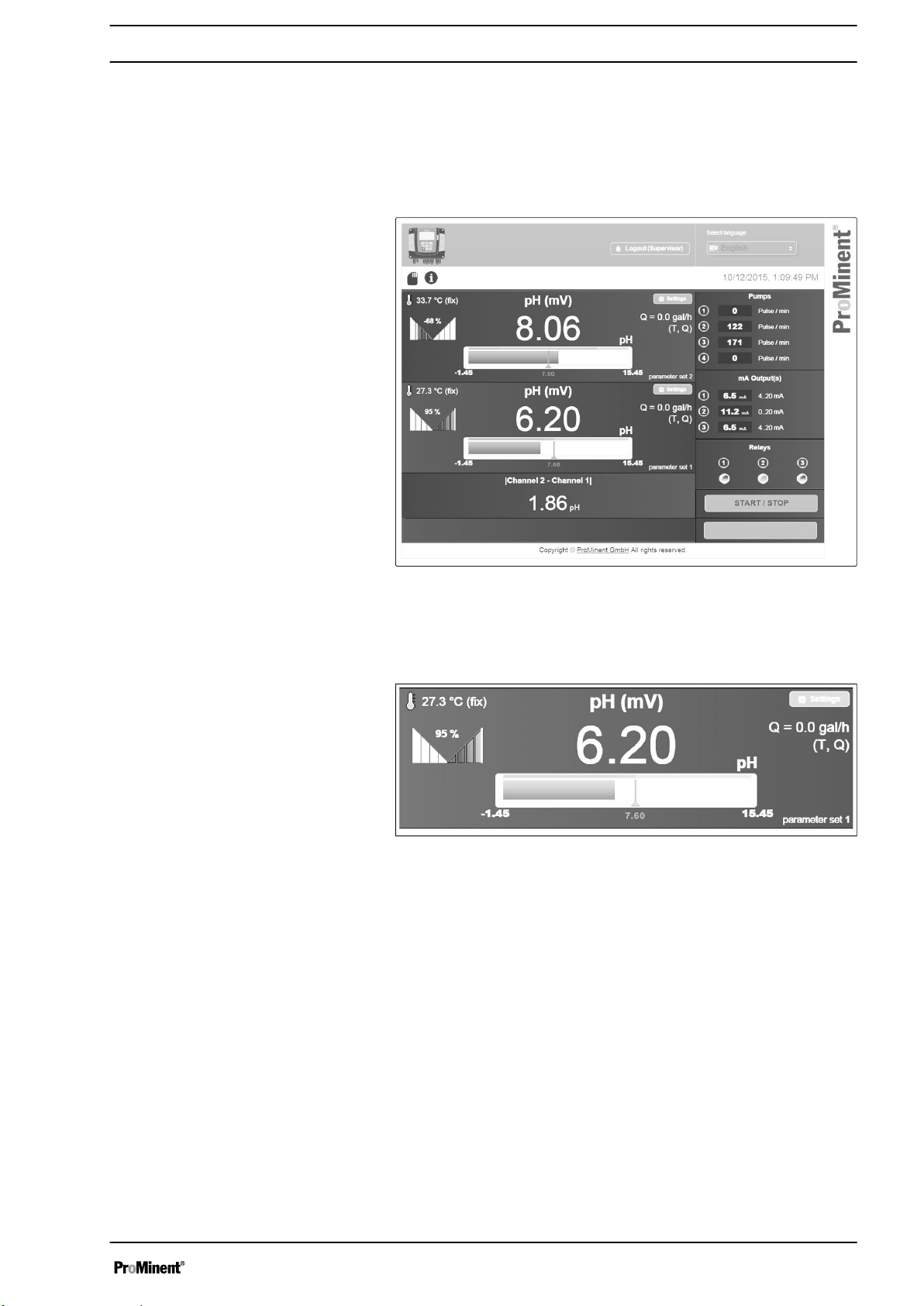

Fig. 1: Main display
Fig. 2: Main display of a channel
The main displays of a measuring channel provide information on:
n Measured variable
n Measured value
n Current setpoint
n Measuring range limits
n Set alarm limits
n Control variable
n Temperature compensation
n Active parameter set
n Correction variables
n Interference variable (e.g. flow)
Use the
[Settings]
button to change the configuration of a meas‐
uring channel if you have the requisite access code for the con‐
troller.
5
Page 6
Main display
2.2 Access Code
2.3 "Start/Stop" Key
Authorisation is needed to operate the controller. Four-digit access
codes must be issued in the
troller for the various users and the access code of the controller
has to be activated for this.
The password entered is transmitted encrypted to the controller.
If no user has been authorised, the web interface merely provides
information about the current status. Only authorised users can
stop the controller or acknowledge errors.
A login with at least
parameters.
Use the Start/Stop key on the web interface to start or stop the
controller. This function corresponds to the local Stop key.
The following applies:
n You cannot restart a controller via the web interface, which has
been stopped by the local key.
n You cannot restart a controller using the local key, which has
been stopped via the web interface.
‘Installer’
‘Setup/Access code’
level of access is needed to change
menu of the con‐
2.4 Error Display
2.5
‘Total Error List’
2.6
‘Pumps’
Key
Key
You can also use the local Start/Stop key to start the controller if it
has been stopped via the web interface and the connection to the
online page has been disconnected for more then 60 seconds.
The Start/Stop key is only active if a user with a sufficiently high
access level is logged on.
Channel 2, Error 02: The mV input voltage is too high
An error display showing all the current errors is located under‐
neath the display of the mathematical channel. The most recent
error is displayed in red.
Pressing the
warnings and errors.
‘Total error list’
key displays the number of current
Pumps
➀ 0 Stroke rate / min
➁ 122 Stroke rate / min
➂ 171 Stroke rate / min
➃ 0 Stroke rate / min
The current stroke rate is displayed for each activated pump output
(frequency output).
6
Page 7
2.7
A2229
Limit value 1
Limit value 2
Parameter set 2
Parameter set 1
Limit value
Value
Switch-on delay
Switch-off delay
Low
1.93 pH
0 s
0 s
Cancel
A2230
Limit value 1
Limit value 2
Parameter set 2
Parameter set 1
Type
Basic load
Lower setpoint
Controller P bidirectional
1.93 pH
7.60 pH
-5 %
Cancel
1.11 pH
0 s
0 s
T
v
T
n
X
p
Upper setpoint
‘Current Outputs’
Display
2.8 Limit Value Settings
Main display
mA output
➀ 6.5 mA 4 ... 20 mA
➁ 0.20 mA 0 ... 20 mA
➂ 6.5 mA 4 ... 20 mA
The current mode and current being directly emitted at the current
output is displayed for an activated current output.
2.9 Control Parameter Settings
Fig. 3: Limit value settings
You can set two independent limit values for each measuring
channel.
You can set:
n Effective direction (upper/lower transgression)
n Limit value
n Switch-on delay
n Switch-off delay
Fig. 4: Control parameter settings
The controller can be adapted depending on the controller type set
in the controller. You can set two independent sets of control
parameters.
7
Page 8
Channel 1
Channel 2
Channel 3
1 warning
1 error / 2 warnings
1 warning
Type Number Description Acknowledge
Type Number Description Acknowledge
4
2
1
4
OK
Close
A2231
The measuring channel is not yet calibrated
The mV input voltage is too high
The limit value was undershot
The measuring channel is not yet calibrated
!
!
!
Global error list
3 Global error list
Fig. 5: Global error list
The global error list shows all existing warnings and errors from all
activated channels. You can confirm the errors by clicking on
‘OK’
if you are logged on as an authorised user.
The error list of a channel is automatically expanded when the
error display is opened if there is at least one unconfirmed error.
The error list of this channel is hidden if all errors of a channel have
been confirmed or are merely warnings, and you can open the
error list by clicking on the
‘+’
key. The error numbers of the error
list correspond to the errors in the controller's local display
8
