Operating instructions

P_DE_0002_SW

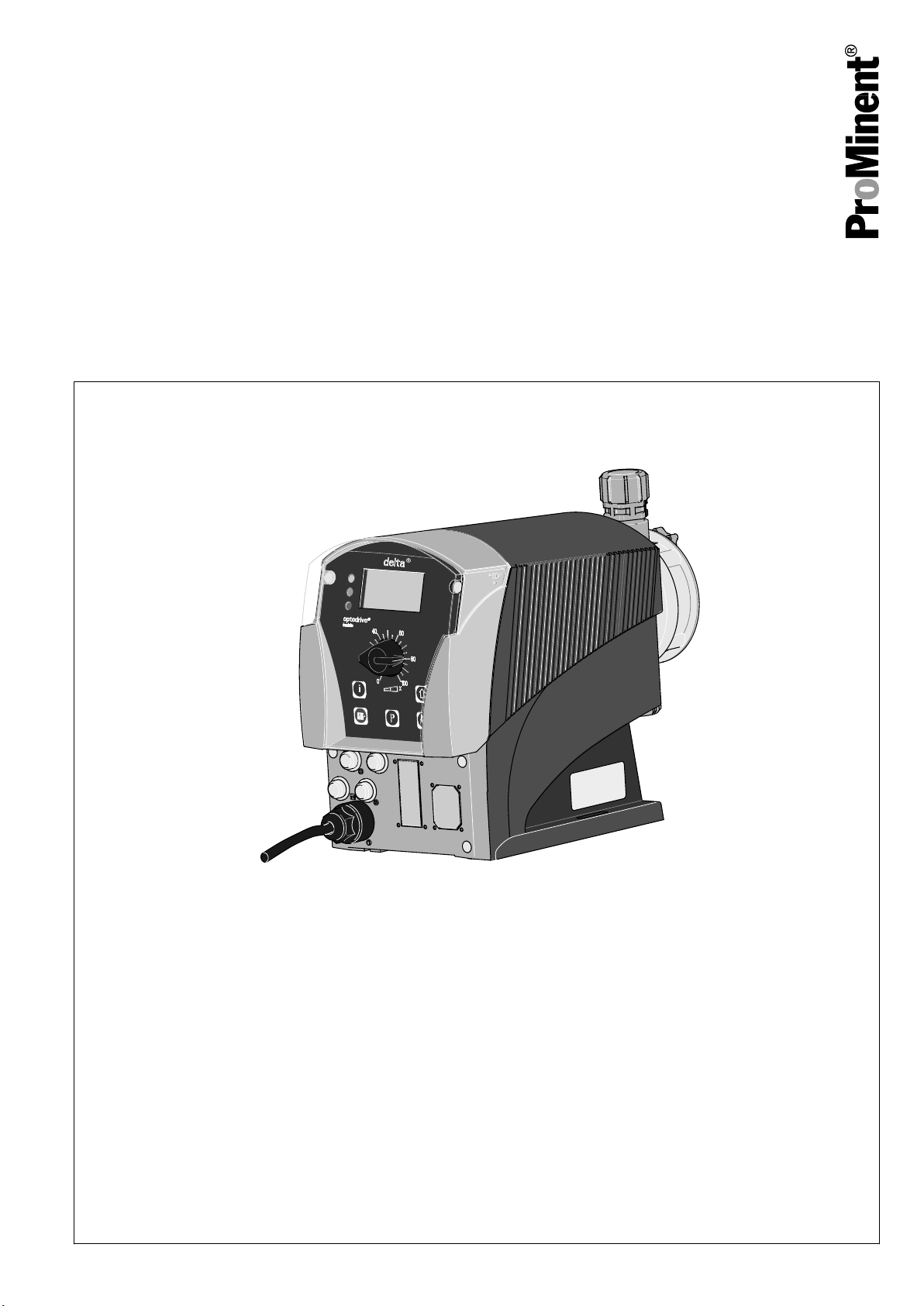

Solenoid Metering Pump delta®

DLTa

with controlled optoDrive®

solenoid drive

Please carefully read these operating instructions before use! · Do not discard!

The operator shall be liable for any damage caused by installation or operating errors!

Technical changes reserved.

Original operating instructions (2006/42/EC)Part no. 986691 BA DE 032 01/14 EN

Page 2

Supplemental instructions

Supplementary information

Fig. 1: Please read!

Read the following supplementary information in its entirety! Should you already know this information, you will benefit more from referring to the operating instructions.

The following are highlighted separately in the document:

n Enumerated lists

Operating guidelines

Outcome of the instructions

Information

This provides important information relating to the correct operation of the unit or is intended to make your work easier.

Safety notes

Safety notes are identified by pictograms - see Safety Chapter.

Validity

State the identity code and serial number

These operating instructions conform to current EU regulations applicable at the time of publication.

Please state identity code and serial number, which you can find on the nameplate when you contact us or order spare parts. This enables the device type and material versions to be clearly identified.

Page 3

Table of contents

Identity code.................................................................................... 5

2 About this pump............................................................................... 8

3 Safety chapter................................................................................. 9

4 Storage, transport and unpacking................................................. 14

5 Device overview and control elements.......................................... 15

5.1 Device overview.................................................................... 15

5.2 Control elements................................................................... 16

5.2.1 Key functions...................................................................... 16

5.2.2 Stroke length adjustment knob........................................... 17

5.2.3 Identifiers............................................................................ 17

6 Functional description.................................................................... 20

6.1 Liquid End............................................................................. 20

6.2 Drive unit............................................................................... 20

6.3 Capacity................................................................................ 20

6.4 Operating modes................................................................... 21

6.5 Functions............................................................................... 21

6.6 Relay (options)...................................................................... 22

6.7 Functional and fault Indicator................................................ 22

6.8 LCD display........................................................................... 23

6.9 LED indicators....................................................................... 23

6.10 Hierarchy of operating modes, functions and fault sta‐

tuses....................................................................................

7 Assembly....................................................................................... 24

8 Hydraulic installation...................................................................... 25

8.1 Install hose lines.................................................................... 26

8.1.1 Installation for metering pumps without bleed valve.......... 26

8.1.2 Installation for metering pumps with bleed valve............... 28

8.2 Basic installation notes.......................................................... 29

9 Electrical installation...................................................................... 31

9.1 Supply voltage connector...................................................... 32

9.2 Description of the sockets..................................................... 33

9.2.1 "External control" terminal.................................................. 33

9.2.2 "Level Switch" terminal....................................................... 34

9.2.3 "Dosing monitor" terminal................................................... 34

9.2.4 "Diaphragm rupture sensor" terminal................................. 35

9.3 Relay..................................................................................... 35

9.3.1 "Fault indicating relay" output (identity code 1 + 3 or 6 +

7)........................................................................................ 35

9.3.2 Output for other relays (identity code 4 + 5, 8 + 9, A + B).. 36

9.3.3 Output "Current output plus relay" (identity code C + D +

E)........................................................................................ 37

10 Set up............................................................................................ 38

10.1 Basic principles of control adjustment................................. 38

10.2 Checking adjustable values................................................ 38

10.3 Changing to adjustment mode............................................ 39

10.4 Selecting the operating mode (Menu "Mode").................... 40

10.5 Operating mode settings (menu "Settings")........................ 40

10.5.1 "Manual" operating mode settings................................... 42

10.5.2 Settings for the “Batch” operating mode (BATCH menu). 42

10.5.3 "Contact" operating mode settings................................... 43

10.5.4 "Analog" operating mode settings.................................... 45

10.6 Programmable function settings ("Settings" menu )............ 47

Page 4

Table of contents

10.6.1 Settings for the “Concentration” function (CONCENTRA‐

TION menu)..................................................................... 48

10.6.2 Settings for the “Auxiliary frequency” function (AUX

menu)............................................................................... 56

10.6.3 Settings for the “Flow” function (FLOW menu)................. 57

10.6.4 Settings for the “Calibration” function (CALIBRATION

menu)............................................................................... 57

10.6.5 Settings for the “Metering” function (DOSING menu)...... 59

10.6.6 Settings for the "Bleeding" function)................................. 63

10.6.7 Settings for the “Relay” function (RELAY menu).............. 65

10.6.8 Settings for the “Analog output” function (ANALOG

OUTPUT menu)............................................................... 66

10.6.9 Settings in the "System" menu" (SYSTEM menu)........... 67

10.7 Set code (SECURITY menu).............................................. 68

10.8 Delete total number of strokes or total litres (CLEAR

menu).................................................................................. 69

10.9 Set language (LANGUAGE menu)...................................... 69

11 Operation....................................................................................... 70

11.1 Manual................................................................................ 70

11.2 Remote operation................................................................ 72

12 Maintenance.................................................................................. 73

Repairs.......................................................................................... 75

13.1 Cleaning valves................................................................... 76

13.2 Replacing the diaphragm.................................................... 77

13.3 Cleaning the diaphragm rupture indicator........................... 79

14 Troubleshooting............................................................................. 80

14.1 Faults without a fault alert................................................... 80

14.2 Fault alerts.......................................................................... 81

14.3 Fault alerts / warning alerts................................................. 81

14.4 Warning messages............................................................. 82

14.5 All other faults..................................................................... 82

15 Decommissioning.......................................................................... 83

16 Technical data............................................................................... 85

16.1 Performance data................................................................ 85

16.2 Accuracy............................................................................. 86

16.2.1 Standard liquid ends........................................................ 86

16.3 Viscosity.............................................................................. 86

16.4 Material data....................................................................... 87

16.5 Electrical data...................................................................... 87

16.6 Temperatures...................................................................... 87

16.7 Climate................................................................................ 88

16.8 Protection class and Safety Requirements......................... 88

16.9 Compatibility........................................................................ 88

16.10 Weight............................................................................... 88

16.11 Sound pressure level........................................................ 89

17 Dimensional drawings................................................................... 90

Diagrams for setting the metering capacity................................... 94

19 Exploded view drawings................................................................ 96

20 Further order information............................................................. 116

21 EC Declaration of Conformity for Machinery............................... 117

22 Operating menu overview............................................................ 118

23 Continuous displays.................................................................... 120

24 Index............................................................................................ 122

Page 5

1 Identity code

delta®

product range, version a

DLTa Type Capacity

bar l/h

2508 25 7.5

1608 16 7.8

1612 16 11.3

1020 10 19.1

0730 7 29.2

0450 4 49.0

0280 2 75.0

Material of dosing head / valves

SS Stainless steel / stainless steel

PV PVDF / PVDF

Identity code

NP Clear acrylic / PVC

Material of seals / diaphragm

T PTFE / PTFE-coated

S PTFE / Diaphragm also coated with FPM

B FPM-B / PTFE-coated

E EPDM / PTFE-coated

Dosing head design

0 Without bleed valve, without valve spring

1 Without bleed valve, with valve spring

2 With bleed valve, without valve spring

3 With bleed valve, with valve spring

4 HV version for media of higher viscosity

7 Self-bleeding without bypass (SER)

Hydraulic connection

0 Standard connection in line with technical data

5 Connector for 12/6 hose, suction side standard

F Connector on discharge side for 8/4 hose, standard on suction side

Diaphragm rupture indicator

0 Without diaphragm rupture indicator

1 Diaphragm rupture indicator

2 With dual diaphragm system and diaphragm rupture indicator, pres‐

Design

sure sensor

0 With ProMinent logo

Electrical connection

U Universal control 100-230 V ±10 %, 50/60 Hz

Cable and plug

Page 6

Identity code

product range, version a

delta®

A 2 m European

B 2 m Swiss

C 2 m Australian

D 2 m USA / 115 V

1 2 m open end

... ...

Relay

0 No relay

1 Fault indicating

relay N/C

3 Fault indicating

relay magnetic

1 x changeover con‐ tact 230 V – 8 A

4 As 1 + pacing relay 2 x N/O 24 V – 100

5 As 3 + pacing relay 2 x N/O 24 V – 100

A Cut-off and

warning relays N/C

C As 1 + 4-20 mA

mA output

F With automatic

2 x N/O 24 V – 100 mA

1 x N/O 24 V – 100 mA

230 V

bleed valve

G with automatic

24 VDC bleed valve and relay output

... ...

Accessories

0 No accessories

1 With foot and injection valve, 2 m

suction line, 5 m metering line

2 As 0 + measuring cup

3 As 1 + measuring cup

Control version

0 Manual + external contact

with pulse control

3 Manual + external contact

with pulse control + analog 0/4-20mA

4 As 0 + 4-week process

timer

5 As 3 + 4-week process

timer

C As 3 + CANopen

M As 3 + pH, ORP and

chlorine + DFMA control module

As 3 + PROFIBUS® inter‐ face, M12

Page 7

product range, version a

delta®

Identity code

Access code

0 No access code

1 With access code

Language

DE German

EN English

FR French

ES Spanish

... ...

Pause / level

0 Pause N/

C, level N/C

Page 8

About this pump

2 About this pump

Properties of the device

The solenoid metering pumps belonging to the delta® product range with controlled optoDrive® solenoid drive are microprocessor-controlled sole‐ noid metering pumps with the following characteristics:

n Continuous or pulsing operation n Adaptation of the pump to the feed chemical n Detection of blocked points of injection, broken metering lines and

trapped air or gas bubbles in the dosing head by the integral injection point monitor optoGuard.

n Output range 7.5 l/h, 25 - 2 bar n Stroke length continuously adjustable between 0 - 100 % (recom‐

mended 30 - 100 %)

n Material versions PVDF and stainless steel n Patented coarse/fine adjustment n Diaphragm rupture detection and signalling (optional) n Adjustment and display of the feed rate, either as strokes/min or l/h

via the keyboard

n Large illuminated graphic display n External activation via potential-free contacts with optional pulse step-

up and step-down

n Option of external activation by standard signal 0/4-20 mA n Interface for PROFIBUS®or CANopen (optional) n 14-day process timer* for time- and event-dependent metering tasks n Connection for 2-stage level switch n 3 LED display for operation, warning and fault messages in plain text n Concentration input for volume-proportional metering n Automatic bleed n Pump type 2508 with 7.5 l/h at 25 bar n Material version NP for pump types 2508, 1612, 1608, 1020 and 0730

Page 9

3 Safety chapter

Safety chapter

Labelling of safety notes

Warning signs denoting different types of danger

The following signal words are used in these operating instructions to denote different levels of danger:

Signal word Meaning

WARNING Denotes a possibly dangerous sit‐

uation. If this is disregarded, you are in a life-threatening situation and this can result in serious inju‐ ries.

CAUTION Denotes a possibly dangerous sit‐

uation. If this is disregarded, it could result in slight or minor inju‐ ries or material damage.

The following warning signs are used in these operating instructions to denote different types of danger:

Warning signs Type of danger

Warning – automatic start-up.

Warning – high-voltage.

Intended use

Warning – danger zone.

n Only use the pump to meter liquid metering chemicals. n Only use the pump after it has been correctly installed and started up

in accordance with the technical data and specifications contained in the operating instructions.

n Observe the general limitations with regard to viscosity limits, chem‐

ical resistance and density - see also ProMinent® Resistance List in the Product Catalogue or at www.prominent.com/en/downloads!

n All other uses or modifications are prohibited. n The pump is not intended for the metering of gaseous media and

solids.

n The pump is not intended for the metering of explosive media. n The pump is not intended for operation in areas at risk from explosion. n The pump is not intended for flammable media without suitable pro‐

tective measures.

n The pump is not intended for exterior applications without the imple‐

mentation of suitable protective measures.

n The pump should only be operated by trained and authorised per‐

sonnel, see the following "Qualifications" table.

n Observe the information contained in the operating instructions at the

different phases of the unit's service life.

Page 10

Safety chapter

Qualification of personnel

Action Qualification

Storage, transport, unpacking Instructed person

Assembly Technical personnel, service

Planning hydraulic installation Qualified personnel who have a

thorough knowledge of metering pumps.

Hydraulic installation Technical personnel, service

Installation, electrical Electrical technician

Operation Instructed person

Maintenance, repair Technical personnel, service

Decommissioning, disposal Technical personnel, service

Troubleshooting Technical personnel, electrical

technician, instructed person, service

Explanation of the terms:

Technical personnel

A qualified employee is deemed to be a person who is able to assess the tasks assigned to him and recognise possible dangers based on his/her technical training, knowledge and experience, as well as knowledge of pertinent regulations.

Note:

A qualification of equal validity to a technical qualification can also be gained by several years employment in the relevant work area.

Electrical technician

Electrical technicians are deemed to be people, who are able to complete work on electrical systems and recognise and avoid possible dangers independently based on their technical training and experience, as well as knowledge of pertinent standards and regulations.

Electrical technicians should be specifically trained for the working envi‐ ronment in which they are employed and know the relevant standards and regulations.

Electrical technicians must comply with the provisions of the applicable statutory directives on accident prevention.

Instructed person

An instructed person is deemed to be a person who has been instructed and, if required, trained in the tasks assigned to him/her and possible dan‐ gers that could result from improper behaviour, as well as having been instructed in the required protective equipment and protective measures.

Service

Customer Service department refers to service technicians, who have received proven training and have been authorised by ProMinent or Pro‐ Maqua to work on the system.

Safety notes

WARNING! Warning about personal and material damage The pump can start to pump, as soon as it is connected to

the mains voltage.

– Install an emergency cut-off switch in the pump power

supply line or integrate the pump in the emergency cutoff management of the system.

Page 11

Safety chapter

WARNING! Danger of electric shock A mains voltage may exist inside the pump housing.

– If the pump housing has been damaged, you must dis‐

connect it from the mains immediately. It may only be returned to service after an authorised repair.

WARNING! Fire danger When pumping inflammable media the operator must take

suitable safety precautions.

WARNING! Warning of dangerous or unknown feed chemical Should a dangerous or unknown feed chemical be used: It

may escape from the hydraulic components when working on the pump.

– Take appropriate protective measures before working on

the pump (e.g. safety glasses, safety gloves, ...). Observe the safety data sheet for the feed chemical.

–

Drain and flush the liquid end before working on the pump.

CAUTION! Warning of feed chemical spraying around Feed chemical can spray out of the hydraulic components if

they are manipulated or opened due to pressure in the liquid end and adjacent parts of the system.

– Disconnect the pump from the mains power supply and

ensure that it cannot be switched on again by unauthor‐ ised persons.

Depressurise the system before commencing any work

–

on hydraulic parts.

CAUTION! Warning of feed chemical spraying around An unsuitable feed chemical can damage the parts of the

pump that come into contact with the chemical.

– Take into account the resistance of the wetted materials

when selecting the feed chemical - see the ProMinent product catalogue or visit www.prominent.com/en/down‐ loads.

CAUTION! Warning of feed chemical spraying around The metering pump can generate a multiple of its rated pres‐

sure. Hydraulic parts can burst if a discharge line is blocked.

– Correctly install a back pressure valve in the discharge

line behind the metering pump.

Page 12

Safety chapter

CAUTION! Only with SER dosing heads: Warning of feed chemical

spraying around If there is a high pressure acting on the other side of the dis‐

charge valve, opening of the bleed valve can result in feed chemical escaping even if the pump is at a standstill.

CAUTION! Danger of personnel injury and material damage The use of untested third party parts can result in personnel

injuries and material damage.

– Only fit parts to metering pumps, which have been

tested and recommended by ProMinent.

CAUTION! Danger from incorrectly operated or inadequately maintained

pumps Danger can arise from a poorly accessible pump due to

incorrect operation and poor maintenance.

– Ensure that the pump is accessible at all times. –

Adhere to the maintenance intervals.

Fixed separating protective equipment

Information in the event of an emergency

CAUTION! Danger from incorrect metering Should a different liquid end size be fitted, this will change

the metering behaviour of the pump.

– Have the pump reprogrammed in the works.

CAUTION! Warning against illegal operation Observe the regulations that apply where the device is

installed.

n Dosing head n Housing n Hood (houses the control elements)

The dosing head may only be removed by the customer in accordance with the "Repair" chapter.

The housing and the hood may only be removed by ProMinent customer service department.

In the event of an electrical accident, disconnect the mains cable from the mains or press the emergency cut-off switch fitted on the side of the system!

If feed chemical exits, switch off the pump by pressing the

[Stop/Start]

key. If necessary depressurise the hydraulic system around the pump. Observe the safety data sheet for the feed chemical.

Page 13

Sound pressure level

Safety chapter

Sound pressure level LpA < 70 dB according to EN ISO 20361

at maximum stroke length, maximum stroke rate, maximum back pressure (water)

Page 14

Storage, transport and unpacking

4 Storage, transport and unpacking

Safety notes

WARNING! The pump can tip over when lifting The pump can tip over when lifting, as the centre of gravity of

the pump is quite a distance from the liquid end.

– Grip the pump quite close to the liquid end.

Safety notes

WARNING! The transporting of pumps which have been used with radio‐

active feed chemicals is forbidden!

They will also not be accepted by ProMinent!

WARNING! Only return metering pumps for repair in a cleaned state and

with a flushed liquid end - refer to "Decommissioning!

Only return metering pumps with a completed Decontamina‐ tion Declaration form. The Decontamination Declaration con‐ stitutes an integral part of an inspection / repair order. A unit can only be inspected or repaired when a Declaration of Decontamination Form is submitted that has been completed correctly and in full by an authorised and qualified person on behalf of the pump operator.

You can find the "Decontamination Declaration" form under www.prominent.com/en/downloads or on the CD.

Ambient conditions

Scope of supply

CAUTION! Danger of material damage The device can be damaged by incorrect or improper storage

or transportation!

– The unit should only be stored or transported in a well

packaged state - preferably in its original packaging. The packaged unit should also only be stored or trans‐

–

ported in accordance with the stipulated storage condi‐ tions.

– The packaged unit should be protected from moisture

and the ingress of chemicals.

Refer to the "Technical Data" chapter

Compare the delivery note with the scope of supply:

n Metering pump with mains power cable n Connector kit for hose/pipe connection n Product-specific operating instructions with EC Declaration of Con‐

formity

n Optional accessories if ordered n Relay cable, as necessary

Page 15

1 2

P_DE_0027_SW

P_DE_0019_SW

Device overview and control elements

5 Device overview and control elements

5.1

Device overview

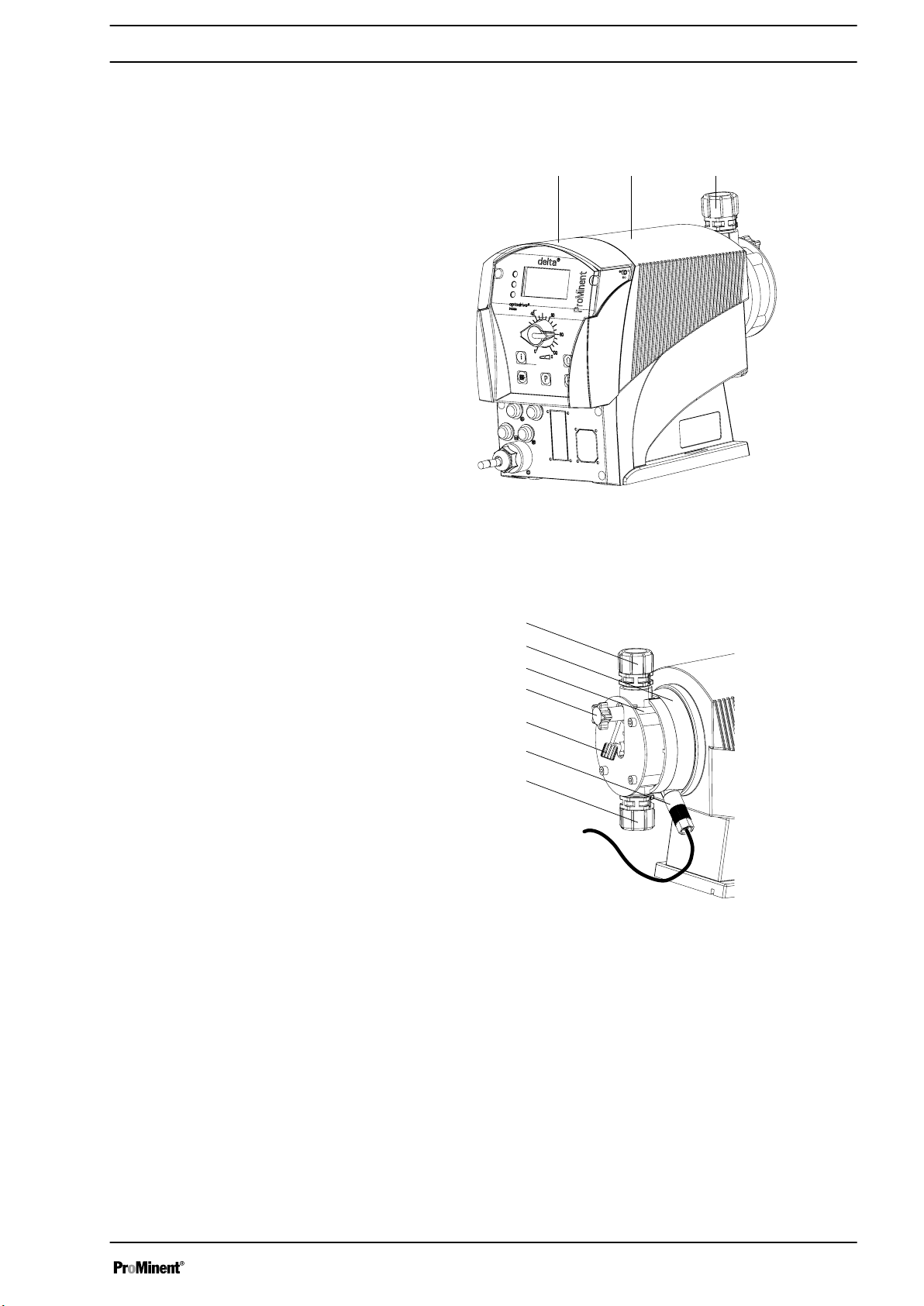

Fig. 2

1 Control unit 2 Drive Unit 3 Liquid end

Fig. 3

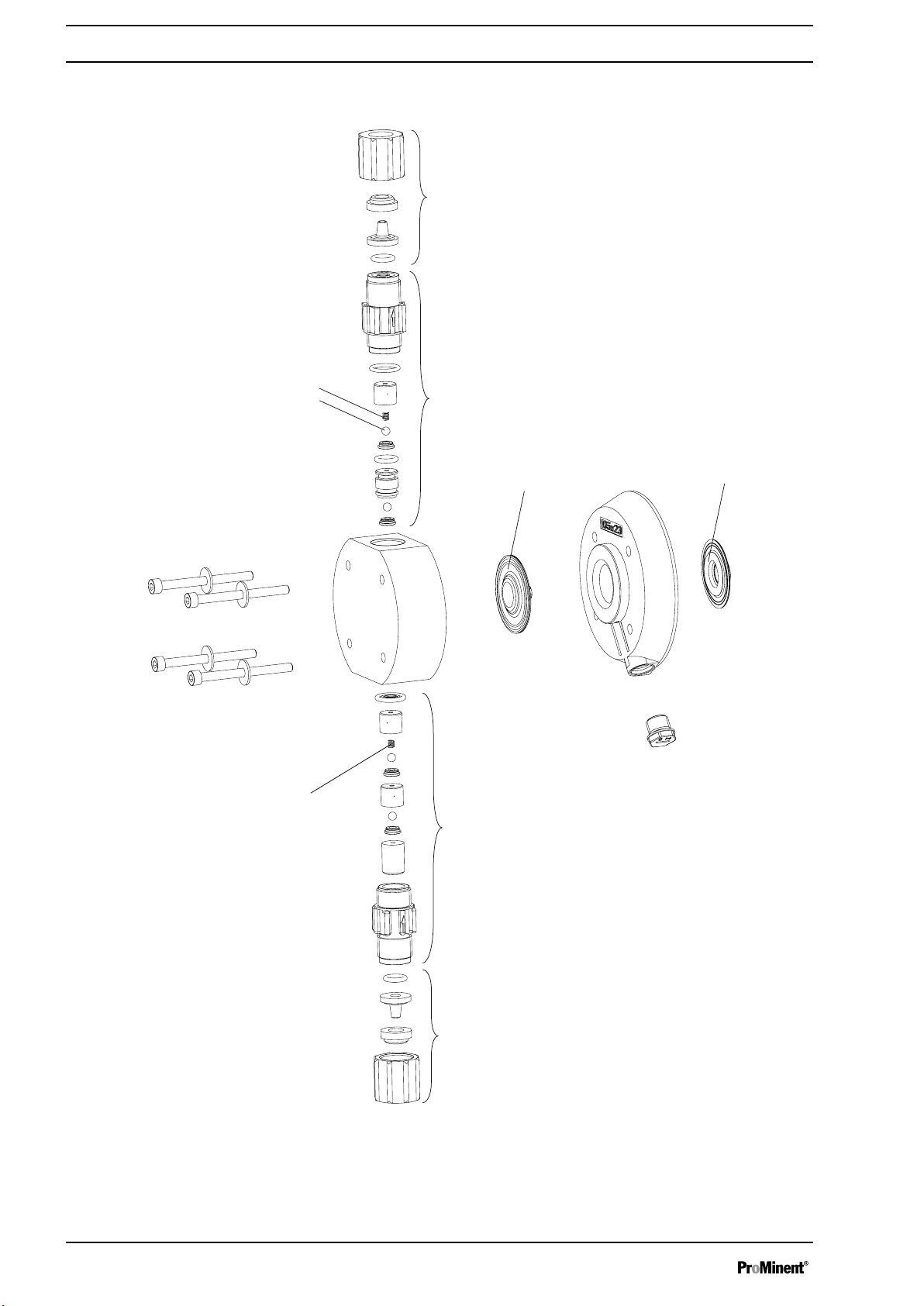

a Discharge valve b End disc c Dosing head d Bleed valve e Bypass hose nozzle f Diaphragm rupture sensor g Suction valve

Page 16

11 13 15 161412

9 8

P_DE_0017_SW

STOP

START

B0098

Device overview and control elements

5.2 Control elements

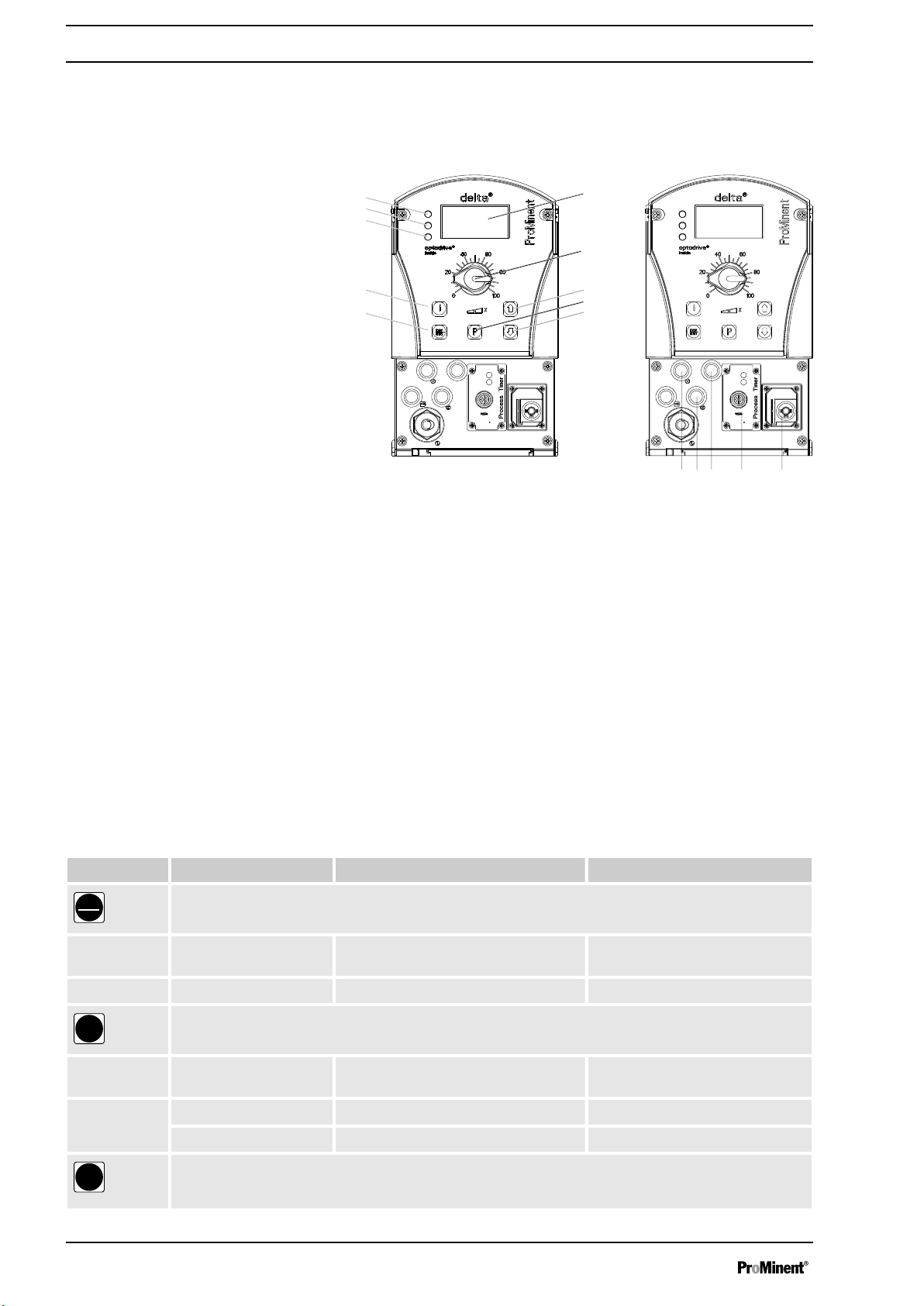

Fig. 4: a) Displays and keys, b) Electrical control connections

1 LCD display 2 Stroke length adjustment knob 3 Key 4 Key 5 Key 6 Key 7 Key

[UP] [P] [DOWN] [STOP/START] [i]

8 Operating indicator (green) 9 Warning indicator (yellow) 10 Fault indicator (red) 11 "External control" jack 12 "Dosing monitor" jack 13 "Level Switch" jack 14 "Diaphragm rupture reporter" jack 15

Optional module slot (timer, PROFIBUS®, CAN-Bus)

16 Relay and mA-output (option)

5.2.1 Key functions

Key Application In continuous displays (operation) In adjustment mode (set up)

[STOP/ START]

start pump start pump

Pressed briefly Stop pump, Stop pump,

[P]

Pressed briefly Start batch (only in

‘ Batch’

operating

mode), acknowledge fault

Pressed for 2 s Change to adjustment mode -

Pressed for 3 s - Jump to continuous display

Confirm entry - jump to next menu point or to continuous display

Page 17

10548

Analog

200

/min

Stop

Aux

cal

Device overview and control elements

Key Application In continuous displays (operation) In adjustment mode (set up)

[i]

Pressed 2x - Under "Changing individual num‐

Press and hold Change to the secondary display -

[UP], [DOWN]

Pressed simultaneously Suction (in continuous display "Stroke

Pressed 1x Change between the continuous dis‐

Individually pressed (until double arrow appears)

plays

Changing directly changeable varia‐ bles

rate")

Change between "Changing indi‐ vidual numbers" and "Changing a number"

bers": jump to the first number

Select another setting, change individual number or number.

At the top end of a selection, effect similar to an ESC key.

5.2.2 Stroke length adjustment knob

The stroke length can be adjusted using the stroke length adjustment knob and with it the volume per stroke.

5.2.3

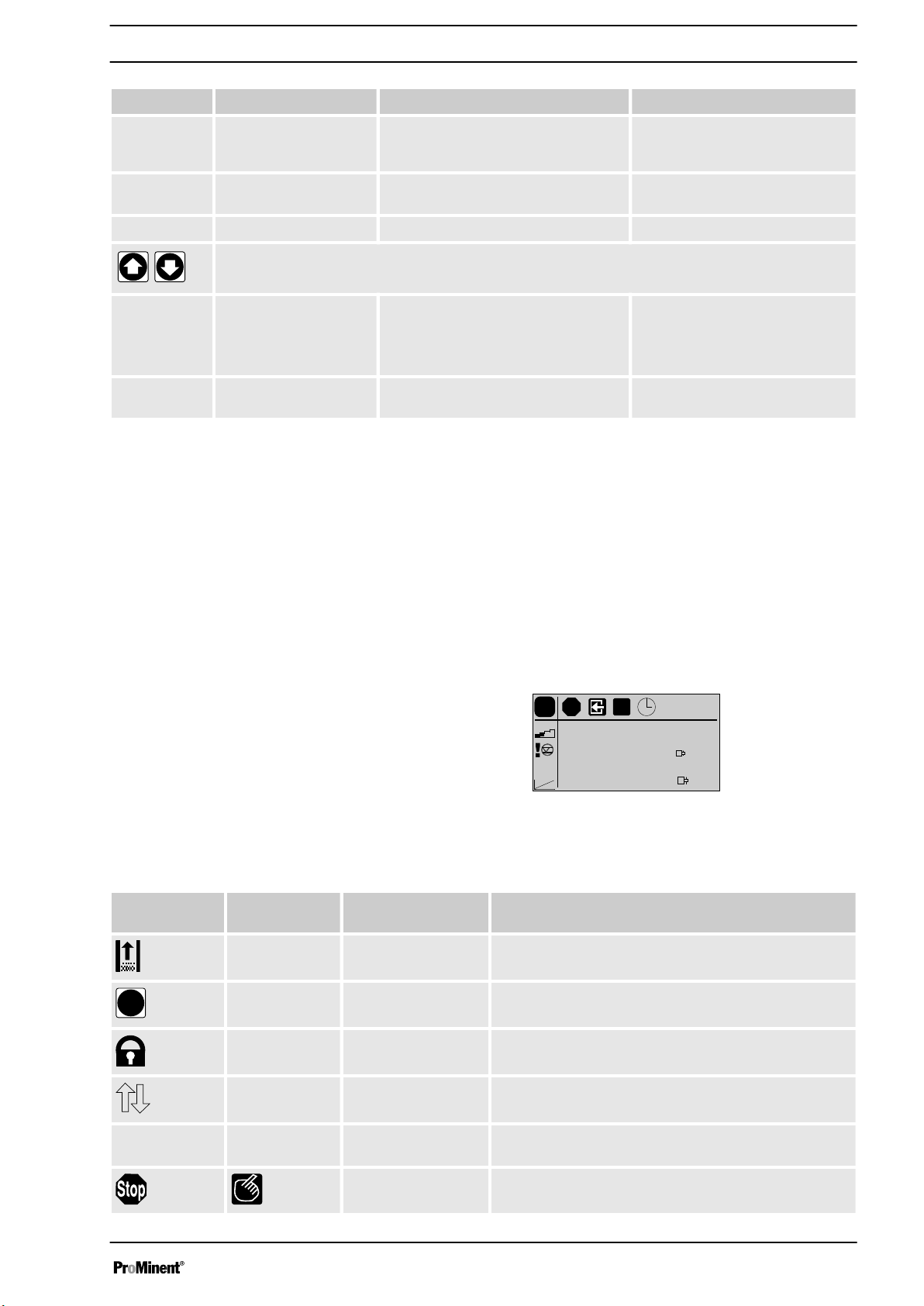

Symbol Additional

Identifiers

symbol

Priming: The pump is currently priming (both arrow keys pressed).

Symbol for P-key: The pump is in adjustment mode.

Lock symbol: Lock (if a code was set. Flashes).

The LCD screen supports the operation and adjustment of the pump with different identifiers:

Fig. 5

The identifiers have the following meanings:

Name Meaning

Double arrow symbol: The value in the continuous display can be changed with

Info symbol: It is possible to change between continuous displays.

Stop: The pump was stopped using the

the arrow keys.

(i.e. manually).

[STOP/START]

key

Page 18

p -

0..200..20

4..204..20

i < 4i < 4

Device overview and control elements

Symbol Additional

symbol

Aux: The pump is currently pumping with the auxiliary rate as

Fault: A fault has occurred, which has stopped the system.

Stroke length: The pump is set to

Stroke length adjust‐

Diaphragm rupture: The diaphragm is broken. The message appears as a

Name Meaning

Pause: The pump was externally stopped by the Pause contact.

the stroke rate.

During this time, the pump is in operating mode

‘Manual.’

ment:

mode is also active (less than 61 stroke/min). Below 30

‘Dosing’ ‘slow’

strokes/min the operating indicator flashes during opera‐ tion and illuminates for slightly longer at the end of each stroke.

The symbol relates to the symbol, which is located beneath the stroke adjustment dial.

Deviation in the stroke length from the value set at the time of the last locking of the adjustment menu.

warning or fault, dependent upon the setting.

The symbol represents a section through the membrane.

and this metering

Air lock: There is air in the liquid end. The message appears as a

Level: The "Warning" level in the storage tank was undershot. If

Flow: A flow control is connected. Together with a call sign, the

Contact: The pump is in operating mode

Contact signal: The pump is in operating mode

Overpressure moni‐

toring:

Low pressure: There is a leak or a burst or torn line on the discharge

Memory: The pump is in operating mode

warning or fault, dependent upon the setting.

The symbol represents a liquid end with air bubbles in it.

the symbol flashes, the level has fallen below the "Fault" level in the storage tank and the pump stops.

symbol indicates problems with the flow.

‘Contact’

The symbol closes every time a contact signal is gener‐ ated.

‘Batch’

The symbol flashes every time a contact signal is gener‐ ated.

A constriction or a closed shut-off valve on the discharge side allows the pressure to increase above the maximum permissible operating pressure. The message appears as a warning or fault, dependent upon the setting.

side. The message appears as a warning or fault, dependent upon the setting.

‘Contact’

auxiliary function "Memory" has been set.

‘Batch’

: the

0...20 mA: The pump is in operating mode

4...20 mA: The pump is in operating mode

i less than 4 mA: Problems with the standard signal at the standard signal

type

‘0...20’

is set.

type

‘4...20’

is set.

input e.g. broken cable.

‘Analog’

. The processing

Page 19

i > 23i > 23

Device overview and control elements

Symbol Additional

symbol

i greater than 23 mA: The standard signal at the standard signal input indicates

Line: The pump is in operating mode

Upper sideband: The pump is in operating mode

Lower sideband: The pump is in operating mode

Name Meaning

a fault with the connected unit.

The processing type

type

‘Curve’-‘Lower sideband’

The pump only shows the metering volume and the capacity in the calibrated state in l or l/h or in gal or gal/h.

‘Analog’

‘Curve’-‘Line’

‘Analog’

is set.

‘Curve’-‘Upper sideband’

‘Analog’

is set.

. The processing

is set.

Page 20

P_DE_0006_SW

a) b)

Functional description

6 Functional description

6.1

Liquid End

The dosing process is performed as follows: The diaphragm is pressed into the dosing head; the pressure in the dosing head closes the suction valve and the feed chemical flows through the discharge valve out of the dosing head. The diaphragm is now drawn out of the dosing head; the dis‐ charge valve closes due to the negative pressure in the dosing head and fresh feed chemical flows through the suction valve into the dosing head. One cycle is completed.

6.2 Drive unit

The displacement body is driven by an electromagnet, which is controlled by an electronic control.

optoDrive® drive technology

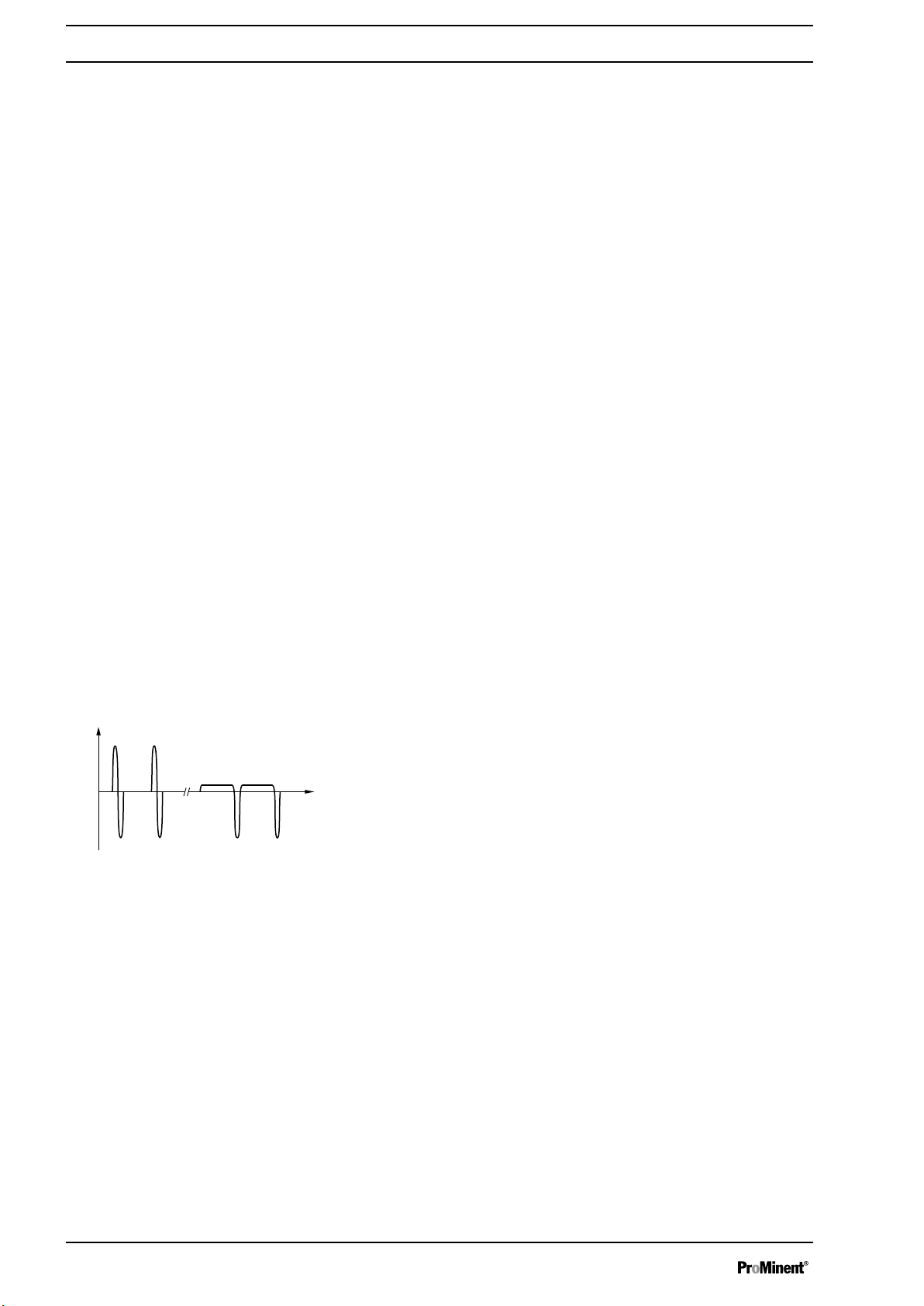

Fig. 6: Metering types: a) pulsing, b) nearly continuous

The optoDrive® drive technology means the variation over time of the metering flow can be precisely matched to the requirements of the partic‐ ular application. Hence the user can, dependent on requirements, set a slow discharge stroke for nearly continuous metering or a quick stroke e.g. for quick clocked filling processes. In both operating modes it is possible, to selectively also slow the suction stroke, see figure. In this way, it is pos‐ sible to prevent the main cause for imprecise metering with high viscosity feed chemicals, namely the incomplete filling of the liquid end. For the case of gaseous feed chemicals, the slow suction stroke prevents cavita‐ tion and consequently increases metering accuracy. Oscillations in the back pressure in the metering line, which could lead to undesirable varia‐ tions in the metering volume, are automatically compensated for by the drive. Consequently, a dosing precision is attained, which otherwise could only be achieved using a complex control circuit.

p Pressure t Time

The integral injection point monitoring of the hydraulic metering parame‐ ters, optoGuard® is integrated in the drive. It automatically detects blocked points of injection or broken metering lines. Consequently, dependent on the hydraulic installation situation, separate relief valves and pressure sen‐ sors need not be used, and no uncontrolled metering through a broken line occurs. It also detects air or gases (airlock) trapped in the liquid end. This prevents metering of incorrect quantities and thus increases process reliability. The relevant messages are shown on the pump's display. The system operator can determine, depending on the type of fault, whether a message is to be sent to the process control system via the fault signal relay and whether metering is automatically stopped.

6.3 Capacity

The capacity is determined by the stroke length and rate.

Page 21

6.4 Operating modes

Functional description

The stroke length is adjusted by the stroke length adjustment knob within a range of 0 ... 100 %. A stroke length of between 30 ... 100 %) is recom‐ mended to achieve the specified reproducibility.

The stroke rate can be set using the arrow keys (not in "Analog" operating mode) in the range 0 - 200 strokes/min (200 strokes/min h). The "Stroke rate (strokes / min)" continuous display shows decimal places if a stroke frequency is set in the "Stroke rate (strokes / h)" contin‐ uous display, which cannot be divided by 60 without a remainder.

Data Value Unit

Recommended stroke length 30 ... 100 %

The stroke speed can be set in the "Dosing" menu.

Operating modes are selected via the "Operating modes" menu.

≜12,000 strokes/

"Manual" operating mode

"Batch" operating mode

Operating mode "Contact"

"Analog" operating mode

6.5 Functions

The stroke rate is set manually via the control unit.

This operating mode provides the option of working with large transfer fac‐ tors (up to 65535). Metering can be triggered by pressing the button by a pulse received via the "External control" jack through a contact or a semiconductor switching element. A metering volume (batch) or a number of strokes can be selected in the

This operating mode offers the option of activating the pump externally by means of potential-free contacts (e.g. by means of a contact water gauge). The number of strokes (reducing or transfer factor 0.01 to 99.99) can be pre-selected in the

The stroke rate is controlled using an analog current signal via the "External control" jack. Processing of the current signal can be preselected via the control unit.

The following functions can be selected vin the menu

‘Settings’

menu using the

[arrow keys]

‘Settings’

[arrow keys]

[P]

"Calibrate" function

"Auxiliary rate" function

"Flow" function

The stroke rate is controlled using an analog current signal via the "External control" jack. Processing of the current signal can be preselected via the control unit.

The pump can also be operated in the calibrated state in all operating modes. The corresponding continuous displays can then either display the metering volume or the capacity (in the 2nd level continuous display). The calibration remains valid over the entire stroke rate range and over a stroke length range from 0 - 100 %.

This enables switching to an adjustable stroke rate which can be fixed in the

‘Settings’

quency has priority over the operating mode stroke rate settings .

This monitors the flow in "pulsing" dosing mode after every individual stroke, if a dosing monitor is connected. The number of sequential faulty strokes above which it is to be stopped, can be set in the

menu via the "External control" jack. This auxiliary fre‐

‘Settings’

menu.

Page 22

Functional description

The following functions are available as standard:

"Level switch" function

"Pause" function

"Stop" function

"Priming" function

6.6 Relay (options)

"Fault indicating relay" option

Information about the liquid/powder level in the feed chemical container is reported to the pump. To do so, a two-stage level switch must be fitted; it is connected to the "Level switch" jack.

The pump can be remotely stopped via the "External control" jack.

The following functions are triggered by a key press:

The pump can be stopped by pressing the key disconnecting it from the power supply.

Priming (short-term transport at maximum frequency) can be triggered by simultaneous pressing of the two

The pump has several connection options for:

The relay can, in the event of fault or warming alerts or messages (e.g.

‘Warning level’

The relay can be retrofitted through a knock-out opening in the pump foot refer to "Retrofitting relays".

), close a connected electric circuit (e.g. for an alarm horn).

[arrow keys]

[STOP/START]

, without

"Fault indicating and pacing relay" option

"Automatic bleed" option

"mA output" option

6.7

Functional and fault Indicator

This combined relay can generate a contact with each stroke via its pacing relay in addition to its function as a fault indicating relay.

The relay can be retrofitted through a knock-out opening in the pump foot refer to "Retrofitting relays".

The function "Bleeding" is used for controlled bleeding of the liquid end, if the pump is provided with the option "Automatic bleed". The "Automatic bleed" option can be retrofitted, i.a. via a knock-out in the control unit.

There are two versions:

n version with only 1 relay - to control the bleed valve. n Version with only 2 relays - one relay to control the bleed valve and

one relay free for other uses.

The I signal of the current output signals the currently calculated pump metering volume. The option "mA output" can be retrofitted via a knock-out in the control unit.

The option additionally always provides a fault indicating relay or a pacing relay.

The operating and fault statuses are indicated by the three LED indicators and the "Fault" identifier of the LCD screen, see also the "Troubleshooting" chapter.

Page 23

6.8 LCD display

LED indicators

6.9

Functional description

If a fault occurs, the identifier "Fault" appears as well an additional, explan‐ atory symbol.

Fault indicator (red)

Warning indicator (yellow)

Operating indicator (green)

The fault indicator lights up if the liquid level in the chemical feed container falls below the second switching point of the level switch ( filling level in the chemical feed container).

This LED flashes in the event of an undefined operating mode.

The warning indicator lights up if the fluid level in the chemical feed con‐ tainer falls below the first switching point of the level switch.

The operating indicator lights up if the pump is ready for operation and there are no fault or warning alerts. It goes out quickly as soon as the pump has performed a stroke. It starts to flash as soon as the stroke rate falls below 30 strokes / min.

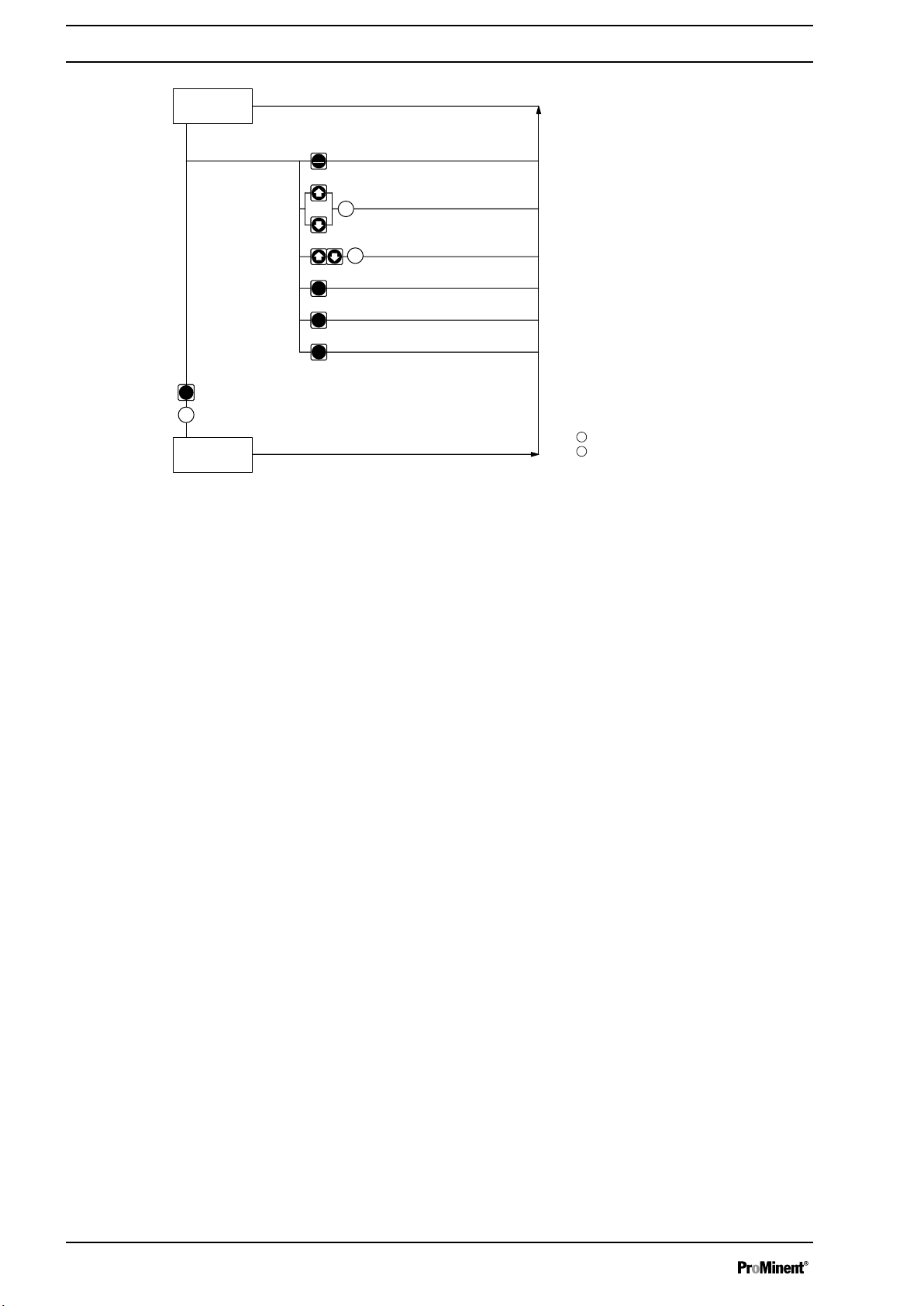

6.10 Hierarchy of operating modes, functions and fault statuses

The different operating modes, functions and fault statuses have a dif‐ ferent effect on if and how the pump reacts.

The following list shows the order:

1. - Priming

2. - Fault, Stop, Pause

3. - Auxiliary rate

4. - Manual, Analog, Contact, Batch

20 mm residual

Comments:

re 1 - "Priming" can take place in any mode of the pump (providing it is

functioning).

re 2 - "Fault", "Stop" and "Pause" stop everything apart from "Priming".

re 3 - The stroke rate of "Auxiliary rate" always has priority over the

stroke rate specified by an operating mode or priority 4.

Page 24

Assembly

7 Assembly

–

Compare the dimensions on the dimensional drawing and pump.

WARNING! Danger of electric shock If water or other electrically conducting liquids penetrate into

the drive housing, in any other manner than via the pump's suction connection, an electric shock may occur.

– Position the pump so that it cannot be flooded.

CAUTION! Danger from incorrectly operated or inadequately maintained

pumps Danger can arise from a poorly accessible pump due to

incorrect operation and poor maintenance.

– Ensure that the pump is accessible at all times. –

Adhere to the maintenance intervals.

Capacity too low The liquid end valves can be disturbed by vibrations.

–

Secure the metering pump to ensure that no vibrations can occur.

Capacity too low If the valves of the liquid end do not stand vertically upwards,

they cannot close correctly.

–

Suction and discharge valves must stand vertically upwards (for self-bleeding liquid end, the bleed valve).

Mount the metering pump with the pump foot on a horizontal, level and load-bearing supporting surface.

Page 25

8 Hydraulic installation

Safety notes

Hydraulic installation

CAUTION! Warning of feed chemical spraying around An unsuitable feed chemical can damage the parts of the

pump that come into contact with the chemical.

– Take into account the resistance of the wetted materials

when selecting the feed chemical - see the ProMinent product catalogue or visit www.prominent.com/en/down‐ loads.

CAUTION! Warning of feed chemical spraying around Pumps which are not fully installed hydraulically can eject

feed chemicals from the outlet openings of the discharge valves as soon as they are connected to the mains.

– The pump must first be hydraulically installed and then

electrically.

–

In the event that you have failed to do so, press the

[STOP/START]

switch.

button or press the emergency-stop

CAUTION! Warning of feed chemical spraying around Feed chemical can spray out of the hydraulic components if

they are manipulated or opened due to pressure in the liquid end and adjacent parts of the system.

– Disconnect the pump from the mains power supply and

ensure that it cannot be switched on again by unauthor‐ ised persons.

Depressurise the system before commencing any work

–

on hydraulic parts.

CAUTION! Danger from rupturing hydraulic components Peak loads during the dosing stroke can cause the maximum

permissible operating pressure of the system and pump to be exceeded.

– The discharge lines are to be properly designed.

CAUTION! Danger of personnel injury and material damage The use of untested third party parts can result in personnel

injuries and material damage.

– Only fit parts to metering pumps, which have been

tested and recommended by ProMinent.

Page 26

Hydraulic installation

8.1 Install hose lines

8.1.1

Safety information

Installation for metering pumps without bleed valve

CAUTION! Warning of feed chemical spraying around If the pipes are improperly installed, they can come lose or

burst.

– Route all hose lines so they are free from mechanical

stresses and kinks.

–

Only use original hoses with the specified hose dimen‐ sions and wall thicknesses.

– To ensure high durability of the connections, only use

clamp rings and hose nozzles that are intended for the hose diameter in question.

CAUTION! Danger resulting from rupturing hydraulic components Hydraulic components can rupture if the maximum permis‐

sible operating pressure is exceeded.

– Always maintain the maximum permissible operating

pressure of all hydraulic components - please refer to the product specific operating instructions and system documentation.

–

Never allow the metering pump to run against a closed shut-off device.

– Install a relief valve.

CAUTION! Hazardous feed chemicals can escape Hazardous or extremely aggressive feed chemicals can leak

out when using conventional bleeding procedures with metering pumps.

– Install a bleed line with recirculation into the storage

tank.

CAUTION! Hazardous feed chemicals can escape Hazardous or extremely aggressive feed chemicals can leak

out in the event that the metering pump is removed from the installation.

– Shut-off valves must be installed on the metering pump's

pressure and discharge sides.

CAUTION! Uncontrolled flowing feed chemicals Feed chemicals can leak through a stopped metering pump

in the event of back pressure.

– For this purpose, use an injection valve or vacuum

breaker.

Page 27

Install hose lines - design PP, NP, PV, TT

Hydraulic installation

CAUTION! Uncontrolled flowing feed chemicals Feed chemicals can leak through the metering pump in an

uncontrolled manner in the event of excessive priming pres‐ sure.

– The maximum priming pressure for the metering pump

may not be exceeded - please refer to the product-spe‐ cific operating instructions.

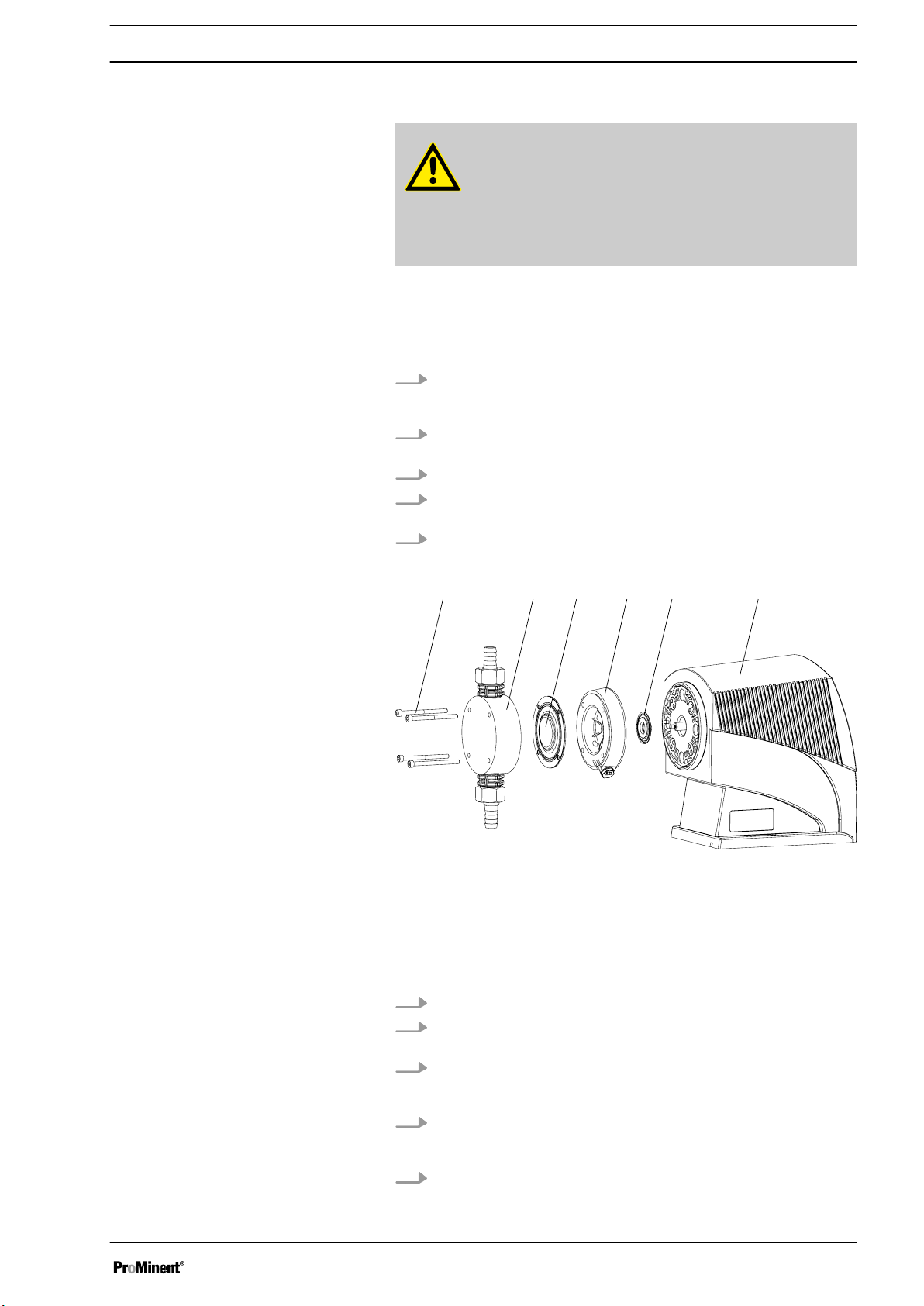

The pipes are to be aligned in such a way as the metering pump and the liquid end can be removed from the side, if necessary.

1. Cut off the ends of the hoses at right angles.

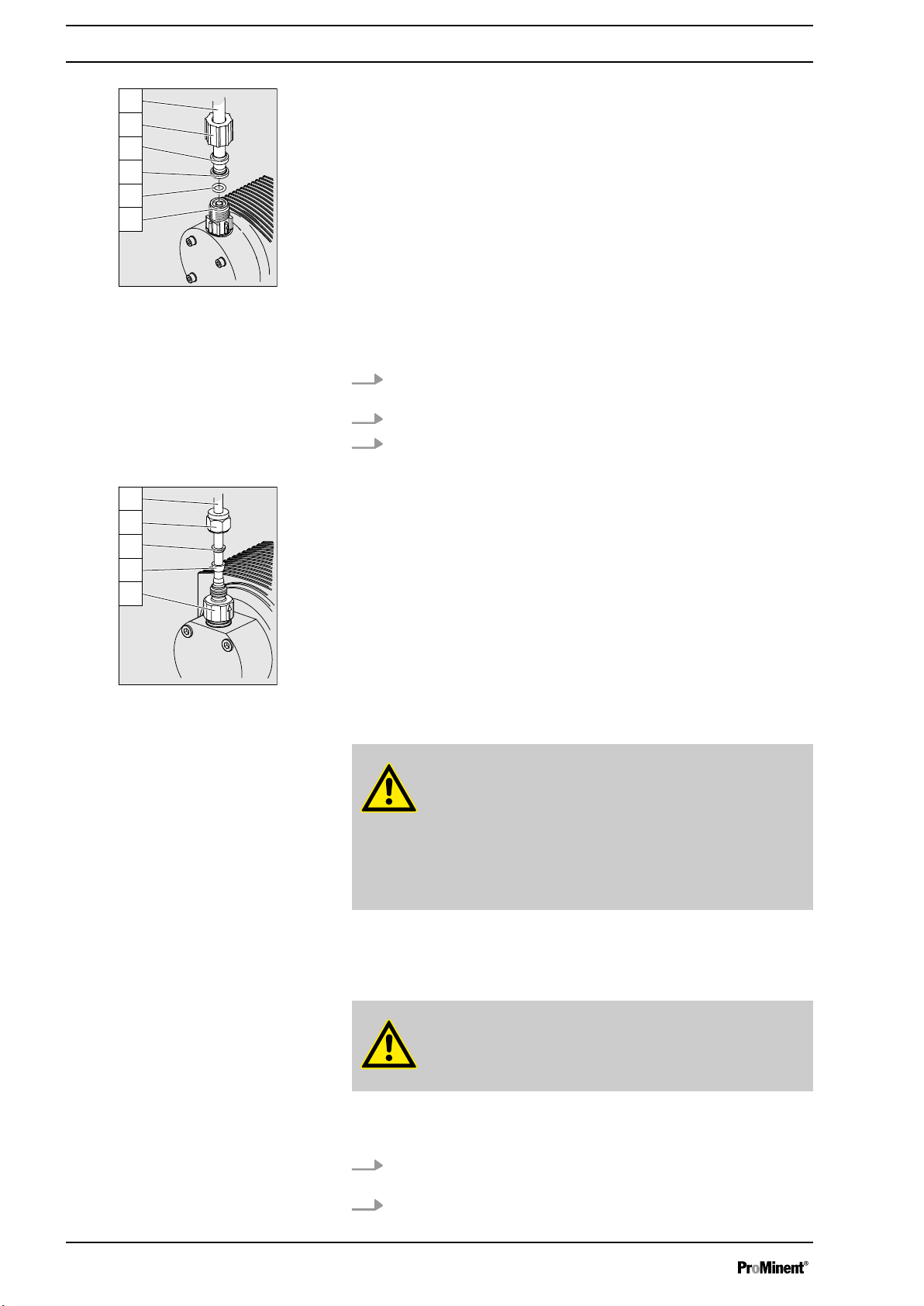

2. Pull the union nut (2) and clamp ring (3) over the hose (1) - see figure .

3. Push the hose end (1) up to the stop over the nozzle (4). Widen it, if necessary.

Ensure that the O-ring and flat seal (5) is properly fitted to the valve (6).

Used PTFE seals may never be re-used. An installa‐ tion sealed in this way will not be watertight.

The reason for this is that this type of seal is perma‐ nently distorted when subjected to pressure.

In order to enable it to be distinguished from the EPDM flat seal, the FPM flat seal design PV has a dot.

4. Place the hose (1) with the nozzle (4) onto the valve (6).

5. Clamp the hose connector: Screw the union nut (2) tight while simultaneously pressing on the hose (1).

6. Re-tighten the hose connector: Pull on the hose (1) briefly, which is fastened to the dosing head, and tighten up the union nut (2) once more.

Page 28

P_MAZ_0021_SW

P_MAZ_0022_SW

Hydraulic installation

Fig. 7: Designs PP, NP, PV, TT

Installing stainless steel pipe - design SS

1 Hose 2 Union nut 3 Clamp ring 4 Nozzle 5 O-ring and flat seal 6 Valve

1. Pull the union nut (2) and clamp rings (3, 4) over the pipe (1) with approx. 10 mm overhang - see .

2. Insert the pipe (1) up to the stop in the valve (5).

3. Tighten the union nut (2).

1 Pipe 2 Union nut 3 Rear clamp ring 4 Front clamp ring 5 Valve

Fig. 8: Design SS

Installing hose lines - design SS

CAUTION! Warning of feed chemical spraying around Connections can come free in the event that hose lines are

installed incorrectly on stainless steel valves.

– Only use PE or PTFE hose lines.

In addition, insert a stainless steel support insert into the

–

hose line.

8.1.2 Installation for metering pumps with bleed valve

Safety information

CAUTION! – All of the installation and safety notes for metering

pumps without bleed valves also apply.

Installation of the return line

A return line is connected in addition to the suction and discharge lines.

1. Fasten the tube line to the return line tube nozzle or to the liquid end bleed valve. PVC hose, soft, 6x4 mm is recommended for this.

2. Feed the free end of the return line back to the storage tank.

Page 29

8.2

P_MAZ_0001_SW

Basic installation notes

Safety notes

Hydraulic installation

3. Shorten the return line hose so that it cannot submerge into the feed chemical in the storage tank.

CAUTION! Danger resulting from rupturing hydraulic components Hydraulic components can rupture if the maximum permis‐

sible operating pressure is exceeded.

– Never allow the metering pump to run against a closed

shut-off device.

–

With metering pumps without integral relief valve: Install a relief valve in the discharge line.

CAUTION! Hazardous feed chemicals can escape With hazardous feed chemicals: Hazardous feed chemical

can leak out when using conventional bleeding procedures with metering pumps.

– Install a bleed line with a return into the storage tank.

Shorten the return line so that it does not dip into the feed chemical in the storage tank.

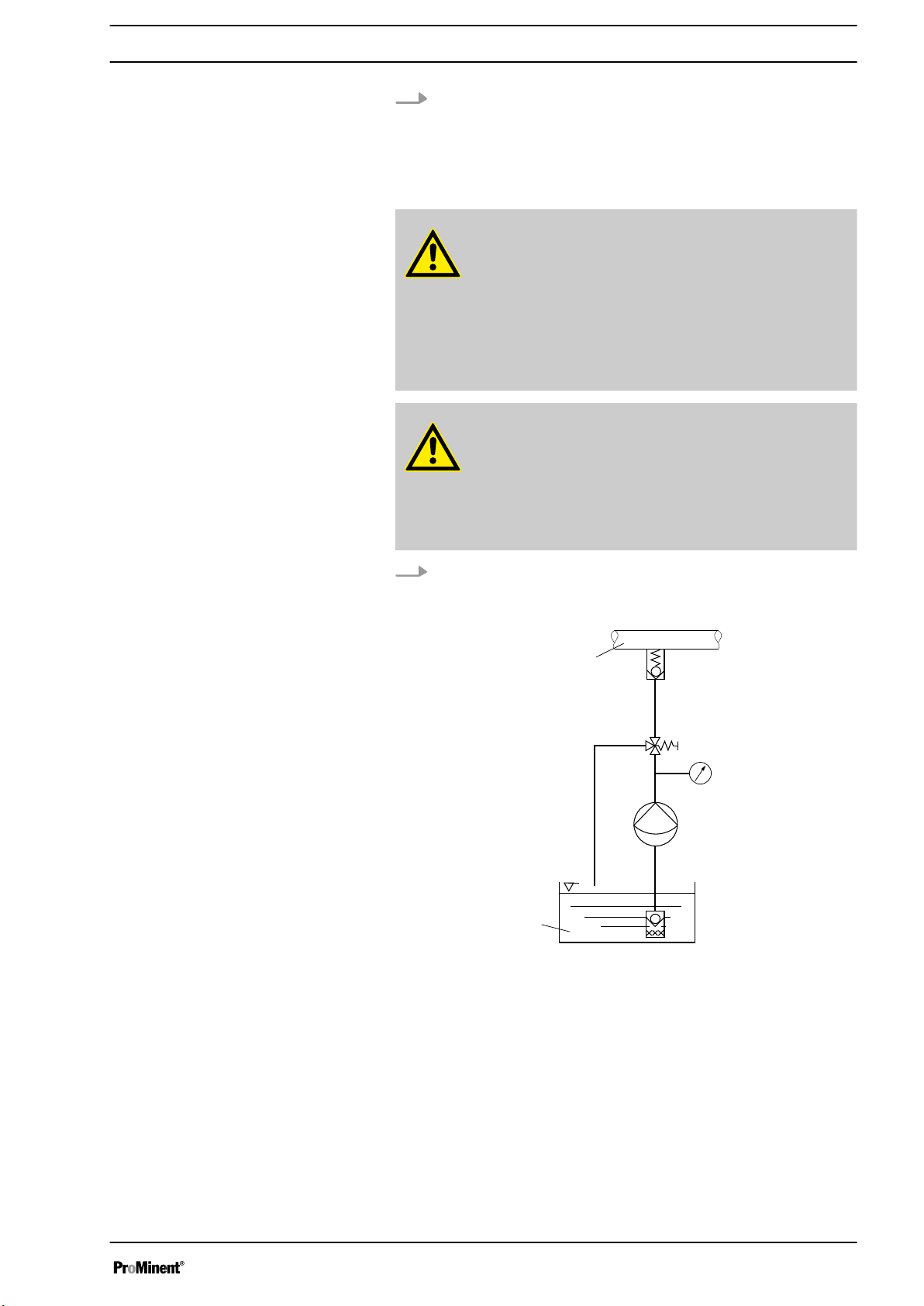

Fig. 9: Standard installation

1 Main line 2 Storage tank

Page 30

Hydraulic installation

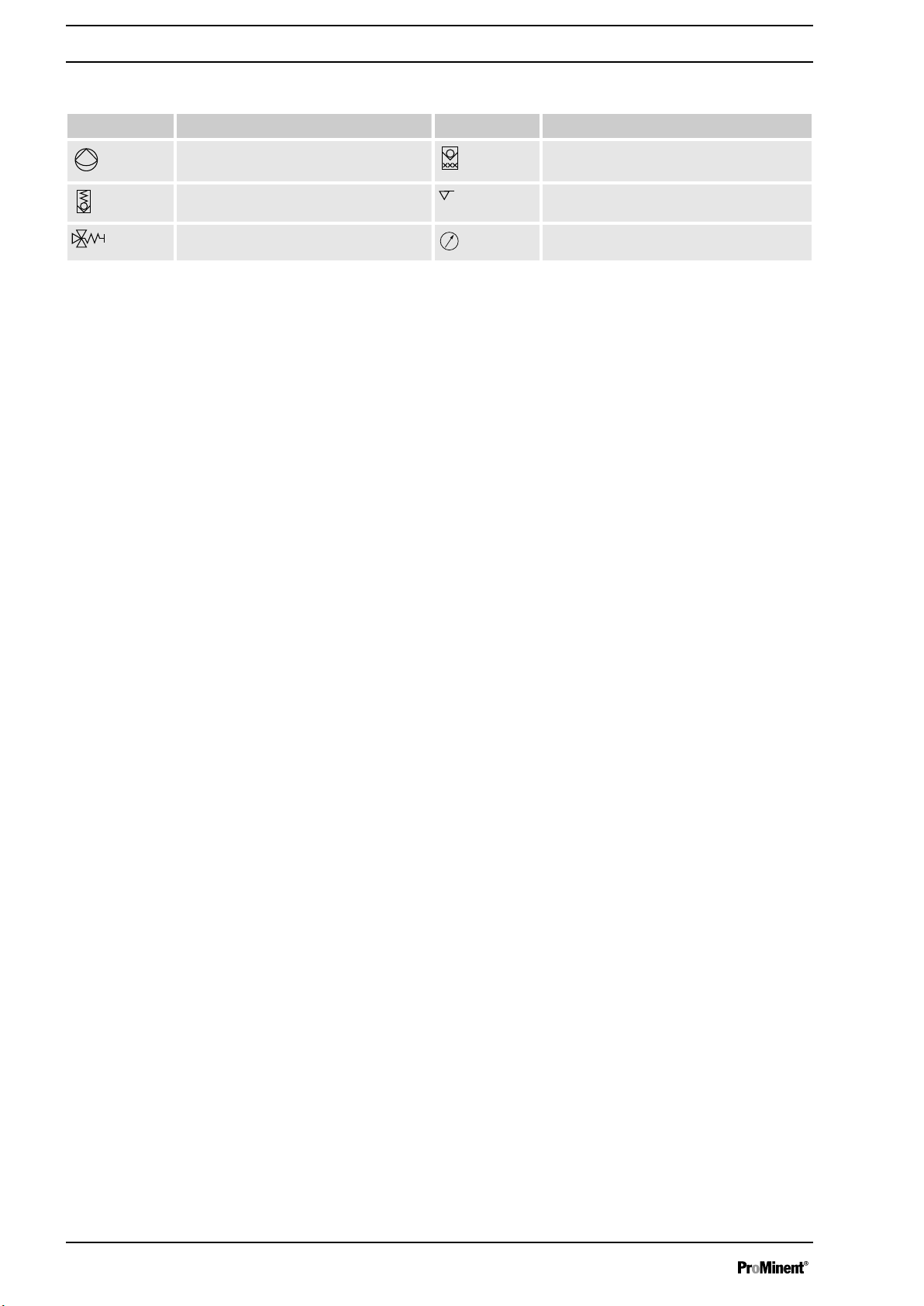

Legend for hydraulic diagram

Symbol Explanation Symbol Explanation

Metering pump Foot valve with filter meshes

Injection valve Level switch

Multifunctional valve Manometer

Page 31

9 Electrical installation

Electrical installation

WARNING! Danger of electric shock A mains voltage may exist inside the device.

– Before any work, disconnect the device's mains cable

from the mains.

WARNING! Risk of electric shock This pump is supplied with a grounding conductor and a

grounding-type attachment plug.

– To reduce the risk of electric shock, ensure that it is con‐

nected only to a proper grounding-type receptacle.

WARNING! Risk of electric shock In the event of an electrical accident, the pump must be

quickly disconnected from the mains.

– Install an emergency cut-off switch in the pump power

supply line or Integrate the pump in the emergency cut-off manage‐

–

ment of the system and inform personnel of the isolating option.

WARNING! Danger of electric shock Incompletely installed electrical options can allow moisture

into the inside of the housing.

– Knock-out openings in the pump housing must be

equipped with matching modules or be sealed in a leaktight manner.

WARNING! Danger of electric shock A mains voltage may exist inside the pump housing.

– If the pump housing has been damaged, you must dis‐

connect it from the mains immediately. It may only be returned to service after an authorised repair.

CAUTION! Risk of short circuiting caused by moist pins

No moisture must reach the pins of the PROFIBUS®

– A suitable PROFIBUS® plug or protective cap must be

screwed onto the PROFIBUS® jack.

jack.

Page 32

Electrical installation

CAUTION! Material damage possible due to power surges Should the pump be connected to the mains power supply in

parallel to inductive consumers (such as solenoid valves, motors), inductive power surges can damage the controller when it is switched off.

– Provide the pump with its own contacts and supply with

voltage via a contactor relay or relay.

Supply voltage connector

9.1

Personnel:

Install the pump in line with best working practice and in accordance with the operating instructions and applicable regulations.

WARNING! Unexpected startup is possible As soon as the pump is connected to the mains, the pump

may start pumping and consequently feed chemical may escape.

– Prevent dangerous feed chemicals from escaping. –

If you have not successfully prevented this, immediately press the from mains, e.g. via an emergency cu-off switch.

CAUTION! If the pump is integrated into a system: Design the system so

that potential hazardous situations are avoided by pumps starting up automatically subsequent to unintended power interruptions.

Electrician

[STOP/START]

key or disconnect the pump

Parallel connection to inductive con‐ sumers

Interference suppression aids

Connect the pump to the mains/power supply using the mains cable.

Should the pump be connected to the mains in parallel to inductive con‐ sumers (e.g. solenoid valves, motor), the pump must be electrically iso‐ lated when these consumers are switched off.

n Supply the pumps with voltage via a contactor relay or relay using

separate contacts for the pump.

n If this is not possible then connect a varistor (part no. 710912) or an

RC member, 0.22 µF / 220 Ω in parallel.

Product Part no.

Varistor: 710912

RC Gate, 0.22 µF / 220 Ω: 710802

Page 33

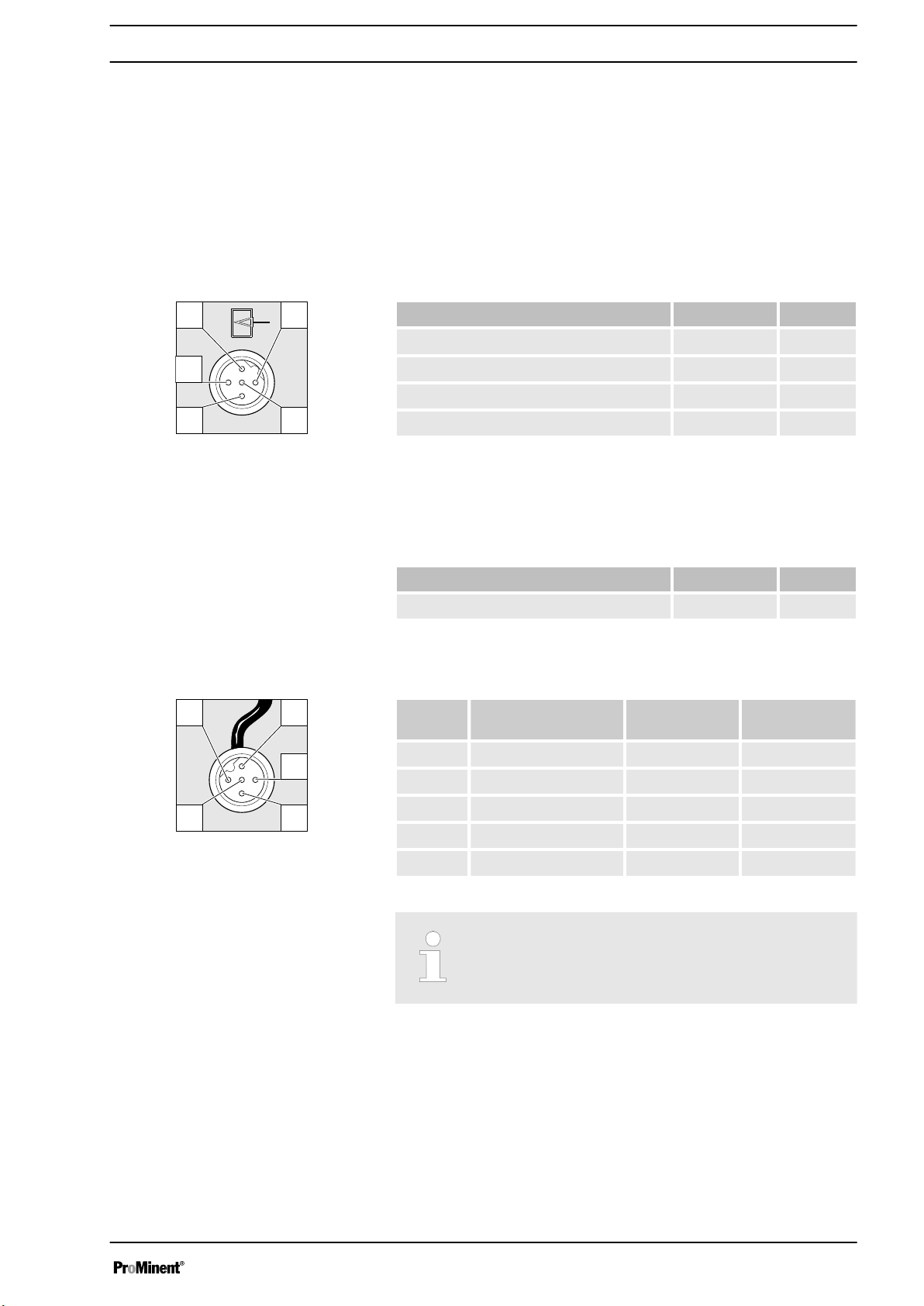

9.2 Description of the sockets

P_BE_0014_SW

P_BE_0015_SW

Electrical installation

9.2.1

"External control" terminal

Fig. 10: Pump pin assignments

The "external control" socket is a five-pin panel jack. It is compatible with two- and four-conductor cables.

Only use a five-pin cable with the "Auxiliary frequency" and "mA-input" functions.

Electrical interface for pin 1 "Pause" - pin 2 "External contact" - pin 5 "Aux‐ iliary frequency"

Data Value Unit

Voltage with open contacts 5 V

Input resistance 10 kΩ

Max. pulse frequency 25 pulse/s

Minimum pulse duration 20 ms

Control via:

n potential-free contact (load: 0.5 mA at 5 V) or n Semiconductor switch (residual voltage < 0.7 V)

Electrical interface for pin 3 "mA input" (with identity code characteristic "Control variant": 3, 5 and R)

Data Value Unit

Fig. 11: Cable conductor assignments

"Pause" function

Input apparent ohmic resistance, approx. 120 Ω

The metering pump makes its first metering stroke at approx. 0.4 mA (4.4

mA) and starts continuous operation at approx. 19.2 mA.

Pin Function 5-conductor

cable

1 Pause brown bridged at pin 4

2 External contact white brown

3 mA input* blue -

4 Earth / GND black white

5 Auxiliary frequency grey -

* with identity code characteristic "Control version": 3, 5 and R

2-conductor cable

Refer to the functional description for the hierarchy of func‐ tions and operating modes.

The pump does not work if:

n the cable is connected and pin 1 and pin 4 are open.

The pump works if:

n the cable is connected and pin 1 and pin 4 are connected. n no cable is connected.

Page 34

P_BE_0016_SW

P_BE_0017_SW

P_DE_0009_SW

Electrical installation

"External contact" operating mode

The pump performs one or more strokes if:

n Pin 2 and pin 4 are connected to each other for at least 20 ms. At the

same time, pin 1 and pin 4 must also be connected to each other.

"Auxiliary frequency" operating mode

9.2.2 "Level Switch" terminal

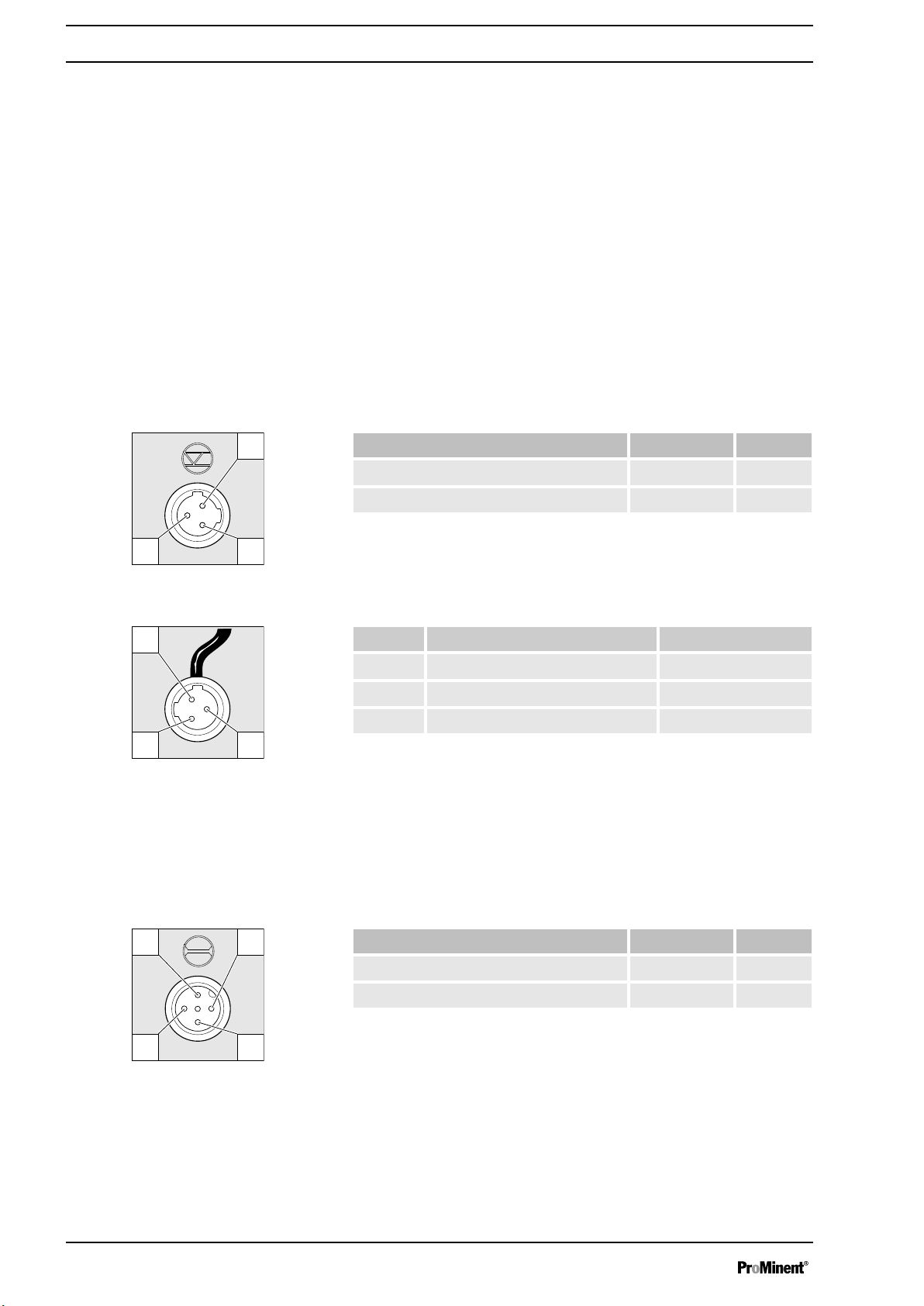

Fig. 12: Pump pin assignments

The pump works at a pre-set stroke rate if:

n Pin 5 and pin 4 are connected to each other. At the same time, pin 1

and pin 4 must also be connected to each other. The auxiliary fre‐ quency is factory-preset to the maximum stroke rate.

There is a connecting option for a 2-stage level switch with pre-warning and limit stop.

Electrical interface

Data Value Unit

Voltage with open contacts 5 V

Input resistance 10 kΩ

Control via:

n potential-free contact (load: 0.5 mA at 5 V) or n Semiconductor switch (residual voltage < 0.7 V)

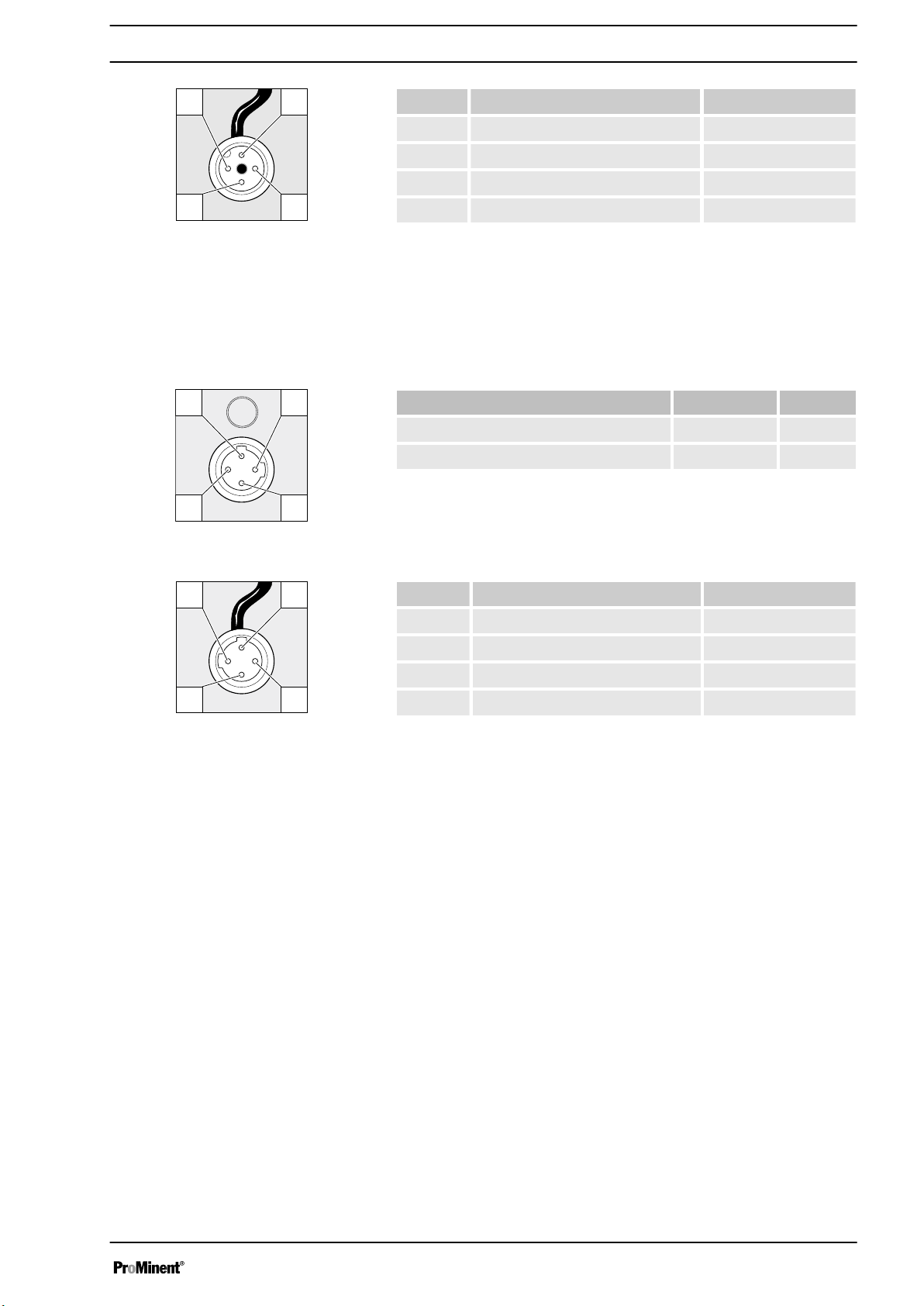

Fig. 13: Cable conductor assignments

9.2.3 "Dosing monitor" terminal

Pin Function 3-conductor cable

1 Earth / GND black

2 Minimum pre-warning blue

3 Minimum limit stop brown

There is a connecting option for a dosing monitor.

Electrical interface

Data Value Unit

Voltage with open contacts 5 V

Input resistance 10 kΩ

Control via:

n potential-free contact (load: 0.5 mA at 5 V) or

Fig. 14: Pump pin assignments

Page 35

Pin Function 4-conductor cable

P_DE_0010_SW

P_DE_0011_SW

P_DE_0012_SW

1 Power supply (5 V) brown

2 Coding white

3 Feedback blue

4 Earth / GND black

Fig. 15: Cable conductor assignments

9.2.4 "Diaphragm rupture sensor" terminal

There is a connecting option for a diaphragm rupture sensor.

Electrical interface

Data Value Unit

Voltage with open contacts 5 V

Input resistance 10 kΩ

Control via:

n potential-free contact (load: 0.5 mA at 5 V) or

Electrical installation

Fig. 16: Pump pin assignments

Pin Function 4-conductor cable

1 Power supply (5 V) brown

2 Coding white

3 Feedback blue

4 Earth / GND black

Fig. 17: Cable conductor assignments

9.3 Relay

9.3.1 "Fault indicating relay" output (identity code 1 + 3 or 6 + 7)

A fault indicating relay can be ordered as an option - refer to ordering information in the appendix. It is used to emit a signal when there is a fault with the pump and for the "Liquid level low, 1st stage" warning alert and "Liquid level low, 2nd stage".

A cut-off relay works when there are fault alerts from the pump and in the event of the "Liquid level low 2nd stage" alert.

The fault indicating relay can be retrofitted and is operational once attached to the relay board - refer to "Retrofitting Relays" supplementary operating instructions.

The behaviour is programmed ex factory. If another switching function is required, the pump can be reprogrammed in the

The relay can be retrofitted and operates once it is plugged into the relay board.

‘Relay’

menu.

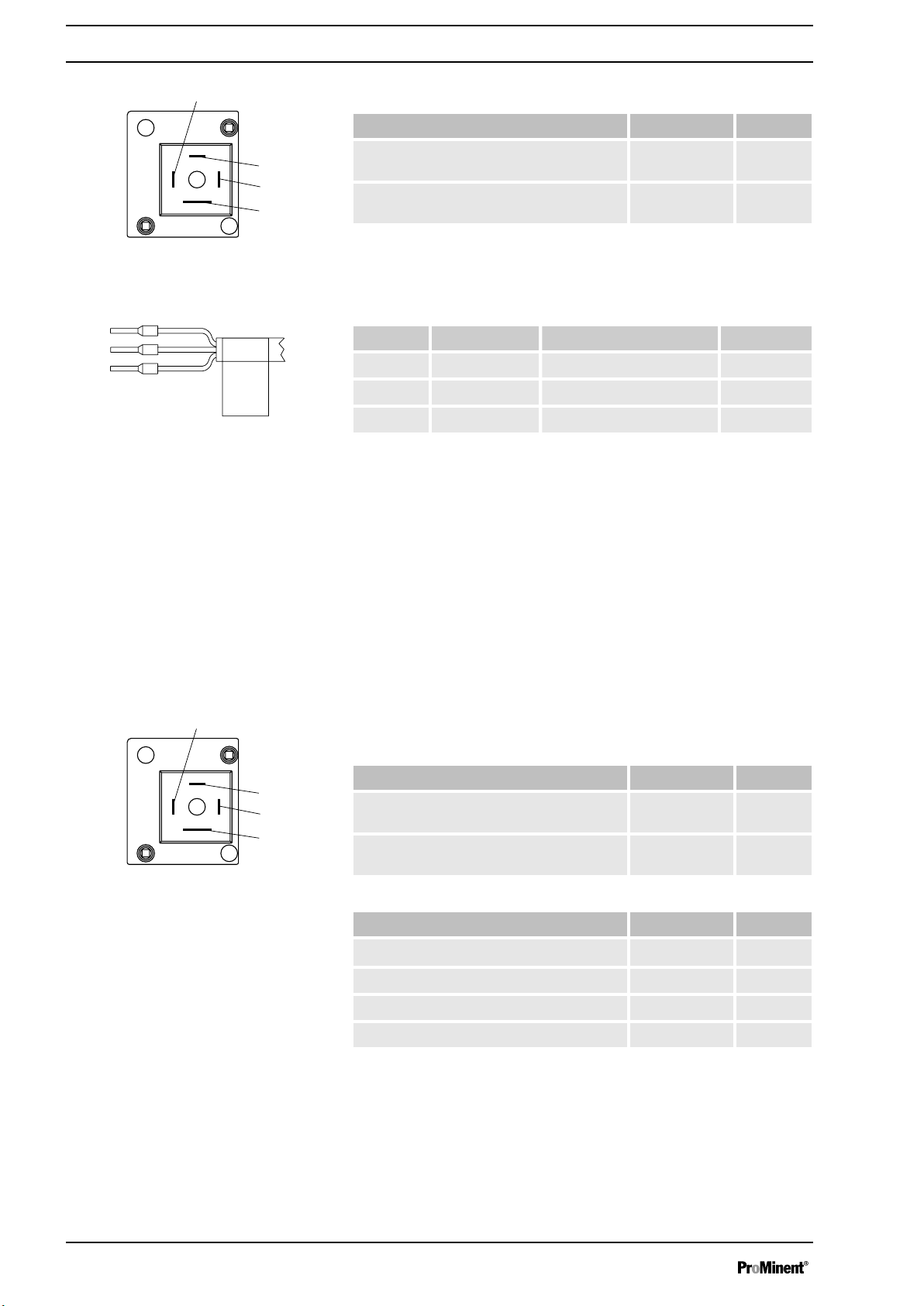

Page 36

P_SI_0010_SW

P_SI_0043

P_SI_0010_SW

Electrical installation

Electrical interface

Data Value Unit

Maximum contact load at 230 V and 50/60 Hz:

Minimum mechanical lifespan: 200 000 Switching

Fig. 18: Pump pin assignments

Identity code 1 + 3 or 6 + 7

To pin VDE cable Contact CSA cable

1 white NO (normally open) white

2 green NC (normally closed) red

4 brown C (common) black

Fig. 19: Cable conductor assignments

9.3.2 Output for other relays (identity code 4 + 5, 8 + 9, A + B)

A fault indicating and a pacing relay can optionally be ordered - refer to ordering information in the appendix. The pacing output is electrically-iso‐ lated by means of an optocoupler with a semiconductor switch. The second switch is a relay.

The behaviour is programmed ex factory. If another switching function is required, the pump can be reprogrammed in the

The fault indicating/pacing relay can be retrofitted and is operational once attached to the relay board - refer to "Retrofitting Relays" supplementary operating instructions.

‘Relay’

8 A

operations

menu.

Fig. 20: Pump pin assignments

Electrical interface

for fault indicating relay output:

Data Value Unit

Maximum contact load at 24 V and 50/60

2 A

Hz:

Minimum mechanical lifespan: 20,000,000 Switching

operations

for semiconductor switch pacing relay:

Data Value Unit

Residual voltage max. at I

= 1 µA 0.4 V

off max

Maximum current 100 mA

Maximum voltage 24 VDC

Pacing pulse duration, approx. 100 ms

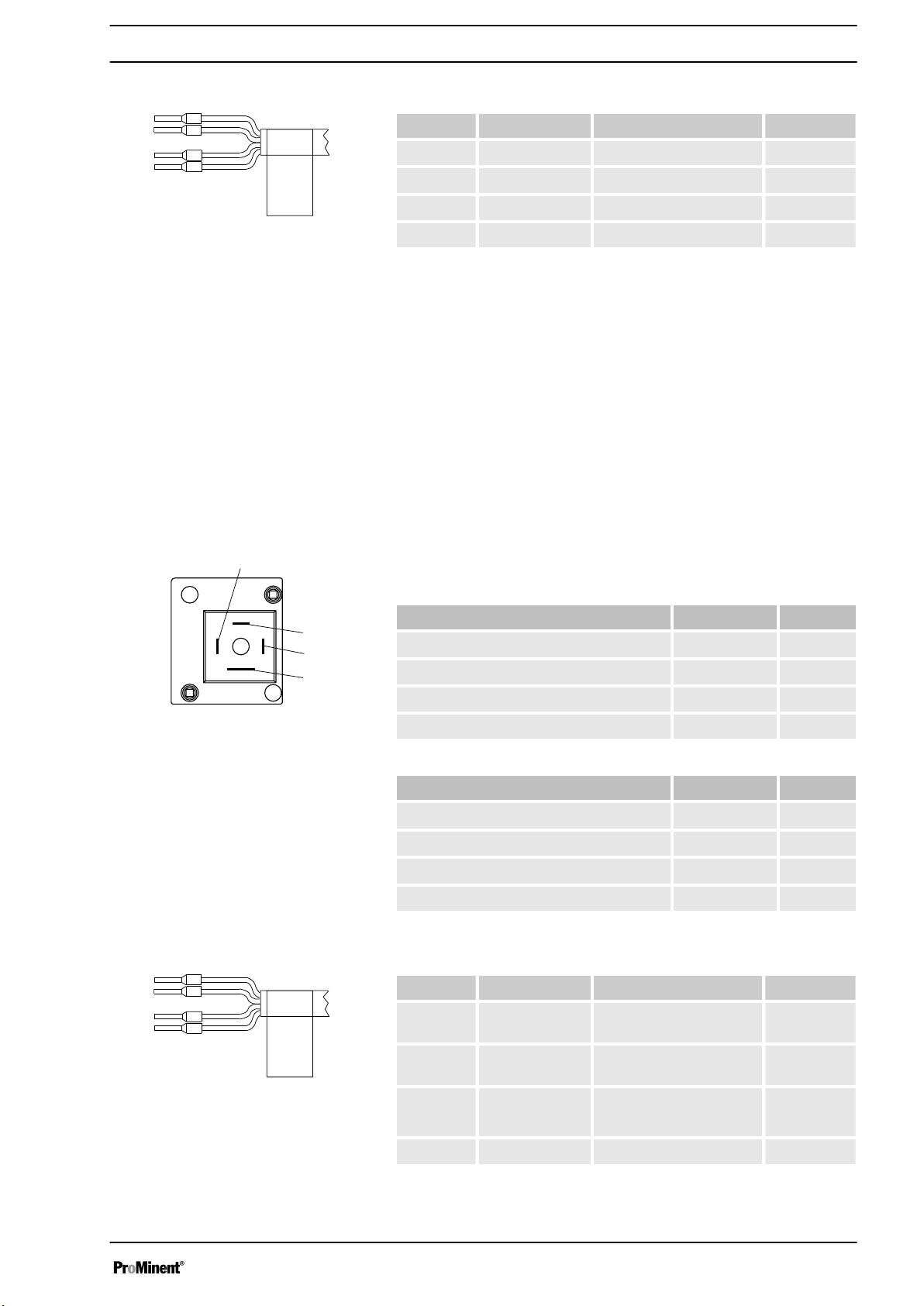

Page 37

Identity code 4 + 5, 8 + 9, A + B

P_SI_0044

P_SI_0010_SW

P_SI_0044

Electrical installation

To pin VDE cable Contact Relay

1 yellow NO (normally open) Other relay

4 green C (common) Other relay

3 white NO (normally open) Pacing relay

Fig. 21: Cable conductor assignments

2 brown C (common) Pacing relay

9.3.3 Output "Current output plus relay" (identity code C + D + E)

A relay combined with a current output can be optionally ordered. The relay switches either as a fault indicating relay when there is a fault with the pump and with "Liquid level low, 1st stage" warning alert and "Liquid level low 2nd stage" fault alert or is used as a pacing relay.

The behaviour is programmed ex factory. If another switching function is required, the pump can be reprogrammed in the

In the

‘ANALOG OUTPUT’

rent output can be selected.

The current output plus relay can be retrofitted and operates once it is plugged into the board.

Electrical interface

for current output

Data Value Unit

Open circuit voltage: 8 V

Current range: 4 ... 20 mA

menu, the variable to be signalled by the cur‐

‘Relay’

menu.

Fig. 22: Pump pin assignments

Identity code C + D + E

Fig. 23: Cable conductor assignments

Ripple, max.: 80 μA ss

Ripple, max.: 250 Ω

for semiconductor switch ("relay"):

Data Value Unit

Residual voltage max. at I

= 1 µA 0.4 V

off max

Maximum current 100 mA

Maximum voltage 24 VDC

Pacing pulse duration, approx. 100 ms

To pin VDE cable Contact Relay

1 yellow "+" Current

output

4 green "-" Current

output

3 white NC (normally closed) or

Relay

NO (normally open)

2 brown C (common) Relay

Page 38

3 s

Continuous

display

Auxiliar

Batch

100 /min

Settings

Batch

Batch Concentration Auxiliar Calibration

= flashes

= adjustment option

Set up

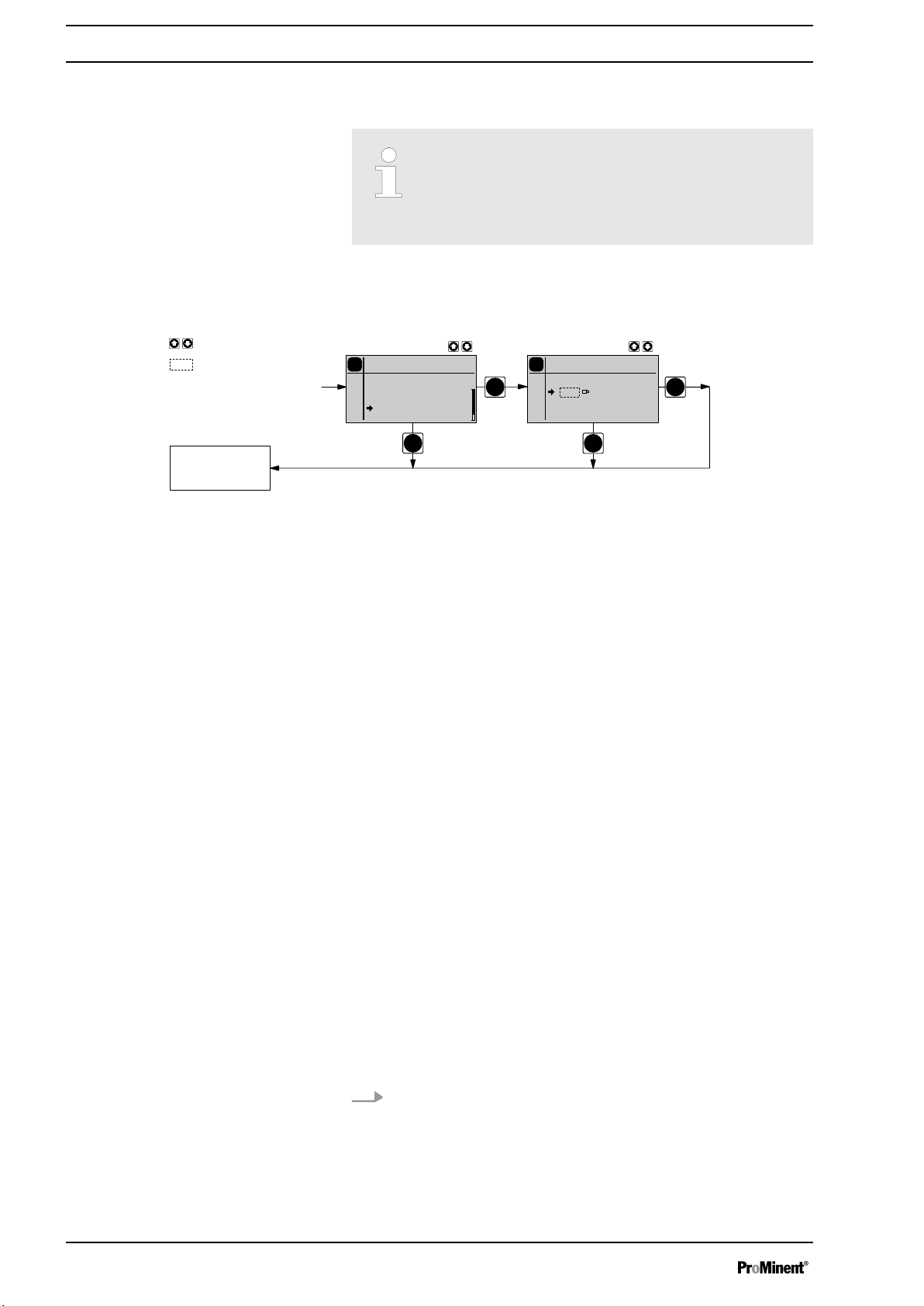

10 Set up

–

10.1 Basic principles of control adjustment

Please read the overviews in the appendix, "Control ele‐ ments and key functions" and "Operating/setting dia‐ gram" for supplementary information.

If no key is pressed for a 1 minute duration, the pump returns to a continuous display.

Confirming an entry

Quitting a menu option without confirming it

Jumping back to a continuous display

Changing adjustable values

Confirming adjustable values

Quickly press key

The display simultaneously changes to the next selection, to the next menu option or into a continuous display.

Press the (flashing beam).

You will jump back to the previous menu point or menu, at most back to the main menu.

Press and hold the

Entry is cancelled and you jump back to a continuous display.

Press the arrow keys

In this way the number between the flashing bars counts upwards or downwards.

Under "Changing a number": press key

The display simultaneously changes to the next selection, to the next menu option or into a continuous display.

[UP]

[P]

key in the top menu selection, if no entry has been started

[P]

key for 3 seconds.

[UP]

[DOWN]

[P]

1x.

10.2 Checking adjustable values

Continuous displays

Before you adjust the pump, you can check the actual settings of the adjustable variables:

Press the key uous display (The display does not contain the symbol for the key).

Each time you press the

display, an "i" can be seen at the top left.

[i]

("i" for "Info"), if the pump is displaying a contin‐

[i]

key, you see another continuous

[P]

Page 39

Set up

The number of continuous displays depends on the identity code, the selected operating mode and the connected addi‐ tional devices, see overview "Continuous displays" in the appendix.

Secondary displays

The lowest line of the Info displays (2nd level continuous display) various information, which cannot, however, be adjusted here, see overview "Sec‐ ondary displays" in the appendix...

If you are in a continuous display, you can access the bottom line of the info displays by:

1. pressing key

2. Keep key

3. As soon as it has reached it, quickly release the

10.3 Changing to adjustment mode

If the

[P]

changes to adjustment mode. If under then the access code entered (

The following menus can be initially chosen in adjustment mode - see also the overview "Operating/setting diagram":

n Menu n Menu n Menu n Menu n Menu

[i]

, provided that the top left double arrow is not visible.

[i]

into the bottom line of the LCD display.

diately page through the info displays in the bottom line by quickly pressing the

key is pressed for 2 seconds in a continuous display, the pump

‘Security’

pressed down until a small arrow appears and glides

[ i ]

key and imme‐

[ i ]

key.

(top left lock symbol), the

[Lock menu]

[arrow keys]

‘Lock all’

[P]

key must be pressed and

!).

have been set

‘Operation’ ‘Settings’ ‘Security’

(option)

‘Delete’ ‘Language’

To adapt the pump to your process requirements, you must:

1. Select the operating mode in the

2. Carry out the adjustment for this operating mode under the

‘Settings’

menu.

‘Operation’

menu.

Page 40

2 s

Continuous

display

Menu Mode

Security

Settings

Menu Clear

Language

Main

Analog

Mode Settings Security Clear

Continuous

display

Main

Analog

Mode Settings Security Clear

Mode

Analog

Manual Batch Contact Analog

0..20

Set up

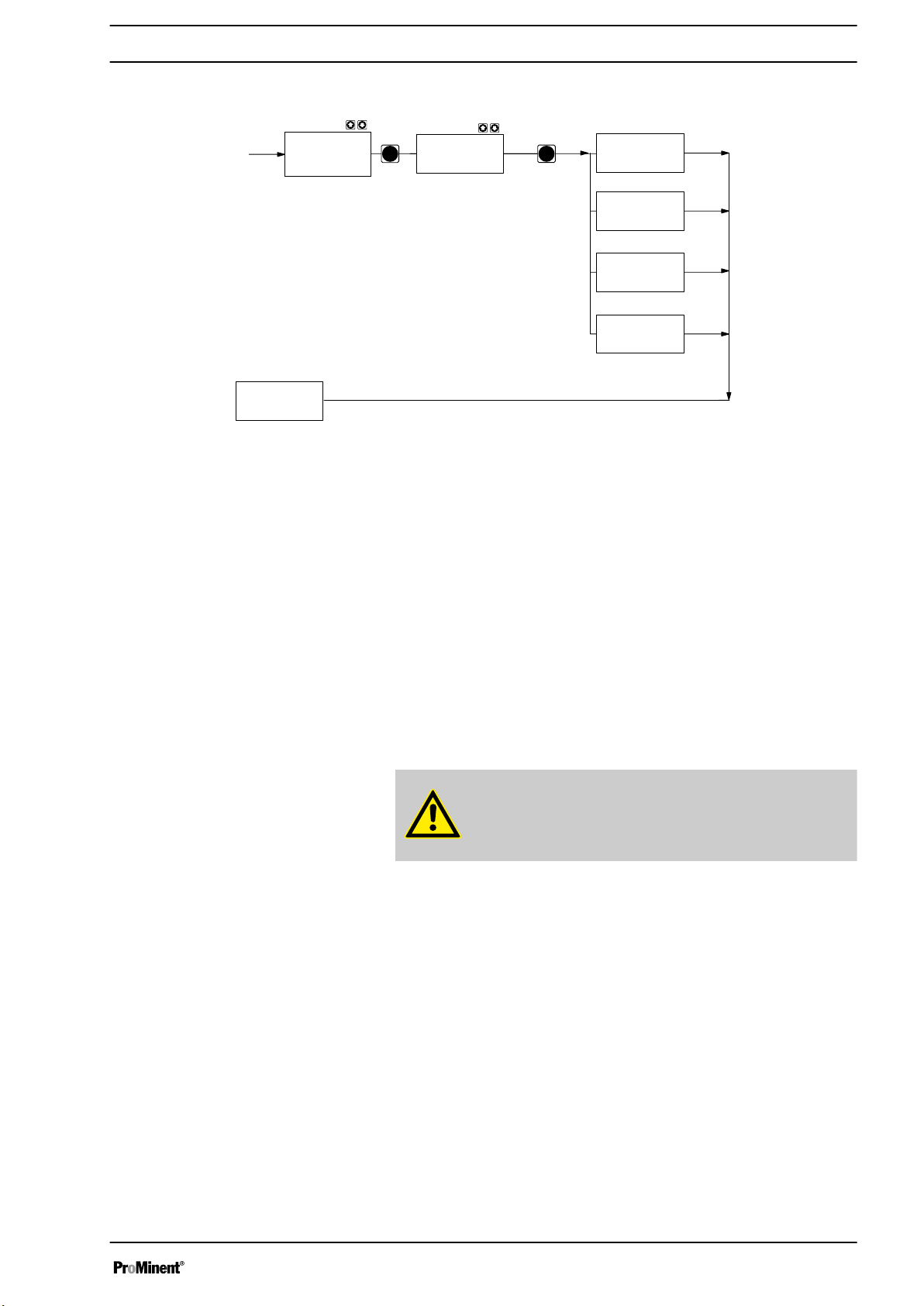

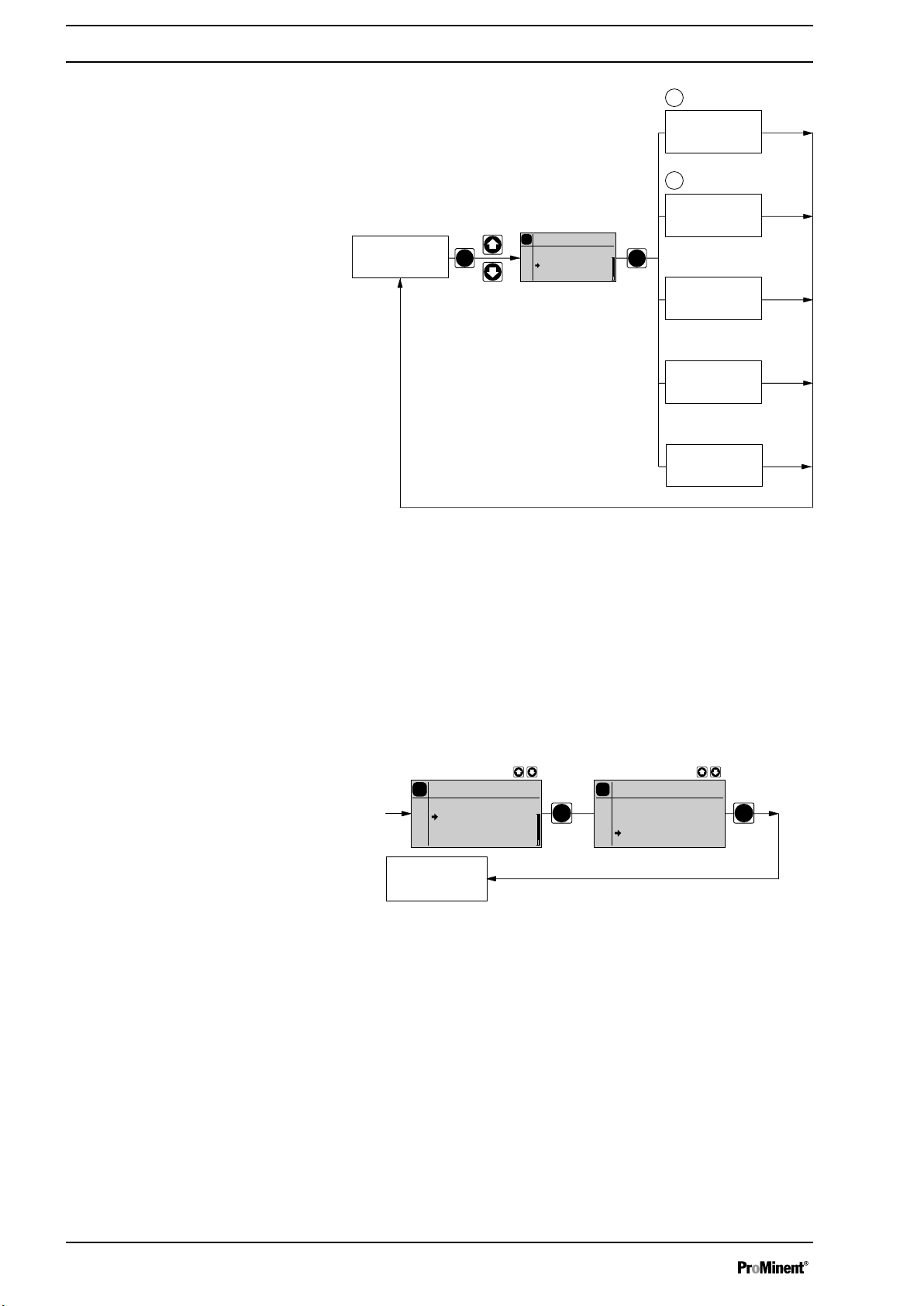

10.4 Selecting the operating mode (Menu "Mode")

10.5 Operating mode settings (menu "Settings")

In the

‘Operation’

menu (dependent on the identity code, some operating modes may not be present) the following operating modes can be selected:

n n n n

‘Manual’ ‘Batch’ ‘Contact’ ‘Analog’

: for manual operation

: for batch operation

: for contact operation

: for current control

Various settings can be adjusted in the selected operating mode.

Setting menus are available in all operating modes for the following pro‐ grammable functions:

‘Concentration’

‘Auxiliary frequency’

‘Calibration’

‘Metering’

‘System’

‘Settings’

menu dependent on the

Page 41

Continuous

display

Settings

Operating

mode**

Timer*

Profibus*

Concentration

Auxiliar

Menu Flow*

Calibration

Submenu

Settings

Submenu

Airlock

Submenu

High pressure

Submenu

Low pressure

Submenu

Unit

Submenu

Diaphragma

Submenu

Info

Submenu

Change

head?

Dosing

Bleeding*

Relay*

Analog

Out*

System

Main

Mode Settings Security Clear

Analog

Set up

For further details, see

("Settings" menu )’ on page 47

As to whether or not a further setting menu is available, depends on the selected operating mode and the connected devices or modules.

Ä Chapter 10.6 ‘Programmable function settings

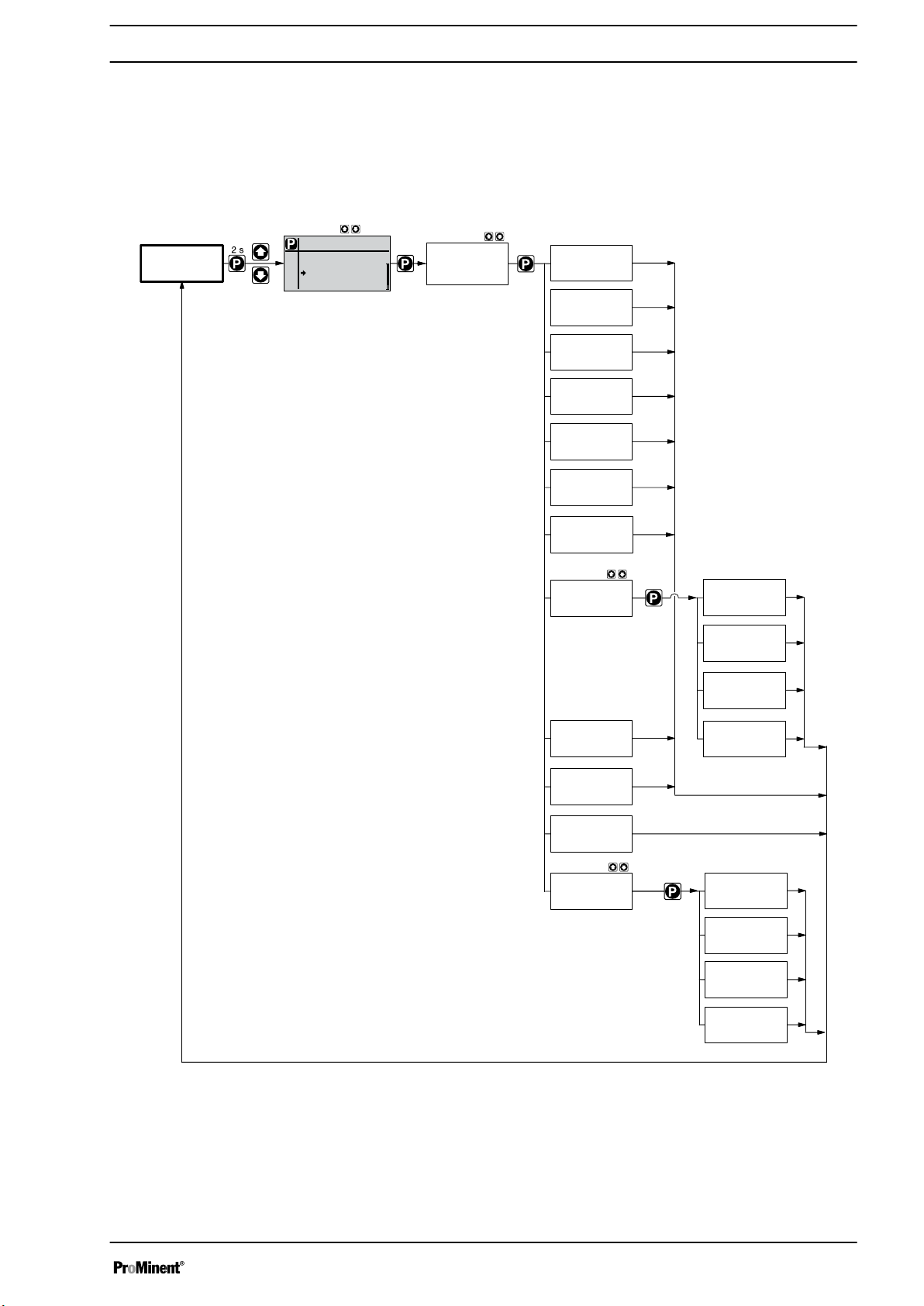

Fig. 24: "Settings" menu branch

Page 42

Continuous

display

Batch

Memory Factor

Settings

Batch

Batch Concentration Auxiliar Calibration

Main

Batch

Mode Settings Security Clear

Batch

off

Batch

Memory Factor

off

Set up

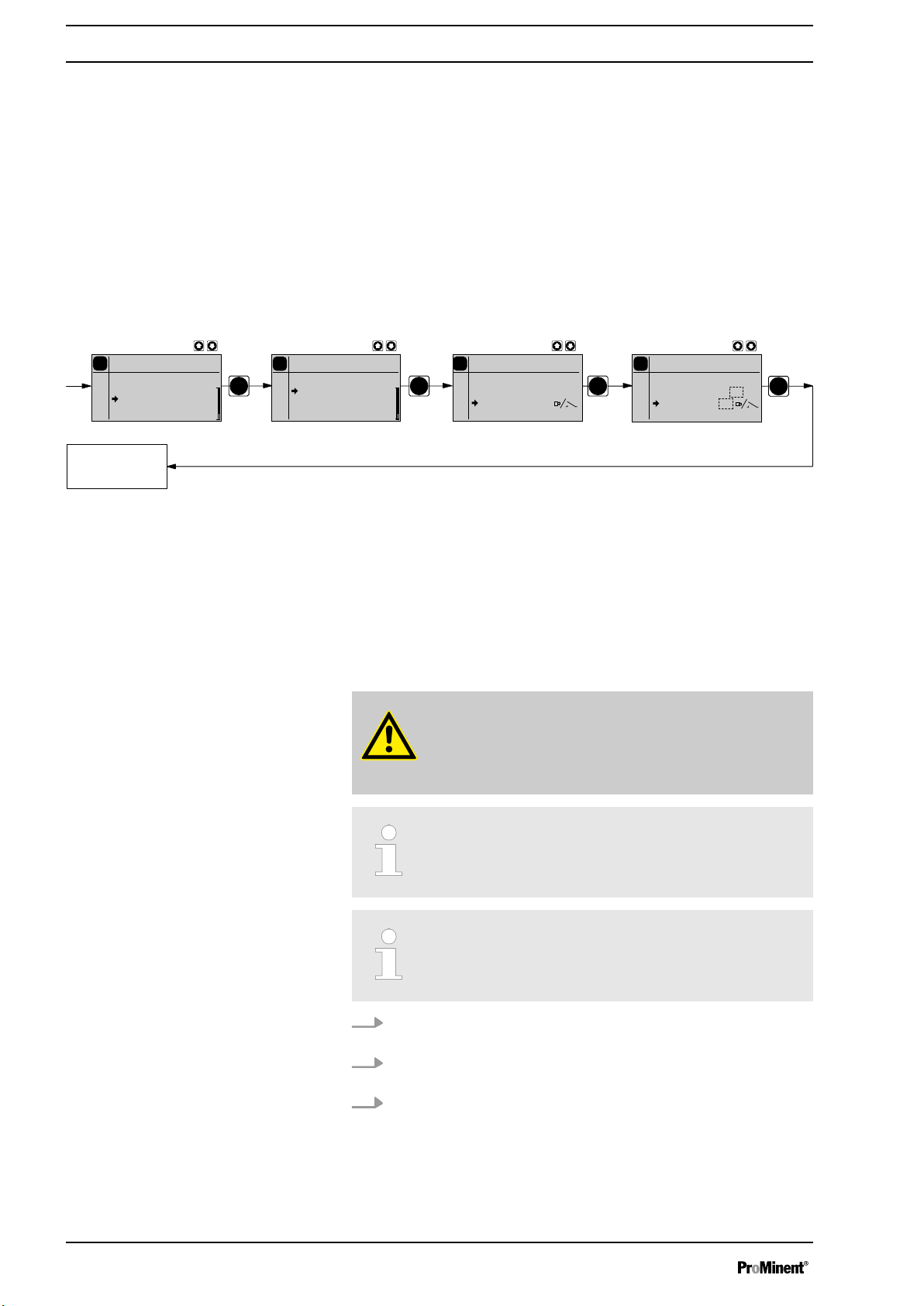

10.5.1 "Manual" operating mode settings

Alongside the setting menus, which are described in more detail in

Ä Chapter 10.6 ‘Programmable function settings ("Settings" menu )’ on page 47

, in

‘Manual’

operating mode in the

further setting menu available.

10.5.2 Settings for the “Batch” operating mode (BATCH menu)

Alongside the setting menus, which are described in more detail in

Ä Chapter 10.6 ‘Programmable function settings ("Settings" menu )’ on page 47

‘BATCH’

, in

‘Batch’

operating mode in the

menu is also available.

‘Settings’

menu there is no

menu, the

The operating mode

‘Batch’

is one variant of the

‘Contact’

operating mode - see the following chapter. Here also, you can select a number of strokes (no fractions, only integers from 1 to 65535).

Operating mode

Metering can be triggered by pressing the

‘Batch’

is intended for large metering quantities.

[P]

key or via an pulse received

via the "External Control" terminal.

The number of received pulses, which could not yet be processed, is stored by the pump in the stroke memory.

CAUTION! When changing over from the "Manual" operating mode to

the "Batch" operating mode, the pump maintains the stroke rate.

The stroke rate can also be set in ‘Contact’ operating mode. It should normally be set to 200 strokes / min.

In operation, the batch size can be changed more easily by using ‘Batch size’ in the continuous display:

1. Using the

plays an

2. Hold down an

[i]

key, select the "Batch size" continuous display (dis‐

‘↑L’

after the number).

[arrow key]

until the variable is flanked by two

flashing bars.

3. Change the batch size as required using the

[arrow keys]

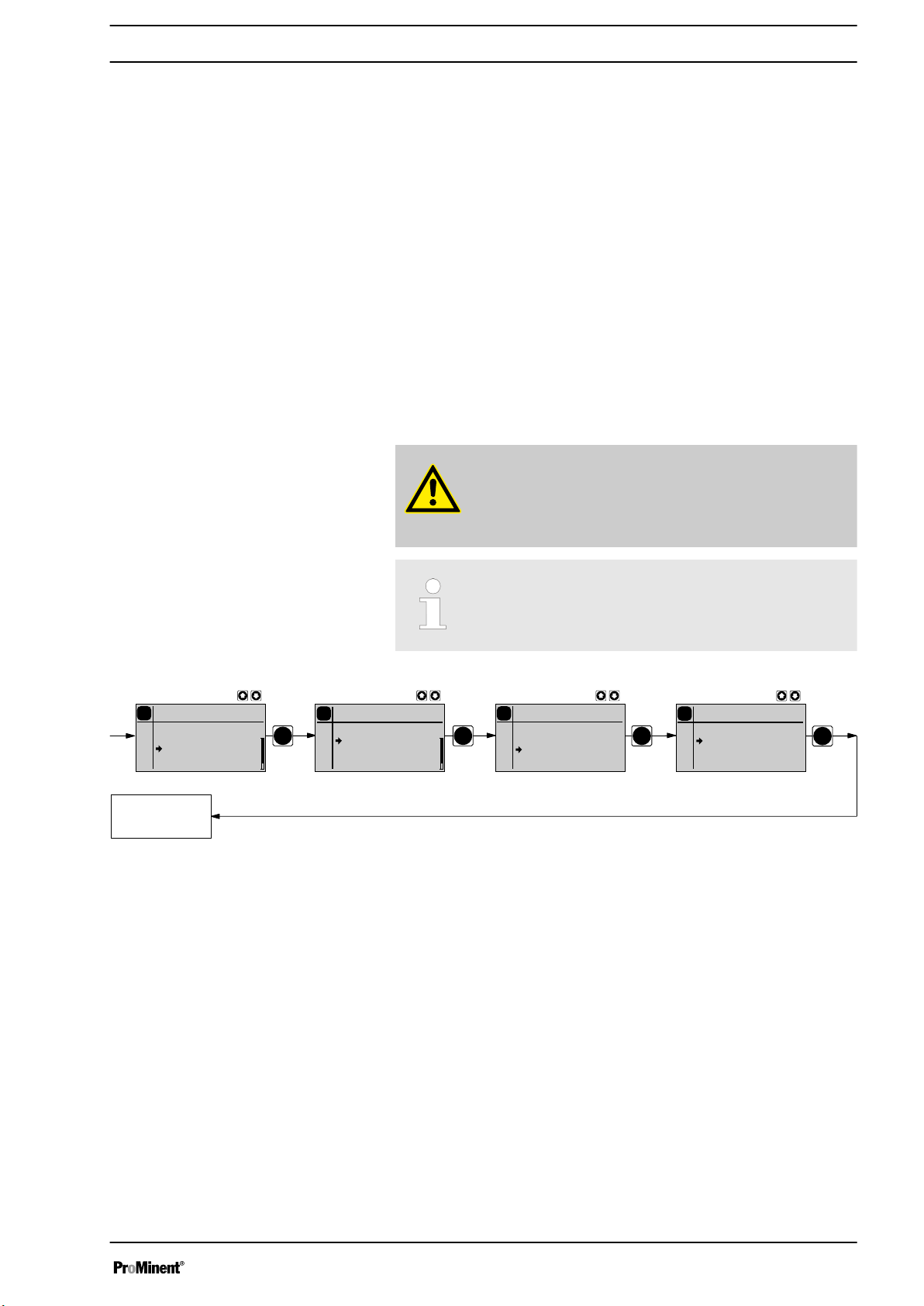

Page 43

Continuous

display

Contact

Stroke memory off Stroke memory on

Settings

Contact

Contact Concentration Auxiliar Calibration

Main

Contact

Mode Settings Security Clear

Stroke memory on

Contact

Factor: 1.25 stroke/cont.

"Memory" function extension

Set up

Additionally, you can activate the "Memory" function extension (Identifier "m"). When "Memory" is activated, the pump adds up the remaining strokes , which could not be processed, up to the maximum capacity of the stroke memory of 65,535 strokes. If this maximum capacity is exceeded, the pump goes into fault mode.

10.5.3

"Contact" operating mode settings

Alongside the setting menus, which are described in more detail in

Ä Chapter 10.6 ‘Programmable function settings ("Settings" menu )’ on page 47

‘Contact’

stroke series.

You can trigger the strokes via a pulse sent via the "External control" ter‐ minal.

The purpose of this operating mode is to convert the incoming pulses with a reduction (fractions) or small step-up into strokes.

menu is also available.

operating mode allows you to trigger individual strokes or a

, in

‘Contact’

operating mode in the

‘Settings’

menu, the

CAUTION! When changing over from

‘Contact’

operating mode, the pump maintains the stroke

‘Manual’

operating mode to

rate.

The stroke rate can also be set in ‘Contact’ operating mode. It should normally be set to 200 strokes / min.

The number of strokes per pulse depends on the factor which you input. By use of the factor you can multiply incoming pulses by a factor between

1.01 and 99.99 or reduce them by a factor of 0.01 to 0.99.

Number of strokes executed = factor x number of incoming pulses

Page 44

Set up

Example table

Factor Pulse (sequence) Number of strokes

Step-up*

1 1 1

2 1 2

25 1 25

99.99 1 99.99

1.50 1 1.50 (1 / 2)

1.25 1 1.25 (1 / 1 / 1 / 2)

Reduction**

1 1 1

0.50 2 1

0.10 10 1

0.01 100 1

0.25 4 1

0.40 2.5 (3 / 2) (1 / 1)

0.75 1.33 (2 / 1 / 1) (1 / 1 / 1)

(sequence)

* Explanation of the conversion ratio

With a factor of 1, ... 1 stroke is executed per 1 pulse.

With a factor of 2, ... 2 strokes are executed per 1 pulse.

With a factor of 25, ... 25 strokes are executed per 1 pulse.

** Explanation of reduction

With a factor of 1, ... 1 stroke is executed per 1 pulse.

With a factor of 0.5, ...1 stroke is executed after 2 pulses.

With a factor of 0.1, ...1 stroke is executed after 10 pulses.

With a factor of 0.75, ...1 stroke is executed once after 2 pulses,

then 1 stroke is executed after 1 pulse two times,

and then again 1 stroke after 2 pulses etc.

If a remainder is obtained when dividing by the factor, then the device adds the remainders together. As soon as this sum reaches or exceeds "1", the pump executes an addi‐ tional stroke. Therefore on average during the metering ope‐ ration, the resultant number of strokes precisely matches the factor.

Non-processed pulses

The number of received pulses, which could not yet be processed, is stored by the pump in the stroke memory. When the pressed or the "Pause" function is activated, the stroke memory is deleted. You can avoid this with the "Memory" function extension:

[STOP/START]

key is

Page 45

Analog

0..20mA

4..20mA Curve

Settings

Analog

Analog Concentration Auxiliar Calibration

Main

Analog

Mode Settings Security Clear

0..20

Continuous

display

Analog

0..20mA

4..20mA Curve

Settings

Analog

Analog Concentration Auxiliar Calibration

Main

Analog

Mode Settings Security Clear

0..20

Continuous

display

"Memory" function extension

Set up

Contact water meter

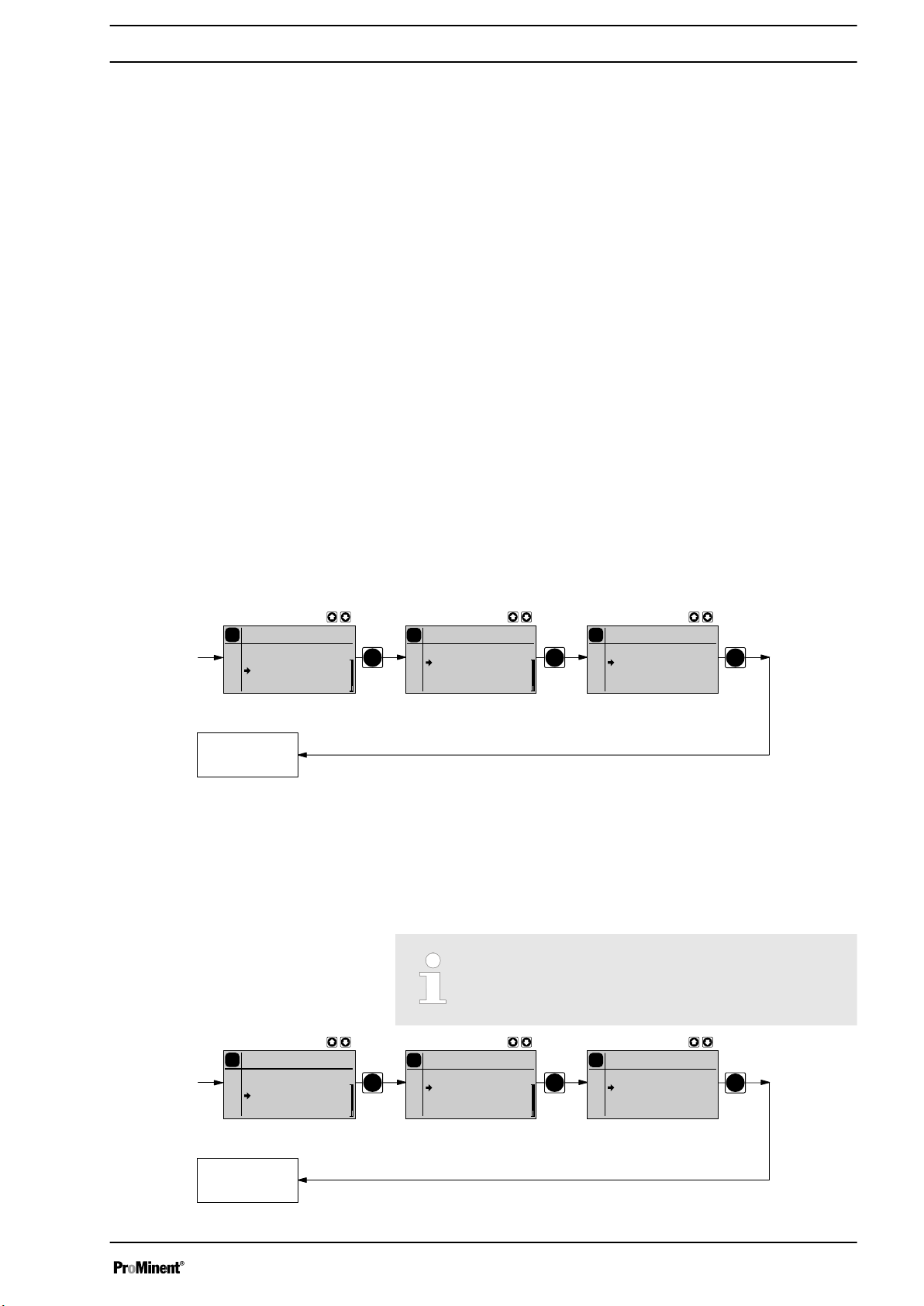

10.5.4

"Analog" operating mode settings

0 - 20 mA

With "Pulse control" you can optimally adapt the pump to the relevant process, for example in conjunction with contact water meters.

Alongside the setting menus, which are described in more detail in

Ä Chapter 10.6 ‘Programmable function settings ("Settings" menu )’ on page 47

‘ANALOG’

, in

‘Analog’

operating mode in the

‘Settings’

menu, the

menu is also available. The stroke rate is controlled using an analog current signal via the "External control" terminal. The continuous display "Signal current" of the 2nd level indicates the incoming current.

You can select three types of current signal processing:

‘0 - 20 mA’

‘4 - 20 mA’

‘Curve’

At 0 mA the pump is stationary -

At 20 mA the pump works at the maximum stroke rate.

Between these values, the stroke rate is proportional to the current signal.

4 - 20 mA

At 4 mA the pump is stationary -

At 20 mA the pump works at the maximum stroke rate.

Between these values, the stroke rate is proportional to the current signal.

For current signals less than 3.8 mA an error message appears and the pump stops (e.g. if a cable has broken).

The maximum stroke rate can only be reduced under pro‐ cessing type ‘Curve’ , not under processing types "0 .. 20" and "4 .. 20".

Page 46

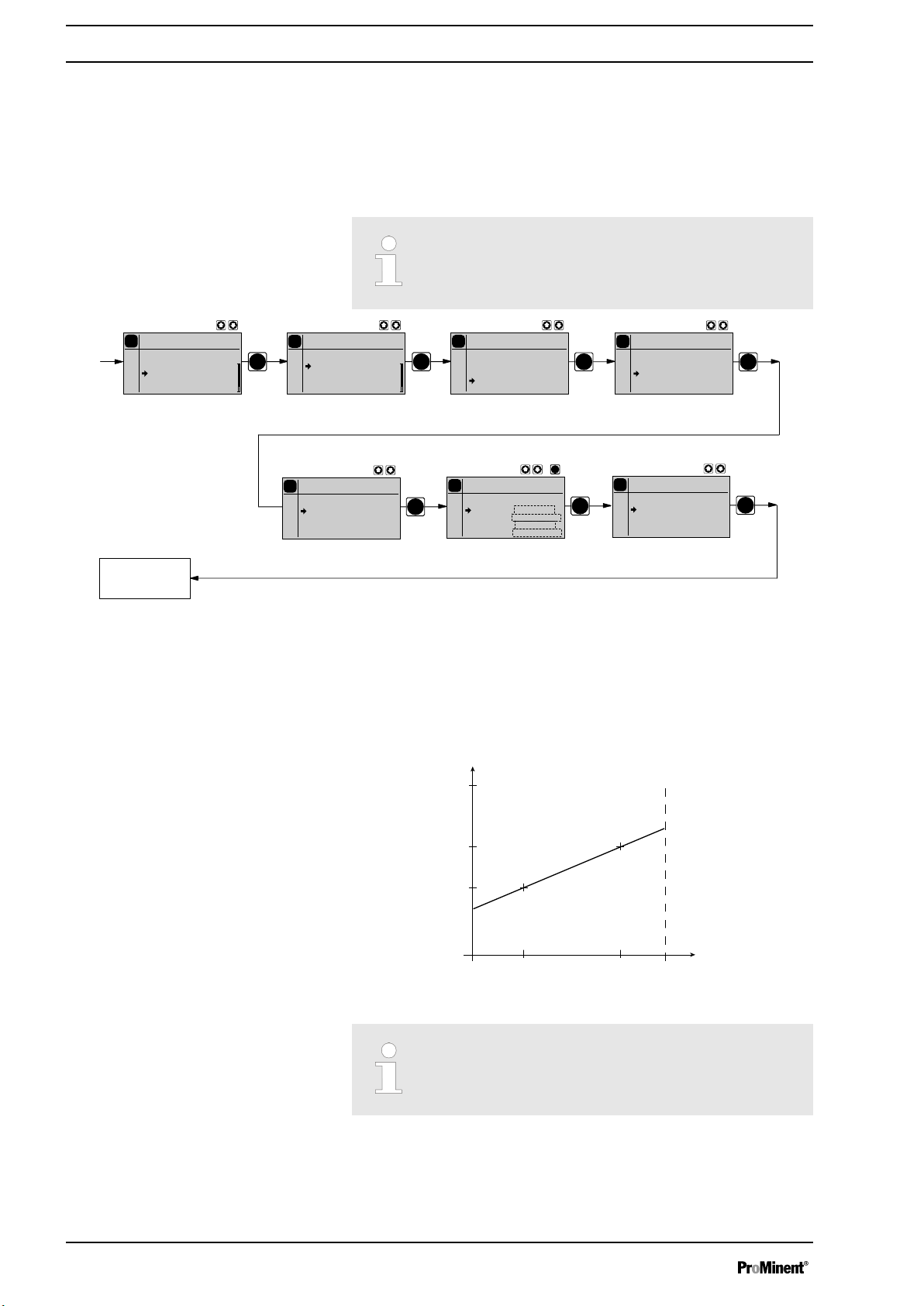

Analog

0..20mA

4..20mA Curve

Settings

Analog

Analog Concentration Auxiliary Calibration

Main menu

Analog

Mode Settings Security Clear

Curve

Analog

Line Upper Sideband bottom sideband

0..20

Upper Sideband

Analog

I1= 04.0mA F1= 060 H/h I2= 20.0mA F2= 100 H/h

Upper Sideband

Analog

I1= 04.0mA F1= 060 H/h I2= 20.0mA F2= 100 H/h

Upper Sideband

Analog

Alarm message: On

0..20

Continuous

display

I [mA]

I 1

I 2

Fmax

0 20

B0088

Set up

Curve

In the processing type iour.

There are three options:

n Linear n Lower sideband n Upper sideband

The following applies to all three options:

The smallest processable difference between I1 and I2 is 4 mA (ll I1-I2 ll ≥4 mA).

‘Curve’

you can freely program the pump behav‐

Linear

The "Linear" symbol appears in the LCD display. You can enter any stroke rate- behaviour of the pump proportional to the current signal. For this pur‐ pose, enter any two points P1 (I1, F1) and P2 (I2, F2) (F1 is the stroke rate at which the pump is to operate at current I1, F2 is the stroke rate at which the pump is to operate at current I2...); this defines a straight line and thus the behaviour is specified:

Fig. 25: Rate(frequency)-Current Diagram for Linear control

Plot a diagram similar to the one above - with values for (I1, F1) and (I2, F2) – so that you can set the pump as desired!

Error processing

Under the menu option processing sequence for the below 3.8 mA, an error message appears and the pump stops.

‘Alarm message’

‘Curve’

(error) you can activate an error

processing type. For current signals

Page 47

I [mA]

I 1 I 2

0 20

a) b)

Fmax

B0089

I [mA]

I 1

I 2

0 20

Fmax

Set up

Lower sideband

Using this processing type, you can control a metering pump using the current signal as shown in the diagram below.

However, you can also control two metering pumps for different feed chemicals via a current signal (e.g. one acid pump and one alkali pump using the signal of a pH sensor). To do this, you must connect the pumps electrically in series, - see the wiring diagram in

installation’ on page 31

The "Lower sideband" symbol appears in the LCD display. Below I1, the pump works at a rate of F1 - above I2 it stops. Between I1 and I2 the stroke rate varies between F1 and F2 in proportion to the signal current.

Ä Chapter 9 ‘Electrical

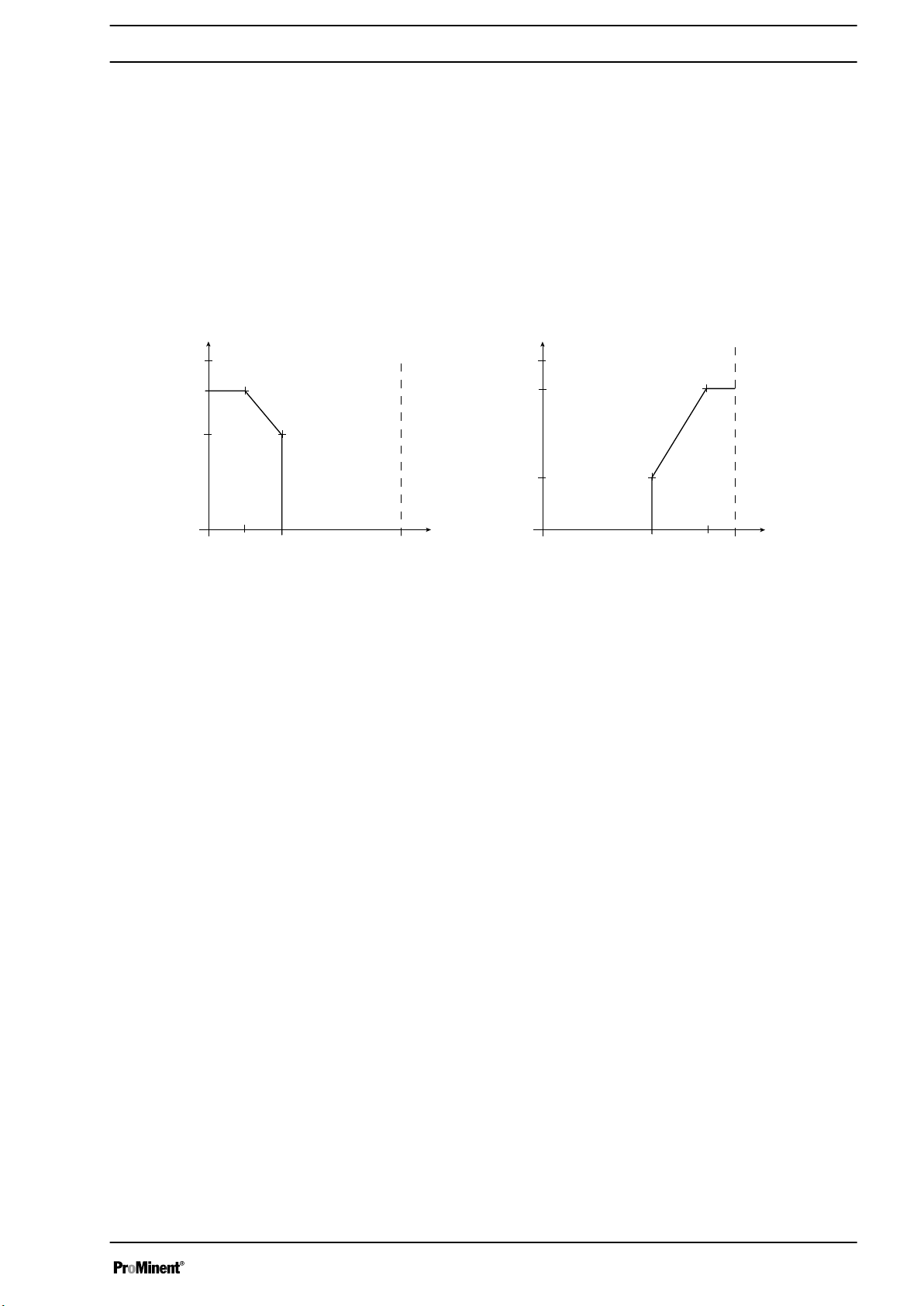

Fig. 26: Frequency-current diagram for a) Lower sideband, b) Upper sideband

10.6 Programmable function settings ("Settings" menu )

Upper sideband

Using this processing type, you can control a metering pump using the current signal as shown in the diagram above.

installation’ on page 31

Ä Chapter 9 ‘Electrical

The "Upper sideband" symbol appears in the LCD display. Below I1, the pump is stationary - above I2 the pump works at rate F2. Between I1 and I2 the stroke rate varies between F1 and F2 in proportion to the signal cur‐ rent.

Setting menus are available in all operating modes in the menu "SET‐ TINGS" for the following programmable functions:

n Concentration (menu n Auxiliary frequency (menu n Flow (menu

‘FLOW’

n Calibration (menu n Metering (menu n Relay (menu

‘RELAY’

n System (menu

‘CONCENTRATION’

‘AUX’

)

) (only available if a dosing monitor is connected)

‘CALIBRATION’

‘METERING’

)

) (only available if a relay is fitted)

‘SYSTEM’

)

Page 48

Continuous

display

Concentration

Manual

off on

Settings

Manual

Concentration Auxiliar Calibration Dosing

Main

Manual

Mode Settings Security Clear

Concentration

Manual

2 m³/h

35.0 %

1.26 kg/l

Concentration

Manual

2 m³/h

35.0 %

1.26 kg/l

Set up

10.6.1 Settings for the “Concentration” function (CONCENTRATION menu)

To enter the concentration principle:

‘CONCENTRATION’

The

menu appears as soon as the pump has been calibrated. The desired mass concentration of the feed chemical which will subsequently be required in the dissolving medium (e.g. the main flow) can be entered directly in the "Concentration" continuous display.

1. Select the operating mode.

2. Set the data for the feed chemical and dissolving medium in the

‘ADJUSTMENT’

menu.

3. Set the desired concentration in the "Concentration" continuous dis‐

play.

The "Concentration" continuous display only appears, if:

–

the pump is calibrated.

–

the ‘CONCENTRATION’ menu was run through in the operating mode being used.

–

and ‘Concentration’ was switched to ‘On’ - in the operating mode being used.

–

The "Concentration" continuous display switches to the display mode "%" at concentrations above 999.9 ppm.

–

When changing between operating modes, the pump saves the settings for each operating mode.

–

If the pump is to display the concentration as a volume concentration, then enter "1.00" kg/l for the density of the feed chemical.

10.6.1.1 MANUAL operating mode (Settings for the "Concentration" function)

The "Concentration input" in operating mode metering of a substance into a pipeline containing a medium flowing at a constant rate in such a way that it exists in the flow with a specific mass concentration.

‘MANUAL’

, is intended for

Page 49

Set up

CAUTION! Danger of too high concentrations The metering pump can continue to dose, if the flow falls or

stops entirely.

– System precautions must be taken to prevent the

metering pump from continuing to dose in such circum‐ stances.

The prerequisites are that:

Procedure

n the flowing medium has the same density as water (1 kg/L n the mass concentration of the feed chemical is known - see the feed

chemical safety data sheet (e.g. with 35 % sulphuric acid: 35 %)

n the density of the feed chemical is known - see the feed chemical

safety data sheet (e.g. with 35 % sulphuric acid: 1.26 kg/L ≜ g/cm3)

n The measurement unit for liquid volume is set in the

the

‘Unit’

submenu, see chapter "Settings under the 'System' menu".

CAUTION! The accuracy of the concentration is strongly dependent on:

– the accuracy of the metering pump calibration. –

the accuracy of the entries.

1. Calibrate the metering pump if it is not yet calibrated - see chapter "Settings for the "Calibrate" function".

2. Select

3. From the

4. Under the first menu option, set

5. Set the flow and press key

6. Set the mass concentration for the feed chemical and press key

7. Set the density of the feed chemical - after pressing key

8. Using key

‘MANUAL’

from other operating modes remain saved.).

‘ADJUSTMENT’

menu.

tion display and press the key

continuous display appears.

or %).

operating mode (settings which may already exist

menu, select the

‘On’

for working with the concentra‐

[P]

[i]

change to the "Concentration" continuous display (ppm

‘CONCENTRATION’

≜ g/cm3)

‘System’

[P]

menu in

, the

[P]

Page 50

Continuous

display

Concentration

Batch

off on

Settings

Batch

Batch Concentration Auxiliar Calibration

Main

Batch

Mode Settings Security Clear

Concentration

Batch

7 l

35.0 %

1.26 kg/l

Concentration

Batch

7 l

35.0 %

1.26 kg/l

Set up

9. You can enter the desired mass concentration using the

[Arrow keys]

Possible values of the adjustable variables

Adjustable variable Lower value Upper value Increment

CAUTION! – Observe the decimal point.

The mass concentration is affected by both

–

changes in the stroke rate and the stroke length.

The value in the continuous display cannot be freely changed using the [Arrow keys] as the least significant figure values changes in jumps, the value of which depends on the input data.

Flow in m3/h

1 1000 1

Mass concentration in % 0.5 100 0.1

Density in kg/l 0.5 2.0 0.1

10.6.1.2 BATCH operating mode (Settings for the "Concentration" function)

The prerequisites are that:

The "Concentration input" in

‘BATCH’

operating mode, is intended for metering a substance into a storage tank so that it then exists in the con‐ tainer with a defined mass concentration (batching of a solution. Do not forget to stir!).

n the medium in the storage tank has the same density as water (1 kg/L

≜ g/cm3)

n the mass concentration of the feed chemical is known - see the feed

chemical safety data sheet (e.g. with 35 % sulphuric acid: 35 %)

Page 51

Procedure

Set up

n the density of the feed chemical is known - see the feed chemical

safety data sheet (e.g. with 35 % sulphuric acid: 1.26 kg/L

n The measurement unit for liquid volume is set in the

the

‘Unit’

submenu, see chapter "Settings under the 'System' menu".

CAUTION! The accuracy of the concentration is strongly dependent on:

– the accuracy of the metering pump calibration.

the accuracy of the entries.

–

1. Calibrate the metering pump if it is not yet calibrated - see chapter "Settings for the "Calibrate" function".

2. Select

3. From the

4. Under the first menu option, set

5. Set the volume of the medium in the storage tank and press key

6. Set the mass concentration for the feed chemical and press key

7. Set the density of the feed chemical - after pressing key

8. Using key

9. You can enter the desired mass concentration using the

‘BATCH’

other operating modes remain saved.).

menu.

tion display and press the key

continuous display appears.

or %).

[Arrow keys]

operating mode (possibly existing settings from

‘ADJUSTMENT’

[i]

change to the "Concentration" continuous display (ppm

menu, select the

‘On’

for working with the concentra‐

[P]

‘CONCENTRATION’

≜ g/cm3)

‘System’

[P]

menu in

, the

[P]

CAUTION! – Observe the decimal point.

–

The mass concentration is affected by both changes in the stroke rate and the stroke length.

The value in the continuous display cannot be freely changed using the [Arrow keys] as the least significant figure values changes in jumps, the value of which depends on the input data.

Possible values of the adjustable variables

Adjustable variable Lower value Upper value Increment

Volume in l 1 1000 1

Mass concentration in % 0.5 100 0.1

Density in kg/l 0.5 2.0 0.1

Page 52

Continuous

display

Concentration

Contact

off on

Settings

Contact

Contact Concentration Auxiliar Calibration

Main

Contact

Mode Settings Security Clear

Concentration

Contact

1 l/

35.0 %

1.26 kg/l

Concentration

Contact

1 l/

35.0 %

1.26 kg/l

Set up

10.6.1.3 CONTACT operating mode (Settings for the "Concentration" function)

The prerequisites are that:

The "Concentration input" in operating mode

‘CONTACT’

, is intended for metering of a substance into a pipeline containing a medium flowing at a constant rate in such a way that it exists in the flow with a specific mass concentration.

CAUTION! Danger of too high concentrations The metering pump can continue to dose, if the flow falls or

stops entirely.

– System precautions must be taken to prevent the

metering pump from continuing to dose in such circum‐ stances.

n the flowing medium has the same density as water (1 kg/L

≜ g/cm3)

n the mass concentration of the feed chemical is known - see the feed

chemical safety data sheet (e.g. with 35 % sulphuric acid: 35 %)

n the density of the feed chemical is known - see the feed chemical

safety data sheet (e.g. with 35 % sulphuric acid: 1.26 kg/L ≜ g/cm3)

n a contact water meter is hydraulically installed and connected to the

external input of the metering pump.

n The measurement unit for liquid volume is set in the

the

‘Unit’

submenu, see chapter "Settings under the 'System' menu".

‘System’

menu in

Procedure

CAUTION! The accuracy of the concentration is strongly dependent on:

– the accuracy of the metering pump calibration.

the accuracy of the entries.

–

1. Calibrate the metering pump if it is not yet calibrated - see chapter

"Settings for the "Calibrate" function".

2. Select

‘CONTACT’

operating mode (possibly existing settings from

other operating modes remain saved.).

3. From the

‘ADJUSTMENT’

menu, select the

‘CONCENTRATION’

menu.

‘On’

4. Under the first menu option, set

tion display and press the key

5. Adjust the contact gap and press key

for working with the concentra‐

[P]

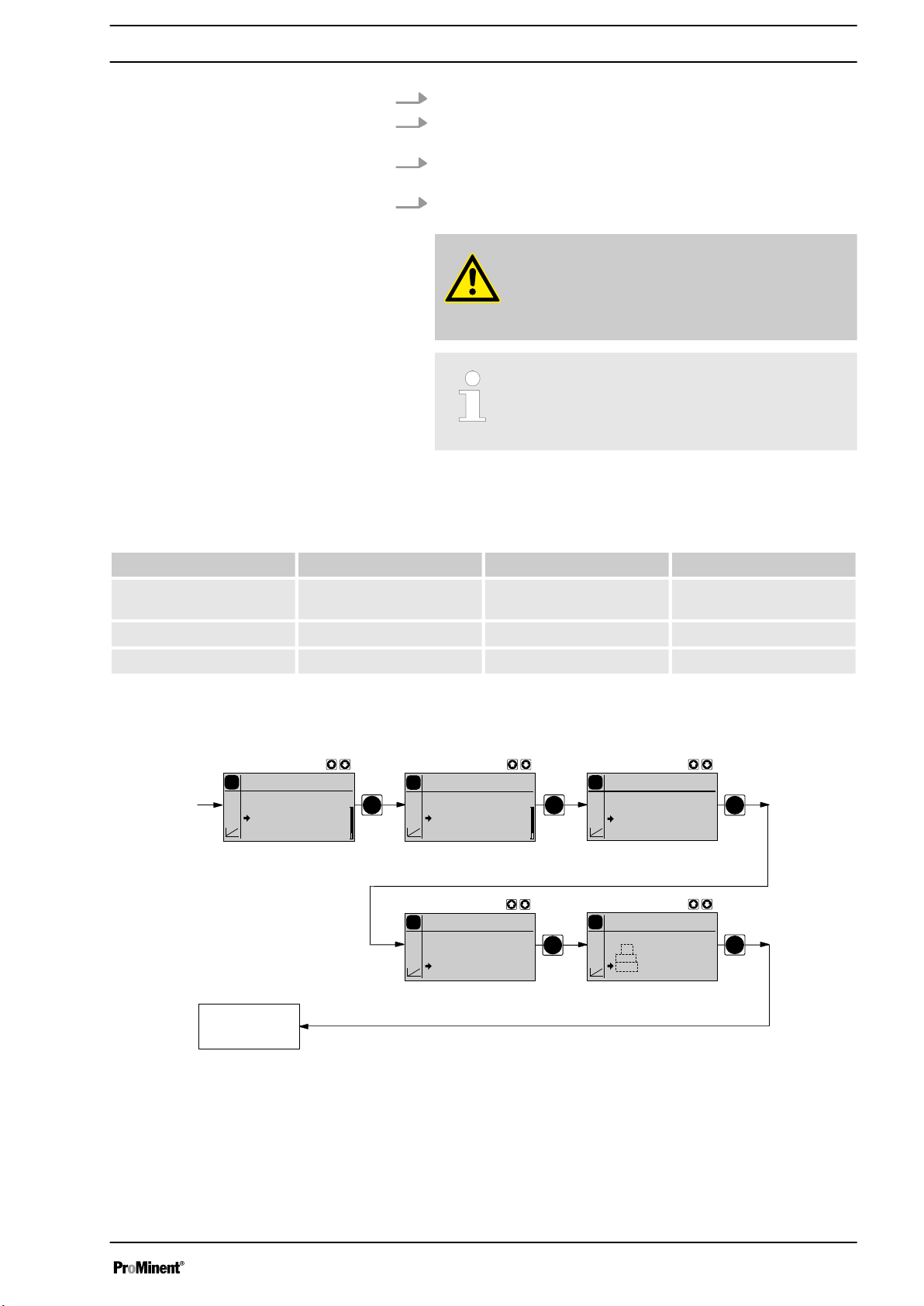

Page 53

Continuous

display

Concentration

Analog

off on

Settings

Analog

Analog Concentration Auxiliar Calibration

Main

Analog

Mode Settings Security Clear

Concentration

Analog

2 m³/h

35.0 %

1.26 kg/l

Concentration

Analog

2 m³/h

35.0 %

1.26 kg/l

Set up

6. Set the mass concentration for the feed chemical and press key

7. Set the density of the feed chemical - after pressing key continuous display appears.

8. Using key

[i]

change to the "Concentration" continuous display (ppm

or %).

9. You can enter the desired mass concentration using the

[Arrow keys]

CAUTION! – Observe the decimal point.

The mass concentration is affected by both

–

changes in the stroke rate and the stroke length.

The value in the continuous display cannot be freely changed using the [Arrow keys] as the least significant figure values changes in jumps, the value of which depends on the input data.

[P]

, the

[P]

Possible values of the adjustable variables

Adjustable variable Lower value Upper value Increment

Contact separation in l/con‐

1 1000 1

tact

Mass concentration in % 0.5 100 0.1

Density in kg/l 0.5 2.0 0.1

10.6.1.4 ANALOG operating mode (Settings for the "Concentration" function)

The "Concentration input" in operating mode

‘ANALOG’

, is intended for metering of a substance into a pipeline containing a medium flowing at a constant rate in such a way that it exists in the flow with a specific mass concentration.

Page 54

Set up

CAUTION! Danger of too high concentrations The metering pump can continue to dose, if the flow falls or

stops entirely.

– System precautions must be taken to prevent the

metering pump from continuing to dose in such circum‐ stances.

CAUTION! Risk of incorrect concentrations – After the adjustment, check whether the concentration at

various flows corresponds to the required result.

The prerequisites are that:

Preparatory settings

n the flowing medium has the same density as water (1 kg/L n the mass concentration of the feed chemical is known - see the feed

chemical safety data sheet (e.g. with 35 % sulphuric acid: 35 %)

n the density of the feed chemical is known - see the feed chemical

safety data sheet (e.g. with 35 % sulphuric acid: 1.26 kg/L ≜ g/cm3)

n a flow meter with analog output is hydraulically installed and con‐

nected to the external input of the metering pump.

n The measurement unit for liquid volume is set in the

the

‘Unit’

submenu, see chapter "Settings under the 'System' menu".

1. Select

2. In the

3. Set the pump behaviour to

4. In the processing type for the current signal, enter

5. Enter I2 = 20 mA and F2 = 200 strokes/min.

6. As required set

‘ANALOG’

tings from other operating modes remain saved.).

‘SETTINGS’

cessing of the current signal to ating mode settings"

and for F1 = 0 strokes / min - see , dashed line.

In the processing type for the current signal, enter mA and for F1 = 0 strokes / min, because the straight line must pass through the zero point (0/0) see , dashed line.

operating mode (possibly already existing set‐

menu under

‘Error message’

‘ANALOG’

‘Curve’

‘Linear’

set the type of pro‐

, see chapter "'Analog' oper‐

‘on’

‘off’

≜ g/cm3)

‘System’

‘4 .. 20’

‘0 .. 20’

menu in

for I1 = 4

for I1 = 0

Page 55

P_DE_0020_SW

I 1=4

Procedure

Set up

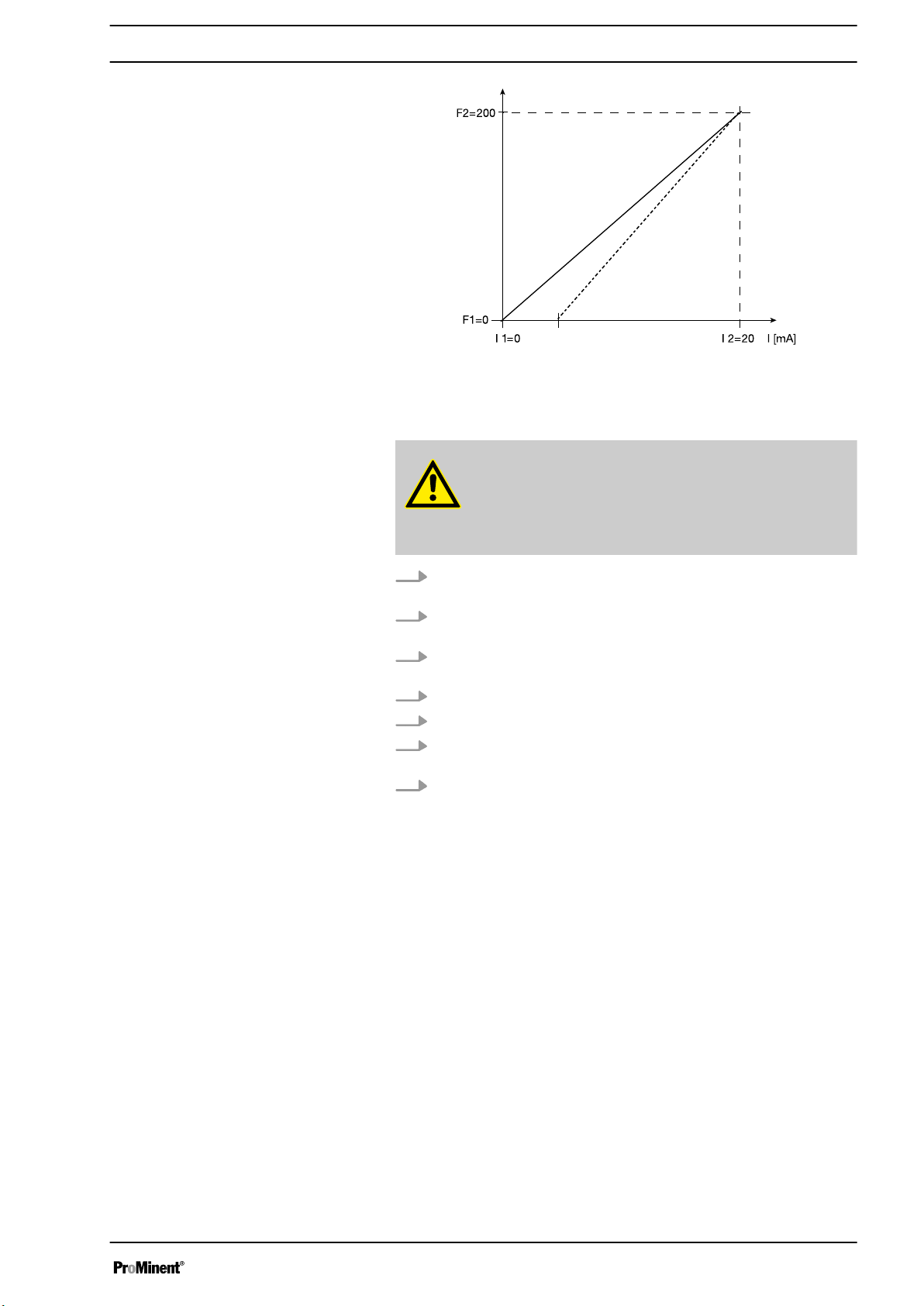

Fig. 27: How the line for "Concentration input" must appear in "Analog" operating mode

CAUTION! The accuracy of the concentration is strongly dependent on:

– the accuracy of the metering pump calibration.

the accuracy of the entries.

–

1. Calibrate the metering pump if it is not yet calibrated - see chapter

"Settings for the "Calibrate" function".

2. From the

‘ADJUSTMENT’

menu, select the

‘CONCENTRATION’

menu.

‘On’

3. Under the first menu option, set

tion display and press the key

4. Set the maximum flow and press key

for working with the concentra‐

[P]

5. Set the mass concentration for the feed chemical and press key

[P]

6. Set the density of the feed chemical - after pressing key

, the

continuous display appears.

7. Using key

[i]

change to the "Concentration" continuous display (ppm

or %).

[P]

Page 56

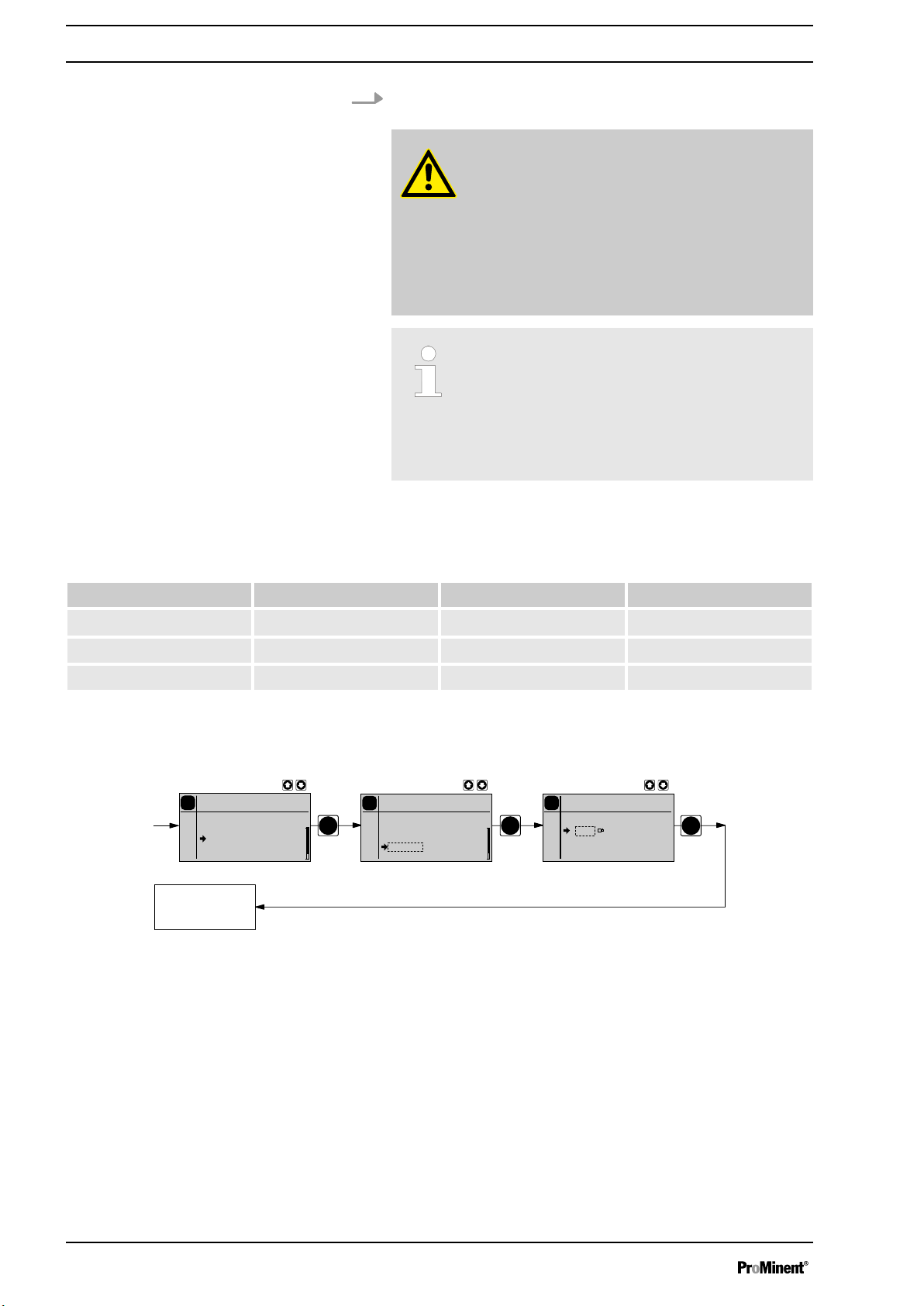

Continuous

display

Auxiliar

Batch

100 /min

Settings

Batch

Batch Concentration Auxiliar Calibration

Main

Batch

Mode Settings Security Clear

Set up

8. You can enter the desired mass concentration using the

[Arrow keys]

CAUTION! – Observe the decimal point.

The mass concentration is affected by both

–

changes in the stroke rate and the stroke length.

– The pump limits the upper value of the mass con‐

centration, because otherwise the incremental jumps when adjusting would be unacceptably large. As necessary, adjust the stroke length - do not set it under 30 %.

The value in the continuous display cannot be freely changed using the [Arrow keys] as the least significant figure values changes in jumps, the value of which depends on the input data.

As necessary, change the stroke length and adjust the concentration; in doing so the pump compensates via the stroke rate.

Possible values of the adjustable variables

Adjustable variable Lower value Upper value Increment

Max. flow in m3/h

1 1000 1

Mass concentration in % 0.5 100 0.1

Density in kg/l 0.5 2.0 0.1

10.6.2 Settings for the “Auxiliary frequency” function (AUX menu)

The programmable function "Auxiliary rate" facilitates the switchover to an auxiliary stroke rate, which can be set in the vated via the "External control" terminal. If the auxiliary rate applies, then the identifier "Aux" appears in the LCD display.

This auxiliary rate has priority over the stroke rate, which is specified by the currently selected operating mode - see also the chapter "Function description" - "Hierarchy of operating modes".

‘AUX’

menu. It can be acti‐

Page 57

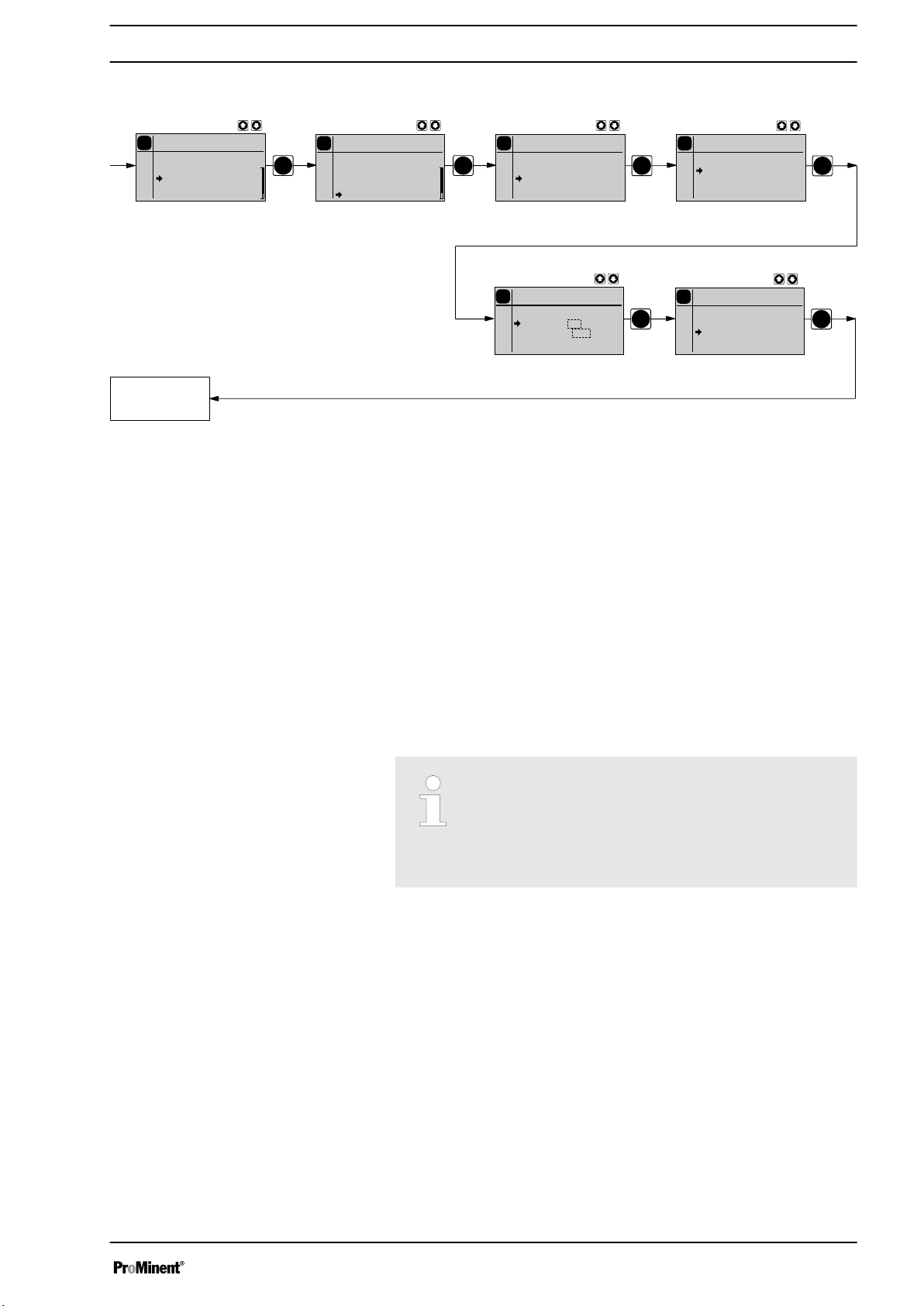

10.6.3 Settings for the “Flow” function (FLOW menu)

Flow

Batch

Off On

Settings

Batch

Batch Concentration Auxiliar Flow

Main

Batch

Mode Settings Security Clear

Flow

Batch

Tolerance: 8 by Auxiliary:

off

Batch

Flow

Batch

Warning Error

Flow

Tolerance: 8 by Auxiliary:

off

Continuous

display

Set up

The menu

‘FLOW’

only appears if a dosing monitor is connected to the "Dosing monitor" terminal. The dosing monitor records the individual pres‐ sure surges of the pump at the pressure connector during pulsed metering (

‘Metering’ ‘fast’

, menu

‘METERING’

) and immediately reports it back to the pump. In the event that this feedback message remains missing in a sequence as often as set in the menu

‘FLOW’

a failure or too low a metering level), then this function stops the pump. The last menu option provides the choice, of whether this case should lead to an

The function

‘Error’

‘Flow’

or a

‘Warning’

can be deactivated for the

(auxiliary rate).

10.6.4 Settings for the “Calibration” function (CALIBRATION menu)

The pump can also be operated in the calibrated state. In this case, the corresponding continuous displays then indicate the metering volume or the capacity directly.

Accuracy of the calibration The calibration will not be accurate, if these conditions are

not adhered to:

–

do not allow the stroke length to fall below 30 %

–

The pump should execute at least 200 strokes.

under

‘Tolerance’

‘AUX’

operating mode

(due to

Page 58

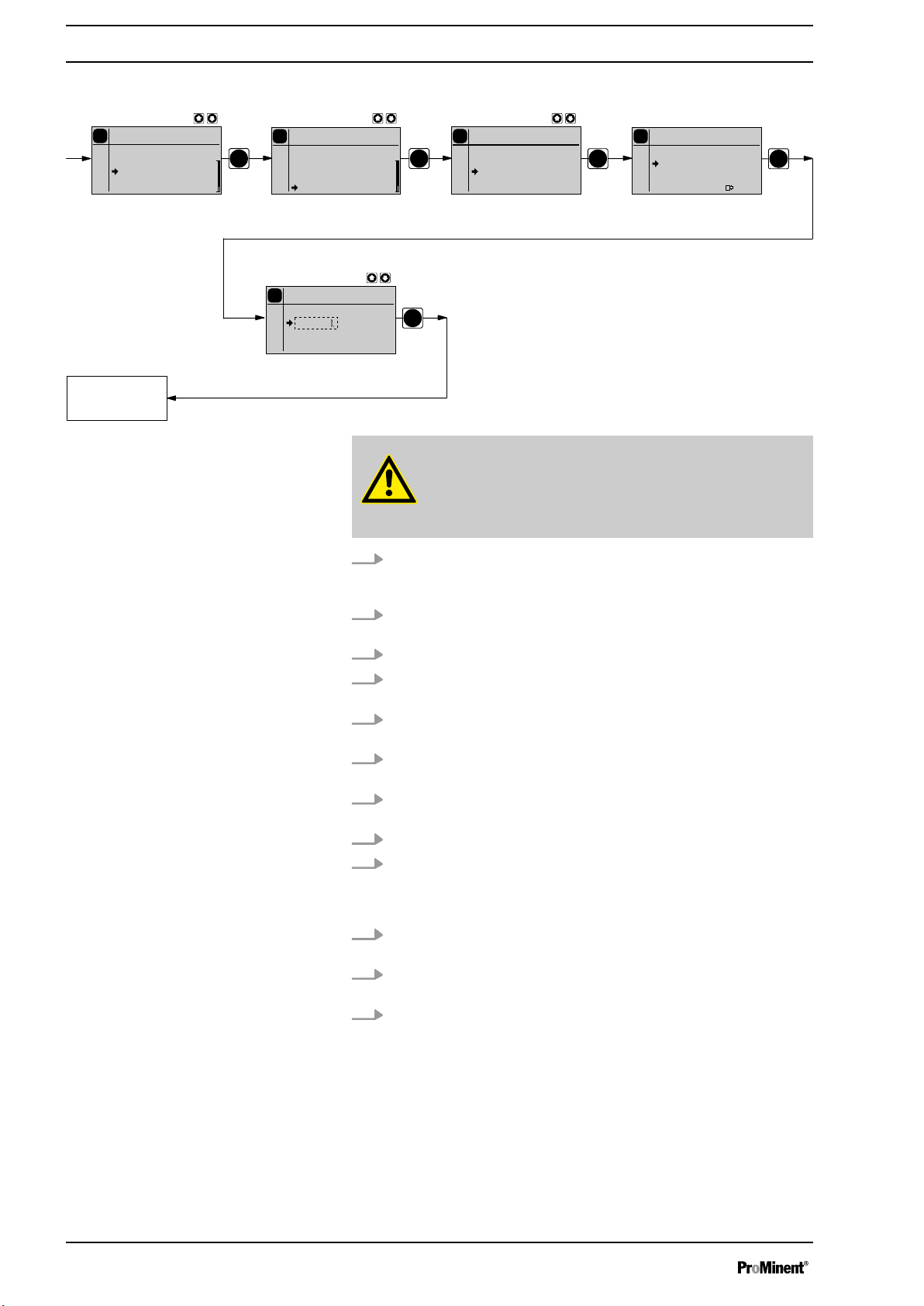

Continuous

display

Calibrate

Analog

Off Start calib.

Settings

Analog

Analog Concentration Aux Calibrate

Main menu

Analog

Operation Settings Security Clear

Calibrate

Manual

Stop calib.

200

0..20

Calibrate

Analog

0.100

0..20

Set up

Calibration

WARNING! If the feed chemical is dangerous, take appropriate safety

precautions when executing the following calibration instruc‐ tions. Observe the safety data sheet for the feed chemical!

1. Lead the suction hose into a measuring cylinder containing the feed chemical - the discharge hose must be installed in a permanent manner (operating pressure, ...!).

2. Prime using the feed chemical (simultaneously press the two

[arrow keys]

), should the suction hose be empty.

3. Record the level in the measuring cylinder.

[i]

4. Using the

key scroll through the continuous display and check

whether litres or gallons are selected.

5. If the incorrect volume units are selected, select the menu and the then the

6. Using the pressing the

7. Select the

[arrow keys]

[P]

key.

‘CALIBRATION’

‘UNITS’

sub-menu.

, select the correct units and confirm by

menu and then use the

‘SYSTEM’

[P]

key to

change to the first menu option.

8. Use the

[DOWN]

9. To start the calibration, press the

‘Stop calib.’

key to select

‘Start calib.’

[P]

key: The next menu option,

. appears, the pump starts to pump and indicates the

stroke rate (the pump works at the stroke rate, which is set under

‘MANUAL’

10. After a reasonable number of strokes (e.g. 200), stop the pump by pressing the

[P]

key.

11. Determine the required metering volume (difference initial volume residual volume).

12. Enter this volume in the menu option which appears and then press the key

The pump is calibrated.

The corresponding continuous displays indicate the calibrated

[P]

- the pump changes to continuous display.

values.

Page 59

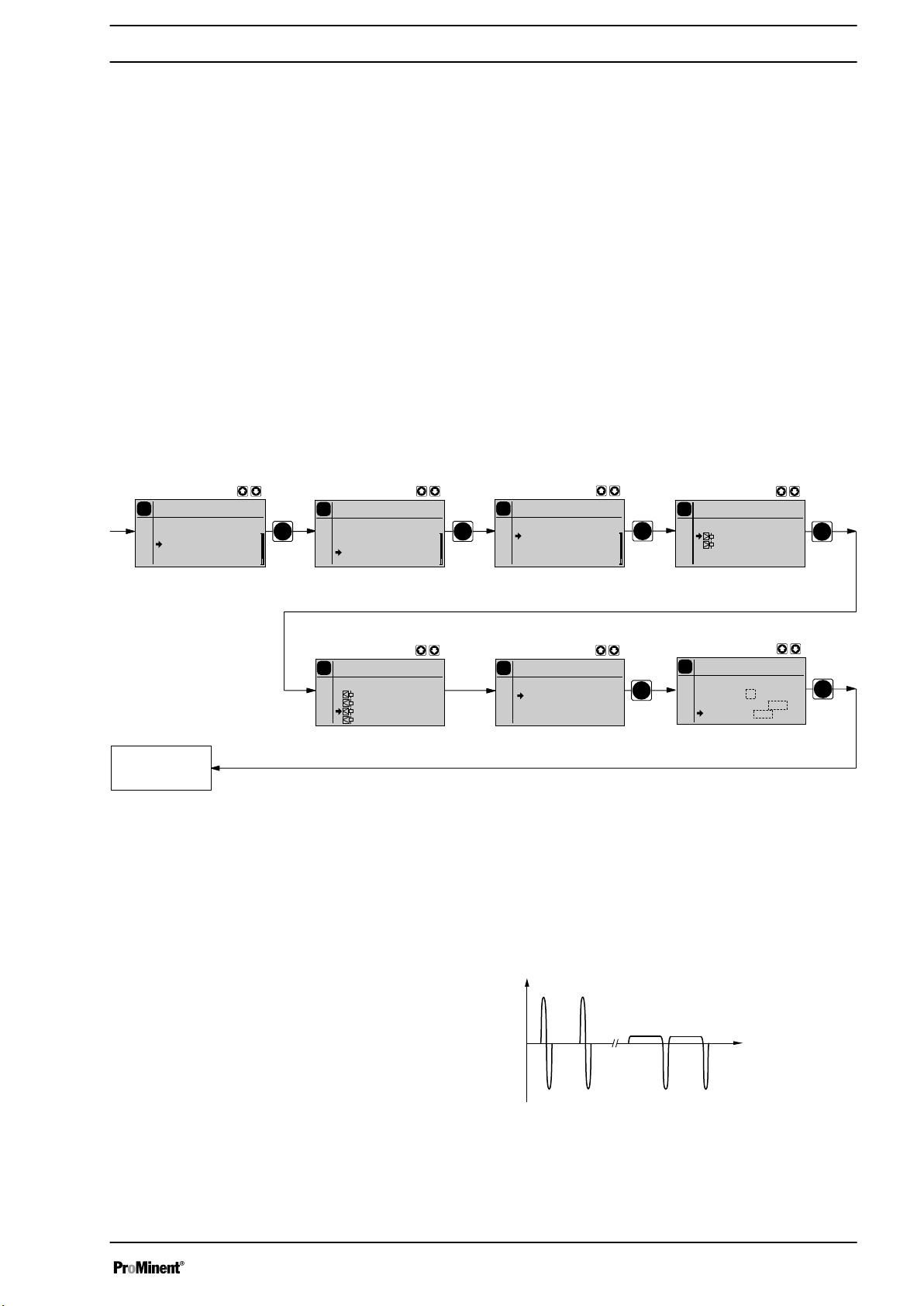

10.6.5 Settings for the “Metering” function (DOSING menu)

Continuous

display

Settings

Batch

Auxiliary Calibration Metering Relay

Main menu

Batch

Mode Settings Security Clear

Settings

Batch

Settings

Batch

Pressure 1 Compensation: off Monitoring: off

Metering

Batch

Settings Air lock No pressure Pressure gauge

Settings

Batch

:slow :fast

- Discharge stroke -

- Suction stroke -

Settings

Batch

:normal :HV1 :HV2 :HV3

Intelligent Direct

P_DE_0006_SW

a) b)

The "Metering" menu branches into the following sub-menus:

‘Settings’

1 -

2 -

‘Airlock’

3 -

‘Low pressure’

4 -

‘High pressure’

The last menu option of "Settings" offers the following functions:

n Pressure (ratings) n Compensation

10.6.5.1 Settings in the sub-menu ″Settings″ (metering)

(metering)

Set up

Discharge stroke

In the sub-menu

‘Settings’

(metering), you can precisely match the pump metering flow over time against the requirements of the particular applica‐ tion.

Hence the user can, dependent on requirements, set a fast discharge stroke ( processes ( a) ) or a slow discharge stroke (

‘Metering’

‘fast’

) for pulsed metering e.g. for quick clocked filling

‘Metering’

‘slow’

) for quasi-

continuous metering, e.g. for processes requiring good mixing ( b) ).

Fig. 28

Page 60

Discharge stroke"fast"

Discharge stroke"slow"

a) Suction

stroke"normal"

b) Suction

stroke"HV1"

c) Suction

stroke"HV3"

P_DE_0006_SW

Set up

During quasi-continuous metering for high accuracy set

–

as large as possible a stroke length.

–

The slowing of the discharge stroke only becomes noticeable at lower stroke rates.

–

At maximum stroke rate, ‘slow’ is identical to ‘fast’ !

–

Slowing of the suction stroke leads to a lower capacity.

Suction stroke

In both metering modes it is possible, to selectively also slow the suction stroke. For the case of gaseous feed chemicals, the slow suction stroke prevents cavitation and consequently increases metering precision ( b) and c) ). In this way, it is possible to prevent the main cause for imprecise metering with high viscosity feed chemicals, namely the incomplete filling of the liquid end.

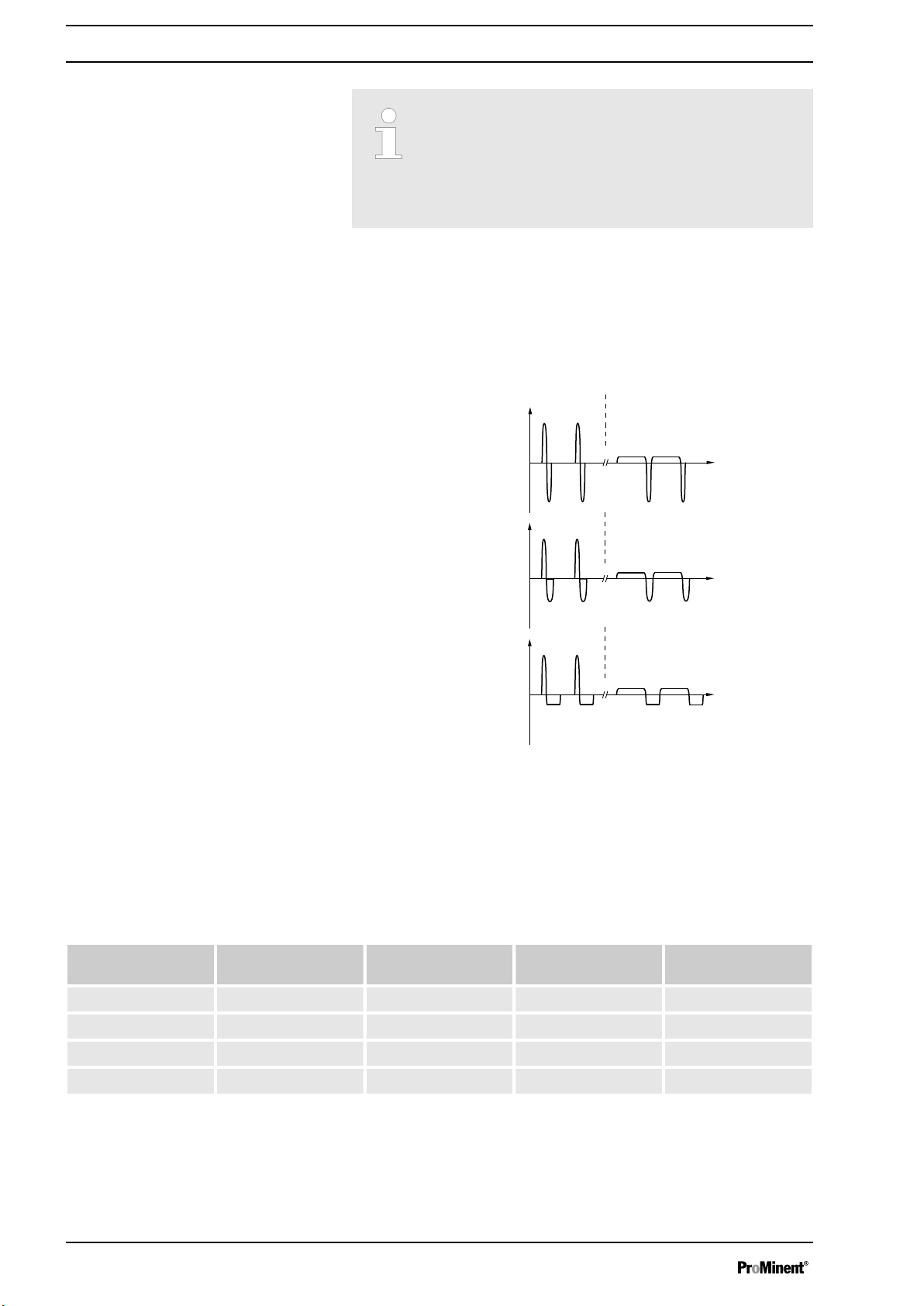

Fig. 29: Pulsed and quasi-continuous operation with:

a) normal suction stroke b) slightly slowed suction stroke c) maximally slowed suction stroke

The metering behaviour of the pump can be matched to the viscosity of the feed chemical.

Viscosity in mPa "Dosing" setting Suction stroke

slowing

Max. stroke rate Remarks

0...50 "normal" none 200

50...200 "HV1" slight 160

200...500 "HV2" medium 120 for valves with springs

500...1000 "HV3" Maximum 80 for valves with springs

For the adjustment for slowing the suction stroke dependent upon the feed chemical viscosity - see the "Adjustment" chapter.

Page 61

Set up

Should

‘Pressure’

Upon selection of

Upon selection of over, the maximum stroke rates are reduced in the following manner:

‘Settings’

, the following appears in the next menu item:

‘Intelligent’

have been selected, then in addition to

‘Compensation’

‘Intelligent’

‘Direct’

"Metering" setting Maximum stroke rate

Normal 160

HV1 150

HV2 100

HV3 60

, all the monitoring functions are available.

, only the pressure ratings are available. More‐

Strokes/min

Pressure ratings

Pressure rating/ 1 2 3 4

Using the pressure.

The switch-off pressure of the permanently active overpressure monitoring falls simultaneously with the pressure rating - see

You can select the following rated pressures for these liquid end sizes via the pressure ratings:

‘Pressure ratings’

CAUTION! If another liquid end size is fitted, then the pump must be

converted to the corresponding type - see

‘System’-‘Change head?’

CAUTION! Warning of bursting lines If a line becomes blocked, it could burst.

– Select the pump rated pressure only as large as neces‐

sary and as small as possible. This reduces the risk of bursting lines.

function, you can reduce the pump rated

Ä on page 62

‘Settings’

Size of liquid end [bar] [bar] [bar] [bar]

2508 4 7 10 25

1608 4 7 10 16

1612 4 7 10 16

1020 4 7 10 -

0730 4 7 - -

0450 4 - - -

0280 2 - - -

Page 62

Set up

Switch-off pressure

Type Discharge

stroke setting *

[bar] [bar]

1020 fast 10 12

fast 7 9

fast 4 7

slow 10 20

slow 7 17

slow 4 12

1608 fast 16 21.5

fast 10 13

fast 7 10.5

fast 4 6

slow 16 25

slow 10 25

slow 7 17.5

slow 4 8.5

Pressure rating Switch-off pres‐

sure

1612 fast 16 20

fast 10 14.5

fast 7 10.5

fast 4 6

slow 16 25

slow 10 17.5

slow 7 11.5

slow 4 7.5

0730 fast 7 10

fast 4 6.5

slow 7 12

slow 4 8

* with simultaneous suction stroke:

CAUTION! The pump cannot and must not be used as a safety device

(e.g. safety relief valve).

‘normal’

Compensation

Using the influence of back pressure oscillations and thus achieve a high metering precision.

‘Compensation’

programmable function, you can minimise the

Under difficult hydraulic conditions, it can be better to switch off the "Compensation" function.

Page 63

10.6.5.2 Settings in the "Airlock" sub-menu

Bleeding

Analog

Period: 10 min

Bleeding

Analog

Off Airlock Periodic Both

Settings

Analog

Dosing Bleeding Relay

System

Bleeding

Analog

Dose time: 10 s if Pause:

off

0..20

Continuous

display

Should a message appear, this may mean that there is air in the liquid end (if either no suction has taken place or there are gas bubbles in the liquid end. These may have been sucked in or created by outgassing or cavita‐ tion.

10.6.5.3 ″Low Pressure″ sub-menu settings

Should a message appear, then, owing to a lack of back pressure, the delta® has established that there is possibly a leak, a burst line or a line ripped off on the pressure side (if in the

‘Warning’

‘Low pressure’

The ‘Low pressure’ function can only function if the liquid end has been filled free from bubbles.

‘Error’

was selected in the

sub-menu).

‘Warning’

‘Airlock’

‘Error’

Set up

sub-menu). Then

has been selected

10.6.5.4 ″High Pressure″ sub-menu settings

If an alert appears, then the pump has identified a possible blockage or closed shut-off valve on the discharge side, owing to the back pressure being too high (if sub-menu).

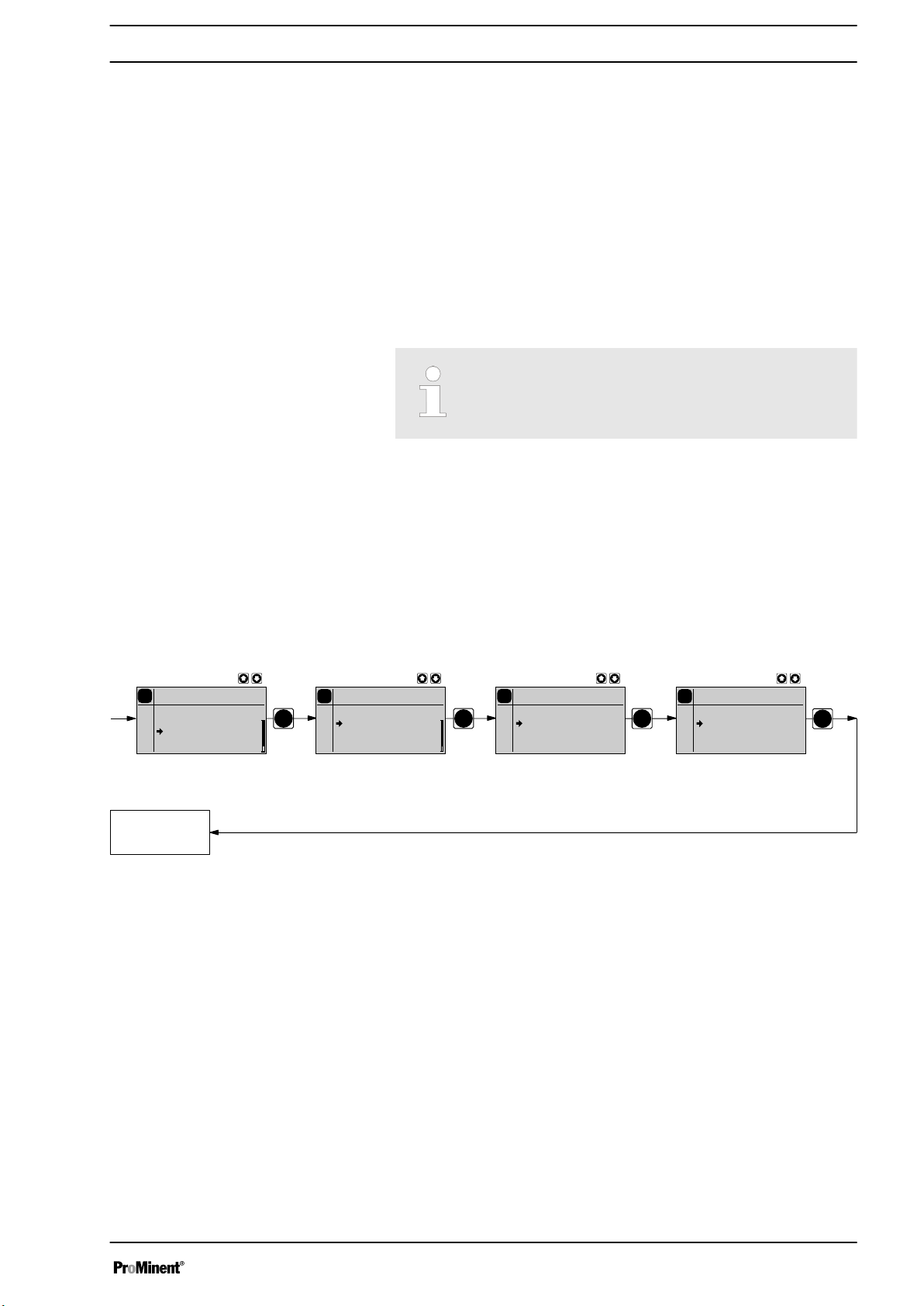

10.6.6 Settings for the "Bleeding" function)

The function the pump has the identity code option "Relay"-"with automatic ventilation" (can be retrofitted).

Accordingly, menu.

There are 2 hardware options for automatically bleeding the discharge side:

n via ProMinent's bleed module in the liquid end. n via a customer implemented bleed facility in the discharge line.

The "Bleeding" function can be triggered in 3 ways:

1 - Only through the "Airlock" internal signal from the pump drive unit.

2 - Only through a control unit internal signal - periodically and for the set

3 - If one of the two signals occurs.

‘Warning’

‘Bleeding’

‘Relay’

‘Error’

is used for controlled bleeding of the liquid end, if

then

‘Bleeding’

duration (both values adjustable).

has been set in the

‘High Pressure’

must be selected in the following

Page 64

Set up

Detailed explanation:

1 - If

‘Airlock’

triggers the bleed procedure.

If the signal appears again within 8 minutes of the bleed procedure being carried out, the control unit repeats the bleed procedure up to a maximum 3x. However if the signals still appear, then an error alert is generated, which must be acknowledged via the In the event of an warning alert upon receipt of the "Airlock" signal. Also the corre‐ sponding menu branch in the menu signal is only available for the "Bleeding" function.

2 - If

‘Periodic’

cally triggers the bleed procedure with the adjustable period (10 ... 1440 min = 24 h) and the adjustable duration ( = 5 min).

Triggering always occurs at the start of a period. Triggering also occurs if started using the applied arising from a bleed procedure. If under the menu the function

‘Upon pause’

during pauses.

3 - If

‘Both’

lock" or the control unit triggers the bleed procedure. If one trigger occurs, while the other has already triggered a bleed procedure, this results in two sequential bleed procedures.

has been selected in the menu, the internal signal "Airlock"

‘STOP/START’

‘Airlock’

was selected in the menu, then the control unit periodi‐

there is no option for a direct error or

‘METERING’

is hidden. The

‘Dose time’

‘STOP/START’

, is set to

has been selected in the menu, either the internal signal "Air‐

‘on’

, the bleed procedure also takes place

key or a mains voltage is

key.

: 0 ... 300 s

Sequence of the bleed procedure (auto‐ matic):

1. The pump control stops the running normal metering operation - the "Stop" symbol appears on the LCD screen.

2. After 1 s, it opens the bleed valve of the liquid end (via the bleed relay and the solenoid valve).

3. 1 s later, the pump starts to run at its maximum possible stroke rate (as during priming) - the symbol "Airlock" appears on the LCD screen instead of the "Stop" symbol.

4. The pump runs in this way for the total set time.

5. Once the set time has elapsed, the pump stops, the symbol "Stop" appears on the LCD screen again.

6. After 1 s the pump control closes the liquid end bleed valve.

7. After 1 s the "Stop" symbol disappears and the pump recommences normal operation.

If the pump was in the "Stop" state upon triggering (Key pause, error), the start of the bleed procedure is delayed - until this state is cleared.

If the pump is placed in the "Stop" state during the bleed procedure, the pump control jumps immediately to phases 5 and 6. (see above) This defi‐ nitely cancels the bleed procedure. As soon as the "Stop" state is cleared, the bleed procedure starts from the beginning.

‘STOP/START’

Page 65

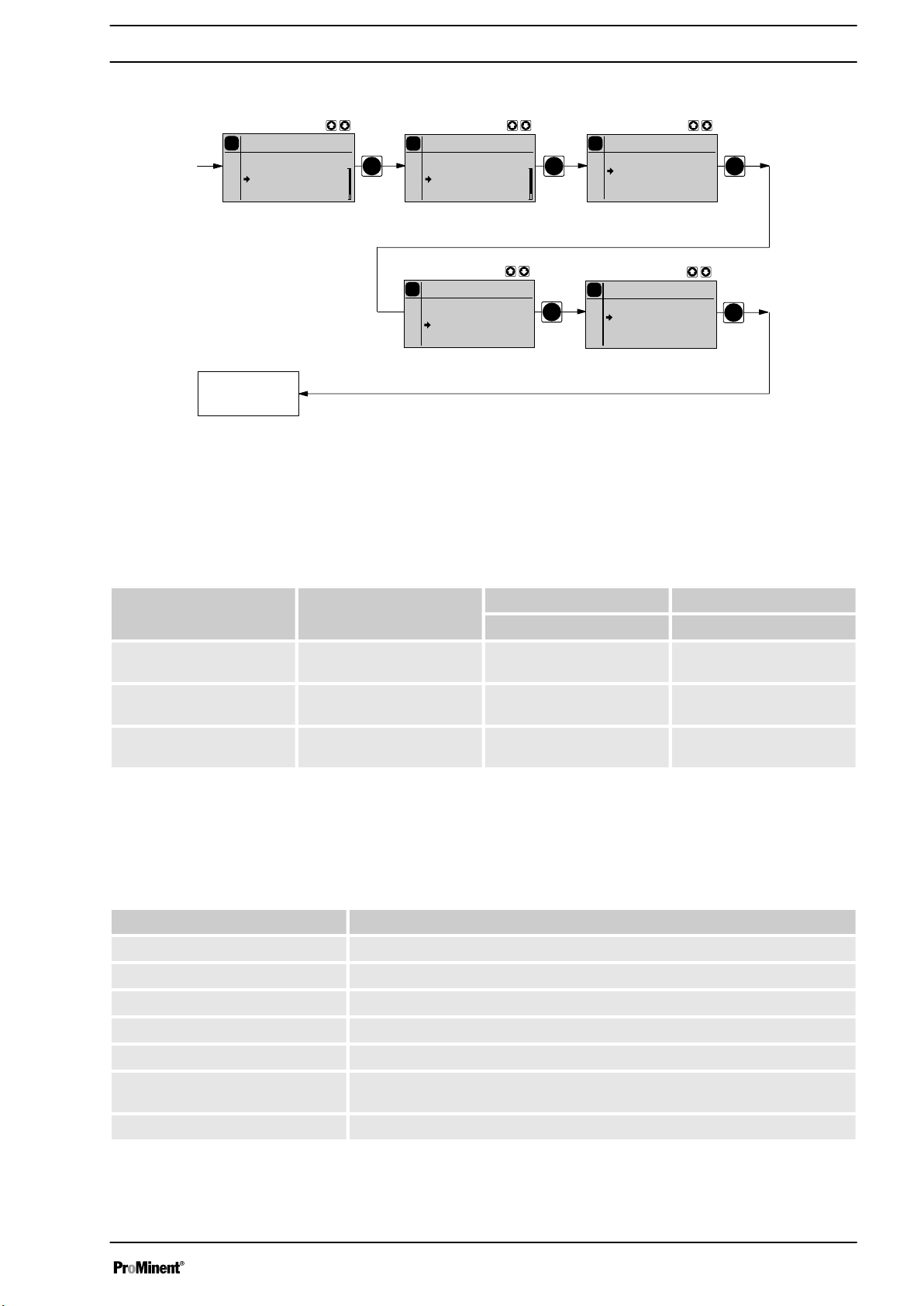

10.6.7 Settings for the “Relay” function (RELAY menu)

Relay

Batch

Relay 1 Relay

Settings

Batch

Dosing Relay Analog

Out

System

Main

Batch

Mode Settings Security Clear

Relay 1

Batch

Error Warning Warning+Error Pulse

Relay 1

Batch

energizing releasing

Continuous

display

Set up

Using the

‘Relay’

programmable function, you can match the pump relays

to your requirements.

You can reprogram the relays using the unlimited way. Exception:

‘Pulse generator’

due to the then short service life.

‘Relay 1’

‘Relay’

function in an almost

should not be reprogrammed as a

Allocations for the relay combinations

Identity code specification Relay type "Relay 1" "Relay 2"

(Mechanical relay) Semiconductor relay)

4 + 5 Fault indicating relay and

Warning + error Pacing relay

pacing relay

8 + 9 Cut-off relay and pacing

Error Pacing relay

relay

A + B Cut-off relay and warning

Error Warning

relay

You can set whether the respective relay is to switch due to a triggering event from the timer, upon a warning alert, a fault alert or a pump stroke:

Selectable behaviour types

‘Relay’

Setting in the

Effect

Warning The relay switches upon a warning alert (yellow LED*).

Error The relay switches upon a fault alert (red LED*).

Warning + error The relay switches upon a warning alert (yellow LED*) or a fault alert (red LED*).

Pacing relay The relay switches every stroke.

Option The relay has the option of which module was plugged in (e.g. timer).

Warn. + Fault + Stop The relay switches upon a warning alert (yellow LED*) or a fault alert (red LED*)

or a stop (key

Bleed valve The relay switches upon the internal signal

‘STOP/START’

or pause).

‘Airlock’

* see "Troubleshooting" chapter

You can also indicate how the respective relay should behave as soon as it switches. You can change this via the setting

‘NO’

‘NC.’

Page 66

Analog Out

Batch

0..20mA

4..20mA

Settings

Batch

Dosing Relay Analog

Out

System

Main

Batch

Mode Settings Security Clear

0..20mA

Batch

/h l/h x Capacity

Capacity

Batch

12 l/h at 20 mA

Continuous

display

only under "Capacity"

Set up

The setting option for the "Relay" function only exists if a relay is present.

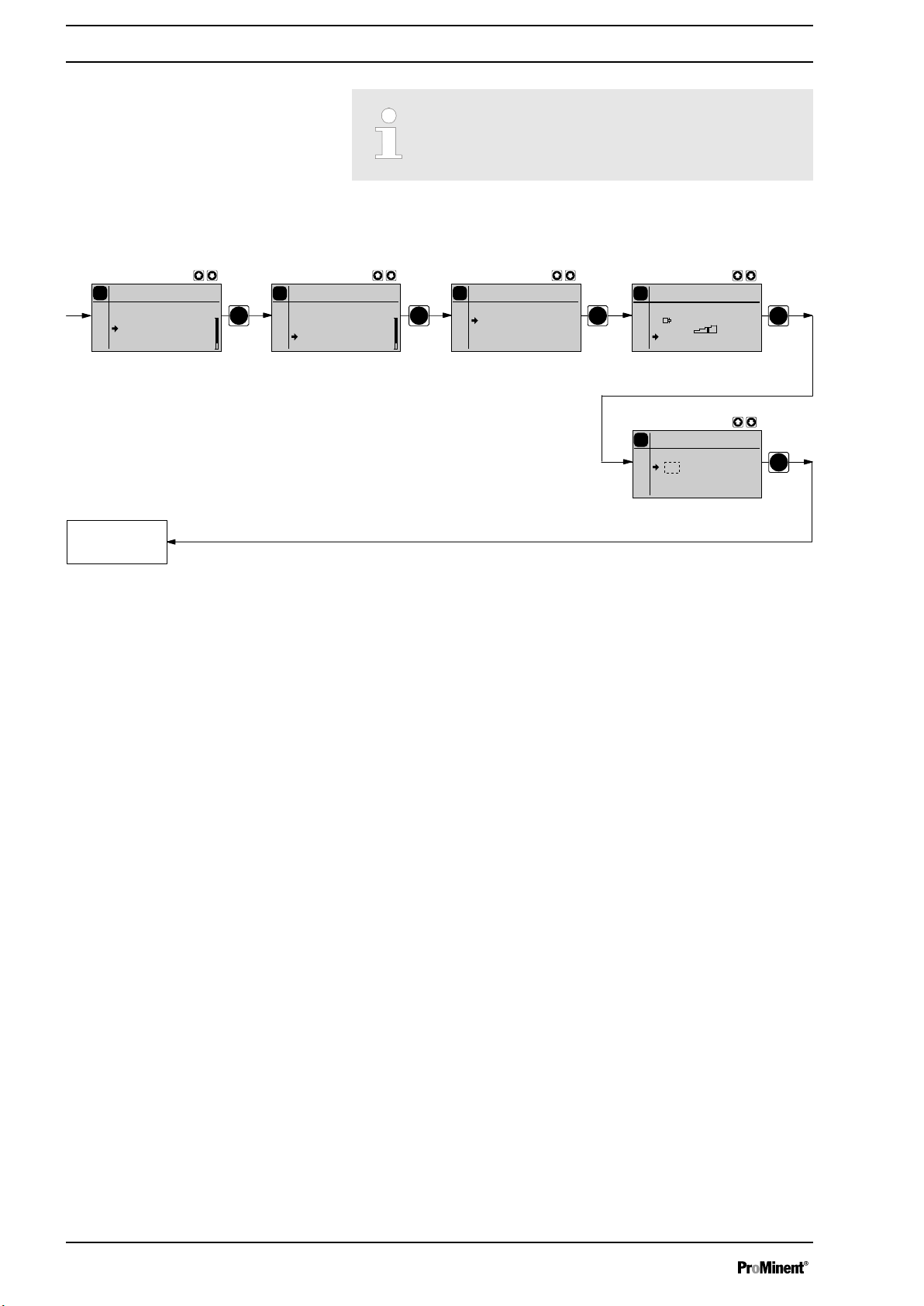

10.6.8 Settings for the “Analog output” function (ANALOG OUTPUT menu)

Using the "Analog output" programmable function, you can match the pump current output signal to your requirements.

The signal I of the current output signal one of the three following varia‐ bles:

n Strokes /h n Litre / h x stroke length (= current, calculated capacity) n n Performance (= capacity, value adjustable at 20 mA)

In the "Stop" or "Pause" states (either because of a fault or operation) or "Pause" the current output emits a current of 4 mA.

The signal for the current, calculated capacity "Litre / h *" is calculated by the pump according to the following formula (here for the range 4-20 mA):

I(4...20) = 16 x (f/fmax) x (L/100) + 4

with

l - Output current in mA

o - Stroke rate in strokes/min

L - Stroke length in %

fmax - Maximum stroke rate in strokes/min

In the

‘Contact’

and

‘Batch’

operating modes, f is the stroke rate which is

set in the "Stroke rate" continuous display.

Page 67

10.6.9 Settings in the "System" menu" (SYSTEM menu)

SystemSystem

SettingsSettings

SubmenuSubmenu

UnitUnit

Submenu

Change head?Change head?

Submenu

InfoInfo

Submenu

Diaphragm Aktiv.Diaphragm Aktiv.

Continuous

display

The "System" menu branches into the following sub-menus:

n Unit n Diaphragm active n Info n Change head?

Set up

10.6.9.1 Settings in the sub-menu ″Units″

10.6.9.2 Settings in the ″Diaphragm active″ sub-menu

10.6.9.3 "Info" sub-menu

In the

‘Units’

sub-menu, you can select whether the pump uses litres or

gallons (US).

In the

‘Diaphragm active’

sub-menu you can select whether the pump

generates a warning or error alert upon a diaphragm rupture.

CAUTION! The diaphragm rupture sensor must first be activated in the

operating menu, in order that it can be detected by the pump.

In the "Info" sub-menu you can read off the following identification num‐ bers:

n Identity code ID n Serial number SN n Software control SW n Hardware control HW n Software drive AS n Hardware drive AH n Name module-option (e.g. proTIME) n Software option OS n Hardware option OH

Page 68

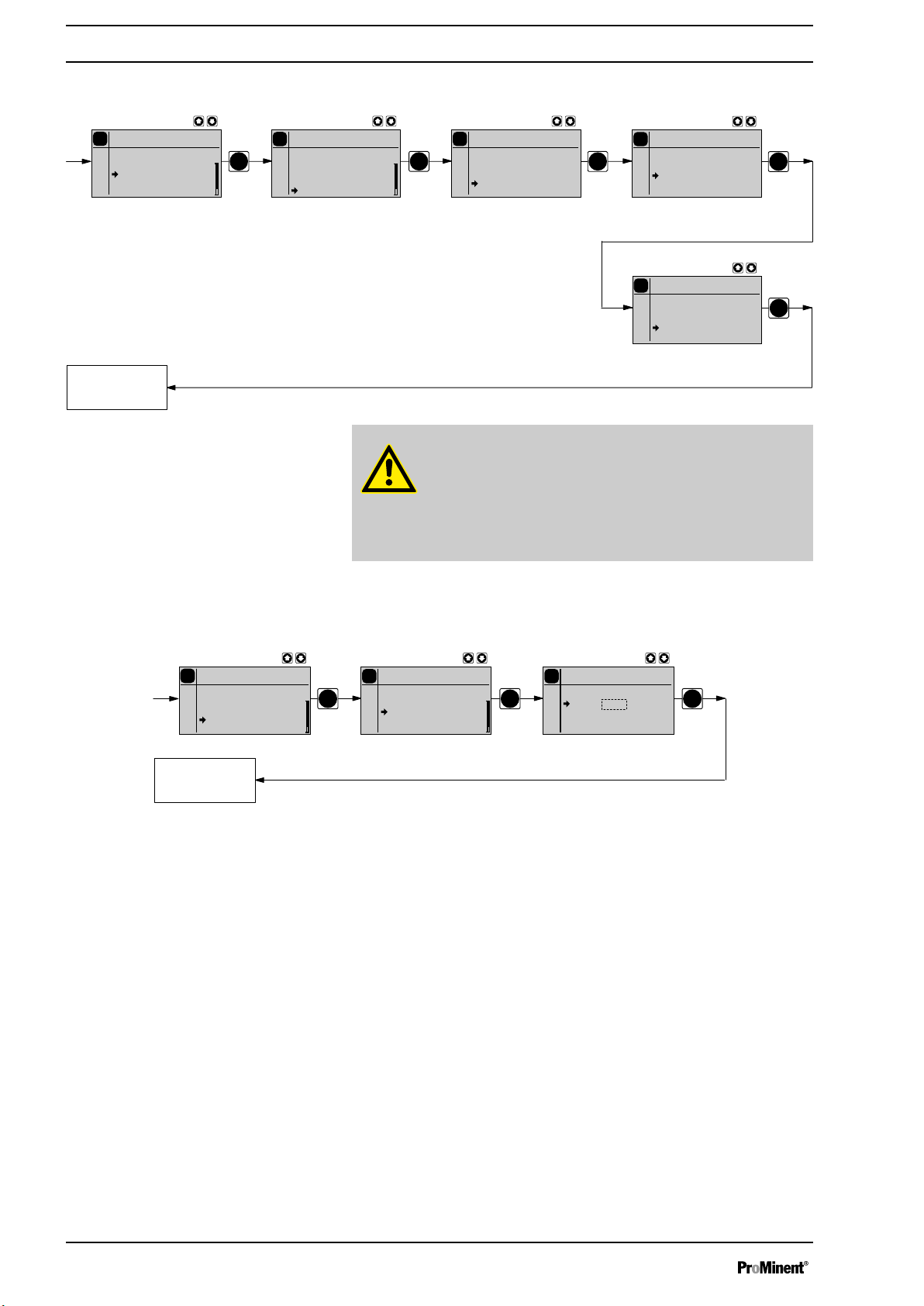

System

Batch

Unit Info

Settings

Batch

Metering Relay Analog output System

Main menu

Batch

Mode Settings Security Clear

Batch

cancel really

Batch

none

Continuous

display

Change head?

1608 1612 1020

PP P

Continuous

display

Security

Batch

none Lock Menu Lock all

Lock Menu

Batch

Code: 2793

Main

Batch

Mode Settings Security Clear

Set up

10.6.9.4 Sub-menu "Change head?"

CAUTION! – Should a different liquid end size be fitted, then the

pump must be reprogrammed in the sub-menu

head?’

‘Change

– For demonstration purposes or if operating without feed

chemical, reprogram the pump to

‘none’

10.7 Set code (SECURITY menu)

In the

‘SECURITY’

menu, you can enter whether you want to block sec‐

tions of the adjustment options.

In the first menu option, you can either set

‘Lock all’

n Select n Select

(both locks use the same code.):

‘None’

, to clear a security lock.

‘Lock menu’

to lock the adjustment mode (point ① in the over‐

‘None’

‘Lock menu’

view "Operating/setting diagram", in the appendix). In the next menu option, enter the number you want to use as the code.

n Select

‘Lock all’

able variables in the continuous displays and to lock the stroke length (point ② in the overview "Operating/setting diagram", in the appendix), in addition to the adjustment mode. In the next menu option, enter the number you want to use as the code.

to lock the adjustment option for the directly adjust‐

If a lock is set, a padlock appears in the continuous display.

If you have set left corner and the specified areas are locked, if no key has been pressed in the meantime.

If you have set minute, if no key has been pressed in the meantime.

‘Lock all’

, a padlock will appear after 1 minute in the top

‘Lock menu’

, the operating menu will be locked after 1

Page 69

Continuous

display

Clear

Batch

none Counter Quantity Count+Quantity

Main

Batch

Mode Settings Security Clear

Continuous

display

Language

Batch

english english

(us) deutsch francais

Main

Batch

Settings Security Clear Language

Test

Set up

To test whether the menu is locked, press the

If you try to change into a locked area, a key appears in the LCD display and the padlock flashes.

[P]

key for 2 s.

Overriding the lock

Changing the stroke length variable

To override the lock, enter the code using the

[arrow keys]

In the stroke adjustment dial has been turned, the padlock flashes, the pump stops and a fault alert and key appear. If you enter the code, the pump continues metering and the fault alert clears.

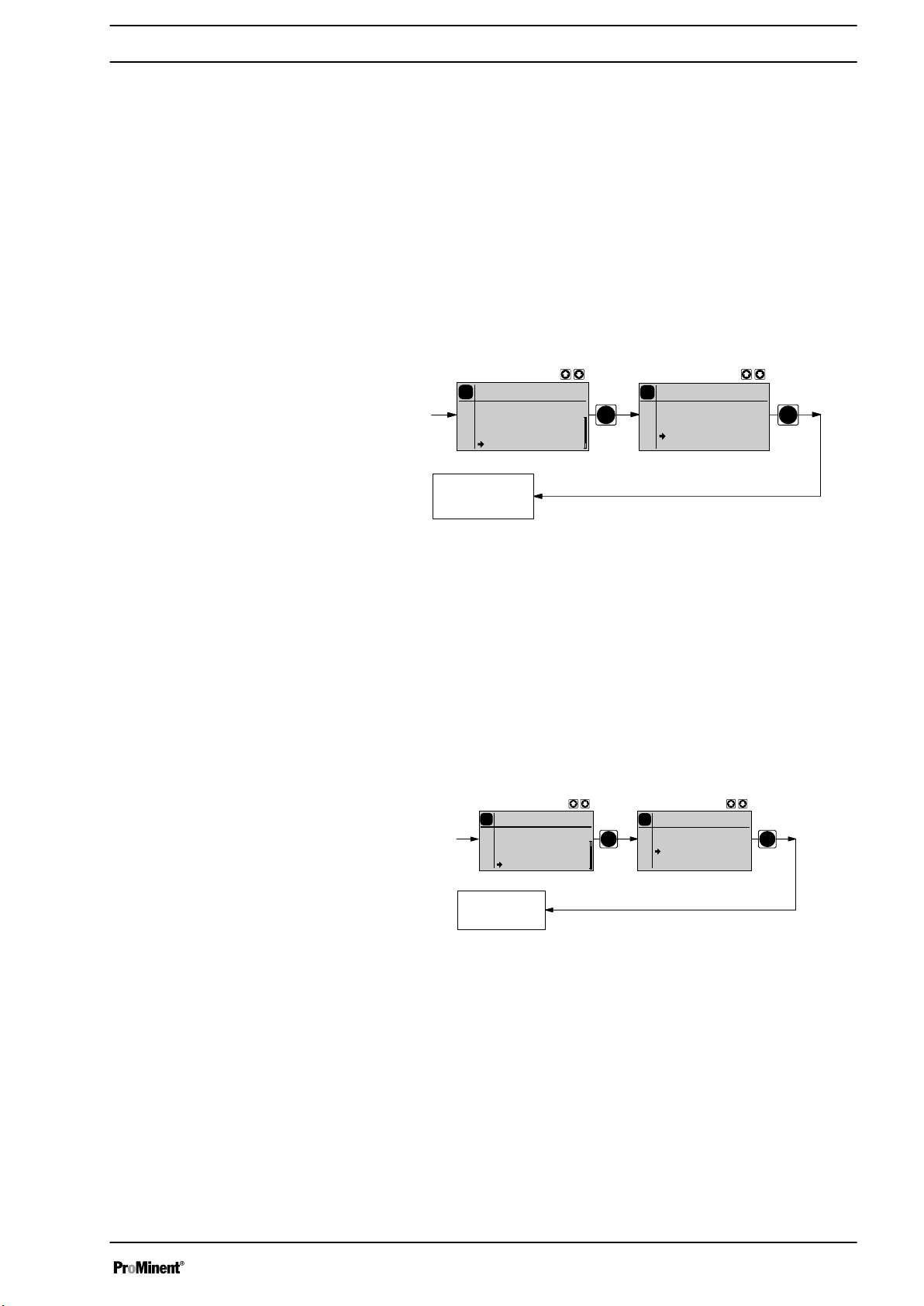

10.8 Delete total number of strokes or total litres (CLEAR menu)

‘DELETE’

In the strokes or the total litres or both together (= reset to "0"):

‘none’

‘Counter’

‘Quantity’

‘all’

(both)

To do this quit the menu by quickly pressing the key

The variables have increased since commissioning of the pump, the last calibration or the last deletion.

menu, you can either delete the stored total number of

(total number of strokes)

(total litres)

[P]

key.

10.9 Set language (LANGUAGE menu)

In the

‘LANGUAGE’

guage.

The selection imal point in the displays.

menu, you can select the desired operating lan‐

‘English (US)’

also changes the decimal comma to a dec‐

Page 70

Operation

11 Operation

WARNING! Fire hazard with flammable media Only with combustible media: These may start to burn when

combined with oxygen.

– During filling and draining of the liquid end, an expert

must ensure that feed chemical does not come into con‐ tact with oxygen.

WARNING! Danger of electric shock Incompletely installed electrical options can allow moisture

into the inside of the housing.

– Knock-out openings in the pump housing must be

equipped with matching modules or be sealed in a leaktight manner.

11.1 Manual

WARNING! Danger of electric shock A mains voltage may exist inside the pump housing.

– If the pump housing has been damaged, you must dis‐

connect it from the mains immediately. It may only be returned to service after an authorised repair.

This chapter describes all the operating options available to you if the pump is displaying a continuous display - the display does not contain the symbol for the

[P]

key.

–

For supplementary information, see the overviews "Con‐ trol elements and key functions" in the chapter "Device overview and control elements" and "Operating/setting diagram" in the appendix.

–

Also take note of the overview "Continuous displays" in the appendix. It shows which continuous displays are available in which operating mode and which variables are directly changeable in the relevant continuous dis‐ play.

Adjusting the stroke length

Stopping/starting the pump

Personnel:

The stroke length is adjusted by the stroke length adjustment knob within a range of 0 ... 100 %. A stroke length of between 30 ... 100 %) is recom‐ mended to achieve the specified reproducibility.

The following operating options are available via the keys - see the next figure:

Stop the pump: Press the

Instructed personnel

[STOP/START]

key.

Page 71

Starting batch

Start the pump: press the

‘Batch’

operating mode: briefly press key

[STOP/START]

key again.

[P]

Operation

Changing to adjustment mode

Checking adjustable values

Change directly changeable variables

Stroke rate

[P]

If the changes to adjustment mode - see chapter "Adjustment".

If an access code was set in the "Security" menu for after pressing the

After every press of the The number of continuous displays depends on the identity code, the selected operating mode and the connected additional devices.

To change a variable, see below, directly in the corresponding continuous display, press and hold one of the identifier "Double arrow" appears and the variable is flanked by two flashing lines. The delay has been programmed in to prevent variables from being unintentionally changed.

If an access code was set in the "Security" menu for pressing the

The directly changeable variables are in detail:

In operating modes

You can change the stroke rate in the "Stroke rate" continuous display.

key is pressed for 2 seconds in a continuous display, the delta

‘Lock menu’

[P]

key the access code must first be entered.

[i]

key, a different continuous display is shown.

[arrow keys]

[P]

key the access code must first be entered.

‘Manual’, ‘Contact’

(approx. 1/2 s) until the

‘Lock all’

and

‘Batch’

, then after

, then

Capacity

Factor

Priming

Acknowledging errors

To change a precisely previously set feed rate (possibly specified in litres), there is an option of changing it via the stroke rate. As the stroke rate is digitally processed, there is no tolerance.

Changing using the stroke length interferes with the mechan‐ ical tolerance.

‘Manual’

You can change the capacity in the "Capacity" continuous display.

The factor is the number of strokes which are triggered upon an external pulse or by pressing key

Simultaneous pressing of the two tion (in the "Stroke rate" continuous display).

Fault displays are acknowledged by brief pressing of the

operating mode:

[P]

(only in

[arrow keys]

‘Batch’

operating mode.

triggers the "Priming" func‐

[P]

key.

Page 72

STOP

START

2 s

Adjustment

mode

Continuous

display

Pump stop/start

Change directly alterable variables

= Security lock ("Lock Menu")

= Security lock ("Lock all")

Priming

Start batch (only in "Batch" operating mode)

Acknowledge error

Check adjustable variables

Operation

Fig. 30: Operating options with a locked operating menu

11.2 Remote operation

There is an option to control the pump remotely via a signal cable - refer to your system documentation and to the "Electrical Installation" chapter.

Page 73

12 Maintenance

Maintenance

WARNING! It is mandatory that you read the safety information and

specifications in the "Storage, Transport and Unpacking" chapter prior to shipping the pump.

WARNING! Fire hazard with flammable media Only with combustible media: These may start to burn when

combined with oxygen.

– During filling and draining of the liquid end, an expert

must ensure that feed chemical does not come into con‐ tact with oxygen.

CAUTION! Warning of feed chemical spraying around Feed chemical can spray out of the hydraulic components if

they are manipulated or opened due to pressure in the liquid end and adjacent parts of the system.

– Disconnect the pump from the mains power supply and

ensure that it cannot be switched on again by unauthor‐ ised persons.

Depressurise the system before commencing any work

–

on hydraulic parts.

Third party spare parts for the pumps may lead to problems when pumping.

–

Use only original spare parts.

–

Use the correct spare parts kits. In case of doubt, refer to the exploded views and ordering information in the appendix.

Standard liquid ends:

Interval Maintenance work Personnel

Quarterly*

n Check the diaphragm for damage - refer to the "Overhaul" chapter. n Check that the metering lines are fixed firmly to the liquid end. n Check that the suction valve and discharge valve are firmly fixed. n Check the tightness of the entire liquid end - particularly around the

leakage hole, see the following figure.

n Check that the flow is correct: Allow the pump to prime briefly - quickly

press both

n Check that the electrical connections are intact and check the pump

housing.

n Check that the dosing head screws are tight.

[arrow keys]

at the same time.

* Under normal loading (approx. 30 % of continuous operation)

Under heavy loading (e.g. continuous operation): Shorter intervals.

Technical personnel

Page 74

P_BE_0012_SW

Maintenance

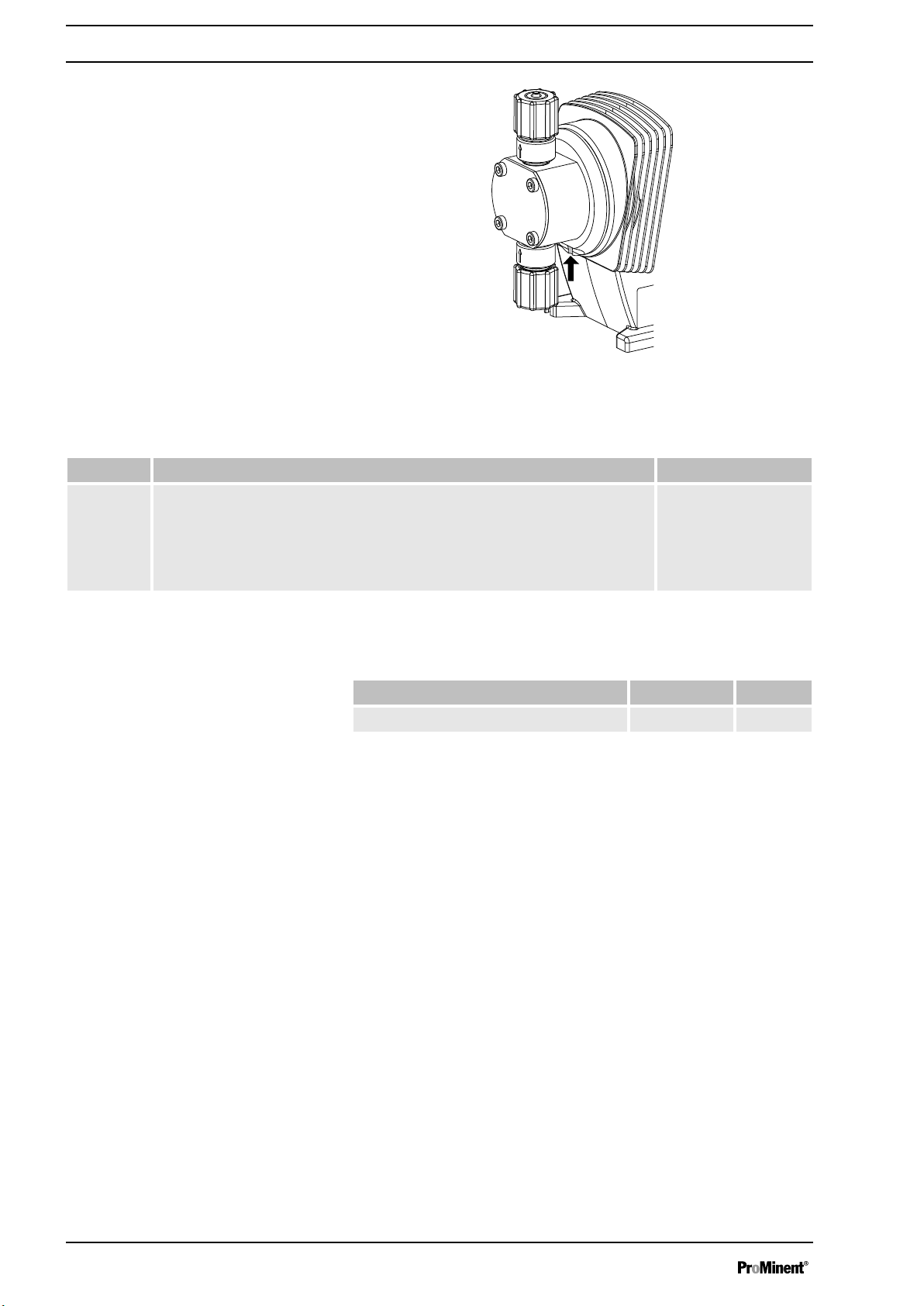

Fig. 31: Leakage hole

Liquid ends with bleed valve:

Interval Maintenance work Personnel

Quarterly* In addition:

n Check that the return line is fixed firmly to the liquid end. n Check that the bleed valve is tight. n Check the discharge and return line for kinks. n Check that the bleed valve is operating correctly.

Tightening torque

Technical personnel

* Under normal loading (approx. 30 % of continuous operation)

Under heavy loading (e.g. continuous operation): Shorter intervals.

Data Value Unit

Tightening torque for screws: 4.5 ... 5.0 Nm

Page 75

13 Repairs

Safety notes

Repairs

WARNING! Danger of electric shock Unauthorised repairs inside the pump can result in an elec‐

tric shock.

For this reason repairs inside the pump should only be car‐ ried out by a ProMinent branch office or representative, in particular the following:

– Replacement of damaged mains connection lines –

Replacement of fuses

– Replacement of electronic control

WARNING! It is mandatory that you read the safety information and

specifications in the "Storage, Transport and Unpacking" chapter prior to shipping the pump.

WARNING! Fire hazard with flammable media Only with combustible media: These may start to burn when

combined with oxygen.

– During filling and draining of the liquid end, an expert

must ensure that feed chemical does not come into con‐ tact with oxygen.

WARNING! Contact with the feed chemical Parts that come into contact with the feed chemical are

exposed and touched during repair work.

– Protect yourself against the feed chemical in case it is

hazardous. Read the safety data sheet on the feed chemical.

CAUTION! Warning of feed chemical spraying around Feed chemical can spray out of the hydraulic components if

they are manipulated or opened due to pressure in the liquid end and adjacent parts of the system.

– Disconnect the pump from the mains power supply and

ensure that it cannot be switched on again by unauthor‐ ised persons.

–

Depressurise the system before commencing any work on hydraulic parts.

Warning of faulty operation Refer to the exploded views in the Appendix when working

on the unit.

Page 76

Repairs

13.1 Cleaning valves

Cleaning a discharge valve for types 0730, 1020, 1612, 1608, 2508

Cleaning a suction valve for types 0730, 1020, 1612, 1608, 2508

Personnel:

Technical personnel

Warning of faulty operation Refer to the exploded views in the Appendix when working

on the unit.

Warning of faulty operation

–

Discharge and suction valves differ from each other! Only take them apart one after each other, so that you do not confuse the components!

–

Only use new components which fit your valve - both in terms of shape and chemical resistance!

–

Readjust the pump after replacing a valve!

–

Using an Allen key or similar, insert it into the smaller hole of the discharge connector and push the valve inserts out of it.

A suction valve is constructed in almost the same way as a discharge valve.

Please note, however, that:

n the two valve inserts are identical here n There is an additional spacer between the valve inserts. n There is a shaped seal in the dosing head instead of an O-ring. n The flow direction of the suction connector is the opposite to that of

the discharge connector.

Cleaning a discharge valve for types 0280, 0450

Cleaning a suction valve for types 0280, 0450

Warning of faulty operation

–

Discharge and suction valves differ from each other! Only take them apart one after each other, so that you do not confuse the components!

–

Only use new components which fit your valve - both in terms of shape and chemical resistance!

–

With the PVT material version, the ball seat is integrated in the dosing head and so has to be cleaned separately!

–

On the PVT material version, the discharge valve is a double ball valve!

–

Using an Allen key or similar, insert it into the smaller hole of the discharge connector and push the valve inserts out of it.

A suction valve is constructed in almost the same way as a discharge valve.

Please note, however, that:

n The flow direction of the suction connector is the opposite to that of

the discharge connector.

Page 77

13.2 Replacing the diaphragm

P_DE_0041_SW

1 2 3 4 5 6

Repairs

WARNING! A few cubic centimetres of feed chemical may have accumu‐

lated behind the metering diaphragm in the backplate fol‐ lowing a leak - depending on the design!

– Take this feed chemical into consideration when you are

planning a repair - especially if it is hazardous!

Personnel:

Technical personnel

n If necessary take protective measures. n Adhere to the safety data sheet for the feed chemical. n Ensure that the system is at atmospheric pressure.

1. Empty the liquid end (turn the liquid end upside down and allow the feed chemical to run out; flush out with a suitable medium; flush the liquid end thoroughly when using hazardous feed chemicals!)

2. Turn the stroke adjustment dial up to the stop below 0 % stroke length if the pump is running (the drive axle is then difficult to turn).

3. Switch off the pump.

4. Unscrew the hydraulic connectors on the discharge and suction side.

5. For types with coarse/fine bleed valve: Firstly remove the coarse/ fine bleed valve (knob), then lift off the cover of the liquid end with a screwdriver.

Fig. 32: Partially exploded view of liquid end

1 Screws 2 Dosing head 3 Diaphragm 4 Backplate 5 Safety diaphragm 6 Pump housing

6. Remove the screws (1).

7. Take the dosing head (2) plus screws (1) off from the pump - see figure Fig. 32

8. Replace the dosing head (2) and screws - the screws (1) should still extend into the holes in the diaphragm (3), but not into the pump housing!

9. Hold the pump housing (6) with one hand and clamp the diaphragm (3) with the other hand between the dosing head (2) and the back‐ plate (4).

10. Loosen the diaphragm (3) from the drive axle with a gentle back‐ wards turn of the dosing head (2), diaphragm (3) and backplate (4) in an anticlockwise direction.

Page 78

Repairs

11. Pull the dosing head (2) with the screws (1) out of the diaphragm (3) and completely unscrew this from the drive axle.

12. Remove the backplate (4) from the pump housing (6).

13. Check the condition of the safety diaphragm (5) and replace if nec‐ essary.

14. Push the safety diaphragm (5) onto the drive axle only until it lies flush with the pump housing (6) and no further!

15. Tentatively screw the new diaphragm (3) onto the drive axle up to the stop - this must be successful, otherwise the pump will subse‐ quently not meter correctly!

16. Check whether the diaphragm holes align correctly with the pump housing.

17. If not, start the pump and adjust the stroke length to 100 %.

18. With the pump running, slowly turn the diaphragm (3) in the clock‐ wise direction until the 4 diaphragm holes align correctly with the pump housing (6). Do not turn anticlockwise!

19. Clamp the diaphragm (3) in this position, adjust the stroke length to 0 % and stop the pump.

20. Unscrew the diaphragm (3) again.

21. Place the backplate (4) onto the pump housing (6).

CAUTION! – The leakage hole must point downwards in the

subsequent fitting position of the pump - see figure in the "Maintenance" chapter!

Place the backplate (4) immediately in the correct

–

position on the pump housing (6)! Do not twist the backplate on the pump housing to prevent the safety diaphragm (5) becoming warped!

22. Place the diaphragm (3) into the backplate (4).

CAUTION! – Do not over-tighten the diaphragm (3) in the fol‐

lowing step!

– Ensure that the backplate (4) remains in its posi‐

tion so that the safety diaphragm does not become warped!

23. Hold the backplate (4) firmly and screw the diaphragm (3) in a clock‐ wise direction until it is sitting tightly (the twisting resistance of the return spring can be felt).

24. Place the dosing head (2) with the screws (1) onto the diaphragm (3) and the backplate (4) - ensure that the suction connector points downwards when the pump is subsequently fitted.

25. Gently tighten the screws (1) and then tighten them diagonally. See below for tightening torque.

26. For types with coarse/fine bleed valve: Allow the cover of the liquid end to rest in the dosing head, then press the knob of the bleed valve into the coarse/fine bleed valve.

Check the tightening torque of the screws after 24 hours of operation!

Page 79

Tightening torques

Repairs

Data Value Unit

Tightening torques for dosing head screws:

13.3 Cleaning the diaphragm rupture indicator

WARNING! Warning of unnoticed escaping of feed chemical After triggering of the diaphragm rupture indicator, any feed

chemical residues can be blocked.

– After triggering of the diaphragm rupture indicator, clean

and test.

Personnel:

1. First replace the liquid end diaphragm - see above!

2. Unscrew the diaphragm rupture indicator using a 15mm openended spanner.

3. Clean the diaphragm rupture indicator with suitable liquid - if pos‐ sible using water (polysulphone material).

4. Test the connected diaphragm rupture indicator: Immerse the for‐ ward hemisphere completely in water, a diaphragm rupture must be indicated in the continuous display.

The continuous display indicates a diaphragm rupture.

5. Thoroughly dry the diaphragm rupture indicator.

The continuous display no longer indicates a diaphragm rup‐

ture.

6. Screw the clean and dry diaphragm rupture indicator hand-tight and liquid tight into the hole - without using tools

Technical personnel

4.5 ... 5.0 Nm

Page 80

Troubleshooting

14 Troubleshooting

Safety notes

WARNING! Fire hazard with flammable media Only with combustible media: These may start to burn when

combined with oxygen.

– During filling and draining of the liquid end, an expert

must ensure that feed chemical does not come into con‐ tact with oxygen.

WARNING! Warning of dangerous or unknown feed chemical Should a dangerous or unknown feed chemical be used: It

may escape from the hydraulic components when working on the pump.

– Take appropriate protective measures before working on

the pump (e.g. safety glasses, safety gloves, ...). Observe the safety data sheet for the feed chemical.

–

Drain and flush the liquid end before working on the pump.

CAUTION! Warning of feed chemical spraying around Feed chemical can spray out of the hydraulic components if

they are manipulated or opened due to pressure in the liquid end and adjacent parts of the system.

– Disconnect the pump from the mains power supply and

ensure that it cannot be switched on again by unauthor‐ ised persons.

Depressurise the system before commencing any work

–

on hydraulic parts.

14.1 Faults without a fault alert

Fault description Cause Remedy Personnel

Pump does not prime in spite of full stroke motion and bleeding.

Fluid is escaping from the backplate.

Minor crystalline deposits on the ball seat due to the valves drying out

Major crystalline deposits on the ball seat due to the valves drying out

The screws in the dosing head are too loose

Take suction hose out of the storage tank and thoroughly flush out the liquid end

Dismantle the valves and clean them - refer to the "Overhaul" chapter.

Tighten the screws in the dosing head in a diagonal pattern - refer to the "Repairs" chapter for tightening torque.

Technical personnel

Green LED display (oper‐ ating display) does not light up

The diaphragm is not tight. Replace the diaphragm - refer to the "Over‐

The wrong mains voltage or no mains voltage is con‐ nected.

haul" chapter.

If a diaphragm rupture has been indicated, clean the diaphragm rupture reporter, refer to the "Overhaul" chapter.

Connect the pump correctly to the specified mains voltage - according to the specification on the nameplate.

Technical personnel

Electrician

Page 81

i < 4i < 4

i > 23i > 23

Troubleshooting

14.2 Fault alerts

Fault description Cause Remedy Personnel

The red LED displays lights up, the "Level" symbol appears flashing in the LCD display as well as the symbols for "Error" and "Stop", and the pump stops.

The red LED displays lights up, the "i < 4 mA" symbol

appears flashing in the LCD dis‐ play as well as the symbols for "Error" and "Stop", and the pump stops.

The red LED displays lights up, the "i > 23 mA" symbol

appears flashing in the LCD display as well as the symbols for "Error" and "Stop", and the pump stops.

The red LED displays lights up, the "m" and "External" symbols appear flashing in the LCD display as well as the symbols for "Error" and "Stop", and the pump stops.

The red LED displays lights up, the "Tem‐ perature" symbol

appears flashing in the LCD display as well as the symbols for "Error" and "Stop", and the pump stops.

The fluid level in the

Fill the storage tank. Technical storage tank has reached "liquid level low 2nd stage".

The pump is in "Analog" operating mode, a fault behaviour has been pro‐ grammed in the ANALOG menu and the control current has fallen below 4 mA.

The pump is in "Analog" operating mode, a fault behaviour has been pro‐ grammed in the ANALOG menu and the control current has risen above 23 mA.

The stroke memory has overflown.

Clear the cause of the low

control current or

Switch the programming of

the fault behaviour to "OFF" -

see chapter "Settings for

'Analog' operating mode".

Clear the cause of the high

control current or

switch the programming of the

fault behaviour to "OFF" - see

chapter "Settings for 'Analog'

operating mode".

Rectify the cause, then

press

[P]

(think through the consequences for the process!).

The pump is overloaded. Rectify the cause, then

press

[P]

(think through the consequences for the process!).

personnel

Technical personnel

The temperature is too high.

Rectify the cause, then

press

[P]

(think through the

Technical personnel

consequences for the process!).

The red LED displays lights up, the "Stroke length adjustment" symbol

appears

flashing in the LCD display as well as the

The stroke adjustment dial was rotated while the menu was locked.

Turn the stroke adjustment dial back or enter the code.

Technical personnel

symbols for "Error" and "Stop", and the pump stops.

14.3 Fault alerts / warning alerts

At issue here are error alerts, which dependent on the setting in the setting menu are displayed as fault alerts or warning alerts.

Fault description Cause Remedy Personnel

Either the yellow LED display lights up, the "Flow" symbol appears flashing in the LCD display - or, together with the red LED display, the symbols for "Error" and "Stop" also appear, and the pump stops.

The dosing monitor is not correctly con‐ nected.

The dosing monitor reported too few strokes, more that set in the FLOW menu.

Connect the dosing monitor cor‐ rectly and

[P]

press

Press

Investigate and clear the cause

Electrician

Technical personnel

Either the yellow LED display lights up, the "Dia‐ phragm" symbol

appears flashing in the LCD display - or, together with the red LED display, the symbols for "Error" and "Stop" also appear, and the pump stops.

The diaphragm is broken.

Replace the diaphragm and clean the diaphragm rupture reporter, refer to the "Overhaul" chapter.

Technical personnel

Page 82

p -

Troubleshooting

Fault description Cause Remedy Personnel

Either the yellow LED display lights up, the "Air lock" symbol appears flashing in the LCD dis‐ play - or, together with the red LED display, the symbols for "Error" and "Stop" also appear, and the pump stops.

Either the yellow LED display lights up, the "p+" symbol or, together with the red LED display, the sym‐ bols for "Error" and "Stop" also appear, and the pump stops.

Either the yellow LED display lights up, the "p-" symbol or, together with the red LED display, the sym‐ bols for "Error" and "Stop" also appear, and the pump stops.

appears flashing in the LCD display -

Gas bubbles in the liquid end (leaks, gaseous medium, cavitation).

A constriction or a closed shut-off valve on the discharge side.

There is a leak or a burst or torn line on the discharge side.

If the red LED display lights up, press

[P]

sequences for the process!

Bleed the liquid end and rectify the cause. Seal the system or slow the suction stroke.

If the red LED display lights up, press sequences for the process!

Open the shut-off valve or rectify the constriction.

If the red LED display lights up, press sequences for the process!

Rectify the leak or clear the cause.

- think through the con‐

[P]

- think through the con‐

[P]

- think through the con‐

14.4 Warning messages

Fault description Cause Remedy Personnel

The yellow LED display lights up, the "Level" symbol appears in the LCD display and flashes.

The fluid level in the storage tank has reached "liquid level low 1st stage".

Fill the storage tank.

Instructed per‐ sonnel

Technical personnel

14.5 All other faults

Please contact the responsible ProMinent branch or representative!

Page 83

15 Decommissioning

Decommissioning

WARNING! Danger from chemical residues There is normally chemical residue in the liquid end and on

the housing after operation. This chemical residue could be hazardous to people.

– It is mandatory that the safety notes relating to the

"Storage, transport and unpacking" chapter are read before shipping or transporting the unit.

–

Thoroughly clean the liquid end and the housing of chemicals and dirt. Adhere to the safety data sheet for the feed chemical.

WARNING! Warning of dangerous or unknown feed chemical Should a dangerous or unknown feed chemical be used: It

may escape from the hydraulic components when working on the pump.

– Take appropriate protective measures before working on

the pump (e.g. safety glasses, safety gloves, ...). Observe the safety data sheet for the feed chemical.

–

Drain and flush the liquid end before working on the pump.

WARNING! Fire hazard with flammable media Only with combustible media: These may start to burn when

combined with oxygen.

– During filling and draining of the liquid end, an expert

must ensure that feed chemical does not come into con‐ tact with oxygen.

CAUTION! Warning of feed chemical spraying around Feed chemical can spray out of the hydraulic components if

they are manipulated or opened due to pressure in the liquid end and adjacent parts of the system.

– Disconnect the pump from the mains power supply and

ensure that it cannot be switched on again by unauthor‐ ised persons.

– Depressurise the system before commencing any work

on hydraulic parts.

Danger of damage to the device Take into account the information in the "Storage, Transport

and Unpacking" chapter if the system is decommissioned for a temporary period.

1. Disconnect the pump from the mains power supply.

2. Drain the liquid end by turning the pump upside down and allowing the feed chemical to run out.

Page 84

Decommissioning

Disposal

3. Flush the liquid end with a suitable medium; flush the dosing head thoroughly when using hazardous feed chemicals!

CAUTION! Warning of feed chemical spraying around Feed chemical can spray out of the hydraulic components if

they are manipulated or opened due to pressure in the liquid end and adjacent parts of the system.

– Disconnect the pump from the mains power supply and

ensure that it cannot be switched on again by unauthor‐ ised persons.

Depressurise the system before commencing any work

–

on hydraulic parts.

CAUTION! Environmental hazard due to electronic waste There are electronic components in the pump, which can

have a toxic effect on the environment.

– Separate the electronic components from the remaining

parts.

–

Note the pertinent regulations currently applicable in your country!

Page 85

16 Technical data

Technical data

16.1

delta®

Performance data

b operating at 200 strokes/minute

and 100 % stroke length

Liquid end type Minimum pump capacity

at maximum back pressure

Minimum pump capacity

at medium back pressure

bar l/h ml/stroke bar l/h ml/stroke

2508 25 7.5 0.62 12.5 8.0 0.67

1608 16 7.8 0.62 8 8.2 0.69

1612 16 11.3 0.94 8 12.2 1.02

1020 10 19.1 1.59 5 19.2 1.6

0730 7 29.2 2.43 3.5 29.4 2.45

0450 4 49.0 4.08 2 51.5 4.29

0280 2 75.0 6.25 1 75.6 6.3

Design with self-bleeding dosing head without bypass ***

1608 16 3.8 0.32 8 6.0 0.50

1612 16 6.5 0.54 8 11.1 0.93

1020 10 14.0 1.17 5 16.4 1.73

0730 7 28.0 2.33 3.5 30.9 2.58

Liquid end type Max. stroke

rate

Connector

size

outside Æ x inside Æ

Suction lift* Priming lift** Permissible

priming pres‐ sure suction side

Weight

Strokes/min mm m WS m WS bar kg

2508 200

8x4

1608 200 8x5 5

1612 200 8x5 6

1020 200 12x9 5

0730 200 12x9 5

0450 200 DN 10 3

0280 200 DN 10 2

3.5 / 3.0

3.0 / 2.5

3.5 / 3.0

4.0 / 3.5

2.5 / 2.5

3.0 / 3.0

10 / 11

Design with self-bleeding dosing head without bypass ***

1608 200 8x5 - 1.8 8 10

1612 200 8x5 - 1.8 8 10

1020 200 12x9 - 1.8 5 10

0730 200 12x9 - 1.8 3 10

Page 86

Technical data

* - Suction lift with a filled suction line and filled liquid end.

** - Priming lift with clean and moist valves. Priming lift at 100 % stroke

length and free outlet or opened bleed valve.

*** - The given performance data represents guaranteed minimum

values, calculated using water as the medium at room temperature.

- The connector size is 6 mm for the SST material version

- SST material version

16.2 Accuracy

16.2.1 Standard liquid ends

16.3 Viscosity

delta® metering pumps with dosing heads for higher-viscosity media (HV) have a 10-20 % G 3/4-DN 10 with tube nozzle d16-DN10.

Data Value Unit

Product scatter -5 ... 10 % *

Metering reproducibility ±2 % **

* - with max. stroke length and max. operating pressure for all material

versions

** - under constant conditions and at least 30 % stroke length

The delta® correctly adjusted and, if "Compensation" is set to "on" (see Chapter "Dosing").

lower capacity and are not self-priming. Connection

ensures uniform conditions provided the stroke velocities are

The metering behaviour of the pump can be matched to the viscosity of the feed chemical.

Viscosity in mPa "Dosing" setting Suction stroke

slowing

0...50 "normal" none 200

50...200 "HV1" slight 160

200...500 "HV2" medium 120 for valves with springs

500...1000 "HV3" Maximum 80 for valves with springs

For the adjustment for slowing the suction stroke dependent upon the feed chemical viscosity - see the "Adjustment" chapter.

Max. stroke rate Remarks

Page 87

16.4 Material data

Liquid ends

Technical data

Version Dosing head Suction/discharge

NP Clear acrylic PVDF PTFE Ceramic

PV PVDF PVDF PTFE Ceramic

SS Stainless steel 1.4404 Stainless steel 1.4404 PTFE Ceramic

Pump

Version Housing Hood Transparent cover Electronics

All Polyphenyl ether

(PPE with fibreglass)

connector

Polyphenyl ether (PPE with fibreglass)

Seals Valve balls

Polycarbonate Electronic compo‐

nents

16.5 Electrical data

Version: 100 - 230 V ±10 %, 50/60 Hz

Data Value Unit

Power rating, approx. 73 W

Nominal current, approx. 0.90 ... 0.55 A

Switch on peak current, (within approx. 50 ms falling

8 ... 4 A

16.6

Pump, compl.

Liquid end, long-term*

Temperatures

Fuse 1.6 AT

Fuses must have VDE, UL and CSA approvals. e.g. Series SPT, 1.6 A supplied by Schurter Order no. 0001.2506 according to IEC Publ. 127 2/3.

Data Value Unit

Storage and transport temperature –10 ... +50 °C

Ambient temperature in operation (drive and control):

Data Value Unit

Liquid end temperature -10 ... +45 °C

* long term at max. operating pressure, dependent on ambient and feed chemical temperatures

–10 ... +45 °C

Liquid end, short-term*

Material version Value Unit

NP_ 60 °C

PVT 120 °C

SST 120 °C

Page 88

Technical data

* Temp. max., for 15 min at max. 2 bar, dependent on the ambient and feed chemical temperatures

16.7

16.8

Degree of protection

Safety requirements

Climate

Protection class and Safety Requirements

Data Value Unit

Maximum air humidity *: 95 % rel.

humidity

* non-condensing

Exposure in a humid and alternating climate:

FW 24 according to DIN 50016

Protection against contact and humidity:

IP 65 in accordance with IEC 529, EN 60529, DIN VDE 0470 Part 1

Degree of protection:

1 - mains power connection with protective earth conductor

16.9

Compatibility

16.10 Weight

Some hydraulic parts of the delta® are identical to those of the Beta® and gamma/ L.

There is greatest compatibility with pumps of the Beta® for the following components and accessories:

n Control wire gamma/Vario 2-, 4- and 5-wire for the "External" function n Level switch 2-stage (gamma / Vario / Beta®) n Metering line cross-sections n Standard gamma connector kit n Chemical feed container n Overall height (distance between the suction and discharge con‐

nector)

n Same use of accessories, such as back pressure valves, multifunc‐

tional valves, dosing monitor and flushing assembly

Material version Weight

SST 11

PVT 10

and gamma series

NP_ 10

Page 89

16.11 Sound pressure level

Technical data

Sound pressure level

Sound pressure level LpA < 70 dB in accordance with EN ISO 20361:2010-10

at maximum stroke length, maximum stroke rate, maximum back pressure (water)

Page 90

P_DE_0046_SW

138

191

Ø 90

120

140

150

238

Dimensional drawings

17 Dimensional drawings

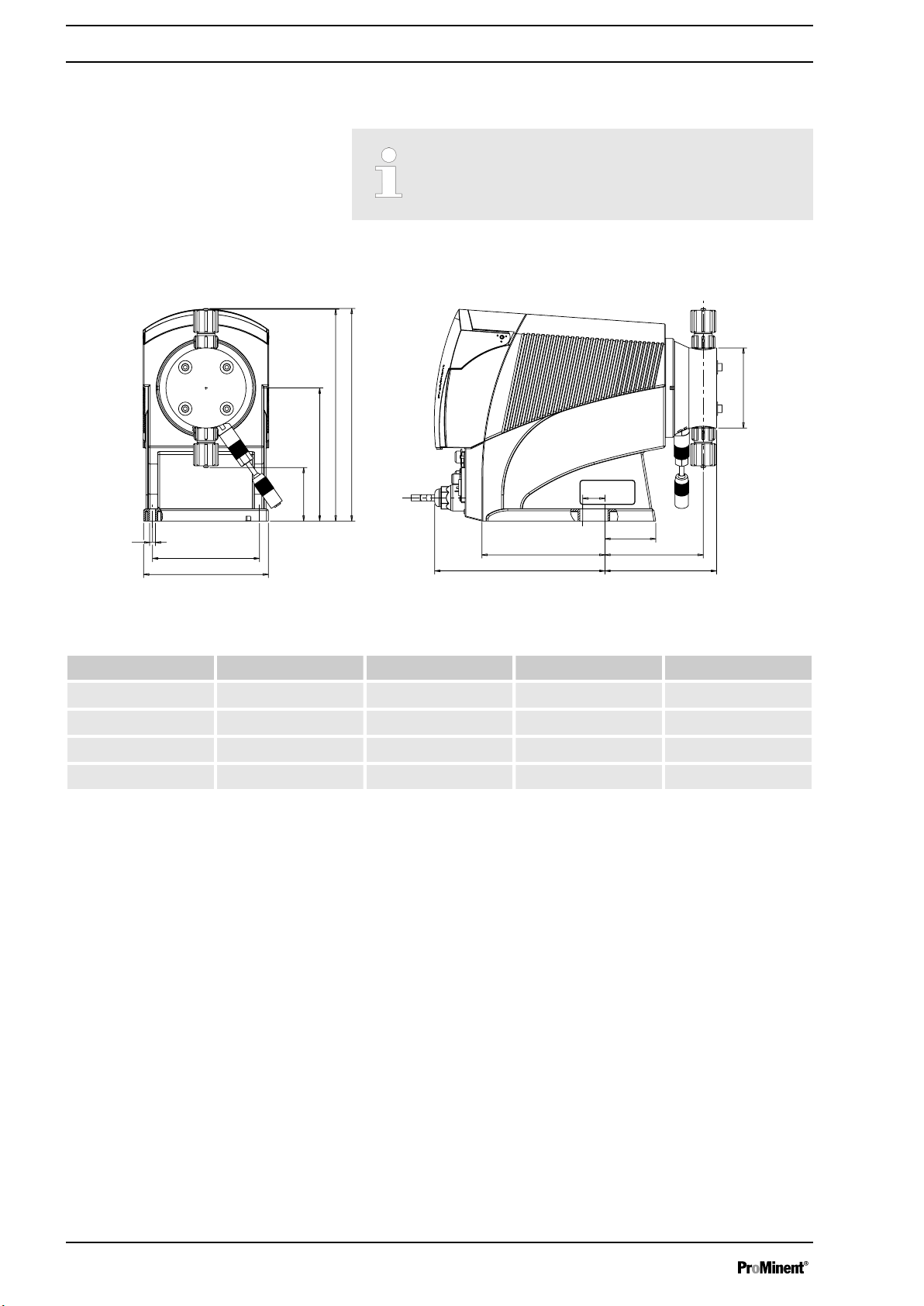

Dimensional drawing delta® type without bleed valve, material version NP

–

Compare the dimensions on the dimensional drawing and pump.

–

All dimensions are in mm.

Fig. 33: Dimensional drawing delta® type without bleed valve, material version NP - dimensions in mm

2508 / 1608 1612 1020 0730

E 63 60 54 53

F 235 239 245 246

K 110 110 112 112

L 125 125 127 127

Page 91

138

191

Ø 90

120

140

150

238

P_DE_0047_SW

120

191 129

P_DE_0042_SW_2

6x4

138 109

150

Ø 90

228

238

140

Dimensional drawings

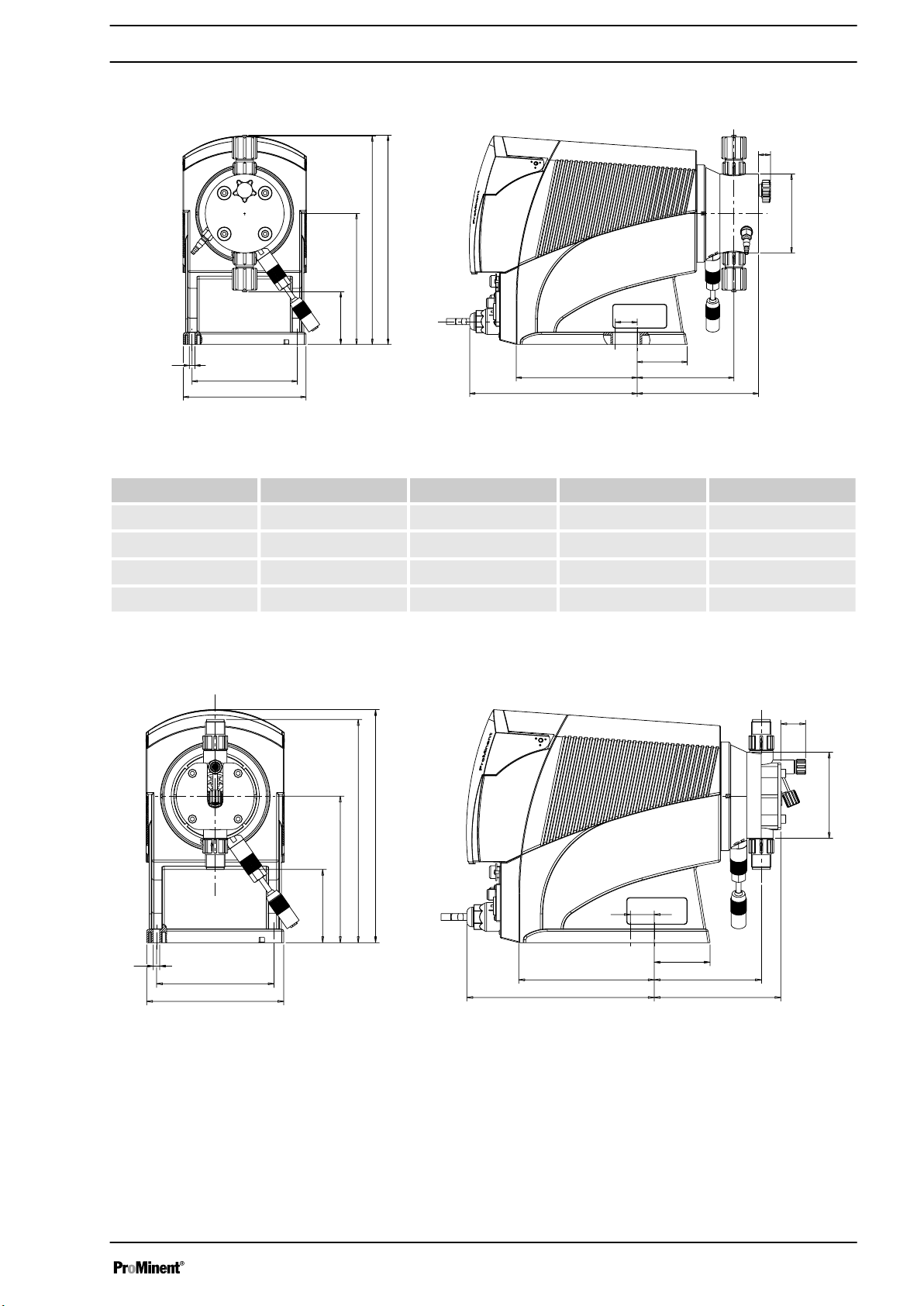

Dimensional drawing delta® type with bleed valve, material version NP

Fig. 34: Dimensional drawing delta® type with bleed valve, material version NP - dimensions in mm

2508 / 1608 1612 1020 0730

E 63 60 54 53

F 235 239 245 246

K 110 110 112 112

L 138 138 140 140

Dimensional drawing delta® type 1612 0730, material version PV

Fig. 35: Dimensional drawing delta® type 1612 - 0730, material version PV - dimensions in mm

Page 92

120

191 133

138 115

150

Ø 106

238

244

140

P_DE_0043_SW_2

6x4

120

191 128

P_DE_0044_SW_2

138 113

150

Ø 84,5

238

252

140

Dimensional drawings

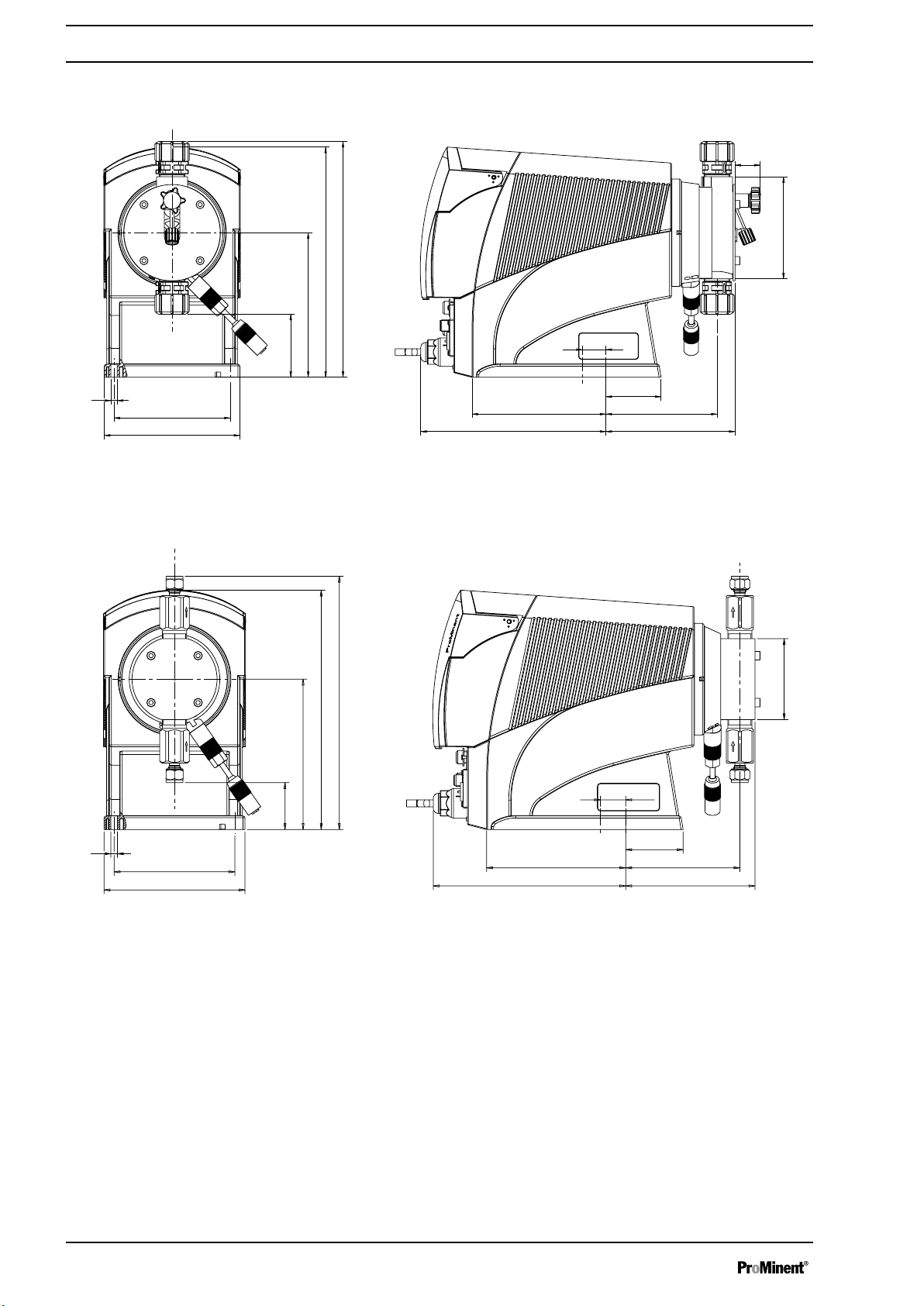

Dimensional drawing delta® type 0450 0280, material version PV

Fig. 36: Dimensional drawing delta® type 0450 - 0280, material version PV - dimensions in mm

Dimensional drawing delta® type 1612 0730, material version SS

Fig. 37: Dimensional drawing delta® type 1612 - 0730, material version SS - dimensions in mm

Page 93

120

191 131

136

P_DE_0045_SW_2

138 115

150

Ø 100

238

268

140

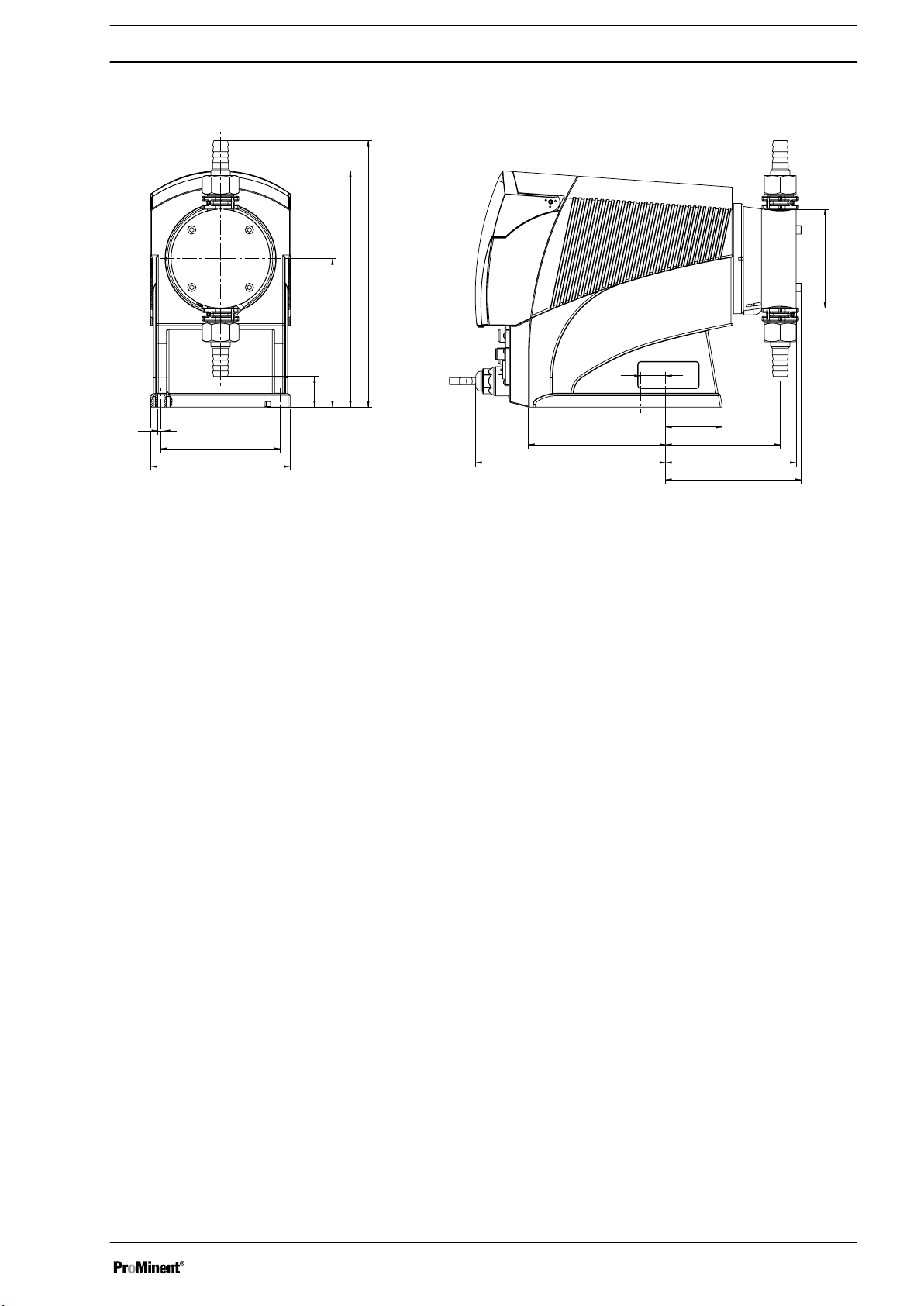

Dimensional drawing delta® type 0450 0280, material version SS

Dimensional drawings

Fig. 38: Dimensional drawing delta® type 0450 - 0280, material version SS - dimensions in mm

Page 94

s [%]

f [%]

C [l/h]

DLTa 1020

30%10%0%

200 min

-1

180 min

-1

160 min

-1

140 min

-1

120 min

-1

100 min

-1

80 min

-1

60 min

-1

40 min

-1

20 min

-1

20% 40%

50% 60%

70% 80% 90% 100%

100

1,15

1,10

1,05

1,00

0,95

0,90

0,85

0 2 4 6 8 10 12 14 1 6

p [bar]

s [%]

f [%]

C [l/h]

DLTa 1608

p [bar]

s [%]

f [%]

C [l/h]

DLTa 2508

p [bar]

s [%]

f [%]

C [l/h]

DLTa 1612

p [bar]

30%10%0%

200 min

-1

180 min

-1

160 min

-1

140 min

-1

120 min-1

100 min

-1

80 min

-1

60 min

-1

40 min

-1

20 min

-1

20% 40%

50% 60%

70% 80% 90% 100%

100

1,15

1,10

1,05

1,00

0,95

0,90

0,85

0 2 4 6 8 10 12 1 4 1 6 24222018

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

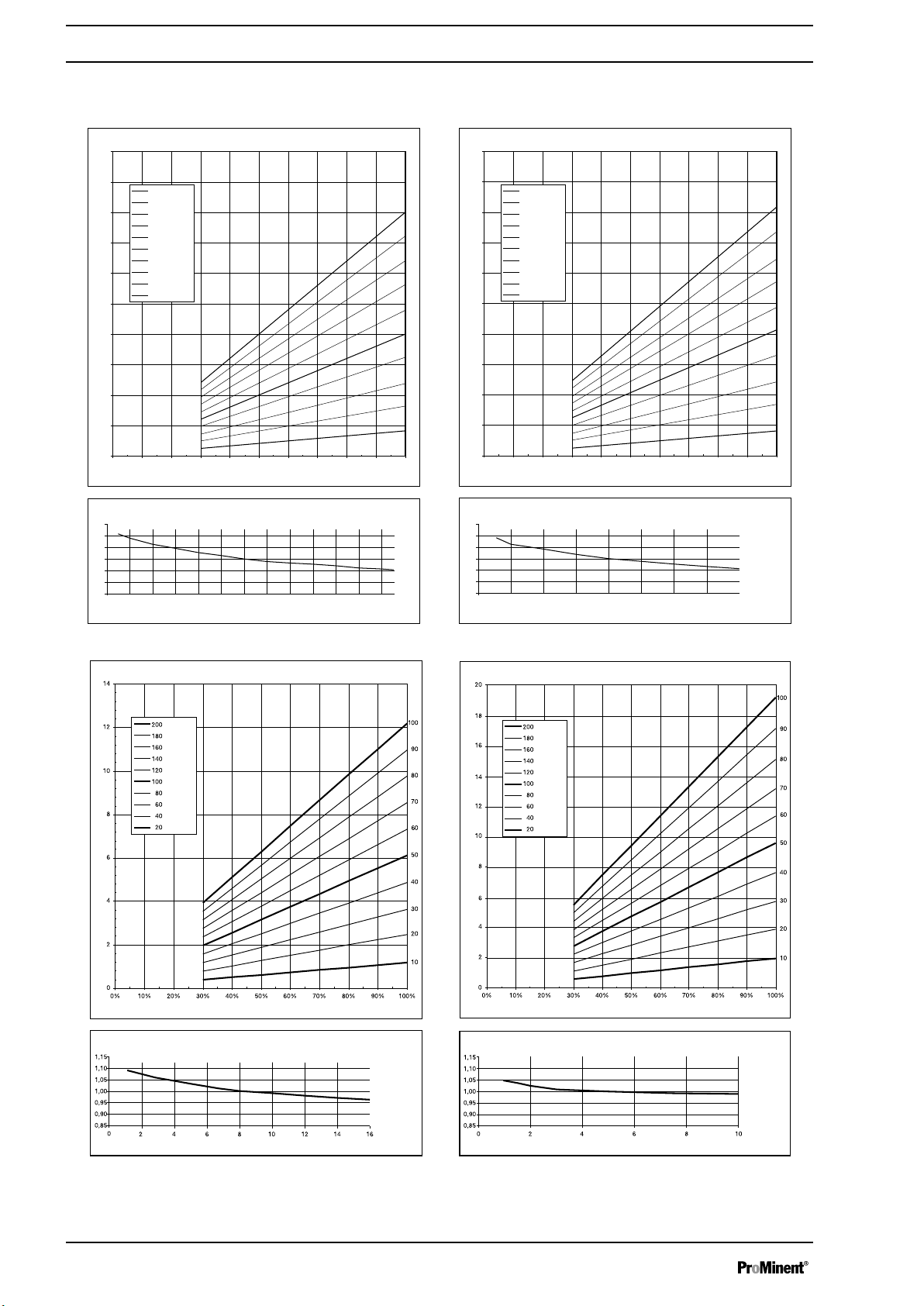

Diagrams for setting the metering capacity

18 Diagrams for setting the metering capacity

Fig. 39: A) Metering capacity C at medium back pressure dependent on the stroke length s for different stroke rates f. B). Corresponding correction factors k dependent on the back pressure p - with 70 % stroke length and "compensation".

Page 95

s [%]

f [%]

C [l/h]

DLTa 0730

p [bar]

f [%]

C [l/h]

DLTa 0280

p [bar]

f [%]

C [l/h]

DLTa 0450

p [bar]

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

min

-1

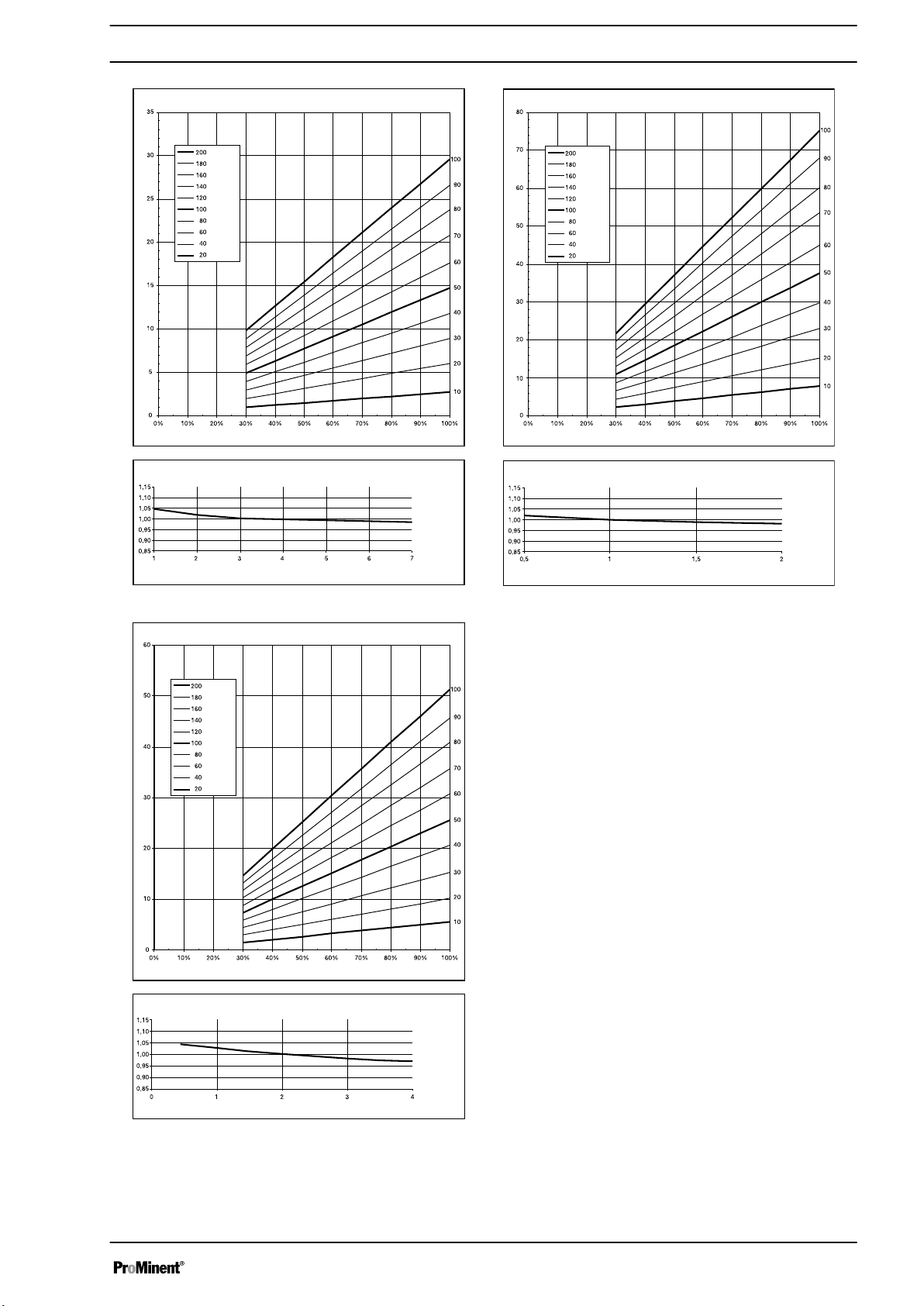

Diagrams for setting the metering capacity

Fig. 40: A) Metering capacity C at medium back pressure dependent on the stroke length s for different stroke rates f. B). Corresponding correction factors k dependent on the back pressure p - with 70 % stroke length and "compensation".

Page 96

P_DE_0050_SW 60_07_104_00_85_04_2

Exploded view drawings

19 Exploded view drawings

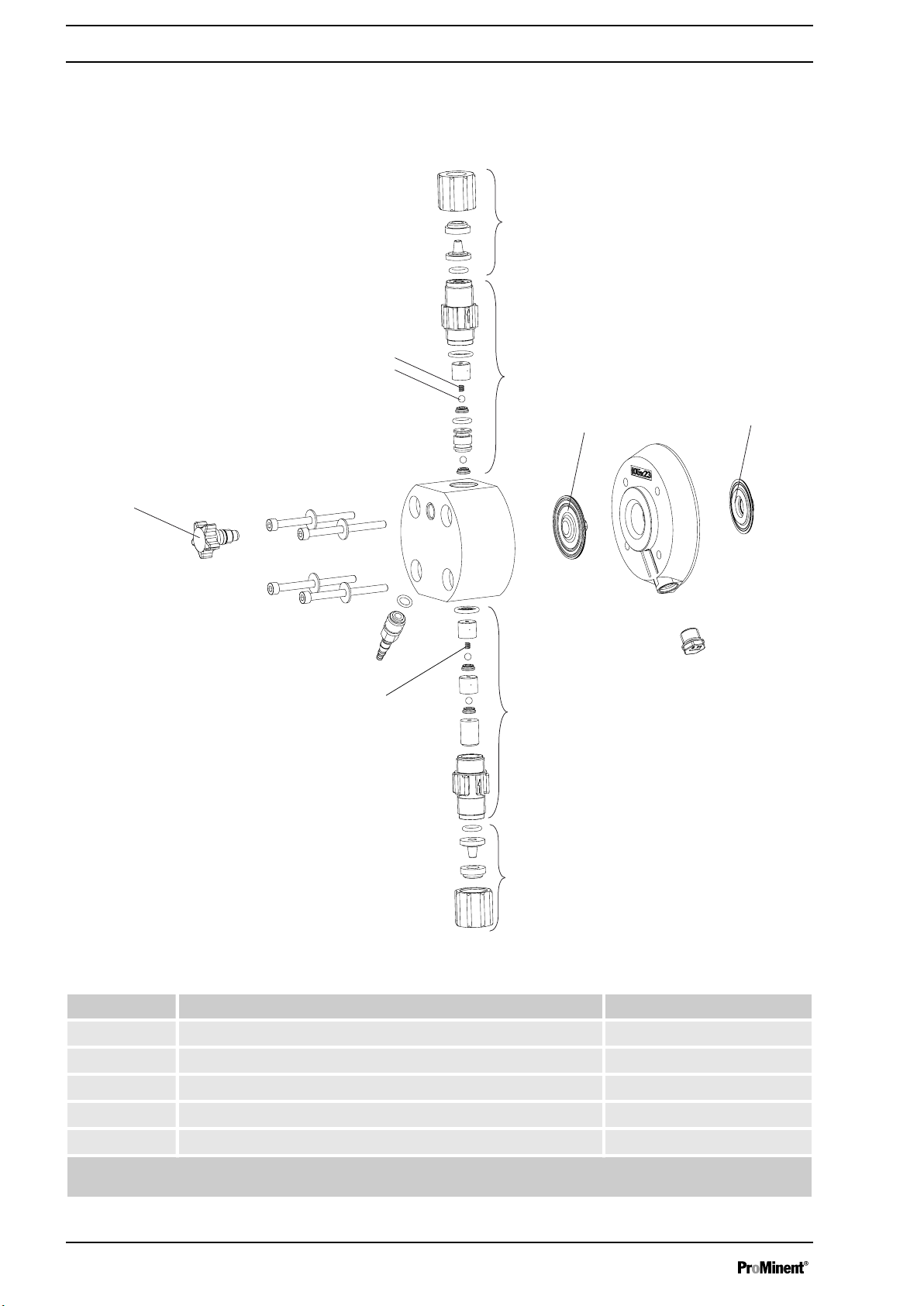

Liquid end delta® 1608/2508 NP with coarse/fine bleeding

Item. Description Type 1608/2508

1 Connector kit 12/9 PCE 817049

Connector kit 8/5 PCE 817048

Connector kit 12/9 PCB 817051

Connector kit 8/5 PCB 817053

3 4 Valve balls 404201

Spring (item 2) and diaphragm rupture reporter (item 8) are accessories. The items listed are included in the spare parts kit, excluding the diaphragm rupture reporter. Technical changes reserved.

Page 97

Exploded view drawings

Item. Description Type 1608/2508

4 Bleed valve 791365

5 Discharge valve compl. PCE 740349

Discharge valve compl. PCB 740348

6 Diaphragm 1030353

7 Safety diaphragm 1027414

8 Diaphragm rupture reporter* 1027416

9 Suction valve compl. PCE 792119

Suction valve compl. PCB 792026

Spring (item 2) and diaphragm rupture reporter (item 8) are accessories. The items listed are included in the spare parts kit, excluding the diaphragm rupture reporter. Technical changes reserved.

Page 98

P_DE_0051_SW 60_07_104_00_87_04_2

Exploded view drawings

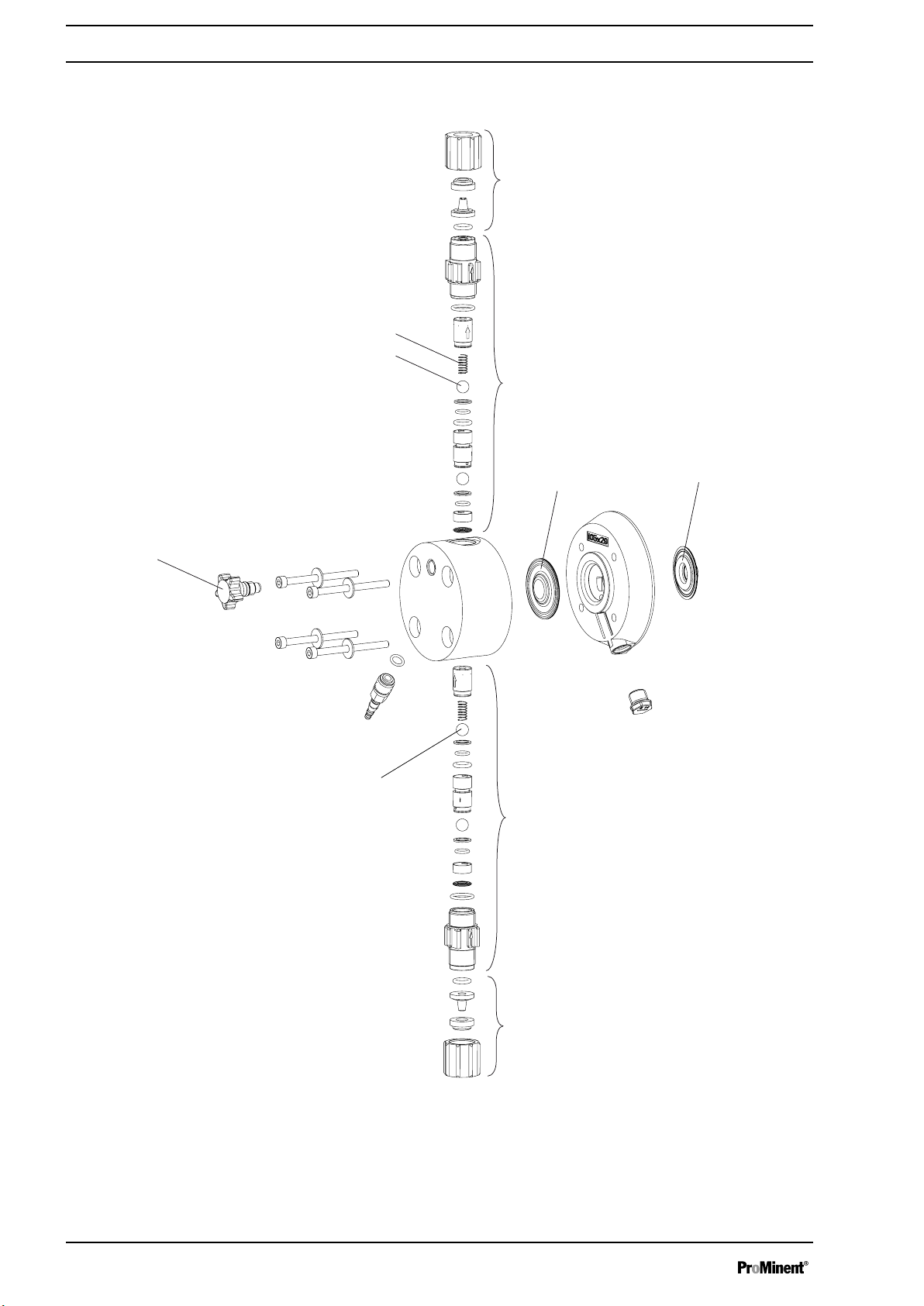

Liquid end delta® 0730 - 1612 NP with coarse/fine bleeding

Page 99

Exploded view drawings

Item. Description 1612 1020 0730

1 Connector kit 12/9 PCE 817049 817049 817049

Connector kit 8/5 PCE 817048 817048 817048

Connector kit 12/9 PCB 817051 817051 817051

Connector kit 8/5 PCB 817053 817053 817053

3 4 Valve balls 404281 404281 404281

4 Bleed valve 791365 791365 791365

5 Discharge valve compl. PCE 1001439 1001439 1001439

Discharge valve compl. PCB 1001438 1001438 1001438

6 Diaphragm 1000248 1000249 1000250

7 Safety diaphragm 1027414 1027414 1027414

8 Diaphragm rupture reporter* 1027416 1027416 1027416

9 Suction valve compl. PCE 1001435 1001435 1001435

Suction valve compl. PCB 1001434 1001434 1001434

Spring (item 2) and diaphragm rupture reporter (item 8) are accessories. The items listed are included in the spare parts kit, excluding the diaphragm rupture reporter. Technical changes reserved.

Page 100

P_DE_0052_SW 60_07_104_00_89_04_2

Exploded view drawings

Liquid end delta® 1608/2508 NP without coarse/fine bleeding

100

ProMinent delta DLTa optoDrive Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of contents
