ProMaxX 14a, 14, 12a, 12, 10 User Manual

...
Speaker
Systems
D
esigneD
,
engineereD
anD
manufactureD
in
i
taly
ProMaxX 14a
600+300W
ProMaxX 14
700W
Speaker Systems
After a decade of prominence as International Best Sellers
in the Polypropylene
Cabinet Powered Speaker
marketplace with the
FBT MaxX Speakers
Series, FBT is proud
to introduce the
evolution: the
ProMaxX
Speaker
Series.
While
maintaining
some of the winning
attributes of the FBTMaxX Series, we have incorporated our latest technological advancements by FBTs R&D team into a new series of speakers that will absolutely stun you with their quality construction, the utmost in reliability, new outstanding features, extreme portability, and most of all unrivaled and truly unbelievable FIDELITY.
ProMaxX
3
While building on the guidelines of the FBTMaxX Series, the ProMaxX Series 2-way speakers feature a sophisticated new cabinet design that increases low frequency SPL and virtually eliminates undesired resonance. A new FBT horn design provides improved projection, accuracy and uniform dispersion of the mid high and high frequencies. Two ergonomically placed carrying handles are integrated into the cabinets for easier placement on speaker stands and when transporting.
Along with our new cabinet designs, the ProMaxX Speaker Series with its innovative electronic DSP circuitry and FBT’s latest technological breakthroughs in the development Class D amplification circuitry, “Raises the Bar to New Heights” for lightweight powered speaker systems. Combining this with their ease of use and the
versatility for many portable or installed sound reinforcement applications, the ProMaxX Speakers provide Musicians, DJ’s, Audio / Video Contractors, Sound Reinforcement and Audio Rental Companies with advanced systems of Pro audio reproduction.
The ProMaxX Series consists of 4 powered and 3 passive models. Three Two -way speaker systems in gas-injected polypropylene molded cabinets and a powered sub with a Baltic birch plywood enclosure. ProMaxX 10a / ProMaxX 10: 10” LF woofer +1” HF driver ProMaxX 12a / ProMaxX 12: 12” LF woofer + 1” HF driver
ProMaxX 14a / ProMaxX 14: New 14” LF woofer + 1,4” HF
driver ProMaxX 15Sa Subwoofer: a compact 15” band-pass design subwoofer in a Baltic birch plywood enclosure.
ProMaxX 12a
600+300W
ProMaxX 12
600W
ProMaxX 10a
600+300W
ProMaxX 10
400W
ProMaxX 15Sa
1200W
Speaker Systems
ProMaxX
4
> New sturdy, gas-injected polypropylene
molded enclosures, engineered to contain undesired resonance
> B&C neodymium magnet loudspeakers,
custom made for FBT
> The latest generation of B&C HF
neodymium magnet compression drivers
> FBT’s latest Class D, LF and HF power
amplifiers with high efficiency switch mode power supplies enclosed inside a thermally efficient lightweight aluminum die­cast chassis. This allows for the optimization of the speaker load without the use of fans for cooling
> Proprietary filter algorithms, dynamic
equalization at low frequencies, and advanced energy control allow high SPL while always granting reliable and distortion free audio reproduction
> New and original horn profile provides
extremely accurate and uniform dispersion for the entire frequency radiation angle, not just for the horizontal and vertical plane
> An increase in total SPL thanks to our
new enclosure design, engineered with 4 bass-reflex ports to increase the size of the radiation area, This further enhances low frequency efficiency and performance without a substantial increase in the external dimensions of the cabinets
> Two integrated ergonomically placed
carrying handles, M10 fly points, top-hat speaker stand socket
Speaker Systems
ProMaxX
5
Instead of rotary EQ controls, FBT’s New Digital Signal Processor with 8 factory equalization presets provides
simple and efficient EQ adjustment. Hundreds of hours of testing in the anechoic chamber in our factory went into the development of these presets to optimize the ProMaxX speakers for use for numerous applications Practically 8 speakers in one! The presets include:
> ORIGINAL: corresponds to the typical FBT
sound for use in general applications
> FLOOR: the ProMaxX immediately becomes
an ideal stage monitor
> VOCAL: provides increased intelligibility and
presence for vocals and speech
> WARM: provides a full bodied response to
the low-mid frequencies and less aggressive on the highs
> HI-END SYSTEM: provides a response
similar to speakers used for touring sound
> FARFIELD: optimized response for listening
distance over 15-20 meters, (48-65-ft,)
> NEARFIELD: optimized response for
listening distance of up to 8 mt (25ft,)
> LOUDNESS: low frequency emphasis /
presense at lower volumes for recorded music playback or disco
Our new unique 14” LF woofer with a 3” voice coil is featured in the ProMaxX 14a, This 14” woofer is housed inside the same enclosure as the ProMaxX 12a, and delivers the performance of a 15” woofer, but at the
size and weight of a 12”!
Two - way cabinets have 3 monitor tapers for use as a floor wedge at 12°, 45°, 55°, providing extraordinary versatility for monitor placement on stage
12° 40° 55°
Speaker Systems
ProMaxX
6
600W RMS + 300W RMS 133dB SPL Processed Active Speaker
> 2-way, bi-amplified, bass
reflex design cabinet
> 320 mm (12”) LF
neodymium magnet woofer with 75 mm (3”) voice coil,
custom made for FBT by B&C
> 25mm (1”) exit throat B&C
HF neodymium magnet
compression driver
> Frequency response from
48Hz to 20 kHz
> Biamped: 600W RMS
LF, 300W RMS HF, Class D power amplifiers with switch mode power supplies
> Digital signal processor with
8 equalization presets
600W RMS + 300W RMS 135,5dB SPL Processed Active Speaker
> 2-way, bi-amplified, bass
reflex design cabinet
> NEW! 355 mm (14”) LF
neodymium magnet woofer with 75mm (3”) voice coil,
custom made for FBT by B&C
> 35 mm (1,4’’) exit throat
B&C HF neodymium magnet compression driver with 64 mm (2,5”) voice coil
> Frequency response from
45Hz to 20 kHz
> Biamped: 600W RMS
LF, 300W RMS HF, Class D power amplifiers with switch mode power supplies
> Digital signal processor with
8 equalization presets

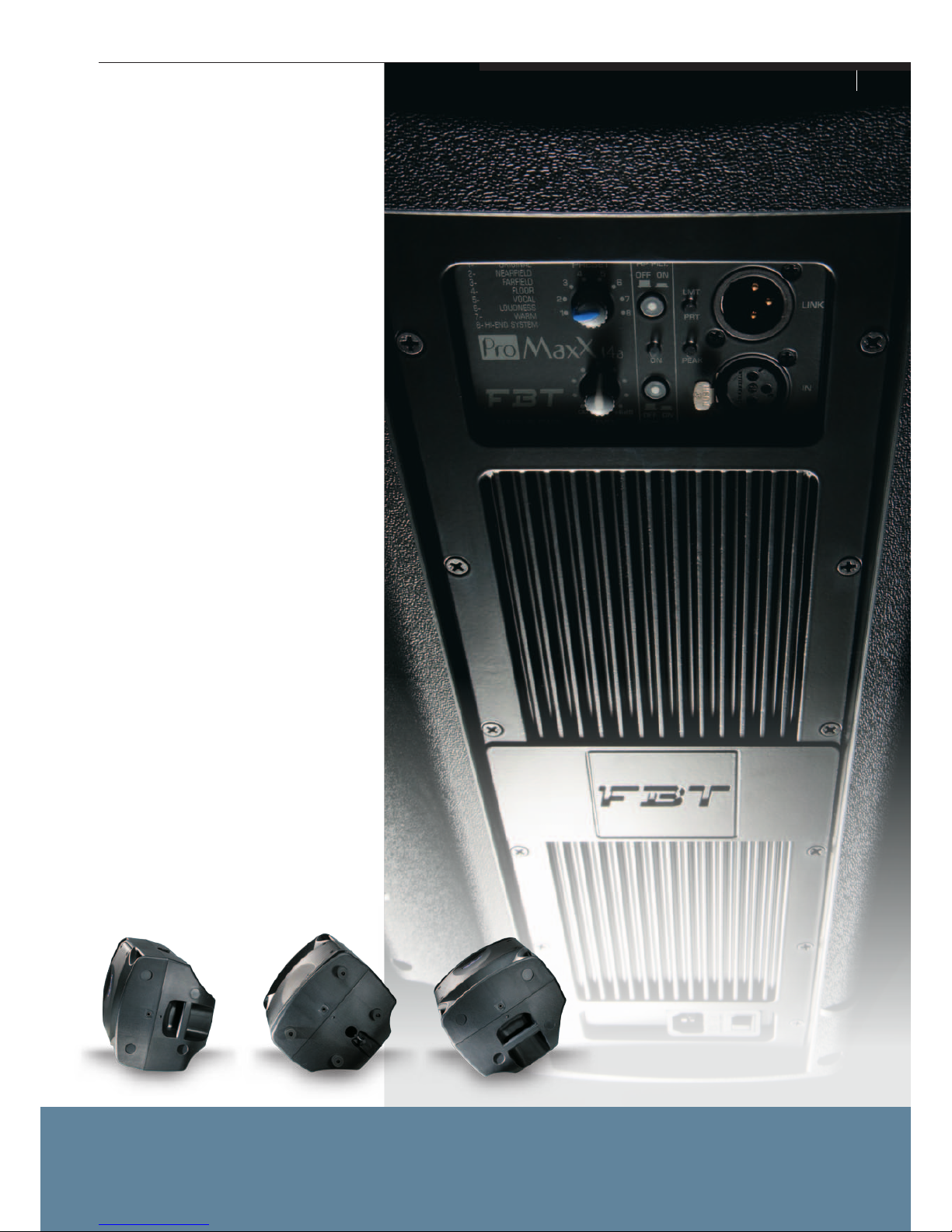

> Control Panel: features XLR
> Control Panel: features XLR
input and link out, Volume, EQ Presets, HP Filter, Ground-Lift Switch
> 90°H x 60°V constant
directivity horn
> Sturdy gas-injected
polypropylene molded enclosure with 2 integrated handles
> 2 x M10 suspension points,
35mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
> Dual Purpose: Front of
House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
> Extremely light, only 15 kg
(33,1 lb)
input and link out, Volume, EQ Presets, HP Filter, Ground-Lift Switch
> 90°H x 60°V constant
directivity horn
> Compact Dimensions:
ProMaxX 14a uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 12a, but features our New 14” LF Woofer for more
low frequency SPL
> Dual Purpose: Front of
House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
> 2 x M10 suspension points,
35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
> Extremely light, only
16,5 kg (36,4 lb)
600 W / 8 ohms 130dB SPL Passive Sound Reinforcement Speaker
> Passive version,
recommended amplifier
600W RMS @ 8 ohms
> Built-in passive crossover
with soft-trip protection for the LF woofer and HF driver
> Speakon NL-4 IN and LINK
OUT connectors
700W / 8ohm 132dB SPL Passive Sound Reinforcement Speaker
> Passive version,
recommended amplifier
700W RMS @ 8 ohms
> Built-in passive crossover
with soft-trip protection for the LF woofer and HF driver
> Speakon NL-4 IN and LINK
OUT connectors
ProMaxX 14a
ProMaxX 14
ProMaxX 12a ProMaxX 12
Speaker Systems
ProMaxX
7
600W RMS + 300W RMS 131dB SPL Processed Active Speaker
> 2-way, bi-amplified, bass
reflex design cabinet
> 250 mm (10”) LF
neodymium magnet woofer with 64mm (2,5”) voice coil, custom made
for FBT by B&C
> 25mm (1”) throat exit B&C
HF neodymium magnet
compression driver
> Frequency response from
58Hz to 20 kHz
> Biamped: 600W RMS
LF, 300W RMS HF, Class D power amplifiers with switch mode power supplies
> Digital signal processor with
8 equalization presets
1200W RMS 136dB SPL Processed Active Subwoofer
> Compact band-pass design
subwoofer with high SPL and punch
> 380 mm (15”) high excursion
woofer with 75 mm (3”) voice coil, custom made for
> Control Panel: features XLR
input and link out, Volume, EQ Presets, HP Filter, Ground-Lift Switch
> 90°H x 60°V constant
directivity horn
> Sturdy gas-injected
polypropylene molded enclosure with one integrated handle
> 2 x M10 suspension points,
35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
> Dual Purpose: Front of
House or Stage Floor Monitor: 12°, 40° and 55°
monitoring angles
> Extremely light, only 11,2 kg
(24,7 lb)
FBT by B&C
> Frequency response from
38Hz to 120Hz
> 1200W RMS Class D power
amplifier with switch mode
power supply
> Digital Signal Processor
with 8 presets, 2
equalization with 4 LPF
different frequency
> Control Panel with XLR input
and link out, Volume, EQ
Presets, Delay, Phase Switch
0°-180°, Ground-Lift Switch
> 15mm (5/8”) Baltic birch
plywood cabinet with
scratch & scuff resistant
paint finish
> M20 (20 mm) top mount
speaker stand socket, two
aluminum carrying handles
> Provides additional low
frequency reinforcement
when used along with 2 -
way ProMaxX speakers
400W / 8 ohms 127dB SPL Passive Sound Reinforcement Speaker
> Passive version,
recommended amplifier
400W RMS @ 8 ohms
> Built-in passive crossover
with soft-trip protection for the LF woofer and HF driver
> Speakon NL-4 IN and LINK
OUT connectors
ProMaxX 10a
ProMaxX 15Sa
ProMaxX10
ProMaxX 15Sa control panel
Speaker Systems
ProMaxX
8
Technical Specifications
Modello ProMaxX 14a ProMaxX 12a ProMaxX 10a ProMaxX 15Sa
Configuration way 2 2 2 1
Built-in amplifier cont. rms LF/HF W 400/200 400/200 400/200 800
Built-in amplifier max. rms LF/HF W 600/300 600/300 600/300 1200
Built-in amplifier max. peak LF/HF W 1200/600 1200/600 1200/600 2400
Frequency response @-6dB 45Hz - 20KHz 48Hz - 20KHz 58Hz - 20KHz 38Hz - 120Hz
Low frequency woofer inch
14 - 3 coil
neodymium
12 - 3 coil
neodymium
10 - 2,5 coil neodymium
1x15 - 3 coil neodymium
High frequency driver inch
1,4 - 2,5 coil neodymium
1 - 1,4 coil
neodymium
1 - 1,4 coil
neodymium
-
Maximum SPL cont/peak dB 127,5 / 135,5 126 / 133 123 / 127 132 / 136 half-space
Dispersion H x V 90° x 60° 90° x 60° 90° x 60° omnidirectional
Input impedance kOhm 22 22 22 22
Crossover frequency kHz 1,3 1,6 1,8 preset dependant
AC Power requirements VA 640 640 640 640
Input connectors XLR with loop XLR with loop XLR with loop XLR with loop
Power cord m/ft 5/16,4 5/16,4 5/16,4 5/16,4
Net dimensions (WxHxD)
mm
inch
402x644x345
15,8x25,4x13,6
402x644x345
15,8x25,4x13,6
320x550x275
12,6x21,6x10,8
507x585x605
20x23x23,82
Net weight kg/lb 16,5 / 36,4 15 / 33,1 11,2 / 24,7 28,5 / 62,8
Transport dimensions(WxHxD)
mm
inch
500x745x440
19,7x29,3x17,3
500x745x440
19,7x29,3x17,3
400x630x360
15,7x24,8x14,2
615x670x715
24,2x26,4x28,2
Transport weight kg/lb 19,5 / 43 18 / 39,7 13,7 / 30,2 32,5 / 71,6
Modello ProMaxX 14 ProMaxX 12 ProMaxX 10
Configuration way 2 2 2
Recommended amplifier W rms 700 600 400
Long term power W 350 300 200
Short term power IEC 268-5 W 1400 1200 800
Nominal impedance Ohm 8 8 8
Frequency response @-6dB 50Hz - 18KHz 55Hz - 18KHz 60Hz - 18KHz
Low frequency woofer inch 1x14 - 3 coil - neodymium 1x12 - 3 coil - neodymium 1x10 - 2,5 coil - neodymium
High frequency driver inch
1 x 1,4 - 2,5 coil-
neodymium 1 - 1,4 coil - neodymium 1 - 1,4 coil - neodymium
Sensitivity (@1W/1m) dB 100 99 97
Maximum SPL cont/peak dB 128 / 132 126 / 130 123 / 127
Dispersion H x V 90° x 60° 90° x 60° 90° x 60°
Crossover frequency kHz 1,3 1,6 1,8
Recommended HP filter 40hz - 24dboct 45hz - 24dboct 50hz - 24dboct
Input connectors 2 x Speakon NL4 in & throu 2 x Speakon NL4 in & throu 2 x Speakon NL4 in & throu
Net dimensions (WxHxD)
mm
inch
402x644x345
15,8x25,4x13,6
402x644x345
15,8x25,4x13,6
320x550x275
12,6x21,6x10,8
Net weight kg/lb 15,1 / 33,2 13,6 / 30 9,8 / 21,6
Transport dimensions (WxHxD)
mm
inch
500x745x440
19,7x29,3x17,3
500x745x440
19,7x29,3x17,3
400x630x360
15,7x24,8x14,2
Transport weight kg/lb 18,1 / 39,9 16,6 / 36,6 12,3 / 27,1
FBT elettronica SpA
Zona Ind.le Squartabue 62019 Recanati (MC) - Italy Tel. +39-071750591 Fax +39-0717505920
www.fbt.it info@fbt.it
