1
WPC USER MANUAL
www.promax.it
2
WPC USER MANUAL
The information contained in this document are for informational purposes only and are subject to change without
notice and should not be interpreted by any commitment by Promax srl. Promax Ltd. assumes no responsibility or liability
for errors or inaccuracies that may be found in this manual. Except as permitted by the license, no part of this publication
may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical,
recording or otherwise without prior permission Promax srl.
Any references to company names and products are for demonstration purposes only and does not allude to any actual
organization.
Rev. 1.00.1
3
WPC USER MANUAL
1 General
The MiniPc by Promax srl respects all the features of a Windows® 10 PC.
Can be equipped with different configurations, RAM,Storage CPU.
In WPC is installed Windows 10 Enterprise LTSB, full compatible for all Windows applications.
WPC
CPU
Intel® Celeron N3350/N4200
RAM
2/4/8 Gb LPDDR4
STORAGE
eMMC 32/64/128 Gb
ETHERNET
2 – Gb ETHERNET
GRAPHICS
Intel® Gen 9 HD/500 HD/505
USB
3 - USB 3.0 1- USB OTG
VIDEO OUTPUT
1 – HDMI 1 - DP
O.S.
Windows 10 Enterprise LTSB
POWER SUPPLY
24 Vdc – 1,25 A max
TEMPERATURE
From -20° C to +70° C
PROTECTION
IP20
DIMENSIONS (mm)
W55 H95 D90
4
WPC USER MANUAL
2 Aspect
Frontal View
USB OTG
UP View
USB 3.0
Power Supply
24 Vdc 1,25 A Max
Bottom View
LAN 1
LAN 2
HDMI
Display Port
USB 3.0
USB 3.0
5

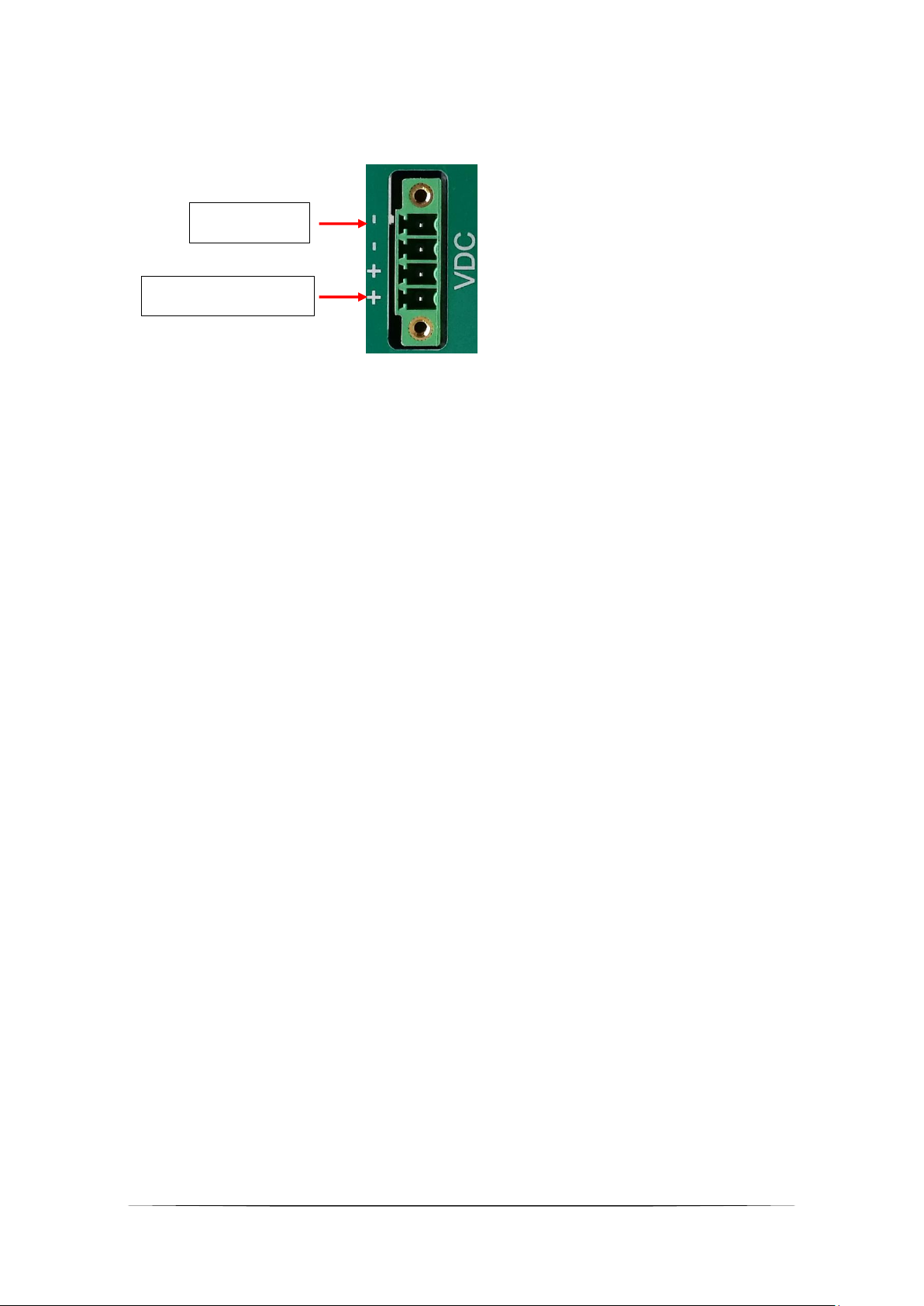

2.1 Power Supply
WPC needs 24 VDC for power supply
The PIN - – e ++ are connect inside, therefore is sufficient connected only one of these.
The Max current is 1,25 A, this is considered for full load and Pentium CPU, therefor others configurations can use a
less current (about 0,5 A)
+ 24 Vdc 1,25 A Max
GND 24 Vdc
6
WPC USER MANUAL
2.2 USB 3.0 Ports
3 USB ports 3.0 type A, 2 on bottom panel and 1 on Up panel
In these ports can be connect all compatible devices
2.3 USB OTG Port
The USB OTG port, is not used in this configuration.
However it can be used for alternative power supply instead of 24 Vdc, with 5V 4-6 A
2.4 LAN Gb Ethernet Ports
2 LAN Gb Ethernet ports on RJ45 for a max speed of Gbit/second.
In these ports can be connect all compatible devices
2.5 Video Output HDMI and DP
Full HDMI 1.4b – 4K @ 30 hz and Display Port DP 1.2 – 4K @ 60 hz.
These ports allow to connect a external monitors
2.6 Storage
eMMC 32 Gb,64 Gb,128 Gb based of configuration
2.7 Graphics
Intel® Gen 9 HD with 12 (Celeron) /18 (Pentium)Execution Unit,
Support 4K Codec Decode and Encode for HEVC4, H.264, VP8
2.8 RTC
RTC (Real Time Clock) inside
2.9 S.O.
Windows® 10 Enterprise LTSB
7
WPC USER MANUAL
2.10 Dimensions
96 mm
WPC
Power On
Front View
48 mm
54 mm
4,5 mm
108 mm
Back View
96 mm
Side View
8
WPC USER MANUAL
9
WPC USER MANUAL
3 Notes on the CE legislation
WPC
We have two directives about electronic devices, regarding the WHC : the 2006/42/CE (machine directive) about safety use of the
devices and 2004/108/CE about electromagnetic compatibility.
About the first (machine directive) electric/electronic devices, must complies the "low voltage" directive (2006/95/CE) but it can
be applied on devices supplied at 50-1000Vac or 75-1500Vdc. WHC works at a voltage of 24Vdc (thus Intrinsically “safe” ), so it
belongs to "very low voltage" devices (class 0 legislation CEI 11.1), on which it isn't no legislation about.
On electromagnetic compatibility, regarding the 2004/108/CE norm, this device can be classified as a "finished appliance". Due to
the fact that the WPC will be normally integrated inside a complex electromechanics system, the machine electric board, by a
manufacturer in an industrial ambit and not by a final customer, it haven’t any certification duty.
PROMAX however, can institute some specific measure as a pre-compliance, in case of particular demands of costumers, regarding
the device electromagnetic characterization.
For example, can be made some measure under the CEI EN 61000-6-1 norm (2007 generic norms – residential , commercial and
light industrial ambient immunity) or CEI EN 61000-6-1 (2007 generic norms - residential , commercial and light industrial ambient
emission)
10
WPC USER MANUAL
Index
1 General ...................................................................................................................................................................... 3
2 Aspect ....................................................................................................................................................................... 4
2.1 Power Supply .................................................................................................................................................... 5
2.2 USB 3.0 Ports ..................................................................................................................................................... 6
2.3 USB OTG Port .................................................................................................................................................... 6
2.4 LAN Gb Ethernet Ports ...................................................................................................................................... 6
2.5 Video Output HDMI and DP .............................................................................................................................. 6
2.6 Storage .............................................................................................................................................................. 6
2.7 Graphics ............................................................................................................................................................ 6
2.8 RTC .................................................................................................................................................................... 6
2.9 S.O. .................................................................................................................................................................... 6
2.10 Dimensions ........................................................................................................................................................ 7
3 Notes on the CE legislation ....................................................................................................................................... 9
