Pro-Max TG1, TG2, Tortila grill TG1-120V, Tortila grill TG1-120VC, Tortila grill TG1-240V Installation And Operation Instructions Manual

TORTILLA GRILL

MODEL

TG1 & TG2

Installation and

Operation

®

TG1-120V

Instructions

2M-Z10809 Rev. A 9/28/07

IL1374

1

SAFETY SYMBOL

Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.

Star reserves the right to change specifi cations and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.

Due to periodic changes in designs, methods, procedures, policies and
regulations, the specifi cations contained in this sheet are subject to change
without notice. While Star Manufacturing exercises good faith efforts to provide
information that is accurate, we are not responsible for errors or omissions
in information provided or conclusions reached as a result of using the
specifi cations. By using the information provided, the user assumes all risks in
connection with such use.

These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

NOTICE

MAINTENANCE AND REPAIRS

Contact your local authorized service agent for service or required maintenance. Please record the model
number, serial number, voltage and purchase date in the area below and have it ready when you call to

ensure faster service.

Model No.

Serial No.

Voltage

Purchase Date

Authorized Service Agent

Reference the listing provided with the unit

or

for an updated listing go to:

Website: www.star-mfg.com
E-mail [e-mail]
Telephone: [phone] Local [phone]

The Star Service Help Desk

Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:

Telephone: [phone] Local [phone]

Fax: [phone] Local [phone]

E-mail [e-mail]

[e-mail]
[e-mail]

Website: www.star-mfg.com

Mailing Address: Star Manufacturing International Inc.

10 Sunnen Drive
St. Louis, MO 63143
U.S.A

2

2

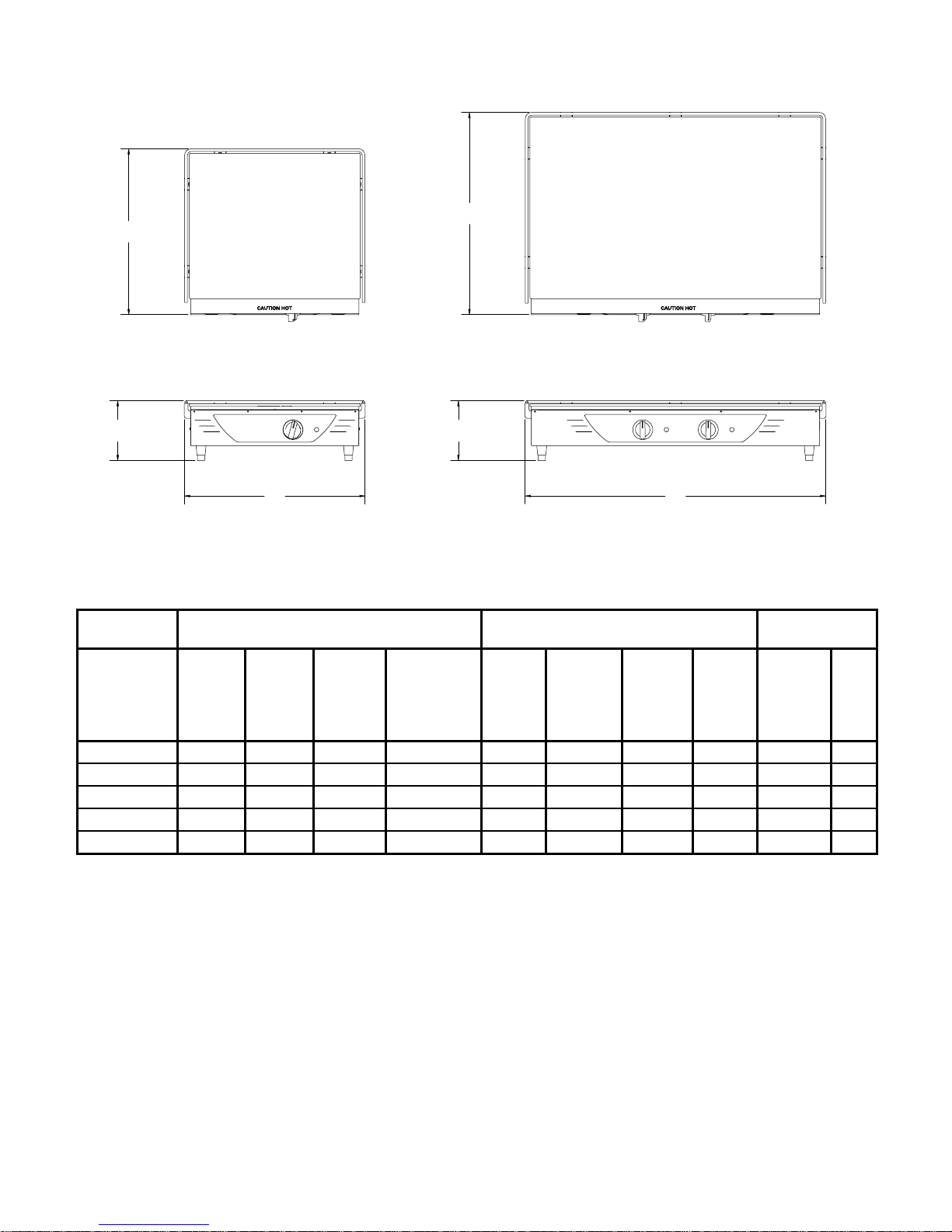

Tortilla Grill Specifi cations

B

B

C

A

Model TG1 Model TG2

Description Dimensions Electrical Specifi cations

(A)

Model No

TG1-120V 25.9 22.7 8.2 23.5 x 20 120 1650 13.8 5-15P 58 50

TG1-120VC (65.8) (57.7) (20.8) (59.7 x 50.8) 120 1650 13.8 5-20P (26.4) (22.7)

TG1-240V 208/240 1650/2200 7.9/9.2 6-15P

TG2-240V 41.4 27.7 8.2 40 x 25 208/240 3300/4400 15.9/18.3 6-20P 111 98

TG2-240VC (105.2) (70.4) (20.8) (101.6 x 63.5) 208/240 3300/4400 15.9/18.3 6-30P (50.5) (44.5)

Width
Inches

(cm)

(B)
Depth
Inches

(cm)

(C)
Height
Inches

(cm)

Platen Size

W x D Inches

(cm)

C

Voltage Wattage Amps NEMA#

A

IL1375

Approxomate

Weight

Shipping

lbs. (kg)

3

CAUTION

WARNING

GENERAL INSTALLATION DATA

This equipment is designed and sold for commercial use only by personnel trained and

experienced in its operation and is not sold for consumer use in and around the home nor
for use directly by the general public in food service locations.

Before using your new equipment, read and understand all the instructions & labels

associated with the unit prior to putting it into operation. Make sure all personnel associated
with its use understand the units operation & safety before operation.

All shipping containers should be checked for freight damage both visible and concealed.

This unit has been tested and carefully packaged to insure delivery of your unit in perfect
condition. If equipment is received in damaged condition, either apparent or concealed, a
claim must be made with the delivering carrier.

Concealed damage or loss - if damage or loss is not apparent until after equipment is

unpacked, a request for inspection of concealed damage must be made with carrier within
15 days. Be certain to retain all contents plus external and internal packaging materials for

inspection. The carrier will make an inspection and will supply necessary claim forms.

INSTALLATION

For your protection, we recommend that a qualifi ed electrician install this appliance.
The electrician should be familiar with electrical installations and your local electrical requirements.
Proper connections and power supply are essential for effi cient performance. The supply circuit
should be properly fused as required by local electrical code.

Plug into 110-125V A.C. outlet that has line of suffi cient capacity to operate griddle. Check
wattage and voltage on the nameplate. Slow performance will indicate the griddle is connected
to a line of insuffi cient capacity or to one already loaded to capacity. DO NOT plug into a 240V
line unless you ordered a 240V griddle. Doing so will damage the element very quickly and
void the warranty. If this appliance does not heat, check your plug and your wall receptacle
for loose connections or blown fuses.

INITIAL START UP

Before using the unit for the fi rst time, wipe down the exterior and platen area with a damp
cloth. Heat for approximately 30 minutes. The warmer may emit a small amount of smoke
as the cooking surface reaches its operating temperature. Do not be alarmed, as the smoke
is caused by oils associated with the manufacturing process and will stop when the burn off
is complete. Brush off any debris from the warming surface.

SEASONING THE TORTILLA GRILL HEATING SURFACE

FIRST TIME SEASONING

Follow your company/corporate guidelines for seasoning cooking surfaces or perform the
following:

1. Bring the grill to 300°F (148°C) and leave it on while performing the next three steps.

2. Brush the cooking surfaces with a release agent. If using an aerosol agent,
fi rst apply into a cup and then brush onto cooking surface.

3. Let sit for 20 minutes.

4. Wipe the cooking surface clean, using a warm damp cloth.

TEMPERATURE CONTROL

The temperature is controled by a dial knob that maintains the heat at a range of 150°F to
450°F (65.5°C to 232°C).

PLATEN AND SHEET METAL SURFACES ARE HOT DURING OPERATION AND

CAUTION

CAN CAUSE BURNS. CARE MUST BE TAKEN WHEN USING THIS
EQUIPMENT.

4
