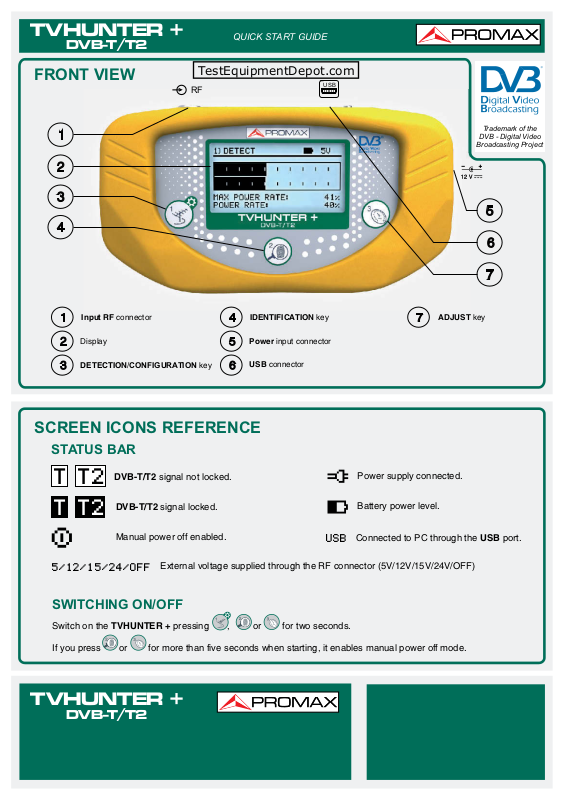

TVHUNTER +
DVB-T/T2
QUICK START GUIDE
FRONT VIEW
TestEquipmentDepot.com
RF
Input RF connector
Display
DETECTION/CONFIGURATION key
IDENTIFICATION key
Power input connector
USB connector
SCREEN ICONS REFERENCE
STATUS BAR
USB
ADJUST key
Trademark of the
DVB - Digital Video
Broadcasting Project
T
T
5/ 12 /1 5/ 24 /O FF
DVB-T/T2 signal not locked.
T2
DVB-T/T2 signal locked.
T2
Manual power off enabled.
External voltage supplied through the RF connector (5V/12V/15V/24V/OFF)
Power supply connected.
Battery power level.
Connected to PC through the USB port.
US B
SWITCHING ON/OFF
Switch on the TVHUNTER + pressing , or for two seconds.
If you press or for more than five seconds when starting, it enables manual power off mode.
TVHUNTER +
DVB-T/T2
TVHUNTER +
DVB-T/T2
QUICK START GUIDE
DETECTION
Plug the TVHUNTER + to the antenna socket and turn the antenna until the TVHUNTER + shows the maximum
power on the display. If necessary, press to switch between 0V (OFF) and the selected external supply voltage.
External supply voltage
PRESS
DETECT
1) DE TE CT 5V
MA X PO WE R RA TE: 41 %
PO WE R RA TE: 40 %
PRESS DETECT TO
SWITCH THE EXTERNAL
SUPPLY VOLTAGE
(see CONFIGURATION)
1) DE TE CT OFF
MA X PO WE R RA TE: 41 %
PO WE R RA TE: 40 %
Maximum measured power
Current power
NOTE:
the channels that can b e re ceived at the locat ion, it is a dvisabl e
to "Auto-Scan" and save the results (see Configuration)
6
Once the antenna is aligned using the Detection mode, if it is unknown
.
TVHUNTER +
DVB-T/T2
QUICK START GUIDE
IDENTIFICATION
Press and wait until locking the signal. The display will show the parameters of the stored test point (selected name
and frequency), the name of multiplex channel tuned and its services identified at this test point. To change to another
test point press again.
Sequential number of
the test point
Test Point Name
Tuned channel name
Identified services
PRESS
IDENTIFICATION
)
2 IDENTIFY OFF
1) DET EC T 5V
C66 FR: 818.0MHz
NET:RGE CAT
SERVICE LIST: 1/7
La 1
La 2
MA X PO WER R AT E: 41 %
24h
PO WER RA TE : 40 %
Locked signal (black background)
TP0 4TP0 4
PRESS
2) IDENTIFY OFF
1) DET EC T 5V
C67 FR: 842.0MHz
NET:SFN
SERVICE LIST: 1/8
LaSexta
CUATRO
MA X PO WER R AT E: 41 %
CNN+
PO WER RA TE : 40 %
SHORT PRESS: NEXT TEST POINT
LONG PRESS (1s): PREVIOUS TEST POINT
TP0 5TP0 5
7
TVHUNTER +
DVB-T/T2
QUICK START GUIDE
ADJUST
Press to perform fine-tuning. Check that every access point in the installation is meeting the criteria
established by current regulations. To measure another test point press again until finding the test point you
are looking for.
Sequential number of
the test point
Test Point Name
RF
Locked signal (black background)
PRESS
ADJUS T
1)D ETE CT 5V
3)A DJU ST
C67 FR:842.00MHz
POW ER: 46. 7dB uV
21
ME R:
.7d B
0
MAX POW ER RA TE: 41%
POW ER RA TE: 40%
TP05
LM: 5.6dB
3.9 E-2CBE R:
7.3 E-5VBE R:
OFF
PRESS
33
SHORT PRESS: NEXT TEST P OINT
LONG PRESS (1s): PREVIO US TEST POIN T
CONFIGURATION
At the DETECTION screen, press and hold
until appears the configuration menu.
1)D ETE CT 5V
)SETUP
1)CANCEL 2)OPTION 3)SELECT
START AUTO SCAN
EXTERNAL SUPPLY
SOUND CONTROL
BACKLIGHT MODE
MAX POW ER RA TE: 41%
CONTRAST LCD
POW ER RA TE: 40%
CONFIRM & EXIT
Start Auto Scan: It starts the auto-scan function.
External Supply: Select the external supply voltage for the antenna among 0V (OFF), 5V, 12V,15V or 24V.
Confirm & Exit: It applies and saves the changes made and exits the configuration menu.
When using the TVHUNTER +, it may appear on the display some messages and icons, depending on the status or
event is taking place. These messages and icons are detailed below
MESSAGE
“LOW BATTERY”
“VERY LOW BATTERY”
“SUPPLY SHORT CIRCUIT”
“SUPPLY OVER CURRENT”
“MANUAL POWER OFF”
“AUTO POWER OFF”
“SERVICE MODE”
“BATTERY MODE”
“UPDATE MODE”
OFF
AUTO
OFF
ON
Navegation Keys:
Low power level battery. Plug it to the charger.
The equipment will be switched off immediately.
The external supply can be shortcut.
The external supply has a high current consumption.
The instrument has to be switched off by hand.
The instrument will switch off after five minutes
of inactivity.
Service mode.
When the battery is being charged.
When the instrument is being updated.
DESCRIPTION
It exits the configuration menu without saving changes
It scrolls along the menu options
It changes the parameter/Accepts
MESSAGE
“NETWORK NOT FOUND”
“SERVICES NOT FOUND”
“SIGNAL NOT DETECTED”
“FULL BATTERY”
“MPEG-2 NOT DETECTED”
“LOADING NETWORK”
“LOADING SERVICES”
“HIGH TEMPERATURE”
The instrument cannot find a TV network.
The instrument cannot detect the services of a network.
When no signal is detected.
Battery fully charged.
It is not detecting the Transport Stream MPEG-2 signal.
After finding a signal, needs a time to load the network.
After finding a network, needs a time to load services.
The operation temperature is too high.
The instrument must be switched off for a while.
If the problem persists, contact with the technical support.
DESCRIPTION
v1.2 (0 DG0102) 24/01/2013
