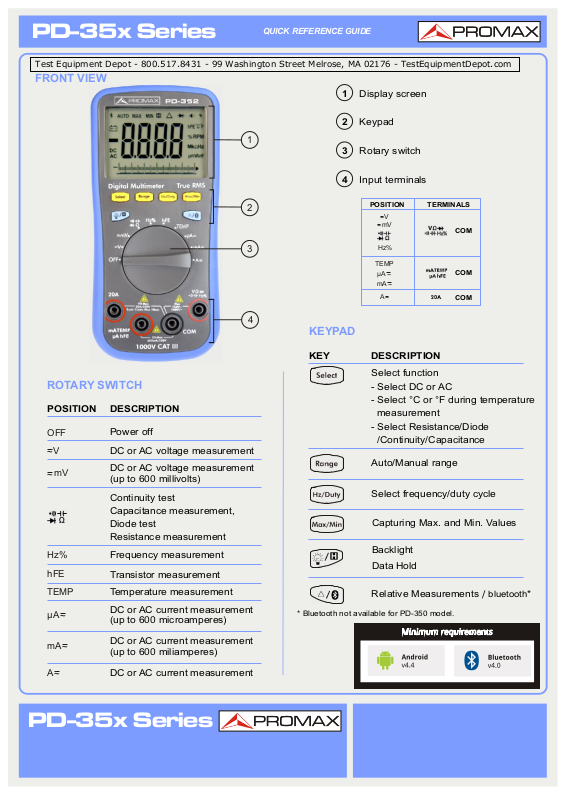

Page 1
PD-35x Series
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
QUICK REFERENCE GUIDE
FRONT VIEW
1
Display screen
2
Keypad
1
3
Rotary switch
4
Input terminals
ROTARY SWITCH
POSITION
OFF
V
~
mV
~
Hz%
hFE
DESCRIPTION
Power off
DC or AC voltage measurement
DC or AC voltage measurement
(up to 600 millivolts)
Continuity test
Capacitance measurement,
Diode test
Resistance measurement
Frequency measurement
Transistor measurement
2
3
POSITION
V
~
mV
~
Hz%
TEMP
µA
~
mA
~
A
~
TERMINALS
COM
COM
COM
4
KEYPAD
KEY
DESCRIPTION
Select function
- Select DC or AC
- Select °C or °F during temperature
measurement
- Select Resistance/Diode
/Continuity/Capacitance
Auto/Manual range
Select frequency/duty cycle
Capturing Max. and Min. Values
Backlight
Data Hold
TEMP
µA
~
mA
~
A
~
Temperature measurement
DC or AC current measurement
(up to 600 microamperes)
DC or AC current measurement
(up to 600 miliamperes)
DC or AC current measurement
PD-35x Series
Relative Measurements / bluetooth*
* Bluetooth not available for PD-350 model.
Page 2
PD-35x Series
DISPLAY SCREEN
QUICK REFERENCE GUIDE
MEASUREMENT UNITS
SIGN DESCRIPTION
M
k
m
µ
n
Mega
kilo
milli
micro
nano
1E+06 (1000000)
1E+03 (1000)
1E-03 (0.001)
1E-06 (0.000001)
1E-09 (0.000000001)
SYMBOL
DESCRIPTION
Bluetooth enabled*
Auto range
Maximum reading
Minimum reading
Data hold enabled
Relative enabled
Diode test selected
Continuity test selected
Battery is low*
DC
AC
SIGN DESCRIPTION MEASUREMENT
TYPE
ºC
ºF
V
A
Ω
Hz
%
F
hFE
Degree Celsius
Degree Fahrenheit
Voltage
Ampere
Ohm
Hertz
Percent
Farad
Current
Amplification Factor
Temperature
Temperature
Voltage
Current
Resistance
Frequency
Duty cycle
Capacitance
Transistor
INPUT TERMINALS
ROTARY
SWITCH POSITION
INPUT
TERMINALS
*batteries not included
COM
COM
750 VCA / 1000 VCC
250 VCC or Equivalent voltage RMS
COM
Measurement display (”OL” is short
for overload, indicates the reading
exceeds the display range)
Measuring units
Analog bar graph
OVERLOAD
PROTECTION
v1.1
COM
COM
COM
COM
COM
250 VCC or Equivalent voltage RMS
1 A / 250 V, fast-acting fuse
20 A / 250 V, fast-acting fuse
04-02-2016 (0 DG0217)
