GF-856
QUICK REFERENCE GUIDE
Test Equipment Depot - 800.517.8431

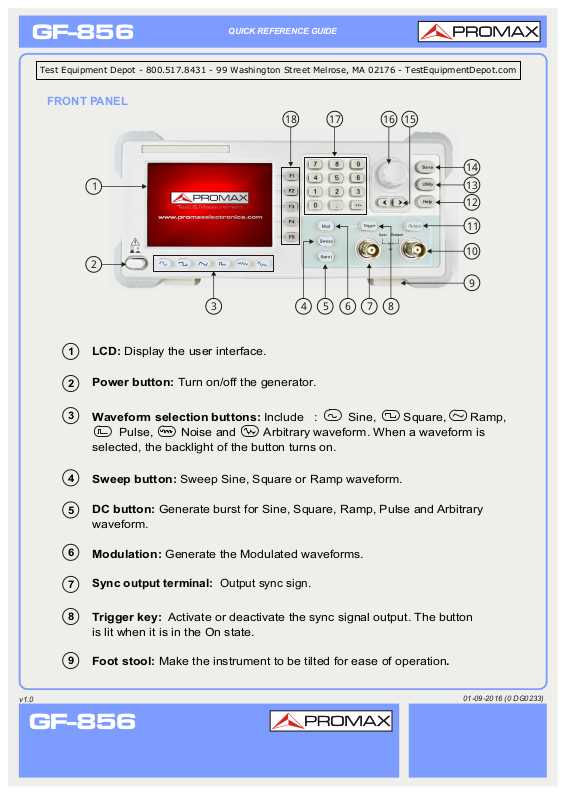

FRONT PANEL
1
2
- 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
18
3
17
5
4
7
6
16
15
14
13
12
11
10
9
8
LCD: Display the user interface.
1
Power button: Turn on/off the generator.
2
3
Waveform selection buttons: Include : Sine, Square, Ramp,
Pulse, Noise and Arbitrary waveform. When a waveform is
selected, the backlight of the button turns on.
4
Sweep button: Sweep Sine, Square or Ramp waveform.
DC button: Generate burst for Sine, Square, Ramp, Pulse and Arbitrary
5
waveform.
6
Modulation: Generate the Modulated waveforms.
Sync output terminal: Output sync sign.
7
8
Trigger key: Activate or deactivate the sync signal output. The button
is lit when it is in the On state.
9
Foot stool: Make the instrument to be tilted for ease of operation.
v1.0
GF-856
01-09-2016 (0 DG0233)
GF-856
10
Main output terminal: Output main signal.
11
Output key: Activate or deactivate the output signal. The button is lit.
12
Help button : View the build-in help information.
13
Utility button : Set the auxiliary system function.
14
Save button: Manage the waveform files in the file system.
QUICK REFERENCE GUIDE
15
Direction key: Move the cursor of the focused parameter or select the
file locations.
16
Knob: Change the current highlighted number, also can be used to select
file location or switch the character of the soft keyboard when entering file
name. In Sweep and N-Cycle Burst, if you choose Source as "Manual", every
time you press this knob, the generator will be triggered once.
17
Number keys: Input parameters, include: number, point and plus/minus sign.
18
Menu selection buttons: Include 5 buttons: F1 - F5, activate the corresponding
menu.
GF-856

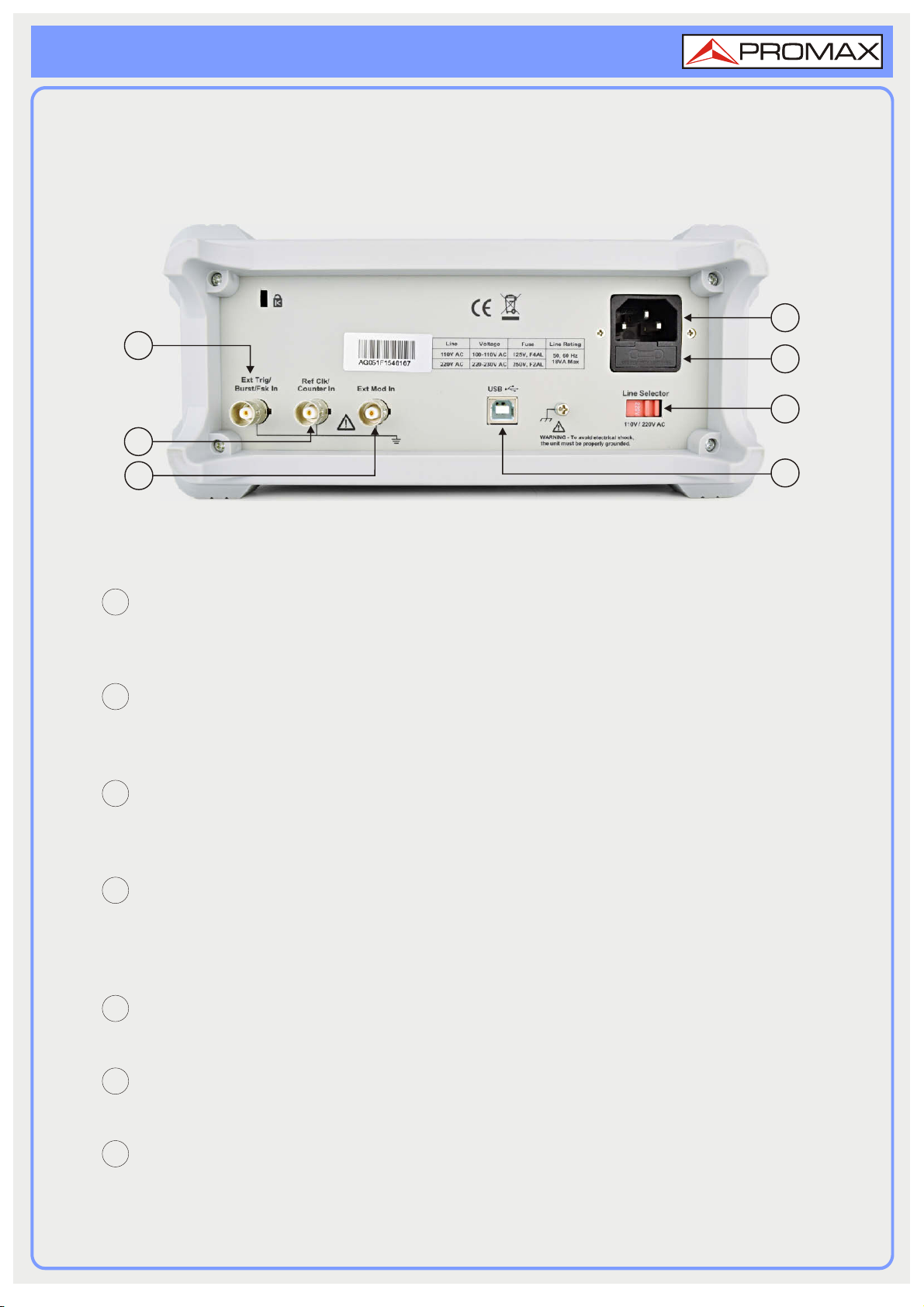

REAR PANEL
QUICK REFERENCE GUIDE
7
1
2
3
Ext Trig/Burst/Fsk In connector: This signal can be used as external
1
signal source in Sweep, Burst and FSK mode.
2
Ref Clk/Counter In connector: To accept an external clock signal, or
to accept the input signal of counter.
3
Ext Mod In Connector: External modulation input, use it as external
signal source.
6
5
4
4
USB (type B) connector: This can be used to connect a USB type B
controller. Connect with an external device, such as connected to a PC
and controlled via PC software.
5
Power switch: Switch between 110 V and 220 V.
6
Fuse: The rating is 250 V, F2AL.
7
Power socket: AC input connector.
GF-856
USER INTERFACE
11
22
33
44
55
QUICK REFERENCE GUIDE
1010
99
88
66
1
Load: High Z, represents high resistance.
2
Frequency/period, depends on the highlighted menu item on the right.
3
Amplitude/high level, depends on the highlighted menu item on the right.
4
Offset/low level, depends on the highlighted menu item on the right.
5
Display current waveform.
6
Parameter 2, display parameter and edit the focused parameter.
7
Parameter 3, display parameter and edit the focused parameter.
77
8
The setting menu of current signal or mode.
9
Current signal type or mode.
10
Parameter 1, display parameter and edit the focused parameter.
