GF-232B
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

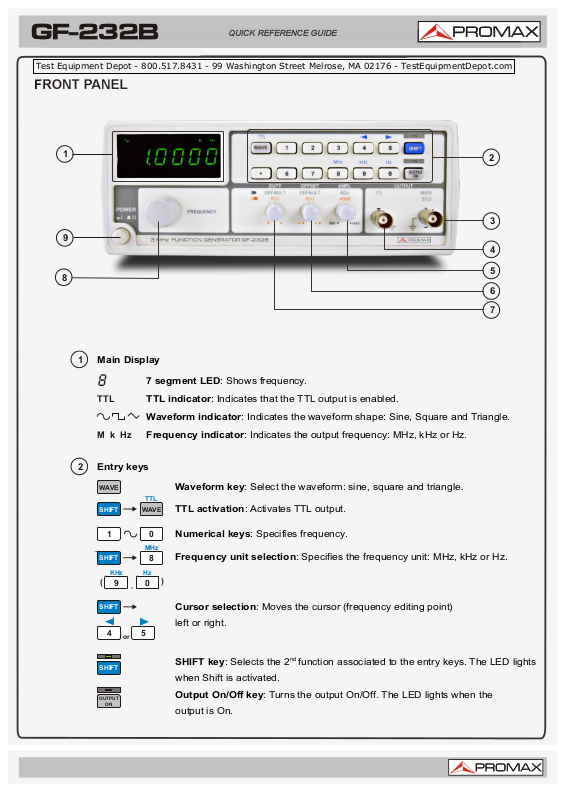

QUICK REFERENCE GUIDE
FRONT PANEL
1
2
3
9
4
8
5
6
7
1
Main Display
8
TTL
7 segment LED: Shows frequency.
TTL indicator: Indicates that the TTL output is enabled.
Waveform indicator: Indicates the waveform shape: Sine, Square and Triangle.
M k Hz
2
Entry keys
WAVE
SHIFT WAVE
1
SHIFT
KHz
(
SHIFT
4
SHIFT
OUTPUT
ON
Frequency indicator: Indicates the output frequency: MHz, kHz or Hz.
Waveform key: Select the waveform: sine, square and triangle.
TTL
TTL activation: Activates TTL output.
0
Numerical keys: Specifies frequency.
MHz
Frequency unit selection: Specifies the frequency unit: MHz, kHz or Hz.
8
Hz
9
,
)
0
Cursor selection: Moves the cursor (frequency editing point)
left or right.
5
or
SHIFT key: Selects the 2 function associated to the entry keys. The LED lights
nd
when Shift is activated.
Output On/Off key: Turns the output On/Off. The LED lights when the
output is On.
Page 2
QUICK REFERENCE GUIDE
3
Main output: Outputs sine, square and triangle waveform. BNC, 50 Ω output
impedance.
4
TTL output: Outputs TTL output waveform, BNC terminal.
5
Amplitude control: Sets the sine / square / triangle waveform amplitude.
Turn left (decrease) or right (increase). When pulled out, attenuates the sine / square /
triangle waveform amplitude by -40 dB.
6
DC Offset control: When pulled out, sets the DC offset level for sine / square /
triangle waveform. Turn left (decrease) or right (increase). The range is -5V ~
+5V, in 50 Ω load.
7
Duty cycle control: When it is pulled out, it sets the square or TTL wave duty cycle. For
TTL waveforms, turn left (decrease) or right (increase). For square waveforms (main
output channel) turn left (increase) or right (decrease). The range is 25% ~ 75 %.
GF-232B
8
9
REAR VIEW
10
Frequency editing knob: Increases (right turn) or decreases (left turn)
the frequency.
Power switch: Turns the main power On/Off.
10
11
12
AC Rating Information: AC line voltage: 100, 120, 220 or 240 V
(factory installed setting). The label shows the applicable rating.
11
12
v1.1
GF-232B
Ground Terminal: The safety ground terminal. Use this terminal for common
ground connection.
AC Power Input: Accepts the AC power cord. 100, 120, 220 or 240 V,
±10%, 50/60 Hz.
21-01-2016 (0 DG0214)
