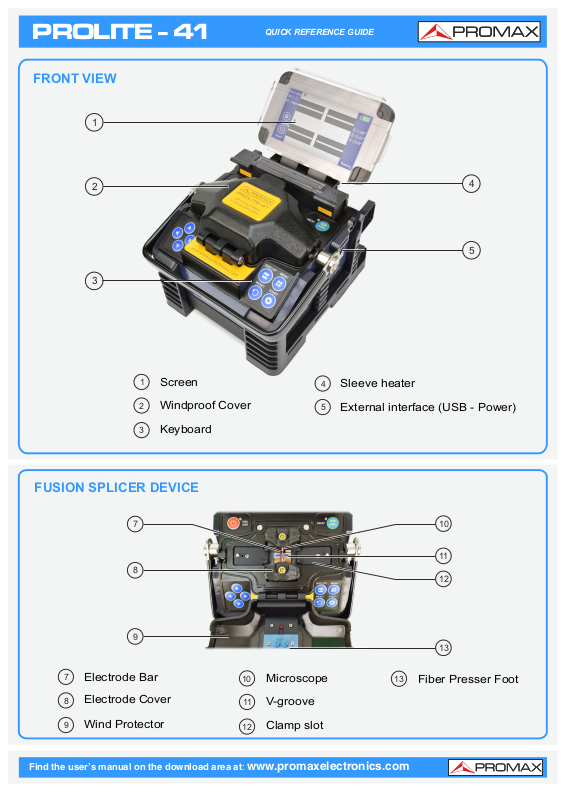

PROLITE - 41
FRONT VIEW
1
QUICK REFERENCE GUIDE
2
3
1
Screen
Windproof Cover
2
Keyboard
3
4
Sleeve heater
5
External interface (USB - Power)
4
5
FUSION SPLICER DEVICE
7
8
9
7
Electrode Bar
Electrode Cover
8
Wind Protector
9
10
Microscope
V-groove
11
Clamp slot
12
10
11
12
13
13
Fiber Presser Foot
Find the user's manual on the download area at: www.promaxelectronics.com
PROLITE - 41
TUBE HEATER
QUICK REFERENCE GUIDE
14
15
14
Clamp
EXTERNAL INTERFACE
17
Heater Plate
15
Cover Plate
16
14
16
18
KEYBOARD
19
20
19
20
Power key
Arrow keys
17
Power Port
18
22
Exit key/Switch XY key
23
Menu/Confirm
USB Port
25
Reset key
21
22
23
24
25
21
Sleeve heating key
24
Start key
PROLITE - 41
MENU INTRODUCTION
100%
QUICK REFERENCE GUIDE
Function:
Splice Mode:
Set the parameters of some system functions such as heating
mode, arc compensation, reset time, etc.
Set the parameters of splice mode.
Function
System
SpliceMode
History Help
SPLICE MODE MENU
SpliceMode
Fiber type
Splice operate mode
Splice program No.
Edit splice program
Clean Arc time
Surface angle threshold
Fiber angle threshold
Align offset threshold
Loss threshold
Compensation arc time
Fiber alignment mode
Fast splice mode
SM
Auto
SM-1
100 ms
3.0 °
0.8 °
0.4 um
0.10 dB
1.0 s
Core align
Off
Maintain
Enter
Back
09-30
09:30
14.11.2018
100%
Enter
Back
09:30
14.11.2018
Maintain:
System:
History:
Help:
Fiber type:
Splice Operate
Mode:
Splice Program No.:
Edit Splice
Program:
Clean Arc Time:
Surface Angle
Threshold:
Fiber Angle
Threshold:
Align Offset
Threshold:
Loss Threshold:
Electrode maintenance, arc correction, calibration, etc.
Set the display parameters, system language & time, restore
to initial settings, etc.
Record of number of arc times, splice results, etc.
Provide key operation manual.
Set according to the type of fibre used such as SM (single
mode), MM (Multimode), DS (Dispersion shifted), NZDS (Nonzero dispersion shifted). Each fibre type can have up to 30
fusion splice pre-set programs. Other available fibre types are
BIF (Bend Insensitive Fibre), UBIF (Ultra-Bend Insensitive
Fibre), EDF (Erbium Doped Fibre) and G.657B3 (Bend
Insensitive Single-Mode fibres).
Automatic, Semi-automatic or Manual.
30 groups preset splice program and 80 groups of users-set
splice program.
Edit splice parameters under the current number of program.
It cleans dust on the fiber surface by short-time arc. The
duration ranges from 0 to 200 ms.
An error message is displayed if the head face angle of either
left or right side of fiber exceeds the angle threshold. The
setting range is 0-8°.
An error message is displayed if the clamp angle of the two
fibers spliced exceeds the angle threshold. The setting range
is 0-4°.
An error message is displayed if the misalignment of the two
fibers spliced exceeds the misalignment limit. The setting
range is 0.0-1.5 µm.
An error message is displayed if the estimated splice loss
exceeds the loss limit. The setting range is 0-0.2db.
FUNCTION SETTINGS MENU
Function
Sleeve heating mode
Fast ArcTest Mode
Tension test
Reset waiting time
Auto starting
Auto heating on
Enter
on
on
12 s
on
100%
Enter
Back
09:30
14.11.2018
Compensation arc
Time:
Fiber Alignment
Mode:
Fast Splice Mode:
Sleeve heating mode:
Fast ArcTest Mode:
Tension Test:
Reset Waiting
Time:
Auto Starting:
Auto Heating:
Splice loss may be improved by compensative arc in some
cases.
Cladding align or core align can be set.
If it is "on" it accelerates the alignment.
Set the sleeve heating time.
If this is set "on", after splice is completed, the equipment
adjusts arc current and tension test.
If this is set “on”, after splice is completed, the equipment will
restore and Tension test will perform itself.
If the Tension test is set “off”, the system will restore the
equipment after the waiting time is over.
If it is set “on”, it will perform a splice itself when the cover is
closed.
If it is set “on”, it starts heating when the cover is lid.
PROLITE - 41
MAINTENANCE MENU
Maintain
Arc correction
Clean electrodes
Replace electrodes
Self Test Mode
CorrectLed
Enter
Enter
SYSTEM AND FUNCTION SETTINGS
System
Brightness adjustment 100%
Language selection English
Screen flip Default
Time setup
Restore factory settings
Power saving mode
Silent mode on
100%
09:30
14.11.2018
100%
09:30
14.11.2018
Enter
Back
Enter
Back
QUICK REFERENCE GUIDE
Arc correction:
Clean
Electrodes:
Replace
electrodes:
Selt Test Mode:
CorrectLed:
Brightness
Adjustment:
Language
Selection:
Screen Flip:
Time Setup:
Restore
Factory Settings:
Power Saving
Mode:
It performs an arc test and correction.
It repeats short arc several times to clean the electrodes.
After replace electrodes, repeats short arc several times to
stabilize the electrodes and to measure the electrodes
position.
It measures the electrodes position, motor and other system
parameters automatically.
When there is sudden change of temperature it may appear fog
on the camera lens. Use this option to clear fog.
Adjust the display brightness.
Select language.
Screen rotates 180º.
Set system time and date.
Restore all parameters to factory settings.
Set auto sleep or shutdown.
Silent Mode:
SPLICE RESULTS STORAGE AND QUERY
Total Arc Number:
Reset Arc Count:
Total Records:
View Records:
Delete Records:
Query fault
records:
Delete fault
records:
History
Total Arc number
Clean electrodes
Clean Arc count
Replace electrodesTotal records
View records
Detect system parameters
Delete records
Query fault records
Delete fault records
100%
0
Enter
0
Enter
Back
09:30
14-11-2018
Turn on or off the key beep.
Electrodes arc times since the last record is eliminated.
Eliminate arc times after electrodes are replaced.
The splice records having been stored by system.
3000 groups of the latest splice records can be viewed. Users
could query the splice parameters and results.
Delete all splice records.
It shows data about fault records.
It deletes fault records.
v2.2
PROLITE - 41
Find the user's manual on the download area at:
www.promaxelectronics.com
23-10-2019 (0 DG0348)
