MO-480/481
BROADCAST GRADE SFN/MFN
DVB-T/T2 MODULATOR
- 0 MI1970 -
SAFETY NOTES
Read the user’s manual before using the equipment, mainly "SAFETY RULES"
paragraph.
The symbol on the equipment means "SEE USER’S MANUAL". In this manual
may also appear as a Caution or Warning symbol.
WARNING AND CAUTION statements may appear in this manual to avoid injury
hazard or damage to this product or other property.
USER’S MANUAL VERSION
Version Date Software Version
2.0 September 2016 v1.02
SAFETY RULES
∗ The safety could not be assured if the instructions for use are not closely
followed.
∗ Use this equipment connected only to systems with their negative of
measurement connected to ground potential.
∗ The mains adaptor is a Class I equipment. For safety reasons it must be plugged
to supply power lines with their ground.
∗ This equipment can be used in Overvoltage Category II installations and
Pollution Degree 1 environments.
∗ When using some of the following accessories use only the specified ones to
ensure safety:
Power cord CA005.
∗ Observe all specified ratings both of supply and measurement.
∗ Remember that voltages higher than 70 V DC or 33 V AC rms are dangerous.
∗ Use this instrument under the specified environmental conditions.
∗ The user is only authorized to carry out the following maintenance operations:
Replace the fuses of the specified type and value.
On the Maintenance paragraph the proper instructions are given.
Any other change on the equipment should be carried out by qualified
personnel.
∗ The negative of measurement is at ground potential.
∗ Do not obstruct the ventilation system of the equipment.
∗ Use appropriate low-level radiation cables for input/output signals, especially on
high level signals.
∗ Follow the cleaning instructions described in the Maintenance paragraph.

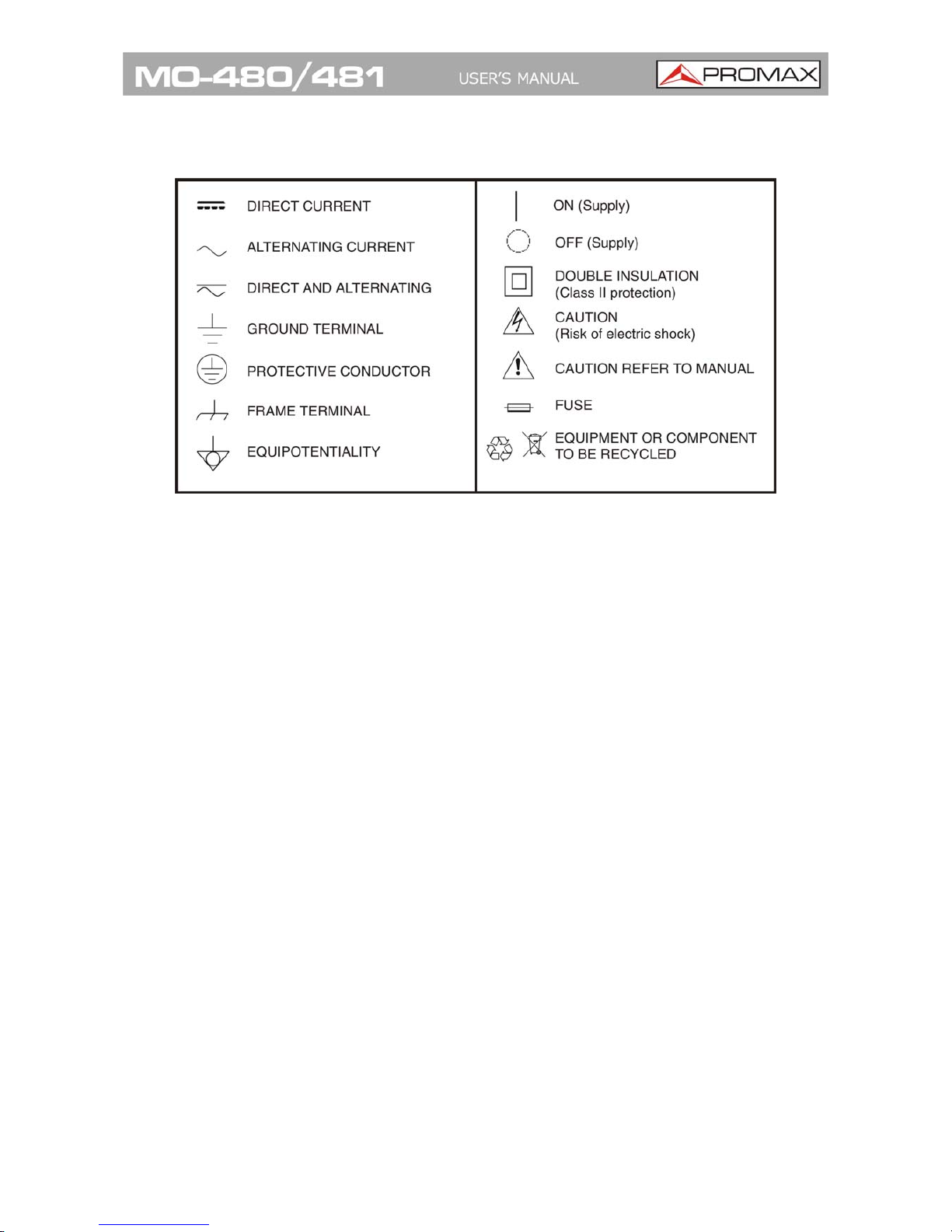

∗ Symbols related with safety:
Descriptive Examples of Over-Voltage Categories
Cat I Low voltage installations isolated from the mains.
Cat II Portable domestic installations.
Cat III Fixed domestic installations.
Cat IV Industrial installations.
TABLE OF CONTENTS
1 GENERAL ..................................................................................................1-1
1.1 Introduction .......................................................................................1-1
2 INSTALATION............................................................................................ 2-3
2.1 Power Supply .....................................................................................2-3
2.1.1 Operation using the Mains Adapter .................................................2-3
2.1.2 Operation using the AC Adapter ..................................................... 2-3
2.2 Installation and Start-up ......................................................................2-3
3 OPERATING INSTRUCTIONS ........................................................................ 3-4
3.1 MO-480 .............................................................................................3-4
3.1.1 Front panel description .................................................................3-4
3.1.2 Rear panel description .................................................................. 3-5
3.2 MO-481 .............................................................................................3-6
3.2.1 Front panel description .................................................................3-6
3.2.2 Rear panel description .................................................................. 3-6
4 WEB CONTROL MANUAL.............................................................................. 4-8
4.1 Introduction .......................................................................................4-8
4.2 Installation ........................................................................................4-8
4.2.1 Installation Requirements .............................................................4-8
4.2.1.1 System Requirements .............................................................4-8
4.2.1.2 Software Requirements ...........................................................4-8
5 MO-480/481 CONFIGURATION.....................................................................5-9
5.1 Login ................................................................................................5-9
5.2 Menu Options ................................................................................... 5-10
5.2.1 Monitoring ................................................................................ 5-11
5.2.2 Configuration ............................................................................ 5-13
5.2.2.1 Input .................................................................................. 5-13
5.2.2.2 Modulation...........................................................................5-16
5.2.2.3 Network Parameters .............................................................5-18
5.2.2.4 PLP Parameters (only for DVB-T2)
........................................... 5-19
4.2.2.5 Output ................................................................................ 5-20
5.2.3 System .................................................................................... 5-22
5.2.4 Log.......................................................................................... 5-23
5.2.5 Admin ...................................................................................... 5-24
5.2.6 Testing..................................................................................... 5-25
5.2.7 About....................................................................................... 5-26
6 SPECIFICATIONS
............................................................................... 6-27
7 MAINTENANCE
.................................................................................. 7-31
7.1 Cleaning Recommendations................................................................ 7-31
7.2 Fuses .............................................................................................. 7-31
September 2016 1-1
BROADCAST GRADE SFN/MFN
DVB-T/T2 MODULATOR
MO-480/481
1
1 GENERAL
1.1
Introduction
The MO-480/481 is a broadcast grade DVB-T/T2 modulator available in a
standard 1U high 19" rack case (MO-480) and also in an open frame chassis
(MO-481) that can be used for MFN as well as SFN applications.
The modulator has several Transport Stream and T2-MI inputs in ASI and IP
formats so that it can be easily interfaced with other existing transmission
equipments such as gateways. The modulator can be configured to generate any
of the transmission modes listed in the corresponding DVB-T2 standard
including single and multiple PLP, MISO or SISO. It can also be used for DVB-T
applications.
The modulator inputs consist of an MPEG-2 transport stream (TS) in TS over IP
or DVB-ASI format, a 10 MHz GPS reference and a 1pps GPS reference. The
GPS inputs are for SFN synchronisation purposes. The outputs are DVB-T/T2
signals COFDM-modulated and up-converted to RF.
The interest in DVB-T2 is now increasing with the growing demand for
bandwidth mostly to deliver high definition television programmes. Several
countries already have T2 commercial services, some others are running test
trials and many more are on the planning stage.
Highlights of this product are:
DVB-T and DVB-T2 modulation
MFN and SFN
Single output 30 to 900 MHz
Affordable yet broadcast grade design
High output quality
1
Trademark of the DVB - Digital Video Broadcasting Project
1-2 September 2016
Low power consumption
Easy OEM integration
Multi-PLP
SISO/MISO
Digital Pre-correction
Webserver for programming and control
10 MHz / 1PPS internal and external references
Installation and maintenance tests modes
Configurable latence
IP FEC correction
IP UDP, RTP & IGMP compatibility
September 2016 2-3
2 INSTALATION
2.1
Power Supply
The MO-480 is an equipment powered through the mains for its operation.
The MO-481 is powered through an AC Adapter.
2.1.1 Operation using the Mains Adapter
Connect the MO-480 to the mains through the AC voltage connector located on
the rear panel.
Check if the mains voltage is according to the equipment specifications.
2.1.2 Operation using the AC Adapter
Connect the AC power adapter to the module MO-481 through the power
connector on the rear panel.
Then connect the AC power adapter to the mains via the mains cord. Ensure that
your mains voltage is compatible with the adapter voltage.
2.2
Installation and Start-up
The MO-480 modulator is designed for use as a rack-mounted 19 inches device
(1U chassis). The MO-481 modulator it is in an open frame chassis and can be
used anywhere.
To start-up the MO-480, switch the main switch located in the rear panel to
position I (power on). To start-up the MO-481, just connect the AC adapter to
the mains. After a successfully start up, all LEDs of the MO-480 blink (except
power). When the equipment is connected to the mains, the POWER LED
remains lit.
3-4 September 2016
3 OPERATING INSTRUCTIONS
3.1
MO-480
3.1.1 Front panel description

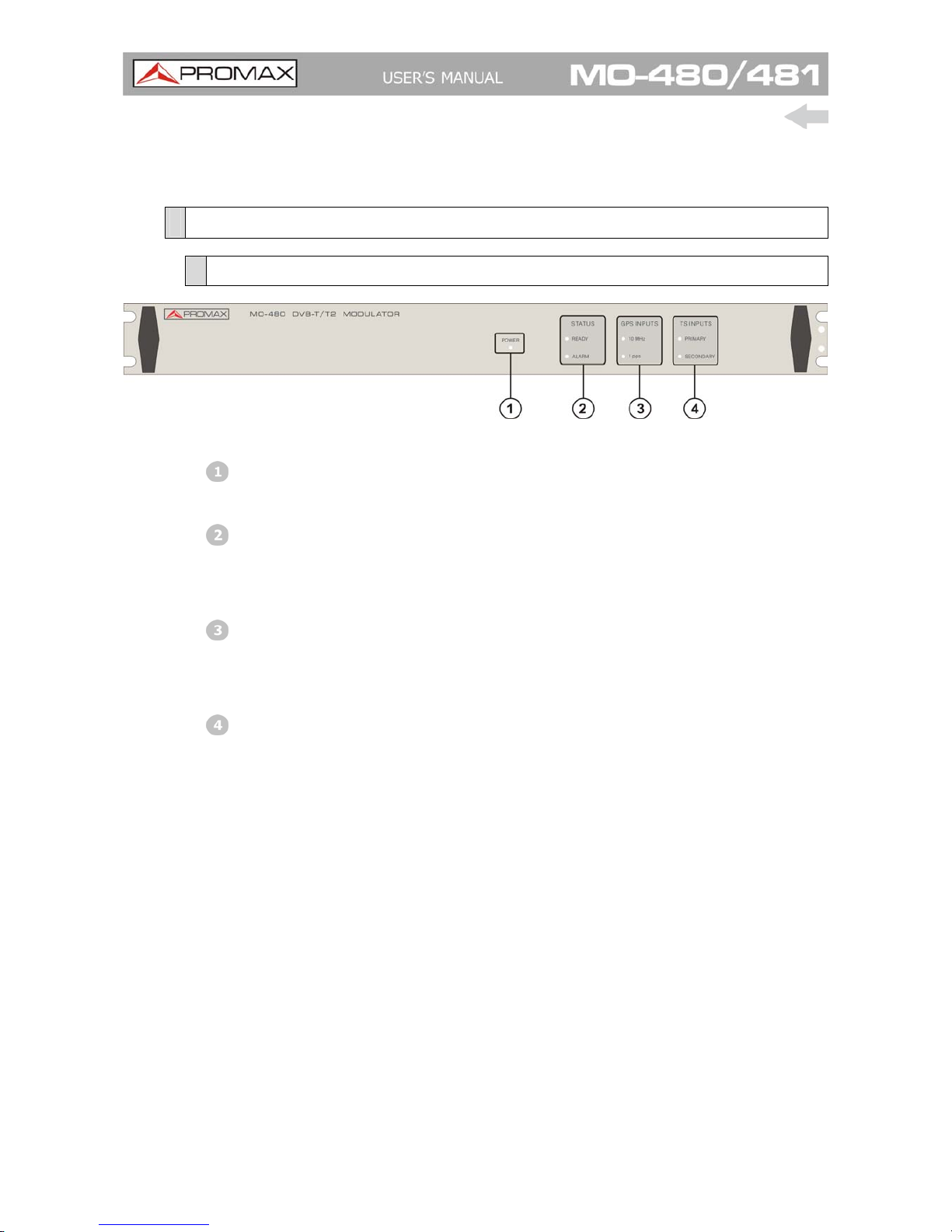

Figure 1. Front panel.
Power LED.
When is in green means the power supply is ON.
Status LEDs
Ready: When it is in green means it is working properly.
Alarm: When it is in red means some kind of error.
GPS inputs LEDs
10 MHz: 10 MHz GPS input.
1 pps: One pulse per second GPS input.
TS inputs LEDs
Primary: It shows the status of the primary TS input.
Secondary: It shows the status of the secondary TS input.
September 2016 3-5
3.1.2 Rear panel description

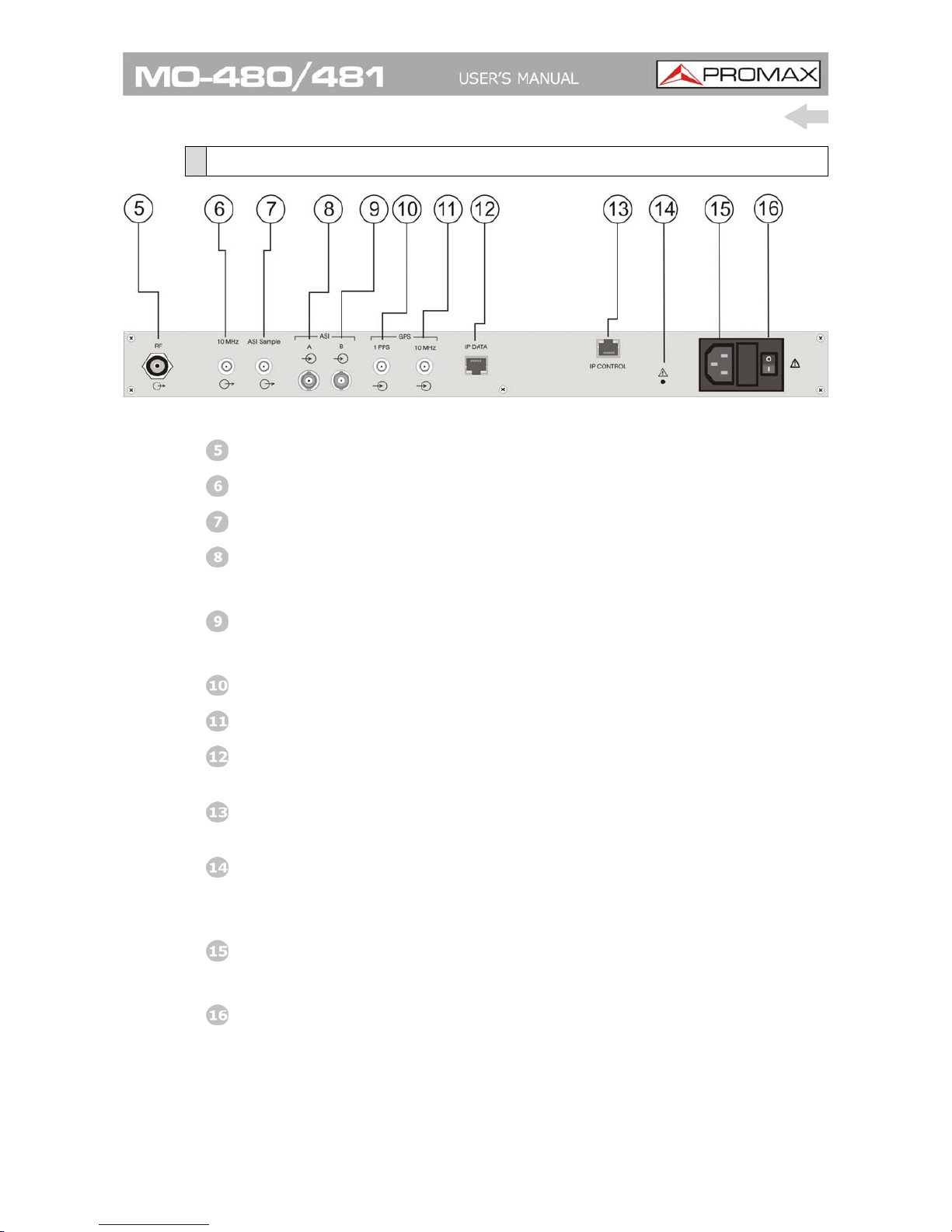

Figure 2. Rear panel.
RF output, 50 Ω, female N-type connector.
10 MHz reference output, female SMA.
ASI Sample output, female SMA.
ASI A input, 75 Ω, female BNC.
DVB-ASI input number 1.
ASI B input, 75 Ω, female BNC.
DVB-ASI input number 2.
1PPS GPS input, 50 Ω or high impedance, female SMA.
10 MHz GPS input, 50 Ω or high impedance, female SMA.
IP DATA, input for MPEG2 TS over IP, 1 Gigabit ethernet RJ45
connector.
IP CONTROL, input for web control software, 100 Mbps ethernet, RJ45
connector.
Reset IP button.
If keeping pressed for 10 or more seconds it changes the current IP
address to the default IP address: 192.168.42.30.
AC voltage connector.
Supplies power to the equipment.
Mains switch.
Switch on or off the power supply.
3-6 September 2016
3.2
MO-481
3.2.1 Front panel description
Figure 3. Front panel.

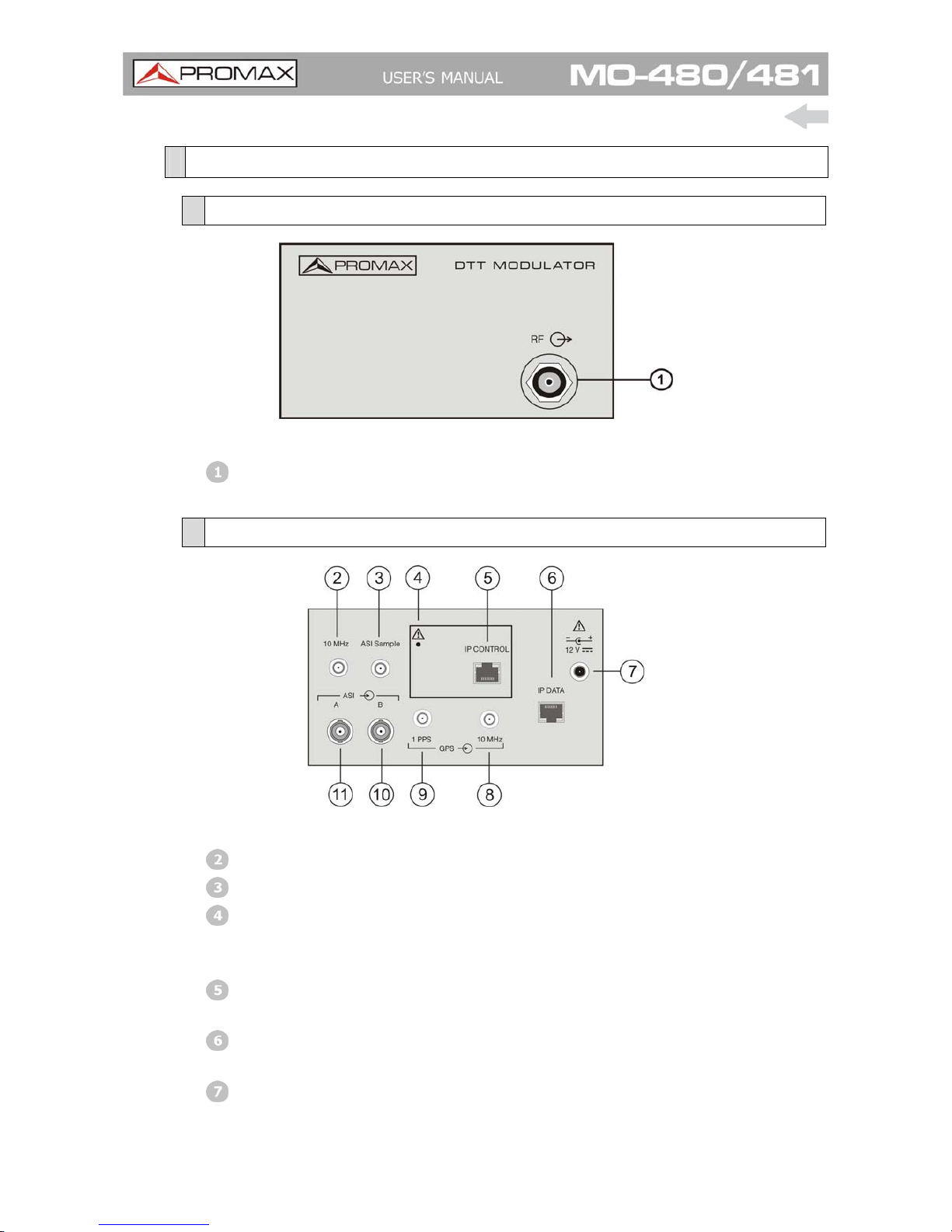

RF output, 50 Ω, female N-type connector.
3.2.2 Rear panel description
Figure 4. Front panel.
10 MHz reference output, female SMA.
ASI Sample output, female SMA.
Reset IP button.
If keeping pressed for 10 or more seconds it changes the current IP
address to the default IP address: 192.168.42.30.
IP CONTROL, input for web control software, 100 Mbps ethernet, RJ45
connector.
IP DATA, input for MPEG2 TS over IP, 1 Gigabit ethernet RJ45
connector.
AC voltage connector.
September 2016 3-7
10 MHz GPS input, 50 Ω or high impedance, female SMA.
1PPS GPS input, 50 Ω or high impedance, female SMA.
ASI B input, 75 Ω, female BNC.
DVB-ASI input number 2.
ASI A input, 75 Ω, female BNC.
DVB-ASI input number 1.
