TWO-SIDED
GRILLS
230V MODELS
CG10, GR10
CG14 & GR14
CG28 & GR28 SERIES
Installation and
Operation
Instructions
2M-Z8985 Rev. D 4/19/2010
35.6 CM X 35.6 CM Grooved Grill
35.6 CM X 71.1 CM Grooved Grill
1
2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specifi cations and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
impr ovements, addi tions or replacements for pr eviously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specifi cations contained in this sheet are subject to change
without notice. While Star Manufacturing exercises good faith efforts to provide
information that is accurate, we are not responsible for errors or omissions
in information provided or conclusions reached as a result of using the
specifi cations. By using the information provided, the user assumes all risks in
connection with such use.
MAINTENANCE AND REPAIRS
Contact your local dealer for service or required maintenance. Please record the model number, serial
number, voltage and purchase date in the area below and have it ready when you call to ensure a faster
service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
2
PRODUCT IDENTIFICATION
Star Manufacturing International, Inc. Two Sided Grills
230V Models:
GR10-230V- Smooth Top and Bottom Platens Aluminum, without Timer
GR10T-230V- Smooth Top and Bottom Platens Aluminum, with Timer
GR10I-230V- Smooth Top and Bottom Platens Cast Iron, without Timer
GR10IT-230V- Smooth Top and Bottom Platens Cast Iron, with Timer
CG10I-230V- Grooved Top and Bottom Platens Cast Iron, without Timer
CG10IT-230V-Grooved Top and Bottom Platens Cast Iron, with Timer
GR14-230V- Aluminum Smooth Top and Bottom Platens, without Timer
GR14T-230V- Aluminum Smooth Top and Bottom Platens, with Timer
GR14I-230V- Iron Smooth Top and Bottom Platens, without Timer
GR14IT-230V- Iron Smooth Top and Bottom Platens, with Timer
CG14-230V- Aluminum Grooved Top and Bottom Platens, without Timer
CG14T-230V- Aluminum Grooved Top and Bottom Platens, with Timer
CG14I-230V-Iron Grooved Top and Bottom Platens, without Timer
CG14IT-230V- Iron Grooved Top and Bottom Platens, with Timer
CG28I-230V Grooved Iron Platens without Timers
CG28IT-240V Grooved Iron Platens with 2 Timers
CG28IGT-240V Iron Platens, Grooved Top and Smooth Bottom without Timers
GR28I-240V Smooth Iron Platens without Timers
GR28IT-240V Smooth Iron Platens with 2 Timers
3
GENERAL INSTALLATION DATA
CAUTION
This equipment is designed and sold for
commercial use only by personnel trained and
experienced in its operation and is not sold for
consumer use in and around the home nor for
use directly by the general public in food service
locations.
Before using your new equipment, read
and understand all the instructions & labels
associated with the unit prior to putting it into
operation. Make sure all people associated with
its use understand the units operation & safety
before they use the unit.
All shipping containers should be checked for
freight damage both visible and concealed. This
unit has been tested and carefully packaged to
insure delivery of your unit in perfect condition.
If equipment is received in damaged condition,
either apparent or concealed, a claim must be
made with the delivering carrier.
Concealed damage or loss - if damage or loss is
not apparent until after equipment is unpacked, a
request for inspection of concealed damage must
be made with carrier within 15 days. Be certain
to retain all contents plus external and internal
packaging materials for inspection. The carrier
will make an inspection and will supply necessary
claim forms.
VENTILATION AND CLEARANCES
The installation of any components such as
a vent hood, grease extractors, and/or re
extinguishing systems, must conform to their
applicable nationally recognized installation
standards and/or local building codes.
ELECTRICAL CONNECTION
CAUTION
Before making any electrical connection be sure
to read data plate which is located at the bottom
of the unit.
ELECTRICAL GROUNDING
INSTRUCTIONS
This unit is equipped with a CEE-7/VII Cord, use
the proper (grounding) plug that provides proper
protection against shock hazard and must be
plugged directly into a properly grounded 3-prong
receptacle. For your protection we recommend
that a qualied electrician be consulted in regards
to any electrical conserns or installations. He/she
should be familiar with electrical installations and
all electric codes. Proper connections and power
supply are essential for efcient performance.
CAUTION
DO NOT CUT OR REMOVE THIS PLUG OR
GROUNDING PRONG FROM THE PLUG.
CAUTION
CONNECT/PLUG UNIT INTO DEDICATED
A.C LINE ONLY SPECIFIED ON THE DATA
PLATE OF THE UNIT.
4
ELECTRICAL SPECIFICATIONS
Model No. Volts Rated Wattage Amps NEMA Plug
GR 10 230 1653 7.2 CEE-7/VII
GR 10I 230 1653 7.2 CEE-7/VII
CG 10I 230 1653 7.2 CEE-7/VII
GR 14 230 1653 7.2 CEE-7/VII
GR 14I 230 3306 14.2 CEE-7/VII
CG 14 230 1653 7.2 CEE-7/VII
CG 14I 230 3306 14.2 CEE-7/VII
CG 28I 230 6612 28.7 CEE-7/VII
GR 28I 230 6612 28.7 CEE-7/VII
INITIAL START UP
Level unit using the adjustable feet under the unit
(approximately 1/2" adjustment).
Before using the unit for the rst time, clean and
heat for approximately 30 minutes. The grill may
emit a small amount of smoke as the cooking
surfaces reach 300-350°F (148-176°C). Do
not be alarmed, as the smoke is caused by oils
associated with the manufacturing process and
will stop when the grill reaches 400°F (204°C).
This will take approximately 30 minutes. Brush
off any debris from the grilling surfaces. Allow
grill to cool prior to placing it in its permanent
position.
SEASONING THE COOKING SURFACES
FIRST TIME SEASONING
Follow your company/corporate guidlines for
seasoning cooking surfaces. or
1. Bring the grill to 300°F and leave it on while
doing the next three steps.
2. Brush the cooking surfaces with a release
agent. If using an aerosol agent,
rst apply into a cup and then brush onto
cooking surface.
3. Let sit for 20 minutes, and then wipe clean
using a warm damp cloth.
SETTING THE TEMPERATURE
The thermostat control knob is used to set the
temperature to your requirements. The maximum
set point is 550°F (288°C), the minimum set point
is 175°F (79°C). See Knob Settings.
SETTING THE TIMER (TIMER MODELS ONLY)
(9 MIN. 59 SEC. MAX)
The timer may be factory pre-set. If changes are
required follow these simple steps:
1. To increase time, press and hold the
(UP) button. The Start/Stop button can
now be used to increase the cooking time.
2. To decrease time, press and hold the
(DOWN) button. The Start/Stop button
can now be used to decrease cooking time.
KNOB SETTING
Knob Position Approx. Temp
1-2 175°F / 79°C
3 200°F / 93°C
4 250°F / 121°C
5 300°F / 148°C
6 350°F / 176°C
7 400°F / 204°C
8 450°F / 232°C
9 500°F / 260°C
10 550°F / 287°C
DAILY SEASONING
The grill should not require much seasoning while
in use. In most cases, brush a light coating of the
baking release agent in the morning and occasionally
throughtout the day will be enough to prevent any
sticking. It is not necessary to spray before grilling
each item.
5
ON/OFF ROCKER SWITCH
(TIMER MODELS ONLY)
The switch turns the unit on and off. The switch
has three positions:
With the switch in this position,
both top and bottom platens
will heat.
MONTHLY LUBRICATION/INSPECTION
Apply two (2) drops of non-toxic mineral or
vegetable oil to counter balance shoulder rivets
and plastic spacers.
Check and clean brass rollers to make sure they
are rolling and not sliding on the cam surfaces of
the counterbalance.
Check the bolts, screws and nuts, tighten if
necessary.
With the switch in this position,
neither platen will heat.
With the switch in this position
only bottom platen will heat.
DAILY OPERATION
Always allow 10-20 minutes of preheat time
before loading the unit with product. Failure
to allow sufcient preheat time will result in
unsatisfactory cooking of the rst load.
Check the power cord to insure that it is plugged
into a proper outlet.
Check that the switch and thermostat control are
turned on.
Set the unit's ON/OFF rocker switch to desired
position.
Set the thermostat control knob to desired
temperature.
OPERATING HINTS AND SAFETY
Disconnect power to the unit with the switch at
the end of each day of operation.
Do not leave the unit in operation without an
attendant.
Turn thermostat down to 200°F (93°C) during idle
periods. It will take only a few minutes to regain
operating temperature.
CLEANING
Begin cleaning procedure by using the operating
procedures within your organization, or follow the
steps below:
1. If particles adhere to the cooking surface during
the day, scrape them off with a spatula.
NOTE: It is best not to let food cook onto the
grill, as food build-up on the grill will increase
sticking and smoking. In addition, carbon may
build up on the grill surface and reduce the
cooking efciency.
CARBON BUILDUP: A black matter that forms on
or near the cooking surface. Generally this is
releasing agents that has cooked itself to the
surface. After a period of time, without carbon
cleaning this material may start aking off. When
that happens, follow the "Carbon Cleaning"
procedures.
2. At the end of the day, wipe down all surfaces
with a warm, damp cloth and mild detergent,
then dry.
CAUTION
DO NOT IMMERSE OR LET THE UNIT
STAND IN WATER.
Use spatula to push excess grease into grease
drawer after each load of food is cooked.
This will reduce smoking of hot grease and
carbonizing.
Do not leave the unit at high temperature when
not in use or during idle periods. This will cause
food particles and grease lm to carbonize.
"Season" cooking surfaces with non-salted
vegetable oil to reduce product sticking.
DO NOT HOSE DOWN THE UNIT OR
THE TABLE/COUNTER IF THE UNIT IS
ON THE TABLE/COUNTER.
KEEP AWAY FROM RUNNING WATER.
6
CLEANING CON'T
OPERATION TROUBLESHOOTING
CAUTION
DO NOT USE SHARP OBJECTS TO REMOVE
CARBON BUILD-UP.
BEFORE CLEANING MAKE SURE POWER IS
TURNED OFF, UNIT IS UNPLUGGED AND IS
NOT TOO HOT.
While holding top lid with one hand, apply
only cleaners which are safe for aluminum
and iron surfaces. Wipe with clean sponge or
towel until unit is clean.
DO NOT SPLASH FRONT CONTROL
PANEL!
DO NOT SPLASH FLEX CONDUIT
CONNECTING TOP AND BOTTOM
OF THE UNIT.
1. Unit not heating.
A. Check if unit is plugged in correct
receptacle.
B. Check incoming power line.
C. Check that the switch is in correct position.
D. Check that thermostat is set to proper
temperature.
2. Top platen not heating.
A. Check that the rocker switch is in correct
postion.
3. Counter balance roller not rolling.
A. Clean rollers.
If unit still does not operate contact the factory
or one of its representatives or a local service
company for service or required maintenance.
Remove and empty to clean grease catcher drawer
as required using mild detergent and water.
WARNING
Do not use ice or cold water to clean the cooking
surfaces when the unit is hot. The surfaces are
cast aluminum or cast iron and may crack or deform
under the shock of rapid temperature change.
CARBON CLEANING
When carbon build up occurs, use a carbon removal
agent according to the instructions provided with
the cleaner. When this process is complete, you
must re-season the grill according to your company/
corporate guidelines, or the seasoning instructions
in this manual.
7
INTERNATIONAL ONE (1) YEAR EQUIPMENT WARRANTY
All workmanship and materials in “STAR” products are warranted for a period of one year from the date shipped from the factory or
one year from the date shown on the proof of purchase of the end-user when purchased through an authorized “STAR” dealer/dis-
tributor in a commercial foodservice location.
“STAR’s” obligation under this warranty is limited to the replacement of the defective part(s) only without charge. This warranty is
void if damage occurs from improper installation, misuse or abuse, disassembly or tampering of unit for any purpose other than repair
by a qualifi ed service agent, wrong voltage, incorrect or fl uctuating voltage conditions, wrong gas, improper gas or gas conditions,
operated contrary to the installation and operating instructions, operated in an application for which the unit is not suited, or if the unit
is not maintained and/or cleaned in a suitable manner.
Any expense in connection with installation, or any cost of making adjustments on a unit to conform to electric or gas service at the
point of installation, are not covered by this warranty.
* The warranty period for the JetStar series six (6) ounce popcorn machines is two (2) years.
* The warranty period for the Chrome-Max Griddles is fi ve (5) years on the griddle surface. See detailed warranty provided with unit.
* The warranty period for Tefl on/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not
apply if damage occurs to Tefl on/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive
cleaners. This warranty does not apply to the “non-stick” properties of such materials.
* This warranty is not valid on Conveyor Ovens
unless a “start-up/check-out has been performed by a Factory Authorized Technician.
In order to make a claim under this warranty; a warranty report must be fi led with Star Manufacturing International Inc. in St. Louis,
Missouri, U.S.A. by the dealer/distibutor through which product was purchased. All details, including serial number and model number of the defective unit, must be included. Failure to fi le a claim within a 120 Day time period may result in the claim being refused.
“STAR” may forego the necessity of returning the part for inspection dependent upon the expense involved. However, “STAR”
requires defective parts to be held in the claimant’s possession for a period of ninety (90) days for possible inspection by a “STAR”
representative or designated inspector .
The foregoing warranty is lieu of any and all other warranties, expressed or implied, and constitutes the entire warranty.
PARTS WARRANTY
Parts that are sold for out-of-warranty repair are warranted for a period of ninety days. The part only is warranted; no labor.
SERVICES NOT COVERED BY WARRANTY
1. Labor
2. Mileage and/or travel time
3. Installation and/or adjustment of equipment
4. Operation contrary to the installation and operating instructions
5. Cleaning of equipment
6. Seasoning of griddle plates
7. Voltage conversions/adjustments
8. Gas conversions
9. Pilot light conversion/adjustments
10. Thermostat calibration/adjustments
11. Resetting of circuit breakers or safety controls
12. Replacement of bulbs/lamps
13. Replacement of fuses
14. Damages due to improper installation
15. Damages from abuse or misuse
16. Damage created by acts of God, Acts of War, or Civil Disturbance
08-05 rms
8

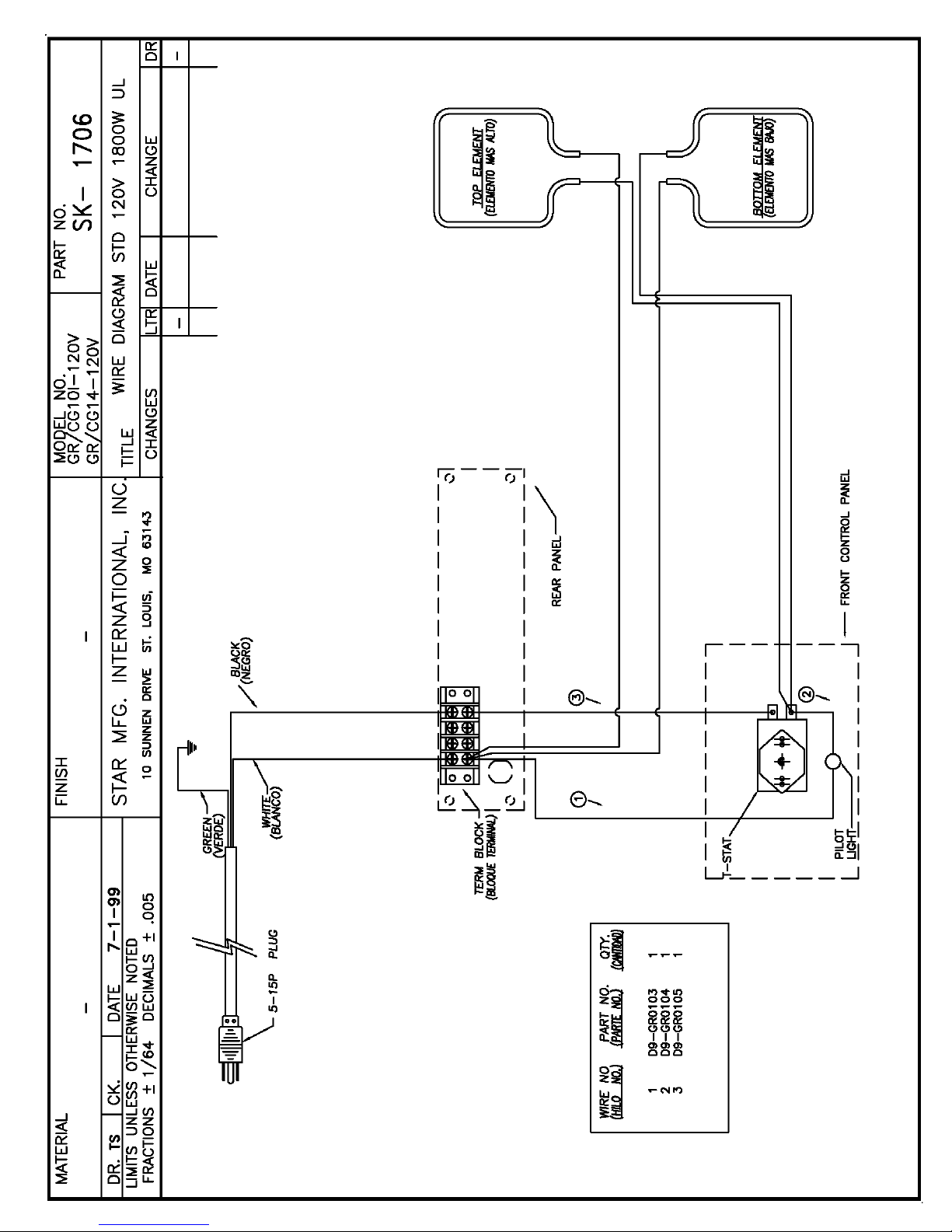

9
10
11
GREEN
BLACK
WHITE
15 AMP PLUG
NEMA 5-15P ON ALL 120V UNITS.
NEMA 6-15P ON 240V, 1,800 WATT UNITS.
20 AMP PLUG
NEMA 6-20P ON 240V, 3,600 WATT UNITS.
TOP ELEMENT
TRANSFORMER
TERMINAL BLOCK
FOR REFERENCE
WIRING DIAGRAM IS SHOWN AS UNIT IS ASSEMBLED
WITH THE BOTTOM PLATE REMOVED. ITEMS ARE IN
GENERAL LOCATION BUT MAY BE RELOCATED OR SCALED
FOR CLARITY.
3
E2 E1
8
8
1
1
11
12
12
11
5
2
52
4
4
10
10
9
9
13
3
3
7
6
7
INDICATOR LIGHT
(POWER ON)
TIMER BOARD
SWITCH
THERMOSTAT
BOTTOM ELEMENT
230V UNITS
INLET IEC 320 16A
20
19
18
L N
G
6
13
MODEL:
CG/GR, 10/14, 120V/230/240V,
WITH TIMER
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
SK2001 Rev A
8/10/2004
12
(ELEMENTO MAS BAJO)
BOTTOM ELEMENT
(ELEMENTO MAS ALTO)
TOP ELEMENT
WIRE NO PART NO.
(HILO NO.) (PARTE NO.)
QTY.
(CANTIDAD)
4 D9-GR0058 1
2,5 D9-GR0059 1
1,8 D9-GR0060 1
3,6,7 D9-GR0064 1
10 D9-GR0057 1
9 D9-GR0065 1
11 D9-GR0106 1
12 D9-GR0107 1
(ELEMENTO MAS ALTO)
TOP ELEMENT
(ELEMENTO MAS BAJO)
BOTTOM ELEMENT
MATERIAL
DR. CK. DATE
FINISH
MODEL NO.
TITLE
PART NO.
STAR MFG. INTERNATIONAL, INC.
10 SUNNEN DRIVE ST. LOUIS, MO 63143
LIMITS UNLESS OTHERWISE NOTED
FRACTIONS 1/64 DECIMALS .005
- SK-1709
7-05-99
WIRE DIAGRAM 240V 7200W UL W/TIMER
GR/CG28IT-240V
CG28ITGT-240V
13
(ELEMENTO MAS BAJO)
BOTTOM ELEMENT
(ELEMENTO MAS ALTO)
TOP ELEMENT
T-STAT
FRONT CONTROL PANEL
PILOT
LIGHT
(BLOQUE TERMINAL)
TERM BLOCK
REAR PANEL
1
3
2
TOP ELEMENT
(ELEMENTO MAS ALTO)
BOTTOM ELEMENT
(ELEMENTO MAS BAJO)
(BLANCO)
GREEN
(VERDE)
NEMA L6-30 P PLUG
WHITE
15
14
REAR PANEL
(BLOQUE TERMINAL)
TERM BLOCK
T-STAT
PILOT
LIGHT
FRONT CONTROL PANEL
3
1
2
(NEGRO)
BLACK
18
20
230V UNITS
INLET IEC 320 16A
19
18
INLET IEC 320 16A
20
19
240V UNITS
N
L
G
N
L
G
WIRE NO PART NO.
(HILO NO.) (PARTE NO.)
QTY.
(CANTIDAD)
1 D9-GR0103 1
2 D9-GR0104 1
3 D9-GR0105 1
14 D9-GR0106 1
15 D9-GR0107 1
3,6,7 D9-GR0064 1
1,8 D9-GR0060 1
2,5 D9-GR0059 1
WIRE NO PART NO.
(HILO NO.) (PARTE NO.)
20 D9-GR0252 2
19 D9-GR0251 2
18 D9-GR0250 2
9 D9-GR0065 1
10 D9-GR0057 1
4 D9-GR0058 1
(CANTIDAD)
QTY.
MODEL:
GR-CG28I-230/240V
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
SK1710 Rev B
8/09/2004
14
STAR MANUFACTURING INTERNATIONAL, INC.
SK1687 REV. F 4/15/10
GR14,GR14I, GR14ITTC,CG14,CG14I,CG14IGT
This drawing contains information confidential
to Star Manufacturing International, Inc.
No reproduction or disclosure of its
CERTAIN INSTANCES MAY NOT BE AVAILABLE
ILLUSTRATIVE PURPOSES ONLY AND IN
SOME ITEMS ARE INCLUDED FOR
contents is permitted.
MODEL GR10I,CG10I,
TOP &
ON
POWER
TIME
START
STOP
35
22
23
38
12
31
50
16
51
52
53
2
3
7
6
11
27
26
25
24
FAVOR NO TOCAR
PELIGRO
SUPERIFICIE
CALIENTE
CAUTION
running water.
Keep away from
Do not hose down.
base stand in water.
Do not immerse or let
corriente de a
gua.
No rocia con
manguera.
Maintengase lejos de
DO NOT TOUCH
DANGER
HOT SURFACE.
PRECAUCION
Favordeno sumerg
ir
estancada sobre agua
o dejar quela base e
ste
30
21
20
49
33
32
29
BOTTOM
OFF
BOTTOM
ON ( I )
POWER ON
PRO-MAX
14
15
16
18
19
17
17
46
58
59
56
57
8
19
4
5
1
28
13
10
39
40
41
42
45
44
47
54
55
37
48
9
54
Hinge Mech.
15
PARTS LIST April 19, 2010, Rev D
MODEL
Number
Key
Number
1 2C-Z2992 2 SCREW, HANDLE
2 2V-Z2990 1 HANDLE - 10”
3 2B-Z2988 2 ARM - 10”
4 2C-08-07-0040 4 NUT
4 2C-08-07-0262 4 WASHER
5 2C-Z2992 4 SCREW, ARM TO BRACKET
6 D9-Z2038 1 HOUSING-TOP-10”
7 2C-Z3200 2 PIN - TOP HOUSING
8 2C-Z2855 2 RETAINER RING
9 2C-08-07-0040 2 1/4” NUT, USE PART NUMBER 2C-Z2820
10 24-Z3827 1 CONDUIT KEEPER PLATE
11 2C-Z3780 2 CONDUIT RETAINER
12 2E-Z2898 1 CONDUIT ASSY. - PTFE
13 2E-Z3768 1 CONDUIT LOCKNUT
14 D9-04-GR-0166 1 WIRE MOUNT
15 D9-GR0084 1 TOP RETAINING PLATE AY/10
16 D9-Z2908 2 INSULATION - 10”
17 2A-Z6604 8 SPACER - INSULATED PLATE
18 D9-Z2772 1 TOP ELEMENT/INS. PLATE/10
19 2C-08-07-0285 8 SCREW, ELEMENT RET. PLATE
20 PS-Z1978 1 TOP ELEMENT, HEATING, 800W/120 GR10I, GR10IT, CG10I, CG10IT, GR10, GR10T
PS-Z2019 1 TOP ELEMENT, HEATING, 800W/240V GR10I, GR10IT, CG10I, CG10IT, GR10, GR10T
21 PS-GR0348 1 KIT, 2F-Z1928 CSTN, SM. TOP,ALUM.-10” GR10, GR10T
PS-GR0349 1 KIT, 2F-Z1932 CSTN, SM. TOP, IRON-10” GR10I, GR10IT
PS-GR0347 1 KIT, 2F-Z1934 CASTING, GR. TOP, IRON-10” CG10I, CG10IT
22 2K-Y3240 1 BUSHING 90 SR 17-2 GR10, GR10T, GR10I, GR10IT, CG10I, CG10IT,
(120V MODELS),
GR10, GR10T, GR10I, GR10IT, CG10I,CG10IT
(240V MODELS)
23 2E-Z2770 1 CORD, POWER, 14-3, 6-15P GR10T, GR10, GR10I, GR10IT, CG10I, CG10IT,
(240V MODELS)
2E-Z2935 1 CORD SET 14/3 NEMA 5-15P GR10T, GR10, GR10I, GR10IT, CG10I, CG10IT,
(120V MODELS)
2E-Z4119 1 CORD, POWER, 12/3 5-20P 120VC MODELS
24 2M-Z2620 1 LABEL CAUTION, BI-LINGUAL
25 2E-05-07-0350 1 TRANSFORMER 230V/10V 6VA 240V MODELS
2E-05-07-0351 1 TRANSFORMER 115/10V 6VA 120V MODELS
26 2E-Z2894 1 TERMINAL BLOCK
27 D9-GR0053 1 REAR LINER ASSY. - 10”/BOT
28 2C-1512 2 SCREW - PIN ASSY
29 2V-Z3252 1 PIN ASSY - TOP HOUSING STOP
30 2R-Z2907 1 COUNTERBALANCE -10”-IRON
2R-Z3333 1 COUNTERBALANCE -10”-ALUM.
31 D9-GR0032 2 TORQUE BOX ASSY.
32 D9-Z3071 4 BRACKET-HANDLE
33 2V-Z3072 2 HANDLE - SIDE
34 D9-GR0034 1 GREASE CABINET ASSY.
35 D9-GR0517 1 GREASE DRAWER ASSY
37 D9-GR0246 1 BASE BOTTOM - 10” 230V MODELS
38 2A-Z1485 4 FOOT, 1” ADJUSTABLE
39 D9-GR0062 1 BODY ASSY. - 10”
40 2J-Z1836 1 TIMER CONTROL CG10T, CG10IT, GR10T, GR10IT
Part
Number
Per
Unit
10' TWO SIDED GRILLS
Description Model
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
1
2
16
PARTS LIST April 19, 2010, Rev D
Key
Number
41 2K-Z1971 4 SPACER CG10T, CG10IT, GR10T, GR10IT
42 2J-Y6689 1 PILOT LIGHT, 120V GR10, GR10I, CG10I (120V MODELS)
2J-Z2329 1 PILOT LIGHT, 240V GR10, GR10I, CG10I (240V MODELS)
43 D9-GR0051 1 FACEPLATE ASSY. - 10” w/TIMER GR10T, GR10IT, CG10IT
D9-GR0109 1 FACEPLATE ASSY. - 10” NO TIMER GR10, GR10I, GR10I, CG10I, CG10I
44 2E-Z6863 1 SWITCH 3 POS CG10T, CG10IT, GR10T, GR10IT
PS-GR0223 1 SWITCH CG10IT-120V W/SERIAL NUMBERS BELOW CGA24279
CG10IT-240V W/SERIAL NUMBERS BELOW CGA20294
GR10IT-120V W/SERIAL NUMBERS BELOW GRA27109
CG10TJD-240V W/SERIAL NUMBERS BELOW CGA29997
GR10T-240V W/SERIAL NUMBERS BELOW GRA03390
45 2M-Z6881 1 OVERLAY - 10” w/TIMER GR10T, GR10IT, CG10IT
2M-Z3051 1 OVERLAY - 10” NO TIMER GR10, GR10I, CG10I
46 2I-05-07-0013 1 RUBBER BOOT, SWITCH
47 2R-Z1854 1 KNOB-CONTROL
48 2T-6447 1 THERMOSTAT 118V-236V
49 2A-Z3026 1 HALF CLIP
50 D9-Z2774 1 BTM. INSULATION RET. PLT. 10”
51 D9-Z2773 1 BTM ELEMENT RET. PLATE 10”
52 2N-Z1979 1 BTM ELEMENT, HEATING, 1000W/120 GR10I, GR10IT, CG10I, CG10IT, GR10, GR10T
52 2N-Z2020 1 BTM ELEMENT, HEATING, 1000W/240 GR10I, GR10IT, CG10I, CG10IT, GR10, GR10T
53 PS-GR0359 1 KIT, 2F-Z1929 CSTG, SM.BOT., ALUM.-10” GR10, GR10T
PS-GR0360 1 KIT, 2F-Z1933 CSTG, SM. BOT., IRON-10” GR10I, GR10IT
PS-GR0358 1 KIT, 2F-Z1935 CSTG, GR. BOT., IRON-10” CG10I, CG10IT
54 2C-Z5883 8 SCREW 10-24X1/2 FZA
55 PS-GR134 2 KIT, ROLLER BEARING KIT
Part
Number
MODEL
Number
Per
Unit
10' TWO SIDED GRILLS
Description Model
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
2
2
17
PARTS LIST April 19, 2010, Rev D
MODEL
14' TWO SIDED GRILLS
Number
Key
Number
1 2C-Z2992 2 SCREW, HANDLE
2 2V-Z2989 1 HANDLE - 14”
2V-Z3413 1 HANDLE - 14” S.S. GR14, GR14T SER. # GRC00112 - 00138,
GRC00778 - 00858,
GRC00864 - 01256
3 2B-Z2987 2 ARM - 14”
2B-Z3336 2 ARM GR14SN
4 2C-08-07-0040 4 NUT
2C-08-07-0262 4 WASHER
5 2C-Z2992 4 SCREW, ARM TO BRACKET
6 D9-Z2036 1 HOUSING-TOP-14”
7 2C-Z3200 2 PIN - TOP HOUSING
8 2C-Z2955 2 RETAINER RING
9 2C-08-07-0040 2 1/4” NUT, USE PART NUMBER 2C-Z2820
10 2A-Z3827 1 CONDUIT KEEPER PLATE
11 2C-Z3780 2 CONDUIT RETAINER
12 2E-Z2898 1 CONDUIT ASSY. - PTFE
13 2E-Z3768 1 CONDUIT LOCKNUT
14 D9-04-GR-0166 1 WIRE MOUNT
15 D9-GR0079 1 TOP RETAINING PLATE AY/14
16 D9-Z2888 2 INSULATION - 14”
17 2A-Z6604 8 SPACER - INSULATED PLATE
18 D9-Z2075 1 TOP ELEMENT/INS. PLATE/14
19 2C-08-07-0285 8 SCREW, ELEMENT RET. PLATE
20 PS-Z1980 1 TOP ELEMENT, HEATING, 800W/120 CG14, CG14T, GR14, GR14T, CG14IT-120V
2N-Z2021 1 TOP ELEMENT, HEATING, 800W/240V CG14, CG14T, GR14, GR14T
PS-Z2391 1 TOP ELEMENT, HEATING, 1800W/240 GR14I, GR14IT, CG14IGT, CG14ITGT, CG14I, CG14IT
21 PS-GR0350 1 KIT, 2F-Z7786 CSTG, SM. TOP, ALUM.-14” GR14, GR14T
PS-GR0351 1 KIT, 2F-Z1946 CSTG, GR. TOP, ALUM.-14” CG14, CG14T
PS-GR0352 1 KIT, 2F-Z1948 CSTG, SM. TOP, IRON-14” GR14I, GR14IT
PS-GR0353 1 KIT, 2F-Z1950 CSTG, GR. TOP, IRON-14” CG14IGT, CG14ITGT
22 2K-3485 1 BUSHING-HEYCO #SR-9P-2 GR14I, GR14IT, CG14IGT, CG14ITGT, CG14I,
CG14IT (240V MODELS)
2K-Y2968 1 BUSHING 7W-2 CG14IT-120V
2K-Y6764 1 BUSHING CG14IT-120VC (CANADIAN)
2K-Y3240 1 BUSHING CG14, CG14FT, CG14T, GR14, GR14SN,
GR14T, (120V &120VC)
23 2E-Z2905 1 CORD SJTO 12/2 NEMA 6-20P GR14I, GR14IT, CG14IGT, CG14ITGT, CG14I,
CG14IT (240V MODELS)
2E-Z2935 1 CORD SET 14/3 NEMA 5-15P 120V MODELS
2E-Z4119 1 CORD, POWER 12/3 5-20P 120VC (CANADIAN) MODELS
24 2M-Z2620 1 LABEL CAUTION, BI-LINGUAL
25 2E-05-07-0350 1 TRANSFORMER 230V/10V 6VA 240V MODELS
2E-05-07-0351 1 TRANSFORMER 115/10V 6VA 120V MODELS
26 2E-Z2894 1 TERMINAL BLOCK
27 D9-GR0054 1 REAR LINER ASSY. - 14”/BOT CG14, GR14, CG14T, GR14T
D9-GR0080 1 REAR LINER ASSY. - 14”/REAR CG14I, GR14I, CG14IGT, CG14IT, GR14IT, CG14ITGT
D9-GR0201 1 REAR LINER ASSY. CG14IT (120V)
28 2C-1512 2 SCREW - PIN ASSY
29 2V-Z3252 1 PIN ASSY - TOP HOUSING STOP
30 2R-Z2896 1 COUNTERBALANCE -14”-IRON
2R-Z2897 1 COUNTERBALANCE -14”-ALUM.
Part
Number
Per
Unit
Description Model
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
1
2
18
PARTS LIST April 19, 2010, Rev D
MODEL
14' TWO SIDED GRILLS
Number
Key
Number
31 D9-GR0032 2 TORQUE BOX ASSY.
32 D9-Z3071 4 BRACKET-HANDLE
33 2V-Z3072 2 HANDLE - SIDE
34 D9-GR0034 1 GREASE CABINET ASSY.
35 D9-GR0517 1 GREASE DRAWER ASSY
37 D9-GR0247 1 BASE BOTTOM - 14” 230V MODELS
38 2A-Z0314 4 FOOT, 4” GR14I, GR14IT, CG14I, CG14IT, CG14IGT, CG14ITGT
2A-Z1485 4 FOOT, 1” ADJUSTABLE
39 D9-GR0061 1 BODY ASSY. - 14”
D9-GR0184 1 BODY ASSY GR14SN
40 2J-Z1836 1 TIMER CONTROL CG14T, CG14IT, CG14IGT, GR14T, GR14IT
41 2K-Z1971 4 SPACER CG14T, CG14IT, CG14IGT, GR14T, GR14IT
42 2J-Y6689 1 PILOT LIGHT, 120V CG14, GR14 (120V MODELS)
2J-Z2329 1 PILOT LIGHT, 240V GR14I, CG14IGT, CG14I, CG14, GR14 (240V MODELS)
43 D9-GR0108 1 FACEPLATE ASSY. - 14” NO TIMER GR14I, CG14IGT, CG14I, CG14, GR14
D9-GR0178 1 FACEPLATE ASSY. - 14” 2 TIMERS CG14-2T
D9-GR0210 1 FACEPLATE ASSY. - 14” w/TIMER GR14IT, CG14ITGT, CG14IT, CG14T, GR14T
44 2E-Z6863 1 SWITCH 3 POS CG14T, CG14IT, CG14IGT, GR14T, GR14IT
PS-GR0224 1 SWITCH CG14T-120V W/SERIAL NUMBERS BELOW CGC25308
CG14IT-120V W/SERIAL NUMBERS BELOW CGC24701
GR14T-120V W/SERIAL NUMBERS BELOW GRC23789
CG14IT-240V W/SERIAL NUMBERS BELOW CGC24559
45 2M-Z6870 1 OVERLAY - 14” w/TIMER GR14IT, CG14ITGT, CG14IT, CG14T, GR14T
2M-Z3050 1 OVERLAY - 14” NO TIMER GR14I, CG14IGT, CG14I, CG14, GR14
2M-Z3816 1 OVERLAY - 14” w/2 MANUAL TIMERS CG14-2T
46 2I-05-07-0013 1 RUBBER BOOT, SWITCH
47 2R-Z1854 1 KNOB-CONTROL
48 2T-6447 1 THERMOSTAT 118V-236V
49 2A-Z3026 1 HALF CLIP
50 D9-Z8082 1 BTM. INSULATION RET. PLT. 14”
51 D9-Z8082 1 BTM ELEMENT RET. PLATE 14”
52 2N-Z1981 1 BTM ELEMENT, HEATING, 1000W/120 CG14, CG14T, GR14, GR14T, CG14IT-120V
2N-Z2022 1 BTM ELEMENT, HEATING, 1000W/240 CG14, CG14T, GR14, GR14T
2N-Z2392 1 BTM ELEMENT, HEATING, 1800W/240V GR14I, GR14IT, CG14IGT, CG14ITGT, CG14I, CG14IT
53 PS-GR0361 1 KIT, 2F-Z1945 CSTG, SM. BOT., ALUM.-14” GR14, GR14T
PS-GR0362 1 KIT, 2F-Z1947 CSTG, GR. BOT., ALUM.-14” CG14, CG14T
PS-GR0363 1 KIT, 2F-Z1949 CSTG, SM. BOT., IRON-14” GR14I, GR14IT, CG14IGT, CG14ITGT
PS-GR0364 1 KIT, 2F-Z1951 CSTG, GR. BOT., IRON-14” CG14I, CG14IT
54 2C-Z5883 8 SCREW 10-24X1/2 FZA
55 PS-GR134 2 ROLLER BEARING KIT
NI 2C-08-WB-0008 2 NUT-TIMER (NOT SHOWN) CG14-2T
NI 2C-09-WB-0005 2 BEZEL (NOT SHOWN) CG14-2T
NI 2P-09-WB-0007 2 TIMER BELL (NOT SHOWN) CG14-2T
NI 2P-Z2911 1 PLUG DOUBLE D .75x.625 CG14I, GR14I, CG14IGT, CG14IT, GR14IT, CG14ITGT
NI 2R-09-WB-0006 2 KNOB-BLACK (NOT SHOWN) CG14-2T
NI 2V-Z3027 2 CROSS SUPPORT (NOT SHOWN) GR14I, GR14IT, CG14I, CG14IT, CG14IGT, CG14ITGT
NI D9-Z3028 1 SIDE SUPPORT (NOT SHOWN) GR14I, GR14IT, CG14I, CG14IT, CG14IGT, CG14ITGT
NI D9-Z3029 1 PART SUPPORT (NOT SHOWN) GR14I, GR14IT, CG14I, CG14IT, CG14IGT, CG14ITGT
Part
Number
Per
Unit
Description Model
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
2
2
19
MODEL:GR28I,CG28I,CG28IGT-240V
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
TIME
STOP
START
ON ( I )
OFF ( O )
POWER
Do not hose
down.
base st
and in water.
DANGER
DO NOT TOUCH
HOT SURFACE.
running water.
Keep
away from
esta
ncada
sobre agua
o dejar quela base este
Favorde no s
umergir
No rocia con
manguera.
Mai
ntengase le
jos d
e
corriente de agua.
PRECAUC
ION
SUPERI
FICIE
FAVO
R NOTOCAR
CALIENTE
PELIGRO
Do not immerse or let
CAUTION
TIME
STOP
START
ON ( I )
POWER
OFF ( O )
Do not hos
e down.
basestand in water
.
runningwate
r.
Keep away from
Do not immerse or let
CAUTION
estancada sobreagua
odejarquela base
este
Favordeno sumergir
No r
ocia con
manguera.
Mainteng
ase lejos de
corriente de agua.
PRECAUCION
SUPERIFICIE
FAVOR NOTOCAR
CALIENTE
PELIGRO
DANGER
DO NOT TOUCH
HOT SURFACE.
1
1A
2
2A
3
4
5
6
7
8
10
9
11
12
13
8
8
12A
15
14
1
2
3
4
5
7
10
11
9
6
16
17
18
17
18
20
21
20
21
19
22
23
2425
26
30
24
25
27
29
28
31
32
34
35
36
37
38
35
36
37
39
41
40
42
45
46
44
43
47
33
43A
19A
48
Pro-Max
49
50
STAR MANUFACTURING INTERNATIONAL INC.
SK1700 Rev B 05/06/05
5A
5A
16A
16B
18A
2B
2C
20
PARTS LIST April 19, 2010, Rev D
MODEL
28' TWO SIDED GRILLS
Number
Key
Number
1 2M-Z2989 2 HANDLE, 14”
1A 2C-Z2992 4 BOLT 1/4" 20X1 PHP STL NP
2 2B-Z2987 4 ARM, 14”
2A 2C-Z2992 8 BOLT 1/4" 20X1 PHP STL NP
2B 2C-08-07-0262 8 WASHER 1/4" INT STL NP
2C 2C-08-07-0040 8 NUT 1/4"-20 ACHD STL NP
3 2M-Z2620 2 LABEL, CAUTION
4 2C-Z2820 4 PIN, TOP HOUSING
5 D9-Z2306 2 TOP HOUSING 14”
5A 2A-Z3827 2 CONDUIT STAMPING PLATE
6 D9-04-GR-0166 2 WIRE MOUNT
7 D9-GR0079 2 TOP RETAINING PLATE 14”
8 D9-Z2888 4 INSULATION 14”
9 D9-Z2075 2 TOP ELEMENT PLATE 14”
10 PS-Z2391 2 TOP ELEMENT, 1800W
11 PS-GR0353 2 KIT, 2F-Z1950 TOP CASTING - GROOVED CG28IGT, CG28ITGT, CG28I, CG28IT
PS-GR0353 1 KIT, 2F-Z1950 TOP CASTING - GROOVED GR28ITGS
PS-GR0352 2 KIT, 2F-Z1948 TOP CASTING - SMOOTH GR28I, GR28IT,
PS-GR0352 1 KIT, 2F-Z1948 TOP CASTING - SMOOTH GR28ITGS
12 PS-GR0365 1 KIT, 2F-Z1962 BOTTOM CASTING - SMOOTH GR28I, GR28IT, CG28IGT, CG28ITGT
GR28ITGS
PS-GR0366 1 KIT, 2F-Z1963 BOTTOM CASTING - GROOVED CG28I, CG28IT
12 A 2c-08-07-0117 8 SCREW 10-24X3/4 FZA
13 2N-Z2392 2 ELEMENT, BOTTOM 1800W
14 D9-Z2618 2 BOTTOM ELEMENT RET. PLATE
15 D9-Z2619 2 BOTTOM INSULATION RET. PLATE
16 2E-Z2898 2 CONDUIT ASSY PTFE
16A 2C-Z3780 4 CONDUIT RETAINER
16B 2E-Z3768 4 CONDUIT LOCKNUT
17 2R-Z2896 2 COUNTER BALANCE
18 2V-Z3079 2 PIN ASSY - TOP HOUSING STOP
18A 2C-1512 4 SCREW 10-24X3/8 RH
19 D9-GR0180 1 REAR LINER ASSY - REAR CORD SET 240V
D9-GR0317 1 REAR LINER ASSY - REAR CORD SET 240VC
19A D9-GR0054 1 REAR LINER ASSY - BOTTOM CORD SET
20 2E-Z2894 2 TERMINAL BLOCK
21 2E-05-07-0350 2 TRANSFORMER 230V/10V;6VA
22 D9-GR0032 4 TORQUE BOX ASSY
23 2K-Y1139 1 BUSHING, HEYCO
24 D9-Z3071 4 HANDLE BRACKET
25 2V-Z3072 2 SIDE HANDLE
26 D9-GR0098 1 BODY ASSY 28”
27 D9-GR0034 2 GREASE CABINET ASSY
28 D9-GR0517 2 GREASE DRAWER ASSY
Part
Number
Per
Unit
Description Model
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
1
2
21
PARTS LIST April 19, 2010, Rev D
MODEL
28' TWO SIDED GRILLS
Number
Key
Number
30 D9-GR0114 1 FACE PLATE - RIGHT w/TIMER
D9-GR0118 1 FACE PLATE - RIGHT w/PILOT LIGHT
31 D9-GR0099 1 FACE PLATE - LEFT w/TIMER
D9-GR0119 1 FACE PLATE - LEFT w/PILOT LIGHT
32 2J-Z1836 2 TIMER CONTROL
33 2K-Z1971 8 SPACER
34 2E-Z6863 2 SWITCH, 3 POSITION, CG28IT(serial no. less than CGB29481
use PS-GR0225)
CG28ITGT (serial no. less than CGB25137
use PS-GR0225)
PS-GR0225 1 SWITCH KIT
35 2R-Z1854 2 KNOB - THERMOSTAT
36 2T-6447 2 THERMOSTAT
37 2A-Z3026 2 HALF CLIP
38 2M-Z3045 1 OVERLAY w/TIMER
2M-Z3088 1 OVERLAY w/PILOT LIGHT
39 D9-Z3028 2 SIDE LEG SUPPORT
40 D9-Z3030 1 LEG SUPPORT L.H.
41 D9-Z3029 1 LEG SUPPORT R.H.
42 2V-Z3027 4 LEG SUPPORT - CROSS
43 D9-Z2610 1 BASE PLATE ASSY. 14”
43A D9-Z2956 1 BASE PLATE ASSY. 28”
44 2A-Z0314 4 LEG, 4” DIE CAST
45 2K-3485 1 BUSHING, HEYCO 240V
46 2P-Z2911 2 PLUG, DOUBLE “D”
47 2E-Y9251 1 CORD SET CONT EUR 16AMP 230V
48 2I-05-07-0013 2 SWITCH BOOT
49 2A-Z6604 16 SPACER - INSULATED PLATE
50 2C-08-07-0285 8 SCREW 10-24 X 3/4 X 3/8
2J-Z2329 2 PILOT LIGHT 240V (NOT SHOWN) GR28I, CG28I, CG28IGT, GR28ITGS
Part
Number
Per
Unit
Description Model
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
2
2
22
STAR INTERNATIONAL HOLDINGS INC. COMPANY
Star - Holman - Lang - Wells - Bloomeld - Toastmaster
10 Sunnen Drive, St. Louis, MO 63143 U.S.A.
(800) 807-9054 (314) 781-2777
Parts & Service (800) 807-9054
www.star-mfg.com
Loading...
