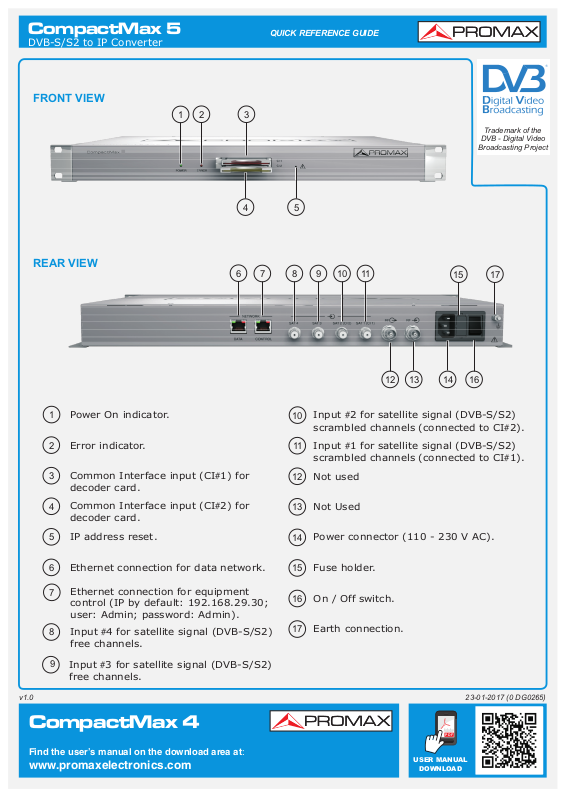

CompactMax 5
DVB-S/S2 to IP Converter
FRONT VIEW
QUICK REFERENCE GUIDE
2
1
3
Trademark of the
DVB - Digital Video
Broadcasting Project
REAR VIEW
1
Power On indicator.
2
Error indicator.
Common Interface input (CI 1) for
3
decoder card.
4
6
7
#
5
8
9
Input 2 for satellite signal (DVB-S/S2)
10
scrambled channels (connected to CI 2).##
Input 1 for satellite signal (DVB-S/S2)
11
scrambled channels (connected to CI 1).##
12
Not used
10
11
12
13
15
14
17
16
v1.0
Common Interface input (CI 2) for
4
decoder card.
5
IP address reset.
6
Ethernet connection for data network.
Ethernet connection for equipment
7
control (IP by default: 192.168.29.30;
user: Admin; password: Admin).
Input 4 for satellite signal (DVB-S/S2)
8
free channels.
9
Input 3 for satellite signal (DVB-S/S2)
free channels.
#
#
#
CompactMax 4
Find the user's manual on the download area at:
www.promaxelectronics.com
13
Not Used
Power connector (110 - 230 V AC).
14
Fuse holder.
15
16
On / Off switch.
Earth connection.
17
USER MANUAL
DOWNLOAD
23-01-2017 (0 DG0265)
PDF
CompactMax 4
DVB-S/S2 to IP Converter
WALL MOUNTING
QUICK REFERENCE GUIDE
