pro master Timer Remote User Manual

Thank you for purchasing the ProMaster® Multi-Function Infrared Timer Remote. For the best
performance, please read this instruction manual carefully before using.

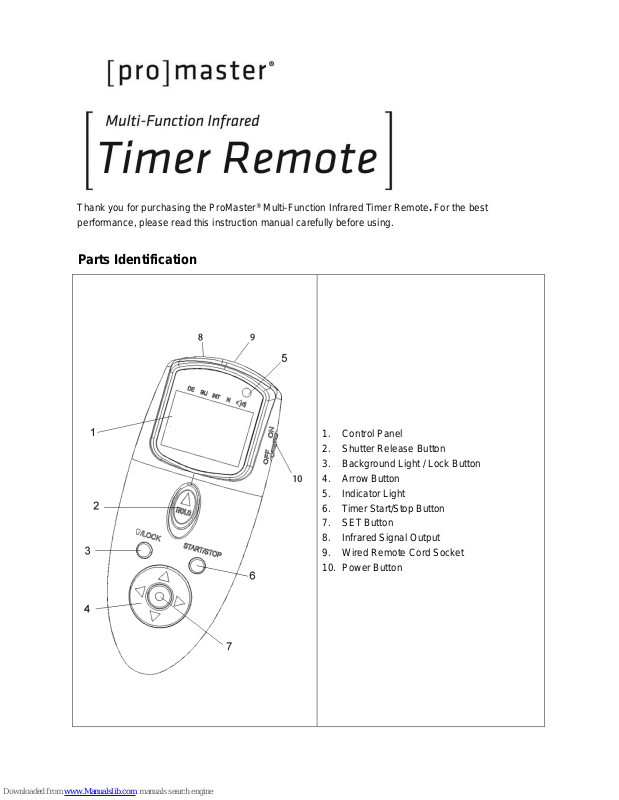

Parts Identification

1. Control Panel

2. Shutter Release Button

3. Background Light / Lock Button

4. Arrow Button

5. Indicator Light

6. Timer Start/Stop Button

7. SET Button

8. Infrared Signal Output

9. Wired Remote Cord Socket

10. Power Button

11. Selection cursor

12. Timer display

13. LOCK indicator

14. Low power indicator

15. Timer active indicator

16. Speaker ON/OFF

17. SET indicator

18. Release indicator

19. Number of shots

20. Multi-Exposure indicator

21. Infrared Signal indicator

Included in the package

The following items included in the package:

1. IR Timer Remote Control

2. Instruction Manual

3. 2 pcs. - AAA 1.5V Battery

Installing and replacing the batteries

Using the remote in the wireless infrared mode

Setting the infrared channel

1. Use the arrow button to select the correct infrared signal for your camera.

2. Press the left or right button to move the selection cursor until it disappears.

3. Press the SET button to go into the infrared signal section. When the infrared signal number is
flashing, press the up or down button to edit.

4. Press the SET button at any time to complete the operation and display the new setting for the
selected item.

OFF

Quick Response Remote for CANON

Delayed Remote for CANON

Quick Response Remote for

SAMSUNG

Quick Response Remote for

PENTAX

Quick Response Remote for

OLYMPUS

Quick Response Remote for NIKON

Quick Response Remote for SONY

Delayed Remote for SONY

Video stop/start for SONY

NOTE: In the autofocus mode, most cameras will not take a picture until they have achieved focus
lock. On some camera and lens combinations, this may be slow and result in the camera not
releasing as expected. If you are experiencing inconsistent triggering, try using the delayed mode to
give your camera more time to achieve focus lock.
