Mifare® DESFire® Reader

User’s Manual

(For DF7XX Series)

REV.C

November 30, 2011

PROMAG

DF7XX

REV.C

Table of Contents

Mifare® Configurable Sector Reader .......................................................................................... 3

Mifare® Application Directory (MAD) Support: ........................................................................ 4

Mifare® User-Data Format ............................................................................................................. 5

Wires Assignment ........................................................................................................................... 6

Mifare® DESFire® Reader Utility .................................................................................................. 7

1. DESFire® Settings ........................................................................................................... 7

2. Mifare® Settings ............................................................................................................... 8

3. Reader Settings ............................................................................................................. 10

4. LED / Buzzer Settings .................................................................................................. 11

5. Wiegand Setting ............................................................................................................ 13

6. ABA-TK2 Settings ......................................................................................................... 14

7. RS232 Output Setting................................................................................................... 15

8. Configured Card ............................................................................................................ 17

9. Test Reader After Update ............................................................................................ 18

ANNEX A. Hardware Specification ........................................................................................... 19

ANNEX B. Wiegand Interface ..................................................................................................... 20

ANNEX C. ABA TK2 Interface ..................................................................................................... 21

ANNEX D. RS232 Interface ......................................................................................................... 22

ANNEX E. External LED/Buzzer Control ................................................................................. 23

ANNEX F. Order Information ...................................................................................................... 24

ANNEX G. WebISP - Firmware Upgrade Utility ...................................................................... 25

ANNEX H. Configured Card ........................................................................................................ 27

ANNEX I. Key Pad Settings (for DF750K/DF760K) ............................................................... 29

ANNEX J. History .......................................................................................................................... 30

PROMAG

DF7XX

REV.C

Mifare® Configurable Sector Reader

Overview:

DF7XX Reader is a user configurable mifare® sector data reader. It can be configured to read mifare® card with MAD1/MAD2/MAD3 standard in a mifare® application open system, or can be configured to read the user-defined sector data (Non-MAD) in a user defined closed system. Output interface can be configured as an RS232 output or Wiegand output. Wiegand output is selectable up to 128 bits. DF7XX Reader can also be set with a Reader ID number for multi-unit communication.

Features:

1. Support MAD1/MAD2/MAD3 standard, and support customer MAD-AID setting.

2. Support Non-MAD format with user-defined sector number.

3. Support used card with data offset and length.

4. Support Multi Sectors.

5. Support Mifare® Standard 4K or Mifare® Standard 1K card.

6. Each Reader with Reader ID for multi-link application.

7. Output interface: Wiegand (Default), ABA-TK2 and RS232.

8. Wiegand output selectable from 1 bit to 128 bits.

9. RS232 output packet can be set with Header, Reader ID and Trailer.

Application:

1. Access Control.

2. Time Attendance.

3. Guest Registration System.

4. Academic Services.

5. Info Services.

PROMAG

DF7XX

REV.C

Mifare® Application Directory (MAD) Support:

DF7XX reader support the MAD format card, the MAD (mifare® application directory) standard proposes the introduction of common data structures for card application directory entries. DF7XX Reader should take advantage of this feature using those sector pointers instead of physical sector number.

Yes

Auto Mode

Get

Application Sector#

Request

Anti-collision

Is MAD

Card

AID Match

Using DF700

Non-MAD Sector#

Un-know

Read Sector Data

Output Data

No Tag

Card On Reader

Yes

The DESFire Reader will search the AID from mifare® application directory (MAD), then got a correct sector number from MAD. If the card is not a MAD card, the DF700 will use the Non-MAD Sector# (Setting by Mifare Reader Utility).

About MAD please visit the web sites:

http://www.mifare.net

http://www.semiconductors.philips.com/ac

robat/other/identification/M001824.pdf

APP KEY

Authenticate

PASS

PROMAG

DF7XX

REV.C

Mifare® User-Data Format

DF7XX reader will send out the data following the format as below, the user data length defined by the Data-Info. At Wiegand output format, the data output length is fixed (defined by Number Of Bits), so the user data would be cut if longer than Number of Bits, or the user data would be appended with zero “0” if shorter than Number of Bits.

Byte 0

Byte 15

Application

Sector #

Block 0

Data-Info

Block 1

USER DATA (Max 128 Bytes)

Block 2

Block 3

Data-Info

bit7 bit6

bit5 bit0

Data Type (11b)

Data Length

Data Type is fixed with 11b which meets “any other data” type of “Card Holder information” as MAD standard. And data length is including the data with ending zero “0”, so the number of data byte sent by DF7XX reader is equal to data length with one less for RS232 output. Example: Data Length is 16, DF7XX reader only sends out 15 bytes for RS232 output.

PROMAG

DF7XX

REV.C

Wires Assignment

Color

Symbol

I/O

Description

Red

VCC

Power Input : DC 7.5V~24V

Black

GND

Power Ground

White

DATA 1

OUT

Wiegand Data 1 Signal / ABA TK2 Clock (Strobe)

Green

DATA 0

OUT

Wiegand Data 0 Signal / ABA TK2 Data

Yellow

TXD

OUT

RS232 TXD (To Host RXD)/ RS485+(for DF710)

Blue

RXD

RS232 RXD (To Host TXD)/ RS485-(for DF710)

Orange

OUT

ABA TK2 Card Present

Brown

LED/BUZEER

External LED/BUZZER Control

To configure the DF7XX Reader you need connect the reader to the MF700KIT first as below:

DF700/DF750

GND

D1 D0 RX TX

VCC

" "" "

MF700KIT

MF700

9VDC

WAS-T0029

BLACK

WHITE

GREEN

BLUE

YELLOW

RED

ORANGE

BROWN

DF710/DF760

Connect Yellow (T+) and Blue (T-) to RS485 Converter to PC. (Suggest using USB485A)

ORANGE

BROWN

T+

T-

GND

D1 D0 RX TX

VCC

" "" "

MF700KIT

MF705

9VDC or 12VDC

WAS-T0029

BLACK

WHITE

GREEN

BLUE

YELLOW

RED

Note: MF700KIT is a test connection kit for DF7XX reader configuration use. It is an optional item for purchasing.

The above housing is for reference only

PROMAG

DF7XX

REV.C

Mifare® DESFire® Reader Utility

1. DESFire® Settings

MAD-AID: (Default=F47030)

MAD Application Identifier number is authorized and assigned by Mifare

.net upon the customer’s

request for registered Application Identifier in a mifare® application open system (AID: 000000h~FFFFFFh). Or it is also possible for the user to define the AID himself for the application in user defined closed system without registering into MAD group. According to the AID, DF7XX reader can find and read the corresponding application on the card.

File ID: (Default=0)

File ID is 0~15. There are three file types. Data file, Value file and Record file. DF7XX Reader will auto detect the type and output the data.

PROMAG

DF7XX

REV.C

Offset/Length: (Default=0 / 5)

The Data file will depend on the value to output data. The Value file will be sent the value out. The Record file will be sent the latest record data.

Access Key No/Value: (Default=0 / 00000000000000000000000000000000)

Key must be the same as the Read or Read/Write KEY of the card issued. This means DF7XX reader only can read the data on the card with the same KEY.

2. Mifare® Settings

Click “Card Type”: “Mifare Only” or “Both”, and this tab will be visibled.

MAD-AID: (Default=4703)

MAD Application Identifier number is authorized and assigned by Mifare

.net upon the customer’s

request for registered Application Identifier in a mifare® application open system (AID: 0000h~FFFFh). Or it is also possible for the user to define the AID himself for the application in user defined closed system without registering into MAD group. According to the AID, DF7XX reader can find and read the corresponding sector on the MAD card.

PROMAG

DF7XX

REV.C

Non-MAD Sector: (Default =0)

When the card is Non-MAD format, DF7XX reader will only read the “Non-MAD Sector”. (1K Card Sector: 0~15, 4K Card Sector: 0~39). For the Non-MAD application, user can freely define the Sector.

App Key (KEY_A): (Default=FFFFFFFFFFFF)

App Key must be the same as the KEY_A of the card issued. This means DF7XX reader only can read the sector data on the card with the same KEY_A.

Encrypt: (Default=None) Fraud prevention, Select Encrypt Mode (None, Encrypt 1, Encrypt 2, Encrypt 3, Encrypt 4, Encrypt 5) to protected your card data. (Remark: Encrypt mode must to work together with the same encrypt mode of “Mifare Card Issuer” software.)

Used Card (Not issued by “Mifare Card Issuer”)

You have to indicate the data position in the card, when the card is not issued by “Mifare Card Issuer” software. And you must set the “Offset” (Max 255, and base from zero) form the beginning of sector and set your data “Length” (Max 128).

Example: If your card data in the grey grid of sector, you have to set the “Offset” = 17, and set the “Length”= 20.

AID Sector (or Non-MAD Sector)

Block 0

0 1 2 3 4 5 6 7 8 9 10

Block 1

Block 2

PROMAG

DF7XX

REV.C

3. Reader Settings

Reader ID: (Default=0)

DF7XX Reader ID for multi link application. (ID: 0~63)

Interface: (Default=Wiegand) DF7XX reader can be set as Wiegand , RS232 or ABA-TK2 output.

Read Mode: (Default=Card Data Only) a. Card Data Only: Read card sector data only; If any error (ex. mifare® key error), reader will show

“Card Invalid” status.

b. Card Data or CSN (Card Serial Number): Read card sector data, If any error (ex. mifare® key error),

reader will send the CSN to host.

c. CSN Only: CSN read only.

Output Mode: (Default=Once)

a. Once: Send data (or CSN) to host once. b. Continue: Keeping sending data (or CSN) to host till card remove. Only for Mifare® Card.

PROMAG

DF7XX

REV.C

4. LED / Buzzer Settings

Enable RS232 Command Set Control: (For 19200,n,8,1 Only)

RS232 LED/Buzzer command set frame as below:

STX J NUMBER (0~9)

02h

4Ah

30h~39h

0Dh

Command Table:

NUMBER

Descriptions

0 (30h)

All LED Off, Buzzer Off

1 (31h)

Green LED ON

2 (32h)

Green LED OFF

3 (33h)

Red LED ON

4 (34h)

Red LED OFF

5 (35h)

Buzzer Beep once

6 (36h)

Buzzer Beep 3 Times

7 (37h)

Green LED ON with Beep once

8 (38h)

Red LED ON with Beep 3 Times

9 (39h)

All LED ON (Orange)

Remark: If “Enable RS232 Command Set Control (for LED/Buzzer)” checkbox is checked, the external LED/Buzzer control with high/low level control will be disabled.

PROMAG

DF7XX

REV.C

Enable Two Wires Control LED / Disabled ABA-TK2: (For 19200,n,8,1 only)

set up the "Brown Wire Active Level", and Brown wire and Orange wire will follow

the setting.

Example: "Brown Wire Active Level"=High; Green light on with a beep when brown

wire level was high. Red light on with three beeps when orange wire level high.

When both wire change level high at the same time, it will both light on without

beep.

Read Idle: Show LED color after power on or idle state.

Brown wire = PULSE (or Card is valid): Show LED color and beeps to indicate the end-user when

brown wire = PULSE, or card was passed by DF7XX Reader.

Brown wire = Inactive (or Card is invalid): Show LED color and beeps to indicate the end-user when

brown wire = Inactive, or card was failed by DF7XX Reader.

Brown wire = Active: Show LED color and beeps to indicate the end-user that brown wire = Active signal from Host.

Brown wire Active level: Set Brown wire Active level condition with Host status. Disable: Always disable the Brown wire. (Default), LED/Buzzer controls by reader self. High: Active High / Normal keep in Low. Low: Active Low / Normal keep in High.

Remark: If set Active Low, you may have to connect brown wire to a pull-up resistor (1K~10K) with 5VDC).

Control Brown wire:

After Data Output: The brown wire will be enabling after finished output the card data or CSN. (Default) Any Time: The brown wire enabled in any time.

Note: See Annex E, the LED/Buzzer also can be controlled externally with High/Low

level control.

Brightness: Change value to brighten or darken led. More high and more brighten..

PROMAG

DF7XX

REV.C

5. Wiegand Setting

Include Reader ID is to set the Wiegand output data to include Reader ID when it is enabled.

(Default=Disable). Custom Premable is to set the Wiegand output data to include premable code when it is enabled. This code only combines with CSN output. (Default=Disable). Number of Bits is to set the Wiegand output type you want to meet your Host (or Terminal). It can be 1 to 128 (Default=26). Bit Sequence is to set the Wiegand output data sequence, it can be standard data sequence (MSB first) or Reverse data sequence (LSB first). (Default=Standard). Byte Order is to set the Wiegand output data sequence, it can be ISO (High byte first) or Non ISO (Low byte first). Alive Event is reserved.

PROMAG

DF7XX

REV.C

6. ABA-TK2 Settings

Number Of Digital: Set number of digital codes for TK2 output. (Default=10) Add Reader ID: Add Reader ID into TK2 data. (Default=Disable)

Output Data Order: Set the TK2 output data sequence order. (Default=MSB First) Source Data Order: Set the TK2 source data sequence order. (Default=MSB First)

Data Conversion: Select card data format to convert,

a. BIN to DEC (Default, card issue by Mifare Card Issuer Utility) b. Decimal String (ex. “123456”) c. BCD d. Direct (Memory Map) e. Bytes to DEC

PROMAG

DF7XX

REV.C

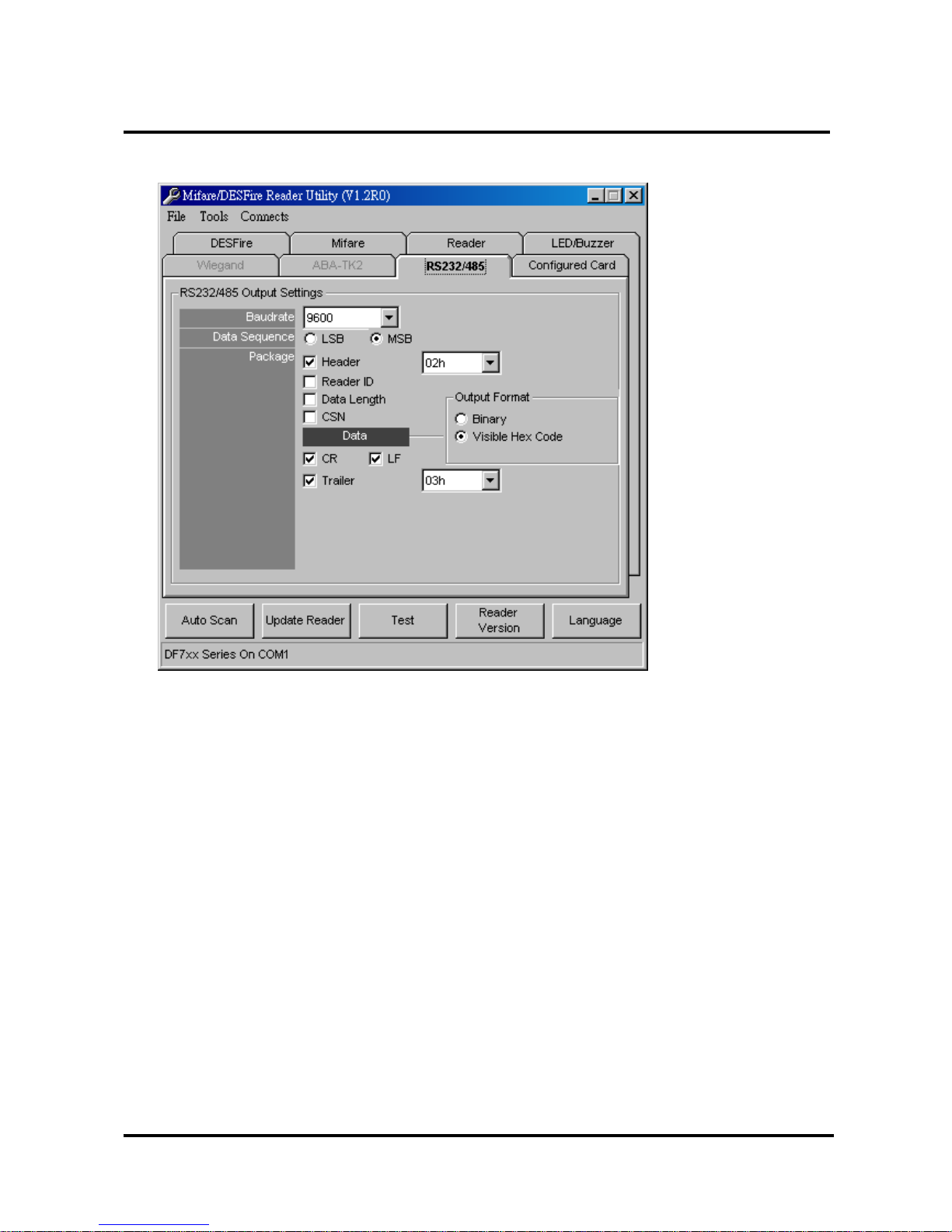

7. RS232 Output Setting

Baud rate can be set 2400bps~57600bps (Default=9600bps) Data Sequence can be set “LSB” first and “MSB” first(Default). Package is to set the output data packet to include Header, Reader ID, Data Length, CR, LF and Trailer.

(Header: 00h~FFh, Trailer: 00h~FFh). (Default = 02h+Visible Hex Code+CR+LF+03h) Output Format can be “Binary” or “Hex String” for output format.

PROMAG

DF7XX

REV.C

Note:

(1).Wiegand output data packet with Reader ID:

(2).RS232 output data packet with Header, Reader ID and Trailer:

Header

Reader ID

(LSB) Data Bytes (MSB)

Trailer

(3).ABA-TK2 with Reader ID:

Remark:

DF7XX reader all configuration items are write only, so any users can not read the configuration items from DF7XX reader to get the App Key, that is very important to protect your App Key and all configuration items.

Standard

Parity(Even)

Reader ID

(MSB) Data Bits (LSB)

Parity(Odd)

Reverse

Parity(Odd)

Reader ID

(LSB) Data Bits (MSB)

Parity(Even)

MSB First

Reader ID

(MSB) Digital Code (LSB)

LRC

LSB First

Reader ID

(LSB) Digital Code (MSB)

LRC

PROMAG

DF7XX

REV.C

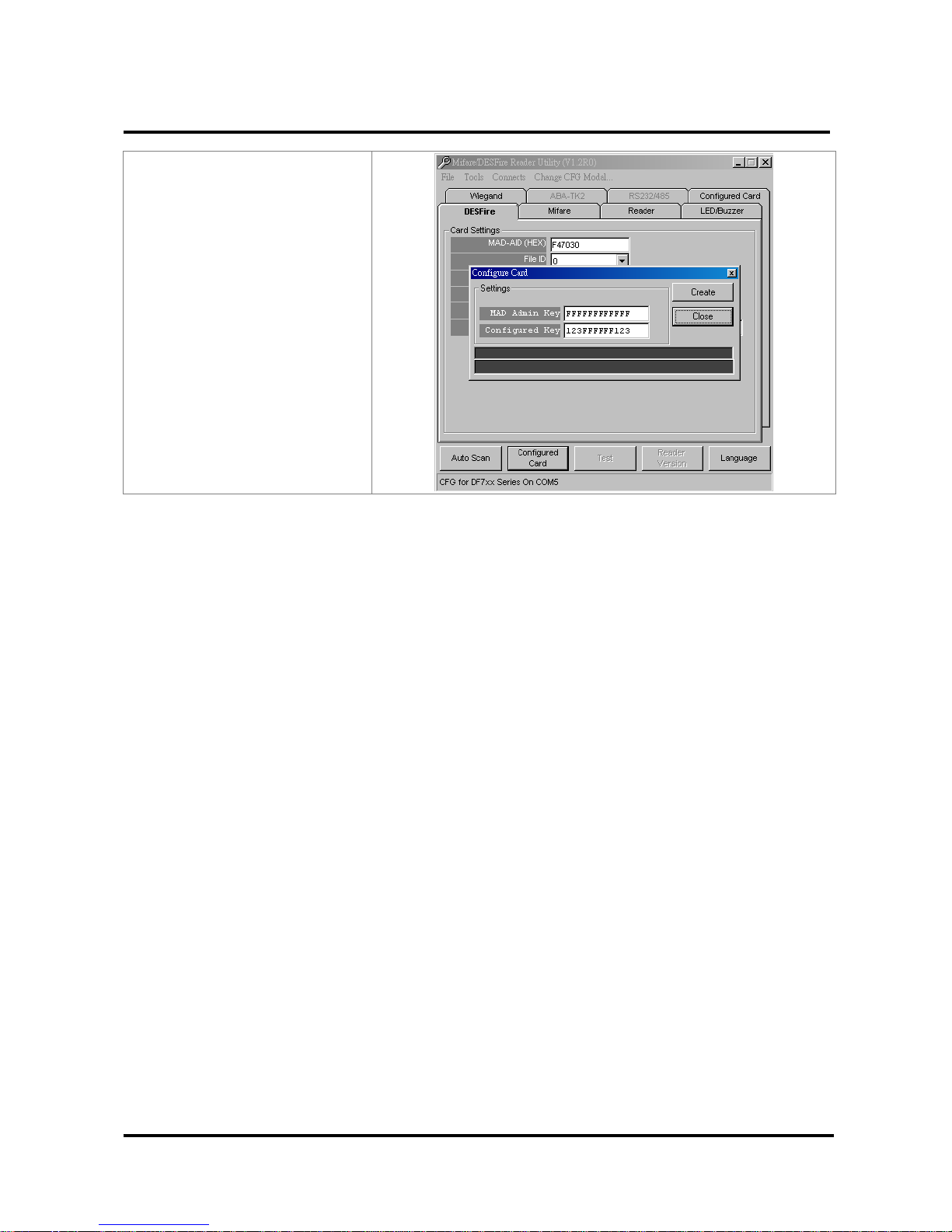

8. Configured Card

Configured Card Enabled can allow your reader change configuration by Mifare® Card. Key is the Mifare® Key A for allowed configured card.

PROMAG

DF7XX

REV.C

9. Test Reader After Update

After reader’s configurations have been updated success, you can use [Test] function to check reader’s configurations have been correctly stored.

1. After set configurations in the Reader Utility software, you can click [Update Reader] to update the currently configurations to the reader.

2. Or, click [Test] to update configurations and verify output data.

3. Got an issued mifare® card and approach the reader, you can see the output data on “Reader Test” window.

Wiegand 34 bits output data with standard bit sequence, example as below:

PROMAG

DF7XX

REV.C

ANNEX A. Hardware Specification

DF7XX reader

Major Feature

Mifare® DESFire® Application Directory Reader

Access Control & Security

Card Type

ISO14443A, Mifare® Class1

(Mifare® 1K, Mifare

4K for MAD1/MAD2)

DESFire®

RF Frequency

13.56MHz

RF Distance2

50mm (Using the MFA01 Mifare® card of GIGA-TMS INC.)

DC Power

7.5VDC~24VDC (Min 250mA@7.5V, 150mA@12V)

Interface

Wiegand 26~128 bits (Standard / Reverse)

RS232 2400bps~57600bps

ABA-TK2 40IPS

Dimension

H82.5mm x W46.5mm x D15.0mm

Weight

120g

Note:

1. Mifare

Class: Mifare Standard 1K/4K/Pro (without Mifare® Ultra-Light).

2. DF7XX reader RF distance can reach up to 50mm with MFA01 (Mifare

Standard 1K Card)

of GIGA-TMS INC.

PROMAG

DF7XX

REV.C

ANNEX B. Wiegand Interface

The Data 1 and Data 0 signals are held at a logic high level unit, the reader is ready to send a data stream. The reader places data as asynchronous low-going pulses on the Data 1 or Data 0 lines to transmit the data stream to Host. The Data 1 and Data 0 pulses will allowable pulse width times and pulse interval times for the DF7XX Reader.

Data 1 Signal

Data 0 Signal

` Tpw Tpi Tpw Tpi

Pulse Times

Symbol

Description

Typical Time

Tpw

Pulse Width Time

100us +/- 3%

Tpi

Pulse Interval Time

1.9ms +/- 3%

Wiegand Packet (Without Reader ID)

Standard (Default)

Parity(Even)

(MSB) Data Bits (LSB)

Parity(Odd)

Reverse (Option)

Parity(Odd)

(LSB) Data Bits (MSB)

Parity(Even)

Connect the Wiegand wires, example as below: (The pull high resister must >= 10K Ohm)

Optional: External LED/Buzzer Control (Brown)

(Red)

(Black)

Data 0 (Green)

Data 1 (White)

HOST/Terminal

DF700

7.5~24VDC

GND

10K

ohm

10K

ohm

5VDC

Pull high resistor

>=10K Ohm

PROMAG

DF7XX

REV.C

ANNEX C. ABA TK2 Interface

The timing for Card Present, Clock (Strobe) and Data, example as below:

DATA

The data signal is valid while the clock is low. If the Data signal is high, the bit

is a zero. If the Data signal is low, the bit is a one.

CLOCK (STROBE)

The Clock signal indicates when Data is valid. It is recommended that Data be loaded

by the user with the leading edge (negative) of the Strobe.

CARD PRESENT

Card Present will go low after flux reversals from the Reader. Card Present will return

high after the last flux reversal.

Connect the ABA TK2 wires, example as below:

Clock (White)

Data (Green)

HOST/Terminal

Optional: External LED/Buzzer Control (Brown)

(Red)

(Black)

DF700

7.5~24VDC

GND

Card Present (Orange)

0 0 0 . . . 0 1 1 0 1 0 0 1 . . . 0 0 0

Leading Zero

Data

Trailing Zero

/CARD PRESENT

/STROBE

(CLOCK)

/DATA

Bit Time 40IPS (min:280us, typ:330us, max:480us)

STROBE Width Approximately 25~50% Of Bit Time

PROMAG

DF7XX

REV.C

ANNEX D. RS232 Interface

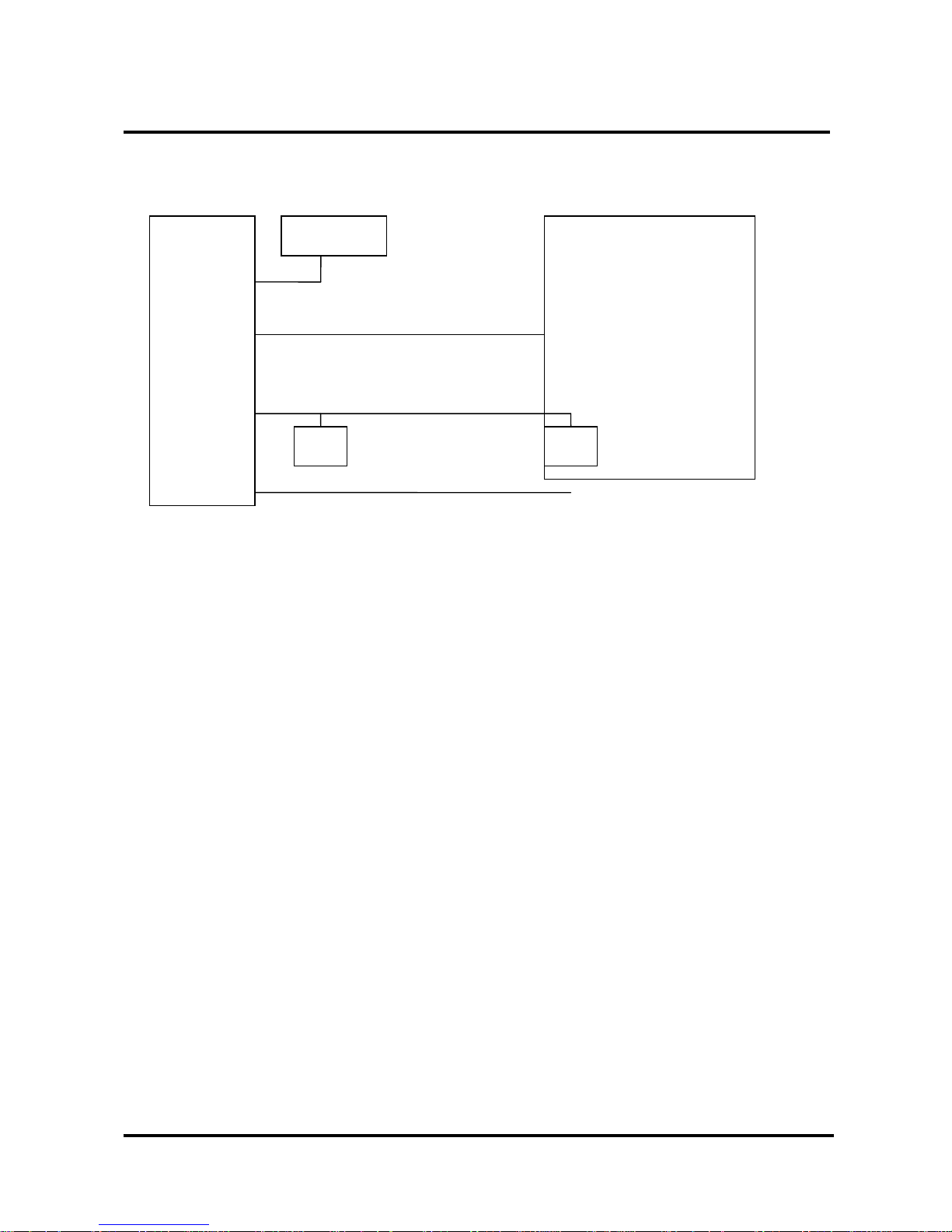

Connect the RS232 wires, example as below:

HOST/Terminal

Optional: External LED/Buzzer Control (Brown)

(Red)

GND (Black)

DF700

7.5~24VDC

GND

TXD (Yellow)

PROMAG

DF7XX

REV.C

ANNEX E. External LED/Buzzer Control

DF7XX reader supports the external LED/Buzzer control for Terminal (or Host) to prompt end-user the card data is invalid or valid. Use Brown wire to control the LED/Buzzer of DF7XX reader

Examples as below: (Active High)

(1) Show External Invalid Status

Data Output

Alarm Control (Brown)

(2) Show Card Valid Status

Data Output

Alarm Control (Brown)

Note:

1. Send one pulse to show the “Extern Invalid” LED/Buzzer Status.

2. Send three or more pulse to show the “Card Valid” LED/Buzzer status.

3. You can configure the LED/Buzzer status by READER utility Software.

Min 100ms

PROMAG

DF7XX

REV.C

ANNEX F. Order Information

Part Number

Include

Description

DF700-00

DF700 DESFire® Configurable Reader

MF700KIT-10

MF700KIT

WAS-T0029

DISK5238

Power Adaptor

Reader Kit

MF7XX Configure Cable

Card Issue and Utility Software

DC Power Adaptor 9VDC for MF7XXKIT

MFA01

Mifare® Standard 1K Card

MFA04

Mifare® Standard 4K Card

PROMAG

DF7XX

REV.C

ANNEX G. WebISP - Firmware Upgrade Utility

DF7XX reader also supports the ISP (In-System Program) function to upgrade the reader’s

firmware.

Install the WebISP (include in CD-ROM) in your Windows System first (It may need to

reboot your system) and follow the steps as below: (First of all, you need to connect

the reader or programmer to PC, and make sure they were power-on)

Step 1: Input your account

(UserName and Password)

Note:

account when needed.

Step 2: Click [Start Check]

to automatically check the

firmware version from our

FTP server.

Note:

1. The WebISP will auto

scan all COM ports to

search the reader or

programmer.

2. The WebISP will show the

[Update Information]

and list the update

history.

Show the update history.

PROMAG

DF7XX

REV.C

Step 3: If your reader’s or

programmer’s firmware out

of date, then WebISP will

prompt you to update the

firmware. Click [Update]

to begin Updating the

firmware.

Step 4: Wait for the

updating to finish. And

repeat step 2 to update

Promag Mifare DESFire User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
