INSTALLATION GUIDE
Wiring Diagrams
REV 6.1.4
PL-INSTL-WIRING-EN
www.proloncontrols.com
1-877-977-6566
17510 Rue Charles, Suite 100, Mirabel, QC, J7J 1X9
Page 2
2
REV 6.1.4 / PL-INSTL-WIRING-EN
Table of Contents
© Copyright 2018 ProLon. All rights reserved.
No part of this document may be photocopied or reproduced by any means, or translated to another language without prior written consent of ProLon. All specications are nominal
and may change as design improvements are introduced. ProLon shall not be liable for damages resulting from misapplication or misuse of its products. All trademarks are the propert y
of their respective owners.
REV 6.1.4
PL-INSTL-WIRING-EN
1 - PL-M2000 Unit Controller + PL-VC2000 Zone Controller(s) ............................................................................................................................................................................................... 3
2 - PL-NC2000 Network Controller + PL-M2000 Unit Controller(s) ....................................................................................................................................................................................... 4
3 - PL-VC2000 Zone Controller + Digital Wall Sensor ................................................................................................................................................................................................................ 5
4 - PL-M2000 Single-Zone Unit Controller + Digital Wall Sensor .......................................................................................................................................................................................... 6
5 - PL-C1000 Single-Zone Controller + Digital Wall Sensor ..................................................................................................................................................................................................... 7
Page 3
3
REV 6.1.4 / PL-INSTL-WIRING-EN

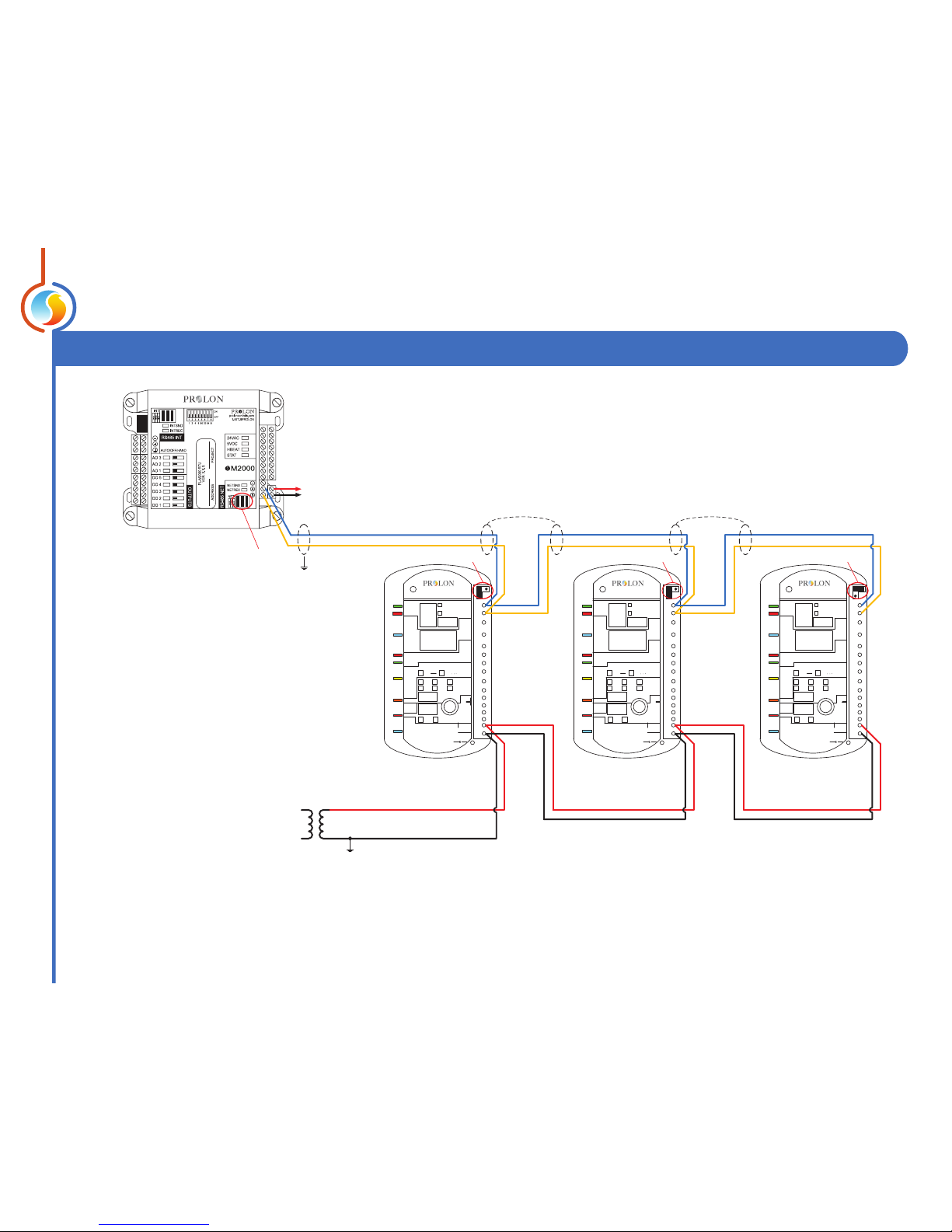

1 - PL-M2000 Unit Controller + PL-VC2000 Zone Controller(s)
Recommended wiring for communication: #24/2, stranded, twisted and shielded, low-capacitance.
Recommended wiring for 24vac supply: #18/2, stranded.
*Connect “24VAC“ and “C” terminals to “R“ and “C“ terminals respectively on A/C control board.
NET A
NET B
Modbus
BACnet
VC2000
DIG OUT
On/Off Pulse
24VAC
COM
COM
AI
www.prolon.net
1-877-9PROLON
POWER
COM
24VAC
24VAC
AN OUT
SERV
DO
Modul On/Off Pulse
COM
AO
0-10V 2-10V 0-5V
STATUS
CCW CW
Damper Opening:
DIGITAL SENSOR
COM
24VAC
INT B
INT A
INT SND
INT REC
INFO
Ver
Adress
HBEAT
NET SND
NET REC
1
2
3
CLUTCH
4
5
6
7
8
9
10
11
12
13
14
15
16
U
L
C US
LISTED
BIAS ON
TERM ON
BIAS ON
NET A
NET B
Modbus
BACnet
VC2000
DIG OUT
On/Off Pulse
24VAC
COM
COM
AI
www.prolon.net
1-877-9PROLON
POWER
COM
24VAC
24VAC
AN OUT
SERV
DO
Modul On/Off Pulse
COM
AO
0-10V 2-10V 0-5V
STATUS
CCW CW
Damper Opening:
DIGITAL SENSOR
COM
24VAC
INT B
INT A
INT SND
INT REC
INFO
Ver
Adress
HBEAT
NET SND
NET REC
1
2
3
CLUTCH
4
5
6
7
8
9
10
11
12
13
14
15
16
U
L
C US
LISTED
NET A
NET B
Modbus
BACnet
VC2000
DIG OUT
On/Off Pulse
24VAC
COM
COM
AI
www.prolon.net
1-877-9PROLON
POWER
COM
24VAC
24VAC
AN OUT
SERV
DO
Modul On/Off Pulse
COM
AO
0-10V 2-10V 0-5V
STATUS
CCW CW
Damper Opening:
DIGITAL SENSOR
COM
24VAC
INT B
INT A
INT SND
INT REC
INFO
Ver
Adress
HBEAT
NET SND
NET REC
1
2
3
CLUTCH
4
5
6
7
8
9
10
11
12
13
14
15
16
U
L
C US
LISTED
TERM OFF TERM OFF TERM ON
24VAC TRANSFORMER
PL-M2000
UNIT CONTROLLER
PL-VC2000
ZONE CONTROLLER
PL-VC2000
ZONE CONTROLLER
PL-VC2000
ZONE CONTROLLER
R *
C *
Page 4
4
REV 6.1.4 / PL-INSTL-WIRING-EN
2 - PL-NC2000 Network Controller + PL-M2000 Unit Controller(s)
Recommended wiring for communication: #24/2, stranded, twisted and shielded, low-capacitance.
Recommended wiring for 24vac supply: #18/2, stranded.
*Connect “24VAC“ and “C” terminals to “R“ and “C“ terminals respectively on A/C control board.
COMMUNICATION
BUS TO ZONES
PL-M2000-RTU or PL-M2000-HP
UNIT CONTROLLER
PL-NC2000
NETWORK CONTROLLER
(optional)
BIAS ON
TERM ON
BIAS ON
BIAS OFF
TERM OFF
BIAS OFF
R *
C *
COMMUNICATION
BUS TO ZONES
PL-M2000-RTU or PL-M2000-HP
UNIT CONTROLLER
BIAS OFF
TERM OFF
BIAS OFF
R *
C *
COMMUNICATION
BUS TO ZONES
PL-M2000-RTU or PL-M2000-HP
UNIT CONTROLLER
BIAS OFF
TERM ON
BIAS OFF
R *
C *
C
24Vac
Page 5
5
REV 6.1.4 / PL-INSTL-WIRING-EN
3 - PL-VC2000 Zone Controller + Digital Wall Sensor
Recommended wiring for communication: #24/2, stranded, twisted and shielded, low-capacitance.
Recommended wiring for 24vac supply: #18/2, stranded.
1
4
3
2
COM
24VAC
INT B (-)
INT A (+)
NET A
NET B
Modbus
BACnet
VC2000
DIG OUT
On/Off Pulse
24VAC
COM
COM
AI
www.prolon.net
1-877-9PROLON
POWER
COM
24VAC
24VAC
AN OUT
SERV
DO
Modul On/Off Pulse
COM
AO
0-10V 2-10V 0-5V
STATUS
CCW CW
Damper Opening:
DIGITAL SENSOR
COM
24VAC
INT B
INT A
INT SND
INT REC
INFO
Ver
ADDRESS
HBEAT
NET SND
NET REC
1
2
3
CLUTCH
4
5
6
7
8
9
10
11
12
13
14
15
16
U
L
C US
LISTED
Zone controller and Digital Sensor
DIGITAL WALL SENSOR
PL-T1000/PL-T500/PL-T20
0
24 VAC Transformer
PL-VC2000(-PI)
ZONE CONTROLLER
Page 6
6
REV 6.1.4 / PL-INSTL-WIRING-EN
4 - PL-M2000 Single-Zone Unit Controller + Digital Wall Sensor
Recommended wiring for communication: #24/2, stranded, twisted and shielded, low-capacitance.
Recommended wiring for 24vac supply: #18/2, stranded.
*Connect “24VAC“ and “C” terminals to “R“ and “C“ terminals respectively on A/C control board.
24 VAC Transformer
R *
C *
BIAS ON
TERMINAL ON
BIAS ON
PL-M2000-RTUS or PL-M2000-HPS
SINGLE ZONE UNIT CONTROLLER
DIGITAL WALL SENSOR
PL-T1000/PL-T500/PL-T200
1
4
3
2
COM
24VAC
INT B (-)
INT A (+)
Page 7
7
REV 6.1.4 / PL-INSTL-WIRING-EN
5 - PL-C1000 Single-Zone Controller + Digital Wall Sensor
Recommended wiring for communication and 24vac supply:
CAT5e cable + RJ45 connectors -OR- #18/4, stranded + PL-T1000-ADAPT
STAT
NETSNDNETREC INTSND
A
NET
B
OCC
SUPPLY
GND
SETPT
ROOM
+
COM
24VAC
COM
24VAC
COM
24VAC
COM
24VAC
COM
24VACCOM
INTREC
HBEATOUT5OUT4OUT3OUT2OUT1
RESET
WALL SENSOR
(PL-T1000/PL-T500/PL-T200)
COM
24VAC
INT
INT
B (-)
A (+)
Net A
PL-T1000-ADAPT
CAT5e CABLE
Net B
OR
24 VAC Transformer
