Proliphix IMT550c, IMT550w Configuration Manual

Internet Managed Thermostat (IMT)
Configuration Guide

(IMT550c and IMT550w)

Release 1.0

Part No. 600-03001-550, Rev. 1
July 2010

Copyright

Beta Draft Confidential

Copyright © 2010 Proliphix, Inc. All Rights Reserved.

The following are trademarks of Proliphix, Inc.:

All other trademarks are the property of their respective owners.

This document contains information that is the property of Proliphix, Inc. This document may not be
copied, reproduced, reduced to any electronic medium or machine readable form, or otherwise
duplicated, and the information herein may not be used, disseminated or otherwise disclosed, except with
the prior written consent of Proliphix, Inc.

ii Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Software License Agreement

License for Use of Proliphix Software

IMPORTANT NOTICE -- READ CAREFULLY: This License For Customer Use of the Proliphix
Remote Management Interface Software ("PROLIPHIX LICENSE") is the agreement which governs use
of the software of Proliphix Incorporated and its subsidiaries ("Proliphix") downloadable here from,
including computer software and associated printed materials ("PROLIPHIX SOFTWARE"). By
downloading, installing, or otherwise using the PROLIPHIX SOFTWARE, you agree to be bound by the
terms of this PROLIPHIX LICENSE. If you do not agree to the terms of this PROLIPHIX LICENSE, do
not download or run the PROLIPHIX SOFTWARE.

RECITALS Use of Proliphix's products requires four elements: the Thermostat, the Thermostat FIRMWARE, the

Proliphix Remote Management Software and a personal computer. The PROLIPHIX SOFTWARE is
protected by copyright laws and international copyright treaties, as well as other intellectual property
laws and treaties. This PROLIPHIX LICENSE sets forth the terms and conditions of the SOFTWARE
LICENSE only.

DEFINITIONS Customer. Customer means the entity or individual that uses the SOFTWARE.

GRANT OF
LICENSE

LIMITATIONS No Reverse Engineering. Customer may not reverse engineer, decompile, or disassemble the

TERMINATION This LICENSE will automatically terminate if Customer fails to comply with any of the terms and

COPYRIGHT All title and copyrights in and to the SOFTWARE (including but not limited to all images, photographs,

Rights and Limitations of Grant. Proliphix hereby grants Customer the following non-exclusive,
non-transferable right to use the SOFTWARE, with the following limitations:

Rights. Customer may use the SOFTWARE on one or more computers, and may not otherwise copy the
SOFTWARE. This PROLIPHIX LICENSE of SOFTWARE may be used concurrently on different
computers.

SOFTWARE, nor attempt in any other manner to obtain the source code.

No Separation of Components. The SOFTWARE is licensed as a single product. Its component parts
may not be separated for use on more than one computer, nor otherwise used separately from the other
parts.

No Rental. Customer may not rent or lease the SOFTWARE to someone else.

conditions hereof. In such event, Customer will be prohibited from access to the SOFTWARE by
termination of Customer’s Remote Management Interface account.

Defensive Suspension. If Customer commences or participates in any legal proceeding against Proliphix,
then Proliphix may, in its sole discretion, suspend or terminate all license grants and any other rights
provided under this LICENSE during the pendency of such legal proceedings.

animations, video, audio, music, text, and other information incorporated into the SOFTWARE), the
accompanying printed materials, and any copies of the SOFTWARE, are owned by Proliphix, or its
suppliers. The SOFTWARE is protected by copyright laws and international treaty provisions.
Accordingly, Customer is required to treat the SOFTWARE like any other copyrighted material, except
as otherwise allowed pursuant to this LICENSE and that it may make one copy of the SOFTWARE
solely for backup or archive purposes.

APPLICABLE
LAW

This LICENSE shall be deemed to have been made in, and shall be construed pursuant to, the laws of the
Commonwealth of Massachusetts. The United Nations Convention on Contracts for the International Sale
of Goods is specifically disclaimed.

Internet Managed Thermostat Configuration Guide, Release 1.0 iii
Part No. 600-03001-550, Rev. 1

Software License Agreement

Beta Draft Confidential

DISCLAIMER OF
WARRANTIES
AND
LIMITATION ON
LIABILITY

OTHER If any provision of this LICENSE is inconsistent with, or cannot be fully enforced under, the law, such

No Warranties. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE
SOFTWARE IS PROVIDED "AS IS" AND PROLIPHIX AND ITS SUPPLIERS DISCLAIM ALL
WARRANTIES, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE.

No Liability for Consequential Damages. TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, IN NO EVENT SHALL PROLIPHIX OR ITS SUPPLIERS BE LIABLE FOR
ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER
(INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER
PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THE
SOFTWARE,EVEN IF PROLIPHIX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.

provision will be construed as limited to the extent necessary to be consistent with and fully enforceable
under the law. This LICENSE is the final, complete and exclusive agreement between the parties relating
to the subject matter hereof, and supersedes all prior or contemporaneous understandings and agreements
relating to such subject matter, whether oral or written. This LICENSE may only be modified in writing
signed by an authorized officer of Proliphix. Customer agrees that it will not ship, transfer or export the
SOFTWARE into any country, or use the SOFTWARE in any manner, prohibited by the United States
Bureau of Export Administration or any export laws, restrictions or regulations.

iv Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Technical
Support

When contacting Proliphix, Inc. for technical assistance, please have the following information available:

 Product model and serial number.

 Type of heating/cooling system (example: gas, oil, or electric; warm air, hot water, heat pump,

steam or gravity).

 Location and number of wires attached to your Proliphix thermostat.

For additional assistance, please contact Proliphix, Inc. Technical Support,
9:00 AM to 5:00 PM Eastern Time Monday to Friday:

Web: www.proliphix.com
Email: [e-mail]
Telephone: [phone]
Fax: [phone]

Warranty
Information

Proliphix, Inc. warrants its products to be free from manufacturing defects in materials and workmanship
under normal use for a period of 3 years for the IMT series thermostats from the date of purchase.

Proliphix shall not be liable to honor the terms of this warranty if the product has been used in any other
application other than that for which it was intended, or if it has been subjected to misuse, accidental damage,
acts of God, modification, or improper installation procedures. Furthermore, this warranty covers only
products which have all original and unaltered markings and labels (serial numbers, model numbers, etc.) of
manufacture. This limited warranty does not cover the repair of cracked, scratched, broken or modified
plastics; other cosmetic damage; or parts that have been altered, defaced or removed; or the scratching,
cracking or breakage of the product.

This warranty is not transferable.

THE FOREGOING WARRANTIES ARE THE SOLE AND EXCLUSIVE WARRANTIES EXPRESSED OR
IMPLIED GIVEN BY PROLIPHIX IN CONNECTION WITH THE PRODUCT, AND PROLIPHIX
DISCLAIMS ALL IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF
THIRD PARTY RIGHTS. PROLIPHIX DOES NOT PROMISE THAT THE PRODUCT IS ERROR-FREE
OR WILL OPERATE WITHOUT INTERRUPTION. PROLIPHIX WILL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR ANY OTHER LOSSES, EXPENSES OR
DAMAGES RELATING TO PRODUCT DEFECTS OR FAILURES. CUSTOMER'S SOLE REMEDY,
AND PROLIPHIX'S SOLE OBLIGATION, WITH RESPECT TO ANY PRODUCT DEFECTS OR
FAILURES (REGARDLESS OF WHETHER YOUR CLAIM IS ASSERTED IN CONTRACT, TORT,
STRICT LIABILITY OR OTHERWISE) SHALL BE (AT PROLIPHIX'S SOLE OPTION) REPAIR,
REPLACEMENT OR REFUND OF THE PRICE PAID. IN NO EVENT WILL PROLIPHIX'S LIABILITY
WITH RESPECT TO A PRODUCT, EXCEED THE PRICE PAID FOR SUCH PRODUCT.

This warranty statement supersedes all previous warranties.

This warranty extends to products purchased directly from Proliphix or an authorized Proliphix agent, dealer,
distributor, or reseller.

Material
Return
Procedure

No merchandise may be returned for credit, exchange, or service without prior authorization from Proliphix.
To obtain warranty service for Proliphix products, contact Proliphix Customer Service (1-866-475-4846) and
request a Return Material Authorization (RMA) number.

Products may be returned for credit, exchange, or service with a Proliphix RMA number and with proof of
purchase. Enclose a note explaining the symptoms of the problem, stating the RMA number, and the name,
address and phone number of the company or individual contact.

Authorized returns must be shipped prepaid to Proliphix at:

Proliphix, Inc.
3 Lan Drive
Westford, MA 01886

Internet Managed Thermostat Configuration Guide, Release 1.0 v
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

The RMA number must be clearly marked on the outside of the package. Products received without an RMA
number or without shipping prepaid will be subject to refusal by Proliphix. Proliphix reserves the right to
charge a 15% restocking fee plus shipping costs on any products returned without an RMA.

Return shipping charges following repair of items under warranty shall be paid by Proliphix via standard
ground carrier. In the event that repairs are found to be non-warranty, return shipping charges will be paid by
the purchaser.

vi Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Contents

Preface

Audience xi
Conventions xii
Technical Publications xiii
Technical Support xiii
Proliphix Welcomes Your Comments xiv

Chapter 1 Overview

DHCP Assigned IP Addresses 1-1
Connecting the Thermostat to the Local Network 1-2

Remote Management 1-2
Determining the IMT550 IP Address 1-2
Accessing the Web Interface 1-3
Logging In to the Thermostat 1-4

Chapter 2 Configuring the Thermostat Using the Web Interface

Control Page 2-2

HVAC 2-2
AUX Relays 2-6
Usage Statistics 2-9

Schedules Page 2-11

HVAC 2-11

Schedule Settings 2-11

Calendar 2-13

Special Days 2-14

AUX Relay 1 and AUX Relay 2 2-19
Alarms Page 2-20

Zone 2-20

Wired Sensors 2-23
Sensors Page 2-25
Advanced Page 2-27

HVAC Settings 2-27

Thermostat Settings 2-34

Override Settings 2-35
Network Page 2-38

General 2-38

Remote Access 2-40

Network Notification Settings 2-42

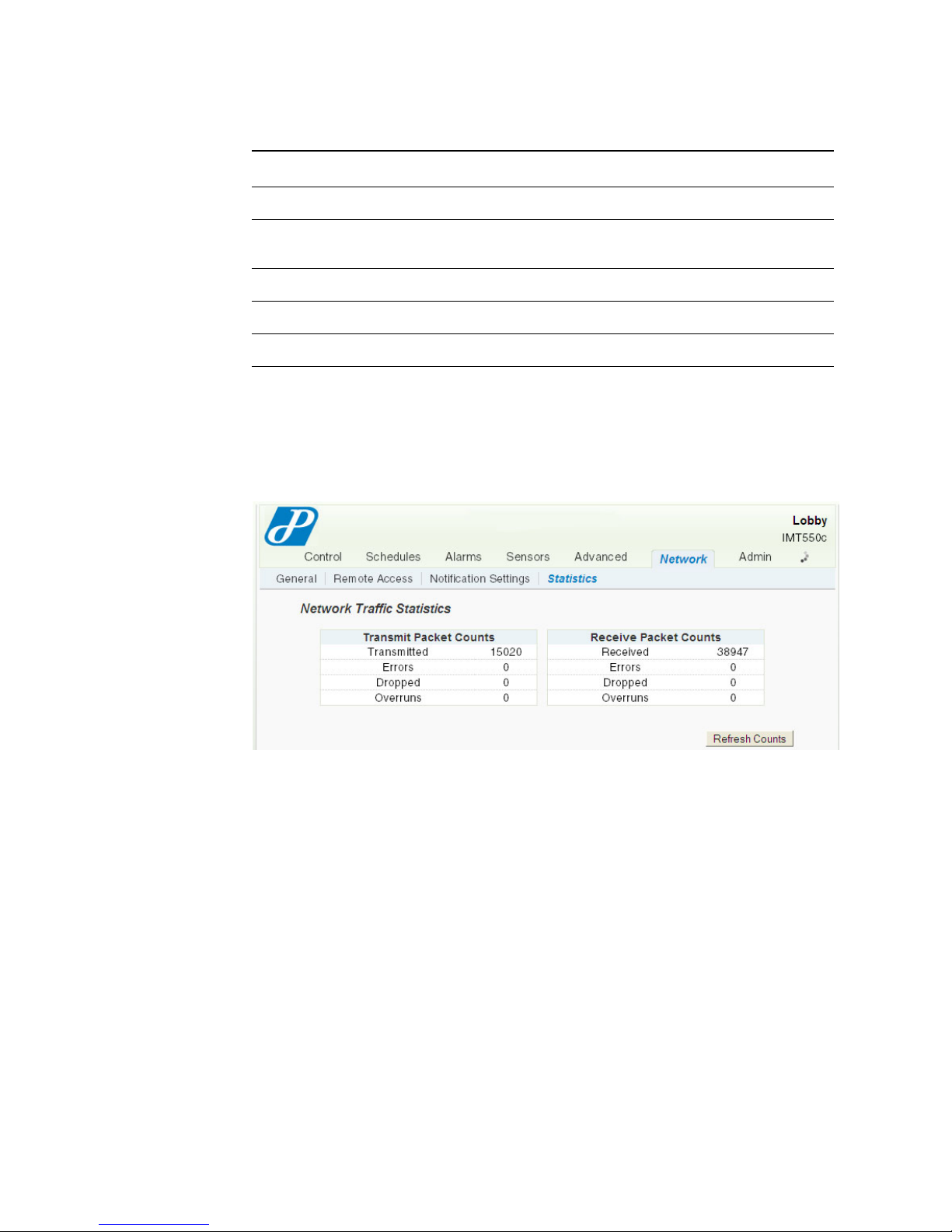

Statistics 2-43
Admin Page 2-44

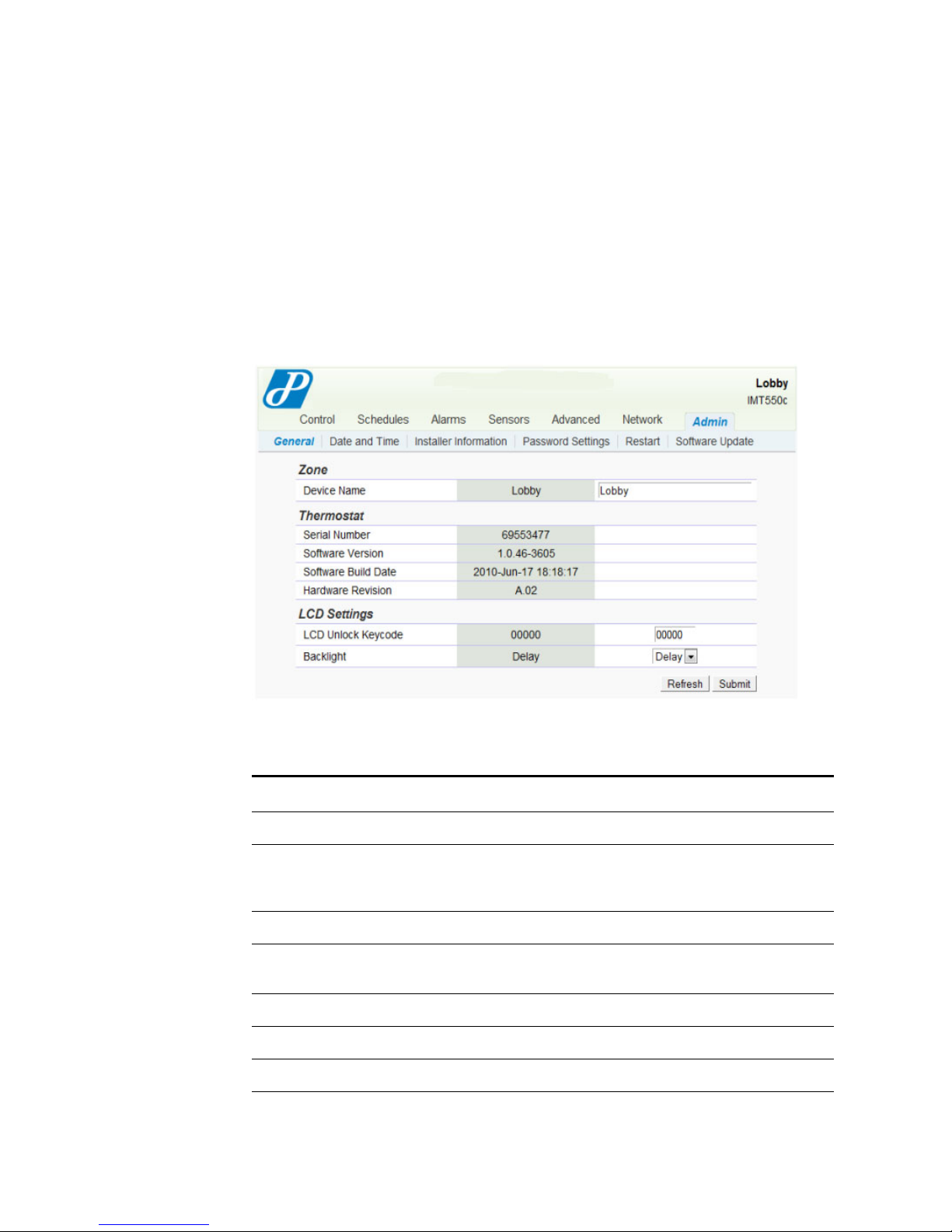

General 2-44

Date and Time 2-45

Installer Information 2-46

Password Settings 2-47

Restart 2-47

Software Update 2-48

Contents

Internet Management Thermostat Configuration Guide, Release 1.0 vii
Part No. 600-03001-550, Rev. 1

Contents

Beta Draft Confidential

viii Internet Management Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

List of Figures

Figure 1-1 Administrator Authentication Window 1-4
Figure 2-1 Control - HVAC Page 2-2
Figure 2-2 Control - AUX Relays Page - Relay State Inactive 2-6
Figure 2-3 Control - AUX Relays Page - Relay Manually Active 2-7
Figure 2-4 Control - AUX Relays Page - Relay Manually Inactive 2-7
Figure 2-5 Control - AUX Relays Page - Externally Triggered 2-7
Figure 2-6 Control - AUX Relays Page - Scheduled 2-8
Figure 2-7 Control - Usage Statistics Page 2-9
Figure 2-8 Schedules - HVAC - Schedule Settings Page 2-11
Figure 2-9 Schedules - HVAC - Calendar Page 2-13
Figure 2-10 Schedule - HVAC - Special Days Page 2-14
Figure 2-11 Add Special Days Schedule 2-14
Figure 2-12 Edit Special Day Schedule 2-15
Figure 2-13 Special Days - Example 1A 2-16
Figure 2-14 Special Days - Example 1B 2-16
Figure 2-15 Special Days - Example 1C 2-17
Figure 2-16 Special Days - Example 2A 2-17
Figure 2-17 Special Days - Example 2B 2-18
Figure 2-18 Special Days - Example 2C 2-18
Figure 2-19 Schedules - Aux Relay Page 2-19
Figure 2-20 Alarms - Zone Page 2-20
Figure 2-21 Alarms - Wired Sensors Page 2-23
Figure 2-22 Sensors Page 2-25
Figure 2-23 Advanced - HVAC Settings Page - Fuel Burner 2-27
Figure 2-24 Advanced - HVAC Settings Page - Heat Pump 2-28
Figure 2-25 Advanced - Thermostat Settings Page 2-34

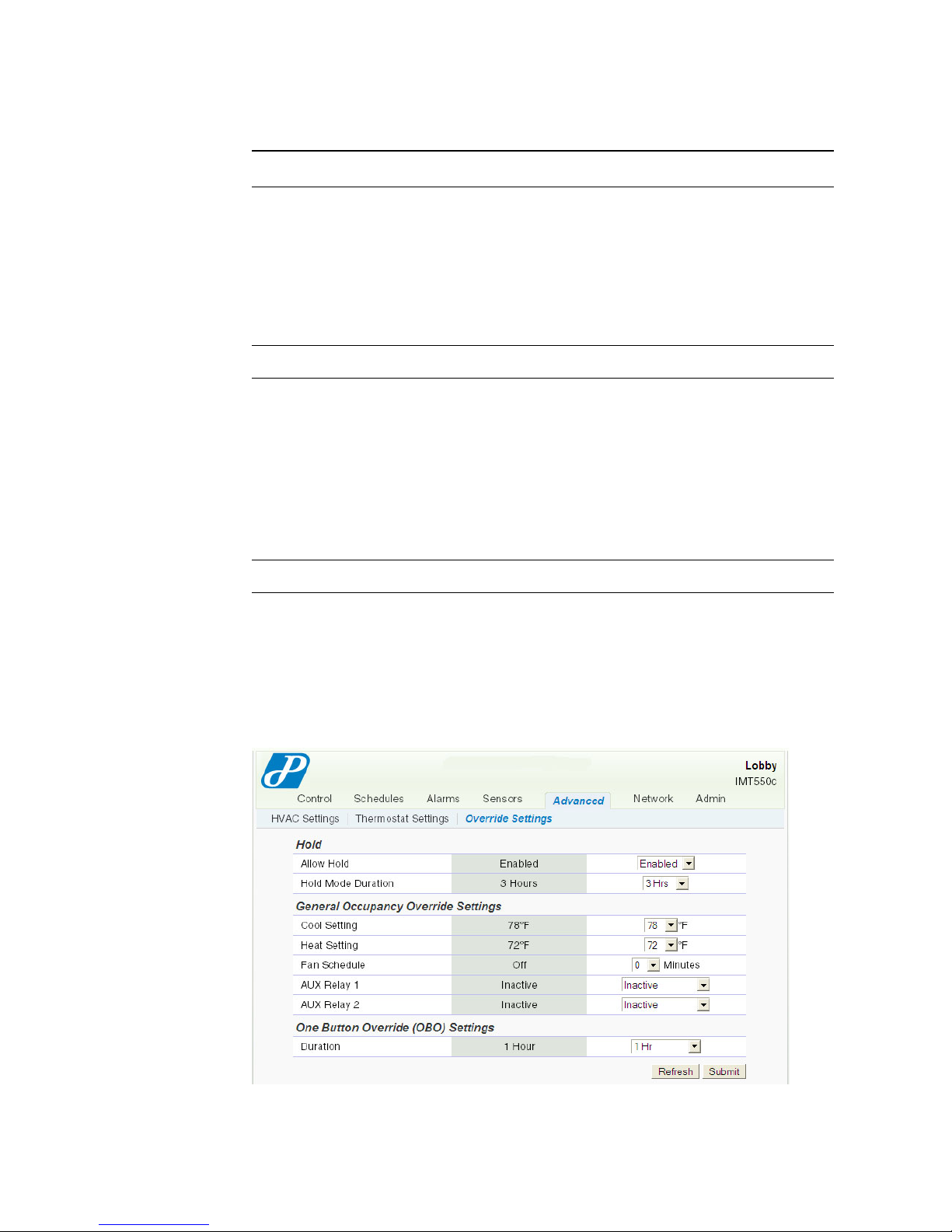

Figure 2-26 Advanced - Override Settings Page 2-35
Figure 2-27 Network - Warning: Network Configuration 2-38
Figure 2-28 Network - General Page 2-38
Figure 2-29 Network - Remote Access Page 2-40
Figure 2-30 Network - Notification Settings Page 2-42
Figure 2-31 Network - Statistics Page 2-43
Figure 2-32 Admin - General Page 2-44
Figure 2-33 Admin - Date and Time Page 2-45
Figure 2-34 Admin - Installer Information Page 2-46
Figure 2-35 Admin - Password Settings Page 2-47
Figure 2-36 Admin - Restart Page 2-47
Figure 2-37 Admin - Software Update Page 2-48

Figures

Internet Management Thermostat Configuration Guide, Release 1.0 ix
Part No. 600-03001-550, Rev. 1

Contents

List of Tables

Beta Draft Confidential

Table 1-1 IMT550 Features 1-1
Table 2-1 Control - HVAC Field Descriptions 2-3
Table 2-2 Control - AUX Relays Field Descriptions 2-8
Table 2-3 Control - Usage Statistics Field Descriptions 2-9
Table 2-4 Schedules-Daily Profile Definitions Field Descriptions 2-12
Table 2-5 Alarms - Zone Field Descriptions 2-21
Table 2-6 Alarms - Wired Sensors Field Descriptions 2-24
Table 2-7 Sensors Field Descriptions 2-25
Table 2-8 Advanced Settings Fields - HVAC Field Descriptions 2-28
Table 2-9 Advanced - Thermostat Settings Field Descriptions 2-34
Table 2-10 Advanced - Override Settings Field Descriptions 2-36
Table 2-11 Network - General Field Descriptions 2-39
Table 2-12 Network - Remote Access Field Descriptions 2-40
Table 2-13 Network - Notification Settings Field Descriptions 2-42
Table 2-14 Admin - General Field Descriptions 2-44
Table 2-15 Admin - Date and Time Field Descriptions 2-46
Table 2-16 Admin - Password Settings Field Descriptions 2-47

x Internet Management Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Preface

The Internet Managed Thermostat Configuration Guide describes how to control and
configure your IMT550 thermostat using a standard web browser such as Firefox or
Internet Explorer.

Audience

This guide is intended for managers and/or facilities managers or those responsible for
managing multiple devices remotely in small or medium size buildings, multiple
buildings, or corporate environments.

As a reader of this guide, you should be familiar with the use of an Internet browser
(for example Internet Explorer or Firefox) and have a working knowledge of general
data networking principles. You should have prior experience with establishing a local
area network (LAN) in either a home or office.

Internet Managed Thermostat Configuration Guide, Release 1.0 xi
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Preface

Conventions

This guide uses the following conventions, when applicable:

Description Convention and Example

Commands or keywords, file or path names Boldface font

Variable parameters for which you supply values <courier italics>

Options and arguments for which you supply values [ ]

Information that the user must enter

Screen messages or system output

Selecting a menu item

Book titles, new terms, and emphasized text Italics

Courier Bold font

Courier Regular font

Menu => Option

Additional information that may apply to the subject text.

Note

Proceed carefully to avoid possible equipment damage or data loss.

Caution

Proceed carefully to avoid possible personal injury.

Warning

Provide helpful suggestions.

Tip

xii Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Technical Publications

Customers can obtain product documentation on our web site at

http://www.proliphix.com/.

Documentation is available for currently supported product releases.

Note

Technical Support

Documentation is available in Adobe PDF format. You can view PDFs online
using the Adobe Reader ® 6.0 or later. To download the latest version of the Adobe
Reader software from the Adobe web site, click

http://www.adobe.com/products/acrobat/readstep2.html.

Proliphix Technical Support provides technical support between the hours of 9:00 AM
and 5:00 PM Eastern Time, Monday through Friday. Extended 7/24 contracts are
available.

Preface

When contacting Proliphix Technical Support, please have the following information
available:

 Product model and serial number

 Type of heating/cooling system (for example, gas, oil, or electric; warm air, hot

water, heat pump, steam or gravity)

 Location and number of wires attached to the Proliphix thermostat

To contact Proliphix Technical Support:

Proliphix, Inc.

www.proliphix.com

3 Lan Drive
Westford, MA 01886

E-mail: [e-mail]

Telephone support
1-978-692-3375

Internet Managed Thermostat Configuration Guide, Release 1.0 xiii
Part No. 600-03001-550, Rev. 1

Fax: Attention Proliphix Technical Support
1-978-692-3378

Beta Draft Confidential

Preface

Proliphix Welcomes Your Comments

You can mail, e-mail, or fax your comments. Please include the document part
number in the subject line of your e-mail or fax message.

E-mail: [e-mail]

Fax: Attention Technical Publications
978-692-3378

Proliphix, Inc.
Technical Publications
3 Lan Drive
Westford, MA 01886

xiv Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Overview

Chapter

This chapter gives an overview of the Proliphix Internet Managed Thermostats (IMT)
Series Network Thermostats, as well as how to access the IMT550 using a Web
browser.

The IMT550 series of thermostats are powered by either Proliphix Ethernet Power
Adapters, Power over Ethernet, or via 24Vac from the HVAC system, and include the
following features:

Table 1-1 IMT550 Features

1

Model Wired

Ethernet

IMT550c X X X

IMT550w X X X

DHCP Assigned IP Addresses

The IMT550c and IMT550w thermostat ship directly from the factory enabled to
perform as a Dynamic Host Configuration Protocol (DHCP) client. DHCP is an
established standard used to assign IP addresses automatically after each network
device is inserted into the network or when the device experiences a power cycle.
DHCP allows devices on your local network to receive their Internet Protocol (IP)
addresses automatically from an attached DHCP server typically located within a
local router.

If your file server or router supports DHCP, then your Proliphix thermostat
automatically retrieves an IP Address, Gateway Address, Subnet Mask, and DNS
server address from the DHCP server on your network.

802.11 b/g
wireless

Humidity

Sensing

Aux Relays

(2)

Power

Method(s)

 EPA

 PoE

 HVAC

 HPA

 HVAC

Internet Management Thermostat Configuration Guide, Release 1.0 1-1
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 1: Overview

Proliphix strongly recommends that a DHCP server be installed and operational

Note

Connecting the Thermostat to the Local Network

in your network prior to installing the thermostat.

If a DHCP server is unavailable on your network, your thermostat will default to
the 169.254.111.111 IP address. Note that this address is not unique to your
network if more than one thermostat is installed on a network without a DHCP
server. That is, there will be multiple thermostats on the network with the same IP
address (i.e. 169.254.111.111). Addressing conflicts will exist and most of the
thermostats will be inaccessible. You can use the lcd interface to set the IMT550 to
a static IP address if no DHCP server is available.

This section describes how to connect your IMT550c and IMT550w thermostats to
your local data network. This connection enables you to conveniently and efficiently
configure your thermostat using a browser on your laptop or desktop personal
computer. If a broadband connection is available on your local network, you can also
remotely manage and configure your thermostat via the Internet.

To connect the thermostat to your local network:

 For the IMT550c, use a standard Ethernet patch cable and complete the

connection of your thermostat(s) to the local switch or router. Your thermostat(s)
should automatically communicate with the local DHCP server and be assigned a
unique IP address.

 For the IMT550w, use the lcd interface and configure the wireless settings to

match your local wireless network.

Remote Management

You can manage the IMT550c and IMT550w thermostats using a web browser on a
local area network (LAN) or remotely though the Internet after proper authentication
at the Proliphix Web Site (www.proliphix.com).

Determining the IMT550 IP Address

Your Proliphix IMT550 ships from the factory capable to support the DHCP mode for
assigning an IP address to your thermostat. See the DHCP Assigned IP Addresses

(page 1-1) for more information.

Before you access and control your Proliphix IMT550 through either the lcd screen or
more comprehensively through the Web browser, you must know the IP address of the
thermostat.

To retrieve the IP address on the lcd screen on the front of the thermostat:

1 Press the Proliphix logo on the bottom right side of the lcd screen.

1-2 Internet Management Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

2 Press Network.

3 Press IP Address.

The IP Address screen displays the Address Method and URL (IP Address).

Accessing the Web Interface

To access the initial Web page of the thermostat, enter the unique IP address initially
assigned via DHCP in your browser window. For example:

http://192.168.0.247

Where 192.168.0.247 is a unique IP address initially assigned via DHCP.

Most of the Web pages conform to a standard format which is maintained for both
local and remote thermostat access. A banner at the top of each page contains the
following information for each thermostat:

 Current date and time

Accessing the Web Interface

 Host name of the thermostat

 Model number

Each thermostat page also includes tabs which enable direct access to all other Web
pages on the thermostat. The Web browser displays each page in a table format. Each
feature table is organized by rows of functions, in a left to right direction as follows:

 Field name

 Function status

 Function control (text boxes and drop-down selections)

Internet Management Thermostat Configuration Guide, Release 1.0 1-3
Part No. 600-03001-550, Rev. 1

CHAPTER 1: Overview

Logging In to the Thermostat

The IMT550 Series thermostats require password authentication prior to accessing the
Web pages that enable you to control or manage the thermostats. The username and
password is as follows:

Username: admin

Password: admin (default)

You can change each of these passwords within each account after the initial

Tip

authentication. For more information, see Password Settings (page 2-47).

To log in to the thermostat and access the Web pages:

1 Open a Web browser.

2 Enter the IP address of the thermostat. For example:

http://192.168.0.247

Beta Draft Confidential

The login window appears. (See Figure 1-1.) Proper authentication is required before
you can access any other thermostat Web pages.

Figure 1-1 Administrator Authentication Window

3 Enter the default username admin and password admin for the admin account.

You can change passwords for each account using the Password Settings. See

Note

Password Settings (page 2-47).

1-4 Internet Management Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

4 Click OK.

The default Control - HVAC page appears. See Figure 2-1 on page 2-2.

In each Web page, you must click Submit to apply all changes made in the Control

Note

column. Click Refresh to update the status.

Continue with the Control Page (page 2-2).

Logging In to the Thermostat

Internet Management Thermostat Configuration Guide, Release 1.0 1-5
Part No. 600-03001-550, Rev. 1

CHAPTER 1: Overview

Beta Draft Confidential

1-6 Internet Management Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Chapter

Configuring the Thermostat Using the Web
Interface

This chapter describes how to configure and monitor the thermostat through the web
browser using the IMT550 Web interface.

2

Internet Managed Thermostat Configuration Guide, Release 1.0 2-1
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Control Page

The Control page displays tabs for the HVAC, AUX Relays, and Usage Statistics
pages.

HVAC

The Control - HVAC page displays the HVAC zone status, schedule, and settings,
for example.

Figure 2-1 Control - HVAC Page

2-2 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Use Table 2-1 to configure the Control - HVAC fields.

Table 2-1 Control - HVAC Field Descriptions

Field Description

Temperature

Zone Temperature Displays the current temperature of the zone if temperature averaging is

disabled.

Average temperature of any combination of Local, Remote Sensor #1 (RS
#1), Remote Sensor #2 (RS #2), or Remote Sensor #3 (RS# 3) if
temperature averaging is enabled. (See Advanced Page (page 2-27).)

In a range of -30

Also displays the current status of the Zone Temperature alarm. If an alarm
occurs, you must repair the condition which caused the alarm before
resetting the alarm. (See Alarms Page (page 2-20).)

 This field is blank if no Zone Temperature alarm exists.

 Low Temperature Alert! – The temperature monitored within the

thermostat has dropped below the pre-set temperature threshold.

°

F(-34°C) to 199°F(95°C)

Control Page

 High Temperature Alert! – The temperature monitored within the

thermostat has risen above the pre-set temperature threshold.

Local Temperature Displays the current temperature of the local sensor. This field is disabled if

the local thermostat sensor is not included in temperature averaging.

In a range of 40

Zone Humidity Displays the current Zone Humidity.

In a range of 0% to 95%

 Low Humidity Alert! – The humidity level monitored within the

thermostat has dropped below the pre-set humidity threshold.

 High Humidity Alert! – The humidity level monitored within the

thermostat has risen above the pre-set humidity threshold.

Heat Setting Displays the current temperature programmed for the heating system. This

field is disabled if the HVAC mode is set to Cool or Off. (See HVAC Mode

(page 2-5).) This field is not visible if the thermostat is configured to be a

cool-only controlling device. (See Advanced Page (page 2-27).)

To modify this field, use the drop-down menu to select a Heat Setting.

°

F(4.5°C) to 110°F(43.5°C)

40

Cool Setting Displays the current temperature programmed for the cooling (A/C) system.

This field is disabled if the HVAC mode is set to Heat or Off. (See HVAC

Mode (page 2-5).) This field is not visible if the thermostat is configured to

be a heat-only controlling device. (See Advanced Page (page 2-27).)

To modify this field, use the drop-down menu to select a Cool Setting.

°

40

F(4.5°C) to 110°F(43.5°C)

°

F(4.5°C) to 110°F(43.5°C)

Internet Managed Thermostat Configuration Guide, Release 1.0 2-3
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Table 2-1 Control - HVAC Field Descriptions (Continued)

Field Description

Fan Filter Change Displays a reminder that the time interval between HVAC filter changes has

expired. The air filter(s) should be cleaned or replaced. You should change
the filter and then reset this timer. (See Alarms Page (page 2-20).)

 This field is left blank if no filter change is required.

 Required! – The HVAC filters require changing or cleaning.

Current Schedule

Daily Profile Displays the current active scheduled Profile.

Event Displays the current active Event.

 Morning

 Day

 Evening

 Night

Heat Setting Displays the current Heat temperature setting as set within the current

schedule.

°

40

F(4.5°C) to 110°F(43.5°C)

Cool Setting Displays the current Cool temperature setting as set within the current

schedule.

°

40

F(4.5°C) to 110°F(43.5°C)

Overrides

Hold/Occupancy
Override

Displays the current state for both the Heat and Cool Setting. To “Hold” the
current settings indefinitely or for a prescribed period of time as set on the

Override Settings (page 2-35), use the drop-down menu and choose:

 Enabled – Hold mode is enabled.

 Off (default) – Hold mode is disabled.

Note: When Occupancy Override is visible, it displays the current state of
an active “OBO” button activation.

HVAC Settings

HVAC State Displays the current state of the heating or cooling system. If a state change

is made while viewing this page, click Refresh to update the status.

 Heat – First stage heat is actively heating.

 Heat2 – First stage and second stage heat are actively heating.

 Aux Ht – First stage, second stage, and auxiliary heat are actively

heating. (Heat Pump)

 Emergency Ht - Emergency heat source is heating.

 Cool – First stage A/C is actively cooling.

 Cool2 – First stage and second stage A/C are actively cooling.

 Off – Neither the heating system or cooling system is active (i.e. on).

2-4 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Table 2-1 Control - HVAC Field Descriptions (Continued)

Field Description

HVAC Delay State Displays the HVAC delay state. Delay can be in effect if the interstage delay

is set or if the compressor has been turned off within the last n minutes,
where n is the set time from the Compressor Delay on the Advanced/HVAC
page.

HVAC Mode Displays and controls the current mode setting for the HVAC system. The

thermostat can be configured to control the heat system only, cool system
only, automatically change over between heating and cooling systems, or
control neither system.

 Off – The thermostat is disabled from controlling either the heating or

cooling system.

 Heat – Heating system only.

 Cool – Cooling system only.

 Auto – Automatic changeover between heating and cooling systems.

 Emergency Heat - Forces the activation of an alternative heat source for

heat pumps.

Control Page

Fan State Displays the current state of the HVAC fan.

 Off – The operation of the fan is off.

 On – The fan is operating.

Fan Mode Displays and controls the current state setting for the HVAC fan.

 Auto – Heating or cooling system controls the operation of the fan.

 On – User forces the fan to the on state independent of the operation of

the HVAC system.

 Scheduled – The operation of the fan adheres to a schedule as defined by

the user on the schedule pages with the schedule profile definition. Note:

When in Scheduled mode, the fan continues to work in Auto mode as
well.

Internet Managed Thermostat Configuration Guide, Release 1.0 2-5
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

AUX Relays

The Control - AUX Relays page displays the AUX Relay 1 and AUX Relay 2 state
information.

Figure 2-2 Control - AUX Relays Page - Relay State Inactive

2-6 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Figure 2-3 Control - AUX Relays Page - Relay Manually Active

Figure 2-4 Control - AUX Relays Page - Relay Manually Inactive

Control Page

Figure 2-5 Control - AUX Relays Page - Externally Triggered

Internet Managed Thermostat Configuration Guide, Release 1.0 2-7
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Figure 2-6 Control - AUX Relays Page - Scheduled

Use Table 2-2 to configure the Control - AUX Relays fields.

Table 2-2 Control - AUX Relays Field Descriptions

Field Description

AUX Relay 1 and 2

Current Relay State Displays the current relay state of Active or Inactive.

Configured Relay
State

Current Schedule

Daily Profile Displays the current active sheduled Profile.

Event Displays the current Event definition.

 Active - Forces relay to its active state.

 Inactive - Forces relay to its inactive state.

 Externally Triggered - Enables choice of activation trigger as either

above/below Zone Hmidity or above/below Zone Temperature.

 Scheduled - Activated by time-of-day schedule as established on the

Schedules tab.

 Morning

 Day

 Evening

 Night

Note: This field is for Scheduled control.

Relay State Displays the relay state of Active or Inactive.

General Settings

Name

2-8 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Field Description

Control Page

Output Polarity

Include Relay in
OBO

Usage Statistics

The Control - Usage Statistics page displays the usage information.

Figure 2-7 Control - Usage Statistics Page

 Closed - Normally closed output.

 Open - Normally open output.

Displays when OBO is activated if the associated relays using this function
are to be activated as well.

 Disabled

 Enabled

Use Table 2-3 to configure the Control - Usage Statistics fields.

Table 2-3 Control - Usage Statistics Field Descriptions

Field

Usage Counters

Heating Displays thee Heat1 and Heat 2 relay minute activity counter. The Admin

Fan/Filter Displays the Fan/Filter relay minute activity counter, which is the number

Internet Managed Thermostat Configuration Guide, Release 1.0 2-9
Part No. 600-03001-550, Rev. 1

Description

account user can reset this field by checking the Last counter reset box.

of days, hours, and minutes since the Last counter reset box was checked
and submitted. The Admin account user can reset this field by checking the

Last counter reset box.

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Field

Cooling Displays the Cool 1 and Cool 2 relay minute activity counter, which is the

Auxiliary Relays Displays the AUX Relay 1 and AUX Relay 2 relay minute activity counter,

Counter Status and
Control

Increment fan on
heat

Last counter reset Check to return the Usage Counters to zero value (except Fan/Filter) after

Description

number of days, hours, and minutes since the Last counter reset box was
checked. The Admin account user can reset this field by checking the Last
counter reset box.

which is the number of days, hours, and minutes since the Last counter
reset box was checked.. The Admin account user can reset this field by
checking the Last counter reset box.

Displays whether to include heating cycle run time in systems where the fan
is used to deliver heat, for example, forced hot air systems.

 Increment – Include heating cycle run time.

 Off – Do not include heating cycle run time.

clicking Submit.

2-10 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Schedules Page

The Schedules page displays tabs for the HVAC, AUX Relay 1, and AUX Relay 2
pages.

HVAC

The Schedules - HVAC settings page displays the schedule information.

Schedule Settings

The Schedule Settings page displays the default daily Profiles and weekly schedule.

Figure 2-8 Schedules - HVAC - Schedule Settings Page

Schedules Page

Daily Profile Definitions

The thermostat scheduling feature is organized in a hierarchy. You use Profiles (up to

12) to classify the types of days that are used in the schedule. Each Profile is divided
into four events, each of which supports temperature settings for both heating and
cooling, and fan scheduling to provide periodic air flow.

Each Profile supports the following four non-overlapping events of time (within 24
hour period) in which you can independently specify heat, cool, and fan schedules.

Internet Managed Thermostat Configuration Guide, Release 1.0 2-11
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

 Morning (for example, pre-business hours)

 Day (for example, business hours)

 Evening (for example, after hours)

 Night (for example, unoccupied hours)

Figure 2-8 on page 2-11 displays the Profile table. The Web page displays the Event

period and Start Time within each row of the table. The Web page also displays the
heat and cool settings for each Event period in each Profile. Although the thermostat
ships from the factory with pre-set Event settings, you can change these settings by
selecting the appropriate definition from the drop-down menu.

Use Table 2-4 to configure the Daily Profile Definitions.

Table 2-4 Schedules-Daily Profile Definitions Field Descriptions

Field Description

Daily Profile Definitions

Profile Name Use the drop-down menu to select the appropriate profile. The profile name

displays in the header. Click Color and select a color to color-code the profile for
easy recognition.

Event Displays one of four time periods of the 24-hour day.

Start Time Use the drop-down menu to modify the time period in 5-minute increments.

Includes AM/PM indicator.

Heat Use the drop-down menu to select a heat temperature setback setting between

Cool Use the drop-down menu to select a cool temperature setback setting between

Fan Schedule Select the time in minutes for each hour of the Event in which the fan will be On.

°

40

F(4.5°C) to 110°F(43.5°C)

40°F(4.5°C) to 110°F(43.5°C)

The schedule begins on the hour and advances for the duration specified. Note that
within the hour of each Event but outside the schedule interval, the fan reverts to
AUTO mode to ensure proper operation for either a heating or cooling call to the
HVAC system. Select one of the following options:

 Always Off

 5 On / 15 Off

 10 On / 10 Off

 15 On / 5 Off

 Always On

2-12 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Default Weekly Schedule

In Figure 2-8 on page 2-11, the Default Weekly Schedule table provides a template
that you can use to apply the Profiles to each day of the week. The Web page applies
this weekly template to every week in each month that is visible in the Calendar
View at the bottom of the Calendar (page 2-13) page.

To edit the Default Weekly Schedule, use the drop-down menu and select the
appropriate Profile.

Calendar

The Calendar View table displays the Profile settings for each day of the month.

Figure 2-9 Schedules - HVAC - Calendar Page

Schedules Page

You can modify any day in the Calendar View table using either of the following
methods:

 Click the date within the calendar and continue with Adding Special Days (page

2-14).

 Click Special Days and continue with Special Days (page 2-14).

Internet Managed Thermostat Configuration Guide, Release 1.0 2-13
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Special Days

Special Days entries are organized as rows in the Special Days table. The Web page
supports 30 Special Days table entries, each comprised of a start date entered in the
Month, Day, and Year fields. In each row, you can enter one or more days as a
duration for that entry. Durations cannot exceed 60 days.

Figure 2-10 Schedule - HVAC - Special Days Page

To add a special day(s), click Add Special Day and continue with Adding Special

Days.

Adding Special Days

From the Add Special Days Schedule page, you can select any day(s) of the current
or future month, modify the information, and assign a Profile different from what is
specified in the Default Weekly Schedule (page 2-13).

Figure 2-11 Add Special Days Schedule

To add a special day(s):

1 Enter a Name for the special day(s).

2 Specify the Month, Day, and Year.

2-14 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

3 Enter the appropriate day(s) duration.

4 Select the appropriate Daily Profile to Use.

5 Click Submit.

Modifying Special Days

1 From the Special Days page, click the pencil icon on the appropriate line to

display the Edit Special Day Schedule page.

Figure 2-12 Edit Special Day Schedule

Schedules Page

2 Edit the fields as necessary.

3 Click Submit.

Deleting Special Days

1 From the Special Days page, click the delete icon on the appropriate line.

A message displays confirming you want to delete the special day(s).

2 Click OK to delete the special day(s) or Cancel to cancel the operation.

Internet Managed Thermostat Configuration Guide, Release 1.0 2-15
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Special Days Examples

This section describes some examples of adding Special Days to the thermostat.

Example 1

Figure 2-13 shows an example of changing the July 5, 2010 from a Profile 1 to a

holiday profile. This represents a change to the default weekly schedule for July 5,
2010 and requires a single Special Day entry in the Special Days table.

Figure 2-13 Special Days - Example 1A

You can enter this information in the Special Days table using either of the following
methods:

 Configure the Profile (see Daily Profile Definitions (page 2-11)) to reflect the

desired settings. Click directly on the date on the Calendar. The Add Special Day
Schedule page appears and automatically populates the Start Date and End
Date. One day is the default duration, but you can change this field to any number

of days less than the 60 day maximum. Modify the fields as necessary. Click
Submit. The Special Day displays on the Special Days table and Calendar.

 Configure the Profile (see Daily Profile Definitions (page 2-11)) to reflect the

desired settings. From the Special Days page, click Add Special Days. The Add
Special Days Schedule appears. Modify the fields as necessary. Click Submit.
The Special Day displays on the Special Days table and Calendar.

Figure 2-14 Special Days - Example 1B

2-16 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Figure 2-15 Special Days - Example 1C

Schedules Page

Special Day (1)

Example 2

Figure 2-16 shows an example of adding additional Special Days to the thermostat

schedule of a week-long period from July 12, 2010 through July 16, 2010.

Figure 2-16 Special Days - Example 2A

1 From the Special Days page (see Special Days (page 2-14)), click Add Special Day.

Internet Managed Thermostat Configuration Guide, Release 1.0 2-17
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

2 Enter a Name and Schedule information for the special day(s).

3 Select the appropriate Daily Profile to Use.

4 Click Submit.

The Special Day entry (for 5 days total) displays on the Special Days and Calendar
pages.

Figure 2-17 Special Days - Example 2B

Figure 2-18 Special Days - Example 2C

Special Days (5)

2-18 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

AUX Relay 1 and AUX Relay 2

Use to configure AUX Relay 1 and AUX Relay 2. See HVAC (page 2-11).

Figure 2-19 Schedules - Aux Relay Page

Schedules Page

Internet Managed Thermostat Configuration Guide, Release 1.0 2-19
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Alarms Page

The Alarms page displays tabs for the Zone and Wired Sensors pages.

Zone

The Alarms - Zone page displays the zone temperature, humidity, and filter change
reminder.

Figure 2-20 Alarms - Zone Page

2-20 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Use Table 2-5 to configure the Alarms - Zone page fields.

Table 2-5 Alarms - Zone Field Descriptions

Field Description

Zone Temperature Alarms

Low Temperature Limit Select a value or Disabled to indicate the low temperature

threshold detection status.

The value set by this parameter is monitored by the thermostat
and compared against the current Zone Temperature. If the
current Zone Temperature falls below this value, an alarm
condition is set and the status is displayed on the HVAC (page

2-2) page. In addition, this alarm is sent to the Proliphix web site

to trigger an e-mail notification, if the function is enabled, and
may also be sent as e-mail from this thermostat if configured on
Network - Notification Settings page. See E-mail configuration
on Network Notification Settings (page 2-42).

 Disabled (default) – No low temperature limit is set.

 -30

This is a major (red) alarm condition.

°

F(-34.5°C) to 200°F(93°C)

Alarms Page

Present for Enter how long the condition must be in effect before the alarm

is triggered. Note that the default is 0 minutes and the maximum
time allowed is 240 minutes.

High Temperature Limit Select a value or Disabled to indicate the high temperature

threshold detection status.

The value set by this parameter is monitored by the thermostat
and compared against the current Zone Temperature. If the
current Zone Temperature rises above this value, an alarm
condition is set and the status is displayed on the HVAC (page

2-2) page. In addition, this alarm is sent to the Proliphix web site

to trigger an e-mail notification, if the function is enabled, and
may also be sent as e-mail from this thermostat if configured on
Network - Notification Settings page. See E-mail configuration
on Network Notification Settings (page 2-42).

 Disabled (default) – No high temperature limit is set.

°

 -30

F(-34.5°C) to 200°F(93°C)

This is a major (red) alarm condition.

Present for Enter how long the condition must be in effect before the alarm

is triggered. Note that the default is 0 minutes and the maximum
time allowed is 240 minutes.

Internet Managed Thermostat Configuration Guide, Release 1.0 2-21
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Table 2-5 Alarms - Zone Field Descriptions (Continued)

Field Description

Zone Humidity Alarms

Low Humidity Limit Select a value or Disabled to indicate the low humidity threshold

detection status.

This value is monitored by the thermostat and compared against
the current Relative Humidity. If the current Relative
Humidity rises above this value, an alarm condition is set and
the status is displayed on the HVAC (page 2-2) page. In
addition, this alarm is sent to the Proliphix web site to trigger an
e-mail notification, if the function is enabled, and may also be
sent as e-mail from this thermostat if configured on Network -
Notification Settings page. See E-mail configuration on

Network Notification Settings (page 2-42).

 Disabled (default) – No high humidity limit is set.

 0%RH to 95%RH – High Humidity Limit in 5%

increments.

This is a major (red) alarm condition.

High Humidity Limit Select a value or Disabled to indicate the high humidity

threshold detection status.

This value is monitored by the thermostat and compared against
the current Relative Humidity. If the current Relative
Humidity rises above this value, an alarm condition is set and
the status is displayed on the HVAC (page 2-2) page. In
addition, this alarm is sent to the Proliphix web site to trigger an
e-mail notification, if the function is enabled, and may also be
sent as e-mail from this thermostat if configured on Network -
Notification Settings page. See E-mail configuration on

Network Notification Settings (page 2-42).

 Disabled (default) – No high humidity limit is set.

 0%RH to 95%RH – High Humidity Limit in 5%

increments.

This is a major (red) alarm condition.

Filter Change Reminder

Change Interval (runtime hours) Select an interval in hours to remind you that the HVAC system

requires maintenance. This feature allows you to set time
intervals between changing and/or cleaning the HVAC air filter.
If enabled, an alarm condition is set after the pre-set interval has
expired, and is displayed on the HVAC (page 2-2) page. In
addition, this alarm is sent to the Proliphix web site to trigger an
e-mail notification, if the function is enabled, and may also be
sent as e-mail from this thermostat if configured on Network -
Notification Settings page. See E-mail configuration on

Network Notification Settings (page 2-42).

This is a minor (yellow) alarm condition.

2-22 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Table 2-5 Alarms - Zone Field Descriptions (Continued)

Field Description

Usage to Date Displays a running tally of hours and minutes which have

elapsed since the previous Last Replaced date. If this value is
greater than the preset hours, it is displayed in red and an alarm
is generated indicating that the Change Interval has expired.

Last Replaced Displays the date and time the Filter replaced box was checked

and restarts the interval set within the Change Interval field.

Wired Sensors

The Alarms - Wired Sensors page displays if any of the three remote sensors are
configured.

Figure 2-21 Alarms - Wired Sensors Page

Alarms Page

Internet Managed Thermostat Configuration Guide, Release 1.0 2-23
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Use Table 2-6 to configure the Alarms - Wired Sensors page fields.

Table 2-6 Alarms - Wired Sensors Field Descriptions

Field Description

RS1:, RS2:, and RS3:

Low Temperature Limit Select a value or Disabled to indicate the low temperature

threshold detection status.

The value set by this parameter is monitored by the thermostat
and compared against the current Zone Temperature. If the
current Zone Temperature falls below this value, an alarm
condition is set and the status is displayed on the HVAC (page

2-2) page. In addition, this alarm is sent to the Proliphix web site

to trigger an e-mail notification, if the function is enabled, and
may also be sent as e-mail from this thermostat if configured on
Network: Notification Settings page. See E-mail configuration
on Network Notification Settings (page 2-42).

 Disabled (default) – No low temperature limit is set.

°

 -30

F(-34.5°C) to 200°F(93°C)

This is a major (red) alarm condition.

Present for Enter how long the condition must be in effect before the alarm

is triggered. Note that the default is 0 minutes and the maximum
time allowed is 240 minutes.

Alarm generated at The time the the alarm was generated.

High Temperature Limit Select a value or Disabled to indicate the high temperature

threshold detection status.

The value set by this parameter is monitored by the thermostat
and compared against the current Zone Temperature. If the
current Zone Temperature rises above this value, an alarm
condition is set and the status is displayed on the HVAC (page

2-2) page. In addition, this alarm is sent to the Proliphix web site

to trigger an e-mail notification, if the function is enabled, and
may also be sent as e-mail from this thermostat if configured on
Network: Notification Settings page. See E-mail configuration
on Network Notification Settings (page 2-42).

 Disabled (default) – No high temperature limit is set.

°

 -30

F(-34.5°C) to 200°F(93°C)

This is a major (red) alarm condition.

Present for Enter how long the condition must be in effect before the alarm

is triggered. Note that the default is 0 minutes and the maximum
time allowed is 240 minutes.

2-24 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Sensors Page

The Sensors page displays the local temperature and remote sensor name/type.

Figure 2-22 Sensors Page

Sensors Page

Use Table 2-7 to complete the Sensors page fields.

Table 2-7 Sensors Field Descriptions

Field Description

Local Temperature

Current Reading Displays the current local temperature.

Sensor Correction Indicate the calibration or temperature offset compensation for

Internet Managed Thermostat Configuration Guide, Release 1.0 2-25
Part No. 600-03001-550, Rev. 1

this remote thermal sensor. Offset adjustments are added or
subtracted from the actual temperature read from this sensor and
displayed as the apparent temperature.

°

-10

F (-5.5 °C) through +10°F (5.5C)

The default is 0.

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Table 2-7 Sensors Field Descriptions (Continued)

Field Description

Remote Sensor 1, 2, and 3

Sensor Name Displays the Name (15 characters) for the external thermal

sensor #1/#2/#3.

RS1 / RS2 / RS3

The default is RS1, RS2, RS3.

Type Select the remote sensor type: thermistor or contact to determine

whether or not a temperature sensor or dry contact closure
source is connected to this sensor. (Consult the Proliphix web

site for a list of sensors available in either type.)

 Thermistor – Thermistor-based thermal sensors.

 Contact – Contact-based connections.

The Contact closure option can be used to sense if a door is
open or closed for greater than the number of minutes set on
the Alarms page and then notify you via an alert e-mail. For
example, this option is often used in food service
applications but can be used for any situation where you
need to monitor a Contact closure.

 Unconfigured (default)

 Motion Sensor

State

Group Specifies if the sensor is assigned to Indoor Temp or Outdoor

Temp.

Note: If one ore more of the remote sensors are configured as
witin the Outdoor Temp group, only the first (that is, RS1 then
RS2 then RS3, in that order) are displayed on the thermsotat’s
LCD screen.

Current Reading Displays the current local temperature.

Sensor Correction Indicate the calibration or temperature offset compensation for

this remote thermal sensor. Offset adjustments are added or
subtracted from the actual temperature read from this sensor and
displayed as the apparent temperature.

°

-10

F (-5.5 °C) through +10°F (5.5C)

The default is 0.

2-26 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Advanced Page

The Advanced page displays tabs for the HVAC Settings, Thermostat Settings, and
Override Settings pages.

HVAC Settings

The Advanced - HVAC Settings page displays the HVAC system information,
compressor/interstage delay, and maximum cycles per hour, for example.

Figure 2-23 Advanced - HVAC Settings Page - Fuel Burner

Advanced Page

Internet Managed Thermostat Configuration Guide, Release 1.0 2-27
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Figure 2-24 Advanced - HVAC Settings Page

- Heat Pump

Use Table 2-8 to configure the Advanced Settings fields.

Table 2-8 Advanced Settings Fields - HVAC Field Descriptions

Field Description

HVAC System Type Select the type of HVAC system, either Fuel Burner (default) or

Heat Pump HVAC systems as follows:

 Fuel Burner (default) – The HVAC system burns fossil

fuels (e.g. gas or oil). Typically the system includes either an
oil or gas fired boiler or furnace. See Figure 2-23 on

page 2-27 and continue with If Your HVAC System is a Fuel
Burner (page 2-29).

 Heat Pump – Specifies that the HVAC system is based on

an electric compressor. See Figure 2-24 on page 2-28 and
continue with If Your HVAC System is a Heat Pump (page

2-30).

2-28 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Table 2-8 Advanced Settings Fields - HVAC Field Descriptions (Continued)

Field Description

If Your HVAC System is a Fuel Burner

Heat Control Select the HVAC control for this thermostat. This parameter

describes the thermostat capability to control a single stage or
dual stage heating system. The thermostat can also be disabled
from controlling a heating system and instead operate as a
cool-only thermostat.

 Disable – No heating system exists. (A/C only thermostat.)

 1H – Enables the heating system as a standard single stage

 2H (default) – Enables the heating system as a dual stage

Second Stage Offset Specify the second stage heat set point temperature referenced to

the first stage heat set point temperature. This parameter is only
enabled when 2H Heat Control is selected, otherwise it is
disabled. (e.g. If the first stage temperature set point is set to
70°F, and this parameter were set to -3°F, the second stage heat
would activate at or below 67°F). Temperatures include:

0, -1, -2, -3, -4, -5, -6°F (0, -.25, -.5, -.75, -1, -1.25, -1.5, -1.75,

-2, -2.25, -2.5, -2.75, -3. -3.25, -3.5°C) – Second stage heat

temperature offset from first stage heat set point temperature.

Advanced Page

system.

system.

Cool Control Specify the HVAC control of this thermostat. This parameter

describes the thermostat’s capability to control a single stage or
dual stage cooling system. The thermostat can also be disabled
from controlling a cooling system and instead operate as a
heat-only thermostat. (See Heat Control (page 2-29).)

 Disable – Specifies that there is no cooling system present.

(heat-only thermostat.)

 1C – Enables the cooling system as a standard single stage

system.

 2C (default) – Enables the cooling system as a dual stage

system.

Second Stage Offset Specifies the second stage cool set point temperature referenced

to the first stage cool set point temperature. This parameter is
only enabled when 2H Cool Control is selected, otherwise it is
disabled. (e.g. If the first stage temperature set point is set to
72°F, and this parameter were set to 3°F, the second stage A/C
would activate at or above 75°F). Temperatures include:

0, +1, +2, +3, +4, +5, +6°F (0, -.25, -.5, -.75, -1, -1.25, -1.5,

-1.75, -2, -2.25, -2.5, -2.75, -3. -3.25, -3.5°C) – Second stage

A/C temperature offset from first stage A/C set point
temperature.

Internet Managed Thermostat Configuration Guide, Release 1.0 2-29
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Table 2-8 Advanced Settings Fields - HVAC Field Descriptions (Continued)

Field Description

If Your HVAC System is a Heat Pump

Reverse Valve Polarity Enables you to control the direction of the heating and cooling

modes.

 O - Reverse for Cool – Indicates that the heat pump

normally runs in heat mode and when the reversing valve is
activated then the heat pump will run in cooling mode.

 B - Reverse for Heat – Indicates that the heat pump

normally runs in cool mode and when the reversing valve is
activated then the heat pump will run in heating mode.

Auxiliary Heat Specifies a secondary source of heat outside the heat pump

system, for example, electric baseboard or a gas furnace.

Note: In a dual stage heat pump, Auxilliary Heat is available
only after the 2nd stage is active.

 Disabled – Disables Auxiliary Heat.

 Enabled – Auxilliary Heat can be used while the heat pump

compressor is active.

 Enabled without Compressor – Disables the compressor

when Auxiliary Heat is active.

Heat Control Specifies the HVAC control of this thermostat. This parameter

describes the thermostat’s capability to control a heat pump
system. The thermostat can also be disabled from controlling a
heating system and instead operate as a cool-only thermostat.

 Disabled – Specifies that there is no heating system present.

(A/C only thermostat.)

 1H – Enables the heat pump as a standard single stage

heating system.

 2H (default) – Enables the heat pump as a dual stage heating

system. There are two separate compressor wires from the
heat pump connected to the thermostat.

Second Stage Offset This parameter is only enabled when 2H Heat Control is

selected, otherwise it is disabled.

0,-1, -2, -3, -4, -5, -6°F
(0,-.25,-.5,-.75,-1,-1.25,-1.5,-1.75,-2,-2.25,-2.5,-2.75,-3,-3.25,-3.
5°C)

2-30 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Table 2-8 Advanced Settings Fields - HVAC Field Descriptions (Continued)

Field Description

Cool Control Specifies the HVAC control of this thermostat. This parameter

describes the thermostat’s capability to control a heat pump
system. The thermostat can also be disabled from controlling a
cooling system and instead operate as a heat-only thermostat.

 Disable – Specifies that there is no cooling system present.

 1C – Enables the heat pump as a standard single stage

 2C – Enables the heat pump as a standard dual stage cooling

Second Stage Offset Specifies a secondary source of cool air outside the heat pump

system, for example, electric baseboard or a gas furnace.

This parameter is only enabled when 2C Cool Control is
enabled, otherwise it is disabled.

+0, +2, +3, +4, +5, +6°F
(0,-.25,-.5,-.75,-1,-1.25,-1.5,-1.75,-2,-2.25,-2.5,-2.75,-3,-3.25,-3.
5°C)

Advanced Page

(Heat only thermostat.)

cooling system.

system. There are two separate compressor wires from the
heat pump connected to the thermostat.

Stage Delays

Compressor Delay Specify the minimum time (in minutes) between successive

heating, cooling or heat to cool and cool to heat cycles in heat
pump applications. This parameter ensures a safe heat pump
compressor delay or off time guaranteed between cycles. This
parameter may also be used in fuel burner mode, whereby this
parameter ensures a safe A/C compressor delay or off time
guaranteed between A/C cycles.

 0 – Enables the cooling system to cycle immediately upon

completion of the previous cycle. This is a diagnostic

feature and should not be left in this state or compressor
short cycling and subsequent damage may occur to the
compressor.

 3 through 10 – Time in minutes required between the

completion of a cooling cycle and the next subsequent
cooling cycle. The default delay is 3 minutes.

Interstage Delay

Aux Heat Delay Specifies the delay between the active heat pump cycle (either

Specifies the delay between the 1
activation.

0, 15, 30, 45, 60, 90 - Time in minutes

single or dual stage) and activation of the Auxiliary Heat source.

Note: In a dual stage heat pump, Aux Heat is available only after
the 2nd stage is active.

st

stage activation and 2nd stage

Internet Managed Thermostat Configuration Guide, Release 1.0 2-31
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Table 2-8 Advanced Settings Fields - HVAC Field Descriptions (Continued)

Field Description

Maximum Cycles

Maximum Cool Cycles/Hour Limits the number of cooling cycles every hour. If this value is 3

(default) for example, a cooling cycle can be invoked once in
each of the three 20-minute hourly intervals. In this example, a
subsequent call for cool after the initial cool call in a 20-minute
interval is deferred until the start of the next 20-minute interval.
This feature can be defeated by the user if changes are made to
override the setpoint settings, either at the thermostat or via the
Web page. This feature only applies to scheduled temperature
settings.

 Disabled – This feature is disabled and unlimited cooling

cycles are allowed.

 1-6, 10, 12 – The allowable number of cooling cycles per

hour.

Maximum Heat Cycles/Hour Limits the number of heating cycles every hour. If this value is 5

(default) for example, a cooling cycle can be invoked once in
each of the five 12-minute hourly intervals. In this example, a
subsequent call for heat after the initial heat call in a 12-minute
interval is deferred until the start of the next 12 minute interval.
This feature can be defeated by the user if changes are made to
override the setpoint settings, either at the thermostat or via the
Web page. This feature only applies to scheduled temperature
settings.

 Disabled – This feature is disabled and unlimited heating

cycles are allowed.

 1-6, 10, 12 – The allowable number of heating cycles per

hour.

A/C Humidity Control

A/C Humidity Control Select a relative humidity value from 10% to 90%. when

Enabled. When the measured RH rises above a preset threshold,
the HVAC cooling cycle is initiated. The cycle continues until
the humidity level falls 5% below the trigger level or until a heat
setpoint is encountered. When a heat setpoint is encountered, the
HVAC heating cycle is invoked. After the heat setpoint has been
satisfied, the HVAC cooling cycle (to satisfy humidity
requirements) is delayed for 5 minutes. Humidity control is
intended for moderate moisture control. High humidity
environments should also include secondary dehumidification
equipment.

 Disabled – This feature is disabled and the A/C system may

not be used to reduce humidity.

 Enabled – 10% – 90% - Humidity threshold expressed in

5% increments.

2-32 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Table 2-8 Advanced Settings Fields - HVAC Field Descriptions (Continued)

Field Description

Zone Temperature Averaging

Local Temperature Select Remote Sensors that are configured as Thermistors are

displayed on this page under the Zone Temperature Averaging
field so that they can be used in determining the zone average
temperature. They are either Included in or Excluded from the
zone temperature average.

Advanced Page

RS1, RS2, or RS3 Temperature
Select

Remote Sensors that are configured as Thermistors are
displayed on this page under the Zone Temperature Averaging
field so that they can be used in determining the zone average
temperature. Select to Included in or Excluded from the zone
temperature average.

Internet Managed Thermostat Configuration Guide, Release 1.0 2-33
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Thermostat Settings

The Advanced - Thermostat Settings page displays the HVAC system information,
compressor/interstage delay, and maximum cycles per hour, for example.

Figure 2-25 Advanced - Thermostat Settings Page

Use Table 2-9 to configure the Thermostat Settings fields.

Table 2-9 Advanced - Thermostat Settings Field Descriptions

Field Description

General Thermostat Settings

Temperature Scale Select either the Fahrenheit or Celsius temperature scales.

 Fahrenheit (default) – All thermostat temperature readings

and reporting are displayed in the Fahrenheit temperature

°

scale (

F).

 Celsius – All thermostat temperature readings and reporting

are displayed in the Celsius temperature scale (

Fan on Heat Controls the fan state during heating cycles. In most HVAC

applications the hvac system will wait for the air to warm up
before turning on the fan to circulated the air and the thermostat
does not energize the fan (G) relay. There are some systems
with independent heat sources like electric coils in ducts that rely
on the thermostat to turn on the fan to circulate the air. In this
case you would need to enabel "Fan on Heat."

 Enabled – The fan is forced ‘on’ during heat cycles.

 Disabled – The fan is not forced on during heat cycles.

°

C).

2-34 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Table 2-9 Advanced - Thermostat Settings Field Descriptions (Continued)

Field Description

Setpoint Deadband Establishes the temperature limits above and below the

established setpoint, within which the heating or cooling cycle is
activated and maintained. The anticipator algorithm operates
within this differential range about the setpoint. Optimal comfort
is achieved when this differential is set to 2 (default) or +/- 1°F
about the setpoint. Reduced cycle time is achieved with a larger
differential setting (e.g. 4) or +/- 2 °F about the setpoint.

0,1,2,3,4,5,6,7,8,9,10°F (0,1,2,3,4,5°C)

LCD Button Lockout

Button Lockout When enabled, this feature prevents a user from directly altering

the settings of the thermostat from the thermostat’s button
interface. The button lockout icon appears on the thermostat
LCD screen.

 Disabled (default) – Allows normal thermostat button

 Enabled – Prevents unwanted user access at the thermostat

Advanced Page

activity.

button interface except for limited or no temperature
adjustments.

Setpoint Override

Override Settings

The Advanced - Override Settings page displays the override cool, heat, and AUX
Relay settings, for example.

Figure 2-26 Advanced - Override Settings Page

Internet Managed Thermostat Configuration Guide, Release 1.0 2-35
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Use Table 2-10 to configure the Override Settings fields.

Table 2-10 Advanced - Override Settings Field Descriptions

Field Description

Hold

Allow Hold Indicates if thermostat temperature setting are held independent

of schedule changes due to Event or Daily Profiles
advancements.

 Enabled - Allow the temperature settings to be held for the

duration shown below.

 Disabled - Do not allow the temperature settings to be held.

Hold Mode Duration Specifies the time interval in which the thermostat temperature

setting are held independent of schedule changes due to Event or
Daily Profile advancements.

 Perm – The Hold period is indefinite and the temperature

setting are “held” until the user removes this condition.

 1, 2, 3, 8, 12, 24 Hrs –The amount of time in hours in which

the current temperature setting are “held” and inhibited from
change. The default interval is 3 Hrs.

Note: These durations are observed across Event boundaries.

General Occupancy Override Settings

Cool Setting Displays the cool setpoint to be used while One Button Override

(OBO) is active.

°

40

F(4.5°C) to 110°F(43.5°C)

Heat Setting Displays the current temperature programmed for the heating

system.

°

40

F(4.5°C) to 110°F(43.5°C)

Fan Schedule Specifies the time in minutes of each hour of the Event in which

the fan will be On. The schedule begins on the hour and
advances for the duration specified. Note that within the hour of
each Event but outside the schedule interval, the fan behaves the
same as AUTO mode to ensure proper operation for either a
heating or cooling call to the HVAC system. Select one of the
following options:

 Always Off

 5 On / 15 Off

 10 On / 10 Off

 15 On / 5 Off

 Always On

2-36 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Table 2-10 Advanced - Override Settings Field Descriptions (Continued)

Field Description

Advanced Page

AUX Relay 1

AUX Relay 2

 Active - Activate relay when override is activated.

 Inactive - Inactivate relay when override is activated.

 No Change

 Alarm Managed

 Active - Activate relay when override is activated.

 Inactive - Inactivate relay when override is activated.

 No Change

 Alarm Managed

One Button Override (OBO) Settings

Duration

 Until Cancel

 1, 2, 3, 8, 12, 24 Hrs

Internet Managed Thermostat Configuration Guide, Release 1.0 2-37
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Network Page

The Network page displays tabs for the General, Remote Access, Notification
Settings, and Statistics pages.

Figure 2-27 displays when you access the Network page.

Figure 2-27 Network - Warning: Network Configuration

General

To configure the Network page or view as read only, click the appropriate button.

The Network - General page displays IP address, firewall, and web server
information.

Figure 2-28 Network - General Page

2-38 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Use Table 2-11 to configure the General fields.

Table 2-11 Network - General Field Descriptions

Field Description

IP Addressing

IP Address Method Select the method by which the thermostat receives the unique

Internet Protocol address for the local network. IP addressing
can be either automatically assigned via a local DHCP server or
manually (Static) assigned by the user.

 DHCP (default) – IP addressing method is DHCP assigned.

 Static – IP address is manually assigned by the user.

IP Address Displays the unique Internet Protocol address either assigned

statically or by DHCP. (See IP Address Method.) (You must
click Submit after changing this parameter to invoke a software
reset to set the new value.)

A.B.C.D – Four field standard dot notation for IP address
designation.

Network Page

Subnet Mask Displays the IP subnet on which the thermostat IP address is

assigned.

Default Gateway Displays the IP address of the router which acts as a gateway for

the thermostats to communicate to other devices in another
subnet.

DNS Server Displays the IP address of the Domain Name Server.

MAC Address Displays a factory assigned value installed in the thermostat

which uniquely identifies the thermostat on the local network for
transmitting and receiving network information.

The system displays the MAC address in the format of
00:19:88:AB:CD:EF for IMT550w and 00:11:49:AB:CD:EF for
IMT550c, where AB:CD:EF is a unique value for each
thermostat.

Web Server

HTTPS Port Enter the IP port number of the Web server within the

thermostat.

xyz – Four digit (max) standard IP port number designation for
HTTP access. The default port number is 443.

Allow HTTP

 Disabled

 Enabled

HTTP Port The default is port 80.

Internet Managed Thermostat Configuration Guide, Release 1.0 2-39
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Remote Access

The Network - Remote Access page displays the remote access information.

Figure 2-29 Network - Remote Access Page

Use Table 2-12 to configure the Remote Access fields.

Table 2-12 Network - Remote Access Field Descriptions

Field Description

Software Update Source

Server Address Enter the IP address of the Remote Server for software updates.

Note that this field is pre-configured at the factory with
uem.proliphix.com.

Port Number Enter the outgoing IP port number which is used to communicate

to the remote server. This field is pre-configured at the factory

with the IP port number of the Proliphix Web Server. Do not
change this value.

85 – (default) Port number of the remote server.

2-40 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Table 2-12 Network - Remote Access Field Descriptions (Continued)

Field Description

Remote Server Configuration

Remote Access Controls whether the Remote Server service is enabled. Remote

access is the term used to describe the management and control
of the thermostat from networks outside the local subnet on
which the thermostat resides. Remote access provides the
thermostat with the ability to be controlled from across the
Internet (with the Proliphix UEM).

 Disabled (default) – Remote Server function is disabled.

 Enabled – The thermostat is enabled to participate with the

Server Address Displays the IP address or DNS name of the remote server.

Interval Specifies the frequency of thermostat “calling home” to the

Proliphix server.

Last Attempt Clicking Call Home forces the intercommunication between the

thermostat and the remote server.

 mm.dd.yyyy – Date of last attempt to access the remote

 hh.mm.ss – Time since last attempt to access the remote

Network Page

Proliphix UEM server.

server.

server.

Callhome Attempt State Displays the status (Success or Fail) of last attempt to initiate the

communication to the remote server.

Push Server State

Last Success Displays the date and time of last successful communication

with the remote server.

Last Change Upload Displays the date and time the last change was made to the

thermostat configuration.

Last Observation Upload

Internet Managed Thermostat Configuration Guide, Release 1.0 2-41
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Network Notification Settings

This page is most often used only if the thermostat is not connected to the UEM. An

Note

IT resource would typically use this page to work with their corporate email
servers.

The Network - Notification Settings page displays the e-mail information.

Figure 2-30 Network - Notification Settings Page

Use Table 2-13 to configure the Notification Settings fields.

Table 2-13 Network - Notification Settings Field Descriptions

Field Description

Email Configuration

Mode Select to Enable or Disable e-mail notification.

SMTP Server Specifies the designated e-mail server address or DNS name

through which e-mails are sent.

SMTP Port

SMTP Username Specifies the server authentication username field.

SMTP Password Specifies the server authentication password field.

Password

2-42 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Table 2-13 Network - Notification Settings Field Descriptions (Continued)

Field Description

From Address Specifies the address of source of notification.

To Address Specifies teh address of destination for notifications. Up to 8

e-mail recipients can be identified, separated by semicolons.

E-mail Status

Last Send Status

Last Attempt

Statistics

The Network - Statistics page displays the network traffic information.

Figure 2-31 Network - Statistics Page

Network Page

Internet Managed Thermostat Configuration Guide, Release 1.0 2-43
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Admin Page

The Admin page displays tabs for the General, Date and Time, Installer Information,
Password Settings, Restart, and Software Update pages.

General

The Admin - General page displays the device name, serial number, LCD
information, for example.

Figure 2-32 Admin - General Page

Use Table 2-14 to configure the General fields.

Table 2-14 Admin - General Field Descriptions

Field Description

Zone

Device Name Enter a unique 15 character identifier for the thermostat. You can

use the thermostat location in this field (i.e. Main Lobby). This
identifier is known as the host name within the data network.

Thermostat

Serial Number Displays an eight digit alpha-numeric thermostat serial number

(e.g. 8438F399).

Software Version Displays the current software version.

Software Build Date Displays the date and time the current version of software.

Hardware Revision Displays the hardware revision.

2-44 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Table 2-14 Admin - General Field Descriptions (Continued)

Field Description

LCD Settings

LCD Unlock Keycode

Backlight Select the LCD backlight control.

 Delay (default) – The backlight is illuminated when you

 On – The backlight is enabled.

 Off – The backlight is disabled from activation. A low level

Date and Time

The Admin - Set Date and Time page displays the network time and time zone
information.

Admin Page

click a button and remains illuminated for 16 seconds after
the last button is clicked.

ambient backlight remains visible.

Figure 2-33 Admin - Date and Time Page

Internet Managed Thermostat Configuration Guide, Release 1.0 2-45
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Use Table 2-15 to configure the Admin - Date and Time fields.

Table 2-15 Admin - Date and Time Field Descriptions

Field Description

Network Time
Synchronization

Network Time Protocol (NTP)

NTP Timeserver

Thermostat Timezone

Timezone of Thermostat Displays the current timezone.

Observe DST Click to adjust the time for Daylight Savings Time.

Manually Set Date and Time

New Date Enter a new date.

New Time Enter a new time.

Use web browser date and time Click to use configure date and time using browser date and

Installer Information

The Installer Information page contains contact information for the installer. Enter
the information as necessary.

 Enabled

 Disabled

time.

Figure 2-34 Admin - Installer Information Page

2-46 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

Password Settings

The Admin - Password Settings page enables you to modify the Admin password.

Figure 2-35 Admin - Password Settings Page

Use Table 2-16 to configure the Admin - Password Settings page.

Table 2-16 Admin - Password Settings Field Descriptions

Admin Page

Restart

Field Description

Change Admin Password

New Password Enter an alpha-numeric password for the Administrator

(admin) account. The password is case sensitive and limited to
15 alpha-numeric characters. The default password is admin.

Re-enter Password to Confirm Re-enter your password.

The Admin - Restart page enables you to restart the thermostat.

Figure 2-36 Admin - Restart Page

Internet Managed Thermostat Configuration Guide, Release 1.0 2-47
Part No. 600-03001-550, Rev. 1

Beta Draft Confidential

CHAPTER 2: Configuring the Thermostat Using the Web Interface

Software Update

The Admin - Software Update page enables you to check for and download any
updates to the thermostat. Check the box and click Submit.

Figure 2-37 Admin - Software Update Page

2-48 Internet Managed Thermostat Configuration Guide, Release 1.0

Part No. 600-03001-550, Rev. 1

Beta Draft Confidential
