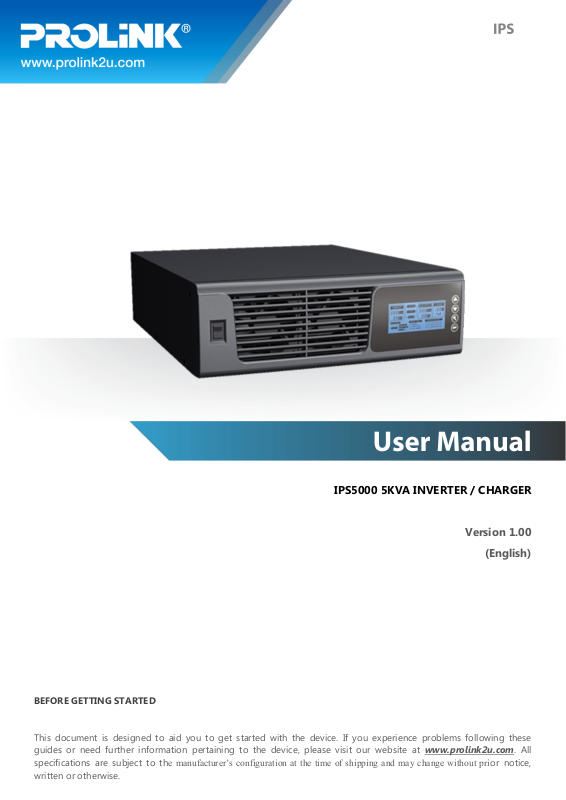

IPS5000 5KVA INVERTER / CHARGER
Version 1.00
(English)
BEFORE GETTING STARTED
This document is designed to aid you to get started with the device. If you experience problems following these
guides or need further information pertaining to the device, please visit our website at www.prolink2u.com. All
specifications are subject to the manufacturer’s configuration at the time of shipping and may change without prior notice,
written or otherwise.
Contents
ABOUT THIS MANUAL ........................................................................................................................................ - 2 -
Purpose................................................................................................................................................................ - 2 -
Scope ...................................................................................................................................................................- 2 -
IMPORTANT SAFETY INSTRUCTIONS............................................................................................................ - 2 -
General Precautions ..........................................................................................................................................- 2 -
Personal Precautions......................................................................................................................................... - 3 -
INSTALLATION ...................................................................................................................................................... - 4 -
Unpacking and Inspection................................................................................................................................. - 4 -
Basic Configuration ............................................................................................................................................ - 4 -
Batteries............................................................................................................................................................... - 6 -
Battery Cable Size.............................................................................................................................................. - 6 -
DC Disconnect and Over-Current Protection ................................................................................................. - 6 -
Battery Cable Connection ................................................................................................................................. - 7 -
AC Cable Size..................................................................................................................................................... - 7 -
AC Connections.................................................................................................................................................. - 8 -
OPERATION ........................................................................................................................................................... - 9 -
Front Panel Controls and LCD Indicators ....................................................................................................... - 9 -
Power ON/OFF ................................................................................................................................................... - 9 -
Configuration Switch .......................................................................................................................................... - 9 -
LCD Indicator .................................................................................................................................................... - 10 -
Battery Charger................................................................................................................................................. - 11 -
Circuit Breaker .................................................................................................................................................. - 11 -
SPECIFICATIONS................................................................................................................................................ - 12 -
Table 5 Line Mode Specifications................................................................................................................... - 12 -
Table 6 Inverter Mode Specifications............................................................................................................. - 13 -
Table 7 Charge Mode Specifications ............................................................................................................. - 14 -
Table 8 General Specifications ....................................................................................................................... - 15 -
Table 9 Fault code/ Audible alarm.................................................................................................................. - 15 -
TROUBLESHOOTING ........................................................................................................................................ - 16 -
- 1 -
ABOUT THIS MANUAL
Purpose
This purpose of this manual is to provide explanations and procedures for installing, operating and
troubleshooting for the unit. This manual should be read carefully before installations and
operations. Please retain this manual for future reference.
Scope
This document defines the functional requirements of the unit, intended for worldwide use in
electronic processing equipment. All manuals are applicable under all operating conditions when
installed in the End Use system, unless otherwise stated.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This chapter contains important safety and operating instructions. Read and
keep this User Guide for future reference.
General Precautions
1. Before using the unit, read all instructions and cautionary markings on:
(1) The unit (2) the batteries (3) all appropriate sections of this manual.
2. CAUTION --To reduce risk of injury, charge only deep-cycle lead acid type rechargeable batteries.
Other types of batteries may burst, causing personal injury and damage.
3. Do not expose the unit to rain, snow or liquids of any type. The unit is designed for indoor use
only. Protect the unit from splashing if used in vehicle applications.
4. Do not disassemble the unit. Take it to a qualified service center when service or repair is
required. Incorrect re-assembly may result in a risk of electric shock or fire.
5. To reduce risk of electric shock, disconnect all wiring before attempting any maintenance or
cleaning. Turning off the unit will not reduce this risk.
6. WARNING: WORKING IN VICINITY OF A LEAD ACID BATTERY IS DANGEROUS.
BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. Provide
ventilation to outdoors from the battery compartment. The battery enclosure should be designed
to prevent accumulation and concentration of hydrogen gas in “pockets” at the top of the
compartment. Vent the battery compartment from the highest point. A sloped lid can also be used
to direct the flow to the vent opening location.
7. NEVER charge a frozen battery.
8. No terminals or lugs are required for hook-up of the AC wiring. AC wiring must be no less than 10
o
AWG gauge copper wire and rated for 75
higher and should be no less than table 1. Crimped and sealed copper ring terminal lugs with a
5/16 hole should be used to connect the battery cables to the DC terminals of the unit. Soldered
cable lugs are also acceptable.
C or higher. Battery cables must be rated for 75oC or
- 2 -
9. Be extra cautious when working with metal tools on, or around batteries. The potential exists to
drop a tool and short-circuit the batteries or other electrical parts resulting in sparks that could
cause an explosion.
10. No AC or DC disconnects are provided as an integral part of this unit. Both AC and DC
disconnects must be provided as part of the system installation. See INSTALLATION section of
this manual.
11. No over current protection for the battery supply is provided as an integral part of this unit. Over
current protection of the battery cables must be provided as part of the system installation. See
INSTALLATION section of this manual.
12. GROUNDING INSTRUCTIONS -This battery charger should be connected to a grounded
permanent wiring system. For most installations, the Ground Lug should be bonded to the
grounding system at one (and only one point) in the system. All installations should comply with
all national and local codes and ordinances.
Personal Precautions
1. Someone should be within range of your voice to come to your aid when you work near batteries.
2. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes.
3. Wear complete eye protection and clothing protection. Avoid touching eyes while working near
batteries. Wash your hands when done.
4. If battery acid contacts skin or clothing, wash immediately soap and water. If acid enters eyes,
immediately flood eyes with running cool water for at least 15 minutes and get medical attention
immediately.
5. Baking soda neutralizes lead acid battery electrolyte. Keep a supply on hand in the area of the
batteries.
6. NEVER smoke or allow a spark or flame in vicinity of a battery or generator.
7. Be extra cautious when working with metal tools on, and around batteries. Potential exists to
short-circuit the batteries or other electrical parts which may result in a spark which could cause
an explosion.
8. Remove personal metal items such as rings, bracelets, necklaces, and watches when working
with a battery. A battery can produce a short-circuit current high enough to weld a ring, or the like,
to metal causing severe burns.
9. If a remote or automatic generator start system is used, disable the automatic starting circuit
and/or disconnect the generator from its starting battery while servicing to prevent accidental
starting during servicing.
- 3 -
INSTALLATION
Unpacking and Inspection
Carefully unpack the inverter/charger from its shipping carton.
Verify all of items list below are present. Please call customer service if any items are missing.
y The unit
y 1 DC red cable
y 1 DC black cable
y 1 user’s manual
Basic Configuration
The following illustrations show basic applications for IPS5000 5KVa.
They include the following configurations:
y Utility Backup. see figure 1-1
y Renewable Energy Source And a Generator, see figure 1-2
Consult with your system design for other possible configurations depending on site or code
requirements.
Main Electrical Panel
Inverex S 5KVA
Vent
（outlet）
Battery Enclosure
(if used)
Battery Bank
Vent
（inlet）
IPS5000
AC Distribution Panel
(Sub-Panel)
AC I/P
AC O/P
To Primary System Ground
AC Loads
Figure 1-1 Utility Backup
- 4 -
DC Diversion Load
(for Wind Generator)
Diversion Load
Controller
DC Disconnect
Wind
Conduit
(if used)
DC
Disconnect
Photovoltaic
DC Combiner Box
IPS5000
Inverex S 5KVA
DC Disconnect
and PVGFP
DC Charger
Controller
DC
Disconnect
AC I/P
Hydro
DC Diversion Load
(for Hydro Generator)
Diversion Load
AC Generator
Generator
Disconnect
Controller
Vent
（outlet）
AC O/P
AC Loads
Battery Enclosure
(if used)
Vent
（inlet）
Battery Bank
To Primary System Ground
Figure 1-2 Renewable Energy Source
IPS5000 5KVA Inverter can feeds almost all kinds of appliances from home to office environment,
including motor characteristic appliances like tube light, fan, refrigerator and Air conditioner.
Note: Appliances like Air conditioner needs at least 3 minutes to restart in case of a power shortage
occurs in a way that the power turns off then back on again rapidly (time is required to balance
the refrigerant gas in inside circuit); so in order to protect your Air conditioner, please consult
the Air conditioner manufacturer whether they have already provided time delay function
before installing. Otherwise, Inverter will trig overload fault and shut off its output to protect
your appliance but sometimes it is not enough and your Air conditioner can be damaged
internally beyond repair.
- 5 -
Batteries
The unit support either 48 volt or 96 volt battery bank depending on the model. Please refer to
figure 2 to wiring battery correctly. Before proceeding, ensure you have appropriate size batteries
for this inverter. The unit can use flooded lead-acid, or sealed GEL/AGM lead-acid batteries so
ensure that your batteries are in one of these categories.
The battery must be wired to match the units DC input voltage specifications. Suggest battery
capacity not smaller than 100AH (IPS5000R)/50AH (IPS5000L).
Inverter Unit
Figure 2-1 IPS5000R batteries string wiring
Inverter Unit
Figure 2-2 IPS5000L batteries string wiring
Battery Cable Size
Below table 1 you can find information for minimum recommended battery cable size. Be sure the
cable you select no smaller than this.
Model Number Typical Amperage 1~3 m one-way Torque value
IPS5000R 100 A 4 AWG 10~15 Nm
IPS5000L 50 A 6 AWG 10~15 Nm
Table 1 Minimum recommended battery cable size
DC Disconnect and Over-Current Protection
For safety and to comply with regulations, battery over-current protection and disconnect devices
are required. Fuses and disconnects must be sized to protect the DC cable size used, and must be
rated for DC operation. Do not use devices rated only for AC service – they will not function
properly.
Note that some installation requirements may not require a disconnect device, although
over-current protection is still required.
- 6 -
Battery Cable Connection
Observe Battery Polarity! Place the ring terminal of DC cable over the bolt and directly against the
unit’s battery terminal. Tighten the M8 screw to 5-8 Nm. Do not place anything between the flat
part of the Backup System terminal and the battery cable ring terminal or overheating may
occur. DO NOT APPLY ANY TYPE OF ANTI-OXIDANT PASTE TO TERMINALS UNTIL AFTER
THE BATTERY CABLE WIRING IS TORQUED!!
Figure 3 illustrates the proper method to connect the battery cables to the unit terminals.
WARNING: Shock Hazard
Installation must be performed with care for the high battery voltage in series.
Caution!! Do NOT place anything between battery cable ring terminals and terminals on
the inverter. The terminal screw is not designed to carry current.
Apply Anti-oxidant paste to terminals AFTER terminals have been screwed.
Verify that cable lugs are flush with
Nm).
the battery terminals. Tighten battery cables to terminals (10~15
Figure 3 Battery Cable Connections to unit
AC Cable Size
Before wiring the input and output of inverter, refer to table 2 for minimum recommended cable size
and torque value
Model Number AC Input AC Output Torque value
IPS5000R 10 AWG 10 AWG 1.2~1.8 Nm
IPS5000L 10 AWG 10 AWG 1.2~1.8 Nm
Table 2 Min recommended cable size, torque value for AC wiring
- 7 -
AC Connections
Installation should be done by a qualified electrician. Consult local code for the proper wire sizes,
connectors and conduit requirements.
On the left of rear chassis is the AC hardwire cover. A six-station terminal block is provided to make
the AC connections. The terminal block is used to hardwire the AC input, AC output, and ground.
The National Electrical Code requires that an external disconnect switch be used in the AC input
wiring circuit. The AC breakers in a sub panel will meet this requirement.
Step 1- Disconnect the unit from the battery either by turning off the battery switch or removing the
battery cables from the battery. Turning off the unit does not constitute disconnecting from the
battery.
Step 2- Feed the wires through cable clamp and AC cover. See Figure 4.
Figure 4 AC Cable Connections to unit
Step 3- Following the wiring guide located in the AC wiring compartment as Figure 4, connect the
GND (green/yellow), Line (brown), and neutral (blue) wires from the AC input (utility, generator, etc)
to the terminal block.
Caution!! Be sure that AC source is disconnected before attempting to hardwire it to
the unit.
Step 4- Connect the AC Line output wiring to the terminal marked AC Line (output) following the
wiring guide inside the compartment. Connect the AC neutral out to the AC neutral out terminal.
Torque the wires into the terminal block.
Step 5- Use the two M3 screws to lock the AC cover.
Step 6-Tighten the clamps on the AC cable jackets (not the individual wires) to provide strain relief
for the connections.
- 8 -
OPERATION
Front Panel Controls and LCD Indicators
Shown below figure 5 are the controls and indicator lights on the front of the unit. They control and
provide information in either inverter or battery charging mode of operation.
On/Off
switch
Power ON/OFF
Figure 5 Front Panel
LCD indicator
Configuration switch
Located on the left of the panel is the ON/OFF Switch. Once the unit has been properly installed
and the batteries are connected, press this switch to on position will turn on the unit.
Configuration Switch
On the right of panel is the 4 configuration switches which setup unit operation parameter. See table
3 for details.
Switch Function Description
After you press configuration button and enter configuration mode, there are 4 configuration pages
totally. Turn page by press configuration button again.
Page Description Selectable option
1 Input range Normal/generator/wide range
up Move up to pre-select
down Move down to pre-select
configuration Enter configuration mode, and turn page
enter Enter to confirm
Table 3 configuration button function
2 Output range 220v/230v/240v
3 Battery type AGM/GEL/FLOODED
4 Charger current 35A/20A(IPS5000R) 20A/10A(IPS5000L)
5 Saver mode ON/OFF
Note: The 220v and 240v output function is reversed for further feature.
Table 4 configuration button function
- 9 -
LCD Indicator
Comprehensive LCD display provides system status, and user-friendly panel eases program
settings. See Figure 6.
Figure 6 LCD display interface
y AC Mode Indicator
The line mode symbol will show up and the indicator present input voltage, output voltage, load
information.
y Inverter Mode Indicator
The inverter mode symbol will show up and the indicator present input voltage, output voltage, load
information.
The battery capacity segment indicate the battery capacity depend on the battery voltage level.
y Charging Indicator
When line mode and input within range, the charging symbol will show up. And battery capacity
segment will roll flashing in turn basing on capacity.
y Charger mode battery indicator
Status Battery Capacity
5 4 3 2 1
75%~100% ON Flash1 Solid on Solid on Solid on
50%~75% ON Flash2 Flash1 Solid on Solid on
CC/CV
Floating Full ON Solid on Solid on Solid on Solid on
y Inverter mode battery indicator
Battery Capacity
Low battery alarm flash
25%~50% ON Flash3 Flash2 Flash1 Solid on
0%~25% ON Flash4 Flash3 Flash2 Flash1
Low battery flash Flash4 Flash3 Flash2 Flash1
5 4 3 2 1 ALARM
Full ON ON ON ON ON -75% left
50% left
25% left ON
0% left ON
Low battery off flash
ON OFF
ON OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
ON ON ON --
- 10 -
ON ON --
ON -OFF -OFF 1beep/2s
OFF --
y Load indicator
The load indicate the load percentage comply with load VA or W(show the bigger value), the overload
label will flash when overload exist.
Battery Charger
y Inverter to Charger Transition
The internal battery charger and automatic transfer relay allow the unit to operate as either a
battery charger or inverter (but not both at the same time). The unit automatically becomes a
battery charger whenever AC power is supplied to its AC input. The unit’s AC input is internally
connected to the inverter’s AC output while in the battery charger mode.
y Charger Terminology
1. Constant Current Stage- During this charge cycle, the batteries are charged at a constant
current.
2. Constant Voltage Stage- During this charge cycle, the batteries are held at the constant
voltage (14.1V/battery AGM&GEL, 14.6v/battery FLOODED) and accept whatever current (less
than the current in CC stage) is required to maintain this voltage. This ensures fully charging.
3. Floating Stage- During this charge cycle, the batteries are held at the float voltage
(13.5V/battery).
If the A/C is reconnected, the charger will reset the cycle above.
If the charge maintains the float state for 21 days, the charger will reset the cycle.
Circuit Breaker
The unit contains one input circuit breakers located on the rear panel of the chassis, which close to
the AC input terminal block. The INPUT PROTECT circuit breaker protects the charger circuit and
bypass circuit. The circuit breaker will trig out once input over current. Reset the circuit breaker by
press the handspike.
- 11 -
SPECIFICATIONS
Table 5 Line Mode Specifications
MODEL IPS5000R IPS5000L
Input Voltage Waveform
Nominal Input Voltage
Low Line Disconnect
Low Line Re-connect
High Line Disconnect
High Line Re-connect
Max AC Input Voltage
Nominal Input Frequency
Low Line Frequency Disconnect
Low Line Frequency
Re-connect
High Line Frequency Disconnect
High Line Frequency Re-connect
Output Voltage Waveform
Output Short Circuit Protection
Efficiency (Line Mode)
Transfer Switch Rating
Transfer Time
(AC to DC)
Transfer Time
(DC to AC)
Sinusoidal (utility or generator)
230Vac
170Vac (Normal)
90Vac (generator/Wide range)
180Vac (Normal)
100Vac (generator/Wide range)
280Vac
270Vac
300Vac rms
50Hz / 60Hz (Auto detection)
40±1Hz
42±1Hz
65±1Hz
63±1Hz
As same as Input Waveform
Circuit Breaker 40A
>95%
40A
10ms (typical)
20ms (typical)
10ms (typical)
20ms (typical)
Max Output power
Power Limitation
5KVA/4.2KW
2.5KVA/2.1KW
- 12 -
90V 180V
Input Voltage
Table 6 Inverter Mode Specifications
MODEL IPS5000R IPS5000L
Output Voltage Waveform
Rated Output Power(VA)
Power Factor
Nominal Output Voltage(V)
Output Frequency(Hz)
Output Voltage Regulation
Nominal Efficiency
Over-Load Protection
Surge rating
Capable of starting electric motor
Output Short Circuit Protection
Bypass Breaker Size
Nominal DC Input Voltage
Min DC start voltage
Low DC Alarm
Low DC Alarm Recovery
Low DC Shut-down
Pure Sine Wave
5000
0.84
230Vac
50Hz / 60Hz ± 1Hz
±10% rms
>90%
fault after 5s@≥150% load,
fault after 10s@110%~150% load,
10000VA
2.5HP
Current limit (Fault after 4 cycles max)
40A
48V 96V
40V 80V
42.0 ± 1.2Vdc 84.0± 2.4Vdc
43.2 ± 1.2Vdc 86.4± 2.4Vdc
40.0±1.2Vdc 80.0±2.4Vdc
Low DC Shut-down Recovery
High DC Shut-down
High DC Shut-down Recovery
Power saver setting
Tare loss(nominal)
DC component of AC output
Half wave load detection
Power Limitation
Note: Necessary condition for DC low recovery is: Line voltage must be available for charging.
44.0±1.2Vdc 88.0±2.4Vdc
60.0±1.2Vdc 120.0 ±2.4Vdc
58.0±1.2Vdc 116.0 ±2.4Vdc
0W (Set “OFF” at LCD)
10±5W enter 5+/-2w leave (Set “ON” at LCD)
Saver OFF:<50w
Saver ON:<10w
<100mv
Yes(when unbalance current>35A)
- 13 -
Table 7 Charge Mode Specifications
MODEL IPS5000R IPS5000L
Nominal Input Voltage
Input Voltage Range
Nominal Output Voltage
20A(95-175v,gen/wide,only),
Nominal Charge Current
Battery initial voltage(sps setup)
Charger Short Circuit Protection
Over Charge Protection
Charge Algorithm
35A(175-275v)@35A setting
20A(175v-275v)@20A setting)
Bat. V ≥60Vdc, Fault, Buzzer alarm Bat. V ≥120Vdc,Fault, Buzzer alarm
Three stage:
Boost CC (constant current stage) → Boost CV (constant voltage
stage) → Float (constant voltage stage)
230Vac
180V~ 270Vac(Normal range)
100V~ 270Vac(generator/wide range)
According to the battery type
10A(95-175v,gen/wide,only),
20A(175-275v)@20A setting
10A(175v-275v)@10A setting)
>35Vdc >70Vdc
Unit shutdown automatic
Boost CC/CV Float
Battery Type Setting(±0.3v/bat)
Charger current (+/-10%)
Battery Type
Flooded 58.4 116.8 53.6 108
AGM/Gel 56.4 112.8 54 108
NOTE: data definition=IPS5000L (IPS5000R)
Voltage(V) Voltage(V)
48 96 48 96
- 14 -
Table 8 General Specifications
Safety Certification
EMI Classification
Operating Temperature Range
Storage temperature
Altitude, operational
Relative humidity
Audible Noise
Cooling
Dimension
Net Weight
CE(EN60950)
EN62040-2, CLASS A
0°C to 45°C
-15°C ~ 60°C
Elevation: 0 ~ 1500 Meters
5% to 95% non-condensing
60dB max
Forced air, variable speed fan
350mm（W）*110mm（H）*407mm（D）
9KG
Table 9 Fault code/ Audible alarm
Fault
Code
--
0
1
1
Protect
Function
Low DC
Voltage
Alarm
Low DC
Voltage
Protection
Over
Charge
Protection
Over
Voltage
Protection
Active
Mode
Inverter
Inverter
Line
Standby
Condition
DC voltage<Low
DC Alarm
DC
Voltage<Low
DC Shut-down
DC
Voltage>High
DC input
Shut-down
DC
Voltage>High
DC input
Shut-down
Warning
(O/P=ON)
1beep/2s -- -- --
--
Beep
continuous
--
Fault
(O/P=OFF)
Beep
continuous
-- Manual --
Beep
continuous
Operate Condition
Auto Mains is normal
Auto
Restart
Voltage<High
DC input
Shut-down
Recovery
DC
2
3
4
5
6
9
Over Load
Protection
Output
Short Circuit
Protection
Fan Fault
Protection
Over Temp
Protection
Back-EMF
Protection
Output
Abnormal
Line/
Inverter
Inverter
Line/
Inverter
Line/
Inverter
Standby
Inverter
110%~150%
load
>150% load
Output
Voltage<20Vrms
Fan Locked
Fan Defected
HEAT SINK
Temp≥100℃
Reverse input
and output
(Output Voltage
<170Vrms and
output current
under 32Arms)
or Output
Voltage
>280Vrms
1beep/0.5s,and
continuous 10s
1beep/0.5s,and
continuous 5s
--
2beep/2s,and
continuous
1min
--
--
--
- 15 -
Beep
continuous
Beep
continuous
Beep
continuous
Beep
continuous
Beep
continuous
Beep
continuous
Beep
continuous
Manual --
Manual --
Manual --
Manual --
Auto
Manual --
Manual --
HEAT SINK
Temp≤ 55℃
TROUBLESHOOTING
Problem Possible Causes Remedy
1. Battery Weak
(<35V for IPS5000R, <70V
for IPS5000L)
2. Battery defective (can't be
No LCD display
Mains normal but
works in inverter mode
Alarm buzzer beeps
continuously
Back up time is
shortened
charged)
3. Power switch is not
pressed
4. Battery polarity reversed,
can’t start up the unit
1. AC Input missing 1. Check AC input connection
2. Input protector is effective 2. Reset the input protector
1. Overload
2. Output short circuit 2. Check wiring or remove abnormal load
3. Over temp 3. Move away barrier in front of airflow inlet
4. Over charger 4. Restart the unit
5. Over voltage
6. Fan fault
7. Back-EMF 7. Check the AC Input and output wire connection
8. DC voltage under the low
DC shut-down
1. Overload 1. Remove some non-critical load
2. Battery voltage is too low 2. Charge battery for 8 hours or more
3. Battery bank is too small 3. Increase battery bank capacity
1. Re-charge battery
2. Battery replacement
3. Press and hold power switch
4. Sent back for repair
1. Verify that the load matches the capability
specified in the specs
5. lower the DC input voltage under the high DC
input shut-down recovery (58.0±1.2Vdc for
IPS5000R, 116V+/-2.4Vdc for IPS5000L)
6. Check if something block the fan, if not replace
the fan
8. Make sure mains is normal to recharger the
battery if not switch the power off until mains is
normal
- 16 -
Register Online For Your Product Warranty @ www.prolink2u.com/register
PROLiNK® is a trademark of FIDA INTERNATIONAL (S) PTE LTD and is manufactured under its authority. All other brands, products,
services, logos and company names mentioned herein are trademarks of their respective owners. All specifications, designs and contents
are subject to changes without prior notice. © Copyright 2012. PROLiNK® all rights reserved.
Loading...
