Section One - Introduction
The Hurricane 8800P provi des Full rate (ANSI and G.DMT) as well as G. lite ADSL standards l ine support, and can be connected to PC through Ether net. This product supports bridge feature set for the integration of ADSL service into corpor ate or home LAN and WAN.
1.1 System Requirements
Befor e connecting the Hurricane 8800P to your PC, make sure your sysytem is equipped with the Ethernet NIC card and TCP/IP protocol.
1.2 Features Summary
ADSL S upport • ANSI ( T1.413 Iss ue 2 )
• G.dmt ( ITU G.992.1 )
• G.lite ( ITU G.992.2 )
• G.hs ( ITU G.994.1 )
• Power cutback (G.lite only ) LAN Support • IEEE 802.3 10/100 Base-T band CSMA/CD ATM Support • ATM signaling UNI 3.1& 4.0
• Multi ple Protocol over AAL5 (RFC 1483 )
• AAL0, AAL2, AAL5
• VC and LLC based Multipl exing
• ATM S ervice Class: UBR/VBR/CBR
• VCs Bridging Support • Trans parent bridging(RFC 1483) support
Section One: Introduction
4
Section One: Introduction
1.3 Equipm ent Performance
1.3.1 ATM layer
The equipment will be fully compatible with the showed on the figure 1of the ANSI T1.413-1998
1. Adaptation layer The modem will implement the adaptation layer AAL5, as requested by the recommendation ITU I.363.5
2. VCs Support for non-zero VPIs is limit to PVCs only.The full VPI range(0~4095) is supported.The full VCI range(1~65536) is supported. Low-numbered VCIs on VPI0 are looked up.
3. Servi ce class The modem will support : CBR,UBR,rt-VBR,nrt-VBR
4. OAM streams The modem supports OAM F5 s tream.
5. ATM signaling & ILMI The modem suppor ts ATM Formun UNI 3.0,3.1,UNI4.0& IISP signaling bas ed on UNI3.0 or UNI3.1 using SSCOP as a data transport.The implementation of ILMI is based on the ATM Forum's ILMI v4.0 specification.
1.3.2 Protocols
1. Br idge It provides a tr ansparent and a spanning-tree bridge.
2. RFC 1483 br idged The RFC in use i s the 2684, , the 1483 and 2684 are admitted for LLC encaps ulation and VC multiplexing for bridged traffic.
5
3. PPPoE relay It is used to transport PPP traffic over Ethernet.
4. PPP oEthernet client (RFC 2516) Authentifi cation is supported by PAP & CHAP protocols. The RFC 2516 supports for multiple PVCs,with each VC suppo rting a single PPPoE session (different ISPs over different PVCs)
5. BO OTP/TFTP client Systems can be booted over Ethernet using BOOTP/TFTP. Once there is a running image on the ASSP, the images and/or configuration stored in flash can be updated using TFTP.
6. TELNE T server The modem provides a sim ple telnet server that allows administrative acces s to the platform over TCP/IP. The implementation supports only a single session at a time.
Section One: Introduction
6
Section Two: C onnect the Bridge/Ro uter
Section Two - Connect the Bridge/Router
2.1 This Package contents
1. ADS L Bridge/Router
2. RJ-45 straight cable
3. RJ-11 telephone cable
4. RS-232 cable
5. 5V DC Power Adaptor
6. CD with Configuration Tools
7. User's Manual
For any missing items, Please contact your dealer immediately.
1.
2
3
4
5.
6. & 7.
7

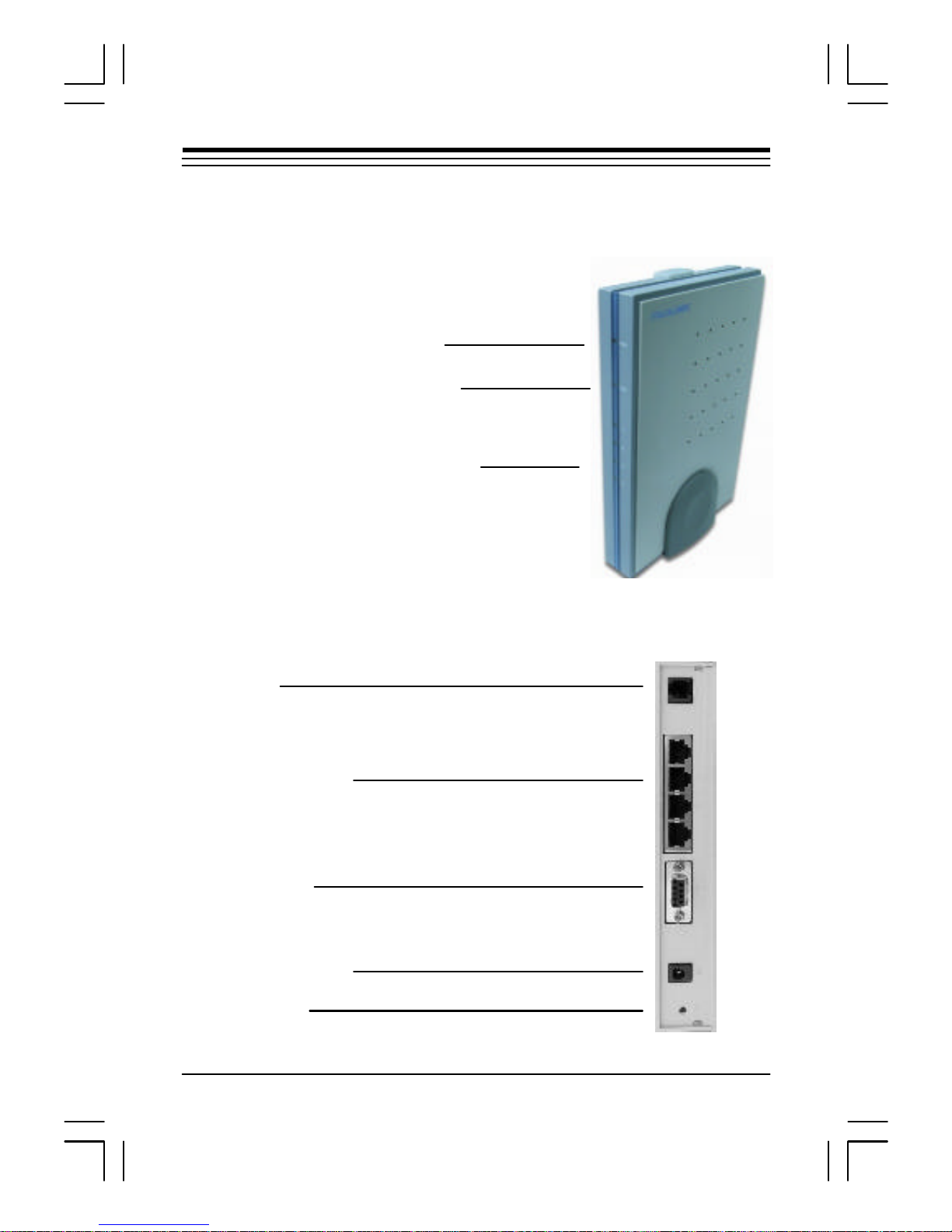

Power LED (In red color) Light ON once detected.
ADSL LED (In green color) Light ON when the connection is ON.
LAN LED x 4 (In green color) Keeps on, Light blinks during data transfer
Line Jack
For RJ-11, to connect to ADS L Line
Power Connector
LAN Connectors
For RJ-45, to connect to P Cs/HUB
Console Port
For RS-232, to connect to Serial Port
Reset Button
2.2 Product View
Section Two: C onnect the Bridge/Ro uter
8
2.3 Hardware Installation
The following steps instruct you to install the Hurricane 8800P for one com puter. for more than four computers, please refer to 2.4 Network Connection.
1. Turn off the com puter.
2. Plug the end of the Ether net cable into any one connector marked 1 2
3 4 at the back of the router.
3. Plug the other end of the Ethernet cable into your computer's RJ45 jack
of Ethernet card.
4. Connect the AC Power adaptor to the Jack.
5. Plug the telephone cable into the connector marked at the back of
the router.
6. Plug the other end of the telephone cable into a Phone Socket .
Section Two: C onnect the Bridge/Ro uter
Power Adaptor
Micro filter
RJ-11 Cable
Strai ght RJ-45 Cable
Strai ght RJ-45 Cable
Main Phone Socket
9
2.4 Network Connections
2.4.1 for four PCs
2.4.2 for more than four PCs
Section Two: C onnect the Bridge/Router
ADSL
RJ-11
RJ-45
RJ-45
RJ-45
RJ-45
Straight Cable to Uplink port or Cross Cable to normal port
RJ-45
ADSL
RJ-11
RJ-45
HUB/S WITCH
RJ-45
10
Section Three - Configure the PCs
The ins tructions in this section will help you configure each of your computers to be able to communicate with the Router. To do this, you need to configure your PC’s network settings to obtain an IP address or get it automatically from the DHCP of the router. Computers use IP addresses to communicate with each other across a network, such as the Internet.
3.1 specify an static IP for your com puter.
•Set IP Address to 192.168.101.X (X:2~254)
•Set S ubnet Mask to 255.255.255.0
•Add Gateway to 192.168.101.1
•DNS Ser ver to Local DNS (e.g. 165.21.83.88)
For Windows 95/98/ME Control Panel >Network>TCP/IP of your LAN card
Section Three: C onfigure the PCs
11
For Windows XP
1. Click the Start button and then Control Panel. From there, click the Network and Internet Connections icon. Then click the Network
Connections i con.
2.Select the Local Area Connection icon for the appli cable Ethernet adapter Doubl e-click the Local Area Connection. Click the Properties button.
Section Three: C onfigure the PCs
12
3.2 Verify the link between your PC and Router
a) From start > Run b) Enter ping 192.168.101.1 –t and click OK c) If the connection has been established, You will r eceive reply from
the router.
d) If you receive “Request timed out”, that means the link has not been
establ ished, pls. check the network cable and IP address.
NOTES:
1.You may have to disable the proxy settings on your Internet browser . Tools>Internet Options>Connection>LAN settings>Disable Proxy Server
2. Make sure that your browser is set to connect directly .
For Inter net Explorer, click Tools, Internet Options, and then the Connection tab. Make sure that Internet Explorer is set to Never dial a connection.
For Netscape Navigator, cl ick Edit, Preferences, Advanced, and Proxy Make s ure that Netscape Navigator is set to Direct connection to the
Internet.
Section Three: C onfigure the PCs
13
Section Four: Configure th e Bridge/Router
Section Four - Configure the Bridge/Router
4.1. Description of Web configuration.

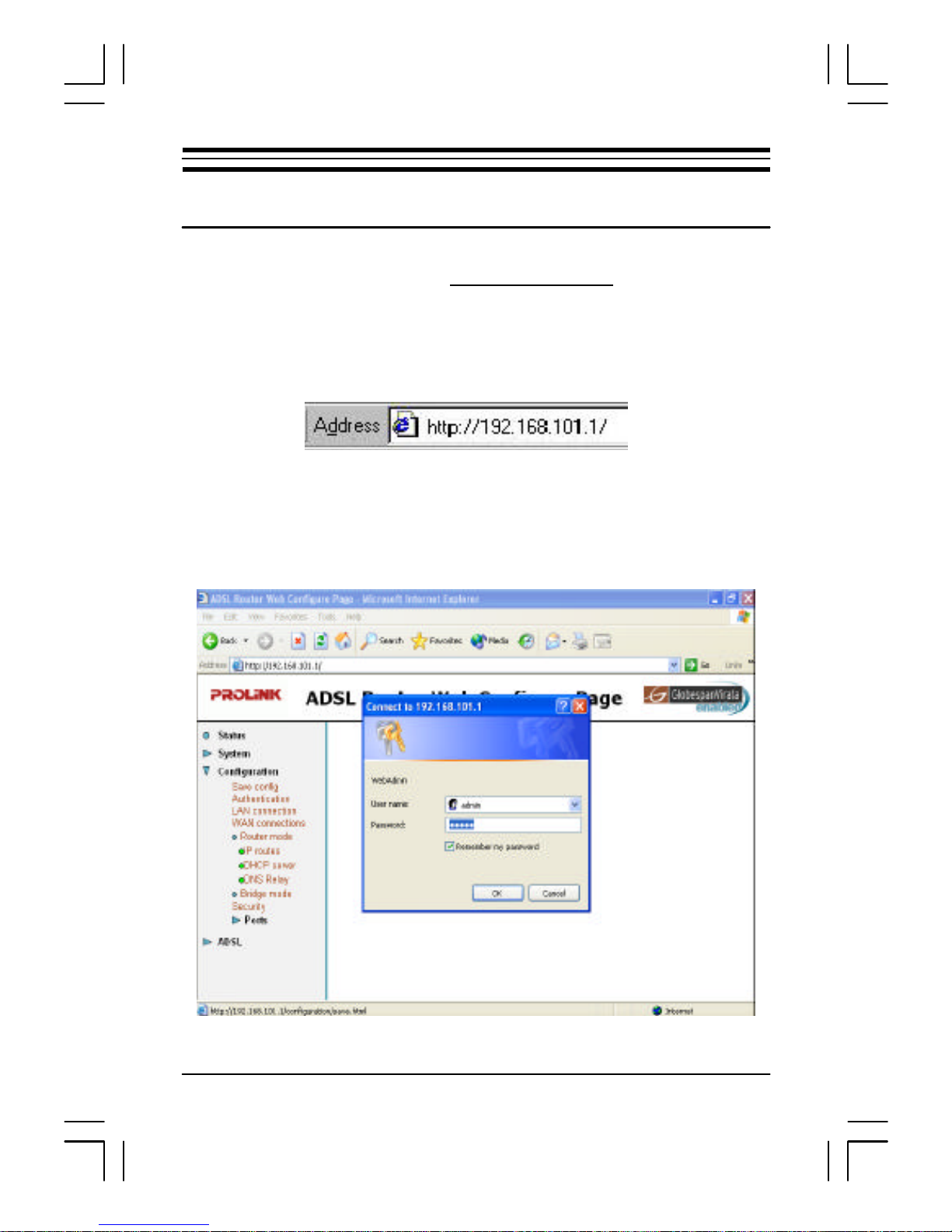

1)Open Internet E xplorer , type http://192.168.101.1
2)The s ystem will remind you to enter administrator’s username and password when restarting or configuring. It is illustrated in the following figure.
Default userna me: admin password: admin
14
3)There are four main menus in the left column: “Status” to the current status of every setting, including IP of port, connecti on status of port, and status of WAN port, LAN port, hardware and definition port. “System” to show informati on of the ADSL Router, including Error Log, Upgrade and Restart (to factory default) “Configuration” to set the parameters according to your operating system.
• Save Config to click Save button and wait until it fi nishes.
• Authentication to check current user information and create new user.
• LAN Connection to change default LAN port address.
• WAN Connection to check, edi t and delete current WAN port configuration or create new routing mode and bridging mode .
• SNTP Client to set SNTP (Simple Network Time Protocol)
• Secur ity to set NAT, Port forwarding, DMZ and firewall .
“ADSL” to check the attribution of ADSL l evel.
4.2. How to Configure your router
You can configur e your router as either one of the following modes:
Routing mode
ü RFC 1483 Routed ü PPPoE Routed ü IPoA Routed ü PPPoA Routed
Section Four: Configure th e Bridge/Router
15
Bridging mode
ü RFC 1483 Bridged ü PPPoE Relay Bridged
Please kindly check with your local ISP, select one of the above modes to configure it.
The Information i n the screen shots in this manual is as examples
only, you are required to replace these values wi th those provided by your ADSL Internet Service Provider or your System Adminis trator!
NOTE : You have to delete the existent wan connection before configuring a new one.
1) SingNet and Pacific Internet : PPPoA or PPPoE
2) Magix ATM plan(Static IP) : RFC 1483 Routed
Section Four: Configure th e Bridge/Router
16
4.2.1 PPPoA Routed Configuration.
A. Click Router mode under Configuration and choose PPPOA routed.
Click Configure and the interface shows as below.
Section Four: Configure th e Bridge/Router
17
• Description: Name of the WAN connection. (e.g. S ingNet
• VPI/VCI: ATM VC of local ISP (remote) (e.g. for Singapor e, VPI=0 ,VCI=100)
• WAN IP Address/WAN Subnet Mask: IP and Subnet Mask dynami cally allocated by your ISP.
0.0.0.0 (Default)
255.255.255.0 (Default)
• LLC Header Mode: off (Default)
• HDLC Header M ode: off (Default)
• Choose CHAP
• User name and Password: The user name and password will be provided by your ISP when applying for ADSL service. (e.g. prolink@singnet )
Click Configure to complete
B. NAT Configuration.
Click Security and the interface shows as below. Choose Enable under Security State and cli ck Change State
Section Four: Configure th e Bridge/Router
18
Click add Interface und er Security Interface
Add WAN Inter face
•Name : sel ect the name of WAN Port (e.g. ppp-0)
•Interface Type : Choose external
Click Apply and WAN Interface is a dded.
Add LAN Inter face
•Name: Sel ect the name of LAN port (e.g. eth0 or ip1)
•Interface Type: Choose internal
Click Apply and LAN Interface is added. The screen will show the following interface.
Section Four: Configure th e Bridge/Router
19
Click Enable NAT to int ernal interfaces and the configuration of PPPoA Router mode has been done.
NOTE: Please remember to save the configuration after finishing the settings.
Section Four: Configure th e Bridge/Router
20
Click Save Config , then Click Save button and wait until it finishes.
4.2.2 PPPoE Routed Configuration. A. Click Router mode under Configuration and choose PPPOE routed.
Section Four: Configure th e Bridge/Router
21
Click Configure and the interface shows as below.
• Description: Name of the WAN connection (e.g. Si ngNet)
• VPI/VCI: ATM VC of local ISP (remote). e.g. for Singapore VPI=0 , VCI=100
• PPPoE Auto Connect: Default as Disabled (‘Enable’ means starti ng using. Its function is: ADSL automatically disconnects when the time without data transmission in LAN port equals to the time set in “User Idle Time Out”.ADSL automatically connects when ther e is data transmission again)
• WAN IP Address/WAN Subnet Mask : IP and Subnet Mask dynam ically allocated by ISP.
0.0.0.0 (Default)
255.255.255.0 (Default)
• Access Concentrator: Blank (Default)
• Service Name: Blank (Default)
• Host Unique Tag (in hex): Bl ank (Default)
Section Four: Configure th e Bridge/Router
22
• LLC Header Mode: Off (Default)
• HDLC Header M ode: Off (Default)
• Choose CHAP
• User name and Password: The user name and password will be pr ovided by ISP when applying for ADSL service
• User Idle Timeout (in minutes) Refer to description of PPPoE Auto Connect
Click Configuration to complete
B. NAT Configuration.
Confi guration of NAT is the same as that of PPPoA Router mode, Please refer to 4.2.1.B.(Page 17-20)
NOTE: Please remember to save the configuration after finishing the settings.
Section Four: Configure th e Bridge/Router
23
4.2.3 RFC 1483 Routed Configuration. A. Click Router mode under Configuration and choose RFC 1483 routed.
Click Configure and the interface shows as below.
• Description: Name of the WAN connecti on. (e.g. Magix)
• VPI/VCI: ATM VC of l ocal ISP (remote). (e.g. Magix ATM plan VPI=0 , VCI=101)
• Encapsulation Method: Four methods: LLC/SNAP Routered, LLC/SNAP Bridged, VcMux(null) Routered VcMux(null) Bridged. Please select it according to ISP designation.
• Use DHCP: Use DHCP to allocate PC IP Address of WAN from ISP. (default)
• WAN IP: Enter specified WAN IP address and WAN subnet mask. (Provided by your ISP)
Section Four: Configure th e Bridge/Router
24
Click Apply to continue
B. NAT Configuration.
Confi guration of NAT is the same as that of PPPoA Router mode, Please refer to 4.2.1.B.(Page 17-20)
Section Four: Configure th e Bridge/Router
25
C. Add default Gateway to IP routes.
If you uses static IP, have to add the default gateway (Pr ovided by your ISP) to IP routes.
Click IP routes, key i n the gateway IP (provided by your ISP) to Gateway. Interface: lea ve blank. Click OK button.
NOTE: Please remember to save the configuration after finishing the settings.
Section Four: Configure th e Bridge/Router
26
4.2.4 IPoA Routed Configuration. A. Click Router mode under Configuration and choose IPoA routed.
B. NAT Configuration. Configuration of NAT is the same as that of PPPoA Router m ode, Please refer to 4.2.1.B.(Page 1 7-20)
C. Add default Gateway to IP routes. Configuration of IP Routes is the same as the RFC 1483 Ro uted. Please refer to 4.2.3.C (Page 25)
Section Four: Configure th e Bridge/Router
27

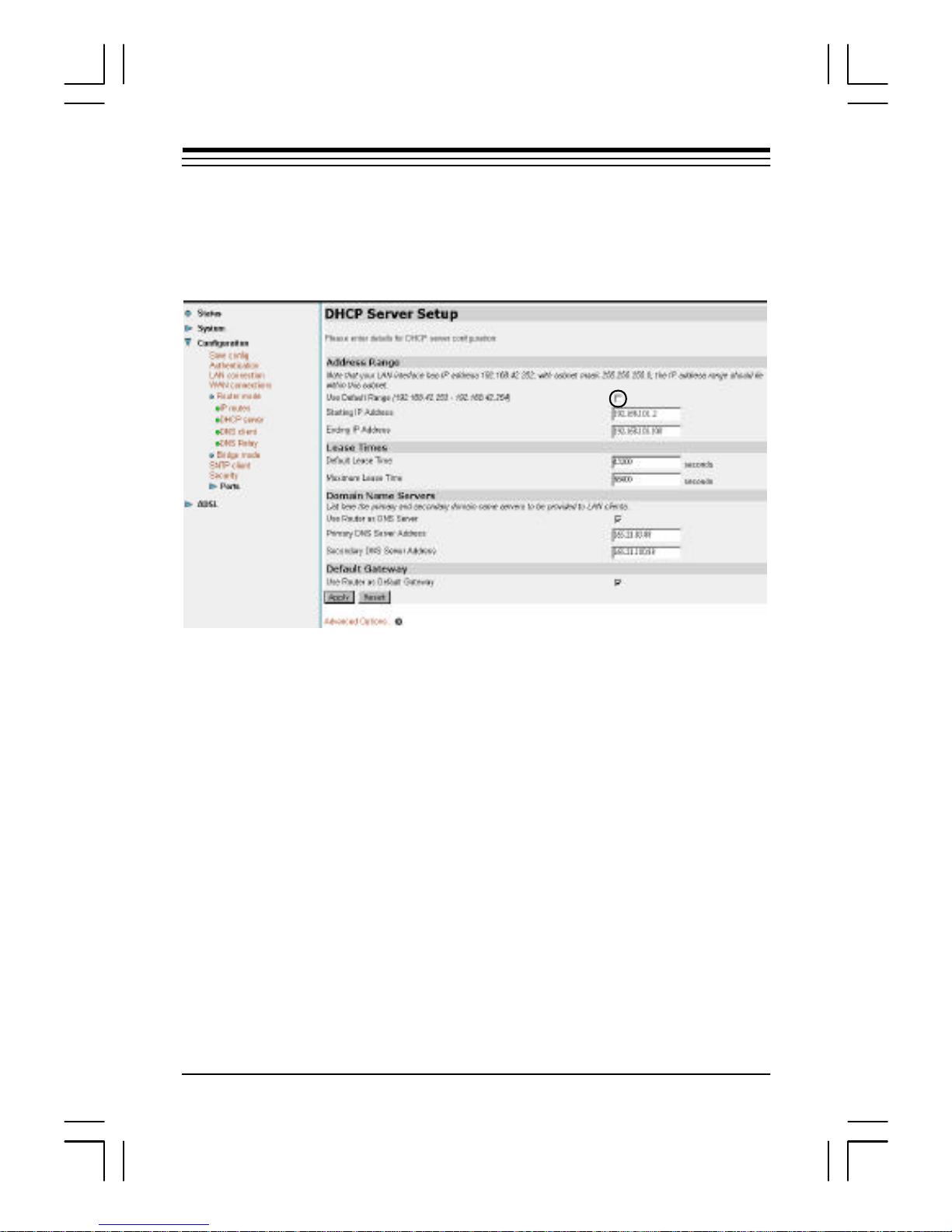

4.3 How to Configure DHCP Server.
Select DHCP Server, then click Configure to configure the DHCP Server setti ngs.
Section Four: Configure th e Bridge/Router
28
4.4 How to set Port Forwarding.
Click Advanced NAT Configuration under Security .
Section Four: Configure th e Bridge/Router
29
4.5 How to let Netmeeting pass through.
You may enable Firewall to let your netmee ting pass through. Select Enable under Firewall, click Change State and select low under Security
Level, cli ck Change Level.
Section Four: Configure th e Bridge/Router
30
4.6 How to Configure Bridge Mode.
If you connect the Hurricane 8800P to the WAN port of another router as bridge (Ethernet Modem), you need to set it to Bridge mode.
Click Bridge Mod e, then Slect RFC 1483 Bridge or PPPoE Relay Bridge.
NOTE : If you connect it to your computer or HUB/Switch as Bridge Mode, you need one REmote PPPoE client software to login to your ISP for surfing the internet. e.g. WinPoET.
Section Four: Configure th e Bridge/Router
31
4.7 How to Restore to the Factory Default.
Click Restart under System, select reset to factory default Settings, then click restart button.
Section Four: Configure th e Bridge/Router
32
Appendix A - Troubleshooting
1. I can not get any connection. Power LED and LAN LED light up, but the ADSL Link LED has no light .
1) Ensur e that the ADSL line is activated.
2) Check that the Telephone cable (RJ-11) is connected to LINE Jack on your router.
3) Unplug the RJ45 Cable (Network Cable), LAN LED will turn off,if not, please pr ess reset button on your router.
If the problem still persists, please check with your ADSL Service Provider to confirm the line condi tion.
2. I get ‘Request timed out’ response when I ping to the router.
1) Check that you have enter ed the correct IP Address for your Ether net Card . (MS-DOS mode, type ipconfig to check your computer’s IP, i t should be in the same subnet as the router.)
2) Check the LAN LED whether it lights up. If not, check the cable connection.
3) Press reset button to restart the Router again.
4) Restart your PC for the IP Address to take effect and try to ping again.
3. I am not able to get the web configuration screen for the Router. What can I do?
1) You may have to dis able the proxy settings on your Internet browser.
2) Make s ure that your browser is set to connect directly .
Appendix A - Troubleshooting
33
A. For Internet Explorer, click Tools, Internet Options, and then the Connection tab. Make sure that Internet Explorer is set to Never dial a connection. B. For Netscape Navigator, click Edit, Preferences, Advanced, and Proxy. Make sure that Netscape Navigator is set to Direct
connection to the Internet.
Appendix A - Troubleshooting
34
Appendix B - High Protocols
1. IP
The modem will support next type IP packets:
RFC 1483 Routed (now in use)
The RFC in use is the 2684, but its PDU for IPV4 (802 networks) is similar to the 1483. So both, the 1483 and 2684 are admitted fo r LLC encapsulation for Routed protocols.
PPPoA as the RFC 2364 (for near future use)
The modem wi ll support an PPP automatic session at the power on. Also, session wi ll start if there is traffic detected on the user interface. A timer will cancel the sess ion after a certain inactivity time. Authentification will be supported by PAP & CHAP protocols.
PPPoEthernet (for near future use)
As RFC 2516 and RFC 1483 bridging. Authentification will be supported by PAP & CHAP protocols.
2. Safety (access control)
The access for the different configur ation parameters will be protected by password. A general reset will recover the standard pass word. A firewall SW (in the interface and/or in the user equi pment) is very well considered to avoi d external attack.
The modems who will be managed by Telefonica wi ll include the possibility of establish a limited address range belonging to its management center.
3. Virtual Private Network support
It will be well considered the tunneling and encryption methods to create
Appendix B - High Prot ocols
35
VPN's. The m echanisms should be based on standards, to warranty the manufacturer independence of the other end s ervers for tunneling and encryption.
Router
At least, the modem should support routing for IP protocol between user LAN and WAN (through ADS L interface). This makes compulsory the possi bility of configuring static routes. It is recommend the availability of ARP proxy.
DHCP server
This service will assign the IP address, subnet mask, IP gateway plus the primar y & secondary DNS address to all user's equipment.
NAT
NAT (Network Addres s Translation) is the translation of an Internet Protocol address (IP address) used within one network to a different IP address known within another network. One network is designated the inside network and the other is the outside.
Bridge
It provides a tr ansparent and a spanning-tree bridge.
RFC 1483 bridged
The RFC in use i s the 2684, , the 1483 and 2684 are admitted for LLC encaps ulation and VC multiplexing for bridged traffic.
PPPoE relay
It is used to transport PPP traffic over Ethernet.
PPPoEthernet client (RFC 2516)
Authentifi cation is supported by PAP & CHAP protocols. The RFC 2516 supports for multiple PVCs,with each VC suppo rting a single PPPoE session (different ISPs over different PVCs)
Appendix B - High Prot ocols
36
BOOTP/TFTP client
Systems can be booted over Ethernet using BOOTP/TFTP. Once there is a running image on the ASSP, the images and/or configuration stored in flash can be updated using TFTP.
TELNET server
The modem provides a sim ple telnet server that allows administrative acces s to the platform over TCP/IP. The implementation supports only a single session at a time.
DMZ
(DeMilitar ized Zone) allows one IP address (or computer) to be exposed to the Internet. So me applications require multiple TCP/IP ports to be open. It is recommended that you set your computer with a static IP addr ess if you want to us e DMZ Hosting.
Appendix B - High Prot ocols
37
Appendix C - Acronyms
ADSL Asymmetric Digital Subscriber Line ANSI American National S tandards Institute ATM Asynchr onous Transfer Mode CHAP CHall enge Handshake Protocol DHCP Dynami c Host Configuration Protocol DNS Domai n Name Service FTP File Transfer Pr otocol HTML Hyper Text Mark Language HTTP HyperText Transfer P rotocol ICMP Internet Control Message Pr otocol IP Inter net Protocol IPoA IP over ATM ITU International Telecommunication Union LAN Local Area Network MPoA Multipr otocol Encapsulation over ATM Adaptation Layer 5
(AAL5)
NAPT Networ k Address & Port Translation NAT Network Address Translation PAP Password Authentication Pr otocol PPP Point to Point Pr otocol PPPoA PPP over ATM PPPoE PPP over Ethernet PVC Permanent VC VC Virtual Connection VP Virtual Path WAN Wide Area Network
Appendix C - Acronyms
38
Appendix D - EMC and Safety
EMC - CE Mark
Directive 89/336/EEC EN 55022:1998 Class B/CISPR22:1997 EN 61000-3-2: 1995 EN 61000-3-3: 1995 EN 55024: 1998
Safety - CE Mark
Directive 72/23/EEC IEC950/E N 60950
Appendix D - EMC and Safety
39
Appendix E- Telecom Notices
CTR-2 1 Compliance Information
The equipment has been approved in accordance with Council ecis ion 98/ 482/EC for pan- European single terminal connection to the public switched tel ephone network (PSTN). However, due to differences between the individual PS TNs provided in different countries, the approval dose not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point. In the event of problems, you should contact your equipment supplier in the first i nstace.
Note: the manufacturer should ensure that the vendor and user of the equipment is clearly informed of the above information by means of packaging and /or user manuals or other forms of user instructions.
FCC Com pliance Information
The information in this document is subject to change without noti ce and does not represent a commitment on the part of the vendor. No warranty of representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the r ight to make changes to the content of this document and/or the products associated with it at any time without obligati on to notify any person or organisation of such changes. In no event wi ll the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
Appendix E - Telecom Notices
40
Micros oft Windows is a trademark of Microsoft Corporation. Al l product names are trademarks or registered trademarks of their respective owners.
FCC Compliance Statement
This device compli es with Part 15 and 68 of the FCC Rules. Operation is subject to the following two conditions:
1.this device may not cause harmful interference, and
2.this device must accept any interference received, including interference that m ay cause undesired operation.
FCC Warning Statement
This equi pment has been tested and found to comply with the limits for a Class B digital device, pursuant to P art 15 and 68 of the FCC Rules. These li mits are designed to provide reasonable protection against harmful interference in a residenti al installation. This equipment generates, uses and can em it radio frequency energy and, if not installed or used in accordance with the i nstructions, may cause interference to radio communicati ons. However, television reception interference can be deter mined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the foll owing measures:
• Reorient or relocate the r eceiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet different from that to which the receiver is connected
• Consul t the dealer or an experienced radio/TV technician for help
Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Appendix E - Telecom Notices
PROLiNK TECHNICAL SUPPORT
At PROLiNK, we are committed to give you the best products as well as the best technical support for installation of ADSL Bridge/Router.If there is virus in your
Service Centre
Tel : (65)62965455
Fax : (65)63925455
URL : www.fida.com
Email: support@fida.com
Address: Blk 105 Boon Keng Rd #06-13, Singapore 339776
Operating Hours: Mon-Fri :0900-1745 hrs Sat : 0900-1300 hrs
© Copyright 2000 Fida International (S) Pte Ltd. All Rights Reserved
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
