PROLINK HSDPA Modem PC Manager User Guide

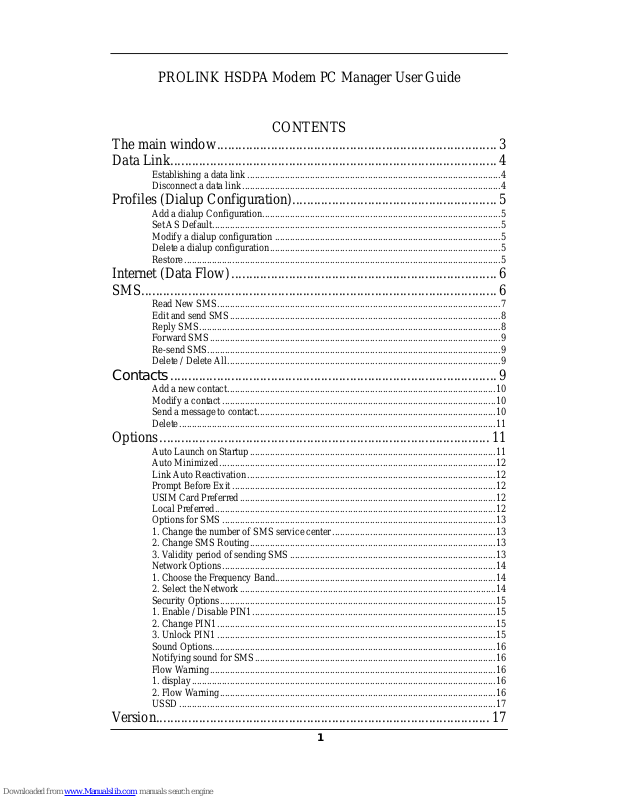

CONTENTS
The main window..............................................................................3
Data Link........................................................................................... 4
Establishing a data link .....................................................................................................4
Disconnect a data link.......................................................................................................4
Profiles (Dialup Configuration).........................................................5
Add a dialup Configuration...............................................................................................5
Set AS Default...................................................................................................................5
Modify a dialup configuration ..........................................................................................5
Delete a dialup configuration............................................................................................5
Restore ..............................................................................................................................5
Internet (Data Flow)..........................................................................6
SMS................................................................................................... 6
Read New SMS.................................................................................................................7

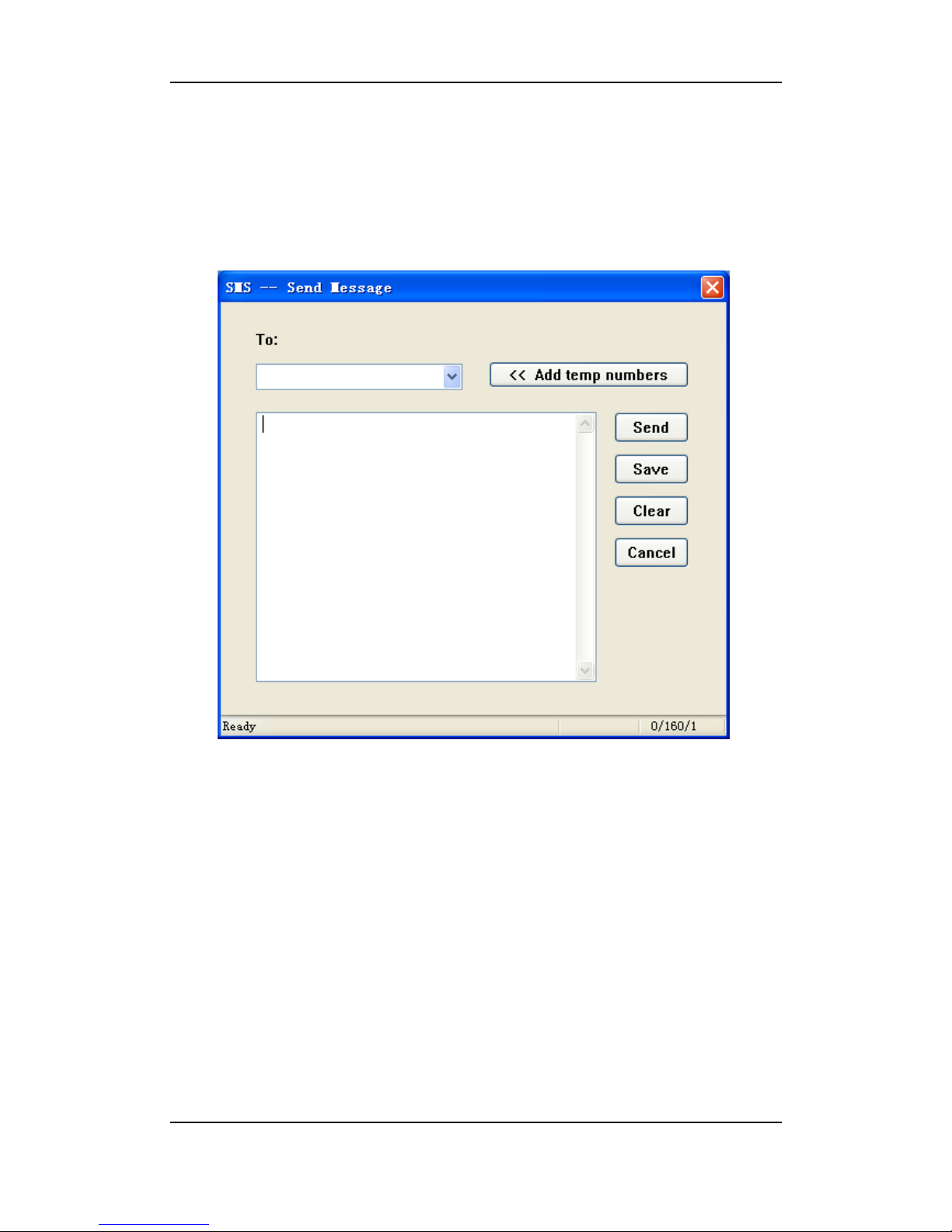

Edit and send SMS............................................................................................................8
Reply SMS........................................................................................................................8
Forward SMS....................................................................................................................9
Re-send SMS.....................................................................................................................9
Delete / Delete All.............................................................................................................9

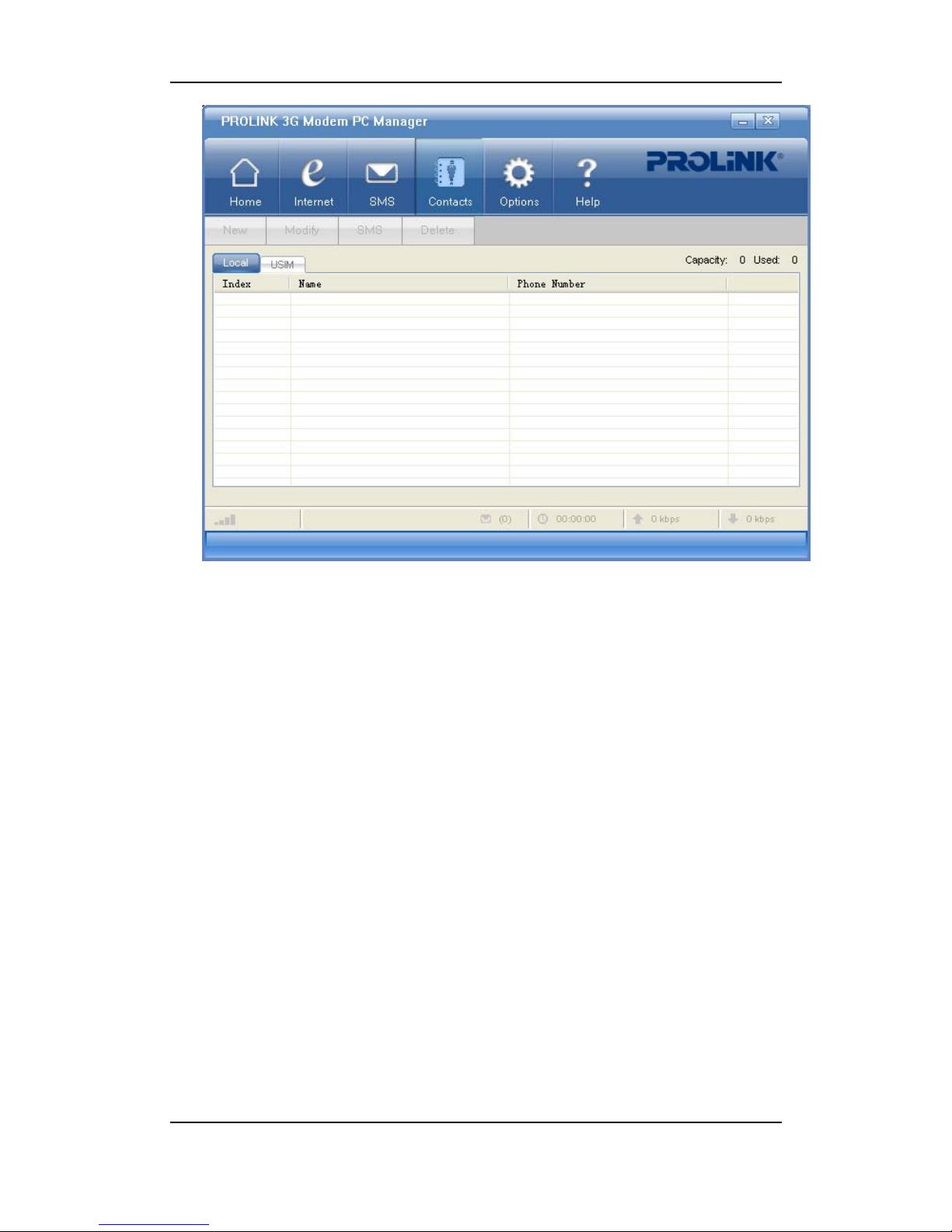

Contacts...........................................................................................9
Add a new contact...........................................................................................................10
Modify a contact .............................................................................................................10
Send a message to contact...............................................................................................10
Delete..............................................................................................................................11

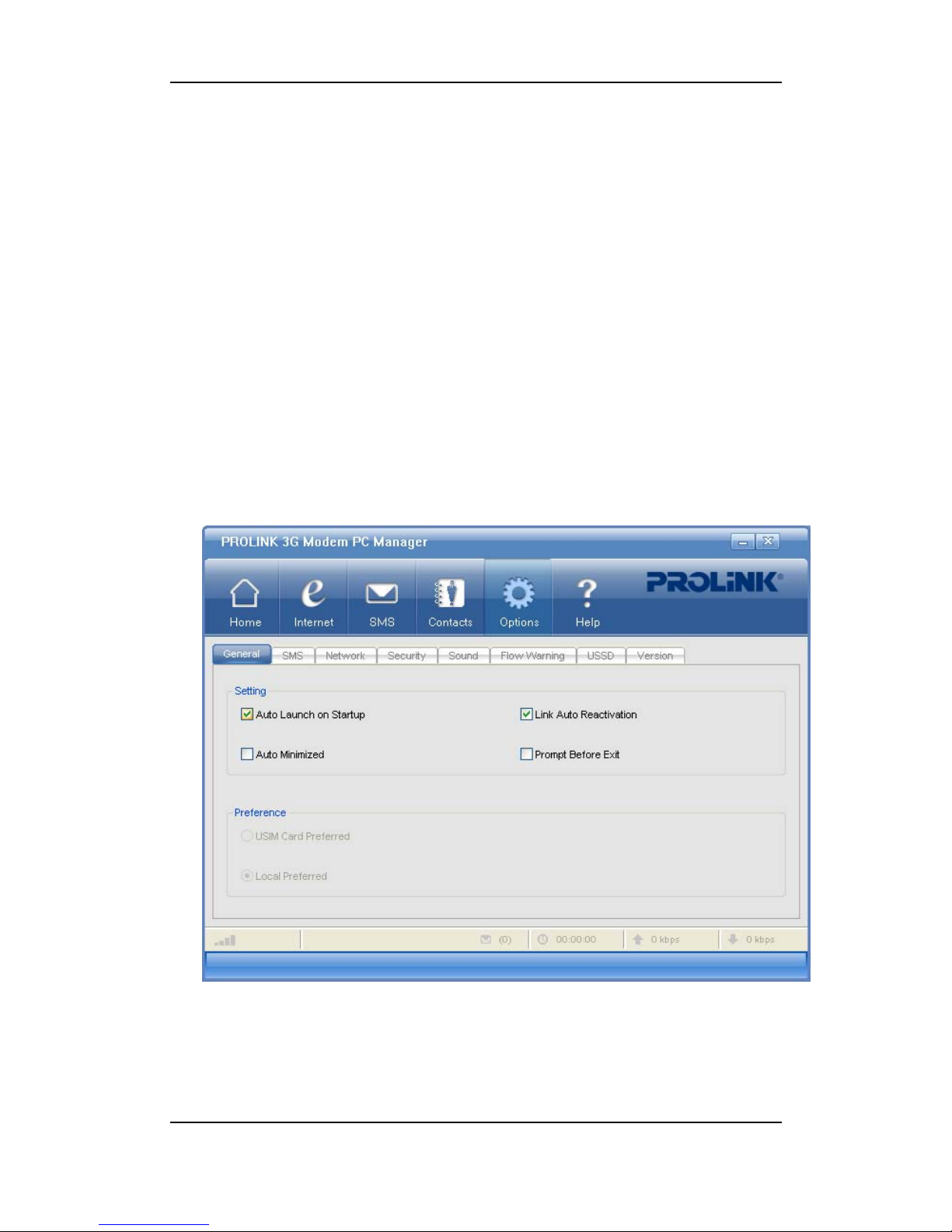

Options............................................................................................ 11
Auto Launch on Startup..................................................................................................11
Auto Minimized..............................................................................................................12
Link Auto Reactivation ...................................................................................................12
Prompt Before Exit .........................................................................................................12
USIM Card Preferred......................................................................................................12
Local Preferred................................................................................................................12
Options for SMS .............................................................................................................13
1. Change the number of SMS service center.................................................................13
2. Change SMS Routing..................................................................................................13
3. Validity period of sending SMS ..................................................................................13
Network Options.............................................................................................................14
1. Choose the Frequency Band........................................................................................14
2. Select the Network......................................................................................................14
Security Options..............................................................................................................15
1. Enable / Disable PIN1.................................................................................................15
2. Change PIN1...............................................................................................................15
3. Unlock PIN1 ...............................................................................................................15
Sound Options.................................................................................................................16
Notifying sound for SMS................................................................................................16
Flow W arning..................................................................................................................16
1. display.........................................................................................................................16
2. Flow Warning..............................................................................................................16
USSD ..............................................................................................................................17
Version.............................................................................................17
2
Help Topics .....................................................................................17
Safety Indication .............................................................................17
FQA & Answers..............................................................................18
Why the PROLINK HSDPA Modem PC Manager always displays "Can not find port..."
................................................................................................................................................18
Why the PROLINK HSDPA Modem PC Manager displays "No USIM Card"..............18
Why the PROLINK HSDPA Modem PC Manager displays "No Service".....................18
Failed to send a SMS ......................................................................................................19
Failed to connect internet................................................................................................19
Appendix.........................................................................................20
Light Indications of data card .........................................................................................20
3
The main window
Here’s the main window of data card’s PROLINK HSDPA Modem PC Manager:
The display of data card’s status, where items included are status bar, carrier’s logo, network in
use, number of unread messages, network connecting time and forward/reverse rate. If there’s no
USIM card inserted, a message “No USIM Card!” shows.
Main menu, including Home, Internet, SMS, Contacts, Options, Help. Make proper
configuration to functions and the data card.
4
Data Link
You can establish a dialup data link over GSM/WCDMA via the data card.
The dialup data link requires the coverage of GSM, GPRS, EDGE or WCDMA. In each of
the link, the data card will be connected to a specific phone number.
The data card support HSDPA up to 3.6 Mbps and WCDMA 384kbps.
Establishing a data link
1) Select More Profiles,
2) Choose a profile in the list, and then click on “Set As Default”,
3) Click on the button “Connect”, to establish a data link.
Disconnect a data link
T o disc onnect, Click on the button “Disconnect”.
5
Profiles (Dialup Configuration)
Add a dialup Configuration
1) Select "Home-->More Profiles";
2) Select "New", enter the Profile Name and choose a Network in the popup window; setup
for the dialup in the advanced options; click on "Finish" to save and close the window;
Each profile depends on the setup settings of the carriers. For example, China Mobile's GPRS
only requires to set the dialup number as *98#, APN "CMNET".
If the settings of CSD, DNS, PPP and TCP/IP are needed, click on "Advanced Settings" and
make proper selections. After completing, click on "OK" to save and close the window. Refer to
Windows' network properties for these settings.
Set AS Default
1) Select "Home-->More Profiles";
2) Choose a profile in the list, and then click on “Set As Default”.
Modify a dialup configuration
1) Select "Home-->More Profiles";
2) Choose a profile in the list, and then click on “View/Modify”;
3) Make proper modifications;
4) Click on “Finish” to save and close the window.
Delete a dialup configuration
1) Select "Home-->More Profiles";
2) Choose a profile in the list, and then click on “Delete”;
3) In the confirmation box, click on “OK” to proceed.
Restore
1) Select "Home-->More Profiles";
2) Click on “Restore” for initial settings.
6
Internet (Data Flow)
To view the data card’s data flow statistics in real time or of current or last month, select
“Internet”.

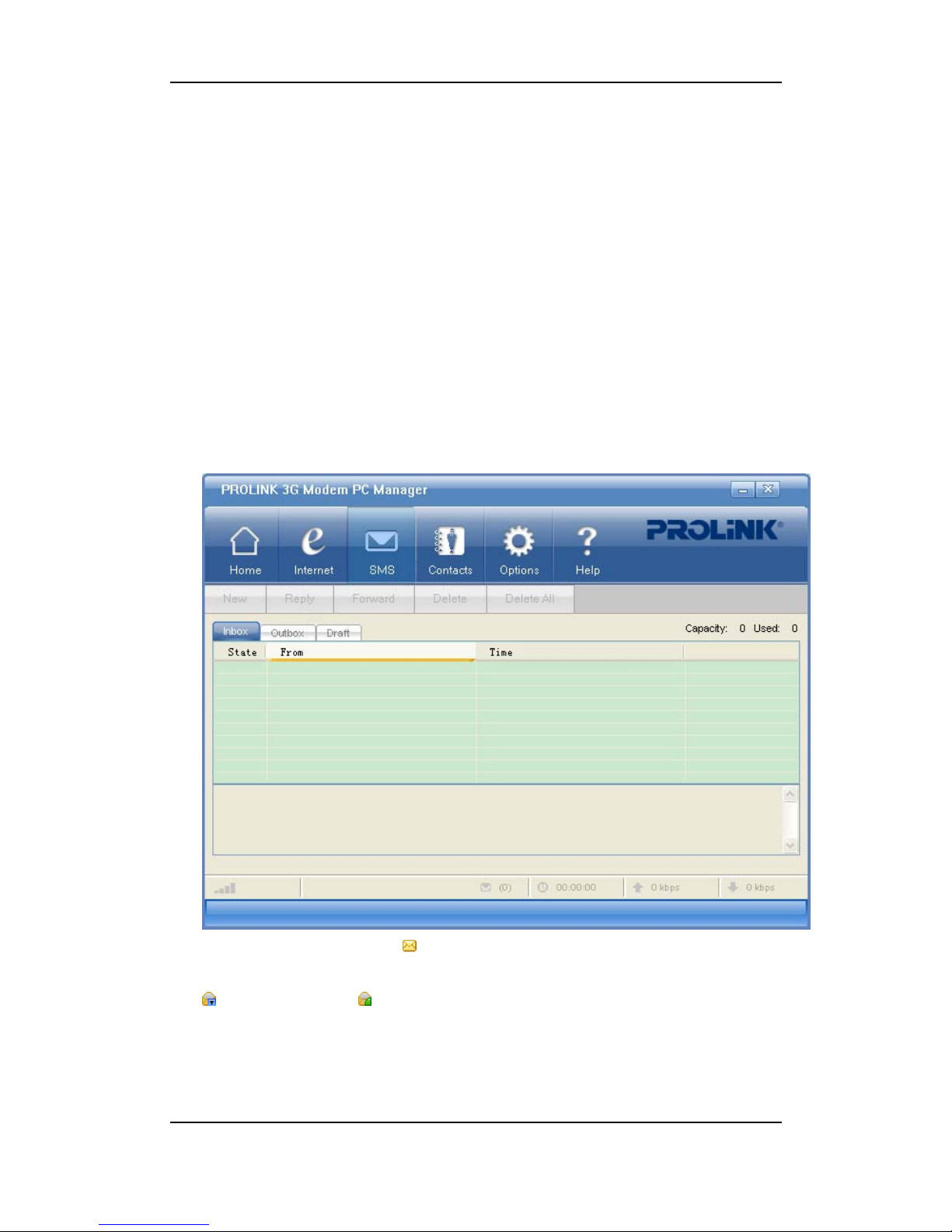

SMS
SMS, or Short Messaging Service, is a value-added service provided by carriers, which
allows you send and receive short messages. It requires subscription, so contact your service
provider to make sure you are authorized to use SMS.
If you are a subscriber, any other people can send short messages through any ways
supported by your service provider.
When you’re offline, the short messages are stored temporarily on the network. And once you
are connected, they will be sent to your USIM card and you will be notified by PROLINK HSDPA
Modem PC Manager of new messages. If the capacity of SMS is full, you will not be able to
receive any new messages unless you remove some of the old messages. When new messages
