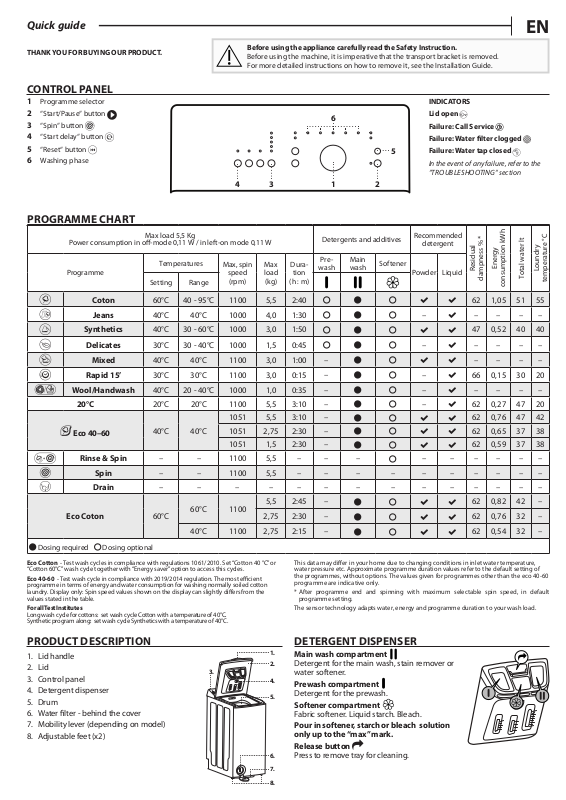

PROLINE PTL5511/N Daily Reference Guide
Quick guide
EN
THANK YOU FOR BUYING OUR PRODUCT.
Before using the appliance carefully read the Safety Instruction.
Before using the machine, it is imperative that the transport bracket is removed.
For more detailed instructions on how to remove it, see the Installation Guide.
CONTROL PANEL
1 Programme selector
2 “Start/Pause“ button
3 “Spin“ button
4 “Start delay“ button
5 “Reset“ button
6 Washing phase
PROGRAMME CHART
Power consumption in o-mode 0,11 W / in left-on mode 0,11 W
Programme
Coton 60°C 40 - 95°C 1100 5,5 2:40
Jeans 40°C 40°C 1000 4,0 1:30
Synthetics 40°C 30 - 60°C 1000 3,0 1:50
Delicates 30°C 30 - 40°C 1000 1,5 0:45
Mixed
Rapid 15’ 30°C 30°C 1100 3,0 0:15
Wool/Handwash 40°C 20 - 40°C 1000 1,0 0:35 –
20°C 20°C 20°C 1100 5,5 3:10 –
Eco 40–60
Rinse & Spin – – 1100 5,5 – – –
Spin – – 1100 5,5 – – – – – – – – – –
Drain – – – – – – – – – – – – – –
Eco Coton 60°C
Dosing required Dosing optional
Eco Cotton - Test wash cycles in compliance with regulations 1061/2010. Set “Cotton 40 °C” or
“Cotton 60°C” wash cycle together with “Energy saver” option to access this cycles.
Eco 40-60 - Test wash cycle in compliance with 2019/2014 regulation. The most ecient
programme in terms of energy and water consumption for washing normally soiled cotton
laundry. Display only: Spin speed values shown on the display can slightly diers from the
values stated in the table.
For all Test Institutes
Long wash cycle for cottons: set wash cycle Cotton with a temperature of 40°C.
Synthetic program along: set wash cycle Synthetics with a temperature of 40°C.
Max load 5,5 Kg
Temperatures
Setting Range
Max, spin
40°C 40°C 1100
40°C 40°C
60°C 1100
40°C 1100 2,75 2:15 –
speed
(rpm)
Max
load
(kg)
3,0
1051 5,5 3:10 –
1051 2,75 2:30 –
1051 1,5 2:30 –
5,5 2:45 –
2,75 2:30 –
INDICATORS
6
5
Lid open
Failure: Call Service
Failure: Water lter clogged
Failure: Water tap closed
In the event of any failure, refer to the
“TROUBLESHOOTING“ section
1 24 3
Recommended
detergent
Energy
Powder Liquid
–
–
Residual
dampness % *
62 1,05 51 55
– – – –
47 0,52 40 40
– – – –
consumption kWh
– – – –
–
–
–
66 0,15 30 20
– – – –
62 0,27 47 20
62 0,76 47 42
62 0,65 37 38
62 0,59 37 38
– – – – – –
62 0,82 42 –
62 0,76 32 –
62 0,54 32 –
Total water lt
Detergents and additives
Dura-
tion
(h : m)
Pre-
wash
Main
wash
Softener
1:00
–
This data may dier in your home due to changing conditions in inlet water temperature,
water pressure etc. Approximate programme duration values refer to the default setting of
the programmes, without options. The values given for programmes other than the eco 40-60
programme are indicative only.
* After programme end and spinning with maximum selectable spin speed, in default
programme setting.
The sensor technology adapts water, energy and programme duration to your wash load.
Loundry
temperature °C
PRODUCT DESCRIPTION
1. Lid handle
2. Lid
3. Control panel
4. Detergent dispenser
5. Drum
6. Water lter - behind the cover
7. Mobility lever (depending on model)
8. Adjustable feet (x2)
DETERGENT DISPENSER
1.
Main wash compartment
Detergent for the main wash, stain remover or
3.
2.
water softener.
4.
Prewash compartment
Detergent for the prewash.
5.
Softener compartment
Fabric softener. Liquid starch. Bleach.
Pour in softener, starch or bleach solution
only up to the “max” mark.
Release button
6.
Press to remove tray for cleaning.
7.
8.
PROGRAMMES
For choosing the appropriate programme for your kind of
laundry, always respect the instructions on the care labels
of the laundry. The value given in the tub symbol is the
maximum temperature possible for washing the garment.
Cotton
Normally to heavily soiled and robust cottons .
Jeans
Turn garments inside-out before washing and use a liquid detergent.
Synthetics
For washing soiled garments made from synthetic fibres (such as
polyester, polyacrylic, viscose, etc.) or cotton/synthetic blends.
Delicates
For washing particularly delicate garments. Preferably turn garments
inside out before washing.
Mixed
For washing lightly to normally soiled resilient garments in cotton,
linen, synthetic fibres and mixed fibres.
Rapid 15’
Refresh programme. Briefly worn clothing made of cotton, artificial fibers
and blends with cotton. Use lowest recommended detergent amount.
Wool/Handwash
All wool garments can be washed using programme ‚ “Wool“ even
those carrying the “hand-wash only“ label. For best results, use special
detergents and do not exceed max kg declaration of laundry.
20 °C
For washing lightly soiled cotton garments, at a temperature of 20 °C.
Eco 40-60
For washing normally soiled cotton garments declared to be washable
at 40 °C or 60 °C, together in the same cycle. This is the standard cotton
programme and the most ecient in terms of water and energy
consumption.
Rinse & Spin
Separate rinse and intensive spin programme. For robust
laundry.
Spin
Spins the load then empties the water. For robust laundry.
Drain
Drain only - no spinning.
Eco Cotton
For washing normally soiled cotton garments. At 40°C and 60°C.
FIRST TIME USE
To remove any manufacturing debris select the “Cotton“ programme
at a temperature of 95°C. Pour a small quantity of detergent powder
into the main wash compartment of the detergent dispenser
(maximum 1/3 of the quantity the detergent manufacturer
recommends for lightly soiled laundry). Start the programme without
adding any laundry.
DAILY USE
Prepare your laundry according to the recommendations in the “HINTS
AND TIPS“ section. Load the laundry, close the drum door and check
that it is closed properly. Pour in the detergent and any additives.
Observe the dosing recommendations on the detergent pack. Close the
lid. Turn the programme selector to the desired programme and select
any option if needed. The indicator for the “Start/Pause” button
flashes and the indicator for the preset spin speed lights up. The speed
can be changed by pressing the “Spin” button. Open the tap and
press the “Star t/Pause” button to start the wash cycle. The “Start/
Pause” indicator will lights up and the door will be locked. Due to
variations in load and temperature of inlet water, the remaining time is
newly calculated in certain programme phases.
PAUSE OR CHANGE A RUNNING PROGRAMME
To pause the wash cycle, press the “Start/Pause“ button, the indicator
light blinks. Select any new programme, temperature, options or spin
speed if you wish to change those settings. Press the “Start/Pause“
button again to start the wash cycle from the point at which it was
interrupted. Do not add detergent for this programme.
LID OPEN INDICATOR
Before starting and after the end of a programme, the “Lid open“
indicator lights to show that the lid can be opened. As long as a wash
programme is running, the lid remains locked and must on no account
be forced open. In case you have an urgent need to open it during a
running programme, for example to add more laundry, or to remove
laundry which was loaded by mistake, press the “Start/Pause“
button. If the temperature is not too high, the “Lid open“ indicator
light turns on. It may last a while until you can open the lid. Press “Start/
Pause“ to proceed with the programme again.
PROGRAMME END
The “Lid open“ indicator lights up. Turn the programme selector to
the “O“ position and close the water tap. Open the lid and drum and
unload the machine. Leave the Lid open for some time to allow the
interior of the machine to dry. After about a quarter of an hour, the
washing machine will switch off completely to save energy.
To cancel a running programme before the end of cycle, press the
“Reset“ button for at least 3 seconds. The water is drained out. It may
last a while until you can open the lid.
OPTIONS
! When the combination of programme and additional option(s) is not
possible, the indication lights switch o automatically.
! Unsuitable combinations of options are deselected automatically.
Start delay
To set the selected programme to start at a later time, press the “Delay
Timer” button until the desired delay time indication is illuminated.
The lamp for the “Start delay“ option button lights up, and it goes off
when the programme starts. Once having pressed the “Start/Pause“
button, the countdown of the time delay begins. Number of hours preselected can be reduced by pressing the “Start delay“ button again.
Do not use liquid detergent when activating this option. To cancel
the “Start delay“ turn the programme selector to another position.
Prewash
Only for heavily soiled loads (for example sand, granular dirt). Increases
the cycle time by approximately 15 min. Do not use liquid detergent for
the main wash when activating the Prewash option.
Rapid
Enables quicker washing by shortening the programme duration.
Recommendable for small loads or only lightly soiled laundry.
Spin
Every programme has a predefined spin speed. If you want to change
the spin speed, press the “Spin“ button. If spin speed “0“ is selected,
the final spinning is cancelled but intermediate spin peaks remain
during the rinse. The water is drained out only.
Intensive rinse
Helps to avoid detergent residues in the laundry by extending the
rinse phase. Particularly suitable for washing baby laundry, for people
suffering from allergies and for areas with soft water.
Energy Saver
With a lower temperature and slightly modied washing duration, the
optimum combination of excellent washing results and even lower
energy consumption is achieved.
