Page 1

TI01045D/06/EN/02.13 71218293

Products Solutions Services

Technical Information

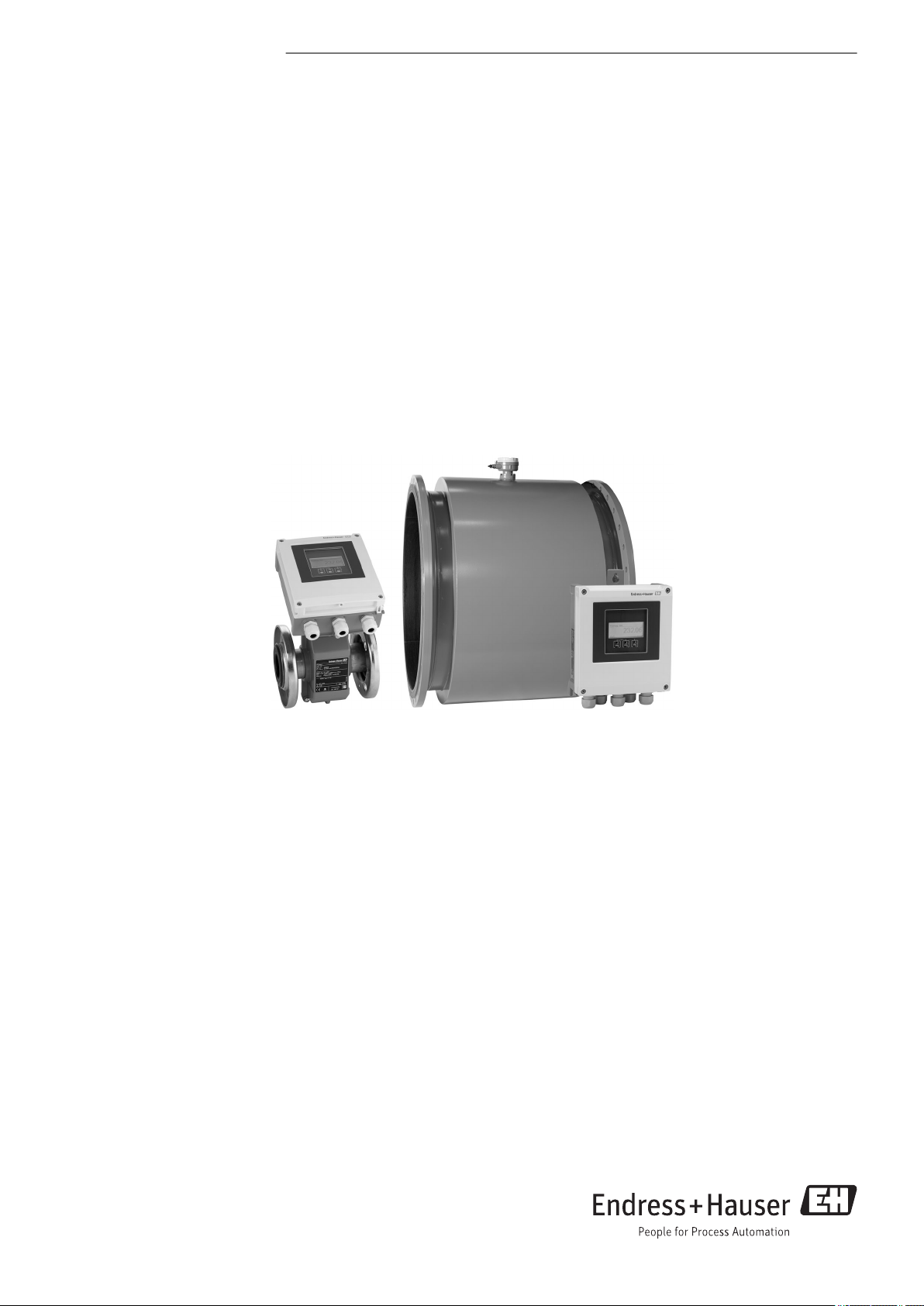

Proline Promag L 400

Electromagnetic flowmeter

The flowmeter with integrated web server and a weight-optimized sensor

Application

• The electromagnetic measuring principle is unaffected by pressure, temperature and flow profile

• Fully suitable for standard applications in the water and wastewater industry

Device properties

• Up to 30 % less sensor weight

• Nominal diameter: DN 50 to 2400 (2 to 90")

• Maximum reduced installation length to DVGW/ISO

• Transmitter housing made of durable polycarbonate

• Same housing concept for compact/remote version

• Integrated data logger: measured values monitoring

Your benefits

• Reduced installation costs – flexible mounting by one-of-akind lap-joint flange concept (DN < 350/14")

• Energy-saving flow measurement – no pressure loss due to cross-section constriction

• Maintenance-free – no moving parts

• Safe operation – no need to open the device due to display with touch control, background lighting

• Time-saving local operation without additional software and hardware – integrated web server

• Integrated verification – Heartbeat Technology™

Page 2

Proline Promag L 400

Document information ....................... 3

Symbols used ................................ 3

Function and system design ................... 4

Measuring principle ............................ 4

Measuring system ............................. 5

Safety ..................................... 5

Input ..................................... 6

Measured variable ............................. 6

Measuring range .............................. 6

Operable flow range ........................... 8

Input signal ................................. 8

Output ................................... 8

Output signal ................................ 8

Signal on alarm .............................. 10

Low flow cut off ............................. 11

Galvanic isolation ............................ 11

Protocol-specific data .......................... 11

Power supply ............................. 14

Terminal assignment .......................... 14

Pin assignment, device plug ...................... 16

Supply voltage .............................. 16

Power consumption ........................... 17

Current consumption .......................... 17

Power supply failure .......................... 17

Electrical connection .......................... 17

Potential equalization ......................... 19

Terminals ................................. 21

Cable entries ............................... 21

Cable specification ............................ 22

Performance characteristics .................. 23

Reference operating conditions ................... 23

Maximum measured error ....................... 23

Repeatability ............................... 24

Influence of ambient temperature ................. 24

Electromagnetic compatibility (EMC) ............... 30

Process .................................. 30

Medium temperature range ...................... 30

Conductivity ................................ 30

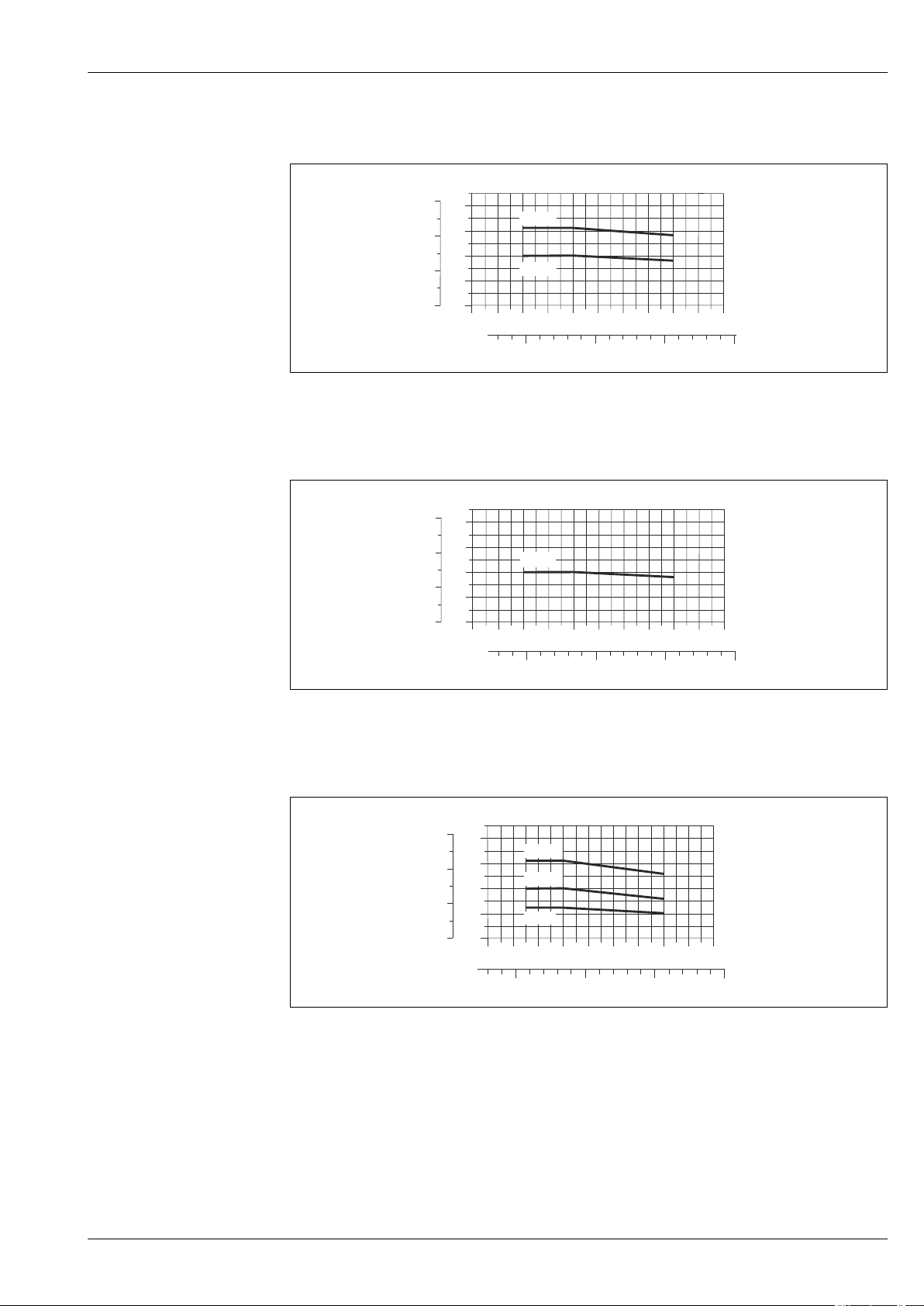

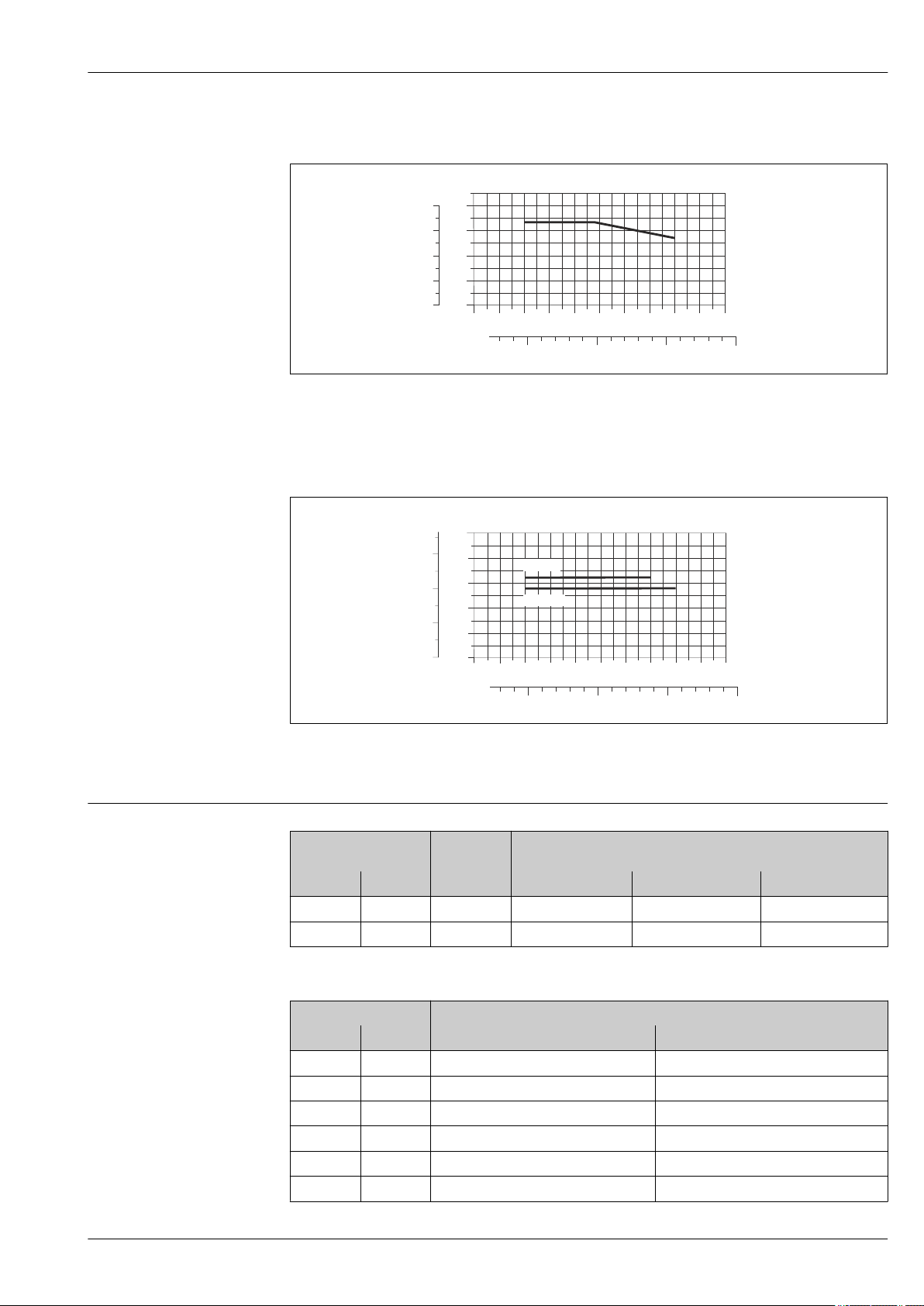

Pressure-temperature ratings .................... 30

Pressure tightness ............................ 33

Flow limit ................................. 34

Pressure loss ............................... 34

System pressure ............................. 34

Vibrations ................................. 34

Mechanical construction .................... 35

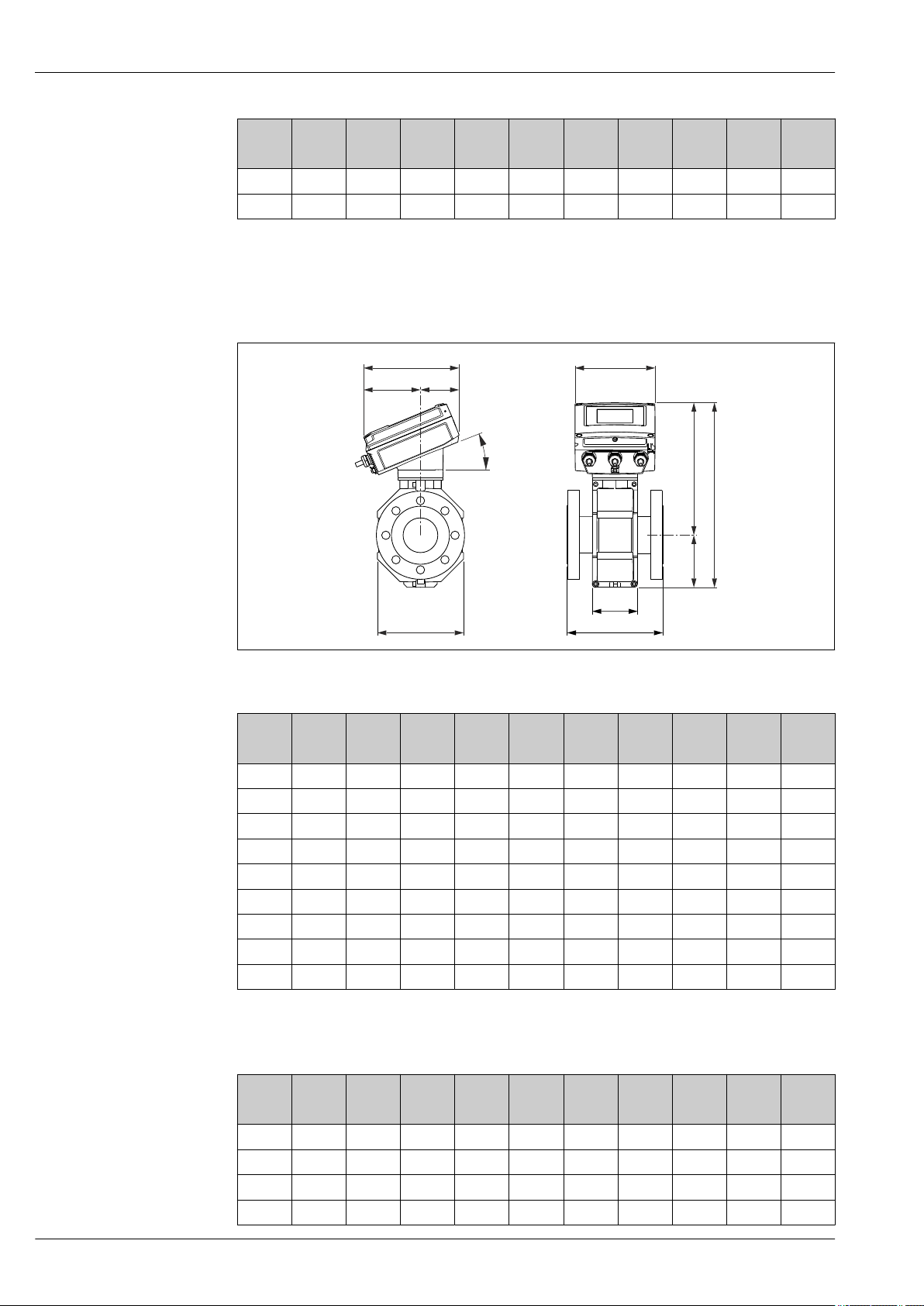

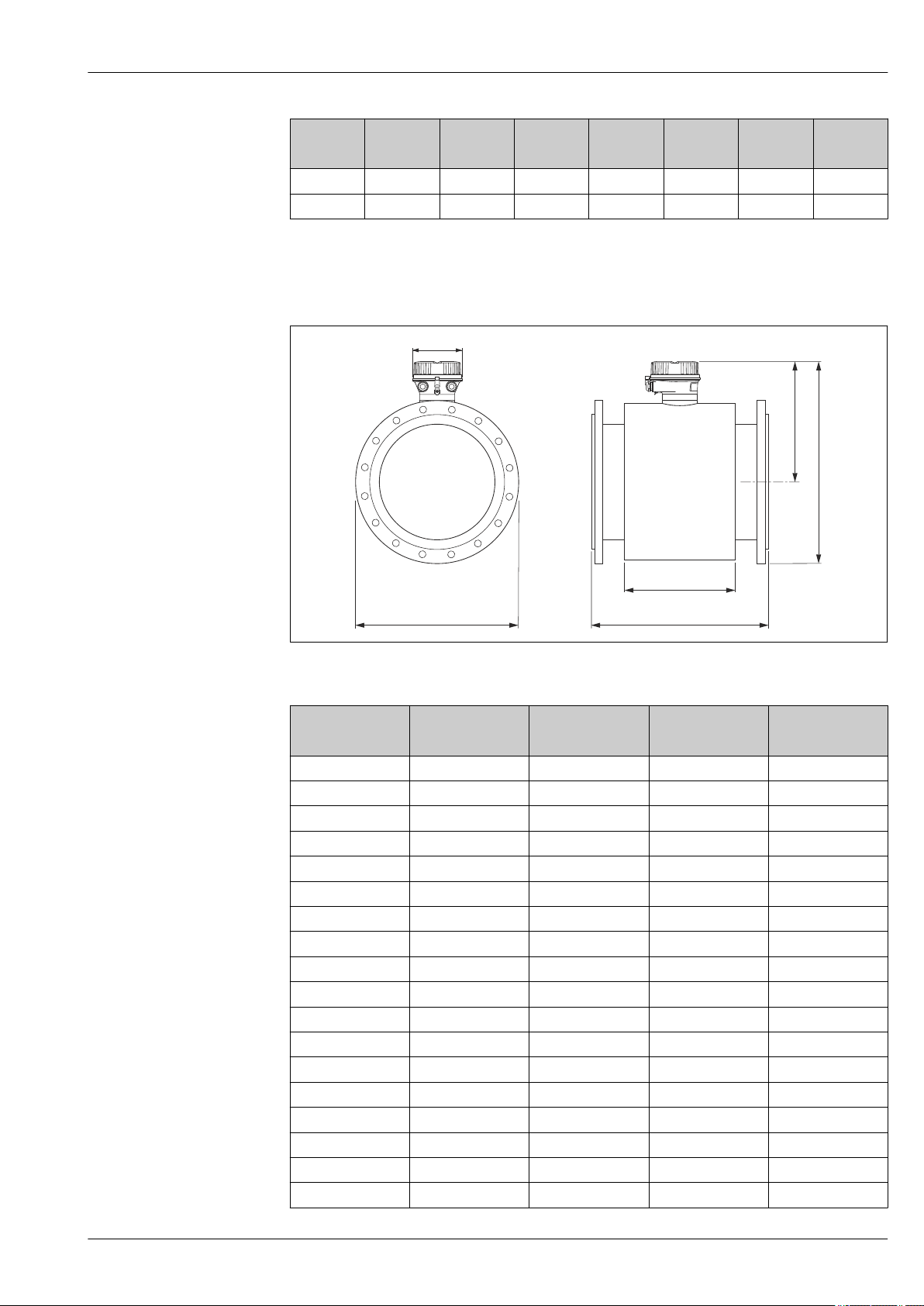

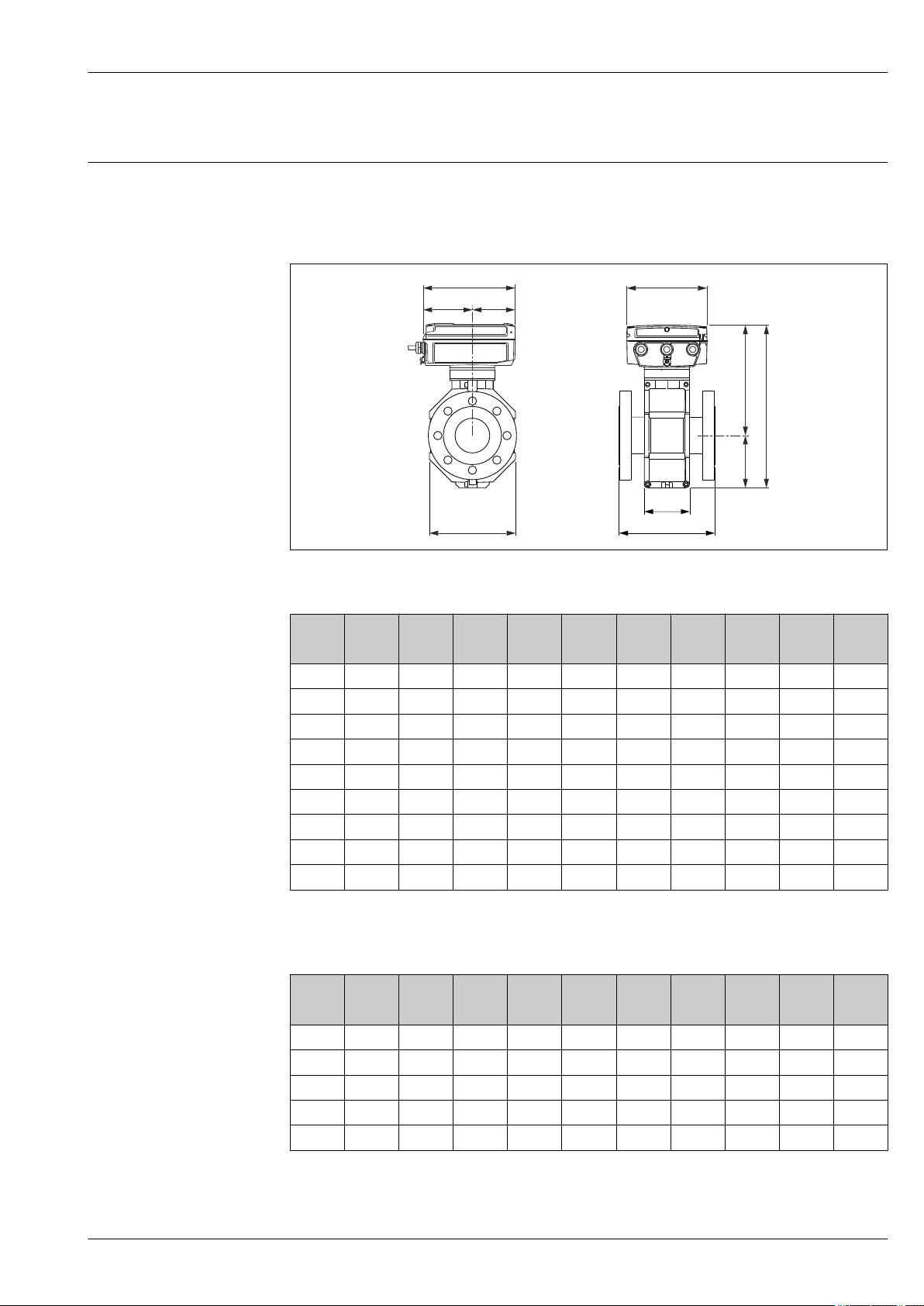

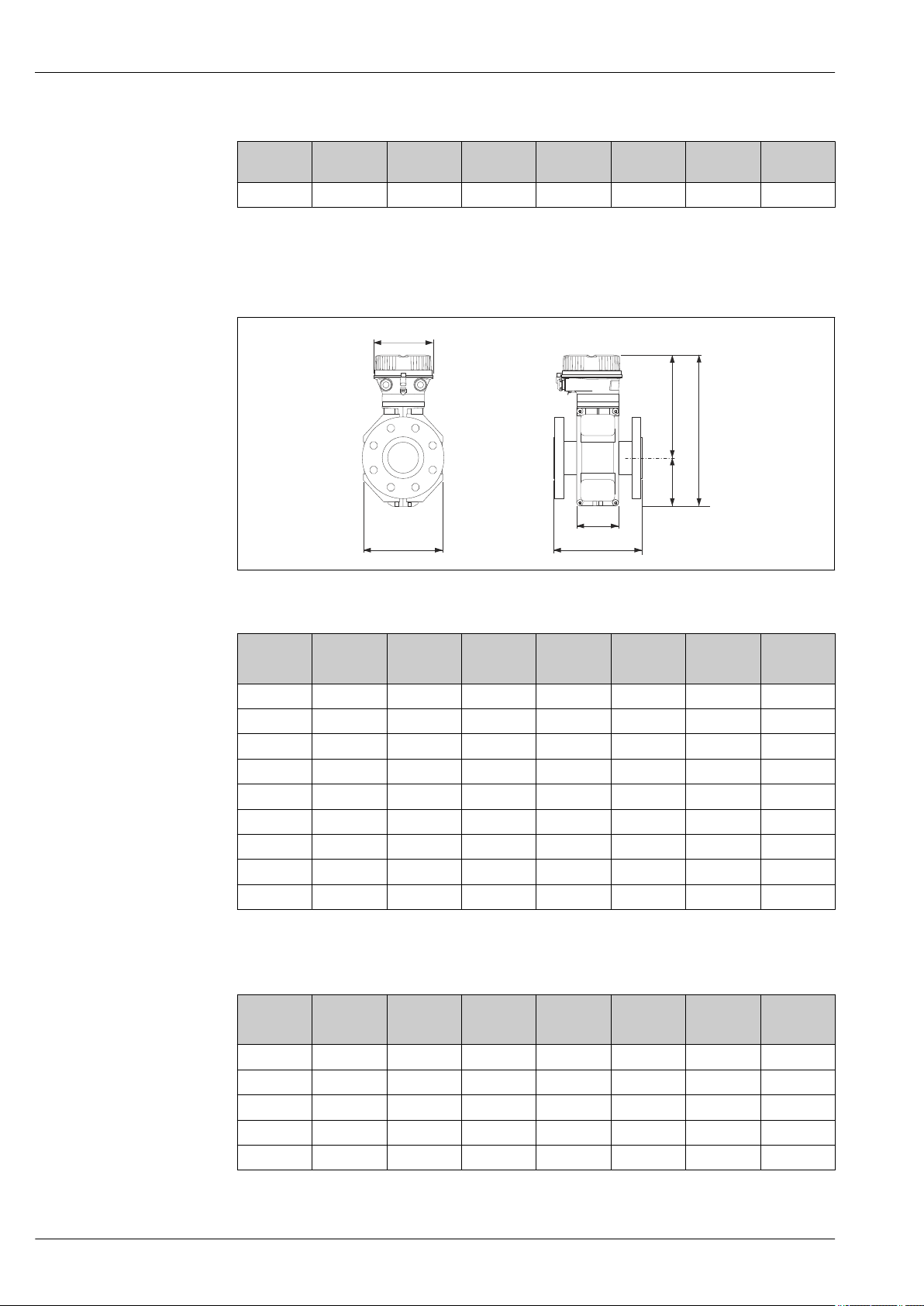

Design, dimensions ........................... 35

Weight ................................... 51

Measuring tube specification ..................... 56

Materials .................................. 58

Fitted electrodes ............................. 60

Process connections ........................... 60

Surface roughness ............................ 60

Operability ............................... 61

Operating concept ............................ 61

Local operation .............................. 61

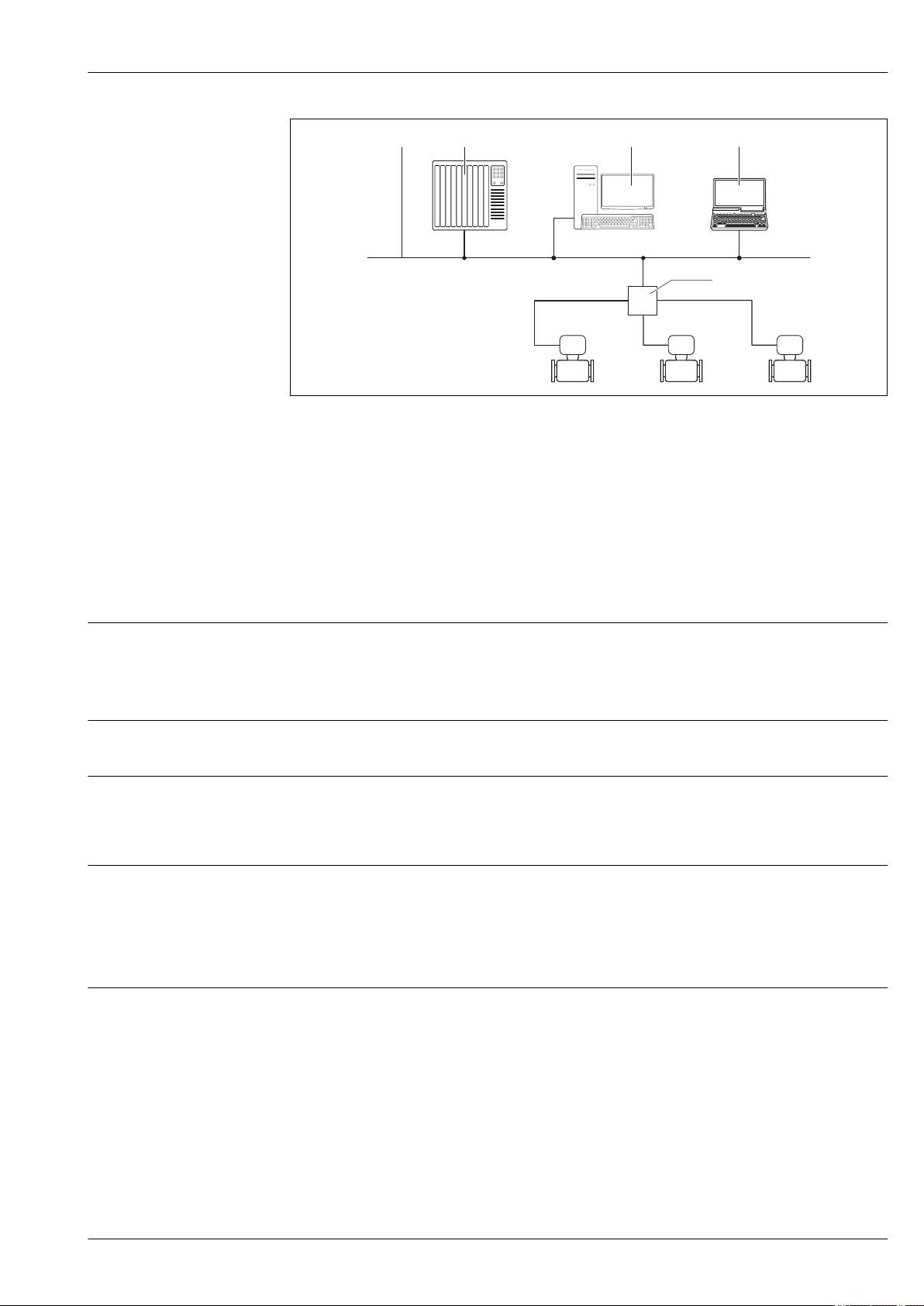

Remote operation ............................ 62

Certificates and approvals ................... 63

CE mark ................................... 63

C-Tick symbol ............................... 63

Drinking water approval ........................ 63

EtherNet/IP certification ........................ 63

Other standards and guidelines ................... 63

Ordering information ....................... 64

Application packages ....................... 64

Cleaning .................................. 64

Diagnostics functions .......................... 65

Heartbeat Technology ......................... 65

Installation ............................... 24

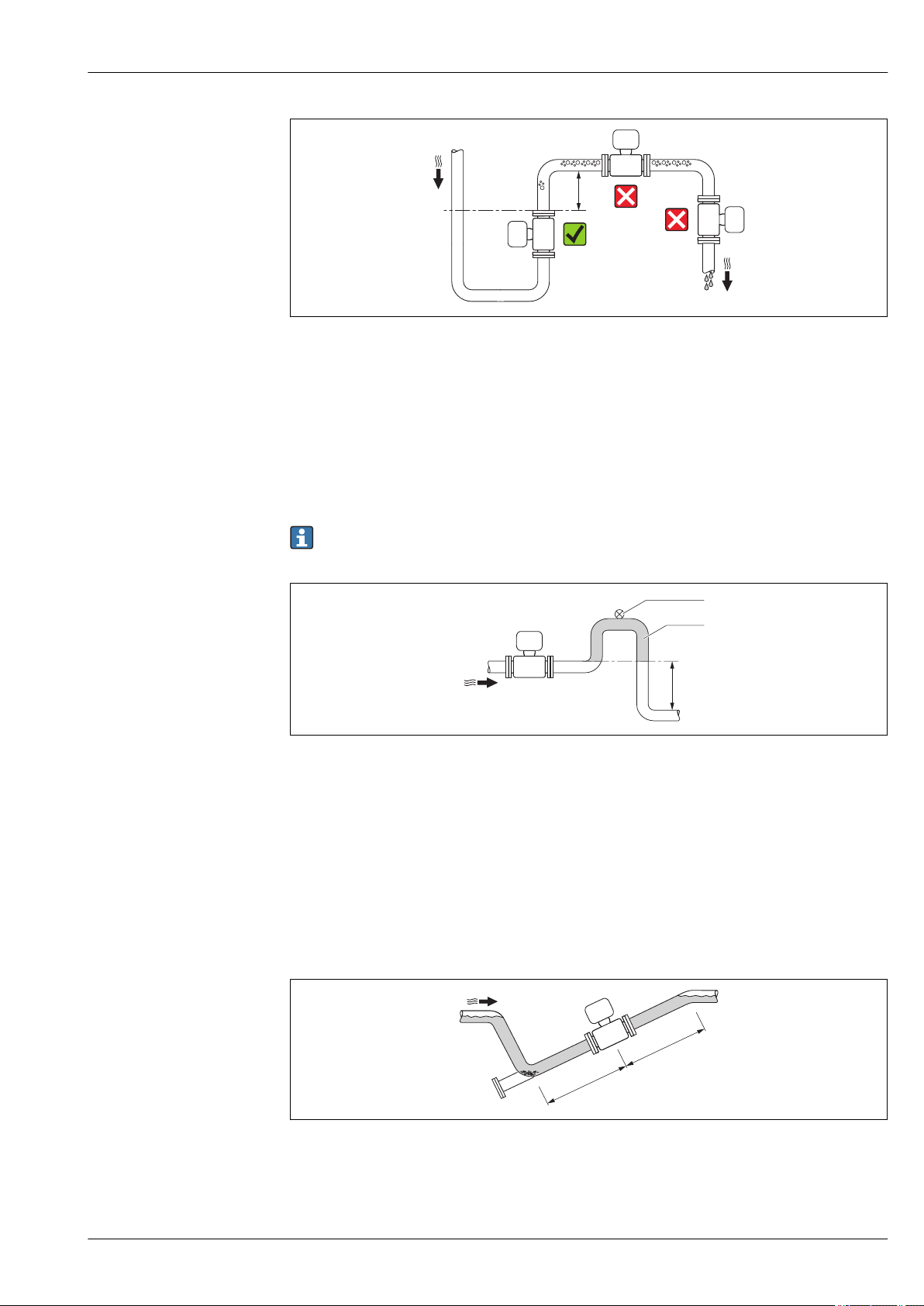

Mounting location ............................ 24

Orientation ................................ 26

Inlet and outlet runs .......................... 26

Adapters .................................. 27

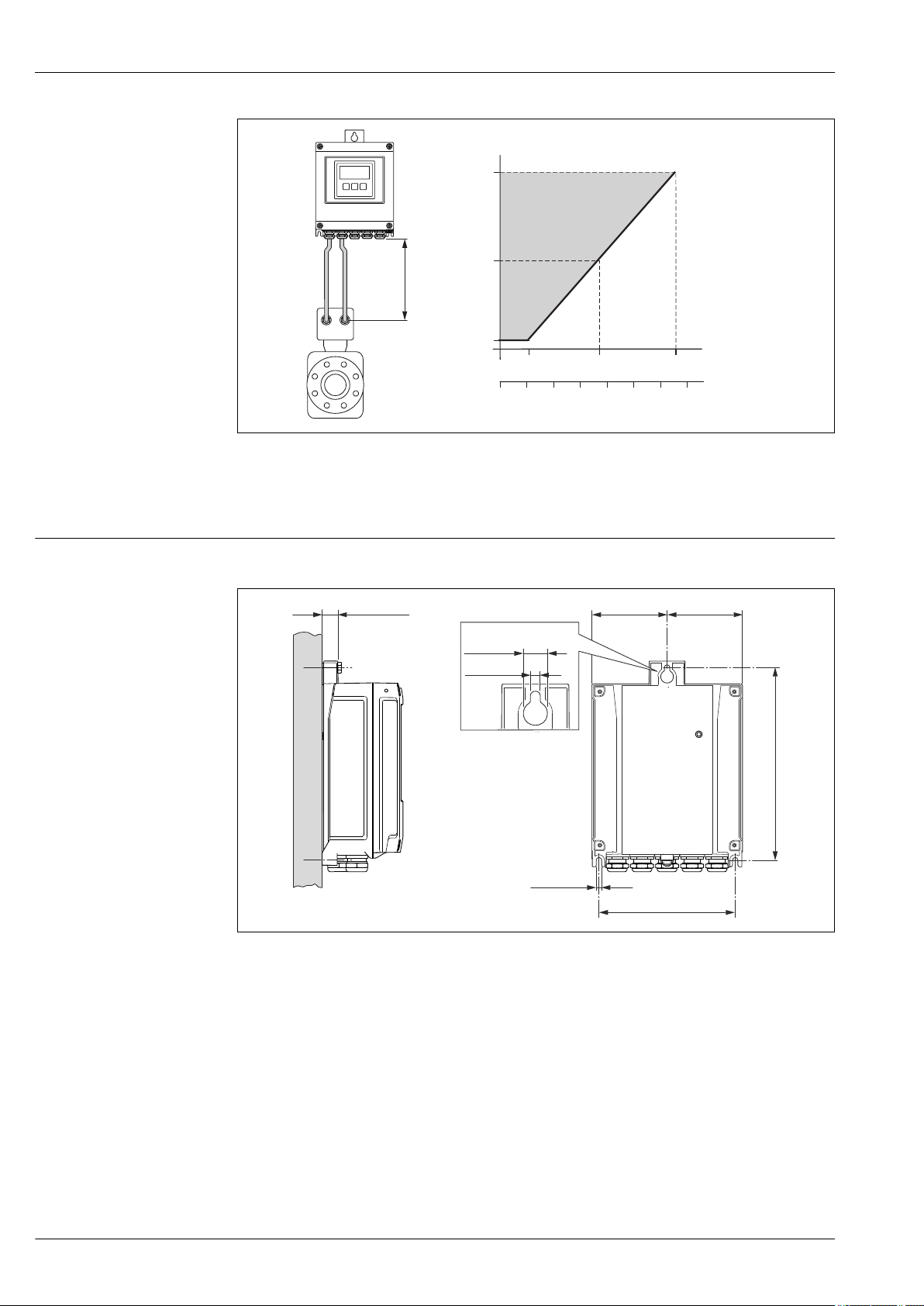

Length of connecting cable ...................... 27

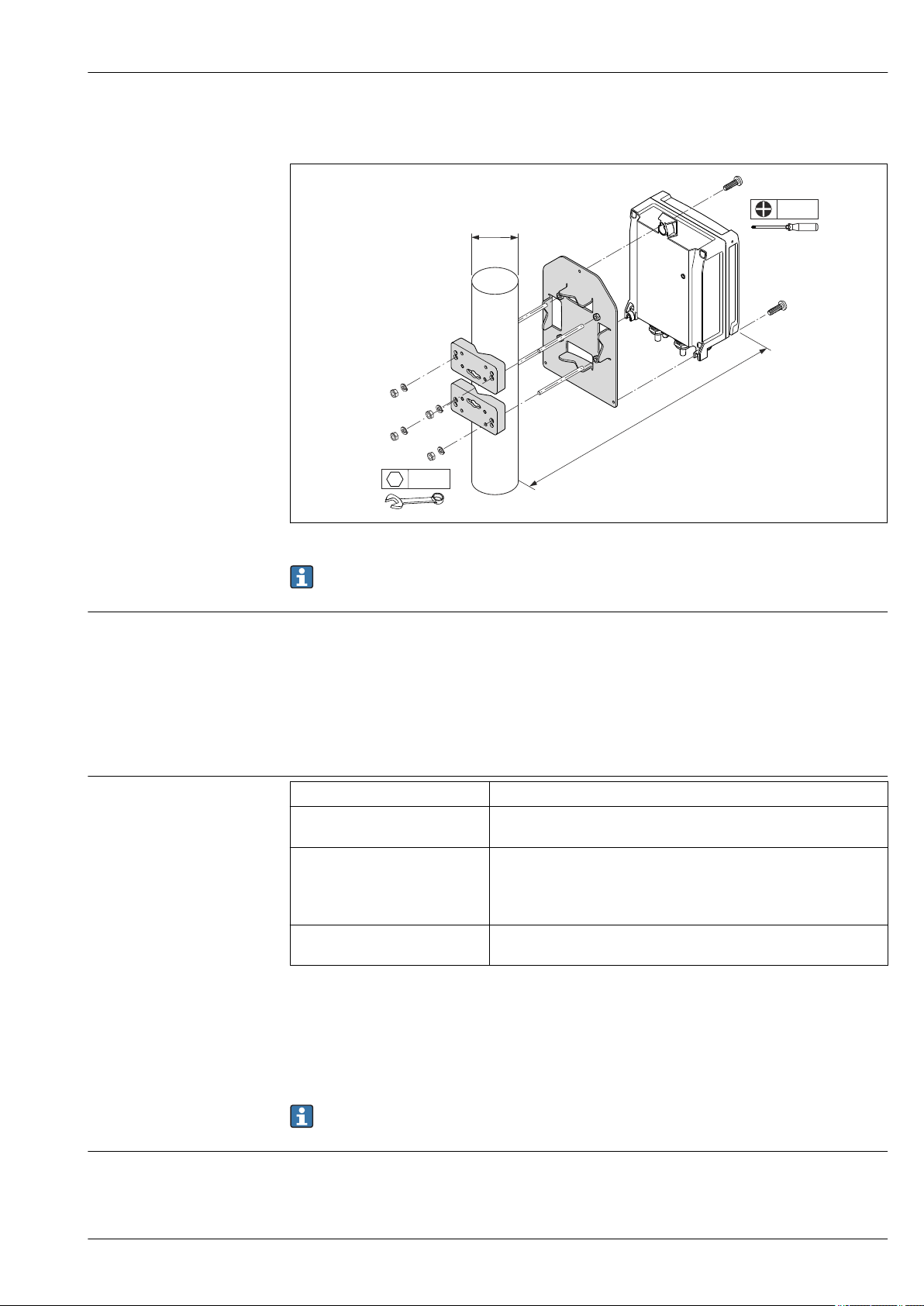

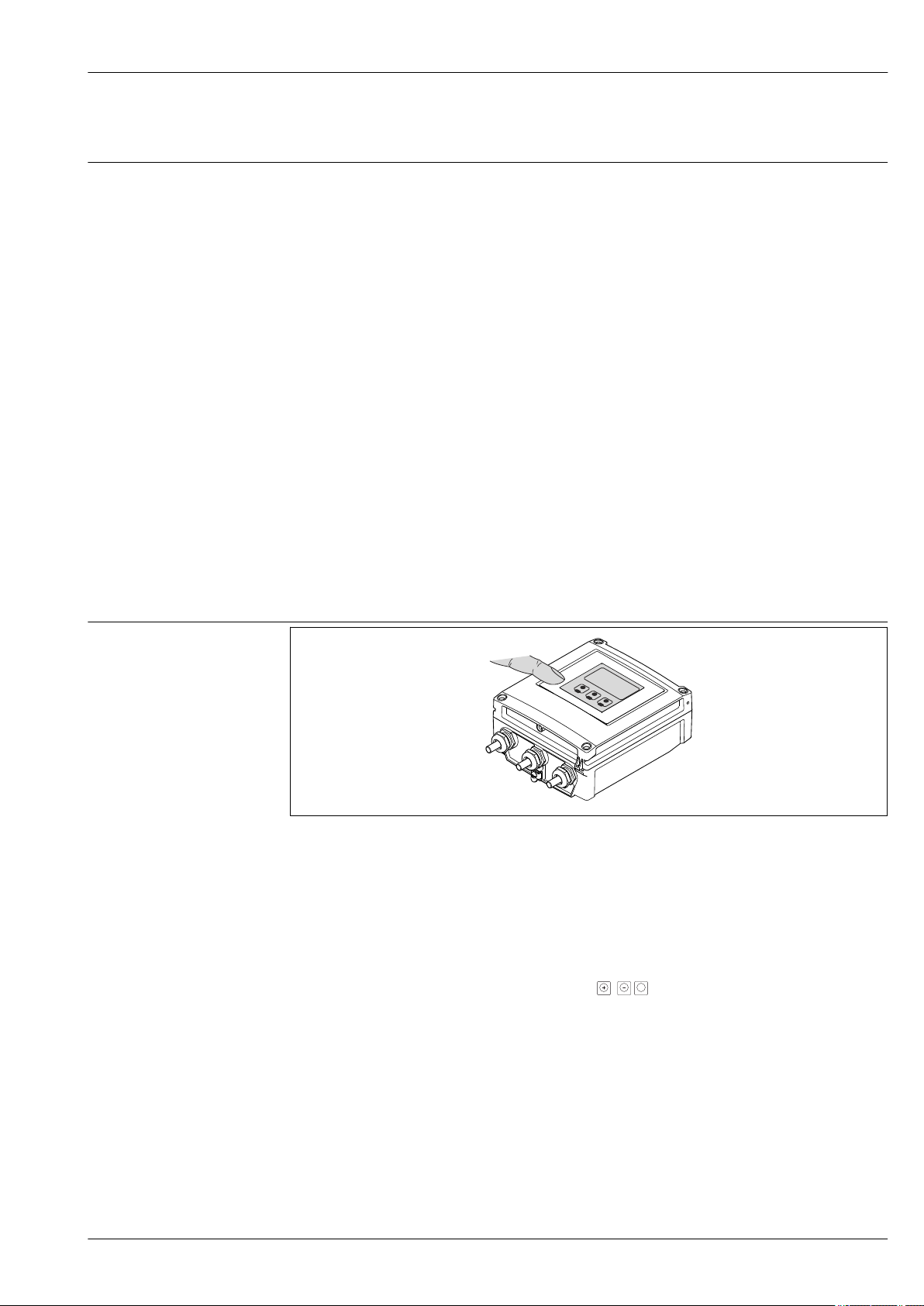

Installing the wall-mount housing ................. 28

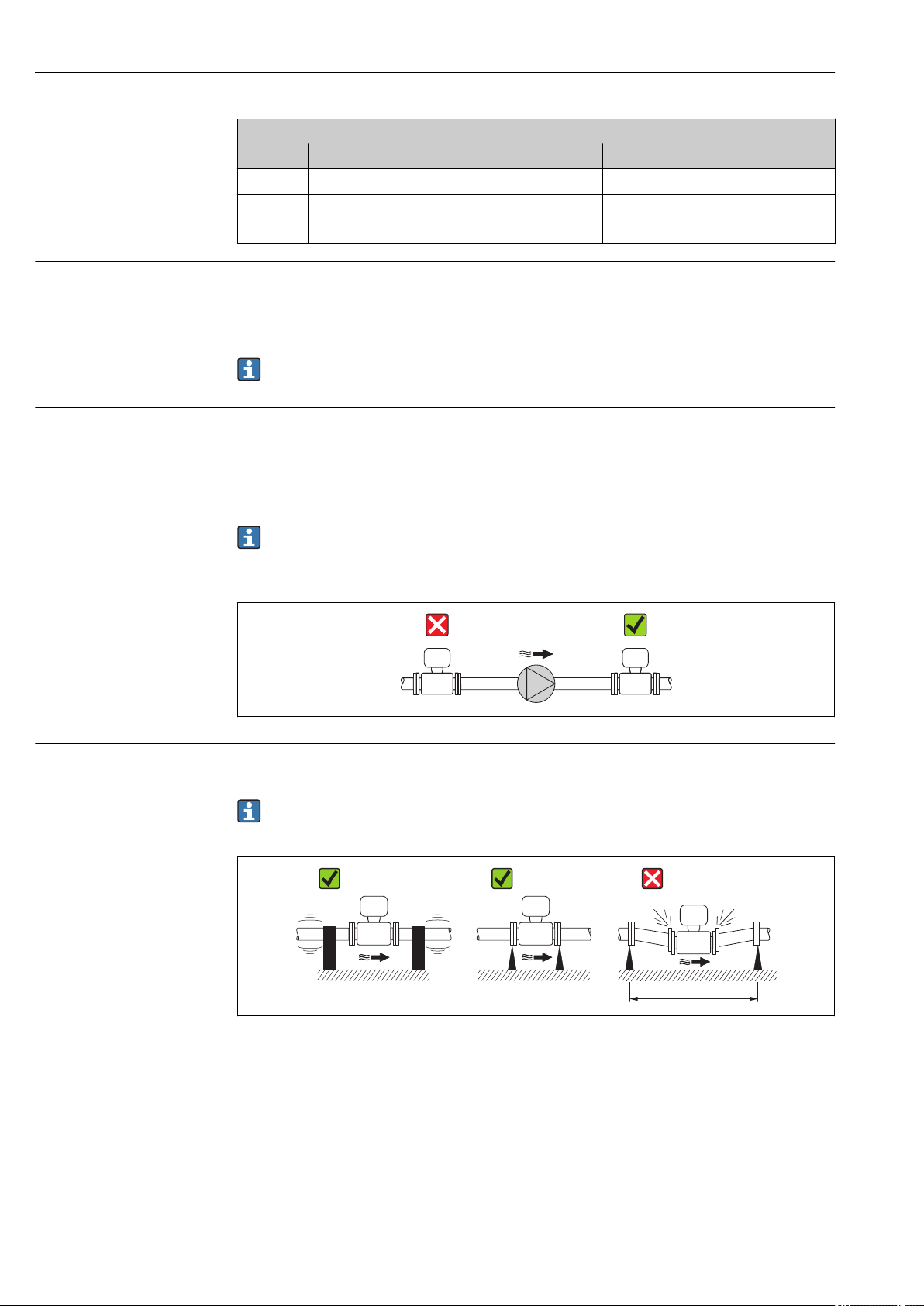

Special mounting instructions .................... 29

Environment .............................. 29

Ambient temperature range ..................... 29

Storage temperature .......................... 29

Atmosphere ................................ 30

Degree of protection .......................... 30

Shock resistance ............................. 30

Vibration resistance ........................... 30

Mechanical load ............................. 30

Accessories ............................... 65

Device-specific accessories ...................... 65

Communication-specific accessories ................ 66

Service-specific accessories ...................... 66

System components ........................... 67

Documentation ............................ 67

Standard documentation ........................ 67

Supplementary device-dependent documentation ....... 67

Registered trademarks ...................... 67

2 Endress+Hauser

Page 3

Proline Promag L 400

,…,

Document information

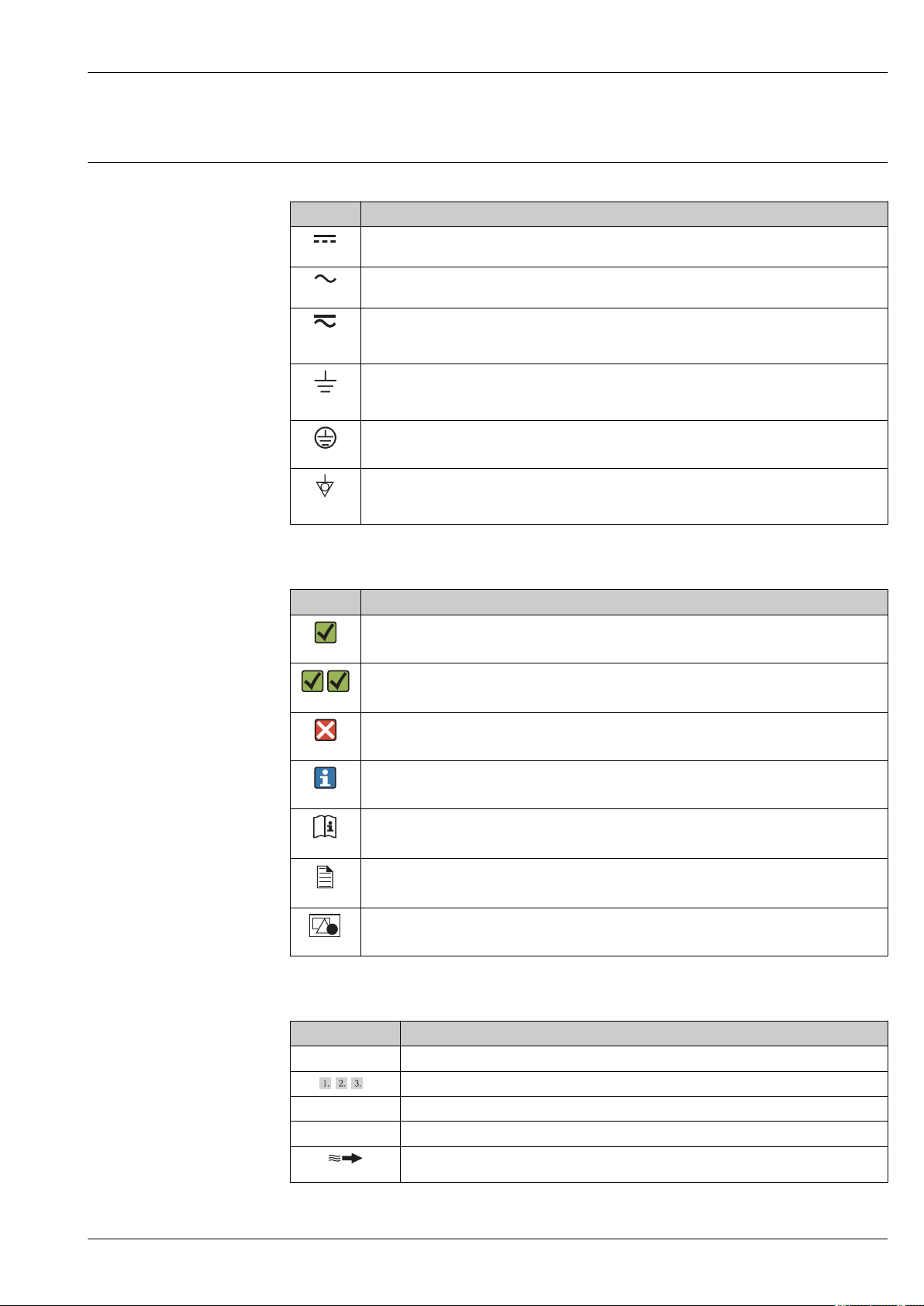

Symbols used Electrical symbols

Symbol Meaning

Direct current

A0011197

A terminal to which DC voltage is applied or through which direct current flows.

Alternating current

A0011198

A terminal to which alternating voltage is applied or through which alternating current flows.

Direct current and alternating current

A0017381

• A terminal to which alternating voltage or DC voltage is applied.

• A terminal through which alternating current or direct current flows.

Ground connection

A grounded terminal which, as far as the operator is concerned, is grounded via a grounding

A0011200

system.

Protective ground connection

A terminal which must be connected to ground prior to establishing any other connections.

A0011199

Equipotential connection

A connection that has to be connected to the plant grounding system: This may be a potential

A0011201

equalization line or a star grounding system depending on national or company codes of practice.

Symbols for certain types of information

Symbol Meaning

Allowed

Indicates procedures, processes or actions that are allowed.

A0011182

Preferred

Indicates procedures, processes or actions that are preferred.

A0011183

Forbidden

Indicates procedures, processes or actions that are forbidden.

A0011184

Tip

Indicates additional information.

A0011193

Reference to documentation

Refers to the corresponding device documentation.

A0011194

Reference to page

Refers to the corresponding page number.

A0011195

Reference to graphic

Refers to the corresponding graphic number and page number.

A0011196

Symbols in graphics

Symbol Meaning

1, 2, 3,... Item numbers

Series of steps

A, B, C, ... Views

A-A, B-B, C-C, ... Sections

Flow direction

A0013441

Endress+Hauser 3

Page 4

Symbol Meaning

Hazardous area

Indicates a hazardous area.

A0011187

Safe area (non-hazardous area)

Indicates a non-hazardous area.

A0011188

Function and system design

Proline Promag L 400

Measuring principle

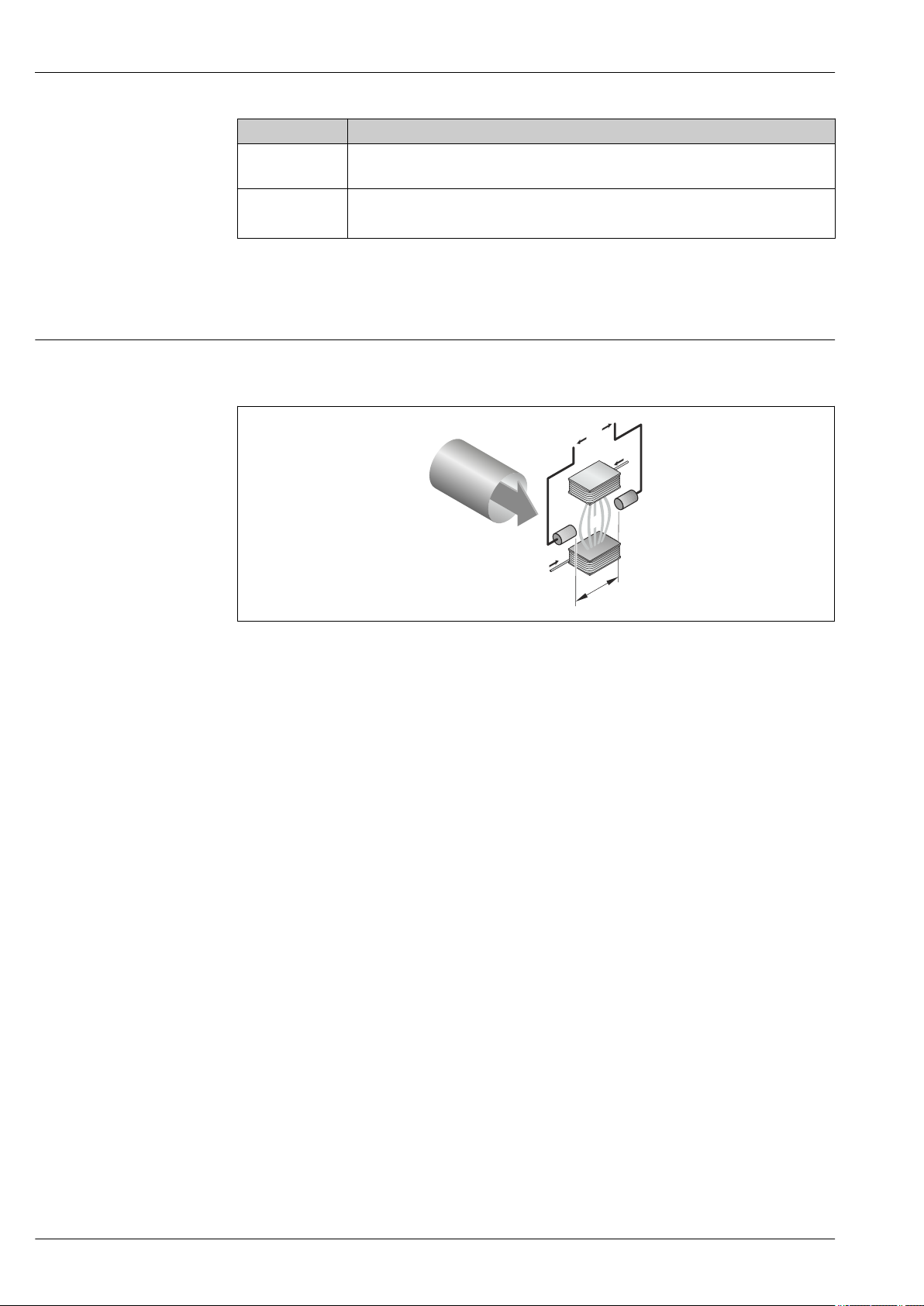

Following Faraday's law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field.

A0017035

Ue Induced voltage B Magnetic induction (magnetic field) L Electrode spacing I Current v Flow velocity

In the electromagnetic measuring principle, the flowing medium is the moving conductor. The voltage induced (Ue) is proportional to the flow velocity (v) and is supplied to the amplifier by means of two measuring electrodes. The flow volume (Q) is calculated via the pipe cross-section (A). The DC magnetic field is created through a switched direct current of alternating polarity.

Formulae for calculation

• Induced voltage Ue = B · L · v

• Volume flow Q = A · v

4 Endress+Hauser

Page 5

Proline Promag L 400

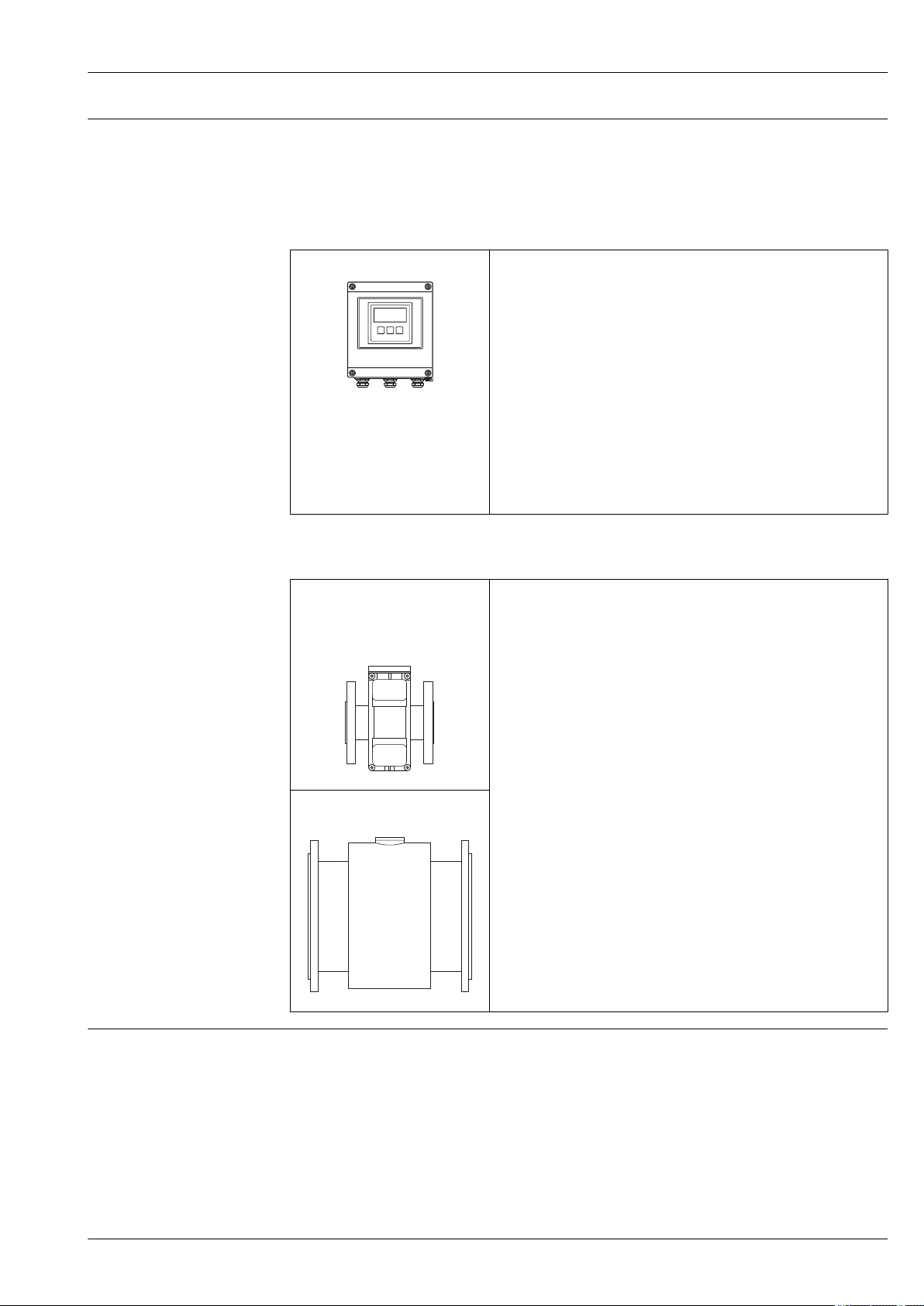

Measuring system

The device consists of a transmitter and a sensor.

Two device versions are available:

• Compact version - the transmitter and sensor form a mechanical unit.

• Remote version – the transmitter and sensor are mounted separately from one another.

Transmitter

Promag 400 Device versions and materials

• Compact version: compact housing – Polycarbonate plastic – Coated aluminum AlSi10Mg

• Remote version: wall-mount housing – Polycarbonate plastic – Coated aluminum AlSi10Mg

Configuration:

• External operation via four-line, illuminated local display with touch

A0017117

control and guided menus ("Make-it-run" wizards) for applications

• Via operating tools (e.g. FieldCare)

• Via Web browser (e.g. Microsoft Internet Explorer)

• Also for device version with EtherNet/IP output: – Via Add-on Profile Level 3 for automation system from Rockwell

Automation

– Via Electronic Data Sheet (EDS)

Sensor

Promag L Nominal diameter range: DN 50 to 2400 (2 to 90")

Lap joint flange; lap joint flange,

stamped plate: DN 50 to 300 (2 to

12")

Fixed flange: DN 350 to 2400 (14

to 90")

Materials:

• Sensor housing: coated aluminum AlSi10Mg, carbon steel with protective varnish

• Sensor connection housing: coated aluminum AlSi10Mg

• Measuring tube: stainless steel 1.4301 (304), 1.4306 (304L), 202, 304

• Liner: hard rubber, polyurethane, PTFE

• Seals: as per DIN EN 1514-1

• Electrodes: 1.4435 (304L), Alloy C22

• Ground disks: 1.4435 (316L), Alloy C22

A0017040

A0017041

Safety IT security

We only provide a warranty if the device is installed and used as described in the Operating Instructions. The device is equipped with security mechanisms to protect it against any inadvertent changes to the device settings.

IT security measures in line with operators' security standards and designed to provide additional protection for the device and device data transfer must be implemented by the operators themselves.

Endress+Hauser can be contacted to provide support in performing this task.

Endress+Hauser 5

Page 6

Input

Measured variable Direct measured variables

• Volume flow (proportional to induced voltage)

• Electrical conductivity

Calculated measured variables

Mass flow

Proline Promag L 400

Measuring range

Typically v = 0.01 to 10 m/s (0.03 to 33 ft/s) with the specified accuracy

Electrical conductivity: 5 to 10 000 µS/cm/cm

Flow characteristic values in SI units

Nominal

diameter

[mm] [in] [m3/h] [m3/h] [m3] [m3/h]

50 2 35 to 1 100 dm3/min 300 dm3/min 2.5 dm

65 – 60 to 2 000 dm3/min 500 dm3/min 5 dm

80 3 90 to 3 000 dm3/min 750 dm3/min 5 dm

100 4 145 to 4 700 dm3/min 1 200 dm3/min 10 dm

125 – 220 to 7 500 dm3/min 1 850 dm3/min 15 dm

150 6 20 to 600 150 0.025 2.5

200 8 35 to 1 100 300 0.05 5

250 10 55 to 1 700 500 0.05 7.5

300 12 80 to 2 400 750 0.1 10

350 14 110 to 3 300 1 000 0.1 15

375 15 140 to 4 200 1 200 0.15 20

400 16 140 to 4 200 1 200 0.15 20

450 18 180 to 5 400 1 500 0.25 25

500 20 220 to 6 600 2 000 0.25 30

600 24 310 to 9 600 2 500 0.3 40

700 28 420 to 13 500 3 500 0.5 50

750 30 480 to 15 000 4 000 0.5 60

800 32 550 to 18 000 4 500 0.75 75

900 36 690 to 22 500 6 000 0.75 100

1 000 40 850 to 28 000 7 000 1 125

– 42 950 to 30 000 8 000 1 125

1 200 48 1 250 to 40 000 10 000 1.5 150

– 54 1 550 to 50 000 13 000 1.5 200

1 400 – 1 700 to 55 000 14 000 2 225

– 60 1 950 to 60 000 16 000 2 250

1 600 – 2 200 to 70 000 18 000 2.5 300

– 66 2 500 to 80 000 20 500 2.5 325

1 800 72 2 850 to 90 000 23 000 3 350

Recommended

flow

min./max. full scale value

(v ~ 0.3/10 m/s)

Factory settings

Full scale value current

output

(v ~ 2.5 m/s)

Pulse value

(~ 2 pulse/s)

Low flow cut off

(v ~ 0.04 m/s)

5 dm3/min

8 dm3/min

12 dm3/min

20 dm3/min

30 dm3/min

6 Endress+Hauser

Page 7

Proline Promag L 400

Nominal diameter

[mm] [in] [m3/h] [m3/h] [m3] [m3/h]

– 78 3 300 to 100 000 28 500 3.5 450

2 000 – 3 400 to 110 000 28 500 3.5 450

– 84 3 700 to 125 000 31 000 4.5 500

2 200 – 4 100 to 136 000 34 000 4.5 540

– 90 4 300 to 143 000 36 000 5 570

2 400 – 4 800 to 162 000 40 000 5.5 650

Recommended

flow

min./max. full scale value

(v ~ 0.3/10 m/s)

Factory settings

Full scale value current

output

(v ~ 2.5 m/s)

Pulse value

(~ 2 pulse/s)

Low flow cut off

(v ~ 0.04 m/s)

Flow characteristic values in US units

Nominal diameter

[in] [mm] [gal/min] [gal/min] [gal] [gal/min]

1 25 2.5 to 80 18 0.2 0.25

1 ½ 40 7 to 190 50 0.5 0.75

2 50 10 to 300 75 0.5 1.25

– 65 16 to 500 130 1 2

3 80 24 to 800 200 2 2.5

4 100 40 to 1 250 300 2 4

8 200 155 to 4 850 1 200 10 15

10 250 250 to 7 500 1 500 15 30

12 300 350 to 10 600 2 400 25 45

14 350 500 to 15 000 3 600 30 60

15 375 600 to 19 000 4 800 50 60

16 400 600 to 19 000 4 800 50 60

18 450 800 to 24 000 6 000 50 90

20 500 1 000 to 30 000 7 500 75 120

24 600 1 400 to 44 000 10 500 100 180

28 700 1 900 to 60 000 13 500 125 210

30 750 2 150 to 67 000 16 500 150 270

32 800 2 450 to 80 000 19 500 200 300

36 900 3 100 to 100 000 24 000 225 360

40 1 000 3 800 to 125 000 30 000 250 480

42 – 4 200 to 135 000 33 000 250 600

48 1 200 5 500 to 175 000 42 000 400 600

54 – 9 to 300 MGal/d 75 MGal/d 0.0005 MGal/d 1.3 MGal/d

– 1 400 10 to 340 MGal/d 85 MGal/d 0.0005 MGal/d 1.3 MGal/d

60 – 12 to 380 MGal/d 95 MGal/d 0.0005 MGal/d 1.3 MGal/d

– 1 600 13 to 450 MGal/d 110 MGal/d 0.0008 MGal/d 1.7 MGal/d

Recommended

flow

min./max. full scale value

(v ~ 0.3/10 m/s)

Factory settings

Full scale value current

output

(v ~ 2.5 m/s)

Pulse value

(~ 2 pulse/s)

Low flow cut off

(v ~ 0.04 m/s)

Endress+Hauser 7

Page 8

Proline Promag L 400

Nominal

diameter

[in] [mm] [gal/min] [gal/min] [gal] [gal/min]

66 – 14 to 500 MGal/d 120 MGal/d 0.0008 MGal/d 2.2 MGal/d

72 1 800 16 to 570 MGal/d 140 MGal/d 0.0008 MGal/d 2.6 MGal/d

78 – 18 to 650 MGal/d 175 MGal/d 0.0010 MGal/d 3.0 MGal/d

– 2 000 20 to 700 MGal/d 175 MGal/d 0.0010 MGal/d 2.9 MGal/d

84 – 24 to 800 MGal/d 190 MGal/d 0.0011 MGal/d 3.2 MGal/d

– 2 200 26 to 870 MGal/d 210 MGal/d 0.0012 MGal/d 3.4 MGal/d

90 – 27 to 910 MGal/d 220 MGal/d 0.0013 MGal/d 3.6 MGal/d

– 2 400 31 to 1 030 MGal/d 245 MGal/d 0.0014 MGal/d 4.1 MGal/d

Recommended

flow

min./max. full scale value

(v ~ 0.3/10 m/s)

Factory settings

Full scale value current

output

(v ~ 2.5 m/s)

Pulse value

(~ 2 pulse/s)

Low flow cut off

(v ~ 0.04 m/s)

To calculate the measuring range, use the Applicator sizing tool (→  66)

Recommended measuring range

"Flow limit" section (→  34)

Operable flow range

Over 1000 : 1

Input signal Status input

Maximum input values • DC 30 V

Response time Adjustable: 5 to 200 ms

Input signal level • Low signal: DC –3 to +5 V

Assignable functions • Off

Output

Output signal Current output

Current output Can be set as:

Maximum output values • DC 24 V (when idle)

Load 0 to 700 Ω

Resolution 0.5 µA

• 6 mA

• High signal: DC 12 to 30 V

• Reset totalizers 1-3 separately

• Reset all totalizers

• Flow override

• 4-20 mA NAMUR

• 4-20 mA US

• 4-20 mA HART

• 0-20 mA

• 22.5 mA

8 Endress+Hauser

Page 9

Proline Promag L 400

Damping Adjustable: 0.07 to 999 s

Assignable measured variables

• Volume flow

• Mass flow

• Flow velocity

• Conductivity

• Electronics temperature

Pulse/frequency/switch output

Function • With the order code for "Output; Input", option H: output 2 can be set as a pulse

or frequency output

• With the order code for "Output; Input", option I: output 2 and 3 can be set as a pulse, frequency or switch output

Version Passive, open collector

Maximum input values • DC30 V

• 250 mA

Voltage drop For 25 mA: ≤ DC2 V

Pulse output

Pulse width Adjustable: 0.05 to 2 000 ms

Maximum pulse rate 10 000 Impulse/s

Pulse value Adjustable

Assignable measured variables

Frequency output

Output frequency Adjustable: 0 to 12 500 Hz

Damping Adjustable: 0 to 999 s

Pulse/pause ratio 1:1

Assignable measured variables

Switch output

Switching behavior Binary, conductive or non-conductive

Switching delay Adjustable: 0 to 100 s

Number of switching cycles

Assignable functions • Off

• Volume flow

• Mass flow

• Volume flow

• Mass flow

• Flow velocity

• Conductivity

• Electronics temperature

Unlimited

• On

• Diagnostic behavior

• Limit value: – Off – Volume flow – Mass flow – Flow velocity – Conductivity – Totalizer 1-3 – Electronics temperature

• Flow direction monitoring

• Status – Empty pipe detection – Low flow cut off

Endress+Hauser 9

Page 10

EtherNet/IP

Standards In accordance with IEEE 802.3

Proline Promag L 400

Signal on alarm

Depending on the interface, failure information is displayed as follows:

Current output

4-20 mA

Failure mode Selectable (as per NAMUR recommendation NE 43):

• Minimum value: 3.6 mA

• Maximum value: 22 mA

• Defined value: 3.59 to 22.5 mA

• Actual value

• Last valid value

0-20 mA

Failure mode Choose from:

• Maximum alarm:22 mA

• Defined value: 0 to 22.5 mA

HART

Device diagnostics Device condition can be read out via HART Command 48

Pulse/frequency/switch output

Pulse output

Failure mode Choose from:

• Actual value

• No pulses

Frequency output

Failure mode Choose from:

• Actual value

• Defined value: 0 to 12 500 Hz

• 0 Hz

Switch output

Failure mode Choose from:

• Current status

• Open

• Closed

EtherNet/IP

Device diagnostics Device condition can be read out in Input Assembly

Local display

Plain text display With information on cause and remedial measures

Backlight Red backlighting indicates a device error.

Status signal as per NAMUR recommendation NE 107

10 Endress+Hauser

Page 11

Proline Promag L 400

Operating tool

• Via digital communication: HART protocol

• Via service interface

Plain text display With information on cause and remedial measures

Additional information on remote operation (→  62)

Web browser

Plain text display With information on cause and remedial measures

Light emitting diodes (LED)

Status information Status indicated by various light emitting diodes

The following information is displayed depending on the device version:

• Supply voltage active

• Data transmission active

• Device alarm/error has occurred

• EtherNet/IP network available

• EtherNet/IP connection established

Low flow cut off

Galvanic isolation

The switch points for low flow cut off are user-selectable.

The following connections are galvanically isolated from each other:

• Inputs

• Outputs

• Power supply

Protocol-specific data HART

Manufacturer ID 0x11

Device type ID 0x67

HART protocol revision 6.0

Device description files (DTM, DD)

HART load Min. 250 Ω

Dynamic variables The measured variables can be freely assigned to the dynamic variables.

Information and files under:

www.endress.com

Measured variables for PV (primary dynamic variable)

• Off

• Volume flow

• Mass flow

• Flow velocity

• Electronics temperature

Measured variables for SV, TV, QV (secondary, tertiary and quaternary dynamic variable)

• Volume flow

• Mass flow

• Flow velocity

• Conductivity

• Electronics temperature

• Totalizer 1

• Totalizer 2

• Totalizer 3

Endress+Hauser 11

Page 12

Proline Promag L 400

EtherNet/IP

Protocol • The CIP Networks Library Volume 1: Common Industrial Protocol

• The CIP Networks Library Volume 2: EtherNet/IP Adaptation of CIP

Communication type • 10Base-T

• 100Base-TX

Device profile Generic device (product type: 0x2B)

Manufacturer ID 0x49E

Device type ID 0x1067

Baud rates Automatic ¹⁰⁄₁₀₀ Mbit with half-duplex and full-duplex detection

Polarity Auto-polarity for automatic correction of crossed TxD and RxD pairs

Supported CIP connections Max. 3 connections

Explicit connections Max. 6 connections

I/O connections Max. 6 connections (scanner)

Configuration options for measuring device

Configuration of the EtherNet interface

Configuration of the device address

Device Level Ring (DLR) No

Fix Input

RPI 5 ms to 10 s (factory setting: 20 ms)

Exclusive Owner Multicast Instance Size [byte]

Input only Multicast Instance Size [byte]

• DIP switches on the electronics module for IP addressing

• Manufacturer-specific software (FieldCare)

• Add-on Profile Level 3 for Rockwell Automation control systems

• Web browser

• Electronic Data Sheet (EDS) integrated in the measuring device

• Speed: 10 MBit, 100 MBit, auto (factory setting)

• Duplex: half-duplex, full-duplex, auto (factory setting)

• DIP switches on the electronics module for IP addressing (last octet)

• DHCP

• Manufacturer-specific software (FieldCare)

• Add-on Profile Level 3 for Rockwell Automation control systems

• Web browser

• EtherNet/IP tools, e.g. RSLinx (Rockwell Automation)

Instance configuration: 0x68 398

O → T configuration: 0x66 56

T → O configuration: 0x64 32

Instance configuration: 0x69 -

O → T configuration: 0x66 56

T → O configuration: 0x64 32

Instance configuration: 0x68 398

O → T configuration: 0xC7 -

T → O configuration: 0x64 32

Instance configuration: 0x69 -

O → T configuration: 0xC7 -

T → O configuration: 0x65 32

12 Endress+Hauser

Page 13

Proline Promag L 400

Input Assembly • Current device diagnostics

• Volume flow

• Mass flow

• Temperature

• Totalizer 1

• Totalizer 2

• Totalizer 3

Configurable Input

RPI 5 ms to 10 s (factory setting: 20 ms)

Exclusive Owner Multicast Instance Size [byte]

Instance configuration: 0x68 398

O → T configuration: 0x66 56

T → O configuration: 0x65 88

Exclusive Owner Multicast Instance Size [byte]

Instance configuration: 0x69 -

O → T configuration: 0x66 56

T → O configuration: 0x64 88

Input only Multicast Instance Size [byte]

Instance configuration: 0x68 398

O → T configuration: 0xC7 -

T → O configuration: 0x64 88

Input only Multicast Instance Size [byte]

Instance configuration: 0x69 -

O → T configuration: 0xC7 -

T → O configuration: 0x65 88

Configurable Input Assembly • Volume flow

• Temperature

• Mass flow

• Totalizer 1 to 3

• Flow velocity

• Volume flow unit

• Temperature unit

• Mass flow unit

• Unit totalizer 1-3

• Flow velocity unit

Fix Output

Output Assembly • Activation of reset totalizers 1-3

• Activation of reference density compensation

• Reset totalizers 1-3

• External density

• Density unit

• Temperature unit

Endress+Hauser 13

Page 14

Proline Promag L 400

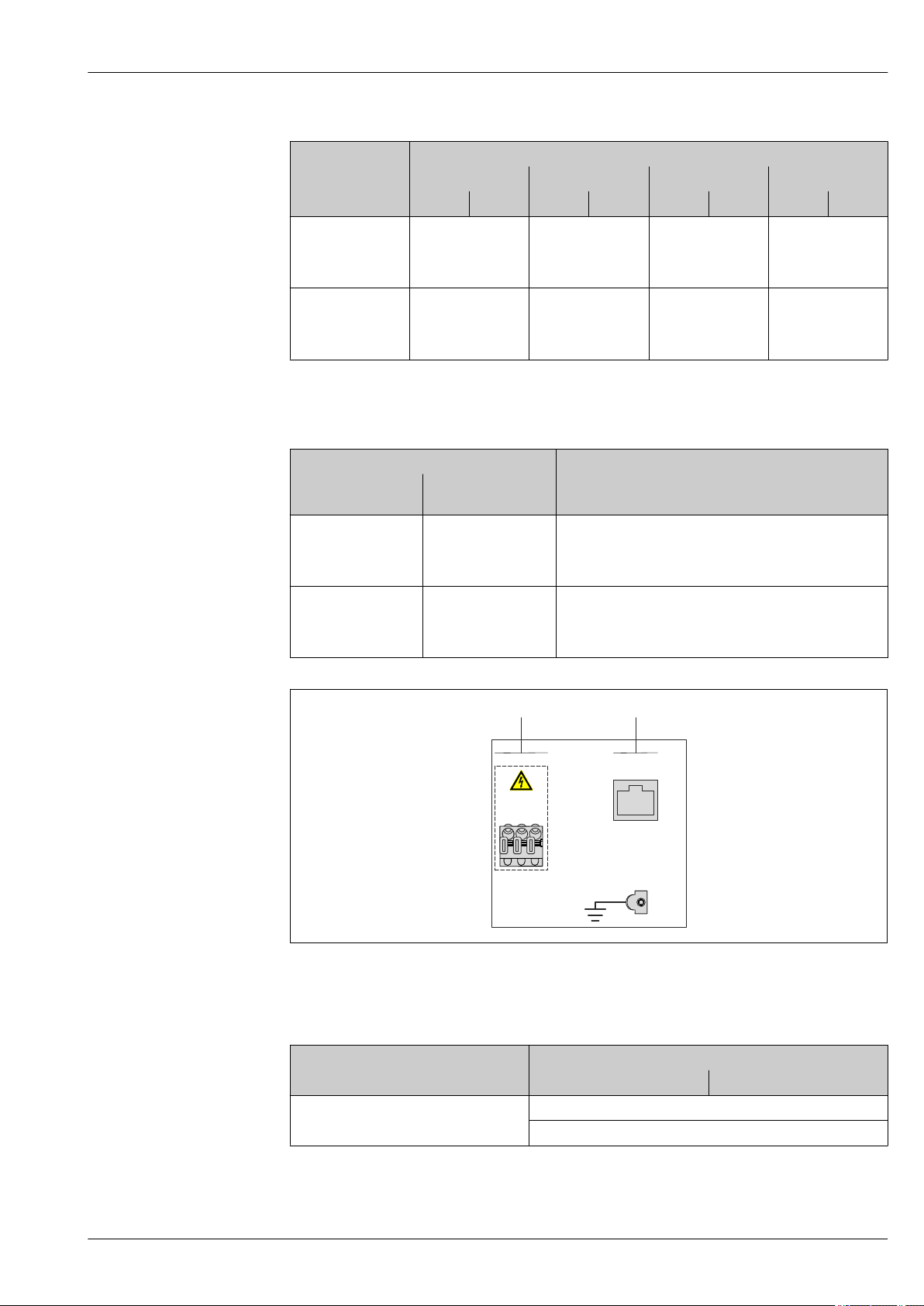

23 20

+ - + -

L+/L

L-/N

1 2 3

Configuration

Configuration Assembly Only the most common configurations are listed below.

• Software write protection

• Mass flow unit

• Mass unit

• Volume flow unit

• Volume unit

• Density unit

• Reference density unit

• Temperature unit

• Length

• Totalizer 1-3: – Assignment – Unit – Operating mode – Failure mode

• Alarm delay

Power supply

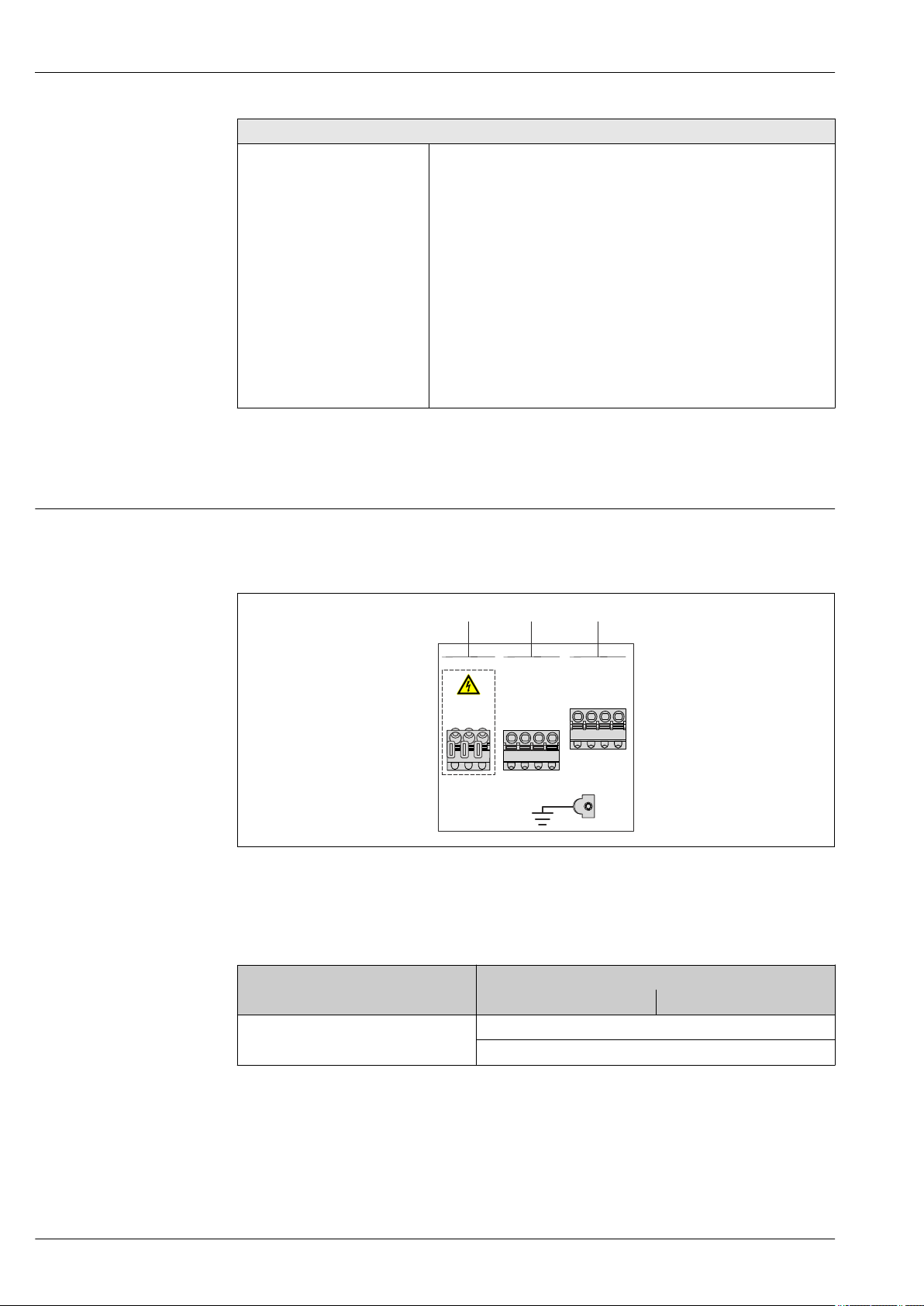

Terminal assignment Transmitter

0-20 mA/4-20 mA HART connection version with additional outputs and inputs

1 Supply voltage 2 Output 1 (26/27) and output 2 (24/25) 3 Output 3 (22/23) and input 1 (20/21)

Supply voltage

A0020424

Order code for "Power supply" Terminal numbers

1 (L+/L) 2 (L-/N)

Option L

(wide range power unit)

AC100 to 240 V

AC/DC24 V

14 Endress+Hauser

Page 15

Proline Promag L 400

L+/L

L-/N

1 2

Signal transmission 0-20 mA/4-20 mA HART with additional outputs and inputs

Order code for

"Output" and

"Input"

Option H • 4-20 mA HART

Option I • 4-20 mA HART

Output 1 Output 2 Output 3 Input

26 (+) 27 (-) 24 (+) 25 (-) 22 (+) 23 (-) 20 (+) 21 (-)

(active)

• 0-20 mA (active)

(active)

• 0-20 mA (active)

Pulse/frequency

Pulse/frequency/

Terminal numbers

output

(passive)

switch output

(passive)

EtherNet/IP connection version

The sensor can be ordered with terminals or a device plug.

Connection methods available

Outputs

Terminals Terminals • Option A: coupling M20x1

Device plug

(→  16)

Power

supply

• Option B: thread M20x1

• Option C: thread G ½"

• Option D: thread NPT ½"

Terminals • Option L: plug M12x1 + thread NPT ½"

• Option N: plug M12x1 + coupling M20

• Option P: plug M12x1 + thread G ½"

• Option U: plug M12x1 + thread M20

Switch output

(passive)

Pulse/frequency/

switch output

(passive)

Possible options for order code

"Electrical connection"

Status input

Endress+Hauser 15

1 Supply voltage (wide range power unit) 2 EtherNet/IP

Supply voltage

Order code for "Power supply" Terminal numbers

1 (L+/L) 2 (L-/N)

Option L

(wide range power unit)

AC100 to 240 V

A0020428

AC/DC24 V

Page 16

EtherNet/IP signal transmission

GND

42 41

8437 36

n.c. n.c.

n.c.

42 41

Order code for "Output" Connection via

Option N EtherNet/IP connector

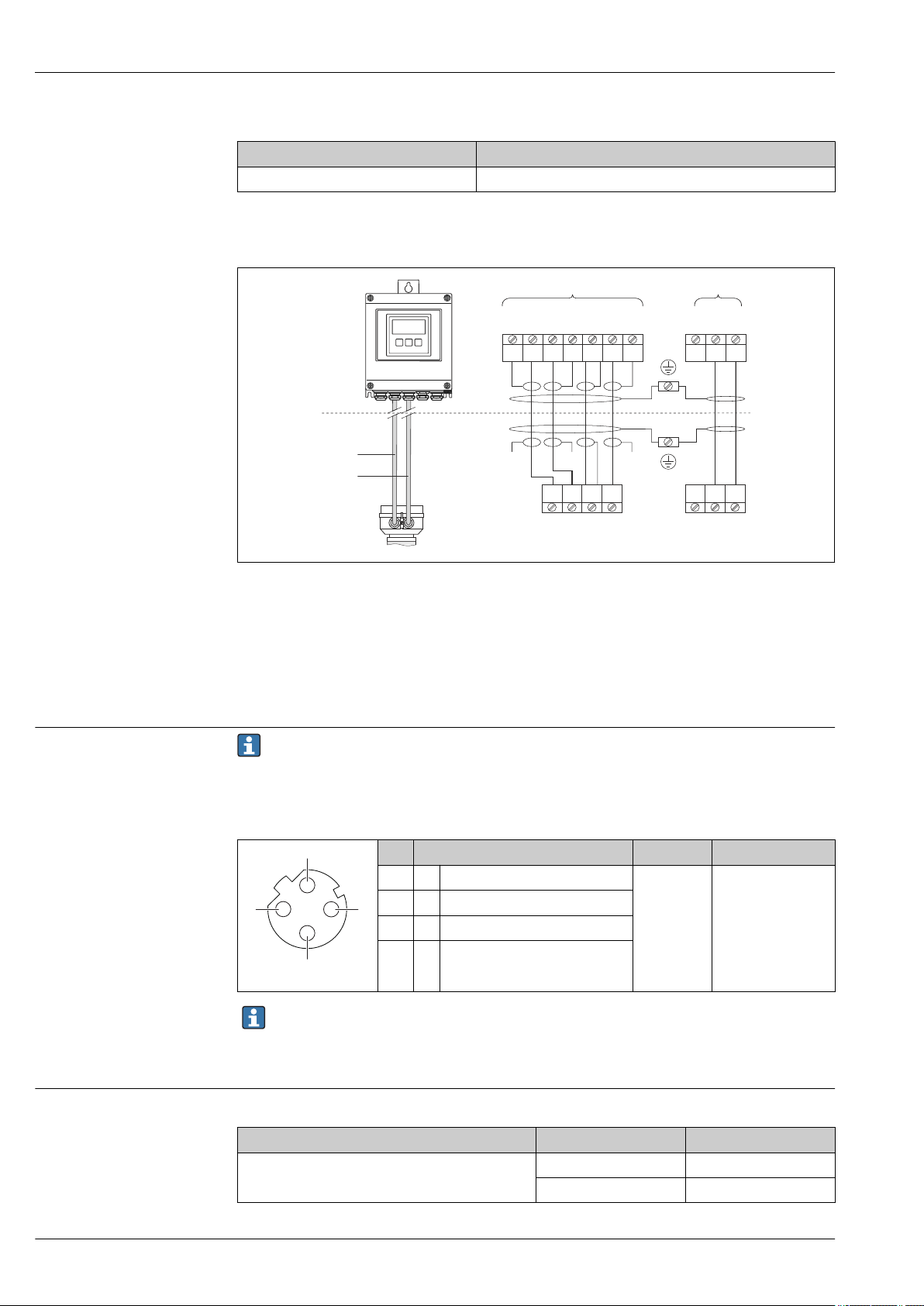

Remote version

Proline Promag L 400

Pin assignment, device plug

Supply voltage Transmitter

 1 Remote version terminal assignment

A Transmitter wall-mount housing B Sensor connection housing 1 Electrode cable 2 Coil current cable n.c. Not connected, insulated cable shields

Terminal No. and cable colors: 6/5 = brown; 7/8 = white; 4 = green; 36/37 = yellow

Order codes for the M12x1 plug, see the "Order code for electrical connection" column: EtherNet/IP (→  15)

EtherNet/IP

EtherNet/IP (on the device side)

Pin Assignment Coding Plug/socket

1 + Tx D Socket

2 + Rx

3 - Tx

4 - Rx

A0016812

Recommended plug:

• Binder, series 763, part no. 99 3729 810 04

• Phoenix, part no. 1543223 SACC-M12MSD-4Q

• When using the device in a hazardous location: Use a suitably certified plug.

A0020534

Order code for "Power supply" Terminal voltage Frequency range

16 Endress+Hauser

Option L

AC100 to 240 V 50/ 60 Hz, ±4 Hz

AC/DC24 V 50/ 60 Hz, ±4 Hz

Page 17

Proline Promag L 400

A B

1 2

2221

1 21

A B

Power consumption

Option L 30 VA/8 W

Option N 30 VA/8 W

Order code for

"Output"

Current consumption Transmitter

Order code for "Power supply" Maximum

Option L: AC 100 to 240 V 145 mA 25 A (< 5 ms)

Option L: AC/DC 24 V 350 mA 27 A (< 5 ms)

Power supply failure

• Totalizers stop at the last value measured.

• Configuration is retained in the plug-in memory (HistoROM DAT).

• Error messages (incl. total operated hours) are stored.

Electrical connection Connecting the transmitter

Maximum

Power consumption

Current consumption

Maximum

switch-on current

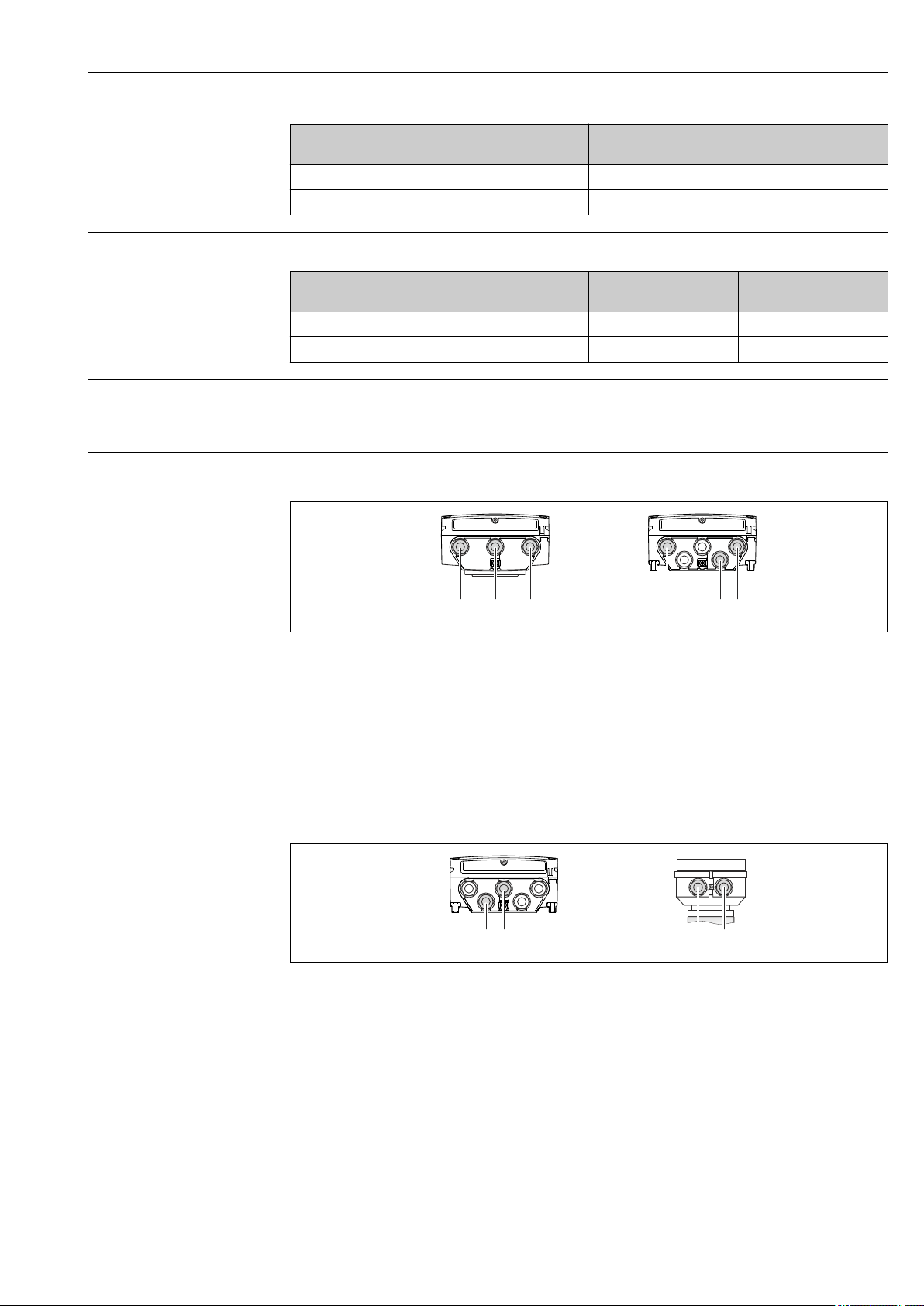

 2 Supply voltage and signal transmission connection

A Compact version B Remote version wall-mount housing 1 Cable entry for supply voltage 2 Cable entry for signal transmission

Remote version connection

Connecting cable

 3 Connecting cable connection: electrode and coil current cable

A Transmitter wall-mount housing B Sensor connection housing 1 Electrode cable 2 Coil current cable

A0017113

A0017267

Endress+Hauser 17

• Fix the cable run or route it in an armored conduit. Cable movements can influence the measuring signal especially in the case of low fluid conductivities.

• Route the cable well clear of electrical machines and switching elements.

• Ensure potential equalization between sensor and transmitter (→  19).

Page 18

Connection examples

4...20 mA

–

0/4...20 mA

–

12345

–

Current output 4-20 mA HART

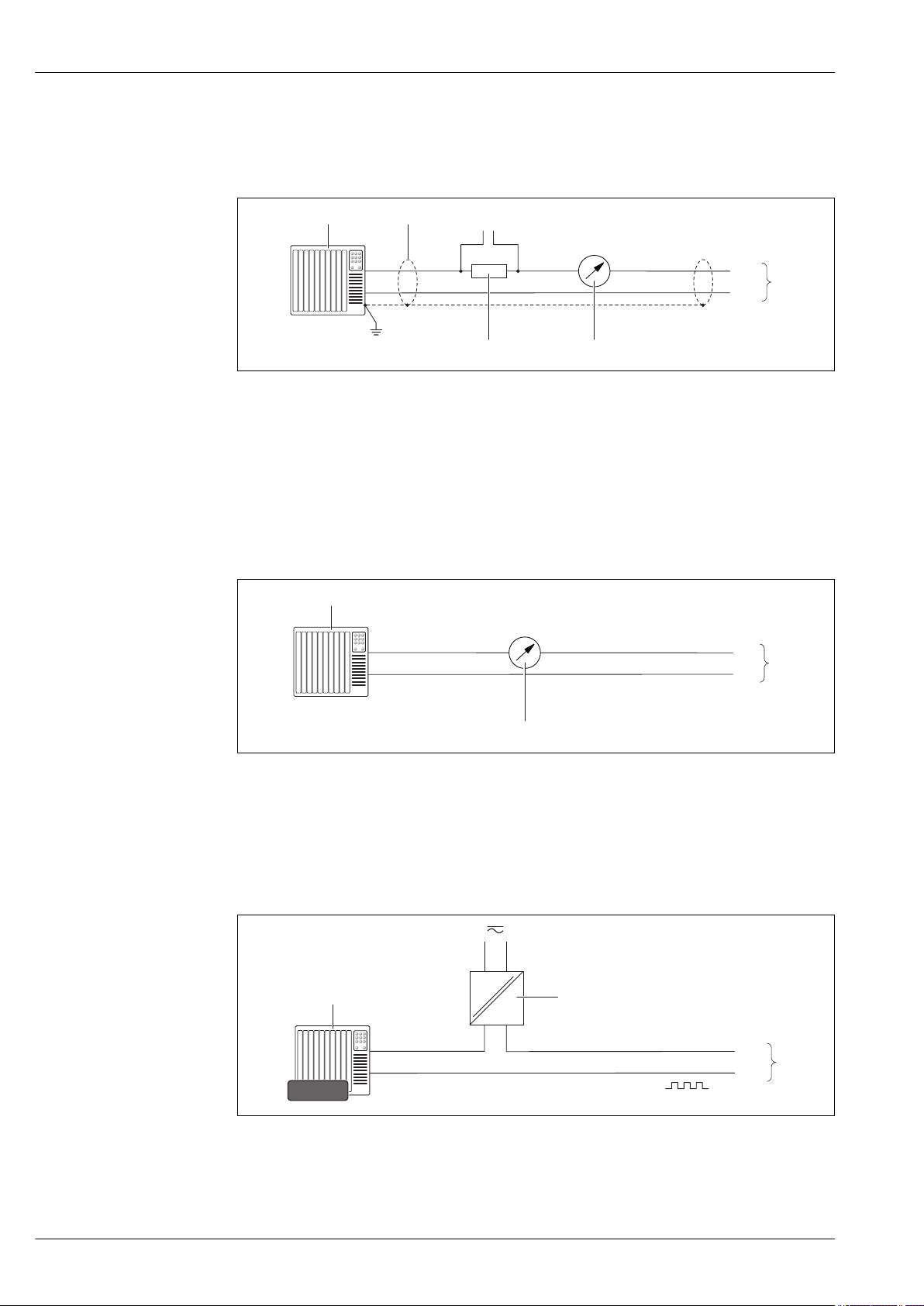

 4 Connection example for 4-20 mA HART current output (active)

1 Automation system with current input (e.g. PLC) 2 Cable shield, observe cable specifications (→  22) 3 Connection for HART operating devices (→  62) 4 Resistor for HART communication (≥ 250 Ω): observe maximum load (→  8) 5 Analog display unit: observe maximum load (→  8) 6 Transmitter

Proline Promag L 400

A0016800

Current output 4-20 mA

 5 Connection example for 0-20 mA current output (active) and 4-20 mA current output (active)

1 Automation system with current input (e.g. PLC) 2 Analog display unit: observe maximum load (→  8) 3 Transmitter

Pulse/frequency output

A0017162

 6 Connection example for pulse/frequency output (passive)

18 Endress+Hauser

1 Automation system with pulse/frequency input (e.g. PLC) 2 Power supply 3 Transmitter: observe input values (→  9)

A0016801

Page 19

Proline Promag L 400

1 2 4

EtherNet/IP

A0016805

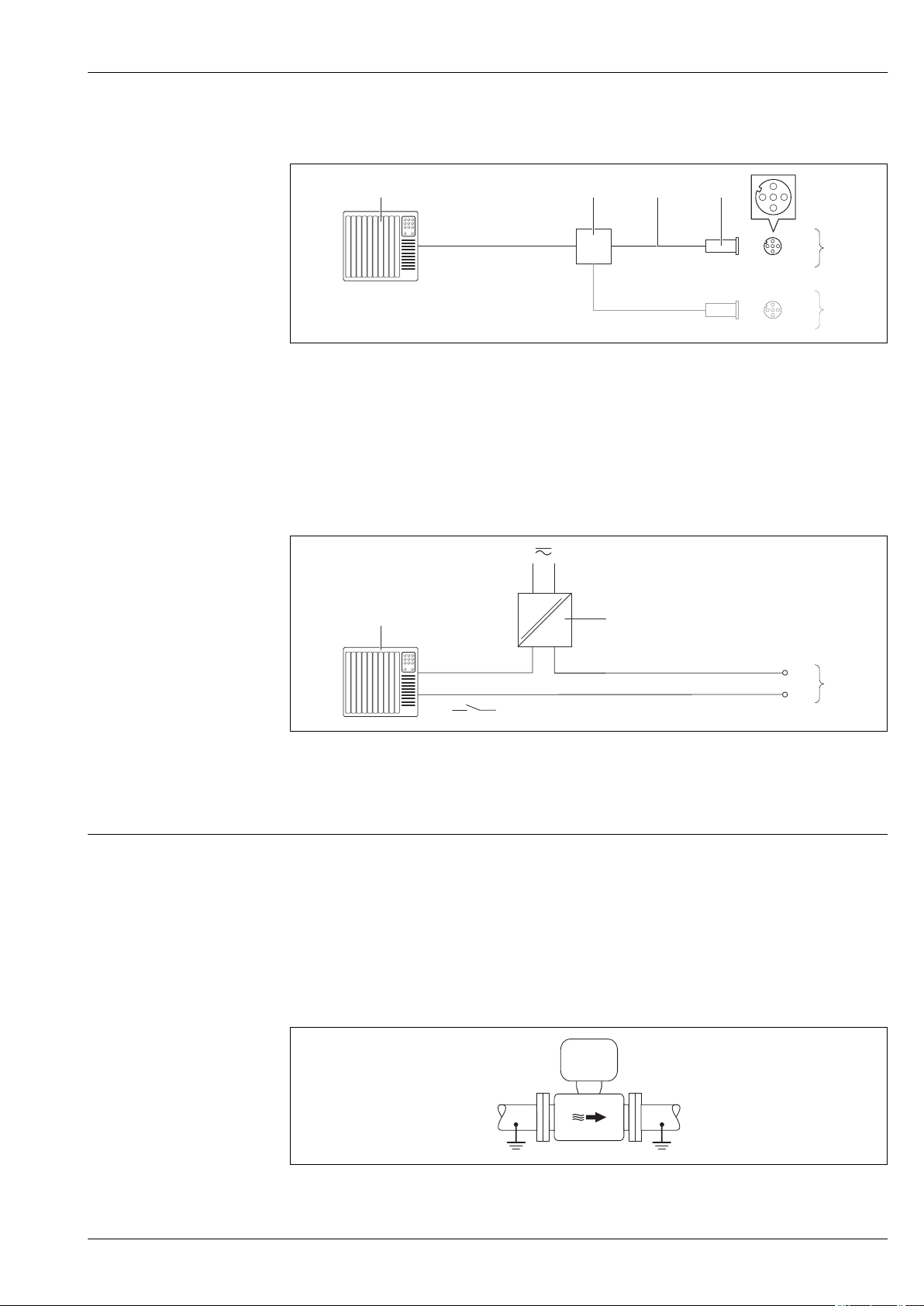

 7 Connection example for EtherNet/IP

1 Control system (e.g. PLC) 2 Ethernet switch 3 Observe cable specifications (→  22) 4 Device plug 5 Transmitter

Status input

 8 Connection example for status input

1 Automation system with status output (e.g. PLC) 2 Power supply 3 Transmitter: observe input values

Potential equalization Requirements

Please consider the following to ensure correct measurement:

• Same electrical potential for the fluid and sensor

• Company-internal grounding concepts

• Pipe material and grounding

Connection examples for standard situations

Metal, grounded pipe

Endress+Hauser 19

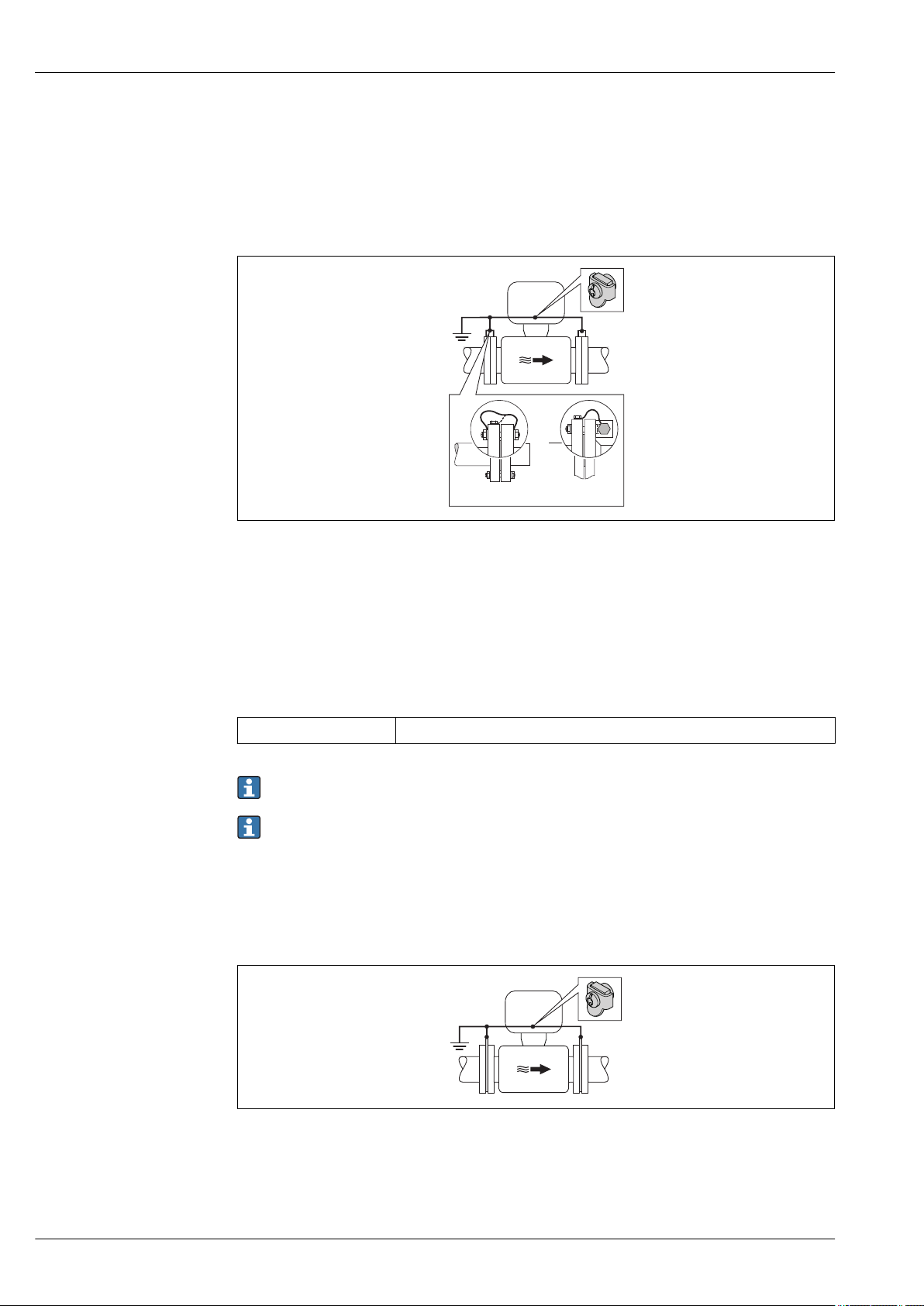

 9 Potential equalization via measuring tube

A0017163

A0016315

Page 20

Connection example in special situations

DN 300£ DN 350³

Unlined and ungrounded metal pipe

This connection method also applies in situations where:

• The customary potential equalization is not used

• Equalizing currents are present

Proline Promag L 400

A0016317

 10 Potential equalization via ground terminal and pipe flanges

Note the following when installing:

• Connect both sensor flanges to the pipe flange via a ground cable and ground them.

• Connect the connection housing of the transmitter or sensor to ground potential by means of the ground terminal provided for the purpose.To mount the ground cable: – If DN ≤ 300 (12"): Mount the ground cable directly on the conductive flange coating of the

sensor with the flange screws.

– If DN ≥ 350 (14"): Mount the ground cable directly on the metal transport bracket.

Ground cable

Copper wire, at least 6 mm2 (0.0093 in2)

For remote device versions, the ground terminal in the example always refers to the sensor and not to the transmitter.

The necessary ground cable can be ordered from Endress+Hauser .

Plastic pipe or pipe with insulating liner

This connection method also applies in situations where:

• The customary potential equalization is not used

• Equalizing currents are present

A0016318

 11 Potential equalization via ground terminal and ground disks

Note the following when installing: The ground disks must be connected to the ground terminal via the ground cable and be connected to ground potential.

20 Endress+Hauser

Page 21

Proline Promag L 400

1 /

+ –

2 /

3 /

Ground cable

Copper wire, at least 6 mm2 (0.0093 in2)

For remote device versions, the ground terminal in the example always refers to the sensor and not to the transmitter.

The ground cable and ground disks can be ordered from Endress+Hauser (→  65).

Pipe with a cathodic protection unit

This connection method is only used if the following two conditions are met:

• Metal pipe without liner or pipe with electrically conductive liner

• Cathodic protection is integrated in the personal protection equipment

Terminals

Cable entries

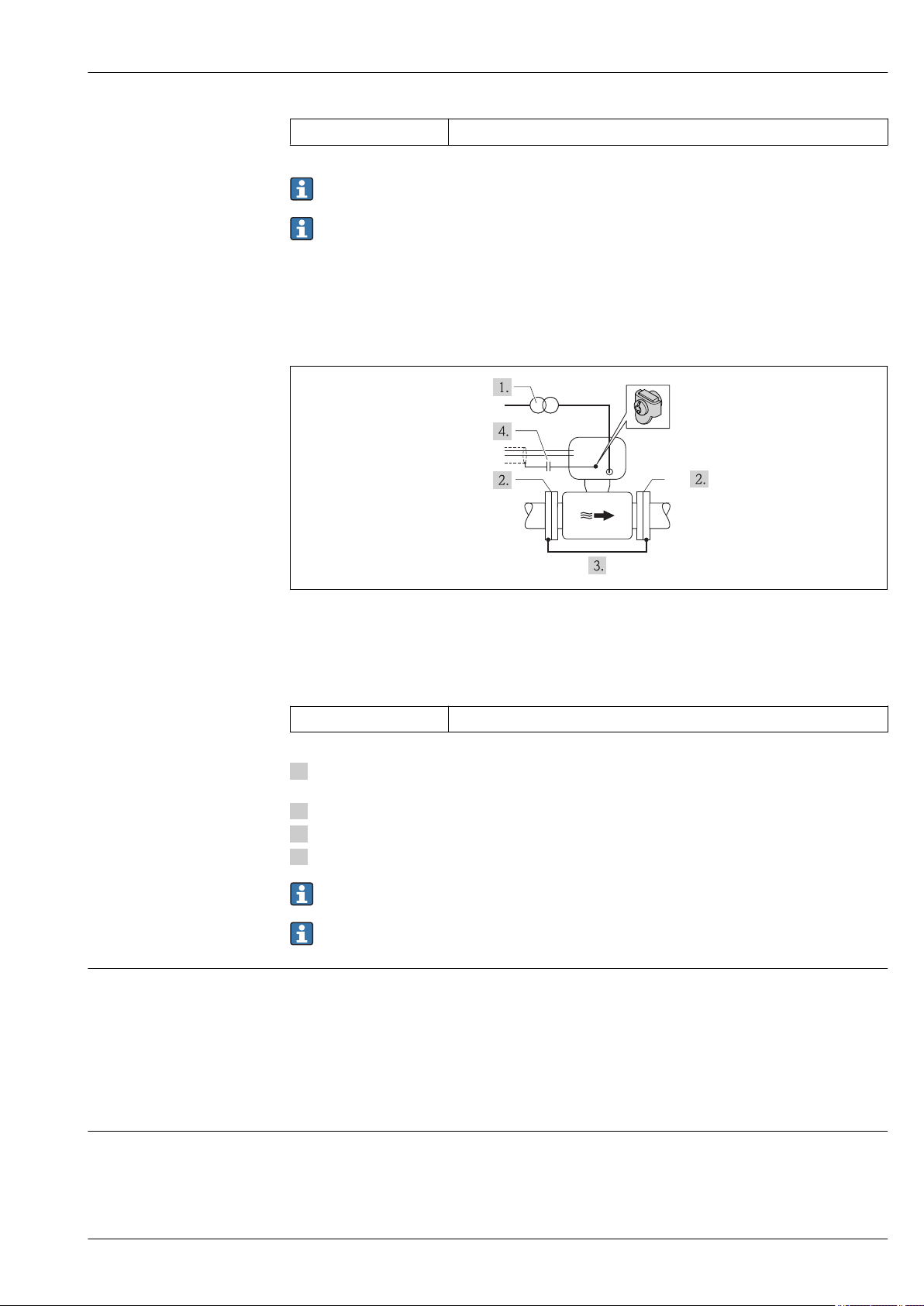

 12 Potential equalization and cathodic protection

1 Isolation transformer power supply 2 Electrically isolated from the pipe 3 Capacitor

Ground cable

Copper wire, at least 6 mm2 (0.0093 in2)

1. Connect the measuring device to the power supply such that it is floating in relation to the protective ground.

2. Install the sensor in the pipe in a way that provides electrical insulation.

3. Connect the two flanges of the pipe to one another via a ground cable.

4. Guide the shield of the signal lines through a capacitor.

For remote device versions, the ground terminal in the example always refers to the sensor and not to the transmitter.

The necessary ground cable can be ordered from Endress+Hauser .

Transmitter

• Supply voltage cable: plug-in spring terminals for wire cross-sections

0.5 to 2.5 mm2 (20 to 14 AWG)

• Signal cable: plug-in spring terminals for wire cross-sections 0.5 to 2.5 mm2 (20 to 14 AWG)

• Electrode cable: spring terminals for wire cross-sections 0.5 to 2.5 mm2 (20 to 14 AWG)

• Coil current cable: spring terminals for wire cross-sections 0.5 to 2.5 mm2 (20 to 14 AWG)

Sensor connection housing

Spring terminals for wire cross-sections0.5 to 2.5 mm2 (20 to 14 AWG)

Cable entry thread

• M20 x 1.5

• Via adapter: – NPT ½" – G ½"

A0016319

Endress+Hauser 21

Page 22

Cable gland

• For standard cable: M20 × 1.5 with cable 6 to 12 mm (0.24 to 0.47 in)

• For reinforced cable: M20 × 1.5 with cable 9.5 to 16 mm (0.37 to 0.63 in) If metal cable entries are used, use a grounding plate.

Cable specification Permitted temperature range

• –40 °C (–40 °F) to +80 °C (+176 °F)

• Minimum requirement: cable temperature range ≥ ambient temperature +20 K

Power supply cable

Standard installation cable is sufficient.

Signal cable

Current output

• For 0-20 mA and 4-20 mA: standard installation cable is sufficient.

• For 4-20 mA HART: Shielded cable recommended. Observe grounding concept of the plant.

Pulse/frequency/switch output

Standard installation cable is sufficient.

Proline Promag L 400

Status input

Standard installation cable is sufficient.

EtherNet/IP

The standard ANSI/TIA/EIA-568-B.2 Annex specifies CAT 5 as the minimum category for a cable used for EtherNet/IP. CAT 5e and CAT 6 are recommended.

For more information on planning and installing EtherNet/IP networks, please refer to the "Media Planning and Installation Manual. EtherNet/IP" of the ODVA Organization.

Connecting cable for remote version

Electrode cable

Standard cable

Cable for empty pipe detection (EPD)

Conductor resistance ≤50 Ω/km (0.015 Ω/ft)

Capacitance: core/shield ≤420 pF/m (128 pF/ft)

Operating temperature –20 to +80 °C (–68 to +176 °F)

3 ×0.38 mm2 (20 AWG) with common, braided copper shield ( ~ 7 mm (0.28")) and individually shielded cores

4 ×0.38 mm2 (20 AWG) with common, braided copper shield ( ~ 7 mm (0.28")) and individually shielded cores

Coil current cable

Standard cable

Conductor resistance ≤37 Ω/km (0.011 Ω/ft)

Capacitance: core/core, shield grounded

Operating temperature –20 to +80 °C (–68 to +176 °F)

Test voltage for cable insulation

2 ×0.75 mm2 (18 AWG) with common, braided copper shield ( ~ 7 mm (0.28")) and individually shielded cores

≤120 pF/m (37 pF/ft)

≤ AC 1433 V r.m.s. 50/60 Hz or ≥ DC 2026 V

22 Endress+Hauser

Page 23

Proline Promag L 400

1 2 3 4 5 6 7

a b

A0003194

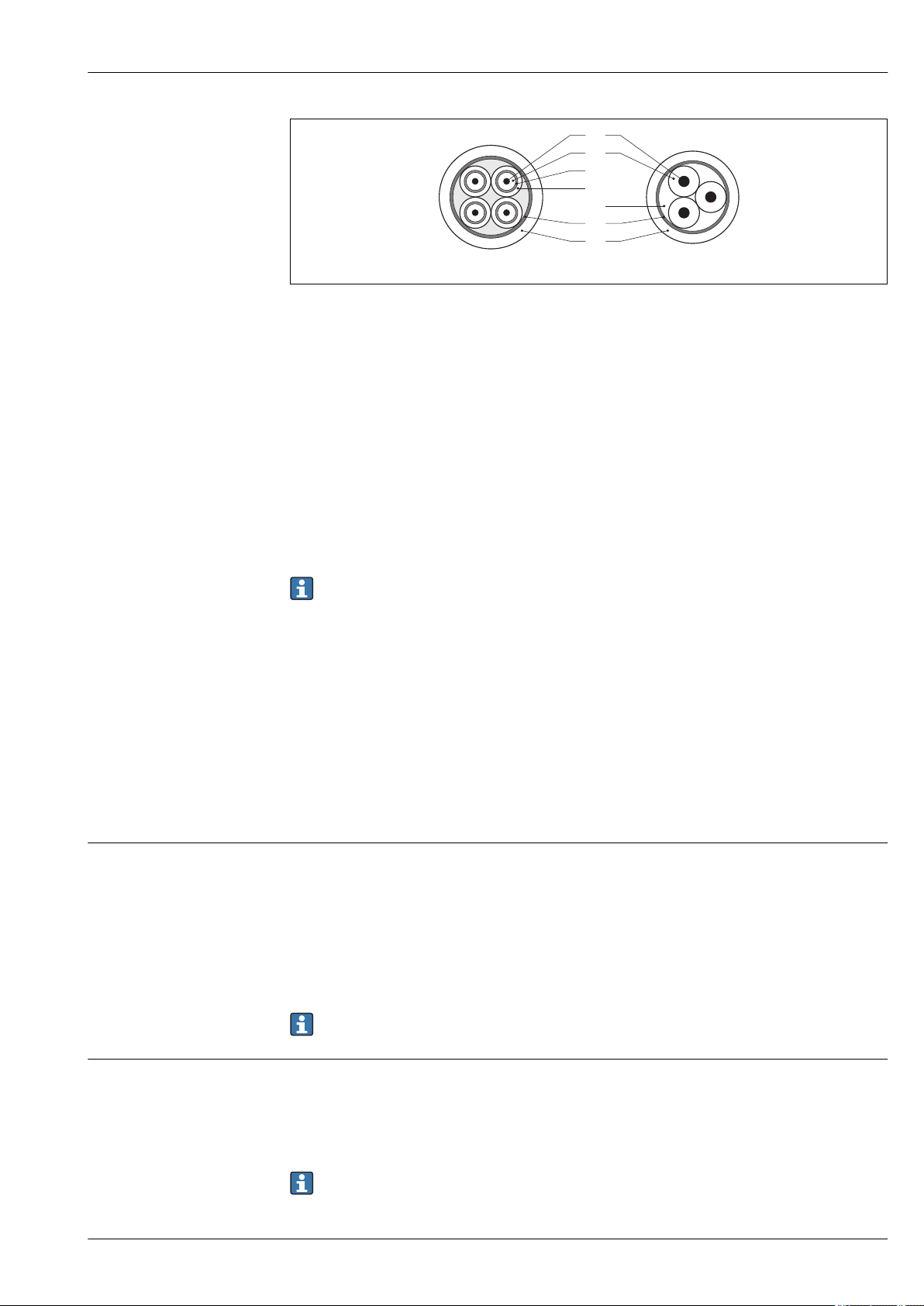

 13 Cable cross-section

a Electrode cable b Coil current cable 1 Core 2 Core insulation 3 Core shield 4 Core jacket 5 Core reinforcement 6 Cable shield 7 Outer jacket

Reinforced connecting cable

Use in the following situations:

• When laying the cable directly in the ground

• Where there is a risk of damage from rodents The reinforced connecting cable with an additional, reinforcing metal braid can be ordered from

Endress+Hauser .

Operation in zones of severe electrical interference

The measuring system meets the general safety requirements (→  63) and EMC specifications (→  30).

Grounding is by means of the ground terminal provided for the purpose inside the connection housing. The stripped and twisted lengths of cable shield to the ground terminal must be as short as possible.

Performance characteristics

Reference operating conditions

Maximum measured error Error limits under reference operating conditions

Endress+Hauser 23

In accordance with DIN EN 29104

• Fluid temperature: +28±2 °C (+82±4 °F)

• Ambient temperature range: +22±2 °C (+72±4 °F)

• Warm-up period:30 min

Installation

• Inlet run > 10 × DN

• Outlet run > 5 × DN

• Sensor and transmitter grounded.

• The sensor is centered in the pipe. To calculate the measuring range, use the Applicator sizing tool (→  66)

o.r. = of reading

Volume flow

• ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

• Optional: ±0.2 % o.r. ± 2 mm/s (0.08 in/s) Fluctuations in the supply voltage do not have any effect within the specified range.

Page 24

2.5

[%]

2.0

1.5

1.0

0.5

0.2 %

0.5 %

2 4 6 8 10 [m/s]

5 10 15 20 25 30 32 [ft/s]0

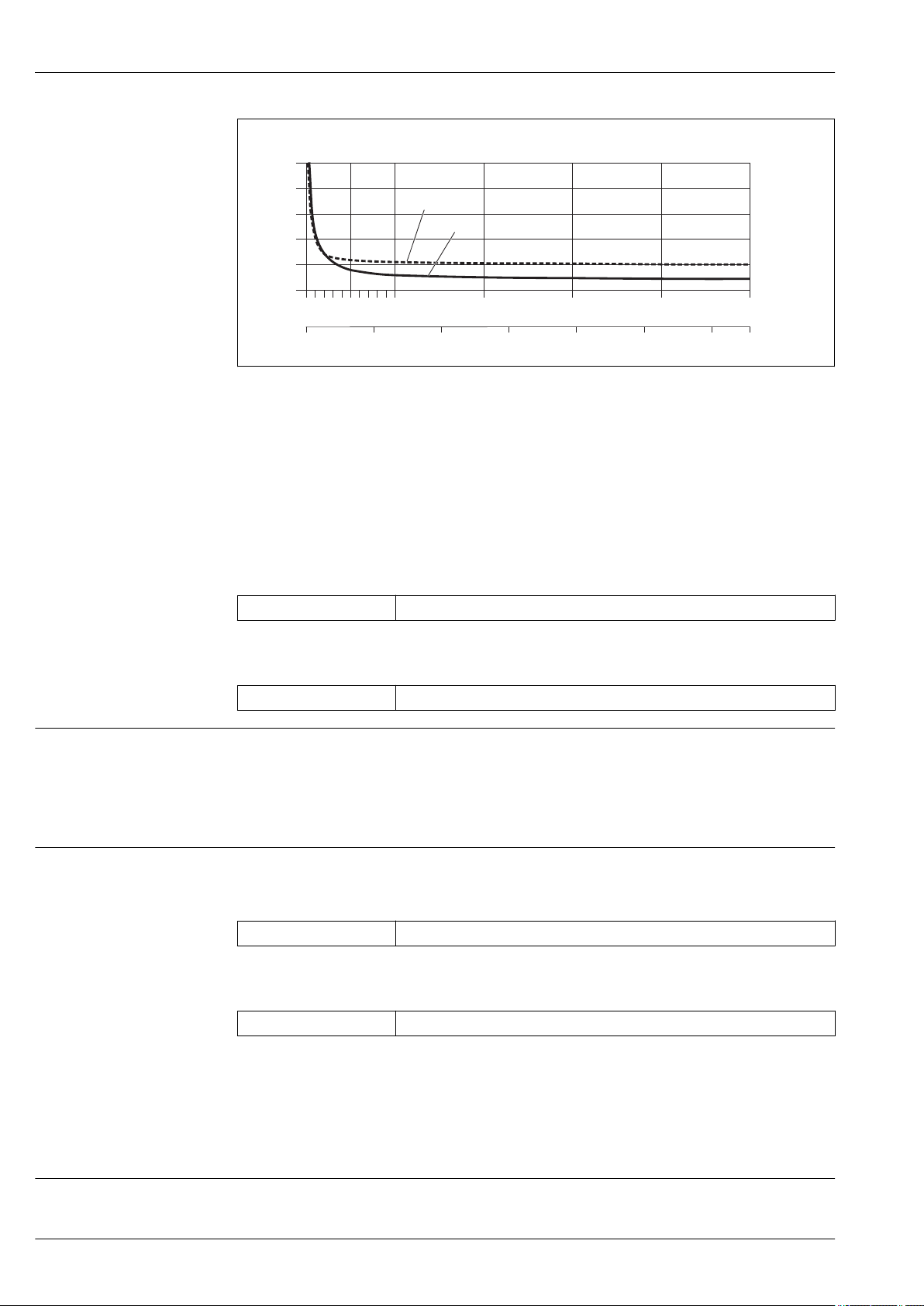

 14 Maximum measured error in % o.r.

Electrical conductivity

Max. measured error not specified.

Accuracy of outputs

o.r. = of reading; o.f.s. = of full scale value The outputs have the following base accuracy specifications.

Proline Promag L 400

A0005531

Repeatability

Influence of ambient temperature

Current output

Accuracy Max. ±0.025 % o.f.s. or ±5 µA

Pulse/frequency output

Accuracy Max. ±50 ppm o.r.

o.r. = of reading

Volume flow

Max. ±0.1 % o.r. ± 0.5 mm/s (0.02 in/s)

Electrical conductivity

Max. ±5 % o.r.

o.r. = of reading; o.f.s. = of full scale value

Current output

Temperature coefficient Typically ±50 ppm/°C o.r. or ±1 µA/°C

Pulse/frequency output

Temperature coefficient Max.±0.5 ppm v.M./°C

Mounting location

Installation

No special measures such as supports are necessary. External forces are absorbed by the construction of the device.

Preferably install the sensor in an ascending pipe, and ensure a sufficient distance to the next pipe elbow: h ≥ 2 × DN

24 Endress+Hauser

Page 25

Proline Promag L 400

³ 5 × DN

³ 2 × DN

A0017061

To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe:

• Highest point of a pipeline.

• Directly upstream of a free pipe outlet in a down pipe.

Installation in down pipes

Install a siphon or a vent valve downstream of the sensor in down pipes whose length h ≥ 5 m (16.4 ft). This precaution is to avoid low pressure and the consequent risk of damage to the measuring tube. This measure also prevents the system losing prime, which could cause air pockets.

For information on the liner's resistance to partial vacuum (→  33)

A0017064

 15 Installation in a down pipe

1 Vent valve 2 Pipe siphon h Length of down pipe

Installation in partially filled pipes

A partially filled pipe with a gradient necessitates a drain-type configuration. The empty pipe detection (EPD) function offers additional protection by detecting empty or partially filled pipes.

• Do not install the sensor at the lowest point in the drain: risk of solids accumulating.

• It is advisable to install a cleaning valve.

A0017063

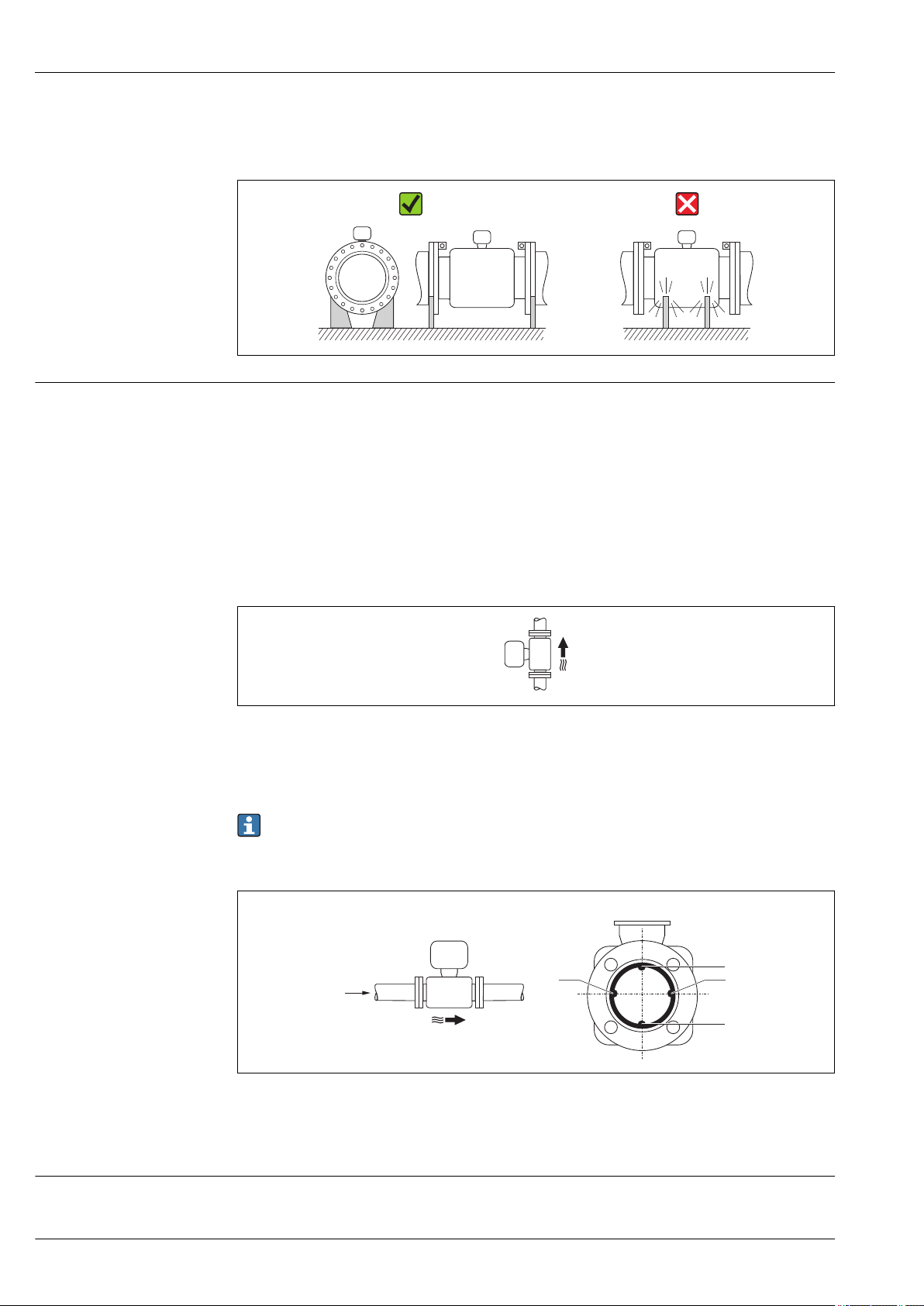

For very heavy sensors

If the nominal diameter DN ≥ 350 (14 in), mount the sensor on a foundation of adequate loadbearing strength.

Endress+Hauser 25

Page 26

Proline Promag L 400

1 2

Do not support the weight of the sensor on the metal casing as this could damage the metal casing and the internal magnetic coils.

A0016276

Orientation

The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping).

An optimum orientation position helps avoid gas and air accumulations and deposits in the measuring tube.

The measuring device also offers the empty pipe detection function to detect partially filled measuring pipes in the event of outgassing fluids or variable process pressures.

Vertical

This is the optimum orientation for self-emptying piping systems and for use in conjunction with empty pipe detection.

A0015591

Horizontal

The measuring electrode plane must be horizontal. This prevents brief insulation of the two measuring electrodes by entrained air bubbles.

With horizontal orientation, empty pipe detection only works if the transmitter housing is pointing upwards as otherwise there is no guarantee that the empty pipe detection function will actually respond to a partially filled or empty measuring tube.

 16 Horizontal orientation

1 EPD electrode for empty pipe detection 2 Measuring electrodes for signal detection

Inlet and outlet runs

3 Reference electrode for potential equalization

If possible, install the sensor upstream from fittings such as valves, T-pieces or elbows.

26 Endress+Hauser

A0016260

Page 27

Proline Promag L 400

5 × DN³

³ 2 × DN

100

0.5

d / D

[mbar]

0.6 0.7 0.8 0.9

1 m/s

2 m/s

3 m/s

4 m/s

5 m/s

6 m/s

7 m/s

8 m/s

max. 8°

Observe the following inlet and outlet runs to comply with accuracy specifications:

• Inlet run ≥ 5 × DN

• Outlet run ≥ 2 × DN

A0016275

Adapters

Suitable adapters to DIN EN 545 (double-flange reducers) can be used to install the sensor in largerdiameter pipes. The resultant increase in the rate of flow improves measuring accuracy with very slow-moving fluids.

The nomogram shown here can be used to calculate the pressure loss caused by reducers and expanders:

• Calculate the ratio of the diameters d/D.

• From the nomogram read off the pressure loss as a function of flow velocity (downstream from

the reduction) and the d/D ratio.

The nomogram only applies to liquids with a viscosity similar to that of water.

Length of connecting cable

To ensure correct measuring results when using the remote version, observe the maximum permitted cable length L the fluid. If measuring liquids in general: 5 µS/cm

. This length is determined by the conductivity of

max

A0016359

Endress+Hauser 27

Page 28

200

100

10 100 200

max

[m][m]

[µS/cm]

max

[ft]

200 6000

400

 17 Permitted length of connecting cable for remote version

149 (5.85)

210.5 (8.29)

5.8 (0.23)

mm (in)

17 (0.67) =

14 (0.55)

5.8 (0.23)

Area shaded gray = permitted range L

length of connecting cable in [m] ([ft])

max

[µS/cm] = fluid conductivity

Proline Promag L 400

A0016539

Installing the wall-mount

Wall mounting

housing

A0020523

28 Endress+Hauser

Page 29

Proline Promag L 400

ø 20…70

( 0.79…2.75)ø

~ ~ 4.0)102 (

4 x

SW 8

3 x

TX 25

Pipe mounting

Special mounting instructions

Ambient temperature range

A0020705

A separate mounting kit can be ordered from Endress+Hauser for pipe mounting (→  65).

Display protection

To ensure that the optional display protection can be easily opened, maintain the following minimum head clearance: 350 mm (13.8 in)

Environment

Transmitter –40 to +60 °C (–40 to +140 °F)

Local display –20 to +60 °C (–4 to +140 °F), the readability of the display may be

impaired at temperatures outside the temperature range.

Sensor • Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)

• Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)

Mount the transmitter separately from the sensor if both the ambient and fluid temperatures are high.

Liner Do not exceed or fall below the permitted temperature range of the liner

(→  30).

If operating outdoors:

• Install the measuring device in a shady location.

• Avoid direct sunlight, particularly in warm climatic regions.

• Avoid direct exposure to weather conditions.

• Protect the display against impact.

• Protect the display from abrasion by sand in desert areas. A display protector can be ordered from Endress+Hauser: "Accessories" section (→  65)

Storage temperature

The storage temperature corresponds to the operating temperature range of the measuring transmitter and the appropriate measuring sensors.

Endress+Hauser 29

Page 30

Proline Promag L 400

• Protect the measuring device against direct sunlight during storage in order to avoid unacceptably high surface temperatures.

• Select a storage location where moisture cannot collect in the measuring device as fungus or bacteria infestation can damage the liner.

• If protection caps or protective covers are mounted these should never be removed before installing the measuring device.

Atmosphere

Degree of protection

Shock resistance

Vibration resistance

Mechanical load

Electromagnetic compatibility (EMC)

If a plastic transmitter housing is permanently exposed to certain steam and air mixtures, this can damage the housing.

If you are unsure, please contact your Endress+Hauser Sales Center for clarification.

Transmitter

• As standard: IP66/67, type 4X enclosure

• When housing is open: IP20, type 1 enclosure

Sensor

• As standard: IP66/67, type 4X enclosure

• Optionally available for remote version: IP68, type 6P enclosure (for DN ≤ 300 (12") only possible in conjunction with stainless steel flanges) Not suitable for use in corrosive atmospheres/liquids or in buried applications if special precautions are not taken.

Acceleration up to 2 g following IEC 60068-2-6

• Protect the transmitter housing against mechanical effects, such as shock or impact; the use of the remote version is sometimes preferable.

• Never use the transmitter housing as a ladder or climbing aid.

• As per IEC/EN 61326 and NAMUR Recommendation 21 (NE 21)

• Complies with emission limits for industry as per EN 55011 (Class A)

Details are provided in the Declaration of Conformity.

Process

Medium temperature range

Conductivity

Pressure-temperature ratings

30 Endress+Hauser

• 0 to +80 °C (+32 to +176 °F) for hard rubber, DN 350 to 2400 (14 to 90")

• –20 to +50 °C (–4 to +122 °F) for polyurethane, DN 50 to 1200 (2 to 48")

• –20 to +90 °C (–4 to +194 °F) for PTFE, DN 50 to 300 (2 to 12")

≥ 5 μS/cm for liquids in general

Note that in the case of the remote version, the requisite minimum conductivity also depends on the cable length (→  27).

The following material load diagrams refer to the entire device and not just the process connection.

Page 31

Proline Promag L 400

[bar][psi]

-60

-40

-20

0 20

40 60 80 100 120 140

[°C]

[°F]

0-40 100 200 300

200

100

300

PN 16

PN 10

[bar][psi]

-60

-40

-20

0 20

40 60 80 100 120 140

[°C]

[°F]

0-40 100 200 300

200

100

300

PN 10

[bar][psi]

-40

-20

20 40

60 80 100 120 140

[°C]

0-40 100 200 300

200

100

300

[°F]

PN 16

PN 10

PN 6

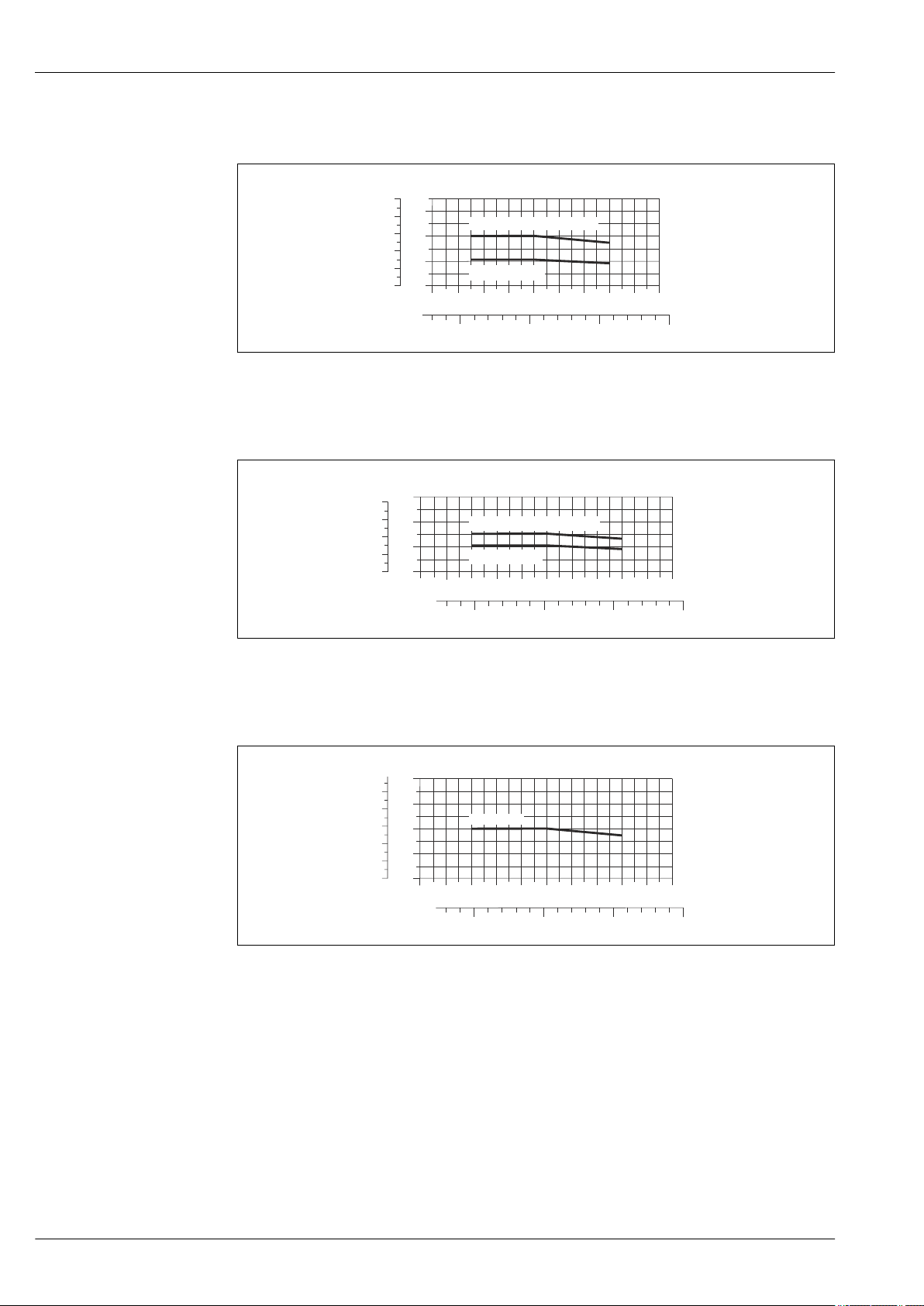

Flange connection according to EN 1092-1 (DIN 2501)

A0021399-EN

 18 Lap joint flange PN 10/16, materials 1.4306 (304L) and 1.4307 (304L), DN 50 to 300 (2 to 12")

Flange connection according to EN 1092-1 (DIN 2501)

A0021400-EN

 19 Lap joint flange, stamped plate PN 10, material 1.4301 (304), DN 50 to 300 (2 to 12")

Flange connection according to EN 1092-1 (DIN 2501)

A0021402-EN

 20 Fixed flange PN 6/10, materials 1.0038 (S235JRG2) and A105, DN 350 to 1000 (14 to 40") / DN 1200

to 2400 (48 to 90"); lap joint flange PN 16, material 1.0038 (S235JRG2), DN 50 to 150 (2 to 6")

Endress+Hauser 31

Page 32

Flange connection according to ASME B16.5

DN 50…250(2"…10")

DN 300(12")

-40

[°C]

-20 0 20

40 60 80 100

120 140

0-40 100 200 300

[°F]

[bar][psi]

200 100

400 300

500

[bar][psi]

-40

-20

0 20

40 60 80 100 120 140

[°C]

[°F]

0-40 100 200 300

200 100

400 300

DN 50…250(2"…10")

DN 300(12")

[bar][psi]

-40

-20

0 20

40 60 80 100 120 140

[°C]

[°F]

0-40 100 200 300

200 100

400 300

500

Class 150

 21 Lap joint flange Class 150, material A105, DN 50 to 300 (2 to 12")

Flange connection according to ASME B16.5

Proline Promag L 400

A0021403-EN

 22 Lap joint flange Class 150, material 316L, DN 50 to 300 (2 to 12")

Flange connection according to ASME B16.5

 23 Fixed flange Class 150, material A105, DN 50 to 300 (2 to 12")

A0021404-EN

A0021405-EN

32 Endress+Hauser

Page 33

Proline Promag L 400

[bar][psi]

-40

-20

20 40

60 80 100 120 140

[°C]

0-40 100 200 300

145

116

160

[°F]

130

-40

-20

0 20

40 60 80 100120140

[°C]

[bar]

0-40 100 200

300

[psi]

200

100

300

[°F]

TableE

PN16

Flange connection according to AWWA C207

A0021406-EN

 24 Fixed flange Class D, materials 1.0044 (S275JR), 1.0425 (316L) (P265GH), A105 and A181, DN 1200 to

2200 (48 to 90")

Flange connection according to AS 2129 and AS 4087

A0021419-EN

 25 Fixed flange Table E, materials 1.0038 (S235JRG2), 1.0345 (P235GH), 1.0425 (316L) (P265GH), A105

and FE 410 WB, DN 350 to 1200 (14 to 48"); fixed flange PN 16, materials 1.0044 (S275JR), 1.0425 (316L) (P265GH) and A105, DN 350 to 1200 (14 to 48")

Pressure tightness

Liner: hard rubber, polyurethane

Nominal diameter Liner Limit values for absolute pressure in [mbar] ([psi]) for fluid

temperatures:

[mm] [in] +25 °C (+77 °F) +50 °C (+122 °F) +80 °C (+176 °F)

350…2400 14…90 Hard rubber 0 (0) 0 (0) 0 (0)

50…1200 2…48 Polyurethane 0 (0) 0 (0) –

Liner: PTFE

Nominal diameter Limit values for absolute pressure in [mbar] ([psi]) for fluid temperatures:

[mm] [in] +25 °C (+77 °F) +90 °C (+194 °F)

50 2 0 (0) 0 (0)

65 2 ½ 0 (0) 40 (0.58)

80 3 0 (0) 40 (0.58)

100 4 0 (0) 135 (2.0)

Endress+Hauser 33

125 5 135 (2.0) 240 (3.5)

150 6 135 (2.0) 240 (3.5)

Page 34

Proline Promag L 400

Nominal diameter Limit values for absolute pressure in [mbar] ([psi]) for fluid temperatures:

[mm] [in] +25 °C (+77 °F) +90 °C (+194 °F)

200 8 200 (2.9) 290 (4.2)

250 10 330 (4.8) 400 (5.8)

300 12 400 (5.8) 500 (7.3)

Flow limit

Pressure loss

System pressure

The diameter of the pipe and the flow rate determine the nominal diameter of the sensor. The optimum flow velocity is between 2 to 3 m/s (6.56 to 9.84 ft/s). Also match the velocity of flow (v) to the physical properties of the fluid:

• v < 2 m/s (6.56 ft/s): for abrasive fluids (e.g. potter's clay, lime milk, ore slurry)

• v > 2 m/s (6.56 ft/s): for fluids producing buildup (e.g. wastewater sludges)

For an overview of the measuring range full scale values, see the "Measuring range" section (→  6)

• No pressure loss occurs if the sensor is installed in a pipe with the same nominal diameter.

• Pressure losses for configurations incorporating adapters according to DIN EN 545 (→  27)

• Never install the sensor on the pump suction side in order to avoid the risk of low pressure, and thus damage to the liner.

• Furthermore, install pulse dampers if reciprocating, diaphragm or peristaltic pumps are used.

• For information on the liner's resistance to partial vacuum (→  33)

• For information on the measuring system's resistance to vibration and shock (→  30), (→  30)

A0015594

Vibrations

In the event of very strong vibrations, the pipe and sensor must be supported and fixed.

It is also advisable to mount the sensor and transmitter separately.

For information on the permitted resistance to vibration and shock (→  30), (→  30)

A0016266

 26 Measures to prevent vibration of the device

L > 10 m (33 ft)

34 Endress+Hauser

Page 35

Proline Promag L 400

H K

Mechanical construction

Design, dimensions Compact version

Order code for "Housing", option M "Compact, polycarbonate" or option A "Compact, coated aluminum" with DN 50 to 300 (2 to 12")

A0020352

Dimensions in SI units

DN A B C D E F G H J K

[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

50 193 103 90 167 222 84 306 120 94 200

65 193 103 90 167 247 109 356 180 94 200

80 193 103 90 167 247 109 356 180 94 200

100 193 103 90 167 247 109 356 180 94 250

125 193 103 90 167 287 150 437 260 140 250

150 193 103 90 167 287 150 437 260 140 300

200 193 103 90 167 312 180 492 324 156 350

250 193 103 90 167 337 205 542 400 166 450

300 193 103 90 167 362 230 592 460 166 500

1) The length is independent of the selected pressure rating. Length in accordance with DVGW/ISO.

Dimensions in US units

DN A B C D E F G H J K

[in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in]

2 7.60 4.06 3.54 6.57 8.74 3.31 12.1 4.72 3.70 7.87

3 7.60 4.06 3.54 6.57 9.72 4.29 14.0 7.09 3.70 7.87

4 7.60 4.06 3.54 6.57 9.72 4.29 14.0 7.09 3.70 9.84

6 7.60 4.06 3.54 6.57 11.3 5.91 17.2 10.2 5.51 11.8

8 7.60 4.06 3.54 6.57 12.3 7.09 19.4 12.8 6.14 13.8

Endress+Hauser 35

Page 36

Proline Promag L 400

22.5° E

H K

DN A B C D E F G H J K

[in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in]

10 7.60 4.06 3.54 6.57 13.3 8.07 21.3 15.8 6.54 17.7

12 7.60 4.06 3.54 6.57 14.3 9.06 23.3 18.1 6.54 19.7

1) The length is independent of the selected pressure rating. Length in accordance with DVGW/ISO.

Order code for "Housing", option Q "Compact, polycarbonate, inclined" or option R "Compact, coated aluminum, inclined" with DN 50 to 300 (2 to 12")

A0020353

Dimensions in SI units

DN A B C D E F G H J K

[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

50 199 119 80 167 267 84 351 120 94 200

65 199 119 80 167 292 109 401 180 94 200

80 199 119 80 167 292 109 401 180 94 200

100 199 119 80 167 292 109 401 180 94 250

125 199 119 80 167 332 150 482 260 140 250

150 199 119 80 167 332 150 482 260 140 300

200 199 119 80 167 357 180 537 324 156 350

250 199 119 80 167 382 205 587 400 166 450

300 199 119 80 167 407 230 637 460 166 500

1) The length is independent of the selected pressure rating. Length in accordance with DVGW/ISO.

Dimensions in US units

DN A B C D E F G H J K

[in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in]

2 7.83 4.69 3.15 6.57 10.5 3.31 13.8 4.72 3.70 7.87

3 7.83 4.69 3.15 6.57 11.5 4.29 15.8 7.09 3.70 7.87

4 7.83 4.69 3.15 6.57 11.5 4.29 15.8 7.09 3.70 9.84

6 7.83 4.69 3.15 6.57 13.1 5.91 19.0 10.2 5.51 11.8

36 Endress+Hauser

Page 37

Proline Promag L 400

DN A B C D E F G H J K

[in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in]

8 7.83 4.69 3.15 6.57 14.1 7.09 21.1 12.8 6.14 13.8

10 7.83 4.69 3.15 6.57 15.0 8.07 23.1 15.8 6.54 17.7

12 7.83 4.69 3.15 6.57 16.0 9.06 25.1 18.1 6.54 19.7

1) The length is independent of the selected pressure rating. Length in accordance with DVGW/ISO.

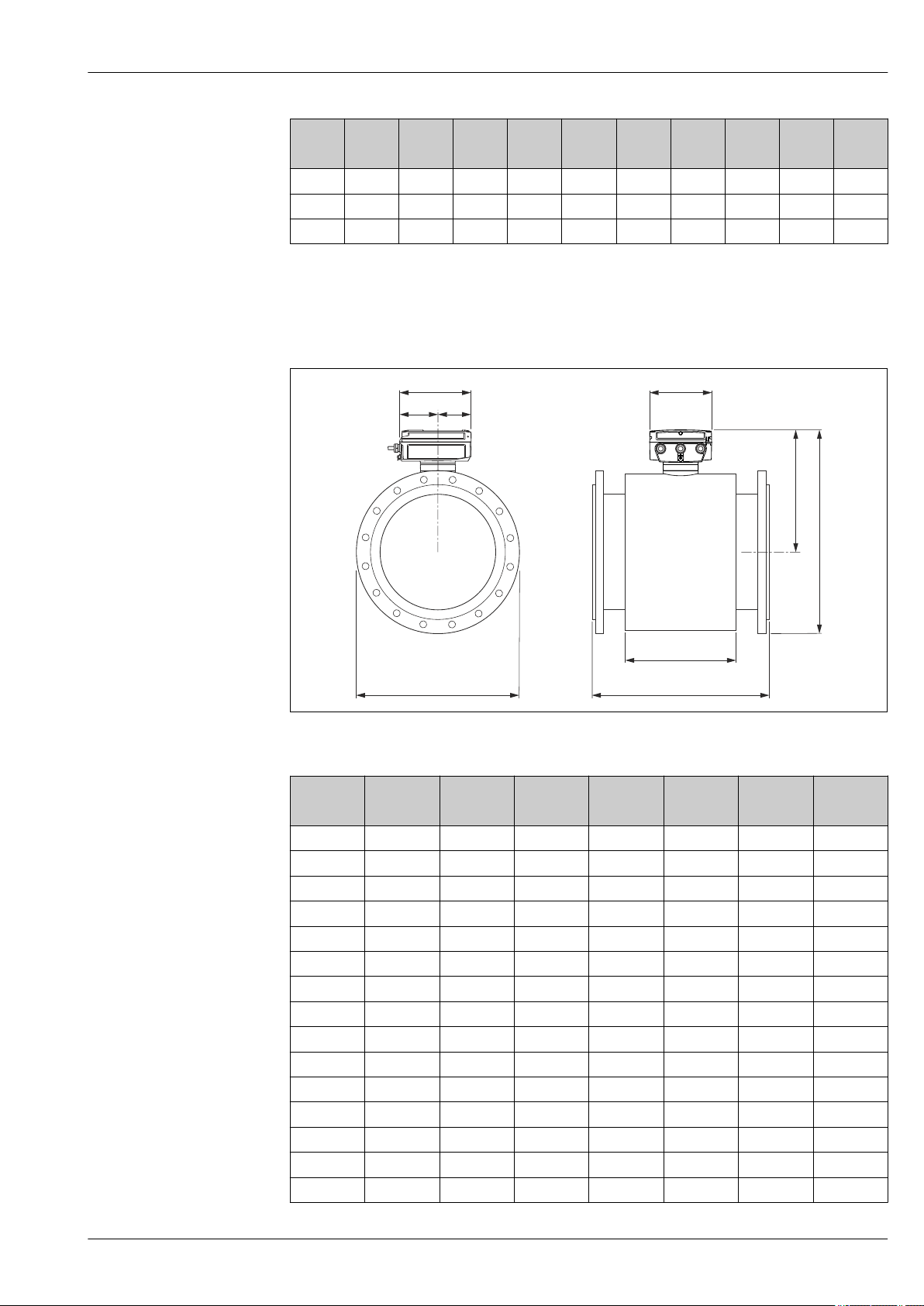

Order code for "Housing", option M "Compact, polycarbonate" or option A "Compact, coated aluminum" with DN 350 to 2400 (14 to 90")

A0017153

Dimensions in SI units

DN A B C D E H J

[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

350 193 103 90 167 386 290 550

375 193 103 90 167 412 290 600

400 193 103 90 167 412 290 600

450 193 103 90 167 440 290 600

500 193 103 90 167 465 290 600

600 193 103 90 167 506 290 600

700 193 103 90 167 571 424 700

750 193 103 90 167 608 454 750

800 193 103 90 167 627 500 800

900 193 103 90 167 677 580 900

1000 193 103 90 167 727 660 1000

1050 193 103 90 167 763 755 1050

1200 193 103 90 167 841 828 1200

1350 193 103 90 167 953 1008 1350

1400 193 103 90 167 953 1008 1400

Endress+Hauser 37

Page 38

Proline Promag L 400

DN A B C D E H J

[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

1500 193 103 90 167 1053 1147 1500

1600 193 103 90 167 1053 1147 1600

1650 193 103 90 167 1104 1284 1650

1800 193 103 90 167 1161 1379 1800

2000 193 103 90 167 1272 1569 2000

2150 193 103 90 167 1372 1711 2150

2200 193 103 90 167 1372 1711 2200

2300 193 103 90 167 1477 1859 2300

2400 193 103 90 167 1477 1859 2400

Dimension F Dimension G

EN (DIN) ASME AS EN (DIN) ASME AS

DN PN 6 PN 10 PN 16 AWWA PN 6 PN 10 PN 16 AWWA

[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

350 631 638 702 653 648 490 505 520 533 525

375 – – – – 687 – – – – 550

400 682 694 760 710 702 540 565 580 597 580

450 737 747 823 757 760 595 615 640 635 640

500 787 800 926 814 817 645 670 715 699 705

600 883 896 1026 912 918 755 780 840 813 825

700 1001 1018 1145 1034 1026 860 895 910 927 910

750 – – – 1100 1106 – – – 984 995

800 1115 1135 1240 1157 1157 975 1015 1025 1060 1060

900 1215 1235 1240 1261 1265 1075 1115 1125 1168 1175

1000 1315 1342 1355 1372 1355 1175 1230 1225 1289 1255

1050 – – – 1436 – – – – 1346 –

1200 1544 1569 1584 1597 1586 1405 1455 1255 1511 1490

1350 – – – 1795 – – – – 1683 –

1400 1768 1791 1796 – – 1630 1675 1685 – –

1500 – – – 1980 – – – – 1854 –

1600 1968 2011 2019 – – 1830 1915 1930 – –

1650 – – – 2120 – – – – 2032 –

1800 2183 2218 2226 2259 – 2045 2115 2130 2197 –

2000 2404 2434 2444 2453 – 2265 2325 2345 2362 –

2150 – – – 2639 – – – – 2534 –

2200 2609 2647 – – – 2475 2550 – – –

2300 – – – 2829 – – – – 2705 –

2400 2819 2857 – – – 2685 2760 – – –

38 Endress+Hauser

Page 39

Proline Promag L 400

Dimensions in US units

DN A B C D E H J

[in] [in] [in] [in] [in] [in] [in] [in]

14 7.60 4.06 3.54 6.57 15.2 11.4 21.6

15 7.60 4.06 3.54 6.57 16.2 11.4 23.6

16 7.60 4.06 3.54 6.57 16.2 11.4 23.6

18 7.60 4.06 3.54 6.57 17.3 11.4 23.6

20 7.60 4.06 3.54 6.57 18.3 11.4 23.6

24 7.60 4.06 3.54 6.57 19.9 11.4 23.6

28 7.60 4.06 3.54 6.57 22.5 16.7 27.6

30 7.60 4.06 3.54 6.57 23.9 17.9 29.5

32 7.60 4.06 3.54 6.57 24.7 19.7 31.5

36 7.60 4.06 3.54 6.57 26.6 22.8 35.4

40 7.60 4.06 3.54 6.57 28.6 26.0 39.4

42 7.60 4.06 3.54 6.57 30.0 29.7 41.3

48 7.60 4.06 3.54 6.57 33.1 32.6 47.2

54 7.60 4.06 3.54 6.57 37.5 39.7 53.1

60 7.60 4.06 3.54 6.57 41.4 45.2 59.0

66 7.60 4.06 3.54 6.57 43.4 50.6 64.9

72 7.60 4.06 3.54 6.57 45.7 54.3 70.8

78 7.60 4.06 3.54 6.57 50.1 61.8 78.7

84 7.60 4.06 3.54 6.57 54.0 67.4 84.6

90 7.60 4.06 3.54 6.57 58.1 73.2 90.5

Dimension F Dimension G

EN (DIN) ASME AS EN (DIN) ASME AS

DN PN 6 PN 10 PN 16 AWWA PN 6 PN 10 PN 16 AWWA

[in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in]

14 24.8 25.1 27.6 25.7 25.5 19.3 19.9 20.5 21.0 20.7

15 – – – – 27 – – – – 21.7

16 26.8 27.3 30.0 27.0 27.6 21.3 22.2 22.8 23.5 22.8

18 29.0 29.4 32.4 29.8 29.9 23.4 24.2 25.2 25.0 25.2

20 31.0 31.5 36.5 32.0 32.1 25.4 26.4 28.1 27.5 27.8

24 34.7 35.3 40.4 35.9 36.1 29.7 30.7 33.1 32.0 32.5

28 39.4 40.1 45.1 40.7 40.4 33.9 35.2 35.8 36.5 35.8

30 – – – 43.3 43.5 – – – 38.7 39.2

32 43.9 44.7 48.8 45.5 45.5 38.4 40.0 40.4 41.7 41.7

36 47.8 48.6 48.8 49.6 49.8 42.3 43.9 44.3 46.0 46.3

40 51.7 52.8 53.4 54.0 53.3 46.3 48.4 48.2 50.7 49.4

42 – – – 56.5 – – – – 53.0 –

48 60.8 61.7 62.4 62.9 62.4 55.3 57.3 49.4 59.5 58.7

54 – – – 70.6 – – – – 66.3 –

60 – – – 77.9 – – – – 73.0 –

Endress+Hauser 39

Page 40

Proline Promag L 400

22.5°

Dimension F Dimension G

EN (DIN) ASME AS EN (DIN) ASME AS

DN PN 6 PN 10 PN 16 AWWA PN 6 PN 10 PN 16 AWWA

[in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in]

66 – – – 83.4 – – – – 80.0 –

72 85.9 87.3 87.6 88.9 – 80.5 83.3 83.9 86.5 –

78 94.6 95.8 96.2 96.6 – 89.2 91.5 92.3 93.0 –

84 – – – 104.0 – – – – 99.8 –

90 – – – 111.0 – – – – – –

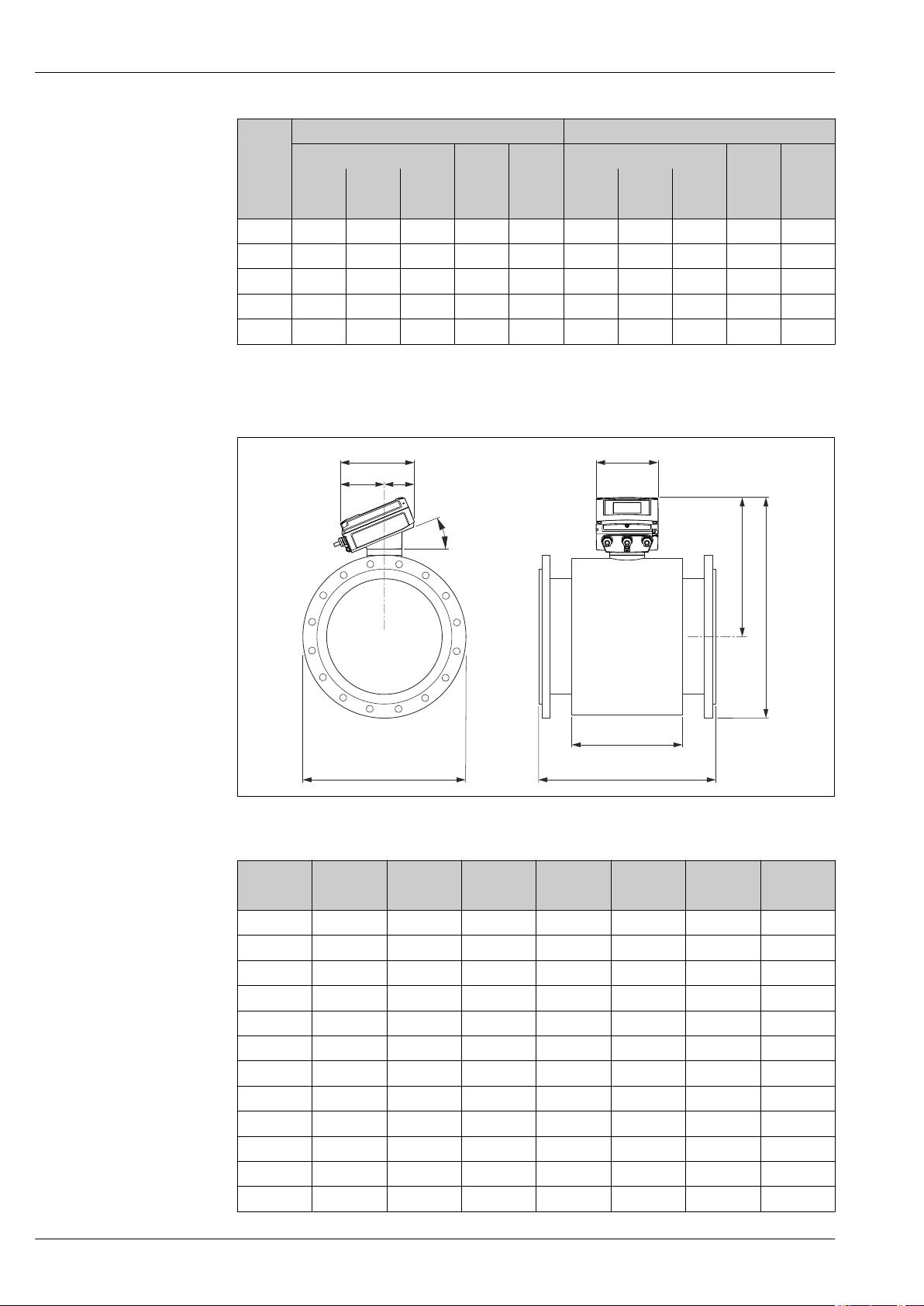

Order code for "Housing", option Q "Compact, polycarbonate, inclined" or option R "Compact, coated aluminum, inclined" with DN 350 to 2400 (14 to 90")

A0020393

Dimensions in SI units

DN A B C D E H J

[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

350 199 119 80 167 431 290 550

375 199 119 80 167 457 290 600

400 199 119 80 167 457 290 600

450 199 119 80 167 485 290 600

500 199 119 80 167 510 290 600

600 199 119 80 167 551 290 600

700 199 119 80 167 616 424 700

750 199 119 80 167 653 454 750

800 199 119 80 167 672 500 800

900 199 119 80 167 722 580 900

1000 199 119 80 167 772 660 1000

1050 199 119 80 167 808 755 1050

40 Endress+Hauser

Page 41

Proline Promag L 400

DN A B C D E H J

[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

1200 199 119 80 167 886 828 1200

1350 199 119 80 167 998 1008 1350

1400 199 119 80 167 953 1008 1400

1500 199 119 80 167 1098 1147 1500

1600 199 119 80 167 1098 1147 1600

1650 199 119 80 167 1149 1284 1650

1800 199 119 80 167 1206 1379 1800

2000 199 119 80 167 1317 1569 2000

2150 199 119 80 167 1417 1711 2150

2200 199 119 80 167 1417 1711 2200

2300 199 119 80 167 1522 1859 2300

2400 199 119 80 167 1522 1859 2400

Dimension F Dimension G

EN (DIN) ASME AS EN (DIN) ASME AS

DN PN 6 PN 10 PN 16 AWWA PN 6 PN 10 PN 16 AWWA

[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

350 676 683 618 698 693 490 505 520 533 525

375 – – – – 732 – – – – 550

400 727 739 672 755 747 540 565 580 597 580

450 782 792 732 802 805 595 615 640 635 640

500 832 845 795 859 862 645 670 715 699 705

600 928 941 898 957 963 755 780 840 813 825

700 1046 1063 1008 1079 1071 860 895 910 927 910

750 – – – 1145 1151 – – – 984 995

800 1160 1180 1112 1202 1202 975 1015 1025 1060 1060

900 1260 1280 1212 1306 1310 1075 1115 1125 1168 1175

1000 1360 1387 1327 1417 1400 1175 1230 1225 1289 1255

1050 – – – 1481 – – – – 1346 –

1200 1589 1614 1556 1642 1631 1405 1455 1255 1511 1490

1350 – – – 1840 – – – – 1683 –

1400 1813 1836 1768 – – 1630 1675 1685 – –

1500 – – – 2025 – – – – 1854 –

1600 2013 2056 1991 – – 1830 1915 1930 – –

1650 – – – 2165 – – – – 2032 –

1800 2228 2263 2198 2304 – 2045 2115 2130 2197 –

2000 2449 2479 2416 2498 – 2265 2325 2345 2362 –

2150 – – – 2684 – – – – 2534 –

2200 2654 2692 – – – 2475 2550 – – –

2300 – – – 2874 – – – – 2705 –

2400 2864 2902 – – – 2685 2760 – – –

Endress+Hauser 41

Page 42

Proline Promag L 400

Dimensions in US units

DN A B C D E H J

[in] [in] [in] [in] [in] [in] [in] [in]

14 7.83 4.69 3.15 6.57 17.0 11.4 21.6

15 7.83 4.69 3.15 6.57 18.0 11.4 23.6

16 7.83 4.69 3.15 6.57 18.0 11.4 23.6

18 7.83 4.69 3.15 6.57 19.1 11.4 23.6

20 7.83 4.69 3.15 6.57 20.1 11.4 23.6

24 7.83 4.69 3.15 6.57 21.7 11.4 23.6

28 7.83 4.69 3.15 6.57 24.3 16.7 27.6

30 7.83 4.69 3.15 6.57 25.7 17.9 29.5

32 7.83 4.69 3.15 6.57 26.5 19.7 31.5

36 7.83 4.69 3.15 6.57 28.4 22.8 35.4

40 7.83 4.69 3.15 6.57 30.4 26.0 39.4

42 7.83 4.69 3.15 6.57 31.8 29.7 41.3

48 7.83 4.69 3.15 6.57 34.9 32.6 47.2

54 7.83 4.69 3.15 6.57 39.3 39.7 53.1

60 7.83 4.69 3.15 6.57 43.2 45.2 59.0

66 7.83 4.69 3.15 6.57 45.2 50.6 64.9

72 7.83 4.69 3.15 6.57 47.5 54.3 70.8

78 7.83 4.69 3.15 6.57 51.9 61.8 78.7

84 7.83 4.69 3.15 6.57 55.8 67.4 84.6

90 7.83 4.69 3.15 6.57 59.9 73.2 90.5

Dimension F Dimension G

EN (DIN) ASME AS EN (DIN) ASME AS

DN PN 6 PN 10 PN 16 AWWA PN 6 PN 10 PN 16 AWWA

[in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in]

14 26.6 26.9 24.3 27.5 27.3 19.3 19.9 20.5 21.0 20.7

15 – – – – 28.8 – – – – 21.7

16 28.6 29.1 26.5 28.8 29.4 21.3 22.2 22.8 23.5 22.8

18 30.8 31.2 28.8 31.6 31.7 23.4 24.2 25.2 25.0 25.2

20 32.8 33.3 31.3 33.8 33.9 25.4 26.4 28.1 27.5 27.8

24 36.5 37.1 35.4 37.7 37.9 29.7 30.7 33.1 32.0 32.5

28 41.2 41.9 39.7 42.5 42.2 33.9 35.2 35.8 36.5 35.8

30 – – – 45.1 45.3 – – – 38.7 39.2

32 45.7 46.5 43.8 47.3 47.3 38.4 40.0 40.4 41.7 41.7

36 49.6 50.4 47.7 51.4 49.8 42.3 43.9 44.3 46.0 46.3

40 53.5 54.6 52.2 55.8 55.1 46.3 48.4 48.2 50.7 49.4

42 – – – 58.3 – – – – 53.0 –

48 62.6 63.5 61.3 64.7 64.2 55.3 57.3 49.4 59.5 58.7

54 – – – 72.4 – – – – 66.3 –

60 – – – 79.7 – – – – 73.0 –

42 Endress+Hauser

Page 43

Proline Promag L 400

Dimension F Dimension G

EN (DIN) ASME AS EN (DIN) ASME AS

DN PN 6 PN 10 PN 16 AWWA PN 6 PN 10 PN 16 AWWA

[in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in]

66 – – – 85.2 – – – – 80.0 –

72 87.7 89.1 86.5 90.7 – 80.5 83.3 83.9 86.5 –

78 96.4 97.6 95.1 98.4 – 89.2 91.5 92.3 93.0 –

84 – – – 105.8 – – – – 99.8 –

90 – – – 112.8 – – – – – –

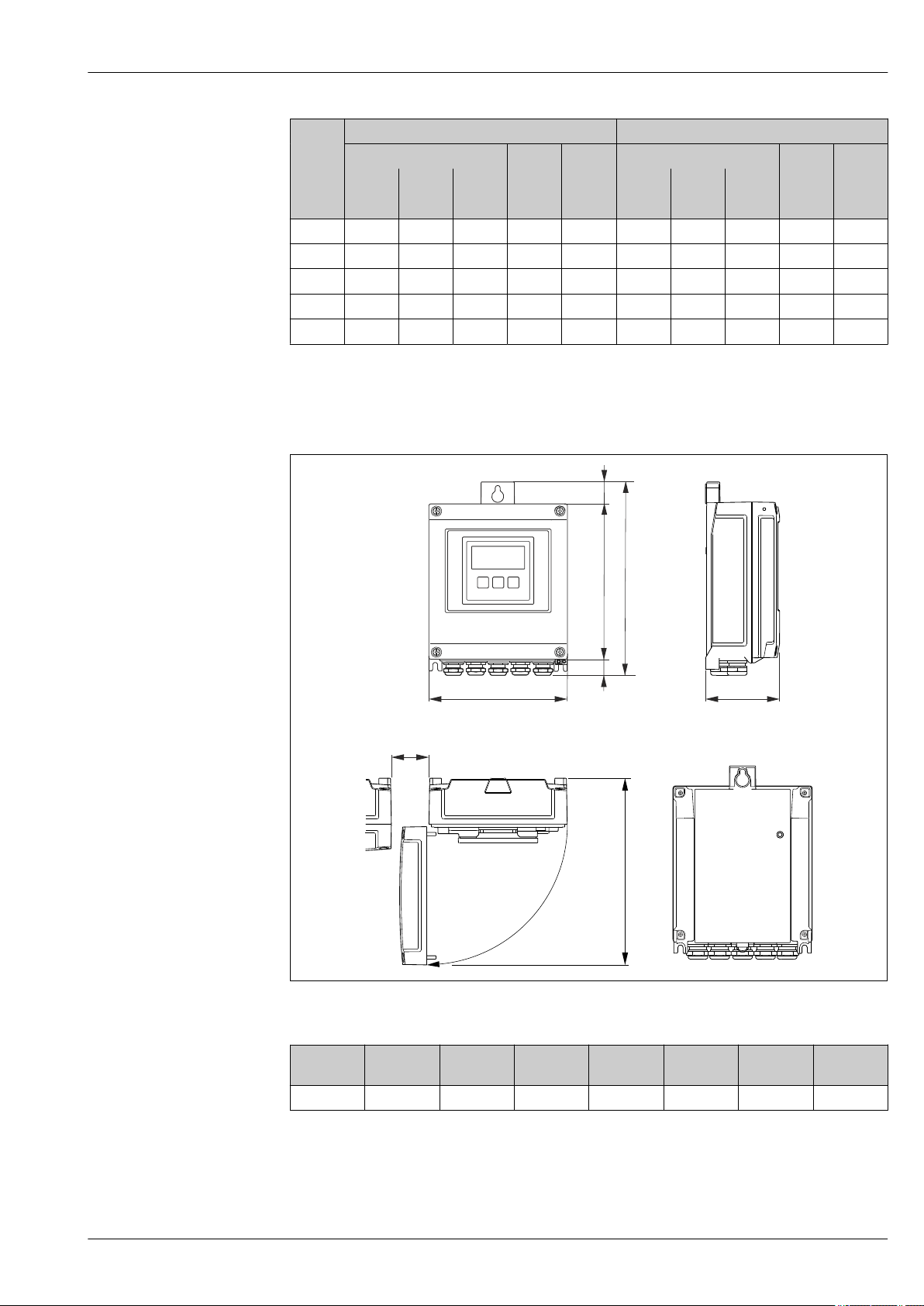

Transmitter remote version

Order code for "Housing", option N "Remote, polycarbonate" or option P "Remote, coated aluminum"

Dimensions in SI units

[mm]

167 24 187 21 232 80 50 240

[mm]

Endress+Hauser 43

A0020522

[mm]

Page 44

Dimensions in US units

Proline Promag L 400

[in]

6.57 0.94 7.36 0.83 9.13 3.15 1.97 9.5

[in]

Sensor remote version

DN 50 to 300 (2 to 12")

[in]

A0017282

Dimensions in SI units

DN A B C D E F G

[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

50 136 207 84 291 120 94 200

65 136 232 109 341 180 94 200

80 136 232 109 341 180 94 200

100 136 232 109 341 180 94 250

125 136 272 150 422 260 140 250

150 136 272 150 422 260 140 300

200 136 297 180 477 324 156 350

250 136 322 205 527 400 156 450

300 136 347 230 577 460 166 500

1) The length is independent of the selected pressure rating. Length in accordance with DVGW/ISO.

Dimensions in US units

DN A B C D E F G

[in] [in] [in] [in] [in] [in] [in] [in]

2 5.35 8.15 3.31 11.5 4.72 3.70 7.87

3 5.35 9.13 4.29 13.4 7.09 3.70 7.87

4 5.35 9.13 4.29 13.4 7.09 3.70 9.84

6 5.35 10.7 5.91 16.6 10.2 5.51 11.8

8 5.35 11.7 7.09 18.8 12.8 6.14 13.8

44 Endress+Hauser

Page 45

Proline Promag L 400

DN A B C D E F G

[in] [in] [in] [in] [in] [in] [in] [in]

10 5.35 12.7 8.07 20.8 15.8 6.14 17.7

12 5.35 13.7 9.06 22.8 18.1 6.54 19.7

1) The length is independent of the selected pressure rating. Length in accordance with DVGW/ISO.

DN 350 to 2400 (14 to 90")

A0017284

Dimensions in SI units

DN A B E F

[mm] [mm] [mm] [mm] [mm]

350 136 358 290 550

375 136 384 290 600

400 136 384 290 600

450 136 412 290 600

500 136 437 290 600

600 136 478 290 600

700 136 543 424 700

750 136 579 454 750

800 136 599 500 800

900 136 649 580 900

1000 136 699 660 1000

1050 136 735 755 1050

1200 136 813 828 1200

1350 136 925 1008 1350

1400 136 925 1008 1400

1500 136 1025 1147 1500

1600 136 1025 1147 1600

1650 136 1076 1284 1650

Endress+Hauser 45

Page 46

Proline Promag L 400

DN A B E F

[mm] [mm] [mm] [mm] [mm]

1800 136 1133 1379 1800

2000 136 1244 1569 2000

2150 136 1344 1711 2150

2200 136 1344 1711 2200

2300 136 1449 1859 2300

2400 136 1449 1859 2400

Dimension C Dimension D

EN (DIN) ASME AS EN (DIN) ASME AS

DN PN 6 PN 10 PN 16 AWWA PN 6 PN 10 PN 16 AWWA

[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

350 603 610 616 625 620 490 505 520 533 525

375 – – – – 659 – – – – 550

400 654 666 672 682 674 540 565 580 597 580

450 709 719 729 729 732 595 615 640 635 640

500 759 772 791 786 789 645 670 715 699 705

600 855 868 903 884 890 755 780 840 813 825

700 973 990 1009 1006 998 860 895 910 927 910

750 – – – 1072 1078 – – – 984 995

800 1087 1107 1123 1129 1129 975 1015 1025 1060 1060

900 1187 1207 1223 1233 1237 1075 1115 1125 1168 1175

1000 1287 1314 1338 1344 1327 1175 1230 1225 1289 1255

1050 – – – 1408 – – – – 1346 –

1200 1516 1541 1567 1569 1558 1405 1455 1255 1511 1490

1350 – – – 1767 – – – – 1683 –

1400 1740 1763 1779 – – 1630 1675 1685 – –

1500 – – – 1952 – – – – 1854 –

1600 1940 1983 2002 – – 1830 1915 1930 – –

1650 – – – 2092 – – – – 2032 –

1800 2155 2190 2209 2231 – 2045 2115 2130 2197 –

2000 2376 2406 2427 2425 – 2265 2325 2345 2362 –

2150 – – – 2611 – – – – 2534 –

2200 2581 2619 – – – 2475 2550 – – –

2300 – – – 2801 – – – – 2705 –

2400 2791 2829 – – – 2685 2760 – – –

Dimensions in US units

DN A B E F

[in] [in] [in] [in] [in]

14 5.35 14.1 11.4 21.6

15 5.35 15.1 11.4 23.6

46 Endress+Hauser

Page 47

Proline Promag L 400

DN A B E F

[in] [in] [in] [in] [in]

16 5.35 15.1 11.4 23.6

18 5.35 16.2 11.4 23.6

20 5.35 17.2 11.4 23.6

24 5.35 18.8 11.4 23.6

28 5.35 21.6 16.7 27.6

30 5.35 23.0 17.9 29.5

32 5.35 23.6 19.7 31.5

36 5.35 25.6 22.8 35.4

40 5.35 27.5 26.0 39.4

42 5.35 28.9 29.7 41.3

48 5.35 32.0 32.6 47.2

54 5.35 36.4 39.6 53.1

60 5.35 40.4 45.2 59.0

66 5.35 42.4 50.6 64.9

72 5.35 44.6 54.2 70.8

78 5.35 49.0 61.8 78.7

84 5.35 52.9 67.4 84.6

90 5.35 57.1 73.2 90.5

Dimension C Dimension D

EN (DIN) ASME AS EN (DIN) ASME AS

DN PN 6 PN 10 PN 16 AWWA PN 6 PN 10 PN 16 AWWA

[in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in]

14 23.7 24.0 24.3 24.6 24.4 19.3 19.9 20.5 21.0 20.7

15 – – – – 25.9 – – – – 21.7

16 25.8 26.2 26.5 26.9 26.5 21.3 22.2 22.8 23.5 22.8

18 27.9 28.3 28.7 28.7 28.8 23.4 24.2 25.2 25.0 25.2

20 29.9 30.4 31.1 30.9 31.1 25.4 26.4 28.1 27.5 27.8

24 33.7 34.2 35.6 34.8 35.0 29.7 30.7 33.1 32.0 32.5

28 38.5 39.2 39.7 39.8 39.5 33.9 35.2 35.8 36.5 35.8

30 – – – 42.4 42.4 – – – 38.7 39.2

32 43.0 43.8 44.2 44.6 44.6 38.4 40.0 40.4 41.7 41.7

36 46.9 47.7 48.2 48.7 48.9 42.3 43.9 44.3 46.0 46.3

40 50.8 51.9 52.7 53.1 52.4 46.3 48.4 48.2 50.7 49.4

42 – – – 55.6 – – – – 53.0 –

48 59.9 60.8 61.7 62.0 61.5 55.3 57.3 49.4 59.5 58.7

54 – – – 69.6 – – – – 66.3 –

60 – – – 76.9 – – – – 73.0 –

66 – – – 82.4 – – – – 80.0 –

72 84.9 86.3 87.0 87.9 – 80.5 83.3 83.9 86.5 –

78 93.6 94.7 95.6 95.5 – 89.2 91.5 92.3 93.0 –

Endress+Hauser 47

Page 48

Proline Promag L 400

Dimension C Dimension D

EN (DIN) ASME AS EN (DIN) ASME AS

DN PN 6 PN 10 PN 16 AWWA PN 6 PN 10 PN 16 AWWA

[in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in]

84 – – – 102.8 – – – – 99.8 –

90 – – – 110.3 – – – – 106.5 –

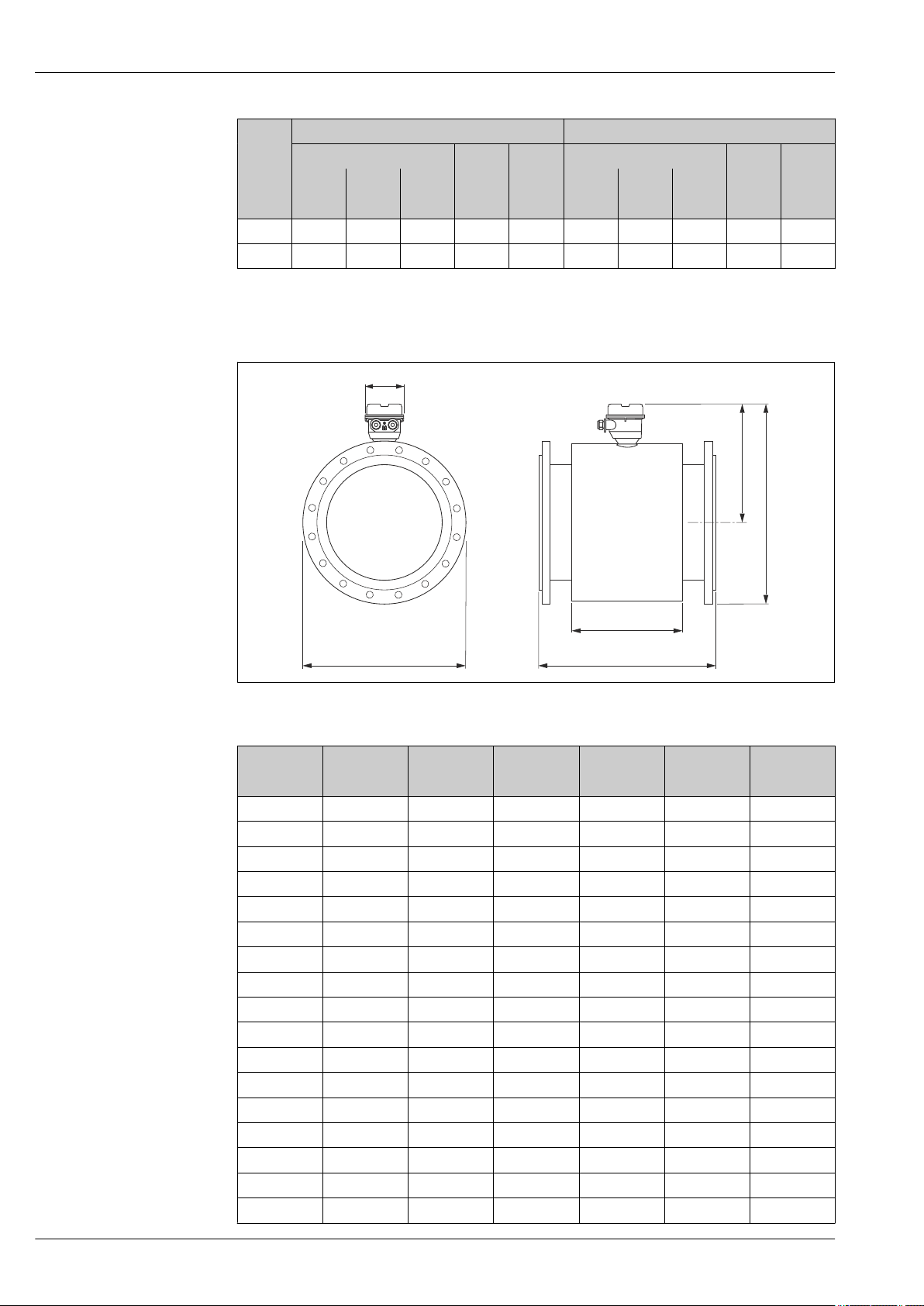

Order code for "Sensor option", option CK "IP68, Type 6P, water-proof" with DN 350 to 2000 (14 to 78")

A0020436

Dimensions in SI units

DN A B C D E F

[mm] [mm] [mm] [mm] [mm] [mm] [mm]

350 112 364 617 520 290 550

375 112 390 – – 290 600

400 112 390 673 580 290 600

450 112 418 730 640 290 600

500 112 443 792 715 290 600

600 112 484 904 840 290 600

700 112 549 1010 910 424 700

750 112 585 – – 454 750

800 112 605 1224 1025 500 800

900 112 655 1224 1125 580 900

1000 112 705 1339 1225 660 1000

1050 112 741 – – 755 1050

1200 112 819 1568 1255 828 1200

1350 112 931 – – 1008 1350

1400 112 931 1780 1685 1008 1400

1500 112 1031 – – 1147 1500

1600 112 1031 2003 1930 1147 1600

48 Endress+Hauser

Page 49

Proline Promag L 400

DN £ 300 (12")

mm (in)

DN 300…600 (14…24")

t = 2 (0.08)t = 2 (0.08)

t = 2 (0.08)

9 (0.35)

³DN 700 (28")

6.5 (0.26)

6.4 (0.25)

DN A B C D E F

[mm] [mm] [mm] [mm] [mm] [mm] [mm]

1650 112 1082 – – 1284 1650

1800 112 1139 2210 2130 1379 1800

2000 112 1250 2428 2345 1569 2000

Dimensions in US units

DN A B C D E F

[in] [in] [in] [in] [in] [in] [in]

14 4.41 14.3 24.3 20.5 11.4 21.6

15 4.41 15.4 – – 11.4 23.6

16 4.41 15.4 26.5 22.8 11.4 23.6

18 4.41 16.5 28.7 25.2 11.4 23.6

20 4.41 17.4 31.2 28.1 11.4 23.6

24 4.41 19.1 35.6 33.1 11.4 23.6

28 4.41 21.6 39.8 35.8 16.7 27.6

30 4.41 23.0 – – 17.9 29.5

32 4.41 23.8 44.2 40.4 19.7 31.5

36 4.41 25.8 48.2 44.3 22.8 35.4

40 4.41 27.8 52.7 48.2 26.0 39.4

42 4.41 29.2 – – 29.7 41.3

48 4.41 32.2 61.7 49.4 32.6 47.2

54 4.41 36.7 – – 39.6 53.1

60 4.41 40.6 – – 45.2 59.0

66 4.41 42.6 – – 50.6 64.9

72 4.41 44.8 87.0 83.9 54.2 70.8

78 4.41 49.2 95.6 92.3 61.8 78.7

Accessories

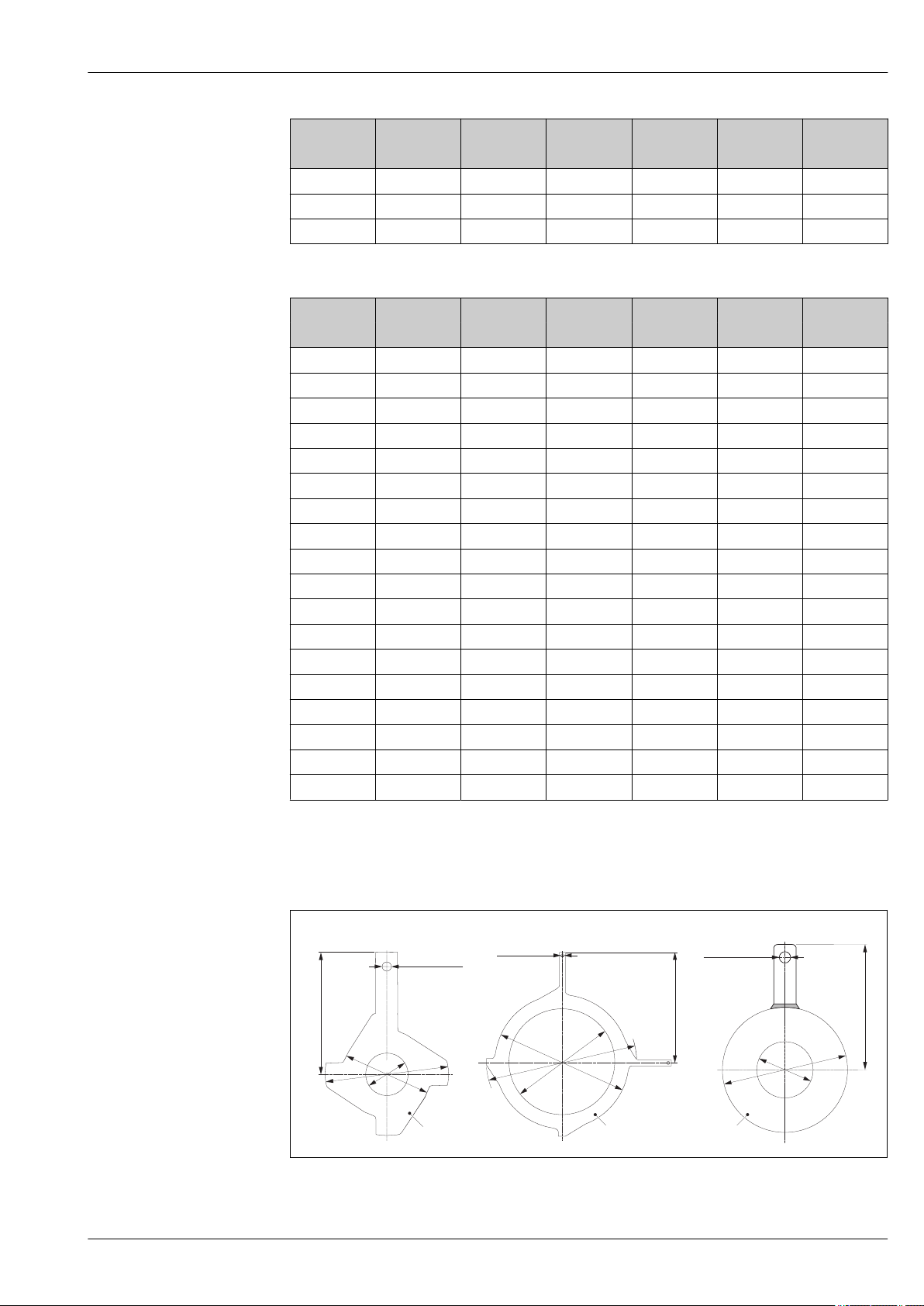

Ground disks for flange connections

Endress+Hauser 49

A0015442

Page 50

Proline Promag L 400

Dimensions in SI and US units

DN Pressure rating A B D H

[mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in]

50 2

65 2 ½

80 3

100 4

125 5

150 6

200 8

250 10

300 12

350 14 DIN, PN 6 343 13.5 433 16.5 479 18.9 365 14.4

350 14 DIN, PN 10 343 13.5 400 15.8 479 18.9 365 14.4

350 14 ASME, Class

400 16 DIN, PN 6 393 15.5 470 18.5 542 21.3 395 15.6

400 16 DIN, PN 10 393 15.5 469 18.5 542 21.3 395 15.6

400 16 ASME, Class

450 18 DIN, PN 6 439 17.3 525 20.7 583 23.0 417 16.4

450 18 DIN, PN 10 439 17.3 535 21.1 583 23.0 417 16.4

450 18 ASME, Class

500 20 DIN, PN 6 493 19.4 575 23.3 650 25.6 460 18.1

500 20 DIN, PN 10 493 19.4 588 23.2 650 25.6 460 18.1

500 20 ASME, Class

600 24 DIN, PN 6 593 23.4 676 27.3 766 30.2 522 20.6

600 24 DIN, PN 10 593 23.4 688 27.1 766 30.2 522 20.6

600 24 ASME, Class

700 28 DIN, PN 6 697 27.4 – – 786 30.9 460 18.1

700 28 DIN, PN 10 693 27.3 – – 813 32.0 480 18.9

700 28 AS, PN 16 687 27.1 – – 807 31.8 490 19.3

700 28 AWWA, Class D 693 27.3 – – 832 32.8 494 19.5

750 30 AWWA, Class D 743 29.3 – – 833 32.8 523 20.6

800 32 DIN, PN 6 799 31.5 – – 893 35.2 520 20.5

800 32 DIN, PN 10 795 31.3 – – 920 36.2 540 21.3

800 32 AS, PN 16 789 31.1 – – 914 36.0 550 21.7

800 32 AWWA, Class D 795 31.3 – – 940 37.0 561 22.1

900 36 DIN, PN 6 897 35.3 – – 993 39.1 570 22.4

900 36 DIN, PN 10 893 35.2 – – 1 020 40.2 590 23.2

900 36 AS, PN 16 886 34.9 – – 1 014 39.9 595 23.4

900 36 AWWA, Class D 893 35.2 – – 1 048 41.3 615 24.2

1 000 40 DIN, PN 6 999 39.3 – – 1 093 43.0 620 24.4

150

52 2.05 101 3.98 115.5 4.55 108 4.25

68 2.68 121 4.76 131.5 5.18 118 4.65

80 3.15 131 5.16 154.5 6.08 135 5.31

104 4.09 156 6.14 186.5 7.34 153 6.02

130 5.12 187 7.36 206.5 8.13 160 6.30

158 6.22 217 8.54 256 10.1 184 7.24

206 8.11 267 10.5 288 11.3 205 8.07

260 10.2 328 12.9 359 14.1 240 9.45

312 12.3 375 14.8 413 16.3 273 10.8

343 13.5 400 15.8 479 18.9 365 14.4

393 15.5 469 18.5 542 21.3 395 15.6

439 17.3 535 21.1 583 23.0 417 16.4

493 19.4 588 23.2 650 25.6 460 18.1

593 23.4 688 27.1 766 30.2 522 20.6

50 Endress+Hauser

Page 51

Proline Promag L 400

DN Pressure rating A B D H

[mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in]

1 000 40 DIN, PN 10 995 39.2 – – 1 127 44.4 650 25.6

1 000 40 AS, PN 16 988 38.9 – – 1 131 44.5 660 26.0

1 000 40 AWWA, Class D 995 39.2 – – 1 163 45.8 675 26.6

1 050 42 AWWA, Class D 1 044 41.1 – – 1 220 48.0 704 27.7

1 200 48 DIN, PN 6 1 203 47.4 – – 1 310 51.6 733 28.9

1) Ground disks can be used for all the flange standards/pressure ratings which can be supplied in the standard version.

Weight Compact version

Weight data:

• Including the transmitter

– Polycarbonate plastic: 1.3 kg (2.9 lbs) – Aluminum: 2.0 kg (4.4 lbs)

• Excluding packaging material

Weight in SI units

Lap joint flange; fixed flange DN ≥ 350 (14")

Nominal

diameter

[mm] [in] Pressure

[kg]

rating

50 2 PN 6 – PN 10 – PN 16 9 Class 150 9 PN 16 – Table E –

65 2 ½ PN 6 – PN 10 – PN 16 10 Class 150 – PN 16 – Table E –

80 3 PN 6 – PN 10 – PN 16 12 Class 150 12 PN 16 – Table E –

100 4 PN 6 – PN 10 – PN 16 14 Class 150 14 PN 16 – Table E –

125 5 PN 6 – PN 10 – PN 16 20 Class 150 – PN 16 – Table E –

150 6 PN 6 – PN 10 – PN 16 24 Class 150 24 PN 16 – Table E –

200 8 PN 6 – PN 10 43 PN 16 – Class 150 43 PN 16 – Table E –

250 10 PN 6 – PN 10 63 PN 16 – Class 150 63 PN 16 – Table E –

300 12 PN 6 – PN 10 68 PN 16 – Class 150 68 PN 16 – Table E –

350 14 PN 6 77 PN 10 88 PN 16 103 Class 150 137 PN 16 99 Table E 99

375 15 PN 6 – PN 10 – PN 16 – Class 150 – PN 16 105 Table E –

400 16 PN 6 89 PN 10 104 PN 16 121 Class 150 168 PN 16 120 Table E 120

450 18 PN 6 99 PN 10 112 PN 16 138 Class 150 191 PN 16 133 Table E 143

500 20 PN 6 114 PN 10 132 PN 16 178 Class 150 228 PN 16 182 Table E 182

600 24 PN 6 155 PN 10 162 PN 16 223 Class 150 302 PN 16 260 Table E 260

700 28 PN 6 190 PN 10 240 PN 16 287 Class D 266 PN 16 367 Table E 346

750 30 PN 6 – PN 10 – PN 16 – Class D 318 PN 16 445 Table E 433

800 32 PN 6 240 PN 10 315 PN 16 349 Class D 383 PN 16 503 Table E 493

900 36 PN 6 308 PN 10 393 PN 16 440 Class D 470 PN 16 702 Table E 690

1 000 40 PN 6 359 PN 10 468 PN 16 562 Class D 587 PN 16 759 Table E 761

1 050 42 PN 6 – PN 10 – PN 16 – Class D 670 PN 16 – Table E –

1 200 48 PN 6 529 PN 10 717 PN 16 839 Class D 901 PN 16 1219 Table E 1237

– 54 PN 6 – PN 10 – PN 16 – Class D 1273 PN 16 – Table E –

EN (DIN) ASME, AWWA AS

Pressure

rating

[kg]

Pressure

rating

[kg]

Pressure

rating

[kg]

Pressure

rating

[kg]

Pressure

rating

[kg]

Endress+Hauser 51

Page 52

Proline Promag L 400

Nominal

EN (DIN) ASME, AWWA AS

diameter

[mm] [in] Pressure

rating

[kg]

Pressure

rating

[kg]

Pressure

rating

[kg]

Pressure

rating

[kg]

Pressure

rating

[kg]

Pressure

rating

1 400 – PN 6 784 PN 10 1114 PN 16 1200 Class D – PN 16 – Table E –

– 60 PN 6 – PN 10 – PN 16 – Class D 1594 PN 16 – Table E –

1 600 – PN 6 1058 PN 10 1624 PN 16 1840 Class D – PN 16 – Table E –

1 650 66 PN 6 – PN 10 – PN 16 – Class D 2131 PN 16 – Table E –

1 800 72 PN 6 1484 PN 10 2107 PN 16 2353 Class D 2568 PN 16 – Table E –

2 000 78 PN 6 1877 PN 10 2630 PN 16 2925 Class D 3113 PN 16 – Table E –

– 84 PN 6 – PN 10 – PN 16 – Class D 3755 PN 16 – Table E –

2 200 – PN 6 2512 PN 10 3422 PN 16 – Class D – PN 16 – Table E –

– 90 PN 6 – PN 10 – PN 16 – Class D 4797 PN 16 – Table E –

2 400 – PN 6 2996 PN 10 4094 PN 16 – Class D – PN 16 – Table E –

1) Values with polycarbonate plastic transmitter; values for aluminum transmitter: + 0.7 kg

Lap joint flange, stamped plate

Nominal diameter EN (DIN)

[mm] [in] Pressure rating [kg]

50 2 PN 10 5

65 2 ½ PN 10 6

80 3 PN 10 7

100 4 PN 10 9

125 5 PN 10 13

150 6 PN 10 17

200 8 PN 10 35

250 10 PN 10 54

300 12 PN 10 55

[kg]

1) Values with polycarbonate plastic transmitter; values for aluminum transmitter: + 0.7 kg

Weight in US units

Lap joint flange; fixed flange DN ≥ 350 (14")

Nominal diameter ASME, AWWA

[mm] [in] Pressure rating [lbs]

50 2 Class 150 20

65 2 ½ Class 150 –

80 3 Class 150 26

100 4 Class 150 31

125 5 Class 150 –

150 6 Class 150 53

200 8 Class 150 95

250 10 Class 150 139

300 12 Class 150 150

52 Endress+Hauser

Page 53

Proline Promag L 400

Nominal diameter ASME, AWWA

[mm] [in] Pressure rating [lbs]

350 14 Class 150 302

375 15 Class 150 –

400 16 Class 150 370

450 18 Class 150 421

500 20 Class 150 503

600 24 Class 150 666

700 28 Class D 586

750 30 Class D 701

800 32 Class D 844

900 36 Class D 1036

1 000 40 Class D 1294

– 42 Class D 1477

1 200 48 Class D 1987

– 54 Class D 2807

– 60 Class D 3515

1 650 66 Class D 4699

1 800 72 Class D 5662

2 000 78 Class D 6864

– 84 Class D 8280

– 90 Class D 10577

1) Values with polycarbonate plastic transmitter; values for aluminum transmitter: + 1.45 lbs

Transmitter remote version

Wall-mount housing

Depends on the material of the wall-mount housing:

• Polycarbonate plastic: 1.3 kg (2.9 lb)

• Aluminum: 2.0 kg (4.4 lb)

Sensor remote version

Weight data:

• Including sensor connection housing

• Excluding the connecting cable

• Excluding packaging material

Weight in SI units

Lap joint flange; fixed flange DN ≥ 350 (14")

Nominal diameter

[mm] [in] Pressure

rating

50 2 PN 6 – PN 10 – PN 16 6 Class 150 6 PN 16 – Table E –

65 2 ½ PN 6 – PN 10 – PN 16 7 Class 150 – PN 16 – Table E –

80 3 PN 6 – PN 10 – PN 16 9 Class 150 9 PN 16 – Table E –

100 4 PN 6 – PN 10 – PN 16 11 Class 150 11 PN 16 – Table E –

[kg] Pressure

EN (DIN) ASME, AWWA AS

rating

[kg] Pressure

rating

[kg] Pressure

rating

[kg] Pressure

rating

[kg] Pressure

rating

[kg]

Endress+Hauser 53

Page 54

Proline Promag L 400

Nominal diameter

[mm] [in] Pressure

rating

125 5 PN 6 – PN 10 – PN 16 16 Class 150 – PN 16 – Table E –

150 6 PN 6 – PN 10 – PN 16 20 Class 150 20 PN 16 – Table E –

200 8 PN 6 – PN 10 40 PN 16 – Class 150 40 PN 16 – Table E –

250 10 PN 6 – PN 10 60 PN 16 – Class 150 60 PN 16 – Table E –

300 12 PN 6 – PN 10 65 PN 16 – Class 150 65 PN 16 – Table E –

350 14 PN 6 73 PN 10 84 PN 16 101 Class 150 133 PN 16 95 Table E 95

375 15 PN 6 – PN 10 – PN 16 – Class 150 – PN 16 101 Table E –

400 16 PN 6 85 PN 10 100 PN 16 119 Class 150 164 PN 16 116 Table E 116

450 18 PN 6 95 PN 10 108 PN 16 136 Class 150 187 PN 16 129 Table E 139

500 20 PN 6 110 PN 10 128 PN 16 176 Class 150 224 PN 16 178 Table E 178

600 24 PN 6 158 PN 10 158 PN 16 221 Class 150 298 PN 16 256 Table E 256

700 28 PN 6 187 PN 10 237 PN 16 285 Class D 263 PN 16 364 Table E 343

750 30 PN 6 – PN 10 – PN 16 – Class D 315 PN 16 442 Table E 430

800 32 PN 6 237 PN 10 312 PN 16 347 Class D 380 PN 16 500 Table E 490

900 36 PN 6 305 PN 10 390 PN 16 438 Class D 467 PN 16 699 Table E 687

1 000 40 PN 6 356 PN 10 465 PN 16 560 Class D 584 PN 16 756 Table E 758

1 050 42 PN 6 – PN 10 – PN 16 – Class D 667 PN 16 – Table E –

1 200 48 PN 6 526 PN 10 714 PN 16 837 Class D 898 PN 16 1216 Table E 1234

– 54 PN 6 – PN 10 – PN 16 – Class D 1270 PN 16 – Table E –

1 400 – PN 6 781 PN 10 1111 PN 16 1197 Class D – PN 16 – Table E –

– 60 PN 6 – PN 10 – PN 16 – Class D 1591 PN 16 – Table E –

1 600 – PN 6 1055 PN 10 1621 PN 16 1838 Class D – PN 16 – Table E –

1 650 66 PN 6 – PN 10 – PN 16 – Class D 2128 PN 16 – Table E –

1 800 72 PN 6 1415 PN 10 2104 PN 16 2350 Class D 2565 PN 16 – Table E –

2 000 78 PN 6 1874 PN 10 2627 PN 16 2922 Class D 3110 PN 16 – Table E –

– 84 PN 6 – PN 10 – PN 16 – Class D 3752 PN 16 – Table E –

2 200 – PN 6 2509 PN 10 3419 PN 16 – Class D – PN 16 – Table E –

– 90 PN 6 – PN 10 – PN 16 – Class D 4794 PN 16 – Table E –

2 400 – PN 6 2993 PN 10 4091 PN 16 – Class D – PN 16 – Table E –

[kg] Pressure

EN (DIN) ASME, AWWA AS

rating

[kg] Pressure

rating

[kg] Pressure

rating

[kg] Pressure

rating

[kg] Pressure

[kg]

rating

Lap joint flange, stamped plate

Nominal diameter EN (DIN)

[mm] [in] Pressure rating [kg]

50 2 PN 10 3

65 2 ½ PN 10 4

80 3 PN 10 5

100 4 PN 10 7

125 5 PN 10 11

150 6 PN 10 15

200 8 PN 10 33

54 Endress+Hauser

Page 55

Proline Promag L 400

Nominal diameter EN (DIN)

[mm] [in] Pressure rating [kg]

250 10 PN 10 52

300 12 PN 10 53

Weight in US units

Lap joint flange; fixed flange DN ≥ 350 (14")

Nominal diameter ASME, AWWA

[mm] [in] Pressure rating [lbs]

50 2 Class 150 13

65 2 ½ Class 150 –

80 3 Class 150 20

100 4 Class 150 24

125 5 Class 150 –

150 6 Class 150 44

200 8 Class 150 88

250 10 Class 150 132

300 12 Class 150 143

350 14 Class 150 293

375 15 Class 150 –

400 16 Class 150 361

450 18 Class 150 412

500 20 Class 150 494

600 24 Class 150 657

700 28 Class D 580

750 30 Class D 695

800 32 Class D 838

900 36 Class D 1030

1 000 40 Class D 1288

– 42 Class D 1471

1 200 48 Class D 1980

– 54 Class D 2800

– 60 Class D 3508

1 650 66 Class D 4692

1 800 72 Class D 5656

2 000 78 Class D 6858

– 84 Class D 8273

– 90 Class D 10571

Endress+Hauser 55

Page 56

Proline Promag L 400

Measuring tube specification

Nominal diameter Pressure rating Measuring tube internal diameter

EN (DIN) ASME AS 2129 Hard rubber Polyurethane PTFE

AWWA AS 4087

[mm] [in] [mm] [in] [mm] [in] [mm] [in]

50 2 PN 10/16 Class 150 – – – 50.3 2.0 51.7 2.0

80 3 PN 10/16 Class 150 – – – 78.9 3.1 79.9 3.1

100 4 PN 10/16 Class 150 – – – 104.3 4.1 103.8 4.1

125 5 PN 10/16 Class 150 – – – 129.7 5.1 129.1 5.1

150 6 PN 10/16 Class 150 – – – 158.3 6.2 156.3 6.2

200 8 PN 10/16 Class 150 – – – 206.7 8.1 202.1 8.0

250 10 PN 10/16 Class 150 – – – 260.6 10.3 256.2 10.1

300 12 PN 10/16 – – – – 311.5 12.3 305.5 12.0

300 12 – Class 150 – – – 309.9 12.2 303.9 12.0

350 14 PN 6 – – 341 13.4 344 13.5 – –

350 14 PN 10 – – 341 13.4 344 13.5 – –

350 14 – – Table E, PN 16 339 13.3 342 13.4 – –

350 14 – Class 150 – 339 13.3 342 13.4 – –

375 15 PN 10 – – 391 15.4 – – – –

375 15 – – PN 16 389 15.3 392 15.4 – –

400 16 PN 6 – – 391 15.4 394 13.5 – –

400 16 PN 10 – – 442 17.4 394 13.5 – –

400 16 – – Table E, PN 16 389 15.3 392 13.4 – –

400 16 – Class 150 – 389 15.3 392 13.4 – –

450 18 PN 6 – – 442 17.4 445 17.5 – –

450 18 PN 10 – – 493 19.4 445 17.5 – –

450 18 – – Table E, PN 16 440 17.3 443 17.4 – –

450 18 – Class 150 – 438 17.2 441 17.3 – –

500 20 PN 6 – – 493 19.4 496 19.5 – –

500 20 PN 10 – – 595 23.4 496 19.5 – –

500 20 – – Table E, PN 16 489 19.2 492 19.3 – –

500 20 – Class 150 – 489 19.2 492 19.3 – –

600 24 PN 6 – – 595 23.4 598 23.5 – –

600 24 PN 10 – – 590 23.2 598 23.5 – –

600 24 – – Table E, PN 16 591 23.2 594 23.4 – –

600 24 – Class 150 – 589 23.1 592 23.3 – –

700 28 PN 6 – – 696 27.4 699 27.5 – –

700 28 PN 10 – – 694 27.3 697 27.4 – –

700 28 – – Table E, PN 16 690 27.2 693 27.3 – –

700 28 – Class D – 694 27.3 697 27.4 – –

750 30 PN 6 – – – – 699 27.5 – –

750 30 PN 10 – – – – 697 27.4 – –

750 30 – – Table E, PN 16 741 29.2 744 29.3 – –

2 ½ PN 10/16 Class 150 – – – 66.1 2.6 67.7 2.7

56 Endress+Hauser

Page 57

Proline Promag L 400

Nominal diameter Pressure rating Measuring tube internal diameter

EN (DIN) ASME AS 2129 Hard rubber Polyurethane PTFE

AWWA AS 4087

[mm] [in] [mm] [in] [mm] [in] [mm] [in]

750 30 – Class D – 743 29.3 746 29.4 – –

800 32 PN 6 – – 798 31.4 801 31.5 – –

800 32 PN 10 – – 796 31.3 799 31.5 – –

800 32 – – Table E, PN 16 792 31.2 795 31.3 – –

800 32 – Class D – 794 31.3 797 31.4 – –

900 36 PN 6 – – 897 35.3 900 35.4 – –

900 36 PN 10 – – 895 35.2 898 35.4 – –

900 36 – – Table E, PN 16 889 35.0 892 35.1 – –

900 36 – Class D – 895 35.2 898 35.4 – –

1 000 40 PN 6 – – 999 39.3 1 002 39.4 – –

1 000 40 PN 10 – – 997 39.3 1 000 39.4 – –

1 000 40 – – Table E, PN 16 991 39.0 994 39.1 – –

1 000 40 – Class D – 995 39.1 998 39.3 – –

1 050 42 PN 6 – – – – – – – –

1 050 42 PN 10 – – – – – – – –

1 050 42 – – Table E, PN 16 – – – – – –

1 050 42 – Class D – 1 046 41.2 1 049 41.3 – –

1 200 48 PN 6 – – 1 203 47.4 1 206 47.5 – –

1 200 48 PN 10 – – 1 199 47.2 1 202 47.3 – –

1 200 48 – – Table E, PN 16 1 191 46.9 1 194 47.0 – –

1 200 48 – Class D – 1 195 47.0 1 198 47.2 – –

– 54 – Class D – 1 345 53.8 – – – –

1 400 – PN 6 – – 1 402 56.1 – – – –

1 400 – PN 10 – – 1 394 5 578 – – – –

– 60 – Class D – 1 498 59.9 – – – –

1 600 – PN 6 – – 1 600 64.0 – – – –

1 600 – PN 10 – – 1 590 63.6 – – – –

– 66 – Class D – 1 646 65.8 1 198 47.2 – –

1 800 72 PN 6 – – 1 800 72.0 1 206 47.5 – –

1 800 72 PN 10 – – 1 790 71.6 1 202 47.3 – –

1 800 72 – Class D – 1 790 71.6 1 198 47.2 – –

2 000 78 PN 6 – – 1 998 79.9 – – – –

2 000 78 PN 10 – – 1 990 79.6 – – – –

2 000 78 – Class D – 1 986 79.4 – – – –

– 84 – Class D – 2 099 84.0 – – – –

2 200 – PN 6 – – 2 194 87.8 – – – –

2 200 – PN 10 – – 2 186 87.4 – – – –

– 90 – Class D – 2 246 89.8 – – – –

Endress+Hauser 57

Page 58

Nominal diameter Pressure rating Measuring tube internal diameter

[mm] [in] [mm] [in] [mm] [in] [mm] [in]

2 400 – PN 6 – – 2 394 95.8 – – – –

2 400 – PN 10 – – 2 386 95.4 – – – –

1) Designed acc. to EN 1092-1 (not to DIN 2501)

Materials Transmitter housing

Order code for "Housing"

• Compact version, standard: – Option A: coated aluminum AlSi10Mg – Option M: polycarbonate plastic

• Compact version, inclined: – Option Q: polycarbonate plastic – Option R: coated aluminum AlSi10Mg

• Remote version (wall-mount housing): – Option N: polycarbonate plastic – Option P: coated aluminum AlSi10Mg

Proline Promag L 400

EN (DIN) ASME AS 2129 Hard rubber Polyurethane PTFE

AWWA AS 4087

Window material

Transmitter housing material Window material

Polycarbonate plastic Plastic

Aluminum AlSi10Mg Glass

Cable entries/cable glands

A0020640

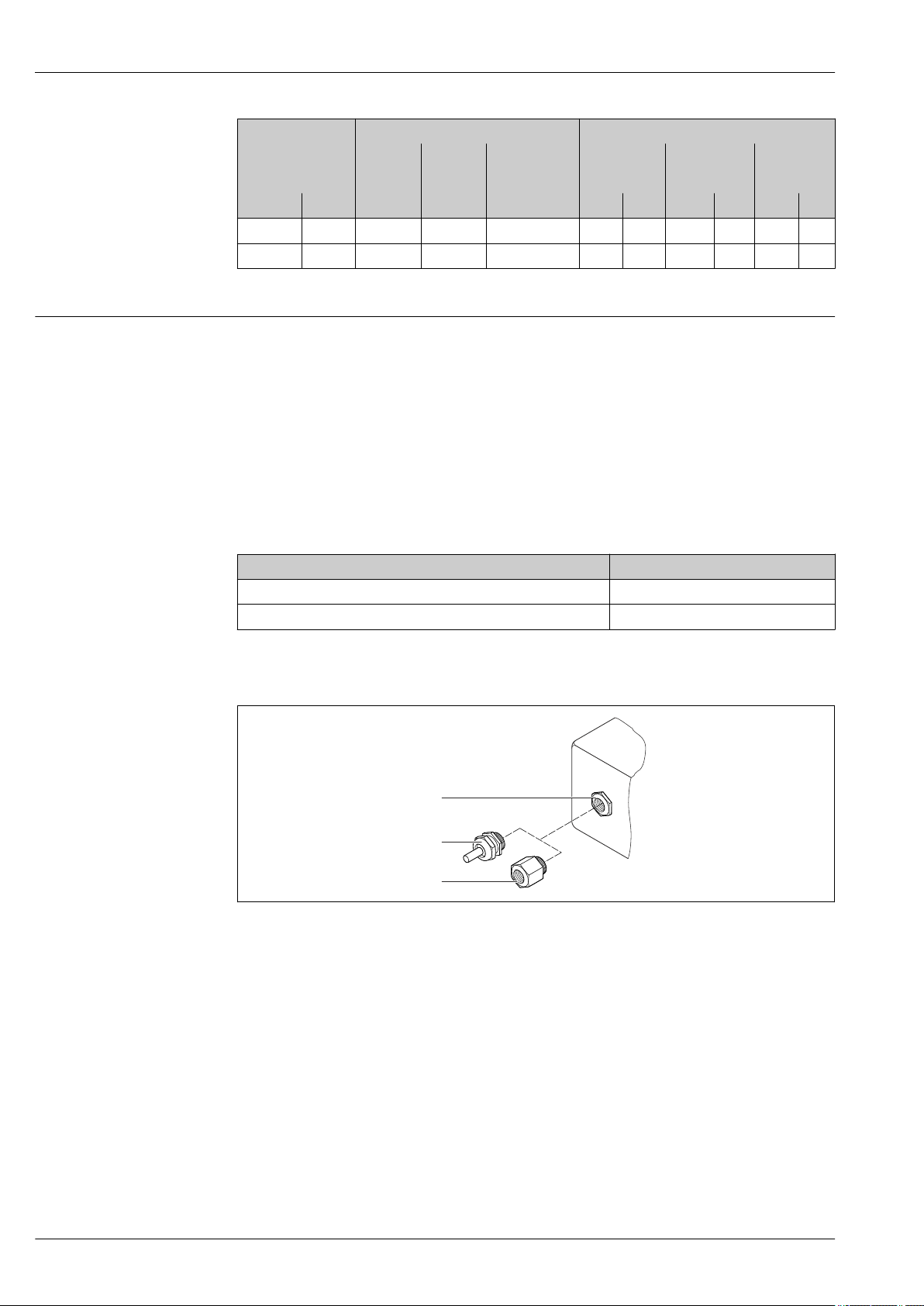

 27 Possible cable entries/cable glands

1 Cable entry in transmitter housing, wall-mount housing or connection housing with internal thread M20 x

1.5 2 Cable gland M20 x 1.5 3 Adapter for cable entry with internal thread G ½" or NPT ½"

58 Endress+Hauser

Page 59

Proline Promag L 400

Compact and remote versions and sensor connection housing

Cable entry/cable gland Material

Cable gland M20 × 1.5 Plastic

Remote version: cable gland M20 × 1.5

• Option CK "IP68, Type 6P, waterproof"

• Option of reinforced connecting cable

Adapter for cable entry with internal thread G ½" or NPT ½"

• Sensor connection housing: Nickel-plated brass

• Transmitter wall-mount housing: Plastic

Nickel-plated brass

Device plug

Electrical connection Material

Plug M12x1 • Socket: Stainless steel 1.4404 (316L)

• Contact housing: Polyamide

• Contacts: Gold-plated brass

Connecting cable for remote version

Electrode and coil current cable

• Standard cable: PVC cable with copper shield

• Reinforced cable: PVC cable with copper shield and additional steel wire braided jacket

Sensor housing

• DN 50 to 300 (2 to 12"): aluminum coated AlSi10Mg

• DN 350 to 2400 (14 to 90"): carbon steel with protective varnish

Sensor connection housing

Aluminum coated AlSi10Mg

Sensor cable entries

Order code for "Housing", option N "Remote, polycarbonate" or option P "Remote, coated aluminum"

The various cable entries are suitable for hazardous and non-hazardous areas.

Electrical connection Material

Cable gland M20 × 1.5 Nickel-plated brass

Thread G ½"

via adapter

Thread NPT ½"

via adapter

Nickel-plated brass

Measuring tubes

• DN 50 to 300 (2 to 12"): stainless steel 1.4301 (304), 1.4306 (304L)

• DN 350 to 2400 (14 to 90"): stainless steel 1.4301 (304), 1.4307

Liner

• DN 50 to 300 (2 to 12"): PTFE

• DN 50 to 1200 (2 to 48"): polyurethane

• DN 350 to 2400 (14 to 90"): hard rubber

Electrodes

1.4435 (304L), Alloy C22

Endress+Hauser 59

Page 60

Proline Promag L 400

Process connections

EN 1092-1 (DIN 2501)

• DN ≤ 300 (12"): 1.0038 (S235JRG2), 1.4301 (304), 1.4306 (304L), 1.4307 (304L)

• DN ≥ 350 (14"): 1.0038 (S235JRG2), A105

ASME B16.5

• DN ≤ 300 (12"): A105, 316L

• DN ≥ 350 (14"): A105

AWWA C207

DN 1200 to 2200 (48 to 90"): 1.0044 (S275JR), 1.0425 (316L) (P265GH), A105, A181

AS 2129

DN 350 to 1200 (14 to 48"): 1.0038 (S235JRG2), 1.0345 (P235GH), 1.0425 (316L) (P265GH), A105, FE 410 WB

AS 4087

DN 350 to 1200 (14 to 48"): 1.0044 (S275JR), 1.0425 (316L) (P265GH), A105

Seals

In accordance with DIN EN 1514-1

Fitted electrodes

Process connections

Accessories

Display protection

Stainless steel 1.4301

Ground disks

1.4435 (316L), Alloy C22

Measurement, reference and empty pipe detection electrodes available as standard with:

• 1.4435 (304L)

• Alloy C22

Flange connections:

• EN 1092-1 (DIN 2501) – DN ≤ 300 (12"): lap joint flange (PN 10/16), lap joint flange, stamped plate (PN 10) = form A – DN ≥ 350 (14"): fixed flange (PN 6/10) = flat face

• ASME B16.5 – DN ≤ 300 (12"): lap joint flange (Class 150) – DN ≥ 350 (14"): fixed flange (Class 150)

• AWWA C207 DN 1200 to 2200 (48 to 90"): fixed flange (Class D)

• AS 2129 DN 350 to 1200 (14 to 48"): fixed flange (Table E)

• AS 4087 DN 350 to 1200 (14 to 48"): fixed flange (PN 16)

For information on the materials of the process connections (→  60)

Surface roughness

Electrodes with 1.4435 (304L), Alloy C22: ≤ 0.3 to 0.5 µm (11.8 to 19.7 in) (All data relate to parts in contact with fluid)

60 Endress+Hauser

Page 61

Proline Promag L 400

Operability

Operating concept

Operator-oriented menu structure for user-specific tasks

• Commissioning

• Operation

• Diagnostics

• Expert level

Rapid and safe commissioning

• Guided menus ("Make-it-run" wizards) for applications

• Menu guidance with brief explanations of the individual parameter functions

Reliable operation

• Operation in the following languages: – Via local display:

English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Chinese, Japanese, Bahasa (Indonesian), Vietnamese, Czech

– Via "FieldCare" operating tool:

English, German, French, Spanish, Italian, Dutch, Chinese, Japanese

– Via Web browser:

English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Chinese, Japanese, Bahasa (Indonesian), Vietnamese, Czech

• Uniform operating philosophy applied to device, operating tools and Web browser

• If replacing the electronic module, transfer the device configuration via the plug-in memory (HistoROM DAT) which contains the process and measuring device data and the event logbook. No need to reconfigure.

Efficient diagnostics increase measurement availability

• Troubleshooting measures can be called up via the device, operating tools and Web browser

• Diverse simulation options, logbook for events that occur and optional line recorder functions

Local operation

Display elements

• 4-line display

• White background lighting; switches to red in event of device errors

• Format for displaying measured variables and status variables can be individually configured

• Permitted ambient temperature for the display: –20 to +50 °C (–4 to +122 °F) The readability of the display may be impaired at temperatures outside the temperature range.

Operating elements

External operation via touch control; 3 optical keys:

, ,

Additional functionality

• Data backup function The device configuration can be saved in the display module.

• Data comparison function The device configuration saved in the display module can be compared to the current device configuration.

• Data transfer function The transmitter configuration can be transmitted to another device using the display module.

A0020538

Endress+Hauser 61

Page 62

Remote operation Via HART protocol

1 2 3 5

4 6

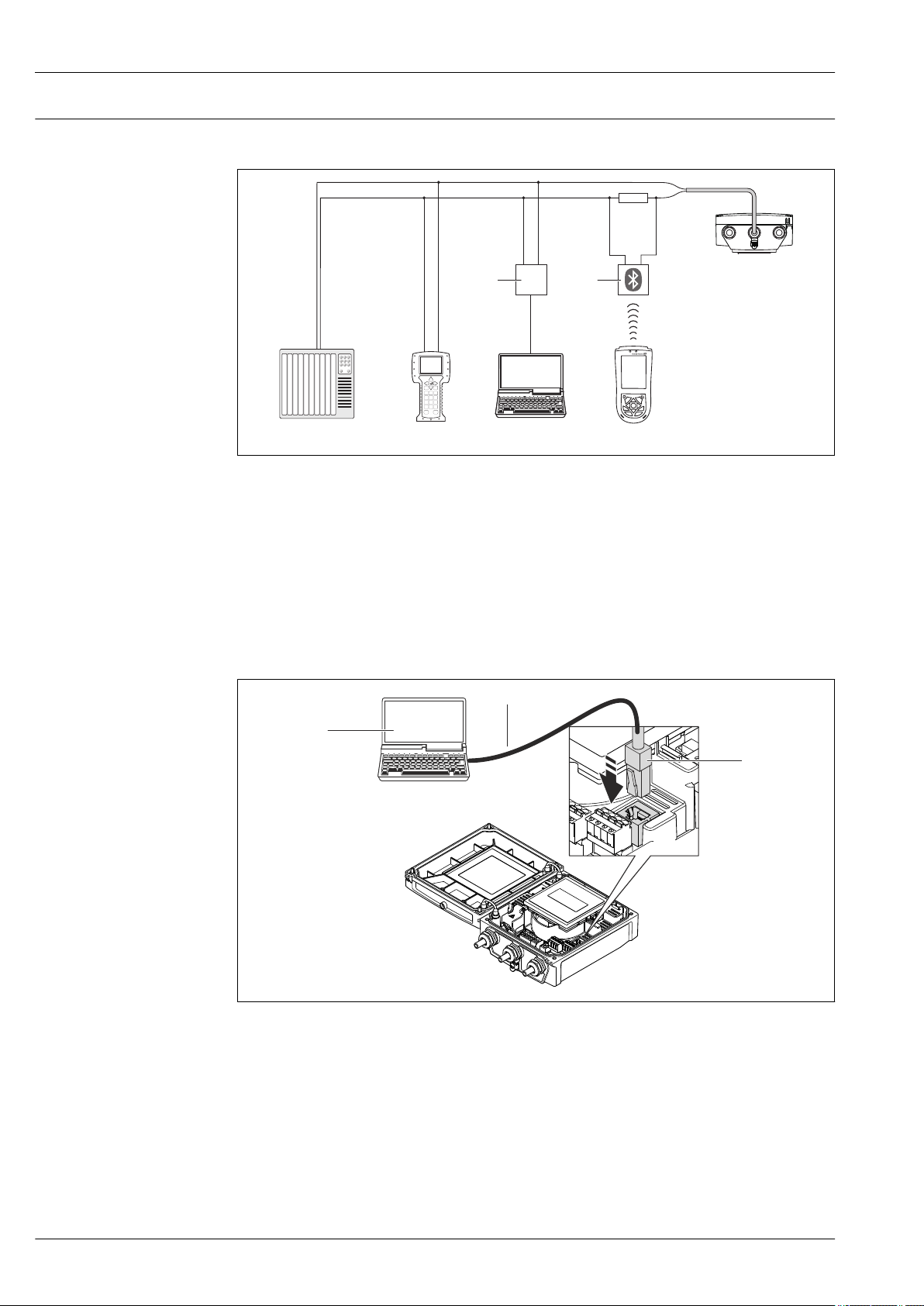

 28 Options for remote operation via HART protocol

1 Control system (e.g. PLC) 2 Field Communicator 475 3 Computer with operating tool (e.g. FieldCare, AMS Device Manager, SIMATIC PDM) 4 Commubox FXA195 (USB) 5 Field Xpert SFX100 6 VIATOR Bluetooth modem with connecting cable 7 Transmitter

Proline Promag L 400

A0017124

Via service interface (CDI-RJ45)

1 Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or with

"FieldCare" operating tool with COM DTM "CDI Communication TCP/IP" 2 Standard Ethernet connecting cable with RJ45 plug 3 Service interface (CDI -RJ45) of the measuring device with access to the integrated Web server

A0020481

Via Ethernet network

This communication interface is present in the following device version: Order code for "Output", option N: EtherNet/IP

62 Endress+Hauser

Page 63

Proline Promag L 400

1 2 4

A0016961

1 Ethernet network 2 Automation system, e.g. "RSLogix" (Rockwell Automation) 3 Workstation for measuring device operation: with Add-on Profile Level 3 for "RSLogix 5000" (Rockwell

Automation) or with Electronic Data Sheet (EDS)

4 Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or with

"FieldCare" operating tool with COM DTM "CDI Communication TCP/IP"

5 Ethernet switch

Certificates and approvals

CE mark

C-Tick symbol

Drinking water approval

EtherNet/IP certification

Other standards and guidelines

The measuring system is in conformity with the statutory requirements of the applicable EC Directives. These are listed in the corresponding EC Declaration of Conformity along with the standards applied.

Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)".

• ACS

• KTW/W270

• NSF 61

• WRAS BS 6920

The measuring device is certified and registered by the ODVA (Open Device Vendor Association). The measuring system meets all the requirements of the following specifications:

• Certified in accordance with the ODVA Conformance Test

• EtherNet/IP Performance Test

• EtherNet/IP PlugFest compliance

• The device can also be operated with certified devices of other manufacturers (interoperability)

• EN 60529 Degrees of protection by housing (IP code)

• EN 61010-1 Protection Measures for Electrical Equipment for Measurement, Control, Regulation and Laboratory Procedures.

• IEC/EN 61326 Emission in accordance with Class A requirements. Electromagnetic compatibility (EMC requirements)

• ANSI/ISA-61010-1 (82.02.01): 2004 Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use - Part 1 General Requirements

Endress+Hauser 63

Page 64

Proline Promag L 400

• CAN/CSA-C22.2 No. 61010-1-04 Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use - Part 1 General Requirements

• NAMUR NE 21 Electromagnetic compatibility (EMC) of industrial process and laboratory control equipment.

• NAMUR NE 32 Data Retention in the Event of a Power Failure in Field and Control Instruments with Microprocessors

• NAMUR NE 43 Standardization of the signal level for the breakdown information of digital transmitters with analog output signal.

• NAMUR NE 53 Software of field devices and signal-processing devices with digital electronics

• NAMUR NE 105 Specifications for Integrating Fieldbus Devices in Engineering Tools for Field Devices

• NAMUR NE 107 Self-monitoring and diagnosis of field devices

• NAMUR NE 131 Requirements for field devices for standard applications

Cleaning

Ordering information

Detailed ordering information is available from the following sources:

• In the Product Configurator on the Endress+Hauser website: www.endress.com → Select country → Instruments → Select device → Product page function: Configure this product

• From your Endress+Hauser Sales Center: www.endress.com/worldwide

Product Configurator - the tool for individual product configuration

• Up-to-the-minute configuration data

• Depending on the device: Direct input of measuring point-specific information such as measuring range or operating language

• Automatic verification of exclusion criteria

• Automatic creation of the order code and its breakdown in PDF or Excel output format

• Ability to order directly in the Endress+Hauser Online Shop

Application packages

Many different application packages are available to enhance the functionality of the device. Such packages might be needed to address safety aspects or specific application requirements.

The application packages can be ordered from Endress+Hauser either directly with the device or subsequently. Detailed information on the order code in question is available from your local Endress +Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

Package Description

Electrode cleaning circuit (ECC)

The electrode cleaning circuit (ECC) function has been developed to have a solution for applications where magnetite (Fe3O4) deposits frequently occur (e.g. hot water). Since magnetite is highly conductive this build up leads to measuring errors and ultimately to the loss of signal. The option is designed to AVOID build up of highly conductive matter and thin layers (typically magnetite).

64 Endress+Hauser

Page 65

Proline Promag L 400

Diagnostics functions

Heartbeat Technology

Package Description

HistoROM extended function

Package Description

Heartbeat Verification +Monitoring

Comprises extended functions concerning the event log and the activation of the measured value memory.

Event log: Memory volume is extended from 20 message entries (basic version) to up to 100 entries.

Data logging (line recorder):

• Memory capacity for up to 1000 measured values is activated.

• 250 measured values can be output via each of the 4 memory channels. The recording interval can be defined and configured by the user.

• Data logging is visualized via the local display or FieldCare.

Heartbeat Monitoring:

Continuously supplies monitoring data, which are characteristic of the measuring principle, for an external condition monitoring system. This makes it possible to:

• Draw conclusions - using these data and other information - about the impact the measuring application has on the measuring performance over time.

• Schedule servicing in time.

• Monitor the product quality, e.g. gas pockets.

Heartbeat Verification:

Makes it possible to check the device functionality on demand when the device is installed, without having to interrupt the process.

• Access via onsite operation or other interfaces (requires no on-site presence).

• End-to-end, traceable documentation of the verification results and verification report.

• Extension of calibration intervals.

Accessories

Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website:

www.endress.com.

Device-specific accessories For the transmitter

Accessories Description

Display protection Is used to protect the display against impact or scoring from sand in desert areas.

Connecting cable for remote version

Ground cable Set, consisting of two ground cables for potential equalization.

Pipe mounting set Pipe mounting set for transmitter.

Compact → remote conversion kit

Promag 50/53 → Promag 400 conversion kit

For details, see Special Documentation SD00333F

Coil current and electrode cables, various lengths, reinforced cables available on request.

For converting a compact device version to a remote device version.

For converting a Promag with transmitter 50/53 to a Promag 400.

Endress+Hauser 65

Page 66

Proline Promag L 400

For the sensor

Accessories Description

Ground disks Are used to ground the fluid in lined measuring tubes to ensure proper

measurement.

For details, see Installation Instructions EA00070D

Communication-specific accessories

Accessories Description

Commubox FXA195 HART

HART Loop Converter HMX50

Wireless HART adapter SWA70

Fieldgate FXA320 Gateway for the remote monitoring of connected 4-20 mA measuring devices via a

Fieldgate FXA520 Gateway for the remote diagnostics and remote configuration of connected HART

Field Xpert SFX100 Compact, flexible and robust industry handheld terminal for remote configuration

For intrinsically safe HART communication with FieldCare via the USB interface.

For details, see "Technical Information" TI00404F

Is used to evaluate and convert dynamic HART process variables to analog current signals or limit values.

For details, see "Technical Information" TI00429F and Operating Instructions BA00371F

Is used for the wireless connection of field devices. The WirelessHART adapter can be easily integrated into field devices and existing infrastructures, offers data protection and transmission safety and can be operated in parallel with other wireless networks with minimum cabling complexity.

For details, see Operating Instructions BA00061S

Web browser.

For details, see "Technical Information" TI00025S and Operating Instructions BA00053S

measuring devices via a Web browser.

For details, see "Technical Information" TI00025S and Operating Instructions BA00051S

and for obtaining measured values via the HART current output (4-20 mA).

For details, see Operating Instructions BA00060S

Service-specific accessories

Accessories Description

Applicator Software for selecting and sizing Endress+Hauser measuring devices:

• Calculation of all the necessary data for identifying the optimum flowmeter: e.g. nominal diameter, pressure loss, accuracy or process connections.

• Graphic illustration of the calculation results

Administration, documentation and access to all project-related data and parameters over the entire life cycle of a project.

Applicator is available:

• Via the Internet: https://wapps.endress.com/applicator

• On CD-ROM for local PC installation.

66 Endress+Hauser

Page 67

Proline Promag L 400

W@M Life cycle management for your plant

W@M supports you with a wide range of software applications over the entire process: from planning and procurement, to the installation, commissioning and operation of the measuring devices. All the relevant device information, such as the device status, spare parts and device-specific documentation, is available for every device over the entire life cycle. The application already contains the data of your Endress+Hauser device. Endress +Hauser also takes care of maintaining and updating the data records.

W@M is available:

• Via the Internet: www.endress.com/lifecyclemanagement

• On CD-ROM for local PC installation.

FieldCare FDT-based plant asset management tool from Endress+Hauser.

It can configure all smart field units in your system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.

For details, see Operating Instructions BA00027S and BA00059S

System components

Standard documentation

Supplementary devicedependent documentation

Accessories Description

Memograph M graphic display recorder

The Memograph M graphic data manager provides information on all the relevant measured variables. Measured values are recorded correctly, limit values are monitored and measuring points analyzed. The data are stored in the 256 MB internal memory and also on a SD card or USB stick.

For details, see "Technical Information" TI00133R and Operating Instructions BA00247R

Documentation

The following document types are available:

• On the CD-ROM supplied with the device

• In the Download Area of the Endress+Hauser Internet site: www.endress.com → Download

Communication Document type Documentation code

HART Operating Instructions BA01062D

EtherNet/IP Operating Instructions BA01213D

- - - - Brief Operating Instructions KA01113D

Document type Approval Documentation code

Special Documentation Heartbeat Technology SD01183D

Installation Instructions Specified for each individual

accessory (→  65)

Registered trademarks

HART

Registered trademark of the HART Communication Foundation, Austin, USA

EtherNet/IP

Trademark of ODVA, Inc.

Microsoft

Registered trademark of the Microsoft Corporation, Redmond, Washington, USA

Applicator®, FieldCare®, Field XpertTM, HistoROM®, Heartbeat Technology

Registered or registration-pending trademarks of the Endress+Hauser Group

Endress+Hauser 67

Page 68

www.addresses.endress.com

Proline Promag L 400 Technical Information

Table of contents

Document information

Symbols used Electrical symbols

Function and system design

Measuring principle

Measuring system

Safety IT security

Input

Measured variable Direct measured variables

Measuring range

output

Operable flow range

Input signal Status input

Output signal Current output

Signal on alarm

Low flow cut off

Galvanic isolation

Protocol-specific data HART

Power supply

Terminal assignment Transmitter

Pin assignment, device plug

Supply voltage Transmitter

Power consumption

Power supply failure

Electrical connection Connecting the transmitter

Current consumption

Potential equalization Requirements

Terminals

Cable entries

Cable specification Permitted temperature range

Performance characteristics

Reference operating conditions

Maximum measured error Error limits under reference operating conditions

Repeatability

Influence of ambient temperature

Mounting location

Installation

Orientation

Inlet and outlet runs

Adapters

Length of connecting cable

Special mounting instructions

Ambient temperature range

Environment

Storage temperature

Atmosphere

Degree of protection

Shock resistance

Vibration resistance

Mechanical load

Electromagnetic compatibility (EMC)

Process

Medium temperature range

Conductivity

Pressure-temperature ratings

Pressure tightness

Flow limit

Pressure loss

System pressure

Vibrations

Mechanical construction

Design, dimensions Compact version

Weight Compact version

Measuring tube specification

Materials Transmitter housing

Process connections

Fitted electrodes

Surface roughness

Operability

Operating concept

Local operation

Remote operation Via HART protocol

Certificates and approvals

CE mark

C-Tick symbol

Drinking water approval

EtherNet/IP certification

Other standards and guidelines

Cleaning
