Proline PMG20W, PMG20S User Manual
MICROWAVE OVEN
MICRO-ONDES
MAGNETRONOVEN
MIKROVINNA
MICROONDE
MODEL PMG20W/S
MICROWAVE OVEN
MICRO-ONDES
MAGNETRONOVEN
MIKROVINNA
MICROONDE
Defrost Setting
5 Power Setting
35 Minute Setting
1
GB
TableofContents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY................................................................................ 2
IMPORTANT SAFETY INSTRUCTIONS..................................................................................3
COOKING UTENSILS...............................................................................................................
OTHER HELPFUL INSTRUCTIONS ........................................................................................ 6
OVEN OVERVIEW.................................................................................................................... 7
TURNTABLE INSTALLATION................................................................................................. 7
COUNTERTOP INSTALLATION.............................................................................................. 8
MICROWAVE OVEN INSTALLATION..................................................................................... 8
CONTROL PANEL....................................................................................................................
OPERATION ............................................................................................................................. 9
CLEANING AND CARE.......................................................................................................... 10
SPECIFICATIONS...................................................................................................................11
QUESTIONS AND ANSWERS............................................................................................... 11
TROUBLESHOOTING............................................................................................................ 12
BEFORE YOU CALL FOR SERVICE..................................................................................... 13
IMPORTANT DISPOSAL INSTRUCTIONS............................................................................ 14
5
9
2
GB
PPRREECCAAUUTTIIOONNSS TTOO AAVVOOIIDD PPOOSSSSIIBBLLEE EEXXPPOOSSUURREE
TTOO EEXXCCEESSSSIIV
The oven cannot be operated with the door open due to the safety
interlocks built in the door mechanism which switch off cooking functions when
the door is opened. Operating the oven with the door open could result in
harmful exposure to microwave energy. It is important not to tamper with the
door mechanism.
Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important that the
oven door closes properly and that there is no damage to the (1) door(bent), (2)
hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
The oven should not be adjusted or repaired by anyone except qualified
personnel.
WARNING
- When heating liquids, e.g. soups, sauces and beverages in your
microwave oven, delayed eruptive boiling can occur without evidence of
bubbling. This could result in a sudden boil over of the hot liquid. To
prevent this possibility the following steps should be taken.
- Avoid using straight-sided containers with narrow necks.
- Do not overheat.
- Stir the liquid before placing the container in the oven and again halfway
through the heating time.
- After heating, allow to stand in the oven for a short time. Stir or shake the
contents (especially feeding bottles and baby foods) and carefully check
the temperature before use.
- If the door or door seals are damaged, the oven must not be operated until
it has been repaired by a competent person.
- It is hazardous for anyone other than a competent person to carry out any
service or repair that involves the removal of a cover which gives protection
against exposure to microwave energy.
- Liquids or other foods must not be heated in a sealed container since they
are liable to explode.
- Only allow children to use the oven without supervision when adequate
instructions have been given so that the child is able to use the oven in a
safe way and understands the hazards of improper use.
- This appliance is intended for domestic use only, any other use may
invalidate the warranty and might be dangerous.
VEE MMIICCRROOWWAAVVEE EENNEERRGGYY
3
GB
IIMMPPOORRTTAANNTT SSAAFFEETTYY IINNSSTTRRUUCCTTIIOONNSS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
1. Read all instructions before using
the appliance and keep for future
reference.
2. Use this appliance only for its
intended use as described in this
manual. Do not use corrosive
chemicals or vapours in this
appliance. This type of oven is
specifically designed to heat,
cook or dry food. It is not
designed for industrial or
laboratory use.
3. Do not operate the oven when
empty. It is best to leave a glass
of water in the oven when not in
use. The water will safely absorb
all microwave energy if the oven
is accidentally started.
4. Do not operate this appliance if it
has a damaged cord or plug, if it
is not working properly or if it has
been damaged or dropped. If the
mains lead is damaged, it must
be replaced by the manufacturer,
its service agent or similarly
qualified person with a lead of the
same type and rating to avoid a
hazard.
5. Do not let power cord hang over
the edge of table or countertop.
6. Do not dry clothes in the oven.
They may become carbonised or
burned if heated too long.
7. Do not cook food wrapped in
paper towels, unless your
cookbook contains instructions
for the food you are cooking.
8. Do not use the oven for drying
kitchen towels or paper products.
They may burn.
9. Only use utensils suitable for use
in microwave ovens. (See
‘COOKING UTENSILS’)
10. Do not use wooden or cardboard
containers. They may heat up
and char.
11. Do not use recycled paper
products since they may contain
impurities which may cause
sparks and / or fires when used in
cooking.
12. Allow the turntable to cool before
cleaning.
13. Small amounts of food require
shorter cooking or heating time. If
normal time is allowed they may
overheat and burn.
14. Before cooking, pierce the skin of
fruit and vegetables.
15. Eggs in their shell and whole hard
boiled eggs should not be heated
in microwave ovens since they
may explode, even after heating
has ended.
16. Do not attempt deep fat frying in
your oven.
17. Remove plastic wrapping from
food before cooking or defrosting.
Note though that in some cases
food should be covered with
plastic film, for heating or cooking,
as detailed in microwave
cookbooks.
18. When heating food in plastic or
paper containers, keep an eye on
the oven due to the possibility of
ignition.
19. If smoke is observed, switch off or
disconnect the oven from the
power supply and keep the oven
door closed in order to stifle any
flames.
4
GB
20. Do not overcook food.
21. Do not use the oven cavity for
storage purposes. Do not store
items, such as bread, cookies,
etc. inside the oven.
22. When food is heated or cooked in
disposable containers of plastic,
paper or other combustible
materials, check the oven
frequently due to the possibility of
ignition.
23. Install or locate this oven only in
accordance with the installation
instructions provided.
24. This appliance is not intended for
use by persons (including
children) with reduced physical,
sensory or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use of the
appliance by a person
responsible for their safety.
25. The oven should be cleaned
regularly and any food deposits
should be removed.
26. Do not store or use this appliance
outdoors.
27. Do not use this oven near water,
in a wet basement or near a
swimming pool.
28. The temperature of accessible
surfaces may be high when the
appliance is operating. Keep
power cord away from heated
surfaces, and do not cover any
items on the oven.
29. Failure to maintain the oven in a
clean condition could lead to
deterioration of the surface that
could adversely affect the life of
the appliance and possibly result
in a hazardous situation.
30. The contents of feeding bottles
and baby food jars shall be stirred
or shaken and the temperature
checked before consumption, in
order to avoid burns.
31. Microwave heating or beverages
can result in delayed eruptive
boiling, therefore take care when
handling the container.
32. The microwave oven shall not be
placed in a cabinet.
WARNING: Do not attempt to tamper with, or make any adjustments or repairs
to the door, control panel, safety interlock switches or any other part of the
oven.
5
GB
CCOOOOKKIINNGG UUTTEENNSSIILLSS
Utensils should be checked to ensure that they are suitable for use in the
microwave oven. The following charts summarise the proper use of cooking
utensils in your oven.
Materials you can use in microwave oven
Utensils Remarks
Aluminium foil
Browning dish
Dinnerware
Shielding only. Small smooth pieces can be used to cover
thin parts of meat or poultry to prevent overcooking.
Arcing can occur if foil is too close to oven walls. The foil
should be at least 2.5cm away from oven walls.
Follow manufacturer’s instructions. The bottom of
browning dish must be at least 5cm away above the
turntable. Incorrect usage may cause the turntable to
break.
Microwave-safe only. Follow manufacturer’s instructions.
Do not use cracked or chipped dishes.
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Always remove lid. Use only to heat food until it’s warm.
Most glass jars are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is
no metallic trim. Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with
metal tie. Make slits to allow steam to escape.
Use for short-term cooking/warming only. Do not leave
oven unattended while cooking.
Use to cover food for reheating and absorbing fat. Use
with supervision for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for
steaming.
Microwave-safe only. Follow the manufacturer’s
instructions. Should be labelled “Microwave Safe”. Some
plastic containers soften, as the food inside gets hot.
“Boiling bags” and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Plastic wrap
Thermometers
Wax paper
Microwave-safe only. Use to cover food during cooking to
retain moisture. Do not allow plastic wrap to touch food.
Microwave-safe only (meat and candy thermometers).
Use as a cover to prevent splattering and retain moisture.
6
GB
Materials to be avoided in microwave oven
Utensils Remarks
Aluminium tray May cause arcing. Transfer food into microwave-safe
dish.
Food carton with
metal handle
Metal or metaltrimmed utensils
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside
Wood Wood will dry out when used in the microwave oven and
Notes:
z Care should be taken when removing utensils or the glass turntable, as
they may become hot during cooking.
z Only use a thermometer that is designed for use in the microwave oven.
z Ensure the turntable is in place when you operate the oven.
May cause arcing. Transfer food into microwave-safe
dish.
Metal shields the food from microwave energy. Metal trim
may cause arcing.
when exposed to high temperature.
may split or crack.
OOTTHHEERR HHEELLPPFFUULL IINNSSTTRRUUCCTTIIOONNSS
For best results and more enjoyable cooking, please read these
comments thoroughly.
For Best Results:
1. When determining the time for a particular food, begin by using minimum
time and checking condition occasionally. It is easy to overcook food
because microwaves cook very quickly.
2. Small quantities of food or foods with low water content may dry out and
become hard if cooked too long.
Defrosting Frozen Food:
1. Foods that have been frozen can be place directly in the oven for thawing.
(Be certain to remove any metallic ties or wraps).
2. Defrost according to the Defrosting instructions found in this manual.
3. For areas of the food thawing faster than others, cover with small pieces of
aluminium foil. This helps slow down or stop the defrosting process.
4. Some foods should not be completely thawed before cooking. For example,
fish cooks so quickly that it is sometimes better to begin cooking while still
slightly frozen.
5. It may be necessary to increase or decrease the cooking time in some
recipes, depending on the starting temperature of the food.
7
GB
NOTE:
Air from the vent may become warm during cooking.
Browning:
There are a few foods which are not cooked long enough in the microwave
oven to brown and may need additional colour.
Coatings such as paprika and browning agents such as Worcestershire sauce
may be used on chops, meat patties or chicken pieces.
Roasts, poultry or ham, cooked for 10-15 minutes or longer, will brown
without extra additives.
OOVVEENN OOVVEERRVVIIEEWW

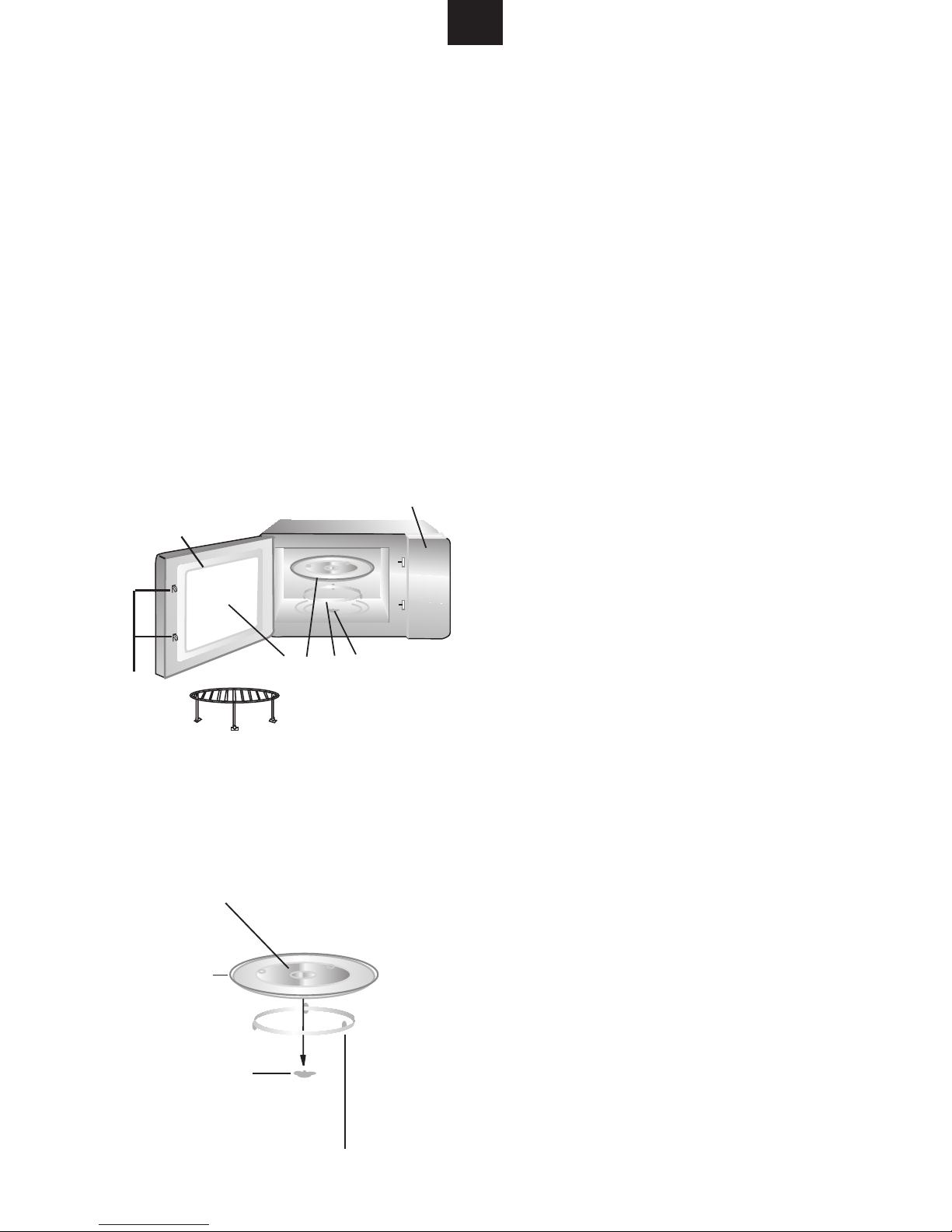

Names of Oven Parts
A
F
A. Control Panel
B. Shaft
C. Roller Ring
D. Glass Tray
E. Oven Window
E
C B
D
G
F. Door Assembly
G. Door Safety Lock
Grill Rack( Only for Grill series )
The oven will shut off if the door is opened during operation.
TTUURRNNTTAABBLLEE IINNSSTTAALLLLAATTIIOONN
Hub (underside)
Glass tray
Turntable shaft
Turntable ring assembly
a. Never place the glass tray upside down.
The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly
must always be used during cooking.
c. All food and containers of food are always
placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly
cracks or breaks, contact your nearest
authorised service centre.
8
GB
CCOOUUNNTTEERRTTOOPP IINNSSTTAALLLLAATTIIOONN
Remove all packing material and
accessories. Examine the oven for
any damage such as dents or broken
door. Do not install if the oven is
damaged.
Cabinet: Remove any protective film
found on the microwave oven
cabinet surface.
Do not remove the light brown
Mica cover that is attached to the
inside of the oven cavity to protect
the magnetron.

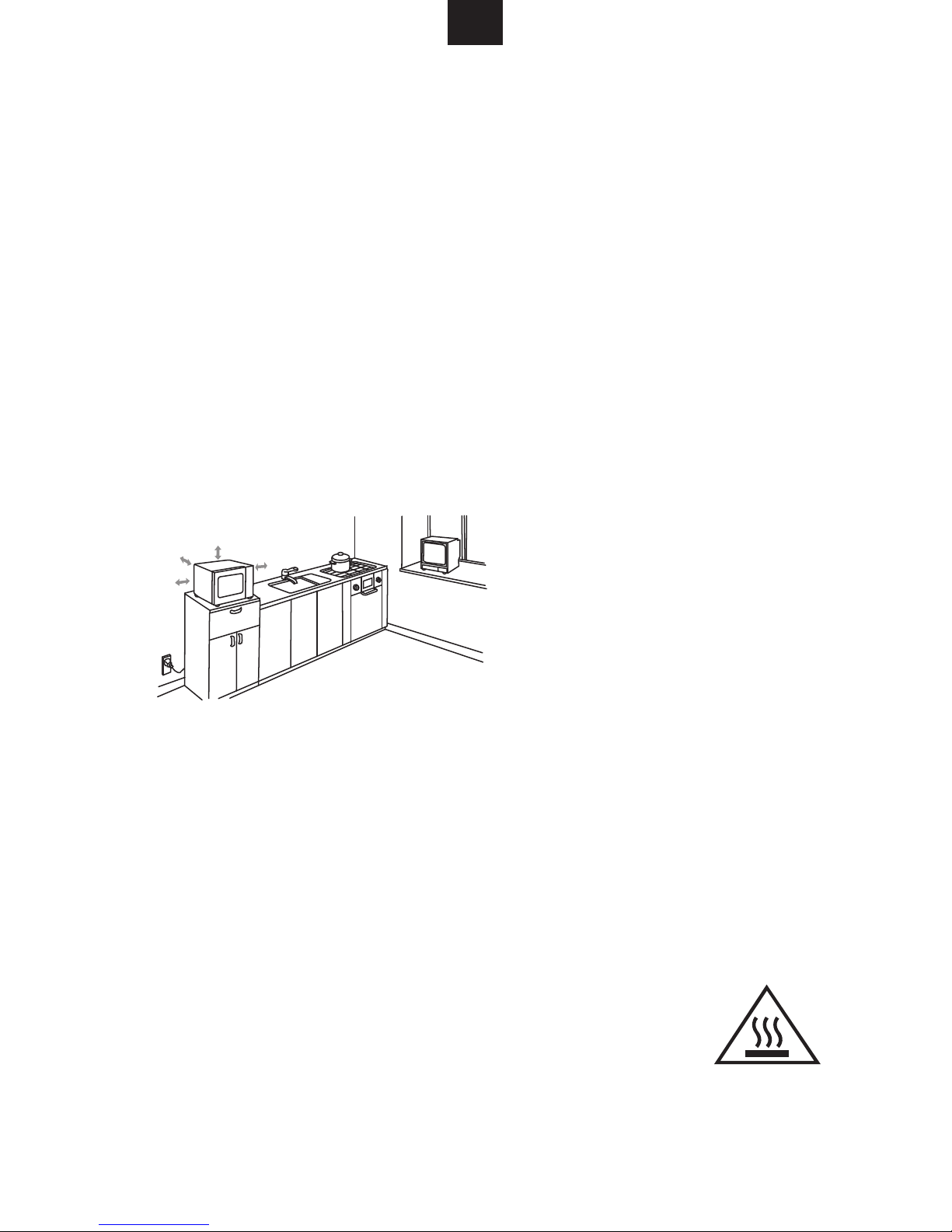

MMIICCRROOWWAAVVEE OOVVEENN IINNSSTTAALLLLAATTIIOONN
1. Select a level surface that
provides enough open space for
the intake and/or outlet vents.
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
openings can damage the oven.
(4) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or
TV reception.
A minimum clearance of 3.0 inches
(7.5cm) is required between the oven
and any adjacent walls. One side
must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
(2) Do not remove the feet from the
bottom of the oven.
(3) Blocking the intake and/or outlet
2. Plug your oven into a standard
household outlet. Be sure the
voltage and the frequency is the
same as the voltage and the
frequency on the rating label.
WARNING: Do not install the oven
over a range cooktop or other
heat-producing appliance. If installed
near or over a heat source, the oven
could be damaged and the warranty
would be void.
Accessible surfaces may get hot
during operation.
Loading...
