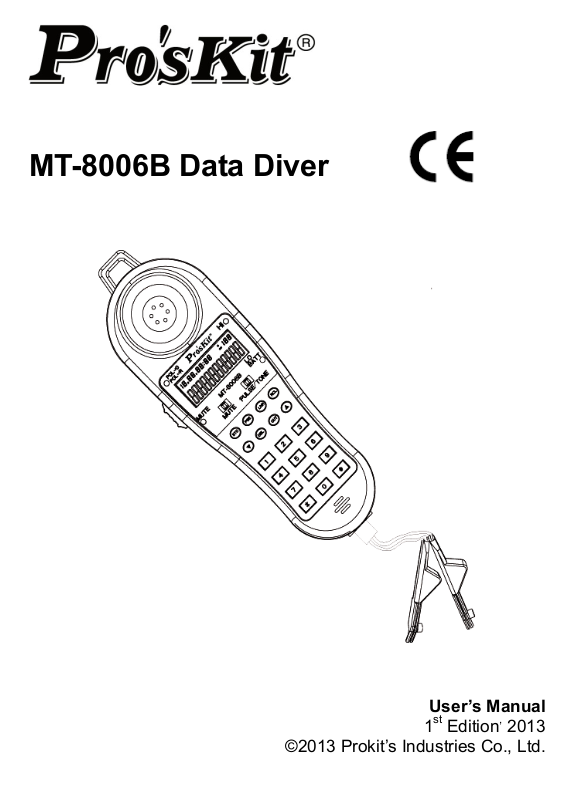

-8006B Data Diver
MT
1
©2013 Prokit’s Industries Co., Ltd.
User’s Manual
st
Edition, 2013
Safety Information
Read First Before Use
Table 1 describes the international electrical symbols used on the
tester and in this manual.
Table 1. International Electrical Symbols
Warning: Risk of personal injury. See explanations in the
manual. Caution: Risk of damage or destruction to equipment
or software. See explanations in the manual.
Warning: Risk of electric shock.
Please keep an eye on the status or function of the equipment
while operating.
This equipment is not for connection to public communications
networks, such as active telephone systems.
Wa
rning
Never use MT-8006B on circuits of more than 100V.
Never use MT-8006B or test leads if they are damaged.
Inspect the case and test leads for damage before use.
Disconnect unused test leads and connectors from the
MT-8006B when testing telephone circuits.
Never open the case except to change the battery or the fuse;
no user-serviceable parts are inside.
Disconnect all test leads before replacing the battery.
Use only 1.5V AAA batteries, properly installed in the case, to
power MT-8006B.
If this equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may
be impaired.
The following IEC symbols are used either on the Data Diver or
throughout the manual:
See Manual for details
Earth Ground
Conformité Européenne
1
Standard package:
MT-8006B * 1
Headphone * 1
Angled bed of nails * 1
User Manual * 1
DESCRIPTION
MT-8006B Data Diver is a portable TEL test set used by installers,
repair technicians and other authorized personnel for temporary
communication and for servicing and installing analog voice
telephones.
Design Features
The MT-8006B provides a wide range of features for working on
analog voice lines, and, in addition, it is equipped with protection
features to prevent the accidental disruption of data services. Never
use MT-8006B on circuits of more than 100V.
The following is a list of the MT-8006B features:
LCD display for dialing number, Caller ID, Clock and other
information
Indicator for determining the line service
Headset & Angled bed of nails
Smart power saving enables battery life up to 6 months
12 phone number memory for speed dialing, each memory up
to 16 digits
16 dialing number memories each number up to 16 digits
Support 2 dialing mode: Tone (DTMF) and pulse
Up to 32 digits phone number memory for speed dialing key
Pre-dialing and last number redial function
PBX pause key, insert a PBX pause in stored numbers
Telephone line polarity indicators
Low battery indication
Backlight function for easy reading even in dark areas
RJ-11 port for changing test leads
Ringer and voltage LED indication
2
WARNING:
The MT-8006B Data Diver is not designed to meet outside
plant requirements. It is recommended that this product not
be used outside during adverse and/or wet weather
conditions.
Legal requirements may exist regarding permission to
connect equipment to a Telecom network operated by a
public network operator.
CAUTION:
The operator of this instrument is advised that if the equipment is
used in a manner not specified in this manual, the protection
provided by the equipment may be impaired.
Physical Characteristics
1. Phone stra
2. Speaker
3. Polarity indicator
4. Ringer and voltage LED indicator
5. Test mode switch
6. LCD Display
7. Headset Jack
8. Mute indicator
9. LO BATT indicator
10. Mute switch
11. Pulse/Tone switch
12. STO 13. PSE
14. LNR 15. RCL
16. ▼ 17. DEL
18. OUT 19. ▲
20. Number pad 0~9, *, #
21. Microphone 22. RJ-11 Jack
p hole
3
LCD Display：
1. Mute indicator
2. Year / Phone number
3. Month
4. Polarity indicator:
red light : The red clip of
Angled bed of nails is
connect to the + line
green light : The red clip
of Angled bed of nails is
connect to the - line
5. Date
6. Hour
7. Minute
8. Incoming call indicator
9. Sequence of the call in list
10. Voltage LED indicator
When incoming call and ringing, the “HI” LED will flash
When voltage detected, the “HI” LED will lights up
11. Dialing call indicator
12. LO BATT indicator
13. Pulse/Tone switch
14. Mute switch
Line cord connection
MT-8006B Data Diver is designed with a
standard 6-position modular jack for
quick connection of cord set. To place
the cord set, simply remove the clip
attachment screw, and put the terminal
of strain relief over the boss behind the
screw hole, then put the clip back and
fasten the screw and plug the modular plug into the jack
Caution:
In order to prolong the service lifetime of modular plug, please
connect the strain relief terminal before plug into the modular jack
4
Keys introduction
Key Description Function
STO Set and
▲/▼
RCL Recall To initial a phone call
DEL Delete Delete the number in list
LNR Last
PSE Pause Insert a PBX pause into
OUT Call out list Enter the dialing out
＊,#,
0~9
Test mode switch
The test mode switch is a slide switch located on the left side of
MT-8006B. Switch the test mode switch to the “Talk” position to
make the Data Diver work as a telephone line tester. Switch the test
mode switch to the “OFF” position for storage; switch the test mode
switch to the “Mon” position to enable monitoring the line without
disrupting it.
Storage
Direction
key
number
redial
Number
keys
Press STO key will
enter the setting mode,
there are 12 setting
screen on MT-8006B.
Please refer to
Operation section.
Enter the incoming call
list, scroll the numbers
in call list and switch the
setting screen.
from stored phone
number
or erase the last digit
from the input number
Make a phone call for
last dialing number or
per-dial number
the input number
number list
Standard Phone
number keys
5
Hand-free function
The MT-8006B Data Diver comes with a headset and a phone strap
necklace. Connecting them to the headset jack and phone strap
hole will give the MT-8006B a hands-free talk function. Please find
the phone strap hole and the 2.5 mm jack on the right upper corner
of the MT-8006B Data Diver.
OPERATION
1. Remove the battery case lid and install 4pcs 1.5V AAA batteries in
the battery compartment paying close attention to polarity of
battery.
2. Parameter Setting
With the MT-8006B in the OFF position; pressing the STO key will
enter the setting mode. The “SET 1 DATE” shows on LCD. User
can switch the setting item by pressing the▲/▼ key then press
the STO key to enter the set item for detail setting. If user wants to
change the setting press the ▲/▼ key again. When the correct
setting appears press STO key to move to next setting. In the
duration of setting press DEL will quit from the setting mode.
Date and time
If the “SET 1 DATE” is displayed on LCD, press STO key to
enter the Date and time setting. The number of year will flash,
press ▲/▼ key to adjust the value of year. Pressing the STO
key again will move to the month setting. Use the same method
to change the value of month then press STO to move to the
date and time setting. When all the values of date and time are
settle down then press STO key to move to “SET 2 ACODE”.
Area code
When the “SET 2 ACODE” is show on LCD, press STO key to
enter the area code setting item. LCD will show “ACODE-----“.
The first digit of area code will flash, press ▲/▼ key to change
the value. Press STO key to move to the next digit. If all the
digits are set, press STO key to enter “SET 3 FLASH”.
Pause Duration
If the “SET 3 FLASH” is displayed on LCD, press STO key to
6
enter the Pause Duration setting. LCD will show “FLASH 3 110“.
It means the default pause duration time is 110 ms, Change the
value by ▲/▼ keys then press STO to move to the “SET 4
LCD”.
LCD light adjust
When the “SET 4 LCD” is displayed on LCD, press STO key to
enter the LCD light adjust mode. There are 5 LCD light level can
be selected. Press ▲/▼ key to change the level then press
STO to jump to “SET 5 ALAR” or press DEL to quit.
CAUTION:
The “SET 5 ALAR” is not used by MT-8006B; we suggest users
do not to change the value in “SET 5 ALAR” setting item. In this
setting item press STO to jump to “SET 6 IPP” or press DEL to
quit.
Dialing mode
If the “SET 6 IPP” is displayed on LCD, press STO key to enter
the dial mode setting. The IPP ON/OFF will show on LCD, use
▲/▼ key to swap between them. If “IPP OFF” is selected, the
dialing mode is tone; otherwise, the dialing mode is pulse.
3. Connect the angled bed of nails (or RJ11 plug) to the telecom line
● Talk / OFF / Mon. →Test mode switch：
The Data Diver has three basic modes of
operation: Talk mode, OFF mode and
Monitor mode. Before using the MT-8006B,
please set the Data Diver to proper mode;
otherwise, it will remain in the OFF mode.
(Your Data Diver is set at the “OFF” position before your first use)
T
alk Mode:
The “Talk” mode gives an off hook condition for dialing and talking as
a common battery telephone. It is also available for memory dialing,
last number dialing, caller dialing, redialing…etc.
7
OFF Mode
A. The “OFF” mode can be operated as either power off function
or voltage inspection.
B. Before testing the line, please slide the switch to the “OFF”
position to detect if any voltage exists. When “HI” LED lights up,
please disconnect from the tested line to avoid any damage to
the Data Diver
C. If the “HI” LED does not light up, then you can slide the switch to
either “Talk” or “Mon” position for testing operation
D. If the “HI” LED flashes and the ringer is ringing, it means there
is an incoming call, slide the switch to “Talk” mode, then it can
be used as a common telephone.
E. For safety reason, please use the “OFF” mode to inspect the
AC or DC voltage of unknown lines before testing
Monitor mode
The “Mon” position removes the transmitter from the circuit and the
“Mute” LED will light up automatically. It provides a high impedance
coupling to allow line monitoring without disrupting conversations or
signaling. If there is any signal present, there will be sound coming
from the speaker
When the Data Diver is in either “Talk” or “Mon” mode, the
battery will supply power to the memory operation and Mute
LED until it is drained. Please make sure the switch is in “OFF”
position when not in use.
● PULSE/TONE Switch
Use PULSE/TONE switch to change the dialing mode
between pulse and tone (DTMF) mode
● STO →Store a number：
MT-8006B is in the OFF position or Talk position,
Phone number + STO + N (N=0~9, ﹡, # )
● RCL →Recall (Dialing out a stored number)：
MT-8006B is on the Talk position,
RCL + N (N=0~9, *, # )
8
● LNR →Last Number Redial：
MT-8006B is on the Talk position,
If a call is not successful and you wish to redial the same
number, just press the LNR button.
The last number redial function is available in either the Pulse
or Tone Mode. The redial memory has a 32-digit capacity.
When checking the incoming or dialing record, press the LNR
button, the number you are dialing will show on the LCD
● PSE →Pause：
There are some cases where it may be necessary to insert a
pause between digits of a stored number, such as when
accessing a trunk through a PBX that requires a 9 to get out.
To store a number with a pause, simply press the PSE button
at the point where the pause is required. For example to store
9-555-1212. The PSE button inserts a 4 second pause.
● DEL →Delete：
In setting mode DEL key is used to quit setting mode. In
pre-dial mode DEL key is used to delete the last digit. In call
in/dialing out list, press DEL will delete a phone number and
press DEL key for 4 seconds all the number in list will be
erased.
● MUTE：
The mute switch turns the handset microphone and
speakerphone microphone off for privacy in Talk mode. When
turn the mute switch to left side, the “MUTE” LED lights up
then the mute function is on, then turn to right side the
“MUTE” LED will turns off and the mute function will also stop,
and back to normal talk mode.
● POL-/G；POL+/R →Telephone line polarity test：
Connect the telephone line to the Angled bed of nails.
MT-8006B is on the Talk position
If the LED is red light, the red Angled bed of nail is
connected to the + line.
If the LED is green light, the red Angled bed of nail is
connected to the - line.
9
● LO BATT：
If the LO BATT LED lights, that means the user needs to change
the battery for fear of losing data.
Caution
After the battery is removed, the memory of stored numbers
will last for 15 seconds only. When changing the battery,
please pay attention for the polarity of the battery. If the
memory disappears, please follow the previous process as
mentioned in this manual to store a number.
● HI →Line high voltage LED indication
1.
Set the function switch to “OFF” position.
2. Connect the two test leads of the line to the angled bed of
nails.
3. If the "HI" LED lights up; voltage over 70V was detected.
Please don't connect the MT-8006B Data Diver to this line to
avoid the Data Diver damaged.
4. OFF mode operation
● Pick up call：
When receiving a FSK or DTMF call, the Caller ID will display
on LCD. The MT-8006B will also add the number to the
incoming call list and give it a corresponding order in the list. If
the call is from a FSK system, MT-8006B will update the month,
date and time setting of system by the information provide by
FSK signal. If the call is come from DTMF system, MT-8006B
will show the system date and time. LCD will also displays the
corresponding order of the receiving call in the incoming call list.
If the number is not in the incoming call list, the LCD will
indicate it is a new number.
When the ringer is ringing, slide the switch to “Talk” position as
common telephone
● Incoming call list checking and Dialing
1. Press ▲ or ▼ to enter the incoming calling list.
2. Use the ▲ or ▼ key to view numbers in the Call ID list.
3. To make an auto speed scroll press the ▲ or ▼ key for 3
10
seconds.
4. Once the incoming number is reached, press LNR key.
5. Set the function to "Talk" mode, and press LNR key, it will
automatically dial the number you reached
● Dialing out list checking and dialing
1. Press the OUT key to enter outgoing call list.
2. Use the OUT key or ▲key to view the number in dialing out
list.
3. To make an auto speed scroll press the ▲ or ▼ key for 3
seconds.
4. Once the outgoing number is reached, press LNR key.
6. Set the function to "Talk" mode, and press LNR key, it will
automatically dial the number you reached.
● Pre-dial function
As with a cell phone, user can input the phone number at
on-hook status then press LNR to send out the number to make
a phone call. It is easy to correct the wrong input in this mode.
5. Talk mode operation
●Incoming call list checking and dialing
1. Press ▲ or ▼ to enter the incoming calling list.
2. Use the ▲ or ▼ key to view numbers in the Call ID list.
3. To make a auto speed scroll press the ▲ or ▼ key for 3
seconds.
4. Once the incoming number is reached, press LNR key.
●Dialing out list checking and dialing
1. Press the OUT key to enter outgoing call list.
2. Use the OUT key or ▲key to view the number in dialing out
list.
3. To make a auto speed scroll press the ▲ or ▼ key for 3
seconds.
4. Once the outgoing number is reached, press LNR key.
11
Battery and fuse replacement
If the Data Diver fails to operate properly, or stops working, replace
the battery and retest. Do not
use rechargeable batteries.
To replace the battery:
1. Disconnect the Data
Diver from the line and
place on a flat work
surface with the battery
cover up.
2. Use a Phillips
screwdriver to remove
the two screws from the
battery compartment.
3. Remove the battery cover
4. Remove the old batteries and properly discard.
5. Insert 4pcs of 1.5V AAA batteries into the Data Diver and
observe the proper polarity.
6. Place the battery cover back and fasten the two screws
securely. Do not over tighten screw. Over tightening will strip
the plastic.
Fuse replacement
If the Data Diver still stops working after a new battery is replaced, it
may be caused by a blown fuse.
To replace the fuse:
1. Use a Phillips screwdriver to remove the two screws from the
battery compartment.
2. Remove the battery cover
3. Remove the old fuse
4. Insert a same specification (ø5xL20mm, 250mA/250V) of fuse
5. Replace the battery cover, then fasten the two screws securely
taking care not to over tighten,
Caution：
Before the battery or fuse replacement, please set it in "OFF" mode
position as power off and disconnect the Data Diver from the line.
Remove the angled bed of nails, and stay away from any power
source or other electric equipment to avoid any electric shock
12
MAINTENANCE
WARNING:
To avoid electric shock, do not perform any servicing other
than that contained in the operating instructions unless you
are qualified to do so.
Disconnect clips from any metallic connections before
performing any maintenance.
If moisture should get inside the Data Diver, let the Data Diver dry at
normal room temperature for 24 hours. DO NOT HEAT THE DATA
DIVER. Moisture can provide a leakage path that may conduct
hazardous voltages to you. DO NOT USE the Data Diver if wet.
Keypad Care
Daily use of your Data Diver results in various liquids, dirt, and other
foreign material building up in your keypad. The keypad may be
cleaned by using a soft toothbrush with soap and water.
Do not use a petroleum-based or chlorinated cleaning agent as it will
harm the keypad. Let the Data Diver dry before using!
Data Diver Trouble Shooting:
1. The MT-8006B Data Diver is a professional telecom tool,
especially designed for checking telecom lines. It is not allowed to
be used under the power source AC100~125V 50/60Hz or
AC200~250V 50/60Hz; otherwise, it may cause the danger of
electric shock or product damage.
2. If there is any crosstalk in application, generally it is the
interference from the telecom line; please check if the angled bed
of nail clips well connected to the telecom line.
3. If any abnormal situation is found while you are using the Prokit's
Data Diver, please test the other telecom line in the different area
to identify the possible defective situation referring to the trouble
shooting list below. (Attention! Please never have the angled bed
of nail clips connected to the power source for safety reason.)
4. If the Data Diver still doesn't work after the first step of fix-up,
please send back to Prokit’s distributor for repairing
13
Caution：
If the Data Diver connected to a line with voltage over 100V, the fuse
will be blown, and it may also caused the IC protection function to
start and lock the Data Diver. When it happens, please remove all
batteries, and wait for 5-10 minutes until all power is dissipated, then
place the batteries back and restart the Data Diver.
Defect Situation Possible Problem Solution
Dead, Doesn’t
work
No tone
Speakerphone
doesn’t work
Short rings only
Can not hear the
conversation on
the Monitor status
Crosstalk
Memory of storing
numbers doesn’t
work
Polarity LED
doesn’t work
HI (LED)
doesn’t work
BATT(LED)
doesn’t work
Blown fuse/IC protection
locked
Angled bed of nails are
not well connected
MUTE button was
pressed and MUTE LED
indicator lights up
Low battery /the angled
bed of nails are
connected to the power
source
The switch did not set to
“Mon” position
Low battery
Angled bed of nails are
not connected firmly
The interference from
the telecom line
Low battery Change new battery
Low battery Change new battery
Low battery Change new battery
Low battery Change new battery
Change new fuse
Remove the batteries,
wait for 5-10mins and
restart the Data Diver
Check if Angled bed of
nails are well connected
to telecom line
Press the MUTE button
and check if the MUTE
LED is off
Change new battery
Confirm if the angled
bed of nails connected
to the right telecom line
Set the switch to “M”
position / Change a new
battery
Check if the Angled bed
of nails are well
connected
14
Specification
ELECTRICAL
Loop limit
DC resistance
Talk Mode 300Ω typical
Monitor impedance >39kΩ nominal at 1 KHz
Rotary dial output
Pulsing rate 10pps+0.8pps
Percent break 60/40%±2%
Inter digit interval 1000 ms typical
Leakage during Break >130 KΩ
DTMF output
Tone frequency error ±1.5% maximum
Tone level -8±2dBm combined (typical)
High versus low tone
Memory dialing
Memory capacity 12 memories
Digit capacity 16 digits per memory
PBX pause duration 1~3.6 seconds
Power source 4pcs 1.5V AAA batteries (not included)
PHYSICAL（Hook included）
Measurement 218.5 ×69.5 × 49mm (8.6” × 2.7” × 1.9”)
Weight 208g typical
2 KΩ maximum at 48 Vdc
(nominal 20 mA minimum loop current)
4 dB maximum
15
Loading...
