professional projector series
F80
WUXGA or 1080p resolution
3-chip DLP® technology
up to 8500 ANSI lumens
Advanced Color Optical Processing
www.projectiondesign.com
COMPA TIBLE
COMPA TIBLE

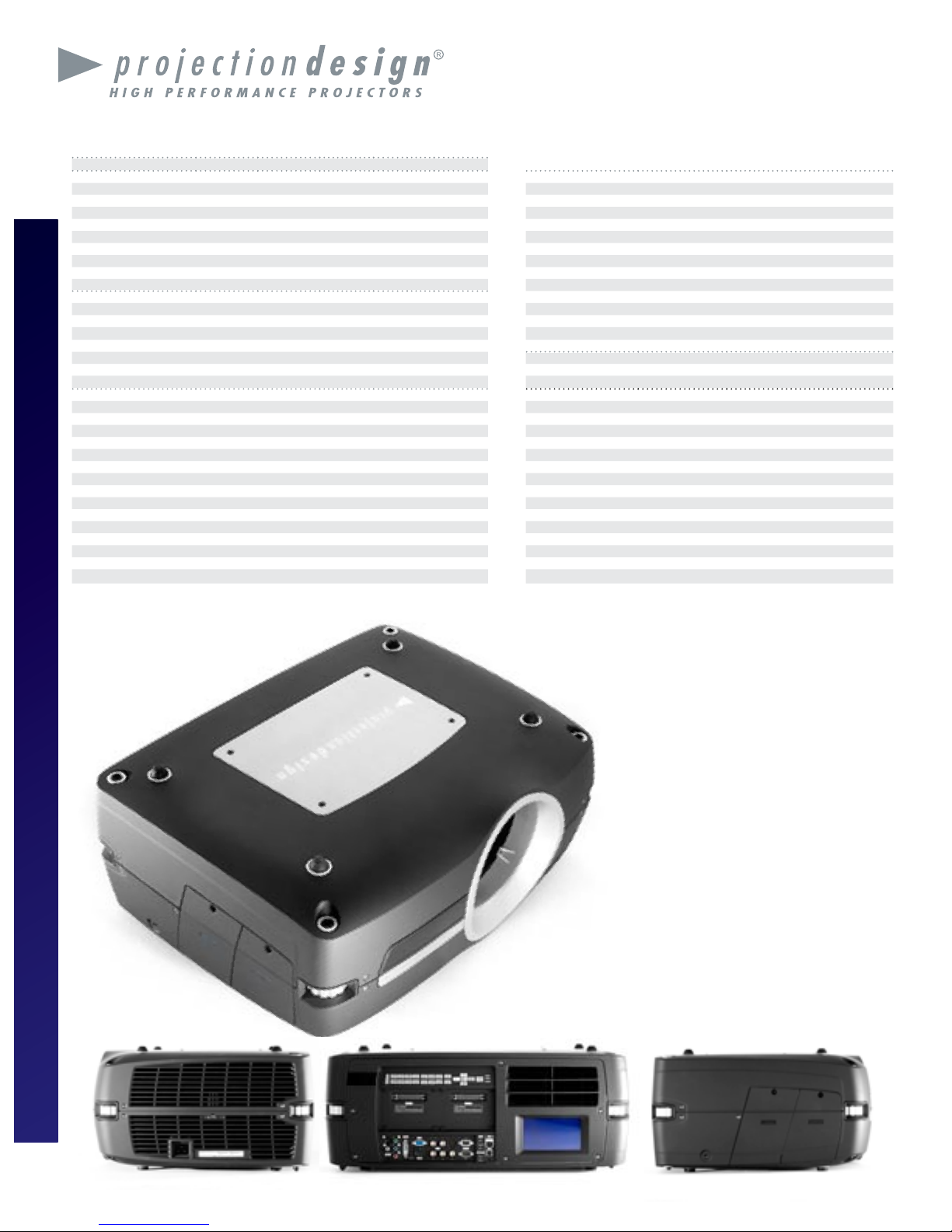

F80 series
The projectiondesign F80 series of three-chip DLP® projectors is
our top professional model, and is made for large screen imaging
and the ultimate image quality for in demanding users.
Markets and applications
With its brightness, numerous configuration, performance, and warranty options, the F80 series is made for strict
requirements. It is made for large screen imaging in auditoriums, staging, or other applications that require the
ultimate in detail and reliability, such as multi channel imaging, or visualisation centres.
www.projectiondesign.com
Key features
The projectiondesign professional series of projectors
include high resolution, high performance products
made and conceived especially for graphically
challenging appllications such as scientific
visualisation, motion simulation, medical imaging, and
public displays.
As our utmost concern is image quality and operational
reliability, all professional series projectors are available
with 24/7 operation warranties, and a wide range
of configuration options to ensure the best possible
application fit and customer satisfaction.
series
RealColor colour management provides completely unique colour management accuracy
Full 24 / 7 warranty covers any operating environment and installation requirement
DYnamicBlack™ gives totally unique dynamic range for a three-chip projector
ACOP optical colour processing enables user selectable color gamuts
3-chip DLP® technology for outstanding colours and dynamics
Choice of WUXGA and 1080p resolution options.
Professional
projector
www.projectiondesign.com
DLP technology
– chosen for reliability
The DLP technology from Texas Instruments® is
chosen for its unmatched reliability performance, and
its unique coupling with long lasting image quality.
With a widely recognized and proven reliability record,
and high brightness and contrast, all whilst displaying
utterly natural colours, it is the obvious choice for
heavy duty applications, or applications that are that
run continuously, or are mission critical. Independent
testing has proven DLP technology to be the most
reliable of all microdisplays; not degrading when
subjected to UV light, inherent in all projectors. Unlike
competing technologies, showing severe image
quality degradation after only a few thousand hours,
DLP technology remains constant over hundreds of
thousands of hours.
overview
Three chip DLP
Three chip DLP technology is renowned for producing
formidable on-screen images, and combines the DLP
reliability and accuracy for even better colours . With
a wealth of brightness from the 3-chip engine’s high
efficiency, and many options for accurately adjusting
colour and brightness performance, the F80 series can be
tailored to suit a a vast number of of applications, focusing
on large screen video centric displays and events.
WUXGA or 1080p resolution
The projectiondesign F80 can be configured with either
WUXGA or 1080p resolution for computer or video centric
applications. In large auditoriums and with large screens,
where computer imaging with maximum detail accuracy
is the primary concern, 1920x1200 pixels (WUXGA)
is the obvious choice, and fully compatible with the
legacy 1600x1200 format. Furthermore, for video centric
applications, the 1920x1080 (1080p) pixel resolution
perfectly fits high defintion video and data. Additionally,
for editing and video centric applications where a menu
line, or additional inforamtion is needed on screen
simultaneously with the unaltered 1080p video image,
WUXGA resolution gives just that.
California Academy of Sciences, California, USA.
The California Academy of Sciences in San Fransisco, USA, uses more than 30 projectiondesign projectors in various configurations.
Precision projection lenses
The F80 series features a wide range of custom designed, precision
ground projection lenses for the best quality imaging, and the most
secure and reliable setup. Key features include infintely adjustable IRIS
and aperture settings, and motorized zoom, focus and lens shift with
memory for use in multiple settings and installations with programmed
calibration and screen setups. Most importantly, every single lens uses
Low Dispersion (LD) aspherical glass and aspherical lens elements for
high quality focusing and sharpness, as welll as high optical interfield
contrast, resulting in very high image quality. Unlike many competing
projector ranges, the lenses are designed and made with high resolution
in mind, not taking standard, off the shelf lenses for use in higher
performance applications. The range of lenses span from an an ultra
wide angle 0.74 : 1, to a long tele zoom at 6.24 : 1, and comprises five
lenses.
A wide range of lenses, from ultra wide 0.74 : 1 to 6.24 : 1 gives unique flexibility in
installations and placement of product.
applications and features
RealColor colour calibration
Each F80 projector is uniquely characterised and calibrated during its manufacture. Unique optical performance values
are recorded and matched to the electronics processing in order to secure perfect on-site calibration. With RealColor, it is
possible to match any number of projectors, and ensure they all project the same primaries and grey scale, without going
through a very complicated process.
What RealColor gives
RealColor provides a unique and quick way to calibrate and set up perfect images for any number of projectors. RealColor
can alter imagery by changing simple characteristics such as the colour temperature of the image – perfectly along the
black body curve, or very complex things such as each colour’s relative saturation and x/y coordiantes. In fact, it is perfect
to within 0.002 along all axes of measurement. RealColor works by mathematically calculating each colour independently.
Advanced Color Optical Processing
The F80 series projectors feature new and revolutionary projectiondesign
optical color processing technology. By combining fixed and motorised
optical filters for each colour channel, the projector can be optically calibrated
with near infinite accuracy. It also means that by the flick of a switch, you
can change the projected colour gamut from standard computer graphics
optimized, to comply with for instance REC709 (High Definition programming)
All this without any loss of bit depth, as the compensation is purely optical, and
not electronic. Unlike competing projectors, where colour calibration is based
upon a simple yellow notch filter to change the green point of the picture, or
simply by changing electronic values, ACOP is vastly superior in all aspects.
0.9
0.8
0.5
0.3
0.2
0.1
0.6
0.7
0.90.80.50.40.30.20.1 0.6 0.7
0.4
colour management and performance
Colour matching
Like all other projectiondesign professional projectors, the F80 series features numerous possibilities and alternatives for matching of several projectors, so that they all appear
and perform similarly. Actual colour matching is realized through several process steps, including that of hand selecting units that are very closely performing optically. Additionally,
colour matching is realized using extensive features of the RealColor colour management suite, so that every single projector performs absolutely similarly.
www.projectiondesign.com
DynamicBlack™ for outstanding dynamics
The F80 series features unmatched dynamics amongst large venue
projectors. The unique DynamicBlack™ functionality can automatically
adapt to the input histogram of the signal, and ajdust so that image output
contrast is maximised at any one point in time. This creates much more
dynamic imaging, and a more involving experience. If the DynamicBlack™
functionality is not desired, the user can manually adjust IRIS and settings to
match a constant, desired output level, with constrast up to 15 000 : 1, and
brightness levels to match that of the desired screen size requirement.
DynamicBlack™ automatically adjusts output to the input signal, and maximises available contrast in the
image. The result is unmatched dynamic performance.
revolutionary
colour
performance
Original lamp with projectiondesign optimised fixture mechanics.
Low Total Cost of Ownership
Thanks to its complex and robust build and
construction, the F80 series requires very little
maintenance and in-life servicing. There are no
user serviceable parts inside, and it does not
have any filters or other parts that need periodical
replacement. That means it does not require a costly
and high frequency maintenance contract. Similarly,
and compared to similarly performing Xenon high
power lamps, lamp replacement cost is low*, and
typical lamp life is long. In total, a very cost effective
projector over time, resulting in a very low cost of
ownership.
* When replacing lamps, it is adviced to use only original
parts and accessories, as non original aftermarket lamps
may reduce performance, damage the projector, and void
warranties.
Low Frequency Maintenace programme
Our Low Frequency Maintenance programme can be set to automatically notify of required service and maintenace.
When run continuously, moving parts such as fans and colour wheels require periodic replacement in order to secure
and enable heavy duty, and continuous operation. With the F80, the shortest duty cycle of any one component – run
in full power mode, is as long as 8000 hours, meaning a full year’s operation in 24/7 without any maintenance. Add hot
svwappable lamps to that, and you have a projector simply does not need to be turned off.
Designed for full 24/7 operation
All projectiondesign professional projectors feature
full 24/7 operation warranties. That means they are
designed to operate continuously. There is no fine
print. Designing for 24/7 operation requires a lot of
attention to detail. Some technologies are better
than others when it comes to withstand the abuse of
time. We use only components that have predictable
behaviours, for instance fans, colour wheel motors,
and electronic components that are designed by their
respective manufacturers to do the same - withstand
time. There are no off-the-shelf components. That is
why we also closely monitor the creation of every detail,
apply dedicated thermal management, and use specific
materials in all parts of the process.
applications and features
Changing lamps is easily done from the side of the projector.
24
7
24
www.projectiondesign.com
projectiondesign in-house EMC lab.
In-house acoustics lab.
Every single F32 projector is rigorously tested, and
characterised in-house. We keep test records and
performance statistics for every single unit. Also, as
we put our pride into making great projectors, they are
not passed down an automated production line, but
enjoy the careful management of people at all stages of
their manufacture. That also means we are personally
responsible for all of them. In addition, every single
projector is made to specific order. That means that the
configuration ordered is the configuration built, and only
existing in that particular installation.
Immaculate
process
management
In house development and
process management
Every single part of the F80 series projectors is
developed, rigorously tested, and verified in-house
at projectiondesign. With more than 800 models and
variations of projectors in regular manufacture, test,
research and verification facilities include everything from
acoustical analysis labs, to a full featured FCC certified
EMC lab, environmental labs for lifetime and operational
testing, such as temperature variations and testing of
vibration resistance, as well as our own optics lab and
various test and demo .
www.projectiondesign.com
RoHS compliant PCB assembly line.
F80 series undergoing vibration testing.
projectiondesign warehouse is completely automatic.

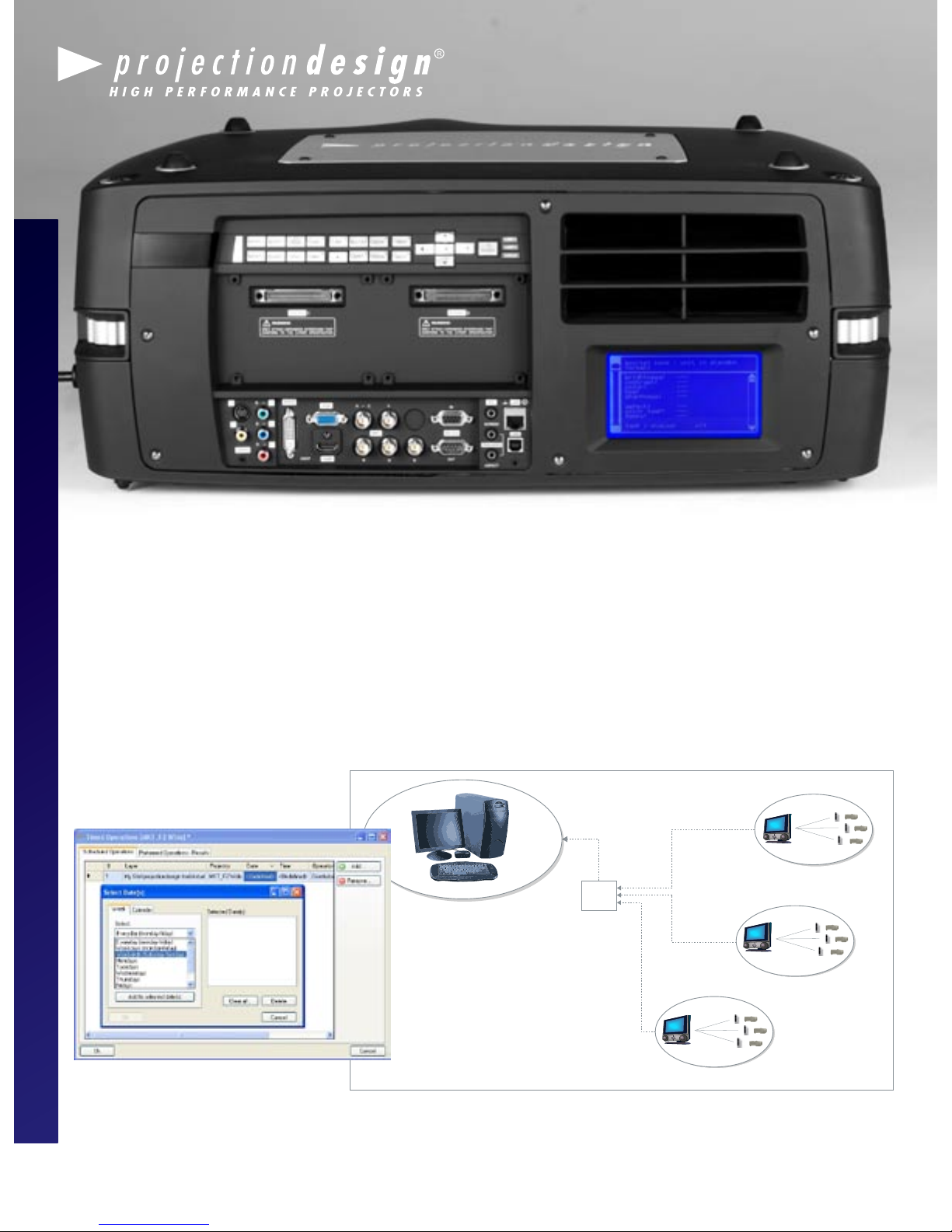

Extensive input compatibility
Two discrete digital inputs, HDMI and DVI-D enables simple and source switching setups in smaller installations. Both inputs feature HDCP - High bandwidth Digital
Content Protection. The F80 also features legacy formats such as RGBHV over VGA, and a 5-BNC input, in addtion to standard video formats. Importantly, the F80
features a projectiondesign unique interface, XPort™, for connection to third party modules, as well as standard modules provided by projectiondesign. Currently, an
HD-SDI module is available for direct connection to such sources and formats.
ProNet Asset Management
Adding to the serviceability and in-life monitoring features, the projectiondesign ProNet.Manager asset management suite
can be set up to monitor and report on an unlimted number of projectors in a dedicated or corporate network, in a single
site, or in multiple sites. ProNet monitors every single aspect of the projector, from individual lamp and fan statuses, to
operating hours, usage statistics, and any other related information.
ProNet.enterprise
ProNet.site 1
ProNet.site n
ProNet.site 2
ftp
service
www.projectiondesign.com
www.projectiondesign.com
techncal specifications
Technical specifications
projector DLP® digital projector
display technology three chip DMD™ (Digital Micromirror Device™) connectivity computer 1x HDMI (1.3)
concept sealed, all-glass optical design with lens shift 1x DVI-D
available resolutions 1920 x 1200 1920 x 1080 1x 15-pin DSUB
brightness standard 8500 8000 1x BNC x5
REC709 5500 5000 video 1x HDMI (v1.3) (HDCP)
1x DVI-D (HDCP)
contrast ratio up to 15 000 : 1 (on/off) (automatically adaptive) 1x RCA x3 YUV
colours 30-bit 1x 4-pin mini DIN Y/C
colour management accuracy ± 0.002 on x, y, z axis 1x RCA composite video
image processing latency ~ 22 ms on graphics port control and communication 1x RJ45 TCP/IP network port
input signal compatibility computer up to 1920 x 1200 pixels 2x RS232 9-pin DSUB (in / out)
RGBHV, RGBS, RGsB 1x USB – mouse control & firmware upgrade
horizontal scan frequency 15 - 150 kHz 2x 12V (60mA) triggers (screen drop / aspect)
vertical scan frequency 48 - 190 Hz 1x RC repeater, 3.5mm mini jack
video HDTV (1080i, 720p, 576i/p, 480i/p) other 2x configurable XPort™ (front- / back end)
NTSC 3.56/4.43, PAL BGHI, M, N, SECAM supplied accessories cables 4m power cord (country dependant)
bandwidth 205 MHz analog RGB other backlit IR remote control
165 MHz digital RGB (DVI or HDMI) product documentation
optics available lenses fixed focal ultra wide angle EN22 (503-0172-00) general dimensions (dwh) 505 x 604 x 250 mm (ex. lens)
fixed focal wide angle EN23 (503-0173-00) weight about 24 kg (net, ex. lens)
standard zoom EN21 (503-0136-00) about 38 kg (shipping)
short tele zoom EN24 (503-0174-00) environmental RoHS, WEEE
short tele zoom EN26 (503-0176-00) security 4-digit PIN code, Kensington lock
focusing distance 0.7 - 20m power requirements 100 – 240 VAC, 50/60 Hz, +/- 10%
optical lens shift vertical and horizontal <1050W power consumption
EN22 on axis only BTU/hr <2900
lens iris control F/2.1 – 6.5 for all lenses, continuously adjustable conformances CE, CSA “C/US”, FCC Class A, CCC
DynamicBlack™ user adjustable operating temperature 10 – 40ºC / 32 – 104ºF, 0 – 1500 m
shutter mechanical 0 – 35ºC / 32 – 95ºF, 1500 – 3000 m
ACOP colour filters standard RGB operating and storage 20 – 90% RH
REC 709 available colours soft touch rubber black matte
warranties standard 2 years, full 24/7 operation
lamp 2 x 330W UHP™ 500 hours or 90 days on lamp
lamp life 2000 hrs (max typical) (5000 hrs in eco relay mode) up to 5 years total extended warranty available.
replacement lamp part no. 400-0700-00 conditions apply.
technical specifications
www.projectiondesign.com
Model Part Number
F80 1080
101-1600-08
F80 wuxga
101-1601-08
Available versions
The F80 can be rotated 360 degrees around the side to side axis, and for instance project
straight down or up, as well as +25/-15 degrees side to side.
Rotation
360°
+15°
-25°
Standard bolt-on ceiling mount interface
0.4
158.2
167
164
83.5
4
LENS RELEASE
PUSH AND HOLD
Flexible vertical and horisontal lens shift
355 249
135
115
250
Multiple lens options and very wide lens shift adjustment ranges allow
for flexibility in installations.
Wide range of projection lenses
WUXGA: 117 %
1080: 124 %
WUXGA: 84 %
1080: 89 %
WUXGA: 84 %
1080: 89 %
EN 22 Ultra wide angle 0.74 : 1 fixed focal (on axis only)
0.5 – 2.5 m
EN 23 Wide angle zoom 1.2 - 1.7 : 1
1.0 – 15 m
EN 21 Standard zoom 1.70 – 2.55 : 1
1.0 – 15 m
EN 24 Short tele zoom 2.50 – 4.00 : 1
2.0 – 15 m
EN 26 Tele zoom 3.90 – 6.24 : 1
2.0 – 30 m
regional offices
the Americas
projectiondesign LLC
295 North Street,
Teterboro, NJ 07608, USA
ph +1 888 588 1024
fx +1 201 288 1034
americas_sales@projectiondesign.com
Sweden
projectiondesign as
Göteborg, Sweden
ph +47 69 30 45 50
fx +47 69 30 45 80
sweden_sales@projectiondesign.com
Germany, Austria, Switzerland
projectiondesign as
Stuttgart
ph +49 7153 958263
mo +49 (176) 2316 0345
fx +47 69 30 45 80
germany_sales@projectiondesign.com
Southern Europe
projectiondesign as
Via Plinio 43, I-20129 Milano (MI), Italy
ph +39 02 45471864
fx +39 02 45471865
southe_sales@projectiondesign.com
BeNeLux
projectiondesign as
J. A. L. J. van Meertenstraat 4
4194WL Meteren, The Netherlands
ph +31 (0) 345753314
fx +31 (0) 345753314
benelux_sales@projectiondesign.com
United Kingdom
projectiondesign as
Regus House, Herons Way, Chester Business Park,
Chester, CH4 9QR, United Kingdom
ph +44 (0)1244 893 231
fx +47 69 30 45 80
uk_sales@projectiondesign.com
head office
projectiondesign as
Habornveien 53
N-1630 Gamle Fredrikstad, Norway
ph +47 69 30 45 50
fx +47 69 30 45 80
sales@projectiondesign.com
Asia
projectiondesign as
161 Kallang Way,
#04-05 Kolam Ayer Industrial Estate, Singapore 349247
ph +65 9621 7421
fx +47 69 30 45 80
asia_sales@projectiondesign.com
Spain and Portugal
projectiondesign as
Gorrondatxe15, bajo A
48640 Berango, Spain
ph 34 676 266 301
fx +47 69 30 45 80
iberica_sales@projectiondesign.com
India, including SAARC
projectiondesign as
Mumbai
ph +91 982 061 0670
fx +47 69 30 45 80
india_sales@projectiondesign.com
South Africa, Africa, Middle East and Oceania
projectiondesign as
1 Peterhof Close
Hout Bay 7806, South Africa
ph + 27 21 79 00 018
fx +47 69 30 45 80
africa_sales@projectiondesign.com
oceania_sales@projectiondesign.com
projectiondesign locations
602-0190-00
www.projectiondesign.com
© 2009 projectiondesign as. All rights reserved. All brands and trade names are the property of their respective owners. Specifications subject to
change without prior notice. All values are typical and may vary. Please visit our website for latest specifications and product offerings.
Loading...
