ProjectionDesign Cineo20 720, Cineo20 sx+ User guide

userguide • benutzer handbuch • guide d’utilisateur • guía del usario • manuale d’uso • bruksanvisning

TABLE OF CONTENTS

2

Table of contents

4

Introduction

6

Safety & Warnings

14

Supplied material

16

Overview

18

Keypad

20

Indicator

22

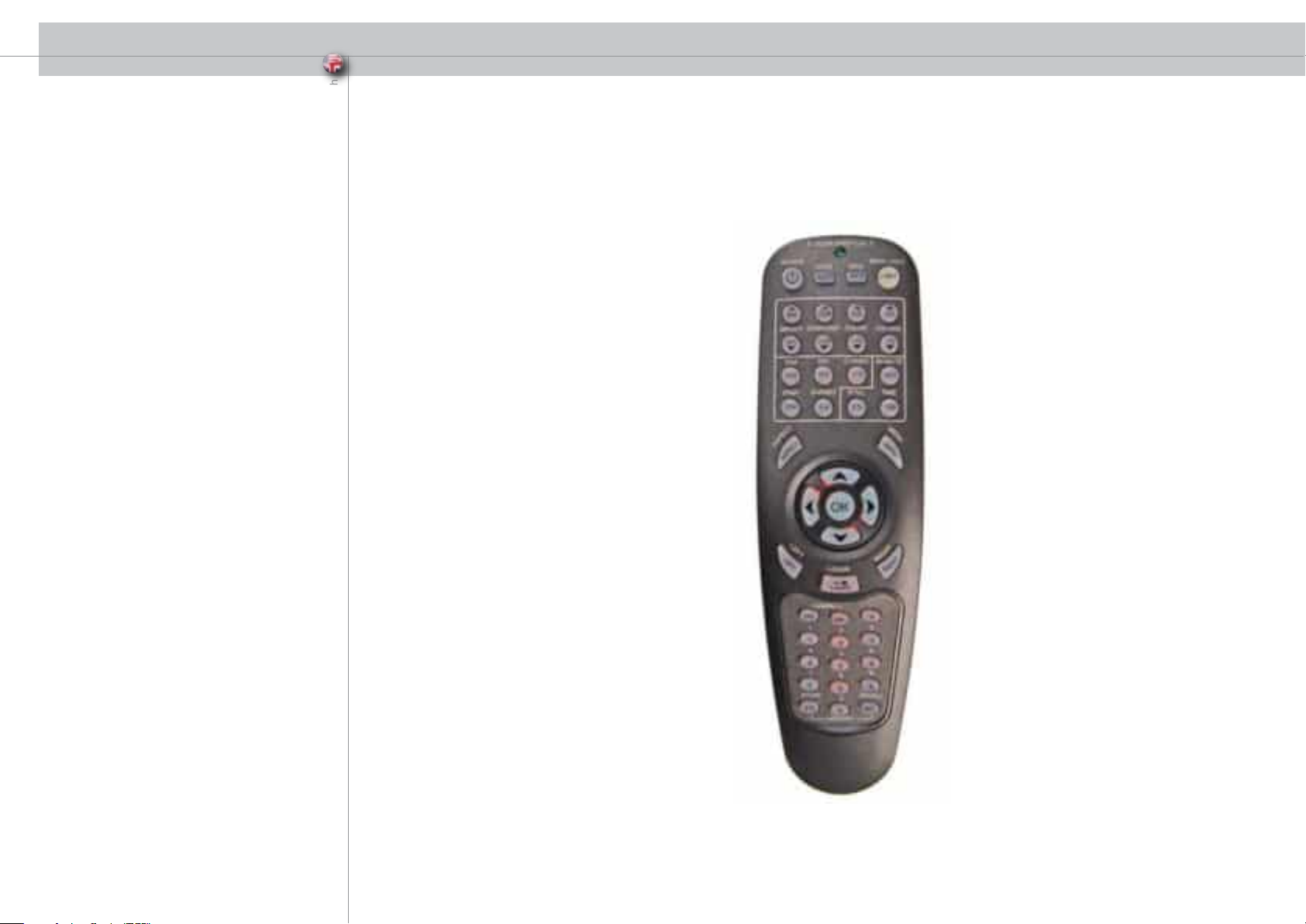

Remote control

26

Connector panel

28

Set up

30

Image adjustments

30

PIN Code

32

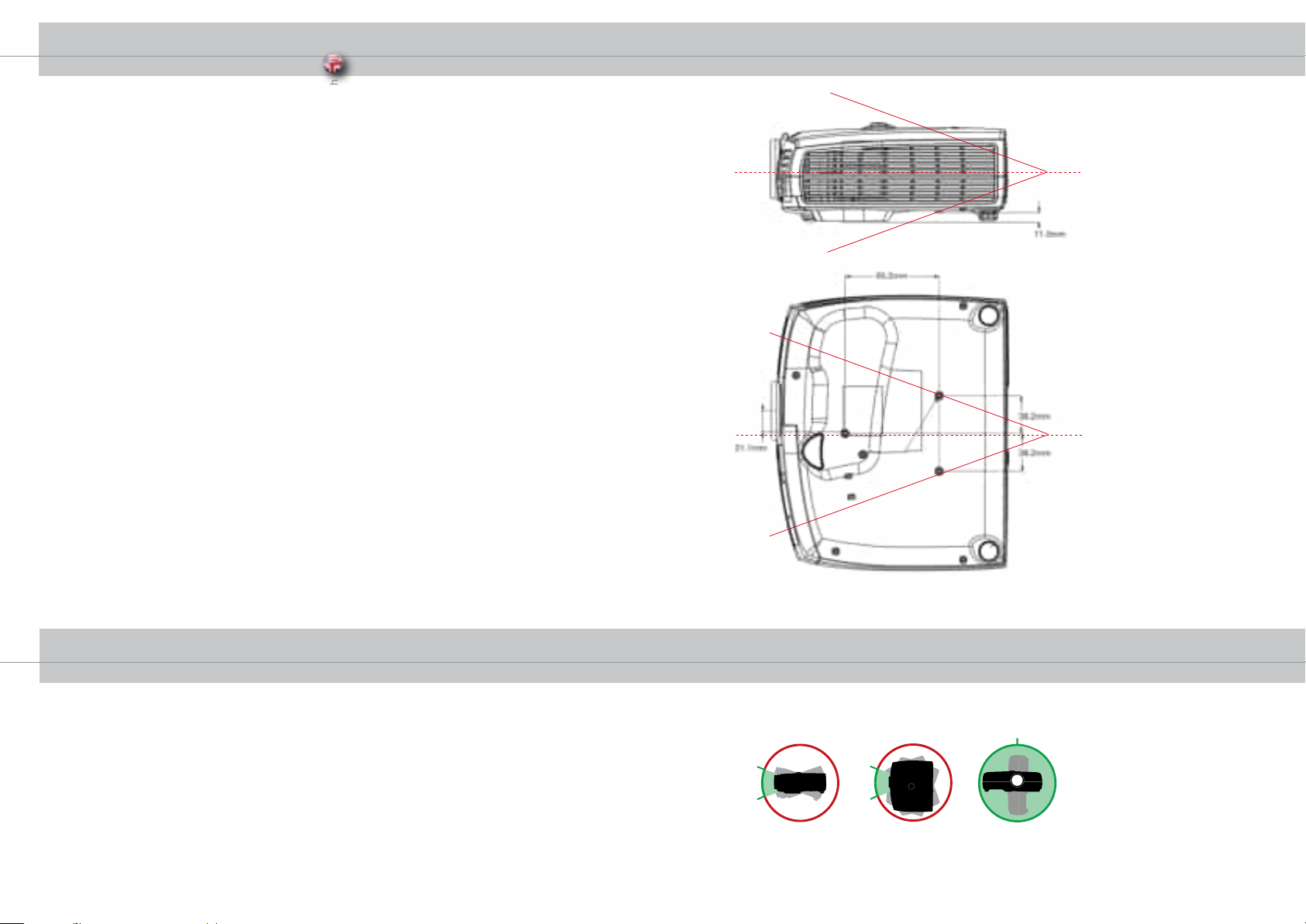

Ceiling mount

32

Vertical operation

34

Using the projector

40

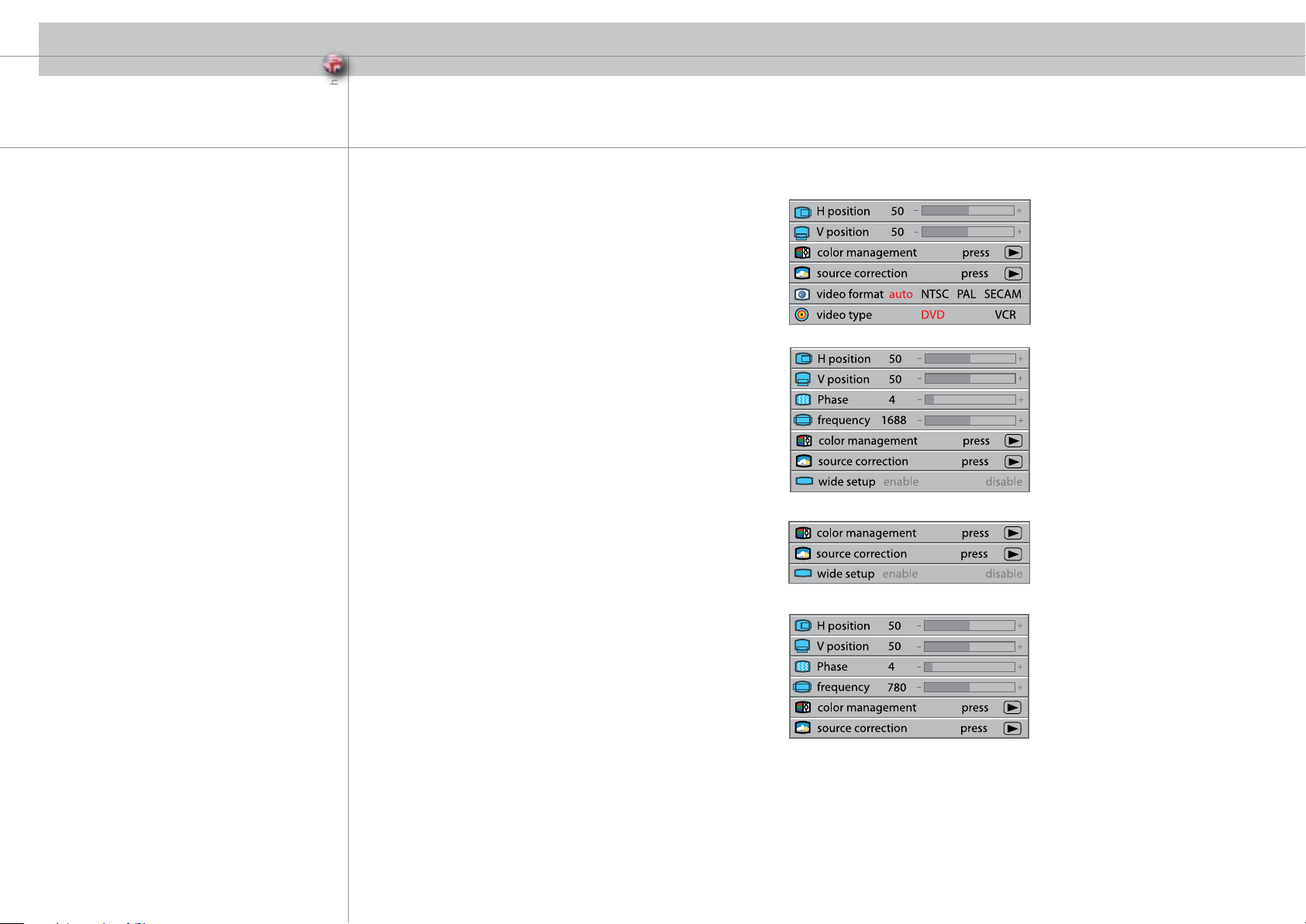

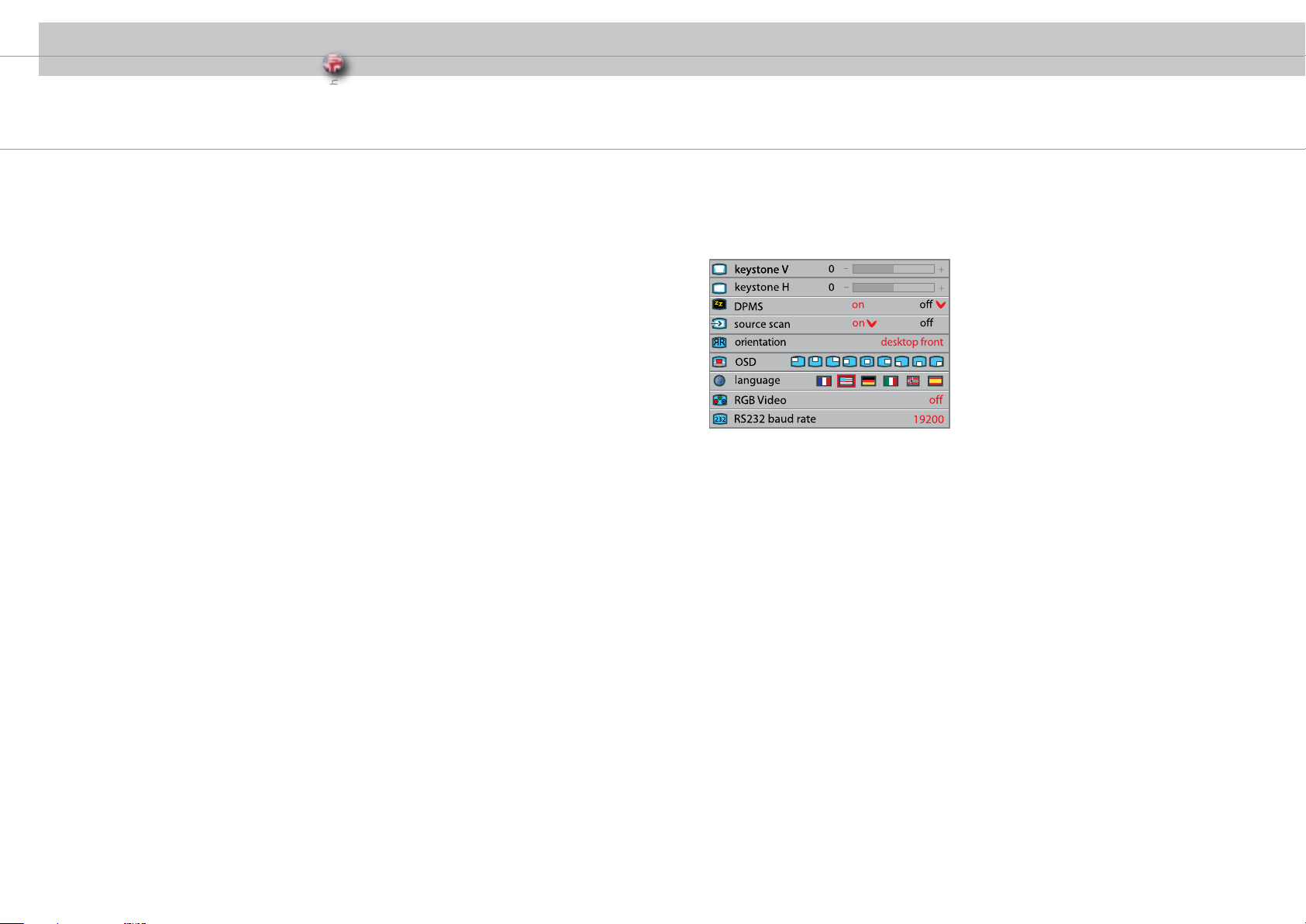

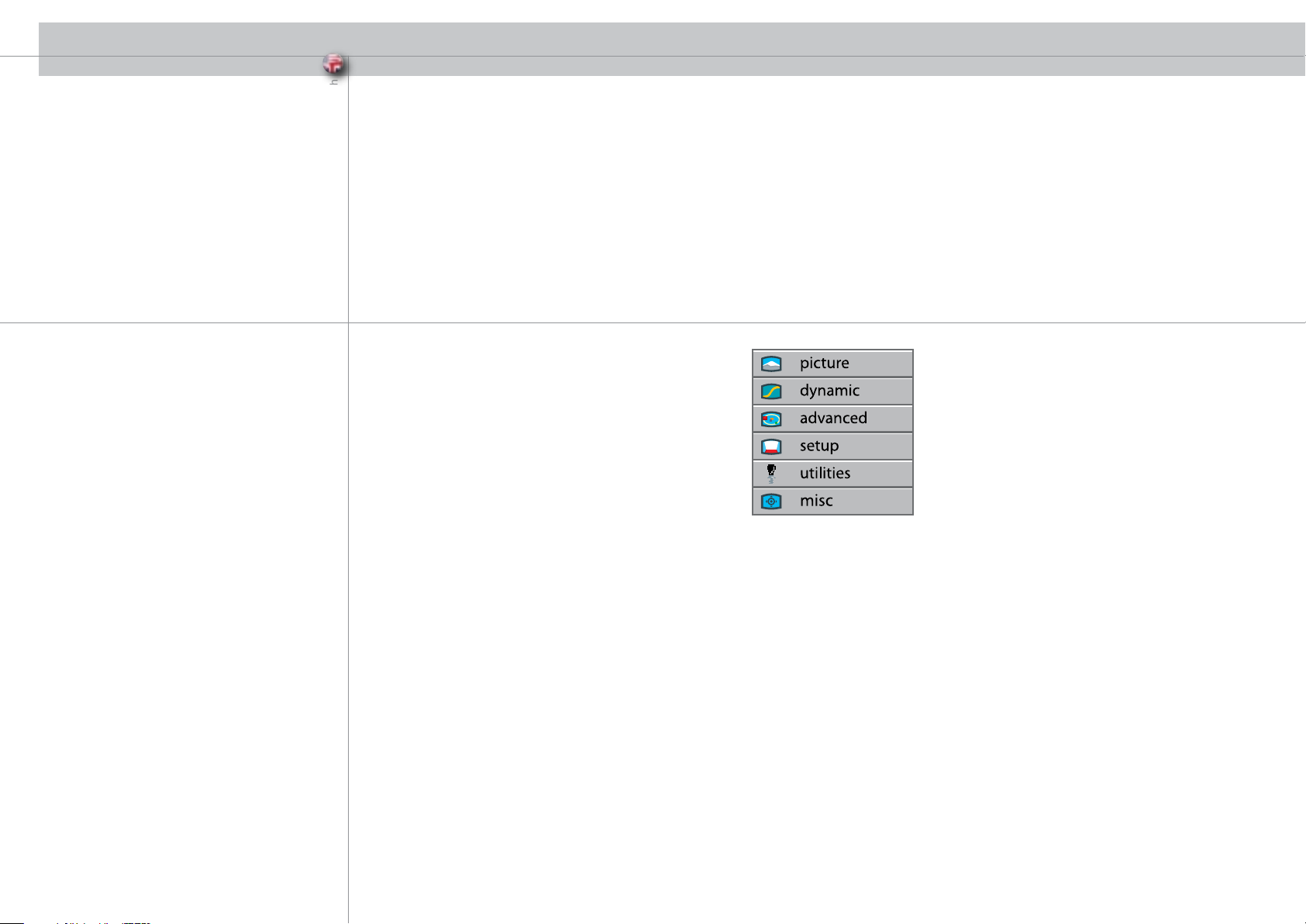

Menu system

56

Trouble shooting

58

Maintenance

58

Service information

60

Lamp change

62

Technical data

68

Declarations

2

ÍNDICE DE CONTENIDOS

2

Índice de contenidos

4

Introducción

6

Seguridad y advertencias

14

Material entregado

16

Descripción general

18

Teclado

20

Indicadores

22

Mando a distancia

26

Panel de conexiones

28

Instalación

30

Ajustes de imagen

30

Código PIN

32

Montaje en el techo

32

Funcionamiento vertical

34

Uso del proyector

40

Sistema de menús

56

Solución de problemas

58

Mantenimiento

58

Información de servicio técnico

60

Cambio de la lámpara

62

Datos técnicos

68

Declaraciones

english

4

INTRODUCTION

This digital projector is designed with the latest state-of-the-art technologies in
illumination, imaging, optics, electronics, thermal and industrial design in order to
serve traditional as well as novel imaging applications across a variety of markets,
offering features such as:

- SXGA+ 1400x1050 or HD720 1280x720 pixel DLP™ technology

- SINGLE CHIP DMD™ with DarkChip™ technology by Texas Instruments®

- HIGH CONTRAST for vibrant colors and deep blacks

- HIGH RESOLUTION for unprecedented detail

- HIGH BRIGHTNESS for larger screens

- DEEP BLACKS for maximum dynamics

- COLOR CALIBRATION for precise images

- REAL TIME CLOCK for timing control

- REDUCED IMAGE NOISE through high end signal processing

- FAROUDJA DCDi™ Video processing and de-interlacing

- ECO MODE for reduced power consumption and lower audible noise

- VARIABLE LAMP POWER for alignment of multi-screen configurations

- LONG LIFE LAMP (up to 4000 hours) in low power ECO mode

- STYLISH AND COMPACT MAGNESIUM DESIGN to fit most applications,
installed or movable

- FIVE VIDEO and GRAPHICS INPUTS for virtually any video and data source

- LAN, RS232 and USB ports for control and monitoring

The specifications and functionality of the product may change without prior
notice.

english

6

SAFETY & WARNINGS

This user guide contains important information about safety precautions and the set­up and use of the projector. Please read the manual carefully before you operate the
projector.

SAFETY

This device complies with relevant safety regulations for data processing equipment
for use in an office environment. Before using the projector for the first time, please
read the safety instructions thoroughly.

WARNING

Use only the cables and cords supplied with the projector or original replacement
cables. Using other cables or cords may lead to malfunction and permanent damage
of the unit.

Always use 3-prong / grounded power cord to ensure proper grounding of the unit.
Never use 2-prong power cords, as this is dangerous and could lead to electrical
shock.

Never open the unit. The projector contains no user serviceable parts. Refer all
repairs to qualified personnel only. Make sure that no objects enter into the vents
and openings of the set.

Do not spill any liquids on the projector or into the vents or openings of the unit.

Always remove lens cap before switching on the projector. If the lens cap is not
removed, it may melt due to the high energy light emitted through the lens. Melting
the lens cap may permanently damage the surface of the projection lens.

Do not look into the projection lens when the projector is switched on. The strong
light may permanently damage sight. Do not look into the laser beam when activated
on the remote control. Laser light may permanently damage sight.

Do not point laser beam on people.

Only place the projector on a stable surface, or mount it securely using an approved
ceiling-mount.

Do not drop the projector.

Always operate the projector horizontally, within the range of the adjustable rear feet.
Operating the unit in other positions may reduce lamp life significantly, and may lead
to overheating, resulting in malfunctioning.

Always allow ample airflow through the projector. Never block any of the air vents.
Never cover the unit in any way while running. Allow for sufficient distance to walls
and ceilings to avoid overheating.

Minimum safety distance to any side of the unit is 50 cm / 20” in any direction.

CAUTION! Hot air is exhausted from the rear vent. Do not place objects that are
sensitive to heat nearer than 50cm /

The projector is designed for indoor use only. Never operate the unit outdoors.

20” to the exhaust vent.

english

8

SAFETY & WARNINGS

Do not operate the projector outside its temperature and humidity specifications, as
this may result in overheating and malfunctioning.

Only connect the projector to signal sources and voltages as described in the technical
specification. Connecting to unspecified signal sources or voltages may lead to
malfunction and permanent damage of the unit.

Allow the unit to cool down for 60 minutes before lamp change.

INFORMATION AND WARNING ABOUT POTENTIAL HEALTH ISSUES RELATED
TO MERCURY VAPOR.

This projector uses a very powerful UHP™ lamp for illumination to produce an extremely
bright image.

This technology is similar to other high-pressure discharge lamps that are extensively
used in cars, street lights and other lighting appliances today. These lamps, like
fluorescent lighting, contain small amounts of mercury. The amount of mercury present
in a lamp is far below the limits of danger set by the authorities. It is very important that
lamps containing mercury are treated properly to minimize potential health hazards.

The UHP™ lamp, like any other high brightness projector lamp, is under high-pressure
when operating. While the lamp and the projector are carefully designed to minimize the
probability of lamp rupture, the lamp may break while operating and small amounts of
mercury vapor may be emitted from the projector. The probability of rupture increases
when the lamp reaches its nominal life. It is therefore highly recommended that the
lamp is replaced when the rated lifetime is reached.

As a general precaution, secure good ventilation in the room when operating the
projector. If lamp rupture occurs, evacuate the room and secure good ventilation.
Children and pregnant women in particular should leave the room.

When replacing a worn lamp, dispose of the used lamp carefully by proper recycling.

Mercury is a naturally occurring, stable metallic element that may pose a safety risk to
people under certain conditions. According to the Public Health Statement for Mercury
published by the Agency for Toxic Substances and Disease Registry (“ATSDR”, part
of the United States Public Health Service), the brain, central nervous system and
kidneys are sensitive to the effects of mercury, and permanent damage can occur at
sufficiently high levels of exposure. Acute exposure to high concentrations of mercury
vapor can cause conditions such as lung and airway irritation, tightness in the chest,
a burning sensation in the lungs, coughing, nausea, vomiting and diarrhea. Children
and fetuses are particularly sensitive to the harmful effects of metallic mercury to the
nervous system.

Seek medical attention if any of the above symptoms are experienced or if other
unusual conditions are experienced following lamp rupture.

english

10

SAFETY & WARNINGS

WEEE INFORMATION

This product conforms to all requirements of the EU Directive on
waste electrical and electronic equipment (WEEE). This product
shall be recycled properly. It can be disassembled to facilitate
proper recycling of it’s individual parts. This product is using
projection lamps that shall be recycled properly. Consult your
dealer or relevant public authority regarding drop-off points for
collection of WEEE.

WARNING

This product contains chemicals, including lead, known to the
State of California to cause birth defects or other reproductive
harm. Recycle properly, do not dispose of in ordinary waste!

REMOTE CONTROL WARNING

Laser radiation class II product; wavelength 670nm; maximum
output 1mW.

Remote control complies with applicable requirements of
21 CFR 1040.10 and 1040.11.

Remote control complies with applicable requirements of
EN 60 825-1: 1994 + A11

english

12

SAFETY & WARNINGS

WARNING SYMBOLS

READ USER GUIDE

Attention! Read the user guide for further information!

DANGEROUS VOLTAGE

Danger! High voltage inside the product!

HOT

Warning! Hot surfaces!

WAIT

Warning! Wait until cooled down!

MERCURY

Warning! Lamp contains mercury! Recycle properly,
do not dispose of in ordinary waste!

UV

Warning! UV radiation inside the product!

RECYCLE

Warning! Recycle properly, do not dispose of in ordinary waste!

NO TELEPHONE

Warning! Do not connect to telephone lines!

english

14

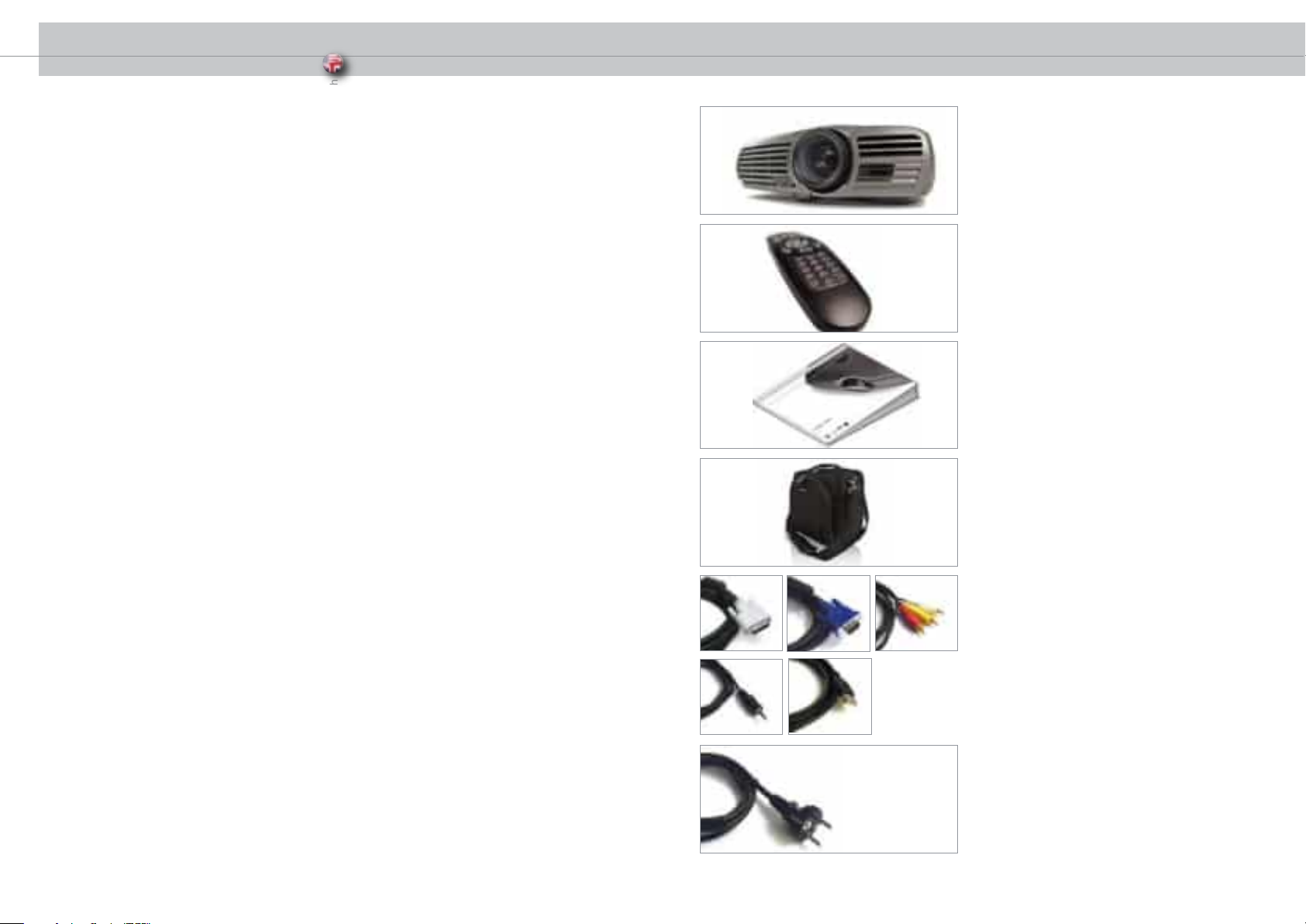

SUPPLIED MATERIAL

Projector

Remote control with batteries

User guide

Bag (optional)

Cables (optional)

Power Cord

(country dependent)

Before Set up and Use

Unpack the supplied parts and familiarise yourself with the
various components.

DVI

Audio

VGA

USB

A-V

english

16

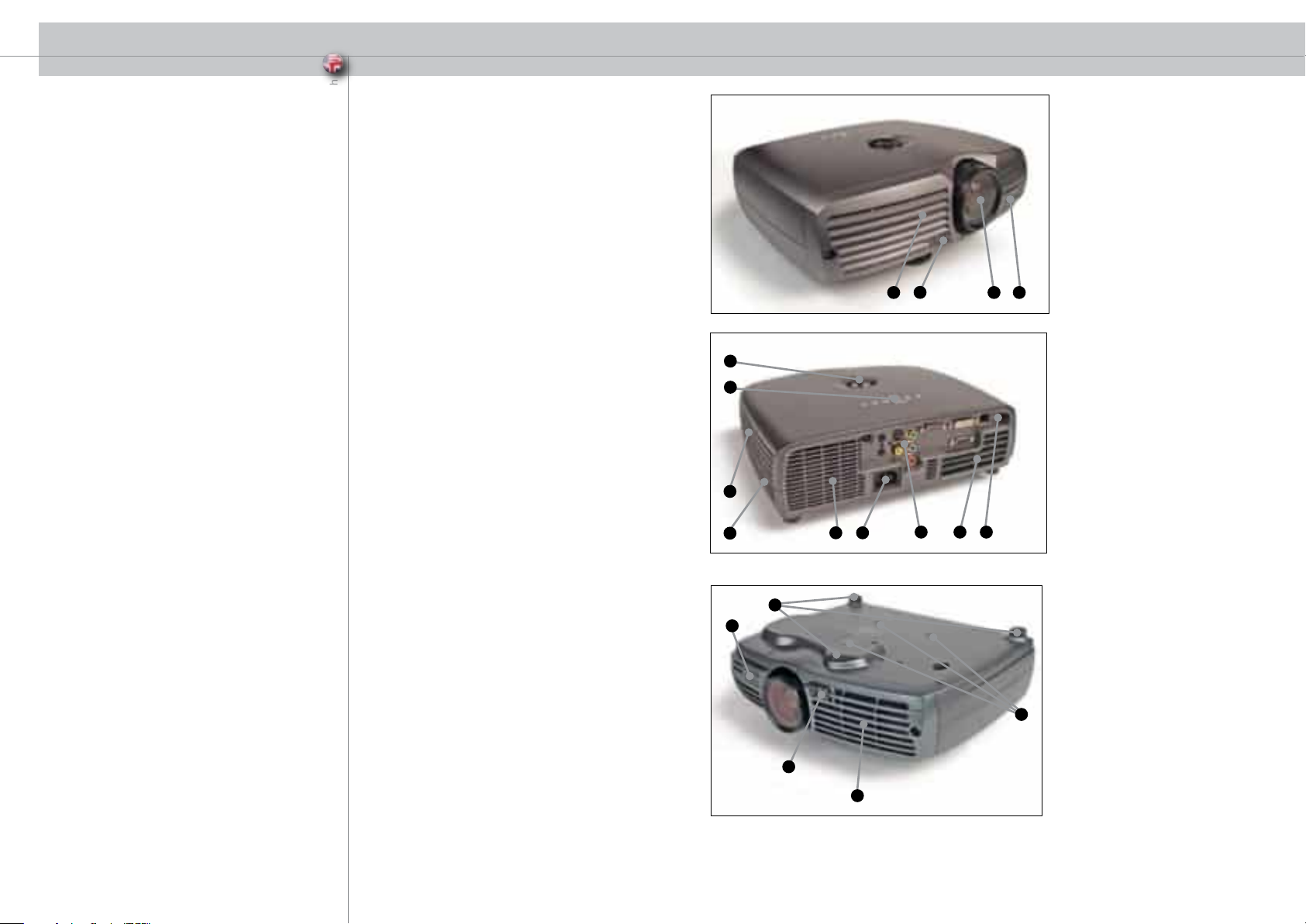

OVERVIEW

A Lens

IR sensor

B

Ventilation

C

Foot release

D

Power connector

E

Keypad

F

Connector panel

G

Lens shift

H

Adjustable feet

I

Security lock

J

K

Ceiling mount

H

F

C

J

C E

D

C

G C B

A B

I

B

K

D

C

english

18

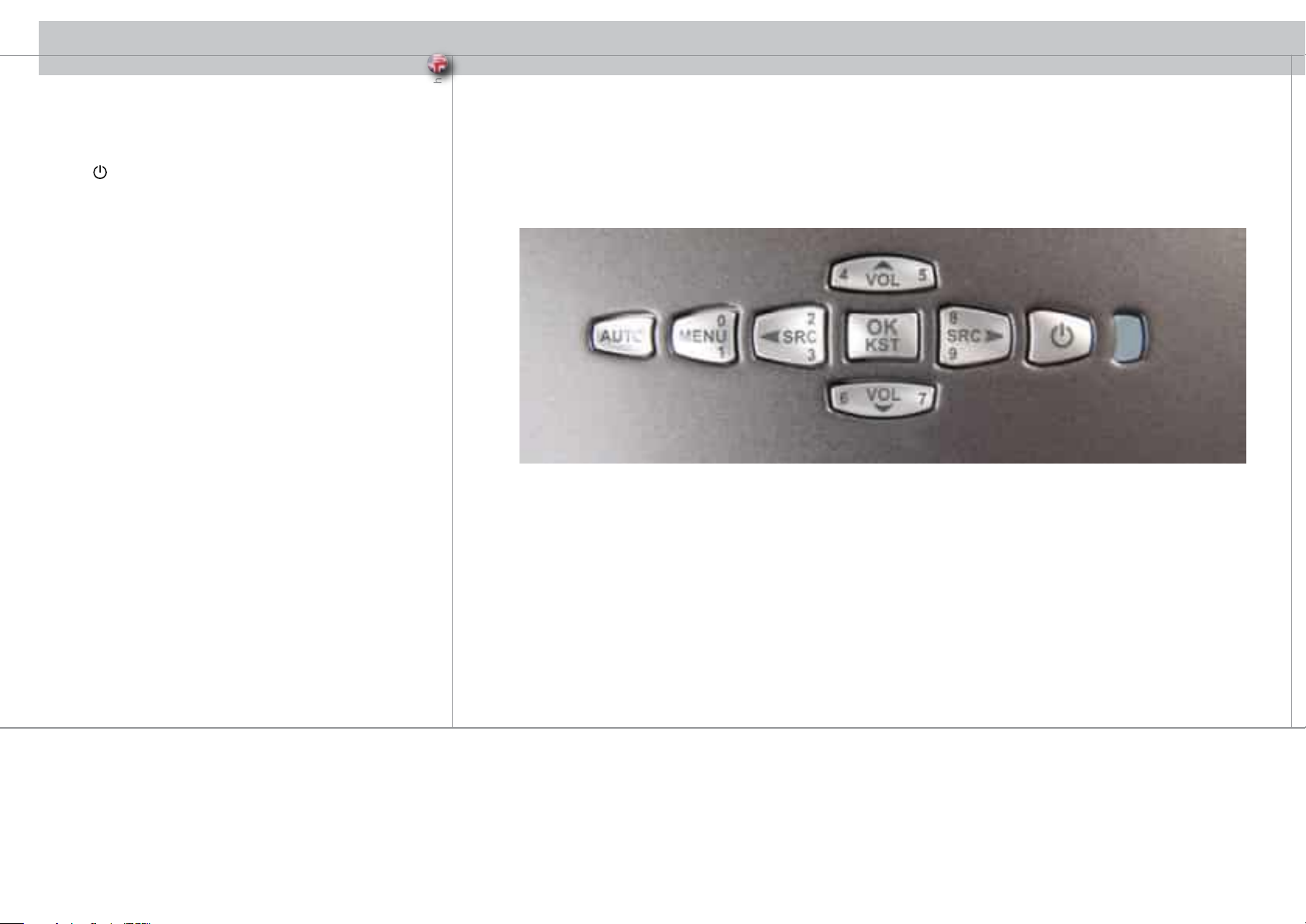

KEYPAD

The keypad is illuminated for operation in dark environments. Several keys have
multiple functions.

POWER

Switches the projector between on and standby modes. Press firmly
(1 sec) to switch on. Press firmly (1 sec) twice to switch off.

AUTO

Adjusting the projector to display a correct image, including position,
width, height and overall stability.

MENU

Activates the menu system. Use the four arrow keys to navigate and
«OK» to activate.

ARROW KEYS

Use the arrow keys to navigate the menu system, or to control speaker sound volume
or source selection when not in the menu

OK

Confirm menu option when menu system is activated.

0-

9

These keys are used for PIN code entry.

SRC

Use these keys to select active source.

VOL

Use these keys to adjust volume of the built-in monitor speaker.

KST

Engage digital keystone correction when not in menu mode. Use arrow keys to
adjust.

TASTENFELD

18

english

20

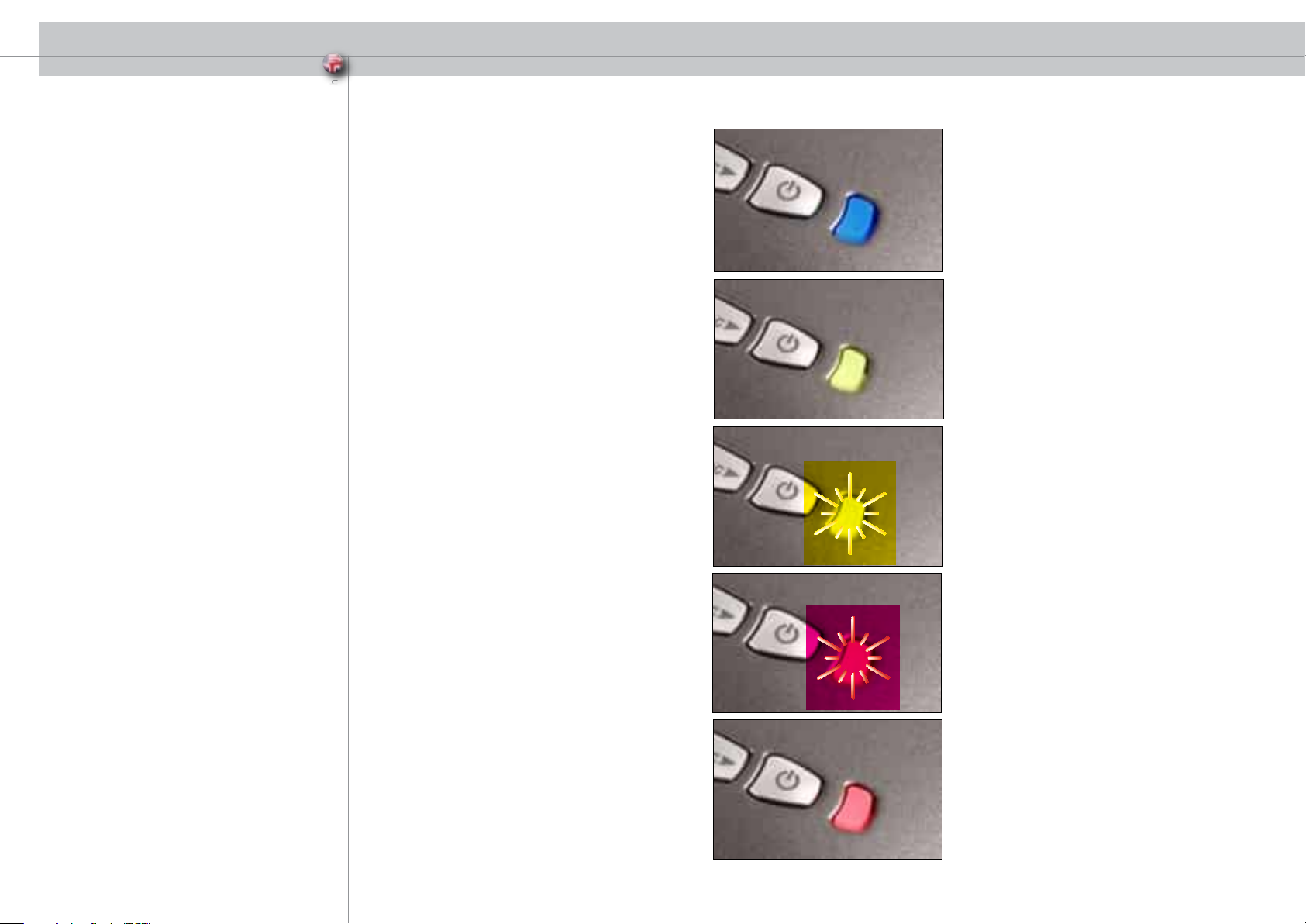

INDICATORS

INDICATOR

The light next to the power key indicates the overall system
status by blue, orange and red colors.

PERMANENT BLUE LIGHT

The projector is turned on and in normal operation.

PERMANENT ORANGE LIGHT

The unit is in standby mode; no source(s) connected, or the
source(s) connected are inactive or switched off, thereby
activating the powersave function (DPMS). You may enable or
disable the power save function in the SET UP sub menu, DPMS
on or off.

FLASHING ORANGE LIGHT

Please wait. The yellow light will flash a period after power cord
is connected (10-15 sec.), and a period after going to standby
mode while lamp is cooling down (approximately 45 sec.). The
projector may not be turned on again until the light has turned
to permanent yellow.

FLASHING RED LIGHT

Projector is overheated. Turn off immediately! Check if air inlets
are covered or if ambient temperature is outside specifications.
The projector can not be restarted unless the power cord is
disconnected and reconnected again. If the projector continues
to flash red, you will need to return the unit for service.

PERMANENT RED LIGHT

Lamp life has expired. Please change projection lamp immediately.
Failing to change lamp may lead to lamp explosion.

NO LIGHT

Power is not connected to the projector.

english

22

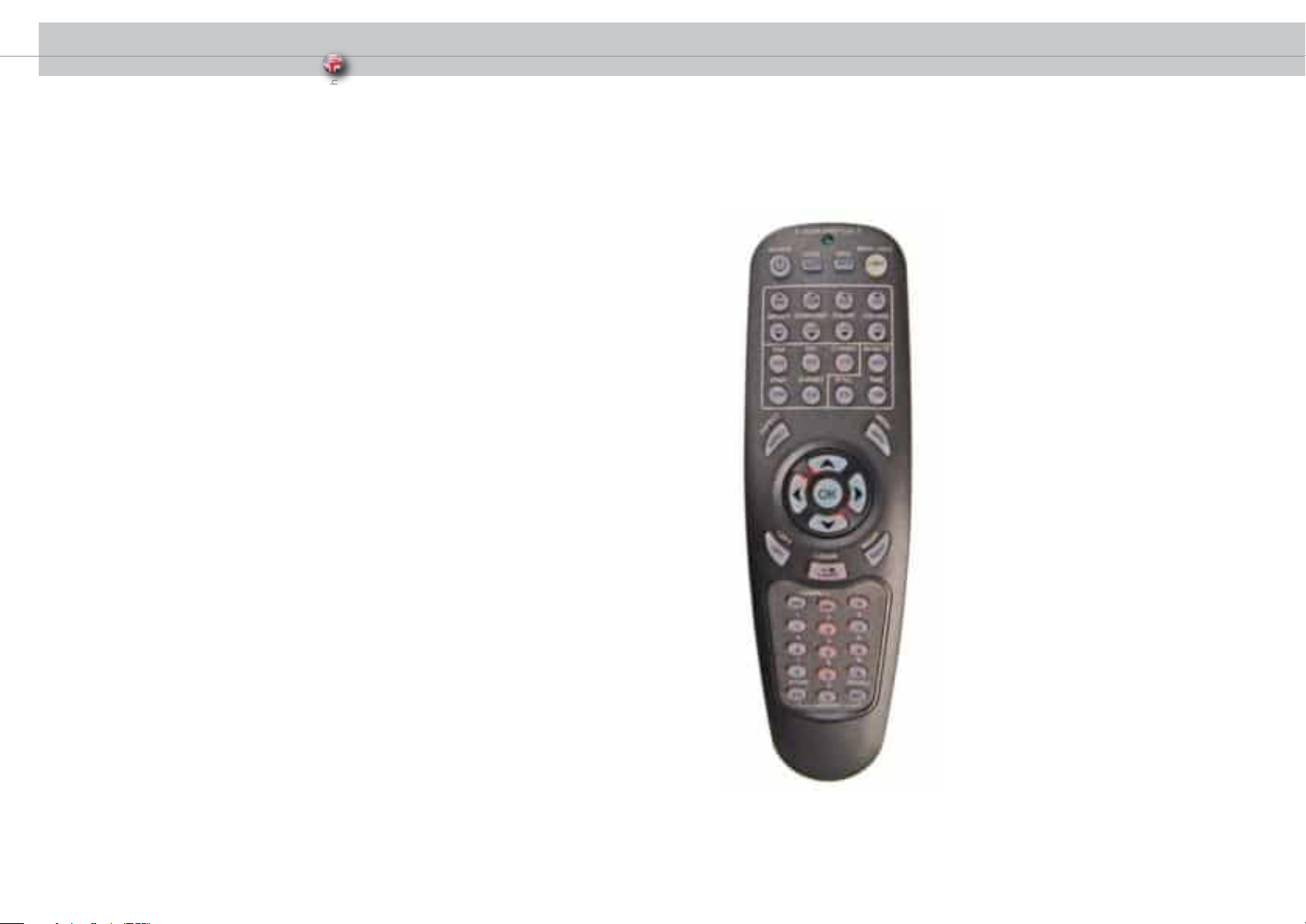

REMOTE CONTROL

The remote control allows flexible access to the projector
settings, either through direct keys, or through the menu system.
The remote control is backlit for use in dark environments. It also
has a datajack that allows for wired connection to the projector.
When the wire is connected, the IR (infra-red) beam and internal
batteries are switched off. The remote control may also be used
to control presentations by mimicing mouse functionality (LEFT,
RIGHT keys and arrow keys).

The remote control can be operated either in ‘broadcast mode’,
or ‘individual mode’. When several projectors are in use in an
installation, individual control may be convenient. Individual
control is available either by wired remote control, using the
data-jack, or by using an individual number code. For individual
control, first set the individual RC ID code using the projector
menu system, see the MISC sub menu. Then, to select a
specific projector to control, first press the ‘*’ button in the lower
keypad area, then the code as set in the target projector. A code
can be in the range ‘0’..’255’. ‘0’ is reserved for broadcast. To
select another target, repeat the process by pressing ‘*’ and a
new code. To exit individual control, press ‘*’’*’ twice or press
‘*’ and ‘0’.

POWER

Switches the projector between on and standby modes.

AUTO

Adjusting the projector to display a correct image, including
position, width, height and overall stability.

INFO

Displays source and projector status on screen.

BACKLIGHT

Switches the backlight on and off. The backlight will switch off
automatically after ten seconds.

BRIGHT

Adjusts image brightness.

CONTRAST

Adjusts image contrast.

COLOR

Adjusts color saturation of the image.

VOLUME

Adjusts the internal monitor speaker volume.

C-VIDEO

Selects the composite video input as signal source.

S-VIDEO

Selects the super video input as signal source.

YPbPr

Selects component video input.

english

24

REMOTE CONTROL

DVI

Selects the DVI input.

VGA

Selects the VGA input.

AV-MUTE

Toggles the internal speaker and the projected image on and off.
The lamp is not shut off.

STILL

Toggle function, locking the projected image on and off.

TIME

Displays date and time. Set the date and time in the MENU
system, MISC sub menu.

ASPECT

Cycles through the aspect ratios available with the
current source.

MENU

Toggles the menu system on and off.

ARROW KEYS

Use the arrow keys to navigate in the menu system
and other adjustments. Controls the mouse pointer when not in
the menu system or other functions.

LEFT

Emulates the LEFT mouse key when not in the MENU system.

RIGHT

Mimics the RIGHT mouse key when not in the MENU system.

OK

Press OK to confirm selected option in menu.

LASER

Activates the built-in laser pointer. CAUTION! Do not
point laser beam at people. Do not stare into laser
beam.

GAMMA

Press GM+ or GM- to select between gamma settings.

STORE

Press STORE, then one digit 0-9, to store user setting
in memory.

RECALL

Press RECALL, then one digit 0-9, to recall user
setting from memory.

0-

9

Used for various numeric functions such as PIN code and user
memory.

*

Used for RC ID control. See the explanation above.

english

26

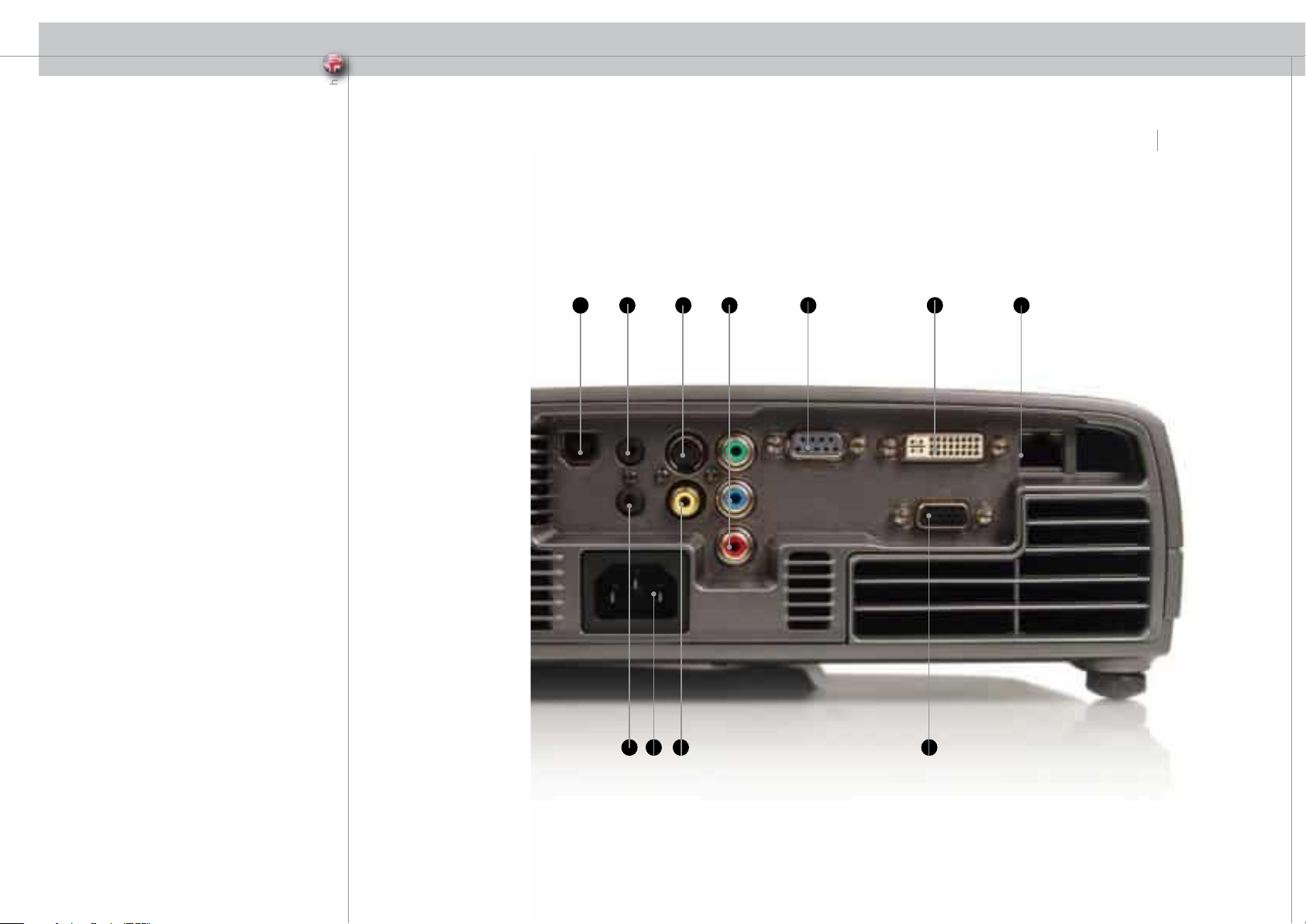

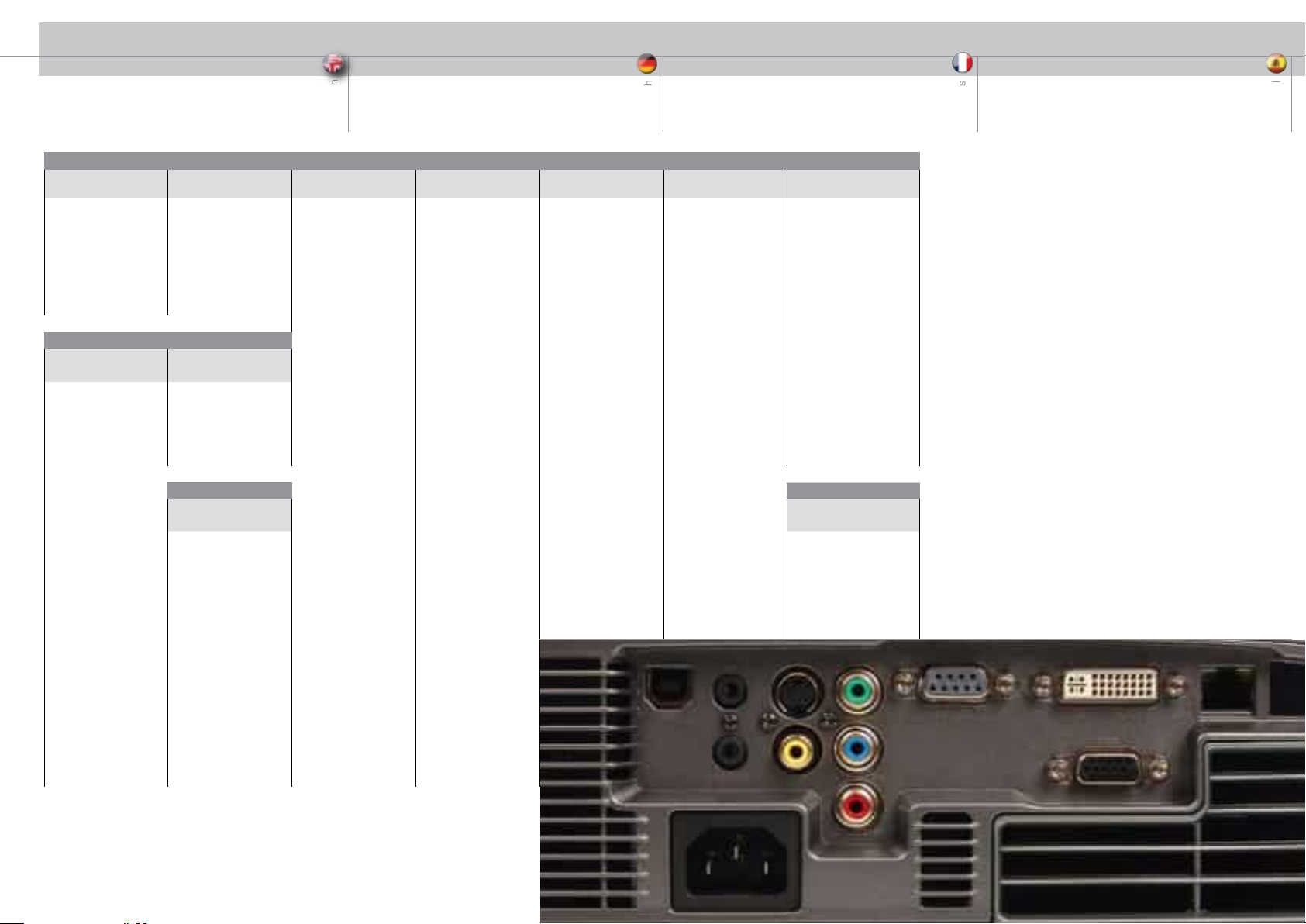

CONNECTOR PANEL

ANSCHLUSSBEREICH

C-VIDEO: Used for standard video quality.

A

B

S-VIDEO:

YPbPr:

C

D

DVI-D - Digital RGB: For a low noise computer and video

image.

E VGA - Analog RGB:

computer graphics interface.

F RS 232 control:

monitoring of many projector functions used in installation
environments.

G

RC: Allows connection of external IR receiver or wired

remote control.

SOUND:

H

USB - interface:

I

LAN:

J

Local Area Network.

K Mains power connector:

power cord.

Used for improved quality video.

Used for high quality video reproduction.

The standard analog

Allows for wired remote control and

Connects to the built-in monitor speaker.

Allows for computer mouse control.

Provides access to control and monitoring over a

Use only three-prong/grounded

I G B C F D J

EH K A

english

28

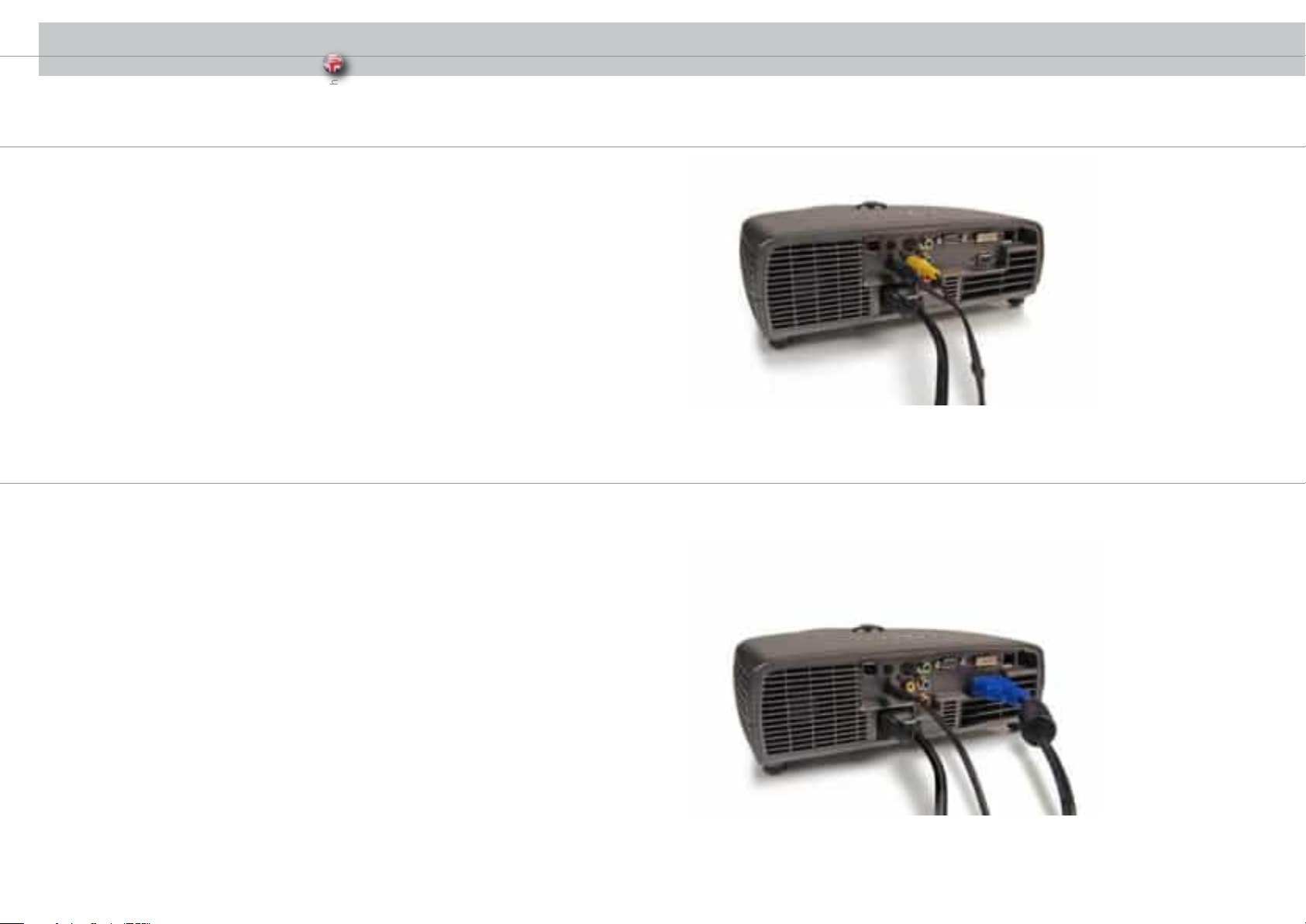

SET UP

SET UP VIDEO

Before setting-up, switch off all equipment.

Three video sources may be connected, using the YPbPr
(component), S-VIDEO (super video) and C-VIDEO (composite
video) inputs.

Component will display more detailed images. Composite video
yields images with less detail.

In addition, the DVI-D input can be used with video sources (DVD
player fitted with an HDCP™ compliant DVI or HDMI connector)
for a pure digital connection.

Connect the power cord.

SETUP COMPUTER

Before setting-up, switch off all equipment.

The projector may be connected to two computer sources
simultaneously, using the VGA and DVI inputs.

The VGA interface is analog and may cause some noise in
the projected image, depending on the signal quality from the
graphics card in the computer.

The DVI (Digital Visual Interface) interface is all-digital and will
yield a projected image with very low noise.

Connect the RS232 or LAN interface to allow for control of the
projector.

Connect the USB interface to enable mouse emulation.

Connect the power cord.

english

30

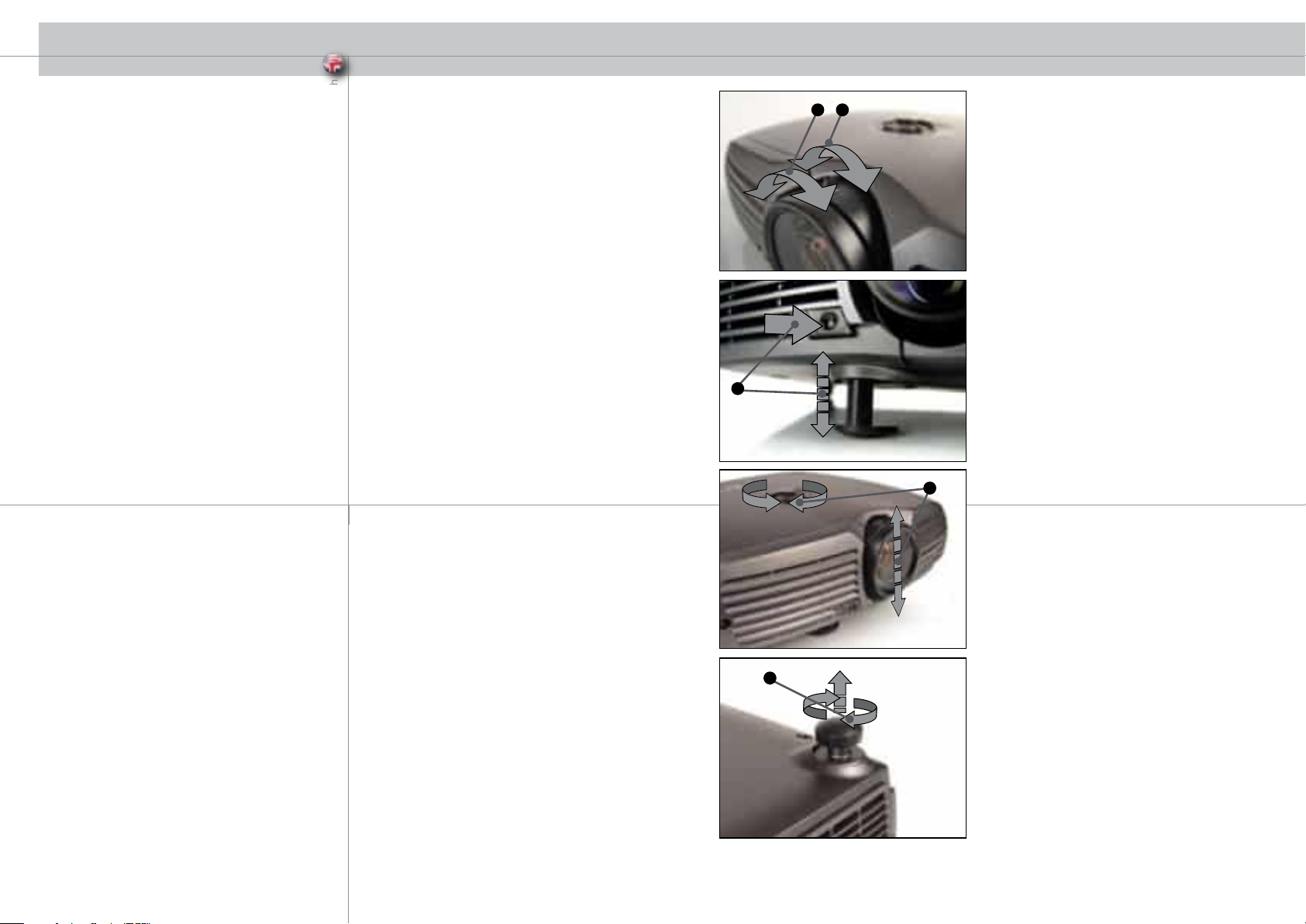

IMAGE ADJUSTMENTS

Position the projector on a level surface, preferably pointing
straight on to the projection screen. Place it at a suitable distance
within the throw range of the zoom lens.

A ZOOM the image for the right size. Reposition the projector
if the desired image size is not achievable.

B FOCUS the image properly.

Level the image by adjusting the rear feet.

C

D To adjust the image vertically on the screen, turn

the vertical adjustment knob on top of the unit.

E in addition you may release the front foot

If the front foot is ejected, you may compensate for the ‘keystone’
effect by pressing the ‘KST’ key on the keypad and adjust with
the arrow keys.

PIN CODE

B A

E

D

The projector may be controlled by a PIN (Personal Identity
Number) code. The PIN code is 4 digits, and if the PIN code is
activated, you must issue the right code to unlock the projector.

To activate the PIN code, see the UTILITIES sub menu.

If a wrong PIN code is issued, you may try again two times. If you
fail three times in a row, a PUK (unnlock) code is needed. The
PUK code is supplied with the product.

If you also fail three times with the PUK code, the projector locks
up permanently, and can only be unlocked by a special service
unlock code.

To access this code, you will need to contact your dealer or a
service station. The service unlock code will be generated based
on a secure, encrypted number that is produced by the projector
itself. The projector will produce a new number every time.

C

english

32

CEILING MOUNT

The projector can be ceiling mounted using an approved UL
tested/ listed ceiling mount fixture, with a capacity of minimum
12 kg / 26 lbs.

For ceiling mount use M4 screws that penetrate maximum 5 mm
(0.19 in) into the projector body.

For proper ventilation the minimum distance from ceiling / rear
wall should be: 30 / 50 cm (12 / 20 in).

± 20°

± 20°

VERTICAL OPERATION

The projector can be operated either horizontally (landscape)
or vertically (portrait). Restrictions apply to offset angles. Do not
operate the unit at angles greater than +/- 20º, as this will greatly
reduce lamp life time.

±20º

360º

±20º

english

34

USING THE PROJECTOR

After setting-up, switch on all equipment. The projector can be controlled by the
keypad, by the remote control or using the RS232 or LAN interfaces. To switch the
projector on, firmly press the POWER button on the keypad or the remote control. The
STATUS indicator will turn from yellow to blue when the unit is switched on.

If the STATUS indicator is flashing yellow, please wait until it turns permanent yellow.
Issue the PIN code if activated.

When only one source is connected, the projector will auto-detect that source. If more
sources are connected, the projector will search for the next active source according to
the following list, provided that SOURCE SCAN is set to ON in the SET UP sub menu
(see description of menu system):

-

VGA

- DVI-D

- YPbPr (Component)

- S-Video

- C-Video

Select between the sources by pressing the SRC buttons on the keypad or the direct
source selection keys on the remote control. Only sources that are active will be
displayed.

If no source is active, searching messages will appear on the screen. If no source is
active for a long time, the projector will go in standby mode if DPMS (power save) is set
to ON in the SET UP sub menu.

The STATUS indicator will turn from blue to flashing yellow, then yellow. The projector
will be switched back on if at least one source is (re)activated. The power-down
function can be disabled in the menu.
See DPMS in the SET UP sub menu.
To switch the projector off, firmly press the POWER button on the keypad or the
remote control twice (to confirm that you really want to switch off the unit). The STATUS
indicator will turn from blue to flashing yellow, then yellow when switched off. You may
not switch the unit on while the STATUS indicator is flashing yellow. Please wait until
the indicator is permanent yellow.

MOUSE EMULATION – PRESENTATION CONTROL

You may use the remote control arrow keys and LEFT and RIGHT buttons as a remote
mouse, controlling your presentations and for moving the mouse pointer around on the
screen. The arrow keys allow for limited mouse pointer control.

To activate the mouse control function, you need to connect the projector to the PC
via the USB port.

english

36

USING THE PROJECTOR

RS 232 AND LAN CONTROL

RS 232

You may control and monitor the projector remotely through the serial
RS232 control interface.
Two RS232 protocols are employed. A simple instruction set (SIS)
ASCII protocol gives access to the most frequently used commands.
In addition, a binary protocol is available where each command is a
series of 32 bytes in one packet. The protocols allow for both SET and
GET operations. To utilize GET operations the host needs a routine for
receiving and interpreting incoming packets. SET operations are used
to force the projector into different modes, like setting brightness and
contrast, switching between sources, etc. A separate document “RS­232 and LAN communication protocol and command set” is available
that describes the communications parameters and operational codes
in detail.

LAN

The projector can be controlled and monitored through the LAN
connector as an alternative to RS232. LAN control is available
either through an embedded web page for the most frequently used
commands or using the same command set as for RS232 for full access
to all system controls.

NOTE! THE PROJECTOR IS CONFIGURED WITH A DEFAULT
IP ADDRESS. SEE THE SYSTEM INFORMATION AVAILABLE
THROUGH THE MENU SYSTEM OR REMOTE CONTROL FOR THE
ACTUAL IP-ADDRESS.

Detailed descriptions of configuration, use and command set is
described in a separate document “RS-232 and LAN communication
protocol and command set”. You may consider using the LAN interface
as a means of theft detection. When the projector is removed, the LAN
will be disconnected; this may be detected over the local area network
and could be used to trigger an alarm.

TIMER

The projector features a real-time clock that enables timing control.
This means that the projector can be programmed to switch on and
off at certain pre-set times during a weekly cycle. To allow for a flexible
schedule, 10 ‘programs’ are available. With each program, you can define
the switch on or switch off time for a single day (Monday to Sunday), all
work days (Monday through Friday), or week-end (Saturday and Sunday).
One, several or all programs can be active at the same time as desired. In
this way, a flexible scheme can be established. Observe the 24 hour time
format. See the MENU system, MISC sub menu, CONFIGURE TIMER,
for more details on how to define the programs.

The following example illustrates a case where the projector turns on at
08:00 in the morning (8 am) and switches off at 20:00 (8 pm) on weekdays
(Monday through Friday). Weekends (Saturdays and Sundays), it turns
on at 10:00 (10 am) and off at 18:00 (6 pm). VGA is used as the source.
For this, four programs are needed, 2 for on and two for off.

c o n f i g u r e t i m e r

program number:

weekday(s):

execute time:

action:

start-up source:

status:

p r e s s O K t o g o b a c k

c o n f i g u r e t i m e r

program number:

weekday(s):

execute time:

action:

start-up source:

status:

p r e s s O K t o g o b a c k

c o n f i g u r e t i m e r

program number:

weekday(s):

execute time:

action:

start-up source:

status:

p r e s s O K t o g o b a c k

c o n f i g u r e t i m e r

program number:

weekday(s):

execute time:

action:

start-up source:

status:

p r e s s O K t o g o b a c k

s e t d a t e a n d t i m e

time (hh/mm/ss):

date (dd/mm/yyyy):

day of week:

p r e s s O K t o g o b a c k

1

monday - friday

08: 00

power on

VGA

activated

2

monday - friday

20 : 00

power off

VGA

activated

3

saturday - sunday

10 : 00

power on

VGA

activated

4

saturday - sunday

18 : 00

power off

VGA

activated

00: 59: 42

31 / 12 / 2000

monday

english

38

USING THE PROJECTOR

IMAGE CALIBRATION AND CORRECTION

Some applications require very precise color reproduction of the images. In addition,
depending on application, different color standards are applied. When preparing for
correct color reproduction, both the source and the projector must be considered.

The projector offers several ways to calibrate colors, as well as correction of the input
signal.

The source may need correction because it is usually not calibrated from the factory,
which leads to higher or lower signal levels than nominal. In addition, R, G and B may
be slightly different (not balanced), adding a tint to the image. Correcting the input signal
means adjusting the gain (contrast) and offset (brightness) of R, G and B individually.
This is in addition to the normal brightness and contrast controls.

The projector may also need calibration regardless of the source signal, because there
may be slight differences in optical coatings, as well as the spectral distribution of
individual lamps, which can even change over time. Calibrating the projector can be
done in different ways, either by changing the color temperature, by defining the x and
y color coordinates or by R, G and B adjustment.

See the MENU system, ADVANCED sub menu, for details on how to correct and
calibrate.

english

40

MENU SYSTEM

The menu system gives access to a multitude of image and
system controls. The menu system is structured through a
top menu and several sub menus. The sub menus may vary
depending on the actual source selected. Some functions are
not available with some sources.

When accessing the menu system, you will enter at the position
you left last time you were using the menu system.

Press the MENU key and navigate using the arrow keys on the
keypad or the arrow keys on the remote control

TOP MENU


Basic picture controls.

dynamic

Allows additional control over the projected image.

advanced

Advanced picture controls.

set up

General projector controls.

utilities

System controls and information.

miscellaneous

Timer, PIN code and other controls

english

42

MENU SYSTEM

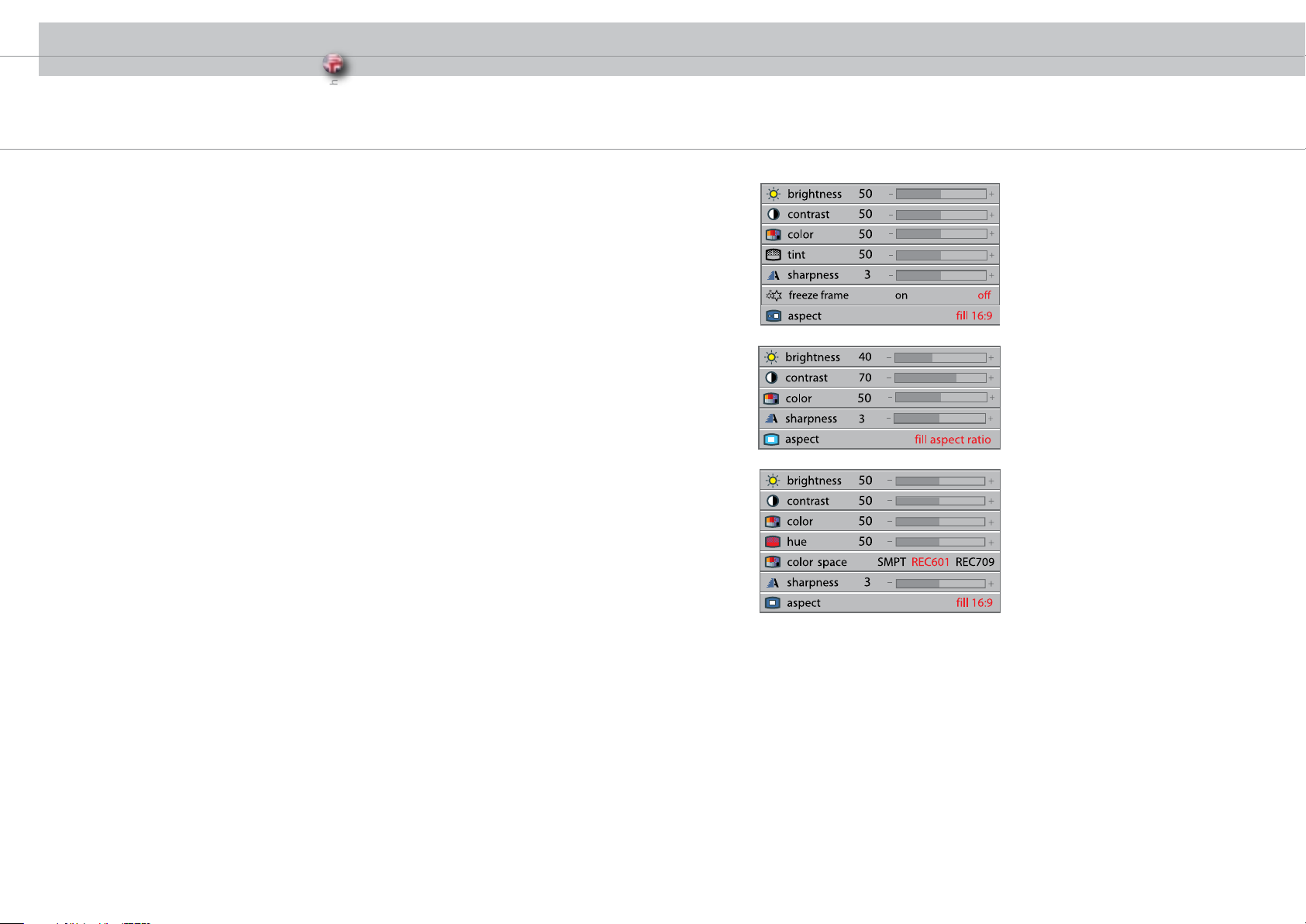

PICTURE SUB MENU

brightness

Adjusts the image brightness. A higher setting will increase the
brightness, a lower setting will decrease the brightness of the
image.

contrast

Controls the contrast of the image. A higher setting will yield
a ‘harder’ image with larger difference between shades, while
a low setting will produce a ‘softer’ image with less difference
between shades.

color

Adjusts the color saturation. A higher setting will produce
stronger coloring, while a lower setting will yield paler colors.

tint

Adjusts the NTSC color tint. Applicable to NTSC (American) video
standard only. A higher setting will yield a more reddish color
scheme, while a lower setting will turn colors more greenish.

hue

Controls the color hue.

sharpness

Controls the image sharpness. A higher setting will yield a harder
image, with less filtering. In video applications, this may produce
more noise in the projected image. A lower setting will soften
the image, looking more smeared out, and reducing the overall
noise.

still

freezes the image displayed.

aspect

Selects image format. An image may be displayed in various
aspect ratios. This function is used when displaying source
formats that differ from the projectors native display format.

S-VIDEO / C-VIDEO / YPbPr (interlaced)

VGA/DVI

YPbPr (progressive)

english

44

MENU SYSTEM

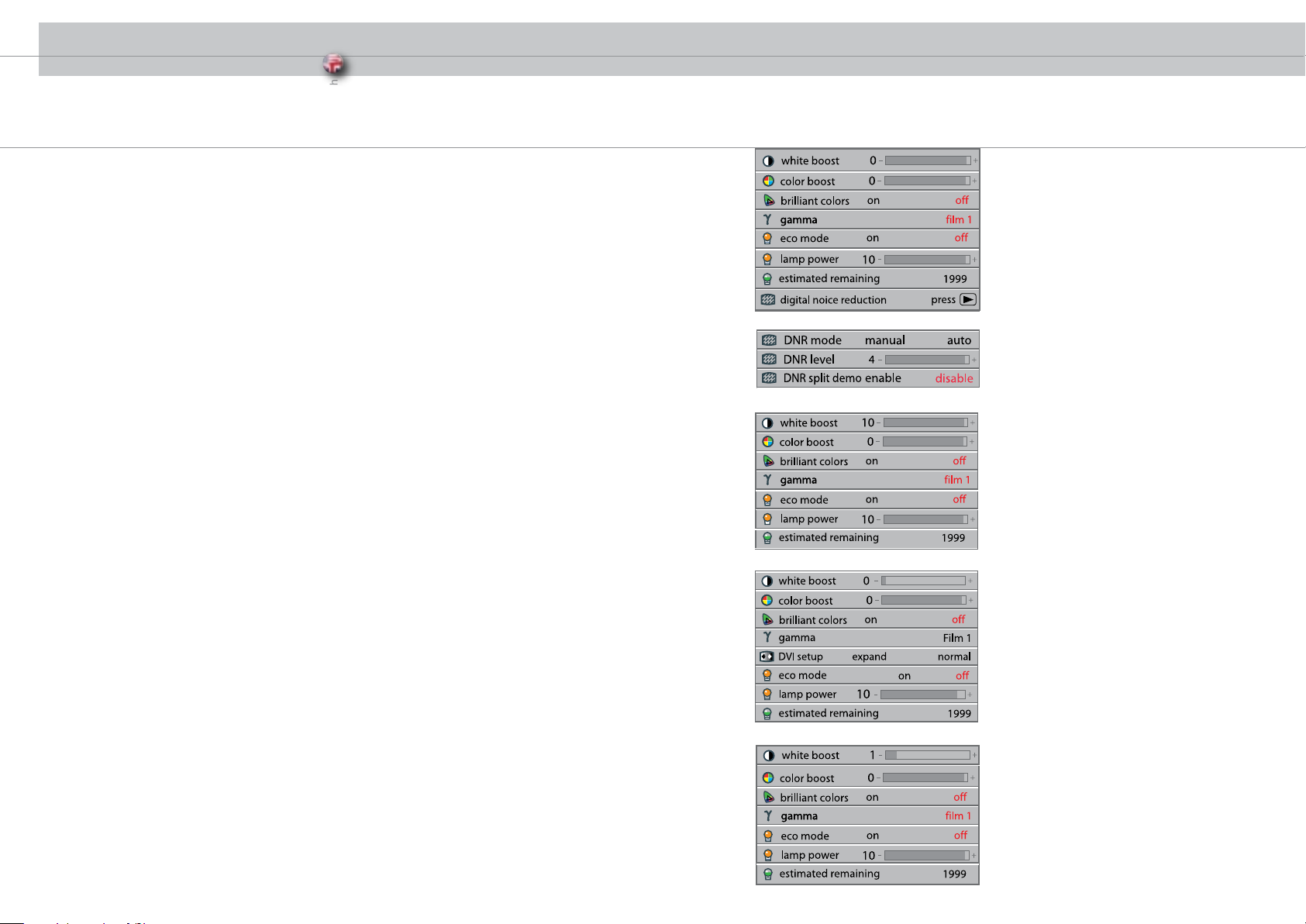

DYNAMIC SUB MENU

white boost*

Increases the white level of the image for enhanced contrast

color boost*

Boosting the colors in the image for more saturated colors.

brilliant colors*

Turns the Brilliant color feature off, no use of the secondary
colors.

gamma

The source image is adapted to characteristics typical to certain
applications. This enables an optimized display of images,
depending
on whether the source is video, computer etc.

DVI setup

Enables an expanded dynamic range when using DVI.

digital noise reduction

Reduce noise in video images from unstable sources, cabling
or material.

DNR mode

Switch DNR (digital noise reduction) off, manual or auto.

DNR level

Select filtering factor. Heavy filtering will reduce noise, but also
smoothen out the image and make it less sharp.

DNR split

You may run half screen with DNR and half screen without DNR
to see the difference.

eco mode

Switch eco mode (low power and long life) on or off. When on,
lamp power may not be adjusted. When off, lamp power may
be adjusted.

lamp power

Adjust lamp power when not in eco mode.

estimated remaining

The estimated remaining lamp life at the current lamp power.

*Model dependent

S-VIDEO / C-VIDEO / YPbPr (interlaced)

DIGITAL NOISE REDUCTION

VGA

DVI

YPbPr (progressive)

english

46

MENU SYSTEM

ADVANCED SUB MENU

h position

Shifts the image sideways.

v position

Shifts the image up and down.

phase

Adjust for stable image. A jittery image may appear with certain
VGA sources. You may also press the AUTO button on the
keypad or remote control to optimize
.

frequency

Adjust image width. An incorrect setting may produce vertical,
unstable bands in the image, and parts of the image may not
be displayed on screen. Push the AUTO button to find a correct
setting, or manually adjust the frequency until the vertical bands
disappear.

S-VIDEO / C-VIDEO / YPbPr (interlaced)

VGA

DVI

YPbPr (progressive)

english

48

MENU SYSTEM

ADVANCED SUB MENU

color management

The color temperature and color coordinates can be calibrated
as desired.

mode

Select not corrected, temperature or custom color. The not
corrected setting displays the native color temeperature of the
projector.

temperature

Select color temperature in steps of 100 Kelvin from 3200 – 9200
K along the ‘black body curve’ of the CIE color chart.

custom color

Allows user control of the color temperature by way of either
adjustments in the RGB domain or x,y space.

RGB

Allows correction of R, G and B gain individually.

coordinate (x,y)

Set x and y color space coordinates directly. You may also reset
to standard D65 coordinates.

source correction

This function allows correction of the incoming signal in the
RGB space. Some sources may output R, G and B signals that
need correction of gain (contrast) and/or offset (brightness). You
may adjust gain (contrast) and offset (brightness) for R, G and
B individually.

video format

Select between manual or auto detection of TV standard.

video type

Select between video types; DVD and VCR. The DVD setting is
normally used and will yield well defined video images.

COLOR MANAGEMENT AND SOURCE CORRECTION

mode

red gain

green gain

blue gain

red offset

red gain

green offset

green gain

blue offset

blue gain

english

50

MENU SYSTEM

SET UP SUB MENU

keystone V

Adjust vertical keystone correction. Compensates for the
geometrical distortion of the projected image resulting from
tilting the projector to shoot higher up on the wall.

keystone H

Adjust horizontal keystone correction. Compensates for the
geometrical distortion of the projected image resulting from
shooting the image at an angle sideways to the screen.

DPMS

Activate/deactivate DPMS (Display Power Management
Signalling). When DPMS is on, the projector will switch off
following the powering off or disconnection of the signal source.
The projector will switch back on when the signal source is
reactivated.

source scan

Switches source scan on and off. With source scan on, the
projector will search for another source if the current source is
disconnected or switched off. With source scan off, the projector
will remain at the selected source input even if the source is
switched off or disconnected.

orientation

Select between desktop front, desktop rear, ceiling front and
ceiling rear mode. The image will be flipped and reversed
accordingly.

OSD

Select where to have the On Screen Display.

language

Select between languages.

RGB video

Selects RGB video on the component video input (YPbPr).
Requires composite sync connected to the composite video
input.

RS

232 baud rate

Select baud rate to secure good transmission. Longer cable
runs usually means you need to set lower baud rates.

FOR ALL

english

52

MENU SYSTEM

UTILITIES SUB MENU

system information

Displays information about the source and projector status.

OSD

Turn the On Screen Display on (display) or off (hide) during
source scan.

OSD timeout

Defines how long OSD is displayed after last key action before it
disappears from the screen.

OSD background

Select background mode, whether transparent or opaque.

factory reset

Resets the projector to its basic settings. All parameters available
in the various menus are reset to their factory values.

lamp reset

Resets the lamp counter after changing lamp.

service menu

For service personnel only. A special service code is needed to
access internal calibration controls and status information. Not
accessible to the user.

test image

Applies a fixed test image for set-up purposes.

FOR ALL

system information press

OSD on off

OSD timeout 50 seconds

OSD background opaque translucent

reset press

lamp reset press

service menu press

test image hide show

english

54

MENU SYSTEM

MISC SUB MENU

audio options

adjust the volume or mute the built-in monitor speaker.

configure timer

The projector has a built-in real time clock that can be used to
time the operation of the unit. Use up and down arrow keys
to adjust value. Use left and right arrow keys to move between
fields.

program number

10 programs are available to time the projector. Multiple
programs (up to 10) can be active at the same time.

weekday

select individual weekday (Monday to Sunday), working days
(Monday through Friday), all week (Monday through Sunday) or
weekend (Saturday and Sunday) as the days of operation.

execute time

Set the time when the projecter shall execute an action (see
below). Use 24 hour format.

Action

Define whether the projecter shall turn on or off at the given
execute time (see above).

start-up source

Define which source to display when switching on.

status

Shows whether the program is active or not

set date and time

Use up and down arrow keys to adjust value. Use left and right
arrow keys to move between fields.

enable PIN

Activate the PIN code. The projector needs a PIN code to
unlock.

disable PIN

De-activate the PIN code. The projector no longer needs a PIN
code to unlock.

change PIN

To change PIN code, enter old code, then new code twice.

keypad light timeout

Define the timeout for the keypad backlight to turn off after
activating a key.

RC ID

Use the left and right arrow keys to select address for individual
remote control. By selecting an individual address, the projector
will only react when this address is issued from the remote
control. Adress range is 0..255. Adress 0 is ‘broadcast mode’,
meaning a unit with address 0 will react to any other address.

FOR ALL

audio options

configure timer

volume

mute

enable

disable

set date and time

enable PIN

disable PIN

change PIN

keypad light timeout

RCID

c o n f i g u r e t i m e r

program number:

weekday(s):

execute time:

action:

start-up source:

status:

p r e s s O K t o g o b a c k

1

monday - friday

08: 00

power on

VGA

activated

e n t e r P I N c o d e

attemt 3/3

_ _ _ _

p r e s s O K t o g o b a c k

c h a n g e P I N c o d e

enter old PIN

enter new PIN

confirm new PIN

p r e s s O K t o g o b a c k

_ _ _ _

_ _ _ _

_ _ _ _

english

56

TROUBLE SHOOTING

NO IMAGE

No connection: Check if all connections are properly made.

Source off: Check if the equipment is powered on.

Lamp dead: The lamp may need replacement. Check the LAMP TIME

in the UTILITIES sub menu.

Source hibernated: Engage the source to display and activate image.

Notebook external screen: Different notebook PC’s use different combinations of

keystrokes to enable the external graphics port.

Source scan off: Check SOURCE SCAN in the SET UP sub menu. If setting is OFF,
the projector will not search for the next active source, but will remain with the current
source selected.

Lens cap: check if the lens cap is off!

DARK IMAGE

Old, worn lamp: The lamp may need replacement. Check the LAMPTIME in the

UTILITIES sub menu.

Low BRIGHTNESS and CONTRAST settings: Use the remote control or the menu
system, PICTURE sub menu for CONTRAST and BRIGHTNESS adjustment.

FLICKERING IMAGE

Bad lamp: Replace the lamp. Check the LAMP TIME in the UTILITIES sub menu.

UNSHARP IMAGE

Lens not focused: Focus the lens properly. Keystone correction may have been

activated inadvertently: Parts of the image is compressed that affects the display of
fine-line graphics, text and other images of high resolution.

Source resolution is different from projectors native resolution:

The projector will automatically scale and resize the input format to its native
resolution. Use a different scaling factor in the PICTURE sub menu, ASPECT. You
may also adjust the SHARPNESS.

english

58

MAINTENANCE

The projector may from time to time need cleaning. Never open the unit, as this will void
any warranties. Refer service and repair to qualified personnel only.

The projector is using lamps that have a limited life time. Please refer to the LAMP
CHANGE section below for further details.

Only the exterior of the unit may be cleaned. Use a damp cloth. Make sure no liquids
enter the inside of the projector Vacuum clean all the air vents (A) regularly to maintain
sufficient air flow.

The projection lens (B) is sensitive to scratches. Use lens cleaning tissue, available at all
photographic stores when cleaning the projection lens. Use lens cap when not in use.

HEAVY DUTY AND CONTINOUS USE

The projector contains moving parts (such as cooling fans) that have limited life­expectancies. When the projector has been used for 7 500 hours, and when the unit
is used in mission-critical applications, it is recommended that the projector is given
preventive maintenance by a qualified service person. This will help ensure long term
stable operation.

SERVICE INFORMATION

This product contains no user serviceable parts. If the product fails to function as
expected, please first check that all connections are properly made, and that the power
cord is properly connected. Please check that the projector as well as the video and
computer sources are all switched on. Cables and cords may break over time. Try to
change cables and cords, in case there is a bad or intermittent connection. Check if
the circuit breaker or fuse of your mains is intact. In the event of product failure, please
contact your reseller. You should prepare a description of the symptoms of failure you
experience. Please also state product number and serial number as printed on the label
on the bottom of the projector.

SERVICE PERSONNEL INFORMATION
WARNING

Use UV radiation eye and skin protection during servicing

english

60

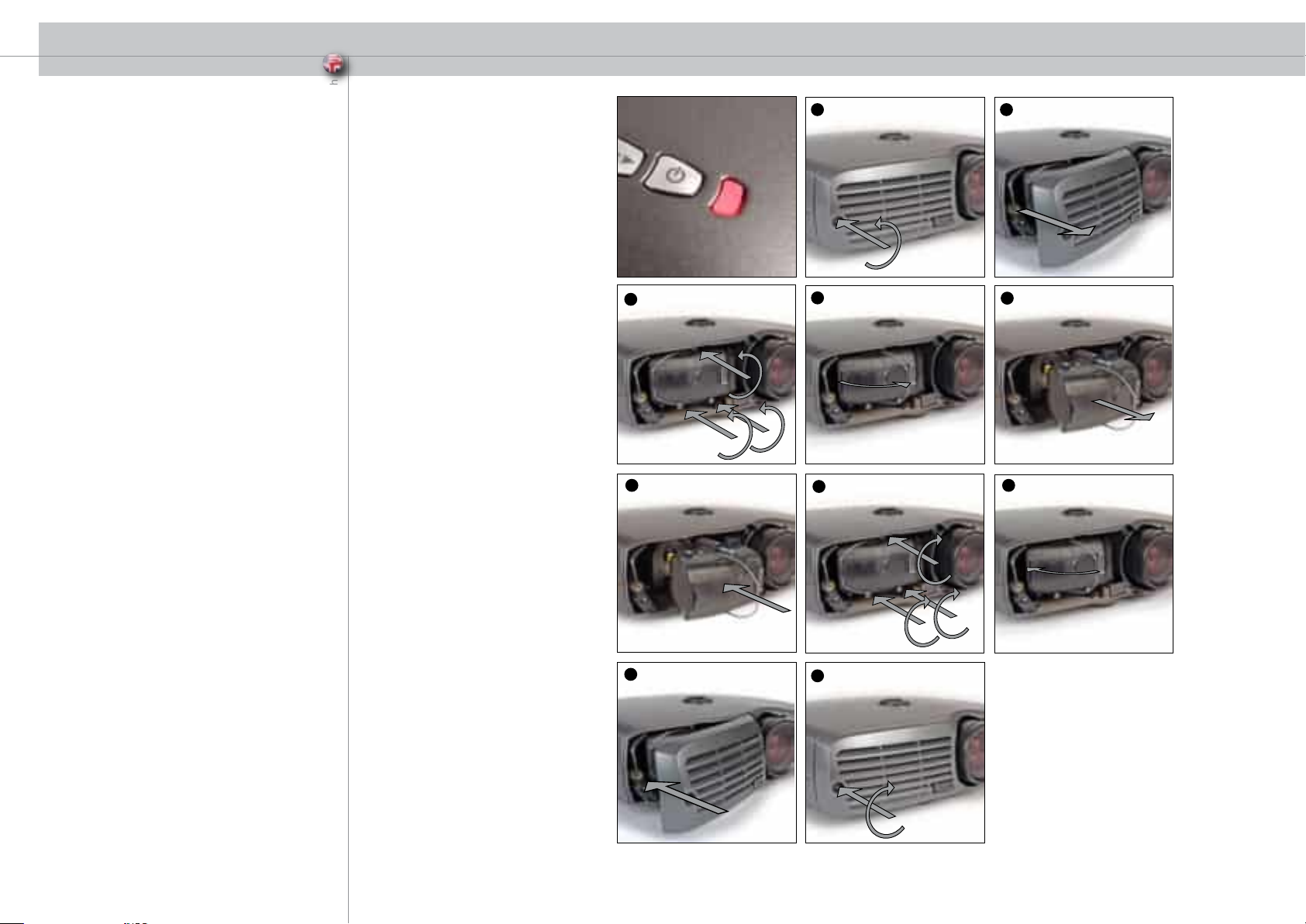

LAMP CHANGE

61

The INDICATOR on the keypad will turn red when lamp life ex­pires. Change the lamp when lifetime expires. Always replace
lamp with the same type and rating.

Always disconnect the power cord and wait until the projector
has cooled down (60 minutes) before opening the lamp cover.

WARNING

Be careful not to touch the protective glass when replacing the
lamp house, this may cause the protective glass to overheat and
break while in use.

WARNING

Be extremely careful when removing the lamp module. In the
unlikely event that the bulb ruptures, small glass fragments may
come loose. The lamp module is designed to contain these frag­ments, but use caution when removing the lamp module.

Release the front cover screw.

A

Remove the front cover.

B

Un-screw the three mounting screws.

C

Release the handle and pull the lamp out.

D

Replace with a new lamp in reverse order.

Insert a new lamp. Observe the guide pins.

E

F Fix the three mounting screws firmly. Do not use excess

force.

Re-position the handle.

G

Replace the front cover.

H

I Fix the front cover screw carefully, but do not use excess

force.

A B

C

E

H

D

F

I

D

G

TECHNICAL DATA

Technical data shown are for the following versions : SX+, HD720-3 and
HD720-2. Different specifications apply accordingly. Where HD720 only
is referenced, data are valid for both -2 and -3 versions.

Resolution

Display technology

Display device

Computer Compatibility

Video Compatibility

Aspect Ratio

Bandwidth

Brightness

Contrast

Lamp

Lamp Life

Lens

Dimensions

Weight

Inputs

Outputs

Power

Conformance

Temperature operating

Temperature storage

Humidity operating

Humidity storage

1400 x 1050 (native) SXGA+, 4 : 3 aspect ratio
1280 x 720 (native) HD720, 16 : 9 aspect ratio

Single chip DLP™ technology by Texas Instruments®

LVDS DMD™ with DarkChip™ technology

UXGA, SXGA+, SXGA, XGA, SVGA, VGA, PC, MAC, SGI and other workstations, RGBHV, RGBS, RGsB

HDTV (1080i, 720p, 576i/p, 480i/p), NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM. Faroudja™ de-interlacing with automatic film mode
detection (3 : 2 and 2 : 2 pull-down)

4 : 3 (native), 16 : 9 / 5 : 4 (compatible) SXGA+
16 : 9 (native), 4:4 / 5:4 (compatible) HD720

Up to 205 MHz on analog RGB
Up to 160 MHz on DVI
Up to 75 MHz on component input

SXGA+ 2500 ANSI lumen (typ), 2000 ANSI lumen (min) @ 220W lamp power*) 2000 ANSI lumen (typ),
1600 ANSI lumen (min) @ ECO-mode 180W lamp power*)
HD720 1000 ANSI lumen (typ), 800 ANSI lumen (min) @ 220W lamp power*) 800 ANSI lumen (typ),
640 ANSI lumen (min) @ ECO-mode 180W lamp power*) *) Initial brightness.

2000 : 1 B/W (typ), 1500 : 1 B/W (min) SXGA+
4000 : 1 B/W (typ), 3000 : 1 B/W (min) HD720-3
3000 : 1 B/W (typ), 2200 : 1 B/W (min) HD720-2

220W UHP™ dimmable to 180W

2250 hrs (typical) to 50% brightness @ 220W
3000 hrs (typical) to 50% brightness @ 180W

Zoom lens
f = 24.9 - 32.6 mm
F = 2.1 - 6.5
zoom ratio = 1.3 x
throw ratio = 1.3 - 1.7 : 1 (distance : width)
throw distance =1 - 15 m / 3.3 - 50 ft.
horizontal shift = 0%
vertical shift = 0 - 100%

234 x 278 x 94 mm / 9.2” x 10.9” x 3.7”, excluding lens

2.9 kg / 6 lbs, excluding lens

1 VGA 15 pin female HD-DSUB analog RGBHV
1 DVI-D female digital RGB
1 Component video female 3 x RCA/phono
1 S-video female 4 pin mini-DIN
1 C-video female RCA/phono
1 RS 232 9 pin female DSUB (control, firmware update)
1 USB-B female (control, firmware update)
1 LAN RJ-45 female (control, firmware update)
1 Remote Control 3.5 mm female stereo jack

1 VGA Monitor 15 pin female HD-DSUB analog RGBHV
1 RS 232 9 pin male DSUB
1 sound 3.5 mm female stereo jack
1 RC in 3.5 mm stereo jack

90-260 VAC, 50-60 Hz, 270W

CE, FCC B, CSA(C,US), CCC

0-40°C / 32-104°F, 0-1500 m / 0-4950 ft
0-35°C / 32-95°F, 1500-3000 m / 4950-9900 ft

-20 - 60°C / -4 - 140°F

20-90% RH, non-condensing

10-95% RH, non-condensing

62

english

deutsch

francais

español

6464

CONNECTORS/STECKER/CONNECTEURS/CONECTADORES/CONNETTORI/KONTAKTER

S-Video G/Y Computer DVI Computer VGA RS-232 RC in LAN

4 PIN MINI DIN FEMALE

PHONO/RCA
FEMALE

DVI-D

15 HIGH DENSITY
DSUB FEMALE

9 PIN DSUB FEMALE

3,5mm stereo
mini jack

RJ 45

1 GND STEM GREEN: G/Y 1 TMDS Data 2- 1 Analog R in 1 NC TIP: 5V DC 1TX+
2 GND SHIELD: GND 2 TMDS Data 2+ 2 Analog G in 2 RXD RING: SIGNAL 2TX­3 Luma 3 TMDS Data 2/4 Shield 3 Analog B in 3 TXD STEM: GND 3RX+
4 Chroma 4 Not used 4 AGND 4 NC 4GND

5 Not used 5 AGND 5 GND 5GND
6 DDC Clock 6 Analog R GND in 6 NC 6RX­7 DDC Data 7 Analog G GND in 7 NC 7GND
8 NC 8 Analog B GND in 8 NC 8GND

C-Video B/Pb

9 TMDS Data 1- 9 Reserved

PHONO/RCA FEMALE PHONO/RCA FEMALE

10 TMDS Data 1+ 10 Sync GND in

11 TMDS Data 1/3 Shield 11 AGND
STEM YELLOW: STEM BLUE: B/Pb 12 Not used 12 DDC/SDA
Composite SHIELD: GND 13 Not used 13 H Sync in
SHIELD: GND 14 +5V Power 14 V Sync in

15 DDC/SCL

R/Pr USB

PHONO/RCA FEMALE DIGITAL USB

STEM RED: R/Pr 1 VCC
SHIELD: GND 2 -Data

3 +Data
4 GND

TECHNISCHE DATEN

TECHNICAL DATA DONNÉES TECHNIQUES DATOS TÉCNICOS

italiano

norsk

65

0 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 m

0

3.30

6.60

9.90

13.20 16.50 19.80 23.10 26.40 29.70

33

.00 ft

m

6.00

5.50

5.00

4.50

4.00

3.50

3.00

2.50

2.00

1.50

1.00

0.50

0

ft

20.0

18.0

16.0

14.0

12.0

10.0

8.0

6.0

4.0

2.0

0

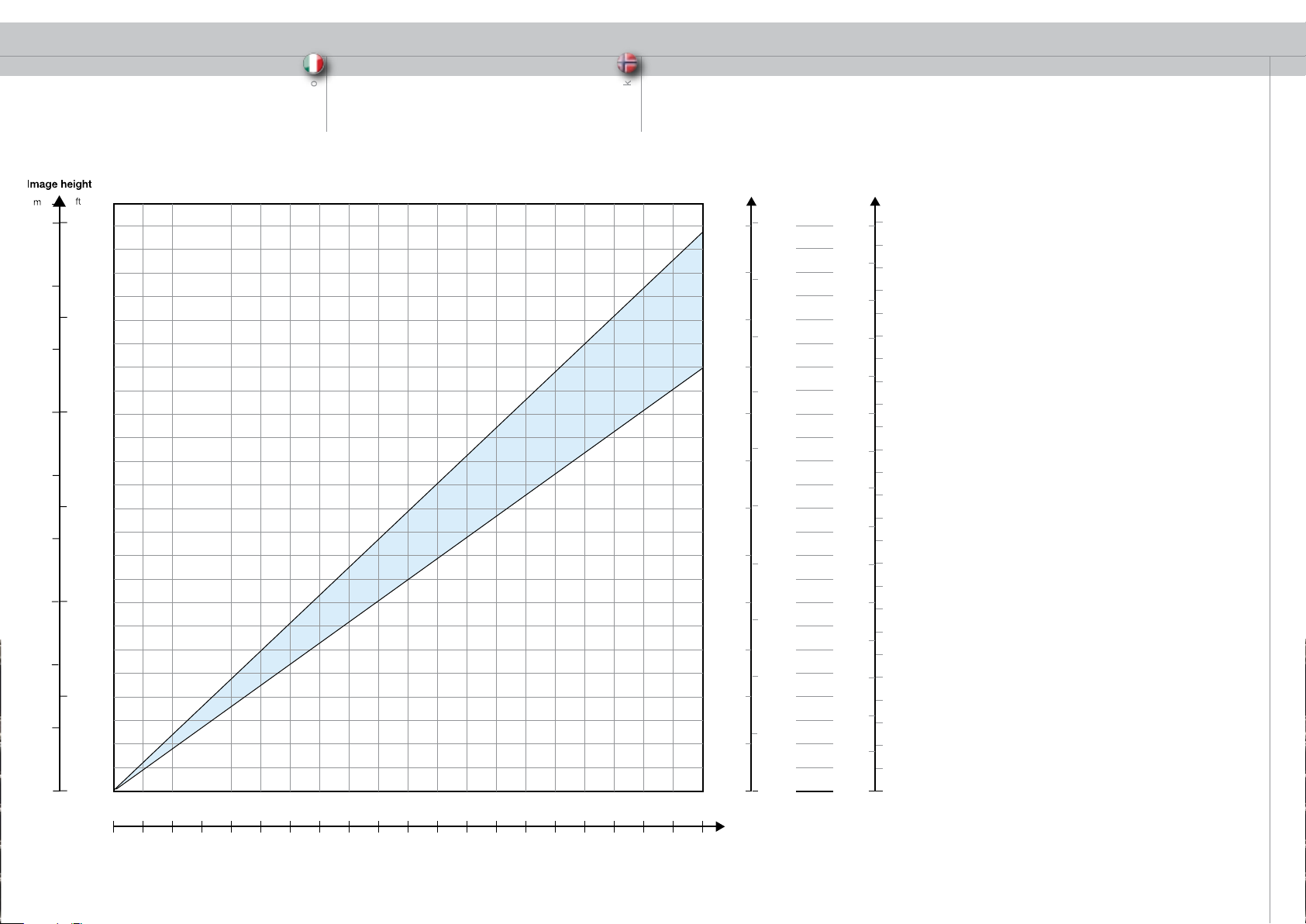

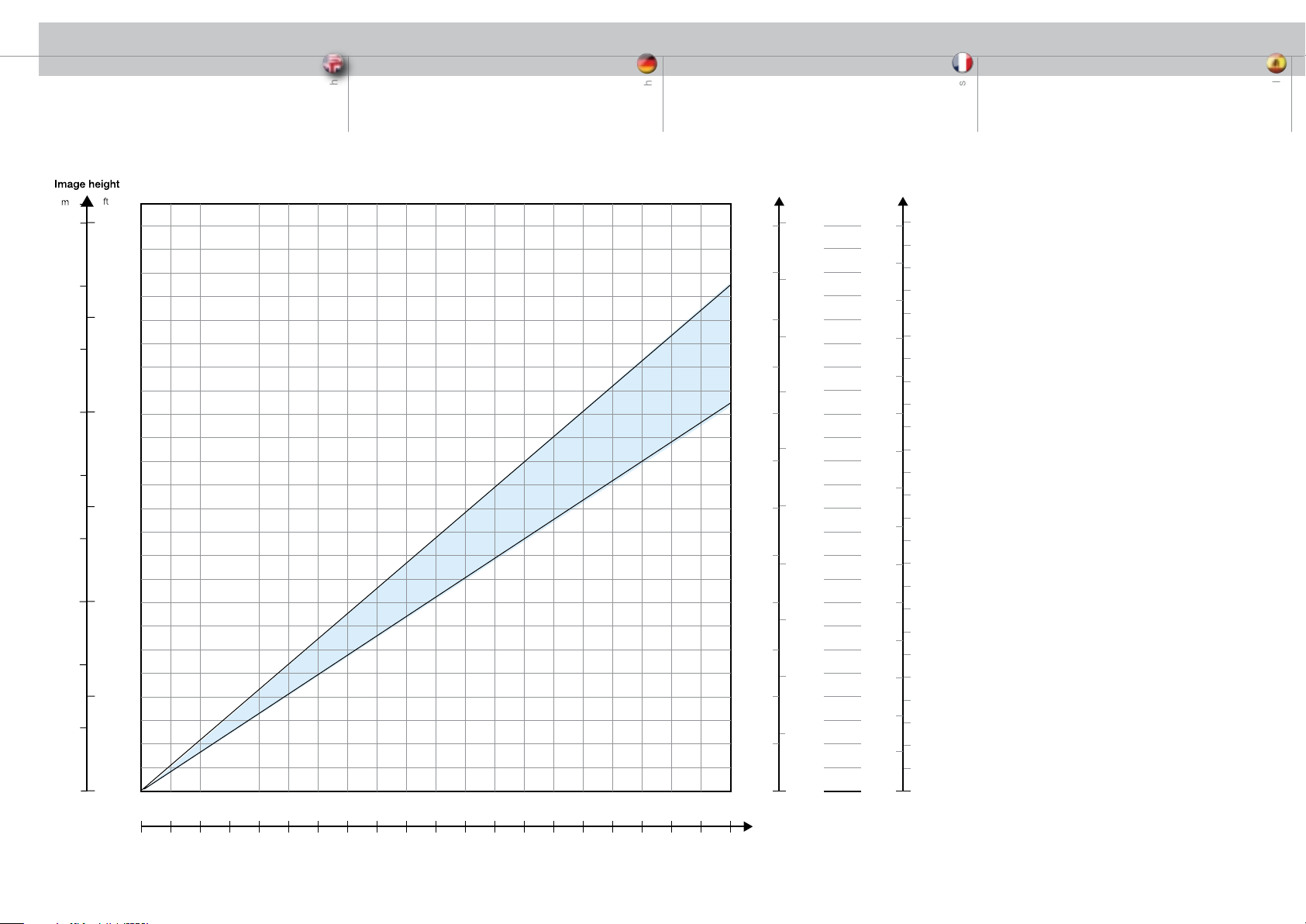

Projection distance

Image width

S

creen diagonal

25.0

20.0

15.0

10.0

5.0

0

7.50

7.00

6.50

6.00

5.50

5.00

4.50

4.00

3.50

3.00

2.50

2.00

1.50

1.00

0.50

0

Zoom lens 1.75 - 2.2 :

1

ft

m

4.50

4.00

3.50

3.00

2.50

2.00

1.50

1.00

0.50

0

15.0

12.5

10.0

7.5

5.0

2.5

0

SX+

DATI TECNICI TEKNISKE DATA

english

deutsch

francais

español

66

TECHNISCHE DATEN

TECHNICAL DATA DONNÉES TECHNIQUES

DATOS TÉCNICOS

0 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 m

0

3.30

6.60

9.90

13.20 16.50 19.80 23.10 26.40 29.70

33

.00 ft

m

6.00

5.50

5.00

4.50

4.00

3.50

3.00

2.50

2.00

1.50

1.00

0.50

0

ft

20.0

18.0

16.0

14.0

12.0

10.0

8.0

6.0

4.0

2.0

0

Projection distance

Image width

S

creen diagonal

25.0

20.0

15.0

10.0

5.0

0

7.50

7.00

6.50

6.00

5.50

5.00

4.50

4.00

3.50

3.00

2.50

2.00

1.50

1.00

0.50

0

Z

o

o

m

le

ns

1

.9

-

2

.4 :

1

ft

m

4.50

4.00

3.50

3.00

2.50

2.00

1.50

1.00

0.50

0

15.0

12.5

10.0

7.5

5.0

2.5

0

720 HD

english

68

DECLARATIONS

FCC

FCC regulations provide that changes or modifications not expressly approved by the
party responsible manufacturer could void your authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications made to this device which are not expressly approved by
the party responsible for compliance could void the user’s authority to operate the
equipment.

CANADA

This Class B digital apparatus complies with Canadian ICES-003. / Cet appareil
numérique de la classe B est conforme à la norme NMB- 003 du Canada.
