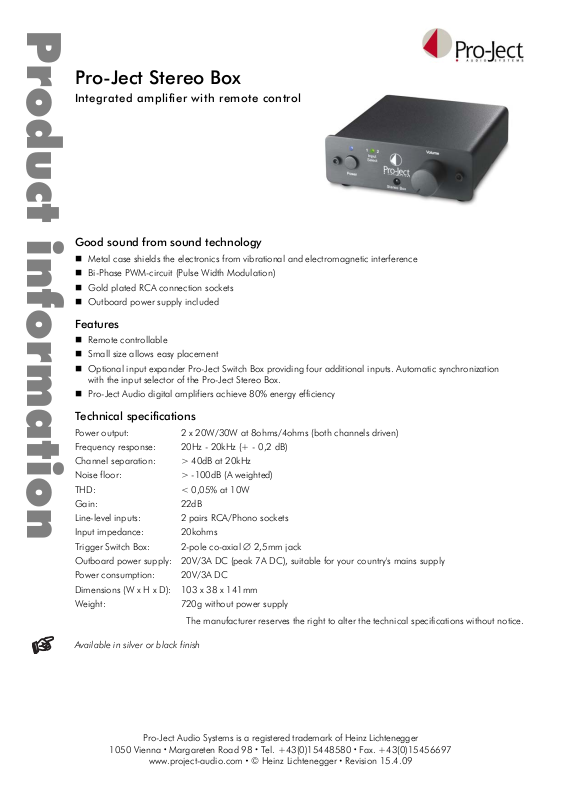

Pro-ject Audio Stereo Box Brochure
Product information
Pro-Ject Stereo Box
Integrated amplifier with remote control
Good sound from sound technology
Metal case shields the electronics from vibrational and electromagnetic interference
Bi-Phase PWM-circuit (Pulse Width Modulation)
Gold plated RCA connection sockets
Outboard power supply included
Features
Remote controllable
Small size allows easy placement
Optional input expander Pro-Ject Switch Box providing four additional inputs. Automatic synchronization
with the input selector of the Pro-Ject Stereo Box.
Pro-Ject Audio digital amplifiers achieve 80% energy efficiency
Technical specifications
Power output: 2 x 20W/30W at 8ohms/4ohms (both channels driven)
Frequency response: 20Hz - 20kHz (+ - 0,2 dB)
Channel separation: > 40dB at 20kHz
Noise floor: > -100dB (A weighted)
THD: < 0,05% at 10W
Gain: 22dB
Line-level inputs: 2 pairs RCA/Phono sockets
Input impedance: 20kohms
Trigger Switch Box: 2-pole co-axial ∅ 2,5mm jack
Outboard power supply: 20V/3A DC (peak 7A DC), suitable for your country's mains supply
Power consumption: 20V/3A DC
Dimensions (W x H x D): 103 x 38 x 141mm
Weight: 720g without power supply
The manufacturer reserves the right to alter the technical specifications without notice.
Available in silver or black finish
Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger
1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697
www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09
