Pro-Ject Tuner Box S
Dear music lover,
thank you for purchasing a PRO-JECT AUDIO FM-tuner.
In order to achieve maximum performance and reliability you should study these instructions for use carefully.
!
Warning of a hazard for the user, the unit or possible misuse.
Important notice.
Connectors
FM Ant.
FM Ant.
75 Ohm
75 Ohm
Pro-Ject Audio Systems, Vienna, Austria
Pro-Ject Audio Systems, Vienna, Austria
Make all connections whilst the tuner is disconnected from the power supply.
Take care to connect the left and right channels correctly. The right channel is usually marked red,
!
the left channel black or white.
Never use any other power supply than the one supplied with the unit.
Trigger
Trigger
In
In
Out
Out
Connection to an amplifier
When the Tuner Box S is used with a Pro-Ject amplifier connect the line level output to input 1(In 1) on the amp.
When used with another manufacturers amplifier connect the line level output to the input marked Tuner on
the amp.
Antenna input
Connects any antenna cable with a co-axial DIN-plug / US-model F-plug.
Remote switch-on
The pre amplifier Pro-Ject Pre Box S provides a trigger signal to switch on and off the Tuner Box S remotely
and for operating the input expander Pro-Ject Switch Box S.
The switching lead should be connected to the Trigger Switch socket on Pre Box S and the Trigger In socket
on the Tuner Box S. In order to ensure correct remote switching, the Tuner Box S must be connected to the
line level input socket (In 1) on the Pro-Ject Pre Box S.
The trigger signal is passed through the Trigger In socket to the Trigger Out socket of the Tuner Box S,
through which it can be relayed to the input expander Pro-Ject Switch Box S.
Two approx. 45cm long trigger leads are supplied with the Pro-Ject Tuner Box S. Longer leads may be
purchased from your Pro-Ject dealer.
Do not use this trigger output for any other connections for which it is not designed.
If any other input is used to connect the Pro-Ject Tuner Box S to a Pro-Ject Pre Box S, the trigger
lead should not be used.
!
Switch off all units and disconnect them from the mains before connecting or disconnecting the
trigger lead. Failing to do so could result in damage to the units.
Mains power connection
The unit is supplied with a power supply suitable for your country's mains supply. Check the label before
connecting to ensure compliance with the mains rating in your house. Connect the low voltage plug from the
power supply to the Power 9V
© Audio Trade GmbH · Pro-Ject Tuner Box S · Revision 2013.1.15
2
"
socket before connecting the power supply to the mains.
Remote control
ON/OFF
TUNE
VOL-
CH+
OK
INPUT
TUNE
VOL+
Stand-By
ON/OFF
0
short press turns the unit on, long press takes it back into standby.
Powered on, a short press activates and deactivates mute
Volume
VOL
0
_
and
VOL
+
0
adjust the sound volume
M1
M3
M6
CH-
M4
M7
M2
M5
M8
INPUT
0
no function
Selecting the tuning mode
OK
Pressing (min. 3 seconds)
search (MANUAL), automatic program search (AUTO) and program selection
from memory (MEMORY) in turns.
0
selects the tuning modes manual program
Manual program search - the display shows MANUAL
TUNE
decreases,
TUNE
increases the reception frequency in 50kHz steps.
Automatic program search - the display shows AUTO
CH-
0
starts the automatic frequency scan downwards,
CH+
0
starts the scan upwards.
Program selection from memory - the display shows MEMORY
-
and
M8
0
activate the memory function. Pressing
CH+
0
select -memory function has to be activated- the memory positions 9 - 99.
M1
0
M1
0
CH-
0
Saving a program in the memory list
OK
Tune to the frequency to be stored. Press
CH+
0
will select the next memory position up the list,
The memory positions 1 - 8 can be selected directly by pressing
OK
Press once again
Saving a program to a particular memory position overwrites any program already stored at that
position. The memory retains its contents through a power off/on cycle and a power failure.
0
to store the program at that position. The display shows STORED.
0
twice in rapid succession. The display will show STORE.
CH-
0
selects the next memory position down the list.
© Audio Trade GmbH · Pro-Ject Tuner Box S · Revision 2013.1.15
-
M8
0
access the presets 1 - 8 directly.
-
M8
0
.
M1
0
3
Auto store function
M4
Long press
storing.
signal level while storing.
0
starts,
M2
0
keeps stations with good signal strength in the memory and overwrites stations with insufficient
M1
0
confirms the auto store function.
M1
0
clears the complete memory while
Front panel controls
Tuner Box S
To switch on from standby or to standby
The push button on the left hand side will toggle the tuner between its fully operational status and standby.
The blue LED above the stand-by push button shows that the unit is switched on. The display shows STANDBY
when the unit is in standby.
If the Tuner Box S is connected to the remote switch-on facility of a Pro-Ject pre amplifier Pre Box S, then
choosing input 1 at the pre amplifier will switch the tuner on. Selecting a different input will switch the tuner off.
Dimming the display, setting the colour of the des display
Press (approx. 3 seconds) to enter the set-up menu.
TUNE
DIM 1 - DIM 4 and DIM MAX.
M3
0
M4
0
M5
0
The changes will be shown in the first line of the display. After leaving the set-op menu, the changes will
become valid for the complete display.
M1
0
TUNE
and
decreases
decreases
decreases
loads the factory settings for brightness and colour. To leave the set-up menu press
will change the display brightness. The following settings are available: „display off“,
M6
0
increases red
M7
0
increases green
M8
0
increases blue
OK
0
.
© Audio Trade GmbH · Pro-Ject Tuner Box S · Revision 2013.1.15
4

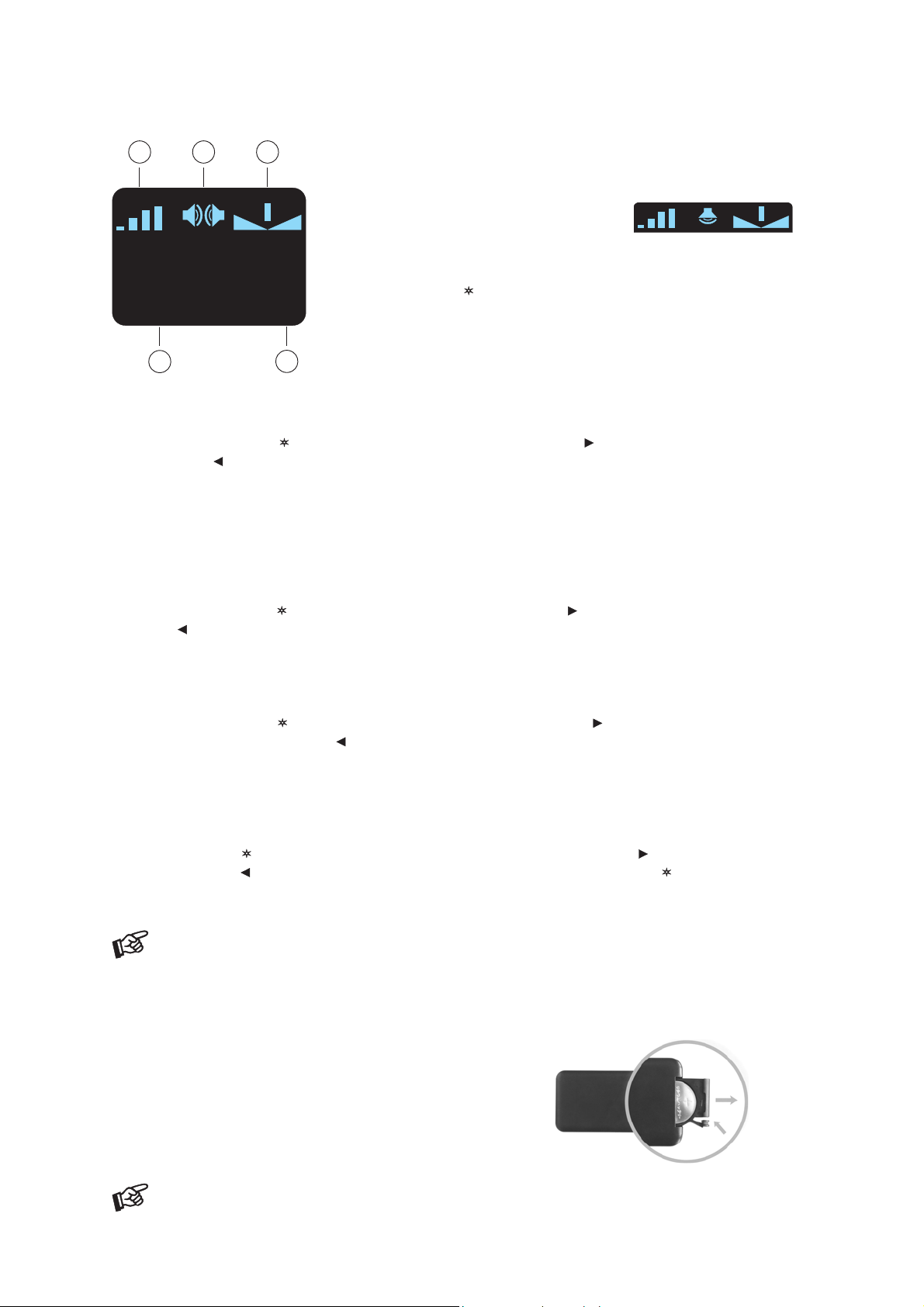

Display
A B C
87.90
MANUAL
D
E
A Signal strength meter
B Stereo reception F Mono reception
C Fine tuning meter
D Tuning mode.
E Tuned frequency
toggles between the tuning modes
Manual program search
Press (approx. 3 seconds) repeatedly until the display shows MANUAL. increases the reception frequency
in 50kHz steps.
broadcast when
A the largest number of bars are shown (signal strength meter) and
B two loudspeaker symbols are shown (F one loudspeaker symbol shows mono reception)
C the vertical bar is centred in the fine tuning display
decreases the reception frequency in 50kHz steps. The tuner is correctly adjusted for a stereo
Automatic program search
Press (approx. 3 seconds) repeatedly until the display shows AUTO. starts the automatic frequency scan
upwards,
program found.
will start it downwards. The maximum signal strength will be adjusted automatically for each
Program selection from memory
Press (approx. 3 seconds) repeatedly until the display shows MEMORY. will select the program with the
next memory position up the list,
program’s memory position is shown to the right of MEMORY in the display.
selects the program with the next memory position down the list. The
Saving a program in the memory list
The memory of the Pro-Ject Tuner Box S can store up to 99 programs. Tune to the frequency of the program
to be stored. Press
position up the list,
at that position. The display shows STORED.
To be able to select a tuning mode (manual program search, automatic program search or
program selection from memory), a antenna has to be conneced.
Saving a program to a particular memory position overwrites any program already stored at that
position. The memory retains its contents through a power off/on cycle.
twice in rapid succession. The display will show STORE. selects the next memory
selects the next memory position down the list. Press once on to store the program
Replacing batteries
Proceed as follows:
Unlock and slide open the battery case cover
Replace the battery.
Make sure the battery is the right way round !
Close the battery case cover
Battery type: 1 x CR2032 / 3V or 1 x CR2025 / 3V
Do not dispose the batteries as ordinary domestic refuse. Please dispose your exhausted batteries at
the appropriate collection sites - usually located at supermarkets and drugstores.
© Audio Trade GmbH · Pro-Ject Tuner Box S · Revision 2013.1.15
5
Technical specifications Pro-Ject Tuner Box S
Tuning range FM-band: 87,5 - 108MHz (50kHz steps)
Programmable presets: 99
Frequency response: 20Hz - 20kHz (±1dB)
S/N ratio: 50dB
THD: 0,05% / ∆f 75kHz and f mod 1kHz
Stereo separation: 30dB / ∆f 75kHz and f mod 1kHz
Sensitivity: 7dB/V mono, 17dB/V stereo /75 ohms
Antenna input: 1 x co-axial DIN-socket (75 ohms) / US-model F-socket
Line-level output: 1 pair RCA/phono sockets
Trigger: digital switching signal
Trigger in and out: 2-pole co-axial 2,5mm co-axial jack
Output voltage: 0,775Vrms
Outboard power supply: 9V/300mA AC, suitable for your country's mains supply
Power consumption: 70mA DC, <1W in standby
Dimensions W x H x D (D with sockets): 103 x 36 x 104 (115)mm
Weight: 565g without power supply
Service
Should you encounter a problem which you are not able to alleviate or identify, please contact your dealer for
further advice. Only when the problem cannot be resolved there should the unit be sent to the responsible
distributor in your country.
Warranty
The manufacturer accepts no responsibility for damage caused by not adhering to these instructions
for use. Modification or change to any part of the product by unauthorized persons release the
manufacturer from any liability over and above the lawful rights of the customer.
Safety instructions
AC outlet voltages vary from country to country. Before connecting to the mains, make sure that the
voltage in your area meets the voltage requirements printed on the power supply.
The power supply is used to disconnect the unit from the mains. Make sure that the power supply is easily
accessible at all times.
!
Avoid letting liquids enter the device or the power supply. Never place any item containing liquid,
such as a flower vase on or near the device. Never spill any liquid on the device or the power supply.
Never place any naked flame sources, such as lighted candles on or near the device. The product shall not
be used in damp or wet locations, next to a bathtub, sink, swimming pool or any other similar conditions.
Never handle the device, the power supply while your hands are wet or damp.
Copyright
PRO-JECT is a Registered Trademark of H. Lichtenegger.
This guide was produced by: Audio Trade GmbH
Copyright
©
2012. All rights reserved.
The information was correct at the time of going to
press. The manufacturer reserves the right to make
changes to the technical specification without prior
notice as deemed necessary to uphold the ongoing
process of technical development.
© Audio Trade GmbH · Pro-Ject Tuner Box S · Revision 2013.1.15
