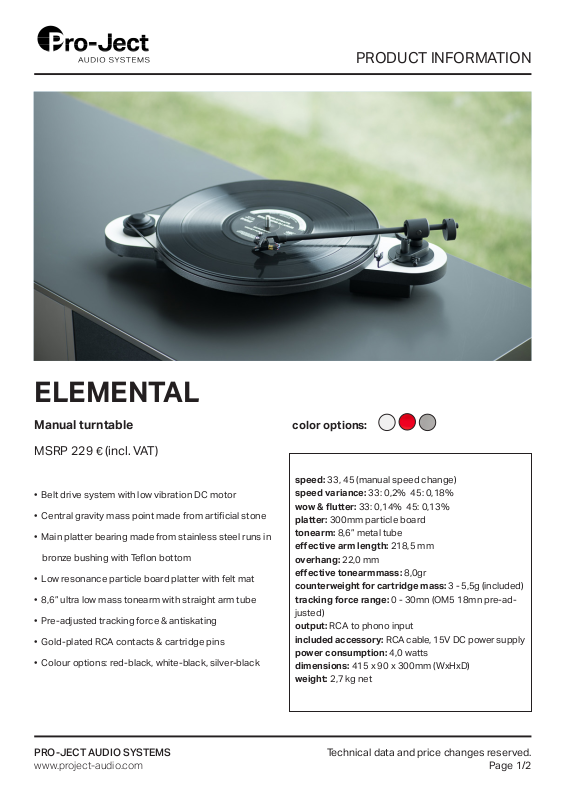

Pro-Ject Elemental Information Manual
PRODUCT INFORMATION
ELEMENTAL
Manual turntable
MSRP 229
• Belt drive system with low vibration DC motor
• Central gravity mass point made from articial stone
• Main platter bearing made from stainless steel runs in
bronze bushing with Teon bottom
• Low resonance particle board platter with felt mat
• 8,6” ultra low mass tonearm with straight arm tube
• Pre-adjusted tracking force & antiskating
• Gold-plated RCA contacts & cartridge pins
• Colour options: red-black, white-black, silver-black
€ (incl. VAT)
color options:
speed: 33, 45 (manual speed change)
speed variance: 33: 0,2% 45: 0,18%
wow & utter: 33: 0,14% 45: 0,13%
platter: 300mm particle board
tonearm: 8,6” metal tube
eective arm length: 218,5 mm
overhang: 22,0 mm
eective tonearmmass: 8,0gr
counterweight for cartridge mass: 3 - 5,5g (included)
tracking force range: 0 - 30mn (OM5 18mn pre-ad-
justed)
output: RCA to phono input
included accessory: RCA cable, 15V DC power supply
power consumption: 4,0 watts
dimensions: 415 x 90 x 300mm (WxHxD)
weight: 2,7 kg net
PRO-JECT AUDIO SYSTEMS
www.project-audio.com
Technical data and price changes reserved.
Page 1/2
PRODUCT INFORMATION
Best buy turntable with maximum
simplicity & outstanding sound quality!
Pro-Ject has decided to go after the cheap plastic
turntable market with an high quality alternative that
comes complete with an Ortofon cartridge. The new
Elemental table is a real „plug‘n‘play“ all the way. No
adjustment of counterweight and antiskating is needed,
because both are pre-adjusted. This new straight ultra
low mass tonearm is optimised for Ortofon OM cartridge
series. All the buyer needs to do is remove it from the box,
remove bearing guard, locate the belt around the platter,
remove stylus guard and plug it in. The only plastic here
is the stylus guard!
The hidden secret to the new table‘s sonic success, is
a central gravity mass point, made from articial stone
and placed directly underneath the platter bearing. It
is capable to fully absorb unwanted rumble and motor
vibration. This turntable appears to be pure simplicity
itself, while maintaining high quality audio standards.
red white silver
Shown with optional Acryl-It E, separately
available.
PRO-JECT AUDIO SYSTEMS
www.project-audio.com
Technical data and price changes reserved.
Page 2/2
