PRO-JECT Debut 3 User Manual
INSTRUCTIONS FOR USE
Pro-Ject Debut III
11
14
11
20
22
16
1
17
3
6
0
30 5
6a
15
2
4
1
5
8
7
18
9
21
25
21
10
17
13
23
9a
3a
11
12
2
© Audio Trade GmbH · Pro-Ject Debut III / Ortofon OM 5E · Revision 1.3.08/1.5.08
PRO-JECT DEBUT III
Controls, features and connections
1 Motor transportation screw (marked red)
2 Stepped drive pulley
3 Drive belt * 3a Hook *
4 Hub
5 Platter with felt mat *
6 Tonearm counterweight * 6a Downforce scale
7 Tonearm lift lever
8/18 Tonearm rest and removable transport lock
9 Tonearm tube 9a Tonearm base
10 Lid *
11 Lid hinges
12 Hinge fasteners
13 Power supply socket
14 Signal output cable
15 Anti-skating weight adjustment scale
16 Anti-skating weight *
17 Anti-skating weight support hoop
20 Power switch
21 Headshell with finger lift and fitted Ortofon OM 5E cartridge
22 Motor
23 Single adapter *
Power supply (not shown) *
Dear music lover,
thank you for purchasing a PRO-JECT AUDIO record player.
In order to achieve maximum performance and reliability with this record player you should study these instructions
for use carefully.
!
Warning of a hazard for the user, the unit or possible misuse.
Important notice.
** Your turntable has been delivered with a factory fitted and adjusted cartridge, please ignore the
cartridge set up instructions unless changing the cartridge at a later date.
During assembly and adjustment of the deck small parts could be lost if not carefully placed in a suitable
receptacle. Before starting assembly make yourself acquainted with the parts listed above and correspondingly
numbered in the technical drawings above. Separately packed items are marked with an asterisk *.

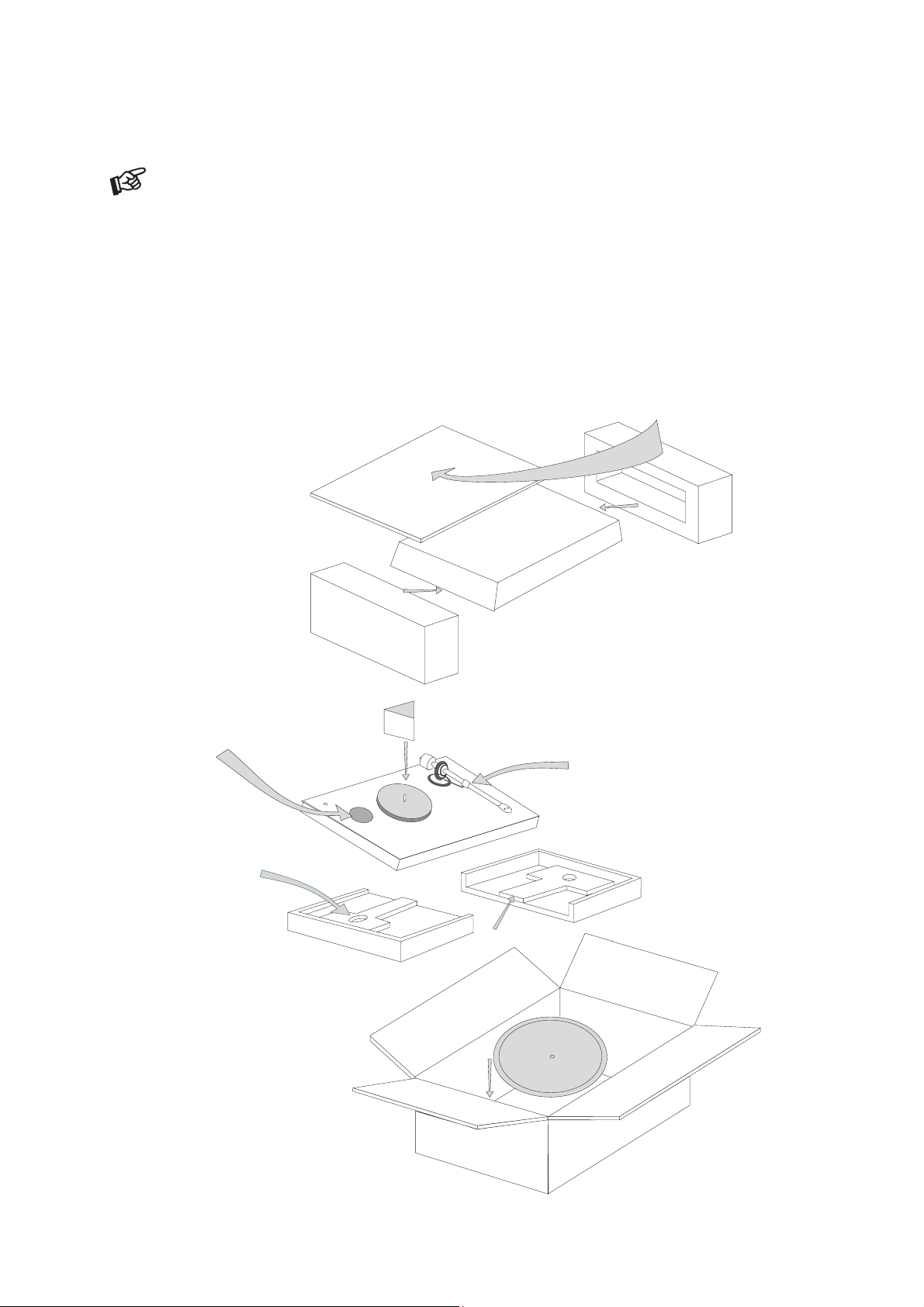

Set-up
Make sure the surface you wish to use the turntable on is level (use a spirit level) before placing the turntable on it.
Remove the two red transport screws (1) which secure the motor (22) during transportation.
Remove the transport lock (18) from the tonearm. Store it together with the two red motor transport screws
(1) in the original packaging so they are available for any future transportation.
Fit the drive belt (3) around the hub (4) and the smaller diameter part of the motor pulley (2). Avoid getting
sweat or grease on the belt as these will deteriorate the performance and reduce the belt's lifespan. Use
absorbent kitchen paper to remove any oil or grease from the outer edge of the hub and the belt. Fit the
platter (5) and felt mat over the spindle of the hub (4).
© Audio Trade GmbH · Pro-Ject Debut III / Ortofon OM 5E · Revision 1.3.08/1.5.08
3
