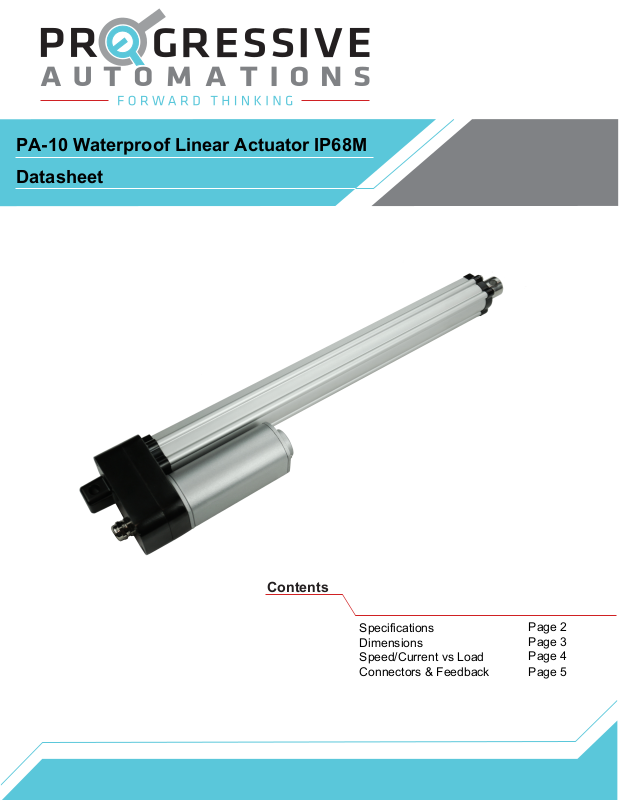

PA-10 Waterproof Linear Actuator IP68M
Datasheet
Contents
Specifications
Dimensions
Speed/Current vs Load
Connectors & Feedback
Page 2
Page 3
Page 4
Page 5
Specifications
Load (LBS)
Dynamic Static
450 450
225 225
450 450
675 675
Input Voltage
Stroke
Features
Feedback
Duty Cycle
Weather Protection
Overload Protection
Operational Temperature
Operating Noise
Limit Switch
Cable Length
Connector
Front Mounting Hole Size
Rear Mounting Hole Size
Actuator Type
Motor Type
Screw Type
Stroke Rod Material
Housing Material
Gear Material
Certifications
Compatible Mounting Brackets
Warranty
No Load Current (A)
12VDC 24VDC
≤1.5
-
-
-
≤1.5
-
≤1.5
≤1.5
12VDC or 24VDC
1.0" to 36.0"
400-hour Salt Spray Rating (Salt Spray Rating Unit Only)
Optional
20%
IP68M, IP69K Static
None
-20°C to 70°C
<45 dBA
Built-In (Non-Adjustable)
60"
Molex Mini-Fit Jr 2-Pin
0.32"
0.32"
Mini, Industrial
Brushed DC Motor
ACME
Stainless Steel
Anodic Oxidation (Standard), Porcelain Plating (Salt Spray Rating)
Polyoxymethylene
UL
BRK-09
18 Months
Full Load Current (A)
12VDC 24VDC
≤6.0 0.16
-
-
-
-
≤3.2
≤4.0
≤4.2
Speed (inch/sec)
No Load
0.28
0.74
0.56
0.31
Full Load
0.57
0.33
0.22
2
Dimensions
(Dimensions in inches)
1.57"
1.02"
0.39"
0.79"
0.32"
1.40"
B (Fully Extended)
A (Fully Retracted)
1.38"
5.57"
1.56"
0.43"
0.39"
0.87"
1.97"
0.79"
0.32"
3.28"
1.18"
0.43"
Hole to Hole
PA-10
For stroke length less than 2.0"
A = 6.7"
B = Stroke + 6.7"
For stroke length 2.0" to 16"
A = Stroke + 4.7"
B = Stroke + Stroke + 4.7"
Stroke
A
B
6.7
8.7
6.7
8.7
2
41
10.7
8.7
16.7
12.7
8
6
12.7
20.7
12
10
18.7
16.7
14.7
32.7
28.7
24.7
For stroke length greater than 16" and less than 23.5"
A = Stroke + 5.1"
B = Stroke + 5.1"
For Stroke Length 23.5" to 36.0"
A = Stroke + 5.9"
B = Stroke + Stroke + 5.9"
1614
20.7
36.7
20
25.1
45.1
22
27.1
49.1
29.9
53.9
3024
35.9
65.9
36
41.9
77.9
3

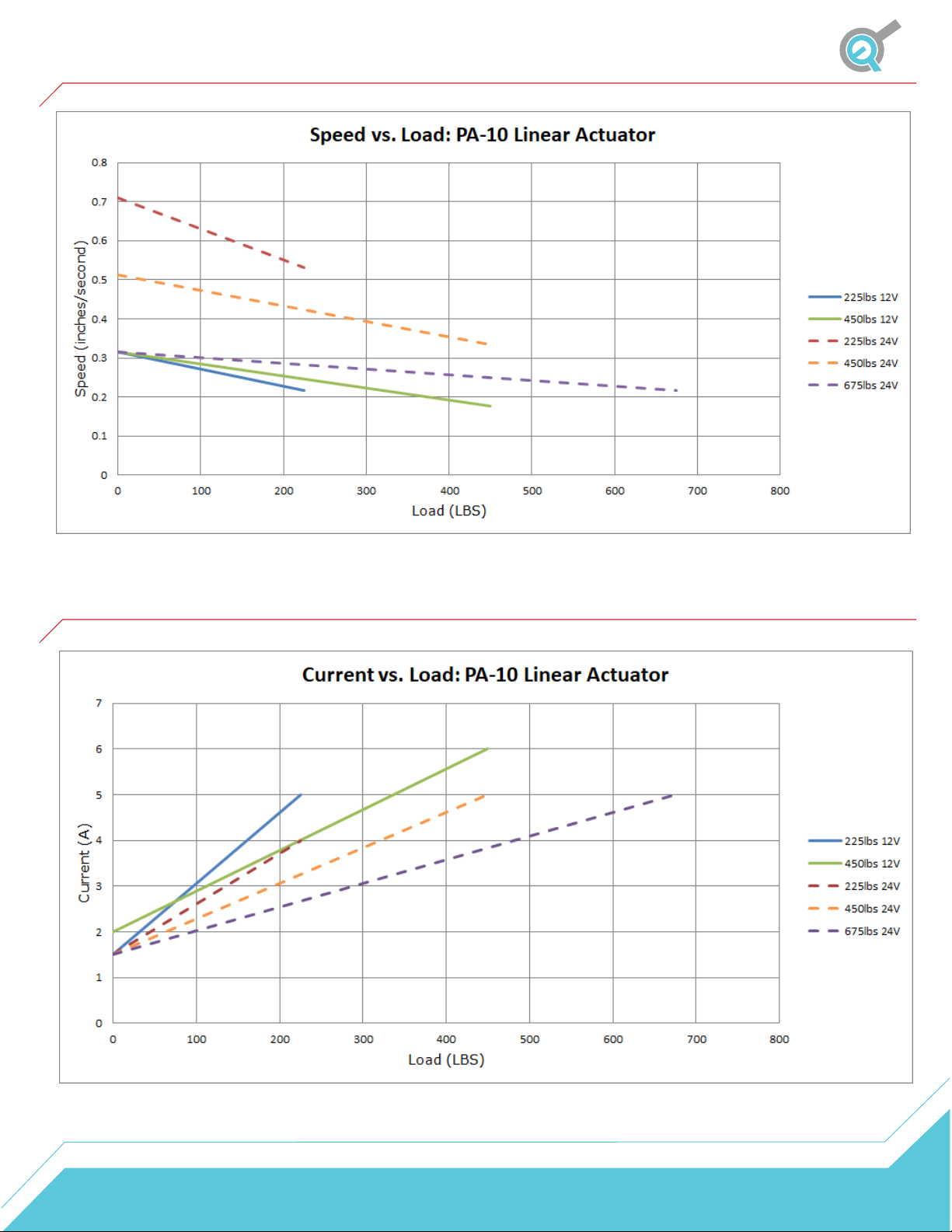

Speed vs Load
Current vs Load
4
Connectors & Feedback
2-Pin Connector (Standard)
Front View
Motor
1 2
M-
2
M+
1
6-Pin Hall Effect Connector
Front View
4
5
6
321
Component
Pin 1 & 2
Motor
1 2
Hall Effect
Signal 1
Component
Part Name
Mini-Fit Jr. Receptacle
Housing, Dual Row, 6
Circuits, UL 94V-2, Natural
Molex Mini-Fit Junior Female
Terminal, Tin-plated brass
over copper, 18-24 AWG
3 4
GND
Mini-Fit Jr. Receptacle
Housing, Dual Row, 6
Circuits, UL 94V-2, Natural
+5VDC
Part Name
Part Number
39-01-2020
39-00-0038
Hall Sensor
M- (Retract)
Part Number
39-01-2060
Part Number
39-01-3023Housing
39-00-0040
5
M+ (Extend)
Part Number
39-01-3063Housing
Mating
6
Hall Effect
Signal 2
Mating
Molex Mini-Fit Junior Female
Pin 1 - 6
Output Signal Extending Output Signal Retracting
Hall Effect 1 Signal
Hall Effect 2 Signal
Terminal, Tin-plated brass
over copper, 18-24 AWG
39-00-0038
Hall Effect 1 Signal
Hall Effect 2 Signal
39-00-0040
5
