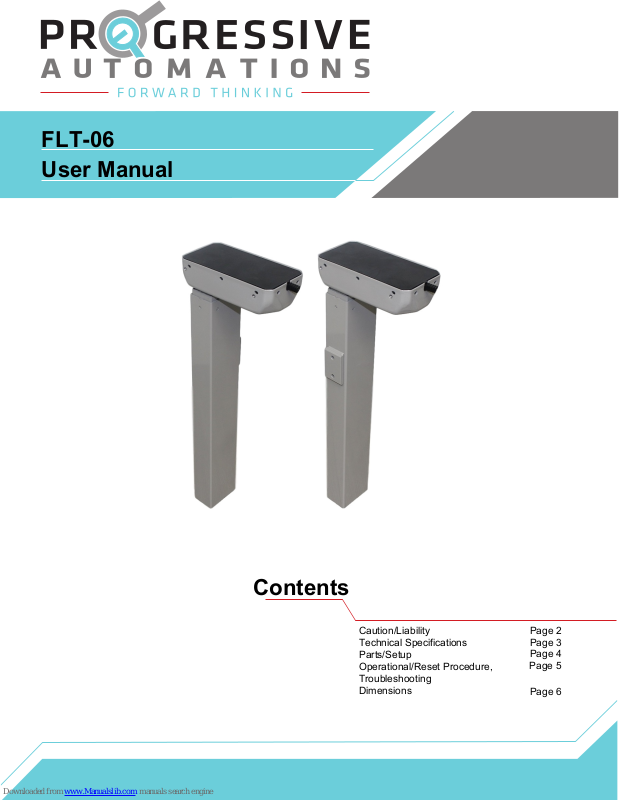

FLT-06
User Manual
Contents
Caution/Liability
Technical Specifications
Parts/Setup
Operational/Reset Procedure,
Troubleshooting
Dimensions
Page 2
Page 3
Page 4
Page 5
Page 6
Caution
Liability
2
Technical Specifications
Input Voltage
Output Voltage
Stroke
Weight Capacity
Speed
Height Range
Duty Cycle
Material
Certification
Base Width
120 VAC, 60 Hz
24 VDC
25"
350 lbs (175 lbs Per Leg)
1.30"/sec
23.5” - 49” (without table top)
10% Max. 2 mins on, 18 mins off
Steel
UL
43” min. - 72.4” max.
Minimum Table Top Size
Features
43"x 24”
Soft start/stop, adjustable leveling studs & 4 memory presets
3
Parts
Lifting Columns x 2
Setup
FLT-06
LIFTING COLUMN [M1]
Control Box & Remote
AC Power Cord
Connector Cables x 2
FLT-06
LIFTING COLUMN [M2]
110/240VAC
CONTROL BOX
M1
FLT-06
WIRED REMOTE
M2AC
HS
F
4
Operational Procedure
Once your lifting columns are installed, operation is simple. Using the wired remote will allow
full control over extending and retracting the lift columns. Use the up button to raise the columns
and the down button to lower the columns.
You can program up to 4 locations using the memory setup: Use the up/down buttons on the remote
to find your desired height(s), then press “M” followed by a number 1-4. The column height positions
are now saved. To move to the set position, hold the number button.
Reset Procedure
IMPORTANT
You must reset the lifting columns prior to use:
To reset, press and hold the DOWN button on the Hand Remote (7) until the lifting columns reach their
lowest point. Release the DOWN button. Press and hold the DOWN button again until the LED display
shows "RST". If you are not using an LED hand remote hold it for about 10 seconds. Release the
DOWN button. Finally press and hold the DOWN button once more until the columns lower, slightly
rises then stops. This signals the end of the reset procedure. Release the DOWN button and your
lifting columns are now ready to use.
Troubleshooting
If your columns are not functioning it might need to be reset. Follow the RESET procedure.
If your hand remote has an LED display and it displays "RST" (reset), perform the reset procedure.
If the LED displays shows an error message ("Er1" - "Er13"), confirm that all wired connections are
secure. Then perform the reset procedure.
If the LED remote displays "HOT", let the unit cool down for 20 minutes.
If the error message persists after the reset procedure, contact us at 1-800-676-6123 or
sales@progressiveautomations.com.
5
Dimensions
Legs
3.2"
2.8"
0.4"
M8X10
M6X10
2.0" 3.2"
0.6"
0.6"
2.5"1.6"
2.0"
22.0"
1.4"
2.0"
0.2"
Remote
3.3"
3.4"
˄
2
1
˅
5.7"
M34
2.2"
6.6"
M6X10
1.6"
7.6"
2.0"
3.8"
Control Box
F
HS
M2
0.7"
F
HS
3.5"
0.3"
M2
10.1"
M1
0.1"
AC
AC
M1
3.5"
6
