2 Progress
CONTENTS
Safety information 2
Safety instructions 3
Product description 5
Control panel 5
Programmes 6
Settings 7
Options 9
Before first use 10
Daily use 11
Hints and tips 13
Care and cleaning 14
Troubleshooting 16
Technical information 17
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damages. Always keep the instructions with the appliance for
future reference.
General Safety
• This appliance is intended to be used in household and
similar applications such as:
– farm houses; staff kitchen areas in shops, offices and
other working environments;
– by clients in hotels, motels, bed & breakfast and other
residential type environments.
• Do not change the specification of this appliance.
• The operating water pressure (minimum and maximum)
must be between 0.5 (0.05) / 8 (0.8) bar (Mpa)
Obey the maximum number of 9 place settings.
•
If the supply cord is damaged, it must be replaced by the
•
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
Put knives and cutlery with sharp points in the cutlery basket
•
with the points down or in a horizontal position.
Do not keep the appliance door open without supervision to
•
prevent to fall on it.
Before maintenance, deactivate the appliance and
•
disconnect the mains plug from the mains socket.
Progress 3
• Do not use water spray and steam to clean the appliance.
• The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
• Do not let children play with the appliance.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when
it is open.
• Cleaning and user maintenance shall not be made by
children without supervision.
SAFETY INSTRUCTIONS
Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance where
the temperature is less than 0 °C.
• Obey the installation instruction supplied
with the appliance.
• Make sure that the appliance is installed
below and adjacent to safe structures.
Electrical connection
WARNING! Risk of fire and
electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the E.E.C.
Directives.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use a 13 amp ASTA (BS
1362) fuse.
4 Progress
Water connection
• Make sure not to cause damage to the
water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.

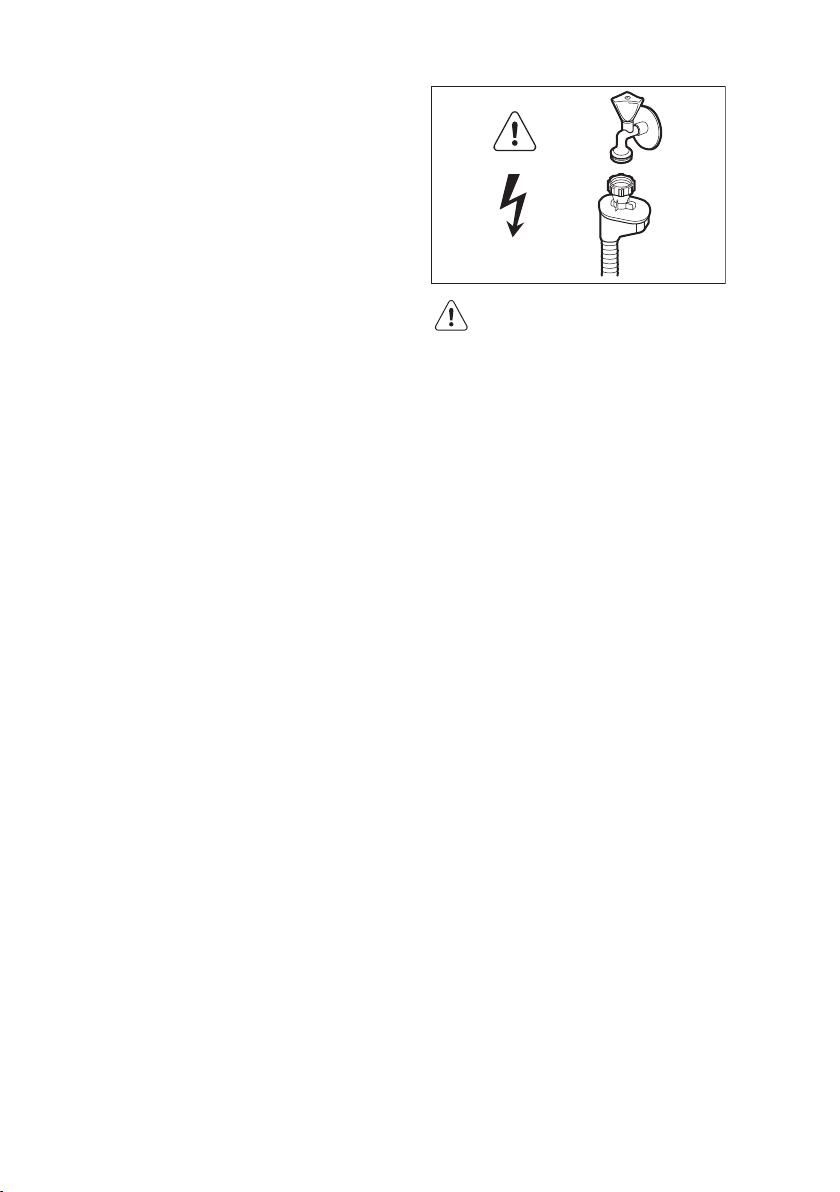

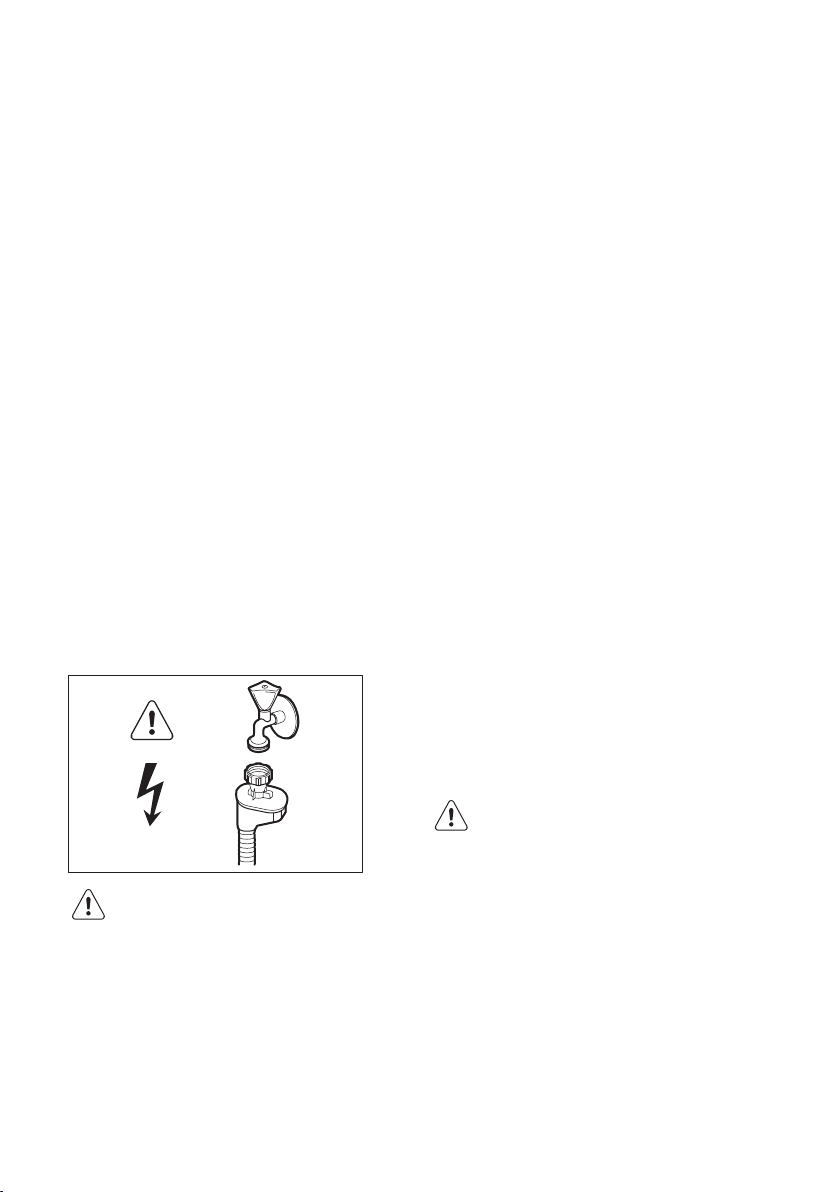

• The water inlet hose has a safety valve
and a sheath with an inner mains cable.
WARNING! Dangerous
voltage.
• If the water inlet hose is damaged,
immediately disconnect the mains plug
from the mains socket. Contact the
Authorised Service Centre to replace the
water inlet hose.
Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Service
• Contact the Authorised Service Centre
to repair the appliance. We recommend
only the use of original spare parts.
• When you contact the Authorised
Service Centre, ensure that you have the
following information that is available on
the rating plate.
Model :
PNC :
Serial Number :
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.

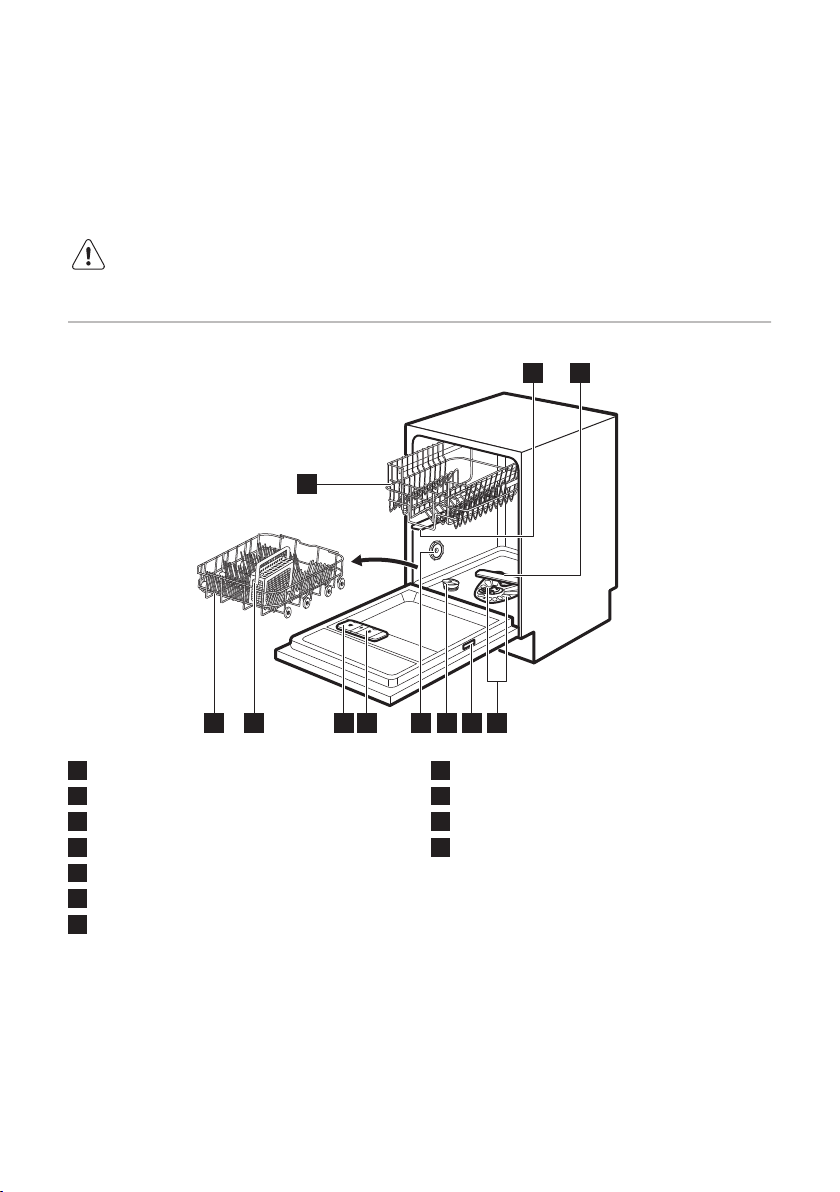

PRODUCT DESCRIPTION
4
3
7
9
8
10
56
11
1
2
1
2
3
4
Progress 5
Upper spray arm
1
Lower spray arm
2
Filters
3
Rating plate
4
Salt container
5
Air vent
6
Rinse aid dispenser
7
CONTROL PANEL
On/off button
1
Programme buttons
2
Delay button
3
Detergent dispenser
8
Cutlery basket
9
Lower basket
10
Upper basket
11
Indicators
4
6 Progress
Indicators
Indicator Description
End indicator.
Multitab indicator.
Salt indicator. It is always off while the programme operates.
PROGRAMMES
Programme Degree of soil
Programme phases Options
Type of load
1)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Multitab
• Dry
• Heavy soil
• Crockery, cutlery,
pots and pans
• Prewash
• Wash 70 °C
• Rinses
• Multitab
• Dry
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 65 °C
• Rinses
• Multitab
• Dry
2)
• Fresh soil
• Crockery and
cutlery
3)
1)
With this programme you have the most efficient use of water and energy consumption for crockery and cutlery
with normal soil. (This is the standard programme for test institutes).
2)
With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
3)
With this programme you can quickly rinse dishes to prevent remains of food to bond on dishes and odours to
form in the appliance. Do not use detergent with this programme.
• All • Prewash
• Wash 60 °C or 65
°C
• Rinses
• Multitab
Consumption values
Programme
1)
Water
(l)
Energy
(kWh)
Duration
(min)
9.5 0.789 225
11 - 13 1.0 - 1.2 130 - 150
15 - 16 1.2 - 1.6 100 - 110
Progress 7
Programme
1)
The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of
dishes can change the values.
1)
Water
(l)
8 0.8 30
4 0.1 14
Information for test institutes
For all the necessary information for test
Energy
(kWh)
Duration
(min)
Write down the product number (PNC) that
is on the rating plate.
performance, send an email to:
info.test@dishwasher-production.com
SETTINGS
Programme selection mode and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener according
to the water hardness.
• The activation or the deactivation of the
acoustic signal for end of programme.
• The deactivation of the rinse aid
dispenser when you want to use the
Multitab option without rinse aid.
These settings will be saved until you
change them again.
How to set the programme selection mode
The appliance is in programme selection
mode when only the indicator of the
programme is on.
When you activate the appliance, usually it
is in programme selection mode. However,
if this does not happen, you can set the
programme selection mode in the following
way:
Press and hold simultaneously
and
until the appliance is in programme
selection mode.
The water softener
The water softener removes minerals from
the water supply, which would have a
detrimental effect on the washing results
and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness is
measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water in
your area. It is important to set the right
level of the water softener to assure good
washing results.
Water hardness
German de-
grees (°dH)
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
French degrees (°fH)
mmol/l Clarke de-
grees
Water softener
level
8 Progress
German de-
grees (°dH)
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5
1)
Factory setting.
2)
Do not use salt at this level.
How to set the water softener level
The appliance must be in programme
selection mode:
1. To enter the user mode, press and hold
simultaneously
indicators , and start to
flash.
2. Press
• The indicators
The indicator
•
flash.
• The indicator starts to flash. The
number of flashes indicates the level.
French degrees (°fH)
and until the
.
and go off.
continues to
mmol/l Clarke de-
grees
The rinse aid dispenser
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
Use of rinse aid and multitablets
When you activate the option Multitab, the
rinse aid dispenser continues to release
rinse aid. However you can deactivate the
rinse aid dispenser. In this case the drying
results may not be satisfactory.
With the rinse aid dispenser deactivated,
the rinse aid indicator is always off.
– E.g. 5 flashes + pause + 5
flashes = level 5.
3. Press
repeatedly to change the
setting. Each time you press the
level number increases. After level 10
you will start again from level by 1.
4.
Press the on/off button to confirm the
setting.
How to deactivate the rinse aid dispenser
The appliance must be in programme
selection mode.
1.
To enter the user mode, press and hold
simultaneously
indicators
flash.
2. Press .
Water softener
level
1)
5
2)
1
and until the
, and start to
Progress 9
• The indicators and a go
off.
• The indicator continues to flash.
• The end indicator indicates the
current setting: End indicator on =
rinse aid dispenser activated.
3. Press to change the setting. End
indicator off = rinse aid dispenser
deactivated.
4. Press the on/off button to confirm the
setting.
Acoustic signals
Acoustic signals sound when a malfunction
of the appliance occurs. It is not possible to
deactivate these acoustic signals.
There is also an acoustic signal that sounds
when the programme is completed. By
default this acoustic signal is deactivated
but it is possible to activate it.
How to activate the acoustic signal for the end of programme
The appliance must be in programme
selection mode.
1. To enter the user mode press and hold
simultaneously and until the
indicators
flash.
2. Press .
• The indicators and go off.
• The indicator
• The indicator is off.
3. Press
• The indicator
acoustic signal for the end of
programme is activated.
4. Press the on/off button to confirm the
setting.
, and start to
continues to flash.
to change the setting.
comes on. The
OPTIONS
Desired options must be
activated every time before you
start a programme. It is not
possible to activate or
deactivate options while a
programme is running.
Not all options are compatible
with each other. If you have
selected non compatible
options, the appliance will
automatically deactivate one or
more of them. Only the
indicators of the options still
active will stay on.
Multitab
Activate this option when you use multitablets that integrate the salt, rinse aid and
detergent functions. They can also contain
other cleaning or rinsing agents.
This option deactivates the release of salt.
The salt indicator does not come on.
With the use of this option the programme
duration is prolonged to increase the
cleaning and drying results with the use of
multi-tablets.
Multitab is not a permanent option and
must be selected at every cycle.
10 Progress
How to activate Multitab
Press and hold simultaneously and
until the indicator comes on.
BEFORE FIRST USE
1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If not,
adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the baskets.
When you start a programme, the
appliance can take up to 5 minutes to
recharge the resin in the water softener. It
seems that the appliance is not working.
The washing phase starts only after this
procedure is completed. The procedure will
be repeated periodically.
The salt container
CAUTION! Only use salt
specifically designed for
dishwashers.
The salt is used to recharge the resin in the
water softener and to assure good washing
results in the daily use.
4. Remove the salt around the opening of
the salt container.
5.
Turn the cap of the salt container
clockwise to close the salt container.
Water and salt can come out
from the salt container when
you fill it. Risk of corrosion. To
prevent it, after you fill the salt
container, start a programme.

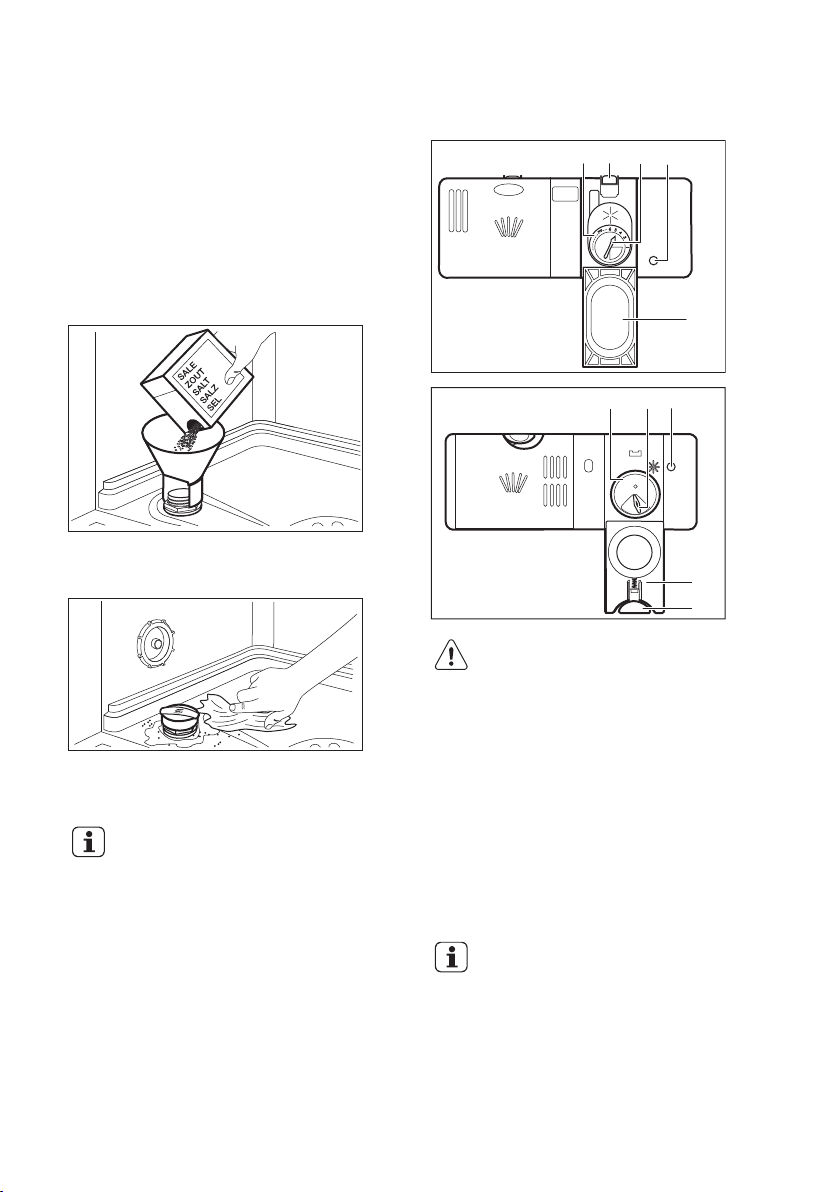

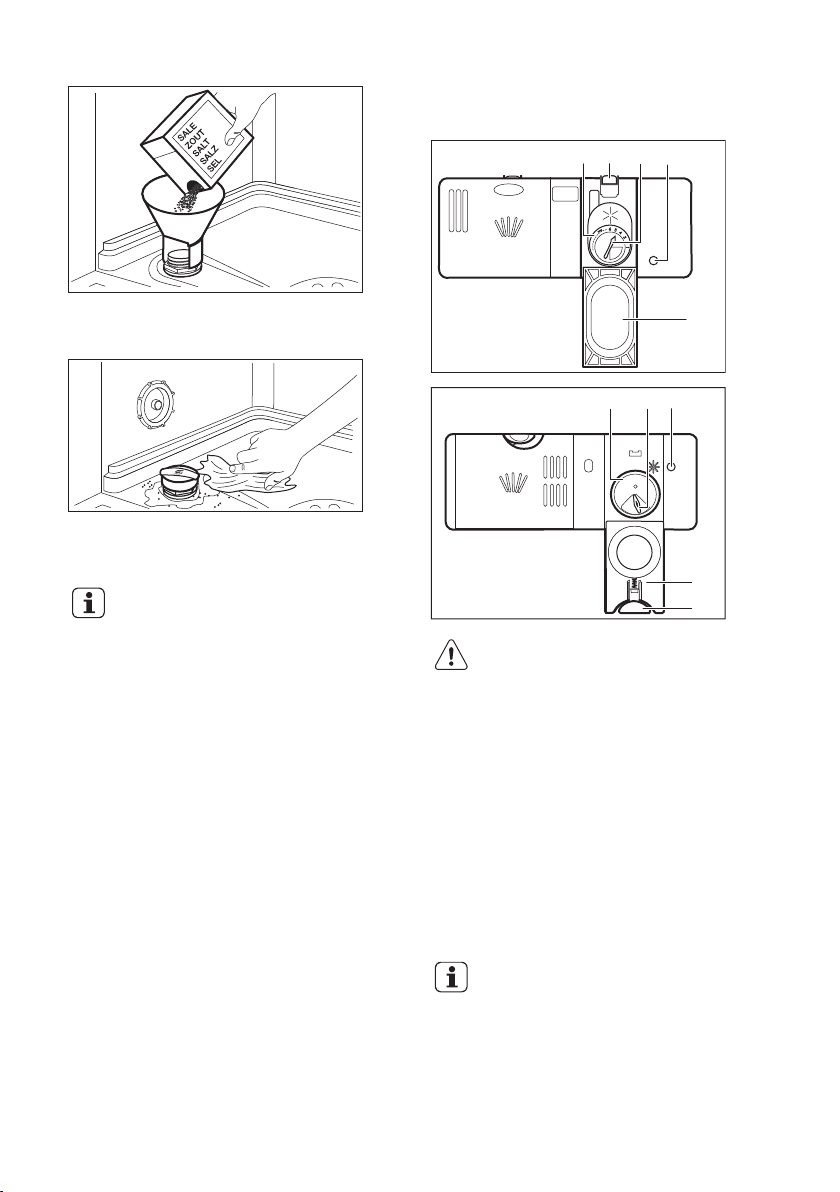

How to fill the salt container
1. Turn the cap of the salt container
counterclockwise and remove it.
2. Put 1 litre of water in the salt container
(Only for the first time).
3. Fill the salt container with dishwasher
salt.
A
B
E
D
C
M
A
X
1
2
3
4
+
-
A
B
D
C
E
30
20
A BD
C
Progress 11
How to fill the rinse aid dispenser
DAILY USE
CAUTION! Only use rinse aid
specifically designed for
dishwashers.
1. Press the release button (D) to open the
lid (C).
2. Pour the rinse aid in the dispenser (A)
until the liquid reaches the fill level
'max'.
3. Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.
4. Close the lid. Make sure that the release
button locks into position.
Fill the rinse aid dispenser when
the indicator (E) becomes clear.
You can turn the selector of the
released quantity (B) between
position 1 (lowest quantity) and
position 4 or 6 (highest quantity).
1. Open the water tap.
2. Press the on/off button to activate the
appliance.
Make sure that the appliance is in user
mode.
• If the salt indicator is on, fill the salt
container.
3. Load the baskets.
4. Add the detergent. If you use multi-
tablets, activate the option Multitab.
5. Set and start the correct programme for
the type of load and the degree of soil.
Using the detergent
20
30
BA D
C
12 Progress

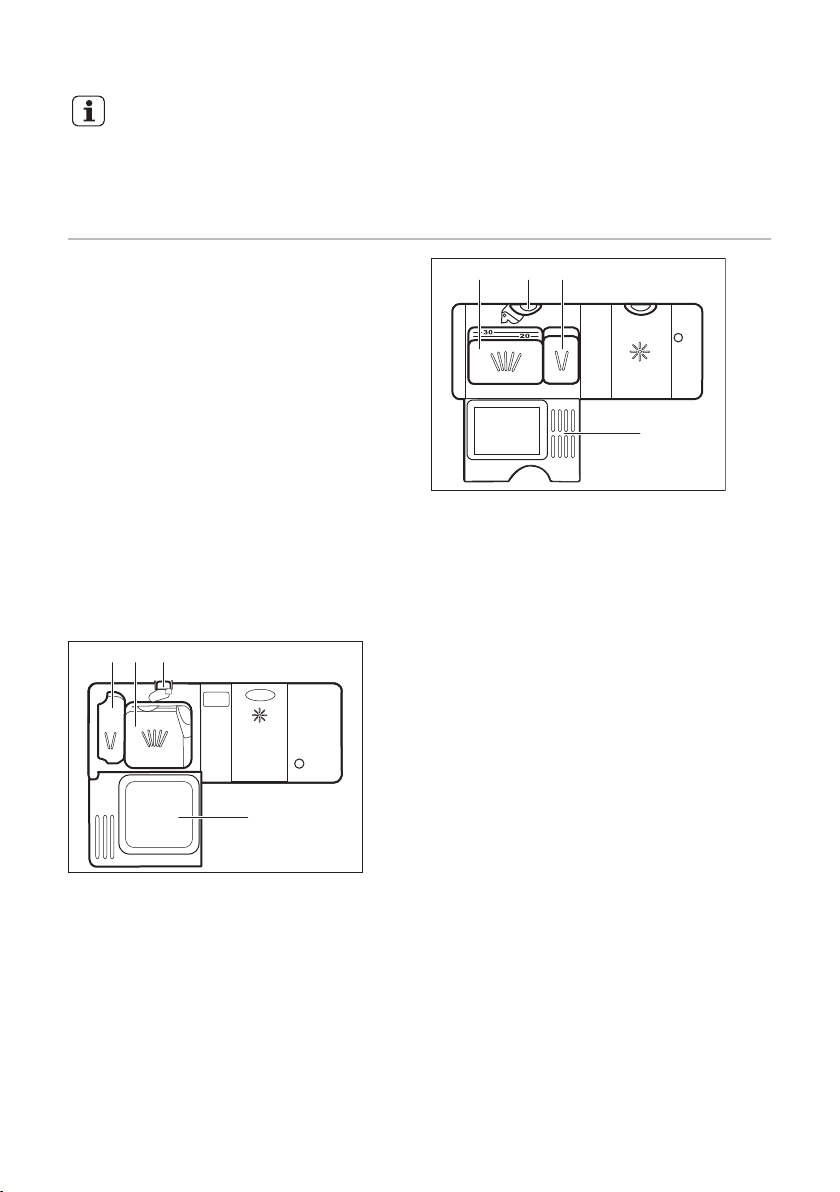

1. Press the release button (B) to open the
lid (C).
2.
Put the detergent, in powder or tablets,
in the compartment (A).
3.
If the programme has a prewash phase,
put a small quantity of detergent in the
compartment (D).
4.
Close the lid. Make sure that the release
button locks into position.
Setting and starting a programme
The AUTO OFF function
This function decreases energy
consumption by deactivating automatically
the appliance when it is not operating.
The function comes into operation:
• 5 minutes after the completion of the
programme.
• After 5 minutes if the programme has
not started.
Starting a programme
1. Keep the appliance door ajar.
2. Press the on/off button to activate the
appliance. Make sure that the appliance
is in programme selection mode.
3. Press the button related to the
programme you want to start.
The related programme indicator comes
on.
4. Close the appliance door to start the
programme.
Starting a programme with delay start
1. Set a programme.
2. Press again and again until the
indicator related to the number of hours
want to set comes on (3, 6 or 9).
The delay indicator comes on.
3. Close the appliance door to start the
countdown.
While a countdown is running it is
possible to increase the delay time but
not to change the selection of the
programme.
When the countdown is completed, the
programme starts.
Opening the door while the appliance operates
If you open the door while a programme is
running, the appliance stops. When you
close the door, the appliance continues
from the point of interruption.
If the door is opened for more
than 30 seconds during the
drying phase, the running
programme will end.
Cancelling the delay start while the countdown operates
When you cancel the delay start you have
to set the programme and options again.
Press and hold simultaneously
until the appliance is in programme
selection mode.
and
Cancelling the programme
Press and hold simultaneously and
until the appliance is in programme
selection mode.
Make sure that there is detergent in the
detergent dispenser before you start a new
programme.
Progress 13
End of the programme
When the programme is completed the
indicator comes on. If you do not
deactivate the appliance within 5 minutes all
indicators goes off. This helps to decrease
energy consumption.
1. To deactivate the appliance press the
on/off button or wait for the AUTO OFF
HINTS AND TIPS
General
The following hints will ensure optimal
cleaning and drying results in daily use and
also help to protect the environment.
• Remove larger residues of food from the
dishes into the waste bin.
• Do not pre-rinse dishes by hand. When
needed, use the prewash programme (if
available) or select a programme with a
prewash phase.
• Always use the whole space of the
baskets.
• When loading the appliance, make sure
that the dishes can be completely
reached and washed by the water
released from the spray arm nozzles.
Make sure that items do not touch or
cover each other.
• You can use dishwasher detergent, rinse
aid and salt separately or you can use
the multi-tablets (e.g. ''3in1'', ''4in1'',
''All in 1''). Follow the instructions written
on the packaging.
• Select the programme according to the
type of load and degree of soil. With the
ECO programme you have the most
efficient use of water and energy
consumption for crockery and cutlery
with normal soil.
Using salt, rinse aid and detergent
• Only use salt, rinse aid and detergent for
dishwasher. Other products can cause
damage to the appliance.
• Multi-tablets are usually suitable in areas
with a water hardness up to 21 °dH. In
function to automatically deactivate the
appliance.
2. Close the water tap.
areas exceeding this limit, rinse aid and
salt must be used in addition to the
multi-tablets. However, in areas with
hard and very hard water we
recommend to use solo-detergent
(powder, gel, tablets without additional
functions), rinse aid and salt separately
for optimal cleaning and drying results.
• If you use multi-tablets you can select
the Multitab option (if available). This
option increases the cleaning and drying
results with the use of multi-tablets.
• Detergent tablets do not fully dissolve
with short programmes. To prevent
detergent residues on the tableware, we
recommend that you use the tablets with
long programmes.
• Do not use more than the correct
quantity of detergent. Refer to the
instructions on the detergent packaging.
What to do if you want to stop using multi-tablets
Before you start to use separately
detergent, salt and rinse aid do the
following procedure.
1. Set the highest level of the water
softener.
2. Make sure that the salt and rinse aid
containers are full.
3. Start the shortest programme with a
rinsing phase. Do not add detergent
and do not load the baskets.
4. When the programme is completed,
adjust the water softener according to
the water hardness in your area.
5. Adjust the released quantity of rinse aid.
C
B
A
14 Progress
Loading the baskets
• Only use the appliance to wash items
that are dishwasher-safe.
• Do not put in the appliance items made
of wood, horn, aluminium, pewter and
copper.
• Do not put in the appliance items that
can absorb water (sponges, household
cloths).
• Remove remaining food from the items.
• Make soft the remaining burned food on
the items.
• Put hollow items (cups, glasses and
pans) with the opening down.
• Make sure that cutlery and dishes do not
bond together. Mix spoons with other
cutlery.
• Make sure that glasses do not touch
other glasses.
• Put small items in the cutlery basket.
• Put light items in the upper basket.
Make sure that the items do not move.
• Make sure that the spray arm can move
freely before you start a programme.
Before starting a programme
Make sure that:
• The filters are clean and correctly
installed.
• The cap of the salt container is tight.
• The spray arms are not clogged.
• There is dishwasher salt and rinse aid
(unless you use multi- tablets).
• The position of the items in the baskets
is correct.
• The programme is applicable for the
type of load and for the degree of soil.
• The correct quantity of detergent is
used.
Unloading the baskets
1.
Let the tableware cool down before you
remove it from the appliance. Hot items
can be easily damaged.
2.
First remove items from the lower
basket, then from the upper basket.
At the end of the programme
water can still remain on the
sides and on the door of the
appliance.
CARE AND CLEANING
WARNING! Before
maintenance, deactivate the
appliance and disconnect the
mains plug from the main
socket.
Dirty filters and clogged spay
arms decrease the washing
results. Make a check regularly
and, if necessary, clean them.

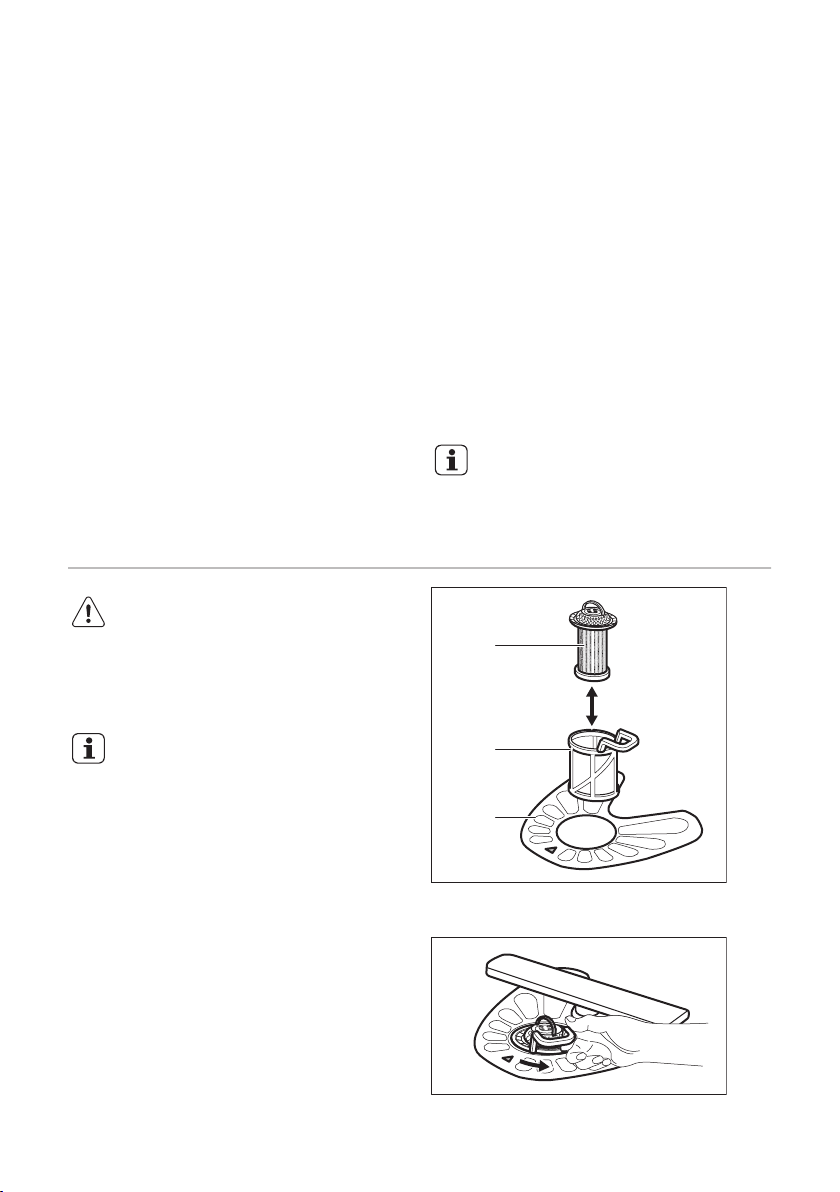

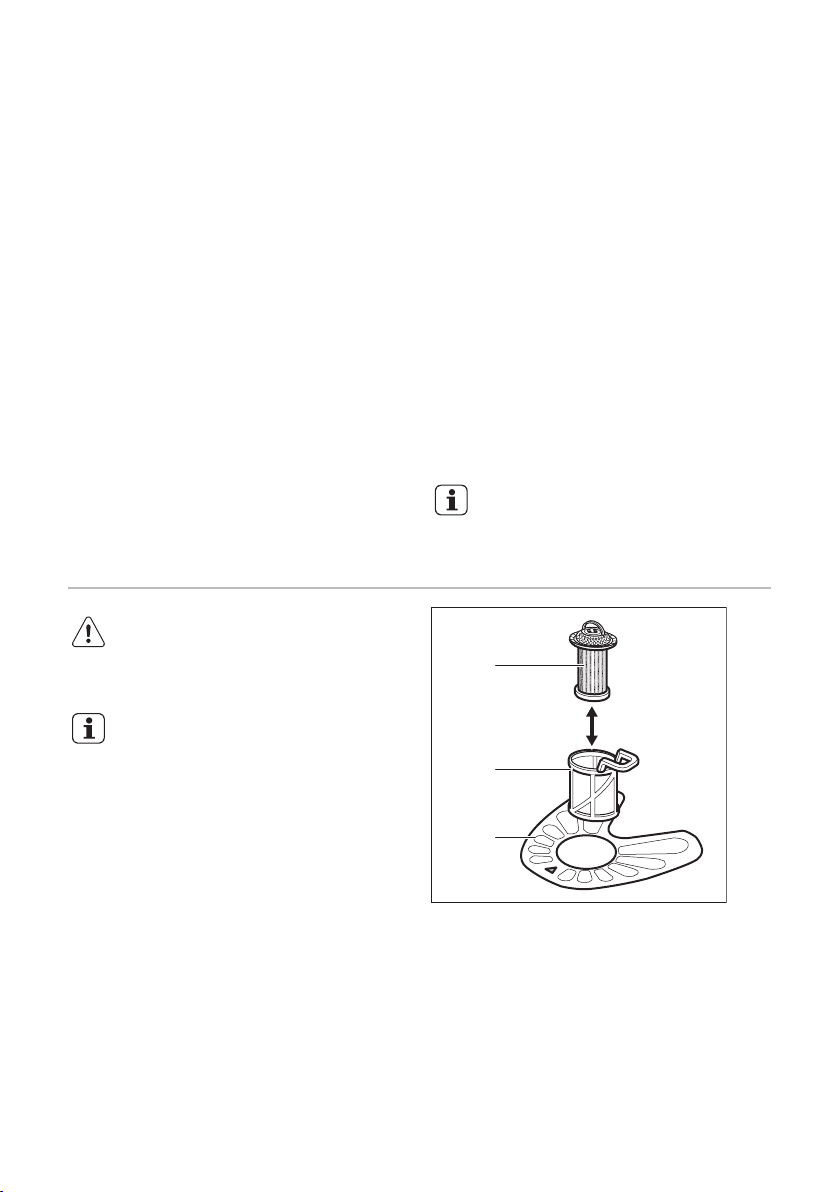

Cleaning the filters
The filter system is made of 3 parts.
1.
Turn the filter (B) counterclockwise and
remove it.
2.
Remove the filter (C) out of filter (B).
3.
Remove the flat filter (A).
Progress 15
7. Reassemble the filters (B) and (C).
8.
Put back the filter (B) in the flat filter (A).
Turn it clockwise until it locks.
4. Wash the filters.
5. Make sure that there are no residues of
food or soil in or around the edge of the
sump.
6. Put back in place the flat filter (A). Make
sure that it is correctly positioned under
the 2 guides.
CAUTION! An incorrect position
of the filters can cause bad
washing results and damage to
the appliance.
Cleaning the spray arms
Do not remove the spray arms. If the holes
in the spray arms are clogged, remove
remaining parts of soil with a thin pointed
object.
External cleaning
• Clean the appliance with a moist soft
cloth.
• Only use neutral detergents.
• Do not use abrasive products, abrasive
cleaning pads or solvents.
Internal cleaning
• Carefully clean the appliance, including
the rubber gasket of the door, with a soft
moist cloth.
16 Progress
• If you regularly use short duration
programmes, these can leave deposits
recommend to run long duration
programmes at least 2 times per month.
of grease and limescale inside the
appliance. To prevent this, we
TROUBLESHOOTING
If the appliance does not start or it stops
during operation, before you contact an
Authorised Service Centre, check if you can
solve the problem by yourself with the help
of the information in the table.
Problem and alarm code Possible solution
You cannot activate the appliance. • Make sure that the mains plug is connected to
The programme does not start. • Make sure that the appliance door is closed.
The appliance does not fill with water.
• The end indicator flashes 1 time in-
termittently.
• Acoustic signal sounds 1 time inter-
mittently.
The appliance does not drain the water.
• The end indicator flashes 2 times in-
termittently.
• Acoustic signal sounds 2 times inter-
mittently.
The anti-flood device is on.
• The end indicator flashes 3 times in-
termittently.
• Acoustic signal sounds 3 times inter-
mittently.
With some problems the end indicator
flashes intermittently indicating a
malfunction.
the mains socket.
• Make sure that there is no a damage fuse in the
fuse box.
• If the delay start is set, cancel the setting or wait
for the end of the countdown.
• The appliance has started the procedure to recharge the resin inside the water softener. The
duration of the procedure is approximately 5 minutes.
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply
is not too low. For this information, contact your
local water authority.
• Make sure that the water tap is not clogged.
• Make sure that the filter in the inlet hose is not
clogged.
• Make sure that the inlet hose has no kinks or
bends.
• Make sure that the sink spigot is not clogged.
• Make sure that the drain hose has no kinks or
bends.
• Close the water tap and contact an Authorised
Service Centre.
Once you have checked the appliance,
deactivate and activate the appliance. If the
problem occurs again, contact an
Authorised Service Centre.
For alarm codes not described in the table,
contact an Authorised Service Centre.
The washing and drying results are not satisfactory
Problem Possible solution
There are whitish streaks or
bluish layers on glasses and
dishes.
There are stains and dry water
drops on glasses and dishes.
The dishes are wet. • The programme does not have a drying phase or has a
• The release quantity of rinse aid is too much. Adjust the
rinse aid selector to a lower position.
• The quantity of detergent is too much.
• The released quantity of rinse aid is not sufficient. Adjust
the rinse aid selector to a higher position.
• The quality of the rinse aid can be the cause.
drying phase with low temperature.
• The rinse aid dispenser is empty.
• The quality of the rinse aid can be the cause.
• The quality of the multi-tablets can be the cause. Try a different brand or activate the rinse aid dispenser and use
rinse aid and multi-tablets together.
Refer to "Hints and tips" for
other possible causes.
TECHNICAL INFORMATION
Progress 17
Dimensions Width / height / depth (mm) 446 / 818-898 / 550
Electrical connection
Water supply pressure Min. / max. bar (MPa) 0.5 (0.05) / 8 (0.8)
Water supply
Capacity Place settings 9
Power consumption Left-on mode (W) 0.99
Power consumption Off-mode (W) 0.10
1)
Refer to the rating plate for other values.
2)
f the hot water comes from alternative source of energy, (e.g. solar panels, aeolian energy), use the hot water
supply to decrease energy consumption.
1)
Voltage (V) 220 - 240
Frequency (Hz) 50
Cold water or hot water
2)
max 60 °C
ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do not
dispose appliances marked with the symbol
with the household waste. Return the
Loading...
