Progress PAI6106E User Manual [de]

User Manual

Notice d'utilisation

Benutzerinformation

Hob

Table de cuisson

Kochfeld

PAI6106E

2 Progress

CONTENTS

Safety information 2
Safety instructions 3
Product description 5
Daily use 7
Hints and tips 10

Care and cleaning 11
Troubleshooting 12
Installation 14
Technical information 16
Energy efficiency 17

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damages. Always keep the instructions with the appliance for
future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.

• Do not let children play with the appliance.

• Keep all packaging away from children.

Keep children and pets away from the appliance when it

•

operates or when it cools down. Accessible parts are hot.
If the appliance has a child safety device, we recommend

•

you activate it.
Cleaning and user maintenance shall not be made by

•

children without supervision.
Children of less than 3 years should be kept away unless

•

continuously supervised.

General Safety

The appliance and its accessible parts become hot during

•

use. Do not touch the heating elements.

Progress 3

• Do not operate the appliance by means of an external timer

or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be

dangerous and may result in fire.

• Never try to extinguish a fire with water, but switch off the

appliance and then cover flame e.g. with a lid or a fire
blanket.

• Do not store items on the cooking surfaces.

• Metallic objects such as knives, forks, spoons and lids

should not be placed on the hob surface since they can get
hot.

• Do not use a steam cleaner to clean the appliance.

• After use, switch off the hob element by its control and do

not rely on the pan detector.

• If the glass ceramic surface / glass surface is cracked,

switch off the appliance to avoid the possibility of electric
shock.

• If the supply cord is damaged, it must be replaced by the

manufacturer, an authorized Service or similarly qualified
persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

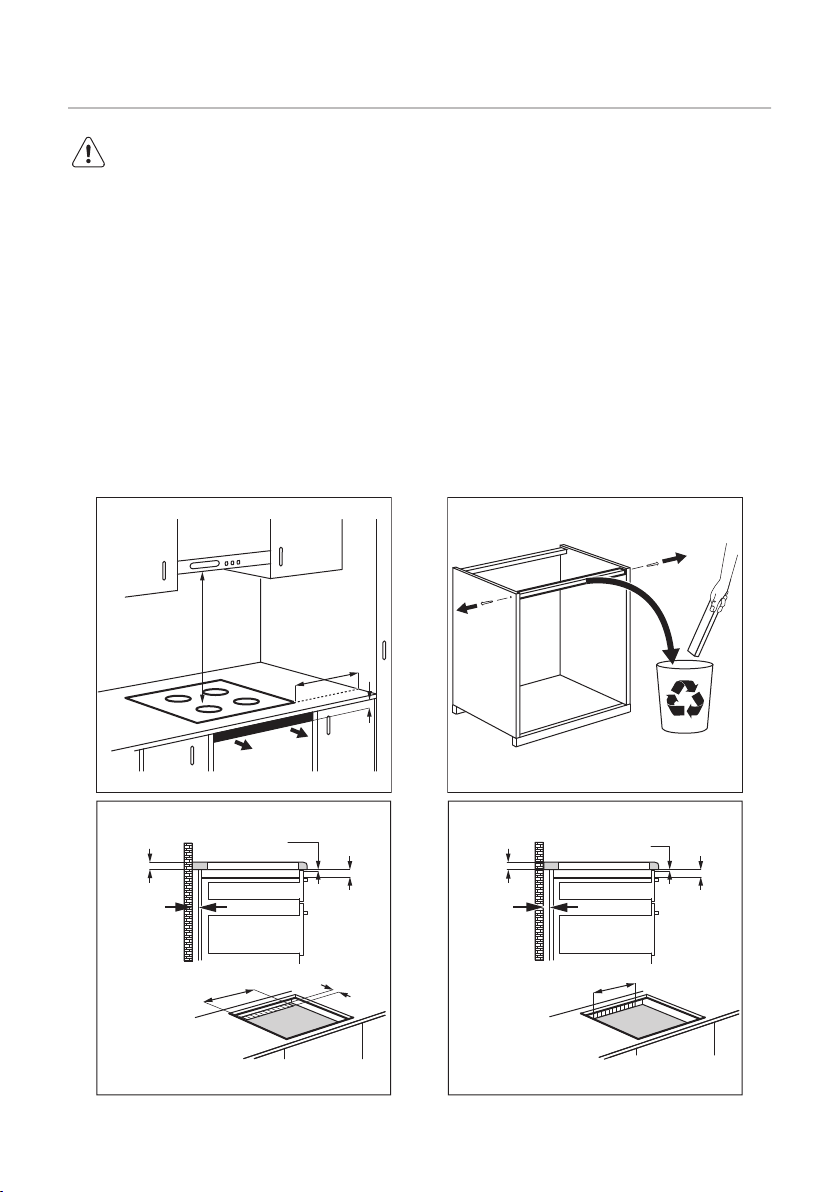

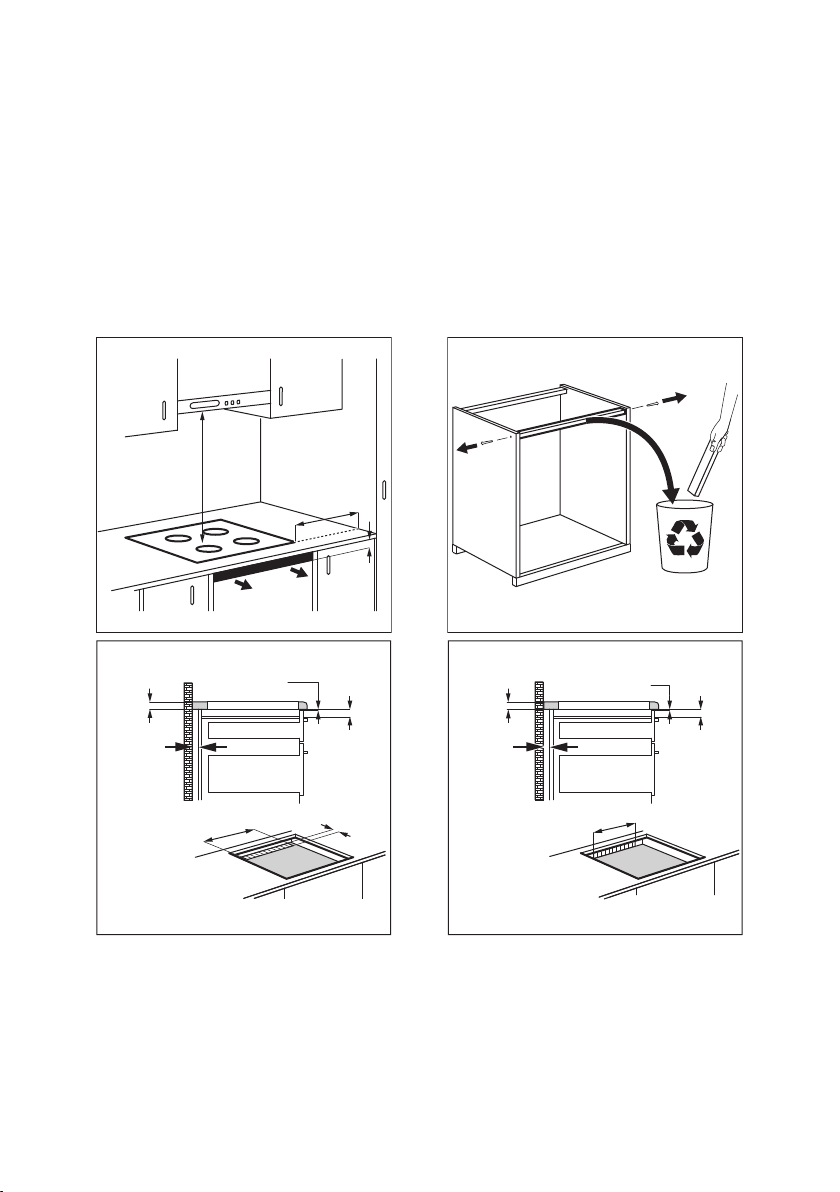

Installation

WARNING! Only a qualified

person must install this
appliance.

• Remove all the packaging.

• Do not install or use a damaged
appliance.

• Obey the installation instruction supplied
with the appliance.

• Keep the minimum distance from the
other appliances and units.

• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.

• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.

• Protect the bottom of the appliance from
steam and moisture.

• Do not install the appliance adjacent to a
door or under a window. This prevents
hot cookware to fall from the appliance
when the door or the window is opened.

• If the appliance is installed above
drawers make sure that the space,
between the bottom of the appliance
and the upper drawer, is sufficient for air
circulation.

• The bottom of the appliance can get hot.
Make sure to install a non-combustile
separation panel under the appliance to
prevent access to the bottom.

• Make sure that the ventilation space of 2
mm, between the worktop and the front
of the below unit, is free. The warranty
does not cover damages caused by the
lack of an adequate ventilation space.

4 Progress

Electrical Connection

WARNING! Risk of fire and

electrical shock.

• All electrical connections should be
made by a qualified electrician.

• The appliance must be earthed.

• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.

• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.

• Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.

• Use the correct electricity mains cable.

• Do not let the electricity mains cable
tangle.

• Make sure that a shock protection is
installed.

• Use the strain relief clamp on the cable.

• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to the near
sockets

• Do not use multi-plug adapters and
extension cables.

• Make sure not to cause damage to the
mains plug (if applicable) or to the mains
cable. Contact our Authorised Service
Centre or an electrician to change a
damaged mains cable.

• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.

• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.

• If the mains socket is loose, do not
connect the mains plug.

• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.

• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type

fuses removed from the holder), earth
leakage trips and contactors.

• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the mains
at all poles. The isolation device must
have a contact opening width of
minimum 3 mm.

Use

WARNING! Risk of injury, burns

and electrical shock.

• Remove all the packaging, labelling and
protective film (if applicable) before first
use.

• Use this appliance in a household
environment.

• Do not change the specification of this
appliance.

• Make sure that the ventilation openings
are not blocked.

• Do not let the appliance stay unattended
during operation.

• Set the cooking zone to “off” after each
use.

• Do not rely on the pan detector.

• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.

• Do not operate the appliance with wet
hands or when it has contact with water.

• Do not use the appliance as a work
surface or as a storage surface.

• If the surface of the appliance is
cracked, disconnect immediately the
appliance from the power supply. This to
prevent an electrical shock.

• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the
appliance is in operation.

• When you place food into hot oil, it may
splash.

WARNING! Risk of fire and
explosion

• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.

1 2 1

1 1

Progress 5

• The vapours that very hot oil releases
can cause spontaneous combustion.

• Used oil, that can contain food
remnants, can cause fire at a lower
temperature than oil used for the first
time.

• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.

WARNING! Risk of damage to
the appliance.

• Do not keep hot cookware on the
control panel.

• Do not let cookware to boil dry.

• Be careful not to let objects or cookware
fall on the appliance. The surface can be
damaged.

• Do not activate the cooking zones with
empty cookware or without cookware.

• Do not put aluminium foil on the
appliance.

• Cookware made of cast iron, aluminium
or with a damaged bottom can cause
scratches on the glass / glass ceramic.
Always lift these objects up when you
have to move them on the cooking
surface.

• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.

Care and cleaning

• Clean regularly the appliance to prevent
the deterioration of the surface material.

• Deactivate the appliance and let it cool
down before you clean it.

• Disconnect the appliance from the
electrical supply before maintenance.

• Do not use water spray and steam to
clean the appliance.

• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.

Disposal

WARNING! Risk of injury or

suffocation.

• Contact your municipal authority for
information on how to discard the
appliance correctly.

• Disconnect the appliance from the mains
supply.

• Cut off the mains cable and discard it.

Service

• To repair the appliance contact an
Authorised Service Centre.

• Use original spare parts only.

PRODUCT DESCRIPTION

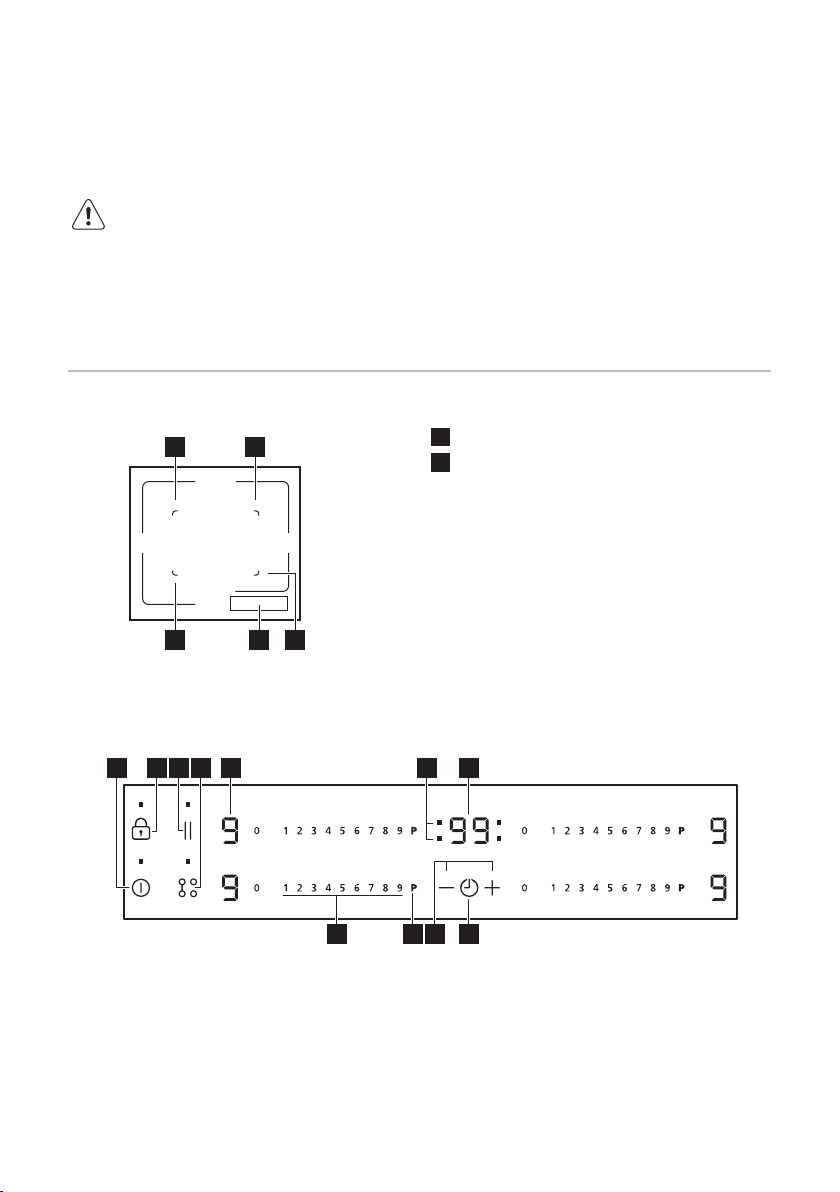

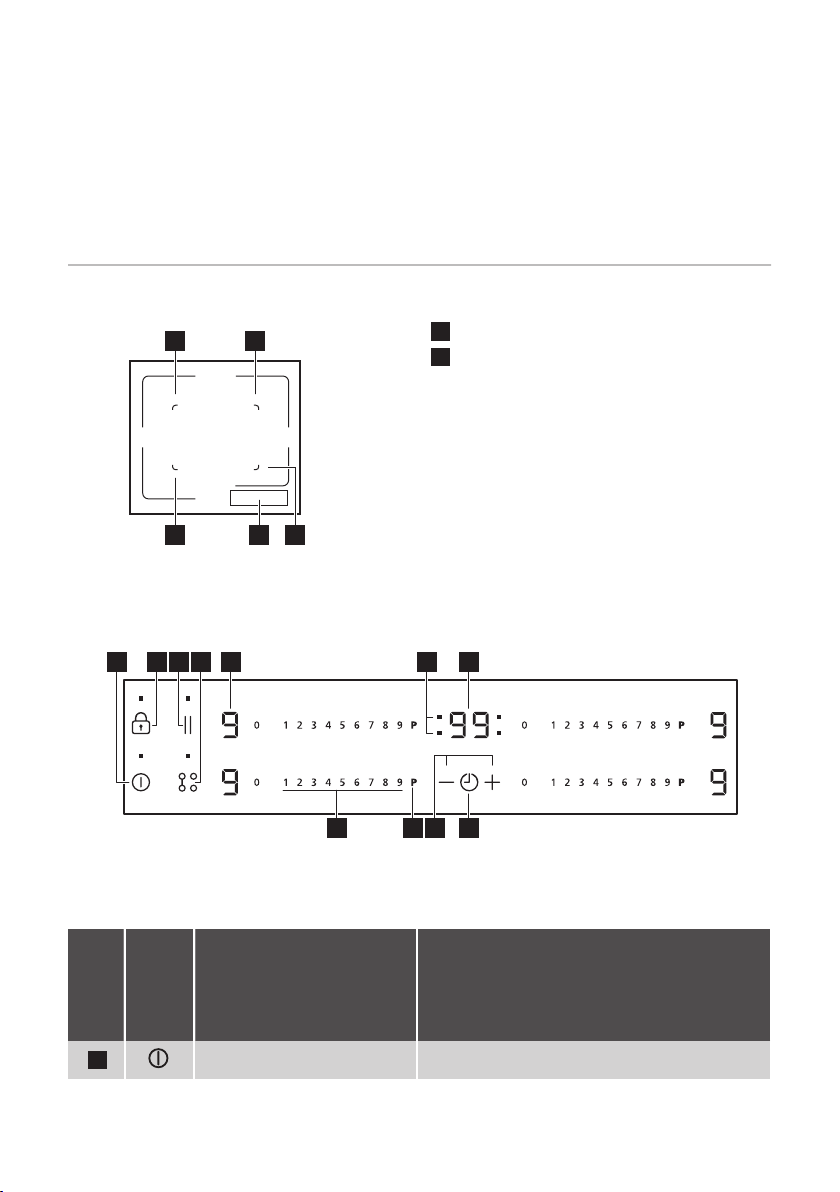

Cooking surface layout

Induction cooking zone

1

Control panel

2

1 2 3 4 5 6 7

810 911

6 Progress

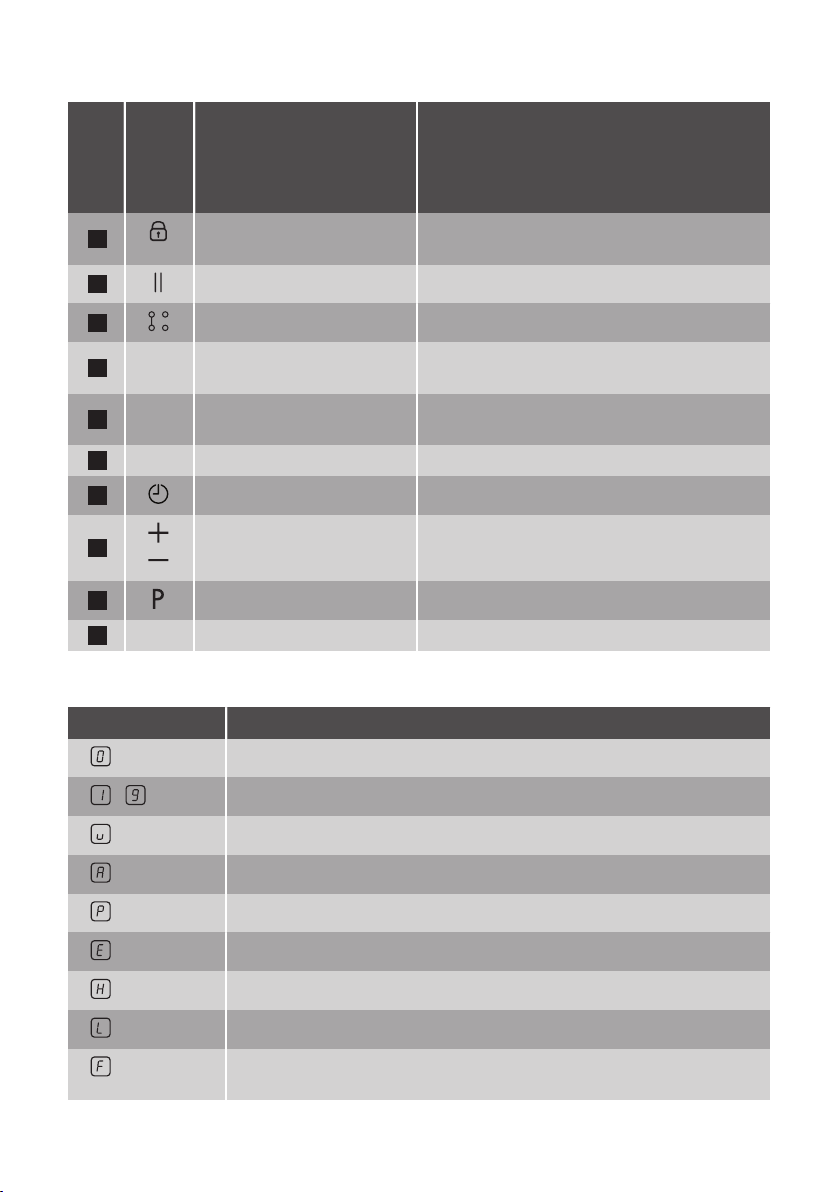

Control panel layout

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell
which functions operate.

10

11

Sen­sor
field

1

2

3

4

- Heat setting display To show the heat setting.

5

- Timer indicators of cooking

6

- Timer display To show the time in minutes.

7

8

9

- Control bar To set a heat setting.

Function Comment

ON / OFF To activate and deactivate the hob.

Lock / The Child Safety De­vice

STOP+GO To activate and deactivate the function.

Bridge To activate and deactivate the function.

zones

- To select the cooking zone.

- To increase or decrease the time.

/

Power function To activate and deactivate the function.

Heat setting displays

Display Description

The cooking zone is deactivated.

To lock / unlock the control panel.

To show for which zone you set the time.

Display Description

-

The cooking zone operates.

STOP+GO function operates.

Automatic Heat Up function operates.

Power function operates.

Progress 7

+ digit

There is a malfunction.

A cooking zone is still hot (residual heat).

Lock / The Child Safety Device function operates.

Incorrect or too small cookware or no cookware on the cooking zone.

Automatic Switch Off function operates.

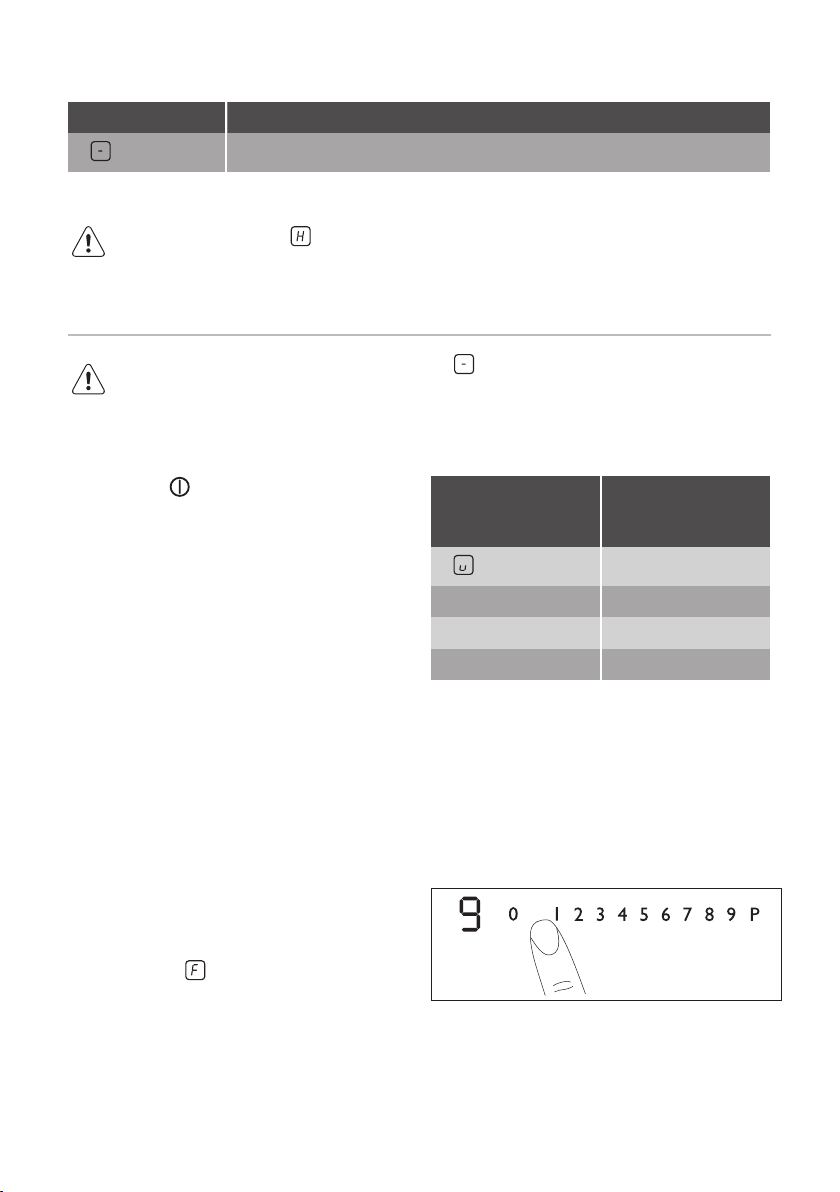

Residual heat indicator

WARNING! There is a risk of

burns from residual heat.

The induction cooking zones make the heat
necessary for cooking process directly in

DAILY USE

WARNING! Refer to Safety
chapters.

Activating and deactivating

Touch for 1 second to activate or
deactivate the hob.

Automatic Switch Off

The function deactivates the hob
automatically if:

• all cooking zones are deactivated,

• you do not set the heat setting after you
activate the hob,

• you spill something or put something on
the control panel for more than 10
seconds (a pan, a cloth, etc.). An
acoustic signal sounds and the hob
deactivates. Remove the object or clean
the control panel.

the bottom of the cookware. The glass
ceramic is heated by the heat of the
cookware.

• the hob gets too hot (e.g. when a
saucepan boils dry). Let the cooking
zone cool down before you use the hob
again.

• you use incorrect cookware. The symbol

comes on and the cooking zone
deactivates automatically after 2
minutes.

• you do not deactivate a cooking zone or
change the heat setting. After some time

comes on and the hob deactivates.

The relation between the heat setting
and the time after which the hob
deactivates:

Heat setting The hob deacti-

vates after

, 1 - 2

6 hours

8 Progress

Heat setting The hob deacti-

vates after

3 - 4 5 hours

5 4 hours

6 - 9 1.5 hour

The heat setting

To set or change the heat setting:
Touch the control bar at the correct heat

setting or move your finger along the
control bar until you reach the correct heat
setting.

Bridge function

This function connects two left side cooking
zones and they operate as one.

First set the heat setting for one of the left
side cooking zones.

To activate the function: touch
set or change the heat setting touch one of
the control sensors.

To deactivate the function: touch .
The cooking zones operate independently.

. To

Automatic Heat Up

If you activate this function you can get a
necessary heat setting in a shorter time.
The function sets the highest heat setting
for some time and then decreases to the
correct heat setting.

To activate the function the
cooking zone must be cold.

To activate the function for a cooking
zone: touch

touch the correct heat setting. After 3
seconds

( comes on). Immediately

comes on.

To deactivate the function: change the
heat setting.

Power function

This function makes more power available
to the induction cooking zones. The
function can be activated for the induction
cooking zone only for a limited period of
time. After this time the induction cooking
zone automatically sets back to the highest
heat setting.

Refer to “Technical information”
chapter.

To activate the function for a cooking
zone: touch . comes on.

To deactivate the function: change the

heat setting.

Timer

Count Down Timer

You can use this function to set how long
the cooking zone should operate for a
single cooking session.

First set the cooking zone then set the
function. You can set the heat setting

before or after you set the function.

To set the cooking zone: touch
and again until the indicator of a necessary
cooking zone comes on.

To activate the function or change the
time: touch or of the timer to set the

time (00 - 99 minutes). When the indicator
of the cooking zone starts to flash slowly
the time counts down.

To see the remaining time: set the
cooking zone with . The indicator of the

cooking zone starts to flash quickly. The
display shows the remaining time.

To deactivate the function: set the
cooking zone with and touch . The

remaining time counts back to 00. The
indicator of the cooking zone goes out.

again

Progress 9

When the time comes to an
end, the sound operates and 00
flashes. The cooking zone
deactivates.

To stop the sound: touch
Minute Minder

You can use this function as a Minute
Minder when the hob is activated and the

cooking zones do not operate (the heat
setting display shows ).

To activate the function: touch
Touch or of the timer to set the time.

When the time comes to an end, the sound
operates and 00 flashes.

To stop the sound: touch .

The function has no effect on
the operation of the cooking
zones.

.

.

STOP+GO

This function sets all cooking zones that
operate to the lowest heat setting.

When the function operates, you cannot
change the heat setting.

The function does not stop the timer
functions.

To activate the function: touch
comes on.

To deactivate the function: touch .
The previous heat setting comes on.

.

Lock

You can lock the control panel while
cooking zones operate. It prevents an
accidental change of the heat setting.

Set the heat setting first.

To activate the function: touch

comes on for 4 seconds. The Timer stays
on.

.

When you deactivate the hob,
you also deactivate this function.

The Child Safety Device

This function prevents an accidental
operation of the hob.

To activate the function: activate the hob
with . Do not set the heat setting. Touch

for 4 seconds. comes on. Deactivate

the hob with
To deactivate the function: activate the

hob with
Touch for 4 seconds. comes on.
Deactivate the hob with .

To override the function for only one
cooking time: activate the hob with
comes on. Touch for 4 seconds. Set

the heat setting in 10 seconds. You can

operate the hob. When you deactivate the
hob with

.

. Do not set the heat setting.

.

the function operates again.

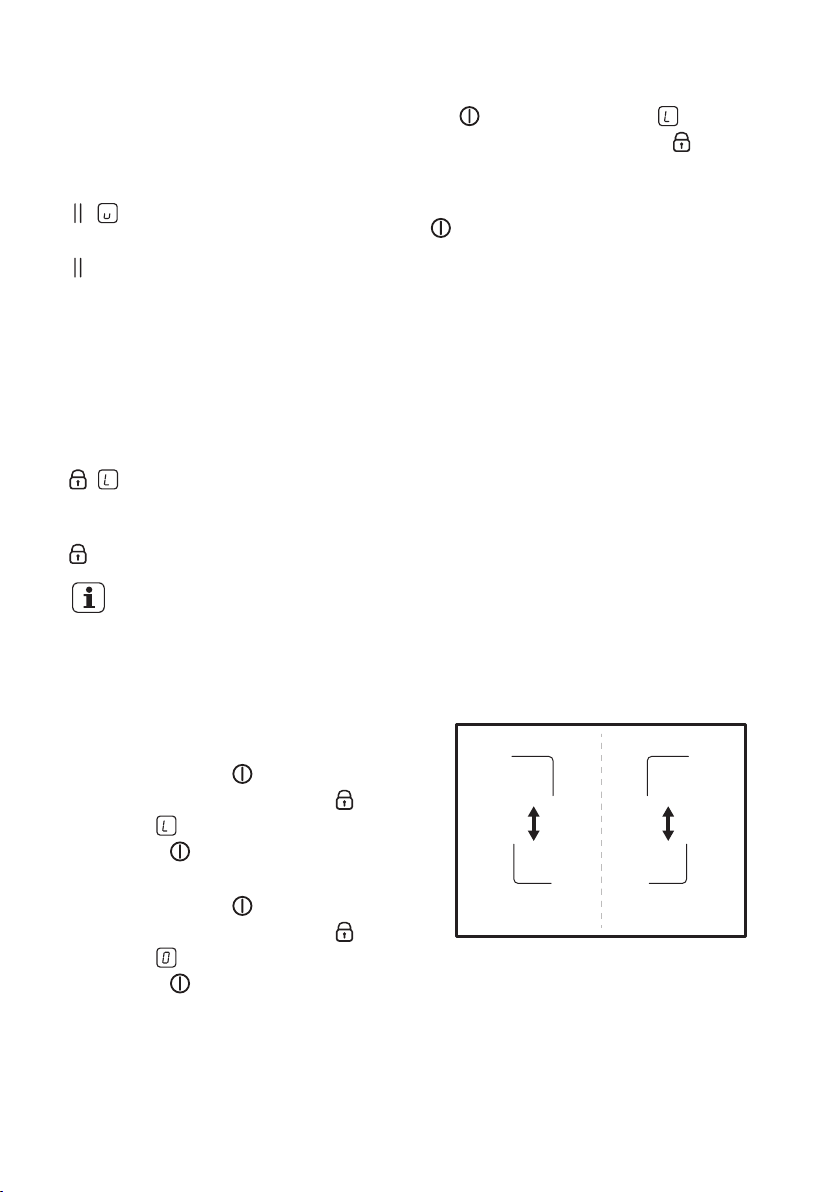

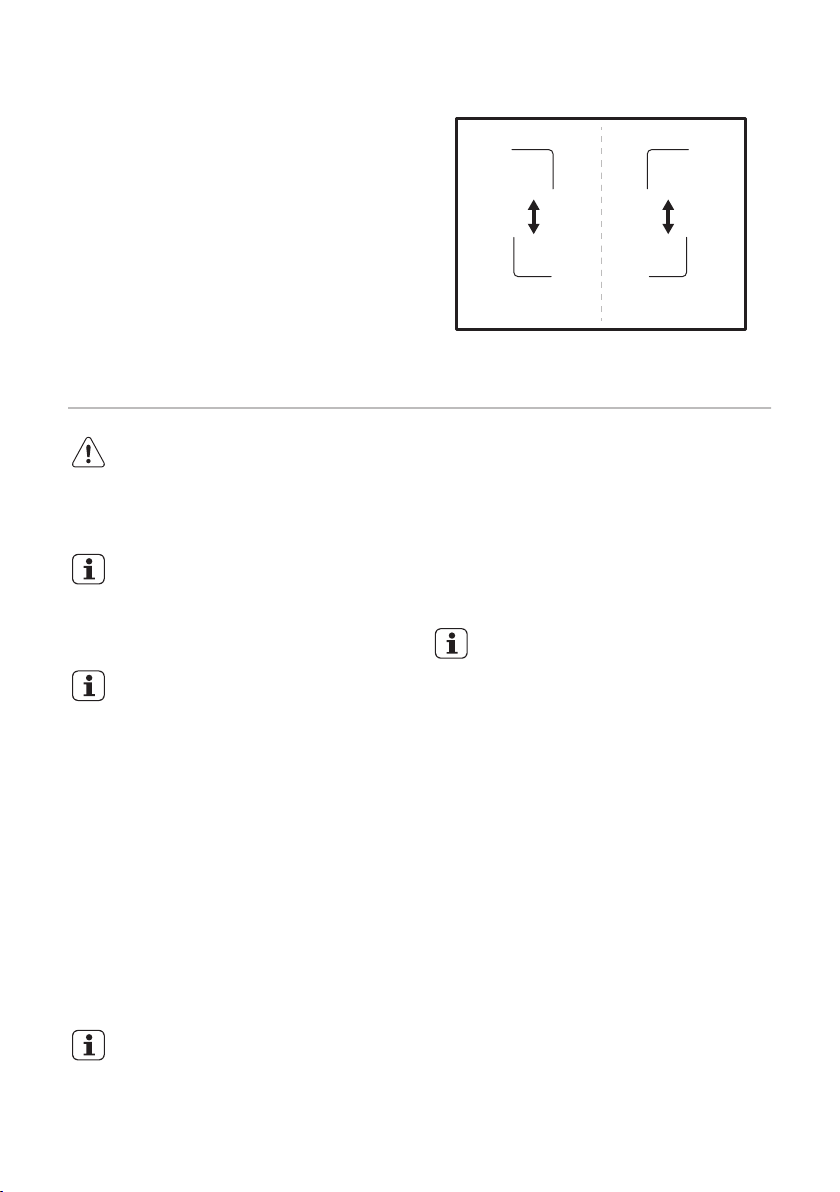

Power management function

• Cooking zones are grouped according
to the location and number of the
phases in the hob. See the illustration.

• Each phase has a maximum electricity
loading of 3700 W.

• The function divides the power between
cooking zones connected to the same
phase.

• The function activates when the total
electricity loading of the cooking zones
connected to a single phase exceeds
3700 W.

• The function decreases the power to the
other cooking zones connected to the
same phase.

• The heat setting display of the reduced
zones changes between two levels.

To deactivate the function: touch .
The previous heat setting comes on.

10 Progress

HINTS AND TIPS

WARNING! Refer to Safety
chapters.

Cookware

For induction cooking zones a
strong electro-magnetic field
creates the heat in the
cookware very quickly.

Use the induction cooking zones
with correct cookware.

Cookware material

• correct: cast iron, steel, enamelled
steel, stainless steel, the bottom made
of multi-layer (with correct mark from a
manufacturer).

• not correct: aluminium, copper, brass,
glass, ceramic, porcelain.

Cookware is correct for an induction
hob if:

• some water boils very quickly on a zone
set to the highest heat setting.

• a magnet pulls on to the bottom of the
cookware.

The bottom of the cookware
must be as thick and flat as
possible.

Cookware dimensions

Induction cooking zones adapt to the
dimension of the bottom of the cookware
automatically to some limit.

The cooking zone efficiency is related to the
diameter of the cookware. The cookware
with a smaller diameter than the minimum
receives only a part of the power generated
by the cooking zone.

Refer to “Technical information”
chapter.

The noises during operation

If you can hear:

• crack noise: cookware is made of
different materials (sandwich
construction).

• whistle sound: you the cooking zone
with high power level and the cookware
is made of different materials (sandwich
construction).

• humming: you use high power level.

• clicking: electric switching occurs.

• hissing, buzzing: the fan operates.

The noises are normal and do not refer
to hob malfunction.

Examples of cooking applications

The relation between the heat setting and
the cooking zone consumption of power is
not linear. When you increase the heat

Progress 11

setting, it is not proportional to the increase
of the cooking zone consumption of power.
It means that the cooking zone with the

The data in the table is for
guidance only.

medium heat setting uses less than a half of
its power.

Heat setting Use to: Time

(min)

- 1

1 - 2 Hollandaise sauce, melt: butter,

1 - 2 Solidify: fluffy omelettes, baked

2 - 3 Simmer rice and milkbased

3 - 4 Steam vegetables, fish, meat. 20 -

4 - 5 Steam potatoes. 20 -

4 - 5 Cook larger quantities of food,

6 - 7 Gentle fry: escalope, veal cor-

7 - 8 Heavy fry, hash browns, loin

9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.

Keep cooked food warm. as

neces­sary

5 - 25 Mix from time to time.

chocolate, gelatine.

10 -

eggs.

dishes, heating up ready­cooked meals.

stews and soups.

don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts.

steaks, steaks.

Boil large quantities of water. Power function is activated.

40

25 ­50

45

60

60 ­150

as
neces­sary

5 - 15 Turn halfway through.

Hints

Put a lid on the cookware.

Cook with a lid on.

Add the minimum twice as
much liquid as rice, mix milk
dishes part procedure through.

Add some tablespoons of liq­uid.

Use max. ¼ l water for 750 g
of potatoes.

Up to 3 l liquid plus ingredients.

Turn halfway through.

CARE AND CLEANING

WARNING! Refer to Safety
chapters.

General information

• Clean the hob after each use.

• Always use cookware with clean bottom.

• Scratches or dark stains on the surface
have no effect on how the hob operates.

• Use a special cleaner applicable for the
surface of the hob.

• Use a special scraper for the glass.

12 Progress

Cleaning the hob

• Remove immediately: melted plastic,
plastic foil, and food with sugar. If not,
the dirt can cause damage to the hob.
Put the special scraper on the glass
surface at an acute angle and move the

• Remove when the hob is sufficiently
cool: limescale rings, water rings, fat
stains, shiny metallic discoloration. Clean
the hob with a moist cloth and some
detergent. After cleaning, rub the hob
dry with a soft cloth.

blade on the surface.

TROUBLESHOOTING

WARNING! Refer to Safety
chapters.

What to do if...

Problem Possible cause Remedy

You cannot activate or oper­ate the hob.

The fuse is released. Make sure that the fuse is the

Activate the hob again and

You touched 2 or more sen-

STOP+GO function operates. Refer to "Daily use" chapter.

There is water or fat stains on

An acoustic signal sounds
and the hob deactivates.
An acoustic signal sounds
when the hob is deactivated.

The hob deactivates. You put something on the

Residual heat indicator does
not come on.

The hob is not connected to
an electrical supply or it is
connected incorrectly.

sor fields at the same time.

the control panel.

You put something on one or
more sensor fields.

sensor field .

The zone is not hot because
it operated only for a short
time.

Check if the hob is correctly
connected to the electrical
supply. Refer to the connec­tion diagram.

cause of the malfunction. If
the fuse releases again and
again, contact a qualified
electrician.

set the heat setting in less
than 10 seconds.

Touch only one sensor field.

Clean the control panel.

Remove the object from the
sensor fields.

Remove the object from the
sensor field.

If the zone operated suffi­ciently long to be hot, speak
to an Authorised Service
Centre.

Progress 13

Problem Possible cause Remedy

Automatic Heat Up function
does not operate.

The highest heat setting is

The heat setting changes be­tween two levels.

The sensor fields become
hot.

comes on.

comes on.

comes on.

The cookware is incorrect. Use the correct cookware.

The diameter of the bottom

and a number come on.

The zone is hot. Let the zone become suffi-

ciently cool.

The highest heat setting has

set.

Power management function
operates.

The cookware is too large or
you put it too near to the
controls.

Automatic Switch Off oper­ates.

The Child Safety Device or
the Lock function operates.

There is no cookware on the
zone.

of the cookware is too small
for the zone.

There is an error in the hob. Disconnect the hob from the

the same power as the func­tion.

Refer to "Daily use" chapter.

Put large cookware on the
rear zones if possible.

Deactivate the hob and acti­vate it again.

Refer to "Daily use" chapter.

Put cookware on the zone.

Refer to “Hints and tips”
chapter.

Use cookware with correct
dimensions.
Refer to “Technical informa­tion” chapter.

electrical supply for some
time. Disconnect the fuse
from the electrical system of
the house. Connect it again.

If comes on again, speak
to an Authorised Service
Centre.

14 Progress

Problem Possible cause Remedy

comes on.

There is an error in the hob
because a cookware boils
dry. Automatic Switch Off
and the overheating protec­tion for the zones operate.

Deactivate the hob. Remove
the hot cookware. After ap­proximately 30 seconds, acti­vate the zone again. If the
cookware was the problem,
the error message goes out.
Residual heat indicator can
stay on. Let the cookware
become sufficiently cool.
Check if your cookware is
compatible with the hob.
Refer to “Hints and tips”
chapter.

If you cannot find a solution...

If you cannot find a solution to the problem
yourself, contact your dealer or an
Authorised Service Centre. Give the data
from the rating plate. Give also three digit
letter code for the glass ceramic (it is in the
corner of the glass surface) and an error

INSTALLATION

WARNING! Refer to Safety
chapters.

Before the installation

Before you install the hob, write down the
information bellow from the rating plate.
The rating plate is on the bottom of the
hob.

Serial number ...........................

Built-in hobs

Only use the built-in hobs after you
assemble the hob into correct built-in units

message that comes on. Make sure, you
operated the hob correctly. If not the
servicing by a service technician or dealer
will not be free of charge, also during the
warranty period. The instructions about the
Service Centre and conditions of guarantee
are in the guarantee booklet.

and work surfaces that align to the
standards.

Connection cable

• For a single phase or two phase
connection use the following (or higher)
mains cable type: H05BB-F T min 90°C.

• To replace the damaged mains cable
use the following (or higher) mains cable
type: H05BB-F T min 90°C. Speak to
your local Service Centre.

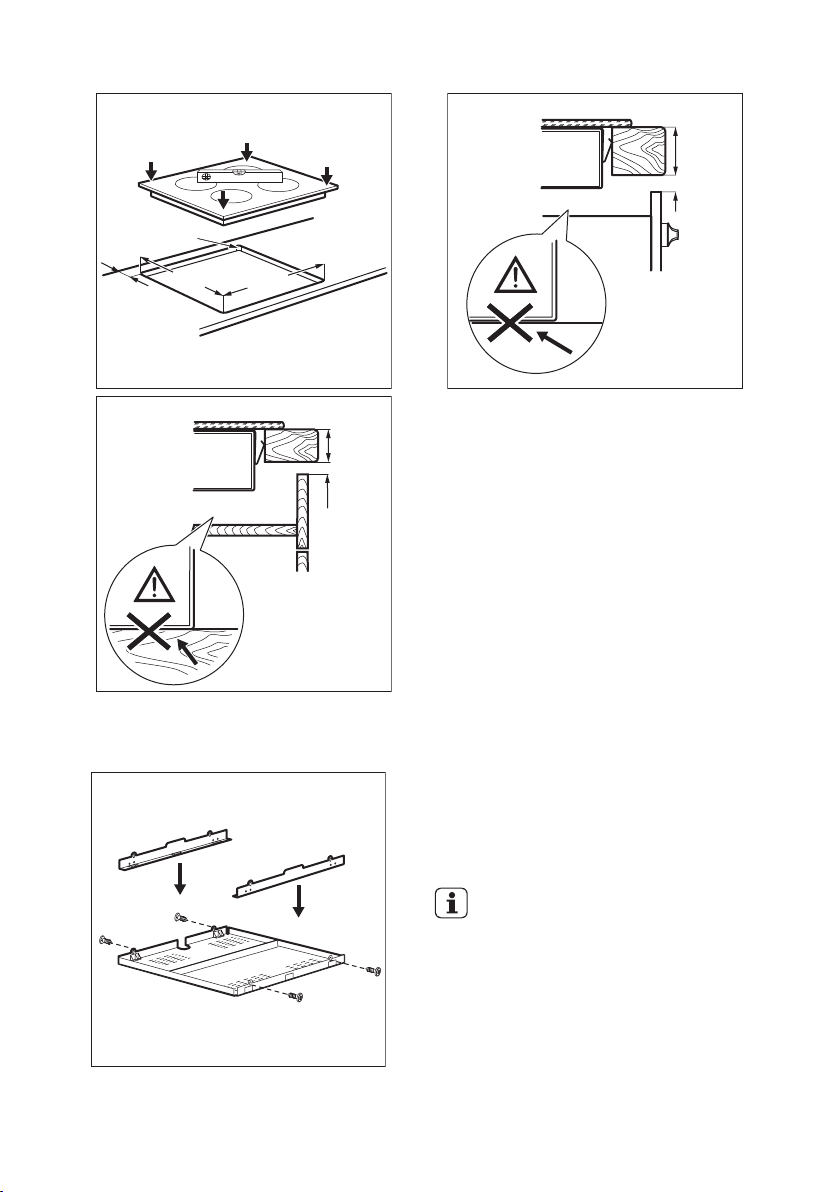

Assembly

min.
50mm

min.
500mm

min.
2mm

min. 2 mm

A

B

A

12 mm
28 mm
38 mm

B

57 mm
41 mm
31 mm

min
30 mm

min. 500 mm

< 20 mm

> 20 mm

min. 2 mm

A

B

A

12 mm
28 mm
38 mm

B

57 mm
41 mm
31 mm

min. 500 mm

R 5mm

min.
55mm

560+1mm

490+1mm

min.
38 mm

min.
2 mm

Progress 15

min.
12 mm

min.
2 mm

16 Progress

Protection box

If you use a protection box (an additional
accessory), the front airflow space of 2 mm
and the protective floor directly below the
hob are not necessary. The protection box
accessory may not be available in some
countries. Please contact your local
supplier.

You can not use the protection
box if you install the hob above
an oven.

TECHNICAL INFORMATION

Rating plate

Modell PAI6106E PNC 949 594 407 00
Typ 58 GAD DC AU 220 - 240 V 50 - 60 Hz
Induction 7.4 kW Made in Germany

Ser.Nr. ................. 7.4 kW

PROGRESS

Cooking zones specification

Progress 17

Cooking zone Nominal pow-

er (maximum
heat setting)
[W]

Left front 2300 3200 10 180 - 210

Left rear 2300 3200 10 180 - 210

Right front 1400 2500 4 125 - 145

Right rear 1800 2800 10 145 - 180

The power of the cooking zones can be
different in some small range from the data

Power func­tion [W]

For optimal cooking results use cookware
not larger than the diameter in the table.

Power func­tion maximum
duration [min]

Cookware di­ameter [mm]

in the table. It changes with the material
and dimensions of the cookware.

ENERGY EFFICIENCY

Product information according to EU 66/2014

Model identification PAI6106E

Type of hob Built-In Hob

Number of cooking zones 4

Heating technology Induction

Diameter of circular cooking
zones (Ø)

Energy consumption per
cooking zone (EC electric
cooking)

Energy consumption of the
hob (EC electric hob)

Left front
Left rear
Right front
Right rear

Left front
Left rear
Right front
Right rear

178.8 Wh / kg

21.0 cm

21.0 cm

14.5 cm

18.0 cm

177.4 Wh / kg

177.4 Wh / kg

188.6 Wh / kg

171.6 Wh / kg

EN 60350-2 - Household electric cooking
appliances - Part 2: Hobs - Methods for
measuring performance

Energy saving

You can save energy during everyday
cooking if you follow below hints.

• When you heat up water, use only the
amount you need.

• If it is possible, always put the lids on the
cookware.

• Before you activate the cooking zone
put the cookware on it.

• Put the smaller cookware on the smaller
cooking zones.

• Put the cookware directly in the centre
of the cooking zone.

• Use the residual heat to keep the food
warm or to melt it.
