Progress PA 8170 User Manual

Bodenstaubsauger Gebrauchsanweisung

Vacuum Floor Cleaner Operating Instructions

Aspirateur-traîneau Mode demploi

Vloerstofzuiger Gebruiksaanwijzing

3

Sicherheitshinweise 4
Übersicht und Zusammensetzen 8
Düsen 10
Staubsaugen - Allgemeine
Anwendungshinweise 12
Arbeiten mit dem Staubbehälter 14
Transportieren und Aufbewahren 18
Wartung und Reinigung 19
Was tun wenn... 11
Der Umwelt zuliebe 11
Kundendienst und Garantie 23

Safety information 5
Exploded view and assembly 8
Nozzles 10
Vacuum cleaning - General instructions 12
Using the dust collector 14
Transport and storage 18

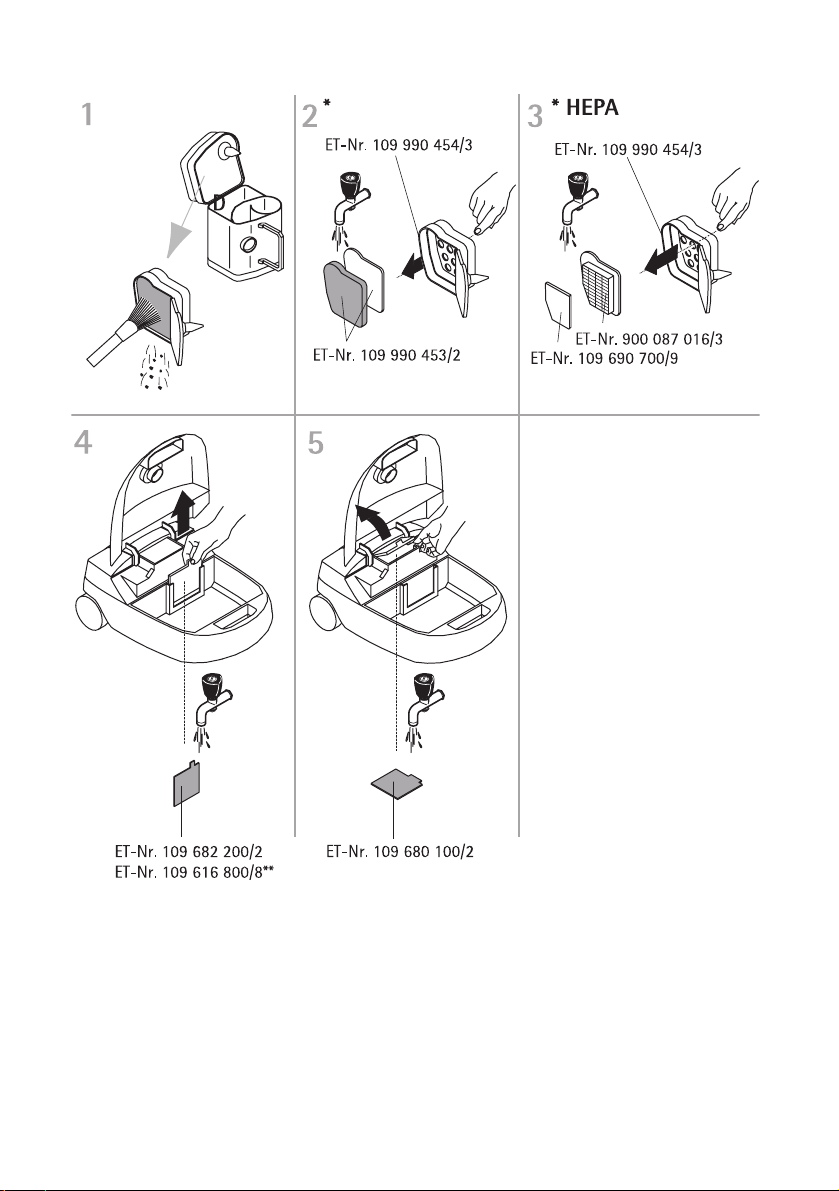

Maintenance and cleaning 20
What to do if... 20
For the sake of the environment 20
Customer service and warranty 23

Instructions de sécurité 6
Vue d'ensemble et assemblage 8
Suceurs 10
Pour aspirer la poussière - Instructions
générales dutilisation 12
Travailler avec le bac à poussière 14
Transport et rangement 18
Entretien et nettoyage 21
Que faire si... 21
Par respect de l'environnement 21
Service après-vente et garantie 23

Veiligheidsinstructies 7
Overzicht en montage 8
Mondstukken 10
Stofzuigen - Algemene gebruiksvoorschriften 12
Werken met het stofreservoir 14
Transporteren en opslaan 18
Onderhoud en reiniging 22
Wat doen als... 22
Ter wille van het milieu 22
Klantendienst en garantie 23

5

Dear Customer

Please read these operating instructions carefully. Pay attention above all to the safety
information! Please keep the operating instructions for future reference. Pass them on to any
future owner of the appliance.

Safety information

Power supply: AC only 220/230 V, fuse 16 A or 10 A slow-acting.
Do not put the unit into service if:

-

the connecting lead is damaged,

-

the unit is visibly damaged.
Use only in the home for cleaning dry material.
People and animals must not be treated with the unit.
Keep children away from electrical appliances.

Do not vacuum:

-

Liquids. Allow damp cleaned fitted carpet to dry out completely.

-

Matchsticks, glowing ash or cigarette ends.

-

Hard, pointed objects.

-

N.b.: Large quantities of fine dust (e.g. lime, drilling dust, sawdust, toner dust from laser

printers/photocopiers, etc.).
Never pull the mains plug from the socket with the cord. Do not run over the mains cable

with the unit and suction brush.

Do not clean unit with water (except filters and dust collector as per the instructions).

Do not expose the unit to the effects of weather, moisture or sources of heat.
Dust collector and all filters must always be fitted. If no dust collector is fitted, the dust-

collector compartment cover cannot be closed. Please do not use force!

Repairs to electrical appliances must be carried out by qualified service engineers.
Improperly performed repairs can result in considerable danger for the user.

If the power cable is defective the entire cable roller must be exchanged by the Progress
customer service or an authorized workshop.

The manufacturer accepts no liability for any damage caused by improper use or incorrect
operation.

In the event of a fault please contact your specialist dealer or the Progress customer service
directly.

This vacuum cleaner complies with the following EU Directives

73/23/EEC of 19.02.1973  Low Voltage Directive.
89/336/EEC of 03.05.1989 (including revised Directive 92/31/EEC)  EMC Directive.

8

Übersicht und Zusammensetzen
Exploded view and assembly
Vue d'ensemble et assemblage
Overzicht en montage

9

A Fusstaste Kabeleinzug G Zubehörhalter *
B Saugleistungsregler * H Nebenluftregler *
C Fusstaste EIN/AUS I Teleskoprohr * mit Schieber zur

Teleskop-rohr-Verlängerung/­Verkürzung

D Anzeige Staubbehälter entleeren

J Steckrohre (2) *
E Öffner für Staubehälterfach K Düse *
F Saugschlauch L Netzkabel

* je nach Ausführung

A Cable retractor foot switch G Accessories holder *
B Suction capacity regulator * H Air slide *
C Foot switch ON/OFF I Telescopic tube * with slide fitting for
D Empty dust collector" extending/shortening the telescopic tube

indicator J Plug-in tubes (2) *
E Opener for dust-collector compartment K Nozzle *
F Suction hose L Power cable

* depending on model

A Touche d'enroulement du câble G Logement des accessoires *
B Régulateur de puissance * H Coulisse de réglage d'air *
C Touche EN/HORS I Tube télescopique * avec coulisse pour
D Indicateur vidange du bac à poussière agrandir/réduire le tube télescopique

J Tubes emboîtables (2) *
E Touche d'ouverture du compartiment K Suceur *
du bac à poussière L Cordon de réseau
F Tuyau d'aspiration

* selon l'exécution

A Voetknop snoer intrekken G Hulpstukhouder *
B Regelaar zuigkracht * H Bijluchtregelaar *
C Voetknop AAN/UIT I Telescoopbuis * met schuifstuk voor het
D Indicator stofreservoir legen verlengen/verkorten van de telescoopbuis

J Insteekbuis (2) *
E Opener voor stofreservoirvak K Mondstuk *
F Zuigslang L Snoer

* Afhankelijk van de uitvoering

10

Düsen
Nozzles
Suceurs
Mondstukken
