Model No. PFEVEX74010.0
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal
(under frame)
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
UK
Call: 08457 089 009
From Ireland: 053 92 36102
USER'S MANUAL
Website: www.iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5QJ
UK
AUSTRALIA
Call: 1-800-237-173
E-mail:
australiacc@iconfitness.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
www.iconeurope.com
TABLE OF CONTENTS
This product should
always be used on a
level surface.
This product is not
intended for
therapeutic use.
M
isuse of this machine
may result in serious
injury.
R
ead user’s manual
prior to use and follow
all warnings and
instructions.
Do not allow children
on or around machine.
User weight must not
exceed 275 pounds.
Replace label if
damaged, illegible,
or removed.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OW TO USE THE EXERCISE BIKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
H
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
RECYCLING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are adequately informed of all precautions.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a commercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
o reduce the risk of serious injury, read all important precautions and
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 275 lbs.
(125 kg).
11. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. Always keep your back straight while using
the exercise bike; do not arch your back.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
3
BEFORE YOU BEGIN
hank you for selecting the new PROFORM
T
exercise bike. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The 300 ZLX exercise bike pro-
ides an impressive selection of features designed to
v
make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions
Handgrip Pulse Sensor
Adjustment Knob
®
3
00 ZLX
fter reading this manual, please see the front cover
a
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
umber decal are shown on the front cover of this
n
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Handlebar
Seat
Seat Adjustment Knob
Seat Post
Leveling Knob
Leveling Foot
Adjustment Knob
Pedal/Strap
Wheel
4
M10 x 95mm Patch
Screw (76)–4
M8 x 20mm
Patch Screw (74)–4
M6 x 60mm Bolt Set (51)–1
M4 x 16mm
Screw (90)–8
M4 x 5mm
Bright Screw
(91)–1
M8 Split
Washer (75)–8
M8 Washer
(43)–2
M8 Locknut
(72)–4
M6 x 70mm Bolt Set (50)–1
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
aterials. Do not dispose of the packing materials until assembly is completed.
m
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
5
1.
To make assembly easier, read the
nformation on page 5 before you begin.
i
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 95mm Patch Screws (76).
1
3
1
76
2. Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 95mm Patch Screws (76).
2
2
1
76
6
3. Loosen the Adjustment Knob (27) in the Frame
(1) a few turns.
rient the Seat Post (6) as shown. Then, pull
O
the Adjustment Knob (27) outward and insert
he Seat Post into the Frame (1). Slide the Seat
t
Post upward or downward to the desired position, and release the Adjustment Knob.
3
Adjustment
Holes
6
Move the Seat Post (6) upward or downward
slightly to make sure that the Adjustment
Knob (27) is engaged in one of the adjustment holes in the Seat Post. Then, tighten the
Adjustment Knob.
4. Orient the Seat (23) and the Seat Carriage (24)
as shown.
Attach the Seat (23) to the Seat Carriage (24)
with four M8 Locknuts (72) and four M8 Split
Washers (75).
Next, slide the Seat Carriage (24) onto the Seat
Post (6). Slide the Seat Carriage all the way forward, and tighten the Seat Adjustment Knob
(26).
1
27
4
23
6
91
24
26
Then, tighten an M4 x 5mm Bright Screw (91)
into the rear of the Seat Post (6).
75
72
7
5. Apply some of the included grease to an M6 x
70mm Bolt Set (50).
rient the Handlebar (5) and the Upright (4) as
O
shown.
While a second person holds the Handlebar (5)
near the Upright (4), insert the Extension Wire
(59) upward through the Handlebar.
Tip: Avoid pinching the Extension Wire (59).
Attach the Handlebar (5) to the Upright (4) with
the M6 x 70mm Bolt Set (50) and two M8
Washers (43).
5
0
5
Grease
51
43
5
59
43
50
Then, attach an M6 x 60mm Bolt Set (51)
through the lower bracket on the Handlebar (5).
6. The Console (13) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic components. Remove the indicated screw, remove the
battery cover, insert the batteries into the battery compartment, and then reattach the battery
cover. Make sure to orient the batteries as
shown by the diagrams inside the battery
compartment.
To purchase an optional power adapter, call
the telephone number on the front cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied power
adapter. Plug one end of the power adapter
into the receptacle on the console; plug the
other end into an outlet installed in accordance
with all local codes and ordinances.
Avoid pinching the
Extension Wire (59)
6
Batteries
Screw
13
51
4
Battery
Cover
Batteries
8
7. While another person holds the Console (13)
near the Handlebar (5), connect the wires on
the Console to the Extension Wire (59) and the
ulse Wire (61).
P
nsert the excess wire downward into the
I
Handlebar (5) or upward into the Console (13).
7
13
Tip: Avoid pinching the wires. Attach the
Console (13) to the Handlebar (5) with four M4
x 16mm Screws (90).
8. Orient the Upright (4) assembly and the Pivot
Cover (12) as shown.
Slide the Pivot Cover (12) upward to the
Handlebar (5). Tip: Bend and flex the Pivot
Cover slightly to slide it over the Handlebar.
Attach the Pivot Cover (12) to the Handlebar (5)
with four M4 x 16mm Screws (90).
Avoid pinching
the wires
8
61
59
5
90
90
Next, pivot the Handlebar (5) until the hole in
the Handlebar is aligned with an adjustment
hole in the Upright (4).
Tighten an Adjustment Knob (27) into the
Handlebar (5) and into an adjustment hole in
the Upright (4). Make sure that the
Adjustment Knob is engaged in one of the
adjustment holes.
5
Hole
Adjustment
Holes
27
90
4
12
90
90
9
9. Slide the Front Shield Cover (7) upward onto
the Upright (4).
hile another person holds the Upright (4) near
W
the Frame (1), connect the Extension Wire (59)
o the Wire Harness (58).
t
Insert the Upright (4) into the Frame (1).
Tip: Avoid pinching the wires. Attach the
Upright (4) with four M8 x 20mm Patch Screws
(74) and four M8 Split Washers (75).
Then, slide the Front Shield Cover (7) downward to the Frame (1) and press it into place.
9
75
4
7
59
1
58
75
74
75
Avoid pinching
he wires
t
74
10. Identify the Right Pedal (21), which is marked
with an “R.”
Using an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right
Crank Arm (19).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank Arm (not shown).
Adjust the strap on the Right Pedal (21) to the
desired position, and press the ends of the
straps onto the tabs on the Right Pedal. Adjust
the strap on the Left Pedal (not shown) in
the same way.
11. Make sure that all parts are properly tightened before you use the exercise bike. Note: Some hardware may be left over after assembly is completed. Place a mat under the exercise bike to protect the
floor or carpet.
10
19
Strap
21
Tab
10
HOW TO USE THE EXERCISE BIKE
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exercise, the seat should be at the
roper height. As you pedal, there should be a slight
p
bend in your knees when the pedals are in the lowest
osition.
p
To adjust the
seat, first loosen
the adjustment
knob a few turns.
Next, pull the
knob outward,
slide the seat
post upward or
downward to the
desired position,
and then release
the knob. Move
the seat post
upward or
downward
slightly to make
sure that the
knob is engaged
in one of the
adjustment
holes in the seat
post. Then,
tighten the knob.
Seat Post
Seat
Holes
Knob
HOW TO ADJUST THE HORIZONTAL POSITION OF
THE SEAT
o adjust the hori-
T
zontal position of
he seat, first
t
loosen the seat
adjustment knob a
few turns. Then,
move the seat forward or backward
to the desired
position, and
firmly tighten the
knob.
HOW TO ADJUST THE PEDAL STRAPS
To loosen the
pedal straps, pull
the straps upward.
To tighten the
pedal staps,
adjust the straps
to the desired
position, and
press the ends of
the straps onto
the tabs on the
pedals.
Seat
Seat Knob
Seat Post
Strap
Tab
11
HOW TO ADJUST THE ANGLE OF THE
HANDLEBAR
o adjust the
T
angle of the han-
lebar, first
d
loosen the adjustment knob a few
turns. Next, pull
the knob outward,
pivot the handlebar to the desired
angle, and then
release the knob
into an adjustment hole. Make
sure that the
knob is engaged
in one of the
adjustment
holes. Then,
tighten the knob.
Handlebar
Knob
Holes
HOW TO LEVEL THE EXERCISE BIKE
If the exercise
ike rocks slightly
b
on your floor dur-
ng use, turn one
i
or both of the leveling knobs on the
rear stabilizer and
adjust the leveling
feet until the rocking motion is
eliminated.
Leveling
Knobs
12
CONSOLE DIAGRAM
Workouts
Button
Display
Button
Volume
Buttons
Resistance
Buttons
FEATURES OF THE CONSOLE
This console offers an array of features designed to
make your workouts more effective and enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. While you exercise, the console will display continuous exercise feedback. You can even
measure your heart rate using the handgrip pulse sensor.
The console offers sixteen preset workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to vary your pedaling speed
as it guides you through an effective workout.
The console also features the iFit interactive workout
system, which enables the console to accept iFit cards
containing workouts designed to help you achieve
specific fitness goals.
For example, lose unwanted pounds with the 8-week
Weight Loss workout. iFit workouts control the resistance of the pedals while the voice of a personal
trainer coaches you through your workouts. iFit cards
are available separately. To purchase iFit cards, go
to www.iFit.com or see the front cover of this manual. iFit cards are also available at select stores.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
workout music or audio books while you exercise.
To use the manual mode, see page 14. To use a
preset workout, see page 16. To use an iFit workout, see page 17. To use the sound system, see
page 17. To change the console settings, see page
18.
Note: Before using the console, make sure that batteries are installed (see step 6 on page 8). If there is a
sheet of plastic on the display, remove the plastic.
13
HOW TO USE THE MANUAL MODE
4. Follow your progress with the display.
1. Begin pedaling or press any button on the
onsole to turn on the console.
c
hen you turn on the console, the display will
W
light. The console will then be ready for use.
2. Select the manual mode.
Each time you turn on the console, the manual
mode will be selected.
If you have selected a workout, press the Certified
Personal Trainer Workouts button (see the drawing on page 13) repeatedly until zeros appear in
the display.
The console offers several display modes. The
isplay mode that you select will determine which
d
workout information is shown. Press the Display
utton (see the drawing on page 13) repeatedly to
b
select the desired display mode.

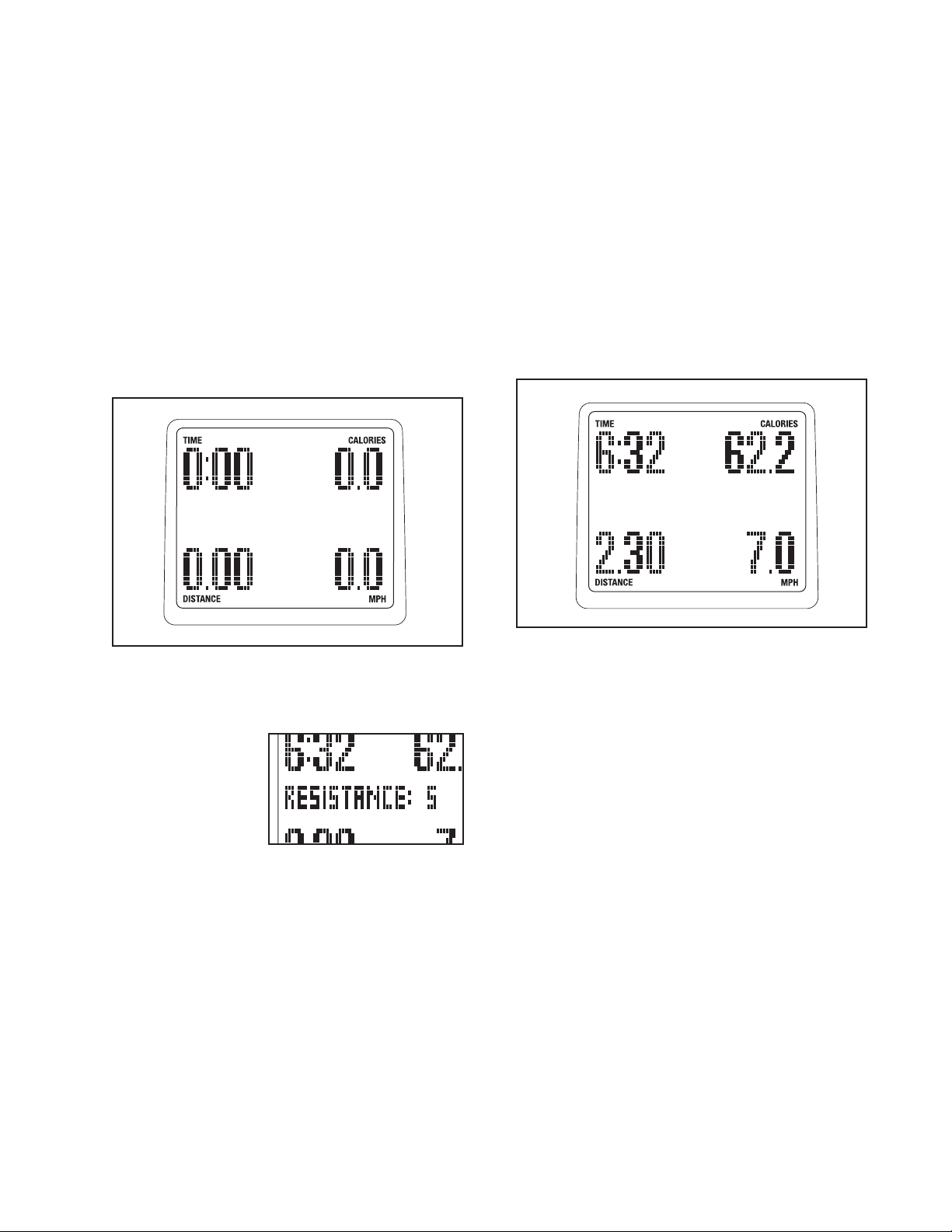

The display can show the following workout information:
Time—When the manual mode is selected, this
display will show the elapsed time. When a workout is selected, the display will show the time
remaining in the workout instead of the elapsed
time.
3. Change the resistance of the pedals as
desired.
As you pedal,
change the resistance of the
pedals by pressing the resistance
increase and
decrease buttons
(see the drawing
on page 13) repeatedly. Note: After you press the
buttons, it will take a moment for the pedals to
reach the selected resistance level.
Speed—This display will show your pedaling
speed, in miles per hour (MPH) or kilometers per
hour (KM/H).
Distance—This display will show the distance you
have pedaled, in miles or kilometers.
Calories—This display will show the approximate
number of calories you have burned.
14
Pulse—This display will show your heart rate
when you use the handgrip pulse sensor (see step
5 below).
Resistance—This display will show the resistance
evel of the pedals for a few seconds each time
l
the resistance level changes.
When your pulse is detected, dashes will appear
in the display, and then your heart rate will be
shown. For the most accurate heart rate reading,
old the contacts for at least 15 seconds. Note: If
h
you continue to hold the handgrip pulse sensor,
he display will show your heart rate for up to 30
t
seconds.
Profile—When a workout is selected, this display
will show a profile of the resistance settings for the
workout.
Display Settings—The console offers a display
settings mode that can be entered when the words
HOLD DISPLAY FOR SETTINGS appear in the
display. To change the display settings, see HOW
TO CHANGE THE CONSOLE SETTINGS on page
18.
Change the volume level of the console by pressing the Volume increase and decrease buttons
(see the drawing on page 13).
Note:
The console can show pedaling speed and
distance in either miles or kilometers. The letters
MPH or KM/H will appear in the display to show
which unit of measurement is selected. To change
the unit of measurement, see step 3 of HOW TO
CHANGE THE CONSOLE SETTINGS on page
18.
5. Measure your heart rate if desired.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound, the console will pause, and the
time will flash in the display. To resume your workout, simply resume pedaling.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
If there are
sheets of plastic
on the metal
contacts on the
handgrip pulse
sensor, remove
the plastic. To
measure your
heart rate, hold
the handgrip
pulse sensor with
your palms resting against the metal contacts.
Avoid moving your hands or gripping the contacts tightly.
Contacts
15
HOW TO USE A PRESET WORKOUT
1. Begin pedaling or press any button on the
onsole to turn on the console.
c
hen you turn on the console, the display will
W
light. The console will then be ready for use.
2. Select a preset workout.
To select a preset workout, press the Certified
Personal Trainer Workouts button repeatedly until
the profile of the desired workout appears in the
display.
The workout time and a profile of the resistance
levels for the workout will appear in the display.
Profile
If a different resistance level and/or target speed is
programmed for the next segment, the resistance
level and/or the target speed will flash in the dis-
lay for a few seconds to alert you. The resistance
p
of the pedals will then change.
As you exercise,
you will be
prompted to keep
your pedaling
speed near the
target speed for
the current segment. When an
upward-pointing arrow appears in the display,
increase your speed. When a downward-pointing
arrow appears in the display, decrease your
speed. When no arrows appear, maintain your current speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual speed may
be slower than the target speed. Make sure to
exercise at a speed that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level for the next segment.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute segments. One resistance level and one target speed
are programmed for each segment. Note: The
same resistance level and/or target speed may be
programmed for consecutive segments.
During the workout, the workout profile will show
your progress. The flashing segment of the profile
represents the current segment of the workout.
The height of the flashing segment indicates the
resistance level for the current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. The resistance level
and the target speed will also appear in the display.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound, the console will
pause, and the time will begin to flash in the display. To resume the workout, simply resume
pedaling.
4. Follow your progress with the display.
See step 4 on page 14.
5. Measure your heart rate if desired.
See step 5 on page 15.
6. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 15.
16
HOW TO USE AN IFIT WORKOUT
iFit cards are available separately. To purchase iFit
ards, go to www.iFit.com or see the front cover of this
c
manual. iFit cards are also available at select stores.
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will
light. The console will then be ready for use.
2.
Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
that the metal contacts are face down and are facing the slot. When the iFit card is properly
inserted, the indicator next to the slot will light and
text will appear in the display.
iFit Slot
iFit Card
A moment after you select a workout, the voice of
a personal trainer will begin guiding you through
your workout.
iFit workouts function in the same way as preset
orkouts. To use the workout, see steps 3 to 6
w
starting on page 16.
3.
When you are finished exercising, remove the
iFit card.
Remove the iFit card when you are finished exercising. Store the iFit card in a secure place.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug the included
audio cable into the jack on the console and into a
jack on your MP3 player or CD player; make sure
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume control on your MP3 player or CD player or press the
Volume increase and decrease buttons on the console.
Next, select the desired workout on the iFit card
by pressing the increase and decrease buttons
next to the iFit slot.
When not in use, unplug the audio cable from the jack
on the console.
17
HOW TO CHANGE THE CONSOLE SETTINGS
3. Select a unit of measurement if desired.
The console features a display settings mode that
allows you to select a backlight option and to select a
unit of measurement for the console. Follow the steps
below to change the console settings.
1. Enter the display settings mode.
To enter the display settings mode, first press the
Display button repeatedly until the words HOLD
DISPLAY FOR SETTINGS appear in the display.
Then, press and hold the Display button until the
display settings information appears in the display.
2. Select a backlight option if desired.
The console has three backlight options. The ON
option keeps the backlight on while the console is
on. The AUTO option keeps the backlight on only
while you are pedaling. The OFF option turns the
backlight off.
An X will appear next to the currently selected
backlight option. To change the backlight option,
press the resistance increase and decrease buttons to choose the desired backlight option.
The console can show pedaling speed and distance in either miles or kilometers.
The word ENGLISH for English miles or the word
METRIC for metric kilometers will appear in the
display. An X will appear next to the currently
selected unit of measurement.
To change the unit of measurement, press the
resistance increase and decrease buttons to
choose the desired unit of measurement.
Then, press the Display button to proceed to the
next option.
4. Exit the display settings mode.
Press the Display button to save your settings and
exit the display settings mode.
18
MAINTENANCE AND TROUBLESHOOTING
nspect and tighten all parts of the exercise bike regu-
I
larly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
mall amount of mild soap. IMPORTANT: To avoid
s
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, replace all the
batteries at the same time. See assembly step 6 on
page 8 for replacement instructions.
If the console does not display your heart rate when
you use the handgrip pulse sensor, see step 5 on
page 15.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the left pedal, the left
disc cover, and the left pedal disc (see the instructions
below).
ext, rotate the Left
N
Crank Arm (20) to a
vertical position with
the end of the Left
rank Arm pointing
C
upward. Rotate the
left Pedal Disc (17)
clockwise to release
it from the Left Shield
(11). Then, work the
left Pedal Disc upward and remove it from the Left
Crank Arm (20).
Locate the Reed Switch (57). Loosen, but do not
remove, the two M4 x 12.7mm Flange Screws (63).
55
57
20
11
17
20
Using an adjustable wrench, turn the left pedal clockwise and remove it.
Next, rotate the
Left Crank Arm
(20) to a vertical
position with the
end of the Left
Crank Arm pointing downward.
20
Using a flat
screwdriver,
release the tabs
on each point of
the left Disc
Cover (18). Carefully work the left Disc Cover over the
Left Crank Arm (20) and remove the left Disc Cover.
Tab
18
Tab
63
Next, rotate the Left Crank Arm (20) until a Magnet
(55) is aligned with the Reed Switch (57). Slide the
Reed Switch slightly toward or away from the Magnet.
Then, retighten the M4 x 12.7mm Flange Screws (63).
Rotate the Left Crank Arm (20) for a moment. Repeat
these actions until the console displays correct feedback.
When the reed switch is correctly adjusted, reattach
the left pedal disc, the left disc cover, and the left
pedal.
19
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
ven when the resistance is adjusted to the highest
e
level, the drive belt may need to be adjusted.
To adjust the drive belt, you must first remove the right
pedal, the seat post, the top shield cover, the rear
shield cover, the front shield cover, the right disc
cover, the right pedal disc, and the right shield (see
the instructions below).
Using an adjustable wrench, turn the Right Pedal (21)
counterclockwise and remove it.
Next, rotate the Right Crank Arm (19) to a vertical
position with the end of the Right Crank Arm pointing
upward.
Rotate the right Pedal Disc (17) clockwise to release it
rom the Right Shield (10).
f
Then, work the right Pedal Disc (17) upward and
remove it from the Right Crank Arm (19).
See the EXPLODED DRAWING on page 23 and
remove the M4 x 19mm Screws (89) and the M4 x
25mm Screws (62) from the Right and Left Shields
(10, 11). Then, remove the Right Shield.
Next, remove the indicated Adjustment Knob (27) and
remove the Seat Post (6).
6
27
8
9
17
18
10
Using a flat screwdriver, remove the Top Shield Cover
(8) and the Rear Shield Cover (9). Then, use the flat
screwdriver to release the Front Shield Cover (7).
Rotate the Right Crank Arm (19) to a vertical position
with the end of the Right Crank Arm pointing downward.
Using a flat screwdriver, release the tabs on each
point of the right Disc Cover (18). Carefully work the
right Disc Cover over the Right Crank Arm (19) and
remove the right Disc Cover. Note: See the drawings
on page 19 for more detail.
7
21
19
Next, loosen the M6 x 20mm Hex Screw (85). Then,
tighten the M10 x 50mm Hex Screw (86) until the
Drive Belt (54) is tight.
54
85
86
When the Drive Belt (54) is tight, tighten the M6 x
20mm Hex Screw (85).
Then, reattach the right shield, the right pedal disc, the
right disc cover, the front shield cover, the rear shield
cover, the top shield cover, the seat post, and the right
pedal.
20
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
ian. This is especially important for persons
c
over age 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
ime. During the first few minutes of exercise, your
t
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
21
PART LIST—Model No. PFEVEX74010.0 R
Key No. Qty. Description Key No. Qty. Description
0910A
1
21Front Stabilizer
31Rear Stabilizer
41Upright
51Handlebar
6 1 Seat Post
71Front Shield Cover
81Top Shield Cover
91Rear Shield Cover
10 1 Right Shield
11 1 Left Shield
12 1 Pivot Cover
13 1 Console
14 1 Right Pad
15 1 Left Pad
16 1 Pulse Sensor
17 2 Pedal Disc
18 2 Disc Cover
19 1 Right Crank Arm
20 1 Left Crank Arm
21 1 Right Pedal/Strap
22 1 Left Pedal/Strap
23 1 Seat
24 1 Seat Carriage
25 2 Seat Post Cap
26 1 Seat Adjustment Knob
27 2 Adjustment Knob
28 1 Seat Post Sleeve
29 2 Leveling Knob
30 1 Seat Bracket
31 2 Leveling Foot
32 2 Rear Stabilizer Cap
33 1 Right Stabilizer Cap
34 1 Left Stabilizer Cap
35 2 Wheel
36 2 Foot
37 2 Foam Grip
38 1 Pulley
39 1 Crank
40 2 Crank Bearing
41 2 Snap Ring
42 1 Flywheel
43 2 M8 Washer
44 1 Flywheel Axle
45 1 Idler
46 1 Motor Bracket
47 1 Resistance Motor
48 1 Resistance Disc
1 Frame
9 1 Resistance Arm
4
50 1 M6 x 70mm Bolt Set
51 1 M6 x 60mm Bolt Set
52 1 Arm Lock
53 1 C-magnet
54 1 Drive Belt
55 2 Magnet
56 1 Clamp
57 1 Reed Switch/Wire
58 1 Wire Harness
59 1 Extension Wire
60 2 Wire Clamp
61 1 Pulse Wire
62 2 M4 x 25mm Screw
63 2 M4 x 12.7mm Flange Screw
64 1 Audio Cable
65 3 M8 x 17mm Flat Head Screw
66 2 Handlebar Pivot Bushing
67 6 M4 x 19mm Flat Head Screw
68 2 Crank Cap
69 2 Upright Pivot Bushing
70 2 5/16" Flange Screw
71 4 M8 x 20mm Button Bolt
72 8 M8 Locknut
73 2 M8 Jam Nut
74 4 M8 x 20mm Patch Screw
75 12 M8 Split Washer
76 4 M10 x 95mm Patch Screw
77 1 M6 x 65mm Hex Screw
78 1 M6 Locknut
79 4 M4 x 12mm Flange Screw
80 2 M6 x 8mm Hex Screw
81 1 M5 Washer
82 1 M5 x 7mm Screw
83 1 M6 x 14.67mm Shoulder Screw
84 1 M6 Washer
85 1 M6 x 20mm Hex Screw
86 1 M10 x 50mm Hex Screw
87 1 M3.5 x 12mm Screw
88 1 M4 x 12.7mm Bright Screw
89 14 M4 x 19mm Screw
90 10 M4 x 16mm Screw
91 2 M4 x 5mm Bright Screw
92 2 Handlebar Cap
*–Assembly Tool
*–Grease Packet
*–Userʼs Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
22
4
50
6
9
13
14
1
5
8
27
12
23
24
25
25
26
61
64
69
66
72
50
91
67
90
90
90
90
75
30
65
43
43
51
51
5
90
67
1
2
3
10
11
17
18
18
17
27
19
20
21
22
28
29
31
32
29
32
31
33
34
35
35
36
36
38
39
40
40
41
42
44
45
46
47
48
49
52
53
54
55
55
56
57
58
59
68
68
70
70
71
71
72
72
73
73
74
74
74
75
75
76
76
77
78
79
80
81
82
83
84
85
86
87
90
89
89
89
63
89
89
89
89
89
89
89
89
89
62
62
88
75
75
90
74
41
60
60
7
67
16
37
92
37
92
EXPLODED DRAWING—Model No. PFEVEX74010.0 R0910A
23
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
RECYCLING INFORMATION
This electronic product must not be disposed of in municipal waste. To preserve the environment, this product must be recycled after its useful life as
required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or
the establishment where you purchased this product.
Part No. 304069 R0910A Printed in China © 2010 ICON IP, Inc.
Loading...
