The serial number is on a sign
behind the access panel. Write the
serial number in the space above.
Access
Panel
QUESTIONS?
If you have questions, or if there
are missing parts, we will guarantee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The technicians on our customer
hot line will provide immediate
assistance, free of charge.
USER’S MANUAL
CUSTOMER HOT LINE:
1-888-884-6555
Mon.–Fri., 8 a.m.–5 p.m. CST
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
The warning sign, shown below, must be posted on a wall or fence where it will be visible to all users of the
hydrotherapy spa. Whenever the spa is moved, the sign must also be moved and reposted near the spa. If the
sign becomes lost or illegible, call our toll-free Customer Hot Line at 1-888-884-6555 to obtain a replacement
sign. Post the sign as described above.
PROFORM is a registered trademark of ICON IP, Inc.
2
Important Safety Instructions
WARNING:To reduce the risk of drowning, electric shock, or serious injury, read the fol-
lowing important precautions before using the hydrotherapy spa.
READ AND FOLLOW ALL INSTRUCTIONS
1. It is the responsibility of the owner to ensure
that all users of the hydrotherapy spa are
adequately informed of all precautions.
2. Use the hydrotherapy spa only as described
in this manual.
3. The hydrotherapy spa is intended for home
use only. Do not use the spa in a commercial,
rental, or institutional setting.
4. Use the hydrotherapy spa only on a level surface. Do not use the spa on carpet or other
materials that could be damaged by moisture.
5. The hydrotherapy spa will weigh approximately 3,300 pounds when it is filled with
water. Make sure that the location you select
for the spa will support this weight, plus the
weight of the occupants.
6. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
7. DANGER—Risk of injury: Do not remove or
alter the covers on the suction fittings. Never
operate the hydrotherapy spa if the suction
guard is missing or broken. If you need to
replace a suction fitting or pump, make sure
you use only manufacturer recommended
replacement parts. Keep hair and body parts
away from the suction guard. Do not allow
long hair to float freely in the water; long hair
should be restrained with a bathing cap.
8. IMPORTANT: Do not allow the hydrotherapy
spa to be exposed to direct sunlight when it
is empty. The surface of the spa shell can
reach temperatures as high as 150°F in a matter of minutes if exposed to the sun while it is
empty. These high temperatures can cause
significant damage, such as blistering of the
shell surface and warping of the spa shell.
Any damage caused by sun exposure is not
covered under the warranty
9. Do not bring any object into the hydrotherapy
spa that could damage the spa shell.
.
10.Never insert any object into any opening.
11.Do not use breakable containers in or near
the hydrotherapy spa.
12.Do not sit on the spa cover or place objects
on it; it is not designed to support weight.
13.Remove any water or debris that may collect
on the spa cover.
14.Keep children under the age of 12 and pets
away from the hydrotherapy spa when it is
not in use.
15.Keep all chemicals away from children and
pets.
16.The pH and chemical balance of the water
must be maintained as explained in this manual (see pages 12 and 17). Failure to do so
may cause injury to users or damage to the
hydrotherapy spa, and will void the warranty.
17.Individuals with infections and open sores or
wounds should not use the hydrotherapy
spa. Bacteria thrive in warm and hot water.
Always keep your spa disinfected and maintain the proper chemical balance.
18.Shower before and after using the hydrotherapy spa. This will remove any deodorant, per
spiration, or body oils that could contaminate
the water. Showering after will remove any
residual chemicals and any bacteria that may
have been in the spa.
The Ground Fault Circuit
ARNING
19.W
Interrupter (GFCI), must be tested before
each use. To test the GFCI, press the “test”
button while the hydrotherapy spa is running.
The spa should shut off. Press the “reset”
button. The spa should resume normal operation. If the spa continues to run after the
“test” button is pressed, then the GFCI is
damaged. Do not use the spa until the GFCI
has been repaired or replaced by a qualified
electrician.
—
-
3
20.DANGER—Risk of electric shock. Keep all
lectrical appliances such as radios, tele-
e
phones, televisions, and lights at least five
feet away from the water.
1.A wire connector is provided on the electron-
2
ics pack of the hydrotherapy spa to connect a
minimum No. 6 AWG (13.3 mm2) solid copper
conductor between the spa and any metal
equipment, electrical enclosure made of
metal, metal water pipes, or conduit within
five feet of the spa.
22.DANGER—Risk of electric shock: Do not set
the hydrotherapy spa within five feet of any
metal objects or surfaces. As an alternative,
you may use the spa within five feet of metal
objects if each metal object is permanently
connected to the wire connector on the electronics pack of the spa by a minimum No. 6
2
AWG (13.3 mm
) solid copper conductor (see
instruction 21).
23.Do not operate the pump motor when the
hydrotherapy spa is empty. The pump motor
may be seriously damaged if it is operated
without water circulating.
24.DANGER—Risk of drowning: Exercise
extreme caution to prevent unauthorized and
unsupervised use of the hydrotherapy spa by
children. Children must always be supervised.
25.DANGER—To reduce the risk of drowning:
• Never use the hydrotherapy spa alone.
• Children should not use the spa unless they
are supervised by an adult.
• Keep pets away from the spa at all times.
Always replace and lock the spa cover when
•
the spa is not in use.
ARNING—To reduce the risk of injury: The
W
26.
water temperature should never exceed
104°F. Temperatures between 100°F and 104°F
are considered to be safe for healthy adults.
However
, if you plan to remain in the hydrotherapy spa for more than 10 to 15 minutes, a
lower temperature is recommended. Lower
temperatures are also recommended for chil
dren. Children should not be allowed to swim
under the surface of the water in the spa.
27.WARNING—To reduce the risk of injury:
Before entering the hydrotherapy spa, always
use an accurate thermometer to determine
the water temperature.
o reduce the risk of injury:
T
28.
ARNING
W
—
Pregnant women should consult with their
physician before using the hydrotherapy spa.
regnant women should not use the spa if
P
the water temperature is above 100°F; the
unborn child could be seriously harmed. This
is especially important during the first 90
days of the pregnancy.
29.DANGER—To reduce the risk of drowning:
Prolonged immersion in the hydrotherapy spa
may cause hyperthermia. The causes, symptoms and effects of hyperthermia may be
described as follows: Hyperthermia occurs
when the internal temperature of the body
reaches a level several degrees above the
normal body temperature of 98.6°F. The symptoms of hyperthermia include an increase in
the internal temperature of the body, dizziness, lethargy, drowsiness and fainting. The
effects of hyperthermia include failure to perceive heat; failure to recognize the need to
exit the spa or hot tub; unawareness of
impending hazard; fetal damage in pregnant
women; physical inability to exit the spa or
hot tub and unconsciousness resulting in
danger of drowning. WARNING: The use of
alcohol, drugs or medication can greatly
increase the risk of fatal hyperthermia.
30.WARNING—To reduce the risk of drowning:
Do not use the hydrotherapy spa if you are
under the influence of alcohol or drugs. Heat
from the water, in conjunction with alcohol or
drugs, can cause loss of consciousness.
31.WARNING—To reduce the risk of injury or
drowning: Consult your physician about possible side-effects of any medications you may
be taking before using the hydrotherapy spa.
Heat from the water, in conjunction with some
medications, may cause drowsiness and
increase the risk of drowning. Other medications can effect blood pressure, heart rate,
and circulation.
32.Do not use the hydrotherapy spa immediately
after strenuous exercise.
33. If you feel pain or dizziness at any time while
-
using the hydrotherapy spa, discontinue use
and contact a physician.
34.WARNING—To reduce the risk of injury: It is
especially important for persons over the age
of 35 or persons with pre-existing health
problems, such as obesity, heart disease,
high or low blood pressure, circulatory problems, or diabetes to consult their physician
before using the hydrotherapy spa.
4
35.WARNING: The spa jets produce a stream of
ater with relatively high pressure. Prolonged
w
exposure of a localized area of the body may
cause bruises to the skin.
6.The included warning sign must be posted
3
where all users of the hydrotherapy spa can
see and read it. (See POSTING THE WARNING
SIGN on page 2.)
37.WARNING DECAL PLACEMENT: Locate the
decals shown below and familiarize yourself
with the information on the decals.
WARNING:Read all instructions before using the hydrotherapy spa. ICON assumes no
responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
5
Before You Begin
ongratulations for selecting the new PROFORM
C
TEMPEST hydrotherapy spa. The innovative TEM-
EST spa allows you to enjoy all the benefits of
P
hydrotherapy in the comfort and privacy of your home.
Hydrotherapy is a proven method for soothing tired
muscles after exercise or for relieving the stress of a
busy life. The warm environment stimulates blood flow,
which is essential in the healing process, and the
powerful massage action further eases tension and
stress throughout the body. The hydrotherapy spa
gives you the specialized treatment you need to feel
your best.
Air
Waterfall
Jet
Waterfall
valve
Controls
Console
®
Jets
Waterfall
Valve
or your benefit, read this manual carefully before
F
using the hydrotherapy spa. If you have questions
fter reading the manual, please call our Customer
a
Service Department toll-free at 1-888-884-6555,
Monday through Friday, 8 a.m. until 5 p.m. Central
Time (excluding holidays). To help us assist you,
please mention the product model number and serial
number when calling. The model number is
PFSB43140. The serial number can be found on a
decal o n t h e a c c e s s panel inside the spa (see the front
cover of this manual).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Spa Shell
Filter
LED
Points
Pillow
Access
Panel
Locking
Buckle
Panel
6
Choosing a Location for the Hydrotherapy Spa
There are many factors to consider when choosing a location to set up the hydrotherapy spa. These factors vary
depending on whether you plan to use the spa inside or outside. We have listed several factors you may wish to
consider as you decide where to set up the spa.
If you set up the hydrotherapy spa inside:
1. The spa will increase the level of humidity in your
home. The location you choose should be well
ventilated. You may need to install a ventilation fan
or use a dehumidifier.
2. The spa should be located near a power source
capable of supplying 240 volts AC power. It mu st
be wired directly into a grounded circuit with a 45
amp circuit breaker and a Ground Fault Circuit
Interrupter (GFCI) capable of carrying 45 amps.
(See WIRING THE HYDROTHERAPY SPAon
page 8). No other appliance should be on the
same circuit.
3. The spa should be close to a source of water.
4. Do not use the spa on carpet or other material that
may be damaged by moisture. We recommend
that you place the spa on a water- and stain-resistant, non-slip surface with a floor drain for any
water that may splash from the spa.
5. Make sure that the location you choose is stable. It
must be able to support the weight of the spa
when it is filled with water, plus the weight of the
occupants. The spa weighs approximately 3,300
pounds when it is filled with water.
If you set up the hydrotherapy spa outside:
1. Check local building codes concerning the use of
outdoor spas.
2. The spa should be located near a power source
capable of supplying 240 volts AC power. It mu st
be wired directly into a grounded circuit with a 45
amp circuit breaker and a Ground Fault Circuit
Interrupter (GFCI) capable of carrying 45 amps.
(See WIRING THE HYDROTHERAPY SPAon
page 8). No other appliance should be on the
same circuit.
3. The spa should be close to a source of water.
4. We recommend that you place the spa on a waterand stain-resistant, non-slip surface. Do not use
the spa on rough or sharp surfaces such as gravel
or wood chips.
5. Make sure that the location you choose is stable. It
must be able to support the weight of the spa
when it is filled with water, plus the weight of the
occupants. The spa weighs approximately 3,300
pounds when it is filled with water.
6. Consider environmental factors such as rain, wind,
shade, and sunlight.
6. Do not use the spa above a finished living area,
due to the risk of water damage.
7. Make sure that there is room around the spa to
permit servicing of the unit. The dimensions of the
spa are 84”W x 84” L x 36”H. You should allow for
this size when choosing the location.
8. The spa is not designed for in-floor installation.
However
is built flush with the top of the spa, provided you
leave access to the motor for service.
Make sure to note any other considerations, such
9.
as aesthetics or privacy concerns, that may affect
the safety or enjoyment of using the spa.
, it is compatible with a deck system that
ou should be able to monitor the use of the spa
7. Y
from your home, to prevent unauthorized use by
children. You may want to enclose the spa with a
fence and self-latching gate to prevent unauthorized use.
8. Make sure that there is room around the spa to
permit servicing of the unit.
spa are 84”W x 84” L x 36”H. You should allow for
this size when choosing the location.
9. The spa is not designed to be installed below
ground level. However
system that is built flush with the top of the spa,
provided you leave access to the motor for service.
Make sure to note any other considerations, such
10.
as aesthetics or privacy concerns, that may affect
the safety or enjoyment of using the spa.
The dimensions of the
, it is compatible with a deck
7
Option 1
M
ain Panel
GFCI Circuit
Breaker
S
pa
Wire Length
Suggested Wire Size
5 Feet to 25 Feet
25 Feet to 50 Feet
6 AWG
4 AWG
Option 2
Main Panel
GFCI Circuit
Breaker
Spa
Wire Length
Suggested Wire Size
5 Feet to 25 Feet
25 Feet to 50 Feet
50 Feet to 100 Feet
6 AWG
4 AWG
A
B
6 AWG
4 AWG
2 AWG4 AWG
Disconnect
Wire
(A)
Wire
(B)
Option 3
Main Panel
Circuit
Breaker
Spa
Disconnect
Wire
(A)
Wire
(B)
GFCI
Min. of
5 feet*
Min. of
5 feet*
More than 50 feet not recommended
More than 100 feet not recommended
Wire Length
Suggested Wire Size
5 Feet to 25 Feet
25 Feet to 50 Feet
50 Feet to 100 Feet
6 AWG
4 AWG
A
B
6 AWG
4 AWG
2 AWG4 AWG
More than 100 feet not recommended
Min. of
5 feet*
* The hydrotherapy spa must be placed a minimum
of five feet from the Main Panel.
* The hydrotherapy spa must be placed a minimum
of five feet from the Disconnect.
* The hydrotherapy spa must be placed a minimum
of five feet from the Disconnect.
Wiring the Hydrotherapy Spa
his procedure must be performed by a qualified,
T
licensed electrician in accordance with the national electric code, and with all local, state, and federal electric code. Under no circumstances should
he hydrotherapy spa be wired by someone other
t
han a qualified electrician.
t
Before you have the spa wired, make sure that the
spa is in the desired position and that it can be easily
serviced, if needed.
The spa operates on a 240 volt power source. It must
be wired directly into a grounded circuit with a 45 amp
circuit breaker and a Ground Fault Circuit Interrupter
(GFCI) capable of carrying 45 amps.
ance should be on the same circuit.
A wire connector is provided on the electronics pack
of the spa to connect a minimum No. 6 AWG (13.3
2
) solid copper conductor between the spa and
mm
any metal equipment, electrical enclosure made of
metal, metal water pipes, or conduit within five feet of
the spa.
Three options for wiring the spa are shown at the
right. A wiring diagram is also found on the inside of
the electronics pack for reference.
No other appli-
8

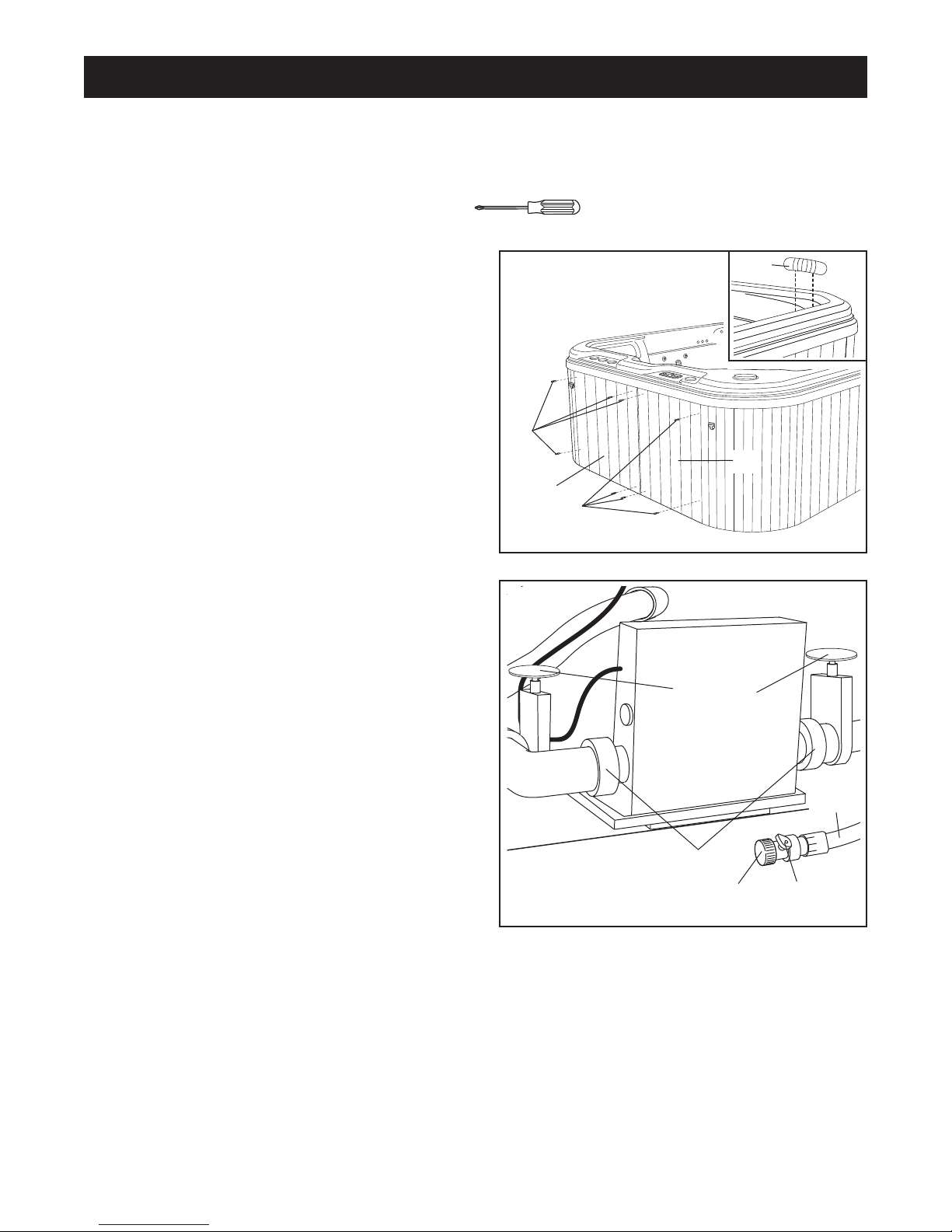

Assembly
Place all parts of the hydrotherapy spa in a cleared area and remove the packing ma teri als. Do not dis pos e
of the packing materials until assembly is completed.
Assembly requires your own phillips screwdriver .
1. Before beginning assembly, make sure that you
have read and understand the information in the
box above and on the previous two pages.
Remove the eight #10 x 2” Machine Screws (39).
Carefully remove the Access Panels (25) and set
them aside. Be careful not to damage the spa
shell.
See the inset drawing. Insert the Pillow (38) into the
lounge seat receptacle. Note: Rotate the Pillow 180º
to change between the high and low positions.
2. Close the valve knob on the drain hose. Thread the
cap onto the drain hose.
Locate the four gate valves inside the access opening (there are two gate valves per pump). Turn the
gate valves counterclockwise to open them.
Make sure that the six collars are tightened (there
are two collars per pump and two on the heater).
2
1
39
38
25
25
39
Gate Valve
See step 1. Reattach the Access Panels (25) to the
spa.
Drain
Hose
Collar
Cap
Valve
Knob
9
3. Make sure that a qualified electrician has wired
the spa to a 240 volt power source.
3
3
Remove the two warning decals (see page 5) from
he spa shell. Using a damp cloth, wipe the spa shell
t
clean.
Before filling the spa, make sure that it is
in the desired position and that there is room to
easily service it. Once the spa is filled, it will
have to be drained before it can be moved.
Insert a garden hose into the filter housing, and fill
the spa.
filled with cold water; however, if warm or hot water
is used, the spa will be ready for use sooner. Fill the
spa until the water is at the level of the molded fi l l
line.

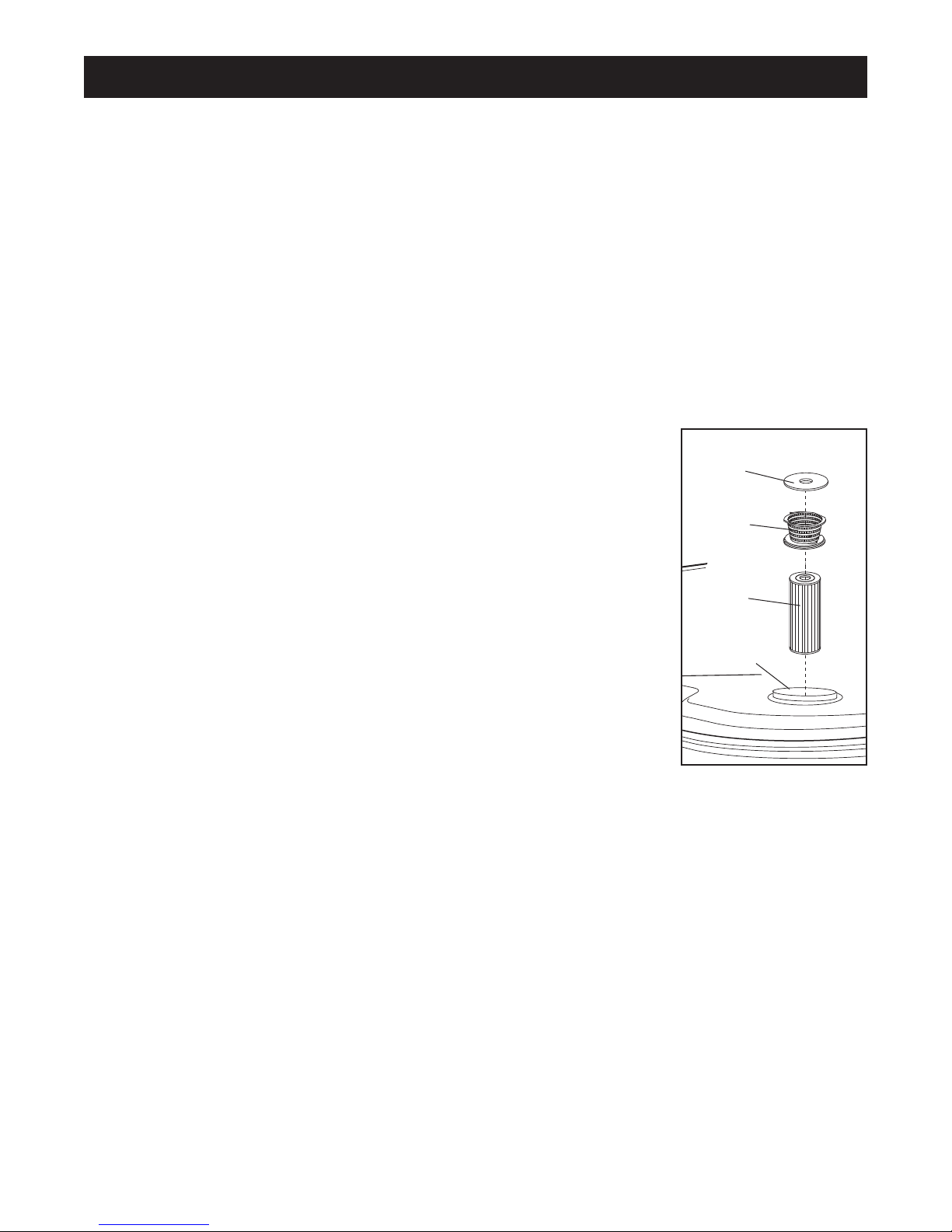

See the inset drawing. Set the Filter (5) and the
Basket (22) into the filter housing. Next, place the
Filter Cover (3) into the filter housing until it is fully
seated.
4. Pull down one of the straps on the Spa Cover (11)
and hold the Buckle (26) against one of the panels on
the spa. (Note: To position the Buckle correctly, have
a second person hold the strap on the opposite side
of the Spa Cover snug.) The Spa Cover must be
snug. Do not place the Buckle over the grooves
between the premium cedar panels.
Do not use soft water. The spa may be
Do not overfill the spa.
4
Fill to here
11
Garden
Hose
22
5
Filter
Housing
Strap
Latch
26
See the inset drawing. Remove the latch from the
Buckle. Attach the Buckle to the panel with two #4 x
3/4” Screws (27). Attach the other three Buckles (26)
to the panels in the same way.
Remove the Spa Cover (11) from the spa.
27
Strap
26
10
Using the Hydrotherapy Spa
The hydrotherapy spa is designed to seat seven
adults. The spa holds approximately 375 gallons of
water and offers a heating system (80°F to 104°F), a
filtration system, and adjustable hydrotherapy jets.
ollow the guidelines below to use and maintain the
F
spa for your long-term enjoyment.
Once the spa is filled with water, the power can be
turned on. Note: If this is the first time the spa has
been turned on, or if the pumps have been
drained, the pumps must be primed before the
spa can be used.
PRIMING THE PUMPS
To prime the pumps, follow the steps below.
1. Remove the access panels (see ATTACHING AND
REMOVING THE ACCESS PANELS on page 18).
2. Make sure all of the gate valves in the plumbing
system are open to allow as much air as possible
to escape from the plumbing and the controller
during the filling process (see step 2 on page 9).
Fill the spa to the level shown in step 3 on page
10. Use towels to soak up any water that leaks
from the plumbing and the pumps.
3. Loosen the indi-
cated collar on
one of the
pumps to vent
the air from the
pump. Repeat for
the other pump.
Allow a small
amount of water
and air to escape from the pumps and related
plumbing. Then, retighten the collars.
Loosen this
Collar
Once the countdown has reached “000,” “Pr” will
be displayed. “Pr” indicates that the controller is in
the two-pump priming mode. This mode will last
for four to five minutes.
5. As soon as “Pr” is displayed, push pump button 1
once to start the pump on low speed and then
push the button again to switch to high speed.
Repeat for pump button 2.
If water is not flowing from the jets after two minutes, turn the power off.
the pumps to run without priming for more
than two minutes. Under no circumstances
allow a pump to run without priming beyond
the end of the four to five minute priming
mode.
and cause the spa to go into an overheat condition.
Repeat the process of venting the air from the
pumps and the controller and priming the pumps
until water flows from the jets.
6. When the priming sequence is completed, the spa
will automatically return to the normal heating and
filtering mode. During the priming process, the
heater is disabled to allow the pumps to be primed
without activating the heater under low flow or no
flow conditions.
Once the pumps are primed, push pump button 1
and pump button 2 to turn the pumps off.
7. The console will display “100F” and then “--F,” for
approximately one minute. The spa requires one
minute of water flowing through the heater to
determine the water temperature.
Doing so may cause damage to the pump
Important: Do not allow
4. Turn the power on at the breaker. The spa will
begin an automatic priming sequence.
countdown from “005” to “000” will appear in the
A
display of the console.
11
8. After one minute, the current temperature of the
water will be displayed. Push the temperature up
r down button to set the temperature of the
o
water. If the water temperature is below the set
emperature, the heat indicator light will turn on to
t
show that the water is being heated.
The controller will automatically heat the water,
and all of the features of the console will be available. To use the console, see USING THE CONTROLS on page 14.
9. Remove the towels and reattach the access pan-
els (see ATTACHING AND REMOVING THE
ACCESS PANELS on page 18).
TESTING AND TREATING THE WATER
The first time you use the spa, you should test and
treat the water.
time you refill the spa.
pack are available at your local pool and spa store.
Follow the directions carefully on the chemical pack to
test and treat the water. Always keep the chemicals
away from children and pets.
See WATER CHEMISTRY on page 17 for information
concerning proper water maintenance.
STARTING THE HYDROTHERAPY SPA
You should always test the GFCI before using the
hydrotherapy spa. First, turn on the spa. Press the
blower button on the console (see USING THE CONTROLS on page 14). Once the spa is running, press
the GFCI “test” button. The spa should shut off. Press
the “reset” button. The spa should resume normal
operation. If the spa continues to run after the “test”
button is pressed, the GFCI is damaged. Do not use
the spa until the GFCI has been repaired or replaced
by a qualified electrician.
You must also treat the water each
A test strip and a chemical
Once you have tested the GFCI, verify that water is
flowing from the jets. Set the air controls to the lowest
etting (see USING THE CONTROLS on page 14).
s
Cover the hydrotherapy spa with the spa cover. The
pa cover must be tight(see SECURING THE SPA
s
COVER ON THE SPA on this page). The water will
heat at about 6°F per hour with the cover on. If you
are using the spa indoors, and the room temperature
is maintained at 70°F, it will take approximately 6 to 8
hours for the water to reach the set temperature.
The temperature and the water flow can be set or
changed with the controls on the console (see USING
THE CONTROLS on page 14).
SECURING THE SPA COVER ON THE SPA
To secure the spa cover,
snap the latches on the
spa cover into the buckles
on the panels. To lock the
buckles, insert the key and
turn it clockwise 1/4 turn.
To unlock the buckles,
insert the key and turn it
counterclockwise 1/4 turn.
Always keep the buckles
locked when the spa is
not in use. Keep the
keys in a safe place, out
of the reach of children.
Latch
Key
Buckle
12

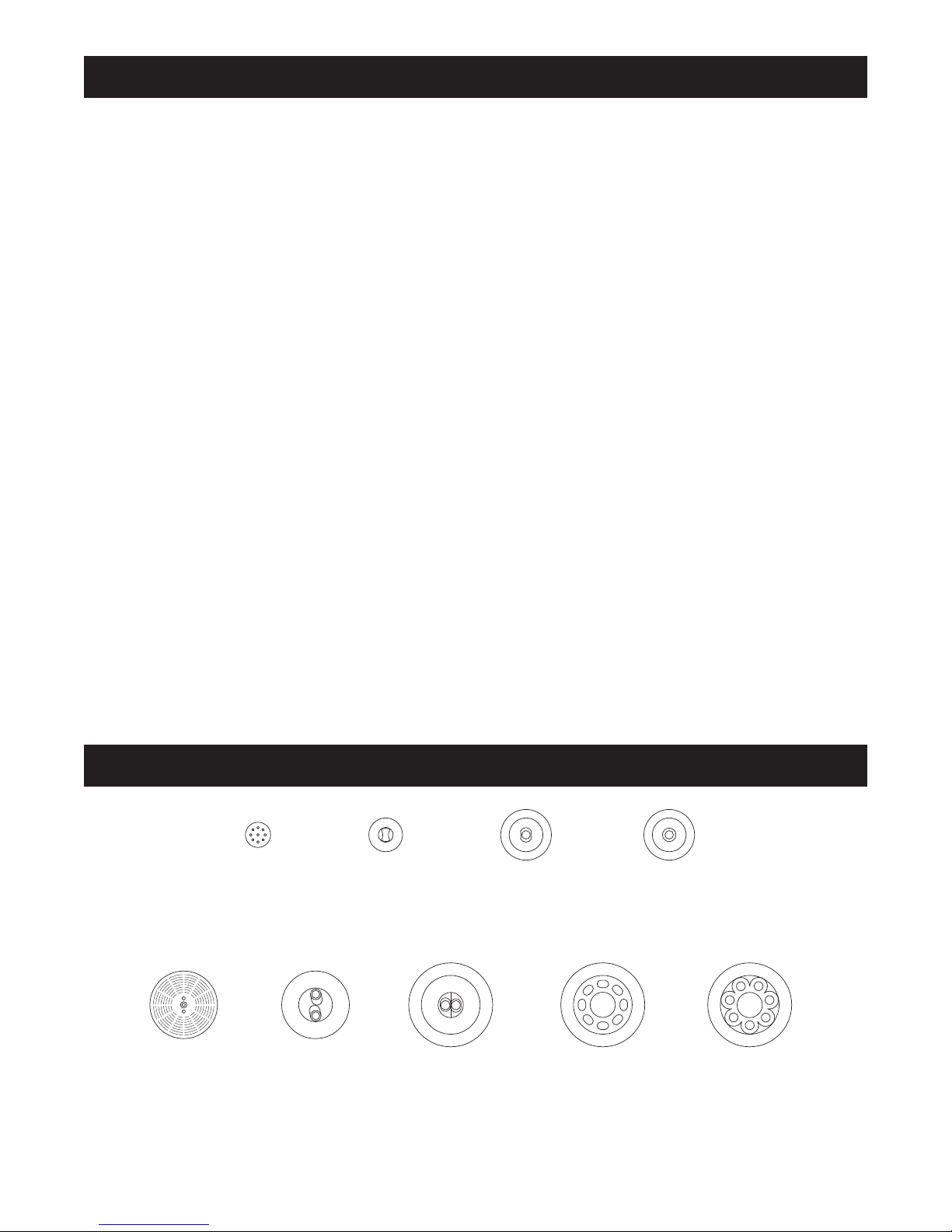

Jet Layout Diagram
G
G
M
K
D
I
D
A
F
I
B
C
E
G
J
I
G
D
B
H
I
B
L
D
M
A. The underwater light can be used for night opera-
tion (see USING THE CONTROLS on page 14).
B. The ten air injectors create air bubbles that
enhance the hydrotherapy experience.
C. The volcano jet provides a soothing foot massage.
D. The five adjustable, directional jets can be pivot-
ed to direct their water flow. To open the jets, turn
the outer rings counterclockwise; to close the jets,
turn the outer rings clockwise. If no air flows
through the jets, turn the jets counterclockwise.
Close the jets to increase the water pressure to
other jets.
The four
E.
pumps. The suction covers should always be in
place over the fittings. Never operate the spa with-
out the suction covers in place.
suction fittings provide water to the
H
B
H
G. The four neck jets can be adjusted to spray sooth-
H. The eleven rotary jets provide a spinning mas-
I. The six dual rotary jets provide a pulsating mas-
J. The power massage jet provides a soothing mas-
K. The twin rotary jet provides a soothing massage to
L. The
H
I
ing water on your neck.
sage.
sage action. Rotate the outer ring counterclockwise
to turn the jets on. Rotate the outer ring clockwise
to turn the jets off.
sage to your lower back. T
ulate the flow.
your lower back. Turn the outer ring to regulate the
flow
I
urn the outer ring to reg-
.
skimmer cleans the surface of the water.
F. The
ozone jet increases the sanitation of the spa
while decreasing chemical treatment needs and
costs.
M. The two waterfalls provide a soothing sound and
massage.
13
Using the Controls
Waterfall Valve
ir Controls
A
1, 2, and 3
Blower
Button
Pump
Button 1
1
2
3
Pump
Button 2
1
1
Mode
Button
Light
Button
1
4
4
Display
Temperature
Buttons
4
4
aterfall
W
for two minutes. “Std” displays momentarily when
standard mode is selected.
• Economy Mode heats the spa to the set temperature only during the filter cycles. “Ecn” is always dis-
2
played when the actual temperature does not equal
the set temperature. “Ecn” alternates with the actual
temperature when the actual temperature is the set
temperature.
Waterfall Valve
Waterfall
4
Air control 1 determines the amount of air flowing
through the hydrotherapy jets labeled 1 in the drawing
above. If the control is turned counterclockwise, the
amount of air will increase; if the control is turned
clockwise, the amount of air will decrease.
2, 3, and 4 function in the same manner.
Air controls 2, 3, and 4 determine the amount of air
flowing through the hydrotherapy jets labeled 2, 3,
and 4 in the drawing above.
The Mode button switches the console between
Standard, Economy, and Sleep modes.
Standard Mode maintains the set temperature. Note:
•
The actual temperature displayed will equal the set
temperature only when pump 1 has been operating
3
2
2
Air controls
• Sleep Mode heats the spa to within 20°F of the set
temperature during the filter cycles only. “Slp” is
always displayed when the actual temperature does
not equal the set temperature. “Slp” alternates with
the actual temperature when the actual temperature
is the set temperature.
Pump button 1 controls the spa jets labeled 3 and 4
in the drawing at the left. If the button is pressed
once, the jets will run at low speed. If the button is
pressed again, the jets will run at high speed. If the
button is pressed a third time, the jets will shut off.
Pump button 2 controls the spa jets labeled 1 and 2
in the drawing at the left. If the button is pressed
once, the jets will run. If the button is pressed again,
the jets will shut of
ic mode that heats and filters the water when the spa
is left unattended. When the power to the spa is first
turned on, or if the water temperature is below the set
temperature, the water will be heated as required.
Note: T
ning, the power to the spa must be turned off.
o keep the filter and heat cycles from run
f.The spa also features an automat
-
-
14
Your spa features an LED light with twelve different
programmed lighting effects:
. Lights cycle between Red, Green, and Blue
1
2. Dark Blue
. Orange
3
4. Purple
5. Green
6. Red
7. Hot Pink
8. Cyan
9. White
10.Color Spectrum (each color is displayed for
approximately one minute)
11. Blue/Green Mix
12.Party ModeTM (colors cycle rapidly through the
color spectrum)
Light button controlls the LED light. To turn the
The
light on, press the light button. To turn the light off,
press the light button again. To select the next lighting
effect, turn the light off and then within five seconds
turn it on again. If the light is left off for more than five
seconds, the same lighting effect will be displayed the
next time the light is turned on.
Temperature buttons control the temperature set-
The
ting of the water. The temperature setting can be from
0°F to 104°F. The startup temperature is set at
8
100°F. The water heats at about 6°F per hour with the
over on. Use a medical or other accurate thermome-
c
ter to check the temperature of the water.
To change the water temperature, press the temperature up or down button until the desired temperature is
reached. After three seconds, the console will automatically display the last measured water temperature.
If the temperature sensors detect a drop below 40°F,
)
then pump 1 (and the heater if necessary
ically activate to provide freeze protection. The equipment will stay on until the sensors detect that the spa
temperature has risen to within 15°F of the set temperature. Pump 2 and the blower will purge for 30 seconds to 2 minutes at the end of the freeze condition.
Blower button turns the ten air injectors, labeled 5
The
in the small drawing on page 14, on and off.
will automat-
15
Maintenance
The hydrotherapy spa is designed to provide years of
njoyment. Please follow the guidelines below to
e
properly maintain your spa.
MAINTENANCE SCHEDULE
Daily
• Check the water level and refill the spa to the level
shown in step 3 on page 10.
• Check the pH balance and sanitizer level. Make
adjustments if necessary (see WATER CHEMISTRY on page 17).
Weekly
• Clean the spa shell at the waterline.
• Check and thoroughly clean the filter (see CHECKING AND CLEANING THE FILTER on this page).
• Replace the filter if needed (see ORDERING
REPLACEMENT PARTS on the back cover of this
manual).
Monthly
• Clean the spa cover (see MAINTAINING THE SPA
COVER on this page).
• Soak the filter for two hours in a trisodium phosphate (TSP) solution. Rinse the filter in clean water.
• Replace the filter if needed (see ORDERING
REPLACEMENT PARTS on the back cover of this
manual).
Every Three Months
• Drain the spa and refill it with clean water. Sanitize
and test the pH of the water.
• Check for any leaks around the pump or joints in
the pipes. The seals will wear out over time; detecting leaks early can reduce repair costs.
Clean the interior of the spa. Do not use solvents or
•
waxes.
MAINTAINING THE SPA COVER
The spa cover should be cleaned monthly. To clean
he spa cover, use water and a non-abrasive cleaner
t
on the entire cover. Rinse the cover with a garden
hose to remove any cleaner residue. Dry the cover
entirely. Use a non-silicone-based vinyl conditioner on
the cover after you clean it. This will help protect the
cover from sun damage.
CHECKING AND CLEANING THE FILTER
The filter should be checked periodically for build-up
of dirt and oil. If the filter needs to be cleaned, follow
the steps below:
1. Turn off the power.
2. Lift the filter cover.
3. Lift the the filter out
of the filter housing.
4. Check the filter for
dirt and debris. If the
filter needs to be
cleaned, rinse the filter with a hose. If the
filter is still dirty, soak
it in cleaning solution
from a pool and spa
supply store.
5. Inspect the filter for
damage. Replace
the filter if it is damaged.
6. Insert the cleaned or
new filter into the filter housing.
Reattach the filter cover
7.
Filter
Cover
Basket
Filter
Filter
Housing
.
MAINT
The surround is maintenance free. The surround
should be cleaned with a mild soap solution; do not
use solvents or waxes.
CLEANING THE SPA SHELL
The spa shell should be cleaned with a mild soap
solution; do not use solvents or waxes. The spa
should always be clean and dry before being moved
or stored.
AINING THE SP
A EXTERIOR
16
WATER CHEMISTRY
aintaining the pH level of the water is very important
M
to the operation of the spa. To maintain the proper pH
evel and to sanitize the spa, you can purchase a
l
chemical starter kit from your local pool and spa supply store.
CAUTION: The chemicals used to maintain the pH
balance of the water and to sanitize the water can
be dangerous. Always follow these basic guidelines when handling the chemicals:
1. Always read and follow the directions on the
label, unless directed otherwise.
2. Never mix different chemicals.
3. Do not exceed the recommended amounts of
chemicals—follow the directions on the label.
4. Keep all chemicals out of the reach of children
and pets.
5. Keep all containers closed tightly when not in
use.
6. Never add water to the chemicals—always add
the chemicals to the water as directed.
7. Always store chemicals in a cool, dry place.
MAINTAINING THE PROPER PH BALANCE
The pH factor is a measure of the relative acidity or
alkalinity in the water, and is measured on a scale of
1 to 14. Pure water has a value of 7, which is neutral.
Any value above 7 is alkaline, and any value below 7
is acidic. You should maintain a slightly alkaline pH
level, between 7.2 and 7.8, in the hydrotherapy spa.
Severe problems can occur when the pH balance is
not maintained within this range. If the pH level
exceeds 7.8, dissolved minerals can build up and clog
the plumbing in the spa jet unit. If the pH level falls
below 7.2, the acid level in the water will begin to corrode the metal parts in the spa jet unit.
tation agents in the water will not be effective if the pH
level is not properly maintained. Damage caused by
improper pH levels is not covered under the warranty
Also, the sani
To maintain the proper pH level, test the pH of the
water regularly. To test the water, purchase a pH test
it at a pool and spa supply store. The pH reading
k
should be between 7.2 and 7.8. If the level is too low,
dd a pH increaser (usually soda ash). If the level is
a
too high, add a pH reducer (usually sodium bisulfate).
Test the water again after five minutes. See the
instructions with your pH test kit for additional information about testing and adjusting the pH.
SANITIZING THE HYDROTHERAPY SPA
The most common sanitizing agent is a solid bromine
concentrate. The amount required varies according to
several factors, such as user load, temperature, and
water conditions. Proper water maintenance is a complex process. Contact your local pool and spa supplier
for information concerning which chemicals you
should use in your area to sanitize the spa.
CHANGING THE FILTER CYCLE
The spa will filter the water every 12 hours. The duration of the cycle can be adjusted to last for 2, 4, 6, or
8 hours or to run indefinitely. Press the temperature
up or temperature down button on the console. When
the display begins to flash, press pump button 1. The
display will read “F2.” To change the time, press the
temperature up button until the desired time is
reached. Press pump button 2 to confirm the selection.
Pump 2 purges for five minutes and the blower
purges for 30 seconds at the beginning of each filter
cycle. Pump 1 will run on low during filtration and the
ozone generator will be enabled.
As spa usage increases, the duration of the filter
cycle may need to be increased.
-
.
17
ATTACHING AND REMOVING THE ACCESS
PANELS
Shut off the power to the spa, at the circuit breaker or
FCI. To remove the indicated Access Panels (25),
G
remove the eight #10 x 2” Machine Screws (39) that
secure the Access Panels to the spa. Carefully
remove the Access Panels and set them aside.
39
25
25
39
To drain the hydrotherapy spa, follow the steps below:
. Using the console, adjust the temperature to the
1
lowest setting.
. Shut off the power to the spa, at the circuit break-
2
er or GFCI.
3. Remove the access panels from the spa (see
ATTACHING AND REMOVING THE ACCESS
PANELS on this page).
4. Pull the hose out and hold it above the waterline.
Remove the cap, open the valve knob, and attach
a garden hose to the drain hose. Lower the hose
and drain the spa.
To replace the Access Panels (25), hold the Access
Panels in place and secure them with the eight #10 x
2” Machine Screws (39). Be careful not to overtight-
en the Machine Screws.
DRAINING THE HYDROTHERAPY SPA
The hydrotherapy spa should be drained at least four
times per year and refilled with clean water. You may
need to drain the spa more often, depending on the
user load. This must be done because after repeated
chemical treatment the water becomes chemically
saturated. Once this happens, additional chemical
treatment of the water is no longer effective. The spa
should also be drained if you will not be using it for
long periods of time. The spa must always be drained
before major repairs are made.
The hydrotherapy spa should always be covered
when it is empty. Direct sunlight can cause extensive damage. The surface of the spa shell can
reach temperatures as high as 150°F in a matter
of minutes if exposed to the sun while it is empty
These high temperatures can cause significant
damage, such as blistering of the shell surface
and warping of the spa shell. Any damage caused
by sun exposure is not covered under warranty
.
Cap
5. When the spa is empty, remove the garden hose,
close the valve knob, reattach the cap, and return
the drain hose inside the spa.
6. Reattach the access panels.
7. Refill the spa and treat the water with chemicals
(see pages 12 and 17).
.
Valve
Knob
Drain
Hose
18
DRAINING THE PUMPS
REPLACING THE LED LIGHT
fter the hydrotherapy spa is drained, the jet pumps
A
should also be drained if the spa will be stored for
ore than thirty days or if it may be exposed to freez-
m
ing temperatures.
Shut off the power to
the spa, at the circuit
breaker or GFCI. To
drain the jet pumps,
remove the access panels from the spa (see
A TTACHING AND
REMOVING THE
ACCESS PANELS on
page 18). Locate the jet
pumps inside the spa.
Loosen the indicated
collar on each of the pumps.
WINTER USE AND CARE
The hydrotherapy spa is designed for year-round use.
If you decide to store the spa for the winter, store it in
a warm, dry location. Follow the steps below to winterize the spa.
1. Make sure the power to the spa is turned off.
2. Drain the spa (see DRAINING THE HYDROTHERAPY SPA on page 18).
3. Remove all remaining water from the spa shell. Dry
the spa shell with towels.
4. Set the air controls to the lowest setting. Use a
wet/dry vacuum to pull any remaining water from
the system. To do this, place the vacuum nozzle
over each jet, starting with the highest jet and finishing with the lowest jet.
5. Set the air controls to the highest setting and
repeat step 3.
Drain the pumps (see DRAINING
6.
this page). Once the water is drained from the
pumps, place the vacuum nozzle over the drainage
hole in the pumps and vacuum any additional
water from the pumps.
tection, remove the pumps/motors from the spa
and store them in a climate-controlled room.
Clean the spa shell (see page 16).
7.
8. Clean the filter (see page 16).
9. Shut the power off at the breaker. Label the
breaker in such a way that the breaker will not
be turned on accidentally.
10.Reattach the access panels and the spa cover.
Note: For additional pro
THE PUMPS on
Collar
-
emove the access panels (see ATTACHING AN D
R
REMOVING THE ACCESS PANELS on page 18).
ake sure the spa power is turned off. Next, locate the
M
light housing. Turn the light housing counterclockwise
and remove it from the spa shell.
Light Housing
To replace the LED light, pull the old LED light out of
the housing and insert a new LED light. Reattach the
light housing to the spa shell. Reattach the access
panels to the spa.
LED
Light
Light
Housing
19
Troubleshooting
Most problems can be solved by following the simple steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, call our Customer Service Department toll-free at
-888-884-6555, Monday through Friday, 8 a.m. until 5 p.m. Central Time.
1
. SYMPTOM: THE SPA WILL NOT OPERATE
1
a. Check to see if the GFCI breaker is tripped or
was not turned on. Reset the GFCI breaker.
2. SYMPTOM: THE CIRCUIT BREAKER OR THE
GFCI TRIPS WHILE THE SPA IS OPERATING
a. Reset the circuit breaker or the GFCI. If the cir-
cuit breaker or the GFCI trips again, contact a
qualified electrician for service.
3. SYMPTOM: THE PUMP HUMS
a. The filter may be dirty or damaged. Remove
the filter from the filter housing and clean or
replace the filter (see page 16).
b. The pump may have a foreign object stuck in
the impeller. Contact our customer service
department.
c. The pump may have a loose wire connection.
Contact our customer service department.
4. SYMPTOM: THE PUMP HUMS, BUT DOES NOT
ROTATE
a. The pump may be jammed. Contact our cus
tomer service department. If your spa is no
longer under warranty, contact a local spa and
pool service provider.
5.
SYMPTOM: THE PUMP IS NOISY WHILE
OPERATING
There may be debris in the pump. Contact our
a.
customer service department.
b. The pump may have a bad bearing. Contact
our customer service department.
-
. SYMPTOM: THE WATER DOES NOT HEAT
6
a. Make sure that the hydrotherapy spa is fully
covered with the spa cover.
must be tight for the water to heat. Set the
air control to low. The water will heat at a rate
of 6°F per hour. If you are using the spa
indoors and the room temperature is maintained at 70°F, it will take approximately 6 to 8
hours for the water to reach the set temperature.
b. If you are using the hydrotherapy spa outdoors,
it may take longer for the water to heat. See
the chart below for the approximate heating
time.
TemperatureHeating Time
Air
70°F +6 to 8 hours
50°F to 70°F9 to 11 hours
30°F to 50°F12 to 14 hours
b. If the water still has not heated after four days,
contact our customer service department.
7. SYMPTOM: THE WATER IS NOT BEING
CLEANED BY THE FILTER
a. Check to see if the filter is in place. Clean the
filter if it is dirty.
b. Check the chemical balance of the water. If the
pH is incorrect, the sanitizing agents will not
function properly. See the section on maintaining the proper pH balance on page 16.
TER PULSA
SYMPT
8.
THERE IS MINIMUM W
a.
OM: THE W
This usually occurs only when the water level is
Add water until it is 2” to 4” above the
low.
skimmer basket.
A
A
The spa cover
TES OR
TER FLOW
20
9. SYMPTOM: THE WATER LEVEL DROPS
. A clamp or seal inside the pump compartment
a
may be loose. Check inside the pump compart-
ent for excess water and watch the pump unit
m
while it is operating to see if water drips from
any of the plumbing. If you can identify the
location of the leak inside of the spa jet unit,
tighten the clamp or replace the damaged seal.
b. Some water loss due to evaporation is normal.
If rapid water loss occurs, or if you notice wetness on the floor around the hydrotherapy spa,
the spa shell may have a leak. Contact your
local pool and spa service provider for repairs.
10. SYMPTOM: THE SPA JET UNIT CONTINUES
TO RUN AFTER IT HAS BEEN SHUT OFF
a. To turn off the main jets, press pump button 1
once or twice. Note: If the actual temperature
of the water in the spa is below the set temperature, or if the spa is running a filter cycle, the
heater pump/motor will not shut off.
listed above, or if the console does not function
correctly, please call our Customer Service
Department toll-free at 1-888-884-6555,
Monday through Friday, 8 a.m. until 5 p.m.
Central Time (excluding holidays).
# Indicates a non-illustrated part.
Specifications are subject to change without notice.
Some parts are serviceable or replaceable only by service technicians.
10Air Injector
2Waterfall Valve

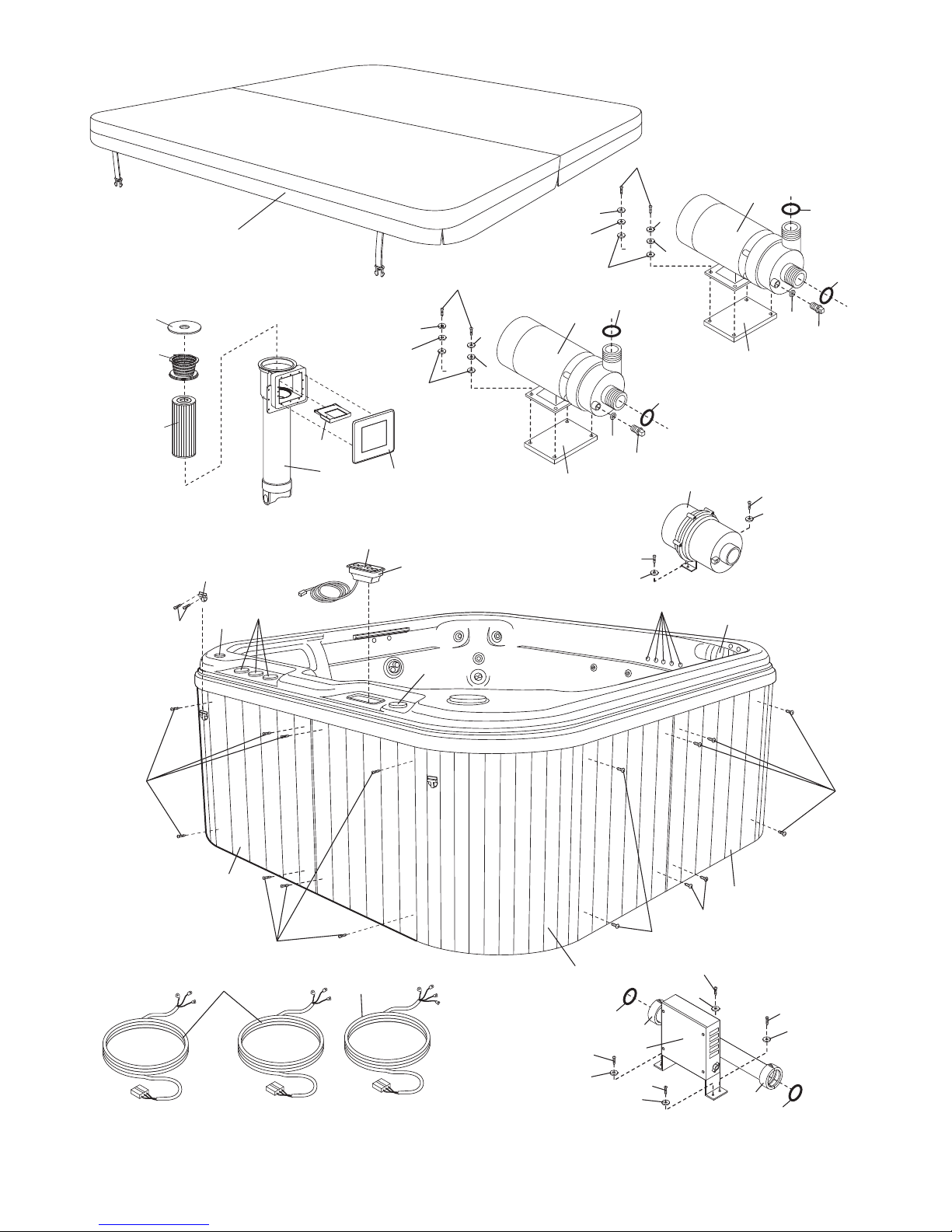

Exploded Drawing—Model No. PFSB43140
22
R0604A
26
27
25
18
29
43
11
20
2
39
39
39
39
33
9
14
9
9
44
44
12
34
34
1
36
5
22
3
24
32
13
19
28
23
31
13
6
40
35
23
31
4
13
10
28
13
6
40
35
23
31
23
31
4
38
31
9
9
31
30
31
31
31
31
9
43
39
45
Model No. PFSB43140 R0604A
23
Ordering Replacement Parts
To order replacement parts, simply call our Customer Service Department toll-free at 1-888-884-6555, Monday
through Friday, 8 a.m. until 5 p.m. Central Time (excluding holidays). To help us assist you, please be prepared
to give the following information when calling:
• The MODEL NUMBER of the product (PFSB43140)
• The NAME of the product (PROFORM TEMPEST hydrotherapy spa)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and the EXPLODED DRAWING on
pages 22 and 23)
Limited Warranty
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. ICON
extends a limited five (5) year warranty on the spa shell structure. ICON extends a limited two (2) year warranty on the pump, motor, and electronics package. This warranty extends only to the original purchaser.
ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through
one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized
by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, improper or abnormal usage, or repairs not provided by ICON authorized service personnel; to products used for commercial or rental purposes; or to products used as store display models. Specifically excluded are damages caused by or attributable to the following incidents: any damage to the
premium cedar surround or frame attributable to improper handling or freight damage; damage resulting from
improper winterization; damage to the spa shell resulting from improper chemical treatment, damage to the
spa shell resulting from exposure to extreme temperatures, or damage to the spa shell resulting from exposure to direct sunlight and ultraviolet rays while the spa is empty; damage to the pump, motor, plumbing, and
components due to improper maintenance, chemical treatment, or exposure; or damage resulting from failure
to properly follow user’s manual installation, operating, or maintenance instructions. Also excluded are consumable components, including but not restricted to filter cartridges. No other warranty beyond that specifi
cally set forth above is authorized by ICON.
-
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of or damage
to property including water damage, loss of revenues or profits, loss of enjoyment or use, costs of removal,
installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or
limitation of incidental or consequential damages.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of mer
chantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 21
1219 R0604A
Accordingly, the above limitation may not apply to you.
