www.proform.com
Model No. PFTL99108.4
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
USER'S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
A
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call the
telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note:
The decals may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
umes no responsibility for personal injury or property damage sustained by or through the use of
s
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 11. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 22 if the treadmill is
not working properly.)
8. The treadmill should be used only by persons
weighing 350 lbs. (159 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
11), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 13).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
3
0. Never leave the treadmill unattended while it
2
is running. Always remove the key, unplug
he power cord, and press the power switch
t
into the off position when the treadmill is not
n use. (See the drawing on page 5 for the lo-
i
cation of the power switch.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 21.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
4. Inspect and properly tighten all parts of the
2
treadmill regularly.
25. DANGER:Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
ance and adjustment procedures described in
n
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
280 PREMIER ES treadmill. The 1280 PREMIER ES
1
treadmill offers an impressive selection of features designed to make your workouts at home more enjoyable
and effective. And when youʼre not exercising, the
nique treadmill can be folded up, requiring less than
u
half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Console
Accessory Tray
Handrail
Pulse Sensor
®
ing this manual, please see the front cover of this man-
al. To help us assist you, note the product model
u
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please look at the drawing
below and familiarize yourself with the labeled parts.
Fan
Book Holder
Key/Clip
Walking Belt
Foot Rail
Idler Roller
Adjustment Bolts
Power Switch
Power Cord
Platform Cushion
5
ASSEMBLY
#8 x 3/4"
Screw (4)–4
3/8" Star
Washer (90)–10
3/8" x 3 3/4" Bolt
(72)–4
3/8" x 1 1/2" Bolt (64)–6
o hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
elt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
b
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex key and your own Phillips screwdriver .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled. To avoid damaging parts, do not use power tools for assembly. Extra
hardware may be included.
1. Make sure that the power cord is unplugged.
With the help of a second person, raise the front
of the treadmill and insert the crossbar on the
Base (83) into the cutout in the cardboard stand
as shown. Have the second person hold the
treadmill to prevent it from moving forward
or backward until assembly step 2 is completed.
WARNING: Serious injury
may occur if the treadmill moves forward or backward and falls off the cardboard stand. A second person must
hold the treadmill until assembly step 2
is completed to prevent the treadmill
from moving, tipping, or falling.
1
6
83
Cardboard
Stand
2. Identify the Left Upright (73) and the Right
Upright (74). See the inset drawing. Tie the wire
tie in the Right Upright securely around the end
f the Upright Wire (75). With the help of a sec-
o
ond person, hold the Right Upright near the
ight Base Cover (77). Then, pull the other end
R
of the wire tie up through the rectangular hole in
the bottom of the Right Upright until the Upright
Wire is routed completely through the Right
Upright.
2
ire
W
Tie
75
73
Gently pull up on the Upright Wire (75) as you
set the Right Upright (74) on the Base (83) inside the Right Base Cover (77). Be careful not
to pinch the Upright Wire.
Attach the Right Upright (74) to the Base (83)
with two 3/8" x 3 3/4" Bolts (72) and two 3/8"
Star Washers (90). Do not tighten the Bolts
yet. Note: It may be necessary to tip the top of
the Right Upright forward slightly and rotate the
bottom as you thread the Bolts into the Right
Upright.
Attach the Left Upright (73) to the Base (83)
in the same way. Note: There are no wires on
the left side.
With the help of a second person, lower the
treadmill off the cardboard stand. Save the cardboard stand for step 8.
3. Identify the Left Upright Sleeve (95) and the
Right Upright Sleeve (96); the Sleeves are labeled “Left” and “Right.” Slide the Left Upright
Sleeve onto the Left Upright (73) and the Right
Upright Sleeve onto the Right Upright (74).
74
75
Wire Tie
3
73
95
“Left”
74
77
83
90
72
“Right”
96
74
7
4. With the help of a second person, hold the console assembly near the Uprights (73, 74).
onnect the Upright Wire (75) to the Console
C
Wire Harness (71). See the inset drawing. The
onnectors should slide together easily and
c
snap into place. If they do not, turn one con-
nector and try again. IF YOU DO NOT CONNECT THE CONNECTORS PROPERLY, THE
CONSOLE MAY BECOME DAMAGED WHEN
YOU TURN ON THE POWER.
4
Assembly
Console
73
71
Remove the wire tie from the Upright Wire (75).
5. Insert the brackets on the Handrails (99) into the
Uprights (73, 74). Make sure that no wires are
pinched.
75
Wire
71
Tie
74
75
5
99
73
99
6. Partially tighten six 3/8" x 1 1/2" Bolts (64) with
six 3/8" Star Washers (90) (only three are
shown) into the Uprights (73, 74). Then, firmly
tighten all six Bolts.
74
6
73
64
90
74
90
64
8
7. Slide the Right Upright Sleeve (96) up against
the console assembly. Attach the Right Upright
Sleeve with two #8 x 3/4" Screws (4).
Attach the Left Upright Sleeve (not shown) to
he console assembly as described above.
t
7
Console
Assembly
4
96
4
8. With the help of a second person, raise the
front of the treadmill and insert the crossbar on
the Base (83) into the cutout in the cardboard
stand as shown. Have the second person
hold the treadmill to prevent it from moving
forward or backward.
Firmly tighten the four 3/8" x 3 3/4" Bolts (72).
With the help of a second person, lower the
treadmill off the cardboard stand.
9. Remove the indicated #8 x 3/4" Screws (4) from
the Pulse Receiver Cover (70) on the back of
the console assembly.
8
72
83
Cardboard
72
Stand
9
Console
Assembly
70
4
9
10. Locate the chest pulse kit. Hold the Chest
Pulse Receiver (53) so the antenna is oriented as shown. Attach the Chest Pulse
eceiver to the Pulse Receiver Cover (70) with
R
the #3 x 1/4" Screw (84) included in the chest
ulse kit.
p
0
1
84
ntenna
A
70
53
11. Connect the wire on the Chest Pulse Receiver
(not shown) to the wire extending from the con-
11
sole assembly. Reattach the Pulse Receiver
Cover (70) to the console assembly with the two
#8 x 3/4" Screws (4). Make sure that no wires
are pinched. Discard the other wires included
with the receiver.
Wires
Console
Assembly
70
4
12. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex key
in a secure place; the hex key is used to adjust the walking belt (see pages 23 and 24). To protect the floor
or carpet from damage, place a mat under the treadmill.
10
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply sil-
cone spray or other substances to the walking
i
belt or the walking platform. Such substances will
cause excessive wear.
HOW TO PLUG IN THE POWER CORD
hat is properly installed and grounded in accor-
t
dance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit
(see drawing 1). A temporary adapter may be used to
connect the surge suppressor to a 2-pole receptacle if
a properly grounded outlet is not available (see drawing 2).
DANGER: Improper connection
of the equipment-grounding conductor increases the risk of electric shock. Check with
a qualified electrician or serviceman if you
are unsure whether the product is properly
grounded. Do not modify the plug—if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your homeʼs
power. To decrease the risk of damaging your
treadmill, always use a surge suppressor with your
treadmill (see drawing 1 at the right). To purchase
a surge suppressor, see precaution 12 on page 3.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could damage the control system of the treadmill (see precaution 13 on page 3).
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This productʼs power cord has an equipment-grounding conductor and a grounding plug. Plug
the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet
1
Grounded Outlet
2
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (see drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
The adapter must be held in place by a metal screw.
Some 2-pole receptacle outlet box covers are not
grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before
using an adapter.
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounding Plug
Grounded Outlet Box
Adapter
Lug
Grounding Plug
Surge Suppressor
11
CONSOLE DIAGRAM
Key
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effective and enjoyable. When the manual mode of the console is selected, the speed and incline of the treadmill
can be changed with the touch of a button. As you exercise, the console will display continuous exercise
feedback. You can even measure your heart rate using
the handgrip pulse sensor or the chest pulse sensor.
In addition, the console features twenty-eight preset
workouts—nine weight loss workouts, nine aerobic fitness workouts, and ten performance workouts. Each
workout automatically controls the speed and incline of
the treadmill as it guides you through an effective exercise session. You can even create your own custom
workouts and save them for future use.
The console also features the iFit interactive workout
system. The iFit system accepts iFit cards with workouts that help you achieve specific fitness goals. For
example, lose unwanted pounds with the 8-week
Weight Loss workout. iFit workouts automatically con-
Clip
trol the treadmill. iFit cards are available separately. To
purchase iFit cards at any time, go to www.iFit.com
or call the telephone number on the front cover of
this manual. iFit cards are also available at select
stores.
You can also listen to your favorite workout music or
audio books with the consoleʼs premium sound system
while you get in shape.
To turn on the power, see page 13. To personalize
console settings, see page 13. To use the manual
mode, see page 14. To use a preset workout, see
page 16. To create and use a custom workout, see
pages 17 and 18. To use the sound system, see
page 19. To use an iFit card, see page 20.
IMPORTANT: If there is a sheet of plastic on the
face of the console, remove the plastic. To prevent
damage to the walking platform, wear clean athletic shoes while using the treadmill. The first time
the treadmill is used, observe the alignment of the
walking belt, and center the walking belt if necessary (see page 24).
12
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
old temperatures, allow it to warm to room tem-
c
perature before turning on the power. If you do not
o this, you may damage the console displays or
d
other electrical components.
Plug in the power cord (see
page 11). Next, locate the
power switch on the treadmill
frame near the power cord.
Reset
Make sure that the switch is
in the reset position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see HOW TO PERSONALIZE CONSOLE
SETTINGS at the right to turn off the demo mode.
Next, stand on the foot rails of the treadmill. Locate the
clip attached to the key (see the drawing on page 12),
and slide the clip securely onto the waistband of your
clothes. Then, insert the key into the console. After a
moment, the displays will light. IMPORTANT: In an
emergency, the key can be pulled from the console, causing the walking belt to slow to a stop.
Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of measurement is selected, see HOW TO PERSONALIZE
CONSOLE SETTINGS at the right. For simplicity, all
instructions in this manual refer to miles.
HOW TO PERSONALIZE CONSOLE SETTINGS
The console features a settings mode that allows you
to view the total time and total distance the walking
belt has moved, select a system of measurement for
the console, turn on and turn off the demo mode, adjust the volume and contrast settings of the console,
and select an audio equalizer setting.
Follow the steps below to personalize the console
settings.
o select the settings mode, first remove the key from
T
the console. Then, hold down the Stop button while
einserting the key into the console.
r
When the settings mode is selected, the top of the display will show the total number of hours that the treadmill has been used and the total number of miles or
kilometers that the walking belt has moved.
The display will show the word ENGLISH or METRIC
to indicate which system of measurement is selected.
To change the system of measurement, press the
Speed increase button.
The console features a display demo mode, designed
to be used if the treadmill is displayed in a store. While
the demo mode is turned on, the console will function
normally when you plug in the power cord, press the
power switch into the reset position, and insert the key
into the console. However, when you remove the key,
the displays will remain lit, although the buttons will not
function. Press the Speed decrease button to select
OFF (to turn off the demo mode), VISUAL EQ (to display a visual equalizer), ROAD (to display an animation of a runner on a road), or PROGRAMS (to display
previews of various workouts).
To adjust the volume, first highlight volume level by
pressing the Display button repeatedly. Next, press
the Performance or Custom button to select a volume
setting.
To adjust the contrast of the display, first highlight contrast level by pressing the Display button repeatedly.
Next, press the Performance or Custom button to select a contrast setting.
You can also select an equalizer setting to optimize
the sound of your personal music. Choose among DEFAULT, CLASSIC, COUNTRY, TECHNO, or ROCK.
To select an equalizer setting, first highlight the equalizer setting by pressing the Display button repeatedly.
Next, press the Performance or Custom button to select an equalizer setting.
To exit the settings mode at any time, remove the key
from the console.
13
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
3. When the key is inserted, the incline will auto-
1
matically calibrate, tones will sound, and then the
console will be ready for use.
2. Personalize console settings if desired.
See HOW TO PERSONALIZE CONSOLE SETTINGS on page 13.
3. Select the manual mode.
Speed increase button, or one of the numbered
speed buttons.
. Change the incline of the treadmill as desired.
5
o change the incline of the treadmill, press the
T
Incline increase and decrease buttons or one of
the incline buttons numbered 0 to 12. Each time
you press one of the buttons, the incline will gradually change until it reaches the selected incline setting.

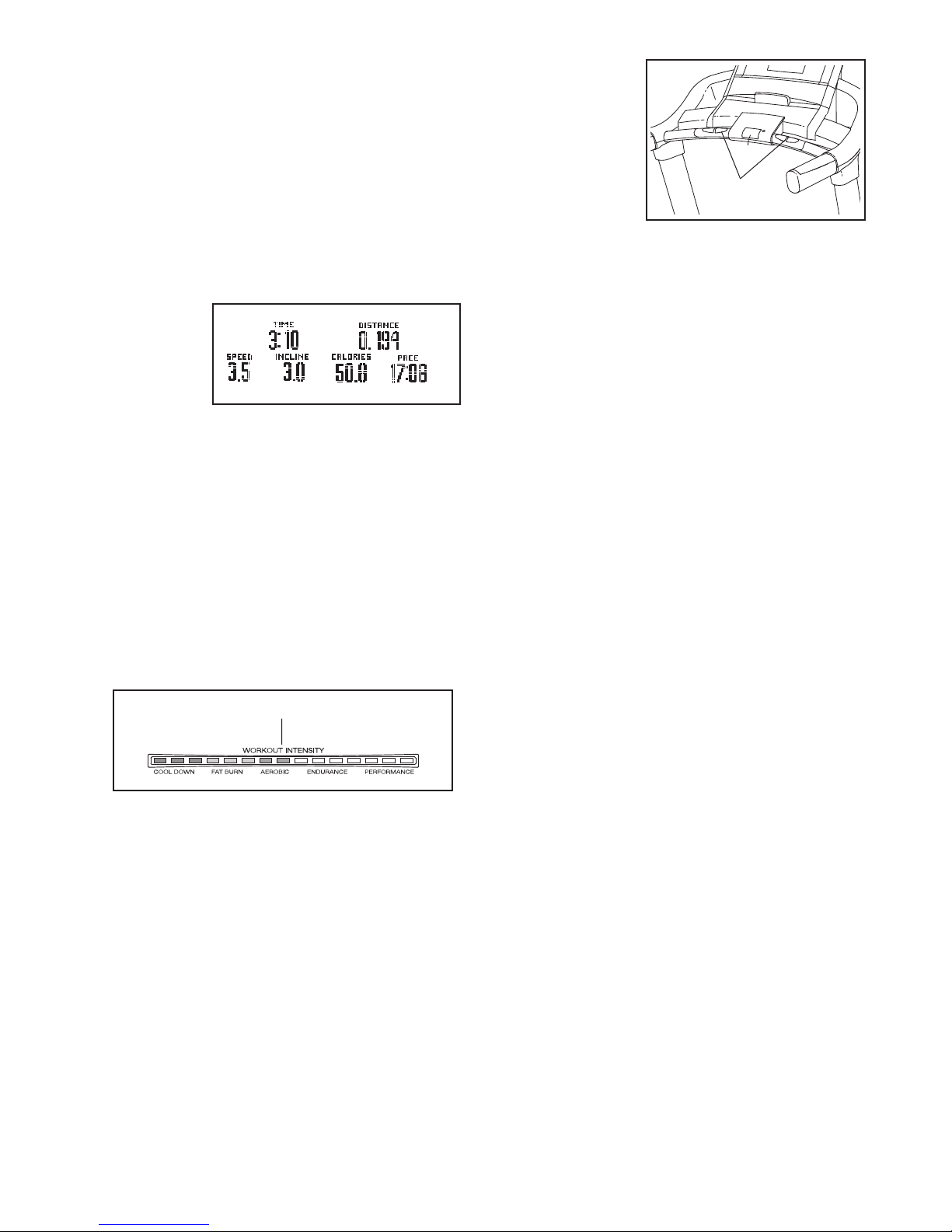

6. Select a display mode and monitor your
progress with the display and the intensity
level bar.
Each time
the key is
inserted,
the manual mode
will be selected. If
you have selected a workout, press any of the
workout buttons repeatedly until the word MANUAL
appears in the display.
4. Start the walking belt and adjust the speed.
To start the walking belt, press the Start button, the
Speed increase button, or one of the speed buttons numbered 1 to 12.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed increase and decrease buttons next to the Start button. Each time you press a button, the speed setting will change by 0.1 mph; if you hold down a button, the speed setting will change in increments of
0.5 mph. If you press one of the numbered speed
buttons, the walking belt will gradually change
speed until it reaches the selected speed setting.
When the manual mode is selected, the console
offers eight display modes. The display mode that
you select will determine which workout information is shown. Press the Display button repeatedly
to select the desired display mode.
As you walk or run on the treadmill, the display can
show the following workout information:
• The elapsed time.
• The distance that you have walked or run.
• The speed of the walking belt.
• The incline level of the treadmill.
• The approximate number of calories you have
burned.
• Your walking or running pace, in minutes per
mile or minutes per kilometer.
• A visual equalizer.
• Your heart rate. Note: Your heart rate can be
displayed only while you use the handgrip pulse
sensor or the chest pulse sensor.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
14
• In addition, the display can show a “workout history”—a profile that represents the speed settings that you select during your workout. At the
eginning of each minute of your workout, an
b
additional column will appear in the profile; as
ou increase or decrease the speed setting, the
y
height of the column will increase or decrease.
• The display can also show an animation of a
runner on a road. As you increase or decrease
the speed setting, the runner will speed up or
slow down.
Regardless of
which display mode
you select, the
speed or
incline setting will appear in the display for a few
seconds each time you change the setting. In addition, your heart rate will appear in the display each
time you use the handgrip pulse sensor or put on
the chest pulse sensor. Note: If you select the display mode shown above, your heart rate will be
shown in place of the approximate exercise pace.
As you exercise, the intensity level bar will indicate
the approximate intensity level of your exercise.
For example, if eight of the indicators in the bar are
lit, the bar shows that your intensity level is ideal
for aerobic exercise.
Intensity Level Bar
Before using
the handgrip
pulse sensor,
emove the
r
sheets of plas-
ic from the
t
metal contacts.
In addition,
Contacts
make sure that
your hands are
clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts on the handrail—
avoid moving your hands. When your pulse is
detected, your heart rate will be shown. For the
most accurate heart rate reading, continue to
hold the contacts for about 15 seconds.
8. Turn on the fan if desired.
The fan has high and low speed settings. Press the
Fan button repeatedly to select a fan speed or to
turn off the fan. Note: If the fan is on when the
walking belt stops, the fan will automatically turn off
after a few minutes.
9. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting when you fold the treadmill to the storage
position, or you may damage the treadmill.
Next, remove the key from the console and put it in
a secure place.
To reset the console, press the Stop button, remove the key, and then reinsert the key.
7. Measure your heart rate if desired.
Note: If you use the handgrip pulse sensor and
the chest pulse sensor at the same time, the
console will not display your heart rate accurately.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmillʼs electrical components may
wear prematurely.
15
HOW TO USE A PRESET WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
3.
1
2. Personalize console settings if desired.
At the end of the first one-minute segment of the
workout, a series of tones will sound. If a different
speed and/or incline setting is programmed for the
econd segment, the speed setting and/or incline
s
setting will appear in the display for a moment to
lert you. The treadmill will then automatically ad-
a
just to the speed and incline settings for the second segment.
See HOW TO PERSONALIZE CONSOLE SETTINGS on page 13.
3. Select a preset workout.
To select a preset workout, press the Weight Loss
button, the Aerobic Fitness button, or the
Performance button until the name of the desired
workout appears in the display.
When a
preset
workout is
selected,
the display will
show the
name, the workout time, the maximum incline setting, and the maximum speed setting of the workout. In addition, a profile of the speed settings of
the workout will appear in the display.
Each preset workout is divided into one-minute
segments. One speed setting and one incline setting are programmed for each segment. Note: The
same speed setting and/or incline setting may be
programmed for consecutive segments.
4. Start the walking belt.
Press the Start button to start the workout. A moment after you press the Start button, the walking
belt will begin to move. Hold the handrails and
begin walking.
The workout will continue in this way until the small
arrow reaches the right end of the profile. The
walking belt will then slow to a stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can override
the setting by pressing the Speed or Incline buttons; however, when the next segment begins,
the treadmill will automatically adjust to the
speed and incline settings for the next
segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.
5. Select a display mode and monitor your
progress with the display and the intensity
level bar.
See step 6 on pages 14 and 15.
When a preset workout is selected, the console offers three display modes. Press the Display button
repeatedly to select the desired display mode. Note:
When a preset workout is selected, the display will
show a profile of the speed settings of the workout.
6. Measure your heart rate if desired.
See step 7 on page 15.
A profile
of the
speed settings of
the workout will
appear in
the display. A small arrow below the profile will indicate your progress.
7. Turn on the fan if desired.
See step 8 on page 15.
8. When you are finished exercising, remove the
key from the console.
See step 9 on page 15.
16
HOW TO CREATE A CUSTOM WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
3.
1
2. Personalize console settings if desired.
See HOW TO PERSONALIZE CONSOLE SETTINGS on page 13.
3. Select a custom workout.
To select a custom workout, press the Custom button until Custom Workout 1, Custom Workout 2,
Custom Workout 3, or Custom Workout 4 appears
in the display.
To program a speed setting and an incline setting
for the first one-minute segment of the workout,
simply adjust the speed and incline of the treadmill
s desired by pressing the Speed and Incline but-
a
tons.
When the first segment ends, a series of tones will
sound and the current speed and incline settings
will be saved in memory.
Program a speed setting and an incline setting for
the second segment as described above. Continue
programming speed and incline settings for up to
30 segments.
When you are finished with your workout, press the
Stop button twice. The custom workout will then be
saved in memory.
When a custom workout is selected, the display will
show the name, the workout time, the maximum incline setting, and the maximum speed setting of the
workout. In addition, a profile of the speed settings
of the workout will appear in the display.
If the custom workout has not yet been defined,
the display will show a workout time of three
minutes. If the workout time is more than three
minutes, see HOW TO USE A CUSTOM WORKOUT on page 18.
Each custom workout is divided into one-minute
segments. One speed setting and one incline setting can be programmed for each segment.
4. Start the walking belt.
Press the Start button to start the workout. A moment after you press the Start button, the walking
belt will begin to move. Hold the handrails and
begin walking.
5. Select a display mode and monitor your
progress with the display and the intensity level
bar.
See step 5 on page 16.
6. Measure your heart rate if desired.
See step 7 on page 15.
7. Turn on the fan if desired.
See step 8 on page 15.
8. When you are finished exercising, remove the
key from the console.
See step 9 on page 15.
17
HOW TO USE A CUSTOM WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
3.
1
2. Personalize console settings if desired.
See HOW TO PERSONALIZE CONSOLE SETTINGS on page 13.
3. Select a custom workout.
To select a custom workout, press the Custom button until Custom Workout 1, Custom Workout 2,
Custom Workout 3, or Custom Workout 4 appears
in the display.
When a custom workout is selected, the display
will show the name of the workout, the workout
time, the maximum incline setting, and the maximum speed setting of the workout. In addition, a
profile of the speed settings of the workout will appear in the display.
Note: If the display shows a workout time of
three minutes, see HOW TO CREATE A CUSTOM WORKOUT on page 17.
Each custom workout is divided into one-minute
segments. One speed setting and one incline setting are programmed for each segment.
4. Start the walking belt.
Press the Start button to start the workout. A moment after you press the Start button, the treadmill
will automatically adjust to the first speed and incline settings that you programmed previously.
Hold the handrails and begin walking.
A profile of
the speed
settings of
he work-
t
out will ap-
ear in the
p
display. A
small arrow below the profile will indicate your
progress.
At the end of the first one-minute segment of the
workout, a series of tones will sound. If a different
speed and/or incline setting is programmed for the
second segment, the speed and/or incline setting
will appear in the display for a moment to alert you.
The treadmill will then automatically adjust to the
speed and incline settings for the second segment.
The workout will continue in this way until the small
arrow reaches the right end of the profile. The
walking belt will then slow to a stop.
If desired, you can redefine the workout while
using it. To change the speed or incline setting
for the current segment, simply press the Speed
or Incline buttons. When the current segment ends,
the new setting will be saved in memory. To in-
crease the length of the workout, first wait until
the workout ends. Then, press the Start button and
program speed and incline settings for as many
additional segments as desired; custom workouts
can have up to 30 segments. When you have
added as many segments as desired, press the
Stop button twice. To decrease the length of the
workout, press the Stop button twice when you
want the workout to end.
18
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button. The walking belt will begin to move at 1 mph.
hen the next segment of the workout begins, the
W
treadmill will automatically adjust to the speed and
ncline settings for the next segment.
i
5. Select a display mode and monitor your
progress with the display and the intensity
level bar.
See step 5 on page 16.
6. Measure your heart rate if desired.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the consoleʼs
ound system, you must connect your MP3 player, CD
s
player, or other personal audio player to the console.
ocate the audio wire below the display on the con-
L
sole, and plug it into a jack on your MP3 player, CD
player, or other personal audio player. Make sure that
the audio/video cable is fully plugged in.
Next, press the Play button on your MP3 player, CD
player, or other personal audio player. Then, adjust the
volume on your MP3 player, CD player, or other personal audio player.
See step 7 on page 15.
7. Turn on the fan if desired.
See step 8 on page 15.
8. When you are finished exercising, remove the
key from the console.
See step 9 on page 15.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat surface instead of on the console.
19
HOW TO USE AN IFIT CARD
To purchase iFit cards at any time, go to www.iFit.com
r call the telephone number on the front cover of this
o
manual. iFit cards are also available at select stores.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
Note: The same speed and/or incline setting may
be programmed for consecutive segments.
. Start the walking belt.
4
ress the Start button to start the workout. A mo-
P
ment after you press the button, the treadmill will
automatically adjust to the first speed and incline
settings of the workout. Hold the handrails and
begin walking.
2. Personalize console settings if desired.
See HOW TO PERSONALIZE CONSOLE SETTINGS on page 13.
3. Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face-down and are inserted
into the iFit slot. When the iFit card is properly inserted, the iFit logo will light.
iFit Slot
iFit Card
During the workout, the voice of a personal trainer
will guide you through the workout. You can adjust
the volume for your personal trainer (see HOW TO
PERSONALIZE CONSOLE SETTINGS on page
13).
If the speed or incline setting for the current segment is too high or too low, you can override the
setting by pressing the speed or incline buttons;
however, when the next segment begins, the
treadmill will automatically adjust to the speed
and incline settings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.
5. Select a display mode and monitor your
progress with the display and the intensity level
bar.
See step 5 on page 16.
Next, select an iFit workout by pressing the iFit increase or decrease button. When an iFit workout is
selected, the display will show the name, duration,
maximum incline setting, and maximum speed setting of the workout. In addition, a profile of the
speed settings of the workout will appear in the display.
Each iFit workout is divided into several oneminute segments. One speed setting and one incline setting are programmed for each segment.
6. Turn on the fan if desired.
See step 8 on page 15.
7. When you are finished exercising, remove the
key from the console.
See step 9 on page 15.
CAUTION: Always remove iFit cards from the
iFit slot when you are not using them.
20
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
o the lowest position before you fold the treadmill.
t
Then, remove the key and unplug the power cord.
AUTION: You must be able to safely lift 45 lbs. (20
C
kg) to raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown
by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Make sure to
bend your legs and keep your back straight.
1
Frame
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
eft. CAUTION: Make sure that the latch knob is
l
locked in the storage position. Moving the tread-
ill may require two people.
m
1. Hold the frame and one of the handrails, and place
one foot against a wheel.
1
Frame
Handrail
Wheel
2. Raise the frame until the latch knob locks in the
storage position. CAUTION: Make sure that the
latch knob locks.
2
Frame
Latch
Knob
To protect the floor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).
2. Pull back on the handrail until the treadmill will roll
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the treadmill
without tipping it back, do not pull on the frame,
and do not move the treadmill over an uneven
surface.
3. Place one foot against a wheel, and carefully lower
the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2. Hold the upper end of the treadmill
with your right hand. Pull the latch knob to the left;
if necessary, push the frame forward slightly. Pivot
the frame downward a few inches, and release the
latch knob.
2. See drawing 1 at the left. Hold the metal frame
firmly with both hands, and lower it to the floor.
CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Make sure
to bend your legs and keep your back straight.
21
TROUBLESHOOTING
ost treadmill problems can be solved by following the steps below. Find the symptom that applies, and
M
follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 11). Use only a single-outlet surge suppressor that meets all of the specifications described on page 11. IMPORTANT: The treadmill is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes as
shown, the switch has tripped. To reset the switch,
wait for five minutes and then press the switch back
in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the power switch (see the drawing above). If the switch has tripped, wait for five minutes
and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see
HOW TO PERSONALIZE CONSOLE SETTINGS on page 13 to turn off the demo mode.
c
Tripped Reset
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Place the treadmill in the storage po-
sition (see HOW TO FOLD THE TREADMILL on page
21).
Next, remove the two indicated #8 x 3/4" Screws (4).
a
4
4
22
Lower the treadmill (see HOW TO LOWER THE
TREADMILL FOR USE on page 21). Then, remove
the four indicated #8 x 3/4" Screws (4), and remove
he Motor Hood (44).
t
44
4
4
Next, locate the Reed Switch (20) and the Magnet
(12) on the left side of the Pulley (11). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Top
View
Make sure that the gap between the Magnet and
20
29
1/8 in.
11
12
the Reed Switch is about 1/8 in. (3 mm). If necessary, loosen the indicated 3/4" Tek Screw (29), move
the Reed Switch slightly, and then retighten the
Screw. Then, reattach the Motor Hood (not shown)
with the six #8 x 3/4" Screws (not shown). Run the
treadmill for a few minutes to check for a correct
speed reading.
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, reinsert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
b
3–4 in.
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the hex key, turn both idler
roller bolts counterclockwise, 1/4 of a turn. When the
walking belt is properly tightened, you should be able
to lift each edge of the walking belt 3 to 4 in. (8 to 10
cm) off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Idler Roller Bolts
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please see the front cover of this manual.
23
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, remove the key and
NPLUG THE POWER CORD. If the walking belt
U
has shifted to the left, use the hex key to turn the
eft idler roller bolt clockwise 1/2 of a turn; if the walk-
l
ing belt has shifted to the right, turn the left idler
roller bolt counterclockwise 1/2 of a turn. Be careful
not to overtighten the walking belt. Plug in the power
cord, insert the key, and run the treadmill for a few
minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the hex key, turn both idler roller bolts clockwise, 1/4
of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the
walking belt 3 to 4 in. (8 to 10 cm) off the walking
platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key,
and carefully walk on the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
a
b
24
EXERCISE GUIDELINES
WARNING: Before beginning any
xercise program, consult your physician.
e
This is especially important for persons over
age 35 or persons with pre-existing health
problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is intended only as an exercise aid in determining
heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
25
PART LIST—Model No. PFTL99108.4 R0610A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
12Foot Rail Cover
22Foot Rail
38#8 x 3/4" Cushion Screw
4 64 #8 x 3/4" Screw
54Handrail Cover Fastener
61Walking Platform
72Belt Guide
84#8 x 1/2" Belt Guide Screw
92Isolator
10 2 1/4" x 1 1/4" Bolt
11 1 Drive Roller/Pulley
12 1 Magnet
13 17 #8 x 1/2" Screw
14 1 Reed Switch Clamp
15 2 Incline Rod Bushing
16 2 Lift Arm
17 2 3/8" x 3/4" Bolt
18 2 Hood Mount
19 2 Lift Arm Spacer
20 1 Reed Switch
21 2 Console Clamp
22 1 3/8" x 1 3/4" Bolt
23 1 Chest Pulse Strap
24 1 3/8" x 1 3/4" Incline Motor Bolt
25 1 Chest Pulse Sensor
26 1 Left Grip
27 1 Right Grip
28 1 Motor Belt
29 9 3/4" Tek Screw
30 2 Lift Pivot Bolt
31 1 Drive Motor
32 2 Motor Bolt
33 4 1/4" Nut
34 1 Electronic Bracket
35 1 Front Cap
36 1 Controller
37 1 Incline Rod
38 10 3/8" Nut
39 1 Lift Motor
40 1 3/8" x 2" Incline Motor Bolt
41 1 Power Switch
42 2 Platform Cushion
43 1 Power Cord Bracket
44 1 Motor Hood
45 4 Hood Clip
46 2 Grommet
47 1 Walking Belt
48 1 Frame
49 1 Power Cord Grommet
50 1 Speaker
51 1 Right Rear Foot
52 4 Rear Wheel
53 1 Chest Pulse Receiver
54 1 Right Rear Cap
55 4 Bracket Washer
56 2 Idler Roller Adjustment Bolt
57 1 Hex Key
58 1 Left Rear Foot
59 1 Left Rear Cap
60 1 Idler Roller
61 2 5/16" Flange Nut
62 2 1/4" x 1 1/4" Bolt
63 1 Console Fan
64 6 3/8" x 1 1/2" Bolt
65 1 Console Base
66 1 Console
67 1 Book Rack
68 1 Power Cord
69 5 Electronics Screw
70 1 Pulse Receiver Cover
71 1 Console Wire Harness
72 6 3/8" x 3 3/4" Bolt
73 1 Left Upright
74 1 Right Upright
75 1 Upright Wire
76 1 Left Base Cover
77 1 Right Base Cover
78 2 4" Ground Wire
79 4 #6 x 1/2" Screw
80 4 #8 Star Washer
81 4 Base Foot
82 4 #8 x 1" Tek Screw
83 1 Base
84 1 #3 x 1/4" Screw
85 2 3/8" x 2 3/8" Bolt
86 2 Wheel
87 3 Caution Decal
88 4 Base Foot Spacer
89 1 Key/Clip
90 10 3/8" Star Washer
91 3 Releasable Tie
92 2 Tie Clamp
93 9 Plastic Tie
94 2 Handrail Cover
95 1 Left Upright Sleeve
96 1 Right Upright Sleeve
97 1 3/8" x 2" Bolt
98 1 Ground Nut
99 1 Handrail
100 1 Latch Assembly
26
Key No. Qty. Description Key No. Qty. Description
101 1 Latch Warning Decal
02 8 #8 x Tek 3/4" Screw
1
103 4 #8 x 1" Screw
104 1 Speaker Cover
105 2 #10 Washer
106 1 Incline/Controller Wire
108 1 Stop Bracket Spacer
09 2 #8 x 1/2" Console Ground Screw
1
110 1 Console Plate
111 2 Handrail Cap
*–4" White Wire, M/F
*–Userʼs Manual
107 1 Incline Stop Bracket
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
27
58
57
54
29
59
72
38
52
29
14
9
10
62
60
105
56
4
6
47
62
10
7
8
7
12
32
4
4
4
8
61
61
105
56
48
55
33
33
69
69
33
36
9
30
19
16
15
17
15
16
19
30
17
29
51
38
72
52
18
4
4
35
18
29
11
34
4
4
4
13
46
29
4
101
20
55
55
69
43
13
98
68
49
41
EXPLODED DRAWING A—Model No. PFTL99108.4 R0610A
28
4
44
4
4
4
45
45
2
1
42
3
3
3
3
1
2
42
3
3
3
3
22
38
100
97
38
28
31
106
37
38
24
38
107
108
39
40
EXPLODED DRAWING B—Model No. PFTL99108.4 R0610A
29
73
74
83
38
86
85
87
87
86
85
38
64
87
38
38
82
81
82
81
82
81
95
96
90
64
90
90
75
75
64
90
4
4
82
81
4
4
4
4
4
76
77
4
4
4
4
90
72
90
72
90
46
64
88
88
88
88
29
92
91
93
EXPLODED DRAWING C—Model No. PFTL99108.4 R0610A
30
67
99
94
5
94
5
102
102
80
4
4
4
4
110
103
21
80
78
109
4
4
4
102
4
63
13
104
79
50
13
13
13
13
89
70
4
65
4
4
4
4
4
4
4
26
27
66
13
71
4
4
102
102
102
13
13
23
25
53
84
4
4
111
111
21
EXPLODED DRAWING D—Model No. PFTL99108.4 R0610A
31
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. The drive motor
is warranted for twelve (12) years from the date of purchase. Parts and labor are warranted for one (1)
year from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to products used for commercial or rental purposes or as store display models; or to products transported or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 302613 R0610A Printed in USA © 2010 ICON IP, Inc.
Loading...
