USERʼS MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from
moisture and dust. Place the elliptical on a
level surface, with a mat beneath it to protect
the floor or carpet. Make sure that there is at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side.
6. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
7. Keep children under age 12 and pets away
from the elliptical at all times.
o reduce the risk of serious injury, read all important precautions and
8. The elliptical should not be used by persons
weighing more than 275 lbs. (125 kg).
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
10. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
11. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
12. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
13. Keep your back straight while using the
elliptical; do not arch your back.
14. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
BEFORE YOU BEGIN
Thank you for selecting the new PROFORM®STRIDE
TRAINER 595 elliptical. The STRIDE TRAINER 595
elliptical provides a selection of features designed to
ake your workouts at home more effective and
m
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
Upper Body Arm
Pulse Sensor
Handlebar
Water Bottle Holder*
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
odel number and the location of the serial number
m
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Fan
Console
Pedal
Pedal Disc
Handle
Leveling Foot
Ramp
Wheel
*Water bottle is not included
4
ASSEMBLY
M10 x 48mm Patch
Screw (75)–6
M10 x 20mm Patch
Screw (79)–7
M8 x 20mm
Patch Screw
(80)–4
M4 x 48mm
Screw (89)–2
M8 x 45mm Button
Bolt (76)–4
M10 x 85mm Patch Screw (82)–4
M4 x 16mm
Screw (92)–7
M8 Washer
(33)–6
M10 Split
Washer (78)–10
M8 Jam Nut
(77)–4
M8 x 18mm Patch
Hex Screw (85)–2
To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
ssembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
A
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and an
adjustable wrench .
As you assemble the elliptical, use the drawings below to identify small parts. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit, check
to see if it has been preassembled.
5
1.
To make assembly easier, read the
information on page 5 before you begin.
While a second person lifts the rear of the
rame (1), attach the Rear Stabilizer (70) to the
F
Frame with two M10 x 85mm Patch Screws
(82).
1
70
1
82
2. Orient the Front Stabilizer (73) so that the
“Front” sticker is facing away from the front of
the Frame (1).
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (73) to the
Frame with two M10 x 85mm Patch Screws
(82).
2
82
73
1
6
3. Orient the Upright (2) and the Top Shield Cover
(37) as shown. Slide the Top Shield Cover
upward onto the Upright.
3
Have a second person hold the Upright (2) near
he Frame (1).
t
See the inset drawing. Locate the wire tie in
the Upright (2). Tie the lower end of the wire tie
to the Wire Harness (42). Next, pull the upper
end of the wire tie upward until the Wire
Harness is routed through the Upright. Then,
untie and discard the wire tie.
Tip: To prevent the Wire Harness (42) from
falling into the Upright (2), secure the Wire
Harness with a rubber band or a piece of
tape.
42
37
1
Wire
Tie
2
2
Wire Tie
42
4. Slide the Upright (2) onto the Frame (1).
Tip: Have a second person hold the Top
Shield Cover (37) out of the way.
Tip: Avoid pinching the Wire Harness (42).
Attach the Upright (2) with four M10 x 20mm
Patch Screws (79) and four M10 Split Washers
(78).
Slide the Top Shield Cover (37) downward and
press it into the Frame (1).
4
Avoid pinching the
Wire Harness (42)
79
78
37
42
1
2
79
78
1
7
5. See the upper drawing. To avoid pinching or
damaging the Pulse Wires (28) while you
assemble the Handlebar (39), perform the fol-
owing actions:
l
nsert the end of the left Pulse Wire (28) inside
I
the left side of the Handlebar (39).
Then, insert the end of the right Pulse Wire (28)
inside the right side of the Handlebar (39).
See the lower drawing. Have a second person
hold the Handlebar (39) in place around the
Upright (2).
5
39
28
Tip: Avoid pinching the wires. Attach the
Handlebar (39) to the Upright (2) with three M10
x 20mm Patch Screws (79).
28
79
2
39
Avoid pinching
the wires
79
8
6. The Console (4) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
xposed to cold temperatures, allow it to
e
warm to room temperature before inserting
atteries. Otherwise, you may damage the
b
console displays or other electronic components. Remove the screws, remove the battery
covers, insert the batteries into the battery compartments, and reattach the battery covers.
Make sure to orient the batteries as shown
by the diagrams inside the battery compartments.
6
Screws
Battery
Covers
Batteries
To purchase an optional power adapter, call
the telephone number on the front cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied power
adapter. Plug one end of the power adapter
into the jack on the console; plug the other end
into an outlet installed in accordance with all
local codes and ordinances.
7. Locate the Pulse Wires (28) inside the left and
right sides of the Handlebar (39) and pull them
upward out of the Upright (2).
While a second person holds the Console (4)
near the Upright (2), connect the console wires
to the Wire Harness (42) and to the Pulse Wires
(28).
Insert the excess wires into the Upright (2).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Upright (2) with four M4 x
16mm Screws (92).
Batteries
4
7
4
Console Wires
42
28
2
92
92
39
Avoid
pinching
the wires
9
8. Attach the Console Cover (32) to the back of
the Console (4) with two M4 x 48mm Screws
(89).
8
4
32
89
9. Apply some of the included grease to the axle
on the right side of the Upright (2).
Identify the Right Upper Body Arm (9), which is
marked with a “Right” sticker, and orient it as
shown.
Slide the Right Upper Body Arm (9) onto the
right side of the Upright (2).
Attach the Right Upper Body Arm (9) with an
M8 x 20mm Patch Screw (80) and an M8
Washer (33).
Repeat this step to attach the Left Upper
Body Arm (8).
9
8
33
9
80
Grease
2
10

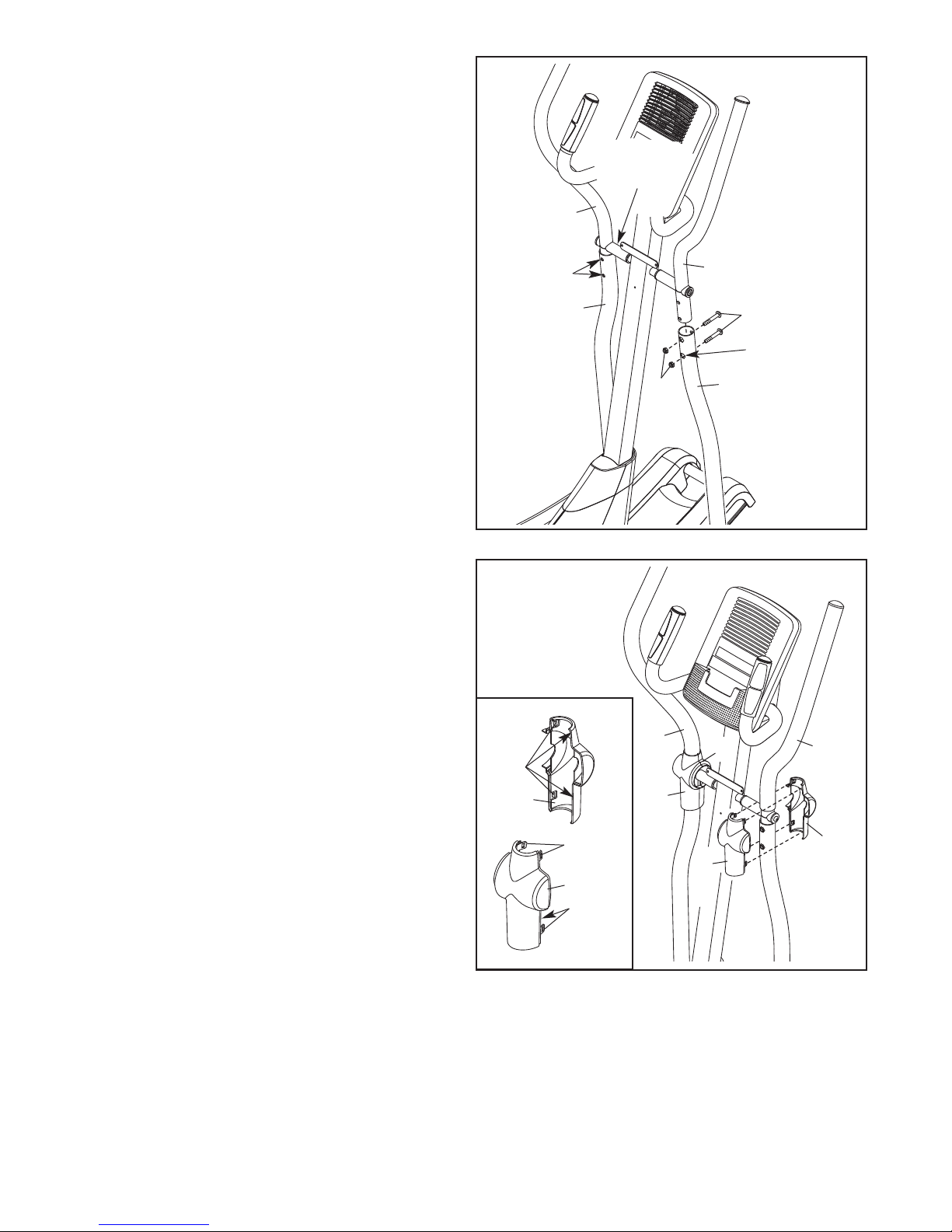

10. Identify the Right Link Arm (98), which is
marked with a “Right” sticker, and orient it as
shown.
Apply some of the included grease to the axle
n the Right Link Arm (98).
o
0
1
Slide a Link Arm Cover (103) onto the axle on
the Right Link Arm (98). Make sure that the
flat side of the Link Arm Cover is facing the
Right Link Arm.
Insert the Right Link Arm (98) through the Right
Pedal Arm (49). Attach the Right Link Arm with
an M8 x 20mm Patch Screw (80) and an M8
Washer (33).
Repeat this step on the other side of the
elliptical.

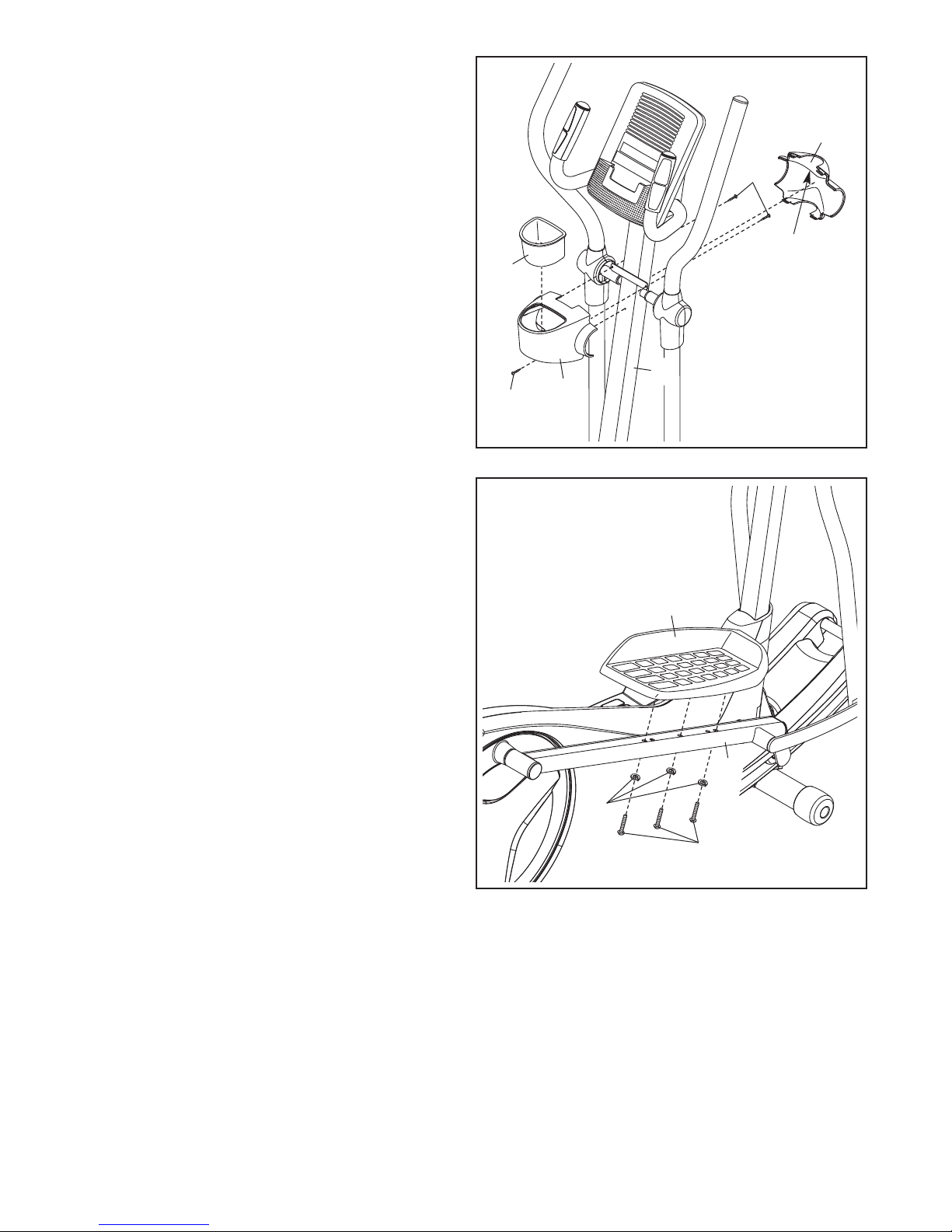

11. Have a second person hold a Bushing Cover
(102) over the post on the right Upper Body Leg
(6). Make sure that the curved side of the
Bushing Cover is facing the right Upper
Body Leg.
Attach the Right Link Arm (98) and the Bushing
Cover (102) to the right Upper Body Leg (6)
with an M8 x 18mm Patch Hex Screw (85) and
an M8 Washer (33).
11
49
80
33
103
Grease
98
Press a Link Arm Screw Cover (104) onto the
M8 x 18mm Patch Hex Screw (85).
Repeat this step on the other side of the
elliptical.
6
Post
102
98
33
85
104
11
12. With the help of a second person, insert the
Right Upper Body Arm (9) into the right Upper
Body Leg (6).
Attach the Right Upper Body Arm (9) with two
8 x 45mm Button Bolts (76) and two M8 Jam
M
Nuts (77). Make sure that the Jam Nuts are in
the hexagonal holes.
Attach the Left Upper Body Arm (8) to the
other Upper Body Leg (6) in the same way.
Make sure that the M8 x 45mm Button Bolts
(76) are in the locations shown.
12
76
8
6
Hexagonal
Holes
77
9
76
Hexagonal
Holes
6
13. See the inset drawing. Identify a Pivot Cover A
(19), which has hooks, and a Pivot Cover B
(22), which has tabs.
Press a Pivot Cover A (19) and a Pivot Cover B
(22) together around the Right Upper Body Arm
(9).
Repeat this step on the other side of the
elliptical.
Tip: Make sure that the Pivot Covers (19, 22)
are positioned as shown.
13
Tabs
22
Hooks
19
Hooks
22
8
19
19
9
22
12
14. Attach the Rear Upright Cover (3) to the Upright
(2) with three M4 x 16mm Screws (92).
14
Orient the Front Upright Cover (16) so that the
indicated arrow is pointing upward.
Press the Front Upright Cover (16) into the
Rear Upright Cover (3).
Press the Water Bottle Holder (5) into the Rear
Upright Cover (3).
15. Identify the Right Pedal (13), which is marked
with a “Right” sticker.
Attach the Right Pedal (13) to the Right Pedal
Arm (49) with three M10 x 48mm Patch Screws
(75) and three M10 Split Washers (78). Make
sure to use the center hole and the two
outer holes to attach the Right Pedal.
15
5
92
16
92
Arrow
2
3
13
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.
49
78
75
13
16. Press the Rear Shield Cover (59) onto the Left
and Right Shields (44, 45).
17. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
16
59
44
5
4
14
HOW TO USE THE ELLIPTICAL
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
t requires two persons. Stand in front of the ellipti-
i
cal, hold the upright, and place one foot against one of
the front wheels. Pull on the upright and have a second person lift the handle until the elliptical will roll on
the wheels. Carefully move the elliptical to the desired
location, and then lower it to the floor.
Upright
HOW TO CHANGE THE INCLINE OF THE RAMP
To vary the motion of the pedals, you can change the
ncline of the ramp.
i
To raise the
ramp to an
incline level, pull
the front of the
ramp upward until
the ramp
engages at one of
the three incline
levels.
To lower the ramp to an incline level, first pull the
front of the ramp all the way upward. Next, press the
ramp all the way downward. Then, pull the front of the
ramp upward until the ramp engages at one of the
three incline levels.
Ramp
Handle
Place
your foot
here
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor during
use, turn one or
both of the leveling feet beneath
the rear stabilizer
until the rocking
motion is eliminated.
Leveling
Feet
15
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars or the
pper body arms and step onto the pedal that is in the
u
lowest position. Then, step onto the other pedal.
Push the pedals until they begin to move with a continuous motion. Note: The pedal discs can turn in
either direction. It is recommended that you move
the pedal discs in the direction shown by the
arrow; however, for variety, you can turn the pedal
discs in the opposite direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the highest pedal first. Then, step off the lowest pedal.
Upper Body Arms
Handlebars
Pedals
Pedal
Disc
16
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor.
The console offers eight preset workouts—four weight
loss and four performance workouts. Each preset
workout automatically changes the resistance of the
pedals as it guides you through an effective workout.
The console also offers six target toning workouts
designed to work specific areas of the body. Each target toning workout has a recommended ramp incline
level and will automatically change the resistance of
the pedals while guiding you through an effective
workout.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 18. To use a preset workout, see page 19. To use a target toning
workout, see page 21. To use the sound system,
see page 22.
Note: Before using the console, make sure that batteries are installed (see assembly step 6 on page 9). If
there is a sheet of plastic on the display, remove the
plastic.
17
HOW TO USE THE MANUAL MODE
4. Follow your progress with the display.
1. Turn on the console.
Press any button or begin pedaling to turn on the
onsole.
c
When you turn on the console, the display will
light. A tone will sound and the console will be
ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected.
If you have selected a workout, reselect the manual mode by pressing the Workouts increase or
decrease button repeatedly until a track appears in
the center display.
Track
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the
resistance of the pedals by
pressing the Resistance
increase and decrease buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resistance level.
The left display–This
isplay can show the
d
elapsed time and the
pproximate number of
a
calories you have
burned. The display will
change modes every few
seconds.
Note: During a workout, the display will show the
time remaining in the workout.
The left display will also show your heart rate when
you use the handgrip pulse sensor (see step 5 on
page 19).
The center display–This
display will show the
resistance level of the
pedals for a few seconds
each time the resistance
level changes.
This display will also
show a track representing 640 revolutions. As
you exercise, indicators
will appear in succession
around the track until the
entire track appears. The
track will then disappear and the indicators will
again begin to appear in succession.
The right display–This
display can show the
distance (total number of
revolutions) you have
pedaled and your pedaling pace in revolutions
per minute (rpm). The
display will change modes every few seconds.
18
5. Measure your heart rate if desired.
HOW TO USE A PRESET WORKOUT
If there are sheets
f plastic on the
o
metal contacts on
he handgrip pulse
t
sensor, remove
the plastic. In
addition, make
sure that your
hands are clean.
To measure your
heart rate, hold the
handgrip pulse sensor with your palms resting against the metal
contacts. Avoid moving your hands or gripping
the contacts tightly.
When your pulse is detected, a heart-shaped symbol will flash in the display and then your heart rate
will be shown. For the most accurate heart rate
reading, hold the contacts for at least 15 seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
metal contacts tightly. For optimal performance,
clean the metal contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
ontacts
C
1. Turn on the console.
See step 1 on page 18.
2. Select a preset workout.
To select a preset workout, press the Workouts
increase or decrease button repeatedly until the
number of the desired workout appears in the right
display.
When you select a preset workout, the duration of
the workout will appear in the left display, the maximum resistance level for the workout will flash in
the center display, and the number of the workout
will appear in the right display.
After a few seconds, a profile of the resistance levels of the workout will scroll across the center
display.
6. Turn on the fan if desired.
The fan has high and low speed settings. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the time will flash in the display.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
Profile
Note: Complete profiles of the preset workouts are
printed on the sides of the console.
3. Begin pedaling to start the workout.
Each workout is divided into 30 one-minute segments. One resistance level is programmed for
each segment. Note: The same resistance level
may be programmed for consecutive segments.
19
During the workout, the workout profile will show
your progress (see the drawing on page 19). The
flashing segment of the profile represents the cur-
ent segment of the workout. The height of the
r
flashing segment indicates the resistance level for
he current segment.
t
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resistance level is programmed for the next segment,
the resistance level will flash in the display for a
few seconds to alert you. The resistance of the
pedals will then change.
To restart the workout, simply resume pedaling.
The workout will continue until the last segment of
the profile flashes and the last segment of the
orkout ends.
w
ote: If you continue to pedal after the workout is
N
completed, the display will continue to show exercise feedback; however, the display will not show
the elapsed time until you select the manual mode
or a new workout.
4. Follow your progress with the display.
See step 4 on page 18.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons.
However, when the current segment ends, the pedals will automatically adjust to the resistance level
for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause.
5. Measure your heart rate if desired.
See step 5 on page 19.
6. Turn on the fan if desired.
See step 6 on page 19.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 19.
20
OW TO USE A TARGET TONING WORKOUT
H
1. Turn on the console.
ee step 1 on page 18.
S
. Select a target toning workout.
2
. Adjust the ramp to the recommended incline
3
level.
See HOW TO CHANGE THE INCLINE OF THE
AMP on page 15 and move the ramp to the rec-
R
ommended incline level for the selected target
oning workout.
t
To select a target toning workout, press the
Workouts increase or decrease button repeatedly
until the number of the desired workout appears in
the right display.
When you select a target toning workout, the duration of the workout will appear in the left display,
the maximum resistance level for the workout will
flash in the center display, and the number of the
workout will appear in the right display.
After a few seconds, a profile of the resistance levels of the workout will scroll across the center
display.
Note: The recommended incline levels for the target toning workouts are printed on the side of the
console above the profiles.
If you selected a Hams/Glutes target toning
workout, move the ramp to the highest incline
level. If you selected a Quads/Hams target toning workout, move the ramp to the middle incline
level. If you selected a Calves/Quads target toning workout, move the ramp to the lowest incline
level.
4. Begin pedaling to start the workout.
Each workout is divided into 30 one-minute segments. One resistance level is programmed for
each segment. Note: The same resistance level
may be programmed for consecutive segments.
During the workout, the workout profile will show
your progress (see the drawing at the left). The
flashing segment of the profile represents the current segment of the workout. The height of the
flashing segment indicates the resistance level for
the current segment.
Profile
Note: Complete profiles of the target toning workouts are printed on the sides of the console.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resistance level is programmed for the next segment,
the resistance level will flash in the display for a
few seconds to alert you. The resistance of the
pedals will then change.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons.
However, when the current segment ends, the pedals will automatically adjust to the resistance level
for the next segment.
21
f you stop pedaling for several seconds, a series
I
of tones will sound and the workout will pause.
To restart the workout, simply resume pedaling.
he workout will continue until the last segment of
T
the profile flashes and the last segment of the
orkout ends.
w
OW TO USE THE SOUND SYSTEM
H
To play music or audio books through the console
sound system while you exercise, plug the audio cable
nto the jack on the console and into the jack on your
i
MP3 player or CD player; make sure that the audio
able is fully plugged in.
c
Note: If you continue to pedal after the workout is
completed, the display will continue to show exercise feedback; however, the display will not show
the elapsed time until you select the manual mode
or a new workout.
5. Follow your progress with the display.
See step 4 on page 18.
6. Measure your heart rate if desired.
See step 5 on page 19.
7. Turn on the fan if desired.
See step 6 on page 19.
8. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 19.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume control on your MP3 player or CD player.
22
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical regularly.
eplace any worn parts immediately.
R
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
o the console, keep liquids away from the con-
t
sole and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console displays become dim, replace all the
batteries at the same time; most console problems are
the result of low batteries. See assembly step 6 on
page 9 for replacement instructions.
If the handgrip pulse sensor does not function properly, see step 5 on page 19.
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the drive belt may need to be adjusted.
To adjust the drive belt, you must remove the left
pedal, the rear shield cover, the top shield cover, and
the left shield (see the instructions below).
First, see step 15 on page 13 and remove the left
pedal.
Next, see step 16 on page 14 and remove the rear
shield cover.
Then, see step 4 on page 7 and release the top shield
cover from the left shield. Slide the top shield cover
upward.
Remove the M4 x 16mm Screws (92) from the Left
Shield (44) and then gently move the Left Shield outward over the Left Pedal Arm (14).
Next, loosen the Pivot Screw (88). Then, tighten the
Drive Belt Adjustment Screw (72) until the Drive Belt
(46) is tight.
46
88
72
When the Drive Belt (46) is tight, tighten the Pivot
Screw (88).
Then, reattach the left shield, the top shield cover, the
rear shield cover, and the left pedal.
23

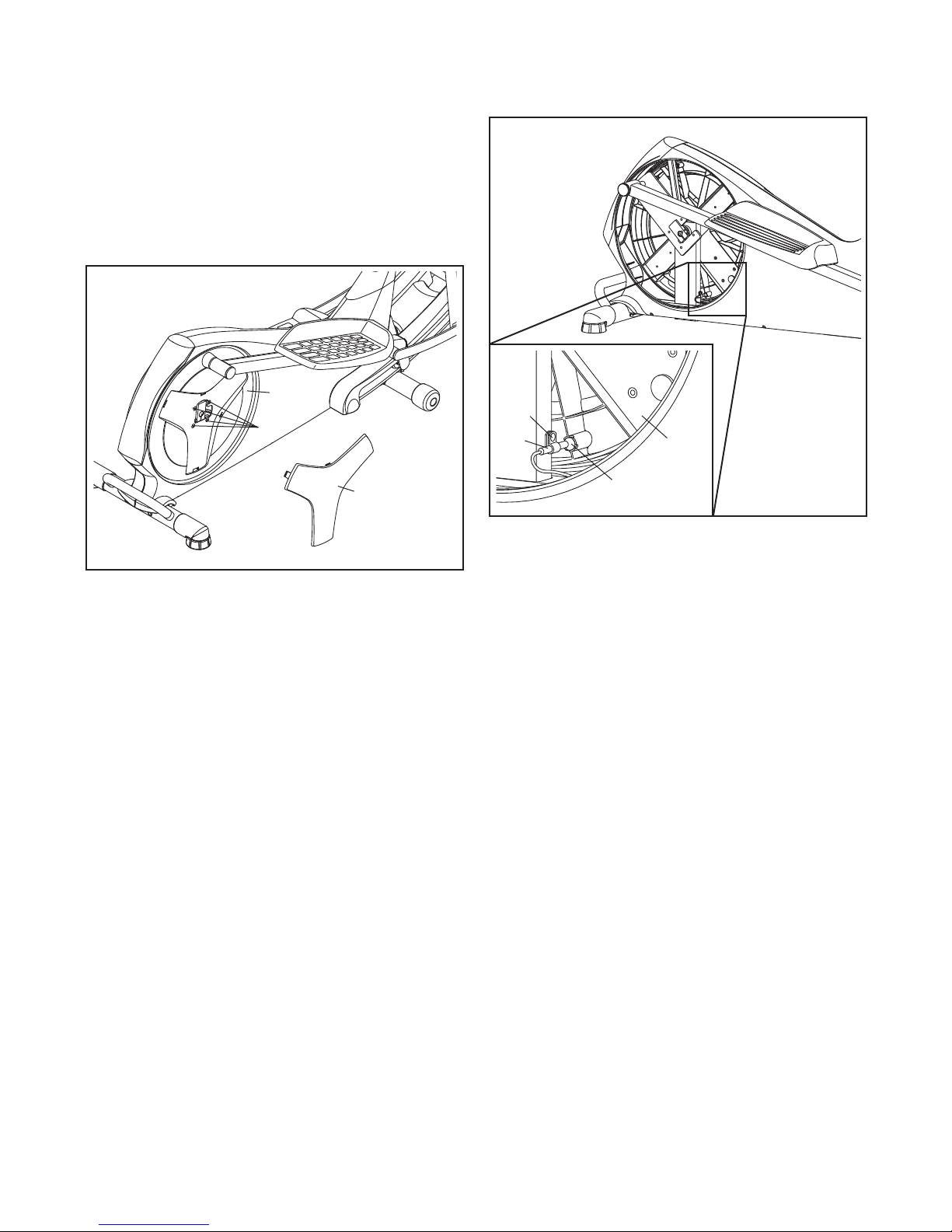

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, you must remove the right
disc cover and the right pedal disc.
Using a flat screwdriver, remove the right Disc Cover
(18).
27
81
Locate the Reed Switch (58). Loosen, but do not
emove, the M4 x 16mm Screw (92).
r
92
58
24
18
Then, remove the M8 x 14mm Button Screws (81)
from the Right Pedal Disc (27), and gently rotate the
Right Pedal Disc out of the way.
41
Next, rotate the Crank Assembly (24) until a Magnet
(41) is aligned with the Reed Switch (58). Slide the
Reed Switch slightly toward or away from the Magnet.
Then, retighten the M4 x 16mm Screw (92).
Rotate the Crank Assembly (24) for a moment. Repeat
these actions until the console displays correct feedback.
When the reed switch is correctly adjusted, reattach
the right pedal disc and the right disc cover.
24
EXERCISE GUIDELINES
WARNING: B
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning this
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
25
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
ove slowly as you stretch—never bounce.
M
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of
knees, and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons, and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
5
26
NOTES
27
PART LIST—Model No. PFEL94910.0 R0610A
Key No. Qty. Description Key No. Qty. Description
11Frame
2
31Rear Upright Cover
41Console
51Water Bottle Holder
62Upper Body Leg
71Resistance Wheel
81Left Upper Body Arm
91Right Upper Body Arm
10 2 Foam Grip
11 2 Upper Cap
12 1 Left Pedal
13 1 Right Pedal
14 1 Left Pedal Arm
15 2 Pedal Bracket
16 1 Front Upright Cover
17 8 Pivot Bushing
18 2 Disc Cover
19 2 Pivot Cover A
20 1 Ramp
21 1 Ramp Cover
22 2 Pivot Cover B
23 1 Latch Cover
24 1 Crank Assembly
25 1 Crank Arm
26 1 Left Pedal Disc
27 1 Right Pedal Disc
28 2 Pulse Wire
29 4 Bearing
30 2 Pedal Arm Cap
31 1 Ramp Axle
32 1 Console Cover
33 8 M8 Washer
34 1 Adjustment Lock
35 1 Adjustment Nut
36 1 Lower Arm
37 1 Top Shield Cover
38 2 Crank Bearing
39 1 Handlebar
40 1 Snap Ring
41 2 Magnet
42 1 Wire Harness
43 7 M6 Washer
44 1 Left Shield
45 1 Right Shield
46 1 Drive Belt
47 2 Leveling Foot
48 2 Stabilizer Cap
49 1 Right Pedal Arm
50 2 Wheel
1 Upright
51 1 Flywheel
2 1 Idler
5
53 1 C-magnet
54 1 Resistance Motor
55 1 Motor Bracket
56 1 Upper Arm
57 1 Clamp
58 1 Reed Switch/Wire
59 1 Rear Shield Cover
60 1 Key
61 1 M8 Locknut
62 1 M6 x 16mm Button Screw
63 2 Shoulder Screw
64 1 Flywheel Axle
65 1 C-magnet Bolt
66 1 Idler Bolt
67 1 Key Screw
68 1 Crank Arm Screw
69 4 Resistance Motor Bolt
70 1 Rear Stabilizer
71 2 Motor Bracket Screw
72 1 Drive Belt Adjustment Screw
73 1 Front Stabilizer
74 2 M6 Locknut
75 6 M10 x 48mm Patch Screw
76 4 M8 x 45mm Button Bolt
77 6 M8 Jam Nut
78 10 M10 Split Washer
79 9 M10 x 20mm Patch Screw
80 4 M8 x 20mm Patch Screw
81 4 M8 x 14mm Button Screw
82 4 M10 x 85mm Patch Screw
83 1 M5 x 7mm Screw
84 10 #10 x 16mm Screw
85 4 M8 x 18mm Patch Hex Screw
86 9 M5 x 12mm Screw
87 1 M3.5 x 12mm Screw
88 1 Pivot Screw
89 2 M4 x 48mm Screw
90 1 M4 x 16mm Ground Screw
91 9 M5 Star Washer
92 30 M4 x 16mm Screw
93 2 Pulse Sensor/Wire
94 1 Flywheel Bearing
95 1 Audio Cable
96 2 Roller
97 2 Roller Snap Ring
98 1 Right Link Arm
99 1 Left Link Arm
100 2 Link Arm Cap
28
ey No. Qty. Description Key No. Qty. Description
K
101 2 Link Arm Bushing
102 2 Bushing Cover
03 2 Link Arm Cover
1
104 2 Link Arm Screw Cover
105 4 Bushing Set
106 2 Ramp Axle Bushing
107 2 Latch Spring
108 1 Latch
109 1 Latch Spacer
110 1 Latch Pin
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
111 1 Spring Bracket
112 1 Latch Screw
13 2 M10 Washer
1
114 1 Latch Snap Ring
115 7 M5 x 16mm Screw
*–Userʼs Manual
*–Assembly Tool
*–Grease Packet
*–Wire Tie
29
EXPLODED DRAWING A—Model No. PFEL94910.0 R0610A
29
29
30
85
33
15
13
15
84
84
49
75
6
6
12
79
78
79
79
78
78
79
22
19
19
22
17
17
33
80
17
17
33
80
76
77
76
77
8
11
9
11
5
10
10
2
4
32
79
79
79
92
92
92
89
3
16
93
14
78
78
78
39
28
95
84
84
29
29
33
85
30
75
78
78
78
33
85
85
33
33
80
17
80
33
17
96
17
103
99
104
101
102
100
100
17
103
98
102
101
104
37
97
97
96
30
51
77
52
25
53
55
54
69
7
87
24
56
57
92
58
38
40
72
43
86
38
43
115
115
41
41
26
18
18
27
61
60
43
62
67
68
92
64
92
92
92
92
92
92
92
92
92
92
44
45
46
90
65
66
48
48
83
47
47
81
71
71
34
35
36
59
70
82
88
43
42
1
115
91
91
115
91
91
74
77
94
50
50
63
63
73
82
113
79
79
113
105
106
31
106
105
107
108
109
110
112
107
111
20
21
23
74
114
92
92
92
92
92
92
91
EXPLODED DRAWING B—Model No. PFEL94910.0 R0610A
31
ORDERING REPLACEMENT PARTS
o order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
T
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for seven (7) years from the
date of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This
warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to
products used for commercial or rental purposes or as store display models; or to products transported
or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by
ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 302913 R0610A Printed in USA © 2010 ICON IP, Inc.
Loading...
