www.proform.com
Visit our website at
Model No. PFCCEL3906.2
Serial No. _
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
USER’S MANUAL
CALL TOLL-FREE:
1-888-936-4266
Mon.–Fri., 8:00 until 17:00 EST
(excluding holidays)
OR E-MAIL US:
customerservice@iconcanada.ca
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
ELLIP/BIKE NON FREEWHEEL
209489
and
210125
D
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
. Read all instructions in this manual and all
1
warnings on the elliptical exerciser before
using the elliptical exerciser. Use the elliptical exerciser only as described in this
manual.
0. The pulse sensor is not a medical device.
1
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institutional setting.
4. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dismount, and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds.
11. Keep your back straight when using the elliptical exerciser; do not arch your back.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. When you stop exercising, allow the pedals
to slowly come to a stop.
14. The decal shown below has been placed on
the elliptical exerciser. If the decal is missing, or if it is not legible, call the toll-free
telephone number on the front cover of this
manual and order a free replacement decal.
Apply the decal in the location shown.
8. Wear appropriate exercise clothes when
using the elliptical exerciser. Always wear
athletic shoes for foot protection while exer
cising.
Hold the handgrip pulse sensor or the han
9.
dlebars
using the elliptical exerciser.
when mounting, dismounting, or
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
-
-
3
BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM
TRIDE SELECT 825 elliptical exerciser. The
S
STRIDE SELECT 825 is an incredibly smooth exerciser that moves your feet in a natural elliptical path,
minimizing the impact on your knees and ankles. And
the unique STRIDE SELECT 825 offers an impressive
array of features to help you achieve your fitness
goals in the convenience of your home.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
Handgrip Pulse Sensor
Console
®
cover of this manual. To help us assist you, note the
roduct model number and serial number before call-
p
ing. The model number is PFCCEL3906.2. The serial
number can be found on a decal attached to the elliptical exerciser (see the front cover of this manual).
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.proformservice.com/registration.

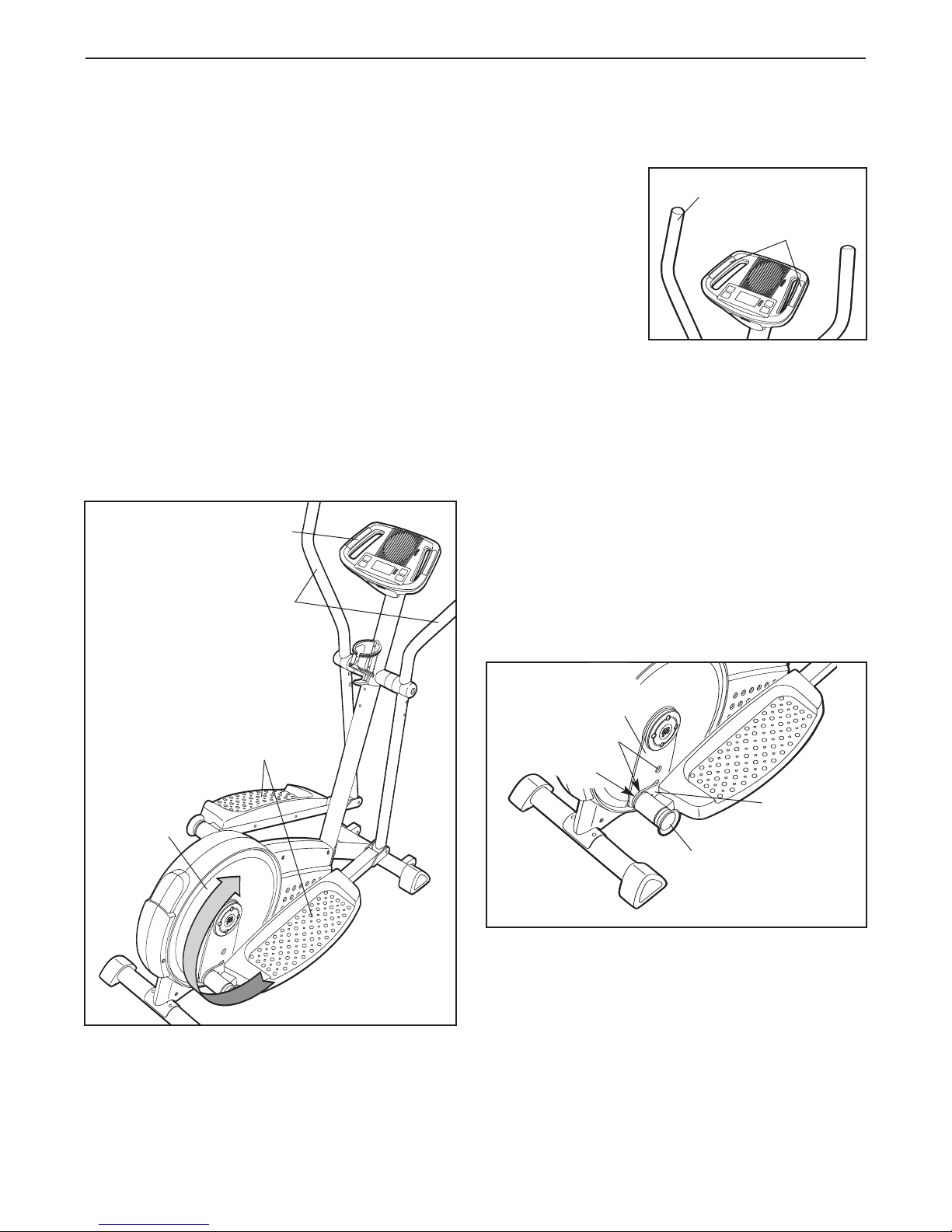

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Fan
Handlebar
Water Bottle Holder*
Pedal Disk
BACK
FRONT
Wheel
Pedal
Adjustment Knob
*No water bottle is included
4
ASSEMBLY
M10 x 75mm Carriage Bolt (34)–2 M10 x 83mm Button Screw (63)–2
M4 x 16mm
Screw (66)–8
M4 x 22mm
Screw (76)–2
M8 x 25mm Patch
Screw (22)–2
M8 x 16mm Button
Screw (84)–4
M8 x 70mm Button Bolt (67)–2
M10 Nylon
Locknut (29)–2
M8 Nylon
Locknut (46)–6
M10 Split
Washer (94)–2
M8 Washer
(53)–6
Wave Washer
(91)–2
M8 Split
Washer (83)–2
M8 x 45mm Button
Bolt (50)–4
M10 x 59mm Bolt Set (27)–2
M8 Jamnut
(80)–4
Cover Screw
(82)–4
o hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
T
ssembly requires two persons.Place all parts of the elliptical exerciser in a cleared area and remove the
A
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on page 17. The number following the
parentheses is the quantity needed for assembly.
part is not in the parts bag, check to see if it has been preassembled.
Note: Some small parts may have been preassembled. If a
5
1. Identify the Rear Stabilizer (4). While another person
lifts the rear of the Frame (1), attach the Rear
tabilizer to the Frame with two M10 x 75mm Carriage
S
Bolts (34) and two M10 Nylon Locknuts (29).
1
29
1
29
4
34
2. See the inset drawing. Remove the two M10 x 45mm
Button Bolts (33) and the packing tubes from the front
of the Frame (1). Next, remove the rubber band from
the Lower Wire Harness (87). Discard the Button
Bolts, the packing tubes, and the rubber band.
Press the two Stabilizer Endcaps (35) onto the Front
Stabilizer (3). Orient the Stabilizer Endcaps as shown.
3. Slide an M10 Split Washer (94) onto each of the two
M10 x 83mm Button Screws (63). Insert the Button
Screws into the Front Stabilizer (3). Next, slide the
Mast (15) onto the Button Screws and against the
Front Stabilizer. Make sure that the Mast is oriented
as shown.
While another person holds the Mast (15) and the
Stabilizer (3) near the Frame (1), connect the
Front
Extension Wire Harness (95) to the Lower Wire
Harness (87). Insert the connectors on the W
Harnesses into the Mast.
ire
2
Packing
Tube
33
Packing Tube
35
3
Pull
15
87
1
35
3
Make sure that the
wire harnesses do
not get pinched
and damaged
during this step.
While the other person lifts the front of the Frame (1),
carefully pull the upper end of the Extension W
Harness (95) to remove any slack. While holding
the upper end of the Extension Wire Harness,
attach the Mast (15) and the
Frame with the two M10 x 83mm Button Screws (63).
Do not tighten the Button Screws yet.
Make sure that the W
get pinched and damaged during this step.
Front
ire Harnesses (87, 95) do not
ire
Stabilizer (3) to the
3
63
94
95
87
1
6
4. While another person holds the Upright (2) in the position shown, connect the Upper Wire Harness (86) to
he Extension Wire Harness (95).
t
ext, insert the Upright (2) into the Mast (15); m
N
sure that the Upright is oriented as shown
the Upright with two M8 x 70mm Button Bolts (67), two
M8 Split Washers (83), and two M8 Nylon Locknuts
(46). Make sure that the Wire Harnesses (86, 95) do
not get pinched and damaged during this step. Do
not tighten the Button Bolts yet.
ake
. Attach
4
Make sure the wire
harnesses do not
get pinched and
amaged during
d
this step.
2
72
76
Attach the Water Bottle Holder (72) to the Upright (2)
with two M4 x 22mm Screws (76).
5. The Console (5) requires four D batteries (not includ-
ed); alkaline batteries are recommended. Press the tab
on the battery door and remove the battery door. Insert
four batteries into the Console as shown.
that the batteries are oriented as shown by the
markings on the battery door. Reattach the battery
door.
Make sure
Hexagonal
5
Holes
46
86
95
83
67
83
15
5
Batteries
Battery
Cover
While another person holds the Console (5) near the
6.
Upright (2), connect the wire harness on the Console
to the Upper W
wire harness down into the Upright. Next, attach the
Console to the Upright with four M4 x 16mm Screws
(66). Be careful to avoid pinching the wire har-
nesses.
ire Harness (86). Insert the excess
Batteries
6
66
5
Wire
86
Harness
66
2
Make sure the
wire harnesses
do not get
pinched and
damaged during
this step.
7

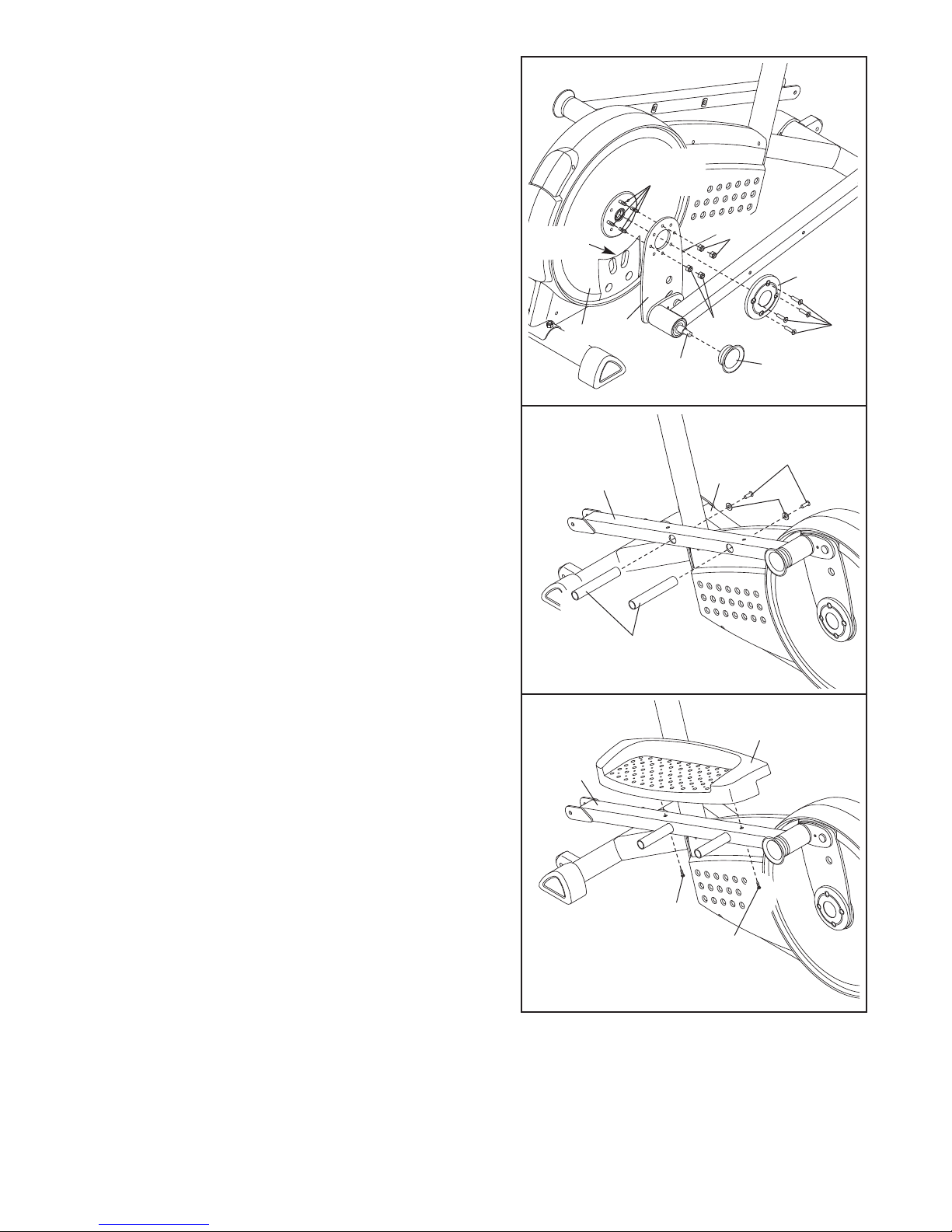

7. Slide the Right Crank Arm (38) onto the four indicated
welded bolts; make sure that the Right Crank Arm is
n the indicated cutout in the Pedal Disk (8). N
i
finger tighten four M8 Jamnuts (80) onto the welded
olts. Then, fully tighten one of the Jamnuts, and then
b
tighten the Jamnut farthest from the first Jamnut. Then,
tighten the remaining two Jamnuts.
Attach a Hub Cover (48) to the Right Crank Arm (38)
with four Cover Screws (82). Then, tighten an
Adjustment Knob (45) onto the right Adjustment Pin (17).
ext,
7
Cutout
Welded
Bolts
80
48
8. Attach two Pedal Posts (16) to the Left Pedal Arm (14)
with two M8 x 16mm Button Screws (84) and two M8
Washers (53).
Attach the other Pedal Posts (not shown) to the Right
Pedal Arm (75) in the same way.
9. Attach one of the Pedals (12) to the Left Pedal Arm
(14) with two M4 x 16mm Screws (66).
Attach the other Pedal (not shown) to the Right Pedal
Arm (not shown) in the same way
.
82
17
80
45
84
75
53
12
38
8
8
14
16
9
14
66
66
8
10. Identify the Left Handlebar (9), which is marked with a
sticker. Insert the Left Handlebar into one of the
andlebar Legs (79); m
H
Leg is turned so the hexagonal holes are on the
ndicated side.Attach the Left Handlebar with two M8
i
x 45mm Button Bolts (50) and two M8 Nylon Locknuts
(46).
Make sure that the Nylon Locknuts are inside
of the hexagonal holes. Do not tighten the Button
Bolts yet.
Assemble the Right Handlebar (not shown) and the other
Handlebar Leg (not shown) in the same way.
ake sure that the Handlebar
0
1
9
46
11.Apply a generous amount of the included grease to the
Pivot Axle (81) and to the two M8 Washers (53). Next,
insert the Pivot Axle into the Upright (2) and center it.
Reapply grease to both ends of the Pivot Axle.
Slide a Handlebar Spacer (25) onto the short tube on the
Left Handlebar (9), and rotate the Handlebar Spacer so
the small arrow is pointing toward the floor. Next, slide the
Left Handlebar onto the left end of the Pivot Axle (81).
Finger tighten an M8 x 25mm Patch Screw (22) with an
M8 Washer (53) and a Wave Washer (91) into the end of
the Pivot Axle. Then, press the small tabs on a Handlebar
Cap (23) into the Handlebar Spacer.
Assemble the Right Handlebar (10) in the same way.
Make sure that both Wave Washers (91) are on the Pivot
Axle (81), and then tighten both M8 x 25mm Patch
Screws (22) at the same time.
11
Grease
53
22
23
91
9
Tube
50
2
Grease
25
Arrow
81
Hexagonal
Holes
79
10
Tube
25
Arrow
23
53
22
91
Grease
12.Apply a small amount of grease to an M10 x 59mm
Bolt Set (27) and to the surfaces of the Leg Bushings
(28) in the left Handlebar Leg (79).
Handlebar Leg to the Left Pedal Arm (14) with the Bolt
Set. Do not overtighten the Bolt Set; the left
Handlebar Leg must be able to pivot freely
Attach the right Handlebar Leg (79) to the Right Pedal
Arm (75) in the same way.
See step 3. Tighten the two M10 x 83mm Button
Screws (63). See step 4. Tighten the two M8 x 70mm
Button Bolts (67). See step 10. Tighten the M8 x
45mm Button Bolts (50) in the Handlebar Legs (79).
13.Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical exerciser.
Attach the left
.
12
79
79
28
Grease
27
Grease
28
14
27
75
9
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the handgrip
ulse sensor and step onto the pedal that is in the low-
p
est position. Next, step onto the other pedal. Push the
pedals until they begin to move with a continuous
motion. Note: The pedal disks can turn in either
direction. It is recommended that you move the
pedal disks in the direction shown by the arrow
below; however, for variety, you can turn the pedal
disks in the opposite direction.
To dismount the elliptical exerciser, wait until the pedals come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
Pulse Sensor
Handlebars
HOW TO USE THE HANDLEBARS
The handlebars are
designed to add
pper-body exer-
u
cise to your workouts. Push and pull
the handlebars as
you exercise to
work your arms,
shoulders, and
back.
To exercise only your lower body, hold the handgrip
pulse sensor as you exercise.
HOW TO ADJUST THE STRIDE OF THE ELLIPTICAL
EXERCISER
To adjust the stride of the elliptical exerciser, first pull
one of the adjustment knobs until the adjustment
bracket can be pivoted freely. Then, pivot the adjustment bracket until the adjustment knob is aligned with
either of the two holes in the crank arm, and gently
release the knob. Pivot the adjustment bracket back
and forth slightly to make sure that the adjustment pin
is engaged in one of the holes. Adjust the other side of
the elliptical exerciser in the same way.
Handlebars
Handgrip
ulse
P
ensor
S
Pedal
Disk
Crank
Arm
Holes
Pedals
Pin
Adjustment
Bracket
Adjustment
Knob
10
DIAGRAM OF THE CONSOLE
Fan
Button
Program
Profiles
ncrease
I
Button
Program Button
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more effective. When
the manual mode of the console is selected, the resistance of the pedals can be changed with the touch of
a button. As you pedal, the console will provide continuous exercise feedback. You can even measure your
heart rate using the built-in handgrip pulse sensor.
In addition, the console features two pulse programs
that change the resistance of the pedals and help you
to maintain a steady pedaling pace to keep your heart
rate near a target heart rate setting while you exercise.
The console also offers four preset programs. Each
program automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
To use the manual mode of the console, see the
instructions at the right.
page 13. T
Before using the console, make sure that batteries are
installed (see assembly step 5 on page 7). If there is a
sheet of clear plastic on the display, remove the plastic.
o use a preset program,
To use a pulse program, see
Program
Indicator
see page 14.
Display
Pace
Guide
HOW TO USE THE MANUAL MODE
Turn on the console.
Decrease
Button
1
To turn on the console, press the Increase button
or begin pedaling. The pace guide will light for a
moment; the console will then be ready for use.
Select the manual mode.
2
When the power is turned on, the manual mode
will be selected. If you have selected a program,
reselect the manual mode by pressing the
Program button repeatedly until no program indicators (see the drawing above) appear along the
left side of the display.
Change the resistance of the pedals as desired.
3
As you pedal,
change the resis
tance of the pedals
by pressing the
Increase and
Decrease buttons.
There are ten resistance levels. Note:
it will take a moment for the pedals to reach the
selected resistance level.
-
After the buttons are pressed,
11

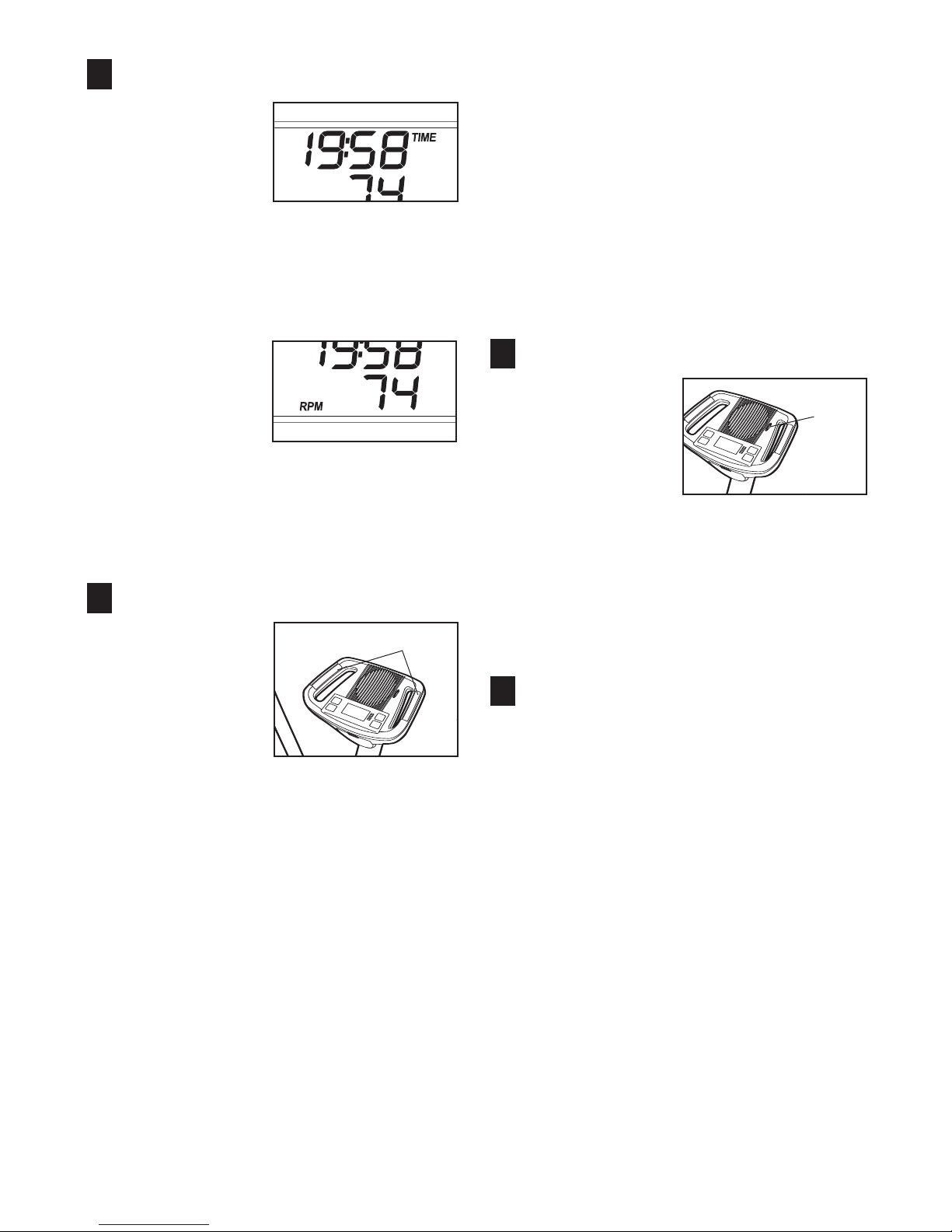

onitor your progress with the display.
M
4
The upper half of
the display will
show the elapsed
time, the distance
(total revolutions)
ou have pedaled,
y
and the resistance
level of the pedals. The display will change from
one mode to the next every few seconds. Note:
When a program is selected (except for pulse program 2), the display will show the time remaining
in the program instead of the elapsed time.
For the most accurate heart rate reading, continue
to hold the handgrip pulse sensor for about 30
econds. Note: If you continue to hold the hand-
s
grip pulse sensor, the display will show your heart
ate for about 30 seconds. The display will then
r
show your heart rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Avoid
moving your hands excessively or squeezing the
metal contacts too tightly. For optimal performance, periodically clean the metal contacts
using a soft cloth;
or chemicals.
never use alcohol, abrasives,
The lower half of
the display will
show your pedaling speed (revolutions per minute
[RPM]) and the
approximate number of calories you have burned. The display will
change from one mode to the other every few
seconds. The lower half of the display will also
show your heart rate when you use the handgrip
pulse sensor (see step 5).
Measure your heart rate if desired.
5
If there are
sheets of clear
plastic on the
metal contacts
on the handgrip
pulse sensor,
remove the plastic. Next, hold the
handgrip pulse
sensor with your palms resting on the contacts.
When your pulse is detected, the heart-shaped
indicator in the lower half of the display will flash
each time your heart beats, and your heart rate
will be shown.
Contacts
Turn on the fan if desired.
6
To turn on the fan
at low speed, press
the fan button. To
turn on the fan at
high speed, press
the fan button a
second time. To
turn off the fan,
press the fan button a third time. Note: If the fan
is turned on but the pedals are not moved for thirty seconds, the fan will automatically turn off to
conserve the batteries.
Rotate the thumb tab on the right side of the fan
to adjust the angle of the fan.
When you are finished exercising, the console
7
will automatically turn off.
If the pedals are not moved for a few seconds, the
time will begin to flash and the console will pause.
If the pedals are not moved for a few minutes,
the console will turn off and the display will be
reset.
Thumb
Ta b
12
OW TO USE A PULSE PROGRAM
H
Pulse program 1 is designed to keep your heart rate
within a set range during your workout. Pulse program
is designed to keep your heart rate near a target
2
heart rate setting that you select.
Follow the steps below to use a pulse program.
Begin pedaling to start the program.
5
ulse program 1 i
P
divided into several time periods of different
engths. One target heart rate is programmed for
l
each period.
long (you may choose to use only part of the program). The same target heart rate is programmed
for the entire program.
s 30 minutes long, and is
Pulse program 2 is sixty minutes
Turn on the console.
1
See step 1 on page 11.
Select a pulse program.
2
To select pulse
program 1 or 2,
press the Program
button repeatedly
until the number 1
or 2 appears
along the left side
of the display.
Enter a target heart rate.
3
If pulse program 1 is selected, the maximum
target heart rate setting for the program will flash
in the display (see the drawing above). Press the
Increase and Decrease buttons to change the
setting, if desired (see EXERCISE INTENSITY
on page 16). If the maximum target heart rate
setting is increased or decreased, the intensity
level of the entire program will increase or
decrease.
During the program, the console will regularly
compare your heart rate to the target heart rate
setting. If your heart rate is too far below or above
the target heart rate setting, the resistance of the
pedals will automatically increase or decrease to
being your heart rate closer to the target heart rate
setting. Note: If the resistance level is too high or
too low, you can override it by pressing the
Increase and Decrease buttons. However, when
the console compares your heart rate to the target heart rate setting, the resistance may automatically change.
After the first minute of the program, the pace
guide will help you to maintain a steady pedaling
pace. When one of the two lower indicators
lights, increase your pace; when one of the two
upper indicators lights, decrease your pace.
When the center indicator lights, maintain your
current pace.
intended only to provide a goal. Make sure to
pedal at a pace that is comfortable for you.
Important: The pace guide is
If pulse program 2 is selected, the target heart
rate setting for the entire program will flash in the
display. Press the Increase and Decrease buttons
to change the setting, if desired (see EXERCISE
INTENSITY on page 16).
Hold the handgrip pulse sensor.
4
It is not necessary to hold the handgrip pulse
sensor continuously during a pulse program;
however, you must hold the handgrip pulse sensor frequently.
grip pulse sensor, keep your hands on the
metal contacts for at least 30 seconds. Note:
When you are not holding the handgrip pulse
, the letters PLS will appear in the display
sensor
instead of your heart rate.
Each time you hold the hand-
The display will show the time remaining in pulse
program 1, or the elapsed time in pulse program
2. If you stop pedaling for a few seconds, the
program will pause and the time will flash in the
display. To restart the program, simply resume
pedaling.
Monitor your progress with the display.
6
See step 4 on page 12.
13
Turn on the fan if desired.
7
ee step 6 on page 12.
S
hen you are finished exercising, the console
W
8
will automatically turn off.
See step 7 on page 12.
HOW TO USE A PRESET PROGRAM
Preset programs 3, 4, 5, and 6 automatically change
the resistance of the pedals and prompt you to
increase or decrease your pedaling pace as they
guide you through effective workouts. The profiles
printed on the left side of the display show how the
resistance level and the target pace will change dur
ing the preset programs.
Follow the steps below to use a preset program.
Turn on the console.
1
See step 1 on page 11.
seconds. The resistance of the pedals will then
automatically change to the resistance level that
s programmed for the next period. Note: If the
i
resistance level is too high or too low, you can
verride it by pressing the Increase and
o
Decrease buttons. However, when the current
period ends, the resistance level will automatically change if a different resistance level is programmed for the next period.
During the program, the pace guide will prompt
you to increase or decrease your pedaling pace.
When one of the two lower indicators lights,
increase your pace; when one of the two upper
indicators lights, decrease your pace. When the
center indicator lights, maintain your current
Important: The pace guide is intended
pace.
only to provide a goal. Make sure to pedal at a
-
pace that is comfortable for you.
Select a preset program.
2
To select preset
program 3, 4, 5, or
6, press the
Program button
repeatedly until
the number 3, 4,
5, or 6 appears
along the left side
of the display
ed, the display will show how long the program
will last.
Begin pedaling to start the program.
. When a preset program is select-
3
Each preset program consists of several time
periods of dif
and one target pace are programmed for each
period.
At the end of each period of the program, the
resistance level will flash in the display for a few
ferent lengths. One resistance level
The display will show the time remaining in the
program. If you stop pedaling for a few seconds,
the program will pause and the time will flash in
the display. To restart the program, simply resume
pedaling.
Monitor your progress with the display.
4
See step 4 on page 12.
Measure your heart rate if desired.
5
See step 5 on page 12.
Turn on the fan if desired.
6
See step 6 on page 12.
When you are finished exercising, the console
7
will automatically turn off.
See step 7 on page 12.
14
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console displays become dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 5 on page
7 for replacement instructions.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
Avoid moving your hands while using the handgrip
•
pulse sensor. Excessive movement may interfere
with heart rate readings.
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 30 seconds.
• For optimal performance of the handgrip pulse sensor, keep the metal contacts clean. The contacts
can be cleaned with a soft cloth—
hol, abrasives, or chemicals.
never use alco-
15
CONDITIONING GUIDELINES
WARNING:
Before beginning this or any exercise program, consult your physician. This is espe-
ially important for persons over the age of 35
c
or persons with pre-existing health problems.
During the first few minutes of exercise, your body
uses easily accessible
gy. Only after the first few minutes of exercise does
your body begin to use stored
f your goal is to burn fat, adjust the intensity of your
I
exercise until your heart rate is near the lowest number in your training zone as you exercise.
carbohydrate
fat
calories for energy.
calories for ener-
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded of
nearest ten years). Next, find the three numbers above
your age.
The lower two numbers are recommended heart rates
for fat burning; the highest number is the recommended heart rate for aerobic exercise.
Fat Burning
o burn fat ef
T
ly low intensity level for a sustained period of time.
The three numbers are your “training zone.”
fectively
, you must exercise at a relative
f
to the
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. Note: During the first few weeks of your exercise program, do not keep your heart rate in your
training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts.
cise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
After a few months of regular exer-
16
PART LIST—Model No. PFCCEL3906.2 R0906A
ey No. Qty. Description Key No. Qty. Description
K
1 1 Frame
2 1 Upright
3 1 Front Stabilizer
4
5
6 1 Left Side Shield
7 1 Right Side Shield
8 2 Pedal Disc
9 1 Left Handlebar
10 1 Right Handlebar
11 2 Foam Grip
12 2 Pedal
13 1 Upright Endcap
14
15 1 Mast
16 4 Pedal Post
17 2 Adjustment Pin
18 4 Pedal Arm Bushing
19 2 Adjustment Spring
20 2 Adjustment Bracket
21 2 Snap Ring
22 2 M8 x 25mm Patch Screw
23 2 Handlebar Cap
24 6 Handlebar Bushing
25 2 Handlebar Spacer
26 2 Upright Spacer
27 2 M10 x 59mm Bolt Set
28 4 Leg Bushing
29 4 M10 Nylon Locknut
30 1 Pillow Block
31 1 Idler
32 2 Wheel
33 2 M10 x 45mm Button Bolt
34 2 M10 x 75mm Carriage Bolt
35
36
37 1 Idler Bracket
38 1 Right Crank Arm
39 1 Crank
40 2 Crank Bearing
41 1 Flywheel
42 4 Large Snap Ring
43 1 Magnet
44 1 Flywheel Spacer
45 2 Adjustment Knob
46 7 M8 Nylon Locknut
47 2 Crank Screw
48 2 Hub Cover
49 1 M6 x 8mm Screw
50 4 M8 x 45mm Button Bolt
1 Rear Stabilizer
1 Console
1 Left Pedal Arm
4 Stabilizer Endcap
1 Left Crank Arm
51 1 Return Spring
52 1 Magnet Guide
53 6 M8 Washer
4 1 “C” Magnet
5
5 1 Motor
5
56 1 Belt
57 2 Hub
58 1 Small Snap Ring
59 1 M5 x 40mm Screw
60 3 M6 Nut
61 4 M5 Nylon Locknut
62 4 M5 x 12mm Bolt
63 2 M10 x 83mm Button Screw
64
65 2 Adjustment Bracket Screw
66 16 M4 x 16mm Screw
67 2 M8 x 70mm Button Bolt
68 4 Flywheel Screw
69 1 Reed Switch Clamp
70 1 Idler Screw
71 2 Handlebar Endcap
72 1 Water Bottle Holder
73 1 M6 x 16mm Screw
74 4 M4 x 38mm Screw
75 1 Right Pedal Arm
76 2 M4 x 22mm Screw
77 1 Reed Switch
78 1 Reed Switch Bracket
79 2 Handlebar Leg
80 8 M8 Jamnut
81 1 Pivot Axle
82 8 Cover Screw
83 2 M8 Split Washer
84 4 M8 x 16mm Button Screw
85
86
87 1 Lower Wire Harness
88 2 Pedal Arm Sleeve
89 2 M3 x 12mm Screw
90 4 Motor Washer
91 2 Wave Washer
92 2 Inner Pedal Arm Sleeve
93 2 M6 Washer
94 2 M10 Split Washer
95 1 Extension Wire Harness
96 2 Pedal Arm Endcap
97 2 Pillow Block Retainer
# 2 Hex Key
# 1 Grease
# 1 User’s Manual
1 M8 x 41mm Bolt
1 Resistance Cable
1 Upper Wire Harness
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
17
46
2
6
9
10
11
22
23
91
67
53
71
71
24
15
74
22
23
24
53
91
27
28
27
86
79
46
50
24
25
26
24
89
81
87
72
76
27
28
28
79
27
5
50
46
24
25
26
24
89
7
66
66
74
66
66
66
74
74
66
59
66
83
83
13
95
EXPLODED DRAWING A—Model No. PFCCEL3906.2 R0906A
18
4
12
31
68
35
35
34
37
39
8
54
56
85
70
73
64
41
44
60
52
84
16
48
82
82
12
16
84
58
30
51
29
75
18
18
38
88
45
19
17
20
93
65
92
42
42
80
8
21
40
47
57
80
92
14
18
18
88
45
42
42
20
19
17
36
93
65
47
57
40
21
48
82
66
53
66
66
53
53
66
1
6
84
84
43
1
78
69
66
77
66
29
55
61
62
90
90
62
49
3
32
32
33
63
33
35
35
46
68
68
80
80
94
96
96
97
97
60
EXPLODED DRAWING B—Model No. PFCCEL3906.2 R0906A
19
HOW TO ORDER REPLACEMENT PARTS
o order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give
T
the following information when calling:
• the MODEL NUMBER of the product (PFCCEL3906.2)
• the NAME of the product (PROFORM STRIDE SELECT 825 elliptical exerciser)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 17 to 19)
LIMITED WARRANTY
ICON OF CANADA, INC., (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of one (1) year from the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to
replacing or repairing, at ICON's option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display models. No other war
ranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to
province or so specified by the retailer of your equipment.
-
-
OF CANADA, INC., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8
ICON
Part No. 235490 R0906A
Printed in China
2006 ICON IP, Inc.
©
Loading...
