Model No. PFEVEL73909.0
Serial No.
Write the serial number in the
space above for reference.
Serial
Number
Decal
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: Visit www.iconsupport.eu
USERʼS MANUAL
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5QJ
UK
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
www.iconeurope.com
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
H
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s)
of the warning decal(s). If a decal
is missing or illegible, see the
front cover of this manual and
request a free replacement
decal. Apply the decal in the
location shown. Note: The
decal(s) may not be shown at
actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
2. Use the elliptical exerciser only as described
in this manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
4. The elliptical exerciser is intended for
home use only. Do not use the elliptical exerciser in a commercial, rental, or institutional
setting.
5. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is at least 3 ft. (0.9 m) of
clearance in the front and rear of your elliptical exerciser and 2 ft. (0.6 m) on each side.
6. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
7. Keep children under age 12 and pets away
from the elliptical exerciser at all times.
o reduce the risk of serious injury, read all important precautions and
8. The elliptical exerciser should not be used
by persons weighing more than 250 lbs.
(113 kg).
9. Wear appropriate exercise clothes while
using the elliptical exerciser. Always wear
athletic shoes for foot protection while exercising.
10. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical exerciser.
11. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
12. Keep your back straight while using the
elliptical exerciser; do not arch your back.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
14. When you stop exercising, allow the pedals
to slowly come to a stop.
3
BEFORE YOU BEGIN
hank you for selecting the new PROFORM
T
SAVER 895 ZLE elliptical exerciser. The PROFORM
SPACE SAVER 895 ZLE provides a selection of features designed to make your workouts at home more
ffective and enjoyable.
e
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
Console
®
PACE
S
over of this manual. To help us assist you, note the
c
product model number and serial number before contacting us. The model number and the location of the
serial number decal are shown on the front cover of
his manual.
t
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Upper Body Arm
Pulse Sensor
Pedal Disc
Handle
Storage Magnet
Water Bottle Holder*
Wheel
Pedal
Pedal Arm Latch
Latch Button
Leveling Foot
*Water bottle is not included
4
M10 x 127mm Button Screw (83)–2
M10 Locknut
(81)–2
M8 Jam Nut
(79)–5
M8 Washer
(88)–6
Wave Washer
(111)–2
M8 x 23mm Button
Screw (84)–4
M8 Split
Washer (90)–3
M8 x 41mm Button
Bolt (78)–4
M4 x 32mm
Round Head
Screw (105)–6
M4 x 47mm
Screw (108)–2
M8 x 23mm Shoulder
Screw (115)–4
M8 x 69mm Button
Bolt (80)–1
M10 x 80mm Carriage
Bolt (82)–2
Hub Screw (87)–8
Transport Handle
Screw (117)–4
Bearing Spacer
(118)–4
M4 Washer
(102)–8
M4 Split
Washer (112)–8
M4 x 16mm
Round Head
Screw (101)–8
M4 x 16mm
Screw (104)–8
ASSEMBLY
ssembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
A
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
rench , and a rubber mallet .
w
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware
kit, check to see if it has been preassembled.
5
1.
To make assembly easier, read the
nformation on page 5 before you begin.
i
hile another person lifts the Frame (1), attach
W
the Front Stabilizer (6) to the Frame with two
M10 x 80mm Carriage Bolts (82) and two M10
Locknuts (81).
1
82
81
6
81
1
2. Remove the indicated screw and the shipping
bracket from the Frame (1). Discard the screw
and the shipping bracket.
Tighten the Frame Foot (26) into the Frame (1)
as far as possible.
2
1
Shipping
Bracket
26
Screw
6
3. Attach the Rear Stabilizer (7) to the Folding
Frame (2) with two M10 x 127mm Button
Screws (83).
3
83
Hold the handle on the Folding Frame (2) and
ress the Latch Button (68). Then, lower the
p
Folding Frame until the Rear Stabilizer (7) rests
on the floor.
4. Hold a Hub Cover (75) and a Crank Arm (36)
against the left Crank Hub (38).
7
andle
H
2
68
4
Align the holes in the Hub Cover (75) and the
Crank Arm (36) with the unused holes in the left
Crank Hub (38).
Insert four Hub Screws (87) into the Hub Cover
(75) and the Crank Arm (36). Then, finger
tighten the Hub Screws into the left Crank Hub
(38). Tip: Tighten one Hub Screw, and then
tighten the Hub Screw across from the first
Hub Screw. Then, tighten the remaining two
Hub Screws.
Repeat this step on the right side of the elliptical
exerciser; make sure that the Crank Arms
(36) are oriented so the Crank Bushing
Sleeves (43) are in the positions shown.
Note: There are no Pulley Screws (98) on the
right side.
43
98
36
38
36
75
87
87
43
7
5. While another person holds the Upright (3) near
the Frame (1), connect the Upper Wire Harness
(48) to the Lower Wire Harness (49).
Insert the Upright (3) into the Frame (1).
5
Tip: Avoid pinching the wires. Attach the
Upright (3) with an M8 x 69mm Button Bolt (80),
an M8 Split Washer (90), and an M8 Jam Nut
(79). Do not tighten the Button Bolt yet;
make sure that the Jam Nut is in the hexagonal hole in the Frame.
Next, finger tighten two M8 x 23mm Button
Screws (84) with M8 Split Washers (90) into the
Frame (1). Do not tighten the Button Screws
yet.
Attach the Water Bottle Holder (22) to the
Frame (1) with two M4 x 16mm Screws (104).
80
Hexagonal
Hole
90
84
Avoid pinching
the wires
3
48
49
79
90
84
90
104
22
1
6. The Console (5) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic components. Remove the battery cover, insert the
batteries into the battery compartment, and
reattach the battery cover. Make sure to orient
the batteries as shown by the diagram
inside the battery compartment.
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied AC
adapter. Plug one end of the AC adapter into
the jack on the console; plug the other end into
an outlet installed in accordance with all local
codes and ordinances.
6
Cover
Batteries
5
8
7. While another person holds the Console (5)
near the Upright (3), connect the wire harness
on the Console to the Upper Wire Harness (48).
Insert the excess wires into the Upright (3).
Tip: Avoid pinching the wires. Attach the
Console (5) to the Upright (3) with four M4 x
16mm Round Head Screws (101).
7
Avoid pinching
the wires
101
8
4
8. Attach the Transport Handle (116) to the Upright
(3) with four Transport Handle Screws (117).
Make sure that the Transport Handle is oriented as shown.
Orient one of the Upright Covers (17) as shown,
and hold it against the Upright (3).
Attach the Upright Cover (17) with two M4 x
16mm Round Head Screws (101).
Attach the other Upright Cover (17) in the
same way.
Wire
3
8
116
117
17
101
Harness
117
3
5
101
17
9

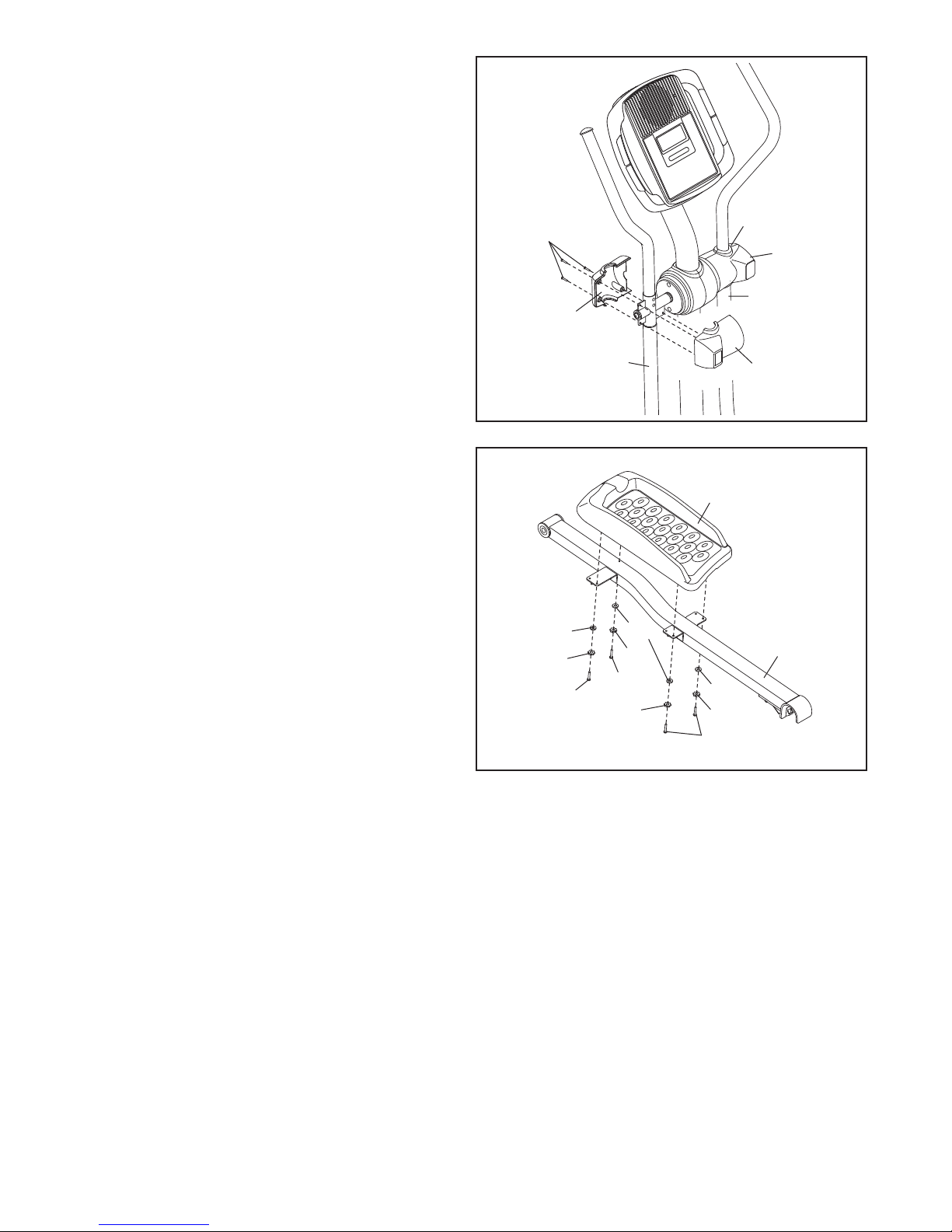

9. Identify the Left Upper Body Arm (8) and the
Left Upper Body Leg (11), which are marked
with “Left” stickers, and orient them as shown.
Insert the Left Upper Body Arm (8) into the Left
pper Body Leg (11).
U
Attach the Left Upper Body Arm (8) with two M8
x 41mm Button Bolts (78) and two M8 Jam Nuts
(79). Make sure that the Jam Nuts are in the
hexagonal holes in the Left Upper Body Leg
(11).
9
8
Hexagonal
Holes
9
Attach the Right Upper Body Arm (9) to the
Right Upper Body Leg (12) in the same way.
10. Apply a generous amount of the included
grease to the Pivot Axle (74). Insert the Pivot
Axle into the Upright (3) and center it.
Orient the Left Upper Body Leg (11) as shown,
and slide it onto the left end of the Pivot Axle
(74).
Then, slide the Right Upper Body Leg (12) onto
the right end of the Pivot Axle (74).
Hexagonal
10
Holes
79
11
79
78
12
3
78
88
84
Tighten an M8 x 23mm Button Screw (84), an
M8 Washer (88), and a Wave Washer (111) into
each end of the Pivot Axle (74). Make sure that
the Wave Washers are on the ends of the
Pivot Axle.
10
84
88
111
Grease
74
111
12
11
11. Hold the Left Front Cover (18) and the Left
ear Cover (19) around the Left Upper Body
R
Leg (11).
Attach the Left Front and Rear Covers (18, 19)
with three M4 x 32mm Round Head Screws
(105).
11
Attach the Right Front Cover (20) and the
Right Rear Cover (21) around the Right
Upper Body Leg (12) in the same way.
12. Identify the Left Pedal (13) and the Left Pedal
Arm (14), which are marked with “Left” stickers.
Attach the Left Pedal (13) to the Left Pedal Arm
(14) with an M4 x 47mm Screw (108), three M4
x 16mm Screws (104), four M4 Split Washers
(112), and four M4 Washers (102).
Attach the Right Pedal (not shown) to the
Right Pedal Arm (not shown) in the same
way.
12
105
102
112
104
18
11
108
112
102
112
20
21
12
19
13
14
102
112
104
11
13. Apply grease to a Pedal Arm Axle (32) and to
he two Pedal Arm Bearings (33) in the Left
t
Pedal Arm (14).
Next, tighten an M8 x 23mm Shoulder Screw
(115), an M8 Washer (88), and a Pedal Arm
Cover (31) into one end of the Pedal Arm Axle
32). Do not fully tighten the Shoulder Screw
(
yet.
While another person holds the Left Pedal Arm
(14) inside the bracket on the Left Upper Body
Leg (11), insert a Bearing Spacer (118) into
each side of the bracket.
13
12
11
Insert the Pedal Arm Axle (32) into the Left
Upper Body Leg (11) and the Left Pedal Arm
(14).
Tighten another M8 x 23mm Shoulder Screw
(115), M8 Washer (88), and Pedal Arm Cover
(31) into the other end of the Pedal Arm Axle
(32).
Fully tighten both M8 x 23mm Shoulder
Screws (115).
Repeat this step to attach the Right Pedal
Arm (not shown) to the Right Upper Body
Leg (12).
14. Lift the latch on the underside of the Left Pedal
Arm (14), and set the Left Pedal Arm on the left
Crank Bushing Sleeve (43).
Release the latch, and make sure that the Left
Pedal Arm (14) is securely connected to the
Crank Bushing Sleeve (43).
14
Bracket
31
88
115
118
Grease
32
88
118
31
33—Grease
115
14
Connect the Right Pedal Arm (not shown) in
the same way.
See step 5. Tighten the M8 x 69mm Button Bolt
(80) and the two M8 x 23mm Button Screws
(84).
15. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
14
Latch
43
12
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
EXERCISER
hen the elliptical exerciser is not in use, the frame
W
can be folded out of the way. First, lift the latch under
ach pedal arm, and lift the pedal arms off the sleeves
e
on the crank arms.
Crank
Arm
Pedal Arm
Latch
Sleeve
Next, raise the pedal arms until they touch the magnets on the upper body arms; the magnets will hold
the pedal arms in place. Then, hold the handle and lift
the frame until it locks in a vertical position.
HOW TO MOVE THE ELLIPTICAL EXERCISER
To move the elliptical exerciser, first fold it as
escribed at the left. Next, stand in front of the ellipti-
d
cal exerciser, hold the handle on the upright, and
lace one foot against the center of the front stabilizer.
p
Pull the handle until the elliptical exerciser will roll on
the front wheels. Carefully move the elliptical exerciser
to the desired position, and then lower it.
Handle
Place
your foot
here
Pedal Arm
Handle
Folding
Frame
Latch
Button
To unfold the elliptical exerciser, first hold the handle,
press the latch button, and lower the frame.
Next, pull the pedal arms away from the magnets on
the upper body arms. Then, lift the latches under the
pedal arms, and set the pedal arms on the sleeves
on the crank arms. Release the latches, and make
sure that the pedal arms are securely connected to
the crank arms.
Magnet
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical
exerciser rocks
slightly on your
floor during use,
turn one or both of
the leveling feet
beneath the rear
stabilizer until the
rocking motion is
eliminated.
Leveling
Feet
13
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
o mount the elliptical exerciser, hold the upper body
T
arms and step onto the pedal that is in the lowest
osition. Then, step onto the other pedal. Push the
p
pedals until they begin to move with a continuous
motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow; however, for
variety you can turn the crank arms in the opposite direction.
To dismount the elliptical exerciser, wait until the pedals come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lower pedal.
Upper Body Arms
Pedals
Crank Arm
14
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When you select the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. As you exercise, the console will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor or the optional chest pulse sensor.
The console also offers four preset workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
In addition, the console features two heart rate workouts that change the resistance of the pedals to keep
your heart rate near target heart rate settings while
you exercise.
The console features the iFit interactive workout system, which enables the console to accept iFit cards
containing workouts designed to help you achieve
specific fitness goals. For example, lose unwanted
pounds with the 8-week Weight Loss workout. iFit
workouts control the resistance of the pedals while the
voice of a personal trainer coaches you through your
workouts. iFit cards are available separately. To pur-
chase iFit cards, go to www.iFit.com or see the
front cover of this manual. iFit cards are also
available at select stores.
You can even connect your MP3 player or CD player
to the consoleʼs sound system and listen to your
favorite music or audio books while you exercise.
To use the manual mode, see page 16. To use a
preset workout, see page 18. To use a heart rate
workout, see page 19. To use an iFit workout, see
page 20. To use the sound system, see page 21.
Note: Before using the console, make sure that batteries are installed (see assembly step 6 on page 8). If
there is a sheet of clear plastic on the face of the console, remove the plastic.
15
OW TO USE THE MANUAL MODE
H
1. Press any button on the console or begin
pedaling to turn on the console.
When you turn on the console, the display and the
arget pacer coach will light. A tone will then sound
t
and the console will be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a workout,
reselect the manual mode by pressing any of the
Quick Workouts buttons repeatedly until a track
appears in the left display.
3. Begin pedaling and change the resistance of
the pedals as desired.
he lower right
T
display can show your
pedaling pace in revolutions per minute
rpm) and the resis-
(
tance level of the
edals. The display will change modes every few
p
seconds. The display will also show your heart
rate when you use the handgrip pulse sensor or
the optional chest pulse sensor (see step 5 on
page 17).

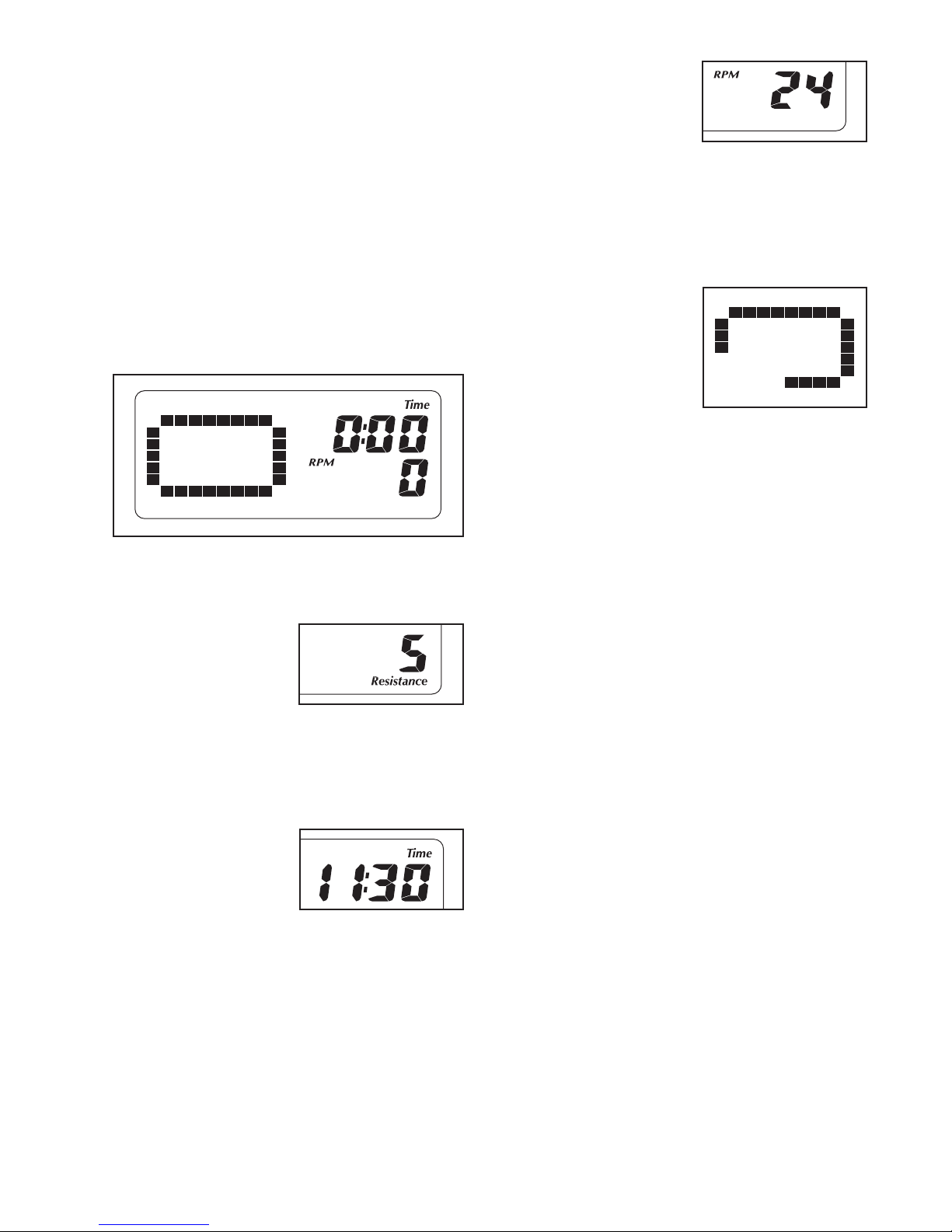

The left display will
show a track representing 640 revolutions
(1/4 mile or 402
meters). As you exercise, indicators will
appear in succession
around the track until
the entire track appears. The track will then disappear and the indicators will again begin to appear
in succession.
To change the display mode, press the Display
button repeatedly until the desired exercise information appears in the upper or lower right display.
After several seconds, the display will change
modes automatically as before.
As you pedal, change
the resistance of the
pedals by pressing the
Quick Resistance buttons. Note: After you
press the buttons, it
will take a moment for the pedals to reach the
selected resistance level.
4. Follow your progress with the displays.
The upper right
display can show the
elapsed time, the distance (total
revolutions) you have
pedaled, the approximate number of calories you have burned, and the
approximate number of grams of carbs you have
burned. The display will change modes every few
seconds.
To view the trip distance, press the Odometer button. The information will appear in the display for a
few seconds. To reset the trip distance, hold down
the Odometer button for a few seconds. To view
the total distance pedaled since the elliptical exerciser was purchased, press the Odometer button a
second time. (Note: The number on the right side
of the display multiplied by the number on the left
side equals the trip distance or the total distance.)
To adjust the volume level of the console, first
press and hold down the Display button until the
display becomes blank. When you release the
Display button, the volume level will then appear in
the display. Press the increase and decrease buttons located above the Heart Rate buttons to
select a volume level. Then, press the Display button.
16
5. Measure your heart rate if desired.
6. Turn on the fan if desired.
You can measure you heart rate using either the
andgrip pulse sensor or the optional chest pulse
h
sensor (see page 21 for information about the
ptional chest pulse sensor).
o
Note: If you hold the handgrip pulse sensor and
wear the chest pulse sensor at the same time, the
console will not display your heart rate accurately.
If there are
sheets of clear
plastic on the
metal contacts on
the handgrip
pulse sensor,
remove the plastic. In addition,
make sure that
your hands are
clean. To measure
your heart rate, hold the handgrip pulse sensor
with your palms resting against the metal contacts.
Avoid moving your hands or gripping the contacts tightly.
When your pulse is detected, a heart-shaped symbol will flash in the display each time your heart
beats and then your heart rate will be shown. For
the most accurate heart rate reading, hold the contacts for at least 15 seconds.
Contacts
The fan has high, low, and auto speed settings;
hile the auto mode is selected, the speed of the
w
fan will automatically increase or decrease as you
ncrease or decrease your pedaling speed. Press
i
the Fan button repeatedly to select a fan speed or
to turn off the fan. Note: If the pedals do not move
for about thirty seconds, the fan will turn off automatically.
Pivot the thumb tab on
the right side of the fan
to adjust the fan angle.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound and the console will
pause.
If the pedals do not move for about five minutes,
the console will turn off and the displays will be
reset.
Thumb Tab
If your heart rate is not shown, make sure that
your hands are positioned as described. Be careful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
17
HOW TO USE A PRESET WORKOUT
1. Press any button on the console or begin pedling to turn on the console.
a
ee step 1 on page 16.
S
2. Select a preset workout.
To select one of the four preset workouts, press
the Weight Loss, the Aerobic 1, the Aerobic 2, or
the Performance button on the left side of the console.
When you select a preset workout, the name of
the workout and the maximum resistance level will
appear in the display for a few seconds. A profile
of the resistance levels of the workout will also
scroll across the left side of the display.
During the workout, the target pacer coach will
prompt you to keep your pedaling pace near the
target pace setting for the current segment. When
left indicator lights, increase your pace; when a
a
right indicator lights, decrease your pace. When
he center indicator lights, maintain your current
t
pace. IMPORTANT: The target pacer coach is
intended only to provide a goal. Make sure to
pedal at a pace that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the Quick Resistance
buttons. However, when the current segment
ends, the resistance of the pedals will automatically adjust to the resistance level for the next
segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
workout ends.
3. Begin pedaling to start the workout.
Each workout is divided into 30 one-minute segments. One resistance level and one target pace
setting is programmed for each segment. Note:
The same resistance level and/or target pace setting may be programmed for consecutive
segments.

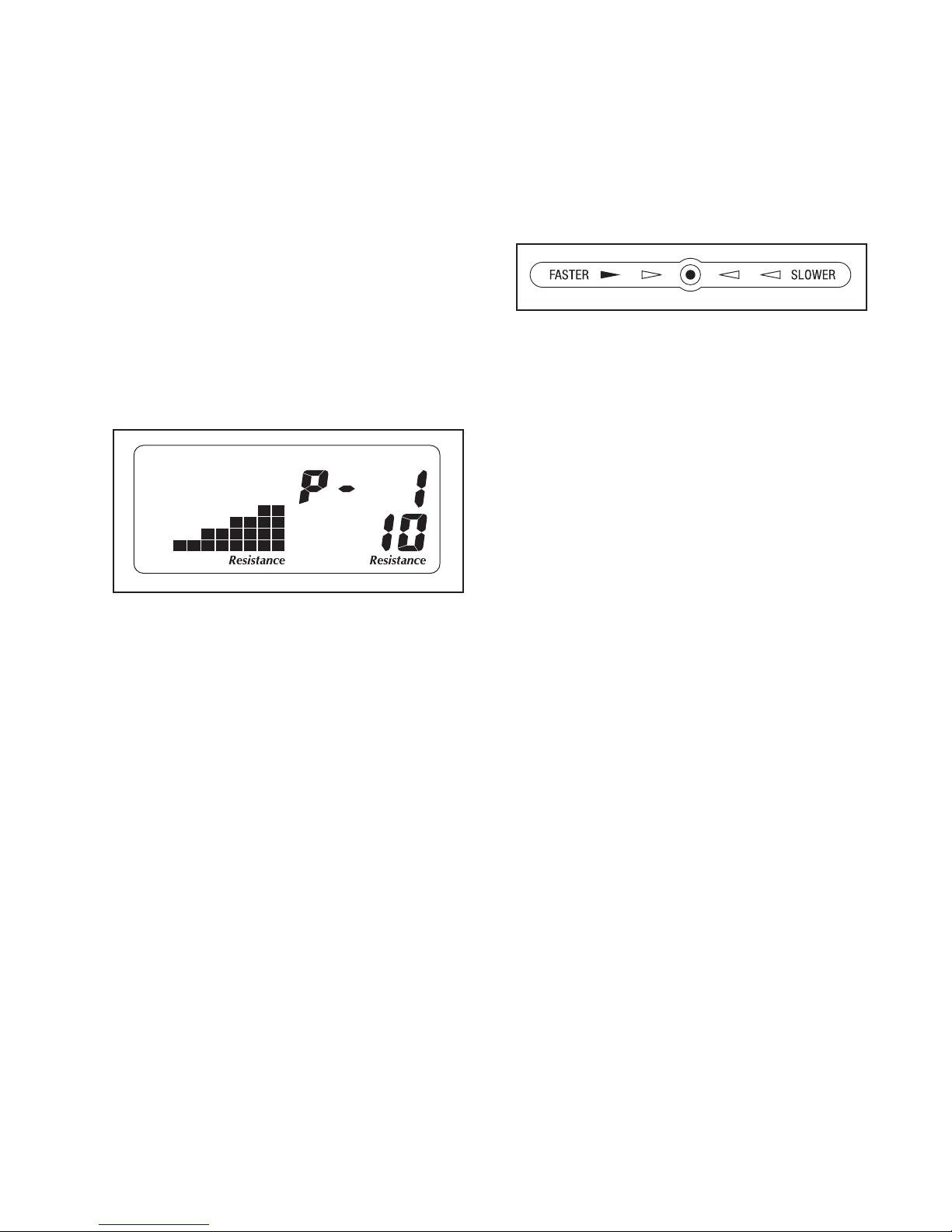

During the workout, the workout profile will show
your progress (see the drawing above). The flashing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the current segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a different resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resistance of the pedals will then change.
4. Follow your progress with the displays.
See step 4 on page 16.
5. Measure your heart rate if desired.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.
18
HOW TO USE A HEART RATE WORKOUT
5. Begin pedaling to start the workout.
1. Press any button on the console or begin pedling to turn on the console.
a
ee step 1 on page 16.
S
2. Select a heart rate workout.
To select one of the heart rate workouts, press the
Heart Rate 1 or the Heart Rate 2 button on the left
side of the console.
3. Enter a target heart rate setting.
A few seconds after
you select a heart rate
workout, the target
heart rate setting for the
workout will flash in the
lower right display.
During heart rate workout 1, the same target
heart rate setting will be programmed for all segments of the workout. If you have selected heart
rate workout 1, press the increase and decrease
buttons above the Heart Rate buttons to enter the
desired target heart rate setting (see EXERCISE
INTENSITY on page 23).
Heart rate workout 1 is divided into 40 one-
inute segments. Note: For a shorter workout,
m
stop exercising or select a different workout before
he workout ends.
t
Heart rate workout 2 is divided into 30 oneminute segments. One target heart rate setting is
programmed for each segment. Note: The same
target heart rate setting may be programmed for
consecutive segments.
During the workout, the workout profile in the display will show your progress. The flashing
segment of the profile represents the current segment of the workout. The height of the flashing
segment indicates the target heart rate setting for
the current segment. At the end of each segment
of the workout, a series of tones will sound and
the next segment of the profile will begin to flash.
During heart rate workout 2, different target
heart rate settings will be programmed for different
segments of the workout. If you have selected
heart rate workout 2, press the increase and
decrease buttons above the Heart Rate buttons to
enter the desired maximum target heart rate setting for the workout (see EXERCISE INTENSITY
on page 23).
4. Hold the handgrip pulse sensor or put on the
optional chest pulse sensor.
To use a heart rate program, you must use the
handgrip pulse sensor or wear the optional chest
pulse sensor (see page 21). Note: If you hold the
handgrip pulse sensor and wear the chest pulse
sensor at the same time, the console will not display your heart rate accurately.
If you use the handgrip pulse sensor, it is not necessary to hold the handgrip pulse sensor
continuously during heart rate workouts; however,
you should hold the handgrip pulse sensor frequently for the workouts to operate properly. Each
time you hold the handgrip pulse sensor, keep
your hands on the metal contacts for at least
30 seconds.
During both workouts, the console will regularly
compare your heart rate to the target heart rate
setting for the current segment of the workout. If
your heart rate is too far below or above the target
heart rate setting, the resistance of the pedals will
automatically increase or decrease to bring your
heart rate closer to the target heart rate setting.
Each time the resistance changes, the resistance
level will appear in the display for a few seconds
to alert you.
19
While you exercise, the target pacer coach will
prompt you to maintain a constant pedaling speed.
When a left indicator lights, increase your pace;
hen a right indicator lights, decrease your pace.
w
When the center indicator lights, maintain your
urrent pace. IMPORTANT: The target pacer
c
coach is intended only to provide a goal. Make
sure to pedal at a pace that is comfortable for
you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the Quick Resistance
buttons. However, when the console compares
your heart rate to the target heart rate setting, the
resistance of the pedals may automatically
increase or decrease to bring your heart rate
closer to the target heart rate setting.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
workout ends.
HOW TO USE AN IFIT WORKOUT
iFit cards are available separately. To purchase iFit
ards, go to www.iFit.com or see the front cover of this
c
manual. iFit cards are also available at select stores.
1. Press any button on the console or begin pedaling to turn on the console.
See step 1 on page 16.
2. Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face down and are facing
the slot. When the iFit card is properly inserted,
the indicator next to the slot will light and the word
IFIT will appear in the display.
iFit Slot
iFit Card
6. Follow your progress with the displays.
See step 4 on page 16.
7. Turn on the fan if desired.
See step 6 on page 17.
8. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.
Next, select the desired workout on the iFit card
by pressing the increase and decrease buttons
next to the iFit slot.
A moment after you select a workout, the voice of
a personal trainer will begin guiding you through
your workout. iFit workouts work in the same way
as preset workouts. To use the workout, see steps
3 to 7 on page 18.
3. When you are finished exercising, remove the
iFit card.
Remove the iFit card when you are finished exercising. Store the iFit card in a secure place.
20
HOW TO USE THE SOUND SYSTEM
THE OPTIONAL CHEST PULSE SENSOR
To play music or audio books through the consoleʼs
ound system while you exercise, plug the included
s
audio cable into the jack on the console and into a
ack on your MP3 player or CD player; make sure
j
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume of the speakers using the
volume control on your MP3 player or CD player.
Note: You can also adjust the volume of the console
as described in step 4 on page 16.
The optional chest pulse sensor provides hands-free
peration and continuously monitors your heart rate
o
during your workouts. To purchase the optional
hest pulse sensor, see the front cover of this
c
manual.
21
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical exerciser
egularly. Replace any worn parts immediately.
r
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. IMPORTANT: To avoid
amage to the console, keep liquids away from
d
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 6 on page 8
for replacement instructions.
If the console does not display your heart rate when
you use the handgrip pulse sensor, see step 5 on
page 17.
HOW TO ELIMINATE FLEXING IN THE CENTER OF
HE ELLIPTICAL EXERCISER
T
If the elliptical exerciser flexes in the center during
use, turn the frame foot (see the drawing at the left)
ntil the flexing is eliminated.
u
Frame
Foot
22
EXERCISE GUIDELINES
WARNING: B
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning this
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
ody uses carbohydrate calories for energy. Only after
b
the first few minutes of exercise does your body begin
o use stored fat calories for energy. If your goal is to
t
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
23
PART LIST—Model No. PFEVEL73909.0 R1009A
Key No. Qty. Description Key No. Qty. Description
11Frame
21Folding Frame
31Upright
41Upright Cap
51Console
61Front Stabilizer
71Rear Stabilizer
81Left Upper Body Arm
91Right Upper Body Arm
10 2 Upper Body Arm Cap
11 1 Left Upper Body Leg
12 1 Right Upper Body Leg
13 1 Left Pedal
14 1 Left Pedal Arm
15 1 Right Pedal
16 1 Right Pedal Arm
17 2 Upright Cover
18 1 Left Front Cover
19 1 Left Rear Cover
20 1 Right Front Cover
21 1 Right Rear Cover
22 1 Water Bottle Holder
23 2 Front Stabilizer Cap
24 2 Rear Stabilizer Cap
25 2 Wheel
26 1 Frame Foot
27 2 Leveling Foot
28 1 Left Shield
29 1 Right Shield
30 6 Upper Body Bearing
31 4 Pedal Arm Cover
32 2 Pedal Arm Axle
33 4 Pedal Arm Bearing
34 1 Frame Axle
35 2 Frame Bushing
36 2 Crank Arm
37 2 Inner Crank Cover
38 2 Crank Hub
39 1 Pulley Spacer
40 1 Pulley
41 2 Crank Bushing Cover
42 4 Crank Arm Bearing
43 2 Crank Bushing Sleeve
44 2 Crank Bearing Set
45 1 Crank
46 1 Crank Spacer
47 2 Crank Snap Ring
48 1 Upper Wire Harness
49 1 Lower Wire Harness
50 1 Reed Switch/Wire
51 1 Drive Belt
52 1 Flywheel
53 1 C-magnet
54 1 Pillow Block
55 1 Magnet
56 1 Spring
57 1 Idler
58 1 Idler Bracket
59 1 Clamp
60 1 Reed Switch Bracket
61 1 Latch Pin
62 2 Latch Bracket Spacer
63 2 Hairpin Cotter Pin
64 1 Latch Bracket
65 1 Pivot Bracket
66 2 Pivot Bracket Spacer
67 1 Pivot Pin
68 1 Latch Button
69 1 Roll Pin
70 1 Resistance Motor
71 1 Resistance Cable Pulley
72 1 Resistance Cable Set
73 2 Foam Grip
74 1 Pivot Axle
75 2 Hub Cover
76 2 Outer Crank Cover
77 2 Flywheel Bracket
78 4 M8 x 41mm Button Bolt
79 7 M8 Jam Nut
80 1 M8 x 69mm Button Bolt
81 4 M10 Locknut
82 2 M10 x 80mm Carriage Bolt
83 2 M10 x 127mm Button Screw
84 6 M8 x 23mm Button Screw
85 1 M6 x 10mm Button Screw
86 2 Crank Screw
87 8 Hub Screw
88 10 M8 Washer
89 2 M10 x 60mm Button Screw
90 3 M8 Split Washer
91 1 Flywheel Spacer
92 1 Flywheel Washer
93 1 Flywheel Snap Ring
94 4 Pillow Block Screw
95 1 Stop Screw
96 1 M8 x 35mm Screw
97 1 E-clip
98 4 Pulley Screw
99 2 Crank Washer
100 2 M4 x 25mm Screw
24
ey No. Qty. Description Key No. Qty. Description
K
101 8 M4 x 16mm Round Head Screw
102 12 M4 Washer
103 27 M4 x 16mm Screw
04 8 M4 x 16mm Screw
1
105 6 M4 x 32mm Round Head Screw
106 2 M8 x 31mm Shoulder Screw
107 4 M4 x 12mm Screw
08 2 M4 x 47mm Screw
1
109 2 Large Wave Washer
110 2 M8 Small Washer
111 2 Wave Washer
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
112 8 M4 Split Washer
113 1 M10 Washer
114 1 M6 Nut
15 4 M8 x 23mm Shoulder Screw
1
116 1 Transport Handle
117 4 Transport Handle Screw
118 4 Bearing Spacer
19 2 Transport Handle Cap
1
*–Assembly Tool
*–Grease Packet
*–Userʼs Manual
25
EXPLODED DRAWING A—Model No. PFEVEL73909.0 R1009A
1
4
3
5
6
8
9
10
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
23
25
25
26
30
30
30
30
30
30
31
31
32
33
33
31
33
32
33
31
34
35
35
80
78
101
101
79
105
105
88
84
79
84
101
101
74
105
79
78
88
8
4
104
115
115
88
84
115
115
84
88
89
82
81
81
81
89
48
49
84
73
73
88
88
88
88
90
90
90
111
111
101
1
16
117
117
118
118
118
118
104
104
108
112
112
102
104
104
108
112
112
102
102
119
119
26
66
2
7
24
24
27
27
28
29
75
76
36
86
99
87
106
37
38
39
40
41
42
42
43
103
103
103
103
107
107
103
38
43
42
42
41
106
36
75
37
83
87
87
76
103
103
103
103
86
99
44
98
98
44
45
46
47
47
103
100
103
51
50
53
56
79
57
58
59
60
103
103
85
96
61
62
62
63
64
63
65
66
67
68
69
113
97
70
95
103
79
71
72
107
100
103
103
103
102
102
107
88
88
109
109
114
103
110
110
52
54
55
94
94
94
92
93
91
77
77
EXPLODED DRAWING B—Model No. PFEVEL73909.0 R1009A
27
ORDERING REPLACEMENT PARTS
o order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
T
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
Part No. 287758 R1009A Printed in China © 2009 ICON IP, Inc.
Loading...
