www.proform.com
Model No. PFTL75910.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
USERʼS MANUAL
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
A
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

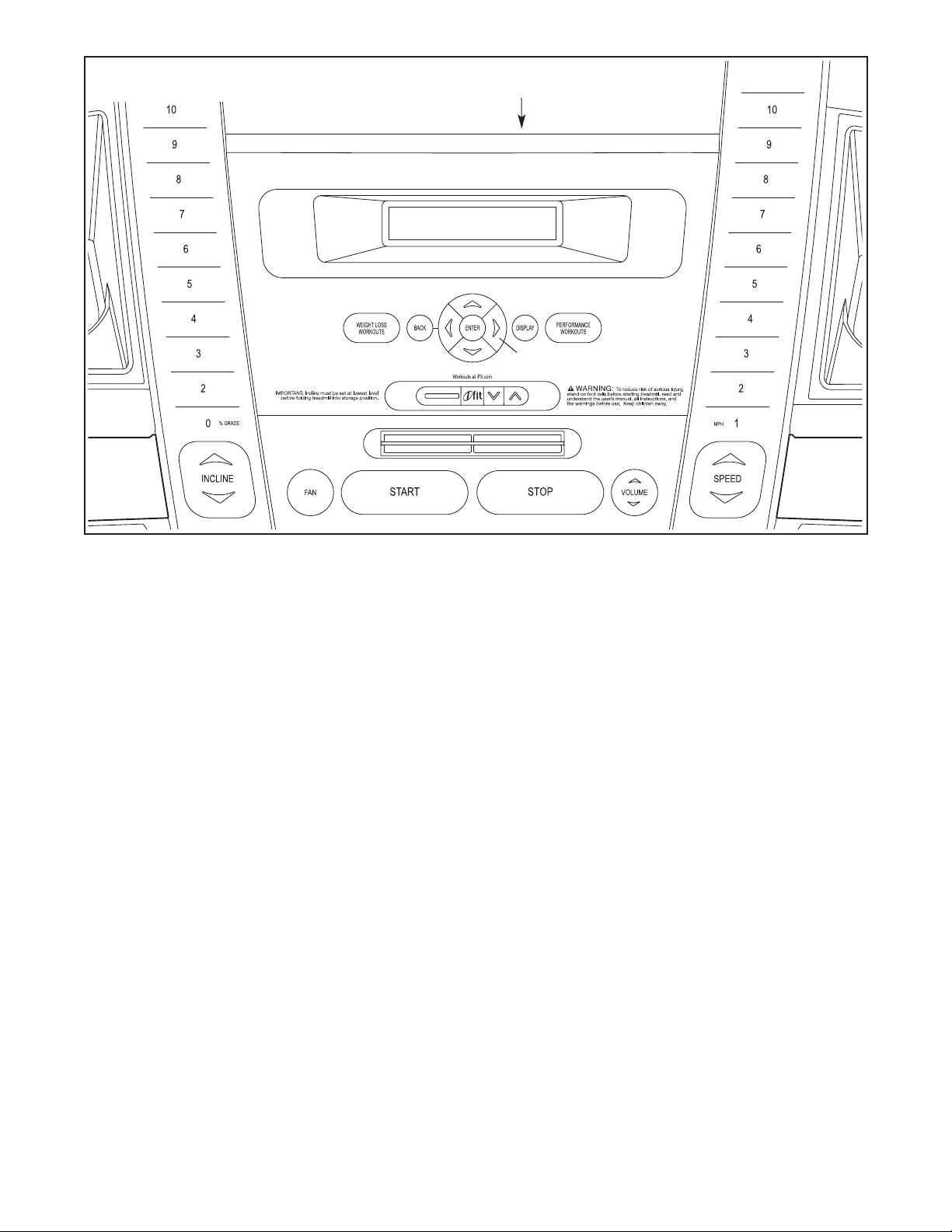

WARNING DECAL PLACEMENT
This drawing shows the locations of the
warning decals. If a decal is missing or il-
legible, call the telephone number on the
front cover of this manual and request a
free replacement decal. Apply the decal
in the location shown. Note: The decals
may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. iPod
2
®
is not included.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
tructions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
s
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 13. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 22 if the treadmill is
not working properly.)
8. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
13), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 15).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
3
0. Never leave the treadmill unattended while it
2
is running. Always remove the key, unplug
the power cord, and press the power switch
into the off position when the treadmill is not
in use. (See the drawing on page 5 for the location of the power switch.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
4. Inspect and properly tighten all parts of the
2
treadmill regularly.
25.
DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
ance and adjustment procedures described in
n
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
00 RT treadmill. The 500 RT treadmill offers an im-
5
pressive selection of features designed to make your
workouts at home more enjoyable and effective. And
when youʼre not exercising, the unique treadmill can be
olded up, requiring less than half the floor space of
f
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Tray
Handrail
Upright
®
ing this manual, please see the front cover of this man-
al. To help us assist you, please note the product
u
model number and serial number before contacting us.
The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Pulse Sensor
Key/Clip
Walking Belt
Foot Rail
Idler Roller
Adjustment Bolts
Power Switch
Power Cord
Platform Cushion
5
ASSEMBLY
Base Foot Spacer
(89)–2
#8 x 3/4" Screw
(1)–4
3/8" Star
Washer (12)–4
1/4" Star
Washer (14)–2
#8 x 1" Tek Screw
(4)–4
3/8" Nut (11)–3
5/16" Star
Washer (13)–4
5/16" x 1" Bolt (6)–6
3/8" x 4" Bolt (9)–4
3/8" x 1 3/4" Bolt (8)–1
3/8" x 2" Bolt (7)–3
1/4" x 1 1/4" Bolt (10)–2
Bolt Spacer (81)–4
o hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
elt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
b
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , needlenose pliers , and scissors .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-
aging parts, do not use power tools for assembly. Extra hardware may be included.
6
. Make sure that the power cord is unplugged.
1
ith the help of a second person, carefully tip
W
the treadmill onto its left side. Partially fold the
Frame (51) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the indicated bolts (A) and
the shipping bracket (B).
Cut the shipping tie securing the Upright Wire
(79) to the Base (87). Locate the plastic tie in
the indicated hole in the Base, and use the tie to
pull the Upright Wire out of the hole.
Attach two Base Feet (84) to the Base (87) in the
locations shown with two Base Foot Spacers
(89) and two #8 x 1" Tek Screws (4).
1
Hole
79
89
51
84
4
B
A
87
84
4
Then, attach the other two Base Feet (84) with
two #8 x 1" Tek Screws (4).
2. Attach a Wheel (88) to the Base (87) with a 3/8"
x 2" Bolt (7) and a 3/8" Nut (11). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (83) into the Base (87).
84
4
84
89
2
7
88
4
83
87
11
7
. Identify the Right Upright (80) and the Right
3
Upright Spacer (82), which are marked with
“Right” stickers.
nsert the Upright Wire (79) through the Right
I
Upright Spacer (82) as shown. Set the Right
Upright Spacer on the Base (87).
ave a second person hold the Right Upright
H
(80) near the Base (87). See the inset drawing.
Tie the wire tie in the Right Upright securely
around the end of the Upright Wire (79). Then,
pull the other end of the wire tie until the Upright
Wire is routed completely through the Right
Upright.
3
80
79
Wire Tie
80
79
82
8
7
4. Hold a Bolt Spacer (81) inside the lower end of
the Right Upright (80). Insert a 3/8" x 4" Bolt (9)
with a 3/8" Star Washer (12) into the Right
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (81), 3/8" x 4" Bolt
(9), and 3/8" Star Washer (12).
Hold the Right Upright (80) against the Right
Upright Spacer (82). Be careful not to pinch
the Upright Wire (79). Tighten the 3/8" x 4"
Bolts (9) until the heads of the Bolts touch the
Upright; do not fully tighten the Bolts yet.
79
4
Wire
Tie
9
80
12
79
81
81
82
8
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (51) so that the treadmill is more stable;
o not fully fold the Frame yet.
d
emove and discard the indicated bolts (A) and
R
the shipping bracket (B).
5
A
B
Attach a Wheel (88) to the Base (87) with a 3/8"
x 2" Bolt (7) and a 3/8" Nut (11). Do not over-
tighten the Nut; the Wheel must turn freely.
6. Press a Base Cap (83) into the Base (87).
Hold a Bolt Spacer (81) inside the lower end of
the Left Upright (75). Insert a 3/8" x 4" Bolt (9)
with a 3/8" Star Washer (12) into the Left
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (81), 3/8" x 4" Bolt
(9), and 3/8" Star Washer (12).
Hold the Left Upright Spacer (86) and the Left
Upright (75) against the Base (87). Tighten the
3/8" x 4" Bolts (9) until the heads of the Bolts
touch the Upright; do not fully tighten the
Bolts yet.
7
51
87
88
11
6
9
75
12
86
81
81
83
87
With the help of a second person, tip the treadmill so that the Base (87) is flat on the floor.
9
7. Set the console assembly face down on a soft
surface to avoid scratching the console assembly. Hold the Right Handrail (104) near the console assembly. Next, insert the console wire into
he large hole in the Right Handrail and pull it
t
out of the top as shown. If necessary, use
needlenose pliers to pull the console wire out.
ttach the Right Handrail (104) and the Left
A
Handrail (not shown) with four #8 x 3/4" Screws
(1) (only two are shown). Make sure that no
wires are pinched. Start all four Screws, and
then tighten each of them; do not overtighten the Screws.
7
Console
Wire
1
104
Console
Assembly
8. Start a 1/4" x 1 1/4" Bolt (10) with a 1/4" Star
Washer (14) into the bracket and the Crossbar
(102) on each side of the console assembly (only
one side is shown). Do not fully tighten the
Bolts yet.
Remove the wire tie from the console wire and
the plastic ties (only one side is shown). If necessary, press the Cage Nuts (74) back into place
(only one is shown).
8
Console
Assembly
Plastic Tie
Console
Wire
74
102
Wire
Tie
10
14
Bracket
10
9. Have a second person hold the console assembly near the Right Upright (80) and the Left
Upright (not shown). Connect the Upright Wire
79) to the console wire. See the inset draw-
(
ing. The connectors should slide together
asily and snap into place. If they do not, turn
e
one connector and try again. IF YOU DO NOT
CONNECT THE CONNECTORS PROPERLY,
THE CONSOLE MAY BECOME DAMAGED
WHEN YOU TURN ON THE POWER. Then, re-
move the wire tie from the Upright Wire.
Set the console assembly on the Right Upright
(80) and the Left Upright (not shown). Be care-
ful not to pinch the wires.
9
onsole
C
Assembly
Console
Wire
80
79
Wire
Tie
Console
Wire
79
10. Attach the console assembly with six 5/16" x 1"
Bolts (6) and four 5/16" Star Washers (13) (only
one side is shown).
See steps 4 and 6. Tighten the 3/8" x 4" Bolts
(9).
10
Console
Assembly
6
13
13
6
11
11. If necessary, press the Left Tray (94) and the
Right Tray (103) into the Console Back (98).
See step 8. Firmly tighten the two 1/4" x 1 1/4"
Bolts (10).
11
98
4
9
103
12. Raise the Frame (51) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (48) so that the large
barrel and the Latch Knob (49) are oriented as
shown.
Attach the upper end of the Storage Latch (48)
to the bracket on the Frame (51) with a 3/8" x 2"
Bolt (7) and a 3/8" Nut (11).
Attach the lower end of the Storage Latch (48) to
the Base (87) with a 3/8" x 1 3/4" Bolt (8). Note:
It may be necessary to move the Frame (51)
back and forth to align the Storage Latch with
the Base.
Lower the Frame (51) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
13. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is
used to adjust the walking belt (see pages 23 and 24).
12
7
51
11
48
49
Large
Barrel
87
8
12
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply sil-
cone spray or other substances to the walking
i
belt or the walking platform. Such substances will
cause excessive wear.
HOW TO PLUG IN THE POWER CORD
hat is properly installed and grounded in accor-
t
dance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit
(see drawing 1). A temporary adapter may be used to
connect the surge suppressor to a 2-pole receptacle if
a properly grounded outlet is not available (see drawing 2).
DANGER: Improper connection
of the equipment-grounding conductor increases the risk of electric shock. Check with
a qualified electrician or serviceman if you
are unsure whether the product is properly
grounded. Do not modify the plug—if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your homeʼs
power. To decrease the risk of damaging your
treadmill, always use a surge suppressor with your
treadmill (see drawing 1 at the right). To purchase
a surge suppressor, see precaution 12 on page 3.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could damage the control system of the treadmill (see precaution 13 on page 3).
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This productʼs power cord has an equipment-grounding conductor and a grounding plug. Plug
the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet
1
Grounded Outlet
2
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (see drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
The adapter must be held in place by a metal screw.
Some 2-pole receptacle outlet box covers are not
grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before
using an adapter.
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet Box
Adapter
Lug
Grounding Plug
Grounding Plug
Surge Suppressor
13
CONSOLE DIAGRAM
Music Port for iPod
Navigation Buttons
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to help you get the most from your
workouts. When the manual mode of the console is selected, the speed and incline of the treadmill can be
changed with the touch of a button. As you exercise,
the console will display continuous exercise feedback.
You can even measure your heart rate using the builtin handgrip pulse sensor.
In addition, the console features fifteen preset workouts—five weight loss, five performance, and five aerobic workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session.
The console also features the new iFit interactive
workout system. The iFit system enables the console
to accept iFit interactive workout cards containing
workouts designed to help you achieve specific fitness
goals. For example, lose unwanted pounds with the 8week weight loss workout, or train for a long-distance
run with the marathon workout. iFit workouts automatically control the treadmill while the voice of a personal
trainer coaches you through every step of your work-
out. iFit cards are available separately. To purchase
iFit cards at any time, go to www.iFit.com or call
the telephone number on the front cover of this
manual. iFit cards are also available at select
stores.
You can even listen to your favorite workout music or
audio books with the consoleʼs premium stereo sound
system while you get in shape. This treadmill has been
designed specifically to work with iPod and has been
certified by the developer to meet Apple performance
standards.
To turn on the power, see page 15. To use the manual mode, see page 15. To use a preset workout,
see page 17. To use an iFit workout, see page 18.
To use the information mode, see page 19. To use
the stereo sound system, see page 19.
Note: The console can display speed and distance in
either miles or kilometers. To find out which unit of
measurement is selected or to change the unit of measurement, see THE INFORMATION MODE on page
19. Note: For simplicity, all instructions in this section
refer to miles.
14
HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the treadmill has been exposed to
old temperatures, allow it to warm to room tem-
c
perature before turning on the power. If you do not
o this, you may damage the console displays or
d
other electrical components.
Plug in the power cord (see
page 13). Next, locate the
power switch on the treadmill frame near the power
cord. Make sure that the
switch is in the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see THE INFORMATION MODE on page
19 to turn off the demo mode.
Next, stand on the foot rails
of the treadmill. Find the
clip attached to the key and
slide the clip onto the waistband of your clothes. Then,
insert the key into the console. After a moment, the
displays will light. IMPORTANT: In an emergency,
the key can be pulled from the console, causing
the walking belt to slow to a stop. Test the clip by
carefully taking a few steps backward; if the key is
not pulled from the console, adjust the position of
the clip.
Reset
Clip
Key
1. Insert the key into the console.
See HOW TO TURN ON THE POWER to the left.
2. Select the manual mode.
When the key is
inserted, the
manual mode
will be selected.
If a workout has
been selected,
reselect the
manual mode by removing the key and then reinserting it.
3. Start the walking belt.
To start the walking belt, press the Start button, the
Speed increase button, or one of the speed buttons numbered 1 through 10.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press
the Speed increase or decrease button, the speed
setting will change by 0.1 mph; if you hold down
the button, the speed setting will change in increments of 0.5 mph. Note: After you press the buttons, it may take a moment for the walking belt to
reach the selected speed setting.
If you press one of the speed buttons numbered 1
through 10, the walking belt will gradually increase
in speed until it reaches the selected speed setting.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage to
the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use the
treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 24).
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the numbered
speed buttons.
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase and decrease buttons. Each time
you press the Incline increase or decrease button,
the incline will change by 0.5 percent. To change
the incline quickly, press one of the incline buttons
numbered 0 through 10. Note: After you press the
Incline buttons, it may take a moment for the treadmill to reach the selected incline setting.
15
5. Select a display mode and monitor your
progress with the display.
hen the manual mode is selected, the console
W
offers three display modes. The display mode that
ou select will determine which workout informa-
y
tion is shown. Press the Display button repeatedly
to select the desired display mode.
As you walk or run on the treadmill, the display can
show the following workout information:
6. Measure your heart rate if desired.
Before using the
andgrip pulse
h
sensor, remove
he sheets of
t
plastic from the
metal contacts. In
addition, make
sure that your
hands are clean.
ontacts
C
• The speed of the walking belt.
• Your walking or running pace, in minutes per
mile or minutes per kilometer.
• The approximate number of calories you have
burned.
• The elapsed time.
• The distance that you have walked or run.
• The number of laps you have completed. Each
lap represents 1/4 mile (400 meters).
• The incline setting of the treadmill whenever the
incline setting changes.
• Your heart rate. Note: Your heart rate can be
displayed only while you use the handgrip pulse
sensor.
• The display can also show an animation of a
road.
Regardless of which display mode you select, the
speed or incline setting will appear in the display for
a few seconds each time you change the setting.
You can change the volume level by pressing the
Volume increase and decrease buttons.
To reset the console, press the Stop button, remove the key, and then reinsert the key.
To measure your heart rate, stand on the foot
rails and hold the metal contacts—avoid moving
your hands. When your pulse is detected, your
heart rate will be shown. For the most accurate
heart rate reading, continue to hold the contacts for about 15 seconds.
7. Turn on the fan if desired.
The fan features high, low, and auto speed settings. Press the Fan button repeatedly to select a
fan speed or to turn off the fan. When the auto
mode is selected, the speed of the fan will automatically increase and decrease as the speed of
the walking belt increases and decreases. Note: If
the fan is on when the walking belt is stopped, the
fan will turn off automatically after a few minutes.
8. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting or you may damage the treadmill when you
fold it to the storage position. Next, remove the
key from the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmillʼs electrical components may
wear prematurely.
16
HOW TO USE A PRESET WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
5.
1
2. Select one of the preset workouts.
A profile of the
speed settings
of the workout
ill appear in
w
the display. A
mall arrow
s
below the profile
will indicate your progress.
To select a
weight loss
workout or a
performance
workout, press
the Weight
Loss Workouts
button or the Performance Workouts button.
Profiles of the speed settings of the workouts will
appear in the display. To select an aerobic workout, press the Weight Loss Workouts button and
then press the down Navigation button until the
aerobic profiles appear in the display. Use the
Navigation buttons to highlight the desired profile.
The maximum speed setting and maximum incline
setting of the workout will be shown. Press Enter to
select the workout.
As each preset
workout is selected, the
maximum
speed setting
and the maximum incline
setting of the workout will flash in the displays for a
few seconds. The workout duration and a profile of
the speed settings of the workout will appear in the
display.
3. Start the workout.
At the end of the first one-minute segment of the
workout, a series of tones will sound. If a different
speed setting and/or incline setting is programmed
for the second segment, the speed setting and/or
incline setting will flash in the display for a moment
to alert you. The treadmill will then automatically
adjust to the speed and incline settings for the second segment.
The workout will continue in this way until the small
arrow reaches the right end of the profile and the
last segment ends. The walking belt will then slow
to a stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can override
the setting by pressing the speed or incline buttons; however, when the next segment begins,
the treadmill will automatically adjust to the
speed and incline settings for the next
segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.
4. Select a display mode and monitor your
progress with the display.
Press the Start button or the Speed increase button to start the workout. A moment after you press
the button, the treadmill will automatically adjust to
the first speed and incline settings for the workout.
Hold the handrails and begin walking.
Each workout is divided into one-minute segments.
One speed setting and one incline setting are programmed for each segment. Note: The same
speed and/or incline setting may be programmed
for consecutive segments.
See step 5 on page 16.
5. Measure your heart rate if desired.
See step 6 on page 16.
6. Turn on the fan if desired.
See step 7 on page 16.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 16.
17
HOW TO USE AN IFIT WORKOUT
To purchase iFit cards at any time, go to www.iFit.com
r call the telephone number on the front cover of this
o
manual. iFit cards are also available at select stores.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
15.
2. Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face-down and are inserted
into the iFit slot.
iFit Slot
iFit Card
the button, the treadmill will automatically adjust to
the first speed and incline settings for the workout.
Hold the handrails and begin walking.
During the workout, the voice of a personal trainer
ill guide you through the workout. You can select
w
an audio setting for your personal trainer (see THE
INFORMATION MODE on page 19).
If the speed or incline setting for the current segment is too high or too low, you can manually override the setting by pressing the speed or incline
buttons; however, when the next segment be-
gins, the treadmill will automatically adjust to
the speed and incline settings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings
for the next segment.
Next, select an iFit workout by pressing the iFit increase and decrease buttons next to the iFit slot.
When an iFit workout is selected, the maximum
speed setting and the maximum incline setting of
the workout will flash in the displays for a few seconds. The workout duration and a profile of the
speed settings of the workout will appear in the display.
Each iFit workout is divided into several oneminute segments. One speed setting and one incline setting are programmed for each segment.
Note: The same speed and/or incline setting may
be programmed for consecutive segments.
3. Start the workout.
Press the Start button or the Speed increase button to start the workout. A moment after you press
4. Select a display mode and monitor your
progress with the display.
See step 5 on page 16.
5. Measure your heart rate if desired.
See step 6 on page 16.
6. Turn on the fan if desired.
See step 7 on page 16.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 16.
CAUTION: Always remove iFit cards from the
iFit slot when you are not using them.
18
THE INFORMATION MODE
The console features a userʼs mode that allows you to
hoose an audio setting for your iFit workouts. The
c
userʼs mode also keeps track of the total number of
iles that the walking belt has moved and the total
m
number of hours that the treadmill has been operated.
You can also select miles or kilometers as the unit of
measurement and turn on and turn off the demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console and then
release the Stop button. When the information mode is
selected, the following information will be shown:
You can select an audio setting for your personal
trainer if desired. When you use an iFit card, a personal trainer will guide you through your workouts. If
you select the ON setting, the personal trainer will give
you detailed instructions. If you select the OFF setting,
your personal trainer will simply guide you through
your iFit workouts. To change the audio setting, press
the Incline decrease button.
The display will show the total number of hours the
treadmill has been used. The display will also show the
total number of miles (or kilometers) that the walking
belt has moved.
The word ENGLISH for miles or METRIC for kilometers will appear in the display. Press the Speed increase button to change the unit of measurement if desired.
sert the key into the console. However, when you remove the key, the displays will remain lit, although the
buttons will not function. If the demo mode is turned
n, the word ON will appear in the display while the in-
o
formation mode is selected. To turn on or off the demo
ode, press the Speed decrease button.
m
To exit the information mode, remove the key from the
console.
HOW TO USE THE STEREO SOUND SYSTEM
This treadmill has been designed specifically to work
with iPod and has been certified by the developer to
meet Apple performance standards. To play music or
audio books through the consoleʼs stereo speakers,
you must connect your iPod, MP3 player, CD player,
or other personal audio player to the console through
the audio jack or through the music port for iPod. The
music port will charge your iPod while you use it.
To use the audio wire, locate the audio wire and plug it
into the audio jack near the speakers. Then plug the
audio wire into a jack on your MP3 player, CD player,
or other personal audio player. Make sure that the
audio wire is fully plugged in.
To use the music port for iPod, you need an iFit universal iPod connector (not included). To purchase an iFit
universal iPod connector, please call the telephone
number on the front cover of this manual. Plug one
end into the music port near the speakers and the
other end into your iPod. Make sure that the iFit uni-
versal iPod connector is fully plugged in.
Next, press the Play button on your iPod, MP3 player,
CD player, or other personal audio player. Adjust the
volume on your personal audio player or press the
Volume increase and decrease buttons on the console.
Note: The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. While the demo mode is turned on, the console
will function normally when you plug in the power cord,
press the power switch into the reset position, and in-
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat surface and not on the console.
19
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
owest position. If you do not do this, you may damage the
l
treadmill when you fold it. Remove the key and unplug the
power cord. CAUTION: You must be able to safely lift 45
lbs. (20 kg) to raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown by
the arrow at the right. CAUTION: To decrease the possibility of injury, do not lift the frame by the plastic
foot rails. Make sure to bend your legs and keep your
back straight as you raise the frame. Raise the frame
about halfway to the vertical position.
2. Raise the frame until the latch knob locks into the storage
position. Make sure that the latch knob is locked in the
storage position.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage
position in temperatures above 85° F (30° C).
Frame
Frame
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the latch
knob is locked in the storage position.
1. Hold a handrail and the frame and place one foot against
one of the wheels.
2. Tip the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce
the risk of injury, use extreme caution while moving
the treadmill. Do not attempt to move the treadmill
over an uneven surface.
3. Place one foot against a wheel, and carefully lower the
treadmill until it is resting in the storage position.
Latch Knob
Handrail
Frame
Wheel
20
HOW TO LOWER THE TREADMILL FOR USE
. Hold the upper end of the treadmill with your right hand.
1
Pull the latch knob to the left and hold it. It may be necessary to push the frame forward as you pull the knob to
the left. Pivot the frame downward and release the latch
knob.
2. Hold the metal frame firmly with both hands and lower
it to the floor. CAUTION: Do not grip only the plastic
foot rails or drop the frame to the floor. Bend your
legs and keep your back straight.
Latch Knob
Frame
21
TROUBLESHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 13). Use only a single-outlet surge suppressor that meets all of the specifications described on page 13. IMPORTANT: The treadmill is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
switch, wait for five minutes and then press the
switch back in.
PROBLEM:The power turns off during use
SOLUTION: a. Check the power switch (see the drawing above). If the switch has tripped, wait for five minutes
and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 19 to turn off the demo mode.
c
Tripped Reset
PROBLEM:The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG
THE POWER CORD. With the help of a second
person, carefully tip down the Uprights (75, 80).
There may be three #8 x 2" Screws (16) in the bottom of the Belly Pan (73). If there are, remove them.
Note: A Phillips screwdriver with a shaft at least 5
in. (13 cm) long is required.
Then, raise the Uprights (75, 80).
22
a
80
75
73
16
16
Remove the three #8 x 3/4" Screws (1) and carefully pivot the Motor Hood (60) off.
Locate the Reed Switch (71) and the Magnet (45)
on the left side of the Pulley (46). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet and
the Reed Switch is about 1/8 in. (3 mm). If nec-
essary, loosen the 3/4" Screw (17), move the Reed
Switch slightly, and then retighten the Screw.
Reattach the Motor Hood (not shown). Reattach
the #8 x 2" Screws (not shown) if necessary. Run
the treadmill for a few minutes to check for a correct speed reading.
1/8 in.
Top
View
17
71
1
60
45
46
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, reinsert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 13.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
c. If the walking belt still slows when walked on, see the front cover of this manual.
b
2–3 in.
Idler Roller Bolts
23
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the
ey and UNPLUG THE POWER CORD. If the
k
walking belt has shifted to the left, use the hex
ey to turn the left idler roller bolt clockwise 1/2 of a
k
turn; if the walking belt has shifted to the right,
turn the bolt counterclockwise 1/2 of a turn. Be
careful not to overtighten the walking belt. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first re-
move the key and UNPLUG THE POWER CORD.
Using the hex key, turn both idler roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each
edge of the walking belt 2 to 3 in. (5 to 7 cm) off
the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for
a few minutes. Repeat until the walking belt is
properly tightened.
a
b
24
EXERCISE GUIDELINES
WARNING: Before beginning this
r any exercise program, consult your physi-
o
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is intended only as an exercise aid in determining
heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
25
PART LIST—Model No. PFTL75910.0 R1010A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
1 26 #8 x 3/4" Screw
22#8 x 1/2" Screw
34Console Fan Screw
44#8 x 1" Tek Screw
51Console Fan
665/16" x 1" Bolt
733/8" x 2" Bolt
813/8" x 1 3/4" Bolt
943/8" x 4" Bolt
10 2 1/4" x 1 1/4" Bolt
11 3 3/8" Nut
12 4 3/8" Star Washer
13 4 5/16" Star Washer
14 2 1/4" Star Washer
15 5 #8 x 3/4" Tek Screw
16 3 #8 x 2" Screw
17 9 3/4" Screw
18 2 5/16" x 1 1/2" Bolt
19 2 5/16" x 3 5/8" Bolt
20 2 3/8" x 1" Bolt
21 2 Idler Roller Bolt
22 1 3/8" x 1 3/4" Incline Bolt
23 1 3/8" x 1 1/2" Bolt
24 2 3/8" x 3/4" Bolt
25 7 #8 x 1/2" Bright Screw
26 8 #12 x 1 1/4" Screw
27 2 Motor Bolt
28 4 Belt Guide Screw
29 2 1/4" Washer
30 2 1/4" Split Washer
31 4 3/8" Jam Nut
32 4 5/16" Flange Nut
33 3 Hood Clip
34 1 Access Door
35 2 Foot Rail Decal
36 1 Left Foot Rail
37 1 Warning Decal
38 2 Platform Cushion
39 1 Walking Platform
40 1 Walking Belt
41 2 Belt Guide
42 2 Frame Cap
43 2 Frame Spacer
44 1 1/4" x 1" Bolt
45 1 Magnet
46 1 Drive Roller/Pulley
47 1 Latch Cap
48 1 Storage Latch
49 1 Latch Knob
50 1 Right Foot Rail
51 1 Frame
52 1 Left Rear Foot
53 1 Idler Roller Ground Wire
54 1 Right Rear Foot
55 1 Idler Roller
56 2 Idler Roller Bracket
57 1 5/32" Hex Key
58 1 Hex Key
59 1 Hood Accent
60 1 Motor Hood
61 1 Lift Frame
62 1 Lift Frame Ground Wire
63 3 Wire Tie
64 1 Drive Belt
65 1 Drive Motor
66 1 Controller Ground Wire
67 1 Power Cord
68 1 Power Cord Grommet
69 1 Power Switch
70 1 Controller
71 1 Reed Switch
72 1 Reed Switch Clamp
73 1 Belly Pan
74 2 Cage Nut
75 1 Left Upright
76 1 Incline Motor
77 1 Incline Motor Spacer
78 1 Incline Motor Wire
79 1 Upright Wire
80 1 Right Upright
81 4 Bolt Spacer
82 1 Right Upright Spacer
83 2 Base Cap
84 4 Base Foot
85 2 Caution Decal
86 1 Left Upright Spacer
87 1 Base
88 2 Wheel
89 2 Base Foot Spacer
90 2 15 1/2" Wire Tie
91 6 Releaseable Tie
92 6 8" Tie
93 1 Key Clip
94 1 Left Tray
95 1 Audio Cable
96 1 Console
97 1 Wire Tie
98 1 Console Back
99 2 #8 x 1 1/2" Screw
100 4 Handrail Cap
26
Key No. Qty. Description Key No. Qty. Description
101 1 Left Handrail
102 1 Crossbar
103 1 Right Tray
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
104 1 Right Handrail
*–Userʼs Manual
27
7
49
48
11
17
18
18
19
19
21
21
30
29
30
29
54
25
25
28
28
41
41
26
26
26
42
26
26
26
26
26
35
36
32
32
32
44
45
42
43
32
38
39
37
40
46
50
35
55
38
51
56
56
43
52
58
57
99
47
53
17
17
17
17
8
99
EXPLODED DRAWING A—Model No. PFTL75910.0 R1010A
28
15
15
15
15
72
17
71
33
33
3
3
1
1
1
2
20
20
25
25
67
68
69
66
27
60
61
73
70
62
16
16
25
65
59
64
63
25
16
EXPLODED DRAWING B—Model No. PFTL75910.0 R1010A
29
84
4
84
4
84
4
88
11
11
88
7
9
12
9
9
12
12
6
13
6
13
6
24
24
31
31
83
83
75
80
87
85
86
82
85
81
81
81
89
84
4
89
22
23
31
31
76
77
79
79
6
92
91
90
7
78
EXPLODED DRAWING C—Model No. PFTL75910.0 R1010A
30
1
97
98
96
94
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
10
103
101
104
102
93
95
14
10
14
5
3
3
100
100
1
34
100
100
74
74
EXPLODED DRAWING D—Model No. PFTL75910.0 R1010A
31
ORDERING REPLACEMENT PARTS
o order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
T
vide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. The drive motor
is warranted for twenty-five (25) years from the date of purchase. Parts and labor are warranted for one
(1) year from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to products used for commercial or rental purposes or as store display models; or to products transported or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 307491 R1010A Printed in USA © 2010 ICON IP, Inc.
Loading...
