ProForm PFTL73105.0 User Manual

Model No. PFTL73105.0

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

Serial No.

Serial Number

Decal

QUESTIONS?

As a manufacturer, we are com­mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.

USER'S MANUAL

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:
www.proformservice.com

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

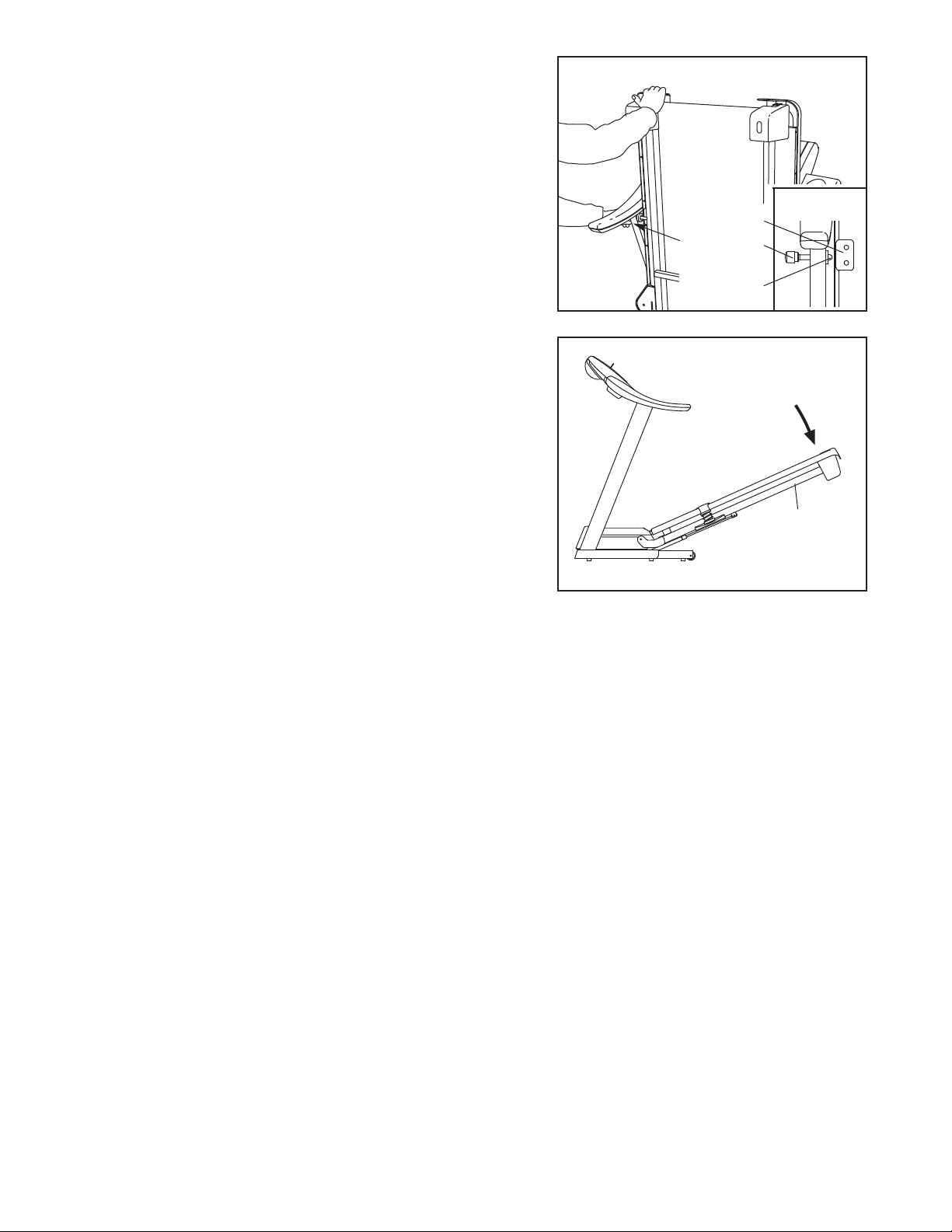

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

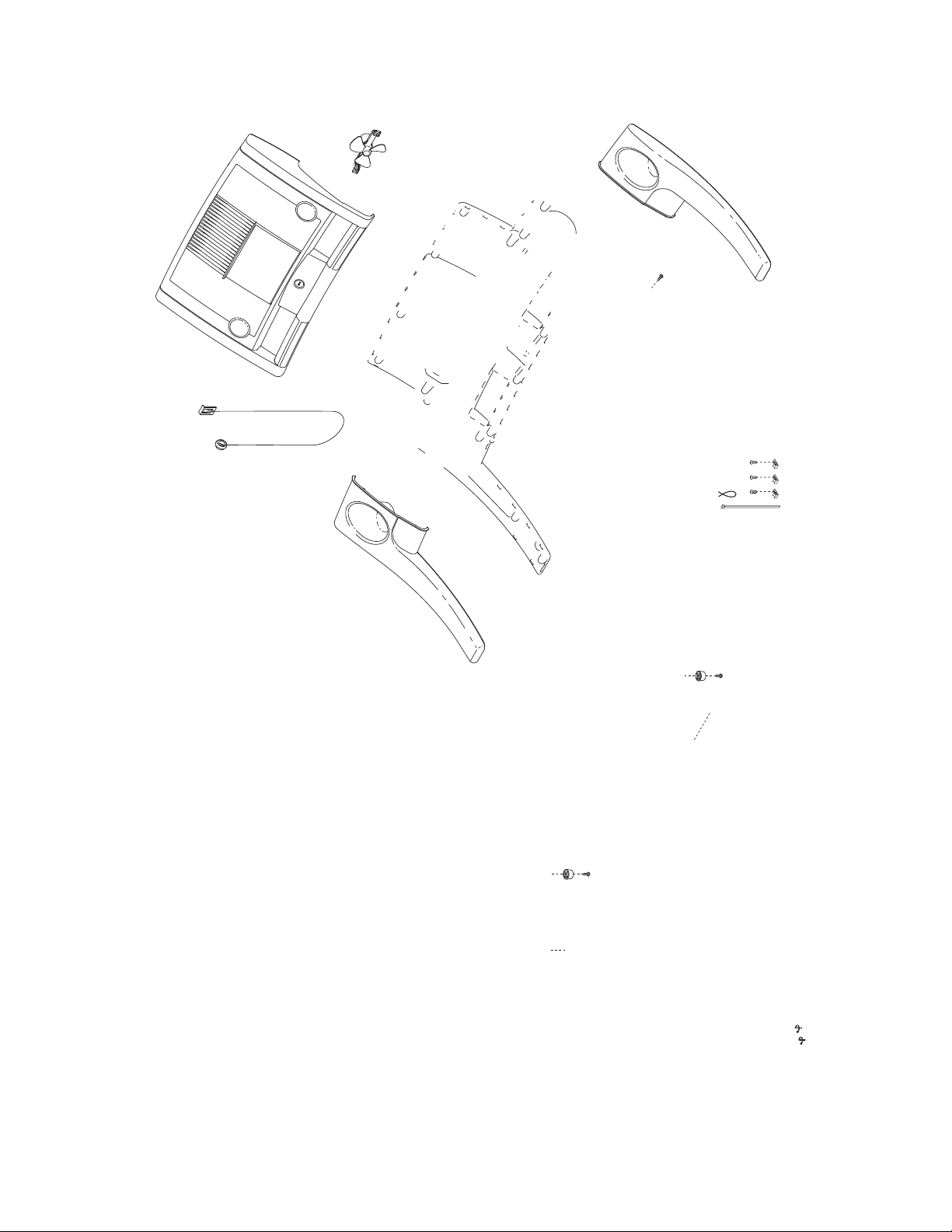

Note: An EXPLODED DRAWING is attached in the center of this manual.

PROFORM is a registered trademark of ICON IP, Inc.

2

IMPORTANT PRECAUTIONS

WARNING: T

following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.

4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.

o reduce the risk of burns, fire, electric shock, or injury to persons, read the

toll-free telephone number on the front cover
of this manual and order part number 146148,
or see your local electronics store.

12. Failure to use a properly functioning surge
suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.

13. Keep the power cord and the surge suppres­sor away from heated surfaces.

14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU­BLESHOOTING on page 22 if the treadmill is
not working properly.)

6. Keep children under the age of 12 and pets
away from the treadmill at all times.

7. The treadmill should be used only by persons
weighing 300 pounds or less.

8. Never allow more than one person on the
treadmill at a time.

Wear appropriate exercise clothes when

9.
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.

Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

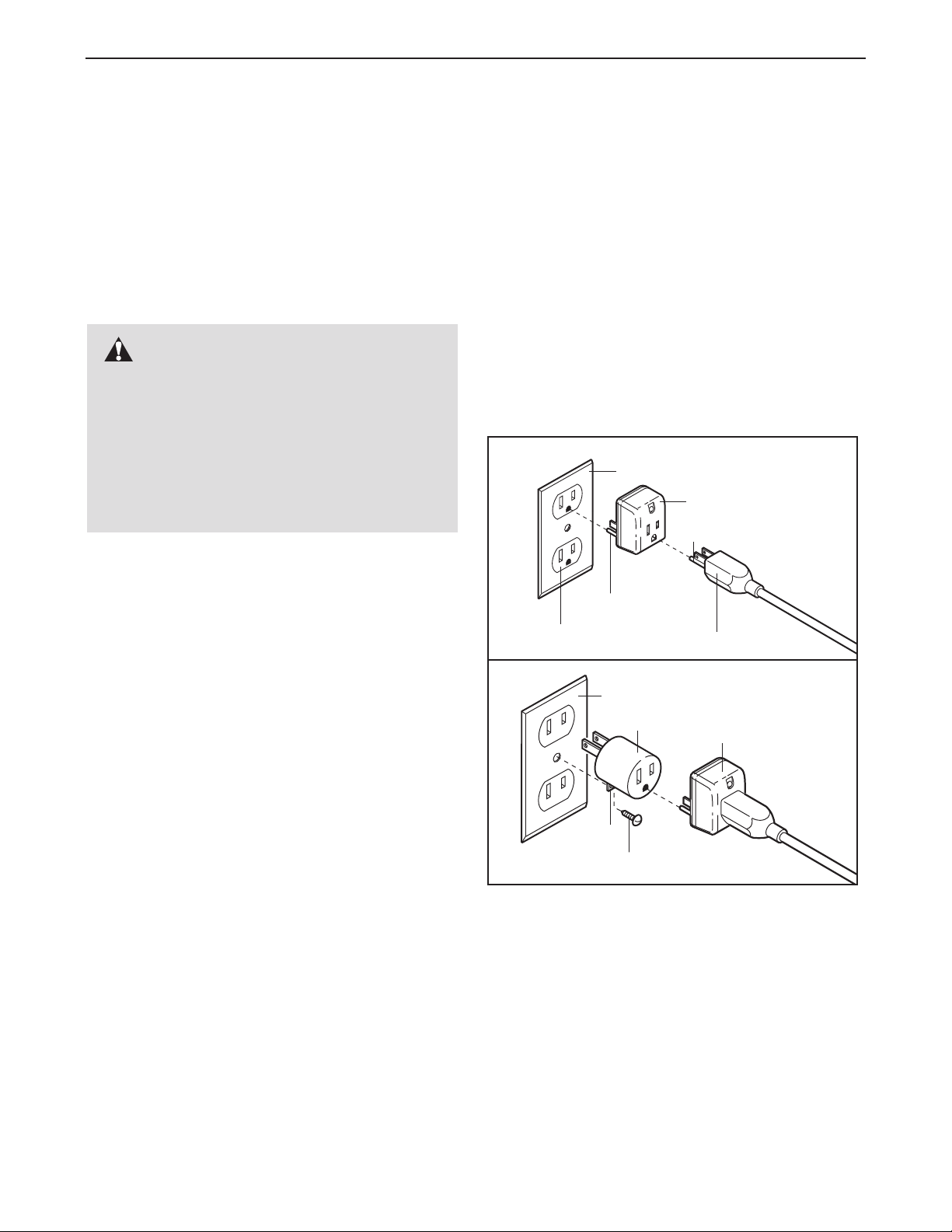

10. When connecting the power cord (see page

10), plug the power cord into a surge sup­pressor (not included) and plug the surge
suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.

11. Use only a single-outlet surge suppressor
that meets all of the specifications described
on page 10. To purchase a surge suppressor,
see your local PROFORM

dealer or call the

15. Never start the treadmill while you are stand­ing on the walking belt. Always hold the
handrails while using the treadmill.

16. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.

17. The pulse sensor is not a medical device.
Various factors, including the user's move
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.

18. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir­cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)

19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD

TREADMILL on page 20.)

MOVE

AND
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.

THE

-

3

4

BEFORE YOU BEGIN

hank you for selecting the revolutionary PROFORM

T

50 treadmill. The 750 treadmill offers an impressive

7
array of features designed to make your workouts at
home more enjoyable and effective. And when you’re
not exercising, the unique 750 treadmill can be folded
up, requiring less than half the floor space of other
treadmills.

For your benefit, read this manual carefully before
you use the treadmill. If you have questions after

reading this manual, please see the front cover of this
manual. To help us assist you, note the product model

Console

Handrail

Storage Latch

®

umber and serial number before calling. The model

n

umber of the treadmill is PFTL73105.0. The serial

n
number can be found on a decal attached to the tread­mill (see the front cover of this manual for the location).

To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.

Water Bottle Holder

(no bottle is included)

Key/Clip

Fan

Upright

Walking Belt

Foot Rail

BACK

Rear Roller
Adjustment Bolts

Reset/Off

Circuit Breaker

Cushioned Walking Platform

for maximum exercise comfort

RIGHT SIDE

5

ASSEMBLY

1” Tek Screw (83)–4

Star Washer (8)–8

Console Bolt (64)–4

Extension Leg Nut (67)–4

L

Extension Leg Bolt (65)–4

o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.

T

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor­mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.

Assembly requires the included allen wrench and your own phillips screwdriver (with
a shaft at least 6” long) and wire cutters .

Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled.

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip the
treadmill onto its left side as shown. Partially fold the
Frame (58) so the treadmill is more stable. Do not fully

fold the treadmill until it is completely assembled.

Attach four Base Pads (82) (only two are shown) to the
base of the Uprights (84) with four 1” Tek Screws (83).

Insert an Extension Leg (89) into the base of the Uprights
(84) as shown. Hold two Extension Leg Nuts (67) in the
bottom of the Extension Leg. Next, insert two Extension
Leg Bolts (65) with Star Washers (8) into the top of the
Extension Leg, and firmly tighten the Extension Leg Bolts
into the Extension Leg Nuts.

With the help of a second person, carefully tip the tread­mill onto its other side. Attach the other Extension Leg
(not shown) as described above.

1

65

89

58

8

82

84

82

83

67

6

3. Insert the Wire Harnesses (77, 78) down into the right
Upright (84).

Set the console assembly on the Uprights (84). Be care-

ful to avoid pinching the Wire Harnesses (77, 78).

Whilst a second person holds the console assembly, at­tach it with four Console Bolts (64) and four Star Washers
(8) as shown; start all four Console Bolts and then

firmly tighten them.

4.

Press the Latch Housing (73) into the left Upright (84).
Tap the Latch Housing with a rubber mallet if necessary.

Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. (Note: If there are two col­lars, place one on each side of the spring.) Next, insert
the pin into the Latch Housing (73). Then, tighten the
knob back onto the pin.

4

Knob

Spring

Collar

73

Pin

7

. Place the treadmill in the storage position (see HOW TO

5

FOLD AND MOVE THE TREADMILL on page 20).

Next, place the cylinder end of the Shock (92) near the

racket on the base of the Uprights (84).

b

See the two small inset drawings. Using your fingernail
or the end of a screwdriver, press on the end of the
Shock Pin (25) to loosen it from the Shock (92). Next, ro­tate the Shock Pin and pull it out of the Shock.

ful to avoid losing the Shock Pin.

See drawing 5a. Press the cylinder end of the Shock (92)
onto the ball on the bracket. Next, insert the end of the
Shock Pin (25) through two of the small holes in the end
of the Shock. Then, rotate the Shock Pin until it clips onto
the Shock.

Be care-

7. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread­mill. Note: Extra hardware may be included. Keep the included allen wrench in a secure place; the large allen
wrench is used to adjust the walking belt (see page 23).

8

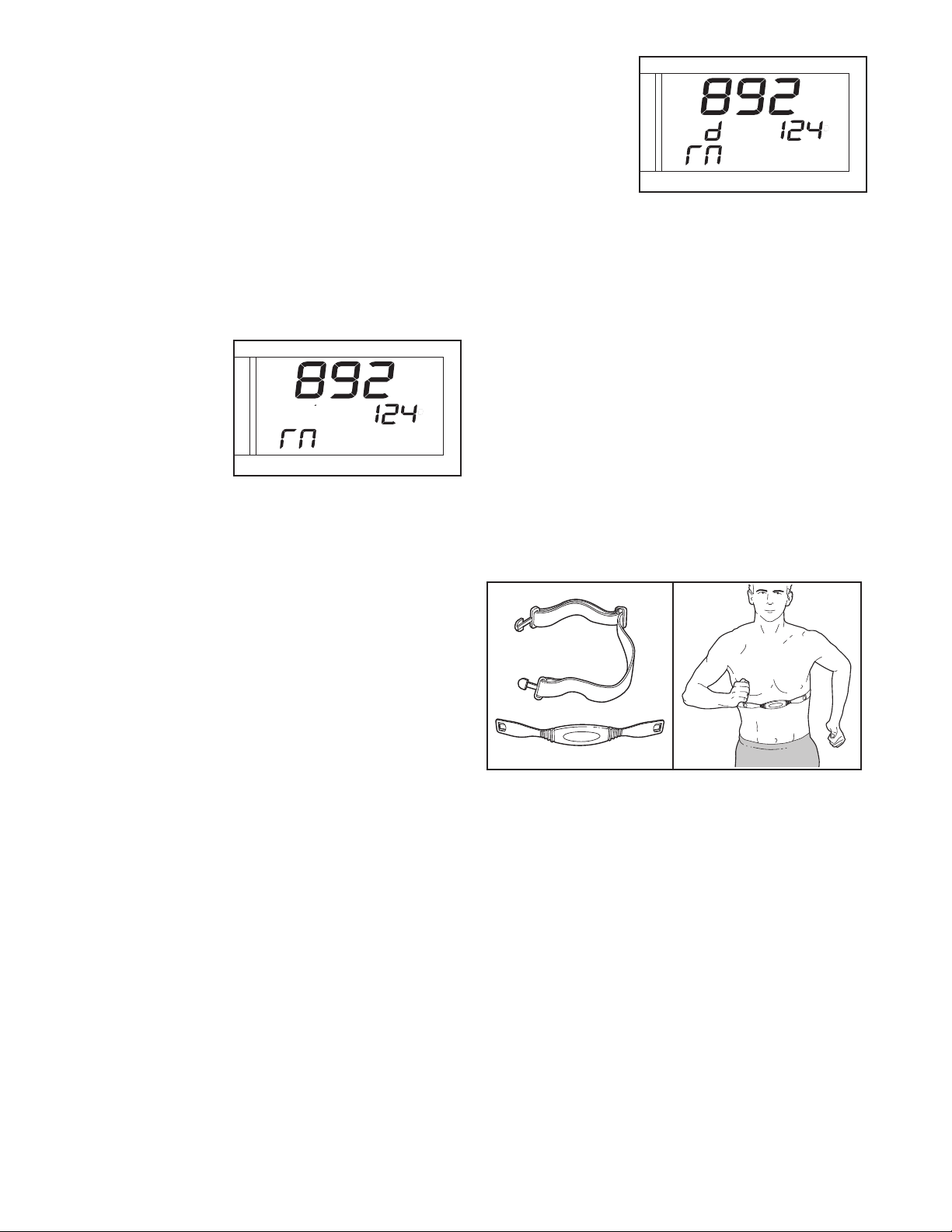

If you purchase the optional chest pulse sensor, follow the steps below to install the receiver included
with the chest pulse sensor.

1. Make sure that the key is removed from the con­ole and that the power cord is unplugged.

s

Remove the indicated Screw (3) and the Access
Door (76) from the back of the Console Base (85).

2. Connect the wire on the receiver (A) to the indicated

wire extending from the Console Base (85). Hold

the receiver so the small cylinder is oriented as
shown and is facing the Console Back.

the receiver to the plastic posts on the Access Door
(76) with the two included small screws.

Make sure that no wires are pinched. Reattach

3.

the Access Door (76) with the Screw (3). Discard
the other wires included with the receiver.

Attach

85

76

3

Wire

Small

Screws

A

Small

Cylinder

9
