ProForm PFTL721041 User Manual

Model No. PFTL72104.1
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
erial No.
S
Serial Number Decal
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY.
USER'S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB: www.proformservice.com
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
PART LIST
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

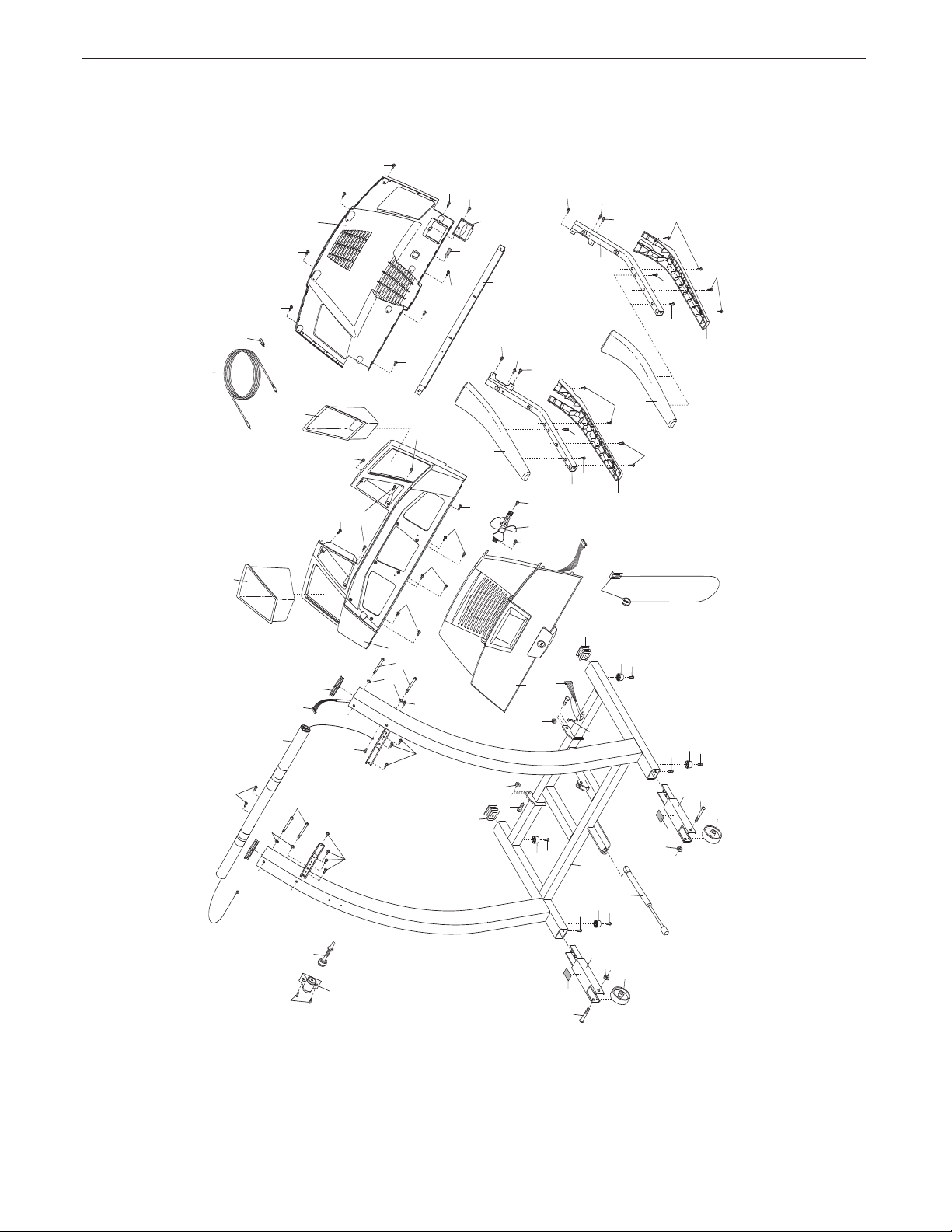

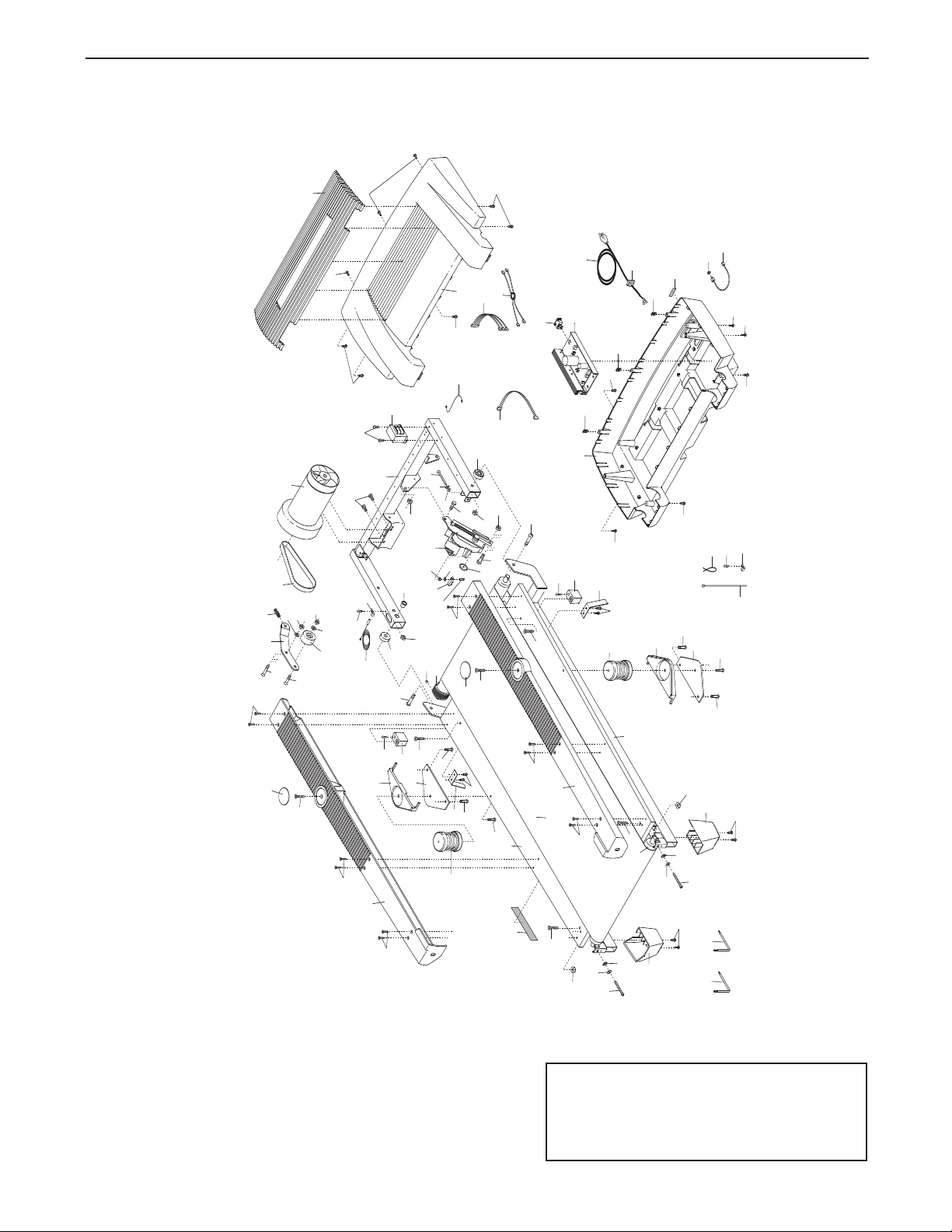

Note: An EXPLODED DRAWING is attached in the center of this manual.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
Keep the treadmill indoors, away from mois-
4. ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should be used only by persons weighing 300 pounds or less.
8. Never allow more than one person on the treadmill at a time.
9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women.
shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
When connecting the power cord (see page 9),
10. plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. To purchase a surge suppressor, see your local PROFORM dealer or call the toll­free telephone number on the front cover of this manual see your local electronics store.
12. Failure to use a properly functioning surge
and order part number 146148, or
o reduce the risk of burns, fire, electric shock, or injury to persons, read the
suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres­sor away from heated surfaces.
14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See TROU­BLESHOOTING on page 26 if the treadmill is not working properly.)
15. Read, understand, and test the emergency stop procedure before using the treadmill (see OPERATION AND ADJUSTMENT on page 9).
16. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
17. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
18. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and switch the reset/off cir­cuit breaker to the off position when the treadmill is not in use. (See the drawing on
Always wear athletic
page 5 for the location of the circuit breaker.)
19. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 24.) You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
20. When folding or moving the treadmill, make sure that the storage latch is fully closed.
21. When using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or in­cline changes. In some instances, the speed and/or incline may change before the per­sonal trainer describes the change.
3
22. When using iFIT.com CDs and videos, you can anually override the speed and incline set-
m tings at any time by pressing the speed and in­cline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.
23. Always remove iFIT.com CDs and videos from
your CD player or VCR when you are not using them.
26. DANGER: Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the mainte­nance and adjustment procedures described in this manual. Never remove the motor hood un­less instructed to do so by an authorized ser-
ice representative. Servicing other than the
v procedures in this manual should be performed by an authorized service representative only.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. Never insert any object into any opening.
27. This treadmill is intended for in-home use only. Do not use this treadmill in a commer­cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on the treadmill. If a decal is missing, or if it is not legible, call our Customer Service Department, toll-free, and order a free replacement decal (see the front cover of this manual). Apply the decal in the location shown.
4
BEFORE YOU BEGIN
hank you for selecting the revolutionary PROFORM
T
40 treadmill. The 840 treadmill offers an impressive
8 array of features designed to make your workouts at home more enjoyable and effective. And when you’re not exercising, the unique 840 treadmill can be folded up, requiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before you use the treadmill. If you have questions after
reading this manual, please see the front cover of this manual. To help us assist you, note the product model
Fan
Console
Handrail
Storage Latch
Upright
®
umber and serial number before contacting us. The
n
odel number of the treadmill is PFTL72104.1. The
m serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the lo­cation).
To avoid a registration fee for any service needed under warranty, you must register the treadmill at www.proformservice.com/registration.
Before reading further, please review the drawing below and familiarize yourself with the labeled parts.
Accessory Tray
Key/Clip
Walking Belt
Foot Rail
BACK
Rear Roller Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
RIGHT SIDE
Cushioned Walking Platform
for maximum exercise comfort
5
ASSEMBLY
Wheel Nut (13)–2
Internal Star
Washer (77)–4
( )
( )
1” Tek Screw (80)–6
Extension Leg Bolt (96)–4
Upright Bolt (76)–4
Extension Leg Bolt (96)–4
o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor­mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver and wire cutters .
Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the parts bag, check to see if it has been preattached to one of the parts to be assembled.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully raise the Uprights (97) to the position shown. Insert one of the Extension Legs (92) into the base of the Uprights. (Note: It may be helpful to tip the Uprights forward as you insert the Extension Leg.) Make sure that the Caution Decal (91) is in the indicated location.
Insert the other Extension Leg (not shown) in the same way.
1
97
91
6
92
2. With the help of a second person, carefully tip the Uprights (97) down as shown. (Note: It may be helpful to
lace one foot on one of the Extension Legs [92] as you
p tip the Uprights.)
emain in the Uprights.
r
Attach the Extension Legs (92) with four 1” Tek Screws (80) and two Base Pads (99) as shown. Tighten the Tek
Screws without the Base Pads first. Note: The indi­cated center holes are not used.
Make sure that the Extension Legs
2
9
9
80
99
99
8
80
0
Attach the other two Base Pads (99) to the base of the Uprights (97) in the locations shown with two 1” Tek Screws (80).
With the help of a second person, raise the Uprights (97) to the vertical position.
3. Remove the knob from the pin. Make sure that the collar and the spring are on the pin. (Note: If there are two col­lars, place one on each side of the spring.) Insert the pin into the Latch Housing (82), and tighten the knob back onto the pin.
4. See drawing 4c. With the help of a second person, hold the Console Base (101) near the Uprights (97). Look under the Console Base and locate the wires on the sides of the Console Base. Make sure that the wires are not routed through the openings for the Trays (109,
111). Drawing 4a shows the correct route for the wires; drawing 4b shows an incorrect route.
See drawing 4c. Locate the Wire Harness (74) and the pulse wire in the Uprights (97). Cut the plastic ties secur­ing the Wire Harness and the pulse wire.
97
Not
Used
3
4a
4c
Knob
Correct
99
92
82
111
80
Spring
97
4b
109
Not
Used
92
Collar
Incorrect
80
Pin
Connect the Wire Harness (74) and the pulse wire to the connectors on the sides of the Console Base (101).
Make sure to connect the connectors properly (see the inset drawings). The connectors should slide to­gether easily and snap into place. If the connectors do
not slide together easily and snap into place, turn a con­nector and try again to insert it. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE CONSOLE MAY BE DAMAGED WHEN THE POWER IS TURNED
Insert the excess Wire Harness and pulse wire up
ON.
into the Console Base.
7
74
74
97
101
97
Pulse
Wire
5. Set the Console Base (101) on the Uprights (97). Thread
four Upright Bolts (76) with four Internal Star Washers (77) into the Uprights and the Console Base. Be careful
not to pinch the Wires (not shown) in the Uprights.
ighten the two Upright Bolts indicated by the arrows
T first; then, tighten the other two Upright Bolts.
Make sure that the Left and Right Trays (109, 111) are pressed into the Console Base (101).
5
11
1
77
109
01
1
97
77
76
6. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included allen wrenches in a secure place; the large allen wrench is used to adjust the walking belt (see page 27). To protect the floor or carpet, place a mat under the treadmill. If there are thin sheets of clear plastic on the decals, remove them.
If you purchase the optional chest pulse sensor (see page 23), follow the steps below to install the receiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged. Remove
the indicated Screw (108) and the Access Door (31).
2. Remove the paper from the adhesive pad on the back of
the receiver (A). Hold the receiver so the small cylin-
der is near the lower edge of the receiver and is fac­ing the Console (107) as shown. Firmly press the re-
ceiver onto the indicated corner of the Access Door (31). Connect the wire on the receiver to the indicated wire ex­tending from the Console.
97
107
31
76
Wire
A
Wire
Cylinder
77
3. Make sure that no wires are pinched. Reattach the
Access Door (31) with the Screw (108). Discard the wires included with the chest pulse sensor.
108
8
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with high­performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call the toll-free telephone number on the front cover of this man­ual and order part number 146148, or see your local electronics store.
ric shock. This product is equipped with a cord having
t an equipment-grounding conductor and a grounding plug.
Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a moni­toring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate or stop unexpect­edly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec-
If it should malfunc-
Lug
Metal Screw
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw.
covers are not grounded. Contact a qualified elec trician to determine if the outlet box cover is grounded before using an adapter.
Some 2-pole receptacle outlet box
9
-
CONSOLE DIAGRAM
Note: If there is a thin sheet of plastic on the face of the console, remove it.
Key
Clip
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of features designed to help you get the most from your workouts.
When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the built-in handgrip pulse sensor or the optional chest pulse sensor (see page 23).
In addition, the console features six preset programs. Each program automatically controls the speed and in­cline of the treadmill as it guides you through an effec­tive workout. You can even create your own custom programs and store them in memory for future use.
Two pulse programs are also offered. Each program au tomatically adjusts the speed and incline of the treadmill to keep your heart rate near a target heart rate while you exercise. Note: The pulse programs require the use of the optional chest pulse sensor.
The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per­sonal trainer in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation.
chase iFIT.com CDs or videocassettes, call the toll­free telephone number on the front cover of this manual.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess programs directly from the internet. See
www.iFIT.com for more information.
-
To use the manual mode of the console, follow the steps beginning on page 11. To use a preset program, see page 13. To use a pulse program, see page 14. pages 16 and 17. To use an iFIT.com CD or video
program, see page 20. To use an iFIT.com program directly from our Web site, see page 22.
To create and use a custom program, see
To pur-
10
HOW TO TURN ON THE POWER
ote: To prevent damage to the walking platform,
N always wear clean shoes when using the treadmill.
Plug in the power cord (see page 9). Next, locate the reset/off circuit breaker near the power cord. Make sure that the circuit breaker is in the reset po­sition.
Stand on the foot rails of the treadmill. Find the clip at­tached to the key (see the drawing on page 10) and slide the clip onto the waistband of your clothes. Next, insert the key into the console. After a moment, the display will light.
tion, the key can be pulled from the console, caus­ing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.
Important: In an emergency situa-
Reset
Position
mph. As you exercise, change the speed of the
alking belt as desired
w by pressing the Speed +
nd – buttons. Each
a time a button is pressed, the speed setting will change by 0.1 mph; if a but­ton is held down, the speed setting will change in increments of 0.5 mph. Note: After the buttons are pressed, it may take a moment for the walking belt to reach the selected speed setting.
If one of the Quick Speed buttons is pressed, the walking belt will gradually increase in speed until it reaches the selected speed setting.
To stop the walking belt, press the Stop button. The time will begin to flash in the display. To restart the walking belt, press the Start button, the Speed + button, or one of the Quick Speed buttons.
Note: The first time the treadmill is used, observe the alignment of the walking belt, and align the walking belt if necessary (see page 27).
HOW TO USE THE MANUAL MODE
Insert the key into the console.
1
See HOW TO TURN ON THE POWER above.
Select the manual mode.
2
When the key is in­serted, the manual mode will be selected. If a program has been selected, reselect the manual mode by pressing the Program Select button repeatedly until a track appears in the lower part of the dis play. Make sure that the letters “iFIT” do not ap pear in the display.
the walking belt.
Start
Track
3
To start the walking belt, press the Start button, the Speed + button, or one of the ten Quick Speed buttons.
Change the incline of the treadmill as desired.
4
To change the incline of the treadmill, press the Incline increase and de­crease buttons. Each time a button is pressed, the incline will change by
0.5%. To change the incline quickly, press one of the Quick Incline buttons. Note: After the buttons are pressed, it may take a moment for the tread­mill to reach the selected incline setting.
Follow your progress with the display.
5
When the manual mode or the
-
-
iFIT.com mode is se­lected, the lower part of the display will show a track that represents 1/4
As you walk or run on the treadmill, the indi-
mile. cators around the track will appear in succession until the entire track appears. The track will then disappear and the indicators will again begin to ap­pear in succession.
Track
If the Start button or the Speed + button is pressed, the walking belt will begin to move at 1
1
1
Loading...
+ 23 hidden pages
