ProForm PFTL721040 User Manual

Page 1
Model No. PFTL721040
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Serial No.
Serial Number Decal
QUESTIONS?
If you have questions, or if there are missing or damaged parts, we will guarantee complete sat­isfaction through direct assis­tance from our factory.
TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL­FREE CUSTOMER HOT LINE. The trained technicians on our Customer Hot Line will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
PART LIST
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

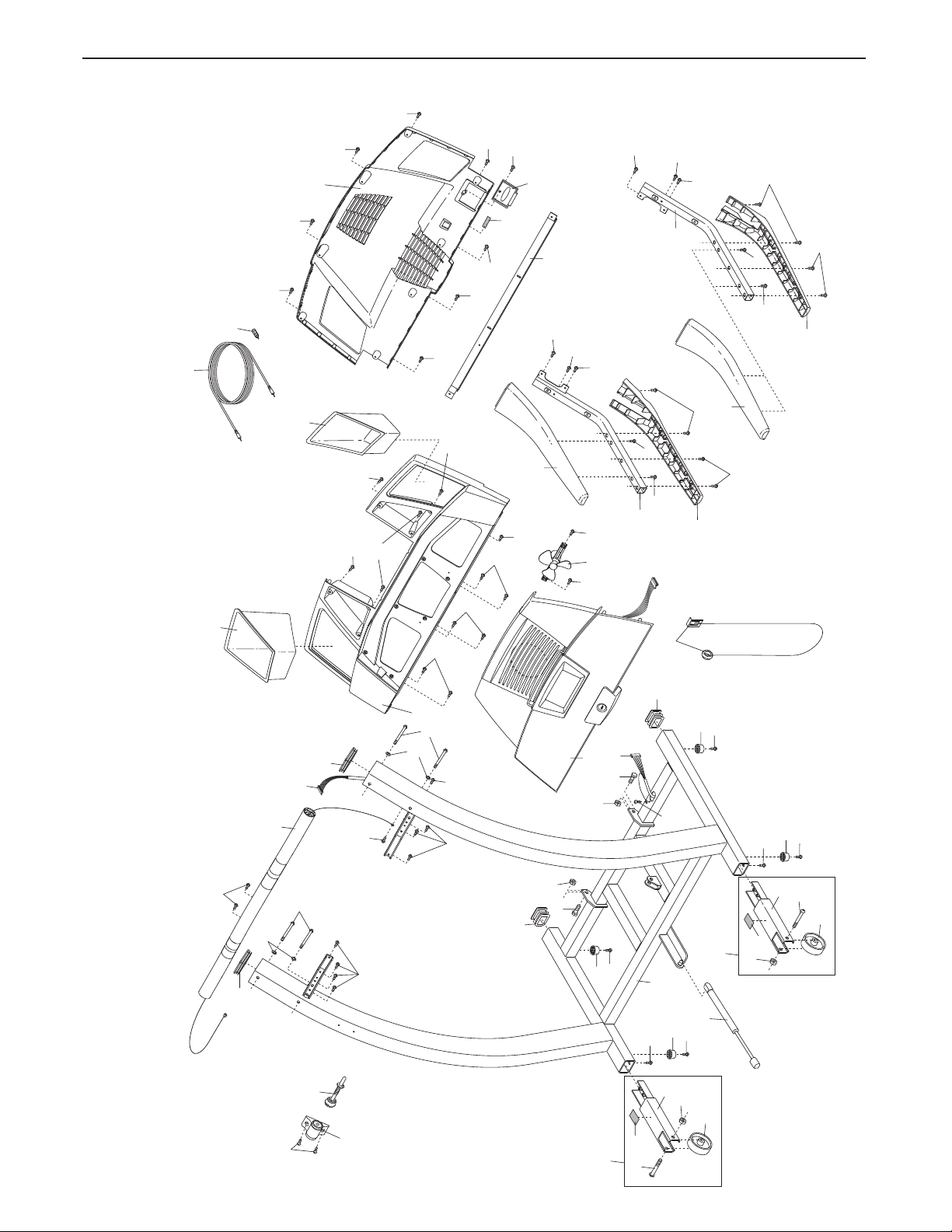

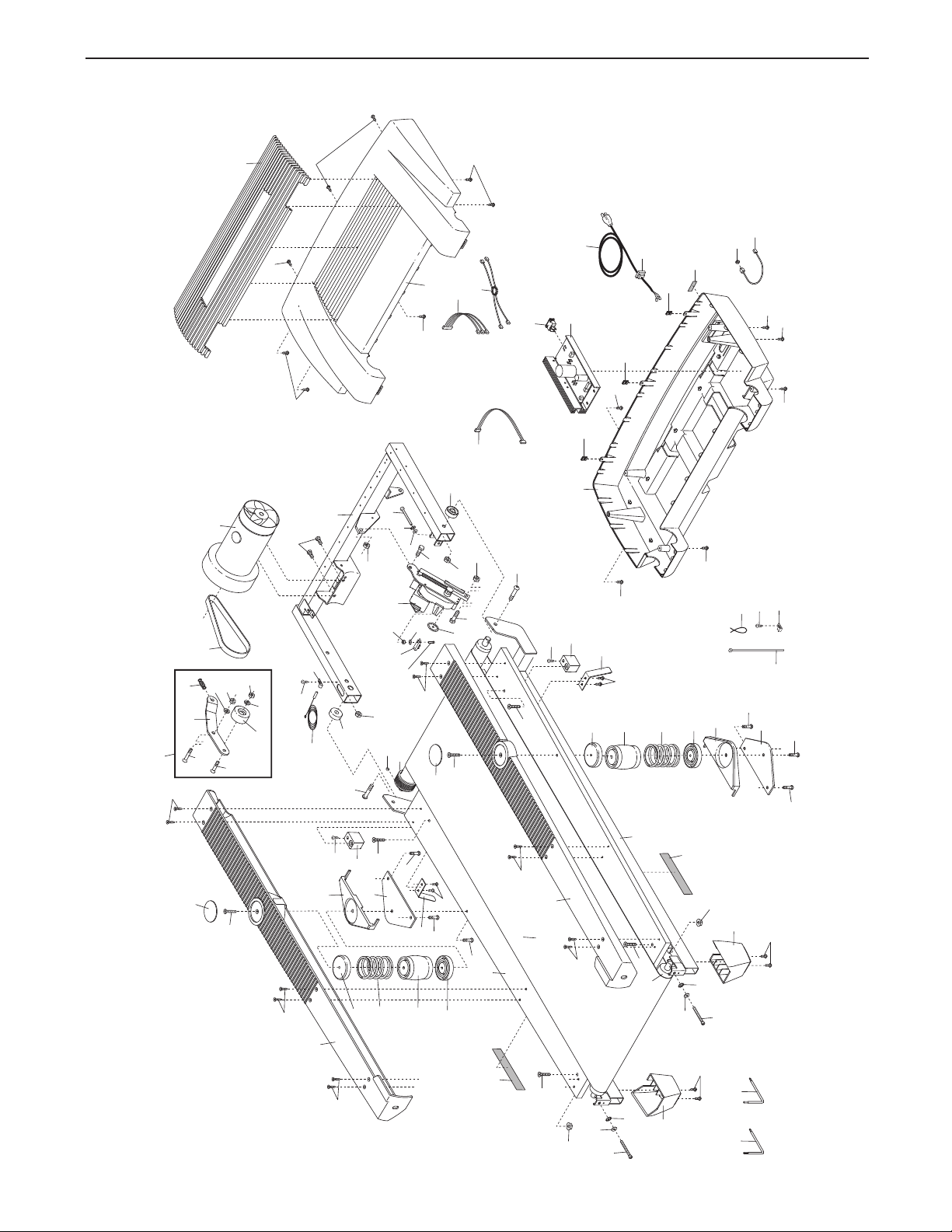

Note: An EXPLODED DRAWING is attached in the center of this manual.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
PROFORM is a registered trademark of ICON IP, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should be used only by persons weighing 300 pounds or less.
8. Never allow more than one person on the treadmill at a time.
Wear appropriate exercise clothes when
9. using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women.
shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
10. When connecting the power cord (see page 9), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. To purchase a surge suppressor, see your local PROFORM dealer or call 1-888-533-
and order part number 146148.
1333
Always wear athletic
12. Failure to use a properly functioning surge suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres­sor away from heated surfaces.
14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See TROU­BLESHOOTING on page 26 if the treadmill is not working properly.)
15. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
17. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and switch the reset/off cir­cuit breaker to the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the circuit breaker.)
18. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 24.) You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
19. When folding or moving the treadmill, make sure that the storage latch is fully closed.
20. When using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or in cline changes. In some instances, the speed and/or incline may change before the per­sonal trainer describes the change.
-
3
Page 4
21. When using iFIT.com CDs and videos, you can manually override the speed and incline set tings at any time by pressing the speed and in­cline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.
22. Always remove iFIT.com CDs and videos from your CD player or VCR when you are not using them.
-
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the mainte­nance and adjustment procedures described in this manual. Never remove the motor hood un­less instructed to do so by an authorized ser­vice representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
23. Inspect and properly tighten all parts of the treadmill regularly.
24. Never insert any object into any opening.
26. This treadmill is intended for in-home use only. Do not use this treadmill in a commer­cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on your treadmill. If a decal is missing, or if it is not legible, please call our Customer Service Department, toll-free, and order a free re­placement decal (see the front cover of this manual). Apply the decal in the location shown.
4
Page 5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary 840 treadmill. The 840 treadmill offers an impressive array of features designed to make your workouts at home more enjoyable and effective. And when you’re not exercising, the unique 840 treadmill can be folded up, requiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before using the treadmill. If you have questions after read-
ing this manual, please call our Customer Service
Fan
Console
Handrail
Storage Latch
Upright
PROFORM
®
Department toll-free at 1-888-533-1333, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (ex cluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is PFTL721040. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please review the drawing below and familiarize yourself with the labeled parts.
Accessory Tray
-
Key/Clip
Walking Belt
Foot Rail
BACK
Rear Roller Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
RIGHT SIDE
Cushioned Walking Platform
for maximum exercise comfort
5
Page 6
ASSEMBLY
Internal Star
Washer (77)–4
1” Tek Screw (80)–6
Upright Bolt (76)–4
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor­mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver and wire cutters .
Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the parts bag, check to see if it has been preattached to one of the parts to be assembled.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully raise the Uprights (97) to the position shown. Insert one of the Extension Legs (92) into the base of the Uprights. (Note: It may be helpful to tip the Uprights forward as you insert the Extension Leg.) Make sure that the Caution Decal (91) is in the indicated location.
Insert the other Extension Leg (not shown) in the same way.
1
97
91
92
6
Page 7
2. With the help of a second person, carefully tip the Uprights (97) down as shown. (Note: It may be helpful to place one foot on one of the Extension Legs [92] as you tip the Uprights.)
remain in the Uprights.
Attach the Extension Legs (92) with four 1” Tek Screws (80) and two Base Pads (99) as shown. Tighten the Tek
Screws without the Base Pads first. Note: The indi­cated center holes are not used.
Make sure that the Extension Legs
2
99
80
99
80
99
80
Attach the other two Base Pads (99) to the base of the Uprights (97) in the locations shown with two 1” Tek Screws (80).
With the help of a second person, raise the Uprights (97) to the vertical position.
3. Remove the knob from the pin. Make sure that the collar and the spring are on the pin. (Note: If there are two col­lars, place one on each side of the spring.) Insert the pin into the Latch Housing (82), and tighten the knob back onto the pin.
4. See drawing 4c. With the help of a second person, hold the Console Base (101) near the Uprights (97). Look under the Console Base and locate the wires on the sides of the Console Base. Make sure that the wires are not routed through the openings for the Trays (109,
111). Drawing 4a shows the correct route for the wires; drawing 4b shows an incorrect route.
See drawing 4c. Locate the Wire Harness (74) and the pulse wire in the Uprights (97). Cut the plastic ties secur­ing the Wire Harness and the pulse wire.
97
Not
Used
3
4a
4c
Knob
Correct
99
92
82
111
80
Spring
97
4b
109
Not
Used
92
Collar
Incorrect
80
Pin
Connect the Wire Harness (74) and the pulse wire to the connectors on the sides of the Console Base (101).
Make sure to connect the connectors properly (see the inset drawings). The connectors should slide to­gether easily and snap into place. If the connectors do
not slide together easily and snap into place, turn a con­nector and try again to insert it. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE CONSOLE MAY BE DAMAGED WHEN THE POWER IS TURNED ON. Insert the excess Wire Harness and pulse wire up
into the Console Base.
7
74
97
101
74
97
Pulse
Wire
Page 8
5. Set the Console Base (101) on the Uprights (97). Thread
four Upright Bolts (76) with four Internal Star Washers (77) into the Uprights and the Console Base. Be careful
not to pinch the Wires (not shown) in the Uprights.
Tighten the two Upright Bolts indicated by the arrows first; then, tighten the other two Upright Bolts.
Make sure that the Left and Right Trays (109, 111) are pressed into the Console Base (101).
5
111
77
109
101
97
77
76
6. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the walking belt (see page 27). To protect the floor or carpet, place a mat under the treadmill. If there are thin sheets of clear plastic on the decals, remove them.
If you purchase the optional chest pulse sensor (see page 23), follow the steps below to install the receiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged. Remove
the indicated Screw (108) and the Access Door (31).
2. Remove the paper from the adhesive pad on the back of
the receiver (A). Hold the receiver so the small cylin-
der is near the lower edge of the receiver and is fac­ing the Console (107) as shown. Firmly press the re-
ceiver onto the indicated corner of the Access Door (31). Connect the wire on the receiver to the indicated wire ex­tending from the Console.
97
107
31
76
Wire
A
Wire
Cylinder
77
3. Make sure that no wires are pinched. Reattach the
Access Door (31) with the Screw (108). Discard the wires included with the chest pulse sensor.
108
8
Page 9
OPERATION AND ADJUSTMENT
PRE-LUBRICATED WALKING BELT
THE
Your treadmill features a walking belt coated with high­performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call 1-888-533-1333 and order part number 146148.
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a moni toring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate, or stop unexpect­edly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec­tric shock. This product is equipped with a cord having
If it should malfunc-
-
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Lug
Metal Screw
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec trician to determine if the outlet box cover is grounded before using an adapter.
Grounding Plug
Surge Suppressor
-
9
Page 10
CONSOLE DIAGRAM
Note: If there is a thin sheet of plastic on the face of the console, remove it.
Key
Clip
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of features designed to help you get the most from your workouts.
When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the built-in handgrip pulse sensor or the optional chest pulse sensor (see page 23).
In addition, the console features six preset programs. Each program automatically controls the speed and in­cline of the treadmill as it guides you through an effec­tive workout. You can even create your own custom programs and store them in memory for future use.
Two pulse programs are also offered. Each program au tomatically adjusts the speed and incline of the treadmill to keep your heart rate near a target heart rate while you exercise. Note: The pulse programs require the use of the optional chest pulse sensor.
The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per­sonal trainer in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation. To
purchase iFIT.com CDs or videocassettes, call toll­free 1-888-533-1333.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess programs directly from the internet. See
www.iFIT.com for more information.
To use the manual mode of the console, follow the
-
steps beginning on page 11. To use a preset program, see page 13. To use a pulse program, see page 14. To create and use a custom program, see pages 16 and 17. To use an iFIT.com CD or video
program, see page 20. To use an iFIT.com directly from our Web site, see page 22.
program
10
Page 11
HOW TO TURN ON THE POWER
Plug in the power cord (see page 9).
1
Locate the reset/off
2
circuit breaker near the power cord. Make sure that the circuit breaker is in the reset position.
On
Position
mph. As you exercise, change the speed of the walking belt as desired by pressing the Speed + and – b time a button is pressed, the speed setting will change by 0.1 mph; if a but­ton is held down, the speed setting will change in increments of 0.5 mph. Note: After the buttons are pressed, it may take a moment for the walking belt to reach the selected speed setting.
uttons. Each
Stand on the foot rails of the treadmill. Find the clip
3
attached to the key (see the drawing on page 10) and slide the clip onto the waistband of your clothes. Next, insert the key into the console. After a moment, the display will light. Test the clip by
carefully taking a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip as needed.
HOW TO USE THE MANUAL MODE
Insert the key into the console.
1
See HOW TO TURN ON THE POWER above.
Select the manual mode.
2
When the key is in­serted, the manual mode will be selected. If a program has been selected, reselect the manual mode by pressing the Program Select button repeatedly until a track appears in the lower part of the dis play. Make sure that the letters “iFIT” do not ap­pear in the display.
Start the walking belt.
Track
3
To start the walking belt, press the Start button, the Speed + button, or one of the ten Quick Speed buttons.
If the Start button or the Speed + button is pressed, the walking belt will begin to move at 1
If one of the Quick Speed buttons is pressed, the walking belt will gradually increase in speed until it reaches the selected speed setting.
To stop the walking belt, press the Stop button. The time will begin to flash in the display. To restart the walking belt, press the Start button, the Speed + button, or one of the Quick Speed buttons.
Note: The first time the treadmill is used, observe the alignment of the walking belt, and align the walking belt if necessary (see page 27).
Change the incline of the treadmill as desired.
4
To change the incline of the treadmill, press the Incline increase and de­crease buttons. Each time a button is pressed, the incline will change by
0.5%. To change the incline quickly, press one of the Quick Incline buttons. Note: After the buttons are pressed, it may take a moment for the tread­mill to reach the selected incline setting.

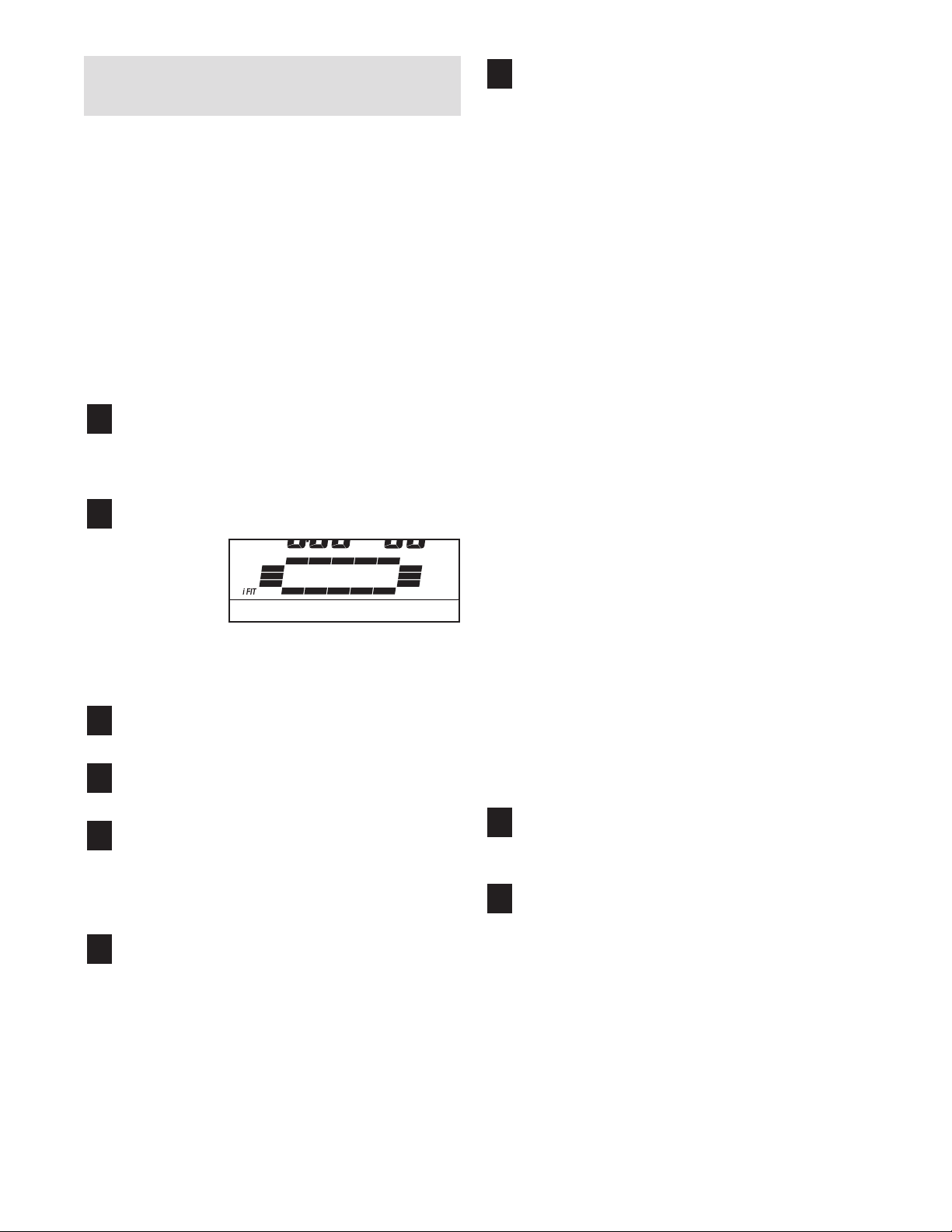

Follow your progress with the display.
5
When the manual
-
mode or the iFIT.com mode is se­lected, the lower part of the display will show a track that represents 1/4
As you walk or run on the treadmill, the indi-
mile. cators around the track will appear in succession until the entire track appears. The track will then disappear and the indicators will again begin to ap­pear in succession.
Track
1
1
Page 12
The left side of the dis­play will show the incline level of the treadmill, the elapsed time, the ap­proximate number of grams of carbs you have burned, and the distance that you have walked or run. Note: Each time the incline changes, the dis­play will show the incline setting for a few sec­onds. When a program is selected, the display will show the time remaining in the program instead of the elapsed time.
The right side of the display will show the speed of the walking belt, the approximate number of calories you have burned, and your pace (in minutes per mile). The display will also show your heart rate when you use the handgrip pulse sensor or the optional chest pulse sensor.
Note: The console can display speed and dis­tance in either miles or kilometres. The word “Metric” will appear in the display when speed and distance are shown in kilometres. To change the unit of measurement, first hold down the Stop button while inserting the key into the console. An “E” for English miles or an “M” for metric kilometres will appear in the right side of the display. Press the Speed + button to change the unit of measure­ment. When the desired unit of measurement is selected, remove the key and then reinsert it.
Note: For simplicity, all instructions in this sec­tion refer to miles.
To reset the display, press the Stop button, re move the key, and then reinsert the key.
Measure your heart rate if desired.
6
Note: If you use the handgrip pulse sensor and the optional chest pulse sensor at the same time, the console will not display your heart rate accu
rately. Before using the hand­grip pulse sen sor, make sure that your hands are clean. If there are sheets of clear plastic on the metal con­tacts on the handgrip pulse sensor, peel off the plastic.
To measure your heart rate, stand on the foot
rails and hold the metal contacts—avoid moving your hands
heart symbol in the right side of the display will ap­pear, one or two dashes will appear, and then your heart rate will be shown. For the most accu-
rate heart rate reading, continue to hold the contacts for about 15 seconds.
Turn on the fan if desired.
-
Contacts
. When your pulse is detected, the
7
To turn on the fan, press the button beside the Program Select button. To turn on the fan at high speed, press the button a second time. To turn off the fan, press the button a third time. Note: A few minutes after the walking belt is stopped, the fan will automatically turn off.
When you are finished exercising, remove the
8
key.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi­tion or the treadmill will be damaged. Next, re-
move the key from the console and put it in a se-
-
-
cure place. Note: If the display remains lit after
the key is removed, the console is in the “demo” mode. See page 23 and turn off the demo mode.
When you are finished using the treadmill, switch
reset/off circuit breaker to the off position and
the unplug the power cord.
12
Page 13
HOW TO USE
Insert the key into the console.
A PRESET PROGRAM
1
See HOW TO TURN ON THE POWER on page
11.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. If the speed and/or in­cline of the treadmill is about to change, the speed setting and/or the incline setting will flash in the display to alert you.

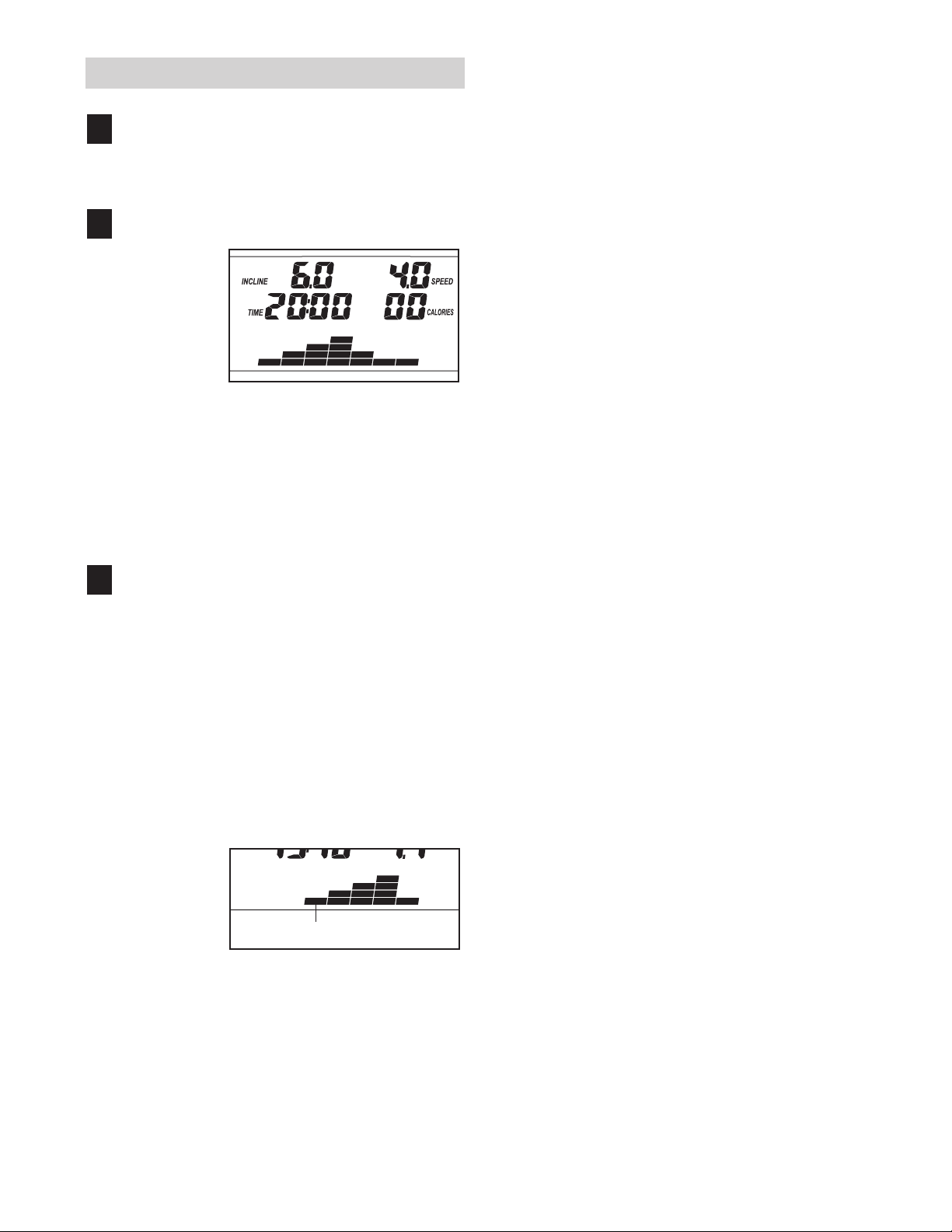

Select one of the preset programs.
2
To select one of the six preset programs, press the Program Select but­ton repeat­edly. As each preset program is selected, the maximum speed setting of the program and the maximum incline setting of the program will flash in the dis play for a few seconds. The display will also show how long the program will last. The matrix in the lower part of the display will show the first seven speed settings of the program.
Press the Start button or the Speed + button to
3
start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
Each program is divided into either 20 or 30 one­minute segments. One speed setting and one in­cline setting are programmed for each Note: The same speed setting and/or incline setting may be programmed for two or more consecutive segments.
The speed setting for the first seg­ment will be shown in the flashing Current Segment column of the matrix. (The incline set­tings are not shown in the matrix.) The speed set­tings for the next four the four columns to the right.
Current Segment
segment
s will be shown in
segment.
When the first segment ends, will move one column to the left. The speed set­ting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the speed and incline settings for the second segment. Note: If all five of the indicators in the Current Segment col­umn appear, ward so that only the highest indicators appear in the matrix.
The program will continue in this way until the speed setting for the last segment is shown in the
-
Current Segment column and the last segment ends. The walking belt will then slow to a stop.
If the speed or incline setting for the current segment is too high or too low, you can manually override the setting by pressing the Speed or Incline buttons. Every few times a Speed button is pressed, an additional indicator will appear or dis­appear in the Current Segment column; if any of the columns to the right of the Current Segment column have the same number of lit indicators as the Current Segment column, an additional indica­tor may appear or disappear in those columns as well. Important: When the next segment of the
program begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
To stop the program at any time, press the Stop button. The time will begin to flash in the display. To restart the program, press the Start button or the Speed + button. The walking belt will begin to move at 1 mph. When the next segment of the pro­gram begins, the treadmill will automatically adjust to the speed and incline settings for the next seg­ment.
the speed settings may move down-
all speed settings
13
Page 14
Follow your progress with the display.
4
See step 5 on page 11.
HOW TO USE A
PULSE PROGRAM
Measure your heart rate if desired.
5
See step 6 on page 12.
Turn on the fan if desired.
6
See step 7 on page 12.
When you are finished exercising, remove the
7
key from the console.
When the program has ended, make sure that the incline of the treadmill is at the lowest set­ting. Next, remove the key from the console and put it in a safe place.Note: If the display remains lit after the key is removed, the console is in the “demo” mode. See page 23 and turn off the demo mode.
When you are finished using the treadmill, switch the reset/off circuit breaker to the off position and unplug the power cord.
CAUTION: If you have heart prob-
lems, or if you are over 60 years of age and have been inactive, do not use the pulse pro­grams. If you are taking medication regularly, consult your physician to find whether the medication will affect your exercise heart rate.
Follow the steps below to use a pulse program.
Put on the optional chest pulse sensor.
1
You must wear the optional chest pulse sensor (see page 23) to use a pulse program.
Insert the key into the console.
2
See HOW TO TURN ON THE POWER on page
11.
Select a pulse program.
3
To select a pulse pro­gram, press the Program Select button repeatedly. The words “PULSE PROGRAM” will appear in the display, and the display will show which pulse program (“P1” or “P2”) is se­lected. When a pulse program is selected, the ma­trix in the lower part of the display will show the first seven target heart rate settings of the program.
14
Note: During pulse program 1, your heart rate will reach approximately 85% of your estimated maxi- mum heart rate. During pulse program 2, your heart rate will reach approximately 80% of your estimated maximum heart rate. Note: Your maxi­mum heart rate is estimated by subtracting your age from 220. For example, if you are 30 years old, your estimated maximum heart rate is 190 beats per minute (220 – 30 = 190).
Page 15

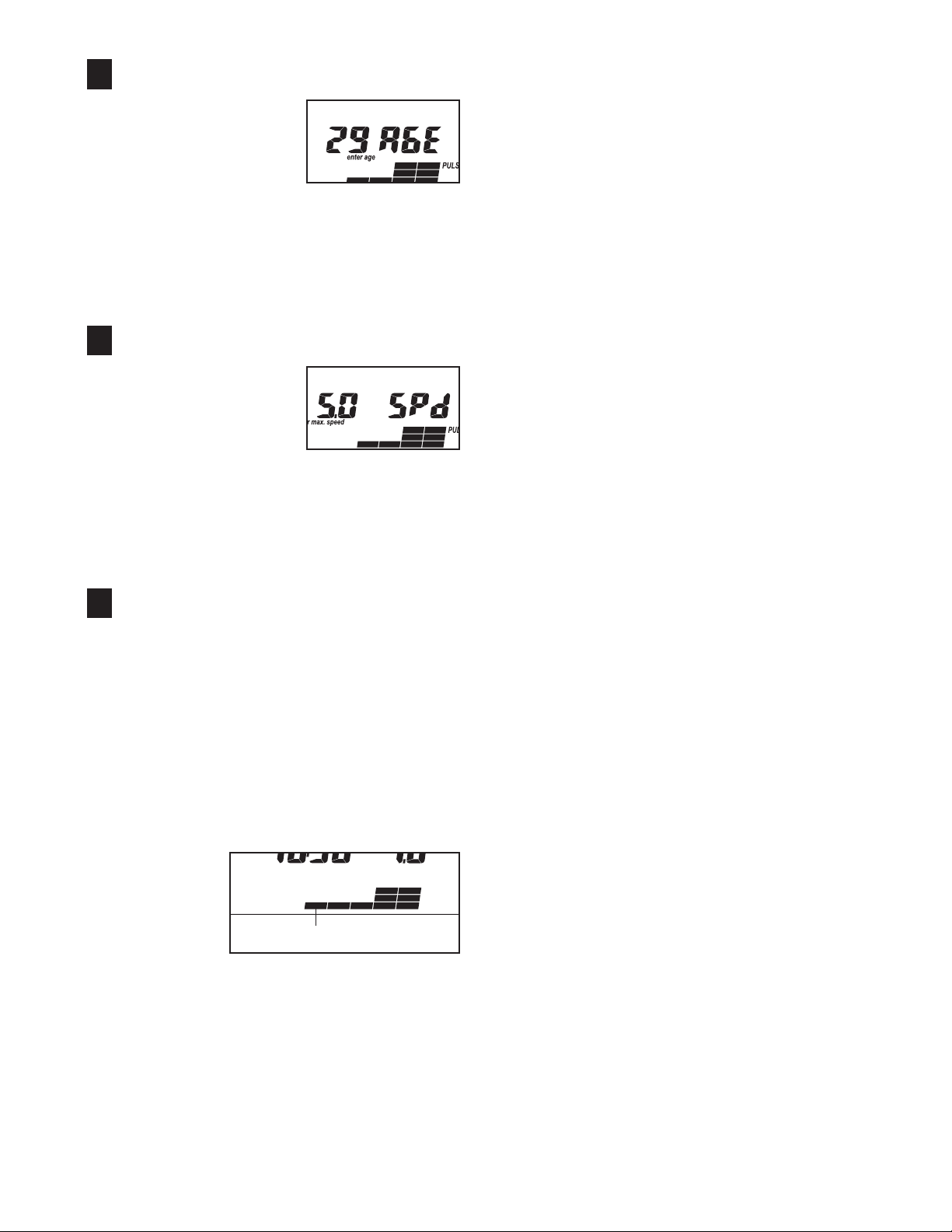

Enter your age.
4

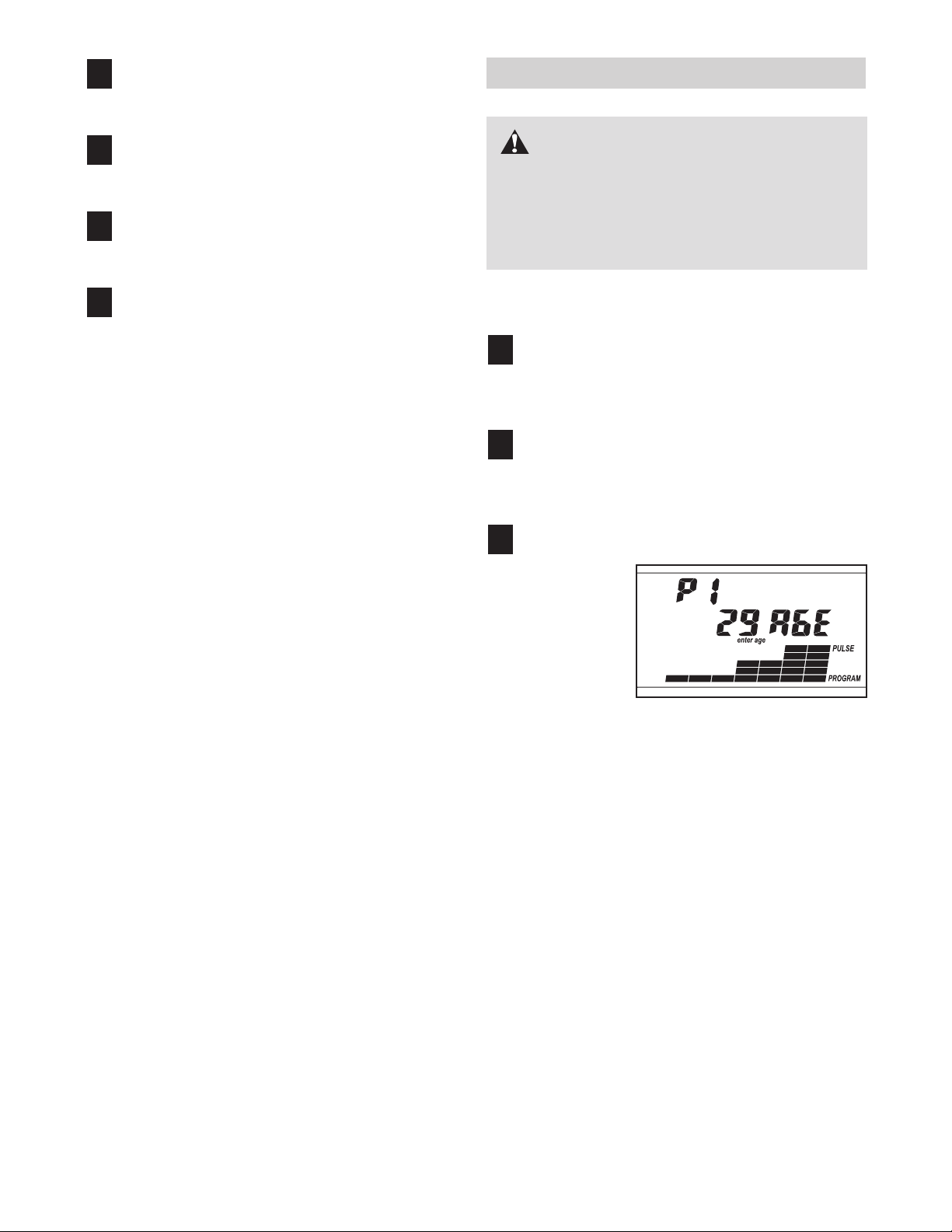

When a pulse program is selected, the word “AGE” will appear in the display and the current age setting will begin to flash. If you have already entered your age, simply press the Start button (the program will not start at this time). If you have not entered your age, press the Incline increase and decrease buttons to enter your age, and then press the Start button.
Enter a maximum speed setting.
5
After you have entered your age, the letters “SPd” will appear in the display and the maxi mum speed setting of the program will begin to flash. If desired, press the Incline increase and decrease buttons to change the maximum speed setting. When the desired setting is shown, press the Start button (the program will not start at this time).
-
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. In addition, the speed setting and the incline setting will flash in the dis play to alert you. When the first segment ends,
target heart rate settings will move one column to the left. The target heart rate setting for the sec-
ond segment will then be shown in the flashing Current Segment column.
During each segment, the console will compare your heart rate to the target heart rate. If your heart rate is too far below or above the target heart rate, the speed of the walking belt will auto­matically increase or decrease to bring your heart rate closer to the target heart rate. If the speed reaches the maximum speed setting of the pro­gram (see step 5 on this page) and your heart rate is still too far below the current target heart rate, the incline of the treadmill will also increase to bring your heart rate closer to the target heart rate.
The program will continue in this way until the tar­get heart rate setting for the last segment is shown in the Current Segment column and the last segment ends. The walking belt will then slow to a stop.
-
all
Press the Start button or the Speed + button to
6
start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
Each pulse program is divided into 20 or 30 one­minute segments. One target heart rate is pro­grammed for each segment. Note: The same tar­get heart rate setting may be programmed for two or more consecutive segments.
The target heart rate setting for the first seg ment will be shown in the flashing Current Segment column of the matrix. heart rate settings for the be shown in the columns to the right.
­Current Segment
The target
next four segments will
If the speed or incline setting is too high or too low at any time during the program, you can adjust the setting with the Speed or Incline buttons. However, each time the console compares your heart rate to the target heart rate, the speed and/or incline of the treadmill may automatically change to bring your heart rate closer to the target heart rate.
If your pulse is not detected during the program, the letters “PLS” will flash in the display and the speed and incline of the treadmill may automati cally decrease included with the optional chest pulse sensor.
To stop the program at any time, press the Stop button. The time will begin to flash in the display. To restart the program, press the Start button or the Speed + button. move at 1 mph. When the console compares your heart rate to the current target heart rate, the speed and/or incline of the treadmill may automati­cally change.
. If this occurs,
The walking belt will begin to
see the instructions
-
15
Page 16
Follow your progress with the display.
7
See step 5 on page 11.
Turn on the fan if desired.
8
See step 7 on page 12.
When you are finished exercising, remove the
9
key from the console.
See step 7 on page 14.
HOW TO CREATE CUSTOM PROGRAMS
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page
11.
Select one of the custom programs.
2
To select ei­ther of the custom pro­grams, press the Program Select but­ton repeat­edly. The word “CUSTOM” will appear in the display.
Note: If the custom program has not yet been defined, only three columns of indicators will appear in the matrix in the lower part of the display. If more than three columns of indica tors appear, see HOW TO USE A CUSTOM PROGRAM on page 17.

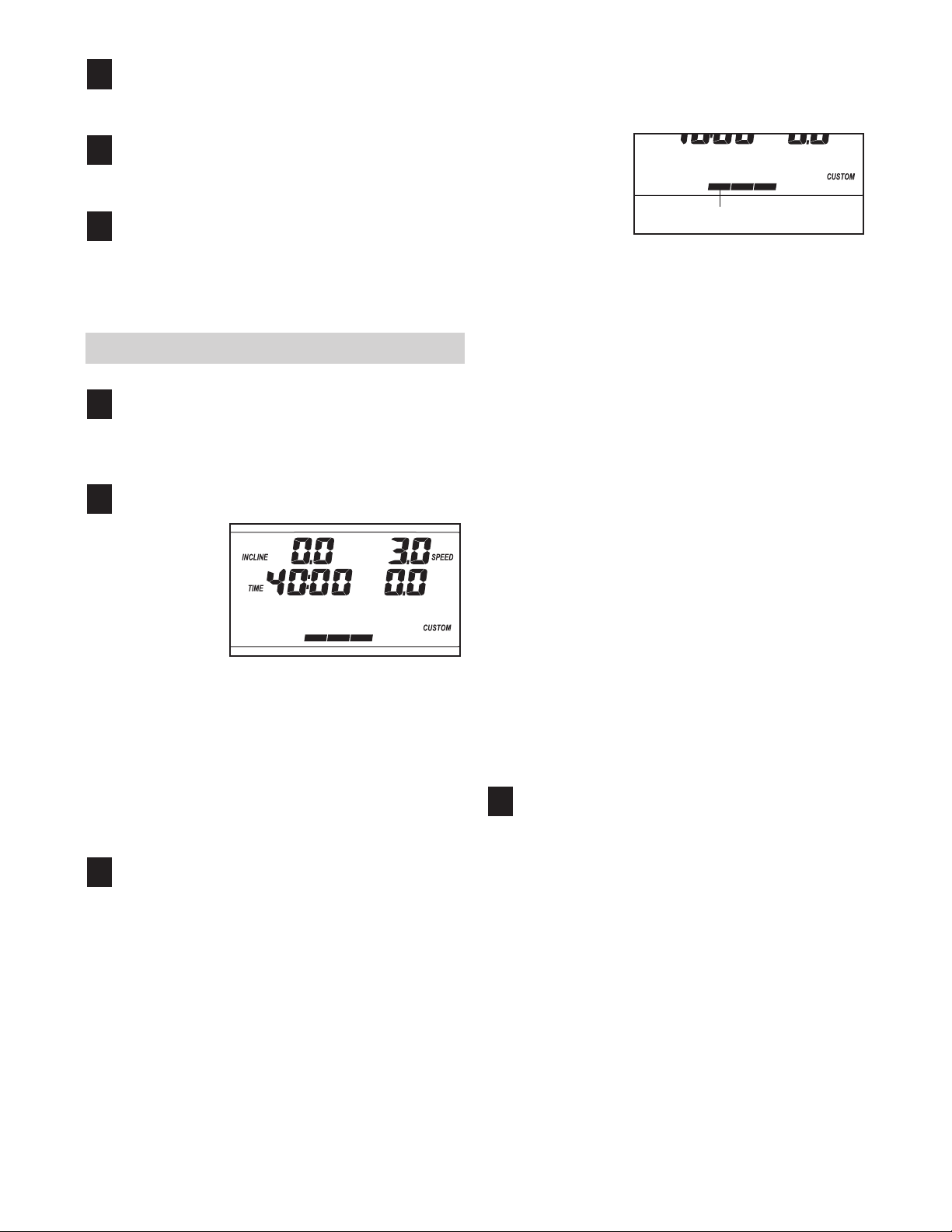

Press the Start button or the Speed + button
3
and program the desired speed and incline settings.
Refer to the matrix. Each custom program is di­vided into one-minute segments. One speed set­ting and one incline setting can be programmed for each seg­ment. The speed set­ting for the first segment will be shown in the flashing Current Segment column of the matrix. (The in­cline settings are not shown in the matrix.) To pro­gram a speed setting and an incline setting for the first segment, simply adjust the speed and incline of the treadmill as desired by pressing the Speed and Incline buttons. Every few times a Speed but­ton is pressed, an additional indicator will appear or disappear in the Current Segment column.
When the first segment of the program ends, a se­ries of tones will sound and the current speed set­ting and the current incline setting will be saved in memory. move one column to the left, and the speed set­ting for the second segment will be shown in the flashing Current Segment column. Program a speed setting and an incline setting for the second segment as described above.
Continue programming speed and incline settings for as many segments as desired; custom pro­grams can have up to forty segments. When you are finished with your workout, press the Stop but­ton twice. The speed and incline settings that you have programmed and the number of segments that you have programmed will then be saved in memory.
-
When you are finished exercising, remove the
4
key from the console.
See step 7 on page 14.
The three columns of indicators will then
Current Segment
A moment after the button is pressed, the walking belt will begin to move. begin walking.
Hold the handrails and
16
Page 17

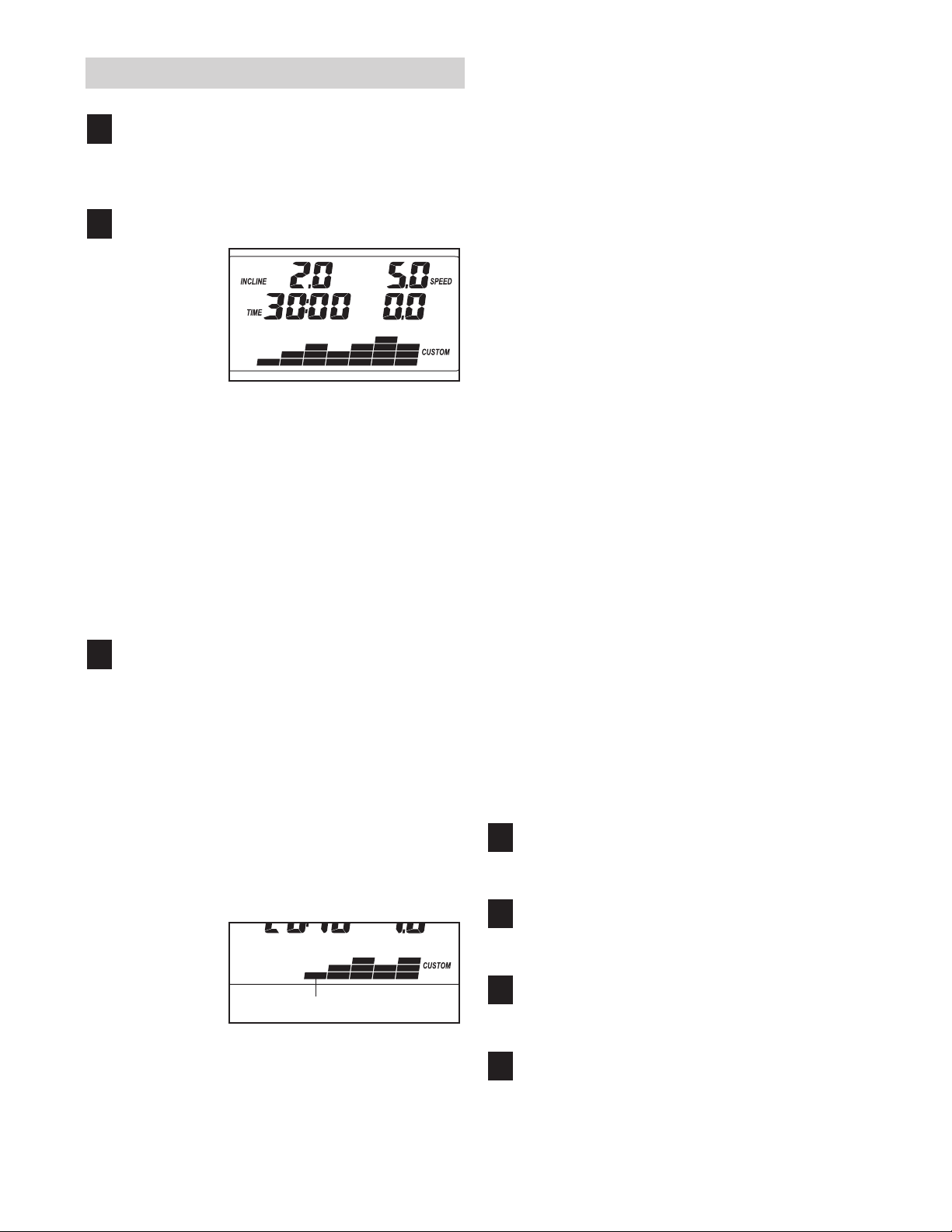

HOW TO USE A CUSTOM PROGRAM
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page
11.
Select one of the custom programs.
2
To select ei­ther of the custom pro­grams, press the Program Select but­ton repeat-
. The
edly word “CUSTOM” will appear in the display. As each custom program is selected, the maximum speed setting of the program and the maximum incline setting of the program will flash in the dis­play for a few seconds. The display will also show how long the program will last. The matrix in the lower part of the display will show the first seven speed settings of the program.
columns of indicators appear in the matrix, see HOW TO CREATE A CUSTOM PROGRAM on page 16.
Press the Start button or the Speed + button to
3
start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings that you programmed previously. Hold the handrails and begin walking.
Each custom program is divided into several one­minute segments. One speed setting and one in­cline setting are programmed for each segment. (The same speed setting and/or incline setting may be programmed for two or more consecutive segments.) The speed setting for the first segment will be shown in the flashing Current Segment column of the matrix. (The incline settings are not shown in the matrix.) The speed settings for the next four in the columns to the right.
Current Segment
Note: If only three
segment
s will be shown
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash, a ries of tones will sound, and the speed setting and the incline setting will flash in the display the first segment ends, move one column to the left. The speed setting for the second segment will then be shown in the flashing Current Segment column, and the tread­mill will automatically adjust to the second speed and incline settings that you programmed previ­ously.
The program will continue in this way until the speed setting for the last segment is shown in the Current Segment column and the last segment ends. The walking belt will then slow to a stop.
If desired, you can redefine to the program while using it. for the current segment, simply press the Speed or Incline buttons. When the current segment ends, the new setting will be saved in memory. To in- crease the length of the program, first wait until the program is completed. Then, press the Start but­ton and program speed and incline settings for as many additional segments as desired. When you have added as many segments as desired, press the Stop button twice. To decrease the length of the program, press the Stop button twice at any time before the program is completed.
To stop the program at any time, press the Stop button. The time will begin to flash in the display. To restart the program, press the Start button or the Speed + button. The walking belt will begin to move at 1 mph. When the next segment of the pro­gram begins, the treadmill will automatically adjust to the speed and incline settings for the next seg­ment.
Follow your progress with the display.
To change the speed or incline setting
all speed settings will
. When
4
See step 5 on page 11.
Measure your heart rate if desired.
5
See step 6 on page 12.
Turn on the fan if desired.
6
See step 7 on page 12.
When you are finished exercising, remove the
7
key from the console.
See step 7 on page 14.
se-
17
Page 18

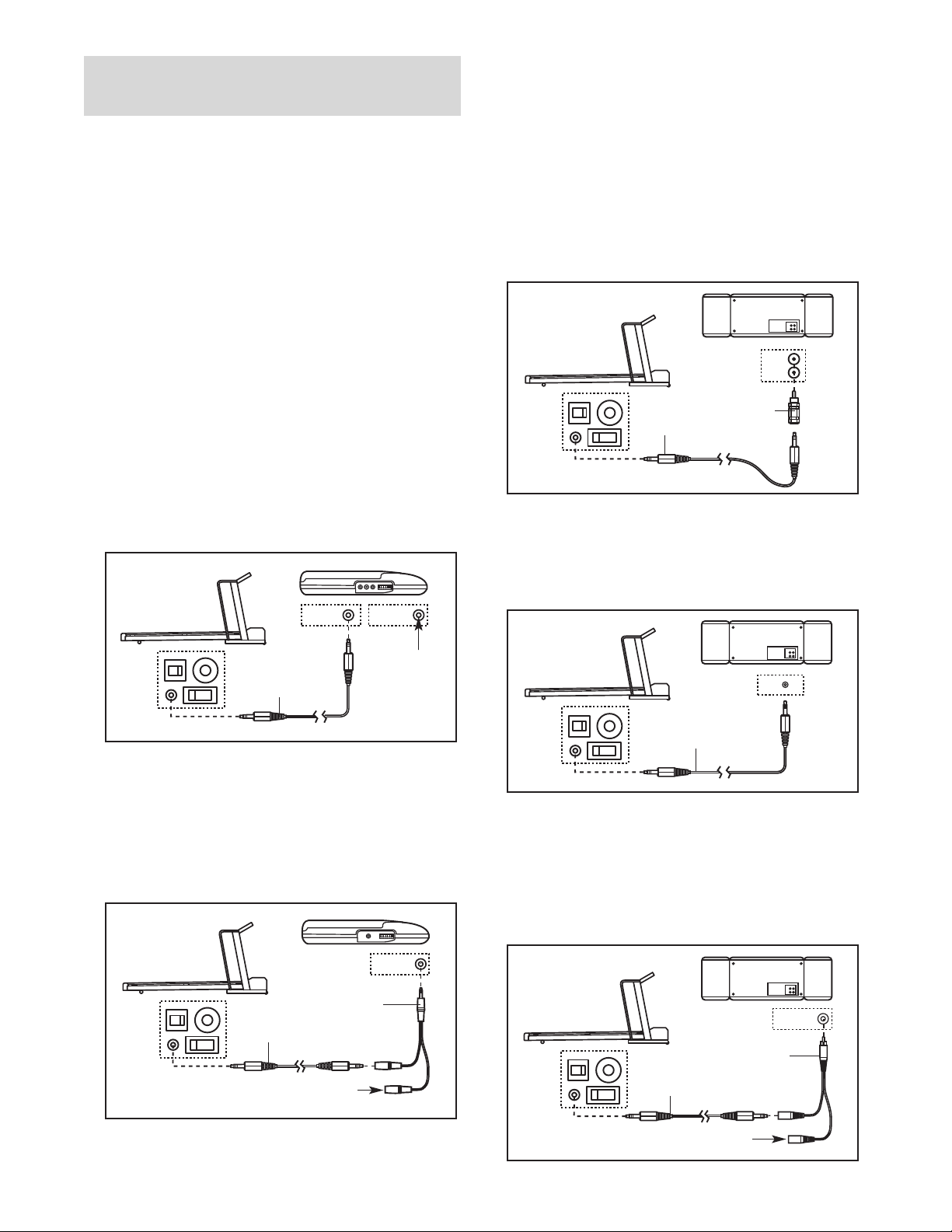

HOW TO CONNECT THE TREADMILL TO YOUR
LINE OUT
PHONES
LINE OUT
PHONES
AUDIO OUT
RIGHT
LEFT
LINE OUT
PHONES
PHONES
PHONES
CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs
, the treadmill must be connected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 18 and 19 for connecting instructions.
To use iFIT.com video­cassettes, the treadmill must be connected to your VCR. See page 20 for connecting instructions. To use iFIT.com programs directly from our Web site, the
treadmill must be connected to your home computer. See page 19 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
A
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your stereo.
Audio
phones
Cable
Head-
Plug one end of the audio cable into the jack on the
B.
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (avail­able at electronics stores). Plug the Y-adapter into the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.
B
3.5mm
Audio
Y-adapter
Cable
Headphones
B
Audio Cable
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.
C
3.5mm
Audio
Y-adapter
Cable
18
Headphones
Page 19

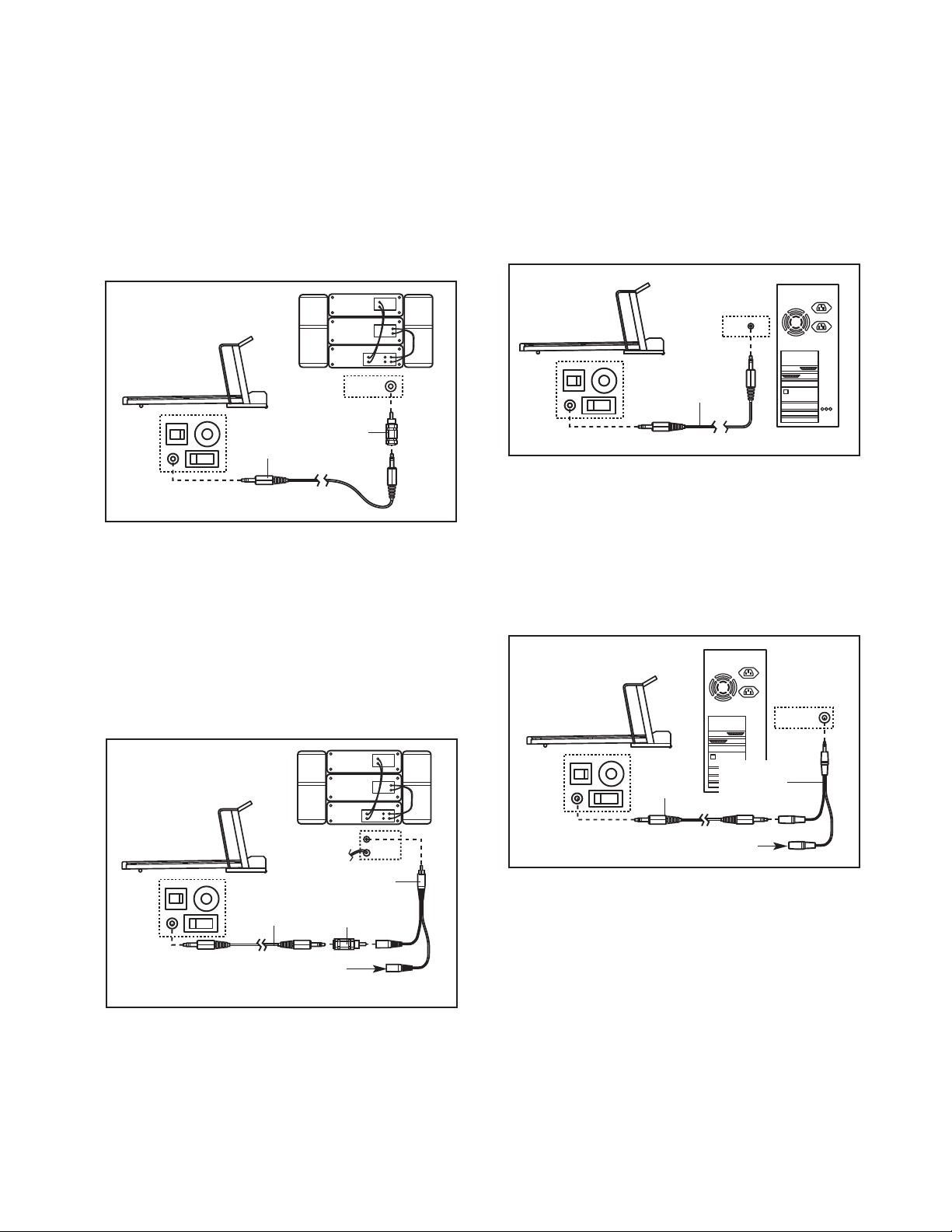

HOW TO CONNECT YOUR HOME STEREO
LINE OUT
CD
VCR
Amp
LINE OUT
LINE OUT
CD
VCR
Amp
LINE OUT
PHONES
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.
Note:
If your computer has a 3.5mm LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your computer.
A
Audio
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the Y-adapter.
B
B
Audio Cable
3.5mm
Y-adapter
Headphones/Speakers
RCA
Audio Cable
Y-adapter
Adapter
Wire removed from
LINE OUT jack
19
Page 20

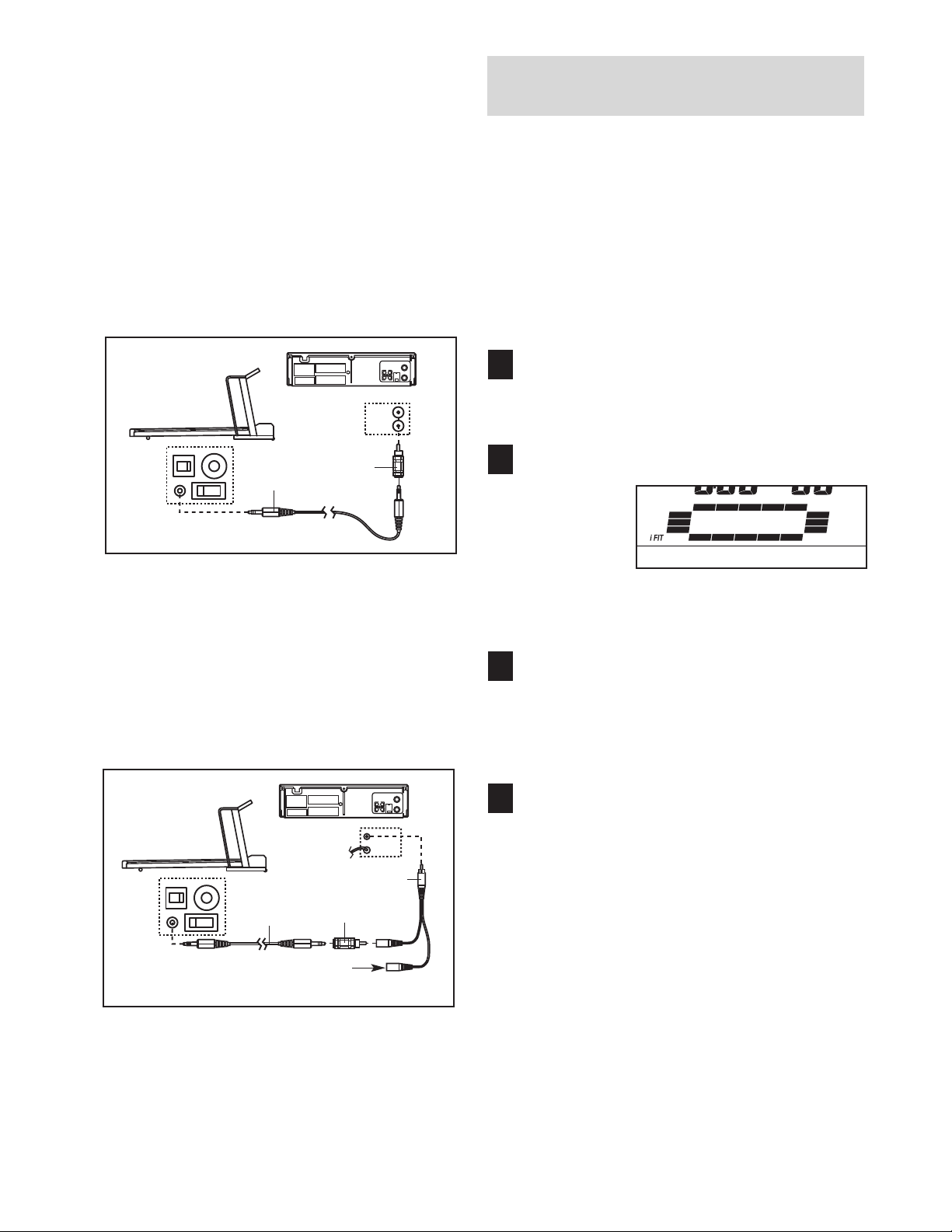

HOW TO CONNECT YOUR VCR
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT
. IN
RF OUT
IN
OUT
CH
3
4
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH
34
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 19.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
HOW TO USE AN IFIT.COM CD OR VIDEO PROGRAM
To use iFIT.com CDs or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on pages 18 to 20.
Note: To purchase iFIT.com CDs or video-
cassettes, call toll-free 1-888-533-1333.
Follow the steps below to use an iFIT.com CD or video program.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
B
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page
11.
Select the iFIT.com mode.
2
To select the iFIT.com mode, press the Program Select button repeatedly until a track and the letters “iFIT” appear in the dis­play.
Insert the iFIT.com CD or videocassette.
3
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or
4
VCR.
RCA Y-adapter
Audio Cable
Adapter
Wire removed from
AUDIO OUT jack
20
A moment after the button is pressed, your per­sonal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the time is flashing in the dis­play, press the Start button or the Speed + button on the console. The treadmill will not respond to a CD or video program while the time is flashing.
During the CD or video program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed
and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.
Page 21
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However,
heard, the speed and/or incline will change the next settings of the program.
To stop the walking belt at any time, press the Stop button on the console. The time will begin to flash in the display. To restart the program, press the Start button or the Speed + button. After a mo­ment, the walking belt will begin to move at 1.0 mph. When the next “chirp” is heard, the
speed and/or incline will change to the next settings of the program
When the CD or video program is completed, the walking belt will stop and the time will begin to flash in the left display. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1 on page 20.
when the next “chirp” is
to
.
• Make sure that the audio cable is properly
connected, that it is fully plugged in, and that it is not wrapped around a power cord.
If you are using your portable CD player and
•
the CD skips, set the CD player on the floor or another flat surface instead of on the console.
• See the incline instructions on page 26.
Follow your progress with the display.
5
See step 5 on page 11.
Measure your heart rate if desired.
6
See step 6 on page 12.
Turn on the fan if desired.
7
See step 7 on page 12.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard:
• Make sure that the letters “iFIT” appear in the display and that the time is not flashing. If the time is flashing, press the Start button or the Speed + button on the console.
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
When you are finished exercising, remove the
8
key from the console.
See step 7 on page 14.
CAUTION: Always remove iFIT.com CDs and videocassettes from your CD player and VCR when you are finished using them.
21
Page 22
HOW TO USE AN IFIT.COM PROGRAM DIRECTLY FROM OUR WEB SITE
Return to the treadmill and stand on the foot
7
rails. Find the clip attached to the key and slide the clip onto the waistband of your clothes.
Our Web site at www.iFIT.com allows you to access programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.
To use a program from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 19. In addition, you must have an internet connection and an internet service provider. A list of specific system re­quirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page
11.
Select the iFIT.com mode.
2
To select the iFIT.com mode, press the Program Select but­ton repeat­edly until a track and the letters “iFIT” appear in the display.
Go to your computer and start an internet
3
connection.
Start your web browser, if necessary, and go to
4
our Web site at www.iFIT.com.
Follow the desired links on our Web site to se
5
lect a program.
-
When the on-screen countdown ends, the program will begin and the walking belt will begin to move. Hold the handrails, step onto the walking belt, and begin walking. During the program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings of the program.
To stop the walking belt at any time, press the Stop button on the console. The time will begin to flash in the display. To restart the program, press the Start button or the Speed + button. After a mo­ment, the walking belt will begin to move at 1.0 mph. When the next “chirp” is heard, the speed
and/or incline will change to the next settings of the program.
When the program is completed, the walking belt will stop. Note: To use another program, press the Stop button and go to step 5.
Note: If the speed and/or incline of the treadmill does not change when a “chirp” is heard, make sure that the letters “iFIT” appear in the display and that the time is not flashing. In addition, make sure that the audio cable is properly con­nected.
Follow your progress with the display.
8
See step 5 on page 11.
ead and follow the on-line instructions for using a
R program.
Follow the on-line instructions to start the
6
program.
When you start the program, an on-screen count down will begin.
When you are finished exercising, remove the
9
key from the console.
See step 7 on page 14.
-
22
Page 23

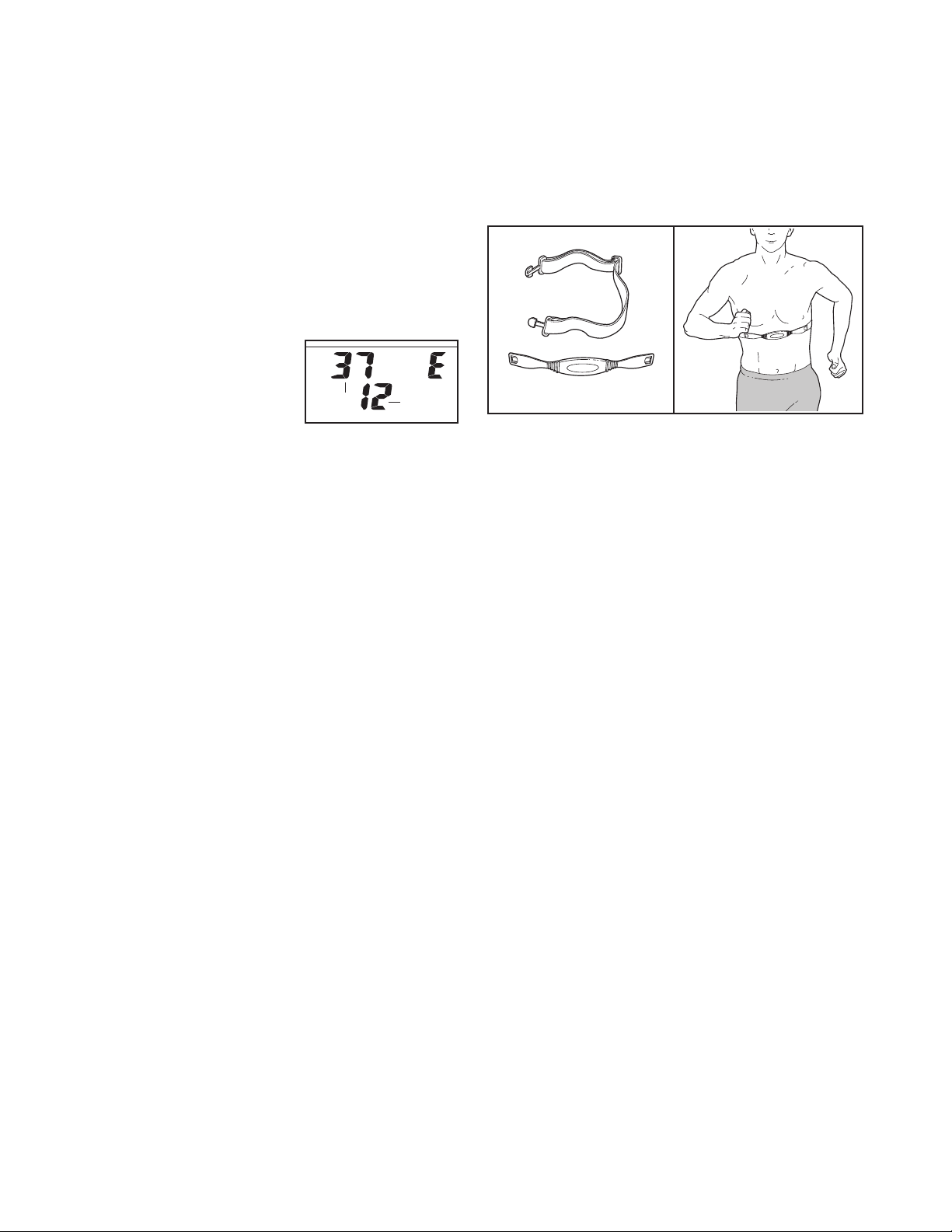

THE INFORMATION MODE/DEMO MODE
THE OPTIONAL CHEST PULSE SENSOR
The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also al­lows you to select miles or kilometres as the unit of measurement and to turn on and turn off the demo mode.
To select the information mode, hold down the Stop button while inserting the key into the console. When the information mode is selected, the following informa­tion will be shown in the display:
The left side of the display will show the total number of miles (or kilometres) that the walking belt has moved and the total number of hours that the treadmill has been used. An “E” for english miles or an “M” for metric kilo­metres will appear in the right side of the display. Press the Speed + button to change the unit of measurement.
IMPORTANT: If a “d” appears in the right side of the display, the console is in the “demo” mode. This mode is intended to be used only when a treadmill is dis­played in a store. When the console is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the indicators in the display will automatically appear in a preset sequence, although the buttons on the console will not operate. If a
“d” appears when the information mode is selected, press the Speed – button so the “d” disappears.
Miles
Hours
An optional chest pulse sensor adds even more fea tures to the console. The chest pulse sensor offers hands-free operation, and enables you to use the con sole’s two heart rate programs.
tional chest pulse sensor, call toll-free 1-888-533-
1333.
To purchase the op-
-
-
To exit the information mode, remove the key from the console.
23
Page 24
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per­manently damaged. You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.

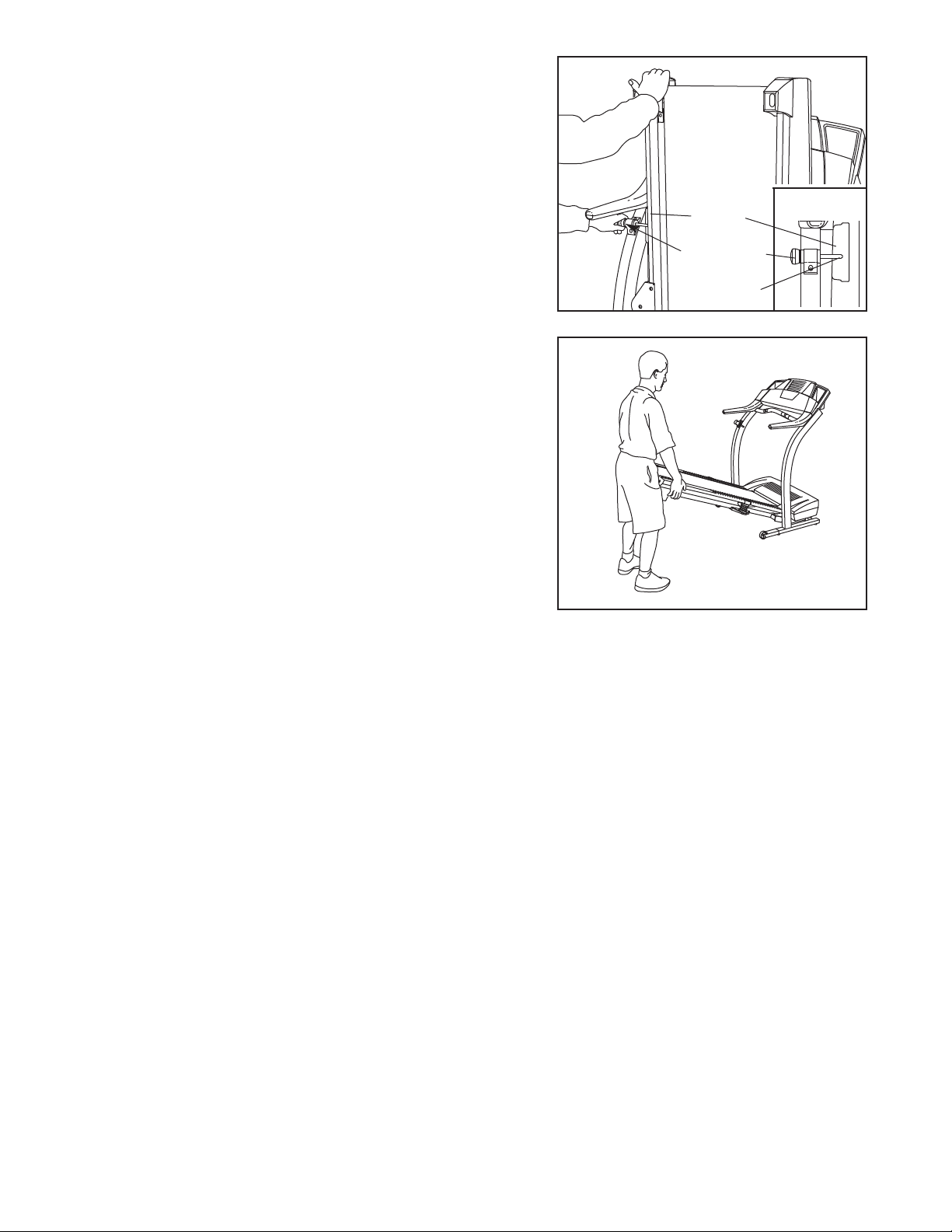

1. Hold the treadmill with your hands in the locations shown at the
To decrease the possibility of injury, bend your legs
right.
and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back.
Raise the treadmill about halfway to the vertical position.
Move your right hand to the position shown and hold the
2. treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the frame is past the latch pin. Slowly release the latch knob.
the frame is securely held by the latch pin.
Next, unplug the power cord. CAUTION:
Make sure that
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sun­light. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit.

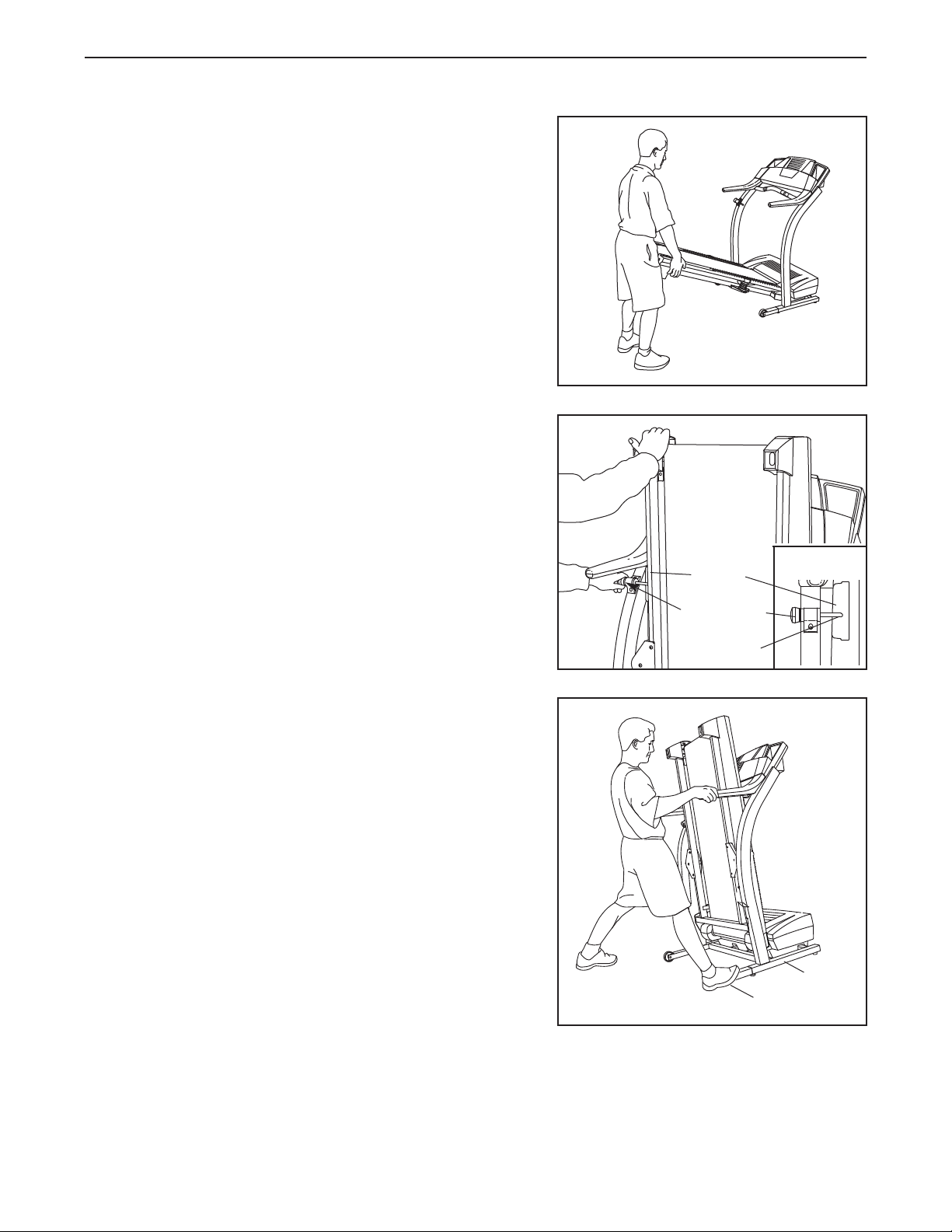

HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the frame is se-
curely held by the latch pin.
1. Hold the upper ends of the handrails. Place one foot on the base as shown.
2. Tilt the treadmill back until it rolls freely on the front wheels. Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while mov­ing the treadmill. even surface.
Place one foot on the base, and carefully lower the treadmill
3. until it is resting in the storage position.
Do not move the treadmill over an un
-
Frame
Latch Knob
Latch Pin
Engaged
Base
Front Wheels
24
Page 25
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the latch pin.
2. Hold the treadmill firmly with both hands, and lower the tread­mill to the floor.
injury, bend your legs and keep your back straight.
CAUTION: To decrease the possibility of
Frame
Latch Knob
Latch Pin
Engaged
25
Page 26
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll­free at 1-888-533-1333, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION:
PROBLEM: The power turns off during use

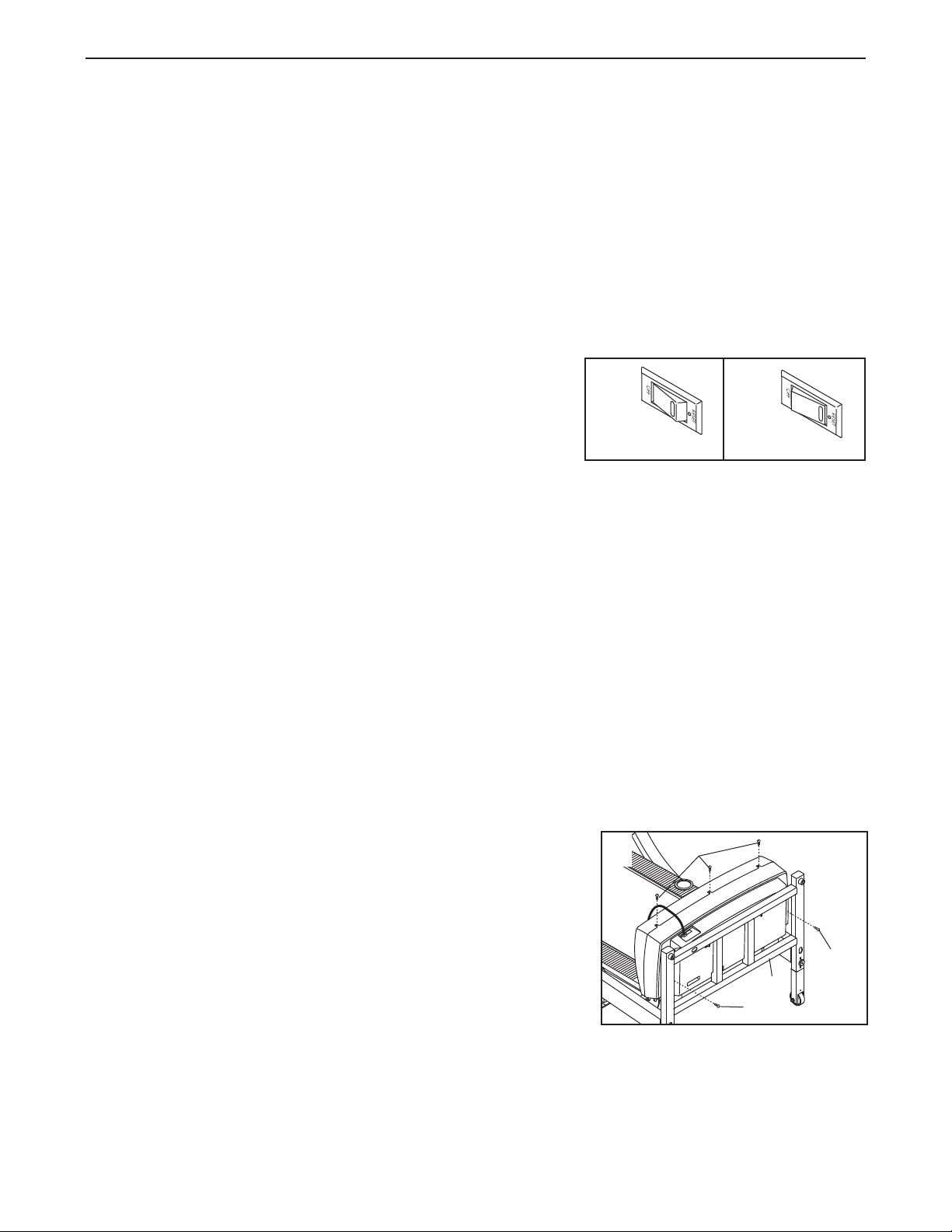

SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
PROBLEM: The incline of the treadmill does not change correctly
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes, and then press the switch back in.
for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our Customer Service Department toll-free.
c
Tripped
Reset
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.

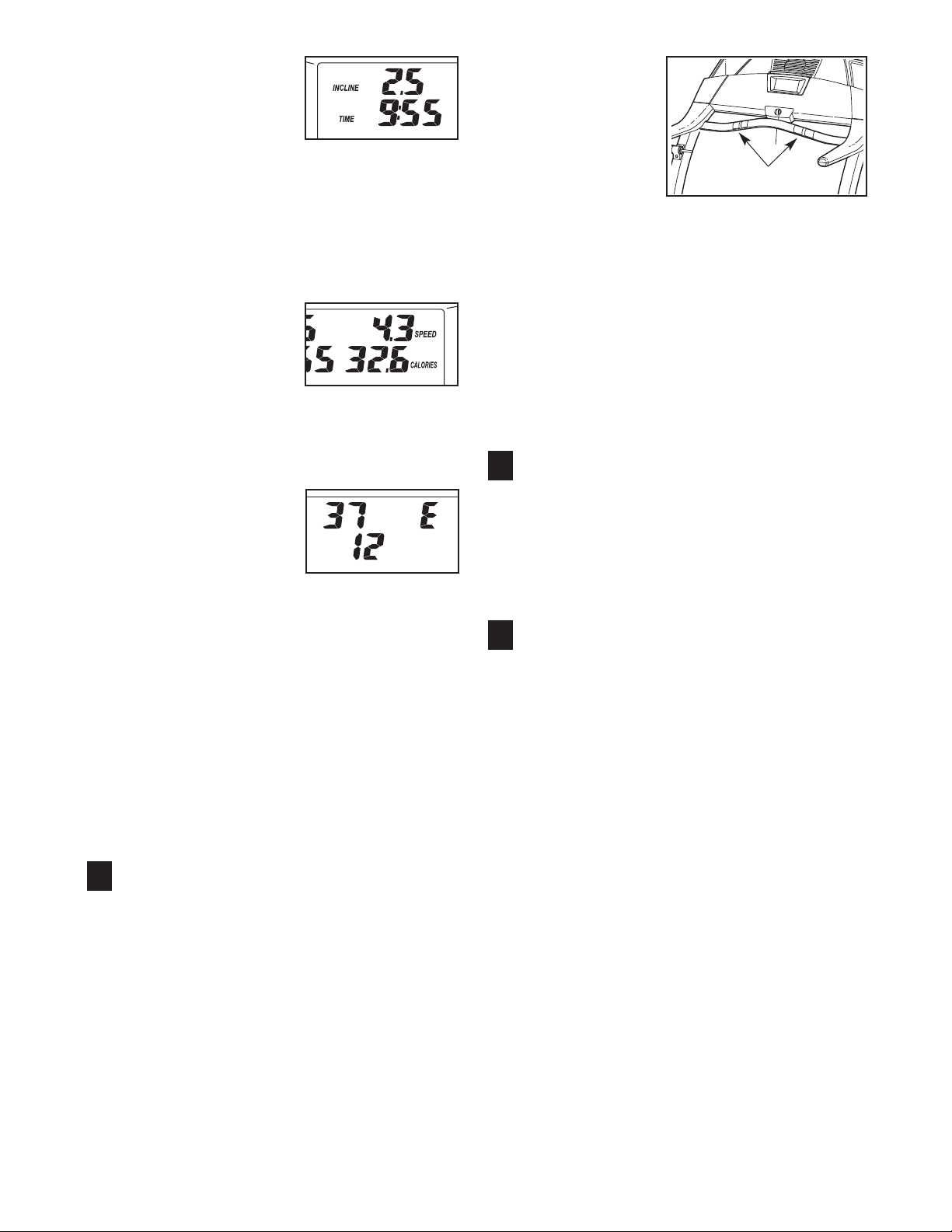

he displays of the console do not function properly
T
PROBLEM
SOLUTION
:
:
Remove the key from the console and
a.
POWER CORD.With the help of a second person,
carefully tip the Uprights (97) down as shown. Remove the five Hood Screws (44). Note: A phillips screwdriver with at least a 5” shaft is required.
UNPLUG THE
a
44
44
97
44
26
Page 27
With the help of a second person, carefully raise the Uprights (97) to the position shown. Carefully pivot the Hood (105) off.

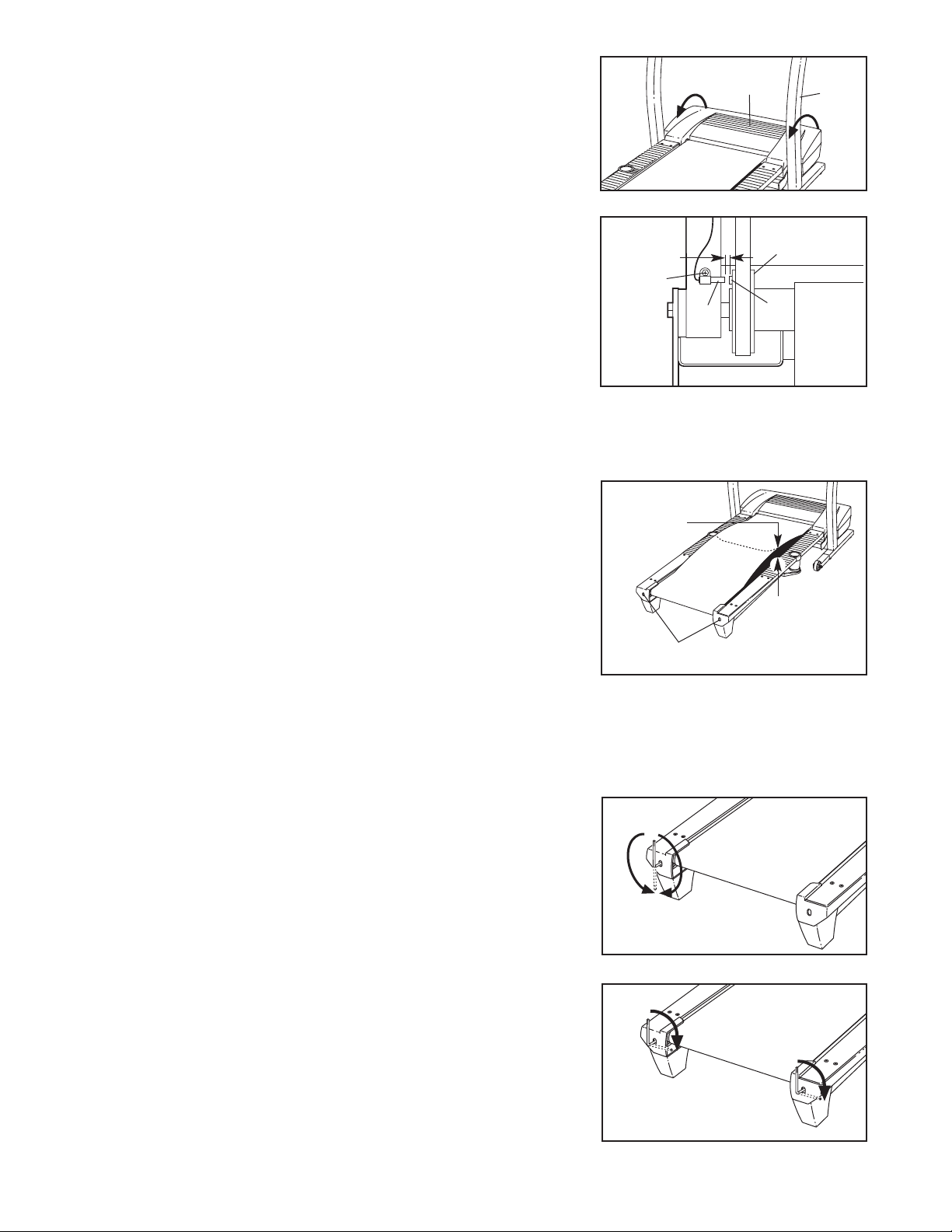

Locate the Reed Switch (22) and the Magnet (19) on the left side of the Pulley (18). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed Switch is about 1/8”.
(23), move the Reed Switch slightly, and then retighten the Screw. Reattach the Hood, and run the treadmill for a few minutes to check for a correct speed reading.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.
If necessary, loosen the Screw
1/8”
23
Top
View
22
105
97
18
19
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be­come damaged. Remove the key and POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, in­sert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please call our Customer Service Department toll-
free.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the
left bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.
use the allen wrench to
UNPLUG THE
b
2”–3”
Rear Roller Adjustment Bolts
a
If the walking belt slips when walked on, first re-
b.
move the key and Using the allen wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is cor­rectly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walk­ing belt is properly tightened
UNPLUG THE POWER CORD.
.
27
b
Page 28
CONDITIONING GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi­cian. This is especially important for individu als over the age of 35 or individuals with pre­existing health problems.
The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings. The sensor is intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
-
ergy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the tread mill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
-

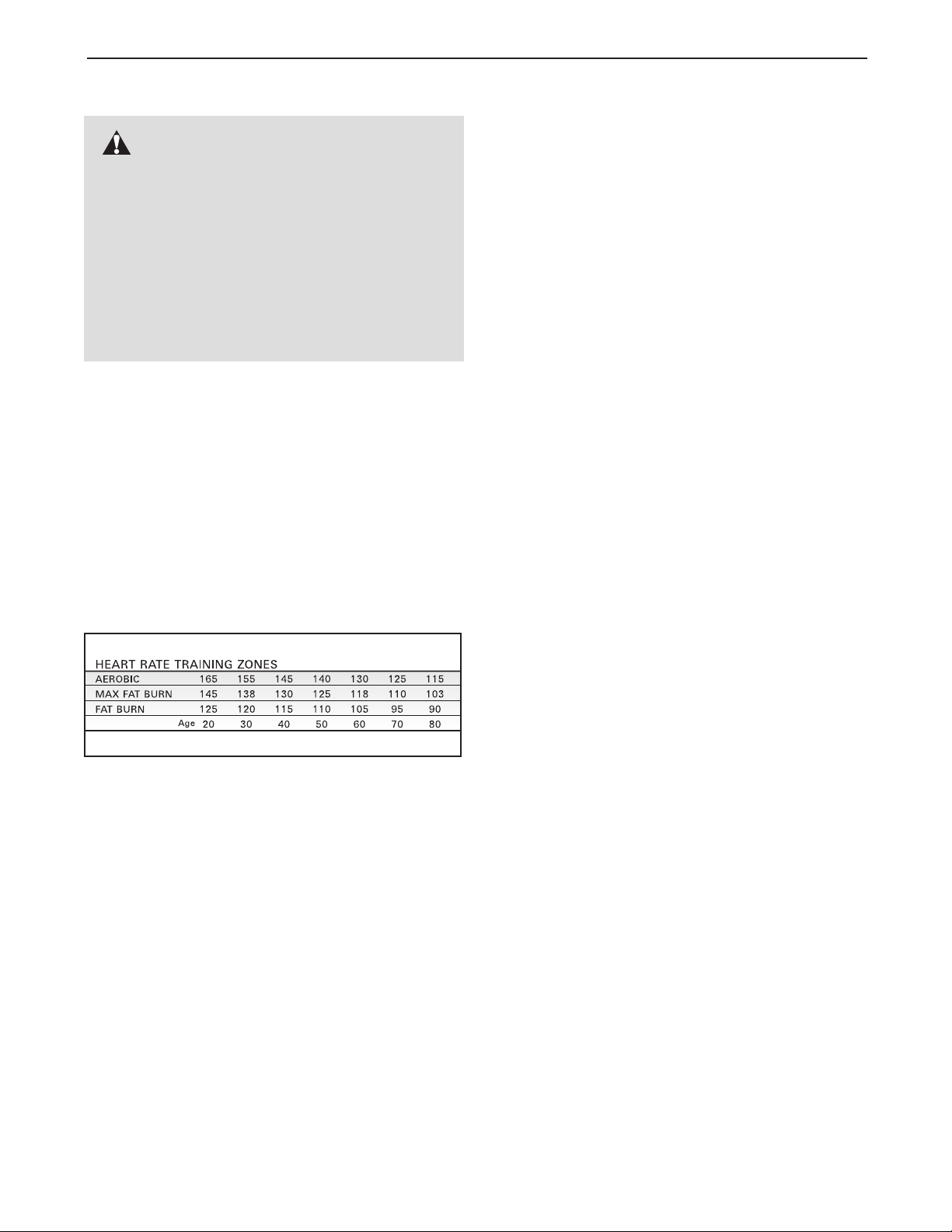

To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train­ing zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the pulse sensor.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for en-
Training Zone Exercise—After warming up, increase the intensity of your exercise until your heart rate is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exer­cise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post­exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
28
Page 29
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles ten­dons, bend your back leg as well. Stretches: Calves, achilles ten­dons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
5
29
Page 30
PART LIST—Model No. PFTL721040 R1104A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty. Description Key No. Qty. Description
1 1 Left Foot Rail 2 12 Foot Rail Screw 3 2 Isolator Bolt (Top) 4 2 Isolator Decal 5 2 Isolator Top Cap 6 2 Isolator Spring 7 2 Isolator 8 2 Isolator Bottom Cap
9 2 Isolator Bracket Cover 10 2 Isolator Bracket 11 4 Isolator Bracket Bolt 12 2 Isolator Bolt 13 1 Walking Platform 14 2 Belt Guide 15 4 Belt Guide Screw 16 2 Walking Platform Screw, Rear 17 2 Frame Pivot Bolt 18 1 Front Roller/Pulley 19 1 Magnet 20 9 Pivot Nut 21 2 Pivot Spacer 22 1 Reed Switch 23 1 Reed Switch Screw 24 1 Console Crossbar 25 1 Reed Switch Clip 26 1 Idler Pulley 27 1 Photo Switch Nut 28 1 Motor Belt 29 1 Pulley Bolt 30 1 Idler Arm Bolt 31 1 Access Door 32 1 Drive Motor
Lift Frame
33 34 35 2 Walking Platform Nut 36* 37 38 2 Incline Motor Bolt 39 3 Washer 40 41 1 Front Roller Adj. Bolt 42 2 Walking Platform Screw, Front 43 1 Idler Arm Spring 44 45 1 Left Handrail 46 1 Right Handrail 47 48 1 Controller 49 1 Power Cord 50 1 Power Cord Grommet
1
Left Handgrip, Top
1
1 Idler Arm Assembly
Incline Motor
1
Roller Star Washer
1
Hood Screw/Console Screw
5
Reset/Off Circuit Breaker
1
51 2 Static Decal 52 10 3/4” Tek Screw 53 3 Belly Pan Clip 54 1 Belly Pan 55 1 Releasable Tie 56 1 Left Bottom Handgrip 57 1 Tie Holder Clamp 58 1 Cable Tie 59 1 Frame 60 1 Right Rear Foot 61 1 Idler Arm 62 2 Rear Roller Adj, Bolt 63 1 Rear Roller 64 1 Allen Wrench 65 1 5/32” Allen Wrench 66 1 Left Rear Foot 67 1 Right Foot Rail 68 1 Walking Belt 69 1 Warning Decal 70 1 Photo Switch Star Washer 71 1 Pulse Bar 72 4 Pulse Bar Screw 73 1 Idler Arm Spring 74 1 Wire Harness 75 2 Top Endcap 76 4 Upright Bolt 77 4 Internal Star Washer 78 1 Photo Switch Wire 79 2 Latch Screw 80 6 1” Tek Screw 81 1 Filter Wire 82 1 Latch Housing
Controller Wire
83 84 85 1 Optic Disk 86 87 88 1 Photo Switch Screw 89* 2 Extension Leg Assembly 90 91 2 Warning Decal 92 2 Extension Leg 93 1 Small Nut 94 95 1 Right Handgrip, Top 96 1 Right Bottom Handgrip 97 98 1 Photo Switch 99 4 Base Pad
100 2 Upright Endcap
1
Pin Assembly
1
2 Front Isolator Screw
Front Isolator
2
Wheel Bolt
2
Wheel
2
Upright
1
30
Page 31
No. Qty. Description Key No. Qty. Description
Key
101 102 1 Console Back 103 6 Ground Screw 104 1 Key Clip 105 1 Hood 106 1 Fan 107 1 Console 108 50 Screw 109 1 Left Tray 110 2 Idler Arm Washer 111 1 Right Tray 112 1 iFIT.com Wire 113 1 iFIT.com Jack 114 2 Motor Bolt 115 4 Hood Cover Screw
1 Console Base
116 117 1 Shock
# 1 12” Blue Wire, M/F # 1 12” Blue Wire, 2F # 1 4” Blue Wire, 2F # 1 12” Green Wire, F/Ring # 1 8” Green Wire, 2 Ring # 1 14” Red Wire, M/F # 1 12” Black Wire, M/F # 1 User’s Manual
*Includes all parts shown in the box.
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.
1 Hood Cover
31
Page 32
2
4
3
2
9
2
1
10
11
12
42
11
15
14
69
13
16
17
18
19
4
3
2
2
2
16
63
62
39
66
68
52
65
64
62
39
52
60
11
11
10
9
14
15
59
67
42
17
20
20
38
21
37
38
33
20
23
20
21
22
25
32
28
55
108
57
58
44
52
54
48
53
52
52
52
51
47
49
50
8
7
5
8
7
5
41
40
39
114
12
93
112
83
78
81
85
88
70
98
27
40
40
35
35
86
87
86
87
44
69
53
53
116
105
44
44
115
88
115
6
6
36*
61
43
29
30
110
20
26
20
110
EXPLODED DRAWING—Model No. PFTL721040 R1104A
Page 33
112
113
104
34
95
56
108
108
108
108
96
108
108
108
108
108
108
108
108
108
108
108
108
108
108
108
102
111
108
108
108
108
108
108
108
108
101
109
51
31
44
44
71
103
108
97
89*
90
94
20
91
92
89*
20
94
90
91
92
75
108
99
80
100
38
20
20
38
74
103
99
80
74
75
100
76
77
108
108
77
76
108
45
46
82
84
79
108
80
99
80
80
99
80
24
117
108
106
108
107
EXPLODED DRAWING—Model No. PFTL721040 R1104A
Page 34
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-888-533-1333, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). Before calling, please note the following information:
The MODEL NUMBER of the product (PFTL721040)
•
• The NAME of the product (PROFORM 840 treadmill)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING in the center of this manual and the PART LIST on pages 30 and 31)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material under normal use and service conditions. The drive motor is warranted for twelve (12) years after the date of purchase. Parts and labor are warranted for ninety (90) days after the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All re­pairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not ex­tend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty be­yond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in­cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 220114 R1104A Printed in USA © 2004 ICON IP, Inc.
Loading...
